Search Results (210)

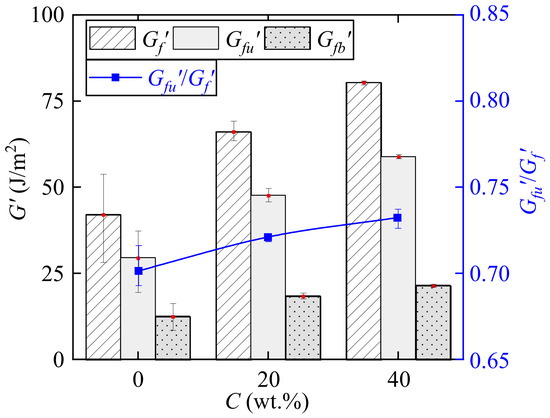

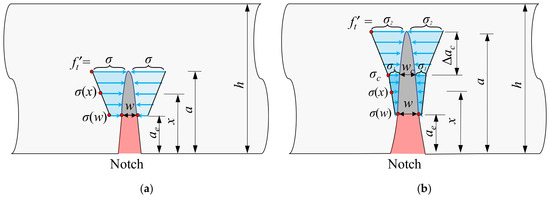

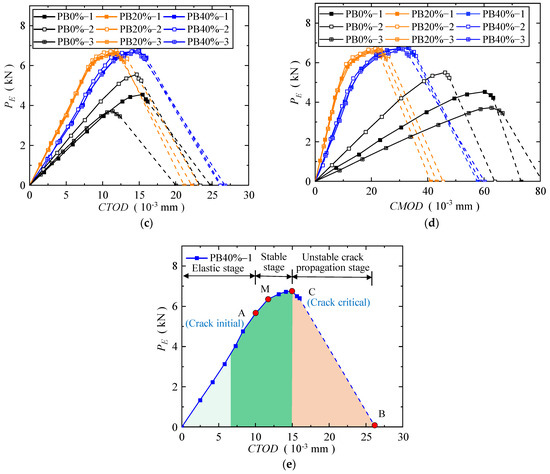

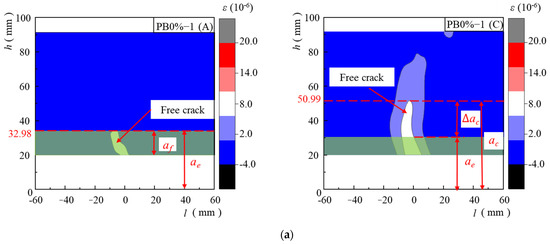

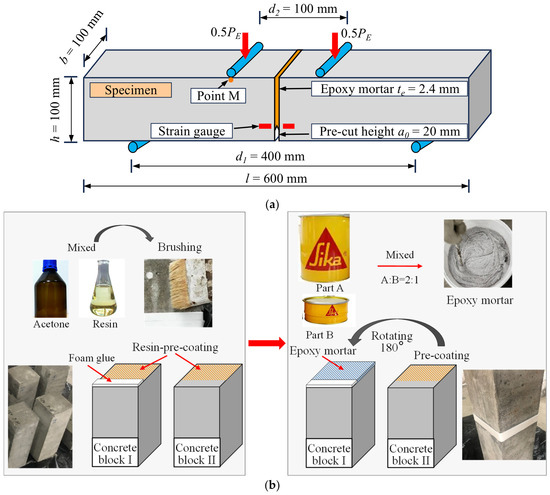

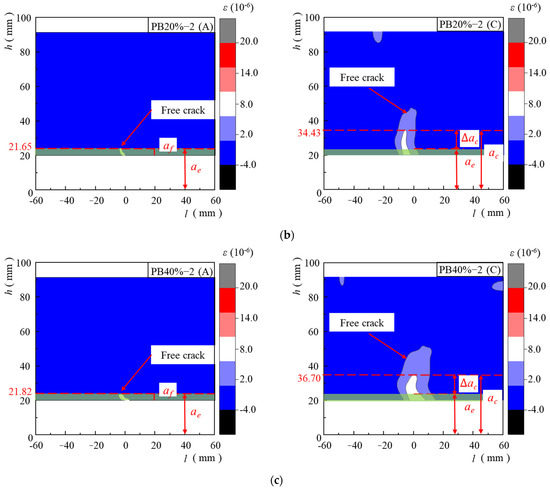

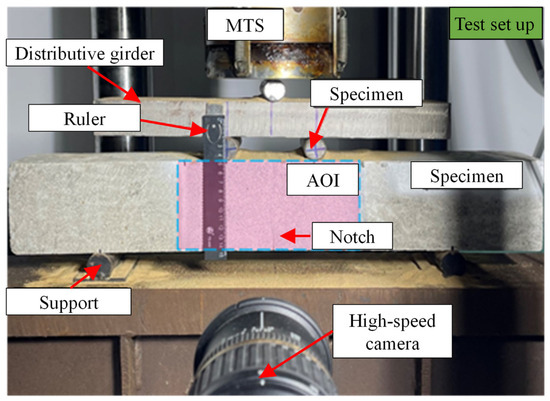

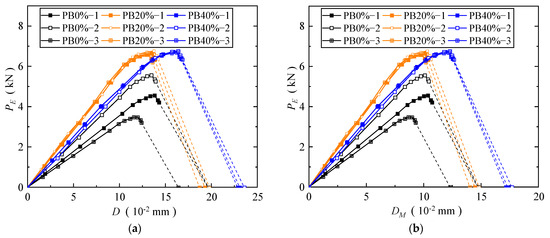

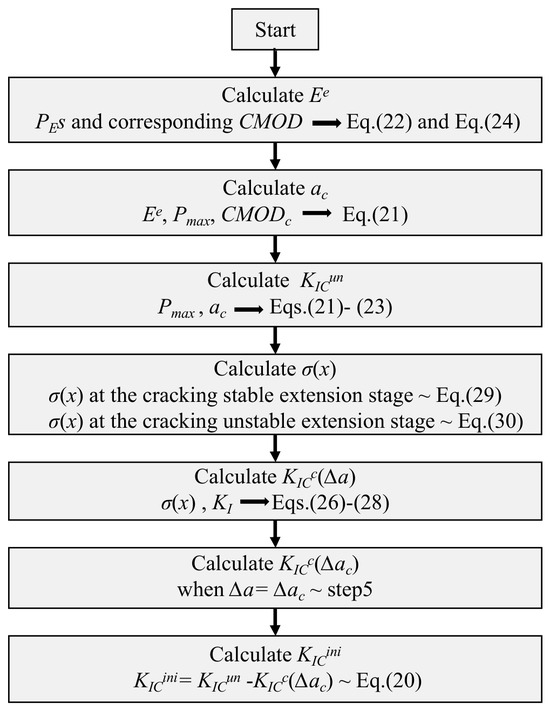

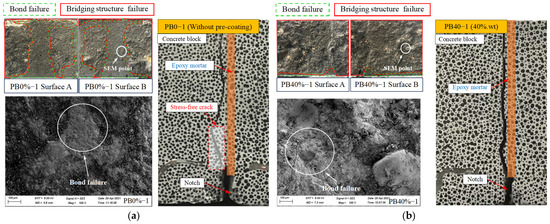

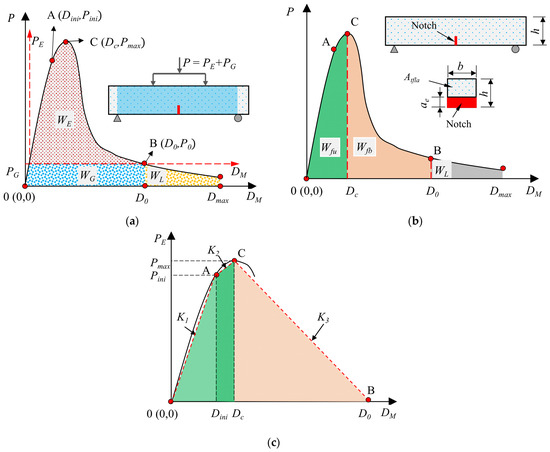

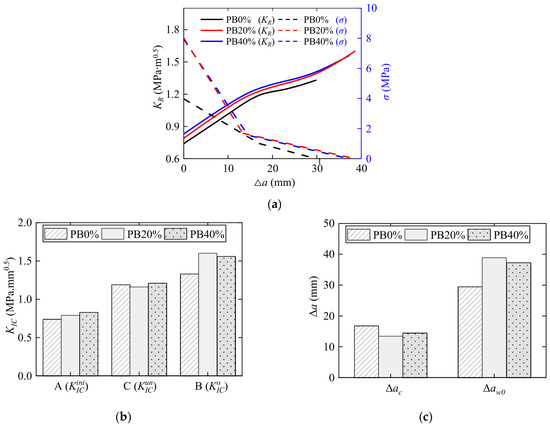

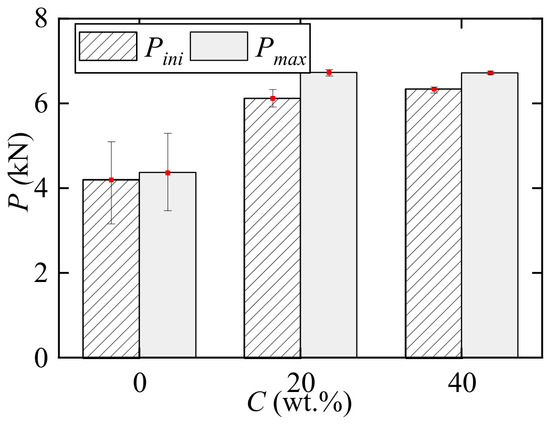

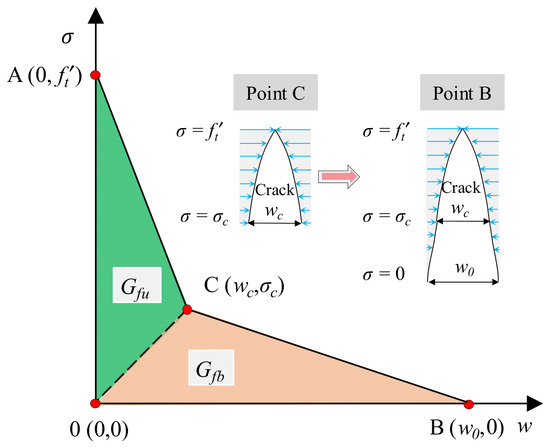

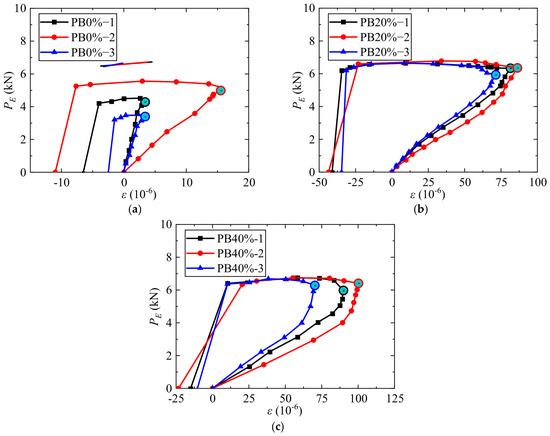

To study the fracture performance of the concrete-epoxy mortar interface (CEMI) pre-coated with epoxy solutions with different concentrations, a total of nine specimens were fabricated to be subjected to four-point bending tests. DIC technology was used to monitor the deformation of the pure bending region of specimens. A triple-fold stiffness model was developed based on the test results of applied load–displacement curves. A generalized method for determining the parameters of the bilinear softening model was proposed and validated by the test results. Additionally, the fracture performance and crack extension of CEMI specimens were deeply analyzed using the double-K fracture criterion. The fracture initiation toughness K_ICⁱⁿⁱ was calculated by introducing the cohesive fracture toughness, and the crack extension resistance K_R curves of the CEMI specimens were calculated by combining the linear-elastic fracture mechanics and the proposed bilinear softening model. It was indicated that the initiation locations and extension paths of interfacial cracks could be effectively identified by the DIC technique, with an error of less than 8% between test results and predictions. The bridging effect was strengthened by pre-coating with an epoxy solution of the CEMI specimens by filling the microscopic defects on the concrete surface, thereby improving K_ICⁱⁿⁱ, delaying unstable crack extension, and enhancing interfacial fracture resistance. Full article

Physical uniaxial compressive tests were conducted on high porosity vesicular basalt specimens in the lab. The main experimental mechanical parameters (i.e., peak strength and elastic constants) were used to calibrate numerical models in the 2-D PFC. Two different contact bond models were applied during the numerical analysis, namely, the linear parallel bond model and the flat-joint model. Also, different seed values were tested to generate distinct two-dimensional pore structures. Further, two grain size distributions were tested: a coarser sized one and a finer sized one. The effects of these bond models and parameters on the fracturing response of the rock were studied. Two simple mathematical criteria were also proposed for the accurate determination of the cracking thresholds from the numerically derived crack count curve. The numerical results were compared with the laboratory derived ones, and the differences were acceptable. Ultimately, via the coupled experimental and numerical approach, we were able to physically interpret the micro- and macrocracking response of the rocks. Full article

Mean atomic bond strain (MABS), based on the globally averaged bond length, has recently emerged as a new strain metric that retains clear physical meaning even as severe atomic neighborhood reconstruction occurs. It has been shown to exhibit a nearly perfect linear relationship with global stress throughout the elastic and plastic deformation in single-crystal face-centered cubic (FCC) metals, contradicting conventional expectations based on nonlinear dislocation activity. Whether this near-linear relationship holds in other materials stands out as an important and intriguing question. In this study, we examine the MABS–stress relationship in representative unary, binary, and ternary metallic glasses (MGs), where neither a crystal structure nor dislocations are present. Large-scale molecular dynamics simulations of uniaxial tensile tests and statistical analysis of millions of atomic bonds are performed. Irrespective of their differing compositions, all the MGs exhibit a persistent near-linear relationship between total MABS (all bonds included) and global stress up to fracture, even in the presence of significant local nonaffine displacements (shear transformation zones and shear bands), with the Pearson correlation coefficient consistently exceeding 0.99. Unlike the nonaffine displacements, the spatial distribution of individual atomic bond strain does not localize under the uniaxial loading. In the MGs containing more than one element, MABS computed for a single bond type may not correlate as linearly with global stress as total MABS. The results demonstrate that the persistent near-linear total MABS–stress relationship over the entire deformation process, recently discovered in single-crystal FCC metals, also applies to MGs despite their vastly different atomic structures. This strengthens the candidacy of total MABS as a universal stress descriptor across materials classes and deformation regimes. With further development and implementation in atomistic simulations and constitutive modeling, the MABS concept has the potential to reshape our understanding of materials mechanics and generate new insights into the design of stronger, tougher, and more thermally and chemically stable materials. Full article

To investigate the inevitable aging of composite insulators under the coupled effects of electrical, thermal, ice, and fog stresses, as well as to explore their aging mechanisms and residual strength prediction methods, this study collected operational insulator samples from four environmental regions: Tibet, Yunnan, Hunan Xuefeng Mountain, and Anhui/Chongqing. Mechanical properties, including tensile strength, elongation at break, and shear resistance, were tested. The results indicate that the degradation of mechanical performance in composite insulation components can be attributed to the synergistic interaction of operational environments and material characteristics, with the aging behavior of high-temperature vulcanized (HTV) silicone rubber exhibiting significant non-linearity. Based on existing research, molecular dynamics simulations were employed to construct microstructural models at different aging stages, and it was verified that main chain scission, reduced system density, and changes in the elemental chemical environment during aging are closely related to the degradation of material mechanical properties. Based on hyper-elastic constitutive theory and fracture mechanics, a quantitative method for assessing the comprehensive aging degree was proposed, with “service years” and “operational altitude” as the core dimensions. A negative exponential model was established to describe the strength degradation of silicone rubber materials. This model enables the non-destructive estimation of the residual mechanical strength of in-service insulators in complex regions without power interruption, providing a decision-making framework for grid operation and maintenance. Full article

This study addresses, within the framework of fracture mechanics, the structural analysis of the DEMO (demonstration power plant) divertor—a key component in fusion reactors—subjected to particularly severe loading conditions. A global model of the divertor was developed using Finite Element Method (FEM) analysis through the software ANSYS Workbench 2024, including all structural subcomponents. Thermal and internal pressure load cases were considered. The FEM analysis enabled the identification of critical areas prone to stress concentration. Based on the global results, a submodeling technique was applied to analyze locally critical components with higher resolution. On these submodels, a Linear Elastic Fracture Mechanics (LEFM) analysis was performed using the FRANC3D (v 8.6.2) software. Static semi-elliptical cracks were introduced in various configurations, and the stress intensity factor was evaluated to assess their criticality. Subsequently, an incremental crack growth analysis was conducted to simulate crack propagation based on the local stress field, also accounting for directional variations. Finally, a lifetime analysis was carried out using Paris’ law, estimating the fatigue cycles for an arbitrary crack propagation under the given loading conditions. The entire procedure was repeated for each subcomponent and loading condition, resulting in a broad and detailed understanding of the fracture response of the system. This approach provides crucial insights for the design, inspection, and long-term maintenance of the divertor. Full article

To address the difficulty of directionally cutting thick, hard key strata in gob-side entry retaining using conventional blasting or hydraulic fracturing, this paper proposes a high-pressure water-jet slotting-induced pre-cracked weakening belt (PCWB) roof-cutting technology. Several finite-length PCWBs are arranged within the key stratum and designed to coalesce into a plane, inducing through-going roof failure along a pre-determined path. A fixed–fixed key strata beam model combined with linear elastic fracture mechanics shows that the double-belt configuration forces the bending moment and shear force to concentrate in a thin rock bridge, where bending and shear stresses are amplified by about 1.5–2.8 times and 1.2–1.7 times, respectively, for 2–4 m thick key strata, providing a mechanical basis for preferential tensile–shear failure. Two-dimensional RFPA2D simulations reveal “width-dominated, length-assisted” control of cutting performance and identify an optimal weakening belt geometry of about 400 mm in width and 200 mm in length. Three-dimensional numerical modeling of parallel slot pairs indicates that intra-pair spacing of about 40 mm produces a continuous, directional weakening belt, whereas smaller or larger spacing causes, respectively, destructive interference or loss of connectivity. High-pressure water-jet tests (320 MPa, 0.33 mm nozzle, 1.30 mm/s traverse speed) on limestone blocks confirm that single slots can penetrate the full thickness and that cracks from adjacent slots coalesce through the rock bridge, forming a wide, straight fracture band. Field application in the Dongjiang Mine (3.5 m limestone key stratum, ~400 m depth) shows that the first weighting is advanced from the 7th to the 3rd day, peak support resistance is reduced from 8.8 to 7.4 MPa, and periodic weighting becomes more frequent and smoother. The PCWB technology is therefore suitable for panels with 2–4 m thick hard key strata at similar depths, offering precise key stratum severance, active stress relief, and safe, controllable construction. Full article

Deep soft-rock tunnels are prone to large deformations and structural damage. This study used the Guanyinping Tunnel as a prototype and conducted 1/50-scale progressive loading model tests under three support configurations: rock-bolt-free, equal-length rock bolts, and mixed long–short rock bolts. Rock stress, radial rock displacement (u), and rock bolt axial force (F_N) at the vault, arch shoulders, sidewalls, and wall feet were monitored to reveal reinforcement mechanisms and mechanical response. The results indicated that stress evolution in the bolt-free case exhibited significant spatial heterogeneity. The vault experienced horizontal stress concentration, while the arch shoulder underwent vertical stress concentration. u underwent a three-stage nonlinear progression: elastic linear growth, plastic linear growth, and plastic-accelerated growth. Displacement at the vault was markedly larger than that at other locations. Equal-length rock bolts substantially improved the rock mass stability by delaying stress concentration and fracture propagation. This reinforcement raised the elastic response threshold to 96 kPa and substantially reduced u. F_N at the vault and shoulder followed linear growth, accelerated growth, and then gradual decline, whereas F_N at the sidewalls and wall feet exhibited a steady linear trend. Combined long and short rock bolts produced a multi-level anchoring effect. Short bolts induced a shallow arching action, while long bolts provided deep suspension. This synergy raised the elastic response threshold to a maximum of 120 kPa and moderated the stress reduction process. Deep residual stresses increased to 74.3–88.4% of peak values. The displacement gradient between shallow and deep rock masses was significantly reduced. The coordinated deformation capacity within the anchoring zone was markedly enhanced. F_N distribution exhibited spatial differentiation: short bolts carried the load initially, followed by the activation of long bolts. Both anchoring schemes increased residual stress and mitigated rock mass deformation. The deformation control effect was stronger in shallow rock mass than in deep rock mass. Improvements at the vault and arch shoulders exceeded those at the sidewalls and wall feet. The mixed short–long bolt configuration was superior because it maximized the self-bearing capacity of the deep rock mass. The findings provide experimental data and theoretical guidance for the design and optimization of rock-bolt support in deep soft-rock tunnels. Full article

Hydrogen-induced crack growth initiation, in metallic structures, is studied under constant temperature and chemical equilibrium, by employing Chemical Equilibrium Fracture Mechanics (CEFM). The conditions of small-scale, contained and large-scale hydrogen embrittlement are introduced and the areas of material deterioration, together with the distributions of stress and hydrogen concentration, including hydride volume fraction, are derived analytically. It is shown that the shape of the material deterioration zone is identical for embrittlement caused either by hydrogen in solid solution or by hydride precipitation; the size depends on the strength of the asymptotic crack-tip field, which develops by the mechanical loading in the hydrogen-free structure, as well as on the average hydrogen content absorbed by the structure. It is also shown that a linear relation exists between a power of the threshold of crack-growth initiation and the logarithm of hydrogen content, depending on the extent of hydrogen embrittlement and material elastic-plastic deformation. These linearity trends, which are derived by the present analysis, are confirmed by published experimental fracture mechanics measurements on several non-hydride- and hydride-forming alloys, including α/β hydride-forming alloys. The present study promotes structural integrity assessments, without reliance on complicated coupled numerical analysis of material deformation, hydrogen diffusion and hydride precipitation. Full article

This study investigates the crack damage evolution in Chinese fir using an anisotropic bilinear cohesive zone-based constitutive model. The crack initiation and propagation processes were numerically modeled and simulated, and the results were validated through double cantilever beam (DCB) fracture tests. By exploiting the bijective relationship between the equivalent linear elastic fracture mechanics (LEFM) resistance curve (R-curve) and the cohesive softening law, the bilinear cohesive parameters were inversely identified from experimental data. The simulation results show good agreement with experimental observations in terms of crack path, propagation rate, and failure mode. The accuracy of the maximum load simulation results for mode I fracture of wood beams is 96.8%. These results further demonstrate the accuracy and applicability of the proposed cohesive zone model in describing crack propagation behavior in Chinese fir and provide a reliable theoretical and numerical framework for predicting fracture performance in timber structures. Full article

The shear behavior of basalt fiber-reinforced polymer (BFRP) bars is crucial for their applications in geotechnical reinforcement and composite structures. In this study, double-side direct shear tests were conducted to investigate the progressive failure mechanism of BFRP bars. The results reveal a three-stage process: initial matrix-dominated vertical shear, followed by fiber-bridging dominated oblique tension-shear, and finally formation of a “brush-like” fracture surface with significant residual strength. The average peak shear strength of the ten specimens was 204.04 MPa with a coefficient of variation of 7.25%, while the initial shear modulus averaged 3.37 GPa with a coefficient of variation of 11.82%. Based on statistical damage theory, a shear constitutive model incorporating fiber bridging and residual strength is established. Parameter analysis indicates that the shape parameter m governs the post-peak softening rate, while the residual strength τ_res essentially determines the height of the residual plateau. The model achieves a goodness-of-fit (R²) exceeding 0.98 for most specimens, accurately describing the mechanical behavior from linear elasticity, damage-induced hardening, peak softening, to the residual stage. This study provides theoretical and experimental support for the engineering application of BFRP bars under complex stress states. Full article

Rock fracture monitoring is crucial for the stability of rock engineering. Based on the four-component borehole strain (FCBS) theory, this study analyzes the response characteristics of FCBS through numerical simulations of large-scale local rock fracture. Drawing on linear elastic mechanics theory and combined with the Gaussian white noise model, three strain response indices (areal strain index $p_j^{\mathrm{a}}$ and shear strain indices $p_j^{13}$, $p_j^{24}$) are proposed to quantitatively characterize rock fracture events. A criterion is defined that if any of these indices is greater than 1, the rock fracture event can be reflected, and the larger the index, the better the effect of this index in reflecting rock fracture. The effects of the installation angle of the four-component borehole strain gauge (FCBSG), the distance between the borehole and the fracture zone, and the orientation of the borehole on these three indices are systematically investigated. The results show that for the same borehole, the areal strain index remains constant for different installation angles of the FCBSG, while the two shear strain indices exhibit a complementary variation trend—one shear strain index is always greater than or equal to the characteristic value of the borehole shear strain index, and the other is less than or equal to it; the larger values of the areal strain index and shear strain index decrease with the increase in the distance between the borehole and the fracture zone, following the variation law of the function y = ax^b with a negative exponent; there are significant differences in the larger values of the areal strain index and shear strain index among different orientation of the borehole, while those in the same orientation of the borehole relative to the fault fractured zone show a certain degree of complementarity, and the combined use of shear strain indices and areal strain index can better reflect rock fracture events; within the range of orientation of the borehole β = 0° to β = 90°, the minimum range of rock fracture that can be reflected by the three strain response indices is 55 m, the maximum range is 65 m, and the average range is 60.7 m. Full article

With the increasing depletion of shallow resources, marine-based mineral resources in coastal and continental shelf areas are poised to become a new frontier for resource development. However, ions in brine solutions undergo complex water-rock interactions with rocks, affecting the engineering stability of marine-based rock masses. This study addresses engineering safety concerns arising from the long-term coupled effects of brine erosion and confining pressure on rocks during seabed mineral resource extraction. Using red sandstone as the research subject, it investigates the evolution of its mechanical properties under complex brine-erosion conditions. Experiments involved immersing red sandstone specimens in simulated seabed brine solutions for erosion cycles of 14, 21, and 35 days. Triaxial compression tests were conducted under confining pressures of 5 MPa, 10 MPa, and 15 MPa to systematically analyze the effects of erosion duration and confining pressure on rock strength, deformation, energy characteristics, and failure modes. Results indicate that brine erosion significantly reduces the strength and elastic modulus of red sandstone, but the effect is not simply linear. Instead, it follows a trend of initial slight strengthening followed by significant deterioration. During short-term erosion (21 days), some mechanical parameters slightly recovered, potentially due to temporary filling of fractures by brine ions. After long-term erosion (35 days), all mechanical properties markedly declined. This study aims to reveal the triaxial mechanical properties and energy evolution patterns of red sandstone under multi-ionic brine erosion, providing crucial experimental evidence for designing safe isolation layers and evaluating long-term stability in seabed mining. Full article

This methodology investigates the determination of the fracture toughness of 3D-printed specimens under monotonic loading conditions. The application is based on the use of a Single Edge Notch Bending (SENB) specimen made by a 3D-printing process (17-4PH stainless steel). The load–displacement curves exhibited linear behavior until crack initiation, indicating that the Linear Elastic Fracture Mechanics (LEFM) can be used under a small-scale yielding assumption. This study extends a previous methodology, originally applied to a polymer, to a metal additively manufactured material. The methodology established in the paper represents a major outcome: the ability to characterize the fracture toughness of the material. This study extends our previous Digital Image Correlation-based methodology from thermoplastic polymers to 17-4PH stainless steel produced by metal additive manufacturing (ADAM). Its novelty lies in combining DIC with a finite element sub-model to evaluate fracture parameters, enabling accurate crack initiation detection in challenging metal AM specimens, and providing a methodology that can be generalized to other metals and AM processes. The aim of this study is to establish a robust DIC-based methodology for the identification of crack initiation and the determination of fracture toughness parameters (K_IC and J) in 3D-printed 17-4PH stainless steel produced by the ADAM process. Full article

This paper presents a high-fidelity numerical simulation of curvilinear fatigue crack growth (FCG) through a modified Compact Tension (CT) specimen made of Haynes 230 nickel-based superalloy. The specimen’s design, featuring three extra holes, was intentionally chosen to induce mixed-mode loading and complex, non-linear crack paths. Crucially, this configuration allows for a thorough examination of how the specimen’s geometry, restraints, or minor manufacturing discrepancies affect the localized stress state. Experimental data corresponding to three different initial crack patterns were utilized to validate the numerical model implemented within the ANSYS simulation environment. The comparison demonstrated that the present simulated crack trajectory was significantly closer to the experimental results than those obtained from earlier numerical simulations using ZFEM-TERF and FRANC3D. Furthermore, the current study critically examined the validity of Linear Elastic Fracture Mechanics (LEFM) by analyzing the evolution of the Cyclic Plastic Zone (CPZ) size for two distinct stress ratio values: R = 0.5 and R = −1. The findings confirm the full satisfaction of the Small-Scale Yielding (SSY) criterion throughout the crack growth history for the positive stress ratio (R = 0.5). Conversely, the negative stress ratio (R = −1) caused a significant violation of the SSY assumption in the later stages of propagation. This highlights how the applicability of LEFM is largely dependent on the loading regime and underscores the necessity of employing Elastic–Plastic Fracture Mechanics (EPFM) for fully reversed cycles. This research establishes a well-founded and valuable protocol for predicting Fatigue Crack Growth (FCG) in complex superalloy components. Full article

We investigate the progressive debonding of FRP reinforcements using an analytical framework based on fracture mechanics and a bilinear softening cohesive law. This study focuses on the energetic analysis of the “apparent hardening” phase observed in the force–slip ($F-\Delta$) curve. It is shown that this non-linear response is a structural phenomenon caused by stress redistribution as the softening zone develops. Full analytical expressions for all energy components (stored and dissipated) are derived, and the energy balance is established. The analysis links the amount of elastic energy stored during the hardening phase to the definitions of toughness (area under the curve) and ductility (post-peak behavior), explaining the transition from ductile to brittle failure. Full article
