Cobalt/copper (Co/Cu) multilayers are prototypical systems for giant magnetoresistance (GMR)-based spintronic devices, where interfacial quality and spin-dependent scattering critically determine performance. In this work, Co/Cu multilayers were fabricated by pulsed laser deposition (PLD) on SITAL ceramics, Si(100), and BK7 substrates, with 10, 20, and 40 bilayer repetitions, in order to elucidate the interplay between microstructure, interfacial diffusion, and magnetotransport properties. Systematic characterization combining atomic force microscopy (AFM), scanning electron microscopy (SEM), SIMS/SNMS depth profiling, vibrating sample magnetometry (VSM), and Hall effect measurements reveals that PLD enables controlled multilayer growth with low background roughness and well-defined periodic structures, despite the presence of characteristic particulates. A clear dependence of the GMR response on both bilayer number and substrate type is observed. Increasing the number of repetitions enhances spin-dependent scattering at Co/Cu interfaces, leading to a progressive increase in the magnetoresistance amplitude, reaching ~−14% for 40-period multilayers on SITAL substrates. This enhancement is attributed to the higher interface density and improved interfacial coherence, as confirmed by SIMS/SNMS analysis showing reduced interdiffusion in thicker stacks. In parallel, Hall effect measurements indicate a reduction in carrier density and an increase in carrier mobility with increasing multilayer thickness, consistent with improved charge transport stability. A pronounced substrate effect is demonstrated: SITAL-supported multilayers exhibit enhanced GMR sensitivity (up to ~44%·T⁻¹) due to increased diffuse spin-dependent scattering at rougher interfaces, whereas Si(100) substrates promote smoother growth, improved structural coherence, and more stable electronic transport. While sputtering typically enables smoother interfaces and higher GMR ratios, PLD offers enhanced flexibility in tailoring interfacial morphology and diffusion processes, which can lead to improved sensitivity under specific conditions. These results establish PLD as a versatile route for tailoring Co/Cu multilayers, enabling controlled optimization of the trade-off between sensitivity and structural quality for advanced spin-valve and magnetic sensor applications. Full article

Brillouin light scattering (BLS) has been established as a standard technique to study thermally excited sound waves with frequencies up to ~100 GHz in transparent materials. In BLS experiments, one usually uses a Fabry–Pérot interferometer (FPI) as a spectrometer. The drastic improvement of the FPI contrast factor over 10¹⁰ by the development of the multipass type and the tandem multipass type FPIs opened a gateway to investigate low energy excitations (ħω ≤ 1 meV) in various research fields of condensed matter physics, including surface acoustic waves and spin waves from opaque surfaces. Over the last four decades, the BLS technique has been successfully applied to study collective spin waves (SWs) in various types of magnetic structures including thin films, ultrathin films, multilayers, superlattices, and artificially arranged dots and wires using high-contrast FPIs. Now, the BLS technique has been fully established as a unique and powerful technique not only for determination of the basic magnetic constants, including the gyromagnetic ratio, the magnetic anisotropy constants, the magnetization, the SW stiffness constant, and other features of various magnetic materials and structures, but also for investigations into coupling phenomena and surface and interface phenomena in artificial magnetic structures. BLS investigations on the Fe/Cr multilayers, which exhibit ferromagnetic-antiferromagnetic arrangements of the adjacent Fe layer’s magnetizations depending on the Cr layer’s thickness, played an important role to open the new field known as “spintronics” through the discovery of the giant magnetoresistance (GMR) effect. In this review, I briefly surveyed the historical development of SW studies using the BLS technique and theoretical background, and I concentrated our BLS SW studies performed at Tohoku University and Ishinomaki Senshu University over the last thirty five years. In addition to the ferromagnetic SW studies, the BLS technique can be also applied to investigations of high-frequency magnetization dynamics in superparamagnetic (SPM) nanogranular films in the frequency domain above 10 GHz. One can excite dipole-coupled SPM excitations under external magnetic fields and observe them via the BLS technique. The external field strength determines the SPM excitations’ frequencies. By performing a numerical analysis of the BLS spectrum as a function of the external magnetic field and temperature, one can investigate the high-frequency magnetization dynamics in the SPM state and determine the magnetization relaxation parameters. Full article

Electrodeposited Ni₆₅Co₃₅/Cu multilayers were prepared with Cu spacer layer thicknesses between 0.5 nm and 7 nm. Their structure and magnetic and magnetoresistance properties were investigated. An important feature was that the Cu layers were deposited at the electrochemically optimized Cu deposition potential, ensuring a reliable control of the spacer layer thickness to reveal the true evolution of the giant magnetoresistance (GMR). X-ray diffraction indicated satellite reflections, demonstrating the highly coherent growth of these multilayer stacks. All of the multilayers exhibited a GMR effect, the magnitude of which did not show an oscillatory behavior with spacer layer thickness, just a steep rise of GMR around 1.5 nm and then, after 3 nm, it remained nearly constant, with a value around 4%. The high relative remanence of the magnetization hinted at the lack of an antiferromagnetic coupling between the magnetic layers, explaining the absence of oscillatory GMR. The occurrence of GMR can be attributed to the fact that, for spacer layer thicknesses above about 1.5 nm, the adjacent magnetic layers become uncoupled and their magnetization orientation is random, giving rise to a GMR effect. The coercive field and magnetoresistance peak field data also corroborate this picture: with increasing spacer layer thickness, both parameters progressively approached values characteristic of individual magnetic layers. At the end, a critical analysis of previously reported GMR data on electrodeposited Ni-Co/Cu multilayers is provided in view of the present results. A discussion of the layer formation processes in electrodeposited multilayers is also included, together with a comparison with physically deposited multilayers. Full article

The eddy-current (EC) testing method is frequently utilized in the nondestructive inspection of conductive materials. To detect the minor and complex-shaped defects on the surface and in the underlying layers of a metallic sample, a miniature eddy-current probe with high sensitivity is preferred for enhancing the signal quality and spatial resolution of the obtained eddy-current images. In this work, we propose a novel design of a miniature eddy-current probe using a giant magnetoresistance (GMR) sensor fabricated on a silicon chip. The in-house-made GMR sensor comprises two cascaded spin-valve elements in parallel with an external variable resistor to form a Wheatstone bridge. The two elements on the chip are excited by the alternating magnetic field generated by a tiny coil aligned to the position that balances the background output of the bridge sensor. In this way, the two GMR elements behave effectively as an axial gradiometer with the bottom element sensitive to the surface and near-surface defects on a conductive specimen. The performance of the EC probe is verified by the numerical simulation and the corresponding experiments with machined defects on metallic samples. With this design, the geometric characteristics of the defects are clearly visualized with a spatial resolution of about 1 mm. The results demonstrate the feasibility and superiority of the proposed miniature GMR EC probe for characterizing the small and complex-shaped defects in multilayer conductive samples. Full article

The versatility of the template-assisted electrodeposition technique to fabricate complex three-dimensional networks made of interconnected nanowires allows one to easily stack ferromagnetic and non-magnetic metallic layers along the nanowire axis. This leads to the fabrication of unique multilayered nanowire network films showing giant magnetoresistance effect in the current-perpendicular-to-plane configuration that can be reliably measured along the macroscopic in-plane direction of the films. Moreover, the system also enables reliable measurements of the analogous magneto-thermoelectric properties of the multilayered nanowire networks. Here, three-dimensional interconnected Ni${}_x$Fe${}_{1-x}$/Cu multilayered nanowire networks (with $0.60\le x\le 0.97$) are fabricated and characterized, leading to large magnetoresistance and magneto-thermopower ratios up to 17% and −25% in Ni${}_{80}$Fe${}_{20}$/Cu, respectively. A strong contrast is observed between the amplitudes of magnetoresistance and magneto-thermoelectric effects depending on the Ni content of the NiFe alloys. In particular, for the highest Ni concentrations, a strong increase in the magneto-thermoelectric effect is observed, more than a factor of 7 larger than the magnetoresistive effect for Ni${}_{97}$Fe${}_3$/Cu multilayers. This sharp increase is mainly due to an increase in the spin-dependent Seebeck coefficient from −7 µV/K for the Ni${}_{60}$Fe${}_{40}$/Cu and Ni${}_{70}$Fe${}_{30}$/Cu nanowire arrays to −21 µV/K for the Ni${}_{97}$Fe${}_3$/Cu nanowire array. The enhancement of the magneto-thermoelectric effect for multilayered nanowire networks based on dilute Ni alloys is promising for obtaining a flexible magnetic switch for thermoelectric generation for potential applications in heat management or logic devices using thermal energy. Full article

Electrochemical deposition of interconnected nanowires and nanotubes made of ferromagnetic metals into track-etched polycarbonate templates with crossed nanochannels has been revealed suitable for the fabrication of mechanically stable three-dimensional magnetic nanostructures with large surface area. These 3D networks embedded into flexible polymer membranes are also planar and lightweight. This fabrication technique allows for the control of the geometric characteristics and material composition of interconnected magnetic nanowire or nanotube networks, which can be used to fine-tune their magnetic and magneto-transport properties. The magnetostatic contribution to the magnetic anisotropy of crossed nanowire networks can be easily controlled using the diameter, packing density, or angle distribution characteristics. Furthermore, the fabrication of Co and Co-rich NiCo alloy crossed nanowires with textured hcp phases leads to an additional significant magnetocrystalline contribution to the magnetic anisotropy that can either compete or add to the magnetostatic contribution. The fabrication of an interconnected nanotube network has also been demonstrated, where the hollow core and the control over the tube wall thickness add another degree of freedom to control the magnetic properties and magnetization reversal mechanisms. Finally, three-dimensional networks made of interconnected multilayered nanowire with a succession of ferromagnetic and non-magnetic layers have been successfully fabricated, leading to giant magnetoresistance responses measured in the current-perpendicular-to-plane configuration. These interconnected nanowire networks have high potential as integrated, reliable, and stable magnetic field sensors; magnetic devices for memory and logic operations; or neuromorphic computing. Full article

Anodized aluminum oxide (AAO) nanochannels of diameter, D, of ~50 nm and length, L, of ~60 µm (L/D: approx. 1200 in the aspect ratio), were synthesized and applied as an electrode for the electrochemical growth of Co/Cu multilayered heterojunction nanocylinders. We synthesized numerous Co/Cu multilayered nanocylinders by applying a rectangular pulsed potential deposition method. The Co layer thickness, t_Co, ranged from ~8 to 27 nm, and it strongly depended on the pulsed-potential condition for Co layers, E_Co. The Cu layer thickness, t_Cu, was kept at less than 4 nm regardless of E_Co. We applied an electrochemical in situ contact technique to connect a Co/Cu multilayered nanocylinder with a sputter-deposited Au thin layer. Current perpendicular-to-plane giant magnetoresistance (CPP-GMR) effect reached up to ~23% in a Co/Cu multilayered nanocylinder with ~4760 Co/Cu bilayers (t_Cu: 4 nm and t_Co: 8.6 nm). With a decrease in t_Co, (ΔR/R_p)⁻¹ was linearly reduced based on the Valet–Fert equation under the condition of t_F > l_F^sf and t_N < l_N^sf. The cobalt spin-diffusion length, l_Co^sf, was estimated to be ~12.5 nm. Full article

Recently, interconnected nanowire networks have been found suitable as flexible macroscopic spin caloritronic devices. The 3D nanowire networks are fabricated by direct electrodeposition in track-etched polymer templates with crossed nano-channels. This technique allows the fabrication of crossed nanowires consisting of both homogeneous ferromagnetic metals and multilayer stack with successive layers of ferromagnetic and non-magnetic metals, with controlled morphology and material composition. The networks exhibit extremely high, magnetically modulated thermoelectric power factors. Moreover, large spin-dependent Seebeck coefficients were directly extracted from experimental measurements on multilayer nanowire networks. This work provides a simple and cost-effective way to fabricate large-scale flexible and shapeable thermoelectric devices exploiting the spin degree of freedom. Full article

Anodized aluminum oxide (AAO) films, which have numerous nanochannels ca. 75 nm in diameter, D and ca. 70 µm in length, L (ca. 933 in aspect ratio, L/D), were used as a template material for growing Co/Cu multilayered nanowire arrays. The multilayered nanowires with alternating Cu layer and Co layers were synthesized by using an electrochemical pulsed-potential deposition technique. The thickness of the Cu layer was adjusted from ca. 2 to 4 nm while that of the Co layer was regulated from ca. 13 to 51 nm by controlling the pulsed potential parameters. To get a Co/Cu multilayered nanowire in an electrochemical in-situ contact with a sputter-deposited Au thin layer, the pulsed potential deposition was continued up to ca. 5000 cycles until the nanowire reached out toward the surface of AAO template. Current-perpendicular-to-plane giant magnetoresistance (CPP-GMR) effect reached up to ca. 23.5% at room temperature in Co/Cu multilayered nanowires with ca. 3500 Co/Cu bilayers (Cu: 1.4 nm and Co: 18.8 nm). When decreasing the thickness of Co layer, the CPP-GMR value increased due to the Valet–Fert model in the long spin diffusion limit. Full article

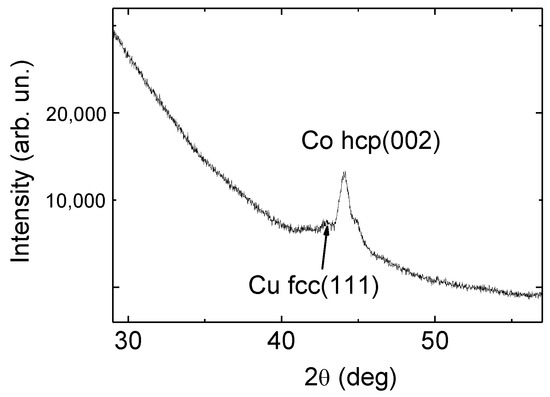

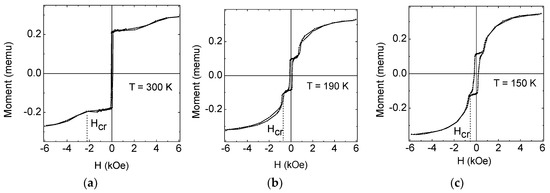

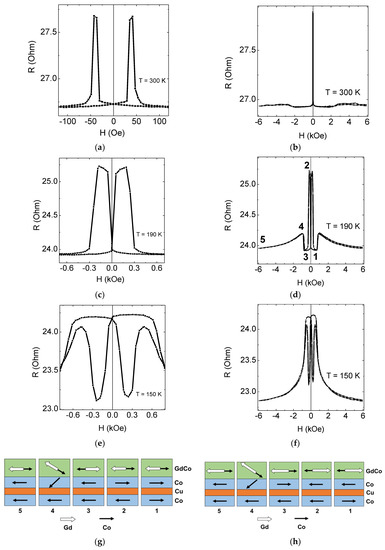

Magnetic and magnetoresistive properties of the Gd-Co/Co/Cu/Co magnetic type multilayered sensitive spin valve were studied as a function of temperature. It is shown that the appearance of a non-collinear magnetic structure significantly affects the shape of the magnetoresistive hysteresis loop. The characteristic values of the critical field related to the appearance of non-collinear structure depend on the temperature of the spin valve. The obtained results can serve as a basis for the improvements of functional properties and expanding the application areas of magnetic multilayered sensitive elements of the spin valve type; for example, for precise determination of the position of the object. Full article

Ta/Ru/Co/Ru/Co/Cu/Co/Ni₈₀Fe₂₀/Ta spin-valve giant magnetoresistive (GMR) multilayers were deposited using UHV magnetron sputtering and optimized to achieve a 13% GMR ratio before patterning. The GMR multilayer was patterned into 12 sensor arrays using a combination of e-beam and optical lithographies. Arrays were constructed with 400 nm × 400 nm and 400 nm × 200 nm sensors for the detection of reporter nanoparticles. Nanoparticle detection was based on measuring the shift in high-to-low resistance switching field of the GMR sensors in the presence of magnetic particle(s). Due to shape anisotropy and the corresponding demag field, the resistance state switching fields were significantly larger and the switching field distribution significantly broader in the 400 nm × 200 nm sensors as compared to the 400 nm × 400 nm sensors. Thus, sensor arrays with 400 nm × 400 nm dimensions were used for the demonstration of particle detection. Detection of a single 225 nm Fe₃O₄ magnetic nanoparticle and a small number (~10) of 100 nm nanoparticles was demonstrated. With appropriate functionalization for biomolecular recognition, submicron GMR sensor arrays can serve as the basis of ultrasensitive chemical and biological sensors. Full article

In eddy current non-destructive testing of a multi-layered riveted structure, rotating current excitation, generated by orthogonal coils, is advantageous in providing sensitivity to defects of all orientations. However, when used with linear array sensors, the exciting magnetic flux density ( $B_x$ ) of the orthogonal coils is not uniform over the sensor region, resulting in an output signal magnitude that depends on the relative location of the defect to the sensor array. In this paper, the rotating excitation coil is optimized to achieve a uniform $B_x$ field in the sensor array area and minimize the probe size. The current density distribution of the coil is optimized using the polynomial approximation method. A non-uniform coil design is derived from the optimized current density distribution. Simulation results, using both an optimized coil and a conventional coil, are generated using the finite element method (FEM) model. The signal magnitude for an optimized coil is seen to be more robust with respect to offset of defects from the coil center. A novel multilayer coil structure, fabricated on a multi-layer printed circuit board, is used to build the optimized coil. A prototype probe with the optimized coil and 32 giant magnetoresistive (GMR) sensors is built and tested on a two-layer riveted aluminum sample. Experimental results show that the optimized probe has better defect detection capability compared with a conventional non-optimized coil. Full article

The giant magnetoresistance (GMR) effect is a very basic phenomenon that occurs in magnetic materials ranging from nanoparticles over multilayered thin films to permanent magnets. In this contribution, we first focus on the links between effect characteristic and underlying microstructure. Thereafter, we discuss design criteria for GMR-sensor applications covering automotive, biosensors as well as nanoparticular sensors. Full article
