Search Results (449)

This study systematically investigates the homogenization-induced Laves phase dissolution kinetics and recrystallization mechanisms in laser powder bed fusion (L-PBF) processed IN718 superalloy. The as-built material exhibits a characteristic fine dendritic microstructure with interdendritic Laves phase segregation and high dislocation density, featuring directional sub-grain boundaries aligned with the build direction. Laves phase dissolution demonstrates dual-stage kinetics: initial rapid dissolution (0–15 min) governed by bulk atomic diffusion, followed by interface reaction-controlled deceleration (15–60 min) after 1 h at 1150 °C. Complete dissolution of the Laves phase is achieved after 3.7 h at 1150 °C. Recrystallization initiates preferentially at serrated grain boundaries through boundary bulging mechanisms, driven by localized orientation gradients and stored energy differentials. Grain growth kinetics obey a fourth-power time dependence, confirming Ostwald ripening-controlled boundary migration via grain boundary diffusion. Such a study is expected to be helpful in understanding the microstructural development of L-PBF-built IN718 under heat treatments. Full article

Based on laser cladding technology, six composite coatings with different amounts of Inconel 718 and 0~5% CeO₂ were successfully prepared on the 316L stainless steel substrate. The effect of different amounts of CeO₂ particles was investigated and discussed, such as microstructure, phases, elemental distribution, microhardness, wear resistance and corrosion resistance. The results show that the phases are composed of γ~(Fe, Ni), Ni₃Nb, (Nb_0.03Ti_0.97)Ni₃, and MC_X(M = Cr, Nb and Mo). When the amount of CeO₂ particles is higher than 1%, some Ce₂O₃ compounds can be detected in coatings. The average microhardness values of N0~N5 are 604.6, 754.5, 771.6, 741.4, 694.5 and 677.3 HV_0.2, respectively. There is a trend that the microhardness increases firstly and then decreases, because an appropriate amount of CeO₂ can improve the solid solution strength. The average wear rate values of N0~N5 are 2.97 × 10⁻⁵, 1.22 × 10⁻⁵, 0.94 × 10⁻⁵, 1.53 × 10⁻⁵, 1.81 × 10⁻⁵ and 2.26 × 10⁻⁵ mm³∙N⁻¹∙min⁻¹, respectively. The N2 coating has the smallest corrosion current density of 2.05 × 10⁻⁴ A·cm⁻², which is about 56% of the N0 coating. When the amount of CeO₂ particles is 2%, the coating has the best wear resistance and corrosion resistance due to fine grains and Cr, Nb and Mo compounds. Full article

Properly refrigerating hard-to-cut alloys during grinding is key to achieve high quality, strict tolerances, and good surface finishing. Nonetheless, literature about the influence of cooling-lubrication conditions (CLCs) on dimensional accuracy of ground components is still scarce. Thus, this work aims to evaluate surface quality, grinding power, and dimensional accuracy of Inconel 718 workpieces after grinding with silicon carbide grinding wheel at different grinding conditions. Four different CLCs were tested: flood, minimum quantity of lubrication (MQL) without graphene, and with multilayer graphene (MG) at two distinct concentrations: 0.05 and 0.10 wt.%. Different radial depths of cut values were also tested. The results showed that the material’s removed height increased with radial depth of cut, leading to coarse tolerance (IT) grades. Machining with the MQL WG resulted in higher dimensional precision with an IT grade varying between IT6 and IT7, followed by MQL MG 0.10% (IT7), MQL MG 0.05% (IT7-IT8), and flood (IT8). The lower tolerances achieved with MG were attributed to the lowering in the friction coefficient of the workpiece material sliding through the abrasive grits with no material removal (micro-plowing mechanism), thereby reducing grinding power and the removed height in comparison to the other CLC tested. Full article

Mold copper plates (Cr–Zr–Cu alloy) frequently fail due to severe wear under high-temperature conditions during continuous casting. To solve this problem, Inconel 718 coatings were prepared on the plate surface via laser cladding to enhance its high-temperature wear resistance. The results demonstrate that the coatings exhibit a defect-free structure with metallurgical bonding to the substrate. The coating primarily consists of a γ-(Fe, Ni, Cr) solid solution and carbides (M₂₃C₆ and M₆C). Notably, elongated columnar Laves phases and coarse Cr–Mo compounds were distributed along grain boundaries, significantly enhancing the coating’s microhardness and high-temperature stability. The coating exhibited an average microhardness of 491.7 HV_0.5, which is approximately 6.8 times higher than that of the copper plate. At 400 °C, the wear rate of the coating was 4.7 × 10⁻⁴ mm³·N⁻¹·min⁻¹, significantly lower than the substrate’s wear rate of 8.86 × 10⁻⁴ mm³·N⁻¹·min⁻¹, which represents only 53% of the substrate’s wear rate. The dominant wear mechanisms were adhesive wear, abrasive wear, and oxidative wear. The Inconel 718 coating demonstrates superior hardness and excellent high-temperature wear resistance, effectively improving both the surface properties and service life of mold copper plates. Full article

The corrosion behavior of Inconel 718 alloy, developed through two different methods—forging (S1) and additive manufacturing (S2)—was evaluated in a seawater environment, and the results were compared with those of Inconel 825 alloy (S3). The corrosion performance of the alloys was examined according to ISO 8044/2024, using open circuit potential (OCP), potentiodynamic polarization (PP), and electrochemical impedance spectroscopy (EIS), in natural seawater at 25 °C over an extended immersion period. After 5000 h of immersion, the corrosion rate (R_corr) estimated from anodic polarization tests was found to be lower for the wrought Inconel 718 alloy (1.21 µm y⁻¹) compared to the wrought 825 alloy (4.1 µm y⁻¹) and to the SLM Inconel 718 alloy (35.1 µm y⁻¹), indicating high corrosion resistance for wrought Inconel 718. A morphological analysis of the alloy’s surface conducted using scanning electron microscopy (SEM) coupled with energy-dispersive X-ray spectroscopy (EDS) revealed a continuous, compact film with localized salt deposits on wrought Inconel 718 and Incoloy 825. In contrast, SLM Inconel 718 exhibited a porous, inhomogeneous film, leading to reduced protective capabilities and lower corrosion resistance. The results demonstrate that wrought Inconel 718 exhibits excellent corrosion resistance in seawater, making it a promising alloy for marine applications. Full article

This study investigates the microstructure and mechanical properties of Inconel 718, a nickel-based alloy, reinforced with ceramic phases via additive manufacturing. Two reinforcement strategies were explored: in situ formation of ceramic phases through titanium powder addition, and direct incorporation of Cr₂O₃ and TiO₂ ceramic particles. Both approaches significantly modified the alloy’s microstructure and elemental distribution. The in situ formation method produced leaf-like Ti-rich precipitates (up to 70.13 wt%), while direct ceramic addition suppressed the preferred orientation of the Laves phase and promoted the formation of NbC precipitates. Microhardness increased by 19.4% with titanium addition, compared to a modest 1.3% improvement with direct ceramic addition. Tensile testing revealed that titanium powder enhanced ultimate tensile strength but reduced elongation, whereas direct ceramic addition led to decreases in both strength and ductility. Wear resistance evaluation showed that direct ceramic addition yielded superior performance, evidenced by the lowest friction coefficient (0.514) and smallest wear volume (16,290,782 μm³). These findings demonstrate the effectiveness of ceramic reinforcement strategies in optimizing the mechanical and tribological behavior of additively manufactured Inconel 718, and offer valuable guidance for the development of wear-resistant components such as those used in hydraulic support systems. Full article

Selective laser melting (SLM) allows the production of complex lattice structures with tunable mechanical properties. This study proposes an integrated approach to enhance the mechanical properties of Inconel 718 (IN718) lightweight structures by applying distinct heat treatment protocols and tailoring key printing parameters. Four lattice geometries—body-centered cube (BCC), diamond, inverse woodpile (IWP), and gyroid—were selected for evaluation. Three heat treatment protocols were applied to assess their effect on mechanical behavior. Additionally, the influence of key SLM parameters such as laser power, scan speed, hatch spacing, and layer thickness on structural performance was investigated. By combining process tailoring and post-processing strategies, this work demonstrates a method to improve the mechanical response of complex IN718 lattices. The results highlight significant improvements in yield strength and energy absorption for high-performance applications in aerospace and automotive engineering. Full article

MIL-STD-1530D and the United States Air Force (USAF) Structures Bulletin EZ-SB-19-01 require an ability to predict the growth of naturally occurring three-dimensional cracks with crack depths equal to what they term an equivalent initial damage size (EIDS) of 0.254 mm. This requirement holds for both additively manufactured and conventionally built parts. The authors have previously presented examples of how to perform such predictions for additively manufactured (AM) Ti-6Al-4V; wire arc additively manufactured (WAAM) 18Ni 250 Maraging steel; and Boeing Space, Intelligence and Weapon Systems laser bed powder fusion (LPBF) Scalmalloy^®, which is an additively manufactured Aluminium-Scandium-Mg alloy, using the Hartman-Schijve crack growth equation. In these studies, the constants used were as determined from ASTM E647 standard tests on long cracks, and the fatigue threshold term in the Hartman-Schijve equation was set to a small value (namely, 0.1 MPa √m). This paper illustrates how this approach can also be used to predict the growth of naturally occurring three-dimensional cracks in WAAM CP-Ti (commercially pure titanium) specimens built by Solvus Global as well as in WAAM-built Inconel 718. As in the prior studies mentioned above, the constants used in this analysis were taken from prior studies into the growth of long cracks in conventionally manufactured CP-Ti and in AM Inconel 718, and the fatigue threshold term in these analyses was set to 0.1 MPa √m. These studies are complemented via a prediction of the growth of naturally occurring three-dimensional cracks in conventionally built M300 steel. Full article

This article explores the use of ultrasonic nondestructive evaluation for qualification of laser-DED IN718 samples. The main goal of this article is to identify potential ultrasonic parameters which have highest sensitivity to microstructral changes that result from fabrication of DED samples. The ultrasonic qualification parameters were extracted from ultrasonic testing including velocity and attenuation measurement, and C-Scan imaging. These measurements were further used to extract parameters that quantify the anisotropy, microstructural heterogeneity, and grain scattering. Two laser-DED IN718 samples fabricated with slightly different processing parameters were evaluated to observe the influence of the laser power and scan speed on the qualification parameters. The identified qualification parameters were compared for these two samples, along with a hot-rolled sample that was also used as reference. The results suggest that the anisotropy, attenuation, and heterogeneity were highest in the DED samples compared to the reference sample. The identified qualification parameters seem to capture these changes, suggesting they could be potentially used for qualification of AM parts. Full article

This study established a machine learning framework to enhance the accuracy of very-high-cycle fatigue (VHCF) life prediction in selective laser melted Inconel 718 alloy by systematically comparing the use of generative adversarial networks (GANs) and variational auto-encoders (VAEs) for data augmentation. We quantified the influence of critical defect parameters (dimensions and stress amplitudes) extracted from fracture analyses on fatigue life and compared the performance of GANs versus VAEs in generating synthetic training data for three regression models (ANN, Random Forest, and SVR). The experimental fatigue data were augmented using both generative models, followed by hyperparameter optimization and rigorous validation against independent test sets. The results demonstrated that the GAN-generated data significantly improved the prediction metrics, with GAN-enhanced models achieving superior R² scores (0.91–0.97 vs. 0.86 ± 0.87) and lower MAEs (1.13–1.62% vs. 2.00–2.64%) compared to the VAE-based approaches. This work not only establishes GANs as a breakthrough tool for AM fatigue prediction but also provides a transferable methodology for data-driven modeling of defect-dominated failure mechanisms in advanced materials. Full article

Inconel 617 is a nickel-based superalloy that is a primary candidate for use in next-generation nuclear applications such as the Gen IV Molten Salt Reactor (MSR) and Very-High-Temperature Reactor (VHTR) due to its corrosion and oxidation resistance and high strength in elevated temperatures. However, Inconel 617 machinability is poor due to its hardness and tendency to work harden during manufacturing. While the machinability of its sister grade, Inconel 718, has been widely studied and understood due to its applications in aerospace, there is a lack of knowledge regarding the behaviour of Inconel 617 in machining. To address this gap, this paper investigates the influence of cutting parameters in the turning of Inconel 617 and compares the impact of Minimum Quantity Lubrication (MQL) turning against conventional coolant. This investigation was performed through three distinct studies: Study A compared the performance of commercial coatings, Study B investigated the influence of cutting parameters on the surface finish, and Study C compared the performance of MQL to flood coolant. This work demonstrated that AlTiN coatings performed the best and doubled the tool life of a standard tungsten carbide insert compared to its uncoated form. Additionally, the feed rate had the largest impact on the surface roughness, especially at high feeds, with the best surface quality found at the lowest feed rate of 0.075 mm/rev. The utilization of MQL had mixed results compared to a conventional flood coolant in the machining of Inconel 617. Surface finish was improved as high as 47% under MQL conditions compared to the flood coolant; however, work hardening at the surface was also shown to increase by 10–20%. Understanding this, it is possible that MQL can completely remove the need for a conventional coolant in the machining of Inconel 617 components for the manufacturing of next-generation reactors. Full article

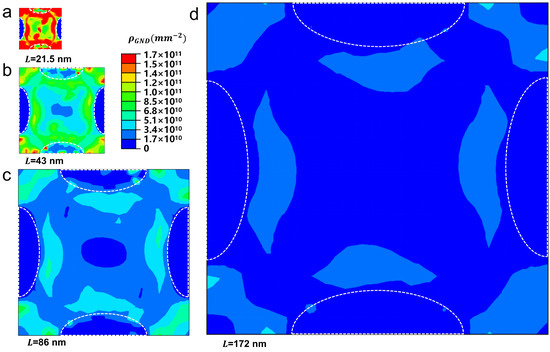

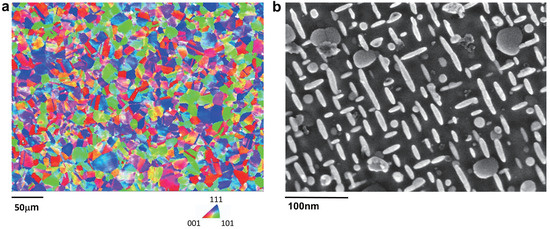

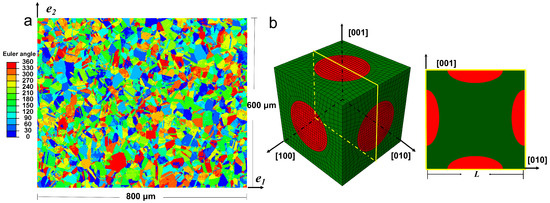

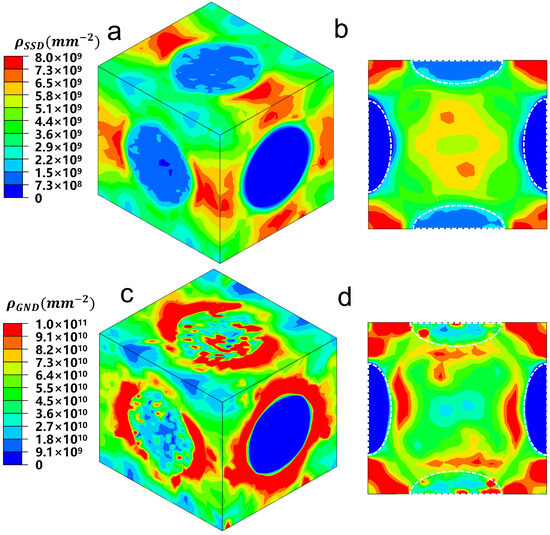

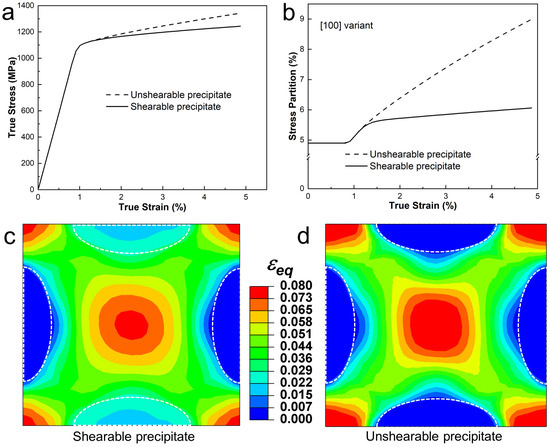

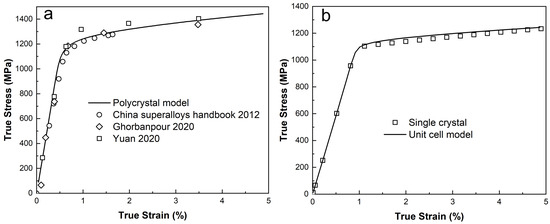

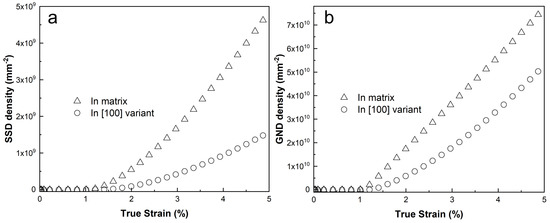

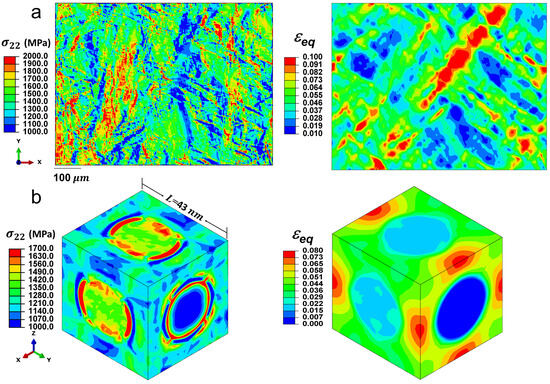

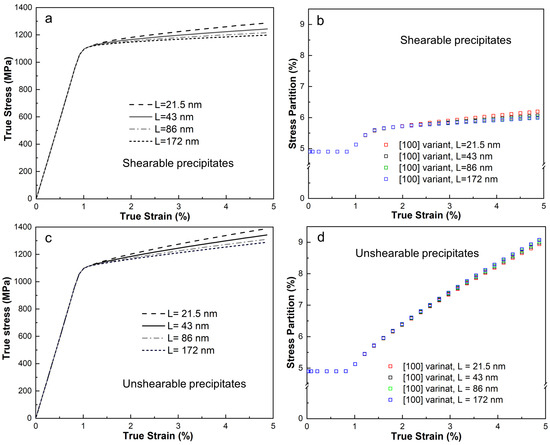

In this work, a crystal plasticity (CP)-based continuum modeling approach is employed to investigate the interaction between dislocations and coherent ${\gamma }^{″}$ precipitates in the Inconel 718 (IN718) superalloy. A finite element (FE) model is developed to accurately represent realistic microstructures in IN718, specifically incorporating a disk-shaped precipitate embedded within a matrix phase. A length-scale-dependent CP modeling simulation informed by molecular dynamics (MD) findings is conducted. The results indicate that the three ${\gamma }^{″}$ variants behave differently under uniaxial loading conditions, altering the deformation process in the $\gamma$ phase and leading to significant strain and stress heterogeneities. The presence of dislocation shearing in the ${\gamma }^{″}$ variants reduces the localization of strain and dislocation densities in the adjacent $\gamma$ phase. The strain gradient-governed geometrically necessary dislocation (GND) density plays a dominant role in influencing strain hardening behavior. The length scale effect is further quantified by considering four different precipitate sizes, with the major axis ranging from 12.5 nm to 100 nm. The findings show that smaller precipitate sizes result in stronger strain hardening, and the size of ${\gamma }^{″}$ precipitates significantly alters GND density evolution. Full article

To address the graphitization of diamond induced by high temperatures during laser cladding of diamond-reinforced composites, this study proposes a laser cladding method utilizing Inconel 718 (IN718) nickel-based alloy as a transition layer which has a lower melting point than the substrate of 45# steel. And then, in order to analyze the detailed characteristics of the samples, scanning electron microscopy (SEM), EDS, Raman spectral analyzer, super-depth-of-field microscope, and friction tests were used. Experimental study and the test results demonstrate that the IN718 transition layer enhances coating performance through dual mechanisms: firstly, its relatively low melting point (1392 °C) reduces the molten pool’s peak temperature, effectively suppressing thermal-induced graphitization of the diamond; on the other hand, simultaneously it acts as a diffusion barrier to inhibit Fe migration from the substrate and weaken Fe–C interfacial catalytic reactions. Microstructural analysis reveals improved diamond encapsulation and reduced interfacial sintering defects in coatings with the transition layer. Tribological tests confirm that samples with the transition layer L exhibit lower friction coefficients and significantly enhanced wear resistance compared to those without. This study elucidates the synergistic mechanism of the transition layer in thermal management optimization and interfacial reaction suppression, providing an innovative solution to overcome the high-temperature damage bottleneck in laser-clad diamond tools. Full article

Thermal modelling of additive manufacturing is a key method for furthering the quality of the components produced, as it allows for analysis that is not possible via experimental methods due to the difficulties involved with in situ monitoring. The thermal gradients present during the additive manufacturing process have a large impact on the formation of defects, such as porosity, residual stress, and cracking. The thermal gradients also have a large impact on material properties by controlling the microstructure formed. Thermal modelling methods are often based on numerical solutions of the heat conduction equation. Whilst numerical methods can be more accurate, they are often very slow because of the fine mesh requirements to capture high thermal gradients and iterative solvers to approximate the real-world solution to the required thermal field equations. An analytical model was developed to provide a fast solution to the problem. The analytical model used in this research was based on the Rosenthal equation and was analysed under a range of process parameters. A temperature-dependent Rosenthal model was also created with the aim of improving the results. The analytical model was then compared with a finite element numerical model to act as verification for the results. The analytical model accurately predicted the meltpool width over a range of process conditions. The analytical model underestimated the meltpool length compared to the numerical model, especially at high velocities. When using the standard Rosenthal model, the use of room-temperature or high-temperature thermal conductivities underestimated or overestimated the cooling rates from the meltpool, respectively. A temperature-dependent Rosenthal model was shown to produce more accurate cooling rates compared to the original Rosenthal equation. Full article

Metallic materials additive manufacturing is extremely challenging nowadays, while aircraft manufacturers are trying to adapt the newly developed technology to produce parts of complex geometry with minimum materials losses. Skyrora is a company focused on the production of several launch vehicles and rockets with the aim of becoming a commercial provider for access to space. One of the Skyrora goals is to develop innovative and long-term solutions for future growth, and, within the Horizon European project “MADE-3D”, aims to improve the rocket propulsion system of the launch vehicle Skyrora XL by exploiting multi-materials during the production phase by additive manufacturing. The main goal of the present investigation is to document the already existing production phases of the “conventional” Skyrora vacuum nozzle printed with Inconel 718 to provide a baseline in terms of weight, manufacturing cost, lead processing time and CO₂ equivalent emissions of the under-development multi-material demonstrator. Full article
