Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

5.8
3.1
Journals
Materials
Special Issues
Advances in Dental and Restorative Materials
materials-logo
Submit to Special Issue Submit Abstract to Special Issue Review for Materials Propose a Special Issue

Journal Menu

► Journal Menu

Journal Browser

► Journal Browser
share announcement

Advances in Dental and Restorative Materials

A special issue of Materials (ISSN 1996-1944). This special issue belongs to the section "Biomaterials".

Deadline for manuscript submissions: 20 June 2025 | Viewed by 4009

Special Issue Editor

Dr. Francesca Zotti

E-Mail Website
Guest Editor
Department of Surgery, Dentistry, Paediatrics and Gynaecology, University of Verona, P.Le L.A. Scuro 10, 37134 Verona, Italy
Interests: dental materials; restorative; digital dentistry; education; aesthetics
Special Issues, Collections and Topics in MDPI journals

Special Issue Information

Dear Colleagues,

Recent years have brought various breakthroughs in dental sciences, prompting both experienced professionals and newly graduated dentists to continuously build on recent innovations. Dental materials constitute a key component in every clinician’s daily practice and, therefore, must be upgraded and developed to foster and improve the quality of dental treatment.

The Special Issue aims to provide the scientific community with new trends regarding dental materials in general, with a focus on composite resins. Research must be oriented around discovering and highlighting new types of materials and their applications related to dental care, specifically composite resins for restorative and aesthetics purposes.

Evidence of using new approaches of routine dental materials is encouraged as well as the use of new materials in routine dental practice.

Dr. Francesca Zotti
Guest Editor

Manuscript Submission Information

Manuscripts should be submitted online at www.mdpi.com by registering and logging in to this website. Once you are registered, click here to go to the submission form. Manuscripts can be submitted until the deadline. All submissions that pass pre-check are peer-reviewed. Accepted papers will be published continuously in the journal (as soon as accepted) and will be listed together on the special issue website. Research articles, review articles as well as short communications are invited. For planned papers, a title and short abstract (about 100 words) can be sent to the Editorial Office for announcement on this website.

Submitted manuscripts should not have been published previously, nor be under consideration for publication elsewhere (except conference proceedings papers). All manuscripts are thoroughly refereed through a single-blind peer-review process. A guide for authors and other relevant information for submission of manuscripts is available on the Instructions for Authors page. Materials is an international peer-reviewed open access semimonthly journal published by MDPI.

Please visit the Instructions for Authors page before submitting a manuscript. The Article Processing Charge (APC) for publication in this open access journal is 2600 CHF (Swiss Francs). Submitted papers should be well formatted and use good English. Authors may use MDPI's English editing service prior to publication or during author revisions.

Keywords

  • composite resins
  • reinforcing fibers
  • dental restorations
  • fracture strength
  • worn dentition
  • aesthetic materials
  • veneers

Benefits of Publishing in a Special Issue

  • Ease of navigation: Grouping papers by topic helps scholars navigate broad scope journals more efficiently.
  • Greater discoverability: Special Issues support the reach and impact of scientific research. Articles in Special Issues are more discoverable and cited more frequently.
  • Expansion of research network: Special Issues facilitate connections among authors, fostering scientific collaborations.
  • External promotion: Articles in Special Issues are often promoted through the journal's social media, increasing their visibility.
  • e-Book format: Special Issues with more than 10 articles can be published as dedicated e-books, ensuring wide and rapid dissemination.

Further information on MDPI's Special Issue policies can be found here.

Published Papers (4 papers)

Download All Papers
Order results
Result details
Show export options expand_more Show export options expand_less
Select all
Export citation of selected articles as:

Research

13 pages, 2268 KiB
Article
Initial Bonding Performance to CAD/CAM Restorative Materials: The Impact of Stepwise Concentration Variation in 8-Methacryloxyoctyl Trimethoxy Silane and 3-Methacryloxypropyl Trimethoxy Silane on Feldspathic Ceramic, Lithium Disilicate Glass-Ceramic, and Polymer-Infiltrated Ceramic
by Yukinori Maruo, Miho Kuwahara, Kumiko Yoshihara, Masao Irie, Noriyuki Nagaoka, Mai Yoshizane, Takuya Matsumoto and Kentaro Akiyama
Materials 2025, 18(9), 1983; https://doi.org/10.3390/ma18091983 - 27 Apr 2025
Viewed by 213
Abstract

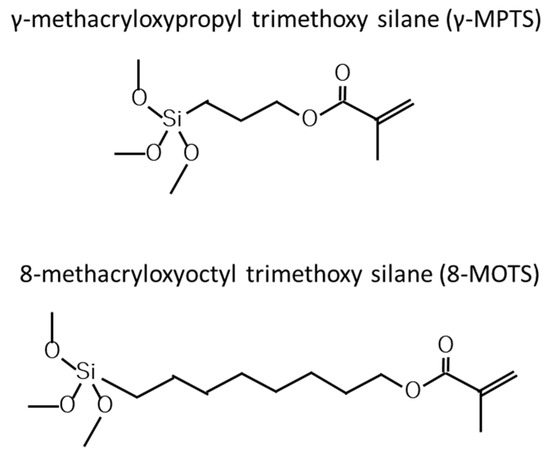

This study investigated the effects of varying concentrations of two distinct silane agents, 8-methacryloxyoctyl trimethoxy silane (8-MOTS) and 3-methacryloxypropyl trimethoxy silane (γ-MPTS), on their initial bonding efficacy to feldspathic ceramic (FC), lithium disilicate glass-ceramic (LD) and polymer-infiltrated ceramic (PIC) specimens, in 10% increments [...] Read more.

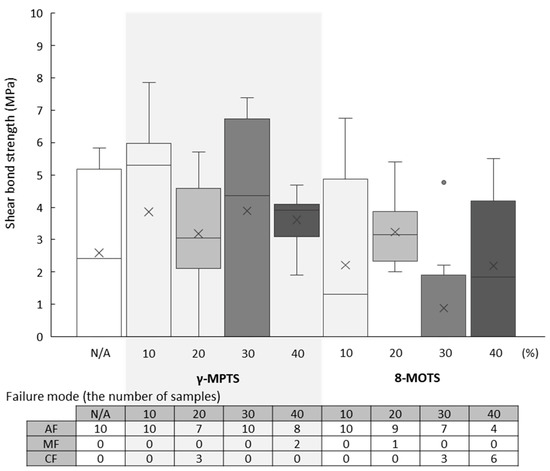

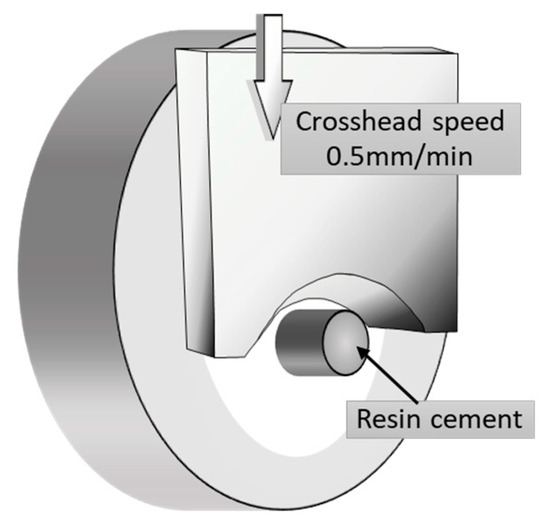

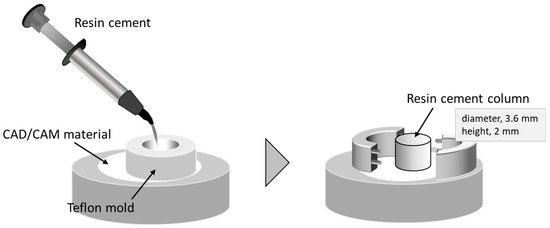

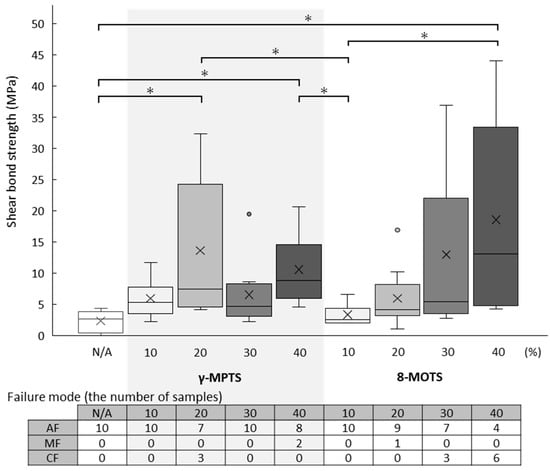

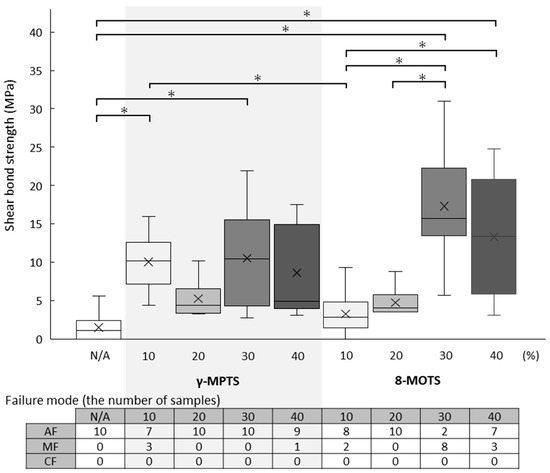

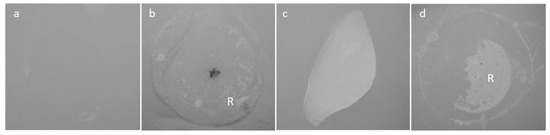

This study investigated the effects of varying concentrations of two distinct silane agents, 8-methacryloxyoctyl trimethoxy silane (8-MOTS) and 3-methacryloxypropyl trimethoxy silane (γ-MPTS), on their initial bonding efficacy to feldspathic ceramic (FC), lithium disilicate glass-ceramic (LD) and polymer-infiltrated ceramic (PIC) specimens, in 10% increments for concentrations ranging from 10% to 40%. Shear bond strengths between the ceramic substrates and the luting material were assessed following 24 h incubation in distilled water. For FC, the median value of shear bond strength peaked at 20% of γ-MPTS (7.4 MPa), while 8-MOTS exhibited a concentration-dependent increase, reaching its highest value at 40% (13.1 MPa). For LD, γ-MPTS above 10% yielded similar strength median values (10.2 MPa), whereas 8-MOTS at 30% (15.8 MPa) and 40% (13.4 MPa) yielded higher strength values than at 10% (2.9 MPa) and 20% (4.1 MPa), with the highest median value exhibited at 30%. For PIC, both γ-MPTS and 8-MOTS demonstrated similarly low bond strength values which were not significantly different from the non-silane-treated specimens. When applied on silica-based FC and LD, silane revealed a concentration-dependent bonding effect, with 8-MOTS exhibiting superior bond strength to γ-MPTS. However, PIC, characterized by a high inorganic filler content, demonstrated limited bondability with both silanes. Full article
(This article belongs to the Special Issue Advances in Dental and Restorative Materials)
►▼ Show Figures

Figure 1

14 pages, 3832 KiB
Article
Chromatic Adaption of Two Universal Composites: Spectrophotometric Analysis
by Francesca Zotti, Francesca Ferrari, Mattia Penazzo, Giorgia Lanzaretti and Nicoletta Zerman
Materials 2024, 17(20), 5103; https://doi.org/10.3390/ma17205103 - 18 Oct 2024
Cited by 1 | Viewed by 978
Abstract
Objective: The purpose of this study was to evaluate the chromatic adaptability and color stability of two different composite resins, Omnichroma and Estelite Bulk-Fill Flow, in Class V restorations at different times. Materials and methods: Standardized Class V cavities were prepared on the [...] Read more.
Objective: The purpose of this study was to evaluate the chromatic adaptability and color stability of two different composite resins, Omnichroma and Estelite Bulk-Fill Flow, in Class V restorations at different times. Materials and methods: Standardized Class V cavities were prepared on the labial surface of 34 extracted intact and noncarious human permanent molars. The dental elements were randomly divided into two groups according to the resin composite material. Group 1 was restored with Omnichroma (Tokuyama Dental Corporation Inc., Tokyo, Japan) and Group 2 was restored with Estelite BulkFill Flow Universal (Tokuyama Dental Corporation Inc., Tokyo, Japan). Color properties were assessed using a spectrophotometer, SpectroShadeTM Micro (MHT Optic Research, Niederhasli, Switzerland), at baseline (T0), immediately after Class V restoration (T1), 24 h after restoration (T2) and after thermocycling (T3) (ISO/TS 11405, 2015 protocol). Color difference (ΔE) was analyzed with a Student’s t-test and a Wilcoxon–Mann–Whitney test to evaluate the differences, in terms of chromatic adaptability, between the two materials (inter-group analysis) while Kruskal–Wallis test e Two-way ANOVA statistical tests were used to evaluate the color stability of each material over time (intra-group analysis). Results: Regarding the inter-group analysis, there were no statistically significant differences between the two materials in all the comparisons: T0–T1 (p = 0.9025), T0–T2 (p = 0.2779), T0–T3 (p = 0.4694). Moreover, both groups showed an average ΔE > 2. In the intra-group analysis, no statistically significant differences were observed in either Group 1 (p = 0.954) or Group 2 (p = 0.8654). Conclusions: The in vitro color matching, assessed by spectrophotometry, of the two tested resin composites does not vary at different time intervals. Furthermore, even though both composites use different mechanisms to produce the color the human eye perceives, they show very similar chromatic adaptability. Full article
(This article belongs to the Special Issue Advances in Dental and Restorative Materials)
►▼ Show Figures

Figure 1

22 pages, 3134 KiB
Article
The Effect of Incorporating Dimethylaminohexadecyl Methacrylate and/or 2-Methacryloyloxyethyl Phosphorylcholine on Flexural Strength and Surface Hardness of Heat Polymerized and 3D-Printed Denture Base Materials
by Njood F. AlAzzam, Salwa O. Bajunaid, Heba A. Mitwalli, Bashayer H. Baras, Michael D. Weir and Hockin H. K. Xu
Materials 2024, 17(18), 4625; https://doi.org/10.3390/ma17184625 - 20 Sep 2024
Cited by 3 | Viewed by 1061
Abstract
Background: A major disadvantage of polymethyl methacrylate (PMMA) acrylic resins is susceptibility to biofilm accumulation. The incorporation of antimicrobial agents is a reliable prevention technique. The purpose of this study is to investigate the effect of incorporating dimethylaminohexadecyl methacrylate (DMAHDM) and/or 2-methacryloyloxyethyl phosphorylcholine [...] Read more.

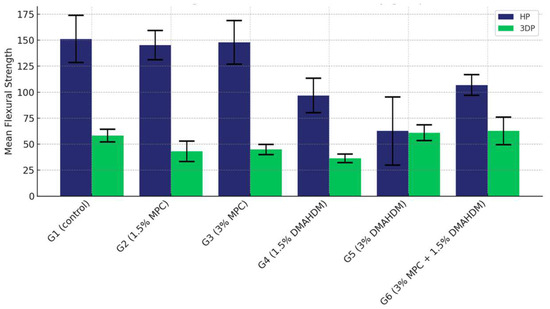

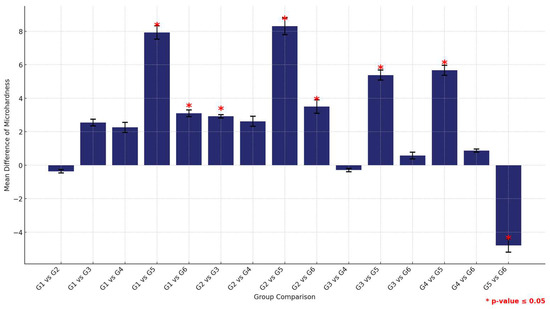

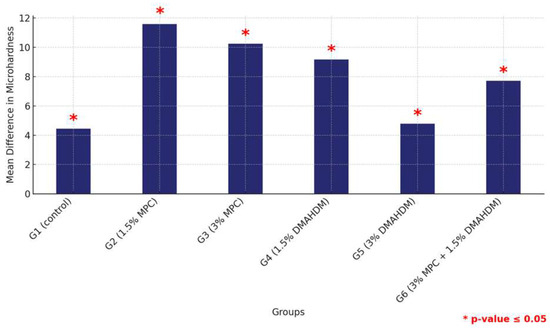

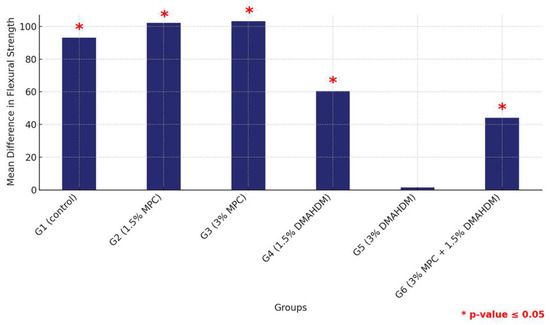

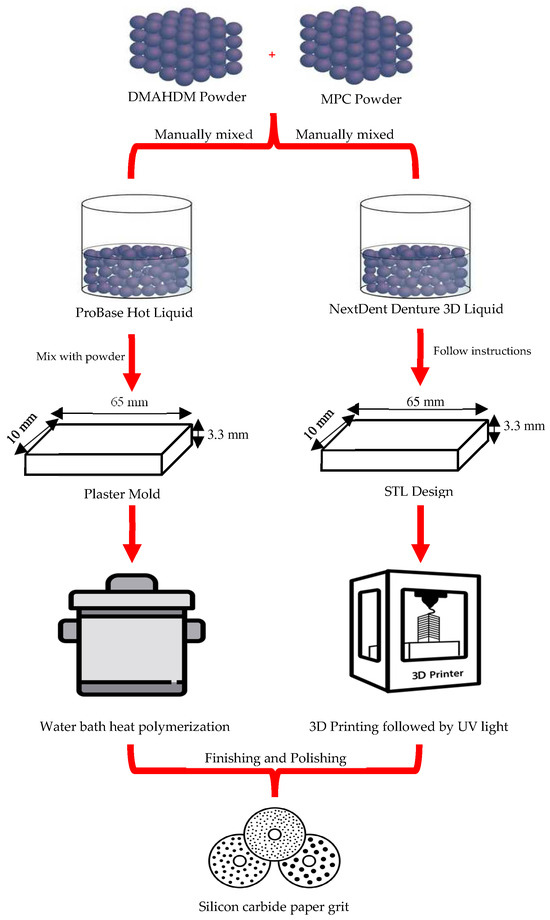

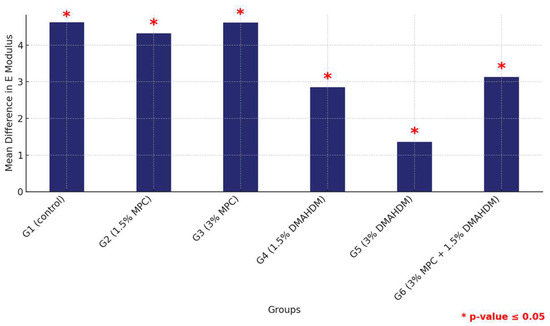

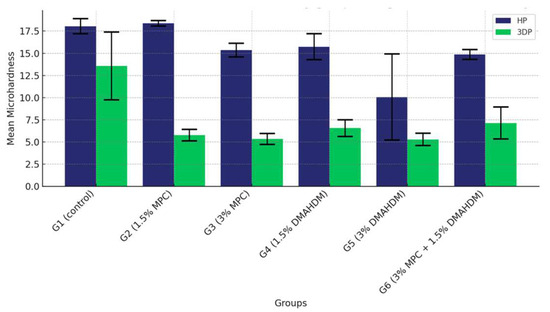

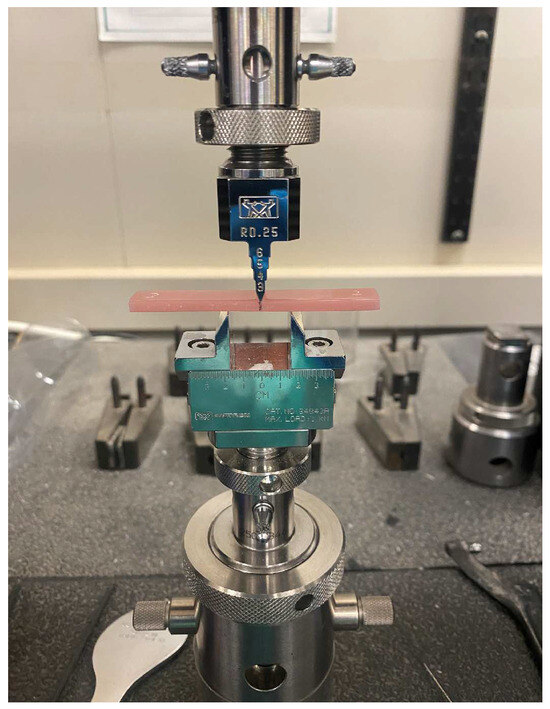

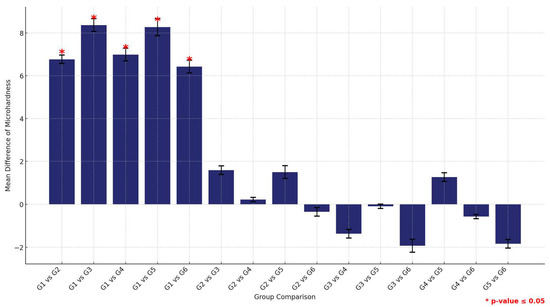

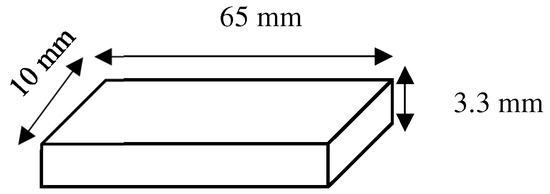

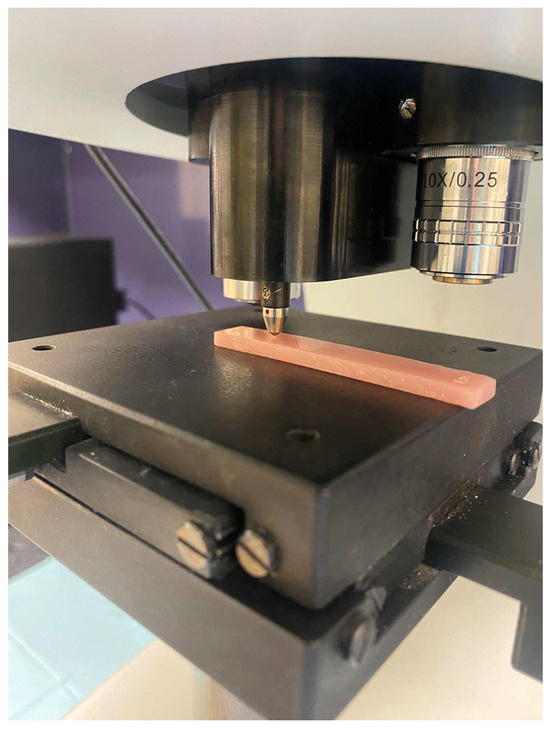

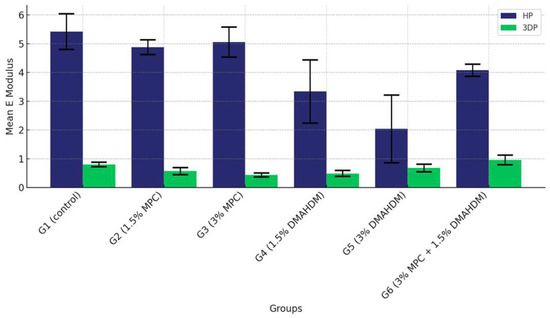

Background: A major disadvantage of polymethyl methacrylate (PMMA) acrylic resins is susceptibility to biofilm accumulation. The incorporation of antimicrobial agents is a reliable prevention technique. The purpose of this study is to investigate the effect of incorporating dimethylaminohexadecyl methacrylate (DMAHDM) and/or 2-methacryloyloxyethyl phosphorylcholine (MPC) into heat-polymerized (HP) and 3D-printed (3DP) denture base materials on the flexural strength, modulus of elasticity, and surface hardness. Methods: DMAHDM and/or MPC were mixed with the acrylic resin liquid of a heat-polymerized (ProBase Hot) and a 3D printed (NextDent Denture 3D) material at mass fractions of 1.5% and 3% and a combination of 3% MPC and 1.5% DMAHDM. Results: Significant differences in mechanical properties between the control and experimental groups have been detected (p-value < 0.0001). In HP materials, the addition of DMAHDM and/or MPC generally decreased the flexural strength, from (151.18 MPa) in G1 down to (62.67 MPa) in G5, and surface hardness, from (18.05 N/mm2) down to (10.07 N/mm2) in G5. Conversely, in 3DP materials, flexural strength was slightly enhanced, from (58.22 MPa) in G1 up to (62.76 MPa) in G6, although surface hardness was consistently reduced, from (13.57 N/mm2) down to (5.29 N/mm2) in G5. Conclusion: It is recommended to carefully optimize the concentrations of DMAHDM and/or MPC to maintain mechanical integrity. Full article
(This article belongs to the Special Issue Advances in Dental and Restorative Materials)
►▼ Show Figures

Figure 1

10 pages, 823 KiB
Article
Dentin Bond Strength of Dental Adhesives Functionalized with Polyhedral Oligomeric Silsesquioxanes
by Jana Biermann, Charlyn Elise Bień, Clemens Lechte, Philipp Kanzow and Annette Wiegand
Materials 2024, 17(6), 1321; https://doi.org/10.3390/ma17061321 - 13 Mar 2024
Viewed by 1195
Abstract
This study analyzed the dentin shear bond strength (SBS) of an etch-and-rinse (ER) or a self-etch (SE) adhesive incorporated with multifunctional polyhedral oligomeric silsesquioxanes (MA-POSS-8). An ER adhesive (Solobond Plus, VOCO GmbH, Cuxhaven, Germany) and a universal adhesive applied in SE mode (Scotchbond [...] Read more.
This study analyzed the dentin shear bond strength (SBS) of an etch-and-rinse (ER) or a self-etch (SE) adhesive incorporated with multifunctional polyhedral oligomeric silsesquioxanes (MA-POSS-8). An ER adhesive (Solobond Plus, VOCO GmbH, Cuxhaven, Germany) and a universal adhesive applied in SE mode (Scotchbond Universal, 3M, St. Paul, MN, USA) were infiltrated with MA-POSS-8 (Hybrid Plastics Inc., Hattiesburg, MS, USA) at 5 wt.% or 10 wt.%. Pure adhesives served as controls. Bovine dentin specimens were conditioned with one of the adhesives prior to the application of a nano-hybrid composite (Venus Diamond A3, Kulzer, Hanau, Germany). SBS and failure modes were determined after water storage for 24 h, 6 months, 12 months, or 24 months (each subgroup n = 20). Statistical analysis was performed using ANOVAs, Weibull statistics, and χ2 tests (p < 0.05). SBSs for the control groups after 24 h were 17.4 ± 4.9 MPa for the ER adhesive and 19.1 ± 5.2 MPa for the universal adhesive. After 24 months, the SBS of the ER adhesive was significantly higher for 5 wt.% MA-POSS-8 (17.9 ± 5.1 MPa) than for the control group (14.6 ± 3.6 MPa) and 10 wt.% MA-POSS-8 (12.8 ± 4.1 MPa), and more cohesive failures were observed. The SBS of the universal adhesive increased during aging, irrespective of the MA-POSS-8 concentration. 5 wt.% MA-POSS-8 improves the SBS of the ER adhesive and does not impair the SBS of the SE adhesive. Full article
(This article belongs to the Special Issue Advances in Dental and Restorative Materials)
►▼ Show Figures

Figure 1

Show export options expand_more Show export options expand_less
Select all
Export citation of selected articles as:

Displaying articles 1-4
Back to TopTop
