materials-logo

Journal Browser

Journal Browser

Advances in Additive Manufacturing: Characteristics and Innovation, 2nd Edition

A special issue of Materials (ISSN 1996-1944). This special issue belongs to the section "Manufacturing Processes and Systems".

Deadline for manuscript submissions: 20 June 2025 | Viewed by 7364

Special Issue Editors


E-Mail Website
Guest Editor
School of Materials Science and Engineering, Jilin University, Changchun, China
Interests: welded joints; fatigue strength; welds
Special Issues, Collections and Topics in MDPI journals
College of Mechanical and Electrical Engineering, Northeast Forestry University, Harbin 150040, China
Interests: fusion welding; metal additive manufacturing; laser cladding; improvement microstructure; corrosion performance
Special Issues, Collections and Topics in MDPI journals

Special Issue Information

Dear Colleagues,

Additive manufacturing technology, as an emerging technology, is widely employed to build metallic and non-metallic materials, which is useful for enhancing manufacturing development. Therefore, advances in additive manufacturing continue to be a hot topic, and it is necessary to carry out research on the characteristics of and innovations in additive manufacturing.

After the success of the Special Issue of Materials on “Advances in Additive Manufacturing: Characteristics and Innovation”, we are delighted to introduce this second edition.

The scope of this Special Issue entitled “Advances in Additive Manufacturing: Characteristics and Innovation, 2nd Edition” includes the following areas:

  • Improved microstructure of the AM component in all processing steps with the final analysis of its microstructure and properties, including the powder/wire composition, deposition process, and so on.
  • Mechanical properties of the AM component, including fatigue performance, wear performance, and so on.

We encourage the submission of both research papers and review articles.

Prof. Dr. Xiaohui Zhao
Dr. Chao Chen
Guest Editors

Manuscript Submission Information

Manuscripts should be submitted online at www.mdpi.com by registering and logging in to this website. Once you are registered, click here to go to the submission form. Manuscripts can be submitted until the deadline. All submissions that pass pre-check are peer-reviewed. Accepted papers will be published continuously in the journal (as soon as accepted) and will be listed together on the special issue website. Research articles, review articles as well as short communications are invited. For planned papers, a title and short abstract (about 100 words) can be sent to the Editorial Office for announcement on this website.

Submitted manuscripts should not have been published previously, nor be under consideration for publication elsewhere (except conference proceedings papers). All manuscripts are thoroughly refereed through a single-blind peer-review process. A guide for authors and other relevant information for submission of manuscripts is available on the Instructions for Authors page. Materials is an international peer-reviewed open access semimonthly journal published by MDPI.

Please visit the Instructions for Authors page before submitting a manuscript. The Article Processing Charge (APC) for publication in this open access journal is 2600 CHF (Swiss Francs). Submitted papers should be well formatted and use good English. Authors may use MDPI's English editing service prior to publication or during author revisions.

Keywords

  • additive manufacturing
  • microstructure
  • mechanical properties
  • fatigue
  • wear

Benefits of Publishing in a Special Issue

  • Ease of navigation: Grouping papers by topic helps scholars navigate broad scope journals more efficiently.
  • Greater discoverability: Special Issues support the reach and impact of scientific research. Articles in Special Issues are more discoverable and cited more frequently.
  • Expansion of research network: Special Issues facilitate connections among authors, fostering scientific collaborations.
  • External promotion: Articles in Special Issues are often promoted through the journal's social media, increasing their visibility.
  • e-Book format: Special Issues with more than 10 articles can be published as dedicated e-books, ensuring wide and rapid dissemination.

Further information on MDPI's Special Issue policies can be found here.

Related Special Issue

Published Papers (3 papers)

Order results
Result details
Select all
Export citation of selected articles as:

Research

Jump to: Review

13 pages, 10567 KiB
Article
Dissimilar Gas Tungsten Arc Welding of (FeCoNi)96Al4 High-Entropy Alloy and Q235 Structural Steel
by Zhen Yang, Guorui Sun and Chao Chen
Materials 2025, 18(2), 280; https://doi.org/10.3390/ma18020280 - 10 Jan 2025
Viewed by 544
Abstract
(FeCoNi)96Al4 high-entropy alloy (HEA) is a new material with a strength similar to that of commercial Q235 structural steel, and its elongation is nearly three times greater than that of Q235 steel. Studying the welding process of the (FeCoNi)96 [...] Read more.

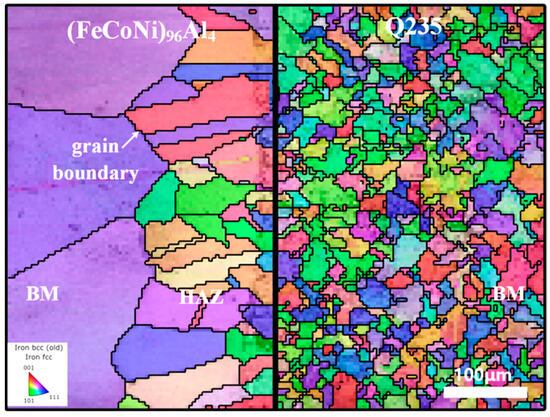

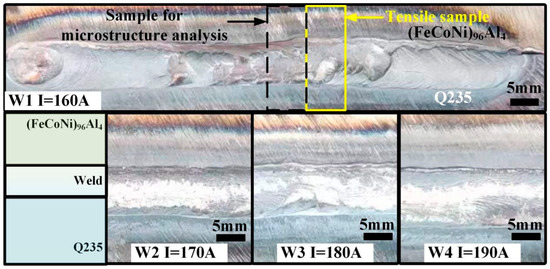

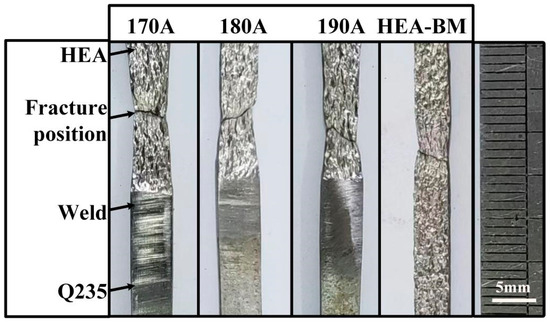

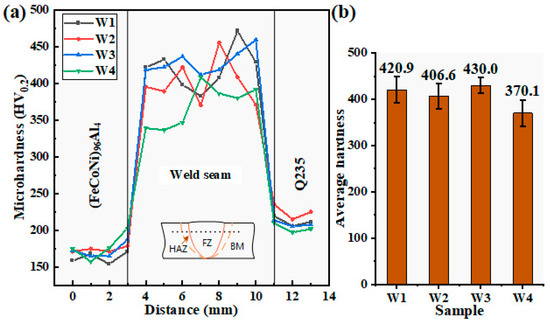

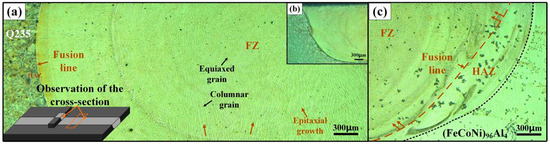

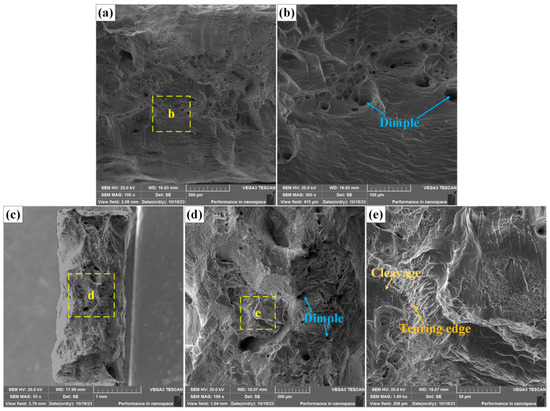

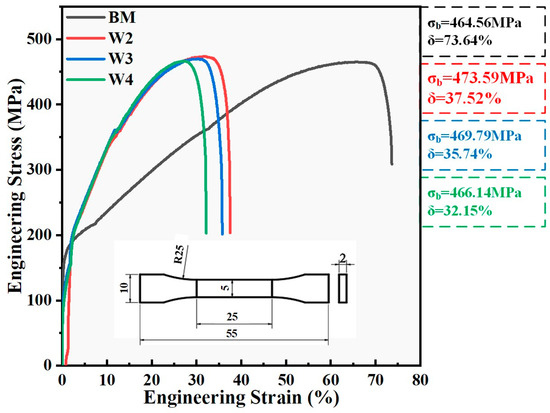

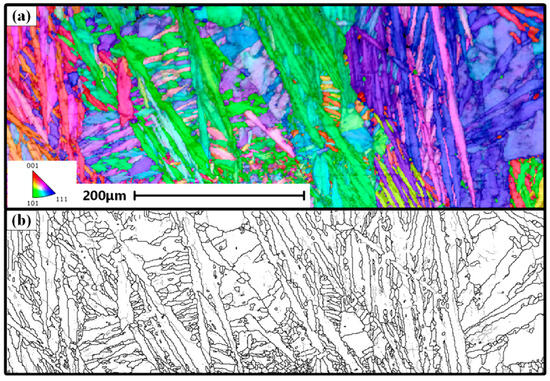

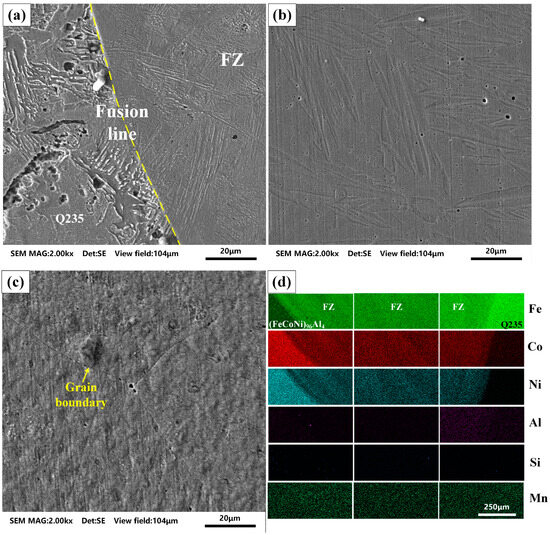

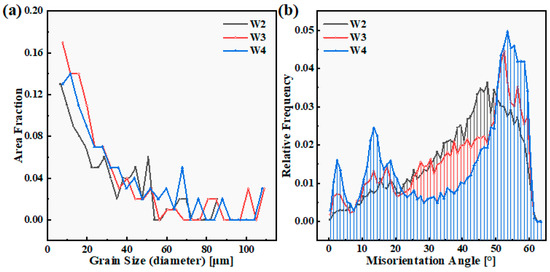

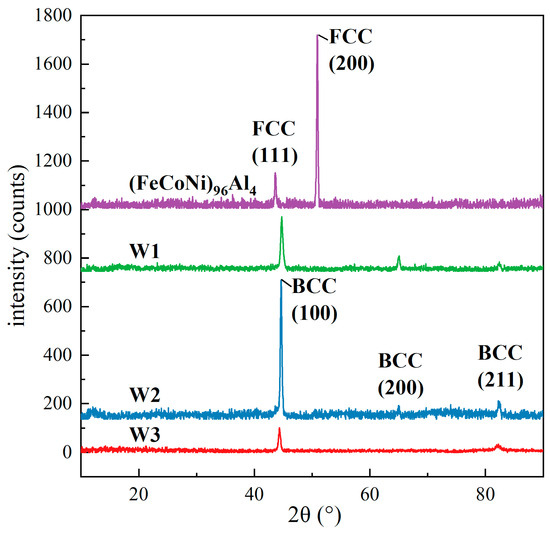

(FeCoNi)96Al4 high-entropy alloy (HEA) is a new material with a strength similar to that of commercial Q235 structural steel, and its elongation is nearly three times greater than that of Q235 steel. Studying the welding process of the (FeCoNi)96Al4 HEA and Q235 steel is expected to further expand the application range of commercial Q235 structural steel and provide a foundation for the engineering application of the (FeCoNi)96Al4 HEA. This study focuses on the dissimilar welded components of (FeCoNi)96Al4 HEA and Q235 steel and analyzes the forming quality, microstructure, and mechanical properties of dissimilar welded samples under different currents. The results show that when the welding current is above 170 A, the 3 mm sheet metal is completely penetrated, and a well-formed weld seam is obtained. The base metal of the (FeCoNi)96Al4 HEA has an FCC structure, whereas the fusion zone of the weld seam is almost entirely a BCC structure. The microstructure of the weld seam exhibits needle-like and block-like grains that are different from those of the base metal. Owing to the difference in microstructure between the weld seam and the base metal, the average microhardness of the welded joint is twice that of the base metal. The strength of the dissimilar welded components reached 460 MPa, maintaining the tensile strength of the (FeCoNi)96Al4 HEA, which is similar to that of the Q235 structural steel. The elongation reached over 30%, which was significantly greater than that of the Q235 structural steel. Full article
Show Figures

Figure 1

9 pages, 4197 KiB
Communication
Study on Properties of Additive Manufacturing Ta10W Alloy Laser-Welded Joints
by Rui Zhen, Liqun Li, Yunhao Gong, Jianfeng Gong, Yichen Huang and Shuai Chang
Materials 2024, 17(24), 6268; https://doi.org/10.3390/ma17246268 - 22 Dec 2024
Viewed by 4284
Abstract
This investigation focuses on Selective Laser Melting (SLM)-fabricated thin-walled Ta10W alloy components. Given the inherent limitations of SLM in producing large-scale, complex components in a single operation, laser welding was investigated as a viable secondary processing method for component integration. The study addresses [...] Read more.
This investigation focuses on Selective Laser Melting (SLM)-fabricated thin-walled Ta10W alloy components. Given the inherent limitations of SLM in producing large-scale, complex components in a single operation, laser welding was investigated as a viable secondary processing method for component integration. The study addresses the critical issue of weldability in additively manufactured tantalum-tungsten alloys, which frequently exhibit internal defects due to process imperfections. Comprehensive analyses were conducted on weldability, microstructural evolution, texture intensity, and mechanical properties for welds oriented along both traveling and building directions. Results demonstrate that welds oriented along the traveling direction exhibit superior performance characteristics, including enhanced tensile strength, increased yield strength, improved elongation, and reduced texture intensity compared to building direction welds. Notably, grain orientation alignment between the weld zone and base material was observed consistently in both directional configurations. Full article
Show Figures

Figure 1

Review

Jump to: Research

42 pages, 7755 KiB
Review
Application of Numerical Modeling and Finite Element Analysis in Fused Filament Fabrication: A Review
by Saeed Behseresht, Young Ho Park, Allen Love and Omar Alejandro Valdez Pastrana
Materials 2024, 17(17), 4185; https://doi.org/10.3390/ma17174185 - 23 Aug 2024
Cited by 5 | Viewed by 1931
Abstract
Additive manufacturing (AM) is not necessarily a new process but an advanced method for manufacturing complex three-dimensional (3D) parts. Among the several advantages of AM are the affordable cost, capability of building objects with complex structures for small-batch production, and raw material versatility. [...] Read more.
Additive manufacturing (AM) is not necessarily a new process but an advanced method for manufacturing complex three-dimensional (3D) parts. Among the several advantages of AM are the affordable cost, capability of building objects with complex structures for small-batch production, and raw material versatility. There are several sub-categories of AM, among which is fused filament fabrication (FFF), also commonly known as fused deposition modeling (FDM). FFF has been one of the most widely used additive manufacturing techniques due to its cost-efficiency, simplicity, and widespread availability. The FFF process is mainly used to create 3D parts made of thermoplastic polymers, and complex physical phenomena such as melt flow, heat transfer, solidification, crystallization, etc. are involved in the FFF process. Different techniques have been developed and employed to analyze these phenomena, including experimental, analytical, numerical, and finite element analysis (FEA). This study specifically aims to provide a comprehensive review of the developed numerical models and simulation tools used to analyze melt flow behavior, heat transfer, crystallization and solidification kinetics, structural analysis, and the material characterization of polymeric components in the FFF process. The strengths and weaknesses of these numerical models are discussed, simplifications and assumptions are highlighted, and an outlook on future work in the numerical modeling and FE simulation of FFF is provided. Full article
Show Figures

Figure 1

Back to TopTop
