Genomic and Epigenomic Plasticity in the Hypoxic Environment

Abstract

Our genome has evolved a complex network of information designed to precisely regulate gene transcription. Commonly known as cis-regulatory elements, they represent those parts of DNA that are highly sensitive to environmental changes in the form of associated multi-protein complexes. Oxygen levels are an important environmental factor influencing a range of cellular activities, including cell survival. To respond to changes in oxygen levels, cells have developed an efficient and precise system for regulating gene expression. Cis-regulatory elements are the key hubs of this response and control the activation of the transcriptional response to hypoxia. In this review, we will discuss the complex genomic and epigenomic structures that are modulated by oxygen and control the activity of cis-regulatory elements and the adaptations to variations in O₂ availability.

1. Hypoxia-Inducible Factors (HIFs) and the Cellular Oxygen Sensor

In order to proliferate and survive, cells must sense O₂ levels and adapt to their fluctuations. In our tissues, hypoxia is a critical environmental factor that triggers efficient and rapid adaptations by controlling gene transcription. Cells are exposed to different O₂ concentrations that influence their behavior. In addition, cells must quickly adapt to oxygen fluctuations, which are strictly monitored by an efficient sensor [1,2]. The key elements of this evolutionarily conserved adaptive response are the transcription factors (TFs) hypoxia-inducible factors (HIFs). HIF-1 is a heterodimer composed of an O₂-regulated subunit HIF-1α/HIF1A and a constitutively expressed subunit HIF-1β/ARNT. A second O₂-sensitive subunit, EPAS1/HIF2A/HIF-2α, may be expressed, and the relative amounts of the two isoforms may vary from cell to cell. The abundance of HIF-1α is controlled by O₂ via the hydroxylation of proline residues 402 and 564 (Pro-405 and Pro-531 in EPAS1/HIF2A). These modifications are carried out by the prolyl hydroxylases PHD1, PHD2, and PHD3, also known as EGLN2, EGLN1, and EGLN3, respectively, and 2-oxoglutarate. Prolyl hydroxylation promotes interaction with the von Hippel–Lindau (VHL) E3-ubiquitin ligase complex. VHL is an important subunit of an E3 ubiquitin ligase complex that includes Elongin C, Elongin B, CUL2, and other proteins. This degradation machinery polyubiquitylates HIF-1α and HIF-2α for proteasomal degradation in an oxygen-dependent manner. Under hypoxia, the prolyl-hydroxylases that hydroxylate HIF-1α and HIF-2α in the presence of oxygen, are inactive. In this state, HIF-1α and HIF-2α are not hydroxylated, and are not recognized by the VHL complex [1,3,4,5]. This leads to an accumulation of these TFs in the cells to activate the transcription of hypoxia-inducible genes. EGLN2, EGLN1, and EGLN3 have the highest in vitro KM values for oxygen of all other 2-oxoglutarate-dependent dioxygenases, and are therefore able to respond to changes in oxygen levels in the range generally found in our body [6].

2. Cis-Regulatory Elements and the 3D Genome

Distal regulatory elements, known as enhancers, super-enhancers and silencers, are important DNA sequences that control gene expression. Enhancers work together with promoters to control gene transcription in response to environmental cues or to coordinate cell fate decisions. In certain genomic regions, enhancers can cluster and form a dense core of TF binding sites 5–50 kb in length. These clusters are referred to as super-enhancers (SEs) and, in addition to their particular size, also have similar epigenetic characteristics to typical enhancers (TEs). SEs are important nodes that control gene expression in the context of cell fate [7,8,9,10]. Recently, various regulatory elements have been proposed to organize SEs. Using the model of alpha-globin, SEs were divided into different domains defined as classical and facilitator enhancers, the latter elements being involved in the potentiation of classical enhancers. In the absence of facilitators, reduced Mediator recruitment, enhancer–RNA transcription, and enhancer–promoter interactions were observed for the alpha–globin locus [11].

How enhancers and promoters interact and cooperate to control gene expression, and which genes are under the spatial control of enhancers, is not entirely clear. One hypothesis assumes that the Cohesin complex drives the chromatin loops and, thus, the contacts between enhancers and promoters (E-P) [12]. The ability of the Cohesin complex to extrude chromatin loops has been implicated as a tool to control E-P interactions and to create transcription units by controlling the organization of topologically associating domains (TADs) via insulator-insulator protein interactions [10,12]. However, interfering with Cohesins expression does not lead to dramatic changes in gene expression, although the organization of TADs is disturbed [13,14]. Instead, active transcription is necessary for the stability of E-P interaction, but it is dispensable for the stability of TADs and limiting the extrusion of longer CTCF-anchored loops [14]. Recently, it has been proposed that RNA polymerase II, when paused at promoters, contributes to E-P interactions [14,15]. Regulation that may be influenced by HIF-1α through its ability to switch paused RNAPII at the promoters of hypoxia-regulated genes into an elongation-capable enzyme [16,17,18].

Several factors have been held responsible for the organization of E-P interactions [19,20,21]. For example, the architectural protein and transcriptional cofactor LDB1 has recently been proposed to mediate E-P and E-E loops and gene transcription independently of the Cohesins, CTCF or YY1 [22]. It is therefore becoming apparent that there are probably different types of E-P and E-E contacts/loops that are controlled by specific multiprotein complexes. In the following sections, we will discuss how HIFs modulate the hypoxia response by recognizing cis-regulatory elements, how epigenetic state may influence the accessibility of these sites, and whether hypoxia can modulate the epigenome, particularly at distal cis-regulatory sites.

3. Distal Cis-Regulatory Elements and the Hypoxia Response

Not surprisingly, distal cis-regulatory elements also play a key role in regulating the hypoxia response. TEs can promote the transcription of hypoxia genes, and also influence the adaptation of organisms to a hypoxic environment through Darwinian selection. Initial studies have identified a TE that promotes transcription of the erythropoietin (EPO) gene under hypoxia. This TE is located at the 3′-end of the gene [23,24,25]. TEs have also been identified that control or are embedded in other hypoxia-responsive genes such as vascular endothelial growth factor (VEGF) [26,27], GLUT1, the glucose transporter gene [28], lactate dehydrogenase A (LDHA) [29], glyceraldehyde-3-phosphate dehydrogenase (GAPDH) [30], and others [31,32], including genes involved in iron metabolism [33]. TEs may also be responsible for regulating HIF-1α expression in a feed-forward loop [34].

Often, these distal cis-regulatory elements contain hypoxia-responsive elements (HREs), the conserved HIF-binding site with an A/GCGTG core motif and a highly variable flanking sequence [35]. In complex with chromatin remodelers, and in cooperation with various transcription factors, HIFs (HIF-1α and/or HIF-2α) can also potently activate transcription at these sites. There is also evidence that the transcriptional activity of HIFs may be under the influence of the circadian rhythm [36,37,38].

The list of TEs examined under hypoxia is long and includes elements involved in the tumor formation process. Clear cell renal cell carcinoma (ccRCC) is characterized by the germline variant and somatic inactivation of the tumor suppressor VHL with the resulting stabilization of HIFs. ccRCC accounts for 80% of renal cell carcinomas, and represents an important model for understanding the contribution of HIFs to the tumor formation process [39]. In primary ccRCC cells and established cell lines, the rearrangements of cis-regulatory elements (promoters, enhancers, and super-enhancers) were mapped using classical epigenetic markers (H3K4me1, H3K4me3, and H3K27ac). Activated promoters control general cancer-related processes (cell cycle, RNA metabolism, etc.), while activated enhancers are associated with genes specific to ccRCC, including HIF1A, angiogenesis, glycolysis, and metabolism. Gained SEs were related to important oncogenes for ccRCC development (VEGFA and EPAS1/HIF2A). Although several of these cis-regulatory elements are under the regulation of VHL, particularly genes of the HIF pathway, other elements are activated independently of VHL. Indeed, mutations in chromatin regulators may characterize ccRCC. These genes may be involved in the switching of cis-regulatory elements, thus ensuring independence from VHL [40,41].

In ccRCC, rewiring of the transcriptional landscape driven by HIFs through binding to selected TEs, also in cooperation with other TFs, plays a crucial role in the tumorigenic process. HIF2A cooperates with the lineage-specific TF PAX8 to support the tumor cell growth. HIF2A is recruited to PAX8-bound TEs, including a cyclin D1 (CCND1) TE, to reshape the transcriptional landscape. In ccRCC, dysregulation of CCND1 is an important event of the tumorigenic process [42]. In ccRCC, polymorphisms can also influence HIF–DNA interactions at the TE, and thus promote the tumorigenic process [43]. A similar observation was made for other oncogenes regulated by HIF1A, such as MYC [44].

Similarly to TEs, SEs can also be used to regulate the hypoxia response. A SE drives the upregulation of the glycolysis gene hexokinase II (HK II) during hypoxia [45]. SE may also be responsible for individual adaptation to the hypoxic environment. A structural variant, a deletion in the SE that regulates EPAS1/HIF2A and possibly the expression of other genes, was identified it an altitude-adapted Tibetan [46]. In this context, the pioneer transcription factor FOXA1 can modulate various SE, of which the one that controls HIF2A transcription [47].

By mapping nascent long non-coding RNAs (lncRNAs) using global run-on sequencing (GRO-seq), a strategy to characterize nascent RNA, in endothelial cells under hypoxic conditions, an increase in promoter-associated lncRNA transcription over enhancer-associated was observed. This result suggests an important role of promoters in shaping transcriptome adaptation to hypoxia. However, the same authors also reported a significant induction of the activity of SE associated with genes controlling angiogenesis, cell adhesion, and survival [48].

In summary, a complex network of interactions between proximal and distal cis-regulatory elements controls the fine-tuning of hypoxic responses, and it is not surprising that dysregulations in this network can affect adaptation to hypoxic conditions.

4. The 3D Genome Under Hypoxia

Chromosome conformational assays were used to map the long-range physical connections between enhancers and promoters, including those recognized and bound by HIF-1α. Remarkably, these interactions are not altered by hypoxia in the experimental models used. Thus, HIF-1α appears to act on already defined sets of chromatin loops. These sometimes-extended chromatin loops are already defined under normoxic conditions. It appears that the hypoxic response in terms of nuclear architecture is a structurally predefined response that is already primed in cells that are not challenged by the hypoxic environment. It is possible that this strategy has become evolutionarily established, because it allows a faster and more efficient response to changes in oxygen levels [49,50]. The predetermined E-P network of interactions that controls transcription of hypoxia genes has also been observed in other studies. HIF-2α binds to an oxygen-sensitive enhancer in intron 3, and stimulates transcription of the WT1 gene in neuroblastoma cells through hypoxia-independent chromatin loops [51]. Furthermore, a hypoxia-responsive element (HRE) located −82 kb from the TSS of the PAG1 gene physically associates with the PAG1 promoter region independently of the HIF-DNA interaction, and is required for hypoxia-induced upregulation of transcription [52].

Using a different approach, high-throughput imaging, the spatial localization of about 100 hypoxia-responsive genes within the nucleus was determined. These hypoxia genes are often localized in the intermediate region of the nucleus. About 20% of them changed their position during hypoxia, but without a clear correlation with gene activation [53]. A recent study suggests that hypoxia may affect the fine 3D nuclear structure. Under hypoxia, upregulation of CTCF expression and binding may modulate the upstream promoter-exon loop. This spatial reorganization influences alternative splicing, and supports EMT [54].

In summary, although few studies have investigated the changes in high-order chromatin organization during hypoxia, it is emerging that several distal contacts between T and E, under the influence of HIFs, are already established in the absence of hypoxia [55]. However, further studies are needed to confirm this scenario and perhaps some new discoveries will be possible.

5. The Landscape of HIFs Genomic Binding

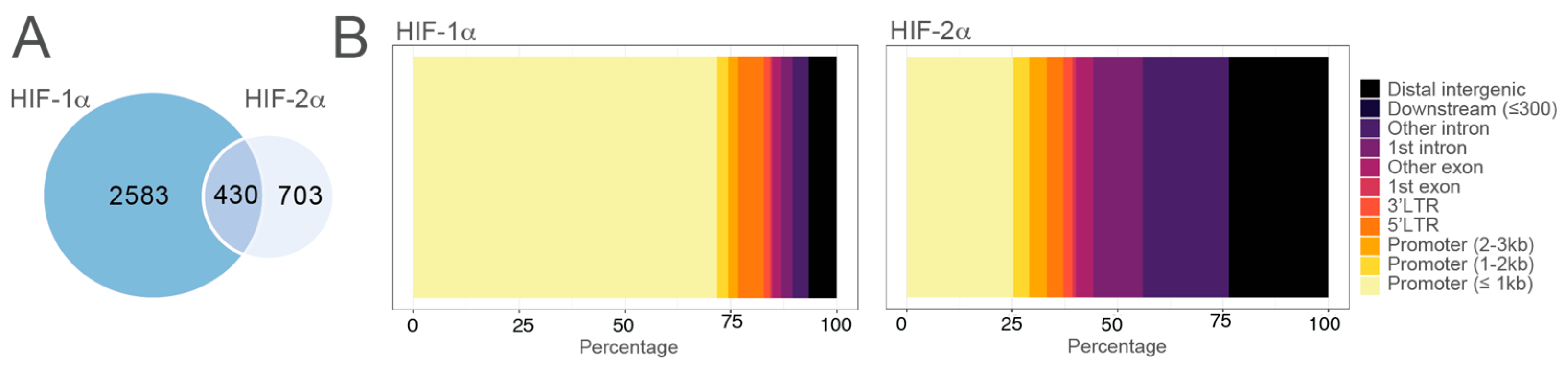

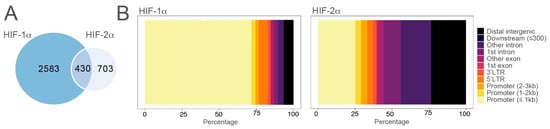

Despite some similarities in terms of regulation, HIF-1α and HIF-2α have a different tissue distribution, with HIF-2α being expressed only in certain tissues, while HIF-1α is more ubiquitously expressed [55,56,57]. Interactions with other transcriptional coactivators, including the acetyl-transferases, CBP (CREBBP) and p300, influence the transcriptional activities of HIF-1α and HIF-2α [57,58]. These KATs enhance the transcriptional activities of HIFs by acetylating HIFs themselves and the surrounding chromatin [5,55].

Pan-transcriptomic analyses of cells under hypoxia have shown that the transcriptional targets of HIFs are highly variable, mainly depending on the cell type [59]. Despite this high variability, a consensus set of 48 HIFs target genes was defined that is highly conserved across different cancer types and cell lines. This common signature may be useful as a reference for HIFs activities in different contexts [59].

The RCGTG motif is considered the minimal cis-regulatory element required for the binding of HIFs to dsDNA [35]. To understand the distinct and shared activities of HIF-1α and HIF-2α, defining the genomic regions under their influence was a fundamental step. Chromatin immunoprecipitation sequencing (ChIP-seq) is a common method used to map the regions of DNA bound by proteins on a genome-wide basis. In the first ChIP-seq studies, aimed at defining the genome-wide binding sites of HIF-1α and HIF-2α, only 0.05% and 0.04% of the putative (more than 10⁶) RCGTG binding motifs in the human genome were found to be bound by these TFs under hypoxia, respectively. ChIP-seq studies in MCF-7 cells have shown that both HIF-1α and HIF-2α show a preference for an A over a G in the R position, but preference was also seen for T immediately 5′ to the RCGTG and for C immediately 3′ to this motif. In addition, HIF-1α binds preferentially near the TSS compared to HIF-2α [60,61] (Figure 1). Another ChIP-seq analysis performed in HUVECs under 1% O₂ for 24 h revealed 2060 binding regions for HIF-1α, which are often quite distant from the TSS (>50 kb). The authors observed a decrease in binding of HIF-1α to the intergenic regions upon hypoxia, accompanied by an increase in binding to promoters [62]. Other studies reported far fewer regions bound by HIF-1α, a variability that could be due to the cell models studied, the experimental protocol used to induce hypoxia, or technical reasons [63,64,65,66,67].

Not surprisingly, the same large heterogeneity observed in the transcriptomic studies also occurred in the ChIP-seq experiments. When comparing the genomic regions bound by HIFs between different cell models, the differences dominated. Although HIF-1α and HIF-2α frequently show not-conserved DNA binding activities in different cell lines, they also exhibit conserved features such as distance from the TSS and genome binding ratio. HIF-1α always shows a higher number of bound regions than HIF-2α [60,61].

All of these genomic peculiarities are clearly reflected in specific patterns of hypoxia gene transcription. HIF-1α preferentially binds cis-regulatory elements of genes encoding enzymes of glycolytic metabolism [68] PGK and BNIP3 [68,69], while HIF-2α specific targets are EPO, OCT4, and TGFβ [69,70,71,72,73]. In contrast, VEGF is a common target of both TFs [58].

A large percentage of genomic regions bound by HIFs under hypoxia are already in open chromatin (DNAse I hypersensitive sites) under normoxic conditions, and show markers for open chromatin conformation such as H3K4me3 and H3 acetylation [60,63]. A predetermined condition also observed for the long-range interactions (E-P, P-E, and E-E) between intergenic HIF-binding regions and one or more promoters of hypoxia-inducible genes [49].

Since tumor growth is closely associated with the creation of a hypoxic environment, the activities of HIFs in the tumor formation process have been frequently studied. In general, cancer cells appear to be more dependent on HIF-1α than on HIF-2α, with the important exception of ccRCC [74,75]. Although HIF-2α and HIF-1α have the same effects on angiogenesis, invasion, and metabolism, all of which contribute to tumor growth and progression, they also exhibit opposite activities. For example, HIF-2α promotes c-Myc transcriptional activity and cell cycle progression, while HIF-1α inhibits c-Myc functions and cell proliferation [76].

6. Chromatin Accessibility Under Hypoxia

Further studies on the accessibility of chromatin under hypoxia have shown that while many regions are already available for transcription under normoxia, other regions can open up or increase their accessibility under hypoxia [77]. Using Assay for Transposase-Accessible Chromatin using sequencing (ATAC-seq), a method for the assessment of the accessibility of the whole genome, different open regions between normoxia and 6 h of hypoxia were identified in HUVEC cells. These regions account for 15.81% of the total 54,102 accessible chromatin regions [78].

Studies on changes in chromatin accessibility under hypoxia have often been associated with the identification of cis-regulatory elements. These studies have provided a better understanding of the evolution of cis-regulatory elements in the regulation of hypoxia. Identification of DNase I-sensitive sites was critical for defining a tissue-specific VEGFA enhancer [27] or for identifying single nucleotide polymorphisms (SNPs) in intergenic regions with regulatory properties, as described above [44]. In renal cell carcinoma (RCC), accessible chromatin regions with HIF-responsive promoters are embedded within an endogenous retroviral long terminal repeat (LTR). LTR elements can act as distal enhancers or promoters [79], and induce the expression of genes that are important for the aggressiveness of renal cell carcinoma [80]. Accessible chromatin regions often correlate with hypoxia-induced 6mA- and H3K4me1-marked regions (see below), strongly indicating that they are functional transcriptional regulatory elements such as TEs and SEs [81].

In addition to distal cis-regulatory elements, promoters are also frequently modulated in terms of their accessibility during hypoxia. Indeed, under hypoxia, differentially accessible regions, as defined by ATAC-seq experiments, correlate well with HIF-dependent changes in gene transcription [82]. Not surprisingly, there are also regions where chromatin accessibility is reduced during hypoxia. These restrictions can also occur independently of HIF-1α or HIF-2α. Examples include the regulatory regions that control the expression of genes belonging to the IFN signaling pathway, and that may contribute to the immunosuppressive environment observed in hypoxic tumors [83], or to the activation of specific differentiation pathways [84]. In other study, a reduction in accessibility was observed primarily at promoters of genes involved in DNA repair, RNA splicing, and the R-loop interactome [85].

Chromatin remodelers are large multiprotein complexes with ATPase activity that favor access to the DNA sequence [86]. Increased chromatin accessibility through the involvement of chromatin remodelers can also influence the response to hypoxia. The multiprotein complex SWI/SNF is the best studied chromatin remodeler. In humans, it is known as BAF (BRG1- or BRM-associated factors). In humans, three different subcomplexes of different sizes have been characterized: the canonical BAF (cBAF), the polybromo BAF (pBAF), and the non-canonical BAF (ncBAF, also known as GBAF). The three subcomplexes are characterized by a specific composition the subunits. BAF is characterized by the presence of ARID1A/ARID1B and DPF2. PBRM1, ARID2, and BRD7 distinguish pBAF, while GLTSCR1/GLTSCR1L and BRD9 are present in ncBAF/GBAF [87].

The involvement of components of the SWI/SNF complex in the activity of HIF-1α and presumably in the regulation of chromatin accessibility has been reported in an early study [36]. This likely reflects a basic strategy in nucleosome remodeling/eviction to facilitate access to genomic regions where the consensus binding sites of HIFs, or for other TFs that cooperate with HIFs, are located [36,88,89].

The existence of different BAF subcomplexes could explain some seemingly contradictory results regarding HIF-dependent transcription, especially in pathogenic contexts. In ccRCC, in addition to the VHL mutations, other cooperating mutations are necessary for the development of the disease. An example of this are mutations in the tumor suppressor genes PBRM1 and BAP1. The PBRM1 component of the pBAF complex limits the transcription activity of HIFs, and its loss increases the transcription intensity of HIF-1α [90,91]. In lung cancer, the alteration of the BAF complex due to a deficiency of the ARID1A subunit promotes tumor development and supports the hypoxia response. Loss of ARID1A leads to increased binding of HIF-1α to the promoter regions of glycolytic metabolism genes (PGAM1, PKM, and PGK1). In the absence of ARID1A, HDAC1 is not recruited to chromatin, leading to increased H4K8 and H4K12 acetylation at the promoter of these genes [92].

In summary, the overall profile of chromatin accessibility is not dramatically perturbed in hypoxia, suggesting a predetermined structural organization. This predefined configuration may reflect the requirement of a certain level of gene transcription, even under normoxic conditions. Regulation of chromatin accessibility may dynamically enhance this baseline level of gene expression under hypoxia. Moreover, these specific modulations may have important effects on tissue-specific adaptations to hypoxia and on the tumor formation process.

7. Epigenetic Modifications

7.1. DNA Methylation

DNA methylation is an important epigenetic modification that is generally involved in creating a compact chromatin state and a transcription inhibitory environment. DNA methylation occurs at selected cytosines (5-methylcytosine; 5mC), often in the presence of the dinucleotide cytosine-guanine, extended as CpG island [93,94,95].

During hypoxia, DNA methylation can shape the gene landscape under HIFs control in a differentiation- and tissue-specific context [96,97]. Hypoxia can also promote DNA methylation to repress gene expression [98,99,100]. For example, DNA methyltransferase 3a (DNMT3a), a de novo methylase, can silence the HIF-2α gene, preventing activation of the HIF-2α genetic program associated with hypoxic cell growth. This deficiency reduces the proliferative capacity of adult cells under low oxygen tension [101].

In addition to targeted DNA methylation, a global decrease in methylation was also observed during hypoxia. This decrease could have various causes. A decrease in the methyl donor S-adenosylmethionine (SAM), which was observed during hypoxia, could contribute to it [102]. This global demethylation can cause the expression of genomic regions that were silenced during normoxia, such as repetitive elements, including endogenous retroviruses [103,104]. Demethylation at repetitive elements may be under the control of HIFs, may cause accumulation of dsRNAs and viral mimicry, and may affect the immune response in tumors [105].

Also considering the studies on chromatin accessibility at HIF binding sites, DNA methylation appears to be primarily involved in regulating the tissue-specific or context-specific accessibility to hypoxia-responsive elements. Less common are the observations of a contribution of DNA methylation to the reorganization of chromatin accessibility at HIF binding sites under hypoxia [106]. However, there are also reports indicating an active role of DNA methylation in the plasticity of the hypoxia response, and in adaptive mechanisms, e.g., in the adaptation to high altitude exposure [107,108,109,110]. Modulation of DNA methylation under hypoxia can also influence the local spatial organization of chromatin and exon usage for the formation of VEGFA mRNA splice variants and angiogenesis [111]. Thus, although the potential hypoxia-dependent transcriptional program is largely predetermined by DNA methylation, some modifications are still possible.

DNA methylation is also subject to the control of enzymes that reverse this modification through a complex mechanism. DNA demethylation is catalyzed by the ten-eleven-translocation 5-methylcytosine dioxygenase (TET) family of enzymes. These enzymes convert 5-methylcytosine (5-mC) into the intermediate 5-hydroxymethylcytosine (5-hmC), which is subsequently modified into cytosine using various strategies [112]. Studies have shown a global increase in 5-hmC levels, including hypoxia genes. This regulation is part of a regulative circuit in which HIF-1α also upregulates TET1 transcription during hypoxia with the support of other TFs [113,114,115]. It has also been reported that TET1 acts as a co-activator of HIF-2α independently of its enzymatic activity [116]. In hematopoietic stem and progenitor cells, hypoxia, again via HIF-1α, regulates the transcription of TET3 [117]. The modulation of 5-hmC and of TET1 and TET3 during hypoxia has been confirmed by other studies [118,119]. TET2 activity is also involved in the hypoxia response. In breast cancer, TET2 is required to enable the binding of HIF-1α to the CTCF promoter, an important step in the regulation of EMT and tumor invasion [54]. A provocative report suggests that TET2 cooperates with NF-kB in macrophages and sustains the inflammatory response associated with immune infiltration and better prognosis of tumors [120]. Further studies have confirmed that TETs are regulated in hypoxia. In glioblastomas, they can regulate stem cells and pluripotency [121] and be a substrate of the PHD-pVHL pathway for proteasomal-mediated degradation. A mechanism that could help explain the increase in 5-hmC observed in hypoxia [122].

Although the expression of TETs is upregulated during hypoxia, their activity can be reduced, leading to hypermethylation in certain contexts. This leads to increased methylation of tumor suppressor gene promoters in hypoxic tumor tissue, a condition that gives the tumor cells an advantage. In a mouse model, this methylation can be reversed by the presence of oxygen [123].

Recently, another type of DNA methylation has entered the field: N6-methyldeoxyadenosine (6mA). The 6mA is enriched in mitochondrial DNA, and increases further in hypoxia, suggesting a regulatory role in the mitochondrial stress response [124]. In the nucleus, 6 mA is under the control of METTL4 during hypoxia. This modification controls the expression of RP11-390F4.3, a lncRNA, and of ZMIZ1, a novel HIF-1α activator. These genes coordinate the transcription of EMT genes. A response that influences the metastatic properties of cancer cells [125]. The 6mA modification has also been associated with accessible chromatin regions, and may play a role in controlling distal E-P interactions during hypoxia-induced gene expression [81].

In summary, overt changes in DNA methylation do not appear to be involved in the regulation of the essential hypoxia response, but peculiar modifications are emerging in various studies.

7.2. The Epigenetic of Histones

Chromatin accessibility and gene transcription is under the influence of different post-translational modifications (PTMs) of histones (Figure 2). These PTMs can influence the nucleosome structure and interaction, as well as the assembling of multiprotein complexes through the direct recognition of the induced PTMs. The result in terms of gene expression is or repression or transcription [126,127,128]. As we already briefly discussed, HIFs can interact with different co-activators or co-repressors, which can also orchestrate different epigenetic changes aimed to influence chromatin accessibility and gene expression. Several PTMs of histones such as acetylation, methylation, citrullination, krotonylation or ubiquitylation can be supervised by HIFs through the assembly in multiprotein complexes [129,130,131,132,133,134]. In the next sections, we will mainly focus the discussion on studies aimed to explore the genome-wide distribution of histone PTMs under hypoxia, using ChIP-seq experiments. We refer to previous excellent published reviews for a discussion on the local variations in specific histone PTMs during hypoxia [55,135].

7.3. Histone Acetylation Under Hypoxia

Histone acetylation is always associated with increased chromatin accessibility and the assembly of multiprotein complexes that promote gene expression [95,136]. A configuration of accessible chromatin achieved by neutralizing the positive charge of the ε-amino group, promoting chromatin remodeling, and controlling the assembly of transcriptional coregulators. N-ε-acetylation of lysine residues acts as a signal recognized by reader proteins characterized by the presence of acetyl-lysine binding domains known as bromodomains, YEATS domains, and PHD fingers [137].

Histone acetylation and, more generally, lysine acetylation is regulated by two antagonistic enzyme families of enzymes: the KATs, lysine acetyl-transferase and the KDACs, lysine deacetylases, also known as histone deacetylases (HDACs) [136,138,139]. The donor of the acetyl group is acetyl-CoA, whose availability directly links histone acetylation and gene expression to cell metabolism [137,138]. Cancer cells increase acetate uptake under hypoxia [140,141,142]. It has been proposed that this acetate uptake serves to buffer the global decrease in histone acetylation induced by hypoxia. Some leucine residues (H3K9, H3K27, and H3K56) show an increase in acetylation, while others (H3K14, H3K18, H3K23, and H3K36) are unaffected. This increase in histone acetylation affects genes involved in lipogenesis to regulate cell survival [142].

Acetylation of lysine 27 in histone H3 (H3K27ac) is the best-studied histone acetylation, and plays a key role in activating the transcription of several genes, including those involved in the hypoxia response (Table 1). H3K27ac is present in various cis-regulatory elements such as promoters, TEs, and SEs that can be modulated during hypoxia [7,143,144].

The genome distribution of histone acetylation by ChIP-seq was first performed in DLD-1 cancer cells and the non-cancerous counterpart TIG-3 to compare peak H3ac levels and distribution in normoxia and hypoxia (Table 1). In the regions surrounding the HIF-1α binding sites, H3ac peaks were already present in normoxia, and slightly increased in hypoxia in both cell lines [63]. In HUVEC cells, a comparative analysis of the genome-wide distribution of H3K27ac, H3ac, and H4ac between normoxia and hypoxia revealed that these epigenetic modifications were enriched in association with HIF-1α. Furthermore, H3K27ac covered 65% of the HIF-1α binding sites present in the genome [62]. In general, H3K27ac signals at HIF binding sites were already present in normoxia, and prior to binding of HIF-1α itself, although less abundant, suggesting that low-level expression of hypoxia-related genes occurs prior to hypoxia [49,145]. In HUVECs, H3K27ac peaks were increased after hypoxia, but the pattern of genome distribution did not change compared to normoxia. About 70% of H3K27ac peaks were found at the gene level under all conditions. Specifically, about 40% of the peaks were found between the first (16–17%) and the other introns (23–24%), and about 13–14% of the peaks were found between TSS (7%) and 5′-UTR (6–7%). The same results were obtained around the promoter of the ANGPTL4 gene in all conditions, emphasizing the relationship between H3K27ac, hypoxia, and angiogenesis [146]. This relationship between H3K27ac, hypoxia and angiogenesis has been confirmed by other studies. In fetal growth restriction (FGR), a condition in which the fetus cannot achieve full growth due to an insufficient supply of nutrients, growth factors and oxygen in the placenta, differentially acetylated regions can be mapped by ChIP-seq. A total of 515 genes can be associated with hyperacetylated regions, and 868 with hypoacetylated regions in FGR samples. Genes mapped to hyperacetylated regions were enriched in transcription regulated by HIF1-alpha/hypoxia or belonging to signaling pathways related to cancer and immune response. The genes annotated in the hypoacetylated regions, on the other hand, belonged to pathways related to angiogenesis, response to external signals and immune response [147].

The importance of H3K27ac in hypoxia has also been emphasized in the context of copper (Cu) deprivation. The authors performed a ChIP-Seq analysis of H3K27ac and HIF-1α distribution in a human umbilical vein endothelial cell line under simultaneous hypoxia and Cu deprivation. Based on colocalization between HIF-1α and H3K27ac signals, regions within 20 kb of the TSS bound by HIF-1α binding and characterized by H3K27ac signals were defined as “putative enhancers” (PEs). Approximately a thousand PEs were identified using this approach [148].

In ccRCC samples compared with corresponding healthy tissues, there were some gained enhancers characterized by the presence of H3K27ac and enriched with specific features of ccRCC such as HIF-1α network activity and proangiogenic pathways, such as VEGFA. This H3K27ac signature is VHL-dependent [40].

Hypoxia can be a problematic condition in the very last phase of pregnancy. During labor, the myometrium suffers from repeated transient hypoxia, which leads to increased uterine contraction. A key role in this process is played by members of the contraction-associated protein (CAP) family, such as gap junction protein alpha 1 (Gja1), prostaglandin endoperoxide synthase 2 (Ptgs2), and oxytocin receptors (Oxtr). In human myometrial smooth muscle cells (hMSMCs) exposed to hypoxia, H3K27ac levels were increased. Furthermore, HIF-1α ChIP-seq signals overlapped with H3K27ac peaks near the TSS or in the coding region of many genes, including those encoding the CAPs [149].

CBP/CREBBP/KAT3A and p300/KAT3B are important H3K27 acetyltransferases and key epigenetic regulators that determine the activity of TEs and SEs. These KATs can also regulate the activities of HIF-1α by direct binding and acetylation, but they also bind DNA in the vicinity of HREs. ChIP-seq experiments showed that 43% of CBP/p300 peaks induced by 2,2′-dipyridyl (2,2′-DP), a hypoxia mimetic, were within 2.5 kb of a TSS, but about 19% were within putative TEs that were more than 50 kb from a known TSS [150]. A result that confirms the important contribution of these KATs to hypoxia regulation [151].

Compared to H3K27ac, H3K4ac is much less studied. It can occur at both active TSSs and enhancers, where it appears to play a role in histone eviction and RNA transcription. H3K4ac signals mutually correlates with the presence of H3K4me1/3 [152]. Genome-wide studies on H3K4ac changes during hypoxia are still preliminary. However, modulation of H3K4ac at the promoter of genes modulated by hypoxia has been reported [153].

As mentioned above, a number of regions (cis-regulatory elements) bound by HIF-1α during hypoxia are already accessible under normoxia, but hypoxia can cause differential accessibility to DNA and a more open chromatin state in certain regions. This is the case with hypoxia-inducible enhancer RNA (HERNA), which is under the control of HIF-1α, and in which H3K27 acetylation at its promoter increases during hypoxia. HERNA in turn confers hypoxia sensitivity to nearby genes [154]. Other studies have similarly suggested changes in H3K27ac levels at the promoters of hypoxia-induced genes in line with their up- or down-regulation. A role for the repressive SIN3A complex, which contains HDAC1/2 activities in both the up- and down-regulated regions, has been suggested following genome-wide binding and RNA interference studies [155].

7.4. Histone Methylation Under Hypoxia

Histone methylation is not a unique epigenetic modification in terms of effects on chromatin compaction and gene expression (Figure 2). Depending on the specific sequence surrounding the modified residue, different types of readers dictate transcriptional output by opening or closing access to DNA. Another factor that influences the state of chromatin is the ability to conjugate single or two/three methyl groups to the same lysine or arginine residue. This complexity is reflected by a variety of readers that recognize the introduced PTMs via different specific domains and monitor the assembly of multiprotein complexes [156].

The s-adenosylmethionine (SAM) is the donor of the methyl group and its conjugation to lysine and arginine residues is supervised by different families of N-methyltransferases [55,95,135,157]. This PTM is reversible, and there are different types of demethylases. Groups have been defined on the basis of the catalysis mechanism [95,135,158]. As already discussed for KATs and KDACs, KTMs and KDMs can act as modulators of histone tails, and HIFs activities by methylating their residues. For example, the methyltransferase SET1B accumulates on chromatin under hypoxia and forms complexes with HIFs that are required to regulate H3K4me3 levels, H3K27 acetylation at promoters, and transcription of hypoxia genes [159]. Furthermore, these enzymes may themselves be under the control of HIFs during hypoxia, creating an integrated cycle of epigenetic changes [55,135,160].

All cis-regulatory elements, promoters, TEs, and SEs can be modulated by histone methylation during hypoxia, and this possibility soon aroused great interest [161]. It is important to know that KDMs belong to the family of 2-oxoglutarate-dependent dioxygenases (2-OGDO), which also includes the prolyl hydroxylases that control the stability of HIF-1α and HIF-2α. The catalytic activities of KDM depend on oxygen, iron and 2-oxoglutarate [162,163]. Therefore, a possible direct contribution of oxygen to the enzymatic activities of KDMs and to the shaping of the histone methylation landscape under hypoxia was initially hypothesized. This appears to be the case for KDM3A and KDM6A, which have been shown to sense oxygen levels and control gene expression and chromatin state during hypoxia [164,165]. However, further data are needed to clarify whether and which KDMs can be directly modulated by oxygen, within the range of variation in oxygen levels normally found in our body [55,135,166].

Genome-wide studies using ChIP-seq approaches have mapped the variation in histone methylation during hypoxia in different cell models (Table 2) [160,167,168,169]. As markers for active gene transcription, H3K4me3, which is enriched at promoters/TSS, and H3K4me1, which is enriched at enhancers, were examined genome-wide under different hypoxia conditions. Among the repressive methylation marks, H3K27me3, a major repressive trait subject to regulation by Polycomb repressive complex 2 (PRC2), was instead examined more frequently. In general, these epigenetic adaptations diverge in different tumors and cell types, indicating a dominant influence of the original differentiation lineage [105,170,171,172].

In HeLa cells grown under hypoxia, modification of H3K4me3 and H3K36me3, both markers of active transcription, is mainly caused by depletion the KDM5A demethylase, which belong to JmjC domain family. Notably, ChIP-seq analysis revealed that hypoxia induced a higher number of downregulated H3K4me3 peaks compared to upregulated peaks. The downregulated peaks were mainly found at promoters, whereas upregulated peaks were frequently found in the gene body and in intergenic regions predicted to be enhancers of hypoxia-inducible genes. H3K36me3 peaks upregulated by hypoxia correlated with HIF targets and H3K36me3 peaks downregulated by hypoxia correlated with genes repressed by hypoxia [169].

A dynamic global increase (reversible upon reoxygenation) of the repressive mark H3K27me3 was reported in MCF7 breast cancer cells during hypoxia. ChIP-seq analysis of H3K4me3, active TSS and H3K27me3 marks revealed a global increase in these antagonistic epigenetic modifications. This upregulation correlates with inhibition of KDMs and an increase in methyltransferase activities. H3K4me3 was increased at the TSS of specific loci such as OPRL1, APLN, ATP2A3, FOXF1, and IGFBP4 [167,173]. These promoter-driven enrichments of H3K4me3 signaling during hypoxia correlated with HIF binding sites, unlike the increase in enhancer-associated histone mark H3K4me1 [145]. The HIF-1α-bound promoters already show H3K4me3 and RNA Pol II occupancy under normal growth conditions before the onset of hypoxia [172].

Interestingly, some regions that were positive for both markers H3K4me3 and H3K27me3 increased during hypoxia, especially at the level of promoters rich in CpG [167]. A state of bivalence characteristic of embryonic stem cells (ESC) that serves to control the temporal expression of differentiation genes [173]. In total, 25% of hypoxia-induced bivalent genes in MCF7 cells overlapped with previously identified trimethylated genes in ESC [167].

As discussed for other genomic and epigenomic traits, the hypoxia program of histone methylation is largely predetermined. In fact, the normoxic profiles of the genomic distributions of H3K4me3 and H3K27me3 determine gene activity under hypoxia [168]. Although the status and deposition of H3K27me3 are largely preset in normoxia, some changes may also occur in hypoxia. In breast cancer cells, 8 h of hypoxia exposure resulted in an increase in H3K27me3 ChIP-seq signals in the DICER promoter region. DICER expression is reduced in hypoxic human breast cancer cells, leading to defects in miRNA processing and promoting EMT and metastasis [174]. Downregulation of DICER expression and changes in miRNA processing during hypoxia were previously described as VHL-dependent [175]. In addition to epigenetic control of transcription, mRNA stability, and protein stability may also be involved in controlling the amount of DICER protein. Interestingly, this downregulation may also maintain the hypoxia response [175].

A change in antagonistic epigenetic marks during hypoxia has also been observed, but is restricted to certain loci. At the promoter of the ΔNp63 gene, ChIP-seq analyses in HCC1806 breast cancer cells under normoxic or hypoxic conditions revealed that H3K27ac signals, which are enriched under normoxia, are replaced by H3K27me3 signals under hypoxia. This switch is mediated by the action of a multiprotein complex of HDAC2 and PRC2, a mechanism that favors the metastatic process [176]. To coordinate the accessibility of DNA and the transcription or repression of genes, various epigenetic modifications act in a coordinated manner, with a few exceptions, such as the poised promoters discussed above [173]. This is also the case with adaptations to hypoxia, where coordination between DNA and histone methylation has been demonstrated. The modification 6mA on the DNA correlates positively with H3K4me1, a marker for active enhancers, in hypoxia. These regions also correlated positively with H3K27ac signals, further supporting their bona fide role as TE or SE [81].

The resetting of an epigenetic signature can also occur by more drastic mechanisms. The N-terminus of histone H3 can be subject to proteolytic cleavage, especially during differentiation or senescence [177,178,179]. A phenomenon defined as H3 clipping. Removal of the histone tail can be seen as an epigenetic irreversible change (at least in non-proliferating cells) that could affect chromatin structure and alter histone-DNA contacts [179]. Hypoxia can counteract senescence [180,181], and limit H3 clipping. Hypoxia-assisted inhibition of H3 cleavage, by H3K18me3 and H3K23me3 methylation in heterochromatic regions. Overall, these hypoxia-dependent methylations reduce chromatin accessibility during oncogene-induced senescence [182].

In summary, similar to other genomic and epigenomic adaptations to hypoxia, evolution appears to have selected a predetermined transcriptional response in which chromatin for hypoxia genes is already accessible during normoxia as a more efficient option. Interventions, including regulation of histone methylation, are still possible to increase transcription, such as increasing the intensity and breadth of H3K4me3 signaling at the promoters of hypoxia genes [62,183].

Table 1. List of ChIP-seq data on histone acetylation under hypoxia.

Histone Modification	Cell Line/Tissue	Hypoxia	Reference	GEO ID
H3K27ac	HUVECs	1%	[146]	GSE38555 GSE50144
H3K27ac	MCF-7	0.5%	[49,145]	GSE78113
H3K27ac	hMSMCs	3%	[149]	HRI266643 (GSA repository)
H3K27ac	PANC-1	pO2 = 1%	[143]	GSE93982 GSE93989
H3K27ac	EA.Hy926	1%	[148]	GSE120527
H3K27ac	FaDu	1%	[81]	GSE260872
H3K27ac	ccRCC	VHL inactivation	[40]	GSE86095
H3K27ac, H3ac, H4ac	HUVECs	1%	[62]	GSE35932
H3ac	DLD-1, TIG-3	1%	[63]	DRA000285-000288 DRA000293-000296 (DDBJ database)
H3K4ac	FaDu	1%	[153]	GSE80218
H3K27ac	Human placenta	FGR	[146]	N.A. *

* Not available.

Table 1. List of ChIP-seq data on histone acetylation under hypoxia.

Histone Modification	Cell Line/Tissue	Hypoxia	Reference	GEO ID
H3K27ac	HUVECs	1%	[146]	GSE38555 GSE50144
H3K27ac	MCF-7	0.5%	[49,145]	GSE78113
H3K27ac	hMSMCs	3%	[149]	HRI266643 (GSA repository)
H3K27ac	PANC-1	pO2 = 1%	[143]	GSE93982 GSE93989
H3K27ac	EA.Hy926	1%	[148]	GSE120527
H3K27ac	FaDu	1%	[81]	GSE260872
H3K27ac	ccRCC	VHL inactivation	[40]	GSE86095
H3K27ac, H3ac, H4ac	HUVECs	1%	[62]	GSE35932
H3ac	DLD-1, TIG-3	1%	[63]	DRA000285-000288 DRA000293-000296 (DDBJ database)
H3K4ac	FaDu	1%	[153]	GSE80218
H3K27ac	Human placenta	FGR	[146]	N.A. *

* Not available.

Table 2. List of ChIP-seq data on histone methylation under hypoxia.

Histone Modifications	Cell Line Tissue	Hypoxia	Reference	GEO ID
H3K4me3, H3K36me3	HeLa cells	1%	[169]	GSE120339
H3K4me3 H3K4me1	FaDu	1%	[81]	GSE260872
H3K4me3	ESF, DSC	1%	[183]	GSE167946
H3K4me3, H3K4me1	HUVEC	1%	[62]	GSE39089
H3K4me3, H3K27me3	MCF7	<0.02%	[168]	GSE71031
H3K4me3 H3K27me3	MCF7	<0.02%	[167]	GSE71031
H3K4me3	MCF-7, Human PTCs	1%	[145]	GSE78113
H3K4me3 H3K4me1	MCF7, RCC4, SK-MEL-28, A549	0.5%	[105]	GSE85352
H3K4me3	HepG2, U87	0.5%	[172]	GSE18505
H3K27me3	MCF7, HMLER	<0.02 to 1.0%	[174]	GSE61740
H3K27me3	HCC1806 cells	1%	[176]	GSE253833

Table 2. List of ChIP-seq data on histone methylation under hypoxia.

Histone Modifications	Cell Line Tissue	Hypoxia	Reference	GEO ID
H3K4me3, H3K36me3	HeLa cells	1%	[169]	GSE120339
H3K4me3 H3K4me1	FaDu	1%	[81]	GSE260872
H3K4me3	ESF, DSC	1%	[183]	GSE167946
H3K4me3, H3K4me1	HUVEC	1%	[62]	GSE39089
H3K4me3, H3K27me3	MCF7	<0.02%	[168]	GSE71031
H3K4me3 H3K27me3	MCF7	<0.02%	[167]	GSE71031
H3K4me3	MCF-7, Human PTCs	1%	[145]	GSE78113
H3K4me3 H3K4me1	MCF7, RCC4, SK-MEL-28, A549	0.5%	[105]	GSE85352
H3K4me3	HepG2, U87	0.5%	[172]	GSE18505
H3K27me3	MCF7, HMLER	<0.02 to 1.0%	[174]	GSE61740
H3K27me3	HCC1806 cells	1%	[176]	GSE253833

7.5. Other PTMs of Histones and Hypoxia

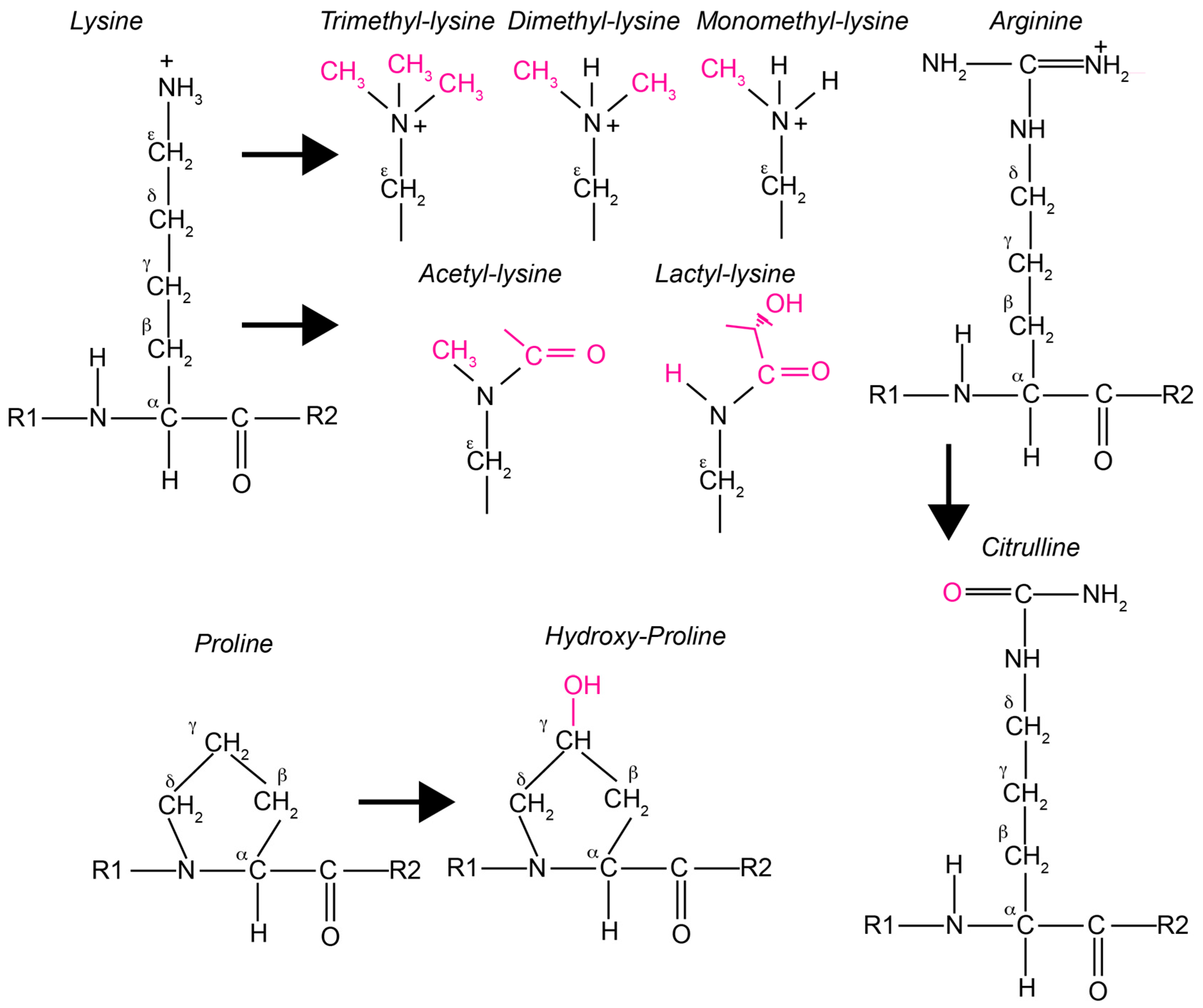

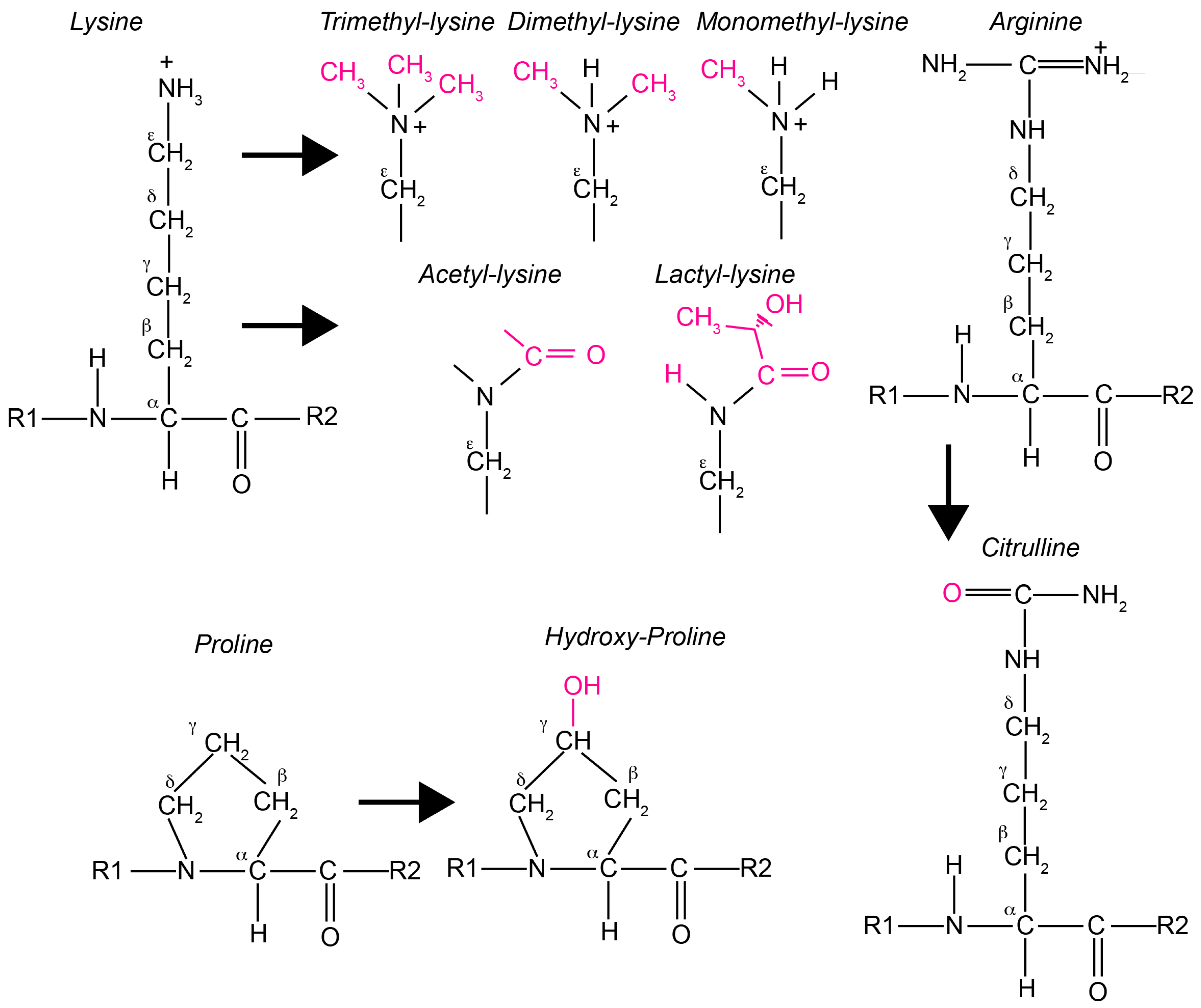

In addition to acetylation and methylation, other PTMs of histones can also act as epigenetic signals, including ubiquitylation, phosphorylation, O-glycosylation, lactylation, citrullination, crotonylation, succinylation, SUMOylation, propionylation, butyrylation, and hydroxylation (Figure 2). Some of them have already been studied during hypoxia, while others have only recently been included in the scenario. In the next sections, we will briefly discuss the most important ones related to hypoxia.

7.5.1. Histone Phosphorylation

Phosphorylation of the histone 2A variant H2A.X is an established marker for DNA double breaks (DSBs). The carboxyl-terminal Ser-Gln-Glu (SQE) motif of H2AX can be phosphorylated after DSBs by the ataxia-telangiectasia mutation (ATM), a member of the phosphoinositide 3-kinase-related kinase family [184,185,186,187]. Phosphorylated H2AX (γH2AX) is produced during DNA replication by cells growing in a hypoxic environment [188]. γH2AX positive domains generally spread to large regions of the genome [189,190]. Moreover, H2AX can control the nuclear retention of HIF-1α and influence its stability [191]. γH2AX can also be monoubiquitylated (mUb-H2AX) [192]. Hypoxia triggers mUb-H2AX and γH2AX in both normal and cancer cells. This leads to an overactivation of HIF-1α-driven tumorigenesis, glycolysis, and metastasis. H2AX-mediated HIF-1α activation occurs through nuclear retention and increased stability of HIF-1α, a proposed circuit that works via a positive feedback mechanism [191].

7.5.2. Histone Ubiquitylation

Hypoxia induces the accumulation of monoubiquitylated histone H2B (H2BK120ub1) at HIFs target genes through the involvement of HIF-1α. This modification is important for the modulation of HIF-1α-mediated transcription initiation and elongation. This activity requires the presence of the complex FACT (facilitates chromatin transcription) with chaperone and destabilizing effect on histones H2A and H2B [193] and the E3 ubiquitin ligase complex RNF20/40 [130]. H2BK120ub1 is closely linked to activation of gene expression. H2BK120ub1 enables the accumulation of H3K4me3 and H3K79 mono-, di- and trimethylation and gene transcription by modulating the activity of COMPASS/MLL1/KMT2A and DOT1L/KMT4, respectively [194].

7.5.3. Histone Hydroxylation

Hypoxia can also regulate epigenetics independently of HIFs. Recently, it has been reported that the H3 hydroxylation at proline 16 is regulated by ELGN2 and, therefore, by the level of O₂. Regions labeled with H3P16oh are quite abundant in the genome. This PTM facilitates the binding of KDM5A to its substrate H3K4me3, increases its demethylation and gene repression [195]. Hypoxia can directly decrease binding between H3 and KDM5A, leading to an increase in H3K4me3 and gene transcription. Several genomic regions containing H3P16oh are enriched in H3K4me3 under hypoxia. This result suggests HIF-independent modulations of chromatin status and gene expression under hypoxia. In addition, the authors indicated that the loss of H3P16oh under hypoxia occurs rapidly before changes in KDM5A [195]. Therefore, this mechanism may anticipate or act synergistically with the downregulation of KDM5A associated with hypoxia [169].

7.5.4. Histone Citrullination

The modification of proteins by the presence of citrulline has been known for many years, and several proteins can be subjected to such PTM [196]. Citrullination or peptidylarginine deimination consists of the hydrolysis of arginine and the simultaneous release of ammonia [196]. A family of enzymes is involved in this reaction: the peptidylarginine deiminases (PADI) [196]. Citrullination of histones has been reported in several studies [197,198,199,200]. Recently, a link between citrullination and hypoxia has been proposed. Hypoxia can induce citrullination of histones (H3 and H4), especially at HREs. This citrullination is dependent on PADI4 and HIF-1α, and PADI4 is a hypoxic gene controlled by HIF-1α. This is another example of a positive feedback loop operating during hypoxia. Citrullination appears to be required for the orchestration of other epigenetic changes associated with gene activation, such as: H3K4me3, H3K36me3, H3K4ac, and H4K5ac [132]. These analyses were limited to selected loci using ChIP-endpoint assays. It will be interesting to evaluate these changes at the genomic level.

7.5.5. Histone Lactylation

The modification L-lactate is a metabolic byproduct of the glycolytic metabolism. It is generated in the cytosol by the lactate dehydrogenase A (LDHA), which converts pyruvate and regenerates NAD⁺, supporting glycolysis [201]. During hypoxia cells accumulate L-lactate due to the upregulation of the HIFs target genes pyruvate dehydrogenase kinase 1 (PDK1) and LDHA [171,202]. Lactate influences various cellular activities, and can also modulate the tumor microenvironment [201]. Particularly, during hypoxia lactate is actively effluxed by the cells in the microenvironment to prevent intracellular acidification [203]. Lactate can also act as an epigenetic modifier and promote gene transcription. Lactyl-lysine was mapped in various residues at the amino terminus of the four core histones and also within the globular domain. Lactylation of histones increases in hypoxia and is a secondary adaptive response compared to acetylation [204]. This PTM of histones is under the control of KATs and KDACs, with p300 playing an established role as a lactyltransferase and class I HDAC1/2/3 controlling delactylation [202,204,205].

In a first attempt to map the genomic distribution of H3K18la (lactylation of lysine 18 in H3) in different tissue and cells, a comparison was made with the distribution of H3K4me3 and H3K27ac traits of active transcription and the repressive mark H3K27me3. H3K18la is frequently present at the TSS of transcribed genes. In addition, the distribution of H3K18la is more similar to that of H3K27ac (marker of both active promoters and enhancers) compared to H3K4me3 (more specific for active promoters). H3K18la is enriched in active CpG island-containing promoters of highly expressed genes with cell line specificities, including many housekeeping genes [206]. Subsequent genomic studies aimed at investigating the effects of hypoxia on H3K18la and HIF-1α distribution have confirmed partial co-localization with HIF-1α-bound regions (approximately 23% of peaks). These regions include genes that are important for cell proliferation [207]. The regulation of genes involved in cell proliferation by H3K18la was also observed in a second study [208]. In another study, the genomic distribution of H3K9la was investigated using squamous cell carcinoma cells of the esophagus. Here, the most obvious effect of hypoxia was not an increase in H3K9la ChIP-seq peaks, but a redistribution from gene bodies and intergenic regions to promoters. Genes under H3K9la are involved in the regulation of cell adhesion and invasion [209].

To summarize, histone lactylation represents a new and, so far, only partially investigated epigenetic mechanism that directly links metabolism to the activation of gene transcription.

8. Conclusions

The response to reduced oxygen levels is an important adaptation to ensure cell survival under altered environmental conditions. Although the HIFs are the central machinery of this adaptive response, actions independent of the HIFs can also contribute. This response is largely predetermined in terms of genomic organization and epigenetic regions. The definition of the accessible cis-regulatory elements that can be activated during hypoxia are predetermined and depend on the specific differentiation program. In several examples, the regulation of gene transcription occurs via the “normoxia” profile of already active and organized transcription units. Nevertheless, the modulations are important, and involve both classical epigenetic marks and recently discovered marks. These modifications are important in linking metabolism to gene expression. However, the selective epigenetic profile determined by the specific differentiation program appears to influence the transcriptional activity of HIFs and the heterogeneous pattern of regulated genes observed in different tissues.

There is still space for further explorations in hypoxia. The contribution of super-enhancers to the hypoxia response and their modulation by HIFs is not well defined, as well as the network of genes under their regulation [210].

RNAPII pausing is certainly an important mechanism to couple productive transcription to hypoxia adaptation under the supervision of HIFs [16,17,18]. Several HIFs target genes are regulated by the release of paused RNAPII [211]. Hypoxia-dependent release of paused RNAPII has been studied in terms of molecular events, but still has several aspects that require further investigation, as well as the overlap with epigenetic changes [212].

Paused RNAPII is also involved in the regulation of lncRNAs. The contribution of lncRNAs to epigenetic modulation and 3D genome structure during hypoxia is possible, but poorly understood and deserves further investigation [213].

The transcriptomic and epigenomic resetting occurring during hypoxia has attracted interest also in a therapeutic perspective. Epigenetic drugs (epi-drugs) are promising molecule that can target a large plethora of writers, readers, and erasers [214]. Epi-drugs have been tested to repress or influence hypoxia in cancer cells [215,216,217]. The HDAC inhibitor (Abexinostat) in combination with VEGF inhibitor (pazopanib) has demonstrated benefits in a first clinical study on RCC patients [218]. However, epi-drugs cannot discriminate between the hypoxic cancer cells and the other cells. This implies several out of target effects that could also impair the therapeutic efficiency because of toxicity [217]. More selective targeting by engineered delivery systems, activable under the hypoxic environment, could represent an interesting strategy to increase efficacy [219,220].

Overall, the response to hypoxia is a fascinating and useful model to understand how our genome works.
