Design and Analysis of a Compact UWB Band Notch Antenna for Wireless Communication †
Department of Electrical and Computer Engineering, North South University, Bashundhara, 1229 Dhaka, Bangladesh
†
Presented at the 1st International Electronic Conference—Futuristic Applications on Electronics, 1–30 November 2020; Available online: https://sciforum.net/conference/IEC2020.
Eng. Proc. 2020, 3(1), 6; https://doi.org/10.3390/IEC2020-06974
Published: 30 October 2020
(This article belongs to the Proceedings of 1st International Electronic Conference—Futuristic Applications on Electronics)
Abstract
:Development and investigation of a miniaturized ultra-wideband band notch antenna is demonstrated in this paper. The antenna was modeled and simulated using Computer Simulation Technology (CST)TM Microwave Studio software. The simulated results of this antenna are presented and analyzed. The performance parameters such as return loss, gain, radiation efficiency, radiation patterns are simulation-based results provided here. The main objective of this paper was to obtain band notch characteristics at the Wireless Local Area Network (5.15–5.8 GHz) and WiMax (5.25–5.85 GHz) in the UWB frequency ranges of 3.1–10.6 GHz in order to avoid interference. Results and analysis show that the antenna meets the objective and shows very good results. It has very compact size as well which is attractive feature of this antenna that will make it suitable for ultra-wideband wireless communication systems.
1. Introduction
The ultra-wideband (UWB) system is very promising technology for wireless communications due its low transmission power, compact size, high data rate, and large bandwidth [1]. This technology is an innovative wireless technology which is attracting researchers nowadays. For small period of UWB pulses, it is simple to persuade high data rate with small latency. The promising application of UWB is in sensor network, body area network, wireless positioning system, indoor short-range communications, biomedical imaging, and high data rate small range communications [1,2,3,4,5]. Federal Communication Communications FCC declares UWB frequency range is to be from 3.1 GHz to 10.6 GHz at −10 dB return loss [2]. The issue is that in the wide frequency range there are other frequencies for Wireless Local Area Network (5.15–5.8 GHz) and WiMax (5.25–5.85 GHz) which may cause interference. Therefore, in order to design interference less and power efficient wireless communications, there is a need for band notch ultra-wideband antennas.
The antenna is one of the most important elements for any wireless communication system. Therefore, the antenna needs to meet the special requirement in terms of impedance bandwidth, return loss, radiation efficiency, gain, and radiation pattern. A good antenna design gives flexibility to system designers. There is tremendous growing interest and research regarding the design of UWB antennas recently [6,7,8,9,10,11,12,13,14,15]. In [6,7,8,9,10,11], UWB antenna design and radio channel modeling for wireless communication have been presented. Ultra-wideband band north antenna has been presented in open literature in [12,13,14,15]. However, different authors have used different techniques for band notch in UWB antennas. There is still no breakthrough for the design of UWB antenna with band notch yet. In [15], the presented band notch antenna is bigger in size. Some band notch antennas in open literature are found to be bigger in size and some of them have low performance. In order to design a compact, lightweight, band-notched, and efficient system a compact antenna with band-notch characteristics and good performance parameters are required.
In this paper, a compact novel band notch antenna is designed and simulated. Simulated performance parameters—like bandwidth, return loss, gain, efficiency, and radiation efficiency—have been illustrated and investigated.
2. Antenna Design Using CST Software
The proposed band notch UWB antenna was developed with the help of Computer Simulation Software (CST) microwave studio. In Figure 1, the antenna design is presented. Figure 1a demonstrate the front side and Figure 1b provides the rear side of the antenna. In the backside of the antenna there is not full ground plane. It is noted that ground plane has been cut for getting the desired return loss result. The total length and width of the antenna are 16 mm and 25 mm, respectively. For this design Fr4 substrate has been used with the relative permittivity of 3. The radiation element of the antenna is printed on the substrate as shown in Figure 1. The antenna is excited with waveguide port. A slot was created on the radiating element to get the notch function. The whole height of the antenna is 1.8 mm. The total size of the antenna is very compact.
3. Results and Discussions
After modeling the antenna in CST it was simulated. The simulated performance parameters such as return loss, gain, radiation pattern, and radiation efficiency are provided below.
3.1. Simulated Return Loss Response
Figure 2 displays the return loss result of the antenna. From the graph shown in Figure 2, it is noted that the antenna works at ultra-wideband frequency band (3.1 GHz to 10.6 GHz) except there is notch from 5.1 to 5.8 GHz. The main objective of this proposed design was to obtain the band notch characteristics at these frequencies in order to avoid interference with the frequency range from 5.1 to 5.8 GHz. The return loss results meet the expected objective of this paper. However, at other frequencies in the UWB range, the return loss value is below −10 dB which is excellent for power efficient transmission. As we know that return loss −10 dB shows nearly 90% of the power will be transferred.
3.2. Simulated Radiation Efficnecy and Gain
The gain and radiation efficiency of this antenna are listed in Table 1. The gain and radiation efficiency are extracted from the far field simulated results at the frequencies of 3.5 GHz, 5.7 GHz (band notch), 8 GHz, and 10 GHz. From the table it is noticed that the antenna demonstrates higher gain at 3.5 GHz, 8 GHz, and 10 GHz as compared with the 5.7 GHz. At 5.7 GHz the gain is lower due to notch at this frequency and this is expected. For the case of radiation efficiency same trend is noticed. There is very low efficiency 38% at the 5.7 GHz whereas other bands they show very good radiation efficiency.
3.3. Simulated Radiation Patterns
Simulated radiation patterns of the antenna are extracted from the far field at specific frequency. The radiation pattern is extracted from the 3D radiation of the antenna. Figure 3a–f shows the simulated radiation patterns of the antenna at various frequencies. The radiation patterns have been plotted as plane wise like elevation and azimuth planes. At 3.5 GHz the radiation pattern at XY plane looks omnidirectional and at XZ plane it looks there is a null at the 120° angle. Both planes radiation patterns look similar at 5.7 GHz. At higher frequencies such as 8 GHz and 10 GHz the radiation patterns look little distorted at certain angle.
3.4. Future Work
This antenna will be fabricated and the performance will be measured and compared with the simulation results. CST software is very user friendly and it has been noticed for other articles cases [7,8,9,10] that the simulated results are comparable to the measured results. Parametric study of this antenna will be carried out and it will be designed also on the textile substrate to see the usability of this antenna for wearable applications. The on-body results of this textile antenna will be investigated. This future work is going on and, due to lack of space here, we have not demonstrated them.
4. Conclusions
Software designed and simulation-based performance of a compact novel UWB band-notch antenna are provided. The antenna works in the FCC defined UWB frequency ranges 3.1 GHz to 10.6 GHz perfectly with the band-notch characteristic 5.1 to 5.8 GHz with a view to avoid interference and power efficient wireless communications. At 5.7 GHz, the antenna demonstrated very bad results due to notch feature and that was the objective of this paper. However, except the band notch frequency this antenna shows very good results. At 3.5 GHz, 6 GHz, 8 GHz, and 10 GHz the antenna shows very good efficiency and gain values. Due to its compact and novel size, very good results, and band-notch characteristics this antenna will be a suitable candidate for wireless communications.
Funding
The authors of this paper have not received any external funding for the work and results presented in this paper.
Acknowledgments
The work has been carried in the Department of Electrical and Computer Engineering at North South University. Authors would like to thank the ECE Department of North South University.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Hall, P.S.; Hao, Y. Antennas and Propagation for Body-Centric Wireless Communications; Artech House: Norwood, MA, USA, 2006. [Google Scholar]
- Revision of part 15 of the Commission’s Rules regarding UWB Transmission Systems; Federal Communications Commission: Washington, DC, USA, April 2002.
- Ullah, S.; Ruan, C.; Sadiq, M.S.; Haq, T.U.; He, W. High efficient and ultra wide band monopole antenna for microwave imaging and communication applications. Sensors 2019, 20, 115. [Google Scholar] [CrossRef] [PubMed]
- Allen, B.; Dohler, M.; Okon, E.; Malik, W.; Brown, A.; Edwards, D. Ultra-Wideband Antennas and Propagation: For Communications, Radar and Imaging; John Wiley and Sons: Hoboken, NJ, USA, 2006. [Google Scholar]
- Staderini, E.M. UWB radars in medicine. IEEE Aerosp. Electron. Syst. Mag. 2002, 17, 13–18. [Google Scholar] [CrossRef]
- Khan, M.M.; Monsurul Alam, A.K.M.; Talha, M.A.; Kumer, P. Investigation of a compact ultra-wideband antenna for wearable applications. Int. J. Commun. Antenna Propag. 2014, 4, 124–129. [Google Scholar]
- Yeboah-Akowuah, B.; Kosmas, P.; Chen, Y. A Q-Slot Monopole for UWB Body-Centric Wireless Communications. IEEE Trans. Antennas Propag. 2017, 65, 5069–5075. [Google Scholar] [CrossRef]
- Khan, M.M.; Mobin, I.; Palikaras, G.; Kallos, E. Study of a small printed quasi-self-complementary ultra wideband antenna for on-body applications. In Proceedings of the 2012 4th Computer Science and Electronic Engineering Conference (CEEC), Colchester, UK, 12–13 September 2012; pp. 179–183. [Google Scholar]
- Khan, M.M.; Rahman, A.; Alomainy, A.; Parini, C.; Rahman, A. On-body radio channel performance of a small printed quasi-self-complementary ultra wideband antenna. In Proceedings of the 2013 2nd International Conference on Advances in Electrical Engineering (ICAEE), Dhaka, Bangladesh, 19–21 December 2013; pp. 318–322. [Google Scholar]
- Abbasi, Q.H.; Khan, M.M.; Liaqat, S.; Kamran, M.; Alomainy, A.; Hao, Y. Experimental investigation of ultra wideband diversity techniques for on-body radio communications. Prog. Electromagn. Res. C 2013, 34, 165–181. [Google Scholar] [CrossRef]
- Khan, M.M.; Abbasi, Q.H.; Alomainy, A.; Parini, C. Experimental Investigation of Subject-Specific On-Body Radio Propagation Channels for Body-Centric Wireless Communications. Electronics 2014, 3, 26–42. [Google Scholar] [CrossRef]
- Abbas, A.; Hussain, N.; Jeong, M.; Park, J.; Shin, K.S.; Kim, T.; Kim, N. A rectangular notch-band UWB antenna with controllable notched bandwidth and centre frequency. Sensors 2020, 20, 777. [Google Scholar] [CrossRef] [PubMed]
- Mok, K.Y.; Rhee, Y.C.; Yoon, J.H. Design of a Pot-Shaped Monopole Antenna with Dual Band Notched Characteristics for UWB Application. J. Electromagn. Eng. Sci. 2017, 17, 44–49. [Google Scholar] [CrossRef]
- Liu, H.-W.; Ku, C.-H.; Wang, T.-S.; Yang, C.-F. Compact Monopole antenna with band-notched characteristic for UWB applications. IEEE Antennas Wirel. Propag. Lett. 2010, 9, 397–400. [Google Scholar] [CrossRef]
- Gheethan, A.A.; Anagnostou, D.E. Dual band-reject UWB antenna with a sharp rejection of narrow and closely-spaced bands. IEEE Trans. Microw. Theory Tech. 2012, 60, 2071–2076. [Google Scholar] [CrossRef]

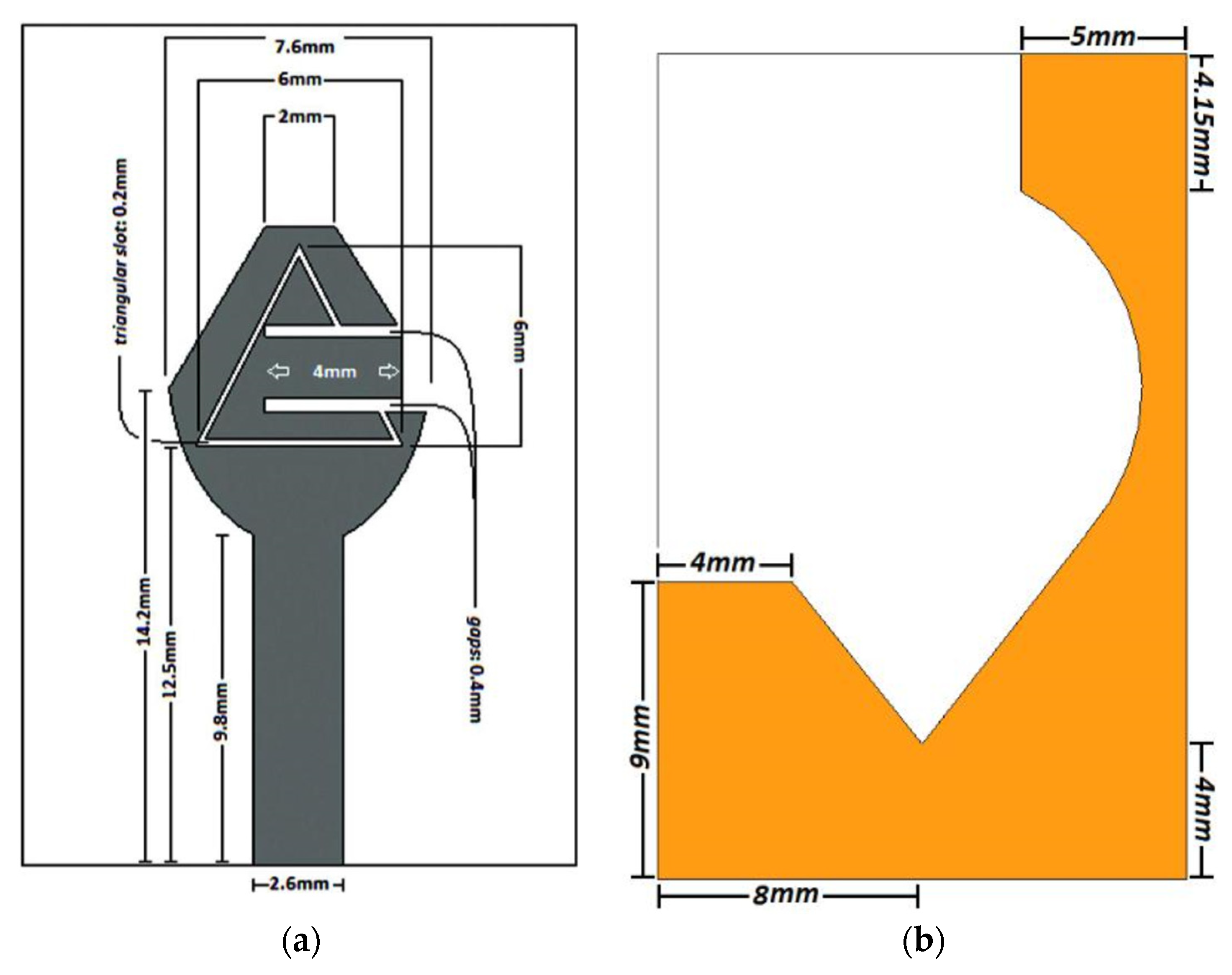

Figure 1.
Band-notch antenna: (a) front view, (b) back view.

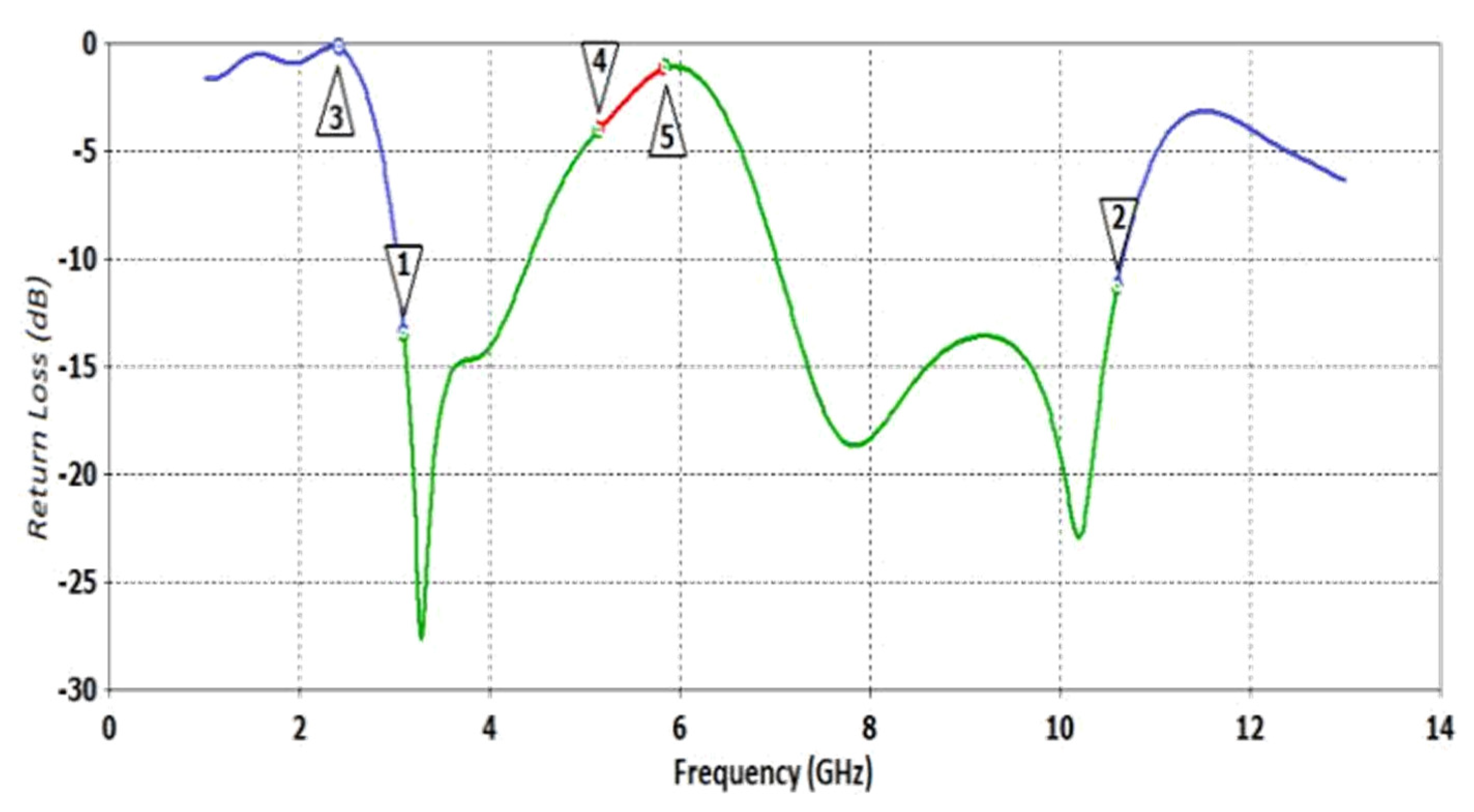

Figure 2.
Return loss result of the antenna.

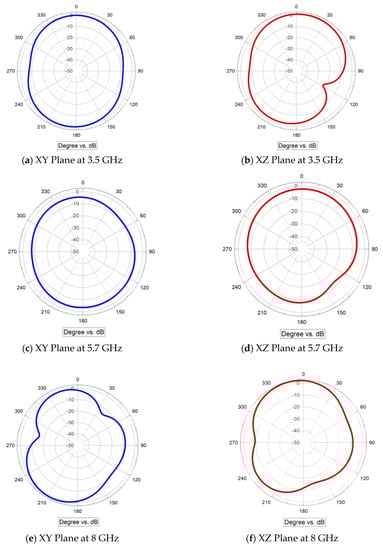

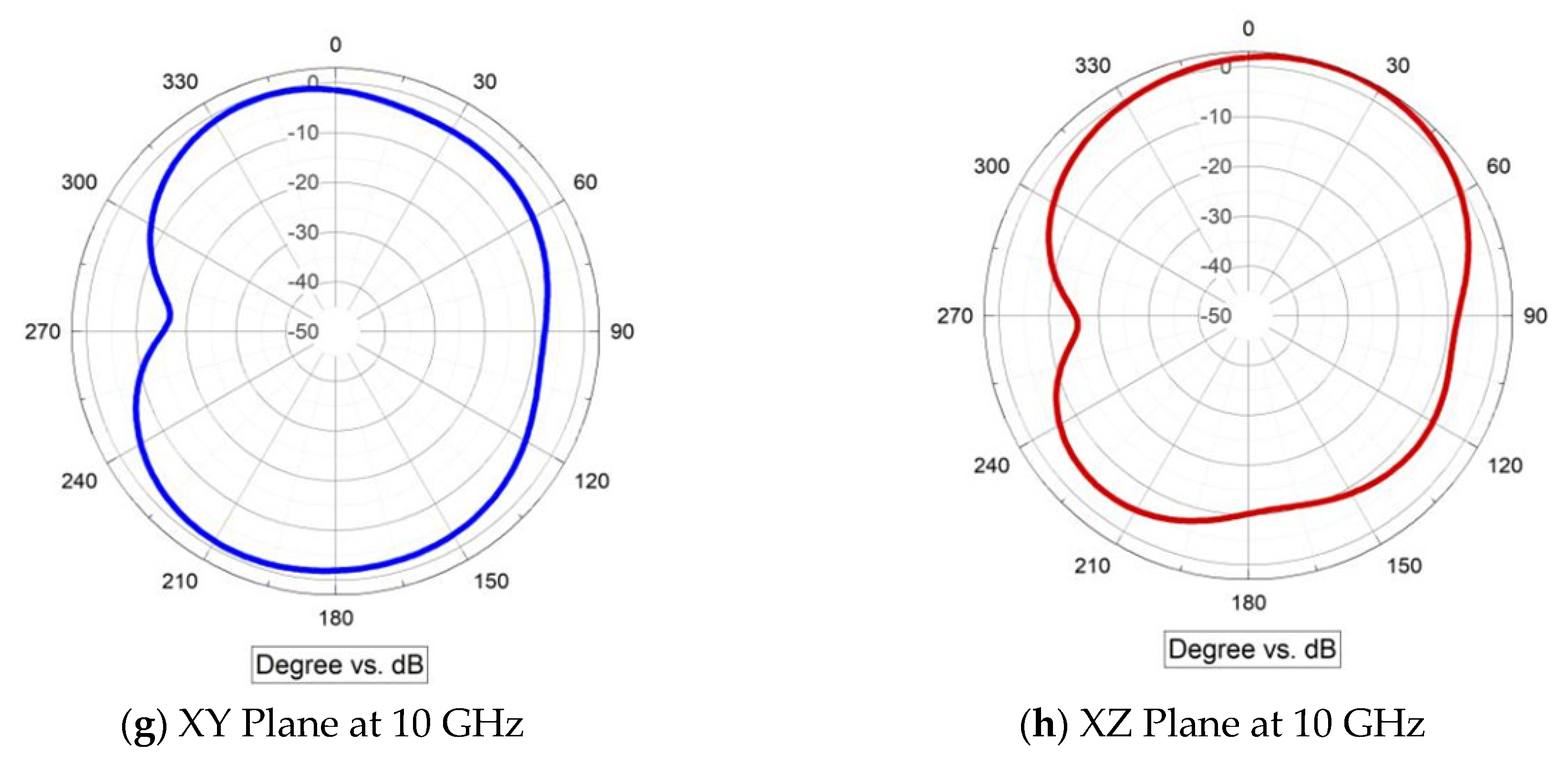

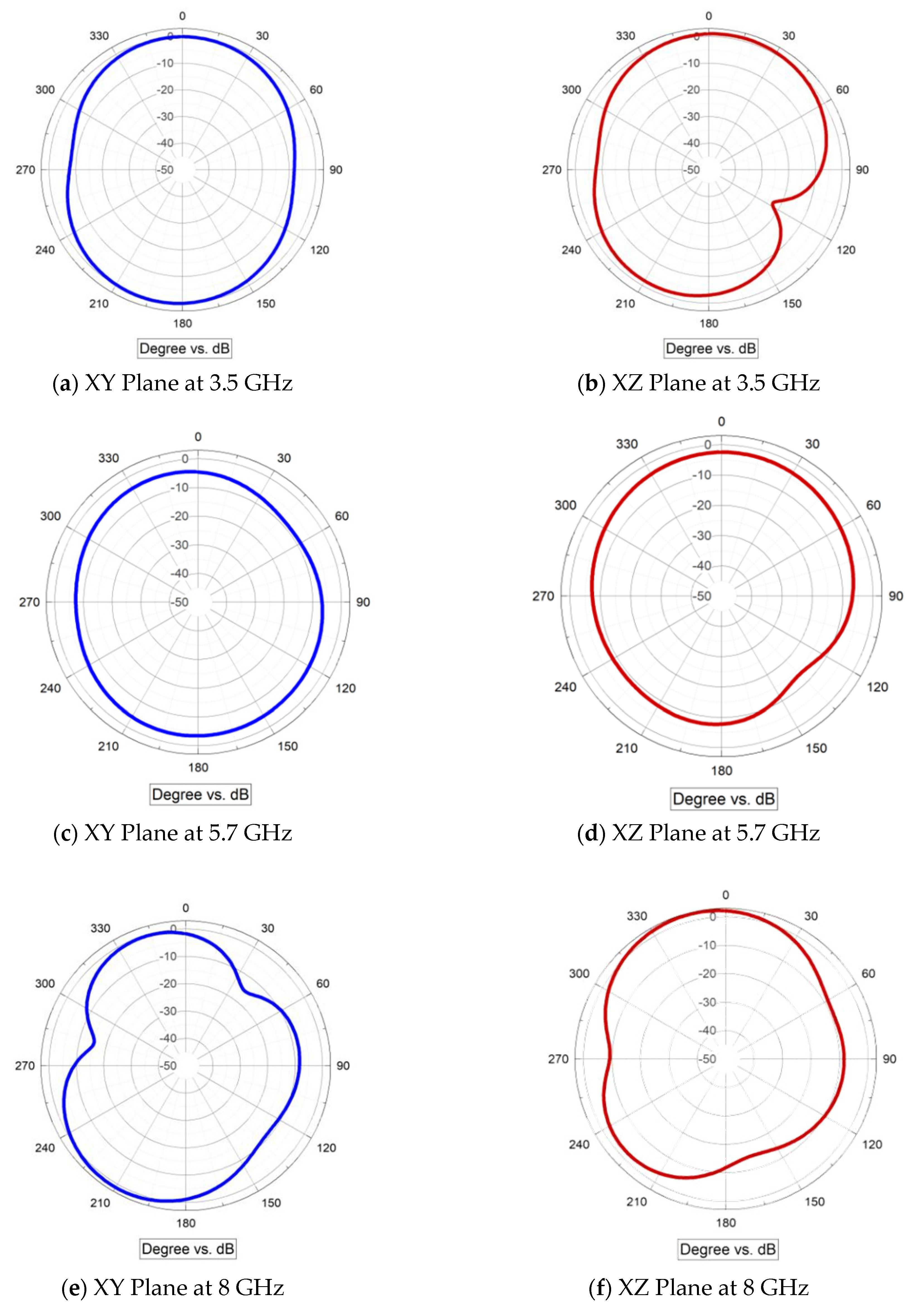

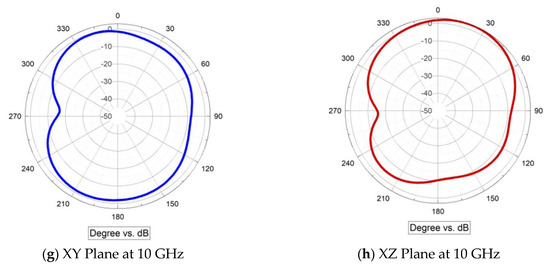

Figure 3.
Simulated radiation patterns of the antennas at various frequencies.
Table 1.
Values of gain and radiation efficiency at various frequencies.
| Frequency (GHz) | 3.5 GHz | 5.7 GHz | 8 GHz | 10 GHz |
|---|---|---|---|---|
| Gain (dBi) | 1.65 | 0.72 | 2.40 | 2.35 |
| Radiation Efficiency (%) | 85.08 | 38.00 | 74.00 | 79.00 |
