Interactions of Alkyl Gallates with SARS-CoV-2 Main Protease: A Molecular Docking Approach ^†

Abstract

Ten natural and semi-synthetic compounds (gallic acid and alkyl gallates) were investigated by in silico methods in order to evaluate their potential inhibitory activity against SAR-CoV-2 using the X-ray structure of SARS-CoV-2 main protease bound to Boceprevir at 1.45 Å (PDB ID: 6WNP). The evaluation of drug-likeness in terms of Lipinski’s Rule of Five and docking results in terms of docking score and interactions with the amino acids residues from the active binding site of the target protein were reported.

1. Introduction

Severe acute respiratory syndrome coronavirus 2 has become a global health issue. Tremendous research efforts to elucidate the virus’ action mechanisms and find specific treatments are in progress all over the world. Gallic acid possesses a promising structure for new drug design and development [1]. Antimicrobial activity was reported for alkyl gallates [2,3]. In our study, we intended to screen by molecular docking approach, a homologue series of alkyl gallates, starting form the lead compound—gallic acid, against the SARS-CoV-2 main protease.

2. Methods for Molecular Docking Simulations

The molecular docking study was realized using the CLC Drug, Discovery Work Bench. The protein fragment SARS-CoV-2 main protease bound to Boceprevir at 1.45 Å (PDB ID: 6WNP) [4] was imported from the Protein Data Bank. Ligands’ structures were constructed using the Spartan’16 program [5,6]; the lowest energy conformers were obtained and used forward for docking simulations. The viral protein contains three binding pockets: 48.13 ų, 40.45 ų, 36.62 ų. Water molecules were removed and amino acids residues form the binding site were protonated. The docking protocol was validated by redocking the co-crystallized ligand (Boceprevir). Intermolecular interactions occurring in Boceprevir and alkyl gallates–protein complexes were identified. The length of hydrogen bonding interactions was measured. The results were given in terms of docking score function and RMSD (root mean square deviation).

3. Results and Discussions

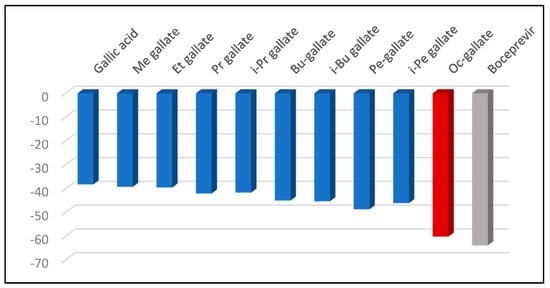

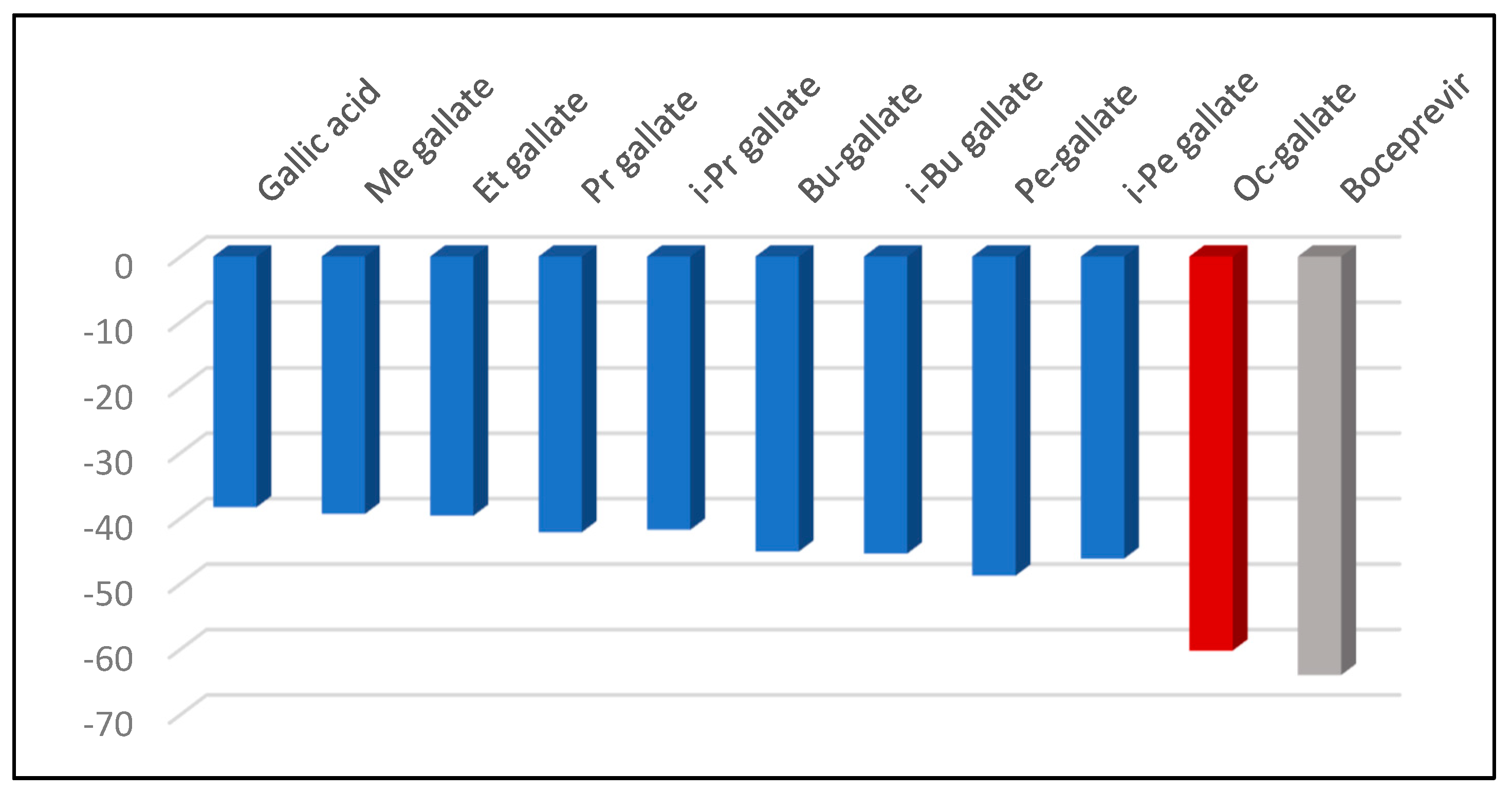

Figure 1 reveals the obtained docking scores for the co-crystallized ligand, gallic acid and alkyl gallates against the SARS-CoV-2 main protease (PDB ID: 6WNP). Boceprevir exhibits the greatest score of -63.95, due to its numerous interactions with the amino acid residues from the protein’s active binding site: eight hydrogen bonding interactions with nitrogen or oxygen atoms of amino acids residues, thus N sp² CYS145 (2.900 Å), N sp² SER144 (3.053 Å), N sp² GLY143 (2.783 Å), N sp² HIS41 (2.604 Å), O sp² HIS164 (3.103 Å), N sp² GLU166 (3.118 Å), O sp² GLU166 (2.908 Å and O sp² GLU166 (3.229 Å). The resulting docking score of octyl gallate (-60.22, RMSD 1.12) is remarkable, close to Boceprevir.

Figure 2 illustrates the hydrogen bond formed by octyl gallate (a) red-brown colored, and Boceprevir (b), in grey, respectively, with the amino acids from the active binding site, along with their surrounding interaction group—shown in Figure 2c,d, respectively.

In

Table 1. Depiction of intramolecular interactions formed by the natural ligand and octyl gallate with SARS-CoV-2 main protease (6WNP).

Ligand	Group Interaction	Hydrogen Bond	Bond Length (Å)
Boceprevir	TYR54, CYS44, HIS41, THR25, THR26, LEU27, MET49, ARG188, ASP187, VAL186, GLN189, THR190 ALA191, GLN192, PRO168, LEU167, GLU166, MET165, HIS165, CYS145, GLY143, SER144, HIS163, LEU141, PHE140, ASN142	O sp2 (O01)—N sp2 CYS145 O sp2 (O01)—N sp2 SER144 O sp2 (O01)—N sp2 GLY143 O sp3 (O04)—N sp2 HIS41 N sp2 (N11)—O sp2 HIS164 O sp2 (O35)—N sp2 GLU166 N sp2 (N27)—O sp2 GLU166 N sp2 (N29)—O sp2 GLU166	2.900 3.053 2.783 2.604 3.103 3.118 2.908 3.229
Octyl gallate	ASN142, GLY143, LEU141, SER144, PHE140, HYS163, CYS145, HYS164, MET165, GLU166, HYS41, PHE181, VAL186, ASP187, TYR54, ARG188, GLN189, MET49	O sp3 (O0)—O sp2 ASN142 O sp3 (O0)—N sp2 GLY143 O sp3 (O3)—N sp2 GLY143 O sp3 (O3)—O sp2 LEU141 O sp3 (O3)—N sp2 SER144 O sp3 (O3)—O sp3 SER144 O sp3 (O3)—N sp2 CYS145 O sp3 (O1)—O sp3 SER144 O sp3 (O1)—N sp2 HIS163	2.762 2.713 2.980 2.475 2.696 2.761 3.179 3.390 2.849

, we listed the amino acids group interactions, type and length of hydrogen bonding interactions formed by the co-crystallized Boceprevir and the alkyl gallate derivative with the greatest docking result, octyl gallate. The atomic numbering scheme of octyl gallate structure, determined as arbitrary by the Spartan software, is given in the Supplementary Material S1, available online. Its structure presents two flexible bonds, three hydrogen bond donors and five hydrogen bond acceptors. The molecular weight and the calculated water–octanol partition coefficient does not exceed the restrictions imposed by Lipinski’s statement [7] regarding the oral bioavailability assessment. Thus, this molecule does not violate this rulesuggesting good permeation and absorption through the biological membranes. Clinical studies have revealed that gallic acid, catechins, flavones and quercetin glucosides have the best bioavailability in humans [8]. The 3,4,5-trihydroxybenzoic acid (gallic acid) is one of the most abundant phenolic acids in plants with various health benefits including anti-inflammatory and antioxidant activities [9]. The presence of phenyl ring, carboxyl moieties, and ester, hydroxyl and methoxy groups seems to be the basis of plants’ phenolic antiviral efficacy [10,11]. On the other hand, semi-synthetic compounds, such as methylated or alkyl chain gallates, are good alternatives for designing and developing anti-viral agents. Their pharmacological activity is associated with the length of their alkyl side chain, which influences their membrane-binding abilities [2]. Generally, the membrane binding of the alkyl gallates increased with the increasing alkyl chain length and is correlated with their anti-viral activity. Increasing docking results were observed, with the increasing length of the n-alkyl side chain.

4. Conclusions

This in silico screening reveals the potential inhibitory action of alkyl gallates, mainly of octyl gallate against the SARS-CoV-2 main protease. The molecular docking simulations led to similar docking results for octyl gallate, compared to the natural ligand, Boceprevir. Further investigations are required in order to demonstrate and develop these preliminary conclusions. Similar docking results were the consequence of similar interactions. Amino acid residues CYS145 and SER144 interact by hydrogen bonding with both Boceprevir and with octyl gallate. Propyl gallate and pentyl gallate have reveal the same intra-molecular interactions with: N sp² GLU166, N sp² HIS163, O sp³ SER144, O sp³ SER144, O sp² LEU141, N sp² SER144, N sp² GLY143, N sp² CYS145, N sp² GLY143, O sp² ASN142. Their obtained docking scores were -42.13 and -48.77, respectively, lower than for octyl gallate, but greater than the results for gallic acid (-38.31). These findings prove that alkyl gallates are a good alternative for developing new therapeutical antiviral agents.
