Simulative Investigation and Optimization of a Rolling Moment Compensation in a Range-Extender Powertrain

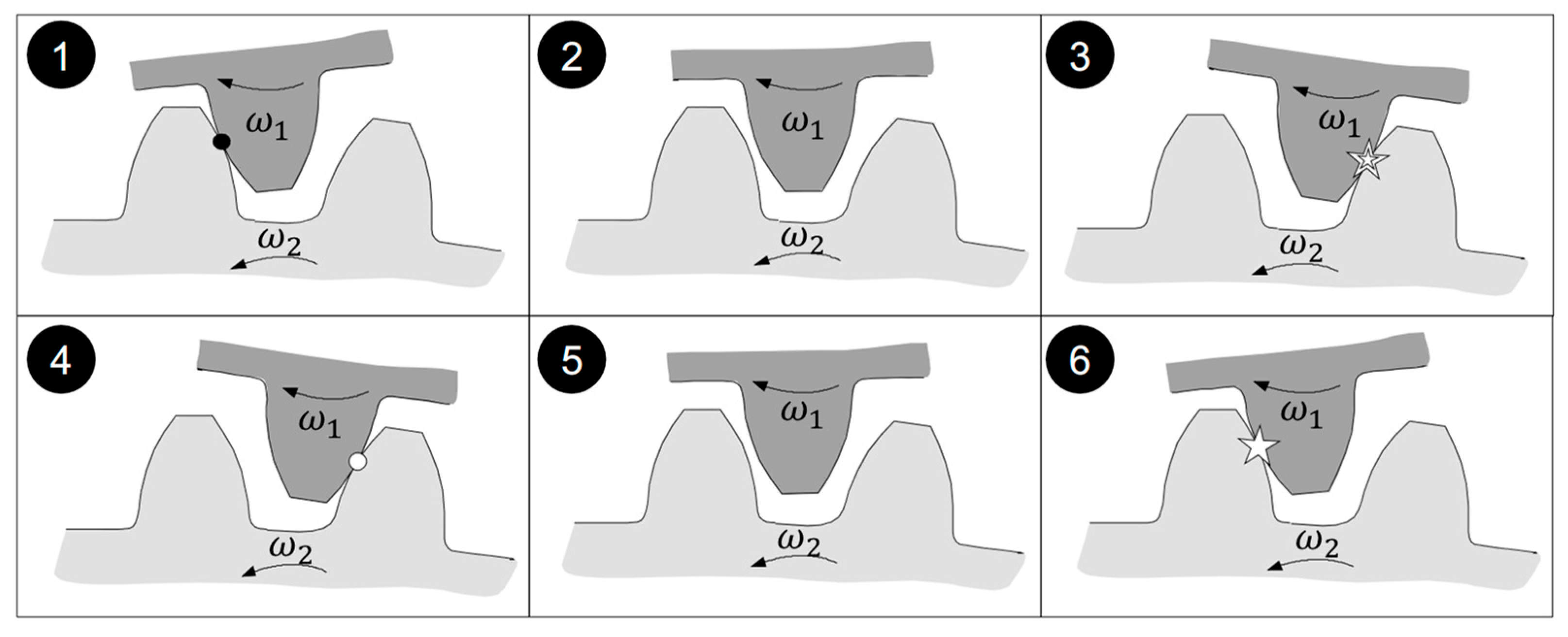

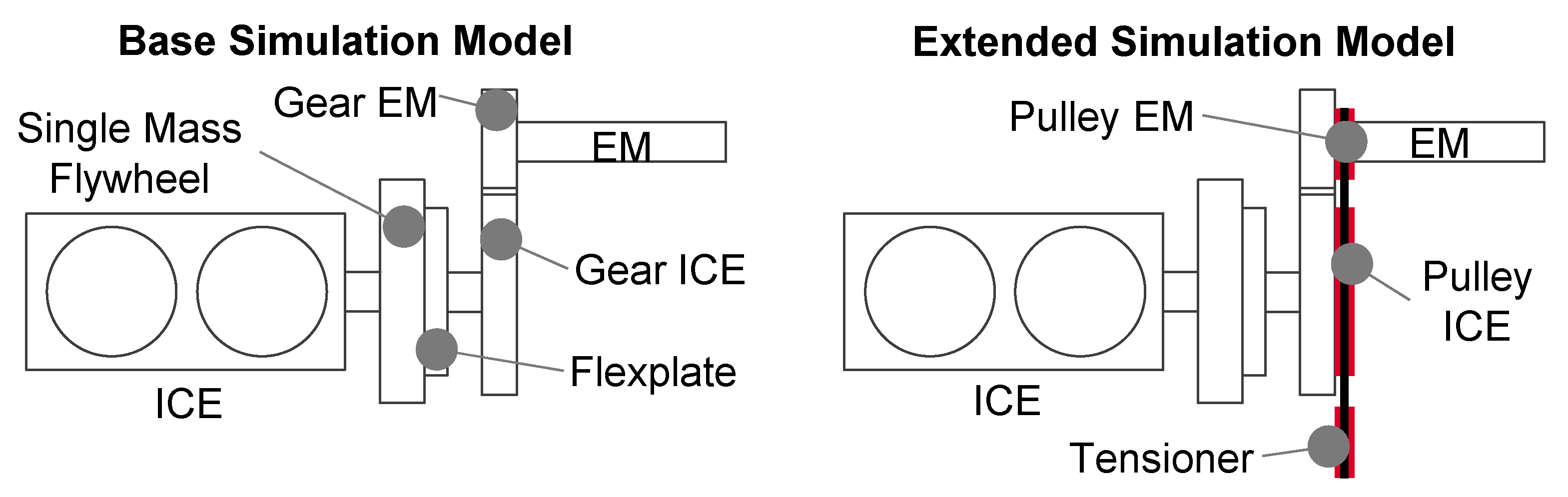

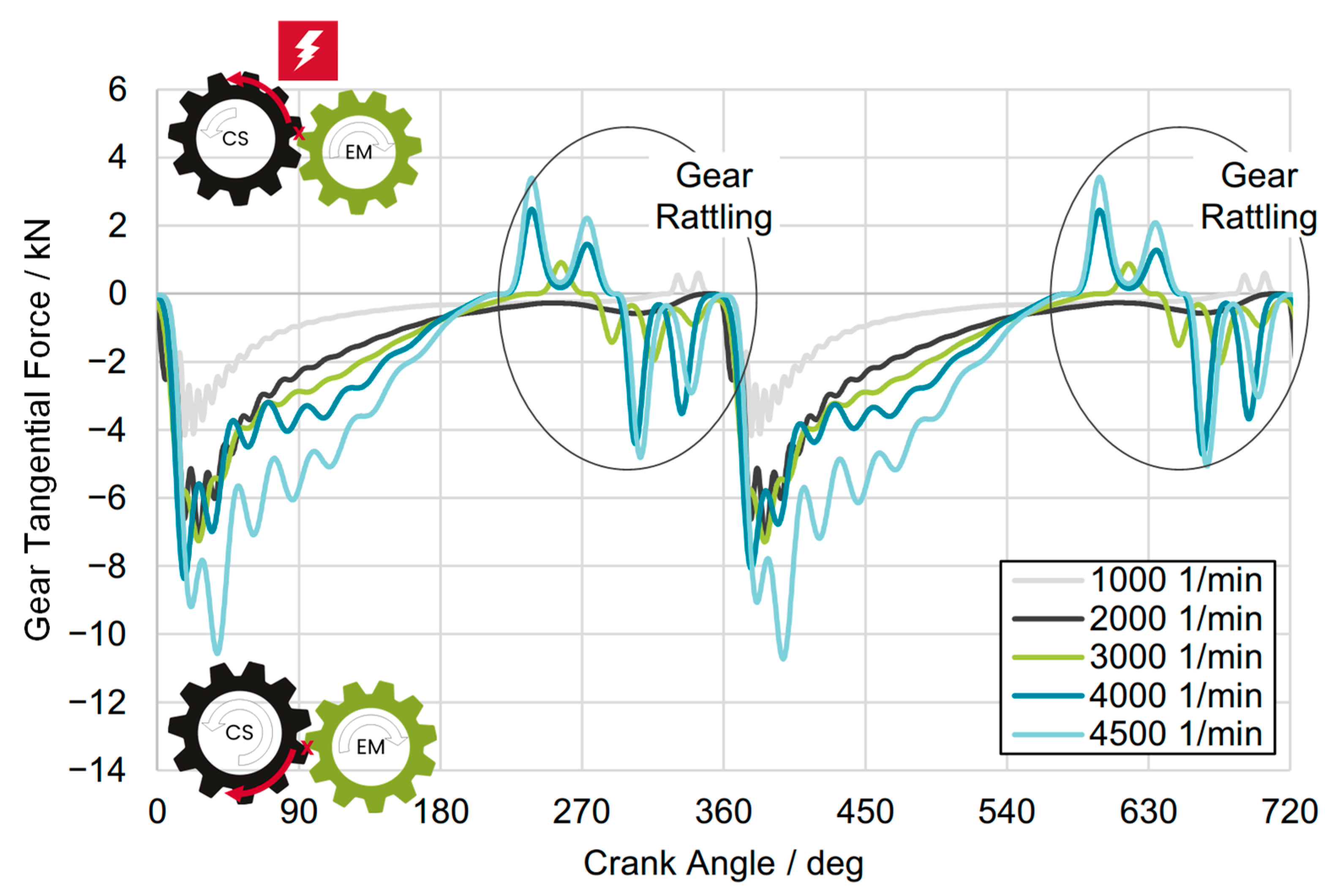

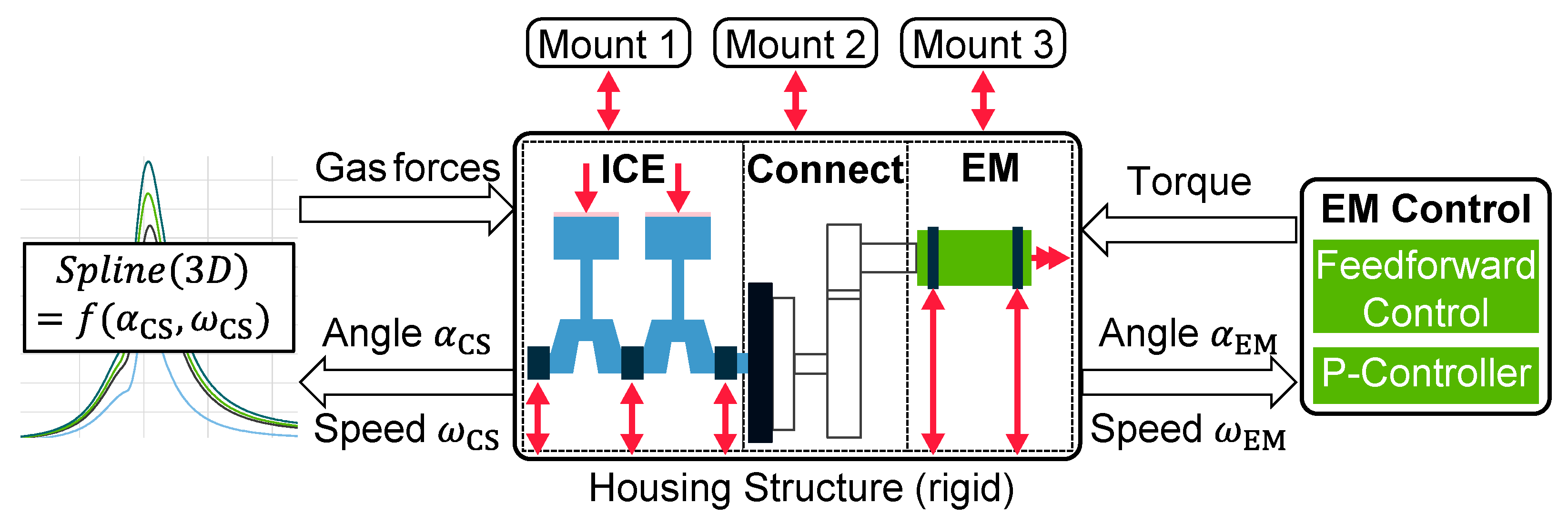

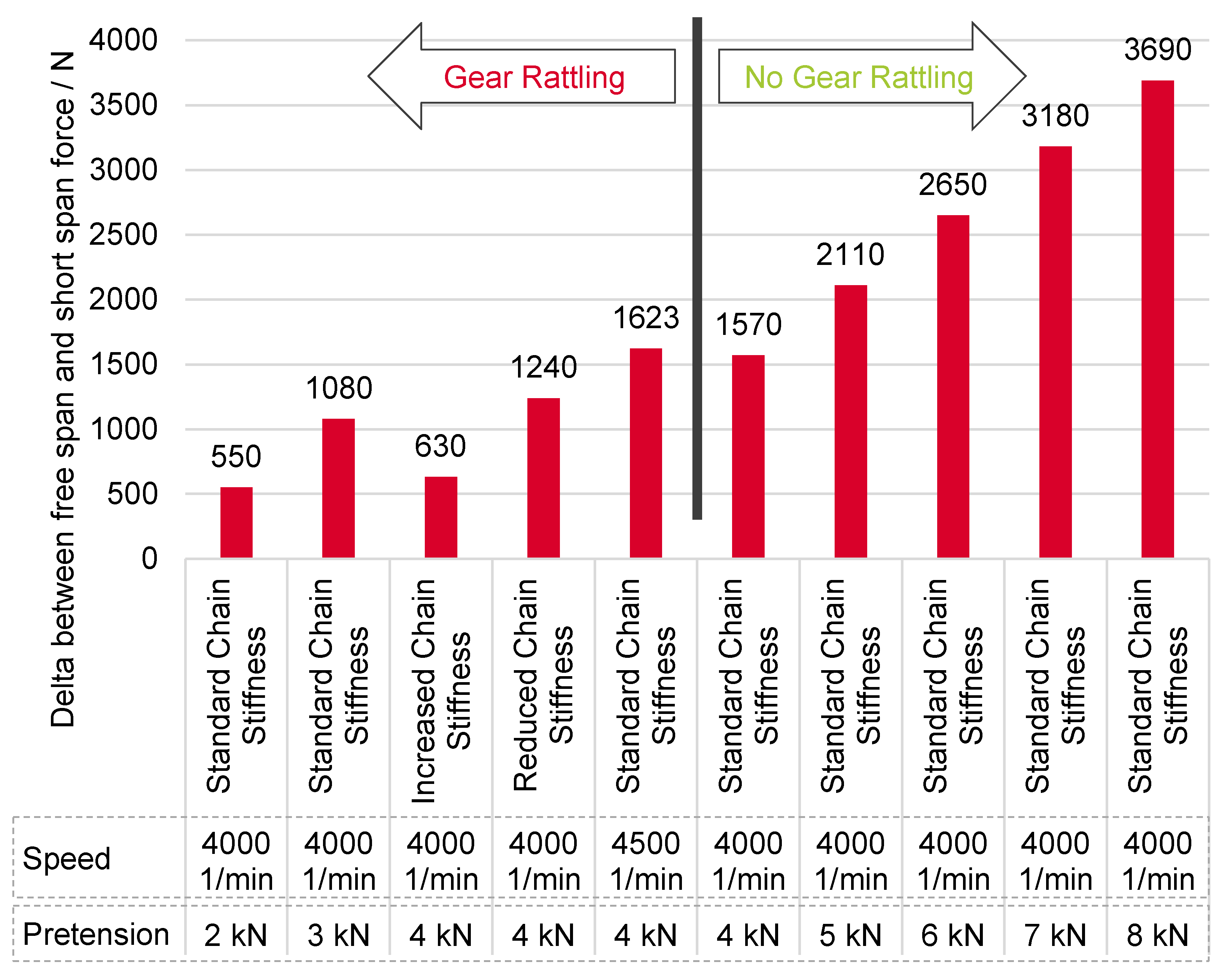

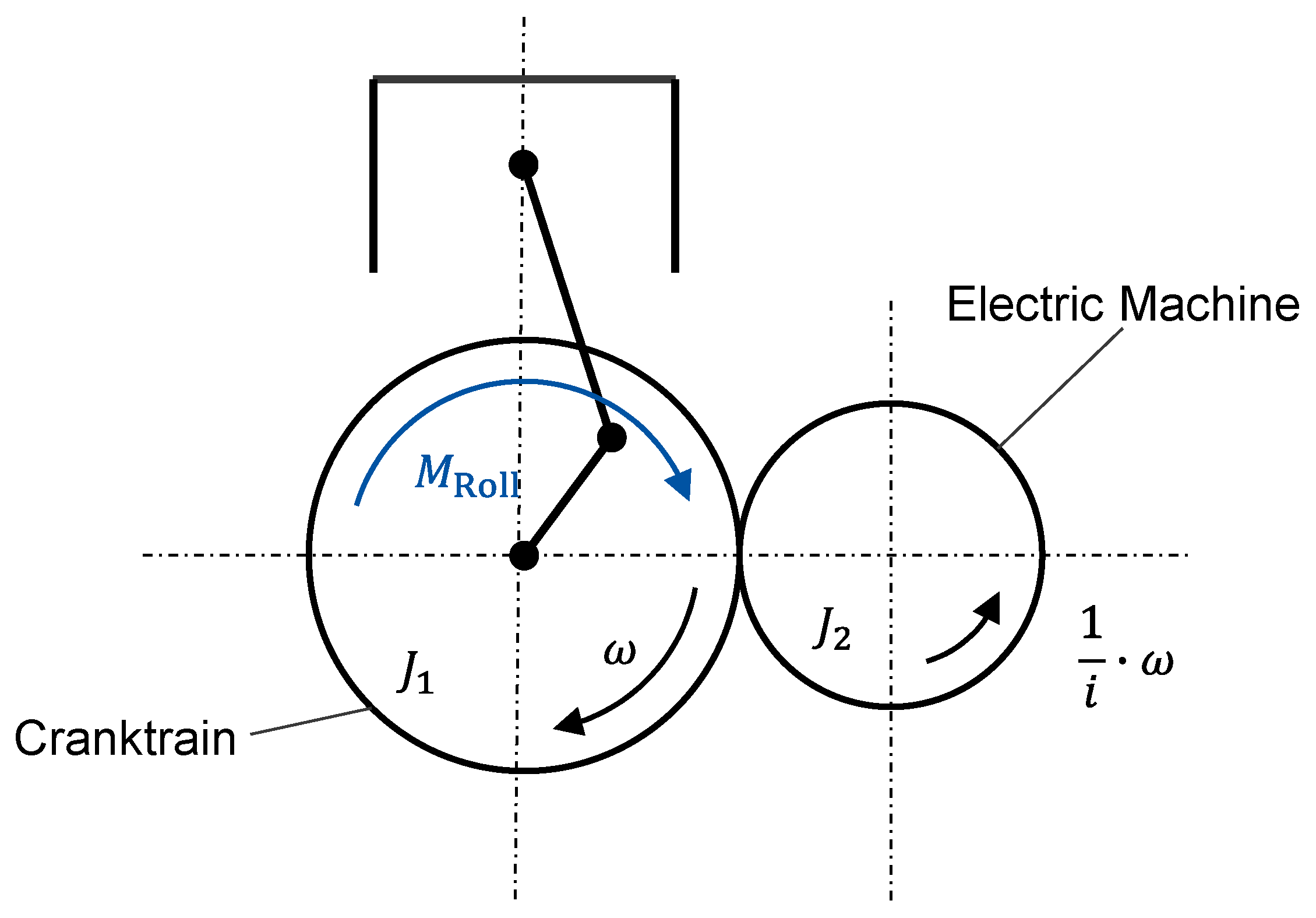

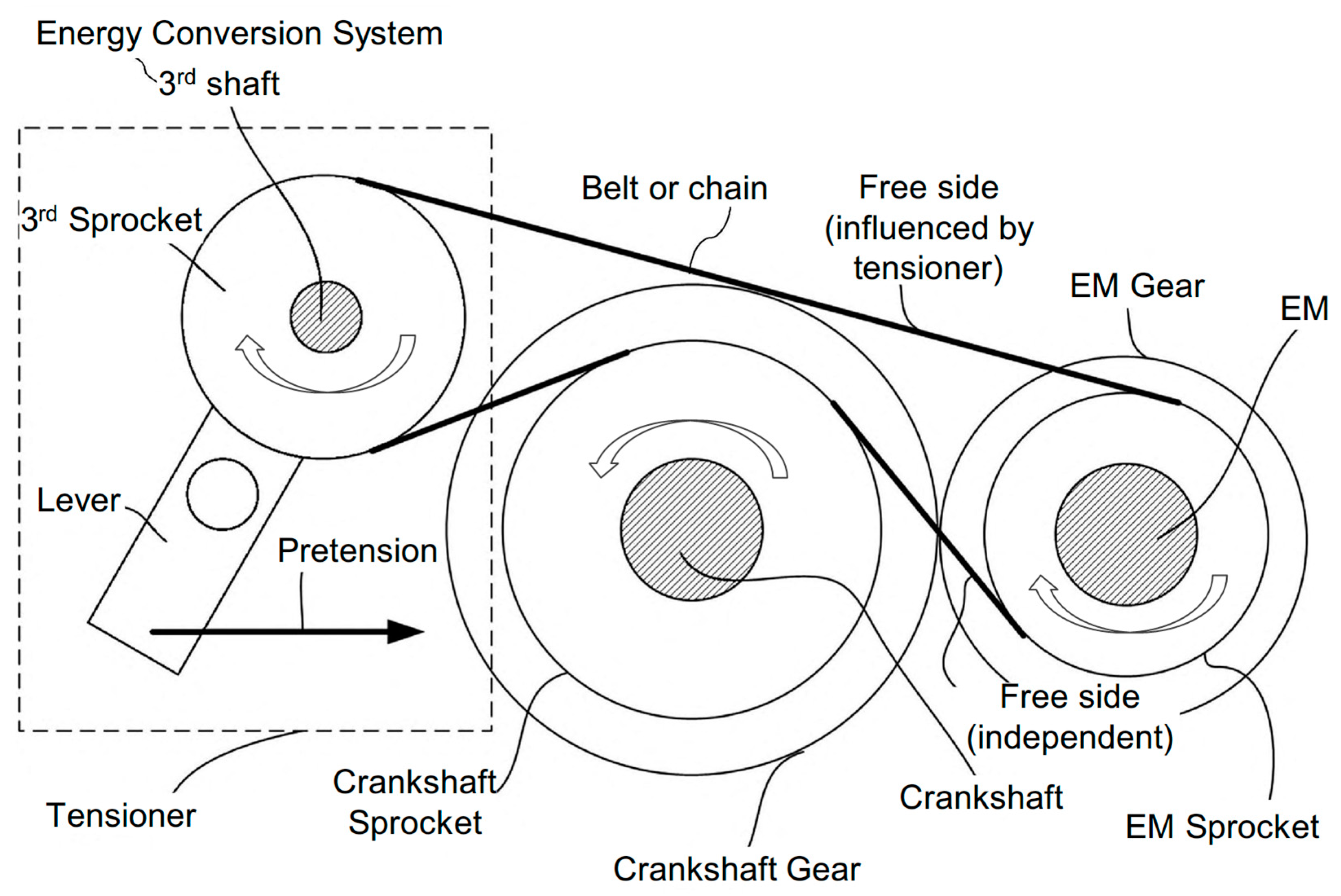

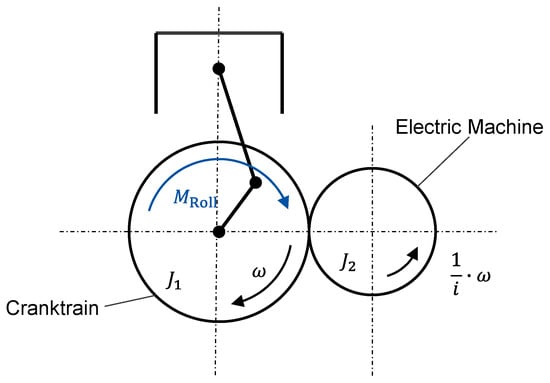

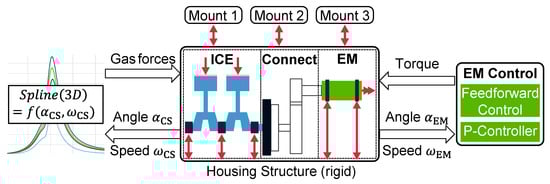

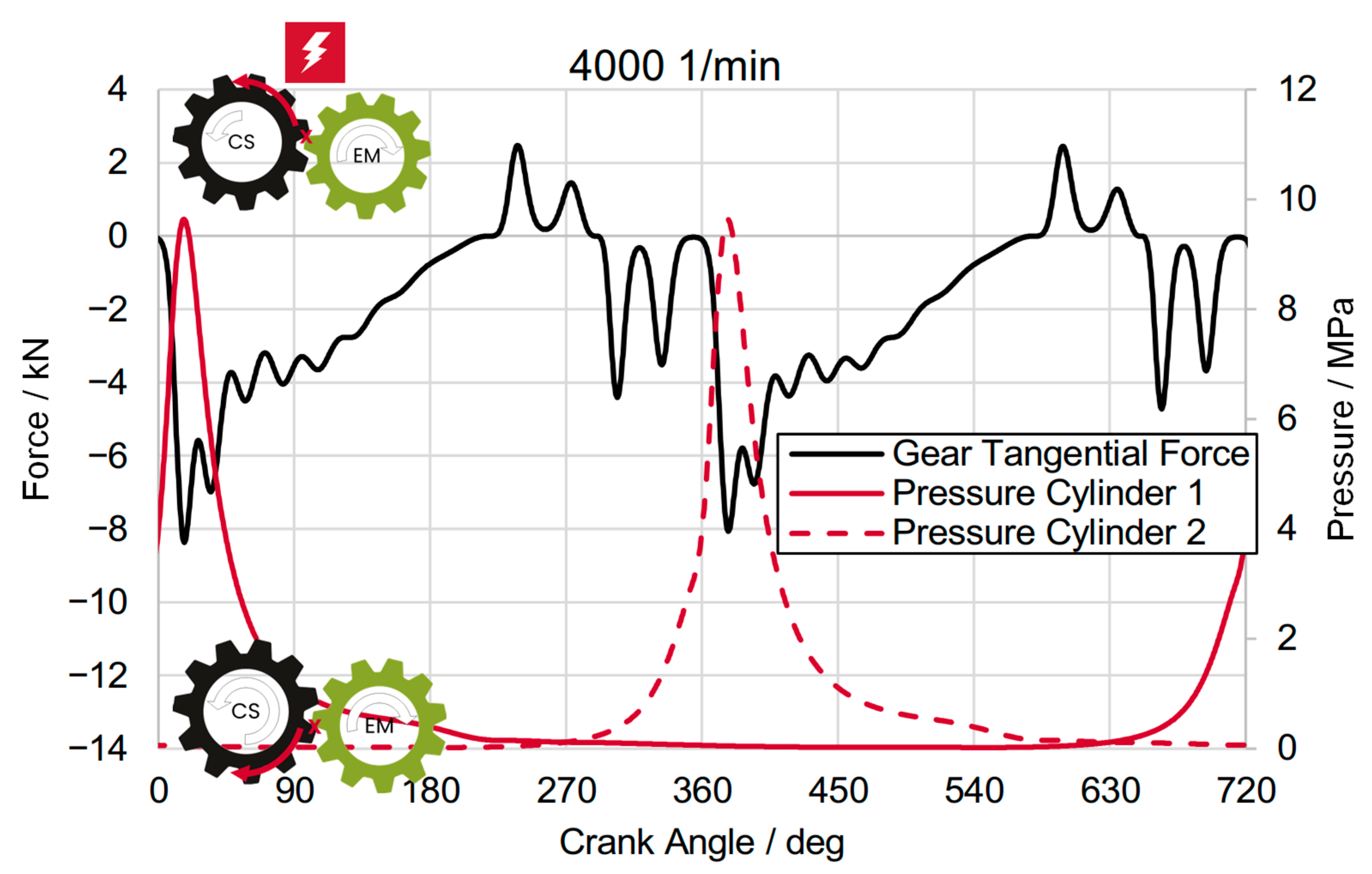

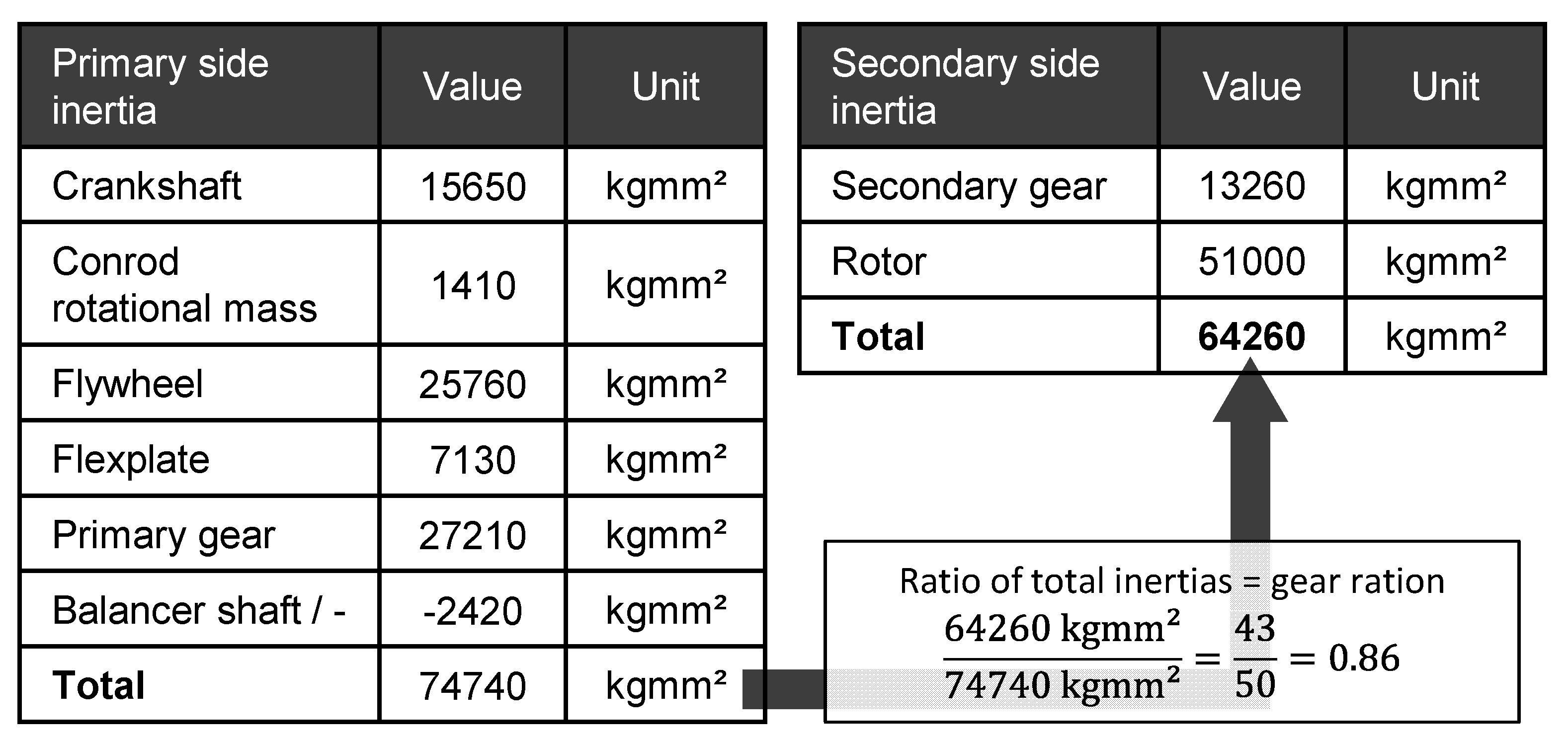

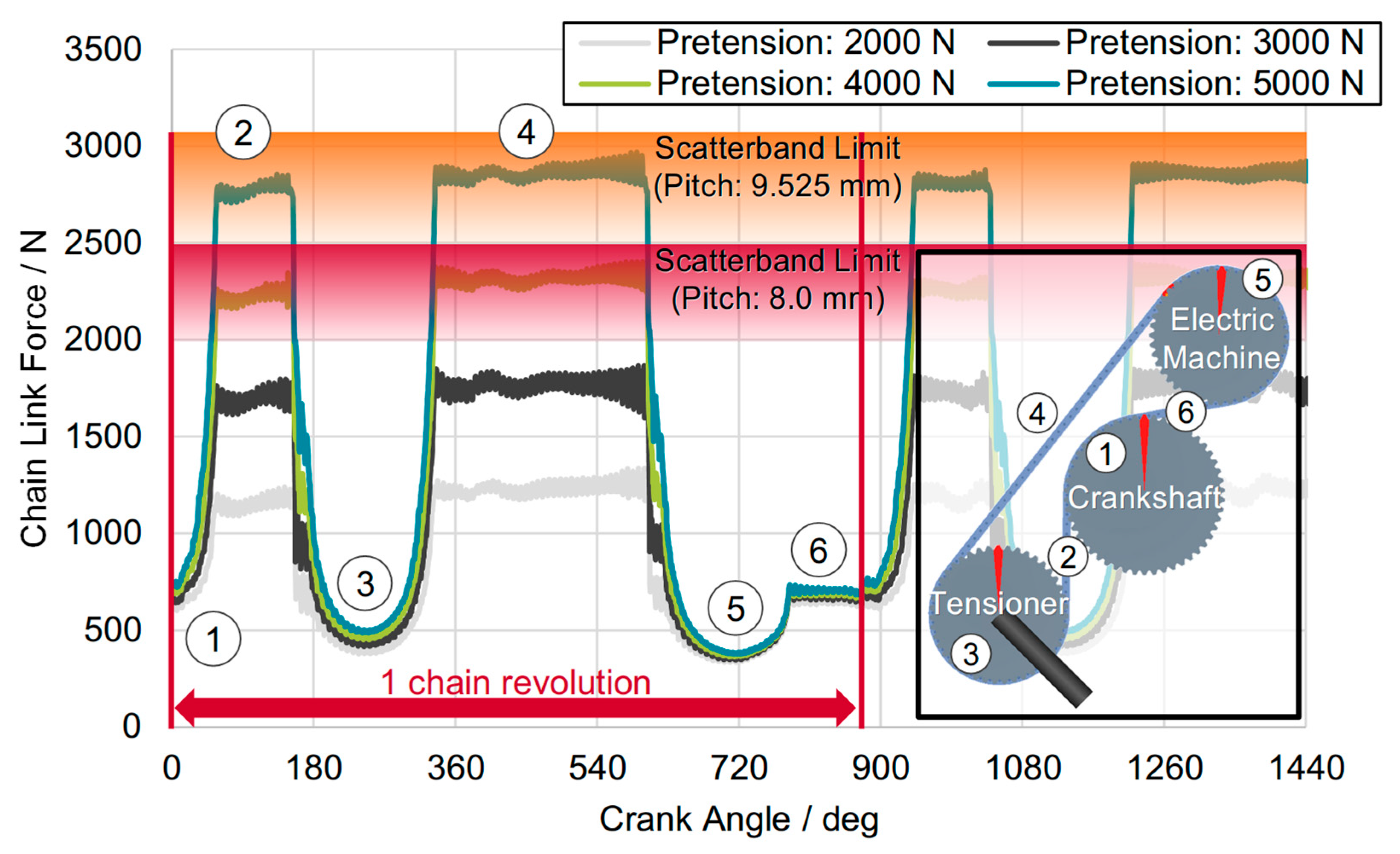

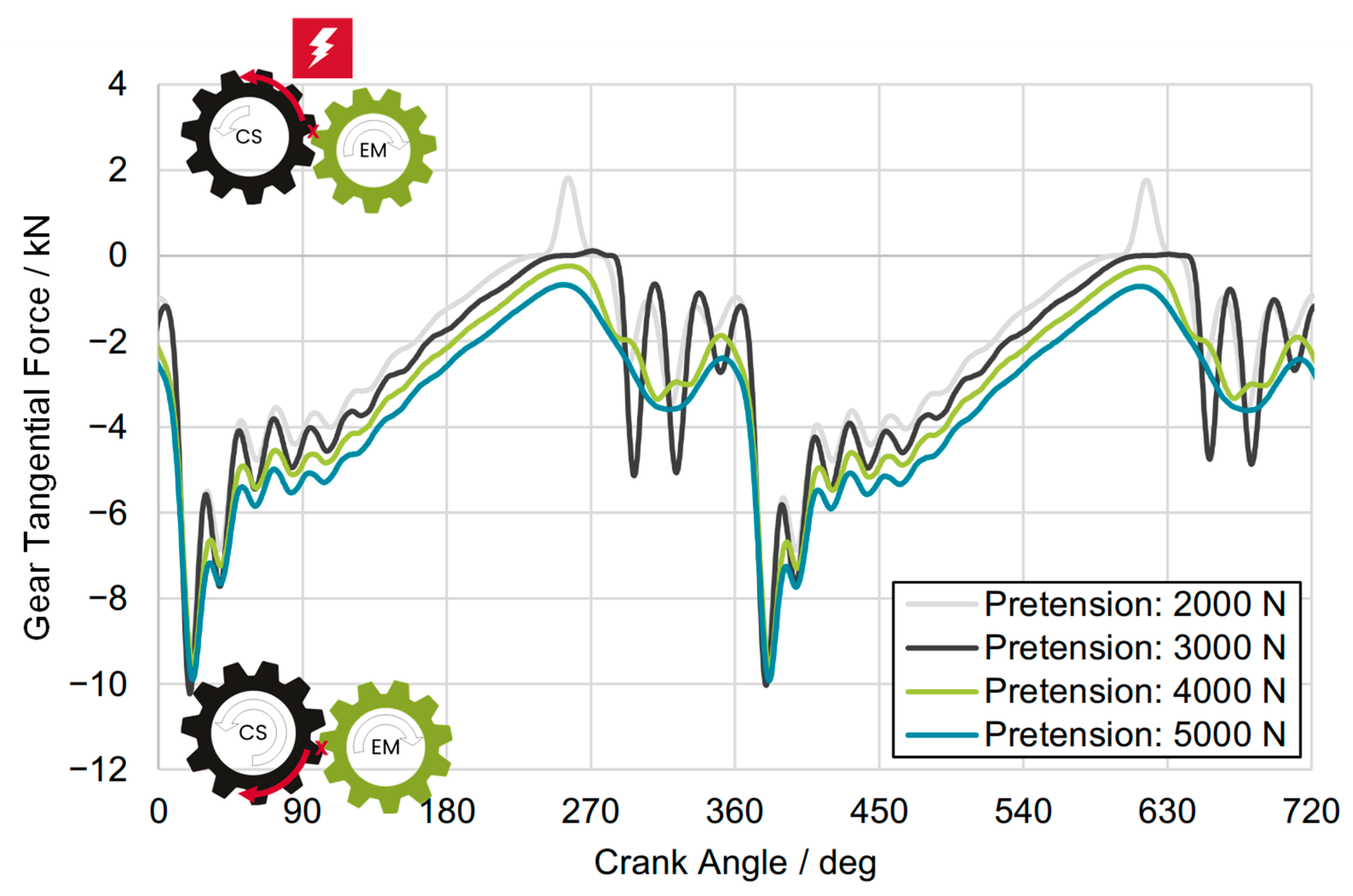

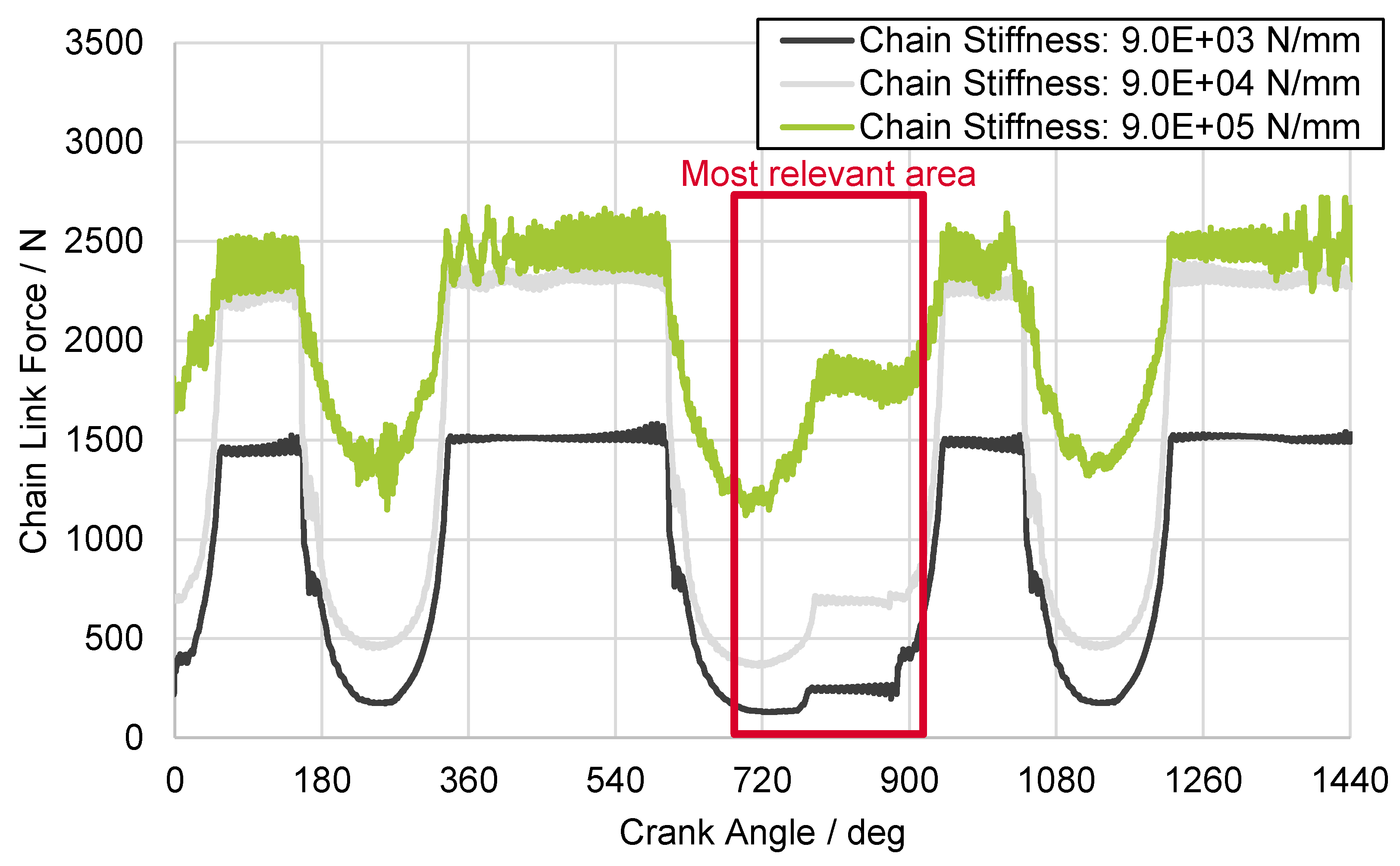

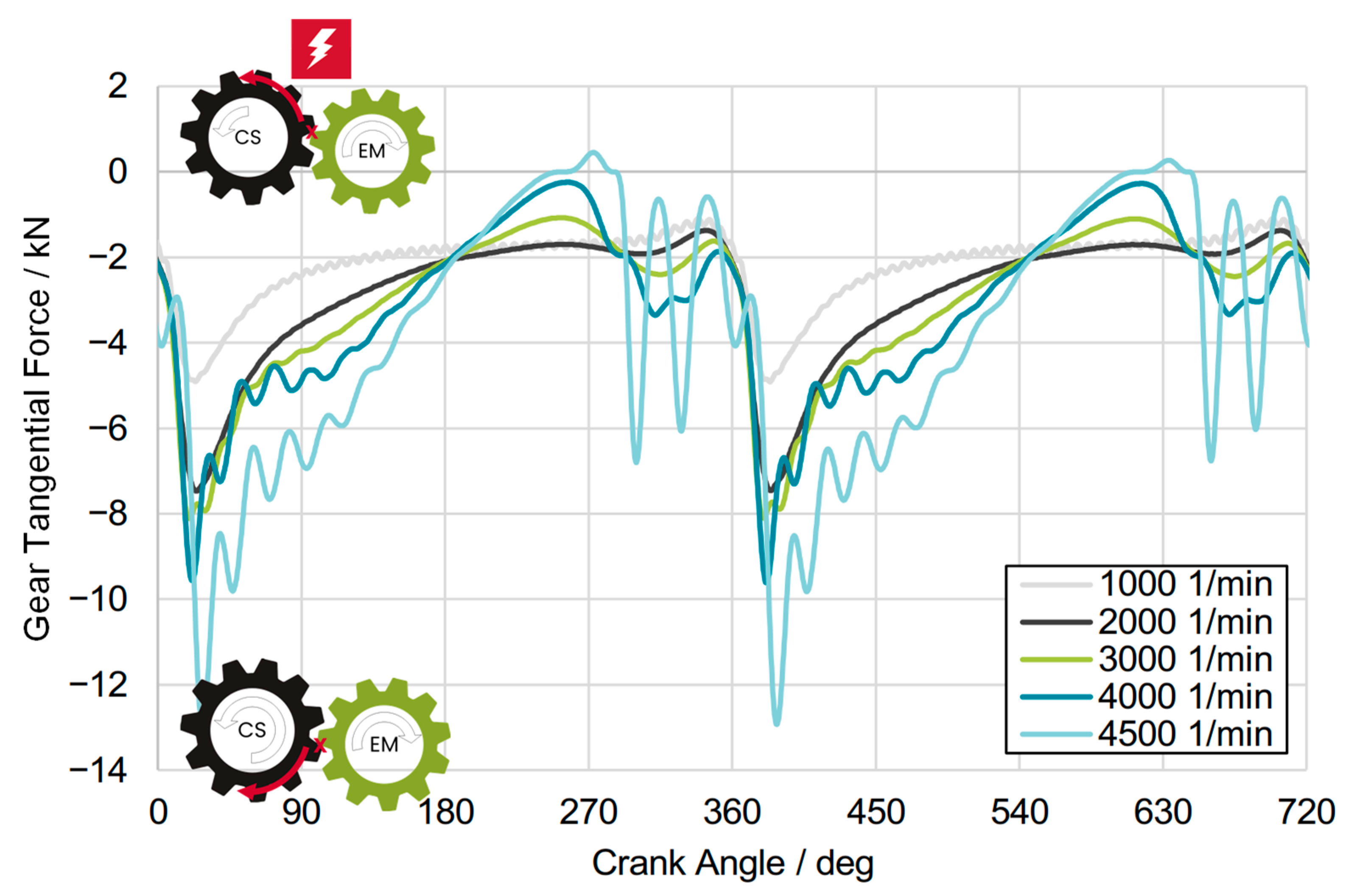

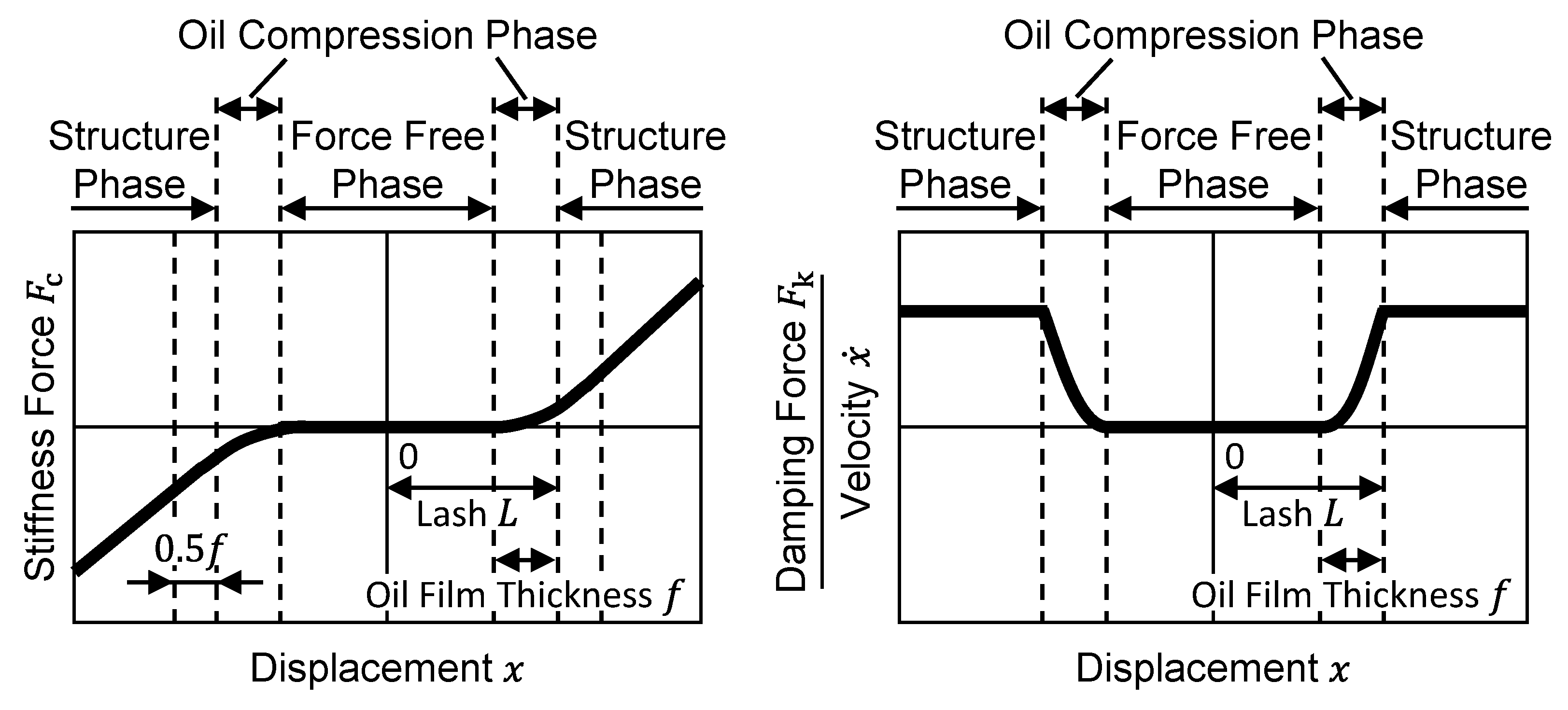

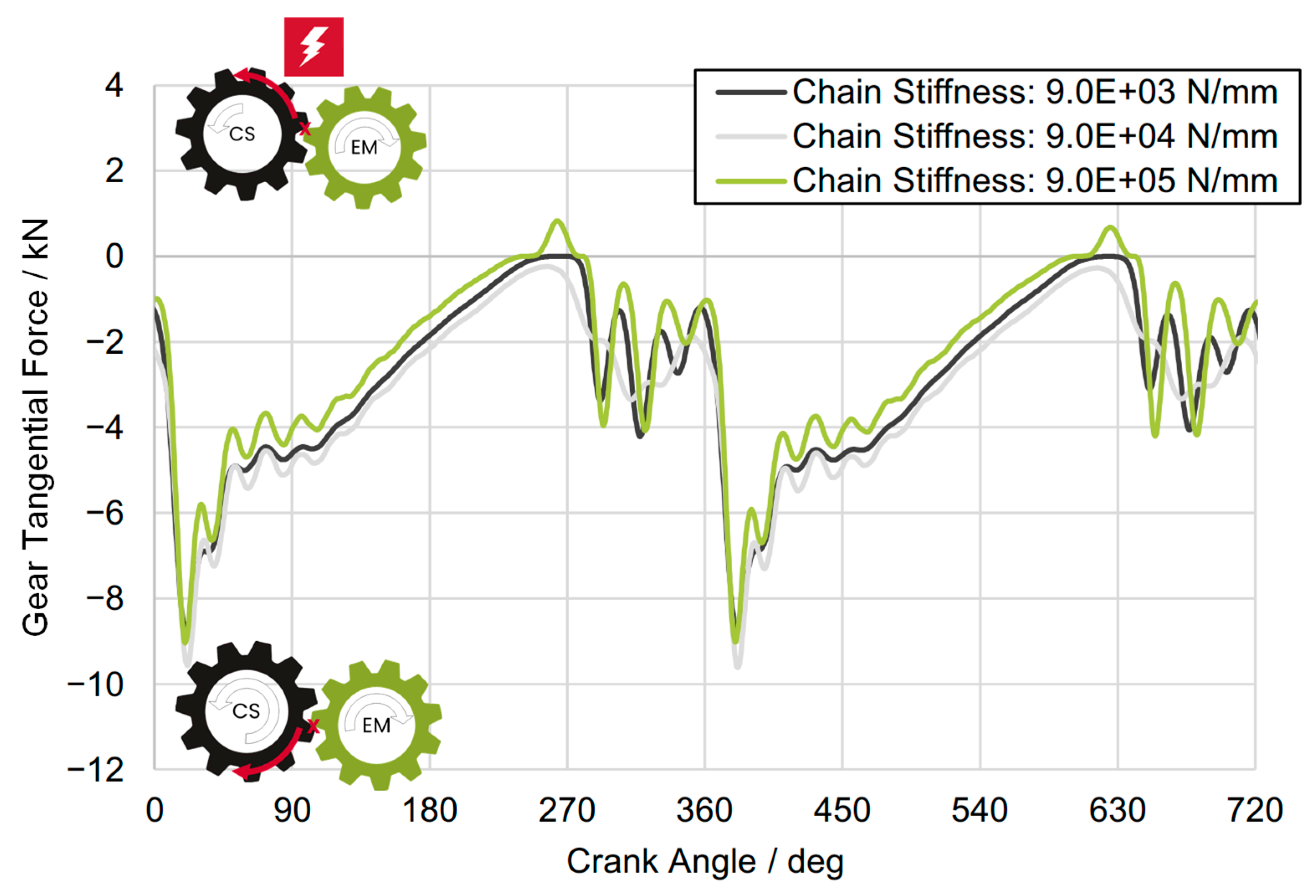

Battery electric vehicles (BEVs) are gaining market share, yet range anxiety and sparse charging still create demand for hybrids with combustion-engine range extenders. Range-extender vehicles face high customer expectations for noise, vibration, and harshness (NVH) due to their direct comparability with fully electric vehicles. Key challenges include the vibrations of the internal combustion engine, especially from vehicle-induced starts, and the discontinuous operating principle. A technological concept to reduce vibrations in the drivetrain and on the engine mounts, called “FEVcom,” relies on rolling moment compensation. In this concept, a counter-rotating electric machine is coupled to the internal combustion engine via a gear stage to minimize external mount forces. However, due to high speed fluctuations of the crankshaft, the gear drive tends to rattle, which is perceived as disturbing and must be avoided. As part of this work, the rolling moment compensation system was examined regarding its vibration excitation, and an extension to prevent gear rattling was simulated and optimized. For the simulation, the extension, based on a chain or belt drive, was set up as a multi-body simulation model in combination with the range extender and examined dynamically at different speeds. Variations of the extended system were simulated, and recommendations for an optimized layout were derived. This work demonstrates the feasibility of successful rattling avoidance in a range-extender drivetrain with full utilization of the rolling moment compensation. It also provides a solid foundation for further detailed investigations and for developing a prototype for experimental validation based on the understanding gained of the system.
