Investigating the Effect of Interface Morphology in Adhesively Bonded Composite Wavy-Lap Joints

1
Department of Mechanical and Aerospace Engineering, University of Strathclyde, 75 Montrose Street, Glasgow G1 1XJ, UK
2
Department of Engineering Design and Mathematics, University of the West of England (UWE), Bristol BS16 1QY, UK
3
Department of Mechanical Engineering, University of Tabriz, Tabriz 5166614766, Iran
4
Randon Center of Technology—Estrada Arziro Galafassi, s/no, Farroupilha 95180-000, Brazil
5
PPGE3M, Federal University of Rio Grande do Sul, Osvaldo Aranha 99, Porto Alegre 90035-190, Brazil
6
School of Engineering, University of Glasgow, Glasgow G12 8QQ, UK
*
Author to whom correspondence should be addressed.
J. Compos. Sci. 2021, 5(1), 32; https://doi.org/10.3390/jcs5010032
Received: 31 December 2020 / Revised: 14 January 2021 / Accepted: 14 January 2021 / Published: 17 January 2021
(This article belongs to the Special Issue Feature Papers in Journal of Composites Science in 2021)

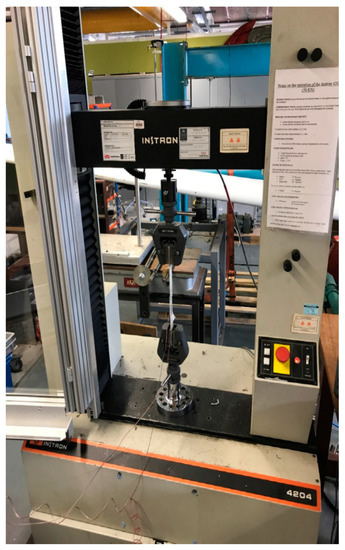

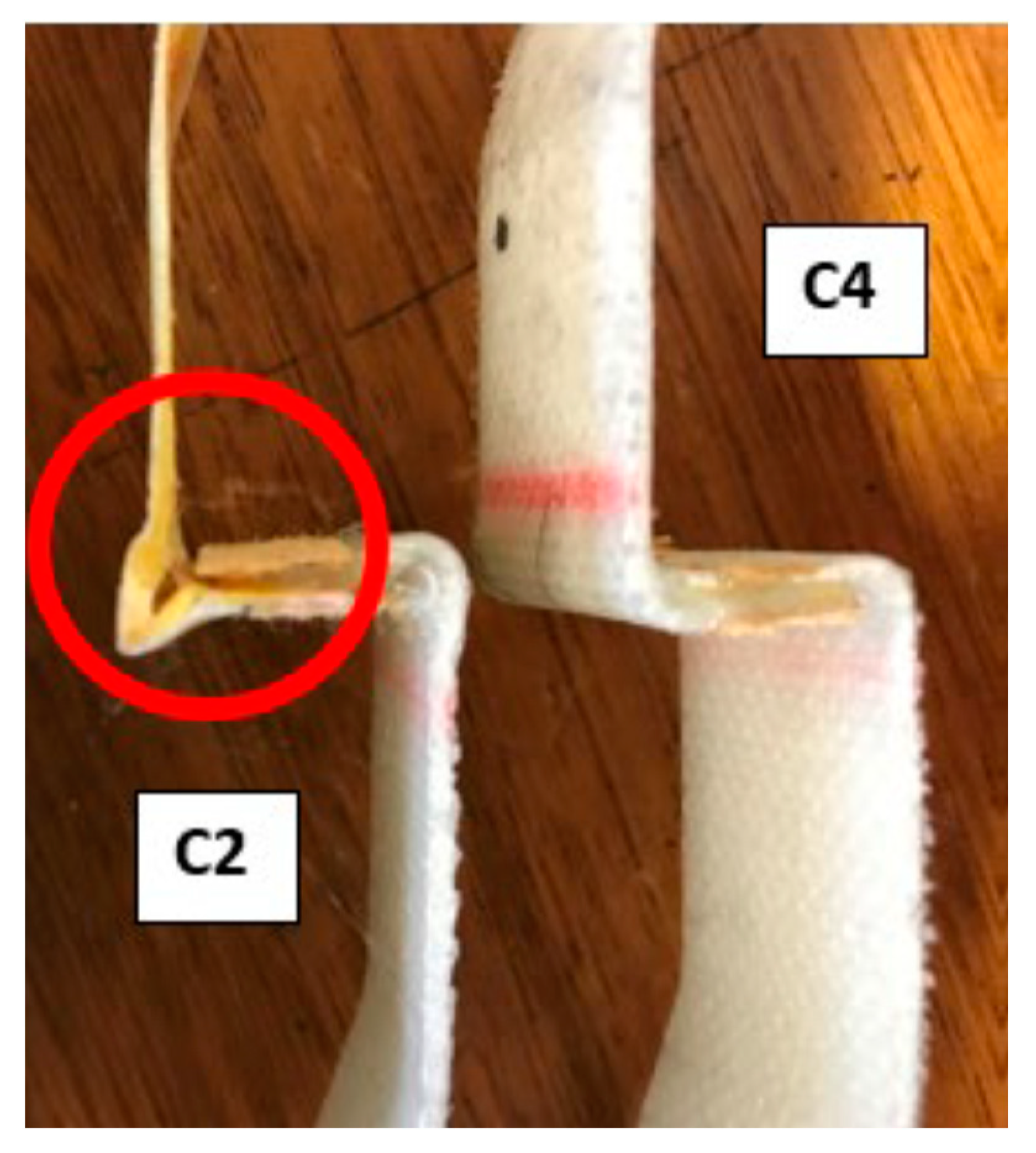

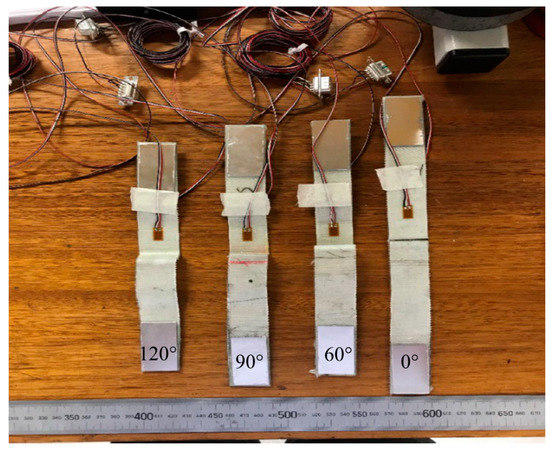

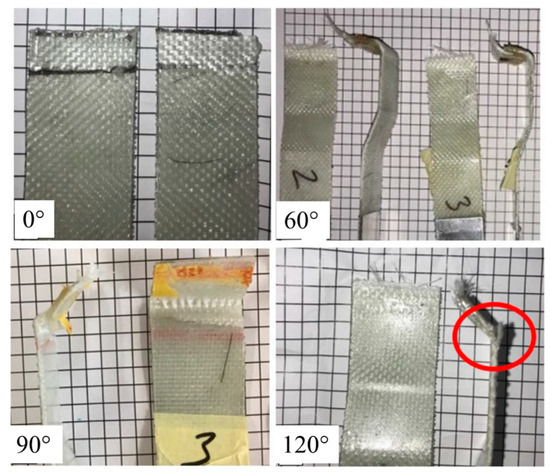

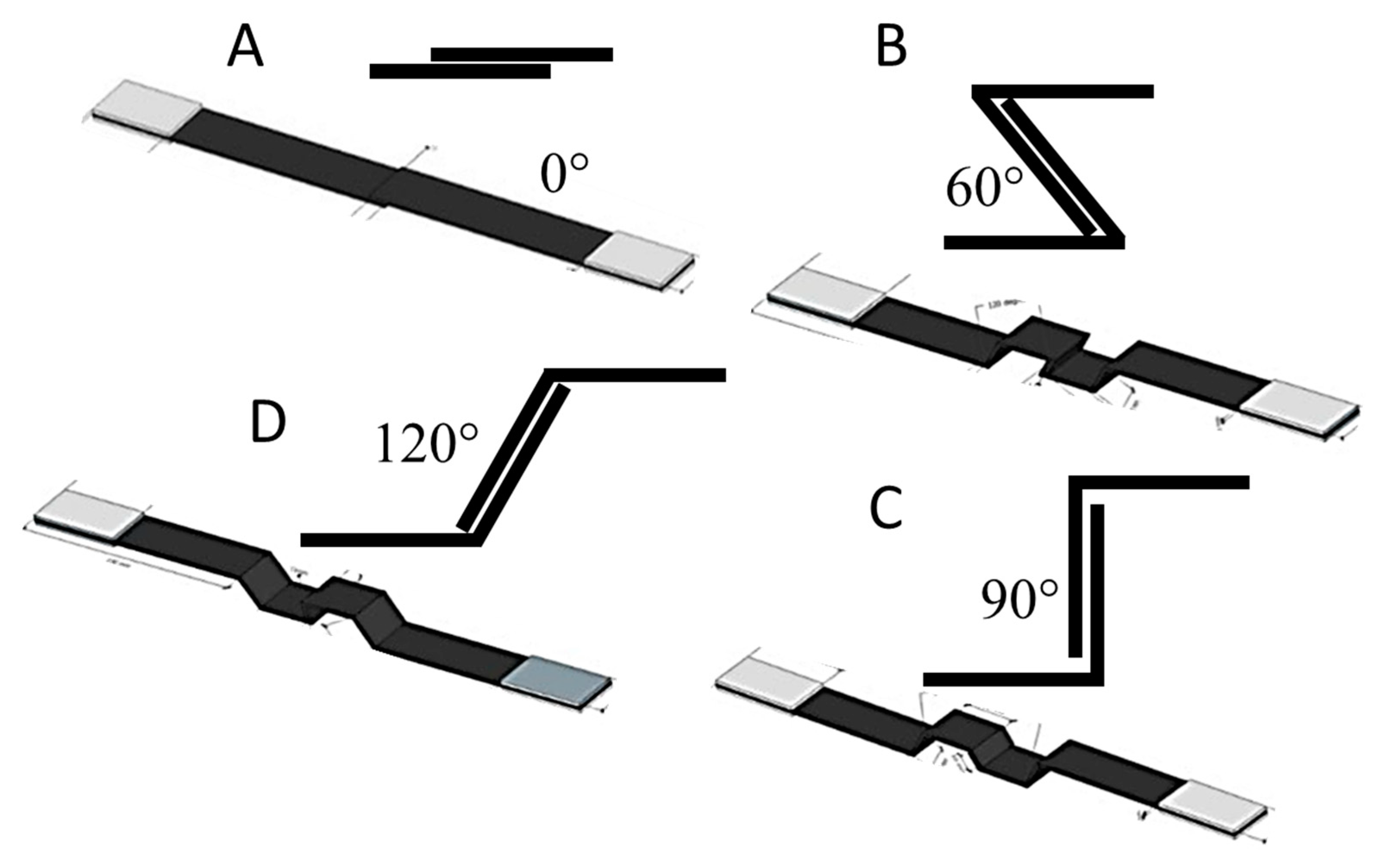

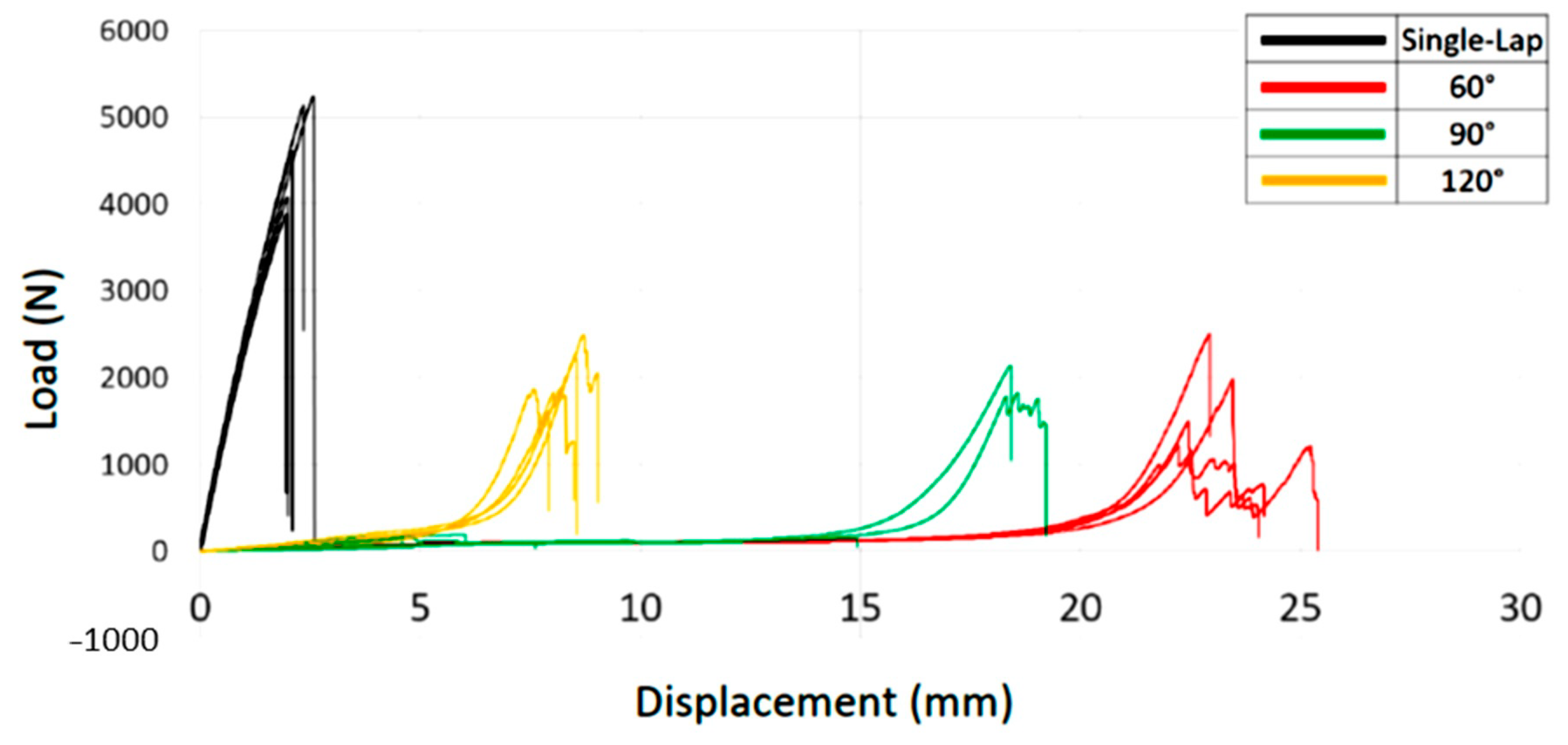

Joints and interfaces are one of the key aspects of the design and production of composite structures. This paper investigates the effect of adhesive–adherend interface morphology on the mechanical behavior of wavy-lap joints with the aim to improve the mechanical performance. Intentional deviation from a flat joint plane was introduced in different bond angles (0°, 60°, 90° and 120°) and the joints were subjected to a quasi-static tensile load. Comparisons were made regarding the mechanical behavior of the conventional flat joint and the wavy joints. The visible failure modes that occurred within each of the joint configurations was also highlighted and explained. Load vs. displacement graphs were produced and compared, as well as the failure modes discussed both visually and qualitatively. It was observed that distinct interface morphologies result in variation in the load–displacement curve and damage types. The wavy-lap joints experience a considerably higher displacement due to the additional bending in the joint area, and the initial damage starts occurring at a higher displacement. However, the load level had its maximum value for the single-lap joints. Our findings provide insight for the development of different interface morphology angle variation to optimize the joints behavior, which is widely observed in some biological systems to improve their performance. View Full-Text
Keywords: wavy joint; interface morphology; lap joint; composite; adhesive wavy joint; interface morphology; lap joint; composite; adhesive
