Analyses of Different Adhesives on Pure Mode I and Mode II Delamination Growth of Composite Bonded Joints ^†

Abstract

This work aims to study the behaviour against delamination under static modes I and II of adhesive bonded joints in unidirectional carbon-fibre/epoxy prepreg. The double cantilever beam and end notched flexure tests were used to characterize the influence on the interlaminar fracture toughness under pure mode I and pure mode II, respectively. Three structural adhesives from different manufacturers were tested in comparison with the original material, that is, without adhesive bonded. The fracture surfaces were also examined for each joint system.

1. Introduction

The application of adhesive bonds in structural components of fibre reinforced polymers has been increased in recent years. This is mainly due to the great advantages over other joining methods, improvements in the strength/weight ratio, load transfer through the adhesive, design flexibility and lower costs. On the contrary, surfaces preparation, adherents and adhesives types, the joint thickness and the temperature, must be studied during the manufacturing process [1]. It is known that the joining method is influenced by the breaking process, the way of breaking and the strength of the joint [2,3].

2. Materials and Manufacture of Joints

The adherends of the specimens were prepared considering unidirectional 0° layups carbon–epoxy prepreg (MTC 510) using a vacuum bagging layup procedure similar to that used in industry and a 100 °C cured during 4 h. Each laminate consisted of 7 plies of MTC 510. Secondary bonded joints were produced by curing a single sheet of adhesive between two pre-cured laminates [4]. A 12 µm thick PTFE sheet was placed between the laminate and the adhesive on one side of the layup to act as a crack initiation.

Three structural adhesives (see

Table 1. Mechanical properties of three different adhesive tested.

Properties	Loctite® EA 9470TM	Araldite® 2015	3MTM DP8010NS
Structural base	Epoxy	Epoxy	Acrylic
Density, g/cm3	~1.33	~1.4	~1.06
Viscosity at 25 °C, mPa·s	150,000–250,000	Thixotropic	45,000
Pot life a 25 °C, minutes	40 to 65	30 to 40	8 to 12

); two epoxy adhesives (Loctite^® EA 9470TM and Araldite^® 2015) and acrylic adhesive 3MTM DP8010NS) were used to bond the adherends, whose surface were previously roughened with sandpaper and cleaned with acetone in order to increase the adhesion thus avoiding adhesive failure.

Once cured, the bonded composite laminates were machined to size using a grinding disc. The specimens were cut to a nominal width of 20 mm and a length of 200 mm with an initial crack starter length of 50 mm from the load-line. The total thickness of each specimen was ≈4.3 ± 0.1 mm. Some specimens of non-adhesive joints were also performed for the aim of comparison.

3. Experimental Methods

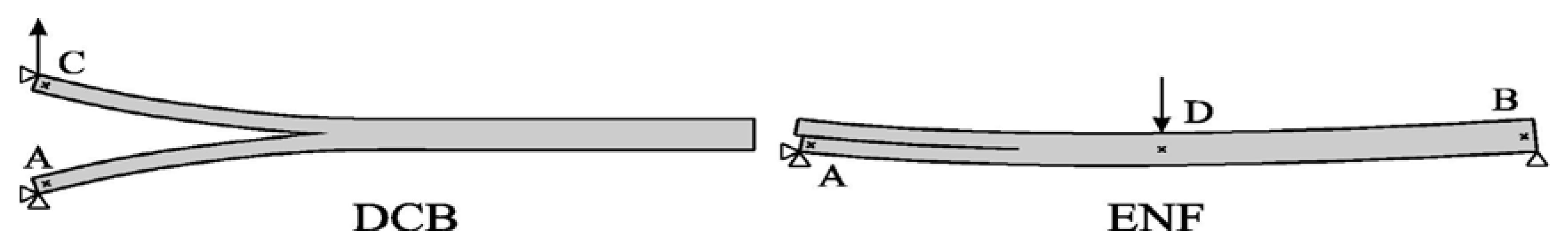

Double Cantilever Beam (DCB) and End-Notched Flexure (ENF) test were performed to characterize the adhesive under pure mode I and pure mode II according to the standards ASTM D 5528-01 [5] and ASTM D7905/D7905M-14 [6], respectively. In Figure 1 the configuration of each test is schematically shown.

Specimens were tested under a displacement control on a servo-hydraulic testing machine (MTS 810) equipped with a 5 kN load cell for both modes of fracture. All tests were carried out at a constant crosshead displacement rate of 3 mm/min. The crack length is monitored from images of the DCB specimen’s edge recorded with a high resolution camera.

3.1. DCB Test

The procedure described in the standard ASTM D 5528-01 [5] was followed to perform the DCB test. The fracture toughness, G_IC, were computed using the Beam Theory (BT) as follows (1):

$${\mathrm{G}}_{\mathrm{Ic}}=\frac{3P\delta }{2Ba}$$

(1)

where P is the applied load, $\delta$ is the opening displacement, B is the width of the specimen and a is the crack length.

3.2. ENF Test

The three point bending ENF tests were done base on the procedure described in the standard ASTM D7905/D7905M-14 [6] (see Figure 1). The fracture toughness, G_IIC, was calculated using (2):

$${\mathrm{G}}_{\mathrm{IIc}}=\frac{3m{P}^2{}_{max}{a}_{\mathrm{O}}^2}{2B}$$

(2)

where m is the CC coefficient, P_max is the maximum force from the fracture test, a₀ is the crack length used in the fracture test (30 mm), B is the specimen width.

4. Results

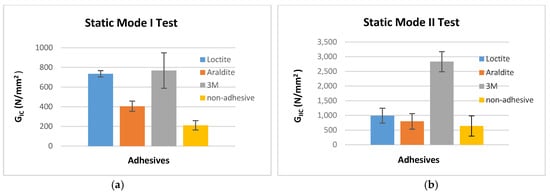

Figure 2 shows the values of the initiation criteria of interlaminar fracture toughness (G_IC and G_IIC) for each adhesive joint system studied to compared with non-adhesive joints, for mode I and II, respectively.

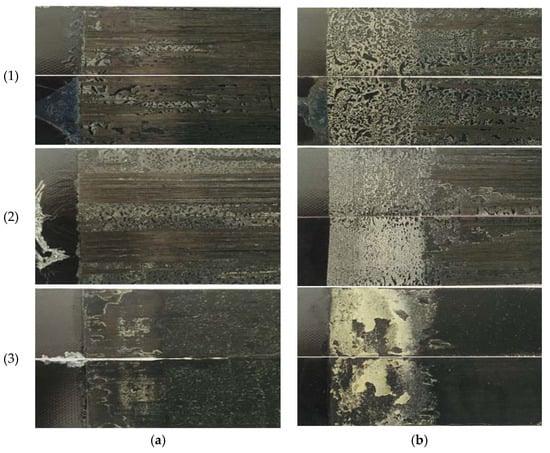

After testing, the specimens were manually broken apart to examine the fracture surfaces. Figure 3 shows the mode I and mode II fracture surface obtained for the different adhesives studied.

5. Discussion

According to the data obtained from the experimental tests, the 3M^TM DP8010NS adhesive presents the highest values of strain energy release rate in mode I (G_IC) and mode II (G_IIC). In both cases, the behaviour of the adhesive joints improves the fracture toughness of the original material.

The errors bars for mode I are quite short except for 3M adhesive bonded joints. This is possible due to an effect caused by fibre-bridging which would positively contribute to the fracture toughness values. For mode II was observed similar error bars for each adhesive joint system and higher in comparison with mode I.

This behaviour was confirmed by the study of the fractured surfaces of the specimens tested previously. In the region where the fracture test was conducted, it can be seen that the (1) Loctite^® EA 9470T^M and (2) Araldite^® 2015 adhesive joints failed interfacially while (3) 3M^TM DP8010NS adhesive joints had had mix-fracture, adhesive failure for initiation region fracture and cohesive failure for propagation region.

For mode II test was observed the (1) Loctite^® EA 9470T^M and (2) Araldite^® 2015 adhesive joints failed interfacially while (3) 3M^TM DP8010NS adhesive joints failed cohesively.

6. Conclusions

This work aims to study the behaviour against delamination under static modes I and II of adhesive bonded joints in unidirectional carbon-fibre/epoxy prepreg for different structural epoxy and acrylic adhesive.

For mode I, higher values of strain energy release rate were obtained in comparison with the original material for three different adhesive bonded joints used. The same trend is observed for mode II.

Fracture surfaces show a better delamination behaviour in cohesively failed than in interfacial failed. Acrylic adhesive tends to have cohesive failure while epoxy adhesives tends to have interfacial failure.
