# A Semi-Supervised Based K-Means Algorithm for Optimal Guided Waves Structural Health Monitoring: A Case Study

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Background

#### 2.1. Guided Waves Based SHM

#### 2.2. Damage Detection Approach

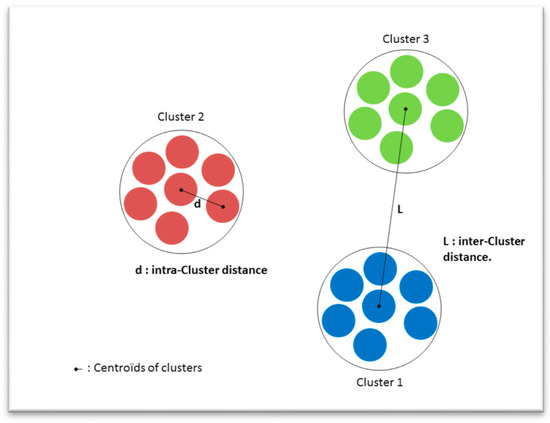

## 3. K-Means Based Method

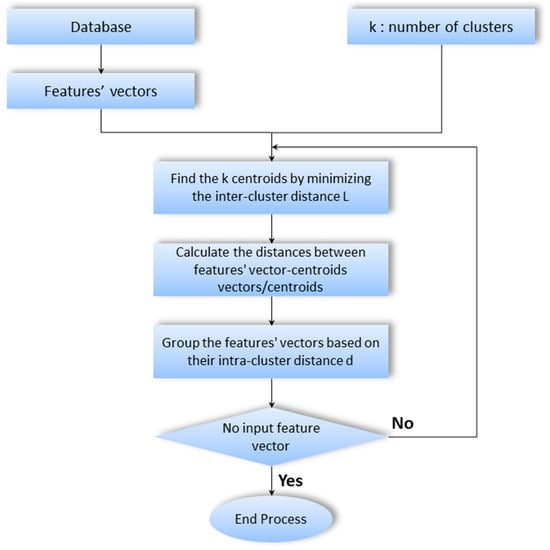

#### 3.1. Classical K-Means Clustering

- Randomly choose k points (centers) from the input data set;
- Extract feature vectors from data;
- Assign each feature vector to the closet center;
- Compute the new centers of the formed clusters.

#### 3.2. Proposed Online Damage Detection Method

- ${\mathrm{TH}}_{\mathrm{d}}$: threshold of limit value of the distance that can be considered in the same cluster;
- i: counter of signal distances that exceed ${\mathrm{TH}}_{\mathrm{d}}$;
- k: number of clusters;
- N: persistence number to reach a new cluster;
- d: the Euclidian distance between the new signal feature vector and the centroid of its cluster.

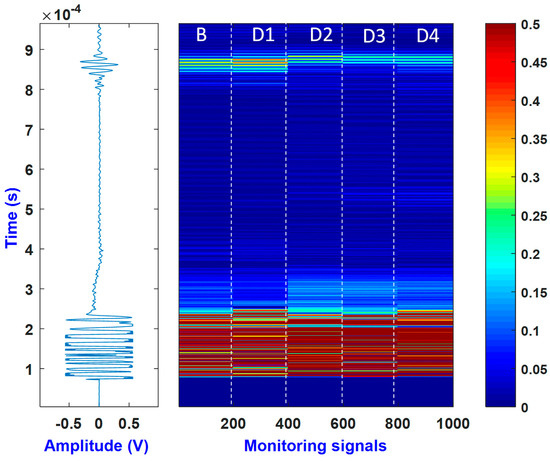

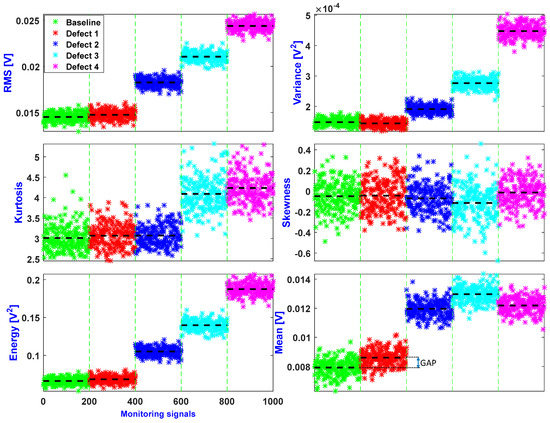

## 4. Experiments and Database Building

## 5. Results and Discussion

#### 5.1. Classical K-Means

_{OPT}= 4. In the second case as shown in Figure 13b, which concerns the feature vector (RMS, mean), only the gap criterion indicates that the optimal number of clusters is five, which is the real number of data groups. This confirms that the feature vector (RMS, mean) is the most relevant for damage detection and will be retained in the following development.

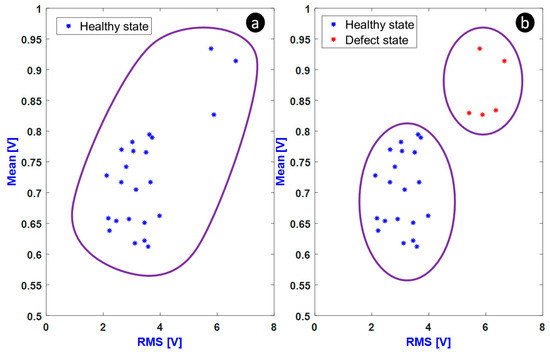

#### 5.2. Novel Proposed Method

^{−3}to ${\mathrm{TH}}_{\mathrm{d}}$ = 8 × 10

^{−3}with a step of 1 × 10

^{−3}. This range was graphically determined from the previous results shown in Figure 12. The persistence number was fixed at N = 3. The result in Figure 15d shows that a high value of ${\mathrm{TH}}_{\mathrm{d}}=8\times {10}^{-3}$ kept all the signals in the same cluster and hence the number of clusters remained at k = 1. Therefore, this value of ${\mathrm{TH}}_{\mathrm{d}}$ did not allow the detection of the damaged state clusters. When ${\mathrm{TH}}_{\mathrm{d}}=6\times {10}^{-3}$, as shown in Figure 15c, the resulting clustering process was close to the real cluster of signals.

## 6. Conclusions

## Author Contributions

## Conflicts of Interest

## References

- Farrar, C.R.; Worden, K. An introduction to structural health monitoring. Philos. Trans. R. Soc. Lond. A Math. Phys. Eng. Sci.
**2017**, 365, 303–315. [Google Scholar] [CrossRef] - Lowe, M.J.; Alleyne, D.N.; Cawley, P. Defect detection in pipes using guided waves. Ultrasonics
**1998**, 36, 147–154. [Google Scholar] [CrossRef] - Zhu, W.; Rose, J.L.; Barshinger, J.N.; Agarwala, V.S. Ultrasonic guided wave NDT for hidden corrosion detection. J. Res. Nondestruct. Eval.
**1998**, 10, 205–225. [Google Scholar] [CrossRef] - Alleyne, D.N.; Pavlakovic, B.; Lowe, M.J.S.; Cawley, P. The use of guided waves for rapid screening of chemical plant pipework. J. Korean Soc. NDT
**2002**, 22, 589–598. [Google Scholar] - Rose, J.L.; Avioli, M.J.; Mudge, P.; Sanderson, R. Guided wave inspection potential of defects in rail. Ndt E Int.
**2004**, 37, 153–161. [Google Scholar] [CrossRef] - Rose, J.L.; Soley, L.E. Ultrasonic guided waves for anomaly detection in aircraft components. Mater. Eval.
**2000**, 58, 1080–1086. [Google Scholar] - Castaings, M.; Hosten, B. Ultrasonic guided waves for health monitoring of high-pressure composite tanks. Ndt E Int.
**2008**, 41, 648–655. [Google Scholar] [CrossRef] - Black, S. Structural Health Monitoring: Composites Get Smart, Composites World. September 2008. Available online: https://www.compositesworld.com/articles/structural-health-monitoring-composites-get-smart (accessed on 30 December 2018).
- Croxford, A.J.; Moll, J.; Wilcox, P.D.; Michaels, J.E. Efficient temperature compensation strategies for guided wave structural health monitoring. Ultrasonics
**2010**, 50, 517–528. [Google Scholar] [CrossRef] - Rizzo, P.; Sorrivi, E.; di Scalea, F.L.; Viola, E. Wavelet-based outlier analysis for guided wave structural monitoring: Application to multi-wire strands. J. Sound Vibr.
**2007**, 307, 52–68. [Google Scholar] [CrossRef] - Eybpoosh, M.; Berges, M.; Noh, H.Y. An energy-based sparse representation of ultrasonic guided-waves for online damage detection of pipelines under varying environmental and operational conditions. Mech. Syst. Signal Process.
**2017**, 82, 260–278. [Google Scholar] [CrossRef] - Yaacoubi, S.; Chehami, L.; Aouini, M.; Declercq, N.F. Ultrasonic guided waves for reinforced plastics safety. Reinf. Plastics.
**2017**, 61, 87–91. [Google Scholar] [CrossRef] - Cawley, P.; Lowe, M.J.S.; Alleyne, D.N.; Pavlakovic, B.; Wilcox, P. Practical long range guided wave inspection-applications to pipes and rail. Mater. Eval.
**2003**, 61, 66–74. [Google Scholar] - Eybpoosh, M.; Berges, M.; Noh, H.Y. Sparse representation of ultrasonic guided-waves for robust damage detection in pipelines under varying environmental and operational conditions. Struct. Control Heal. Monit.
**2016**, 23, 369–391. [Google Scholar] [CrossRef] - Hossein Abadi, H.Z.; Amir fattahi, R.; Nazari, B.; Mirdamadi, H.R.; Atashipour, S.A. GUW-based structural damage detection using WPT statistical features and multiclass SVM. Appl. Acoust.
**2014**, 86, 59–70. [Google Scholar] [CrossRef] - Sahu, S.K.; Jena, S.K. A study of K-Means and C-Means clustering algorithms for intrusion detection product development. Int. J. Innov. Manag. Technol.
**2014**, 5, 207. [Google Scholar] [CrossRef] - Lloyd, S. Least squares quantization in PCM. IEEE Trans. Inf. Theory
**1982**, 28, 129–137. [Google Scholar] [CrossRef] - Loohach, R.; Garg, K. Effect of distance functions on simple k-means clustering algorithm. Int. J. Comput. Appl.
**2012**, 49, 7–9. [Google Scholar] [CrossRef] - Singh, A.; Yadav, A.; Rana, A. K-means with three different distance metrics. Int. J. Comput. Appl.
**2013**, 67. [Google Scholar] [CrossRef] - Kim, Y.G.; Moon, H.S.; Park, K.J.; Lee, J.K. Generating and detecting torsional guided waves using magnetostrictive sensors of crossed coils. Ndt E Int.
**2011**, 44, 145–151. [Google Scholar] [CrossRef] - Salmanpour, M.S.; Sharif Khodaei, Z.; Aliabadi, M.H. Guided wave temperature correction methods in structural health monitoring. J. Intell. Mater. Syst. Struct.
**2017**, 28, 604–618. [Google Scholar] [CrossRef] - Alguri, K.S.; Melville, J.; Harley, J.B. Baseline-free guided wave damage detection with surrogate data and dictionary learning. J. Acoust. Soc. Am.
**2018**, 143, 3807–3818. [Google Scholar] [CrossRef] [PubMed] - Liu, C.; Harley, J.B.; Bergés, M.; Greve, D.W.; Oppenheim, I.J. Robust ultrasonic damage detection under complex environmental conditions using singular value decomposition. Ultrasonics
**2015**, 58, 75–86. [Google Scholar] [CrossRef] [PubMed] - Ebrahimkhanlou, A.; Dubuc, B.; Salamone, S. Damage localization in metallic plate structures using edge-reflected lamb waves. Smart Mater. Struct.
**2016**, 25, 085035. [Google Scholar] [CrossRef] - Rostami, J.; Tse, P.W.; Fang, Z. Sparse and Dispersion-Based Matching Pursuit for Minimizing the Dispersion Effect Occurring When Using Guided Wave for Pipe Inspection. Materials
**2017**, 10, 622. [Google Scholar] [CrossRef] [PubMed] - Caliński, T.; Harabasz, J. A dendrite method for cluster analysis. Commun. Stat.
**1974**, 3, 1–27. [Google Scholar] - Rousseeuw, P.J. Silhouettes: A Graphical Aid to the Interpretation and Validation of Cluster Analysis. Comput. Appl. Math.
**1987**, 20, 53–65. [Google Scholar] [CrossRef] - Kaufman, L.; Rousseeuw, P.J. Finding Groups in Data: An Introduction to Cluster Analysis; John Wiley & Sons: Hoboken, NJ, USA, 1990. [Google Scholar]
- Davies, D.L.; Bouldin, D.W. A Cluster Separation Measure. IEEE Trans. Pattern Anal. Mach. Intell.
**1979**, 2, 224–227. [Google Scholar] [CrossRef] - Tibshirani, R.; Walther, G.; Hastie, T. Estimating the number of clusters in a data set via the gap statistic. J. R. Stat. Soc. B
**2001**, 63, 411–423. [Google Scholar] [CrossRef] - Bholowalia, P.; Kumar, A. EBK-means: A clustering technique based on elbow method and k-means in WSN. Int. J. Comput. Appl.
**2014**, 105, 9. [Google Scholar]

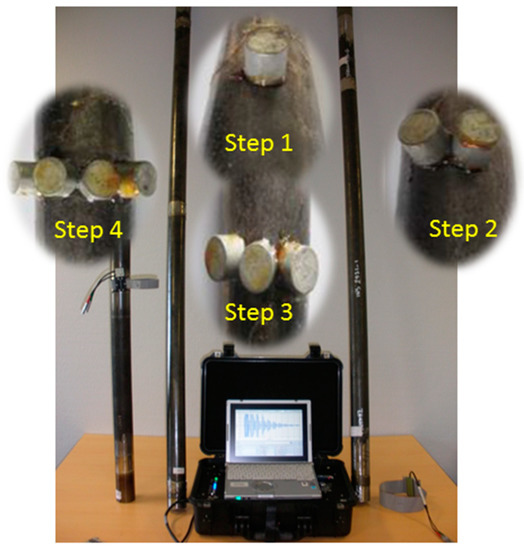

**Figure 5.**Experimental setup of the guided waves monitoring technique of a tube, and photography showing the adopted method to create a structural defect.

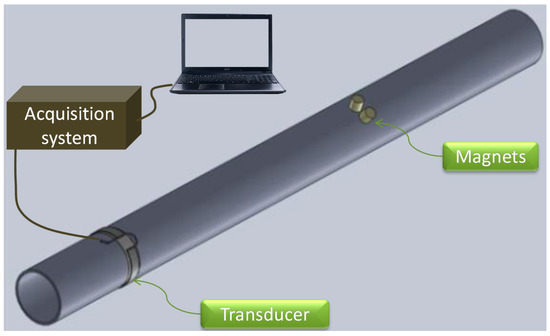

**Figure 6.**Schematic diagram of the proposed experimental setup shown in Figure 5.

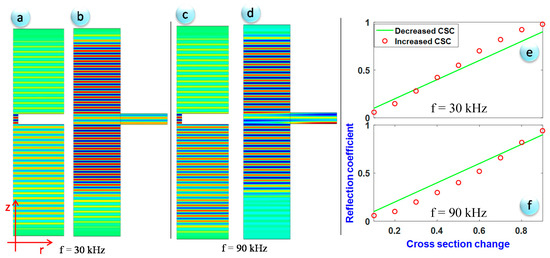

**Figure 7.**Circumferential displacement distribution: for decreased cross-section change (CSC) (

**a**,

**c**), and decreased CSC (

**b**,

**d**), and reflection coefficient versus CSC in both cases (material loss and added material (

**e**,

**f**)). (r, z) are the radial and axial coordinates of the axisymmetric tube.

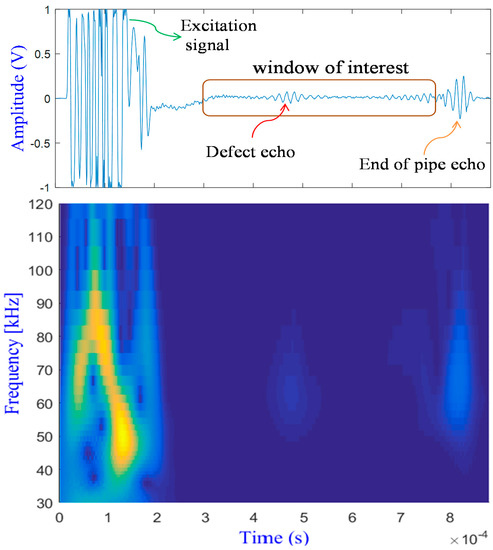

**Figure 8.**Example of a measured signal from a damaged pipe (top) and its time-frequency representation (bottom).

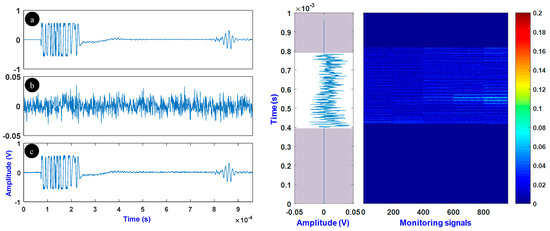

**Figure 10.**(left) Original signal (

**a**), noise (

**b**), and corrupted signal (

**c**), and (right), the collected data after removing the excitation signal and the end of pipe echo and after adding noise.

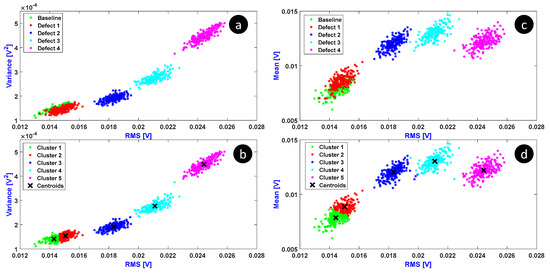

**Figure 12.**Clustering of collected data using two feature vectors: original clusters for (RMS, variance) (

**a**), k-means clusters for (RMS, variance) (

**b**), original clusters for (RMS, mean) (

**c**), and k-means clusters for (RMS, mean) (

**d**).

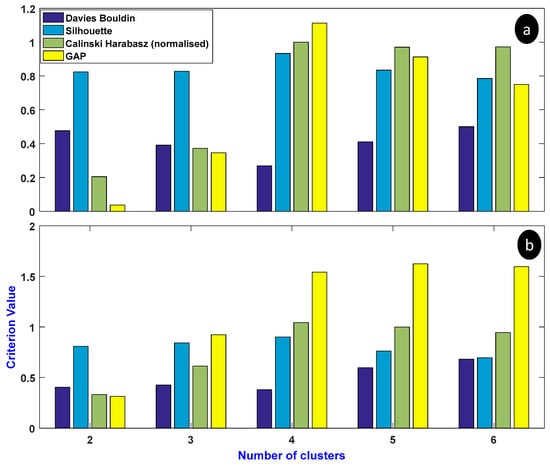

**Figure 13.**Variation of the criterion of optimal cluster number: (

**a**) (RMS, variance) and (

**b**) (RMS, mean).

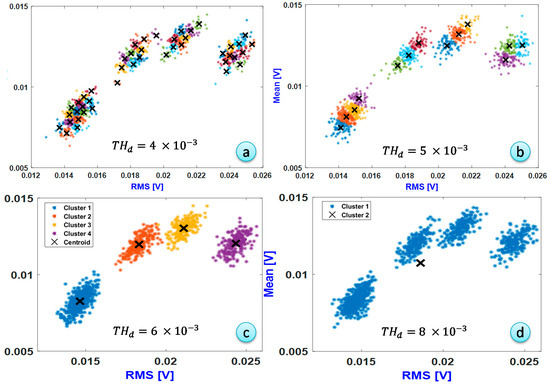

**Figure 15.**Clustering results with different threshold distance ${\mathrm{TH}}_{\mathrm{d}}$ and a fixed persistence number N = 3. (

**a**) ${\mathrm{TH}}_{\mathrm{d}}=4\times {10}^{-3}$; (

**b**) ${\mathrm{TH}}_{\mathrm{d}}=5\times {10}^{-3}$; (

**c**) ${\mathrm{TH}}_{\mathrm{d}}=6\times {10}^{-3}$; (

**d**) ${\mathrm{TH}}_{\mathrm{d}}=8\times {10}^{-3}.$

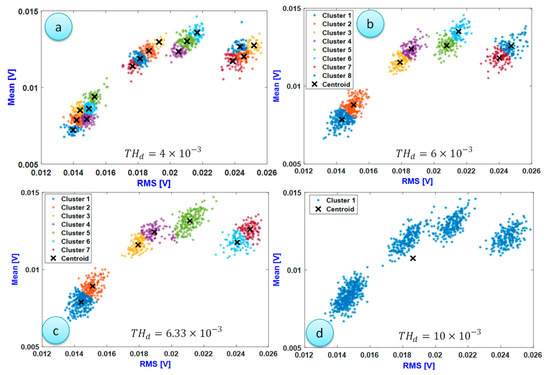

**Figure 16.**Clustering results with different threshold distance ${\mathrm{TH}}_{\mathrm{d}}$ and a fixed persistence number N = 10. (
