Genetics Unveil the Genealogical Ancestry and Physical Appearance of an Unknown Historical Figure: Lady Leonor of Castile (Spain) (1256–1275)

by
Sara Palomo-Díez
1,2,*,
Cláudia Gomes
1,2,
María Sonia Fondevila
3,
Ángel Esparza-Arroyo
4,
Ana María López-Parra
1,2,
María Victoria Lareu
3,
Eduardo Arroyo-Pardo
1,2 and
Juan Francisco Pastor
5
1
Health Legislation, Psychiatry, and Pathology Department, Medicine Faculty, The Complutense University of Madrid, 28040 Madrid, Spain
2
Forensic Sciences Group, Genetics and Toxicology, San Carlos Research Institute (IdISSC), Clínico San Carlos Hospital, 28040 Madrid, Spain
3
Medicine and Odontology Faculty, Santiago de Compostela University, 15705 Santiago de Compostela, Spain
4
GIR ‘PrehUSAL’, Department of Prehistory, Ancient History and Archaeology, University of Salamanca, 37007 Salamanca, Spain
5
Anatomy and Embriology Department, Medicine Faculty, Valladolid University, 47003 Valladolid, Spain
*
Author to whom correspondence should be addressed.
Genealogy 2023, 7(2), 28; https://doi.org/10.3390/genealogy7020028
Submission received: 2 March 2023 / Revised: 15 April 2023 / Accepted: 18 April 2023 / Published: 20 April 2023
Browse Figures
Versions Notes

Abstract

:
Through this study, it has been possible to establish an accurate prediction of the physical characteristics, biogeographical origin, and genealogical ancestry of a previously obscured historical figure: The Princess Lady Leonor of Castile (1256–1275), one of the legitimate daughters of the Spanish King Alfonso X “The Wise”. The genetic analysis of External Visible Characteristics in the mummified remains attributed to this Princess has allowed determining her origin by mitochondrial and nuclear DNA analysis, and her physical appearance for hair, eyes, and skin color by autosomal SNPs. The results show that the mummified remains correspond to a young European woman with black hair, green-hazel eyes, and white skin. Her physical appearance has not been possible to be compared with any pictorial source, but the biogeographical analysis results are consistent with the historiographic genealogical information.

1. Introduction

The present work will shed some light on the ancestry and physical appearance of Princess Leonor of Castile. To this commitment, we have applied ancient DNA techniques. We understand ancient DNA, which has a low quantity and quality of DNA molecules due to its significant age. Not always antiquity is the main cause of DNA degradation, but when we face up to any potential critical sample, like in this case, it must be implemented special analysis conditions and authenticity criteria (Gomes et al. 2019).
In a colloquium about kinship and legitimation, the Portuguese historian J. Mattoso (2011) referred to the importance of the Medieval research of words and language to understand the modalities and evolution of discourse, since those voices would be “a bit like mitochondrial DNA and chromosome Y, which is transmitted from generation to generation, and therefore, always keep some vestiges of previous generations”. He was referring to the fact that these genetic lineage markers are transmitted unaltered from generation to generation to trace people’s genealogy.
Beyond the fortunate metaphor of Mattoso, in the field of Medieval and Modern History, the application of Genetics has also changed, with the DNA analysis of individuals found in the necropolis, but also, for obvious reasons, of sets of remains from royal pantheons, for example from Aragon (Martínez Jarreta 2018) or Hungary (Olasz et al. 2019). Works oriented to the identification of controversial characters are already frequent (Salerno et al. 2005; Haeusler et al. 2016) or to establish kinship among individuals buried together (Gomes et al. 2020; Gamba et al. 2011), without neglecting the detection of individuals related to skeletons with signs of serious diseases (Alves-Cardoso et al. 2022). Nowadays, it is even possible to determine the physical appearance of individuals by the genetic analysis of their skeletal remains (Gomes et al. 2017, 2020). Today it can be said, as Larmuseau and Bodner (2018) have pointed out, that genealogical genetic analyses have, above the merely anecdotal, significative biological, historical, social, and educational importance.
On this occasion, we present the study carried out on the remains of the Infanta Leonor, daughter of King Alfonso X the Wise, as a part of a project for the conservation, restoration, and dissemination of her remains and sepulcher.

Leonor of Castile, an Unknown Princess

The Spanish Princess Leonor of Castile (1256/1257–1275) was the fourth daughter of eleven legitimate sons and daughters of Alfonso X “The Wise” (Spain, 1221–1284) and the Queen Violante of Aragón (1236–1300) (de Salazar Acha 1990). On one hand, there is certain conflicting information about the life of Princess Leonor from different sources (González González and Iriarte 1993; Gutierrez Baños 2014). On the other hand, no registered graphical documents about her physical appearance have survived our days.
Concerning her biogeographical origin, the genealogy of her family is summarized in Figure 1. In summary, in this figure (Figure 1), it is possible to observe that, according to the historical sources, princess Leonor of Castile was fundamentally European and to some extent with Eastern Mediterranean ancestry.
However, it is interesting to analyze in more depth the maternal lineage of Lady Leonor due to the exclusively maternal lineage inheritance of one of the genetic markers studied in this work, mitochondrial DNA (mtDNA). Most of the maternal lineage of Lady Leonor is summarized in Figure 2.
The princess died when she was 19 years old of unknown causes (Martínez Santamarta and Robert 2010). She probably died in Montpellier (France); however, Alfonso X ordered that Leonor’s remains be buried in the Royal Monastery of Saint Dominic of Caleruega (Burgos, Spain), where they were located up to the beginning of this research (Gutierrez Baños 2014).
The present study revolves around two objectives: on one hand, to determine the biogeographical origin of the remains to prove if the predicted biogeographical origin is consistent with the supposed European Princess’ ancestry; and, on the other hand, to determine the most likely pigmentation phenotype (skin, eyes, and hair pigmentation) of Lady Leonor of Castile.

2. Materials and Methods

On June the 10th, 2014, the opening of the sarcophagus containing the mummified remains of Lady Leonor of Castile was carried out. Previously, the coffin had been subjected to a Helical Computed tomography and EDX analysis (Energy Dispersive X-Ray Analysis, an x-ray technique used to identify the elemental composition of materials) (Pastor et al. 2021). Subsequently, the coffin was opened and the remains found wrapped in a piece of white fabric. Through the first stage of the research, the clothing and other objects were removed to be analyzed and reconstructed.
To perform the genetic analysis, there were selected two well-preserved teeth: the lower left second premolar 1LDC1 and the lower left first molar 1LDC2 (Figure 3).
Genetic analyses were performed in two specialized aDNA laboratories, hereinafter, Laboratory 1 (at Health Legislation, Psychiatry, and Pathology Department. Medicine Faculty. Complutense University of Madrid) and Laboratory 2 (at Medicine and Odontology Faculty, Santiago de Compostela University); both yearly tested and certified by GHEP-ISFG (Spanish and Portuguese speaking group of the International Society of Forensic Genetics).
DNA extraction was performed in Laboratory 1 following Gomes et al. (2015). Following this method, sample 1LDC1 and sample LDC2 were analyzed in separate processes. Sample 1LDC1 was pulverized, and the DNA from 1LDC2 was extracted without the physical destruction of the piece. And hereinafter, both sample DNA extracts were processed separately to replicate results.
(a)
The amplification of the DNA regions of interest supplied us with two different kinds of information: biogeographical origin and externally visible characteristics (EVCs).
Biogeographical origin analysis: To study the individuals’ most probable origin, it was taken into account two kinds of information: nuclear and mitochondrial DNA (mtDNA). To predict the most probable biogeographic origin with nuclear information, the SNPforID 34-Plex forensic ancestry test was used to analyze 34 SNPs (Phillips et al. 2007; Fondevila et al. 2013). The PCR conditions are collected in Table 1. After the analysis in an ABI 3500 Genetic Analyzer (ThermoFisher SCIENTIFIC), biogeographic SNPs allele information was analyzed using GeneMapper™ Software 5 (ThermoFisher SCIENTIFIC, Waltham, MA, USA).
Finally, statistical parameters and the most probable biogeographical region were obtained with the software The Snipper app. suite v.2.5 (Phillips et al. 2007), considering the dataset for three major populations: Europe, Africa, and East Asia. This analysis was performed in Laboratory 2.
To analyze the maternal origin by mtDNA and determine the most probable haplogroup(s), both HV1 and HV2 regions were analyzed in Laboratory 1.
There were performed the amplification of 294 bp of the Hypervariable region I (HVRI) (positions 16,105–16,399) (Fernández 2005) and 345 bp of the Hypervariable region II (HVRII) (positions 55–400) (Martínez-Labarga and Rickards 1999). These regions were selected and incorporated into four overlapping PCRs using the Multiplex PCR kit of Qiagen® (Hilden, Germany). The analysis was performed in duplicate for each of the selected samples. The amplification results were tested by electrophoresis on agarose gels and positive amplification results were purified with ExoSAP-IT™ PCR Product Cleanup Reagent (Thermo Fisher Scientific, Waltham, MA, USA) (Exo-SAP®). Sequencing products were visualized on an ABI3730 (Life Technologies: Carlsbad, CA, USA) automated capillary electrophoresis sequencer.
The capillary electrophoresis results were analyzed with the aid of the software Chromas® (http://technelysium.com.au/), and compared to the rCRS (Anderson et al. 1981; Andrews et al. 1999) applying Mutation Surveyor® V.4.0.6 software (Softgenetics, State College, PA, USA) (Mutation Surveyor® software n.d.). Genetics analyses. After haplotype determination, the most probable haplogroup(s) were determined by searching on the HaploGrep 2 online application (van Oven and Kayser 2009; van Oven 2015), on EmPOP mtDNA database v4/R11 (Huber et al. 2018; Parson and Dür 2007), on mtDNA manager (Lee et al. 2008), and Phylotree phylogenetic tree (van Oven and Kayser 2009; van Oven 2015). Finally, there was performed a search of close mtDNA haplogroups in the AmtDB database.
(b)
For the external phenotypic prediction, 35 SNPs were analyzed in Lab 2 to calculate the most probable hair, skin, and eye color pigmentation, using the primers and PCR conditions of Ruiz et al. (2013) (Maroñas et al. 2014). The EVCs PCR conditions are collected in Table 2. For each externally visible characteristic (EVC), the hypotheses considered were (a) iris pigmentation (brown, intermediate, and blue); (b) hair pigmentation (fair versus dark, and for the color pigmentation (red, blond, brown, and black); and (c) skin pigmentation (white, intermediate, and black) (Maroñas et al. 2014). Statistical analysis was performed with the online Snipper app suite v2.5 software (Phillips et al. 2007).
Along with the full analytical procedure, pre-PCR, PCR, and post-PCR procedures were performed in three physically separated and isolated areas. Ancient DNA laboratories were equipped with UV light lamps (254 nm) to ensure a sterile environment for the reliable analysis of ancient DNA samples. Additionally, all laboratory equipment was routinely irradiated with UV light and thoroughly cleaned with bleach (70%) before and after each experiment. All experimental analyses were conducted by a single researcher to reduce the chances of staff DNA contamination; additionally, the access to these laboratories was limited to two people during the whole time the analyses were carried out. All laboratory procedures (sample preparation, extraction, and PCR) were performed wearing disposable laboratory coveralls (masks, caps, glasses, shoe covers, and gloves). DNAse and RNase-free reagents and consumables were also employed. The possibility of modern DNA contamination was monitored with extraction blanks and at least three PCR-negative controls were included per DNA amplification round. So, authenticity criteria were followed, considering the laboratories’ infrastructures, methodology, and interpretation of the results. Also, before the genetic analysis, two biochemical assays on macromolecular preservation were performed by the archaeological team, as recommended by Pääbo (Pääbo et al. 2004). To monitor exogenous mitochondrial DNA contamination of the samples, genetic profiles were recovered from all the people involved in sample manipulation (Table 3).

3. Results

At Laboratory 1, all the PCR reactions performed have provided quality mtDNA sequences without molecular damage or trace of contamination. Furthermore, all the obtained results were consistent among them. This fact provides further strength to the obtained results. Combining the different PCR amplifications has allowed us to determine the next consensus mtDNA haplotype: 16224C 16311C 73G 195C 263G 315.1C (range: 16,105–16,569; 1–390). This result was obtained at least twice from each sample and mtDNA fragment, always with the same result. Subsequently, the obtained results were analyzed to determine the mitochondrial haplogroup, and it was determined as K1a4a1a, with a private mutation on position number 195 of HRVII.
Concerning the amplification of 34 autosomal SNPs for biogeographical assignment carried out at Laboratory 2, results can be seen in Table 4. This table also shows the obtained LR results performed to discern if the individual belongs to a European, Sub-Saharan Africa, East of Asia, American or Oceanian population.
The autosomal SNPs analysis suggests a European origin in the same way as the mtDNA analysis.
Finally, the results of the EVC genetic analysis carried out in Laboratory 2 are summarized in Table 5. To determine each one of the physical characteristics studied, we performed the same methodology employed in the biogeographical origin analysis.
In light of these results, the most probably physical appearance of the Princes was black hair, green-hazel eyes, and white skin.

4. Discussion

We have determined that the human remains studied belong to mtDNA haplogroup K1a4a1a, a typical European haplogroup nowadays, this finding indicates a typical European or Middle East biogeographical ancestry; this is consistent with the European maternal lineage origin of the Princess. As regards ancient DNA, the earliest reported appearance of this haplogroup was dated around 8000 years B.P. in Tell Ramad (Siria) (Fernandez et al. 2014). Also, human remains belonging to haplogroup K have been discovered, which date around 7500–7300 B.P. One of the most popular findings was Ötzi (5000 B.P.), which precisely belongs to the K1 haplogroup (Rollo et al. 2006). Through searching on the AmtDB database of the K1a4a1a haplogroup, no individuals were found with the same haplogroup. Nevertheless, also in AmtDB, the closest haplogroup found in Medieval populations was located in Hungary (Vai et al. 2019). K1a clade (group of individuals who share the same lineage, K1a) was also present during Middle Ages in Germany (Veeramah et al. 2018). If we search the broader K1, it was also present during Middle Ages in Italy (Amorim et al. 2018; Vai et al. 2019), Spain (Olalde et al. 2019), and Poland (Stolarek et al. 2018); but the largest presence of K1 mtDNA haplogroup was located in Hungary. These results are consistent with the mtDNA family tree of Leonor Princess (Figure 2).
Moreover, autosomal SNPs analysis supports this European origin too. This second analysis furthermore provides a broader view of the Princess’ origins, since the analyzed SNPs have been inherited through both the maternal and the paternal lineage and are consistent too with the historical genealogy of Lady Leonor´s family, with mainly European roots (Figure 1 and Figure 2). The matching results for the prediction of biogeographical origin obtained through the two different methodologies employed, provide greater strength to the concluded ancestry.
It could be interesting to compare Lady Leonor´s mtDNA haplotype to that of any person belonging to this maternal genealogy tree. However, it has not been possible to find any previously generated genetic data from other individuals from this maternal lineage. However, the mtDNA and YSTRs profiles of her grandmother´s grandfather, the Hungarian king Bela III, is well known (Olasz et al. 2019); unfortunately, this information is not comparable to our results. Nevertheless, the newly obtained data can provide relevant information to complete the genetic familiar genealogy.
Moreover, the feature that genetic evidence supports as most likely white skin pigmentation seems also to support a possible European origin for the studied remains.
From the paleogenetic point of view, this work confirms the feasibility of genetics to establish the kinship and physiognomic features of individuals. Determining that she is most likely to have white skin, green-hazel eye color, and black hair. Thereby, the Princess obscured in the documentation acquires some visibility. In addition, its haplogroup, K1a4a1a, has been obtained, establishing an eventual link with other royal houses currently under investigation (Olasz et al. 2019).
Certainly, from a historical point of view, the knowledge of notable characters is not today one of the main objectives of investigations, but the realization of restoration and conservation works constitutes new potential sources, usable from different disciplines and prospects. In this sense, the present study has an experimental nature, of exploration possibilities, with which some bases are laid whose use will be greater when other similar ones that allow comparative approaches are published.
Working with these royalties sometimes allows for written descriptions of their physical appearance and sometimes even preserved remains—such as the nails of the blonde Norwegian princess Kristín Hákonardóttir, during some time Leonor’s mother’s rival, whose tomb was opened last century (Vargas Blanco 1968), and sometimes there are also some “portraits”, such as the miniatures of the monarchs, queens or princess collected in the cardboards of the cathedrals from Oviedo and Compostela, which confront genetic inferences, but, as has been said, none of Lady Leonor seems to be known until now. In general, the possibilities of identification will be greater from the Late Middle Ages, with the progressive display of the pictorial portrait.
The viability of the comparisons also grows in the case of investigations such as those mentioned above of the royal pantheons of Hungary and Aragon. Although there were partial pantheons in San Isidoro (León, Spain) and Las Huelgas (Burgos, Spain), for complex historical reasons (Arias Guillén 2015) a single royal pantheon was not formed in the whole of the Crown of Castile that could have facilitated this type of genetic research, it is not impossible to carry it out, taking advantage—as in the present case—projects of rehabilitation of scattered graves. The location of the characters of the dynasties—for example, Leonor’s maternal grandmother and transmitter of her mitochondrial DNA, Violante of Hungary, Aragonese Queen buried in the Royal Monastery of Santa María de Vallbona (Lérida, Spain)—may serve for the constitution of a genetic database. In this sense, the genetic analysis of Leonor of Castile comes to join those already available for some of his relatives, such as Bela III of Hungary and Agnes de Châtillon, grandparents precisely from the aforementioned maternal grandmother of Leonor (Olasz et al. 2019).

Author Contributions

Conceptualization, J.F.P., E.A.-P., C.G. and S.P.-D.; methodology, S.P.-D., C.G. and M.S.F.; software, S.P.-D., C.G. and M.S.F.; validation, S.P.-D., C.G., M.S.F. and A.M.L.-P.; formal analysis, S.P.-D. and C.G.; investigation, S.P.-D., C.G.; resources, S.P.-D., Á.E.-A., J.F.P.; data curation, S.P.-D., C.G., M.S.F. and A.M.L.-P.; writing—original draft preparation, S.P.-D.; writing—review and editing, S.P.-D., C.G., M.S.F., Á.E.-A., A.M.L.-P., M.V.L., E.A.-P. and J.F.P.; visualization, S.P.-D., C.G., M.S.F., Á.E.-A., A.M.L.-P., M.V.L., E.A.-P. and J.F.P.; supervision, S.P.-D., C.G., M.S.F., and E.A.-P.; project administration, J.F.P.; funding acquisition, J.F.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been possible thanks to the collaboration of the General Directorate of Heritage Culture of the Ministry of Culture and Tourism of the Junta de Castilla y Leon (Spain). There was no Grant ID associated.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All available data is in this article.

Conflicts of Interest

We declare that the authors have no competing interest as defined by MDPI, or other interest that might be perceived to influence the results and/or discussion reported in this paper.

References

  1. Alves-Cardoso, Francisca, Sara Palomo-Díez, Alejandro Alonso-Conde, Cláudia Gomes, Silvia Casimiro, Rodrigo Banha da Silva, and Eduardo Arroyo-Pardo. 2022. Metagenomic Research of Infectious Diseases in Archealogical Contexts: Evidence from the Hospital Real de Todos-os-Santos (Portugal). Applied Sciences 12: 6069. [Google Scholar] [CrossRef]
  2. Amorim, Carlos Eduardo G., Stefania Vai, Cosimo Posth, Alessandra Modi, István Koncz, Susanne Hakenbeck, Maria Cristina La Rocca, Balazs Mende, Dean Bobo, Walter Pohl, and et al. 2018. Understanding the 6th-century barbarian social organization and migration through paleogenomics. Nature Communications 9: 1–11. [Google Scholar] [CrossRef] [PubMed]
  3. Anderson, S., Alan T. Bankier, B. G. Barrell, M. H. De Bruijn, Alan R. Coulson, Jacques Drouin, Ian C. Eperon, D. P. Nierlich, B. A. Roe, Fred Sanger, and et al. 1981. Sequence and organization of the human mitochondrial genome. Nature 290: 457–65. [Google Scholar] [CrossRef]
  4. Andrews, Richard M., Iwona Kubacka, Patrick F. Chinnery, Robert N. Lightowlers, Douglass M. Turnbull, and Neil Howell. 1999. Reanalysis and revisión of the Cambridge reference sequence for human mitochondrial DNA. Nature Genetics 23: 147. [Google Scholar] [CrossRef]
  5. Arias Guillén, Fernando. 2015. Enterramientos regios en Castilla y León (c. 842–1504). La dispersión de los espacios funerarios y el fracaso de la memoria dinástica. Anuario de Estudios Medievales 45: 643–75. [Google Scholar] [CrossRef]
  6. de Salazar Acha, Jaime. 1990. «Precisiones y nuevos datos sobre el entorno familiar de Alfonso X el Sabio, fundador de Ciudad Real». Cuaderno de estudios manchegos 20: 211–31. [Google Scholar]
  7. Fernández, Eva. 2005. Polimorfismos de ADN mitocondrial en poblaciones antiguas de la cuenca mediterránea. Ph.D. thesis, Universidad Central de Barcelona, Barcelona, Spain. [Google Scholar]
  8. Fernandez, Eva, Alejandro Pérez-Pérez, Cristina Gamba, Eva Prats, Pedro Cuesta, Josep Anfruns, Miquel Molist, Eduardo Arroyo-Pardo, and Daniel Turbón. 2014. Ancient DNA analysis of 8000 B.C. near eastern farmers supports an early neolithic pioneer maritime colonization of Mainland Europe through Cyprus and the Aegean Islands. PLoS Genetics 10: e1004401. [Google Scholar] [CrossRef]
  9. Fondevila, Manuel, Christopher Phillips, Cristina Santos, Ana Freire Aradas, P. M. Vallone, John M. Butler, María Victoria Lareu, and Ángel Carracedo. 2013. Revision of the SNPforID 34-plex forensic ancestry test: Assay enhancements, standard reference sample genotypes and extended population studies. Forensic Science International: Genetics 7: 63–74. [Google Scholar] [CrossRef]
  10. Gamba, Cristina, Eva Fernandez, Mirian Tirado, Francisco Pastor, and Eduardo Arroyo-Pardo. 2011. Ancient Nuclear DNA and Kinship Analysis: The Case of a Medieval Burial in San Esteban Church in Cuellar (Segovia, Central Spain). American Journal of Physical Anthropology 144: 485–91. [Google Scholar] [CrossRef]
  11. Gomes, Cláudia, Gerard Remolins, Ana María López-Parra, Juan Francisco Gibaja, M. Fondeliva, Francesco De Angelis, V. Veltre, María Eulália Subirá, Carlos Baeza-Richer, D. Guerrero, and et al. 2020. Paleogenetic evidence of a Pyrenean Neolithic family: Kinship, Physical appearance, and biogeography multidisciplinary analysis. Journal of Archaeological Science 123: 105226. [Google Scholar] [CrossRef]
  12. Gomes, Cláudia, Manuel Fondevila, Concepción Magaña-Loarte, J. Fernández-Jiménez, José Fernández-Serrano, Sara Palomo-Díez, Carlos Baeza-Richer, Ana María López-Parra, and Eduardo Arroyo-Pardo. 2019. An unusual kinship case from the Spanish Civil War (1936–1939): Ancient versus degraded sample’s investigation. Forensic Science International: Genetics Supplement Series 7: 690–91. [Google Scholar] [CrossRef]
  13. Gomes, Cláudia, Manuel Fondevila, Sara Palomo-Díez, Antonio F. Pardiñas, César López-Matayoshi, Carlos Baeza-Richer, Ana. María López-Parra, María Victoria Lareu, B. López, and Eduardo Arroyo-Pardo. 2017. Phenotyping the ancient world: The physical appearance and ancestry of very degraded samples form a chalcolithic human remains. Forensic Science International: Supplement Series 6: e484–e486. [Google Scholar] [CrossRef]
  14. Gomes, Cláudia, Sara Palomo-Díez, Joan Roig, Ana López-Parra, Carlos Baeza-Richer, Angel Espara-Arroyo, Juan Gibaja, and Eduardo Arroyo-Pardo. 2015. Nondestructive extraction DNA method from bones or teeth, true or false? Forensic Science International: Genetics Supplement Series 5: e279–e282. [Google Scholar] [CrossRef]
  15. González González, Carmen, and Cándido Aniz Iriarte. 1993. Real Monasterio de Santo Domingo de Caleruega, 1st ed. Salamanca: Editorial San Esteban. ISBN 978-84-87557-56-9. [Google Scholar]
  16. Gutierrez Baños, Fernando. 2014. El sepulcro de la infanta doña Leonor, hija de Alfonso X el Sabio, en el Real Monasterio de Santo Domingo de Caleruega (Burgos). Publicaciones de la Universidad de Santiago de Compostela. Quintana No. 13 2014. Santiago: Universidad de Santiago de Compostela, pp. 185–97. ISSN 1579-7414. [Google Scholar]
  17. Haeusler, Martin, Cordula Haas, Sandra Lösch, Negahnaz Moghaddam, Igor M. Villa, Susan Walsh, Manfred Kayser, Roger Seiler, Frank Ruehli, Manuel Janosa, and et al. 2016. Multidisciplinary Identification of the Controversial Freedom Fighter Jörg Jenatsch, Assassinated 1639 in Chur, Switzerland. PLoS ONE 11: e0168014. [Google Scholar] [CrossRef]
  18. Huber, Nicole, Walter Parson, and Arne Dür. 2018. Next generation database search algorithm for forensic mitogenome analyses. Forensic Science International: Genetics 37: 204–14. [Google Scholar] [CrossRef] [PubMed]
  19. Larmuseau, Maarten H. D., and Martin Bodner. 2018. The biological relevance of a medieval king’s DNA. Biochemical Society Transactions 46: 1013–20. [Google Scholar] [CrossRef]
  20. Lee, Hwan Young, Injee Song, Eunho Ha, Sung-Bae Cho, Woo Ick Yang, and Kyoung-Jin Shin. 2008. mtDNAmanager: A Web-based tool for the management and quality analysis of mitochondrial DNA control-region sequences. BMC Bioinformatics 9: 483. [Google Scholar] [CrossRef]
  21. Maroñas, Olalla, Chris Phillips, Jens Söchtig, Antonio Gomez-Tato, Raquel Cruz, José Alvarez-Dios, María Casares de Cal, Yarimar Ruiz, Manuel Fondevila, Ángel Carracedo, and et al. 2014. Development of a forensic skin colour predictive test. Forensic Science International: Genetics 13: 34–44. [Google Scholar] [CrossRef] [PubMed]
  22. Martínez Jarreta, María Begoña. 2018. Los estudios antropológicos de los restos óseos conservados. En Panteones Reales de Aragón. Zaragoza: Gobierno de Aragón, pp. 240–53. [Google Scholar]
  23. Martínez Santamarta, H. Salvador, and J. Robert. 2010. Alfonso X, the Learned: A biography. Volumen 146 de Studies in the History of Christian Traditions, 1st ed. Leiden: BRILL. ISBN 9789004181472. [Google Scholar]
  24. Martínez-Labarga, Cristina, and Olga Rickards. 1999. La utilización del DNA antiguo en la investigación de la historia evolutiva humana. Revista Española de Antropología Biológica. León: Sociedad Española de Antropología Biológica, Universidad de León, España, vol. 20, pp. 195–213. [Google Scholar]
  25. Mattoso, José. 2011. Introdução: Legitimação e linhagem, e-Spania. Available online: http://journals.openedition.org/e-spania/20258 (accessed on 17 May 2019).
  26. Mutation Surveyor® software. n.d. (Copyright 2011–2012). Available online: http://www.softgenetics.com/mutationSurveyor.html (accessed on 9 January 2023).
  27. Olalde, Íñigo, Swapan Mallick, Nick Patterson, Nadin Rohland, Vanessa Villalba-Mouco, Marina Silva, Katharina Dulias, Ceiridwen Edwards, Francesca Gandini, Maria Pala, and et al. 2019. The genomic history of the Iberian Peninsula over the past 8000 years. Science 363: 1230–34. [Google Scholar] [CrossRef]
  28. Olasz, Judit, Verena Seidenberg, Susanne Hummel, Zoltán Szentirmay, György Szabados, Béla Melegh, and Miklós Kásler. 2019. DNA profiling of Hungarian King Béla III and other skeletal remains originating from the Royal Basilica of Székesfehérvár. Archaeological and Anthropological Sciences 11: 1345–57. [Google Scholar] [CrossRef]
  29. Pääbo, Svante, Hendrik Poinar, David Serre, Viviane Jaenicke-Despres, Juliane Hebler, Nadine Rohland, Melanie Kuch, Johannes Krause, Linda Vigilant, and Michael Hofreiter. 2004. Genetic analyses from ancient DNA. Annual Review of Genetics 38: 645–79. [Google Scholar] [CrossRef] [PubMed]
  30. Parson, Walther, and Arne Dür. 2007. EMPOP-A Forensic mtDNA database. Forensic Sci International: Genetics 1: 88–92. [Google Scholar] [CrossRef]
  31. Pastor, Juan Francisco, Felix De Paz, Mercedes Barbosa, Natividad García, Isabel Sanjosé, Sara Palomo-Díez, and Eduardo Arroyo-Pardo. 2021. Natural mummifications in Castile & Leon (Spain). European Journal of Anatomy 25: 221–32. [Google Scholar]
  32. Phillips, Chris, Antonio Salas, Juan Sánchez, Manuel Fondevila, Antonio Gómez-Tato, José AntonioAlvarez-Dios, Manuel Calaza, María Casares de Cal, David Ballard, María Victoria Lareu, and et al. 2007. Inferring ancestral origin using a single multiplex assay of ancestry-informative marker SNPs. Forensic Science International: Genetics 1: 273–80. [Google Scholar] [CrossRef] [PubMed]
  33. Rollo, Franco, Luca Ermini, Stefania Luciani, Isolina Marota, Cristina Olivieri, and Donata Luiselli. 2006. Fine characterization of the Iceman’s mtDNA haplogroup. American Journal of Physical Anthropology 130: 557–64. [Google Scholar] [CrossRef]
  34. Ruiz, Yarimar, Chris Phillips, Antonio Gomez-Tato, José Antonio Alvarez-Dios, Manuel Casares de Cal, R. Cruz, Olalla Maroñas, Jens Söchtig, Manuel Fondevila, M. J. Rodriguez-Cid, and et al. 2013. Further development of forensic eye color predictive tests. Forensic Science International: Genetics 7: 28–40. [Google Scholar] [CrossRef] [PubMed]
  35. Salerno, Alfredo, Giampietro Lago, Andrea Berti, Francesco Calì, Mario Mirisola, Patrizia Carta, Carmen Ferro, and Valentino Romano. 2005. mtDNA analysis of the human remains buried in the sarcophagus of Federico II. Journal of Cultural Heritage 6: 313–19. [Google Scholar] [CrossRef]
  36. Stolarek, Ireneusz, Anna Juras, Luiza Handschuh, M. Marcinkowska-Swojak, A. Philips, M. Zenczak, A. Debski, H. Kócka-Drenz, Janusz Piontek, Piotr Kzlowski, and et al. 2018. A mosaic genetic structure of the human population living in the South Baltic region during the Iron Age. Scientific Reports 8: 2455. [Google Scholar] [CrossRef]
  37. Vai, Stefania, Andrea Brunelli, Alessandra Modi, Francesca Tassi, Chiara Vergata, Elena Pilli, Martina Lari, Roberta Rosa Susca, Caterina Giostra, Luisella Pejrani Baricco, and et al. 2019. A genetic perspective on Longobard-Era migrations. European Journal of Human Genetics 27: 647–56. [Google Scholar] [CrossRef]
  38. van Oven, Mannis, and Manfred Kayser. 2009. Updated Comprehensive Phylogenetic Tree of Global Human Mitochondrial DNA Variation. Human Mutation 30: E386–E394. [Google Scholar] [CrossRef]
  39. van Oven, Mannis. 2015. PhyloTree Build 17: Growing the human mitochondrial DNA tree. Forensic Science International: Genetics Supplement Series 5: 9–11. Available online: http://www.phylotree.org (accessed on 9 January 2023). [CrossRef]
  40. Vargas Blanco, Rufino. 1968. En torno a la boda del Infante don Felipe de Castilla y doña Cristina, Infanta de Noruega. Boletín de la Institución Fernán González 171: 380–81. [Google Scholar]
  41. Veeramah, Krishna R., Andreas Rott, Melanie Groß, Lucy van Dorp, Saioa López, Karola Kirsanow, Christian Sell, Jens Blöcher, Daniel Wegmann, Vivian Link, and et al. 2018. Population genomic analysis of elongated skulls reveals extensive female-biased immigration in Early Medieval Bavaria. Proceedings of the National Academy of Sciences 115: 3494–99. [Google Scholar] [CrossRef] [PubMed]
Genealogy 07 00028 g001 550

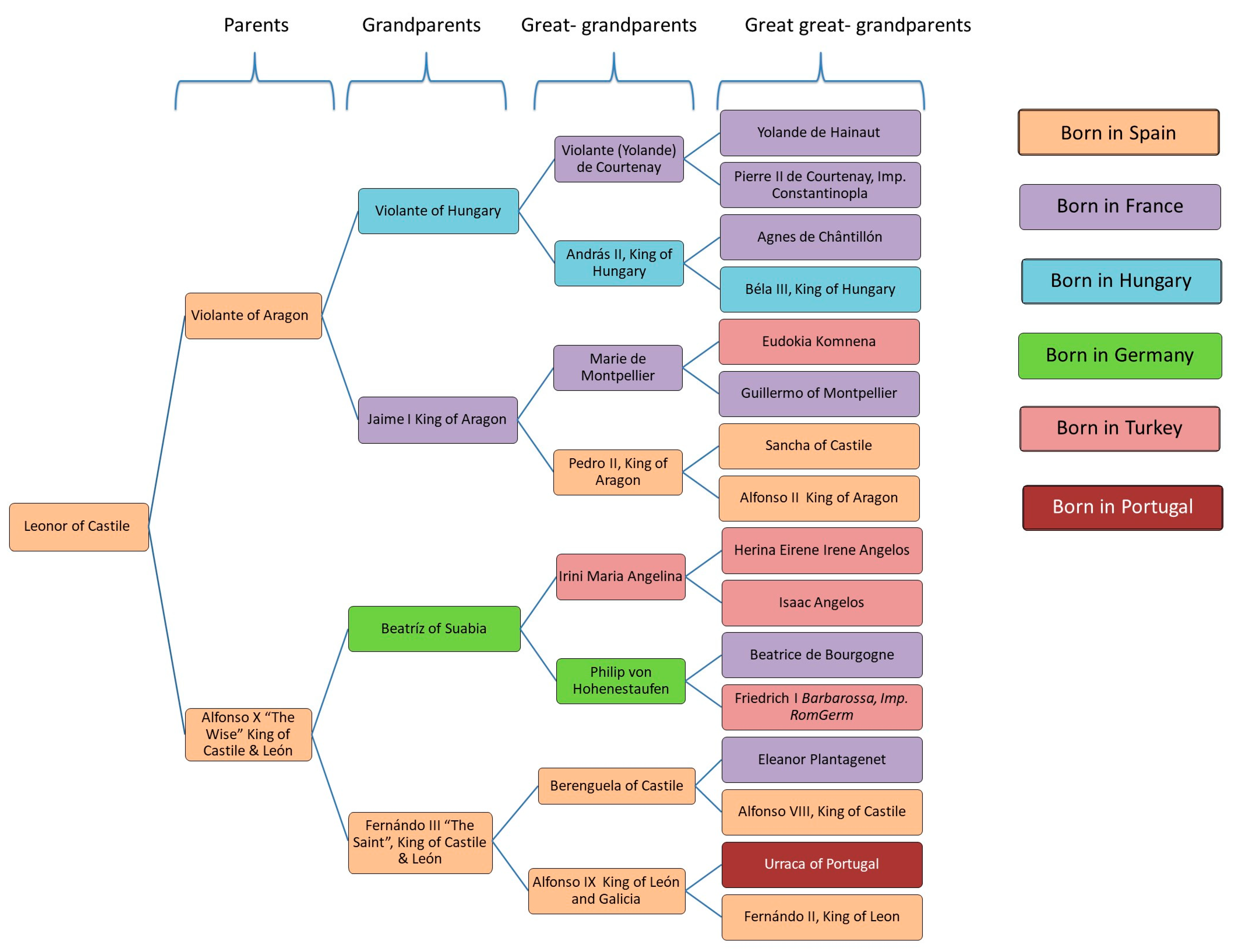

Figure 1. Genealogical tree of Lady Leonor of Castile.
Figure 1. Genealogical tree of Lady Leonor of Castile.
Genealogy 07 00028 g001
Genealogy 07 00028 g002 550

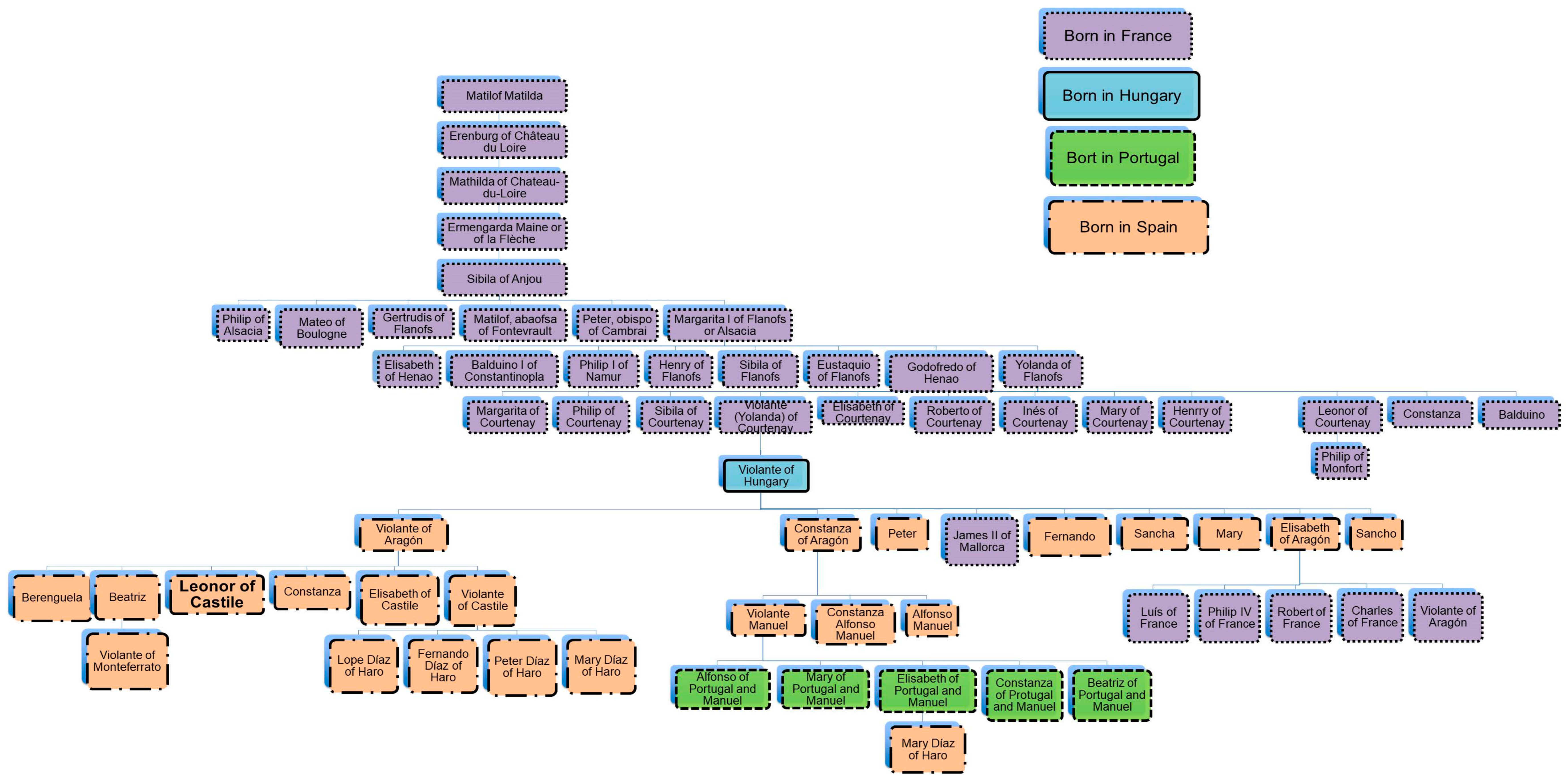

Figure 2. Maternal lineage Biological tree of Lady Eleanor of Castile. The scheme shows all the family members within Princess Eleanor’s maternal lineage with whom they share the same mitochondrial DNA.
Figure 2. Maternal lineage Biological tree of Lady Eleanor of Castile. The scheme shows all the family members within Princess Eleanor’s maternal lineage with whom they share the same mitochondrial DNA.
Genealogy 07 00028 g002
Genealogy 07 00028 g003 550
Figure 3. Selected samples to perform the genetic analysis.
Figure 3. Selected samples to perform the genetic analysis.
Genealogy 07 00028 g003
Table
Table 1. The SNPforID 34-Plex PCR conditions.
Table 1. The SNPforID 34-Plex PCR conditions.
PCR ConditionsCycling Protocol
Final ConcentrationVolume (mL)
Buffer1 X0.615
BSA3.2 mg/mL0.61595 °C15 min
Cl2Mg6.3 mM1.61595 °C30 s35 cycles
dNTPs0.625 mM0.460 °C50 s
PrimerVariable265 °C40 s
TaqGold0.5 U0.165 °C6 min
DNAn/a1–4 mL
Table
Table 2. EVCs PCR conditions.
Table 2. EVCs PCR conditions.
PCR ConditionsCycling Protocol
Final ConcentrationVolume (mL)
buffer1 X0.62595 °C15 min
BSA3.2 mg/mL0.625
Cl2Mg6.3 mM1.62595 °C30 s35 cycles
dNTPs0.625 mM0.4360 °C50 s
primerVariable1.565 °C40 s
TaqGold0.5 U0.1
DNAn/a1–4 uL65 °C6 min
Table
Table 3. Researchers’ mitochondrial DNA profiles.
Table 3. Researchers’ mitochondrial DNA profiles.
Laboratory StaffMitochondrial DNA Haplotype
RESEARCHER A16362C 55G 150T 239C 263G 309.1C 309.2C 315.1C
RESEARCHER B263G 315.1C
RESEARCHER C16145A 16172C 16222T 16261T 16305T 73G 242T 263G 295T 309.1C 315.1C
RESEARCHER D263G 315.1C
RESEARCHER E16126C 16294T 16296T 16304C 73G 263G 315.1C
RESEARCHER F73G 263G 315.1C
Table
Table 4. Autosomal SNPs results for the Biogeographical origin analysis and Likelihood Ratio results of the statistical comparison of the alleged origins one against another. In columns, we can observe the SNP (single nucleotide polymorphisms) analyzed and the obtained results obtained for each one. At the bottom of the table, it is possible to view the Likelihood ratio (LR) results obtained to discern if the individual belongs to a European, Sub-Saharan Africa, East of Asia, American or Oceanian population, showing that the most probable biogeographical origin is European, attending to the different origin hypothesis.
Table 4. Autosomal SNPs results for the Biogeographical origin analysis and Likelihood Ratio results of the statistical comparison of the alleged origins one against another. In columns, we can observe the SNP (single nucleotide polymorphisms) analyzed and the obtained results obtained for each one. At the bottom of the table, it is possible to view the Likelihood ratio (LR) results obtained to discern if the individual belongs to a European, Sub-Saharan Africa, East of Asia, American or Oceanian population, showing that the most probable biogeographical origin is European, attending to the different origin hypothesis.
SNPRESULTSNPRESULTSNPRESULT
rs5997008Crs773658Crs2026721G
rs2304925GTrs10141763Ars4540055A
rs917118Grs182549CTrs1335873A
rs1321333Trs1573020Ars16891982C
rs2814778Crs896788Crs730570T
rs1024116Ars2065160Ars1886510NN
rs7897550Crs2572307Grs5030240C
rs722098AGrs2303798Crs3827760A
rs10843344CTrs2065982A
rs12913832AGrs3785181C
rs239031NNrs881929NN
rs2040411AGrs1498444A
rs1978806Trs1426654T
LIKELIHOOD RATIO RESULTS
HYPOTHESISLR
H1: European origin vs. H2: American originLR = 1.95 × 1016 vs. 1
H1: European origin vs. H2: Asia originLR = 1.02 × 1018 vs. 1
H1: European origin vs. H2: North-African originLR = 10382,18 vs. 1
H1: European origin vs. H2: Sub-Saharian originLR = 2.18 × 1031 vs. 1
Table
Table 5. EVCs SNPs results and Likelihood Ratio results of the statistical comparison of the EVCs one against another. In columns, we can observe the SNP (single nucleotide polymorphisms) analyzed and the obtained results for each. At the bottom of the table, it is possible to view the Likelihood ratio (LR) results obtained to discern the different external visible characteristics (EVCs) studied: eyes, skin, and hair colors.
Table 5. EVCs SNPs results and Likelihood Ratio results of the statistical comparison of the EVCs one against another. In columns, we can observe the SNP (single nucleotide polymorphisms) analyzed and the obtained results for each. At the bottom of the table, it is possible to view the Likelihood ratio (LR) results obtained to discern the different external visible characteristics (EVCs) studied: eyes, skin, and hair colors.
Iris Eye Color SystemHair Color SystemSkyn Color System
SNPRESULTSNPRESULTSNPRESULT
rs12913832AGrs1129038NNrs10777129NN
rs1129038NNrs11547464NNrs13289C
rs11636232CTrs12913832AGrs1408799G
rs12203592Crs12931267Crs1426654A
rs12896399Ars1805006Crs1448484A
rs1393350Grs1805007NNrs16891982C
rs1667394CTrs1805008Grs2402130A
rs16891982Crs1805009Grs3829241C
rs1800407Crs28777NNrs6058017NN
rs4778232Grs35264875Ars6119471C
rs4778241GTrs4778138CT
rs7183877Ars7495174CT
rs8024968G
LIKELIHOOD RATIO RESULTS
HYPOTHESISLRHYPOTHESISLRHYPOTHESISLR
H1: Dark hair vs. H2: Light hairLR = 487.06 vs. 1H1: Green-hazel eyes vs. LR = 26.71 vs. 1H1: White skin vs. LR = 7.54 × 105 vs. 1
H2: Brown eyesH2: Intermediate skin
H1: Black hair vs. H2: Brown hairLR = 2.65 vs. 1H1: Green-hazel eyes vs. LR = 2.64 × 106 vs. 1H1: White skin vs. LR = 1.98 × 1010 vs. 1
H2: Blue eyesH2: Black skin
H1: Black hair vs. H2: Red hairLR = 215.63 vs. 1
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Palomo-Díez, S.; Gomes, C.; Fondevila, M.S.; Esparza-Arroyo, Á.; López-Parra, A.M.; Lareu, M.V.; Arroyo-Pardo, E.; Pastor, J.F. Genetics Unveil the Genealogical Ancestry and Physical Appearance of an Unknown Historical Figure: Lady Leonor of Castile (Spain) (1256–1275). Genealogy 2023, 7, 28. https://doi.org/10.3390/genealogy7020028

AMA Style

Palomo-Díez S, Gomes C, Fondevila MS, Esparza-Arroyo Á, López-Parra AM, Lareu MV, Arroyo-Pardo E, Pastor JF. Genetics Unveil the Genealogical Ancestry and Physical Appearance of an Unknown Historical Figure: Lady Leonor of Castile (Spain) (1256–1275). Genealogy. 2023; 7(2):28. https://doi.org/10.3390/genealogy7020028

Chicago/Turabian Style

Palomo-Díez, Sara, Cláudia Gomes, María Sonia Fondevila, Ángel Esparza-Arroyo, Ana María López-Parra, María Victoria Lareu, Eduardo Arroyo-Pardo, and Juan Francisco Pastor. 2023. "Genetics Unveil the Genealogical Ancestry and Physical Appearance of an Unknown Historical Figure: Lady Leonor of Castile (Spain) (1256–1275)" Genealogy 7, no. 2: 28. https://doi.org/10.3390/genealogy7020028

APA Style

Palomo-Díez, S., Gomes, C., Fondevila, M. S., Esparza-Arroyo, Á., López-Parra, A. M., Lareu, M. V., Arroyo-Pardo, E., & Pastor, J. F. (2023). Genetics Unveil the Genealogical Ancestry and Physical Appearance of an Unknown Historical Figure: Lady Leonor of Castile (Spain) (1256–1275). Genealogy, 7(2), 28. https://doi.org/10.3390/genealogy7020028

Article Metrics

Back to TopTop
