High-Performance Na_0.44MnO₂ Slabs for Sodium-Ion Batteries Obtained through Urea-Based Solution Combustion Synthesis

Abstract

One of the primary targets of current research in the field of energy storage and conversion is the identification of easy, low-cost approaches for synthesizing cell active materials. Herein, we present a novel method for preparing nanometric slabs of Na_0.44MnO₂, making use of the eco-friendly urea within a solution synthesis approach. This kind of preparation greatly reduces the time of reaction, decreases the thermal treatment temperature, and allows the obtaining of particles with smaller dimensions compared with those obtained through conventional solid-state synthesis. Such a decrease in particle size guarantees improved electrochemical performance, particularly at high current densities, where kinetic limitations become relevant. Indeed, the materials produced via solution synthesis outperform those prepared via solid-state synthesis both at 2 C, (95 mA h g⁻¹ vs. 85 mA h g⁻¹, respectively) and 5 C, (78 mA h g⁻¹ vs. 68.5 mA h g⁻¹, respectively). Additionally, the former material is rather stable over 200 cycles, with a high capacity retention of 75.7%.

1. Introduction

Energy storage is a key challenge of the present time. Academic and industrial research is focusing on the development of optimized materials and fabrication processes in order to meet stringent requirements in terms of electrochemical characteristics, while concomitantly achieving the preparation and commercialization of sustainable products, both from an economic and an environmental perspective [1]. For this reason, attention is being devoted to the search for and optimization of electrode compositions based on abundant and cheap chemical elements. In this context, research in the field of Na-ion battery materials is acquiring increasing importance, mainly due to the fact that, in line with the envisaged increasing demand of rechargeable batteries to implement electric vehicles, as well as portable and stationary applications, concerns have arisen with regard to the cost and availability of lithium in the near future [1,2]. The ability to replace or, better, to complement Li-ion technology with different metal ion chemistry, in particular Na-ions, would lower costs and alleviate such concerns [3,4]. In addition, the use of Na instead of Li metal allows the use of aluminum as an anode current collector, providing a cost-effective alternative to copper [2].

Mn-based compounds are being widely investigated as cathode materials for rechargeable Na-ion batteries and, in particular, sodium manganese oxides such as Na_0.67MnO₂, Na_0.44MnO₂ and other Na compounds (Na_xMn_yB_zO₂, B = transition metal) have been regarded as promising cathode materials due to their high capacity, low cost and non-toxicity [5,6]. Among various cathode materials for Na-ion batteries, Na_0.44MnO₂ has been identified as highly promising because of its large capacity (theoretically 121 mAh g⁻¹) and good stability [7], even in aqueous electrolyte [8,9].

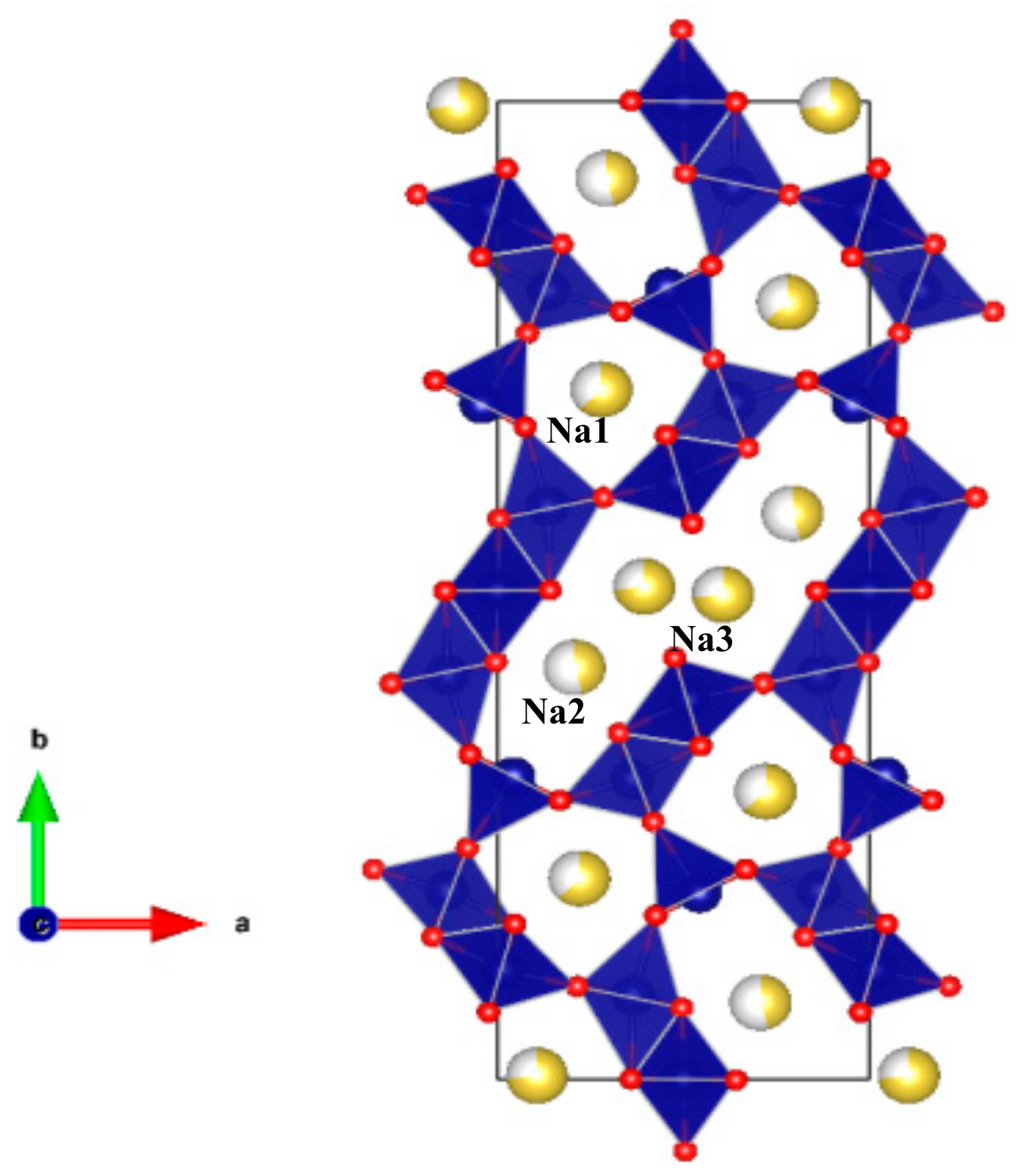

Na_0.44MnO₂ (NMO) is characterized by a peculiar tunnel-like structure composed of Mn-based octahedra and square-based pyramids connected through a vertex to form small, distorted hexagonal channels and larger S-shaped tunnels running parallel to the c crystallographic axis (Figure 1). Three partially occupied Na sites are present within the structure. The Na-cations of all sites can be shuttled during the electrochemical redox process, but to different extents [10,11]. The high reversibility of the insertion and de-insertion processes is only guaranteed in the compositional range Na_0.25MnO₂–Na_0.65MnO₂; otherwise, the tunnel structure is not preserved [12].

NMO powders are conventionally prepared by solid-state reaction at 800 °C or higher for at least 9 h [10,13,14,15]. More recently, NMO materials have also been prepared by other synthesis procedures such as wet-chemistry techniques [12], including modified-Pechini methods [16,17,18], spray pyrolysis [19], polyvinilpyrrolidone (PVP)-assisted gel combustion synthesis [20,21], and reverse microemulsion methods [22,23]. However, even if a solution precursor is used, the NMO materials are usually obtained at high temperatures between 800 °C [12,17,18] and 950 °C [16,20,21] after several hours of annealing, typically ranging between 8 and 15 h. Notable exceptions are related to hydrothermal preparation strategies, where typically an aqueous solution is heated at only 205 °C, but for 4 days, in an autoclave [24,25]. Quite surprisingly, NMO materials deliver similar electrochemical performance and specific capacities at low current rates (i.e., approaching the theoretical capacity of 121 mA h g⁻¹), despite being synthesized via different methodologies.

In this work, we explore the possibility of reducing the temperature and duration of the thermal treatment necessary to synthesize the environmental friendly NMO from abundant raw materials through a solution combustion approach. This synthetic approach involves a self-sustained reaction in an aqueous solution containing metal nitrates as oxidizers and urea as fuel and reducing agent [26,27]. Indeed, we demonstrate that such an energy-saving synthesis yields a material with high electrochemical performance, reduced energy cost, and lower environmental impact.

2. Results and Discussion

2.1. Structural and Morphological Characterization of the as Prepared SC-Powder

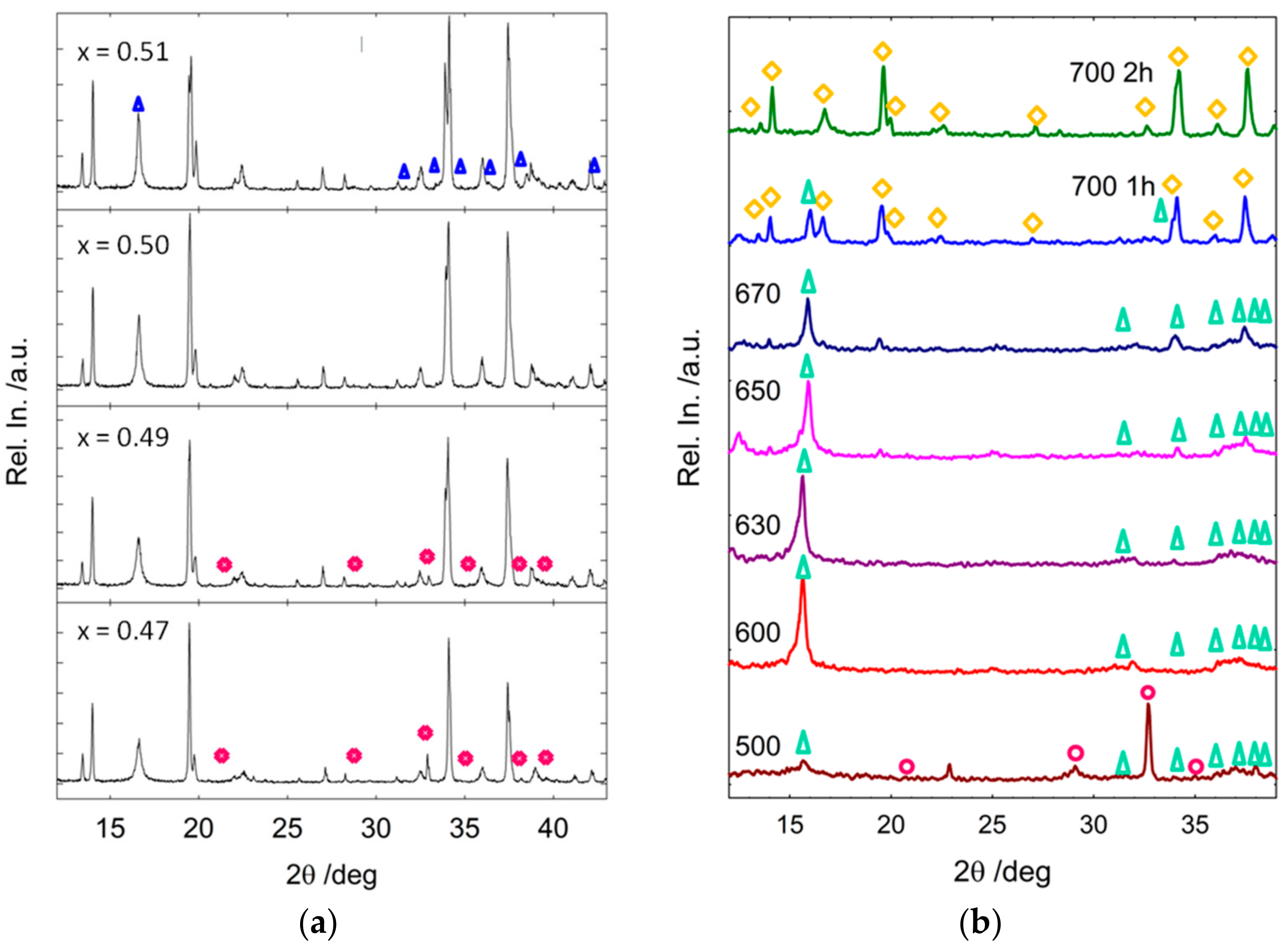

Prior to the electrochemical characterization, all materials underwent a structural investigation to identify the appropriate synthesis conditions. Figure 2a shows the X ray diffraction patterns, XRDP, of the samples prepared with different Na/Mn ratios in the range 0.47–0.51, treated at 800 °C for 2 h. Results show that the sample prepared with a nominal ratio of 0.50 is single-phase, with the desired structure of Na_0.44MnO₂, i.e., an orthorhombic Pbam space space group isostructural to Na₄Mn₄Ti₅O₁₈ (JCPDS: 01-076-0785) [28]. Samples with a lower Na/Mn ratio (0.47 and 0.49) contain Mn₂O₃ impurities (JCPDS: 01-71-0635), confirming a partial volatility of the alkali metal ions during the thermal treatment. Instead, the sample prepared with a higher Na content (Na/Mn ratio = 0.51) shows impurity peaks associated to the presence of α-NaMnO₂ (JCPDS: 01-25-0845).

Accordingly, the study on the required minimum temperature and time of the thermal treatment for obtaining single-phase Na_0.44MnO₂ was performed with a Na/Mn ratio of 0.50. Figure 2b reports the evolution of the diffraction patterns at different annealing temperatures. The XRDP show that at least 700 °C is required to achieve the preparation of phase-pure Na_0.44MnO₂ with the desired structure. Indeed, the mixture treated at 500 °C shows peaks related to the presence of crystalline Mn₂O₃ (JCPDS: 01-71-0635), weak peaks due to β-Na_0.70MnO₂ (JCPDS: 01-27-0752) and additional broader peaks of unidentified phases. After the thermal treatments at 600 °C, the dominant phase present is β-Na_0.70MnO₂, still partially detectable after the thermal treatment of 1 hour at 700 °C. Only after being treated at 700 °C for 2 h is the sample single-phase and able to be indexed according to the reflections of Na_0.44MnO₂, isostructural to Na₄Mn₄Ti₅O₁₈ (JCPDS: 01-76-0193).

Figure 3 presents the SEM images of the sample prepared according to optimized solution combustion synthesis conditions (SC-NMO) and, as comparison, of the sample prepared according the solid state route (SS-NMO). The scanning electron microscopy (SEM) images show that SC-NMO (Figure 3a,b) is mainly composed of sub-micrometric slabs of 100–400 nm width and 0.6–1.4 µm length. Hence, the particle morphology of SC-NMO is similar to that of Na_0.44MnO₂ reported in our previous work [29]. However, the dimensions of the SC-NMO slabs are smaller and surfaces of the slabs are less defined as compared to SS-NMO (Figure 3c). Heat treated Na_0.44MnO₂ samples generally present rod-like structures due to the preferential growth along the [0 0 1] direction [22]. The present finding is therefore in agreement with the reduced time and temperature of the thermal treatment for SC-NMO compared to SS-NMO. Indeed, as expected, the synthetic approach here proposed is a solution-based approach. Wet-chemistry techniques are well known to produce even rather complex oxides at relative low temperatures, compared to conventional solid-state synthesis, thanks to the homogeneous and intimate mixing of the metal ions in the liquid phase and the formation of a porous matrix composed of nanoparticles that can easily react at the solid state in subsequent thermal treatments [30]. In addition, compared to other wet-chemistry techniques, the solution combustion approach takes advantage of the exothermicity of the redox reaction involved in the precursor formation; the released heat of the combustion reaction may fulfill, at least locally, the energy requirement for the formation of the oxide matrix, thus allowing the preparation of single-phase materials at relatively lower temperatures and in a shorter time [26].

2.2. Electrochemical Tests

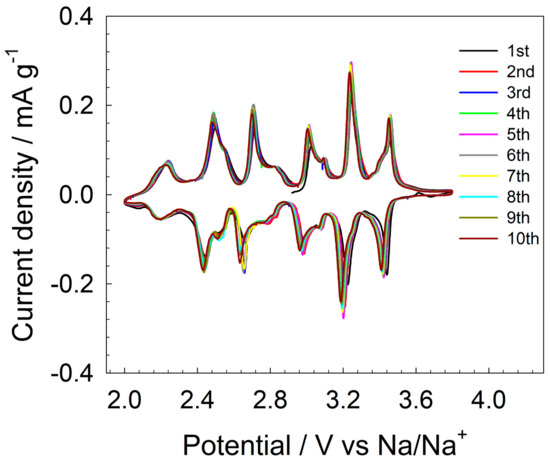

Figure 4 shows the cyclic voltammetry (CV) scans of the SC-NMO electrode between 2.0 V–3.8 V. The general shape of the voltammograms, including the position of the current peaks, is in very good agreement with the literature. In detail, seven main anodic peaks (at 2.23, 2.49, 2.70, 3.00, 3.10, 3.23 and 3.45 V) and cathodic peaks (3.43, 3.22, 3.07, 2.97, 2.66, 2.43 and 2.19 V) are evident, confirming the reversibility of the process. Furthermore, each current peak is correlated to the (de)insertion of sodium from a particular crystallographic site [10,11]. Differently from what was observed with other morphologies, such as in NMO nanofibers [31], SC-NMO does not need an activation cycle: in fact, the current peaks of the first cyclic sweep are overlapping with those of the following cycles.

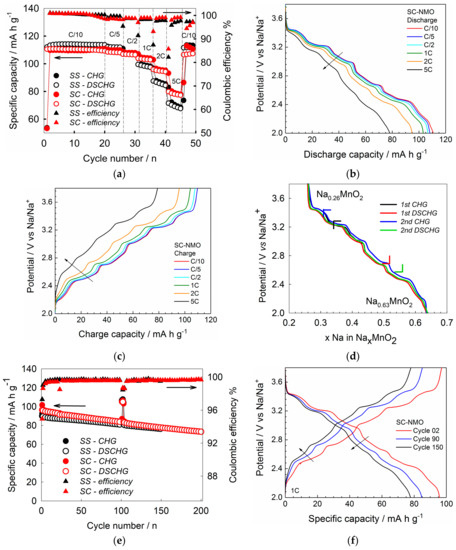

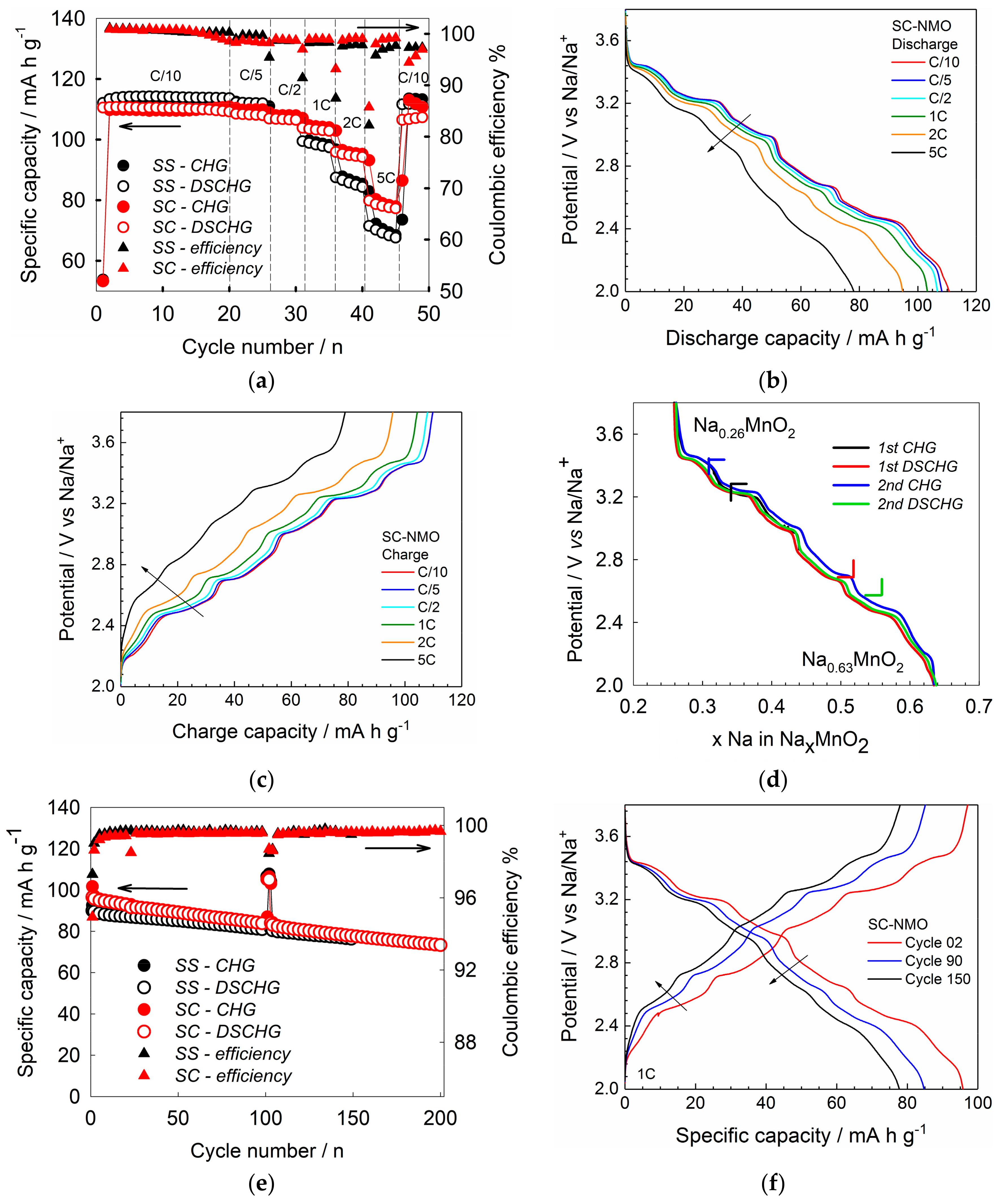

Figure 5 reports the cycling performance of the SC-NMO at increasing C rates (C/10, C/5, C/2, 1 C, 2 C and 5 C) and during the long-term cycling test at 1 C. In addition, selected potential profiles of SC-NMO, recorded at different C-rates and during the 1st and 2nd cycle at C/10 are also given. The galvanostatic cycling data are compared with SS-NMO to reveal the impact of the modified synthesis conditions [29]. The capacities at C/10 are approximately 115 mA h g⁻¹, i.e., in very good agreement with literature data and close to the theoretical capacity of 121 mA h g⁻¹. For example, at the same C rate, a reversible capacity of 110 mA h g⁻¹ was reported for a sample prepared through solid state reaction at 800 °C for 9 h [14] and 112 mA h g⁻¹ for a sample prepared through a solution synthesis approach followed by a thermal treatment at 800 °C for 10 h [32].

At low current densities, such as C/10 or C/5, the SS-NMO-based electrode delivers only a slightly higher capacity of about 1–2 mAh g⁻¹, both in charge and in discharge, which is within the margin of experimental error of the battery cycles used. However, at C/2, both materials show the same performance, and from 1 C on the SC-NMO outperforms SS-NMO in terms of delivered specific capacity and coulombic efficiency. At 1 C the difference is still small but at 2 C the capacity difference between the two materials increases to 10 mA h g⁻¹, i.e., SC-NMO delivering 95 mA h g⁻¹ and SS-NMO only 85 mA h g⁻¹. Both materials show a rather reversible behavior after the current rate test, i.e., when reducing the cycling rate at C/10.

It should be noted that the improved performance of SC-NMO at high C rates is not related to residual carbon coating, because the preparation of SC-NMO is performed in oxidizing atmosphere, i.e., air, to avoid the material’s degradation. In fact, even in a slightly reducing atmosphere, such as nitrogen, the material degrades to a mixture of Mn₂O₃ and Na₂O, which readily transforms into NaCO₃ under ambient conditions (see Figure S1, Electronic Supplementary Information (ESI)). Consistently, the TGA traces (Figure S2, ESI) do not indicate for the presence of additional carbon. In fact, the degree of weight loss for the SS-NMO sample, prepared in the absence of organic reagents, is even higher than that pertaining to the SC-NMO sample during a first acquisition of the TGA curve.

The potential profiles during discharge and charge for the 3rd cycle at each C rate are reported in Figure 5b,c, respectively. The plateaus in the potential profiles correspond well with the current peaks observed via cyclic voltammetry in Figure 4. SC-NMO and SS-NMO were also cycled at 1 C for 200 cycles (Figure 5e) and selected potential profiles of SC-NMO upon cycling are shown in Figure 5f. After 100 cycles, 2 cycles at C/10 were performed to evaluate material degradation. As can be clearly seen in Figure 5e, the capacity of the SC-NMO material is always higher than the one of the SS. After 200 cycles the discharge capacity of SC-NMO is 73.8 mA h g⁻¹ with a coulombic efficiency of 99.72% and a capacity retention of 75.7%. Interestingly, the SC-NMO capacity is completely retained (around 108 mA h g⁻¹) when current is changed to C/10 after the long-term cycling at 1 C. This suggests that the fading performance during long-term cycling is correlated with the composite electrode degradation rather than the irreversible structural degradation of the active material.

The high coulombic efficiency registered for the SC-NMO again suggests a highly reversible insertion of Na⁺ ions. Indeed, as reported in Figure 5d, the amount of Na⁺ equivalents in SC-NMO is between 0.63 eq. Na⁺ and 0.26 eq. Na⁺, i.e., well within the range where high reversibility is observed [13]. As a matter of fact, the potential profiles of the first and second charge plotted vs. Na⁺ equivalents (Figure 5d) almost overlap.

3. Materials and Methods

3.1. Solution Combustion Synthesis of Na_0.44MnO₂

The powder sample of nominal composition Na_0.44MnO₂ (solution combustion synthesis Na_0.44MnO_2, SC-NMO) was prepared starting from appropriate amounts of NaNO₃, Mn(NO₃)₂.4H₂O and urea, CO(NH₂)₂ (Sigma-Aldrich S.r.l, Milano, Italy). The chemicals were dissolved in deionized water in the appropriate stoichiometric ratio and heated at 80 °C under continuous stirring for 30 min. The temperature was then increased to 100 °C to achieve complete evaporation of the solvent until a viscous light pink resin was obtained, which spontaneously ignited to produce a black precursor. This latter was subsequently treated in a furnace at a temperature between 500 °C and 700 °C for maximum 2 h. The Na/Mn ratio was modified between 0.47–0.51 to identify the Na excess suitable to compensate for the loss of alkali metal during the high temperature synthesis steps.

For comparison, a sample of the same nominal composition (solid-state synthesis Na_0.44MnO_2, SS-NMO) was prepared according to the solid-state synthesis procedure reported by Sauvage et al. [13], which foresees a 10 wt.% excess of Na precursor, corresponding to a starting stoichiometry of Na_0.49MnO₂, to compensate for the Na ion volatility at high temperature. The characterization of this sample was already described in our previous work [29].

3.2. Morphological and Structural Characterization of SC-NMO

SC-NMO powder was sputter-coated with Au and analyzed through Scanning Electron Microscopy (SEM, Mira 3, Tescan, Brno, Czech Republic), using a beam acceleration voltage of 20 kV. The average dimensions of the slabs were calculated by measuring the width and length of at least 75 single slabs through the ImageJ^® free software. X-ray Diffraction Patterns (XRDP, BRUKER diffractometer D8 Advance, Cu-Kα: λ = 0.154 nm, Bruker Italia S.r.l., Milano, Italy) were acquired on the SC-NMO powder using an Al sample holder. The data were acquired in the 2θ range from 10° to 45° with scan step of 0.02 and a fixed counting time per step of 8 s. The powder underwent a Thermo-Gravimetric Analysis (TGA, Q5000, TA Instruments, New Castle, DE, USA) under static air, with a heating ramp of 10 °C/min from room temperature up to 800 °C.

3.3. Casting of the Electrodes

The NMO (both SC or SS) powders were mechanically sieved (mesh size ≤ 45 µm), after hand-grinding to separate possible agglomerates of particles. The active material, the conductive carbon (SuperC65^®, IMERYS, Switzerland) and binder polyvinylidene fluoride (PVdF, Solef 6020, Solvay Polymer specialties, Bruxelles, Belgium) were mixed via stirring overnight in N-methyl-2-pyrrolidone (NMP, Sigma Aldrich) in the weight ratio 85:10:5, respectively. In detail, 1 mL of NMP was used for 0.588 g of solid (solid content of 34.8%). Slurries with a wet thickness of 150 µm were cast on aluminum foil (Hydro, 0.020 mm thick). The slurries were dried overnight in an oven at 60 °C, and then round disc electrodes with a diameter of 12 mm-diameter were cut. The electrodes were dried under vacuum in a glass oven (Büchi) for 3 h at room temperature, 3 h at 60 °C and finally for 12 h at 100 °C. Subsequently, electrodes were pressed (8 ton for 10 s), weighed and dried again under vacuum for 3 h at room temperature and 8 h at 100 °C. The final electrodes had an average active material mass loading of 2.7 to 3.2 mg cm⁻².

3.4. Cell Assembly and Electrochemical Tests

Three-electrode Swagelok cells were assembled inside an argon-filled glove-box (mBraun) with water and oxygen content below 0.1 ppm. The cell configuration for all tests was: Na metal (99.8%, ACROS ORGANICS, Geel, Belgium) as reference and counter electrode (RE, CE), 1M NaPF₆ (sodium hexafluorophosphate, 99+%, FluoroChem, Glossop, UK) in PC (propylene carbonate, battery grade, BASF, Ludwigshafen, Germany) as electrolyte with glass fiber disks (GF/D, Whatman, Maidstone, UK) as separator and NMO as working electrode (WE). NaPF₆ and PC were used without further purification.

Electrodes (all possessing similar mass loading) were tested through cyclic voltammetry (CV) with a scan rate of 0.1 mV s⁻¹ in the potential range of 2.0 V–3.8 V vs. Na/Na⁺ (VMP3 multichannel potentiostat, BioLogic, Seyssinet-Pariset, France). The galvanostatic cycling was performed between 2.0 V and 3.8 V at various current densities ranging from C/10 to 5 C (1 C = 121 mA g⁻¹) (Maccor battery tester 4300, Maccor Inc., OK, USA). All electrochemical tests were carried out at 20 ± 1 °C.

4. Conclusions

For the first time, Na_0.44MnO₂ nanometric slabs were synthesized using an urea-based solution combustion synthesis and a subsequent annealing process. This simple synthetic approach, which makes use of the eco-friendly urea, enabled the preparation of Na_0.44MnO₂ cathode material in less time (2 h) and at a lower annealing temperature (700 °C) compared to state-of-the-art synthesis routes such as solid-state and sol-gel methods. SEM revealed smaller particle dimensions as a result of the aforementioned synthesis conditions. Moreover, the final cathode material has shown superior electrochemical performances, in terms of delivered capacities at high C rates of up to 5 C (i.e., 105 mAh g⁻¹ at 1 C and 80 mAh g⁻¹ at 5 C).

The improved capacities at high rates can be ascribed to the different morphology, i.e., smaller slabs characterized by a lower degree of anisotropy. Hence, the results suggest that reducing the particle sizes may be a suitable strategy for improving the high rate performances of Na_0.44MnO₂ cathode materials.
