Three Steps Mixed (Fire Tube–Water Tube) Vertical Boiler to Optimize Thermal Performance
- Three-pass boiler allows better use of the combustion heat from the exhaust gases and obtains a higher thermal efficiency.
- Multipurpose because it allows better use of the unit to be built from two points of view:
- The possibility of using alternative fuels such as diesel, natural gas, and LPG
- The use of the heat of combustion in heat-carrying fluids to produce hot water, steam, or thermal oil can be done in different units or the same unit.
- The boiler’s construction in two subsystems will allow the maintenance activities to be carried out more objectively and reduce the cost and frequency of maintenance.
2. Materials and Methods
- For the construction of the water and steam chamber, carbon steel ASTM 285-C was used, and for the tubes, ASTM 192 established by the ASME Code
- The exterior painting was done with anticorrosive paint and finishing paint
2.1. Plate Thickness Calculation and Material Selection
- To measure the pressure, a manometer with a range of 0–200 psi approx. One psi.

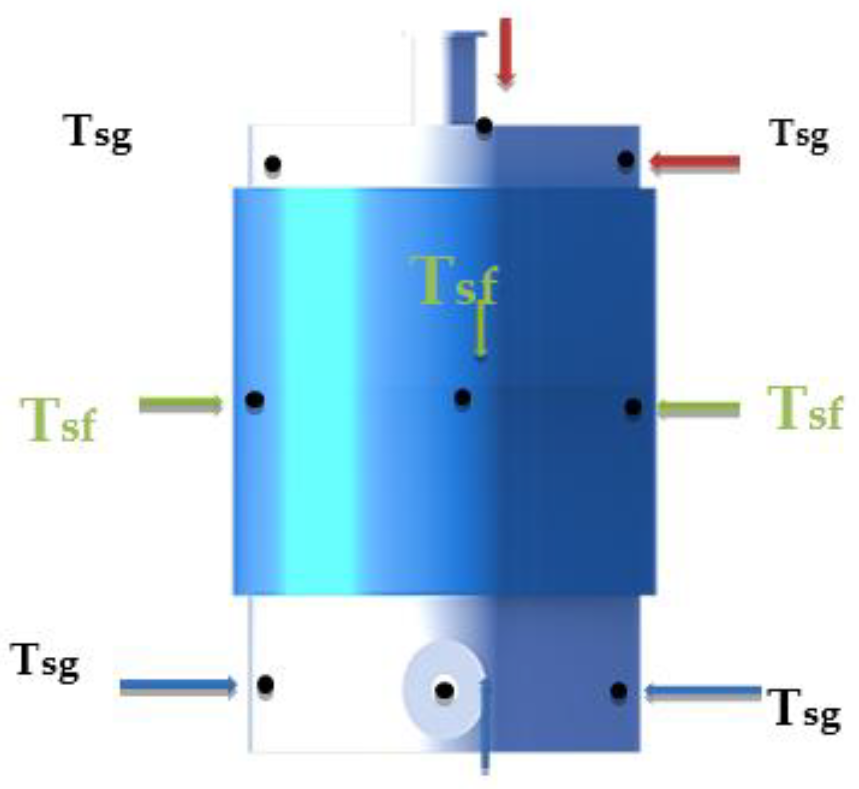

- Contact thermometers with an approximation of 0.1 degrees to measure external surfaces
- Carbon steel plate, ASTM285 grade C in different thicknesses
- Seamless boiler tubes ASTM-192 seamless carbon steel boilers tubes

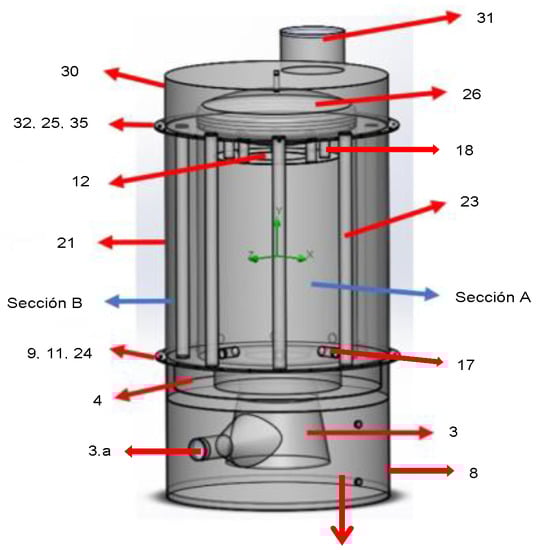

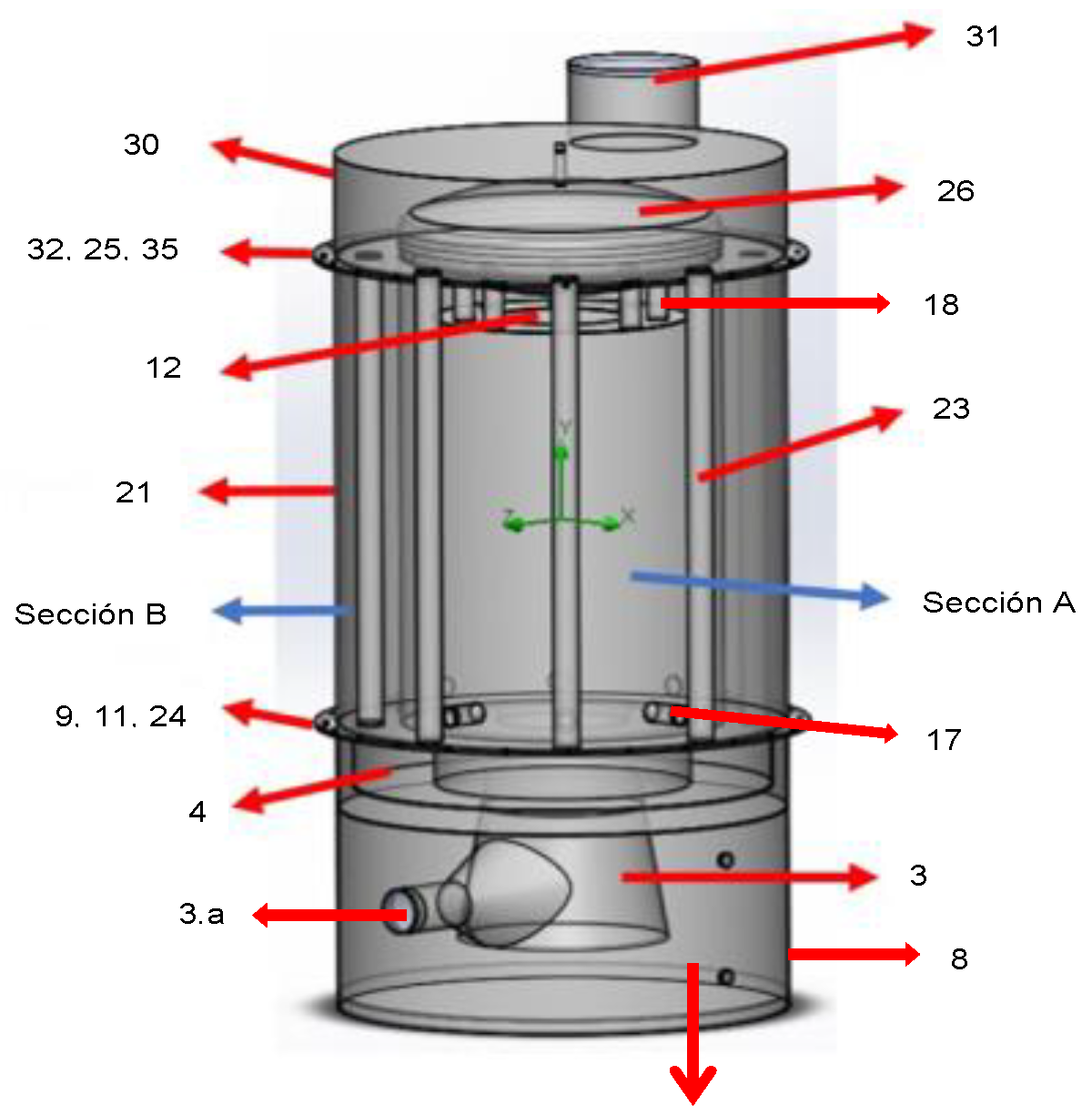

2.2. Boiler Construction Process Sequence
- Material type: Carbon steel plate ASTM 285 C
- Thickness: 1/4″ or 6.53 mm
- Plate dimensions: Depending on the dimensions required by the different sizes for its construction, it is possible to select larger plate dimensions
- Boiler tubes: For small powers, the manufacturers and the ASME Code recommend 2″ diameter.
- Distribution of the transfer area in three gas passes.
- Calculation of the total volume of liquid to be stored
- Dimensioning of the plates whose thickness was previously calculated.
- Tracing, cutting, rolling, and welding of the various sections of the boiler.
- Determination of the type of assembly of the sections previously built
- Selection of the seal gaskets.
- Assembly of the pre-fabricated sections through connecting flanges.
- Tightness test called a hydrostatic test.
- Installation of thermal insulation.
- External covering with galvanized iron plate.

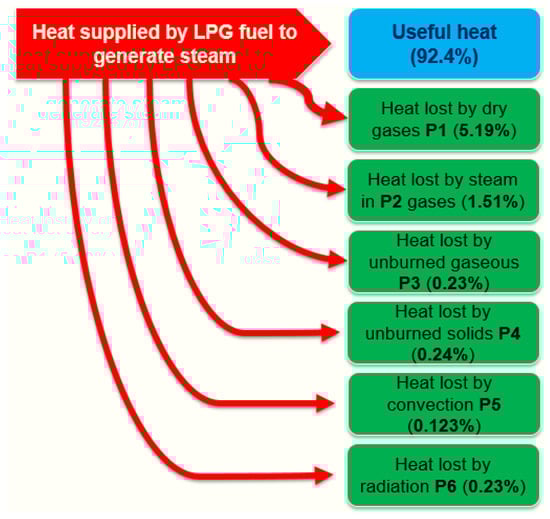

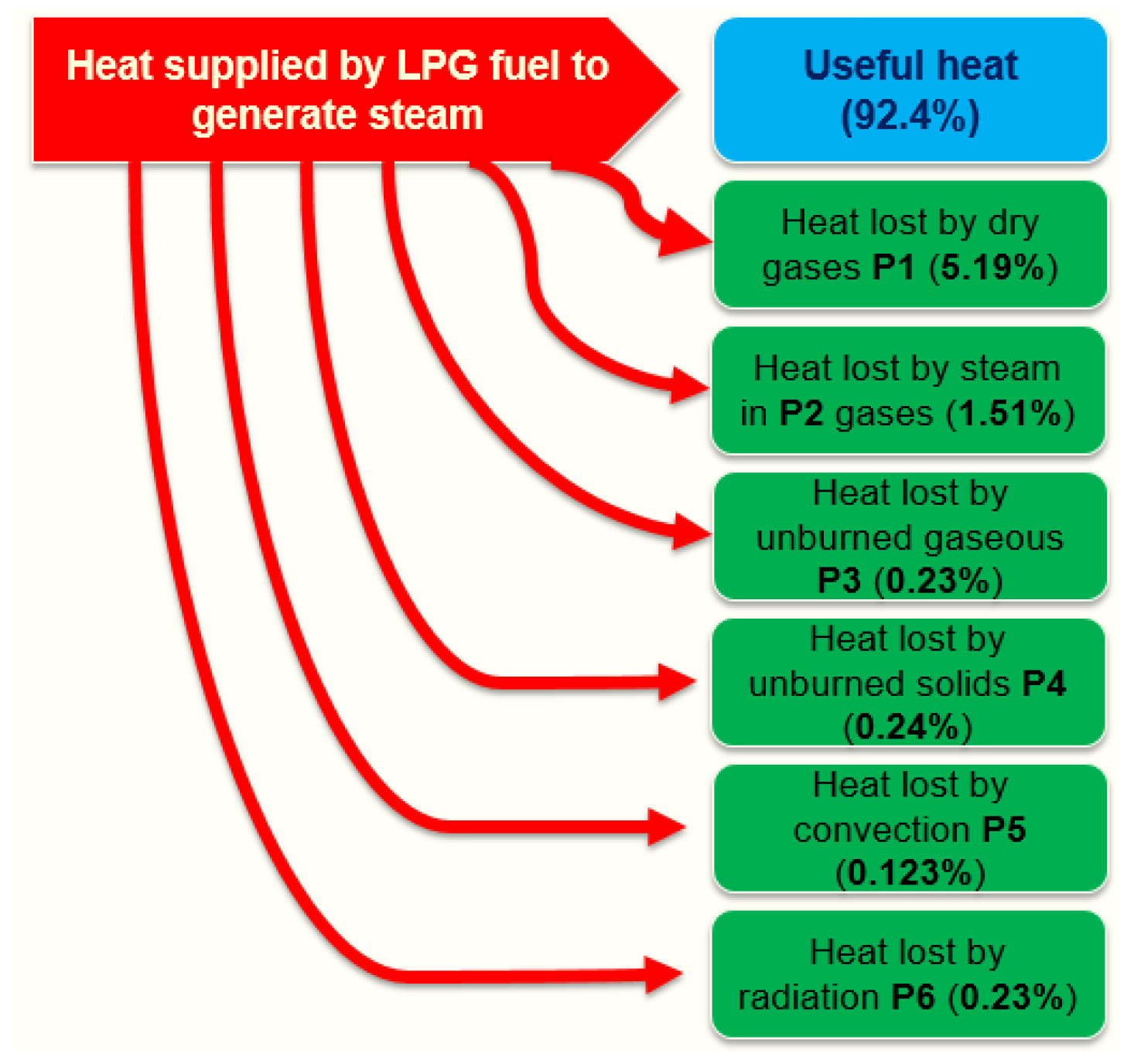

2.3. Energy Characterization
- Qa = Heat absorbed
- Qc = Heat of combustion
- Qp = Lost heat
- Qp1 = heat lost in the exhaust gases
- Qp2 = heat lost by the enthalpy of water vapor in the gases
- Qp3 = heat lost to unburned gas
- Qp4 = heat lost by solid unburned
- Qp5 = heat lost by convection
- Qp6 = heat lost to radiation
2.4. Energy Characterization Using Liquid Petroleum Gas (LPG)
Conflicts of Interest
- INDECOPI. Norma Técnica Peruana NPT 350.300:2002 “CALDERAS INDUSTRIALES”. Procedimiento para la Determinación de la Eficiencia Térmica de Calderas Industriales; Lima, Peru.1a edición 15 de diciembre del 2002. Lima, Peru, 2020. Available online: http://www.minem.gob.pe/_detalle.php?idSector=12&idTitular=3094&idMenu=sub3006&idCateg=742 (accessed on 16 September 2020).
- Dolmos, M.; Esenarro, D.; Rodriguez, C.; Minga, C. Wind Energy Potential in Pillcomarca, Peru, 2020. In Proceedings of the 5th Asia Conference on Power and Electrical Engineering (ACPEE), Chengdu, China, 4–7 June 2020; pp. 284–288. [Google Scholar] [CrossRef]
- Boiler, A.S.M.E. ASME Boiler and Pressure Vessel Code and International Code Rules for Construction of Heating Boiler; 10016-5990; ASME: New York, NY, USA, 2005. [Google Scholar]
- Babcock, W.B. Steam, Its Generation and Use, 13th ed.; Standardsmedia: London, UK, 2005. [Google Scholar]
- Douglas, M.C. Tendencias de las Tecnologías Energéticas; University of Toronto: Toronto, ON, Canada, 1989; pp. 21–24. [Google Scholar]
- Strusnik, D.; Golob, M.; Avsec, J. Artificial neural networking model for the prediction of high efficiency boiler steam generation and distribution. Simul. Modell. Pract. Theory 2016, 57, 58–70. [Google Scholar] [CrossRef]
- Megyesy, E.F. Manual de Recipientes a Presión, Diseño y Calculo; Editorial LIMUSA: Mexico City, Mexico, 1998. [Google Scholar]
- Moring, F.V.; Max, S.C. Termodinámica; UTEHA: Mexico City, Mexico, 1993. [Google Scholar]
- Ganapathy, V. Waste Heat Boiler. Desk Book; The Fairmont Inc. Press: Liburn, GA, USA, 1991. [Google Scholar]
- Wejkowski, R. Triple-finned tubes – Increasing efficiency, decreasing CO2 pollution of a steam boiler. Energy 2016, 99, 304–314. [Google Scholar] [CrossRef]
- Rodriguez, C.; Sifuentes, M.; Kaseng, F.; Lezama, P. Algorithmic efficiency indicator for the optimization of route size. 3C Tecnología 2020. [Google Scholar] [CrossRef]
- Pandey, B.; Tomar, G.; Singh, B.R.; Rodriguez, C. Environment-friendly FSM design on ultra-scale architecture: Energy-efficient green computing approach. World J. Eng. 2020. [Google Scholar] [CrossRef]
- Fernández, G. Monographic Study on Technologies of Medium Voltage Electric Generators in Wind Turbines; Paper Presented to Opt for the Title of University Expert in Wind Energy; National University of Distance Education: Madrid, Spain, 2012; Available online: http://bit.ly/2cRTrNJ (accessed on 23 February 2021).
- Esenarro, D.; Escate, V.; Anco, I.; Tassara, C.; Rodriguez, C. Proposal for an Ecological Research Center for the Recovery and Revaluation of Biodiversity in the Town of Quichas-Lima, Peru. Int. J. Environ. Sci. Dev. 2020, 11, 212–216. [Google Scholar] [CrossRef][Green Version]
- Rodriguez, C.; Esenarro, D.; Alburquerque, C.; Vega, M.; Ramirez, V. Theme park of renewable energies for mitigation of CO2 in the urban area of the district of Chorrillos, Peru. IOP Conf. Ser. Mater. Sci. Eng. 2020, 910, 012021. [Google Scholar] [CrossRef]
- Wrobel, W.A.; Fornalik-Wajs, E.; Szmyd, J.S. Analysis of the influence of a strong magnetic field gradient on convection process of paramagnetic fluid in the annulus between horizontal concentric cylinders. J. Phys. Conf. Ser. 2012, 395, 012124. [Google Scholar] [CrossRef]
- Kenjereš, S.; Fornalik-Wajs, E.; Wrobel, W.; Szmyd, J.S. Inversion of flow and heat transfer of the paramagnetic fluid in a di_erentially heated cube. Int. J. Heat Mass Transf. 2020, 151, 119407. [Google Scholar] [CrossRef]
- Fornalik-Wajs, E.; Roszko, A.; Donizak, J.; Kraszewska, A. Comparison of the experimental and numerical analyses of silver nanofluid under influence of strong magnetic field. Int. J. Numer. Methods Heat Fluid Flow 2019, 30, 3139–3162. [Google Scholar] [CrossRef]
- Fornalik-Wajs, E.; Roszko, A.; Donizak, J. Nanofluid flow driven by thermal and magnetic forces–Experimental and numerical studies. Energy 2020, 201, 117658. [Google Scholar] [CrossRef]
- Kraszewska, A.; Pyrda, L.; Donizak, J. Experimental analysis of the enclosure aspect ratio influences thermo-magnetic convection heat transfer. J. Phys. Conf. Ser. 2016, 745, 032153. [Google Scholar] [CrossRef]
- Zhang, D.; Peng, H.; Ling, X. Lattice Boltzmann method for thermomagnetic convection and entropy generation of paramagnetic fluid in porous enclosure under magnetic quadrupole field. Int. J. HeatMass Transf. 2018, 127, 224–236. [Google Scholar] [CrossRef]
- Furuichi, Y.; Tagawa, T. Numerical study of the magnetic damping e_ect on the sloshing of liquid oxygen in a propellant tank. Fluids 2020, 5, 88. [Google Scholar] [CrossRef]
- He, W.; Qin, G.; Wen, X.; Lin, J.; Jia, C. Resonant enhancement of thermomagnetic convection of paramagnetic fluid in an enclosure due to time-periodic magnetizing force. Numer. Heat Transf. Part A Appl. 2020, 78, 1–17. [Google Scholar] [CrossRef]
- Bahiraei, M.; Hangi, M. Automatic cooling by means of thermomagnetic phenomenon of magnetic nanofluid in a toroidal loop. Appl. Therm. Eng. 2016, 107, 700–708. [Google Scholar] [CrossRef]
- Ozoe, H. Magnetothermal wind tunnel. In Magnetic Convection, 1st ed.; Imperial College Press: London, UK, 2005; pp. 193–204. ISBN 10: 1-86094-578-3. [Google Scholar]
- Pleskacz, L.; Fornalik-Wajs, E. Low Reynolds number flow’s heat transfer influenced by strong magnetic field. J. Phys. Conf. Ser. 2016, 745, 032156. [Google Scholar] [CrossRef]
- Pleskacz, Ł.; Fornalik-Wajs, E. Identification of the structures for low Reynolds number flow in the strong magnetic field. Fluids 2019, 4, 36. [Google Scholar] [CrossRef][Green Version]
- Wada, K.; Kaneda, M.; Suga, K. Rayleigh-Bénard convection of paramagnetic liquid under a magnetic field from permanent magnets. Symmetry 2020, 12, 341. [Google Scholar] [CrossRef][Green Version]
- Kaneda, M.; Fujiwara, H.; Wada, K.; Suga, K. Natural convection of paramagnetic fluid along a vertical heated wall under a magnetic field from a single permanent magnet. J. Magn. Magn. Mater. 2020, 502, 166574. [Google Scholar] [CrossRef]
- Kutz, M. Heat-Transfer Calculations; McGraw-Hill Education: New York, NY, USA, 2006; Available online: https://www.accessengineeringlibrary.com/content/book/9780071410410 (accessed on 23 February 2021).

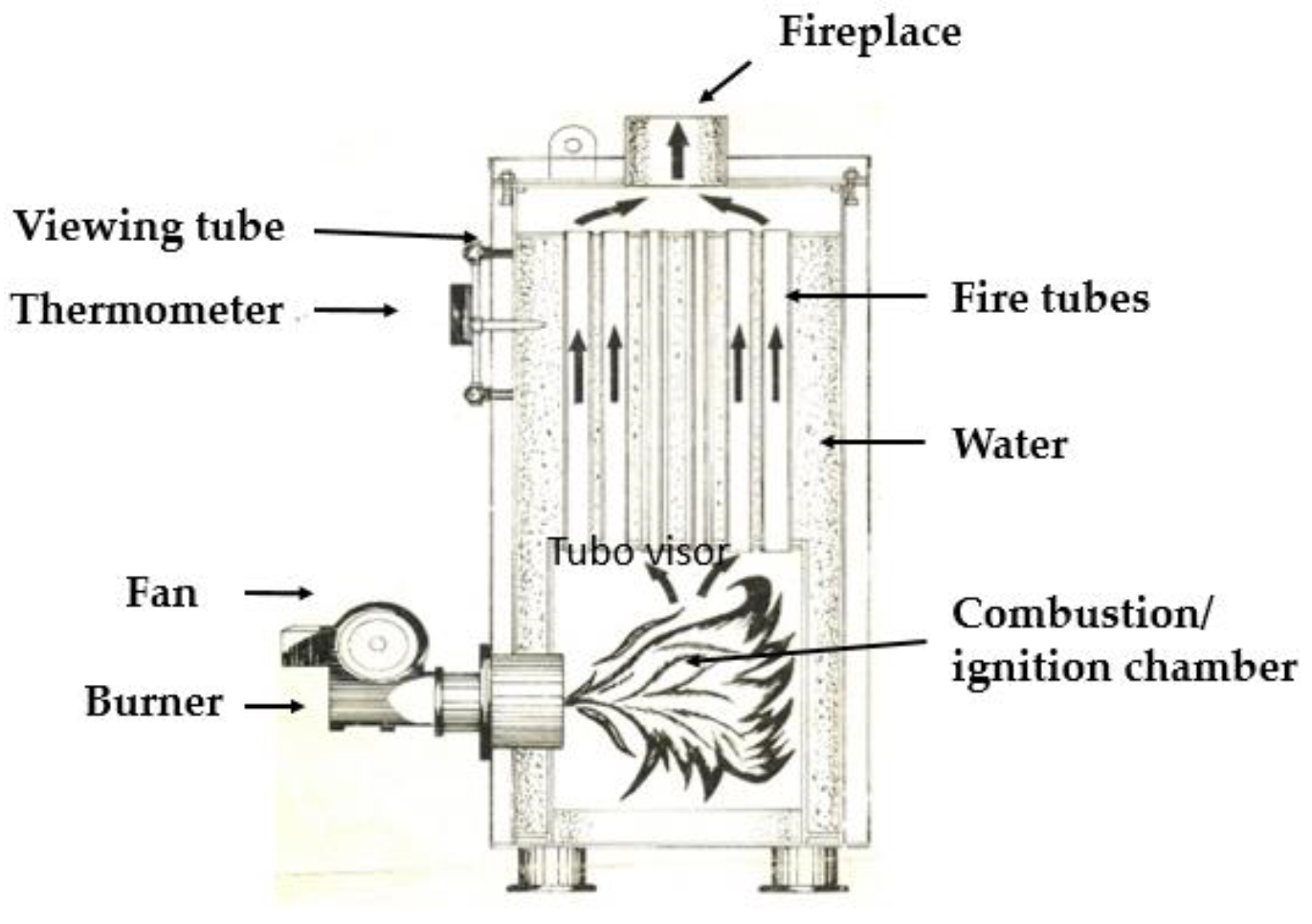

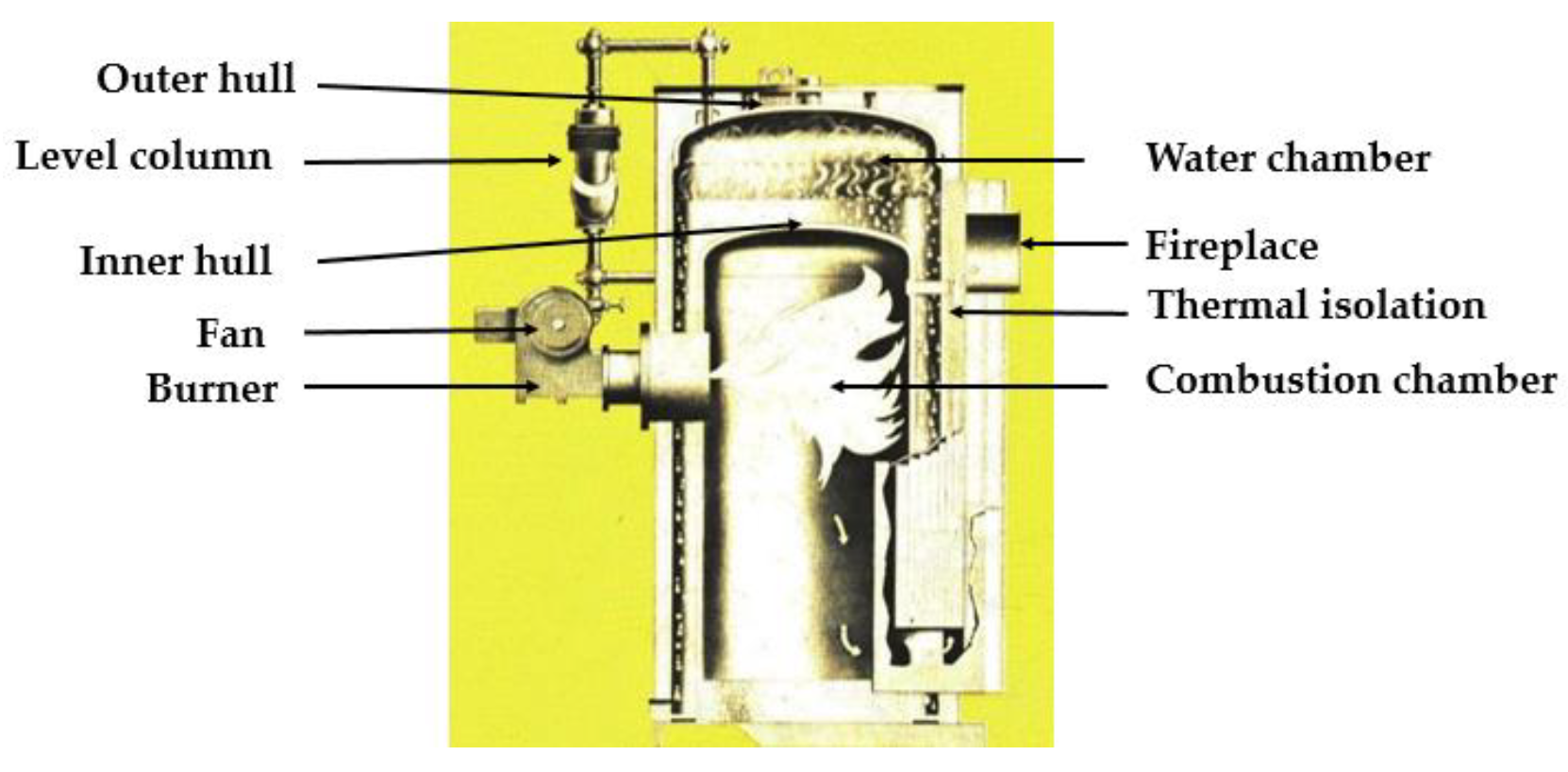

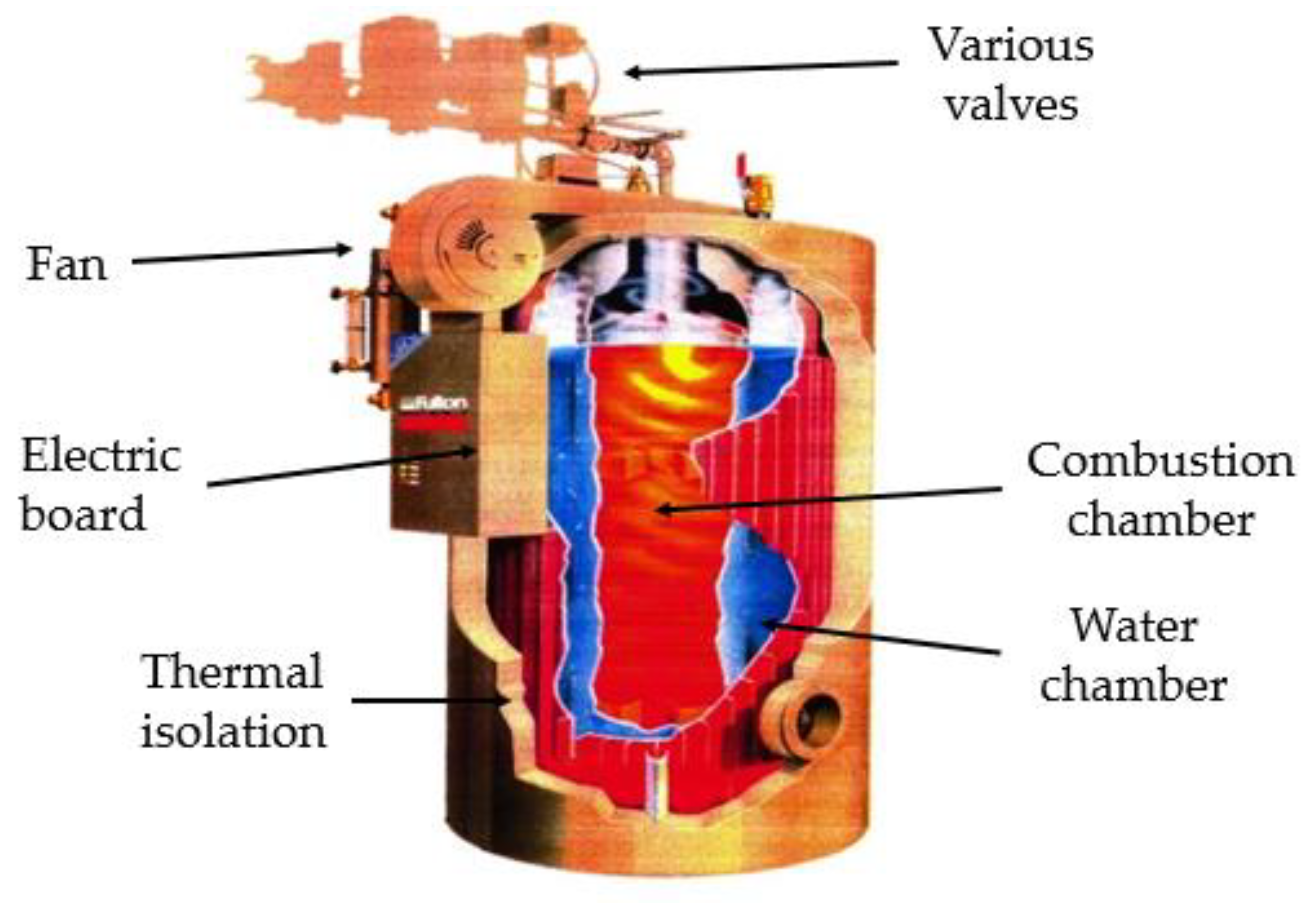

|Pass Flue Gas Vertical Hot Water Boiler||Pass Two Flue Gas Vertical Boiler||Two-Pass Flue Gas Tubeless Boiler||Three-Pass Flue Gas Boiler|
|Combustion gases in a single cycle emit very hot gases around 500 °C, it was worked with diesel II||Combustion gases in two gas steps emit gases into the environment around 250 and 300 °C; it was worked with diesel fuel II||Combustion gases in two gas steps emit gases into the environment around 300 °C; it was worked with diesel oil II||In three gas steps, combustion gases emit gases into the environment around 185 degrees Celsius; it was worked with diesel oil.|
|Boiler efficiency %||89.57||90.01||90.58|
|Fuel comsumption (Kg/h)||19085.9||18938.4||18864.6|
|Fuel comsumption (Kg/s)||5.302||5.092||5.240|
|Heat Loss %||Diesel||Natural Gas||LPG|
|Sensible Heat in Dry Gases %||7.45||7.28||6.10||6.10||5.25||5.19|
|Enthalpy of water vapor in gases %||1.46||1.46||2.18||2.189||1.52||1.51|
|Resulting thermal efficiency%||89.21||89.31||90.25||90.24||92.4||92.42|
|Heat Loss %.||Fuel: LPG|
|Heat Water||Generate Steam|
|Sensitive heat in the||5.25||5.19|
|Dry Gases %.||1.52||1.51|
|Enthalpy of the steam of||0.19||0.23|
|Water in gases||0.29||0.24|
|Heat Water||Generate Steam|
|US$ /BHP||US$/kW||US$ /BHP||US$/kW|
