Porous Starch Materials via Supercritical- and Freeze-Drying

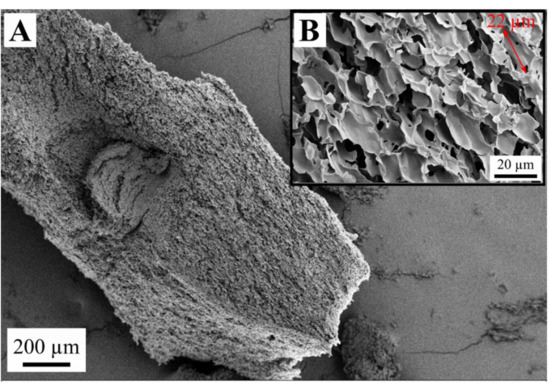

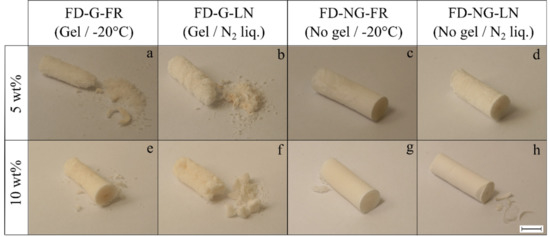

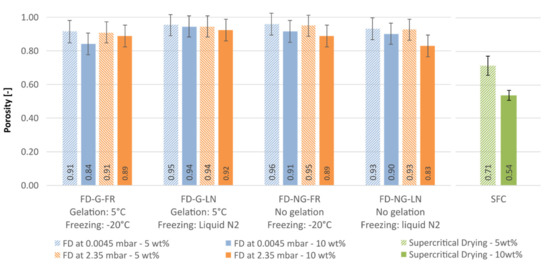

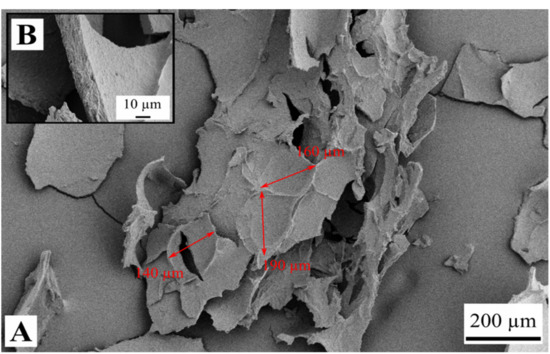

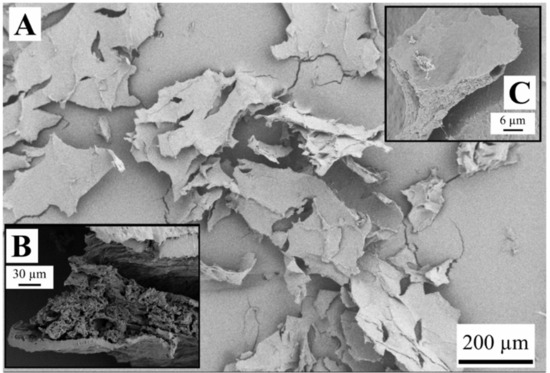

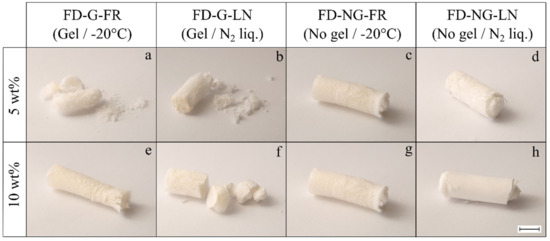

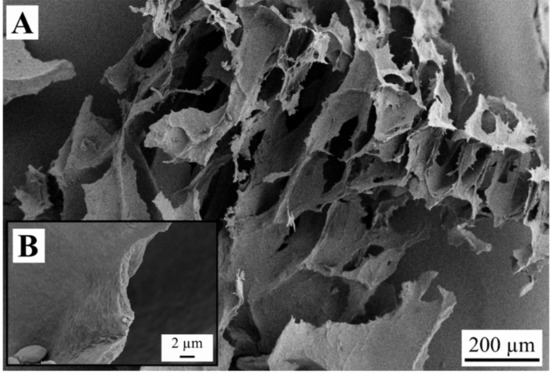

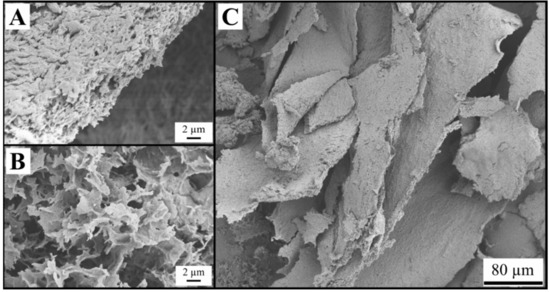

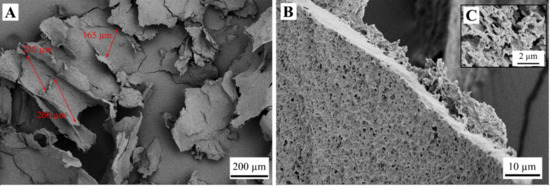

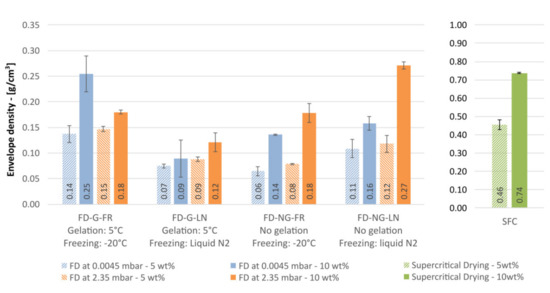

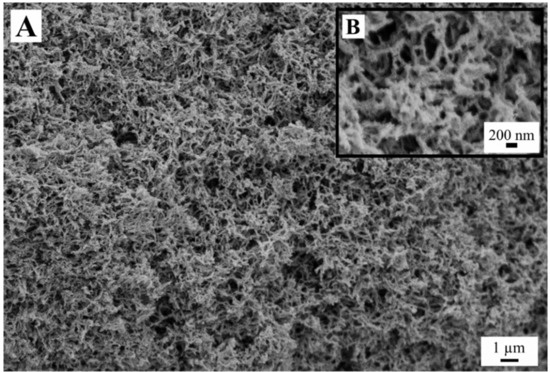

AbstractThe production of porous materials based on starch has been explored with supercritical drying—yielding aerogel—and freeze-drying. The two drying procedures were applied on the same gelling solution of amylomaize starch pasted at 140 °C and for two concentrations (5 and 10 wt.%). After gelation and retrogradation, water from the samples to be supercritically dried was exchanged to ethanol. The resulting starch aerogel presented high specific surface area (197 m2/g). Freeze-drying was assessed by investigating the effect of the gelation, retrogradation, freezing temperature, and sublimation pressure. The resulting starch materials were macroporous, with limited specific surface area and limited mechanical integrity. Cohesive open cell foam with pore size of ~20 µm was produced by quenching the hot starch melt in liquid nitrogen. The highest specific surface area obtained with freeze-drying was 7.7 m2/g for the hot starch melt frozen at −20 °C. View Full-Text
Share & Cite This Article
Baudron, V.; Gurikov, P.; Smirnova, I.; Whitehouse, S. Porous Starch Materials via Supercritical- and Freeze-Drying. Gels 2019, 5, 12.
Baudron V, Gurikov P, Smirnova I, Whitehouse S. Porous Starch Materials via Supercritical- and Freeze-Drying. Gels. 2019; 5(1):12.Chicago/Turabian Style
Baudron, Victor; Gurikov, Pavel; Smirnova, Irina; Whitehouse, Steve. 2019. "Porous Starch Materials via Supercritical- and Freeze-Drying." Gels 5, no. 1: 12.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
