Article

Mechanism of Enhancing Pyrazines in Daqu via Inoculating Bacillus licheniformis with Strains Specificity

by
Qiuxiang Tang
1,
Xiaoru Chen
1,
Jun Huang
1,
Suyi Zhang
2,
Hui Qin
2,
Yi Dong
2,
Chao Wang
2,
Xiaojun Wang
2,
Chongde Wu
1,
Yao Jin
1 and
Rongqing Zhou
1,3,*
1
College of Biomass Science and Engineering, Sichuan University, Chengdu 610065, China
2
Luzhou Laojiao Company Limited, Luzhou 646000, China
3
National Engineering Research Centre of Solid-State Brewing, Luzhou 646000, China
*
Author to whom correspondence should be addressed.
Foods 2023, 12(2), 304; https://doi.org/10.3390/foods12020304
Submission received: 28 November 2022 / Revised: 3 January 2023 / Accepted: 4 January 2023 / Published: 9 January 2023
(This article belongs to the Special Issue Microbiology and Genomic Analysis of Fermented Foods)
Browse Figures
Versions Notes

Abstract

:
Despite the importance of pyrazines in Baijiu flavor, inoculating functional strains to increase the contents of pyrazine in Daqu and how those interact with endogenic communities is not well characterized. The effects of inoculating Bacillus licheniformis with similar metabolic capacity on pyrazine and community structure were assessed in the Daqu complex system and compared with traditional Daqu. The fortification strategy increased the volatile metabolite content of Daqu by 52.40% and the pyrazine content by 655.99%. Meanwhile, results revealed that the pyrazine content in Daqu inoculated isolate J-49 was 2.35–7.41 times higher than isolate J-41. Both isolates have the almost same capability of 2,3-butanediol, a key precursor of pyrazine, in pure cultured systems. Since the membrane fatty acids of isolate J-49 contain unsaturated fatty acids, it enhances the response-ability to withstand complex environmental pressure, resulting in higher pyrazine content. PICRUSt2 suggested that the increase in pyrazine was related to the enzyme expression of nitrogen metabolism significantly increasing, which led to the enrichment of NH4+ and 2,3-butanediol (which increased by 615.89%). These results based on multi-dimensional approaches revealed the effect of functional bacteria enhancement on the attribution of Daqu, laid a methodological foundation regulating the microbial community structure and enhanced the target products by functional strains.

Graphical Abstract

1. Introduction

Daqu (starter) is one of the essential raw materials and is also used to initiate the Baijiu fermentation. The yield and quality of fresh Baijiu are closely related to the composition of Daqu involved in various functional consortiums, enzymes, flavor constituents or their precursor [1,2,3]. In general, Daqu brewing Baijiu can be divided into three major types which are light, strong and sauce flavor [4]. Regulating the quality of Daqu is facing great challenges as it is controlled by artisans with their experiences and manufactured in an open environment, resulting in significant temporal and spatial characteristics [5,6]. Muqu, the high quality of the last year’s Daqu, was still added during the sauce-flavor Daqu manufacturing process [7]. With the help of genomics and bioinformatics, the dominant microbes and the correlation with the main metabolites were preliminary proved [8]. For example, Thermoactinomycetaceae and Bacillaceae dominated in high-temperature Daqu in which Bacillus was the core group [9]. Bacillus is also one of the dominant genera in both strong- and light-flavor Daqu; the former also includes Aspergillus, Saccharomyces and Lactobacillus [10], and the latter contains Lactobacillus, Saccharomyces and Rhizopus [11,12]. Mold affects the glucoamylase ability and liquefying ability of Daqu; meanwhile, it can avoid rancidity, and yeast is the main microorganism that affects fermentative capability and Baijiu production [13]. Bacteria mainly affect the flavor and quality of liquor [14].
These results laid an important foundation for developing new technology to improve the quality of Daqu. In recent years, the approaches to meliorate the Daqu focus on regulating process parameters or fortifying by functional strain/consortia. The former are mainly involved in regulating the change rate of bio-heating and humidity, which are the main driving forces to evolve the communities and their metabolism [15]. The latter can reconstruct the communities and their metabolization by inoculating the functional strain or consortia [16,17,18,19,20,21]. The contents of unique components, including tetramethylpyrazine, phenylethanol, etc., were remarkably enhanced by inoculating Bacillus spp. in Daqu, and it can also benefit the process of liquor fermentation [22,23]. Therefore, it was one of the hot spots on developing the technology of Daqu manufacture based on inoculating the functional strain or consortia in the last decades. Bacillus licheniformis was the dominant species isolated from high-temperature Daqu. The quality of high- and low-temperature Daqu were all improved when B. licheniformis was inoculated as the starter and endowed with their unique flavor [23,24]. The contents of aromatics, phenols, and pyrazines in fresh Baijiu were also increased by 2.4, 0.5, and 3.9 times, respectively, for the former, while the activity of amylase and the content of pyrazine and the aromatic compound was notably increased for the latter. However, there are few reports on the effect of inoculation intensity and strains specificity on the physicochemical property, community structure, and metabolites, even though these were unapplied in strong-flavor Daqu so far.
This study investigated the effect of the different initial concentrations of B. licheniformis in Qupei (to be cultured Daqu) on the physicochemical parameters, the community diversity, and their metabolome in strong-flavor Daqu. The research was dissected by polyphasic detection approaches, including conventional analyzing approaches, chromatography mass spectrometry, as well as the Illumina MiSeq platform, etc. The effects of the initial intensity on the network correlation among the communities and the relationship between functional microbes and main metabolites were inferred by bioinformatic technology. The aim is to reveal the effect of the inoculation intensity on the indigenous communities and their metabolism based on the isolate with strain specificity.

2. Materials and Methods

2.1. Strain Identification, Production and Collection of Daqu Samples

B. licheniformis J-41 and B. licheniformis J-49 were isolated from the Muqu, which was manufactured from Daqu powder undergoing a monthlong spaceflight in Shenzhou 11 spacecraft [25]. Genomic DNA from the strain was extracted using an Ezup Column Bacteria Genomic DNA Purification Kit (Shanghai Sangon Biotech, Shanghai, China). The detailed method described by Kakudo et al. [26] and its 16S rRNA gene was amplified by PCR with the forward primer 27F (5′-AGAGTTTGATCCTGGCTCAG-3′) and the reverse primer 1492R (5′-CTACGGCTACCTTGTTACGA-3′). Sequencing reactions were carried out using the dideoxy chain-termination method with an ABI 3730XL (Applied Biosystems) by Shanghai Sangon Biotech (Shanghai, China), and almost-complete 16S rRNA gene sequences were obtained. All sequencing data have been deposited at the National Center for Biotechnology Information. The GenBank accession numbers were SUB12491630 J-41 OQ135133 (B. licheniformis J-41) and SUB12491630 J-49 OQ135134 (B. licheniformis J-49). The cell membrane fatty acid extraction and analysis of two strains were based on the study by Zhang et al. [27].
In the process of making Daqu, firstly, the strain was inoculated into a commercial medium (LB, beef extract peptone medium), and the seed solution was prepared and incubated at 37 °C and 120 rpm/min for 24 h. Then, the suspension of 3 mL isolates was transferred to a 500 mL eggplant flask, which contained LB medium tilted by 100 mL agar and cultured at 37 °C for 24 h. Then, the suspension was prepared by eluting the culture medium with pre-prepared aseptic water. The number of suspension cells was counted by a blood cell meter and diluted to the corresponding concentration with tap water. Qupei, to be cultured Daqu, was inoculated with the suspension of both isolates, and the initial concentrations were 8 × 104, 2 × 105, 8 × 105, 2 × 106, 8 × 106, and 2 × 107 CFU/g (based on the dry material weight), which were numbered as A-1–A-6, and D-1–D-6, respectively. The blank sample without no inoculation was named B. These Daqu were produced according to the operation specification of Daqu manufacturing implemented by Luzhou Laojiao Co., Ltd. The Daqu (cultured for 30 days) was sampled according to the method described in the literature [28], and then, samples were sent to the laboratory for preservation (−20 °C and −80 °C) until further determination.

2.2. Determination Physiochemical Properties and Volatiles Constituents

The physiochemical properties, including moisture, acidity, liquefying ability, saccharifying ability, fermenting ability and esterifying ability, were determined according to the general methods of analysis for Daqu (QB/T 4257-2011) published by the Ministry of Industry and Information of the People’s Republic of China [29].
The extraction of flavor constituents in all samples was carried out by the headspace-solid phase microextraction (HS-SPME) method, using a 50/30 μm DVB/CAR/PDMS fiber (Supelco, Inc., Bellefonte, PA, USA). Firstly, took a 1.00 g sample into a 20 mL headspace bottle and simultaneously added 10 μL internal standard (0.0079 mg/100 mL, methyl octanoate). Then, samples were equilibrated at (60 ± 1) °C in a magnetic stirring plate for 15 min and extracted for 50 min. Finally, the fiber was immediately inserted the SPME fiber into the GC to thermally desorb the analytes at 250 °C for 5 min.
GC-MS (Gas Chromatography Coupled System TSQ 9000 Mass Spectrometer, Thermo trace 1300, Waltham, MA, USA) was equipped with an HPINNOWAX capillary column (30.0 m × 0.25 mm × 0.25 mm, Agilent Technologies Inc., Electron Corporation, Waltham, MA, USA). The detection protocol and data acquisition procedure were according to the method described previously with some modifications [30]. It was kept at 40 °C for 5 min, then increased to 100 °C at 4 °C/min for 0 min, and then increased to 230 °C for 6 °C/min and kept for 10 min. The inlet temperature was 270 °C, the ion source temperature was 300 °C and the mass spectrum scanning range was 35–400 m/z. Flavor components identification was compared with the mass spectrum data of those in the NIST2017 library database (Finnigan Co., San Jose, CA, USA) based on the following criterion: similarity (SI) > 800 (the highest value is 1000).

2.3. DNA Extraction, PCR Amplification, and Sequence Analysis of High-Throughput Sequencing

The total genomic DNA of Daqu was extracted using the Fast DNA SPIN extraction kit (MP Biomedicals, Santa Ana, CA, USA) following the manufacturer’s instructions; meanwhile, the DNA was quantified by a Nanodrop ND-1000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) and stored at −20 °C prior to further analysis. The extraction quality was measured by 1.2% agarose gel electrophoresis, respectively. For bacteria, the V3–V4 domains of the 16S rRNA genes were amplified using primers 338F (5′-ACTCCTACGGGAGGCAGCA-3′) and 806R (5′-GGACTACHVGGGTWTCTAAT-3′). For fungi, the internal transcribed spacer ITS regions were amplified with primers ITS5 (5′-GGAAGTAAAAGTCGTAACAAGG-3′) and ITS1(5′-GCTGCGTTCTTCATCGATGC-3′). Sample-specific 7-bp barcodes were incorporated into the primers for multiplex sequencing. Specific PCR procedures were performed in accordance with the previous method [31]. The operating conditions of PCR amplification refer to the method of He et al. [28]. After the individual quantification step, amplicons were pooled in equal amounts, and pair-end 2 × 300 bp sequencing was performed using the Illumina MiSeq platform with a MiSeq Reagent Kit v3 at Shanghai Personal Biotechnology Co., Ltd. (Shanghai, China).
According to the Quantitative Insights Into Microbial Ecology (QIIME, version 2) pipeline, the low-quality sequences (length below 150 bp, average Phred scores less than 20, mononucleotide repeats over 8 bp, and ambiguous bases) were processed as previously described [32]. Finally, the DADA2 was used for quality control, denoise, splicing, and chimera detection to generate each deduplication sequence that was called amplicon sequence variants (ASVs) [33], and the abundance table of these sequences in each sample was referred to as the feature table, corresponding to the ASVs table.

2.4. Statistical Analysis

Significance analysis: using IBM SPSS Statistics 19 software (SPSS Inc. Chicago, IL, USA), Duncan’s test of one-way analysis of variance (ANOVA) was used to evaluate the significant differences between physicochemical and flavor compounds (p < 0.05, n = 3). Spearman correlation tests were performed for microbial genera and metabolites; p < 0.05 was considered a robust correlation.
Sequence data analyses were mainly performed using the QIIME2 and R software. The taxonomic tree [34] and principal coordinates analysis (PCoA) were carried out using QIIME2 and R software. The bacterial phylogenetic tree was constructed using QIIME2 [35,36]. The microbial functions were predicted using PICRUSt2 (Phylogenetic Investigation of Communities by Reconstruction of Unobserved States) [37] based on the KEGG PATHWAY Database [38,39,40]. The correlation analysis of physiochemical properties, metabolites, and ECs was analyzed by calculating Pearson’s rank. The correlations between microbes were analyzed by calculating Spearman’s rank with |RHO| > 0.5 and p < 0.01, which were visualized as a co-occurrence network using Cytoscape (version 3.7.2) [40]. A functional prediction using the functional annotation of prokaryotic taxa (FAPROTAX) and the database of metagenomics of bacterial community was used to identify ecosystem functions [41,42]. The FAPROTAX of bacterial communities was performed on the Tutools platform (https://www.cloudtutu.com (accessed on 13 September 2022)).

3. Results

3.1. Effect of the Initial Concentration in Qupei on the Physicochemical Properties of Daqu

As shown in Table 1, the physicochemical properties of Daqu were significantly changed by inoculation with B. licheniformis. The properties such as acidity, liquefying ability, saccharifying ability, and fermenting ability of Daqu were improved, but there was a non-linear correlation with the initial concentration. As the initial concentration increased, the esterifying ability was reduced, which in both D-2 and D-3 was less than half in control Daqu (B), while their fermenting ability was higher. It might be related to the ratio of liquefying ability to saccharifying ability (L/S). For example, the fermenting ability in both sample D-3 and sample D-4 was higher as the ratio of L/S was about 1.40, while the ratio of L/S in sample D-6 was 1.86, similar to sample B (1.82). It inferred that the balance of saccharifying and liquefying rate might be broken, resulting in the performance of mass and heat transfer varying due to the saccharification delayed. It may be one reason that the microbial community constituents and their metabolites shifted as the difference in the initial concentration changed.

3.2. Contents of Volatiles Increased as the Inoculation Intensity

A total of 67 different volatiles were detected in these Daqu, including esters, alcohols, acids, aldehydes, pyrazines, ketones, phenols, alkanes, and other constituents, with a total content of 3603.66–7062.83 μg/kg (Figure 1). Recent studies reported that the content of volatile metabolites increased by Bacillus significantly in fortified Daqu [23,24]. Here, it was noteworthy that their amplitude was closely related to the initial concentration of B. licheniformis inoculated in the present experiment. For example, the content of volatiles was about two times higher than that of sample B when the initial concentration in Qupei ranged between 2 × 106 and 2 × 107 CFU/g. The amount of enhanced volatiles included in esters, alcohols, and pyrazines was 619.84–2229.62 μg/kg, 157.73–681.59 μg/kg, and 227.55–981.66 μg/kg, respectively. Among the volatiles detected, the proportion of esters was more than 50%, and methyl esters (methyl hexadecanoate, methyl caproate, methyl nonanoate, methyl dodecanoate, methyl stearate, etc.) were dominant constituents. The content of esters in sample D-6 was 1.72 times higher than that in sample B, while that of sample D-2 was slightly lower than that of sample B. From sample D-3 to sample D-6, the content of 2,3-butanediol and phenylethanol increased by 384.37–854.75% and 48.29–309.41%; these two kinds of constituents were endowed with creamy and rose aroma to Baijiu [43]. The content of pyrazines in sample D-3 was the highest; trimethylpyrazine and 2,5-dimethylpyrazine increased by 679.59% and 1664.27%, respectively. Additionally, 2,3-butanediol and phenylethanol also increased by 615.89% and 48.29%. Pyrazines not only can endow Baijiu with a charred aroma, but they are also beneficial to human health [44]. 3-Methylbutyric acid was only detected in sample D-2, sample D-3 and sample D-5, and the content was in the range of 26.75–103.99 μg/kg. 3-Methylbutyric acid is the precursor of ethyl 3-methylbutyrate, and the latter can endow the fruit and malt aroma of Baijiu [45]. At the same time, caryophyllene was detected in sample D-1, sample D-5 and sample D-6, and the content was 21.02–37.02 μg/kg.

3.3. Shifted Community Structure and Improved Pyrazine Content by Biofortification

Biofortification markedly affected the α-diversity index of Daqu (Table 2), but the amplitude was not linear as the inoculated initial concentration. By inoculating B. licheniformis, the community structure of Daqu was distinctly shifted, especially the bacterial community. The richness and diversity of the bacterial community were decreased when the initial concentration ranged from 8 × 104 CFU/g (D-1) to 2 × 106 CFU/g (D-4), while it increased at 8 × 106 CFU/g (D-5) and 2 × 107 CFU/g (D-6). The richness and diversity of the fungal community were decreased, and they were all lower than that in sample B, except the richness in sample D-2 was increased.
The composition profiles of microorganisms and functional modules in Daqu are shown in Figure 2. Weissella, Saccharopolyspora and Kroppenstedtia were dominated in sample B, and their abundances were 38.97%, 29.91%, and 10.17%, respectively, which was similar to the results reported by Yang et al. [46]. The initial concentration of B. licheniformis significantly affected the abundance of dominant microbes, and it especially increased the content of Bacillus. The ratio of Bacillus in FD ranged from 1.28% to 95.04%, but the amplitude was non-linear to the initial concentration, while that in sample B was only 0.66%. For example, the abundance of Bacillus in sample D-2 and sample D-3 occupied dominated absolutely even though the initial concentration of B. licheniformis inoculated was 2 × 105 CFU/g and 8 × 105 CFU/g. Conversely, the abundance of Bacillus in sample D-6 was about one-fifth in sample D-2, although the initial concentration of B. licheniformis inoculated in the former was 100 times higher than that in the latter. By inoculating B. licheniformis, Thermomyces and Thermoascus dominated in Daqu, and their abundances ranged from 81.52% to 96.97%, except for 28.21% in sample D-2, while Pichia and Rhizomucor dominated in sample B (Figure 2b).
PCoA analysis showed that the composition of the community and function in FD was significantly changed, which lay in the initial concentration of B. licheniformis (Figure 2c). The bacterial constructures and function in sample D-1 and sample D-6 were similar, while those in sample D-2 and sample D-3 were also similar. Analogously, the fungal communities and ecological function of FDs were shifted in contrast to sample B. The distance among FDs was closed except for sample D-2 as the abundance of Thermomyces was markedly lower than that in other FDs. The results suggested that the effect of initial concentration on the bacterial community and their function was more sensitive than the effect on the fungus’.
The community function database based on FAPROTAX annotation was used to analyze the bacterial community function in Daqu [41,42]. The results showed that the inoculation of B. licheniformis significantly changed the main bacterial functional composition (Figure 2d). Chemoheterotrophy, ureolysis, fermentation, and aerobic chemoheterotrophy dominated in sample B, while arsenate detoxification, dissimilatory arsenate reduction, and nitrate reduction had dominance in FDs. The ratio of these functional compositions in sample D-1 was similar to that in D-6. The abundance of nitrate reduction in both sample D-2 and sample D-3 was higher, as they are involved in nitrogen metabolism. It suggested that the expression abundance of EC:1.7.1.15 in the bacterial community in these FDs was enhanced based on the result predicted by the metabolic pathway of KEGG (Figure 2e). In contrast, the abundance of EC:1.4.1.13 and EC:1.4.1.4 in sample B was significantly higher than that in FDs, which contributed glutamate metabolism consuming NH4+. It was inferred that the effect of B. licheniformis was an accumulation of NH4+, which was beneficial to the biosynthesis of pyrazine.
The contribution of the inoculation intensity to the bacterial community and their function can be divided into three types based on the influencing pattern. They were H (D-2 and D-3), M (D-4 and D-5) and L (D-1 and D-6), respectively, and their network characteristics are shown in Figure 3. The most genera of bacteria were located in the peripheral region (Zi < 2.5, Pi < 0.62); only some of them belonged to Connectors (Zi < 2.5, Pi > 0.62) and have the function to connecting different microbial modules in the community. The results of the top 30 genera in the community demonstrated that 16 genera were shared among the three groups, and many genera had the function of Connectors. The results of heat-map analysis showed that among these microbes defined as Connectors, the abundance of ASV21 (Pseudonocardiaceae), ASV23 (Saccharopolyspora), ASV51 (Staphylococcus) and ASV65 (Lactobacillus) varied markedly in different types. The relationship between ASV44 (Bacillus) and ASV21 was similar to that of ASV44 and ASV23, and it was negative in the class H and positive in the class M and L.

3.4. Correlation between Fermentation Parameters, Metabolites and Community Function

The correlation between fermentation parameters, volatiles, and enzyme abundance in Daqu was analyzed based on Pearson (Figure 4). The fermenting ability was not correlated with the bacterial and fungal enzymes, while the saccharifying ability, liquefying ability, and esterifying ability was all affected by the enzymes. Liquefying ability and saccharifying ability affect the degradation and conversion of starch, there were more bacterial enzymes related to them, and the degree of coincidence was higher. Usually, B. licheniformis can secrete a large number of hydrolases such as amylase and acid protease [47], so it can notably increase the abundance of enzymes related to liquefying ability and saccharifying ability. The enzyme of fungal microbiota mainly had a high correlation with saccharifying ability, but it had a low correlation with liquefying ability and esterifying ability. There were only a few enzymes of the bacterial community related to alcohols, acids, aldehydes, ketones, alkanes and phenols, and most of them were related to the synthesis of esters and pyrazines. These results demonstrated that inoculating B. licheniformis significantly improves the synthesis of esters and pyrazines, and it regulated the ratio of the two metabolites. In FD, the abundance of ester-related enzymes decreased and that of pyrazine-related enzymes increased, mainly by increasing the three enzymes, including EC:1.1.1.100, EC:2.7.13.3, and EC:3.5.1.28, which averagely increased 22.50%, 21.85%, 182.37%, respectively. It was one of the main reasons for the increasing pyrazines content. There were 20 fungal enzymes related to metabolism, but they did not directly affect the synthesis of esters and pyrazines. The results of metabolic pathway analysis of related enzymes showed that the role of B. licheniformis was to increase the degradation and conversion of starch and fiber as well as to increase the rate of multiple pathways such as the TCA cycle, thus improving the production and accumulation of characteristic metabolites. B. licheniformis increased the expression abundance of EC:1.8.1.4 and EC:1.2.1.3 involved in multiple metabolic pathways in the bacterial community and EC:3.2.1.1 and EC:1.2.1.3 in the fungal community, in which EC:3.2.1.1 promoted starch degradation and EC:1.2.1.3 participated in multiple metabolic pathways. These changes made FD accumulate more volatiles than Daqu in the process.

4. Discussion

Inoculating functional microbes/consortia is one of the effective approaches to improving the product quality and characteristic flavor of traditional fermented food. It showed that metabolites in strong-flavor Daqu, especially esters and pyrazines (Figure 1), were improved when fortified by B. licheniformis J-49. In fact, the contribution of an isolate strain mainly included regulating the metabolic pathway of nitrogen metabolism notably (Figure 2 and Figure 4), resulting in increased content of NH4+ and promoting the synthesis of pyrazines (Figure 1). The abundance of histidine kinase (EC:2.7.13.3) expression as a signal transduction molecule [48] was increased, which might change the supply pattern of amino acids. This change significantly affected the synthetizing of aromatic active compounds during the process [49] even if one amino acid supplied was only shifted.
The correlation between the initial concentration of B. licheniformis inoculated and the fermentation parameters, as well as pyrazines, was non-linear, although the latter was also significantly enhanced (Figure 1). The contents of metabolites in sample D-6 were the highest in all FDs which related positively with the initial concentration, although the abundance of Bacillus identified was low (Figure 1a and Figure 2a). These results implied that the contribution of the initial concentration to the main physiochemical parameters as well as target metabolites might be related to the priority effect in the system [50]. The high concentration of inoculation made the target metabolites accumulate in a short time, but the by-products that accumulated at the same time may have a severe effect on community succession. The priority effect of functional microbes/consortia used for enhancement may be positive or negative due to different initial concentrations, which mainly depend on the interaction between the microbes and nutrient networks of the community [51]. In class H, Bacillus was negatively correlated with Saccharopolyspora, Pseudonocardiaceae and Lactobacillus. Bacillus was positively correlated with Saccharopolyspora and Pseudonocardiaceae in class M and L (Figure 3). The correlation between Bacillus and Lactobacillus was negative in class M and H but positive in class L. These results supported the above conjecture. Saccharopolyspora is one of the dominant actinomycetes in high-temperature Daqu, which is related to the fact that the high-temperature section and peak value of the matrix are slightly higher than those of medium and high-temperature Daqu (Figure 2). The antibacterial components secreted by Saccharopolyspora may inhibit Bacillus [52], so it was negatively correlated in class H (Figure 3).
In general, the bio-synthetizing of pyrazines is very complex, which the rate or content lies on the accumulating of intermediates such as 2,3-butanediol, acetoin, or L-threonine [53]. Therefore, it is an effective strategy to increase the content of pyrazines during the process whether a solid-state or liquid-state fermentation pattern develops a precursor supply strategy [54] or the engineered strains [55]. However, these strategies are difficult to apply for solid-state fermentation systems such as Daqu due to the possibility of process operation as well as biosafety. It showed that it was an effective way for biofortification based on inoculating the strains that produce high amounts of pyrazines [23,24,28]. It is worth noting that the results from Daqu were impacted by various factors, including strains specificity, interspecific interactions among the communities, interaction among nutrition networks, and micro-environmental condition. The activity of protease was enhanced by inoculating B. licheniformis and the content of L-threonine in the matrices. However, the propagation of Bacillus and synthesis of 3-hydroxy-2-butanone is more suitable under a weakly acidic environment [56], while the pyrazines synthesizing was suitable to proceed under a neutral environment.
In fact, the content of pyrazines in Daqu mainly depended on the strain specificity. As mentioned above, the content of pyrazines in FD was significantly enhanced when B. licheniformis or B. subtilis was isolated from high-temperature Daqu, while it was unobserved when the typical strain was inoculated [23,24]. Similar results were also obtained in our experiment. We screened two strains from the same source, B. licheniformis J-41 and B. licheniformis J-49 (Figure S1), respectively. The contents of key precursors, acetoin and 2,3-butanediol, were almost the same in the pure culture system composed of the sterilized wheat flour for both (Table S1). However, the significant discrepancy in the pyrazines content of Daqu that was manufactured in situ under identical process parameters was observed when the ranges of the initial concentration were from 2 × 105 CFU/g to 8 × 106 CFU/g (Figure 1 and Figure S2). The content of pyrazines in Daqu fortified with isolate J-49 was increased by 7.41, 2.35, 2.94, and 3.34 times than that with isolate J-41, respectively. In addition, pyrazines averagely increased 9.95 times by inoculation with B. licheniformis J-49 and 3.17 times by inoculation with B. licheniformis J-41 (Figure 1 and Figure S2). It was speculated that the strains specificity was related to the unsaturated fatty acids (palmitoleic acid 0.25% and oleic acid 0.19%) identified only in the cell membrane of isolate J-49 (Table S2), and it improved their fluidity of response to the stress [57]. The abundance of Bacillus had not increased in Daqu by B. licheniformis J-41 (A-1–A-5), which was similar to sample B (Figure 2). Meanwhile, the abundance of acid-producing bacteria was significantly induced with the initial inoculation concentration, and the amplitude reduction by isolate J-49 was higher than that by isolate J-41 (Figure S3). These results suggested that the synthesis rate of pyrazines was also closely related to the acidification rate in the matrices, especially in the pre-stage [58], and the latter lay on the interspecific interactions of isolated from other species and genera. When the initial concentration was up to 2 × 107 CFU/g, the content of pyrazines was decreased in Daqu with isolate J-49 (Figure 1). The high inoculation concentration significantly increased hydrolase activity, improved the degradation of starch and protein, and enhanced the propagation rate of the community and synthesis rate of target products in the pre-stage. Meanwhile, the by-products that formed largely weakened the inhibition of Bacillus to acid-producing bacteria, resulting in decreased pyrazines content and fermenting ability. It might increase the negative correlation of species and genera among communities or core modules (Figure 3) due to the excessive disturbing by isolate J-49 [59]. In contrast, it may be the inhibition of acid-producing bacteria for the latter which needs to explore further.
The dominant fungi in sample B were Pichia and Rhizomucor (Figure 2b). Inoculating B. licheniformis to enhance the fermentation of the Daqu matrix may increase the temperature quickly in the initial stage, which resulted in increasing the abundance of Thermomyces and Thermoascus in FDs (Figure 2b). The growth and reproduction rate of the main communities increased along with the accumulation of bio-heat and significantly changed the composition of fungal communities [15]. Thermoascus and Thermomyces secreted high-temperature hydrolase, such as xylanase and cutinase, which increased the rate of substrate hydrolysis and transformation. Meanwhile, its metabolites fed back the metabolism of B. licheniformis to increase the synthetic content of characteristic flavor components. The thermostable hydrolase secreted by Thermoascus not only improves the hydrolysis rate of the substrate in a high-temperature environment [60] but also benefits the rate of non-enzymatic reactions such as Maillard to synthesize pyrazines. In FD, the abundance of hemicellulose hydrolase secreted by Thermomyces [61], especially EC:3.2.1.1, was significantly increased (Figure 4), and the degradation of starch, chitin, and xylan was also notably increased, which provided the necessary intermediates for the synthesis of pyrazines (Figure 1 and Figure 2).
S. cerevisiae can inhibit the growth of B. licheniformis but not vice versa [62]. Increasing the initial concentration of B. licheniformis in Qupei is beneficial to increase the content of volatiles such as aromatic compounds, volatile acids, pyrazine, etc. (Figure 1) [21]. Fermenting ability is characterized by the increment of CO2 during the initial phase, which is closely related to the community composition in Daqu. Except for sample D-6, one of the contributions of B. licheniformis was to improve the fermenting ability. Although the former had the highest liquefying ability and saccharifying ability, its fermenting ability was significantly lower than that of other Daqu (Table 1). It may be related to the high ratio of liquefying ability to saccharifying ability, and the strong gelatinization ability and cellulose degradation ability of the starch is due to the high liquefying ability. The strong hydrolysate ability to be converted into small molecular fermentable sugar leads to the high saccharifying ability. The former was high and the latter was low, which caused an excessive accumulation of dextrin and small molecular cellulose hydrolysates, increased the viscosity of the matrix, affected mass transfer and dissolved oxygen concentration, and slowed down the reproduction of aerobic consortia. It was suitable for the growth and metabolism of facultative anaerobic consortia, such as lactic acid bacteria, and the accumulation of acidic components such as organic acids. This inhibited the fermentation rate of monosaccharide conversion to ethanol by yeast and reduced the fermenting ability. The result of the acidity in sample D-6 supported this speculation (Table 1, Figure 4).
In this study, the strains that originated from Daqu powder mutated in space not only significantly increased the content of its characteristic flavor, such as pyrazine and 2,3-butanediol, but also shifted the microbial community structure in FD and improved their fermentation parameters. Among them, the initial concentration and strains specificity are the important factors on the Daqu community and quality.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/foods12020304/s1, Table S1: Concentration of 2,3-butanediol (mg/kg) in strains of B. licheniformis J-41 and B. licheniformis J-49; Table S2: Fatty acid content in cell membrane of B. licheniformis J-41 and B. licheniformis J-49; Figure S1: Microscopic graphs of colonies and gram staining of B. licheniformis J-41 and B. licheniformis J-49; Figure S2: Metabolites of fortified Daqu using B. licheniformis J-41 (A-1–A-6). Daqu (a) bacterial and (b) fungal community composition. Volatile metabolites (c) content and (d) abundance of Daqu; Figure S3: Profiles of Bacillus and acid-producing bacteria in Daqu.

Author Contributions

Conceptualization, Q.T., X.C., J.H., C.W. (Chongde Wu),. Y.J. and R.Z.; methodology, Q.T., X.C., J.H. and R.Z.; software, Q.T.; validation, Q.T.; investigation, Q.T.; resources, J.H., S.Z., H.Q., Y.D., C.W. (Chao Wang) and X.W.; data curation, Q.T., X.C. and R.Z.; writing—original draft preparation, Q.T.; writing—review and editing, Q.T.; visualization, Q.T.; supervision, J.H., C.W. (Chongde Wu), Y.J. and R.Z.; project administration, R.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the cooperation of Sichuan University–Luzhou Laojiao Company Limited, grant number 21H0997.

Data Availability Statement

Data are contained within the article or supplementary material.

Acknowledgments

This work was supported by the cooperation of Sichuan University–Luzhou Laojiao Company Limited.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wei, Y.; Zou, W.; Shen, C.; Yang, J. Basic flavor types and component characteristics of Chinese traditional liquors: A review. J. Food Sci. 2020, 85, 4096–4107. [Google Scholar] [CrossRef] [PubMed]
  2. Tu, W.; Cao, X.; Cheng, J.; Li, L.; Zhang, T.; Wu, Q.; Xiang, P.; Shen, C.; Li, Q. Chinese Baijiu: The Perfect Works of Microorganisms. Front. Microbiol. 2022, 13, 919044. [Google Scholar] [CrossRef] [PubMed]
  3. Hu, Y.; Lei, X.; Zhang, X.; Guan, T.; Wang, L.; Zhang, Z.; Yu, X.; Tu, J.; Peng, N.; Liang, Y.; et al. Characteristics of the Microbial Community in the Production of Chinese Rice-Flavor Baijiu and Comparisons with the Microflora of Other Flavors of Baijiu. Front. Microbiol. 2021, 12, 673670. [Google Scholar] [CrossRef] [PubMed]
  4. Wu, X.; Zheng, X.; Han, B.; Vervoort, J.; Nout, M.J.R. Characterization of Chinese Liquor Starter, “Daqu”, by Flavor Type with H-1 NMR-Based Nontargeted Analysis. J. Agric. Food Chem. 2009, 57, 11354–11359. [Google Scholar] [CrossRef] [PubMed]
  5. Fu, G.M.; Deng, M.F.; Chen, Y.; Chen, Y.R.; Wu, S.W.; Lin, P.; Huang, B.J.; Liu, C.M.; Wan, Y. Analysis of microbial community, physiochemical indices, and volatile compounds of Chinese te-flavor baijiu daqu produced in different seasons. J. Sci. Food Agric. 2021, 101, 6525–6532. [Google Scholar] [CrossRef] [PubMed]
  6. Guan, T.; Yang, H.; Ou, M.; Zhang, J. Storage period affecting dynamic succession of microbiota and quality changes of strong-flavor Baijiu Daqu. LWT-Food Sci. Technol. 2021, 139, 110544. [Google Scholar] [CrossRef]
  7. Deng, L.; Mao, X.; Liu, D.; Ning, X.Q.; Shen, Y.; Chen, B.; Nie, H.F.; Huang, D.; Luo, H.B. Comparative Analysis of Physicochemical Properties and Microbial Composition in High-Temperature Daqu with Different Colors. Front. Microbiol. 2020, 11, 588117. [Google Scholar] [CrossRef]
  8. Ling, Y.; Li, W.; Tong, T.; Li, Z.; Li, Q.; Bai, Z.; Wang, G.; Chen, J.; Wang, Y. Assessing the Microbial Communities in Four Different Daqus by Using PCR-DGGE, PLFA, and Biolog Analyses. Pol. J. Microbiol. 2020, 69, 27–37. [Google Scholar] [CrossRef] [Green Version]
  9. Wang, X.; Ban, S.; Hu, B.; Qiu, S.; Zhou, H. Bacterial diversity of Moutai-flavour Daqu based on high-throughput sequencing method. J. Inst. Brew. 2017, 123, 138–143. [Google Scholar] [CrossRef] [Green Version]
  10. Mao, J.; Liu, X.; Gao, T.; Gu, S.; Wu, Y.; Zhao, L.; Ma, J.; Li, X.; Zhang, J. Unraveling the correlations between bacterial diversity, physicochemical properties and bacterial community succession during the fermentation of traditional Chinese strong-flavor Daqu. LWT-Food Sci. Technol. 2022, 154, 112764. [Google Scholar] [CrossRef]
  11. Zheng, X.W.; Yan, Z.; Han, B.Z.; Zwietering, M.H.; Samson, R.A.; Boekhout, T.; Nout, M.J.R. Complex microbiota of a Chinese “Fen” liquor fermentation starter (Fen-Daqu), revealed by culture-dependent and culture-independent methods. Food Microbiol. 2012, 31, 293–300. [Google Scholar] [CrossRef]
  12. Hu, Y.; Huang, X.; Yang, B.; Zhang, X.; Han, Y.; Chen, X.X.; Han, B.Z. Contrasting the microbial community and metabolic profile of three types of light-flavor Daqu. Food Biosci. 2021, 44, 101395. [Google Scholar] [CrossRef]
  13. Li, X.; Ma, E.B.; Yan, L.; Meng, H.; Du, X.; Quan, Z. Bacterial and Fungal Diversity in the Starter Production Process of Fen Liquor, a Traditional Chinese Liquor. J. Microbiol. 2013, 51, 430–438. [Google Scholar] [CrossRef]
  14. Guo, X.; Fan, E.; Ma, B.; Li, Z.; Zhang, Y.; Zhang, Z.; Chen, Y.; Xiao, D. Research progress in functional bacteria in Solid-state fermented Baijiu in China. Food Ferment. Ind. 2020, 46, 280–286. [Google Scholar] [CrossRef]
  15. Xiao, C.; Lu, Z.M.; Zhang, X.J.; Wang, S.T.; Ao, L.; Shen, C.H.; Shi, J.S.; Xu, Z.H. Bio-Heat Is a Key Environmental Driver Shaping the Microbial Community of Medium-Temperature Daqu. Appl. Environ. Microbiol. 2017, 83, e01550-17. [Google Scholar] [CrossRef] [Green Version]
  16. Fu, G.M.; Cai, W.Q.; Dong, B.A.; Wan, Y.; Pan, F.; Zheng, F.P.; Chen, Y.R.; Deng, M.F.; Huang, B.J. Effects of bio-augmented Daqu on microbial community, aroma compounds and physicochemical parameters of fermented grains during the brewing of Chinese special-flavor baijiu. J. Sci. Food Agric. 2022, 103, 273–282. [Google Scholar] [CrossRef]
  17. Li, W.; Fan, G.; Fu, Z.; Wang, W.; Xu, Y.; Teng, C.; Zhang, C.; Yang, R.; Sun, B.; Li, X. Effects of fortification of Daqu with various yeasts on microbial community structure and flavor metabolism. Food Res. Int. 2020, 129, 108837. [Google Scholar] [CrossRef]
  18. Liu, S.; Yang, L.; Zhou, Y.; He, S.; Li, J.; Sun, H.; Yao, S.; Xu, S. Effect of mixed moulds starters on volatile flavor compounds in rice wine. LWT-Food Sci. Technol. 2019, 112, 108215. [Google Scholar] [CrossRef]
  19. Pu, S.; Zhang, Y.; Lu, N.; Shi, C.; Yan, S. Yeasts from Chinese strong flavour Daqu samples: Isolation and evaluation of their potential for fortified Daqu production. Amb. Express 2021, 11, 176. [Google Scholar] [CrossRef]
  20. Song, J.; Tang, H.; Liang, H.; Luo, L.; Lin, W. Effect of bioaugmentation on biochemical characterisation and microbial communities in Daqu using Bacillus, Saccharomycopsis and Absidia. Int. J. Food Sci. Technol. 2019, 54, 2639–2651. [Google Scholar] [CrossRef]
  21. Yu, P.; Du, J.; Cao, C.; Cai, G.; Sun, J.; Wu, D.; Lu, J. Development of a novel multi-strain wheat Qu with high enzyme activities for Huangjiu fermentation. J. Sci. Food Agric. 2021, 101, 4808–4817. [Google Scholar] [CrossRef]
  22. He, G.; Dong, Y.; Huang, J.; Wang, X.; Zhang, S.; Wu, C.; Jin, Y.; Zhou, R. Alteration of microbial community for improving flavor character of Daqu by inoculation with Bacillus velezensis and Bacillus subtilis. LWT-Food Sci. Technol. 2019, 111, 1–8. [Google Scholar] [CrossRef]
  23. Zhang, R.; Wu, Q.; Xu, Y. Aroma characteristics of Moutai-flavour liquor produced with Bacillus licheniformis by solid-state fermentation. Lett. Appl. Microbiol. 2013, 57, 11–18. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, P.; Wu, Q.; Jiang, X.; Wang, Z.; Tang, J.; Xu, Y. Bacillus licheniformis affects the microbial community and metabolic profile in the spontaneous fermentation of Daqu starter for Chinese liquor making. Int. J. Food Microbiol. 2017, 250, 59–67. [Google Scholar] [CrossRef]
  25. Chen, X.; Huang, J.; Zhou, R.; Zhang, S.; Dong, Y.; Wang, C.; Wang, X.; Wu, C.; Jin, Y. Effects of fortifying patterns on the characteristics of strong flavor type Daqu. Food Ferment. Ind. 2021, 47, 50–55. [Google Scholar] [CrossRef]
  26. Kakudo, S.; Kikuchi, N.; Kitadokoro, K.; Fujiwara, T.; Nakamura, E.; Okamoto, H.; Shin, M.; Tamaki, M.; Teraoka, H.; Tsuzuki, H.; et al. Purification, characterization, cloning, and expression of a glutamic acid-specific protease from Bacillus licheniformis ATCC 14580. J. Biol. Chem. 1992, 267, 23782–23788. [Google Scholar] [CrossRef]
  27. Zhang, J.; Du, G.-C.; Zhang, Y.; Liao, X.-Y.; Wang, M.; Li, Y.; Chen, J. Glutathione Protects Lactobacillus sanfranciscensis against Freeze-Thawing, Freeze-Drying, and Cold Treatment. Appl. Environ. Microbiol. 2010, 76, 2989–2996. [Google Scholar] [CrossRef] [Green Version]
  28. He, G.; Huang, J.; Zhou, R.; Wu, C.; Jin, Y. Effect of Fortified Daqu on the Microbial Community and Flavor in Chinese Strong-Flavor Liquor Brewing Process. Front. Microbiol. 2019, 10, 56. [Google Scholar] [CrossRef] [Green Version]
  29. Ministry of Industry and Information of the People’s Republic of China. General Methods of Analysis for DAQU (QB/T 4257–2011); China Light Industry Press: Beijing, China, 2011. [Google Scholar]
  30. Ding, X.; Wu, C.; Huang, J.; Zhou, R. Characterization of interphase volatile compounds in Chinese Luzhou-flavor liquor fermentation cellar analyzed by head space-solid phase micro extraction coupled with gas chromatography mass spectrometry (HS-SPME/GC/MS). LWT-Food Sci. Technol. 2016, 66, 124–133. [Google Scholar] [CrossRef]
  31. Tang, Q.; He, G.; Huang, J.; Wu, C.; Jin, Y.; Zhou, R. Characterizing Relationship of Microbial Diversity and Metabolite in Sichuan Xiaoqu. Front. Microbiol. 2019, 10, 696. [Google Scholar] [CrossRef]
  32. Caporaso, J.G.; Kuczynski, J.; Stombaugh, J.; Bittinger, K.; Bushman, F.D.; Costello, E.K.; Fierer, N.; Pena, A.G.; Goodrich, J.K.; Gordon, J.I.; et al. QIIME allows analysis of high-throughput community sequencing data. Nat. Methods 2010, 7, 335–336. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Callahan, B.J.; McMurdie, P.J.; Rosen, M.J.; Han, A.W.; Johnson, A.J.A.; Holmes, S.P. DADA2: High-resolution sample inference from Illumina amplicon data. Nat. Methods 2016, 13, 581–583. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Carrion, V.J.; Perez-Jaramillo, J.; Cordovez, V.; Tracanna, V.; de Hollander, M.; Ruiz-Buck, D.; Mendes, L.W.; van Ijcken, W.F.J.; Gomez-Exposito, R.; Elsayed, S.S.; et al. Pathogen-induced activation of disease-suppressive functions in the endophytic root microbiome. Science 2019, 366, 606–612. [Google Scholar] [CrossRef] [PubMed]
  35. Katoh, K.; Misawa, K.; Kuma, K.; Miyata, T. MAFFT: A novel method for rapid multiple sequence alignment based on fast Fourier transform. Nucleic Acids Res. 2002, 30, 3059–3066. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Price, M.N.; Dehal, P.S.; Arkin, A.P. FastTree 2-Approximately Maximum-Likelihood Trees for Large Alignments. PLoS ONE 2010, 5, e9490. [Google Scholar] [CrossRef]
  37. Langille, M.G.I.; Zaneveld, J.; Caporaso, J.G.; McDonald, D.; Knights, D.; Reyes, J.A.; Clemente, J.C.; Burkepile, D.E.; Thurber, R.L.V.; Knight, R.; et al. Predictive functional profiling of microbial communities using 16S rRNA marker gene sequences. Nat. Biotechnol. 2013, 31, 814–821. [Google Scholar] [CrossRef]
  38. Huson, D.H.; Mitra, S.; Ruscheweyh, H.J.; Weber, N.; Schuster, S.C. Integrative Analysis of Environmental Sequences Using MEGAN4. Genome Res. 2011, 21, 1552–1560. [Google Scholar] [CrossRef] [Green Version]
  39. Ramette, A. Multivariate analyses in microbial ecology. FEMS Microbiol. Ecol. 2007, 62, 142–160. [Google Scholar] [CrossRef] [Green Version]
  40. Shannon, P.; Markiel, A.; Ozier, O.; Baliga, N.S.; Wang, J.T.; Ramage, D.; Amin, N.; Schwikowski, B.; Ideker, T. Cytoscape: A software environment for integrated models of biomolecular interaction networks. Genome Res. 2003, 13, 2498–2504. [Google Scholar] [CrossRef]
  41. Legrand, F.; Picot, A.; Cobo-Diaz, J.F.; Carof, M.; Chen, W.; Le Floch, G. Effect of tillage and static abiotic soil properties on microbial diversity. Appl. Soil Ecol. 2018, 132, 135–145. [Google Scholar] [CrossRef]
  42. Louca, S.; Parfrey, L.W.; Doebeli, M. Decoupling function and taxonomy in the global ocean microbiome. Science 2016, 353, 1272–1277. [Google Scholar] [CrossRef] [PubMed]
  43. Lee, S.J.; Noble, A.C. Characterization of odor-active compounds in Californian Chardonnay wines using GC-olfactometry and GC-mass spectrometry. J. Agric. Food Chem. 2003, 51, 8036–8044. [Google Scholar] [CrossRef] [PubMed]
  44. Guo, M.; Liu, Y.; Shi, D.Z. Cardiovascular Actions and Therapeutic Potential of Tetramethylpyrazine (Active Component Isolated from Rhizoma Chuanxiong): Roles and Mechanisms. BioMed Res. Int. 2016, 2016, 2430329. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Sha, S.; Chen, S.; Qian, M.; Wang, C.; Xu, Y. Characterization of the Typical Potent Odorants in Chinese Roasted Sesame-like Flavor Type Liquor by Headspace Solid Phase Microextraction-Aroma Extract Dilution Analysis, with Special Emphasis on Sulfur-Containing Odorants. J. Agric. Food Chem. 2017, 65, 123–131. [Google Scholar] [CrossRef] [PubMed]
  46. Yang, J.G.; Dou, X.; Ma, Y.Y. Diversity and dynamic succession of microorganisms during Daqu preparation for Luzhou-flavour liquor using second-generation sequencing technology. J. Inst. Brew. 2018, 124, 498–507. [Google Scholar] [CrossRef] [Green Version]
  47. Hu, Y.; Dun, Y.; Li, S.; Fu, B.; Xiong, X.; Peng, N.; Liang, Y.; Zhao, S. Changes in microbial community during fermentation of high-temperature Daqu used in the production of Chinese ‘Baiyunbian’ liquor. J. Inst. Brew. 2017, 123, 594–599. [Google Scholar] [CrossRef] [Green Version]
  48. Pflock, M.; Dietz, P.; Schar, J.; Beier, D. Genetic evidence for histidine kinase HP165 being an acid sensor of Helicobacter pylori. FEMS Microbiol. Lett. 2004, 234, 51–61. [Google Scholar] [CrossRef]
  49. Procopio, S.; Sprung, P.; Becker, T. Effect of amino acid supply on the transcription of flavour-related genes and aroma compound production during lager yeast fermentation. LWT-Food Sci. Technol. 2015, 63, 289–297. [Google Scholar] [CrossRef]
  50. Carlstroem, C.I.; Field, C.M.; Bortfeld-Miller, M.; Mueller, B.; Sunagawa, S.; Vorholt, J.A. Synthetic microbiota reveal priority effects and keystone strains in the Arabidopsis phyllosphere. Nat. Ecol. Evol. 2019, 3, 1445–1454. [Google Scholar] [CrossRef]
  51. Debray, R.; Herbert, R.A.; Jaffe, A.L.; Crits-Christoph, A.; Power, M.E.; Koskella, B. Priority effects in microbiome assembly. Nat. Rev. Microbiol. 2022, 20, 109–121. [Google Scholar] [CrossRef]
  52. Veyisoglu, A.; Saygin, H.; Tatar, D.; Bektas, K.I.; Sahin, N. Saccharopolyspora hattusasensis sp. nov.; isolated from soil. Anton Van Leeuwenhoek 2017, 110, 1719–1727. [Google Scholar] [CrossRef] [PubMed]
  53. Larroche, C.; Besson, I.; Gros, J.B. High pyrazine production by Bacillus subtilis in solid substrate fermentation on ground soybeans. Process Biochem. 1999, 34, 667–674. [Google Scholar] [CrossRef]
  54. Hao, F.; Wu, Q.; Xu, Y. Precursor Supply Strategy for Tetramethylpyrazine Production by Bacillus subtilis on Solid-State Fermentation of Wheat Bran. Appl. Biochem. Biotechnol. 2013, 169, 1346–1352. [Google Scholar] [CrossRef] [PubMed]
  55. Meng, W.; Wang, R.; Xiao, D. Metabolic engineering of Bacillus subtilis to enhance the production of tetramethylpyrazine. Biotechnol. Lett. 2015, 37, 2475–2480. [Google Scholar] [CrossRef] [PubMed]
  56. Zhu, B.F.; Xu, Y. Production of tetramethylpyrazine by batch culture of Bacillus subtilis with optimal pH control strategy. J. Ind. Microbiol. Biotechnol. 2010, 37, 815–821. [Google Scholar] [CrossRef] [PubMed]
  57. Wu, C.; Zhang, J.; Wang, M.; Du, G.; Chen, J. Lactobacillus casei combats acid stress by maintaining cell membrane functionality. J. Ind. Microbiol. Biotechnol. 2012, 39, 1031–1039. [Google Scholar] [CrossRef]
  58. Cecilia Soria, M.; Carina Audisio, M. Inhibition of Bacillus cereus Strains by Antimicrobial Metabolites from Lactobacillus johnsonii CRL1647 and Enterococcus faecium SM21. Probiotics Antimicrob. Proteins 2014, 6, 208–216. [Google Scholar] [CrossRef] [PubMed]
  59. Ratzke, C.; Barrere, J.; Gore, J. Strength of species interactions determines biodiversity and stability in microbial communities. Nat. Ecol. Evol. 2020, 4, 376–383. [Google Scholar] [CrossRef]
  60. McClendon, S.D.; Batth, T.; Petzold, C.J.; Adams, P.D.; Simmons, B.A.; Singer, S.W. Thermoascus aurantiacus is a promising source of enzymes for biomass deconstruction under thermophilic conditions. Biotechnol. Biofuels 2012, 5, 54. [Google Scholar] [CrossRef] [Green Version]
  61. Maheshwari, R.; Bharadwaj, G.; Bhat, M.K. Thermophilic fungi: Their physiology and enzymes. Microbiol. Mol. Biol. Rev. 2000, 64, 461–488. [Google Scholar] [CrossRef]
  62. Meng, X.; Wu, Q.; Wang, L.; Wang, D.; Chen, L.; Xu, Y. Improving flavor metabolism of Saccharomyces cerevisiae by mixed culture with Bacillus licheniformis for Chinese Maotai-flavor liquor making. J. Ind. Microbiol. Biotechnol. 2015, 42, 1601–1608. [Google Scholar] [CrossRef] [PubMed]
Foods 12 00304 g001 550

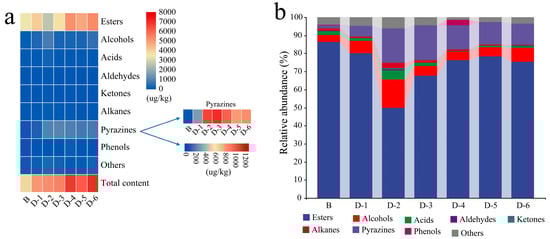

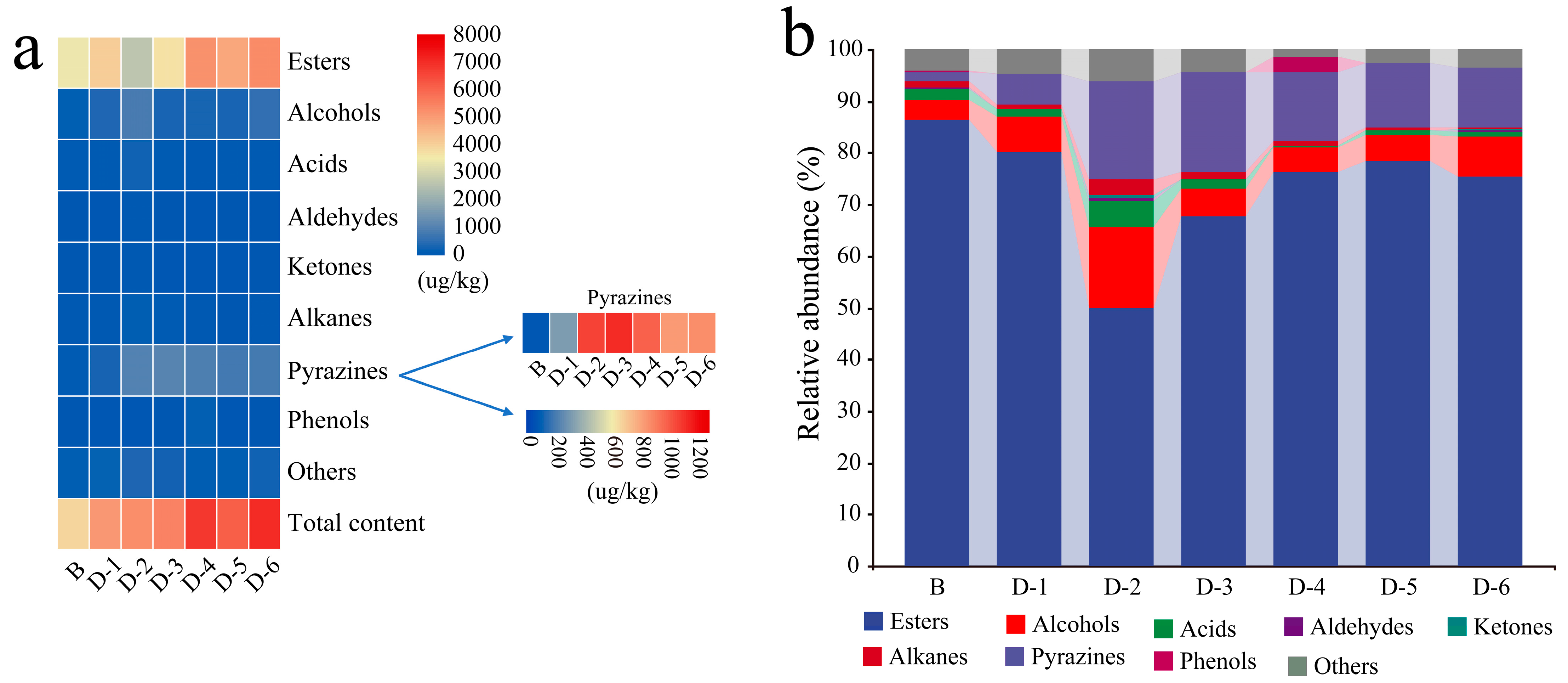

Figure 1. Volatile metabolites (a) content and (b) abundance of Daqu.
Figure 1. Volatile metabolites (a) content and (b) abundance of Daqu.
Foods 12 00304 g001
Foods 12 00304 g002 550

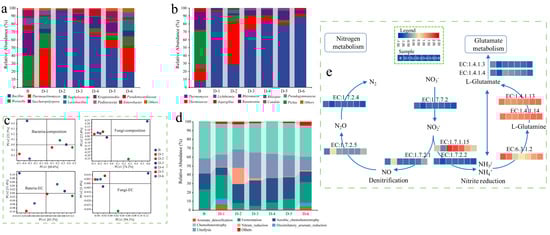

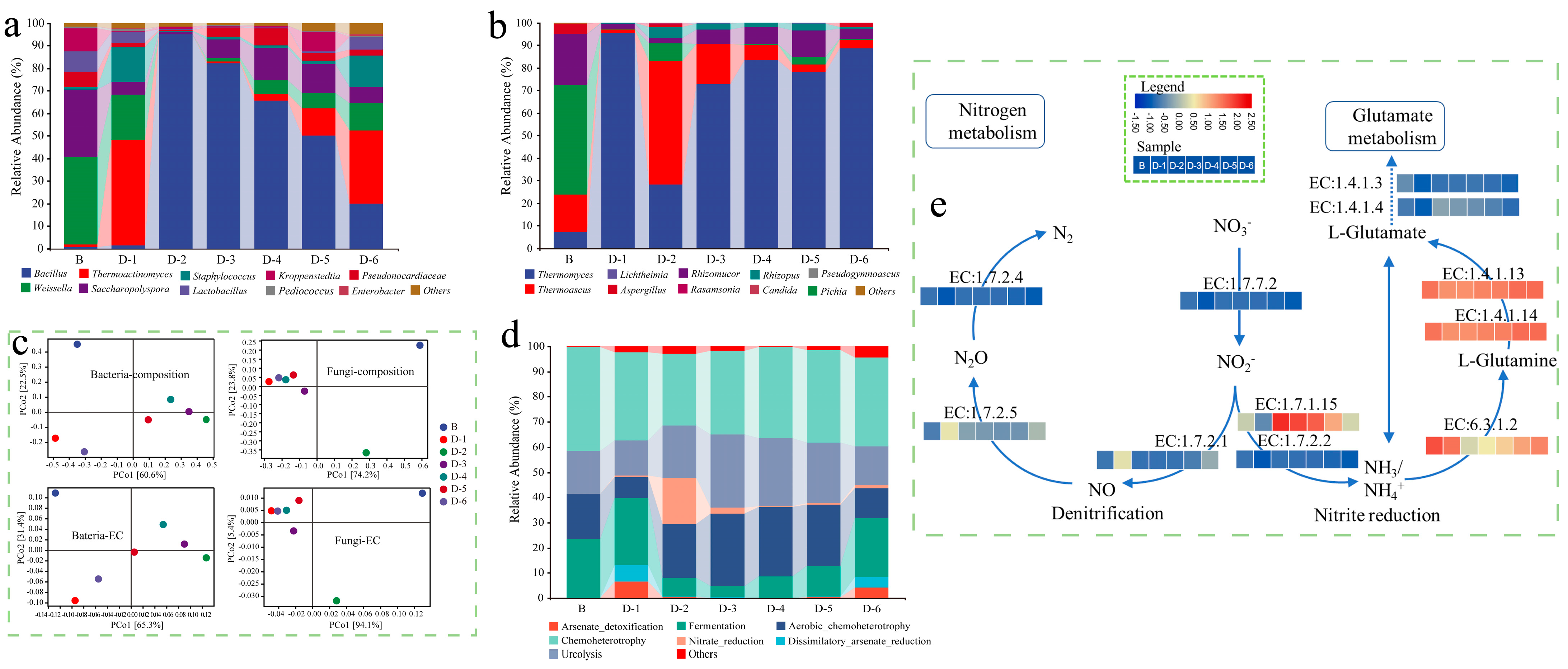

Figure 2. Daqu (a) bacterial and (b) fungal community composition, (c) principal coordinates analysis (PCoA) analysis of microbial and functional unit composition, (d) functional abundance of bacterial community based on FAPROTAX annotation, (e) nitrogen metabolism pathway in bacterial communities.
Figure 2. Daqu (a) bacterial and (b) fungal community composition, (c) principal coordinates analysis (PCoA) analysis of microbial and functional unit composition, (d) functional abundance of bacterial community based on FAPROTAX annotation, (e) nitrogen metabolism pathway in bacterial communities.
Foods 12 00304 g002
Foods 12 00304 g003 550

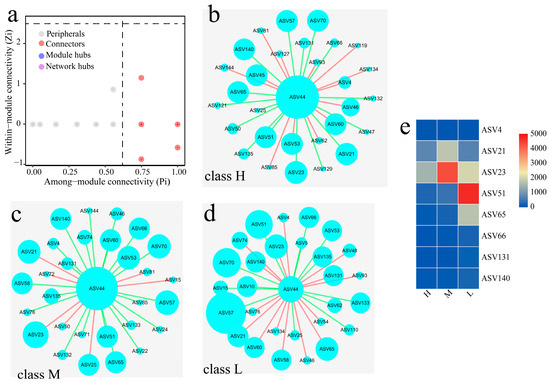

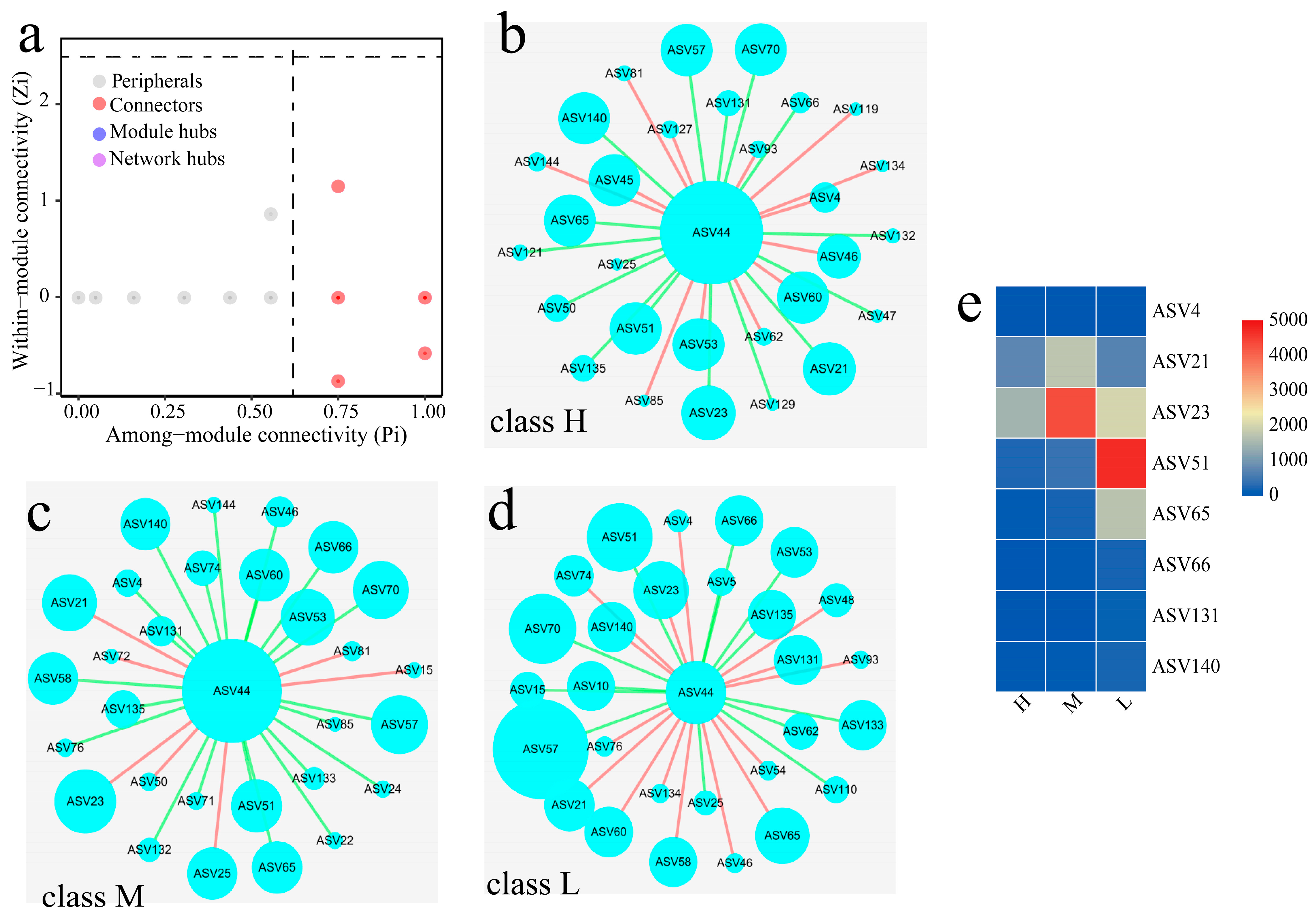

Figure 3. Analysis of Daqu bacterial network characteristics. (a) Zi-Pi of bacteria. (b–d) represented the co-occurrence network of class H, class M, and class L, respectively. (e) Heat map of microbe content. ASV4: Bifidobacterium, ASV21: Pseudonocardiaceae, ASV23: Saccharopolyspora, ASV44: Bacillus, ASV51: Staphylococcus, ASV65: Lactobacillus, ASV66: Pediococcus, ASV131: Enterobacter, ASV140: unclassified_Enterobacteriaceae.
Figure 3. Analysis of Daqu bacterial network characteristics. (a) Zi-Pi of bacteria. (b–d) represented the co-occurrence network of class H, class M, and class L, respectively. (e) Heat map of microbe content. ASV4: Bifidobacterium, ASV21: Pseudonocardiaceae, ASV23: Saccharopolyspora, ASV44: Bacillus, ASV51: Staphylococcus, ASV65: Lactobacillus, ASV66: Pediococcus, ASV131: Enterobacter, ASV140: unclassified_Enterobacteriaceae.
Foods 12 00304 g003
Foods 12 00304 g004 550

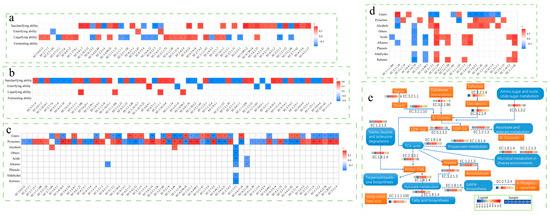

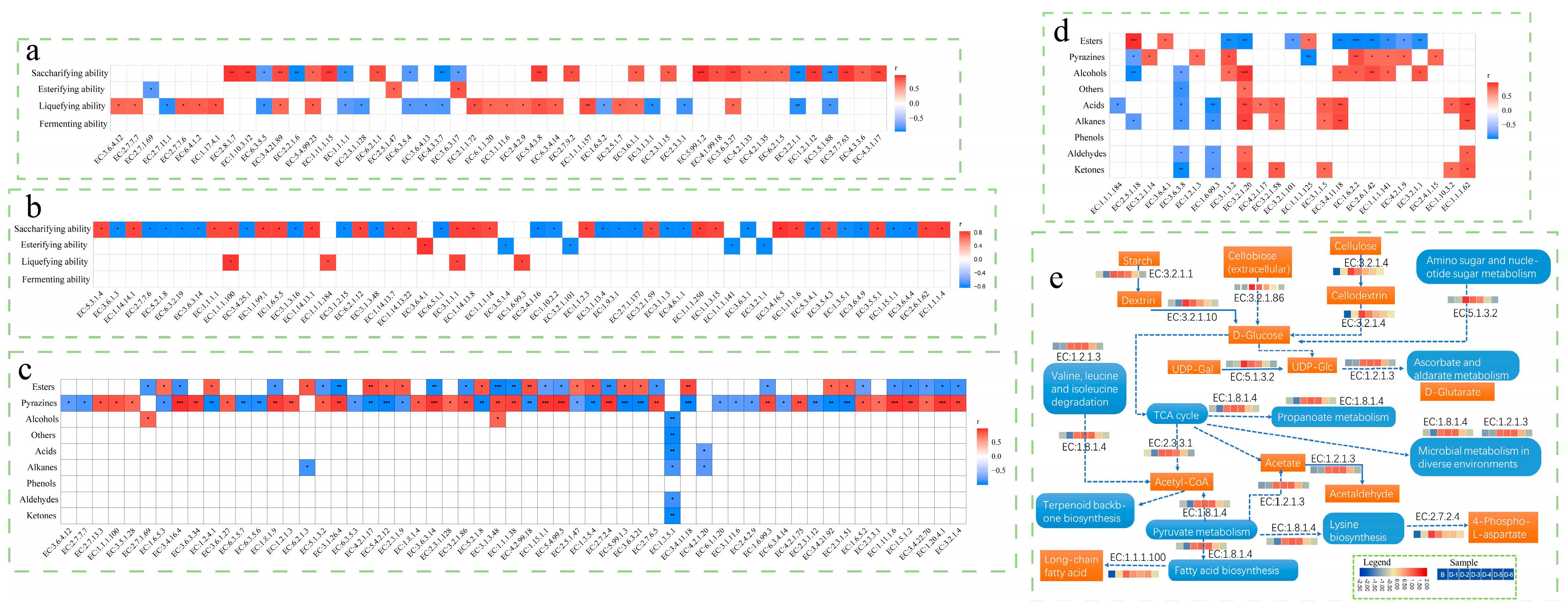

Figure 4. Correlation between fermentation parameters and enzymes: (a) Bacteria, (b) Fungi. Correlation between volatiles and enzymes: (c) Bacteria, (d) Fungi. (e) Main metabolic pathways in Daqu bacterial communities. Significance level labeling: p > 0.05 no marks; 0.01< p <0.05 labeled with an asterisk (*); 0.001< p <=0.01 labeled with two asterisks (**); p < 0.001 labeled with three asterisks (***).
Figure 4. Correlation between fermentation parameters and enzymes: (a) Bacteria, (b) Fungi. Correlation between volatiles and enzymes: (c) Bacteria, (d) Fungi. (e) Main metabolic pathways in Daqu bacterial communities. Significance level labeling: p > 0.05 no marks; 0.01< p <0.05 labeled with an asterisk (*); 0.001< p <=0.01 labeled with two asterisks (**); p < 0.001 labeled with three asterisks (***).
Foods 12 00304 g004
Table
Table 1. Difference of physicochemical properties among samples.
Table 1. Difference of physicochemical properties among samples.
SamplesInoculum
Concentrations (CFU/g)		Moisture (%)Acidity
(mmol/10 g)		Liquefying
Ability (g/g·h)		Saccharifying
Ability (mg/g·h)		Fermenting
Ability
(g/0.5 g·72 h)		Esterifying Ability
(mg/50 g·7 d)
B010.16 ± 0.00 a0.66 ± 0.01 c0.92 ± 0.03 bc505.27 ± 13.93 f0.17 ± 0.01 c5.35 ± 0.69 a
D-18 × 1049.47 ± 0.00 a0.75 ± 0.02 bc1.64 ± 0.27 a935.99 ± 9.03 b0.21 ± 0.00 b1.31 ± 0.07 d
D-22 × 1059.59 ± 0.00 a0.92 ± 0.02 b0.75 ± 0.04 c748.98 ± 15.70 c0.23 ± 0.00 b2.16 ± 0.48 cd
D-38 × 1059.71 ± 0.01 a0.70 ± 0.00 c0.91 ± 0.05 bc654.87 ± 6.06 e0.30 ± 0.01 a2.35 ± 0.05 c
D-42 × 1069.84 ± 0.01 a0.72 ± 0.01 c1.05 ± 0.11 bc706.94 ± 1.45 d0.20 ± 0.02 bc4.08 ± 0.92 b
D-58 × 1069.69 ± 0.00 a0.78 ± 0.02 bc1.21 ± 0.12 b736.30 ± 3.14 c0.21 ± 0.03 bc4.69 ± 0.10 ab
D-62 × 1079.84 ± 0.00 a1.10 ± 0.02 a1.83 ± 0.12 a985.71 ± 15.99 a0.10 ± 0.02 d4.17 ± 0.11 b
Note: B, the unfortified of B. licheniformis in Daqu. D-1–D-6: the inoculation of Daqu. Different letters in the same column of a–f represent significant differences (p < 0.05).
Table
Table 2. Difference of microbial community α-diversity indexes among Daqu samples.
Table 2. Difference of microbial community α-diversity indexes among Daqu samples.
No.Abundance IndexesDiversity Indexes
Chao1Observed SpeciesShannonSimpson
BacteriaFungiBacteriaFungiBacteriaFungiBacteriaFungi
B712.4072.14670.5071.804.522.990.860.84
D-1402.3647.44322.4046.504.140.450.850.10
D-2405.2593.30346.6092.603.162.330.770.65
D-3478.2755.99384.6055.903.961.510.850.46
D-4471.9849.30361.0049.003.991.140.880.32
D-5951.4555.16842.7054.805.911.410.950.39
D-6936.6646.05867.8045.905.760.920.920.23
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tang, Q.; Chen, X.; Huang, J.; Zhang, S.; Qin, H.; Dong, Y.; Wang, C.; Wang, X.; Wu, C.; Jin, Y.; et al. Mechanism of Enhancing Pyrazines in Daqu via Inoculating Bacillus licheniformis with Strains Specificity. Foods 2023, 12, 304. https://doi.org/10.3390/foods12020304

AMA Style

Tang Q, Chen X, Huang J, Zhang S, Qin H, Dong Y, Wang C, Wang X, Wu C, Jin Y, et al. Mechanism of Enhancing Pyrazines in Daqu via Inoculating Bacillus licheniformis with Strains Specificity. Foods. 2023; 12(2):304. https://doi.org/10.3390/foods12020304

Chicago/Turabian Style

Tang, Qiuxiang, Xiaoru Chen, Jun Huang, Suyi Zhang, Hui Qin, Yi Dong, Chao Wang, Xiaojun Wang, Chongde Wu, Yao Jin, and et al. 2023. "Mechanism of Enhancing Pyrazines in Daqu via Inoculating Bacillus licheniformis with Strains Specificity" Foods 12, no. 2: 304. https://doi.org/10.3390/foods12020304

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
