# Constant Transmission Efficiency Dimming Control Scheme for VLC Systems

^{*}

## Abstract

**:**

## 1. Introduction

## 2. System Model

- a.
- The channel state information (CSI) is available both at the receiver and the transmitter.
- b.
- c.
- A static link should be supposed in the proposed scheme because the channel is slow time-varying.

## 3. The Proposed Dimming Control Scheme

#### 3.1. Motivation of the ECWCS Scheme

#### 3.2. Construction of the Codeword Set

- (1)
- When the dimming factor $\gamma =\frac{i}{n}$, the code weight of every codeword in the codeword set $\mathcal{S}$ is i. Therefore, we can not only guarantee the dimming factor $\gamma =\frac{i}{n}$ but also ensure the Hamming distance of the codewords in the codeword set $\mathcal{S}$ is 2 to improve the error performance.
- (2)
- When the dimming factor $\gamma \ne \frac{i}{n}$ and $\frac{1}{n}<\gamma <\frac{n-1}{n}$, the construction of the codeword set is more complicated. First we find the range $\frac{i}{n}<\gamma <\frac{i+1}{n}$. Then we encode the original binary codes like the last case which makes all the code weight of every codeword in set $\mathcal{S}$ is i. At last, we calculate $m=n\times {2}^{k}\times \gamma $, $q=(m-{2}^{k}i)/2$, select q codewords in $\mathcal{S}$ and replace two bit ‘0’ with two bit ‘1’ of the q codewords respectively.

**Example**

**1.**

**Example**

**2.**

Algorithm 1: Construction of the Codeword Set. |

Input: The dimming factor $\gamma $, the length of original binary sequence k and the original binary signal $\mathbf{s}$Fix proper the length of the coded binary sequence n by the constraint: $n\u2a7e{2}^{k}$. If $\gamma =\frac{i}{n}$, where i is a positive integer and $0<i<n$Construct the codeword set $\mathcal{S}$ in which the code weight of every codeword is i. Else If $\gamma \ne \frac{i}{n}$ and $\frac{1}{n}<\gamma <\frac{n-1}{n}$Find the range $\frac{i}{n}<\gamma <\frac{i+1}{n}$ Construct the codeword set $\mathcal{S}$ in which the code weight of every codeword is i. Calculate $m=n\times {2}^{k}\times \gamma $ and $q=(m-{2}^{k}i)/2$ Select q codewords in $\mathcal{S}$ and replace two bit ‘0’ with two bit ‘1’ of the q codewords respectively. EndEndOutput: The codeword set $\mathcal{S}$ |

#### 3.3. Encoding/Decoding Procedure the ECWCS Scheme

- (1)
- When the dimming factor $\gamma =\frac{i}{n}$, the code weight of every codeword in the codeword set $\mathcal{S}$ is i. Thus we can utilize the proposed decoding algorithm directly.
- (2)
- When the dimming factor $\gamma \ne \frac{i}{n}$ and $\frac{1}{n}<\gamma <\frac{n-1}{n}$, the code weight of every codeword in set $\mathcal{S}$ is not a constant. First we find the range $\frac{i}{n}<\gamma <\frac{i+1}{n}$ and calculate $m=n\times {2}^{k}\times \gamma $, $q=(m-{2}^{k}i)/2$. Then we find the q codewords the code weight of which is not i in $\mathcal{S}$. At last, replace two bit ‘1’ with two bit ‘0’ of the q codewords respectively. That is the inverse process of the codeword set construction and requires the decoder to know the details of the construction process. In this way, we can utilize the proposed decoding algorithm.

Algorithm 2: Decoding Procedure. |

Input: The dimming factor $\gamma $, the length of original binary sequence k,the length of received binary sequence n, and the received sequence $\mathbf{r}$ If $\gamma \ne \frac{i}{n}$ and $\frac{1}{n}<\gamma <\frac{n-1}{n}$Find the range $\frac{i}{n}<\gamma <\frac{i+1}{n}$ Calculate $m=n\times {2}^{k}\times \gamma $ and calculate $q=(m-{2}^{k}i)/2$ Replace two bit ‘1’ with two bit ‘0’ of the q codewords respectively. Else If $\gamma =\frac{i}{n}$, where i is a positive integer and $0<i<n$EndEndFind the position of bit ‘1’ in $\mathbf{c}$, sum the elements at the same position in $\mathbf{r}$, and obtain the estimated sequence $\widehat{\mathbf{r}}$ of $\mathbf{r}$. Recover the original binary data by looking up from the table like Table 1 and Table 2. Output: The estimated signal $\widehat{\mathbf{s}}$ of the original binary signal $\mathbf{s}$. |

## 4. Simulation Results

#### 4.1. Dimming Range

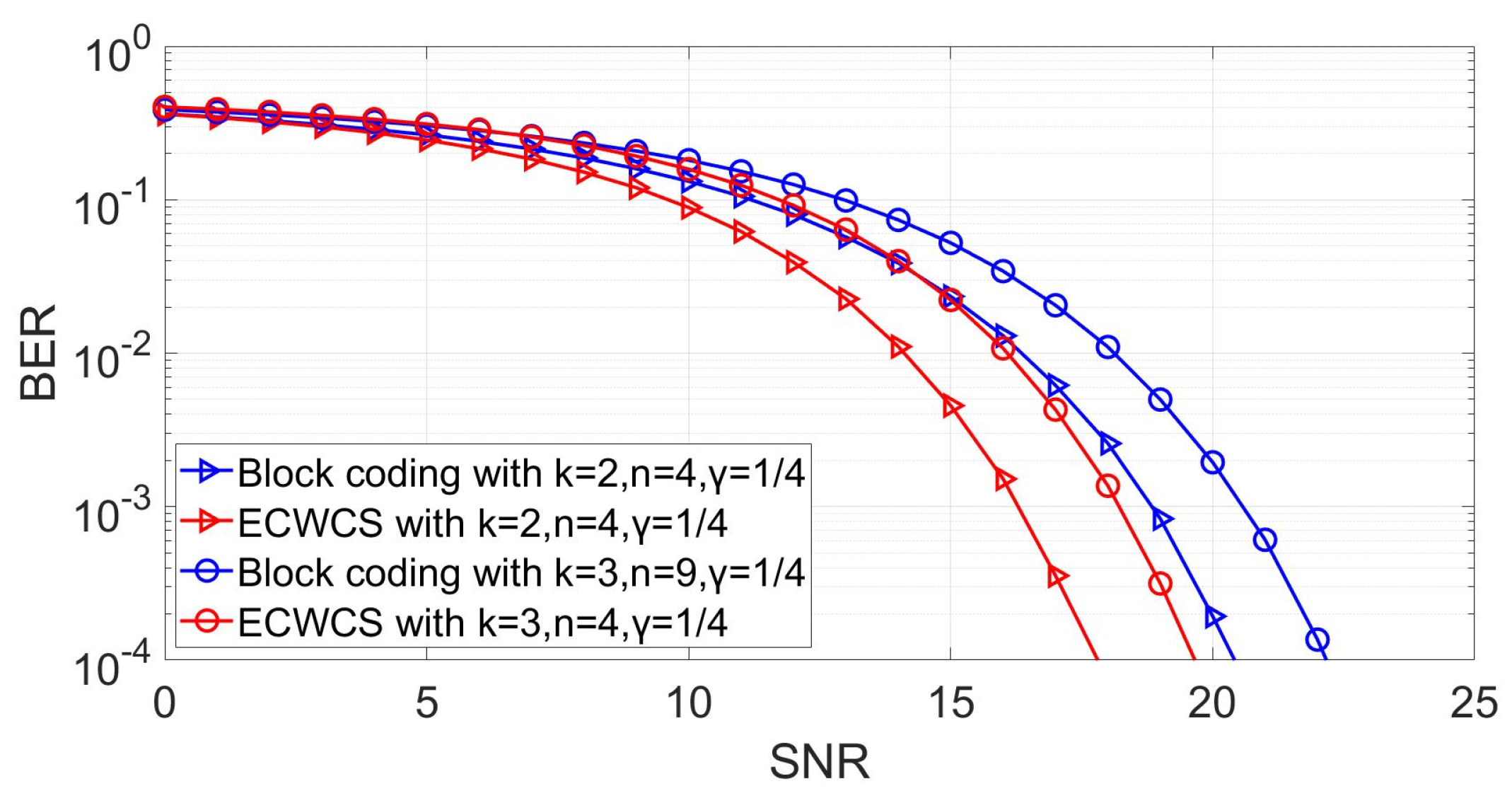

#### 4.2. Error Performance

#### 4.3. Spectral Efficiency

#### 4.4. Analysis

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Komine, T.; Nakagawa, M. Fundamental analysis for visible-light communication system using LED lights. IEEE Trans. Consum. Electron.
**2004**, 50, 100–107. [Google Scholar] [CrossRef] - Andrews, J.G.; Buzzi, S.; Choi, W.; Hanly, S.V.; Lozano, A.; Soong, A.C.K.; Zhang, J.C. What Will 5G Be? IEEE J. Sel. Areas Commun.
**2014**, 32, 1065–1082. [Google Scholar] [CrossRef] - O’Brien, D.; Minh, H.L.; Zeng, L.; Faulkner, G.; Lee, K.; Jung, D.; Oh, Y.; Won, E.T. Indoor visible light communications: Challenges and prospects. In Free-Space Laser Communications VIII; Majumdar, A.K., Davis, C.C., Eds.; International Society for Optics and Photonics, SPIE: Bellingham, WA, USA, 2008; Volume 7091, pp. 60–68. [Google Scholar] [CrossRef]
- Elgala, H.; Mesleh, R.; Haas, H. Indoor optical wireless communication: Potential and state-of-the-art. IEEE Commun. Mag.
**2011**, 49, 56–62. [Google Scholar] [CrossRef] - Wang, Z.Y.; Yu, H.Y.; Wang, D.M. Energy Efficient Transceiver Design for NOMA VLC Downlinks with Finite-Alphabet Inputs. Appl. Sci.
**2018**, 8, 1823. [Google Scholar] [CrossRef][Green Version] - Karunatilaka, D.; Zafar, F.; Kalavally, V.; Parthiban, R. LED Based Indoor Visible Light Communications: State of the Art. IEEE Commun. Surv. Tutor.
**2015**, 17, 1649–1678. [Google Scholar] [CrossRef] - Roberts, R.D.; Rajagopal, S.; Lim, S. IEEE 802.15.7 physical layer summary. In Proceedings of the 2011 IEEE GLOBECOM Workshops (GC Wkshps), Houston, TX, USA, 5–9 December 2011; pp. 772–776. [Google Scholar]
- Lee, K.; Park, H. Modulations for Visible Light Communications With Dimming Control. IEEE Photonics Technol. Lett.
**2011**, 23, 1136–1138. [Google Scholar] [CrossRef] - Kim, J.; Park, H. A Coding Scheme for Visible Light Communication with Wide Dimming Range. IEEE Photonics Technol. Lett.
**2014**, 26, 465–468. [Google Scholar] [CrossRef] - Kim, S.; Jung, S. Modified Reed–Muller Coding Scheme Made From the Bent Function for Dimmable Visible Light Communications. IEEE Photonics Technol. Lett.
**2013**, 25, 11–13. [Google Scholar] [CrossRef] - Zuo, Y.; Zhang, J.; Zhang, Y.; Chen, R. Weight Threshold Check Coding for Dimmable Indoor Visible Light Communication Systems. IEEE Photonics J.
**2018**, 10, 1–11. [Google Scholar] [CrossRef] - Guo, J.N.; Zhang, J.; Zhang, Y.Y.; Li, L.; Zuo, Y.; Chen, R.H. Multilevel transmission scheme based on parity check codes for VLC with dimming control. Opt. Commun.
**2020**, 467, 125733. [Google Scholar] [CrossRef] - Zuo, Y.; Zhang, J.; Zhang, Y.Y. A spectral-efficient dimming control scheme with multi-level incremental constant weight codes in visible light communication systems. Opt. Commun.
**2018**, 426, 531–534. [Google Scholar] [CrossRef] - Zuo, Y.; Zhang, J. A Novel Coding Based Dimming Scheme with Constant Transmission Efficiency in VLC Systems. Appl. Sci.
**2019**, 9, 803. [Google Scholar] [CrossRef][Green Version] - Vučić, J.; Kottke, C.; Habel, K.; Langer, K. 803 Mbit/s visible light WDM link based on DMT modulation of a single RGB LED luminary. In Proceedings of the 2011 Optical Fiber Communication Conference and Exposition and the National Fiber Optic Engineers Conference, Los Angeles, CA, USA, 6–10 March 2011; pp. 1–3. [Google Scholar]
- Khalid, A.M.; Cossu, G.; Corsini, R.; Choudhury, P.; Ciaramella, E. 1-Gb/s Transmission Over a Phosphorescent White LED by Using Rate-Adaptive Discrete Multitone Modulation. IEEE Photonics J.
**2012**, 4, 1465–1473. [Google Scholar] [CrossRef][Green Version] - Lee, K.; Park, H.; Barry, J.R. Indoor Channel Characteristics for Visible Light Communications. IEEE Commun. Lett.
**2011**, 15, 217–219. [Google Scholar] [CrossRef] - Wang, J.; Wang, J.; Chen, M.; Song, X. Dimming scheme analysis for pulse amplitude modulated visible light communications. In Proceedings of the 2013 International Conference on Wireless Communications and Signal Processing, Ilmenau, Germany, 27–30 August 2013; pp. 1–6. [Google Scholar] [CrossRef]
- Zuo, Y.; Zhang, J.; Zhang, Y. The fast detection algorithm suitable for fast dimmable indoor visible light communication system. In Proceedings of the 2017 9th International Conference on Advanced Infocomm Technology (ICAIT), Chengdu, China, 22–24 November 2017; pp. 210–213. [Google Scholar] [CrossRef]
- Proakis, J.; Salehi, M. Digital Communications; McGraw-Hill: New York, NY, USA, 2008. [Google Scholar]
- Kim, S.; Jung, S. Novel FEC Coding Scheme for Dimmable Visible Light Communication Based on the Modified Reed–Muller Codes. IEEE Photonics Technol. Lett.
**2011**, 23, 1514–1516. [Google Scholar] [CrossRef] - Zhang, Y.; Yu, H.; Zhang, J.; Zhu, Y. Signal-Cooperative Multilayer-Modulated VLC Systems for Automotive Applications. IEEE Photonics J.
**2016**, 8, 1–9. [Google Scholar] [CrossRef] - Guo, J.; Zhang, J.; Zhang, Y.; Xin, G. Efficient multi-LED dimming control scheme with space–time codes for VLC systems. Appl. Opt.
**2020**, 59, 8553–8559. [Google Scholar] [CrossRef] - Guo, J.N.; Zhang, J.; Zhang, Y.Y.; Xin, G.; Li, L. Constant Weight Space-Time Codes for Dimmable MIMO-VLC Systems. IEEE Photonics J.
**2020**, 12, 1–15. [Google Scholar] [CrossRef]

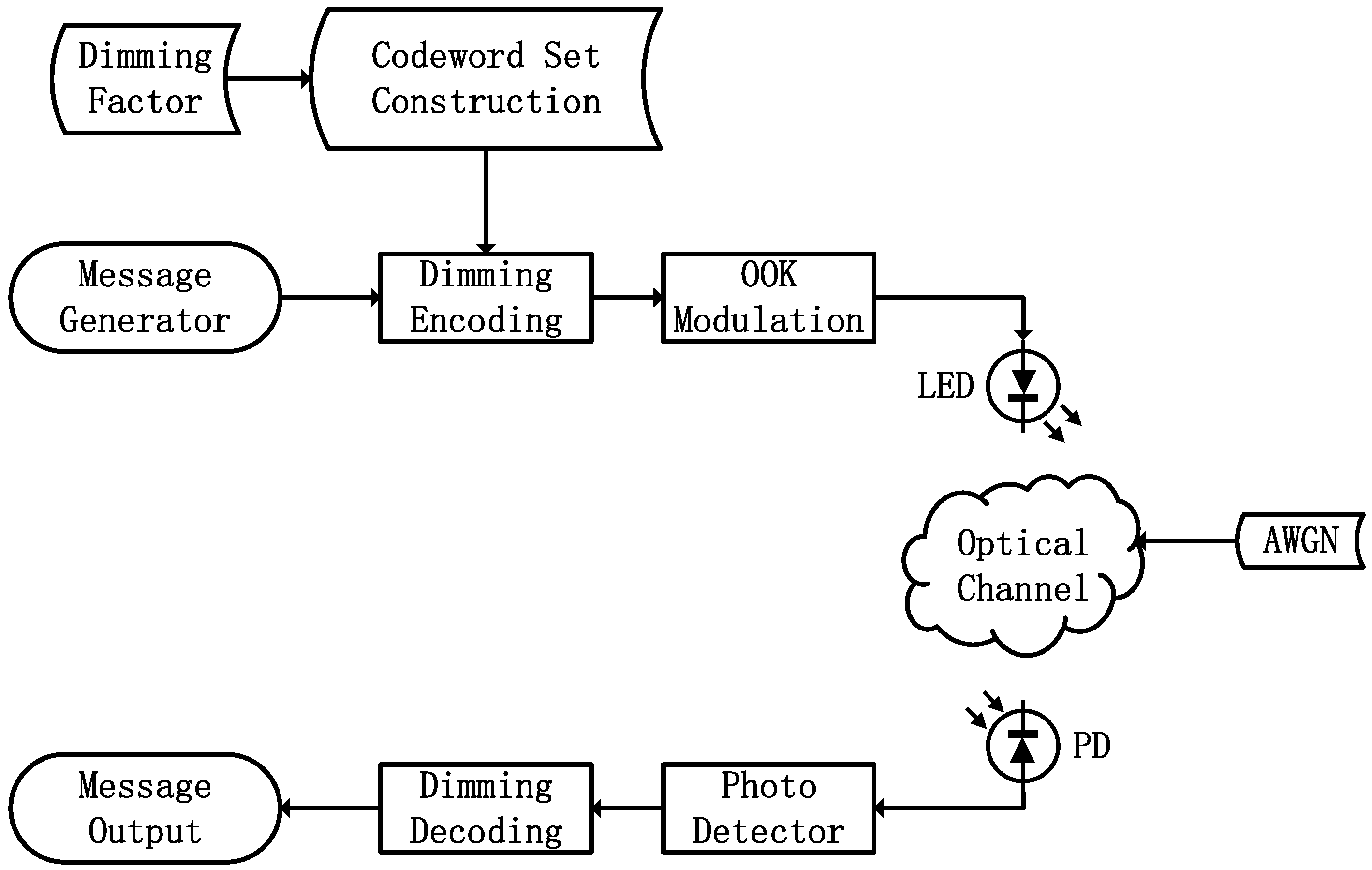

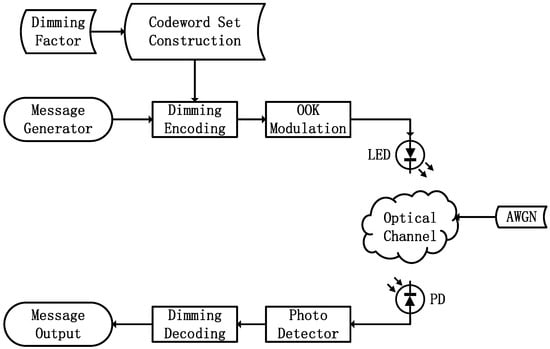

**Figure 1.**System model of the proposed dimming control scheme applied to on-off keying (OOK) modulation.

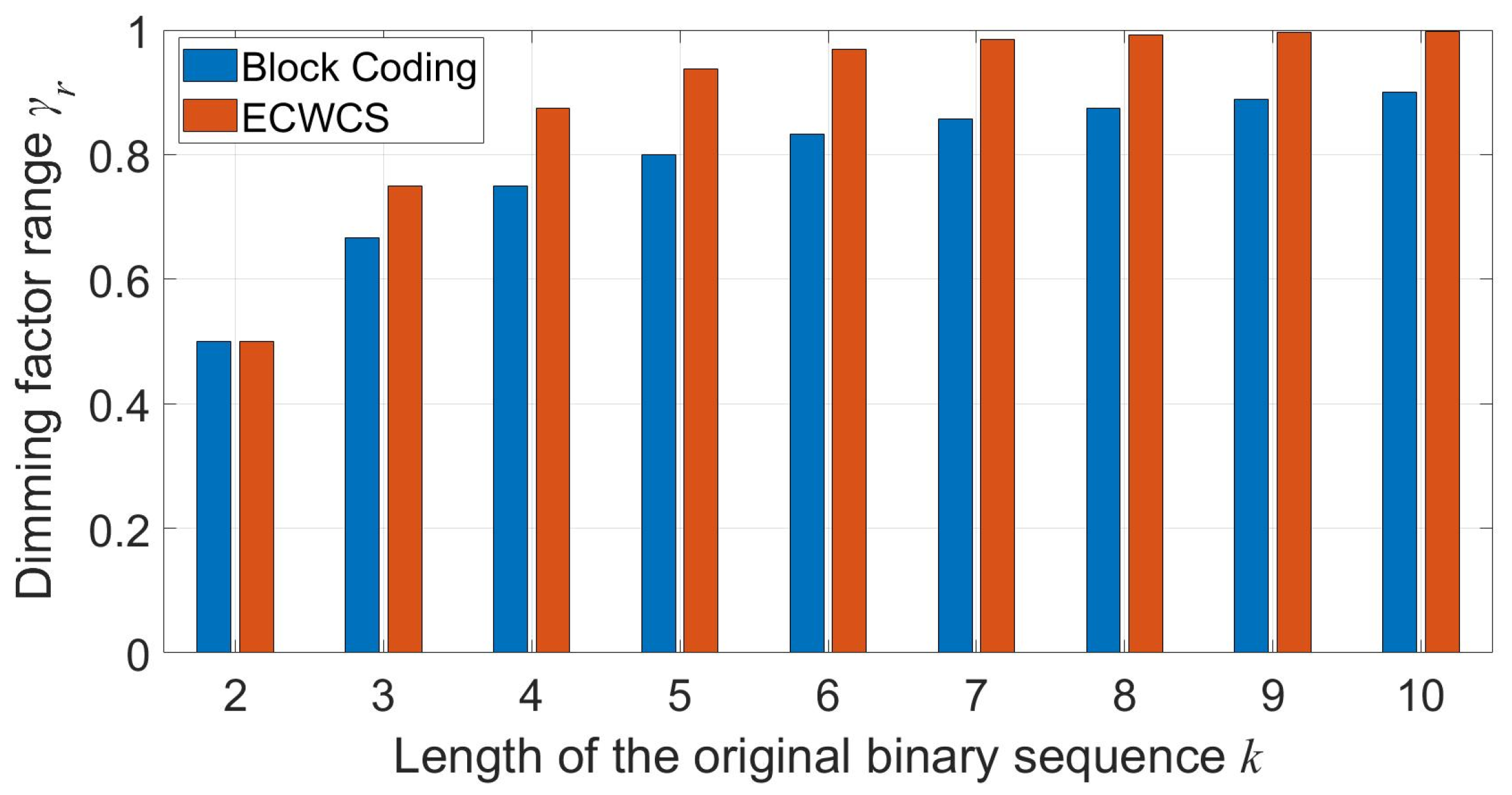

**Figure 2.**Dimming range of the block coding scheme and the extensional constant weight codeword sets (ECWCS) scheme under different k.

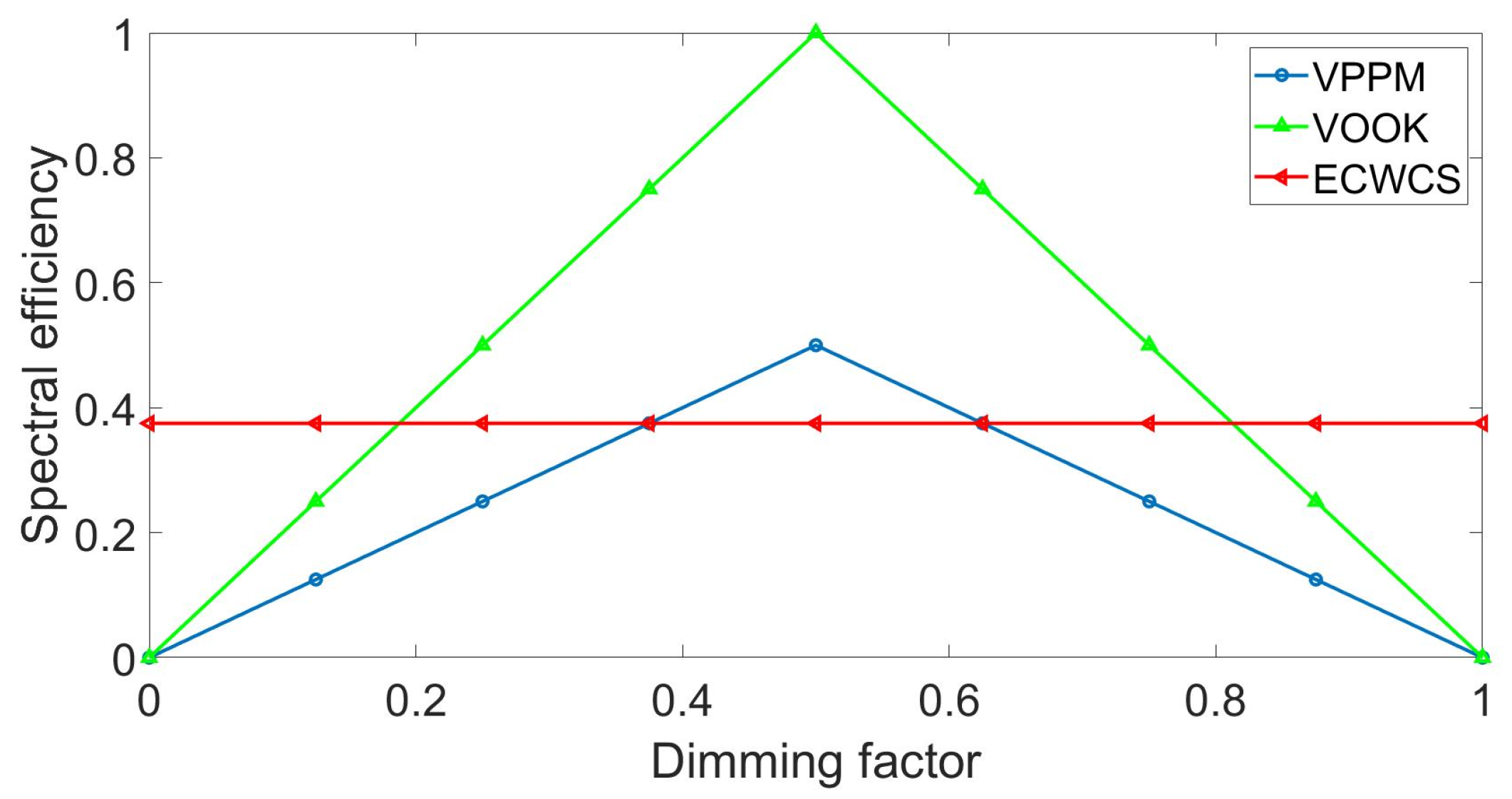

**Figure 4.**Spectral efficiency of variable on-off keying (VOOK), variable pulse position modulation (VPPM) and ECWCS.

**Table 1.**The mapping between the original binary sequence and the dimming coded binary sequence with $k=3$, $n=8$, and $\gamma =1/8$.

Original Binary Sequence | Dimming Coded Binary Sequence | Original Binary Sequence | Dimming Coded Binary Sequence |
---|---|---|---|

000 | 00000001 | 100 | 00010000 |

001 | 00000010 | 101 | 00100000 |

010 | 00000100 | 110 | 01000000 |

011 | 00001000 | 111 | 10000000 |

**Table 2.**The mapping between the original binary sequence and the dimming coded binary sequence with $k=3$, $n=8$, and $\gamma =5/16$.

Original Binary Sequence | Dimming Coded Binary Sequence | Original Binary Sequence | Dimming Coded Binary Sequence |
---|---|---|---|

000 | 00000011 | 100 | 00110000 |

001 | 00000110 | 101 | 01100000 |

010 | 00001100 | 110 | 11000011 |

011 | 00011000 | 111 | 10000111 |

k | ${\mathit{\gamma}}_{\mathbf{min}}$ | ${\mathit{\gamma}}_{\mathbf{max}}$ | ${\mathit{\gamma}}_{\mathit{r}}$ |
---|---|---|---|

2 | $\frac{1}{4}$ | $\frac{3}{4}$ | $\frac{1}{2}$ |

3 | $\frac{1}{6}$ | $\frac{5}{6}$ | $\frac{2}{3}$ |

4 | $\frac{1}{8}$ | $\frac{7}{8}$ | $\frac{3}{4}$ |

k | $\frac{1}{2k}$ | $\frac{2k-1}{2k}$ | $\frac{k-1}{k}$ |

k | ${\mathit{\gamma}}_{\mathbf{min}}$ | ${\mathit{\gamma}}_{\mathbf{max}}$ | ${\mathit{\gamma}}_{\mathit{r}}$ |
---|---|---|---|

2 | $\frac{1}{4}$ | $\frac{3}{4}$ | $\frac{1}{2}$ |

3 | $\frac{1}{8}$ | $\frac{7}{8}$ | $\frac{3}{4}$ |

4 | $\frac{1}{16}$ | $\frac{15}{16}$ | $\frac{7}{8}$ |

k | $\frac{1}{{2}^{k}}$ | $\frac{{2}^{k}-1}{{2}^{k}}$ | $\frac{{2}^{k-1}-1}{{2}^{k-1}}$ |
