The Application of Hydroxyapatite NPs for Adsorption Antibiotic from Aqueous Solutions: Kinetic, Thermodynamic, and Isotherm Studies

by
Huda S. Alhasan
1,
Suhad A. Yasin
2,*,
Nadiyah Alahmadi
3 and
Ahmad Khalaf Alkhawaldeh
4
1
Environmental Research and Studies Center, University of Babylon, Hilla 51002, Iraq
2
Department of Chemistry, College of Science, University of Duhok, Duhok 42001, Iraq
3
Department of Chemistry, College of Science, University of Jeddah, Jeddah 21959, Saudi Arabia
4
Department of Allied Medical Sciences, Faculty of Zarqa College, Balqa Applied University, Salt 19110, Jordan
*
Author to whom correspondence should be addressed.
Processes 2023, 11(3), 749; https://doi.org/10.3390/pr11030749
Submission received: 26 January 2023 / Revised: 21 February 2023 / Accepted: 25 February 2023 / Published: 2 March 2023
(This article belongs to the Special Issue Applications of Hydrogels in Water Treatment Processes through Climate Change)
Browse Figures
Review Reports Versions Notes

Abstract

:
Antibiotic pollution has become a serious concern due to the extensive use of antibiotics, their resistance to removal, and their detrimental effects on aquatic habitats and humans. Hence, developing an efficient antibiotic removal process for aqueous solutions has become vital. Amoxicillin (Amox) is one of the antibiotics that has been efficiently removed from an aqueous solution using hydroxyapatite nanoparticles (HAP NPs). The current study synthesizes and utilizes hydroxyapatite nanoparticles as a cost-effective adsorbent. Adsorbent dose, pH solution, initial Amox concentration, equilibrium time, and temperature are among the factors that have an evident impact on Amox antibiotic adsorption. The (200) mg dose, pH (5), temperature (25) °C, and time (120) min are shown to be the best-optimized values. The nonlinear Langmuir’s isotherm and pseudo-second-order kinetic models with equilibrium capacities of 4.01 mg/g are highly compatible with the experimental adsorption data. The experimental parameters of the thermodynamic analysis show that the Amox antibiotic adsorption onto HAP NPs powder is spontaneous and exothermic.

1. Introduction

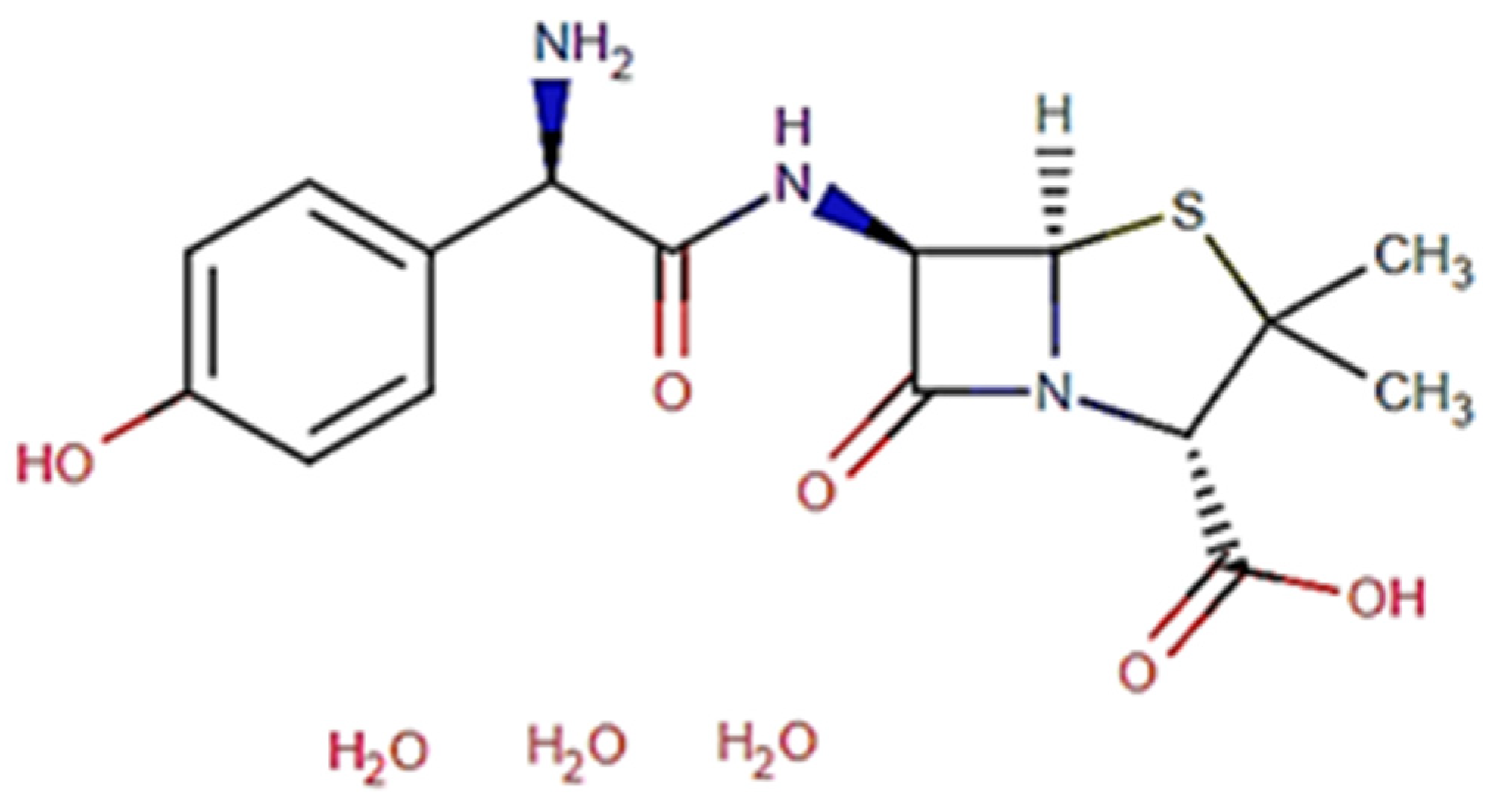

Antibiotics are one of the few medications that primarily target bacteria, including infections, yet they cause little harm to human tissues and cells [1]. Antibiotics can be classified based on their mechanisms of action or chemical structures. In human and veterinary medicine, more than 250 antibiotic entities have been approved [2]. These antibiotics have been used as potent medications for treating and preventing infections and infection-related illnesses in animals and humans for decades [3]. Antibiotics are rapidly expanding worldwide, attracting increasingly significant attention [4]. The antibiotic residue in the environment is of particular concern because prolonged low-level exposure can result in antibiotic-resistant genes (ARGs) [5]. The extensive use of antibiotics in the past and present has led to substantial residues being transported into terrestrial and aquatic habitats either indirectly or directly [6]. Antibiotic residues from humans and animals have been discovered in various matrices [7,8,9]. Antibiotics have different half-lives in the environment; a few are exceptionally long, resulting in rising levels of environmental contamination [10]. Many investigations reveal that antibiotic exposure (µg/L-mg/L) has significantly affected the aquatic growth, survival, and body weight of different species [11,12,13]. Typically, they are released into natural water bodies via pharmaceutical manufacturing effluents and sewage treatment plant effluents [14]. Due to their classification as recalcitrant bio-accumulative compounds, pharmaceutical chemicals, notably antibiotics, are identified as emerging environmental pollutants [15,16]. Antibiotics are hazardous and poisonous [17]. Amoxicillin (Amox) is one of the semisynthetic, broad-spectrum antibiotics routinely used to treat common human infections. It is a beta-lactam antibiotic with a molecular weight of 365.4 g/mol and a molecular formula of C16H19N3O5S [18]. Its antibacterial activity is connected with the beta-lactam ring system in its structure. Blocking connections between the linear peptidoglycan chains hinders bacterial cell wall synthesis [19]. The researchers in Greece investigated the impacts of TiO2/UV-A on Amox and concluded that the applied technique was acceptable [20]. The photocatalytic ozonation was used to conduct rapid mineralization and detoxification of diclofenac and Amox. Such methods were applied in the treatment of urban wastewater [21]. Modern oxidation approaches convert antibiotic molecules into simple complexes or fully mineralize them. However, they are prohibitively costly and too complicated to be sustainably applied to eliminate chemicals such as antibiotics on an industrial scale [22]. Physicochemical technologies have emerged as a viable option for treating organic pollutants [23]. Adsorption, dissimilar to biologically based processes, is easy-to-design, highly efficient, simple to operate, relatively inexpensive, and unaffected by possible toxicity [24]. However, around 30 antibiotics have only been documented utilizing adsorption techniques to extract organic pollutants from contaminated streams onto adsorbent surfaces [25,26].
Nevertheless, this method’s most widely used adsorbents are activated carbons (GACs), which are expensive in terms of industry costs. Therefore, there has been a growing interest in identifying easy-to-use alternative adsorbents. Nanoparticles (NPs) are efficient antimicrobials and may be employed as photocatalysts, adsorbents, and membrane materials [27,28,29,30].
Chemical and physical processes are used for designing and manufacturing nanostructures [31,32]. Recently, green NP synthesis has risen as an environmentally acceptable and cost-effective alternative to chemical and physical approaches [33].
Nanoparticles have been utilized in the removal of amoxicillin. Pham et al. reported the synthesis and characterization of core–Shell ZnO@SiO2 adsorbent for amoxicillin removal [34]. Machado et al. applied iron nanoparticles to the degradation of amoxicillin [35]. Gaim and his co-workers have invested in the photocatalytic degradation of amoxicillin with Mn-doped Cu2O nanoparticles [36]. Hydroxyapatite (HAP) [Ca10 (PO4)6 (OH)2] was widely used as an adsorbent in several applications due to its eco-friendliness, biocompatibility, low solubility in water, high adsorption efficiency for heavy metals, good stability within the oxidized and reduced processes, and wide surface area [37,38,39]. Hydroxyapatite NPs have been applied to remove water pollutants such as organic dyes and antibiotics [40,41]. Moreover, hydroxyapatite has been reported in the literature as a nanocarrier in drug delivery [42,43]. Amoxicillin was loaded onto hydroxyapatite [43,44].
This study aims to investigate the functional activity of HAP NPs, synthesized from eggshells, i.e., biowaste (food waste), in removing Amox from aqueous solutions, taking advantage of the excellent properties of hydroxyapatite nanoparticles, their biocompatibility, and their ability to adsorb many chemicals. The thermodynamics, kinetics, and isotherm parameters are evaluated. In addition, the impact of the experimental conditions, such as pH, contact time, temperature, initial concentrations upon Amox adsorption, and the removal efficiency of Amox utilizing HAP NPs, is investigated.

2. Experimental

2.1. Materials and Reagents

In the present study, all solvents and chemical materials have unpurified analytical reagent grades. An amount of 200 μg/mL of amoxicillin trihydrate stock solution (Figure 1) was prepared in deionized water (DI) (Aldrich Chemical Co. Ltd., Milwaukee, WI, USA). Additional diluted standard (10–60 μg/mL) solutions were prepared by diluting the stock solution with deionized water and kept in the refrigerator for a month or less before being used to avoid decomposition. The pH of the final solution was adjusted for all experiments using (0.1 mol/L) of HCl and NaOH.

2.2. Apparatus

A Hanna pH meter (301 models) was used to adjust the solutions and measure the pH. A Perkin-Elmer UV–vis (190 nm–1100 nm) spectrophotometer (model Lambda 25, USA) with a 10 mm (path width) quartz cell was employed to record all of the spectrophotometric readings. The ADP 110 L, a digitally sensitive balance with three decimal numbers, was also utilized. All solutions were prepared using deionized water from the Milli-Q Plus system (Millipore, Bedford, MA, USA).

2.3. Preparations of HAP-NPs

Calcined eggshells as a calcium basis and (97%) phosphoric acid as a phosphate source were used in the preparation of HAP NPS. Eggshell wastes were collected and then purified using deionized water (DI). The eggshells were dried for 24 h in an oven at 100 °C to eliminate odors and other contaminants, then milled and sieved in a 350 μm sieve. The eggshells were calcined in a furnace at 900 °C for (3) hours at a (10 °C/min) heating rate. In this operation, calcium carbonate (CaCO3) was converted into calcium oxide (CaO) [45]. Subsequently, a 0.3 M suspension solution was prepared by mixing CaO with DI. The resultant solution was used in a wet chemical precipitation reaction by adding H3PO4 dropwise to the suspension solution. This process involved adjusting the pH to 10 using an NH4OH solution.
The reaction was mixed for (6 h) at (120 °C) to obtain a homogeneous solution. Then, the suspension was filtered before being washed with DI and dried at 100 °C for 24 h. The outcome was calcined for 2 h at 900 °C. The synthesized powder was grounded and sieved through a mesh size of (0.350 mm) to save homogeneous particles [46,47].

2.4. Characterization Techniques

X-Ray Diffraction (XRD) and Transmission Electron Microscopy (TEM) were used to characterize the prepared HAP NPs studied in our previous work [40]. The crystal phase was determined using a Siemens D-5000 XRD equipped with Cu-Kα (λ = 0.154 nm). The shape and size of the HAP were measured using a TEM (JEM 20 Japan) at 200 kV.

2.5. Batch Adsorption Experiments

An aqueous solution (25 mL) containing Amox (30 mg/L) in pH = 5 was used to balance the precise weight (0.2 ± 0.01 g) solid phase of the HAP-NPs. A mechanical shaker was utilized to shake the sample solutions for 120 min. The residue concentration of amoxicillin in the solution was measured using a (UV–Vis) spectrophotometer at (227 ± 2 nm) [48]. The separation efficiency percentage (%E) and the quantity of Amox adsorbed (qt) per unit mass of HAP solid-phase were calculated using Equations (1) and (2), respectively.
%   E = C o − C t C o   ×   100
q t = C o − C t   V m
Co represents the initial concentration of Amox, and Ct represents the remaining Amox concentration in the solution after shaking.

3. Results and Discussion

3.1. Characterizations of HAP NPs

X-Ray Diffraction (XRD) and Transmission electron microscopy (TEM) were used to characterize the prepared HAP NPs studied. All the results were analyzed in our previous work [43].

3.2. Retention of Amox from Aqueous Solutions on HAP

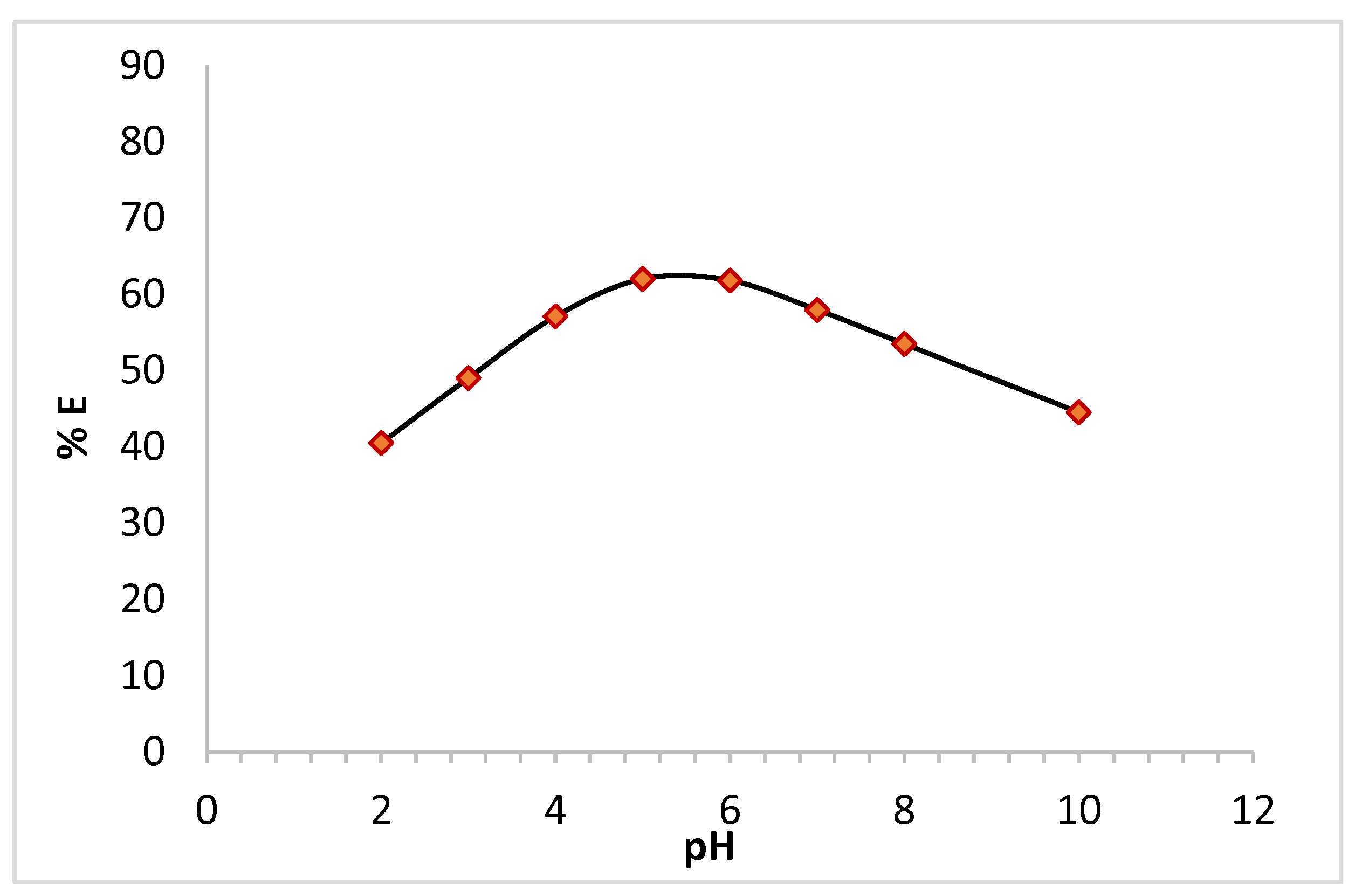

The solution’s pH is one of the essential parameters for studying the adsorption of heavy metal ions and pollutants. After shaking for 120 min at room temperature, the adsorption profile of aqueous solutions that contain Amox at various pH levels via the HAP solid phase was investigated. The quantity of Amox in the aqueous phase after equilibrium was measured using photometry [48]. The adsorption percentage %E of Amox onto HAP increases significantly with the rise in the solution pH up to 5 and then decreases with an increase in the pH, as shown in the representative data (Figure 2). The mechanism of amoxicillin absorption by hydroxyapatite can be explained by several physical processes, such as ion exchange. An exchange may occur between the hydroxyapatite and the protonated functional groups of amoxicillin, such as carboxylate, amine, and hydroxyphenyl. Since amoxicillin has a positive charge at low pH, the adsorption of amoxicillin on hydroxyapatite increases when the pH of the solution increases from 2 to 6, due to the amoxicillin charge shifting to neutral molecules. On the contrary, the absorption of amoxicillin decreases when the pH increases from 7 to 10 as a result of changing the amoxicillin charge to negative [49,50]. Subsequently, pH = 5 is chosen as the best-optimized pH value for the current research work.

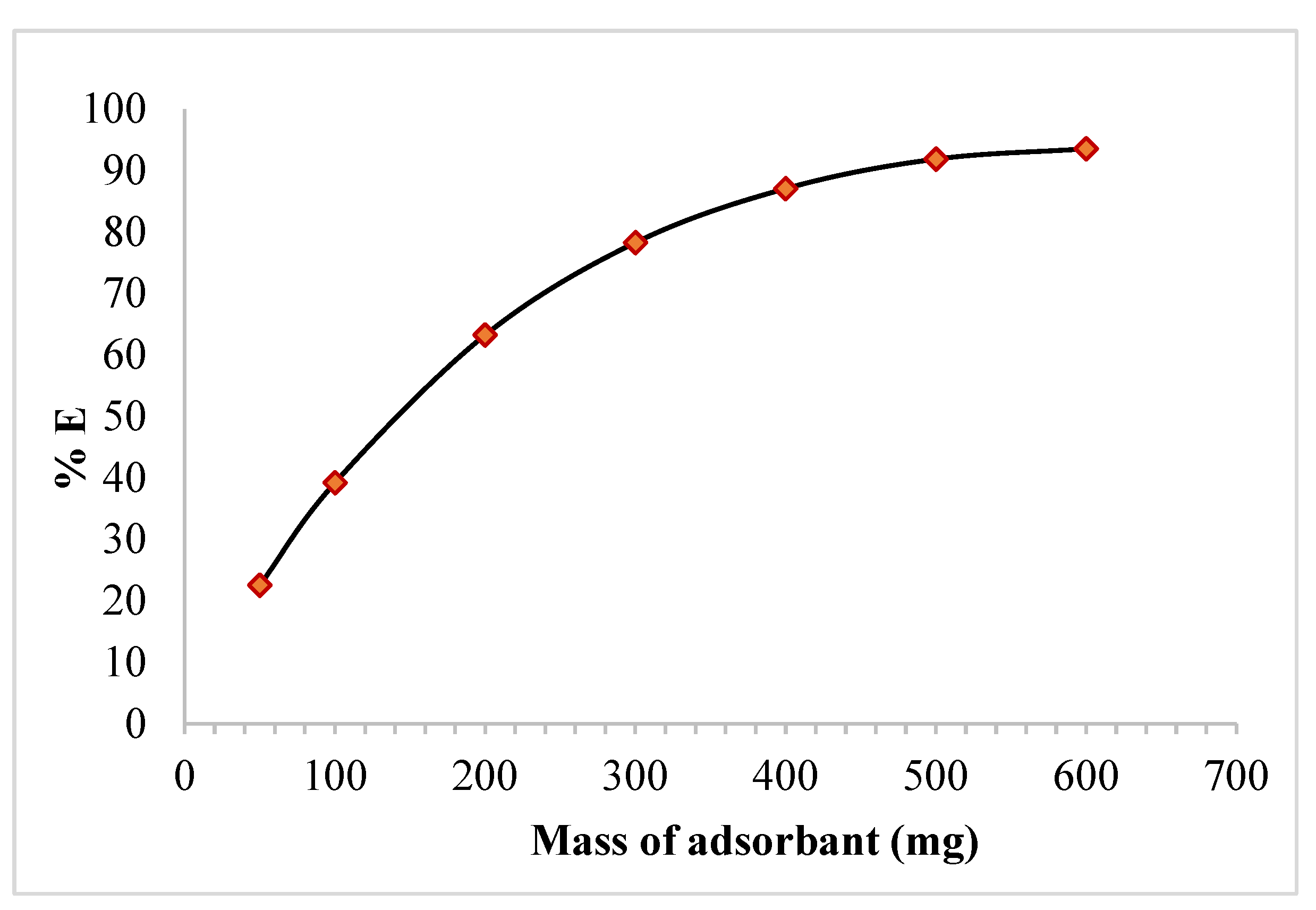

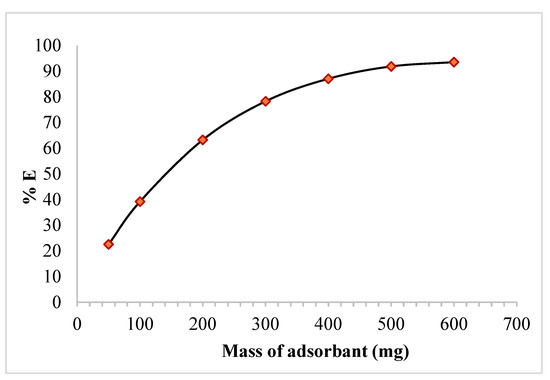

At the 30 mg/L concentration, the impact of the solid-phase HAP mass on the ratio of Amox adsorbed from the solution has been investigated (Figure 3). The figure shows that the HAP proportion eliminated from the aqueous solution ranges from 22.5% to 93.5% when the HAP dose rises from 50 mg to 600 mg. The high amount of solid phase increases the availability of more active sites for adsorption, resulting in a rise in the percentage. In this study, 200 mg of HAP, equivalent to 63.3%, were used to observe the influence of other parameters on adsorption.

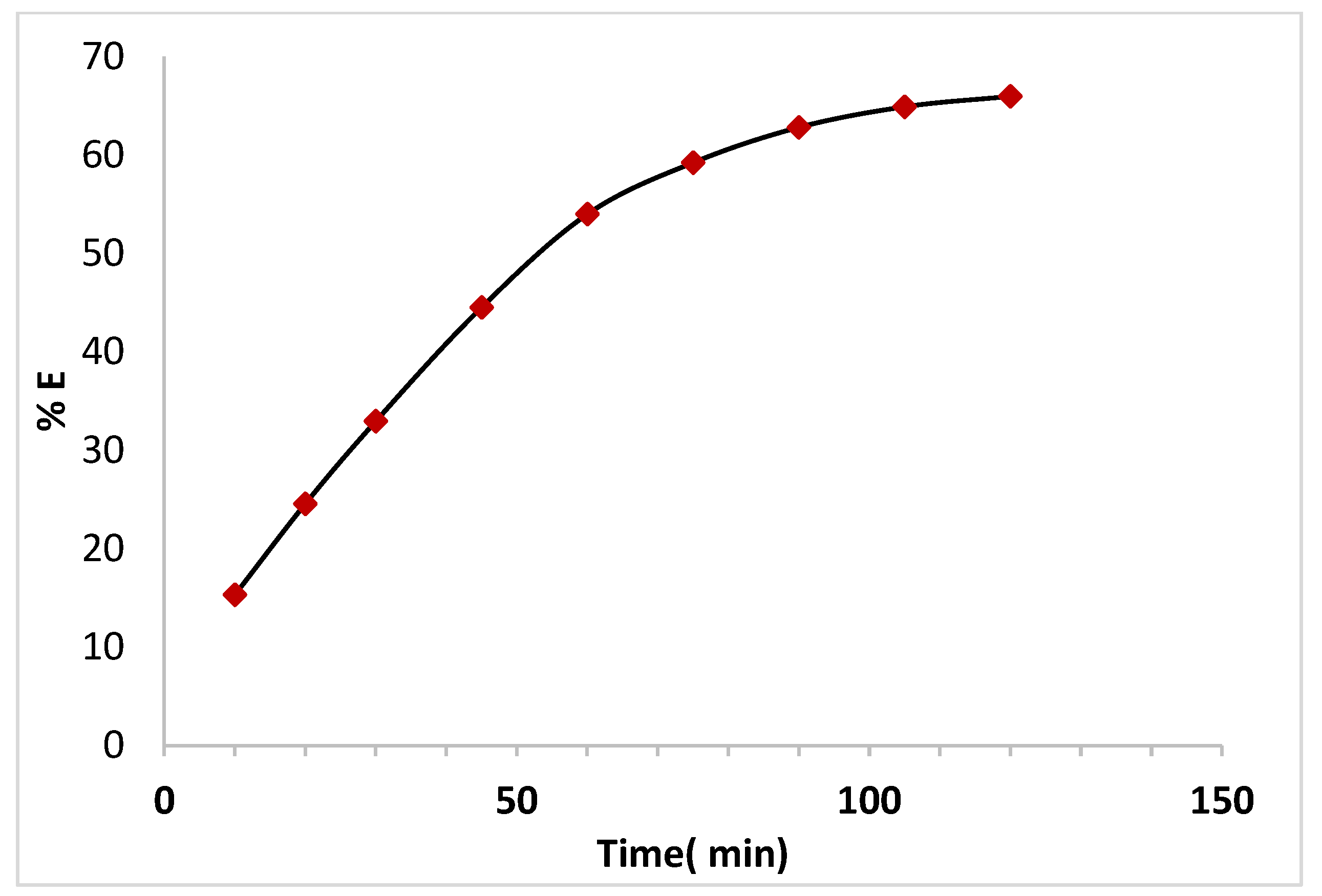

The contact time between an adsorbent and its adsorbate represents one of the critical factors in the adsorption ability to remove pollutant substances. The impact of contact time upon Amox elimination via HAP has been examined, and the results are presented in Figure 4. The steepness of the graph depicts how the increasing contact time results in an increasing process of adsorption. This impact is most noticeable within the first 75 min, when most Amox is physically absorbed (dotted parallel lines). Within 120 min, the proportion of Amox elimination reaches equilibrium. This suggests that Amox adsorption on HAP progresses in two phases, the first of which is the fastest and includes the Amox transfer from the aqueous phase to the external surface of the HAP. The diffusion of Amox between the HAP bundles under the chemical interaction gradient is the second stage, which takes a longer time, thereby representing chemical absorption or adsorption (solid, parallel lines).
Processes 11 00749 i001

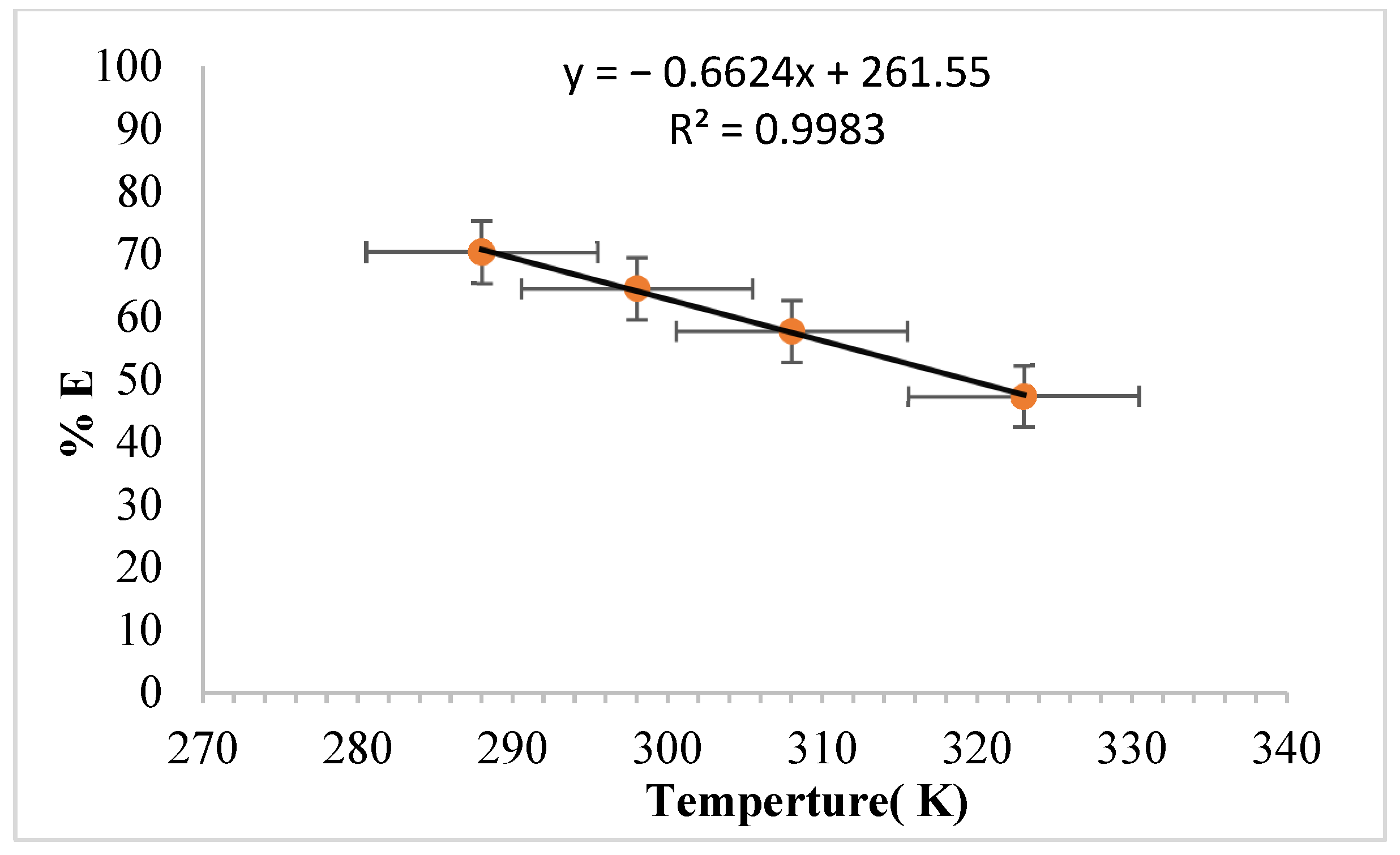

The temperature profile at a constant contact time duration is also studied in terms of solution temperature impact on adsorption capability at different optimized temperature values (K) (288, 298, 308, and 323). It is found that the rise in the solution temperature from 288 to 323 K results in a considerable reduction in the Amox adsorption percentage extracted by the HAP (Figure 5). These findings show that the instant adsorption is exothermic and has a negative Gibbs free energy value, thereby showing the spontaneity of the overall adsorption process.

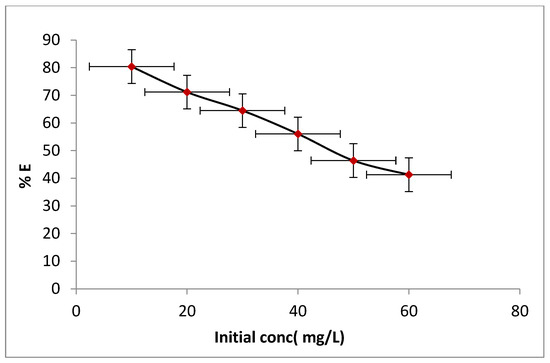

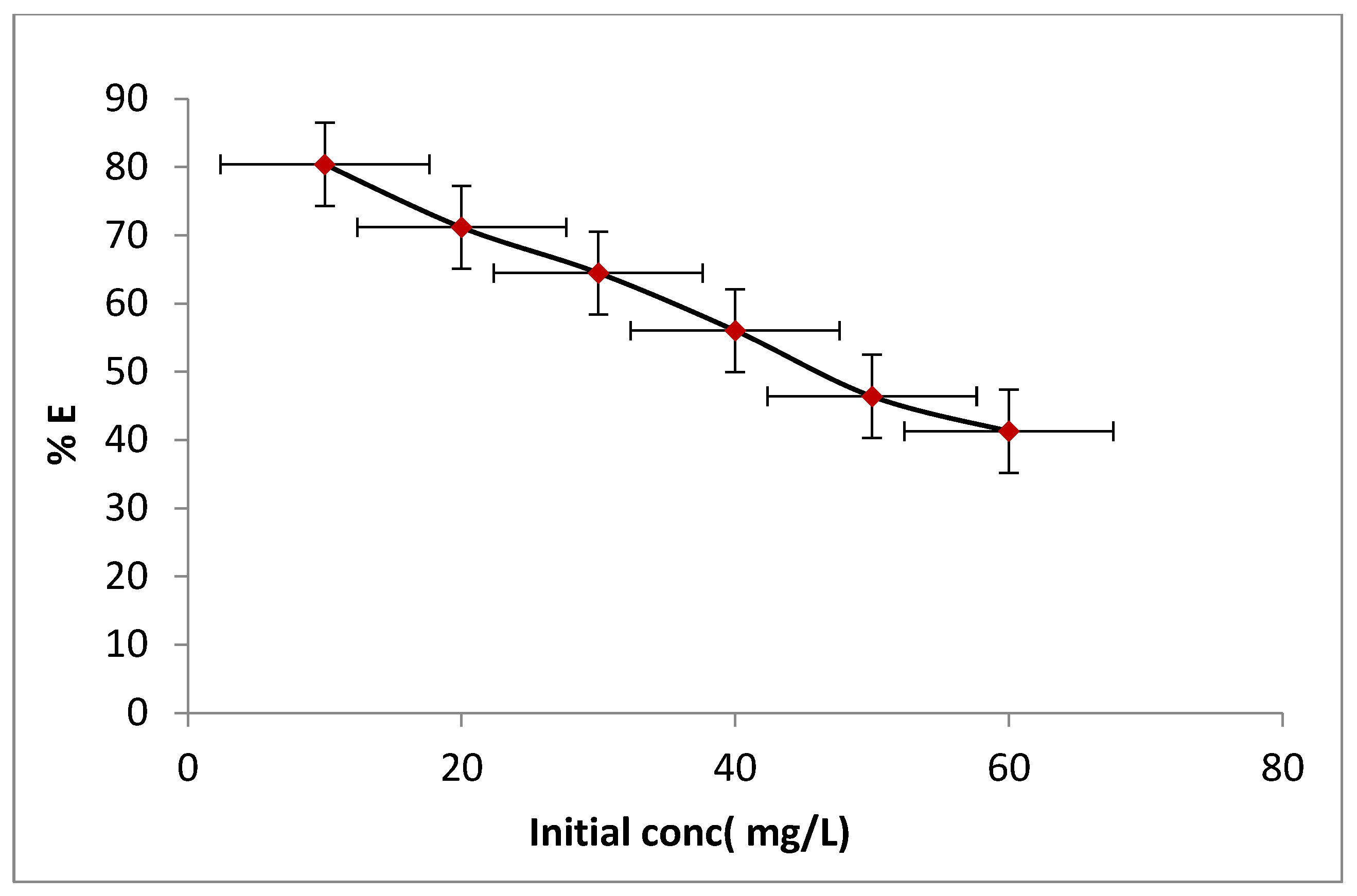

The retention profile of Amox from aqueous solutions with a pH of 5 is examined over a broad range of equilibrium values (10 mg/L–60 mg/L). In (Figure 6), %E of Amox species adsorbed onto HAP is shown against the corresponding concentration in the aqueous solution. More dilute aqueous solutions produce the most favorable %E of Amox adsorption onto HAP sorbent. With the rising Amox concentrations, the %E values decline, and the HAP membranes become increasingly saturated with the retained Amox species.

3.3. Kinetic of Amox Adsorption on HAP solid Phase

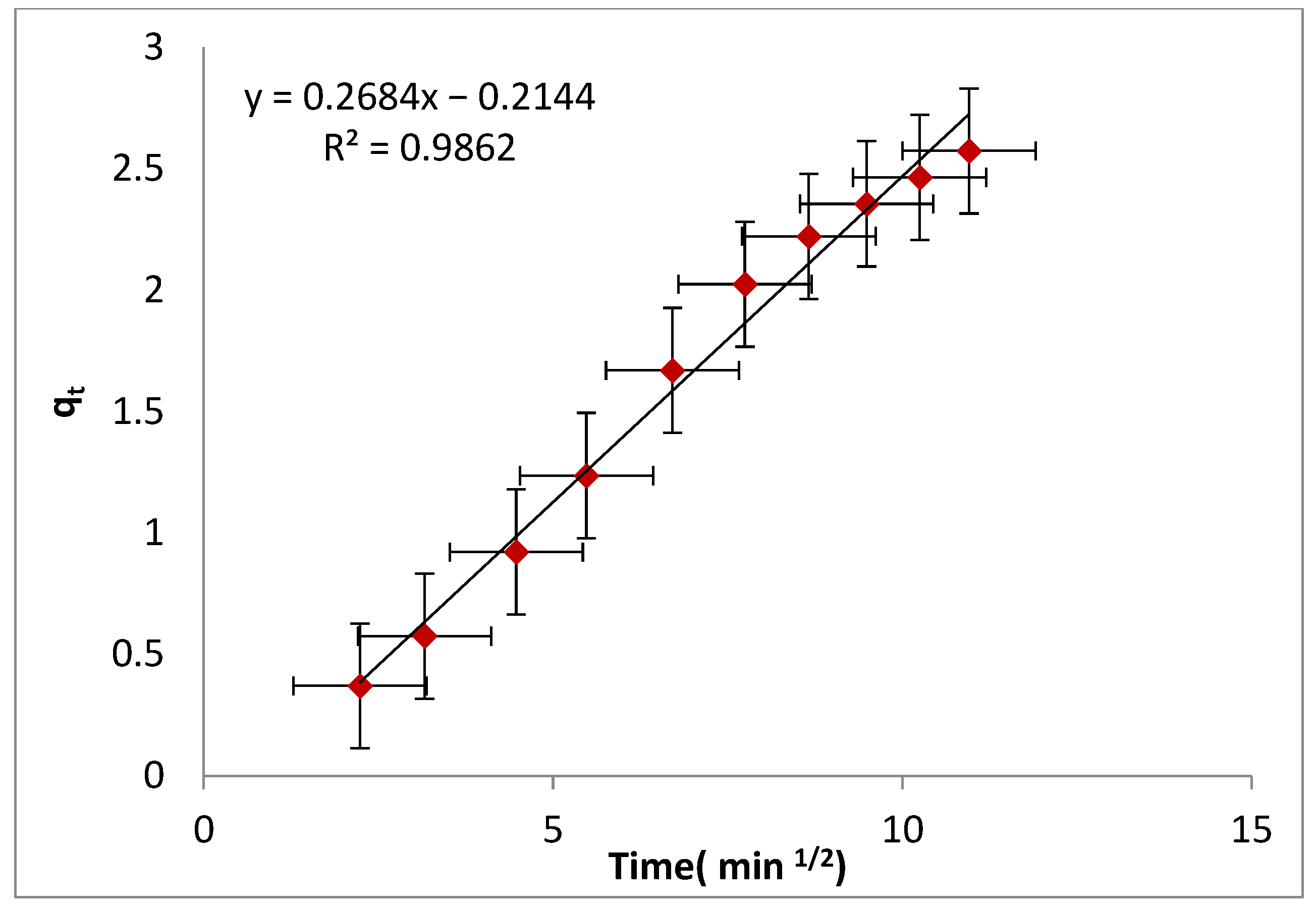

The adsorption kinetics of pollutants such as those of the Amox species from aqueous solutions through the solid sorbent are essential. It delivers important insights into the reaction pathways and net adsorption. The retention of Amox species adsorption on the solid-phase HAP depends on intra-particle and film diffusion. The more rapid one controls the overall transport rate [51]. Based on the effect of shaking time, the study conclusions have been supported by calculating the (t1/2) half-life time of the Amox adsorption from solutions onto HAP of solid sorbent. The (t1/2) values are estimated based on log C/Co plots vs. the time of Amox adsorption onto HAP. The (t1/2) value is 1.60 ± 0.04 min and agrees with the (t1/2) values reported previously [52,53]. This is why the kinetics of Amox species adsorption onto HAP adsorbent depend on the film and intra-particle diffusion, where a more rapid one can control the overall transport rate. The Amox species sorbed onto the HAP sorbent, which was subjected to investigation using the Weber–Morris model [54]:
q t = R d t 1 / 2
Rd and qt represent the intra-particle transport rate constant and sorbed Amox concentration at the time, respectively. The q t   against the time plot has been depicted (Figure 7). The Rd values calculated from distinct Weber–Morris plot slopes (Figure 7) equal 0.27 with (R2 = 0.986) as a correlation coefficient.

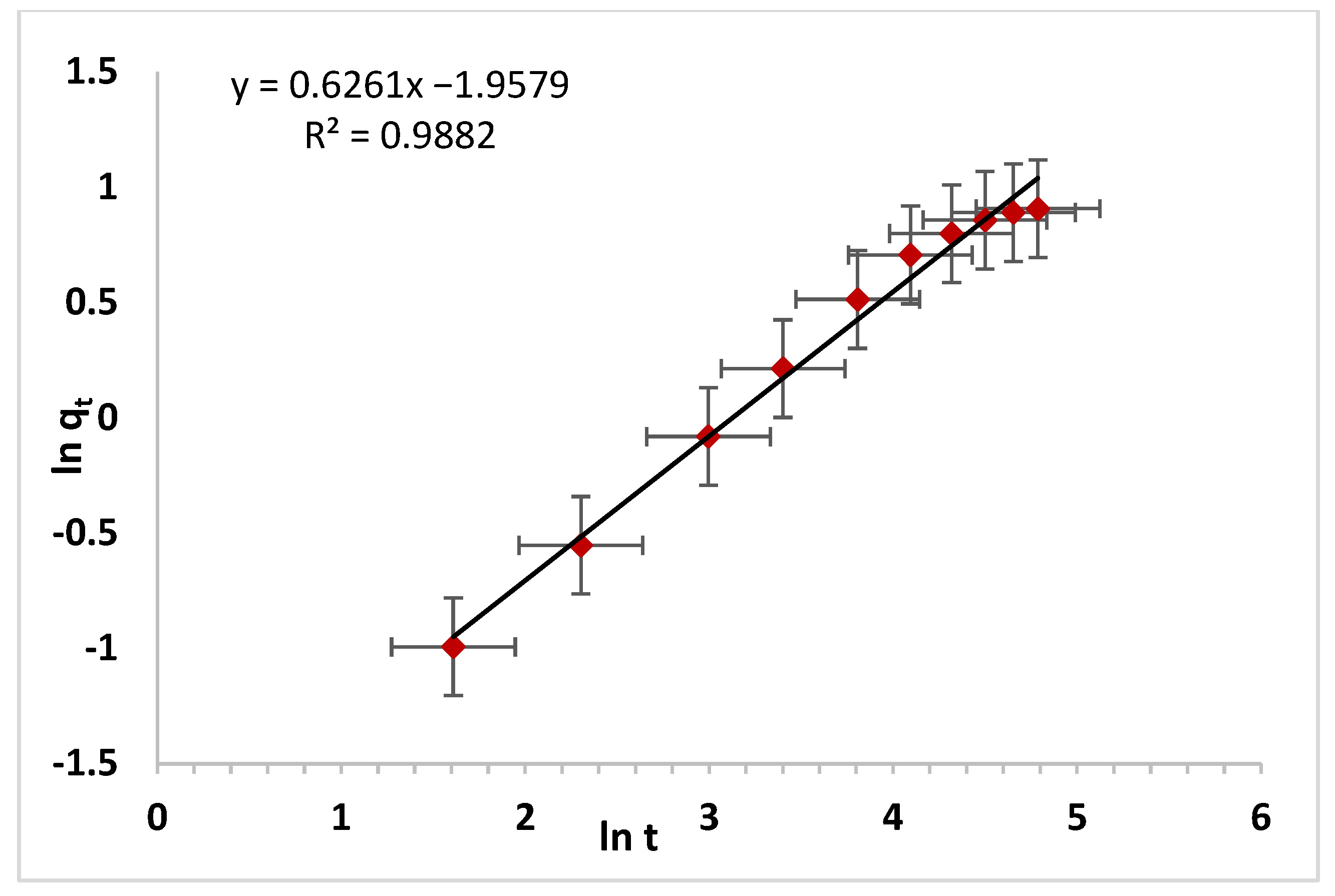

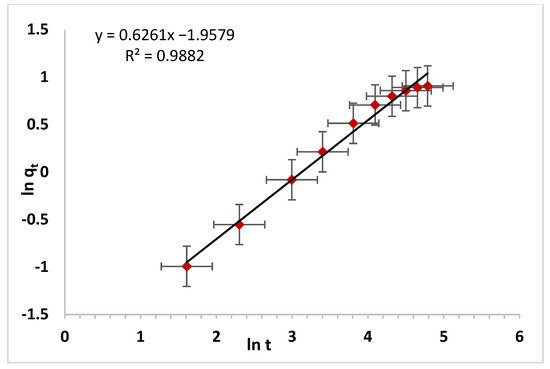

The kinetic model of a fractional power function modified from Freundlich’s equation can be represented by the following relation [55]:
l n   q t = l n   a + b   l n   t
q t refers to the amount of the Amox species adsorbed per HAP unit mass (mg/g) at a time (t), and (a and b) represent coefficients with b < 1. The experimental data from the adsorption process apply to the fractional power equation (Figure 8).
The values of (a and b) are displayed in Table 1, and the data are consistent with the coefficient of correlation (R2) value of 0.988.
The data also indicate that the kinetic model does not apply to the description of Amox adsorption by HAP.

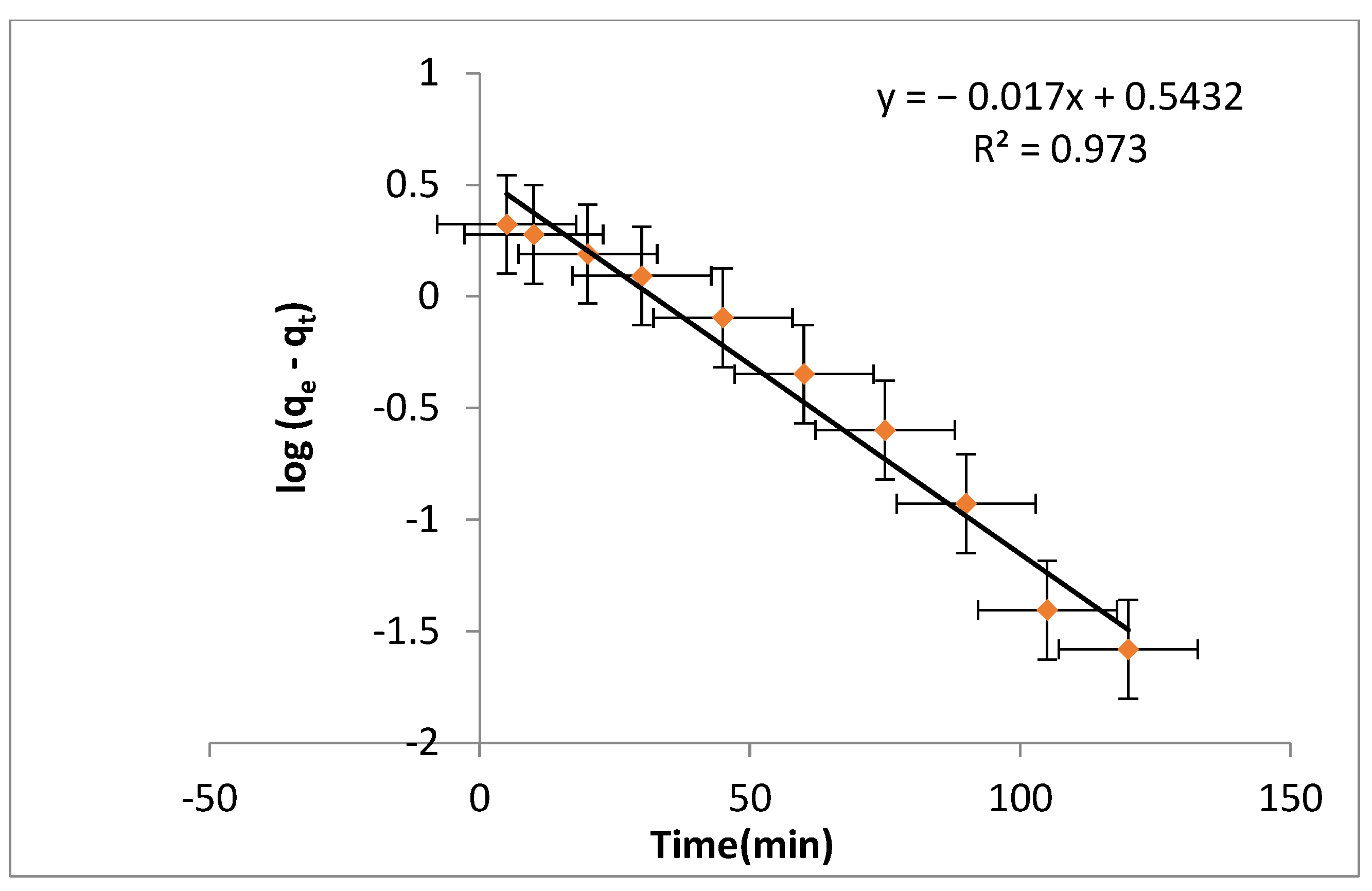

Adsorption rates in liquid-phase systems are described by the common Lagergren equation. The variation of the adsorption of Amox species from an aqueous medium onto the solid phase of HAP is subjected to Lagergren’s equation [56]:
l o g   q e − q t = l o g   q e − k l a g e r t / 2.303
The adsorption of Amox per sorbent unit mass is represented by (qe). For the retention process, (KLager) represents a general rate constant of the first order, and (t) denotes time. The log (qe − qt) vs. time plot (Figure 9) is linear, and (KLager) and the calculated (qe) values are (0.039 min−1) and (3.49 mg/g), respectively, with the correlation coefficient (R2 = 0.973). The resulting data do not agree with the first-order adsorption kinetics of Amox onto (HAP) as a solid sorbent [57].
A pseudo-second-order equation is utilized, as well as a particular kinetics model [53], supported on the assumption that:
(a)
The amount of adsorbate in the solution remains constant over time;
(b)
In an equilibrium state, the amount of adsorbate adsorbed determines the whole number of binding sites.

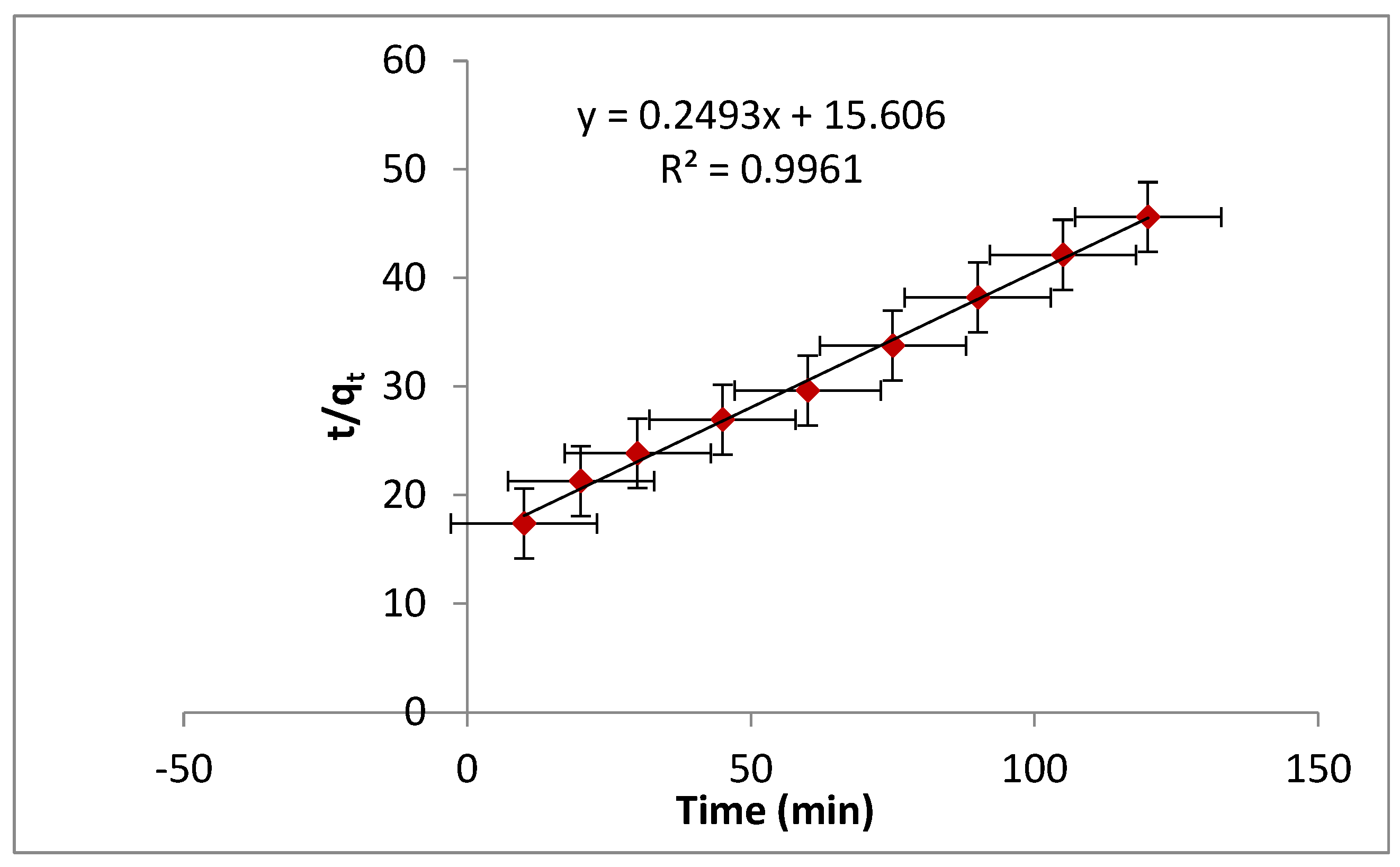

A linearized pseudo-second-order rate form is represented in the below equation:
t q t = 1 h + 1 q e t
(h = k2qe2 relates to the rate of initial adsorption, and (qe and qt) denote the adsorbed quantities per unit mass at any time (t). In these conditions, (t/qt) vs. (t) plots are linear (Figure 10). The (k2) is a second-order rate constant, and the equilibrium capacity (qe) for the Amox species is computed from the intercept and slope. They are equal to (3.9 × 10−3 g) (mg. min)−1 and (4.01 mg/g), with a notable degree of correlation (R2 = 0.996). The data show that all of the experimental data fit well with the excellent agreement values and the pseudo-second-order rate constants, k2, which typically depend on the experimental conditions.

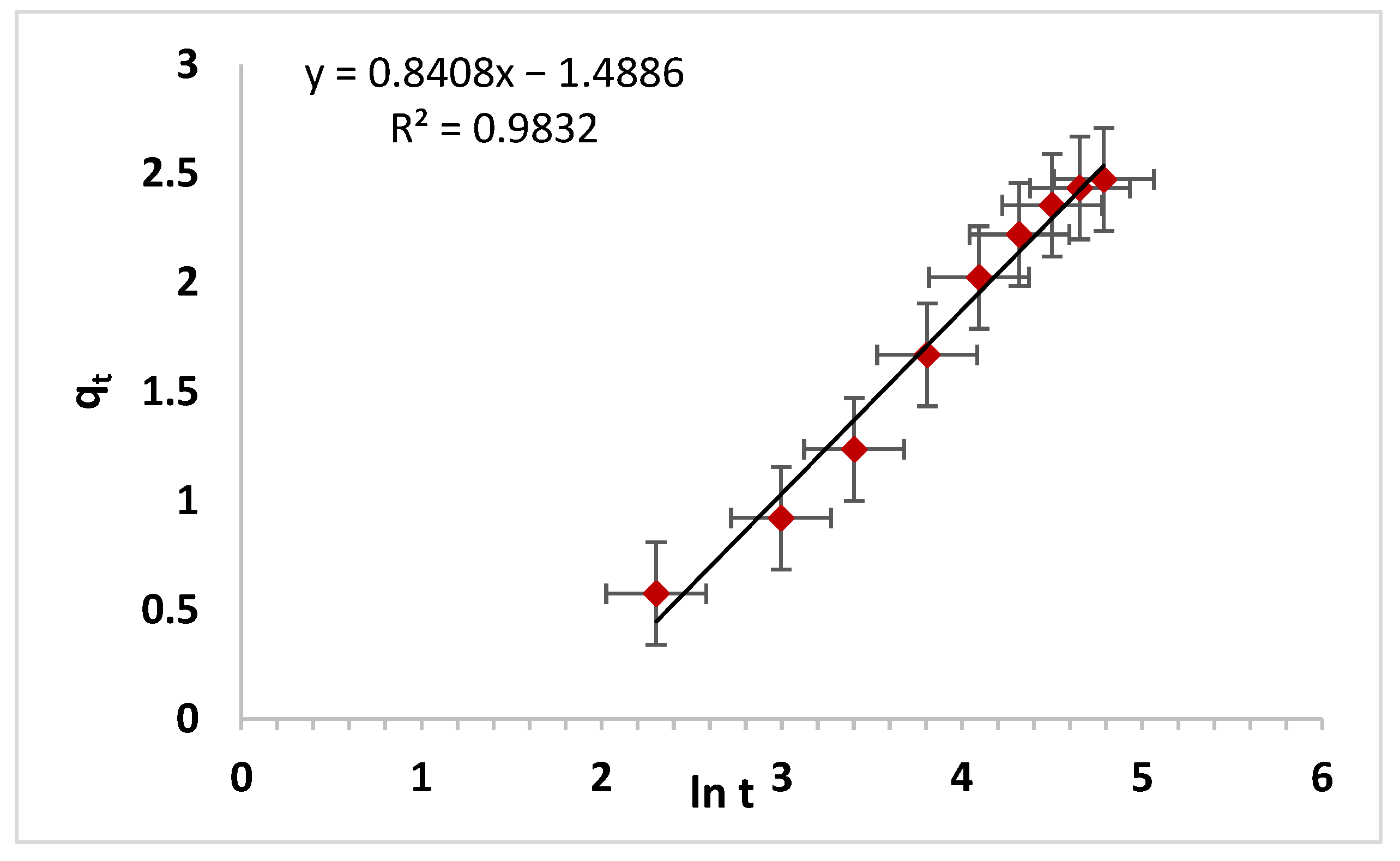

The rate equation is formulated based on the capacity of adsorption that is typically described by the Elovich model [58]. The latter is mainly applicable for the chemisorption kinetics and valid for systems with heterogeneous adsorbing surfaces. The below equation represents the model:
q t = β   l n   α β + β   l n   t
The α (g·mg−1 min−1) and β (mg·g−1 min−1) stand for the initial adsorption rate and the desorption coefficient, respectively. The (qt) versus (lnt) plot is linear (Figure 11). The figure shows that the parameters of the Elovich equation α and β calculated from intercepts and slopes for Amox are (0.20 g·mg−1 min−1) and (0.84 mg·g−1 min−1), respectively, with (R2 = 0.983).
Based on kinetic data, it was determined that the pseudo-second-order kinetic model is the most fitting for explaining the adsorption of Amox by HAP from the solution, which has been shown in Table 1.
Table
Table 1. The parameters of various kinetic models for Amox adsorption on HAP at 298 K.
Table 1. The parameters of various kinetic models for Amox adsorption on HAP at 298 K.
Weber–Morris model
Rd R2
Amox 0.27 0.986
Fractional power function kinetic models
ABabR2
Amox0.1410.6260.0880.988
The pseudo-first-order kinetic (lagregen) model
qe, exp (mg/g)qe, calc(mg/g)k1R2
Amox2.473.490.0390.973
The pseudo-second-order kinetic models
qe, exp (mg/g)qe, calc(mg/g)k2R2
Amox2.474.013.9 × 10−30.996
Elovich kinetic model
α, (g/mg min)β, (mg/g min) R2
Amox0.20.84 0.983

3.4. Adsorption Isotherms

The models of adsorption isotherms are applied to describe the Amox interaction mechanism on the surface of the adsorbent. The equilibrium studies are valuable for calculating the highest HAP adsorption capacity towards Amox and determining the extensive surface features of the tested sorbent. A critical investigation is carried out to study the profiles of the retention over a range of concentrations (10 mg/L–60 mg/L) from Amox solutions on the used sorbent at optimum conditions.

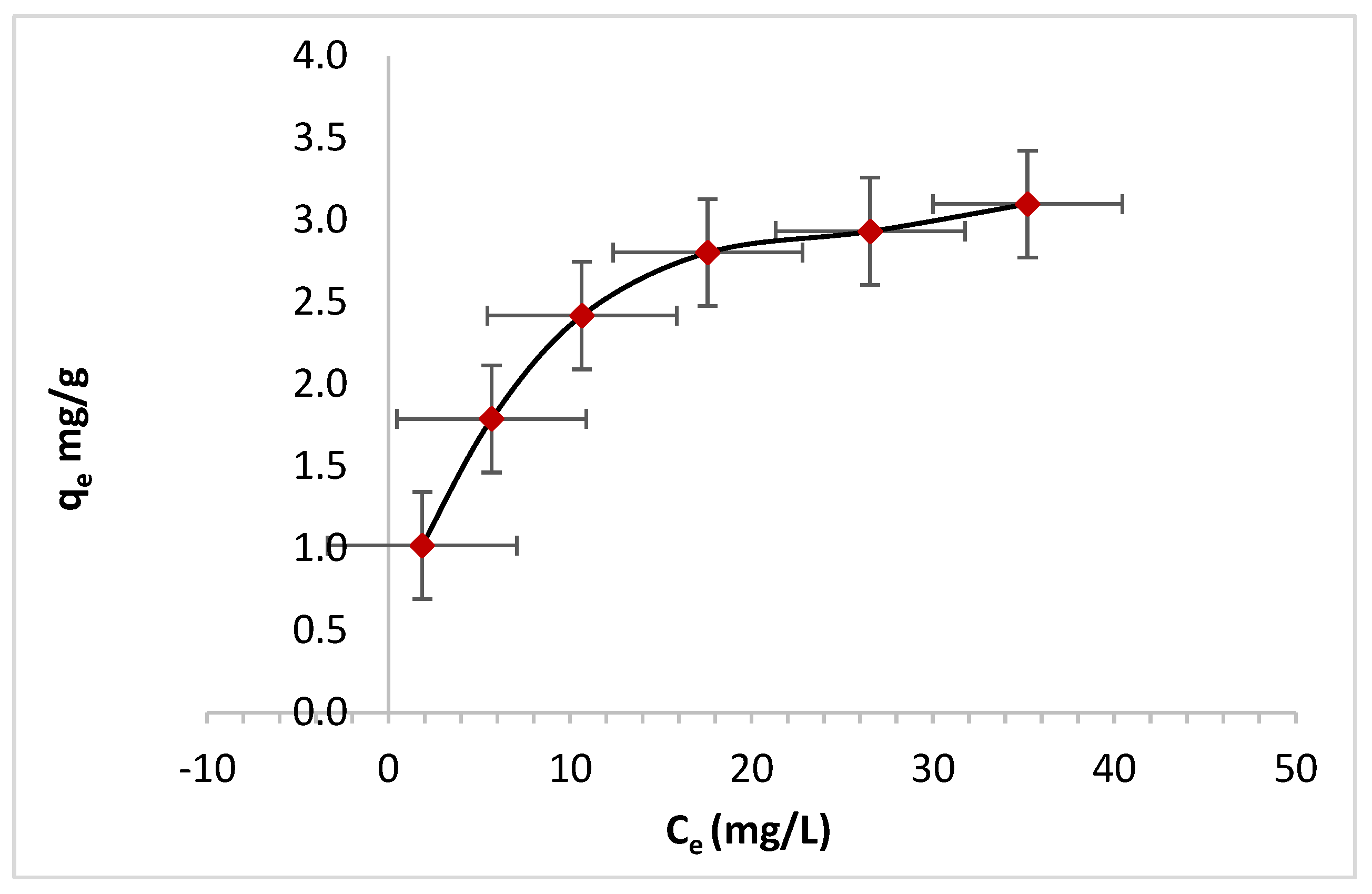

The plot of the Amox amount adsorbed onto HAP vs. the Amox concentration values in solution is depicted in (Figure 12). At moderate concentrations of the analyte, the amount of Amox retained on the HAP linearly varies with the amount of Amox that remains in the solution. A (3.10 ± 0.05 mg g−1) adsorption capacity of Amox onto HAP is achieved.

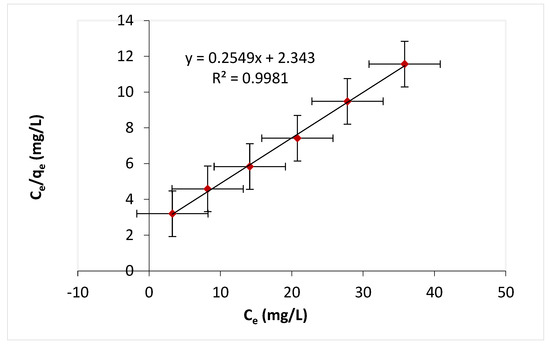

The adsorption of Amox onto the sorbent (HAP) is subjected to the model of Langmuir isotherm represented in the linear form below [58]:
C e C a d s = 1 Q b + C e Q
Ce refers to the concentration (mg/L) of Amox in the analysis solution, and Cads represents the Amox amount that has been retained on HAP (per unit mass). The Q and b constants represent Langmuir’s parameters related to the solute’s maximum adsorption capacity per unit of adsorbent. These parameters are needed for surface monolayer coverage. The equilibrium constant is related to the binding energy of the solute’s adsorption. The Ce/Cads against Ce plot over the entire Amox concentration range onto HAP is linear (R2 = 0.998). The linearity indicates that the Amox adsorption onto the HAP follows the Langmuir model (Figure 13). Q and B values calculated from the linear plot slope and intercept are equal: (3.92 ± 0.03 mmol/g) and (0.11 ± 0.01 L/mol), respectively.

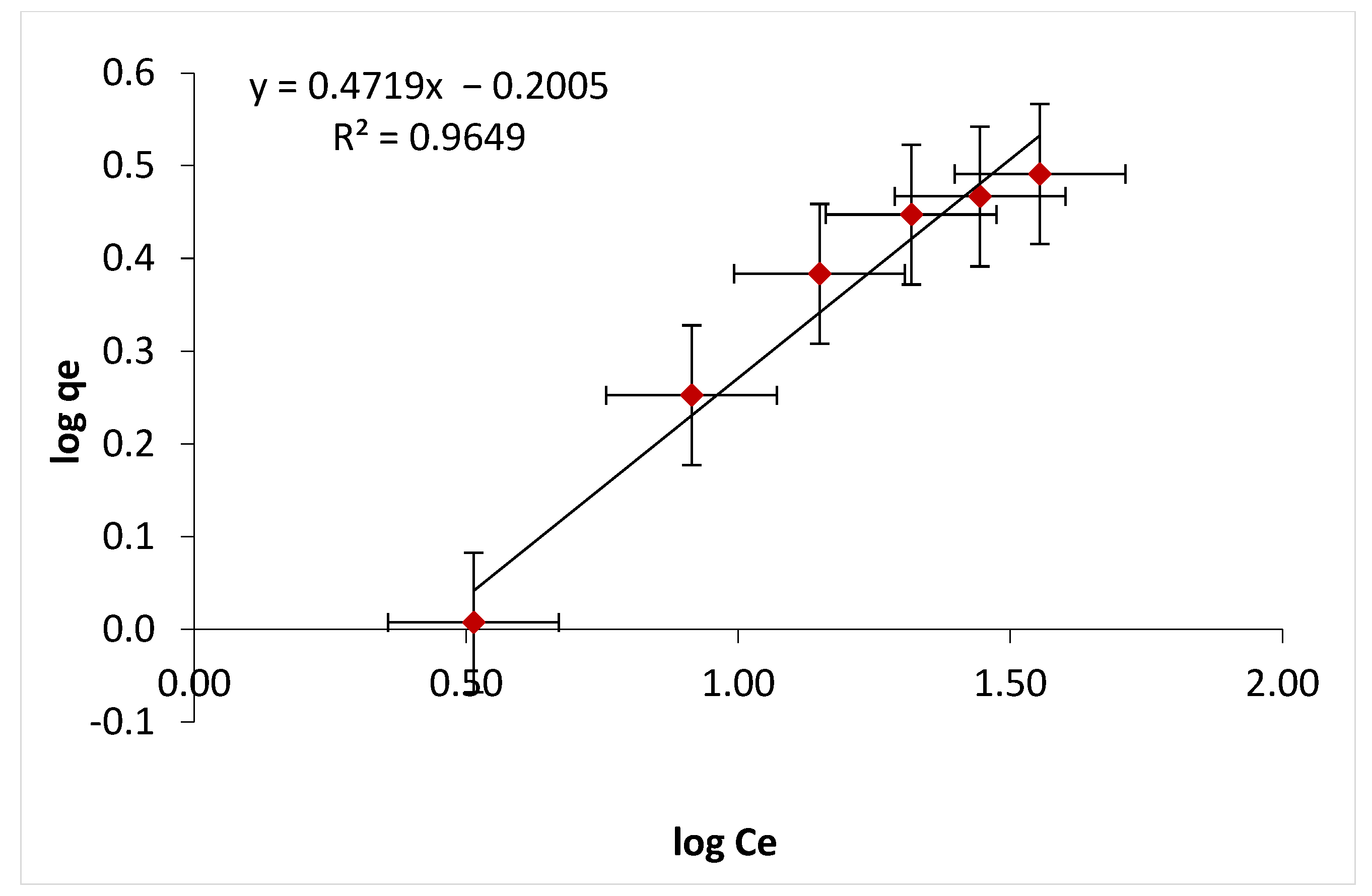

The behavior of the Amox retention from the solution on the deployed types of the sorbent is subjected to the Freundlich model, which can be represented by the linear form below [59]:
l o g   q e = l o g   A + 1 n     l o g   C e
(A) and (1/n) represent the Freundlich parameters related to the highest solute adsorption capacity (mg/g), qe denotes the retained Amox onto the HAP concentration (mg/g) at equilibrium, and Ce represents the Amox concentration in the solution (mg/L) (Figure 14). The parameters (A and 1/n) of Freundlich are estimated based on the slope, and the intercept is equal to (0.47) and (0.63) (R2 = 0.964). The data show that there is unfavorable adsorption of Amox by HAP and that the model used is undoubtedly improper to fit well with the data.

3.5. Thermo-Dynamic Features of Amox Retention on HAP

The Amox adsorption onto the HAP solid phase is essential. It has been researched over many different temperatures (288–323 K) to determine the Amox retention on the HAP. The thermo-dynamic parameters (ΔS, ΔH, and ΔG) are assessed using equations (10, 11 and 12) [60]:

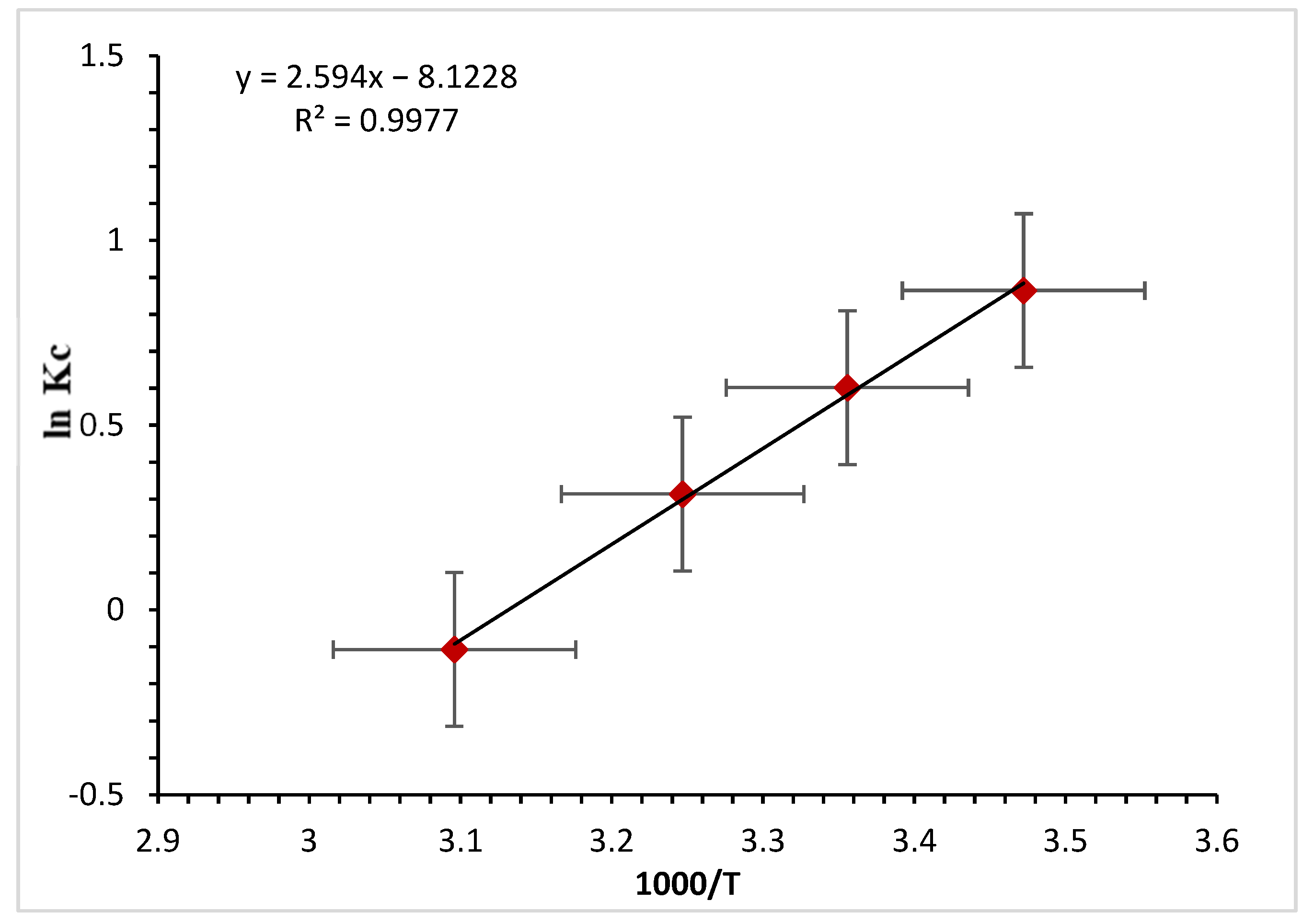

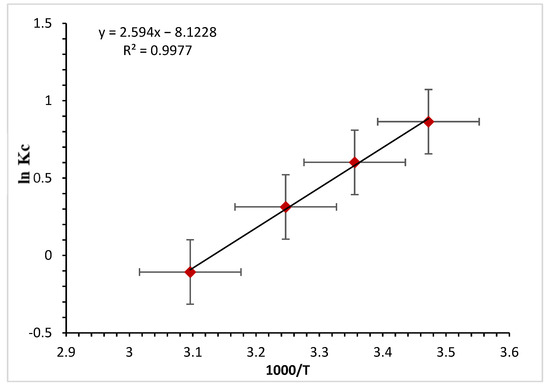

l n   K c = − Δ H R T + Δ S R
Δ G = Δ H − T Δ S
Δ G = − R T   l n   K c
ΔH, ΔS, and Δ G are the enthalpy, entropy, and Gibbs free energy variations. T denotes the degree of temperature (Kelvin), R represents a value of the gas constant (approximately 8.314 J·K−1 mol−1), and (KC) stands for the equilibrium constant. The (KC) values for the Amox adsorption from the solution at equilibrium onto solid sorbent are calculated according to the equation below:
k c = C a C e
( C e ) is the Amox concentration at equilibrium in solution (mg L–1), and ( C a ) is the amount of Amox adsorbed on the adsorbate per liter at equilibrium (mg L–1). The ln KC versus (1000/T) plot is linear over a range of temperature degrees (288–323 K) (Figure 15). The equilibrium constant decreases with an increase in temperature. This direct, proportional increase reveals that the Amox retention process on utilized sorbent materials is exothermic. The ΔH, Δ S, and ΔG numerical values for the release of Amox calculated from the slope and intercept of the (ln KC) versus (1000/T) linear plot are (−21.53 ± 0.1 kJ/mol), (−67.51 ± 0.2 J mol−1 K−1), and (−1.42 ± 0.08 kJ mol−1) at 298 K temperature (Figure 15). The negative ΔH value has revealed the exothermic nature of the uptake process. The negative value of ΔS proves that the step of the re-orientation is entropy, and it is regulated at the state of the activation, indicating non-electrostatic bonding of the adsorbent phase and solid phase. However, the negative value of ΔG at 298 K for the formed solid phase indicates the spontaneous nature of the adsorption of Amox onto HAP. Table 2 shows the comparison of adsorption conditions with those of other adsorbents reported in the literature.

4. Conclusions

The present research indicates that the HAP nanoparticle is an appropriate adsorbent for eliminating the Amox antibiotic from the aqueous solution. The HAP adsorbent’s performance is highly influenced by many parameters, such as contact time, Amox temperature, the concentration of adsorbate, adsorbent dosage, and initial pH. The Langmuir isotherm fits the equilibrium data on the adsorption of Amox compared with the Freundlich model, which indicates monolayer adsorption with a maximal capacity of 4.01 mg/g of HAP at 25 °C and a pH of 5. The Amox adsorption onto HAP is well-fitted to the pseudo-second-order kinetic model. The results of the thermo-dynamic study indicate the physisorption process. The estimated thermo-dynamic parameters have shown that the adsorption process is spontaneous and exothermic. Overall, the current study’s findings propose that the HAP nanoparticles can be used as effective and ecologically acceptable adsorbents for removing the Amox antibiotic from aqueous solutions.
Table
Table 2. Comparison of adsorption conditions with other adsorbents reported in the literature.
Table 2. Comparison of adsorption conditions with other adsorbents reported in the literature.
AdsorbentConditionsRefs.
1ZnO@SiO210 mg/L Amox, 25 mg/mL of ZnO@SiO2 at pH 8[34]
2ZnO@CNF nanoadsorbent25 mg/L of Amox, 0.09 g of ZnO@CNF at pH7.5[61]
3Fe3O4@C nanoparticles50 to 300 mg/L of Amox, 1 g/L Fe3O4@C at pH 5[62]
4Maltodextrin/reduced graphene/CuO nanocomposite30 mg/L of Amox, 0.05 g of nanocomposite at a pH of 7.4 [63]
5Ag NPs30 mg/L of Amox, 0.5 of Ag NPs at pH 4[64]
6Fe3O4-chitosan/Ag NPs20 mg/L of Amox, 0.4 g/L Fe3O4-chitosan/Ag NPs at pH 4[65]
7Fe3O4@AgNPs100 and 500 μL of Amox, 10 and 100 mg/L of Fe3O4@AgNPs at pH 7[66]
8MoS2 Nanosheets45.2 µg/mL of Amox, 1.5 mg/mL of MoS2 Nanosheets at pH 10.2[67]
9Bismuth oxyiodide-chitosan (BiOI-Ch) bionanocomposite80 mg/g of Amox, 1.7 g/L of BiOI-Ch at pH 3[68]
10Hydroxyapatite HAP30 mg/L of Amox, 4.01 mg/g of HAP at pH 5This study
