Chemical Sensing Properties of BaF2-Modified hBN Flakes towards Detection of Volatile Organic Compounds
Abstract
:1. Introduction
2. Materials and Methods

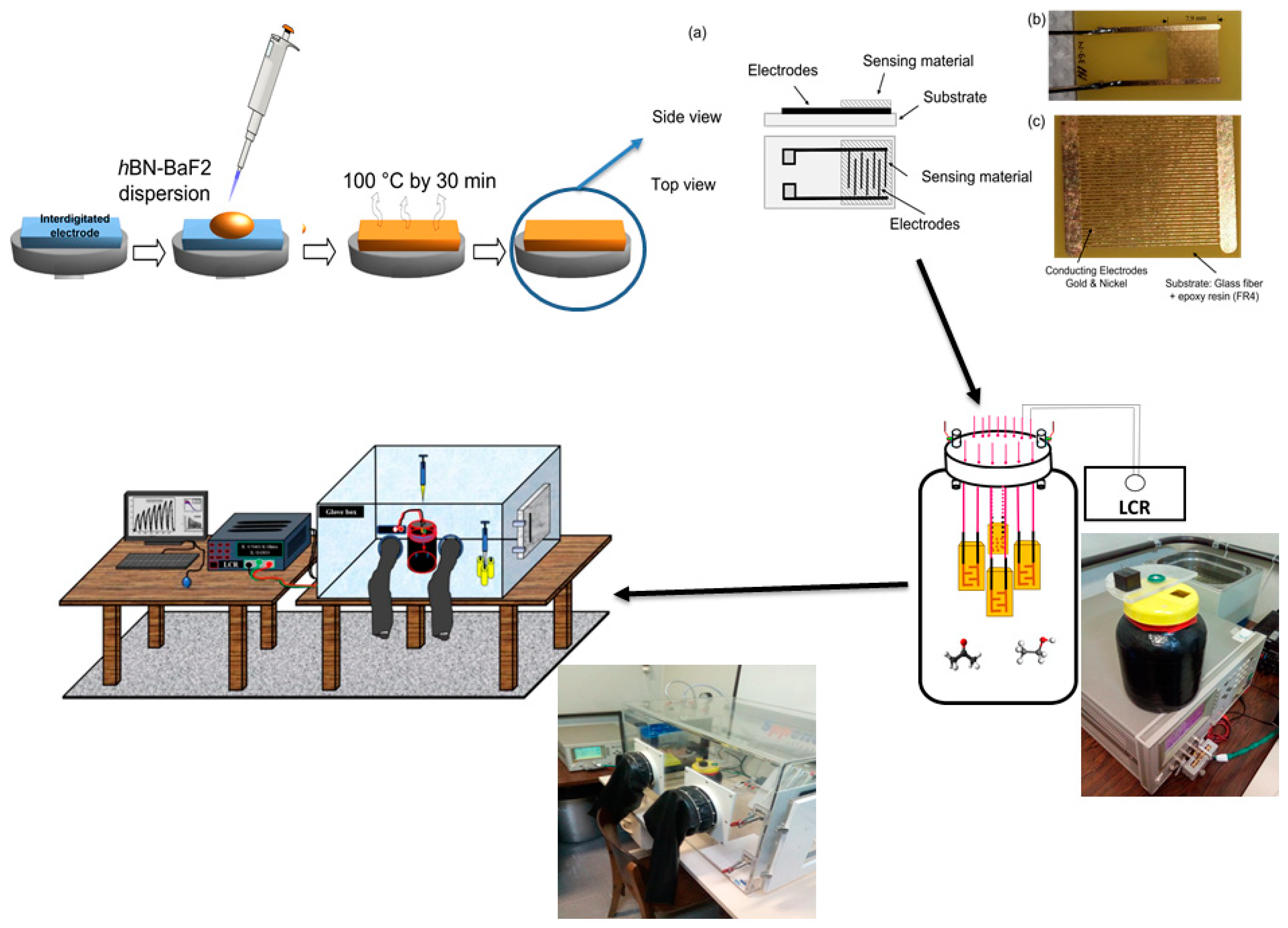

2.1. Material Synthesis and Sensor Preparation
2.2. Characterisation
3. Results

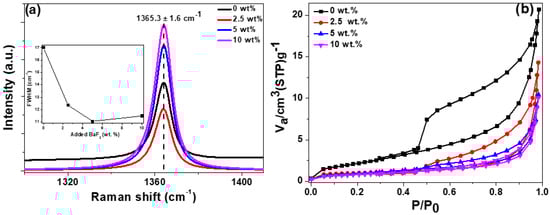

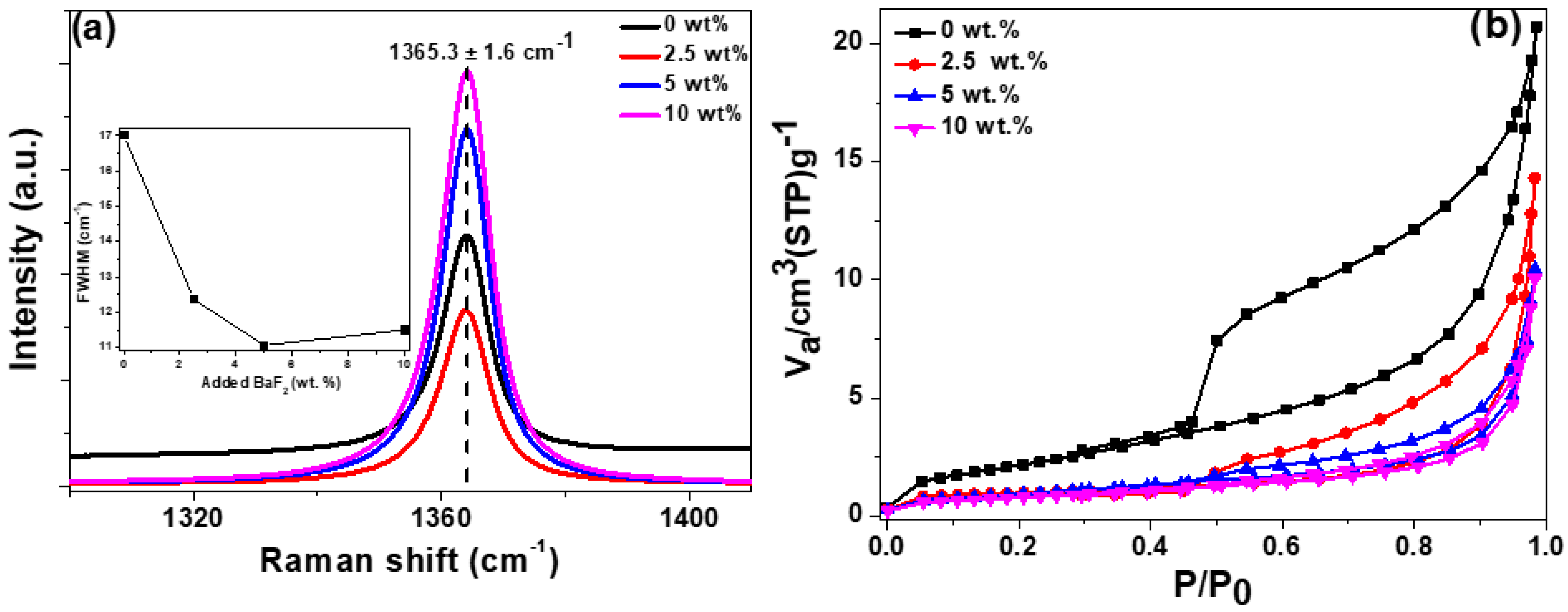

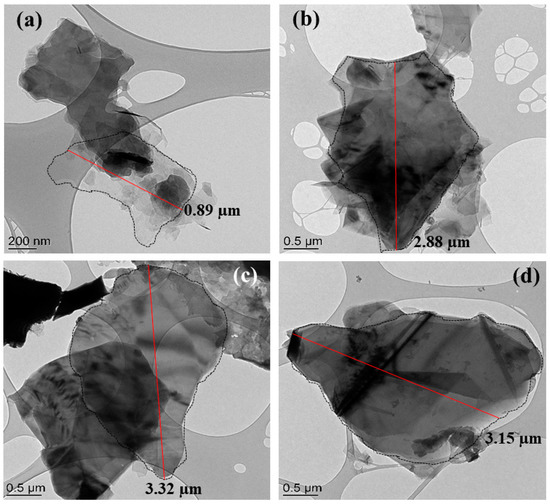

3.1. Structural Analysis
3.2. Sensing Properties of the hBN Nanosheets

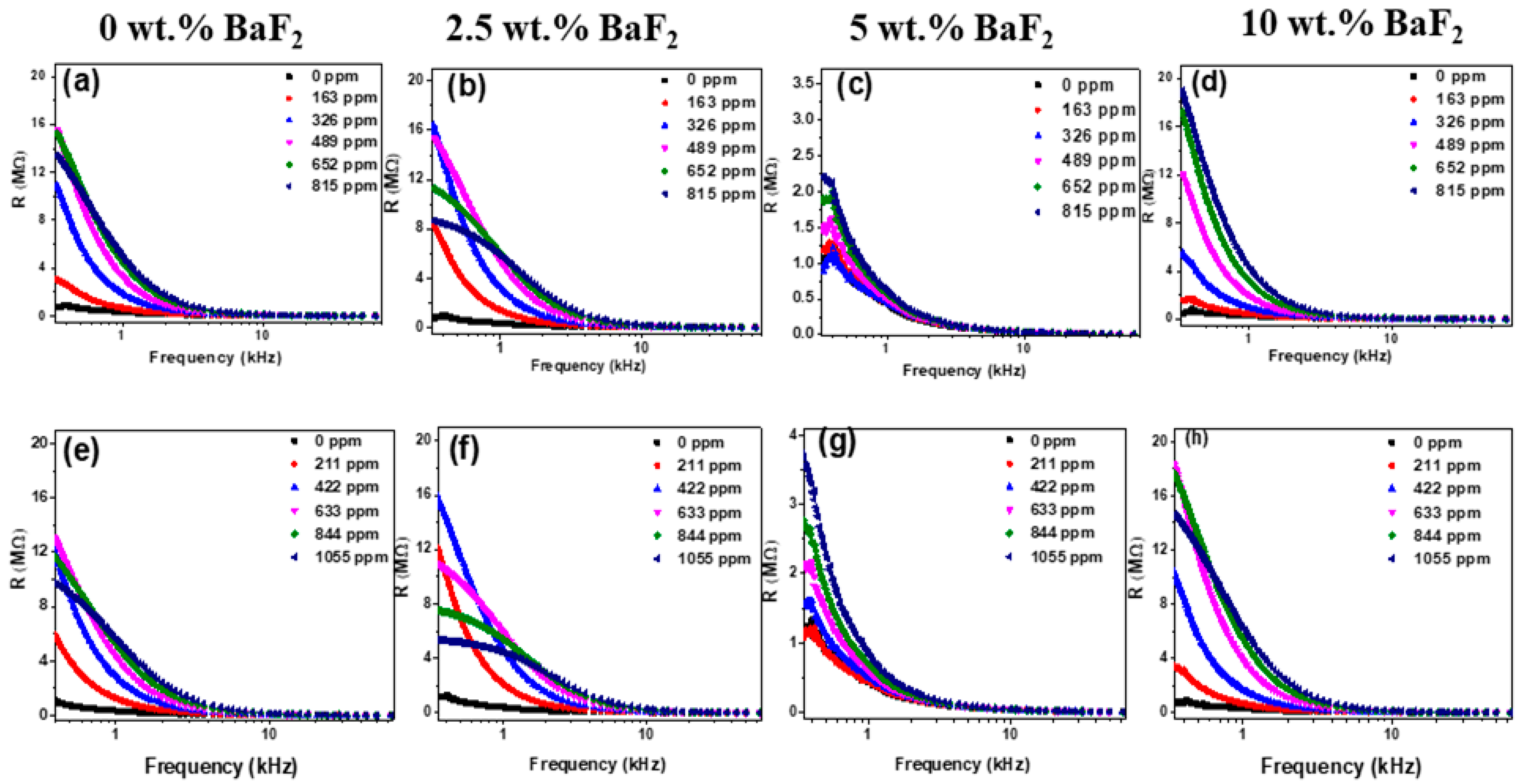

3.2.1. Resistance of the Sensors

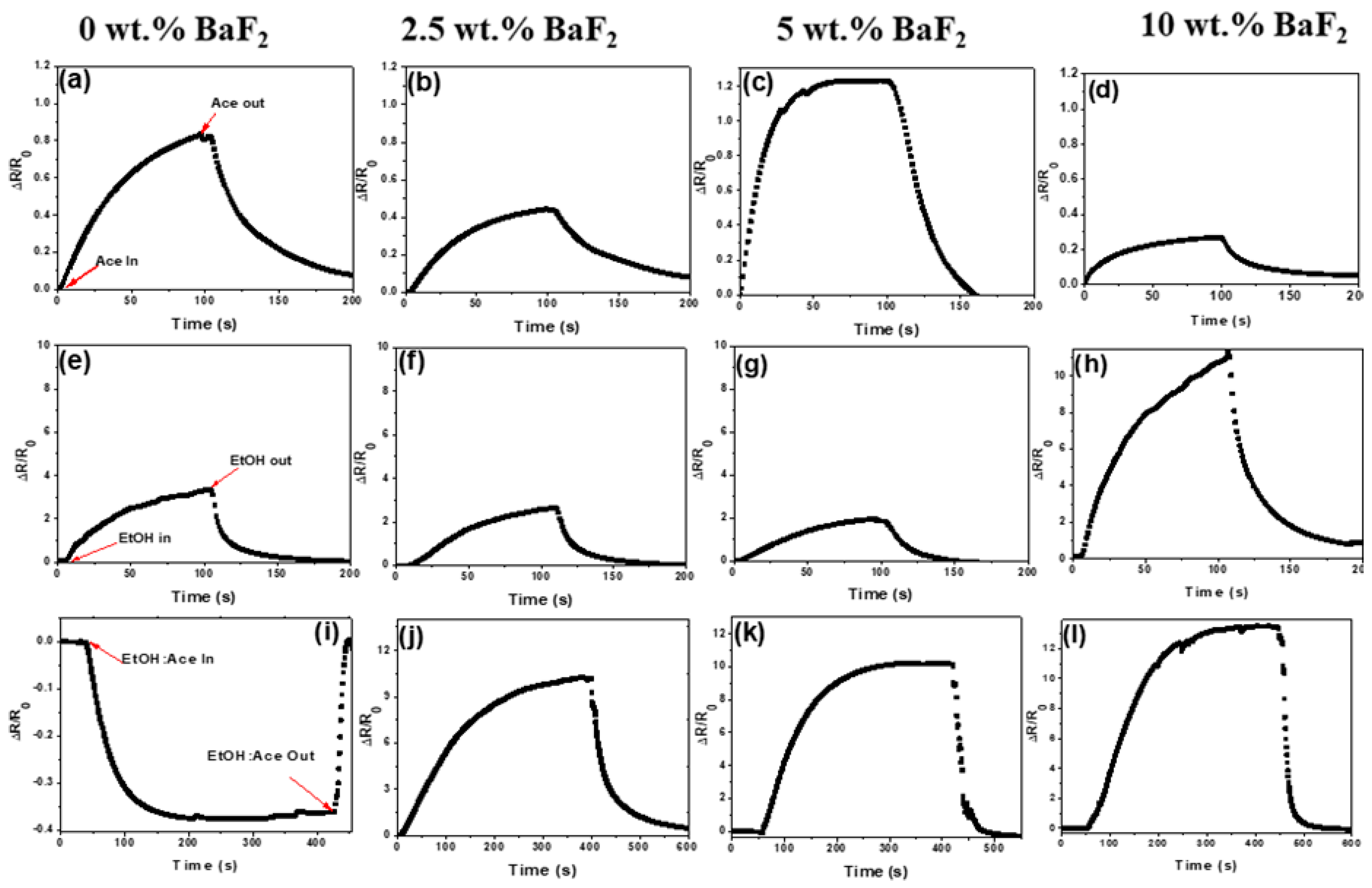

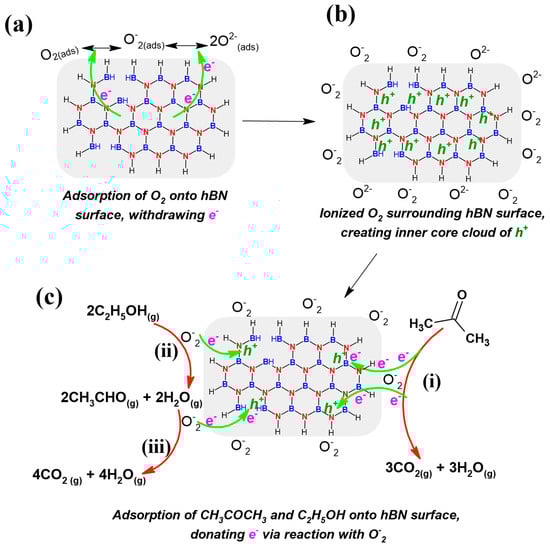

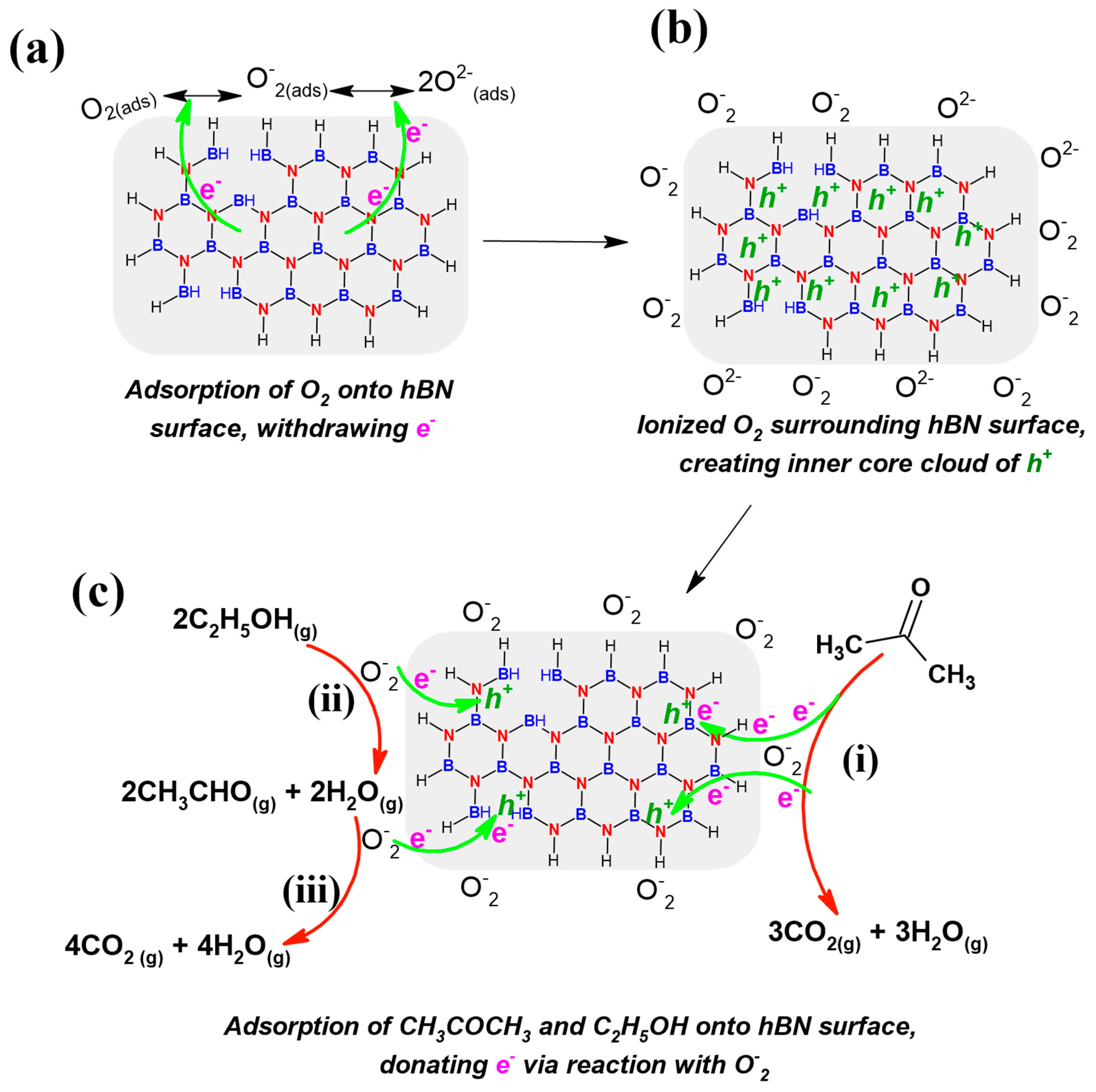

3.2.2. Performance of the Sensors

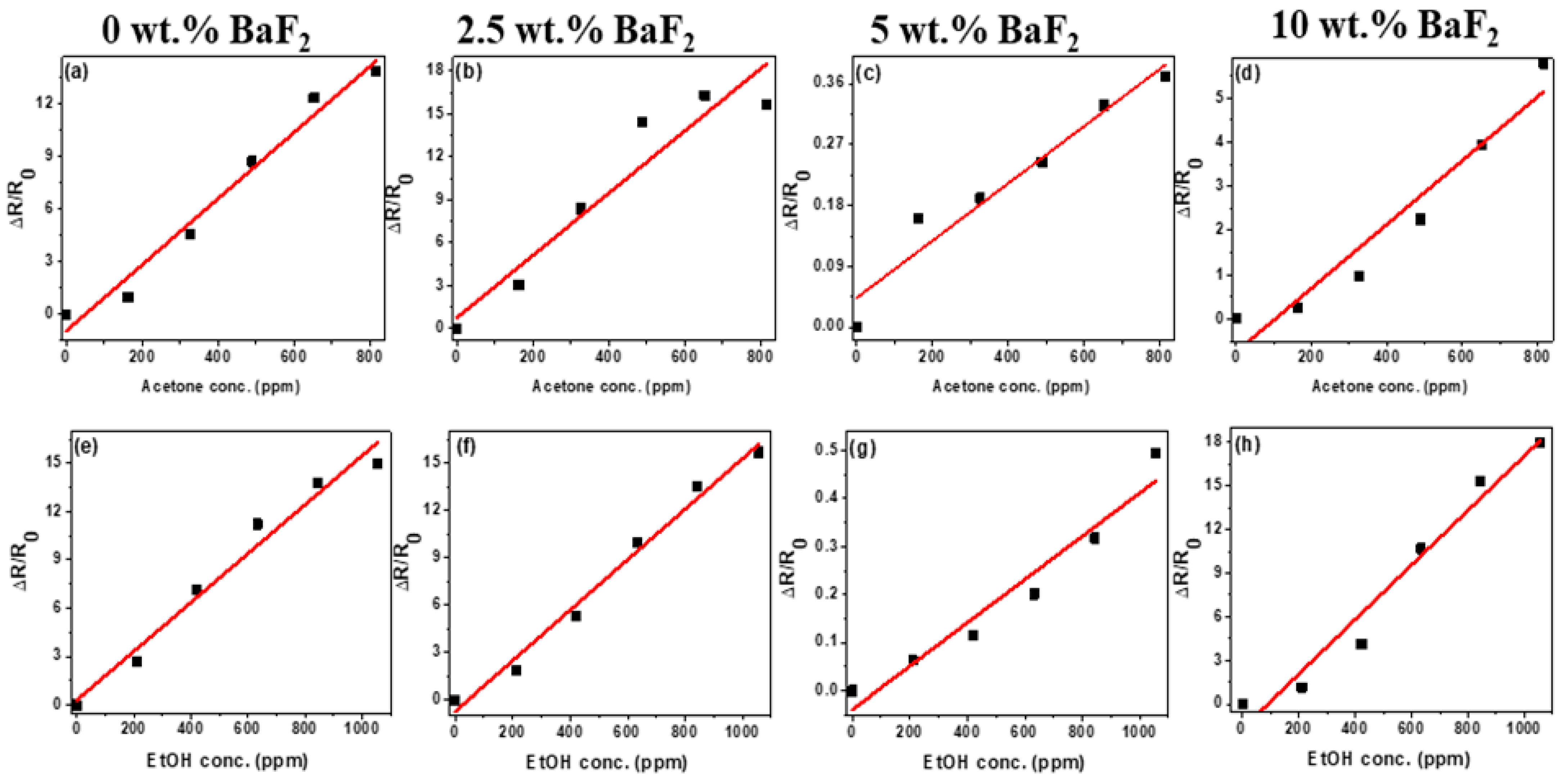

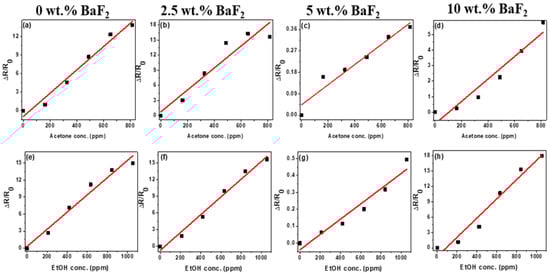

3.2.3. Determination of Sensing Parameters
Analyte | Active Material | Sensor Type | Conc. Range (ppm) | Temp. (°C) | LoD (ppm) | Ref |
---|---|---|---|---|---|---|
Acetone | ZnO | Chemoresistive | 5–1000 | 300 | 10 | [40] |
ZnO/Gr | 10–10000 | 280 | 13.3 | [50] | ||
pristine hBN | 0–100 | RT | 86 | This work | ||
2.5wt% BaF2-hBN | 43 | |||||
5wt% BaF2-hBN | 460 | |||||
10wt% BaF2-hBN | 144 | |||||
α-Fe2O3/rGO | 5–500 | 225 | 5 | [53] | ||
g-C3N4/WO3 | N/A | 340 | 100 | [43] | ||
Ti3C2Tx | Electrochemical | N/A | RT | 0.05 | [42] | |
Ethanol | SnO2/MoS2 | Chemoresistive | N/A | 280 | 50 | [54] |
ZnO/GO | 10–1000 | 400 | 10 | [55] | ||
pristine hBN | 0–100 | RT | 30 | This work | ||
2.5wt% BaF2-hBN | 62 | |||||
5wt% BaF2-hBN | 543 | |||||
10wt% BaF2-hBN | 134 | |||||
Ti3C2Tx | Electrochemical | N/A | RT | 0.10 | [42] |
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Commitee on Toxicology. Exposure Limits for Selected Airborne; National Research Council: Washington, DC, USA, 2000; Volume 1. [Google Scholar]
- Speight, J. Lange’s Handbook of Chemistry, 16th ed.; McGraw-Hill Education: New York, NY, USA, 2005. [Google Scholar]
- Arts, J.; Mojet, J.; Van Gemert, L.; Emmen, H.; Lammers, J.; Marquart, J.; Woutersen, R.; Feron, V. An Analysis of Human Response to the Irritancy of Acetone Vapors. Crit. Rev. Toxicol. 2002, 32, 43–66. [Google Scholar] [CrossRef] [Green Version]
- Pohanka, M. Toxicology and the biological role of methanol and ethanol: Current view. Biomed. Pap. 2016, 160, 54–63. [Google Scholar] [CrossRef]
- Wysocki, C.J.; Dalton, P.; Brody, M.J.; Lawley, H.J. Acetone Odor and Irritation Thresholds Obtained From Acetone-Exposed Factory Workers and From Control (Occupationally Unexposed) Subjects. Am. Ind. Hyg. Assoc. J. 1997, 58, 704–712. [Google Scholar] [CrossRef]
- Bevan, R.J.; Slack, R.J.; Holmes, P.; Levy, L.S. An Assessment of Potential Cancer Risk Following Occupational Exposure to Ethanol. J. Toxicol. Environ. Health Part B 2009, 12, 188–205. [Google Scholar] [CrossRef]
- Cresswell, A. Hazardous Substance Fact Sheet (Ethyl Alcohol). 2007. Available online: https://www.nj.gov/health/eoh/rtkweb/documents/fs/0844.pdf. (accessed on 24 August 2021).
- Nielsen, G.D.; Alarie, Y. Sensory irritation, pulmonary irritation, and respiratory stimulation by airborne benzene and alkylbenzenes: Prediction of safe industrial exposure levels and correlation with their thermodynamic properties. Toxicol. Appl. Pharmacol. 1982, 65, 459–477. [Google Scholar] [CrossRef]
- Dey, A. Semiconductor metal oxide gas sensors: A review. Mater. Sci. Eng. B 2018, 229, 206–217. [Google Scholar] [CrossRef]
- Fine, G.F.; Cavanagh, L.M.; Afonja, A.; Binions, R. Metal Oxide Semi-Conductor Gas Sensors in Environmental Monitoring. Sensors 2010, 10, 5469–5502. [Google Scholar] [CrossRef] [Green Version]
- Ridha, N.J.; Alosfur, F.K.M.; Jumali, M.H.H.; Tahir, K.J.; Madlol, R.A.; Al-Dahan, N. Ethanol sensor based on 1D and 2D ZnO nanostructures. In Proceedings of the International Conference of Numerical Analysis and Applied Mathematics, Rhodes, Greece, 23–28 September 2020; p. 050052. [Google Scholar]
- Kotchasak, N.; Wisitsoraat, A.; Tuantranont, A.; Phanichphant, S.; Yordsri, V.; Liewhiran, C. Highly sensitive and selective detection of ethanol vapor using flame-spray-made CeOx-doped SnO2 nanoparticulate thick films. Sens. Actuators B Chem. 2018, 255, 8–21. [Google Scholar] [CrossRef]
- Kumar, R.; Liu, X.; Zhang, J.; Kumar, M. Room-Temperature Gas Sensors Under Photoactivation: From Metal Oxides to 2D Materials. Nano-Micro Lett. 2020, 12, 164. [Google Scholar] [CrossRef]
- Hermawan, A.; Asakura, Y.; Yin, S. Morphology control of aluminum nitride (AlN) for a novel high-temperature hydrogen sensor. Int. J. Miner. Met. Mater. 2020, 27, 1560–1567. [Google Scholar] [CrossRef]
- Vijayakumar, S.; Vadivel, S. Fiber optic ethanol gas sensor based WO3 and WO3/gC3N4 nanocomposites by a novel microwave technique. Opt. Laser Technol. 2019, 118, 44–51. [Google Scholar] [CrossRef]
- Yang, S.; Jiang, C.; Wei, S.-H. Gas sensing in 2D materials. Appl. Phys. Rev. 2017, 4, 021304. [Google Scholar] [CrossRef]
- Irshad, R.; Tahir, K.; Li, B.; Sher, Z.; Ali, J.; Nazir, S. A revival of 2D materials, phosphorene: Its application as sensors. J. Ind. Eng. Chem. 2018, 64, 60–69. [Google Scholar] [CrossRef]
- Beladi-Mousavi, S.M.; Pourrahimi, A.M.; Sofer, Z.; Pumera, M. Atomically Thin 2D-Arsenene by Liquid-Phased Exfoliation: Toward Selective Vapor Sensing. Adv. Funct. Mater. 2019, 29, 1807004. [Google Scholar] [CrossRef]
- Mayorga-Martinez, C.C.; Sofer, Z.; Pumera, M. Layered Black Phosphorus as a Selective Vapor Sensor. Angew. Chem. Int. Ed. 2015, 54, 14317–14320. [Google Scholar] [CrossRef]
- Goel, N.; Kumar, M. Recent advances in ultrathin 2D hexagonal boron nitride based gas sensors. J. Mater. Chem. C 2021, 9, 1537–1549. [Google Scholar] [CrossRef]
- Mayorov, A.S.; Gorbachev, R.; Morozov, S.; Britnell, L.; Jalil, R.; Ponomarenko, L.A.; Blake, P.; Novoselov, K.; Watanabe, K.; Taniguchi, T.; et al. Micrometer-Scale Ballistic Transport in Encapsulated Graphene at Room Temperature. Nano Lett. 2011, 11, 2396–2399. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Dean, C.R.; Young, A.; Meric, I.; Lee, C.; Wang, L.; Sorgenfrei, S.; Watanabe, K.; Taniguchi, T.; Kim, P.; Shepard, K.L.; et al. Boron nitride substrates for high-quality graphene electronics. Nat. Nanotechnol. 2010, 5, 722–726. [Google Scholar] [CrossRef]
- Khan, K.; Tareen, A.K.; Aslam, M.; Wang, R.; Zhang, Y.; Mahmood, A.; Ouyang, Z.; Zhang, H.; Guo, Z. Recent developments in emerging two-dimensional materials and their applications. J. Mater. Chem. C 2020, 8, 387–440. [Google Scholar] [CrossRef]
- Liu, L.; Feng, Y.P.; Shen, Z.X. Structural and electronic properties of h-BN. Phys. Rev. B 2003, 68, 104102. [Google Scholar] [CrossRef]
- Feng, P.X.; Chavez, E.; Malca, C. Super Stable Pollution Gas Sensor Based on Functionalized 2D Boron Nitride Nanosheet Materials for High Humidity Environments. Chemosensors 2018, 6, 49. [Google Scholar] [CrossRef] [Green Version]
- Bernard, S.; Miele, P. Polymer-Derived Boron Nitride: A Review on the Chemistry, Shaping and Ceramic Conversion of Borazine Derivatives. Materials 2014, 7, 7436–7459. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Gervais, C.; Maquet, J.; Babonneau, F.; Duriez, C.; Framery, E.; Vaultier, M.; Florian, P.; Massiot, D. Chemically Derived BN Ceramics: Extensive11B and15N Solid-State NMR Study of a Preceramic Polyborazilene. Chem. Mater. 2001, 13, 1700–1707. [Google Scholar] [CrossRef]
- Matsoso, B.J.; Vuillet-A-Ciles, V.; Bois, L.; Toury, B.; Journet, C. Improving Formation Conditions and Properties of hBN Nanosheets Through BaF2-assisted Polymer Derived Ceramics (PDCs) Technique. Nanomaterials 2020, 10, 443. [Google Scholar] [CrossRef] [Green Version]
- Feigelson, B.; Frazier, R.; Twigg, M. III-Nitride crystal growth from nitride-salt solution. J. Cryst. Growth 2007, 305, 399–402. [Google Scholar] [CrossRef]
- Yuan, S.; Toury, B.; Journet, C.; Brioude, A. Synthesis of hexagonal boron nitride graphene-like few layers. Nanoscale 2014, 6, 7838–7841. [Google Scholar] [CrossRef] [PubMed]
- Yuan, S.; Toury, B.; Benayoun, S.; Chiriac, R.; Gombault, F.; Journet, C.; Brioude, A. Low-Temperature Synthesis of Highly Crystallized Hexagonal Boron Nitride Sheets with Li3N as Additive Agent. Eur. J. Inorg. Chem. 2014, 2014, 5507–5513. [Google Scholar] [CrossRef]
- Matsoso, B.J.; Garcia-Martinez, C.; Mongwe, T.H.; Toury, B.; Serbena, J.P.M.; Journet, C. Room temperature ammonia vapour detection on hBN flakes. J. Phys. Mater. 2021, 4, 044007. [Google Scholar] [CrossRef]
- Dölle, S.; Lechner, B.-D.; Park, J.H.; Schymura, S.; Lagerwall, J.P.F.; Scalia, G. Utilizing the Krafft Phenomenon to Generate Ideal Micelle-Free Surfactant-Stabilized Nanoparticle Suspensions. Angew. Chem. Int. Ed. 2012, 51, 3254–3257. [Google Scholar] [CrossRef] [PubMed]
- Cunha, B.B.; Greenshields, M.W.C.C.; Mamo, M.; Coville, N.J.; Hümmelgen, I.A. A surfactant dispersed N-doped carbon sphere-poly(vinyl alcohol) composite as relative humidity sensor. J. Mater. Sci. Mater. Electron. 2015, 26, 4198–4201. [Google Scholar] [CrossRef]
- Rodrigues, R.; Mamo, M.A.; Coville, N.J.; Hümmelgen, I.A. Hydrostatic pressure sensors based on carbon spheres dispersed in polyvinyl alcohol prepared using hexadecyltrimethylammonium bromide as surfactant and water as solvent. Mater. Res. Express 2014, 1, 15605. [Google Scholar] [CrossRef]
- Britnell, L.; Gorbachev, R.V.; Jalil, R.; Belle, B.D.; Schedin, F.; Katsnelson, M.I.; Eaves, L.; Morozov, S.V.; Mayorov, A.S.; Peres, N.M.R.; et al. Electron Tunneling through Ultrathin Boron Nitride Crystalline Barriers. Nano Lett. 2012, 12, 1707–1710. [Google Scholar] [CrossRef] [Green Version]
- Mahvash, F.; Paradis, E.; Drouin, D.; Szkopek, T.; Siaj, M. Space-Charge Limited Transport in Large-Area Monolayer Hexagonal Boron Nitride. Nano Lett. 2015, 15, 2263–2268. [Google Scholar] [CrossRef] [PubMed]
- Dyre, J.C.; Maass, P.; Roling, B.; Sidebottom, D.L. Fundamental questions relating to ion conduction in disordered solids. Rep. Prog. Phys. 2009, 72, 46501. [Google Scholar] [CrossRef]
- Mutuma, B.K.; Garcia-Martinez, C.I.; Dias, R.C.; Matsoso, B.J.; Coville, N.J.; Hümmelgen, I.A. Nitrogen-doped hollow carbon spheres as chemical vapour sensors. New J. Chem. 2019, 43, 8418–8427. [Google Scholar] [CrossRef]
- Li, S.-M.; Zhang, L.-X.; Zhu, M.-Y.; Ji, G.-J.; Zhao, L.-X.; Yin, J.; Bie, L.-J. Acetone sensing of ZnO nanosheets synthesized using room-temperature precipitation. Sens. Actuators B Chem. 2017, 249, 611–623. [Google Scholar] [CrossRef]
- Zhang, K.; Feng, Y.; Wang, F.; Yang, Z.; Wang, J. Two dimensional hexagonal boron nitride (2D-hBN): Synthesis, properties and applications. J. Mater. Chem. C 2017, 5, 11992–12022. [Google Scholar] [CrossRef]
- Filipovic, L.; Selberherr, S. Performance and Stress Analysis of Metal Oxide Films for CMOS-Integrated Gas Sensors. Sensors 2015, 15, 7206–7227. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Wang, D.; Huang, S.; Li, H.; Chen, A.; Wang, P.; Yang, J.; Wang, X.; Yang, J. Ultrathin WO3 nanosheets modified by g-C3N4 for highly efficient acetone vapor detection. Sens. Actuators B Chem. 2019, 282, 961–971. [Google Scholar] [CrossRef]
- Kim, S.J.; Koh, H.-J.; Ren, C.E.; Kwon, O.; Maleski, K.; Cho, S.; Anasori, B.; Kim, C.-K.; Choi, Y.-K.; Kim, J.; et al. Metallic Ti3C2Tx MXene Gas Sensors with Ultrahigh Signal-to-Noise Ratio. ACS Nano 2018, 12, 986–993. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Strand, J.; Larcher, L.; Shluger, A.L. Properties of intrinsic point defects and dimers in hexagonal boron nitride. J. Phys. Condens. Matter 2020, 32, 055706. [Google Scholar] [CrossRef]
- Sagar, C.; Chinthapenta, V. Effect of substitutional and vacancy defects on the electrical and mechanical properties of 2D-hexagonal boron nitride. J. Mol. Model. 2020, 26, 1–13. [Google Scholar] [CrossRef] [PubMed]
- Lee, E.; VahidMohammadi, A.; Prorok, B.C.; Yoon, Y.S.; Beidaghi, M.; Kim, D.-J. Room Temperature Gas Sensing of Two-Dimensional Titanium Carbide (MXene). ACS Appl. Mater. Interfaces 2017, 9, 37184–37190. [Google Scholar] [CrossRef]
- Late, D.J.; Huang, Y.-K.; Liu, B.; Acharya, J.; Shirodkar, S.N.; Luo, J.; Yan, A.; Charles, D.; Waghmare, U.V.; Dravid, V.P.; et al. Sensing Behavior of Atomically Thin-Layered MoS2 Transistors. ACS Nano 2013, 7, 4879–4891. [Google Scholar] [CrossRef] [PubMed]
- Anichini, C.; Czepa, W.; Pakulski, D.; Aliprandi, A.; Ciesielski, A.; Samorì, P. Chemical sensing with 2D materials. Chem. Soc. Rev. 2018, 47, 4860–4908. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Boroujerdi, R.; Abdelkader, A.; Paul, R. State of the Art in Alcohol Sensing with 2D Materials. Nano-Micro Lett. 2020, 12, 1–33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Liu, X.; Ma, T.; Pinna, N.; Zhang, J. Two-Dimensional Nanostructured Materials for Gas Sensing. Adv. Funct. Mater. 2017, 27, 1702168. [Google Scholar] [CrossRef]
- Zhang, H.; Cen, Y.; Du, Y.; Ruan, S. Enhanced Acetone Sensing Characteristics of ZnO/Graphene Composites. Sensors 2016, 16, 1876. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Zhang, B.; Liu, J.; Cui, X.; Wang, Y.; Gao, Y.; Sun, P.; Liu, F.; Shimanoe, K.; Yamazoe, N.; Lu, G. Enhanced gas sensing properties to acetone vapor achieved by α-Fe2O3 particles ameliorated with reduced graphene oxide sheets. Sens. Actuators B Chem. 2017, 241, 904–914. [Google Scholar] [CrossRef]
- Yan, H.; Yang, Z.; Song, P.; Zhang, S.; Wang, Q. Dispersed SnO2 nanoparticles on MoS2 nanosheets for superior gas-sensing performances to ethanol. RSC Adv. 2015, 5, 79593–79599. [Google Scholar] [CrossRef]
- Liang, S.; Zhu, J.; Ding, J.; Bi, H.; Yao, P.; Han, Q.; Wang, X. Deposition of cocoon-like ZnO on graphene sheets for improving gas-sensing properties to ethanol. Appl. Surf. Sci. 2015, 357, 1593–1600. [Google Scholar] [CrossRef]
Analyte | Parameter | 0 wt% | 2.5 wt% | 5 wt% | 10 wt% |
---|---|---|---|---|---|
Acetone | f (kHz) | 1 | 1 | 3 | 3 |
S (×10−2 ppm−1) | 1.8 | 2.1 | 0.042 | 0.72 | |
LoD (ppm) | 86.2 | 43.2 | 460 | 144 | |
Ethanol | f (kHz) | 1 | 3 | 3 | 1 |
S (×10−2 ppm−1) | 1.5 | 1.6 | 0.045 | 0.19 | |
LoD (ppm) | 30.4 | 61.7 | 542.6 | 133.5 | |
Acetone: Ethanol (1:1) | f (kHz) | 1 | 3 | 1 | 1 |
S (×10−3 ppm−1) | −9.1 | 7.0 | 7.2 | 10.0 | |
LoD (ppm) | 30.4 | 18 | 197 | 439 |
