According to the Education 4.0 Framework that operationalizes the fourth industrial revolution in education, technological innovation is transforming education. People need new skills to use contemporary technologies meaningfully in the learning process. Technology has improved very fast, and it has been difficult to apply many of its affordances in education. The concept of affordances was introduced by Gibson [1
] more than forty years ago to specify the properties of an object that allow use in one way or another. This does not mean that the object has been used in this way, but it could be potentially used thus, because it has specific properties. Hutchby [2
] applied the concept of affordances in the context of using technology and argued that technological affordances are “functional and relational aspects which frame, while not determining, the possibilities for agentic action in relation to an object” (p 444). He found that the concept was needed to contrast social constructivism that focused heavily on the social construction of the learning process. This means that the learning process can be designed in a social context only within the limits of the objects that form a material environment around the learners. Of course, the environment does not constitute only the physical world of objects but also cultural and structural parameters—other people, their attitudes towards technology, and the learning process and rules set by the people in society. In this way, the decision to use or not use some specific technology in an educational context depends on the technology, the environment and the people. This is in line with the ecological model of agency (see [3
]), which highlights that the agency in decision making is not the ability of a human but a combination of the competence and purposes of the human in the context of the environmental conditions. In order to make a decision to use some technology in a learning situation depends first on the professional competence of the learner (do I have the needed knowledge and skills, do I value the use of technology?) and his/her purposes (do I have goals that could be achieved using technology, do I have goals to achieve transferable skills and positive attitudes towards technology?). However, it also depends on the environment in a specific situation and on the affordances of the technology. The technology will be taken into active use only if it has the properties needed in the particular situation and, more likely, if the environment supports it—if the cultural, structural and material conditions are supportive. For example, other learners should also have a positive attitude towards using the technology in order to avoid social exclusion, and there should be available enough time and technical support for using this technology, and enough budget to equip all learners with the technology.
Due to different reasons, technology has been used in education much less than it has the potential to be according to its affordances. For example, Pedaste and Leijen [5
] found in a review that educational technologies are mainly designed to improve subject knowledge and skills, or to support collaboration and self-regulation, but not usually to enhance students’ learning skills and subjective well-being. A similar finding was revealed in a literature review studying the use of open learner models in the context of self-regulated learning [6
]. The study showed that technology (open learner models in this case) has been mainly used to support students’ cognitive/metacognitive and motivational learning processes, but not their emotional ones. Panadero’s [7
] framework describing four main areas of self-regulated learning—cognitive, metacognitive, motivational and emotional—was used in this case. We found the same framework to be useful in our study because inquiry-based learning, which is our main focus, is also a self-regulated learning approach. In the context of learning with mobile phones and tablets, Pedaste et al. [8
] found that only five percent of the students in middle school use their devices actively in different ways for learning according to their affordances—for searching and sharing information, communication and collaboration, and content creation. This is also a good example showing that the affordances of the technology are not always used, even if the students have the skills but lack purpose or support from the teacher—agency is formed by a combination of these. Thus, it seems that the potential of technology affordances is usually not fully applied in educational settings. The current study focuses on one of the emerging technologies—augmented reality—and discovers how its affordances have been applied in the context of inquiry-based learning and how to further open its potential.
Augmented reality (AR) combines the real and the virtual worlds. It can be defined as a technology that enriches the real world with digital elements [9
] such as 3D animations, images or videos. The coherence of the real and the virtual world is achieved through a camera that is connected to a digital device (see [10
]). AR can be used with different devices such as smartphones, tablets, laptops, computers or head-mounted displays. In any of these cases, the digital elements are superimposed on a user’s real-world view. There are two main ways the AR application types can be described. First, the types can be divided into marker-based and markerless AR applications [11
]. Marker-based applications use simple markers such as images and QR-codes to display the digital information. Markerless applications usually require a GPS signal and therefore depend on the location, but can also use sensors as physical inputs in order to display the virtual information. Second, Cheng and Tsai [12
] divide the application types into location-based and image-based AR. Location-based applications need position data to identify the location, and image-based AR applications work by registering the position of digital objects using real-world images. In addition to these types, AR applications can also be described based on the ARCore and ARKit frameworks [13
]. Both frameworks support the capability of detecting flat surfaces, enabling to project AR objects accurately in relation to the physical world, e.g., on a table or floor. The AR objects are displayed on the surface, and the position of the objects is recognized in cooperation with gyroscopes and cameras.
There are different technologies to augment reality for learning. High-quality solutions need a headset, e.g., Microsoft HoloLens. These solutions are usually too expensive for schools, and the content development for high-quality headsets is more expensive and demanding than solutions that use mobile phones and tablets to augment the real world. Therefore, we focus in the current study on mobile AR, which we define as AR solutions that need mobile phones or tablets. Mobile AR has currently become more accessible and therefore emerged in the field of education. AR technologies provide several educational affordances. For example, according to the literature review from Wu et al. [14
], there are five main affordances of using AR in education, but not all of them may be solely linked to AR. First, learners could visualize objects and places that could not easily be seen in real life; for example, objects that are too small to see with the naked eye, such as molecules and atomic structures, or places that could be dangerous or impossible to visit, such as the deep ocean floor and high mountains. Secondly, Wu et al. [14
] point out that AR could be efficient for interacting with 3D objects. This means that learners could view the objects from different sides and go inside them. This could be very helpful in learning spatial skills in geometry, or even in better understanding complex objects in biology, e.g., the structures of a cell. Third, mobile AR could provide possibilities for collaborative and situated learning. For instance, several educational mobile-AR games have been developed that could support learning in different ways. Moreover, AR could enable learners to feel that they are in different places with others and, thus, provide more realistic experiences. That kind of immersiveness might be very important in learning about social-scientific issues and improving empathy in various situations, e.g., war refugees in a camp, or children with special educational needs in different contexts. Finally, AR technologies could also bridge formal and informal learning. For example, students could use AR applications at school during classes, but also at some other places like at museums or in botanical gardens.
In recent years, several literature reviews have been published focusing on the educational aspects of using AR technologies. Akçayır and Akçayır [15
] identified the gaps in AR research in education as they analyzed articles from up to 2015. They focused on the published studies’ time of distribution, learner types, technologies, and the educational advantages and challenges of using AR. They found that the learner type was mainly K12 students, the most commonly preferred technology was mobile devices, and researchers have focused largely on developing students’ academic performance. Saltan and Arslan [16
] analyzed papers from the period 2012 to 2016 in their literature review and focused on the technologies, pedagogical approaches, affordances, educational outcomes and limitations of using AR in education. They found that the affordance of AR was mainly knowledge comprehension. In their review, they also noticed that marker-based applications are often used and the main limitation of the papers was their small sample size. Altinpulluk [17
] determined the trends of using AR in education between the period of 2006 to 2016. He focused on methods, data collection, fields of study, application types and technologies, assets, physical environments, senses, countries, continents, and the most used keywords regarding the application of AR in education. He found that the main educational advantages of using AR were improving academic achievement, improving motivation, improving perception, improving satisfaction and improving interaction. Most of the studies were carried out in the field of science, and mobile AR applications were mainly used. In 2018, Ibáñez and Delgado-Kloos [18
] published a literature review focusing on the use of AR for Science, Technology, Engineering and Mathematics (STEM) learning. They analyzed articles from the period 2010 to 2017 and investigated the main characteristics and design features, instructional processes and measured outcomes of using AR in STEM education. Most AR applications offered simulation or exploration activities for learners, and students’ conceptual understanding was mainly measured. The main evaluated affective learning outcomes were motivation, enjoyment, attitude and engagement. Yilmaz [19
] concentrated on AR trends between the period 2016 to 2017. She reported that during these two years, AR technology has mostly been used in primary and graduate education, and the most explored field of study was science. Mobile AR and marker-based applications were used in preference to other possibilities. The main advantages of using AR for educational purposes were better academic achievement, higher motivation and better attitude. In sum, these systematic literature reviews revealed that the main educational advantages could be the increase in learning performance and higher motivation levels. On the other hand, researchers have recently started looking into the potential of interactive AR technologies that could be even more beneficial in enabling inquiry-based learning [20
]. The potential of implementing AR in inquiry-based learning has not been revealed, because generalizations based on the studies have not been made yet.
Inquiry-based learning has been considered as one of the key methods in STEM learning in recent years, although it has been applied more and more in other subject areas as well. It has been used because it enables learners to learn scientific thinking in whatever subject area. For example, in STEM, learners learn how to define problems, formulate hypotheses, plan and conduct experiments, make inferences, and communicate the process and outcomes to others to discuss these with them. The main aim of the inquiry-based approach is to solve a problem by applying inquiry skills; however, it is also important that it is a self-regulated process that starts from personal interest and continues by formulating research questions and/or hypotheses, planning data collection, collecting data and making conclusions (based on [21
]). The inquiry process is quite complex, and therefore, it has been divided into different phases. Pedaste et al. [25
] differentiated five general inquiry phases in their review: Orientation, Conceptualization, Investigation, Conclusion and Discussion. According to their framework, inquiry starts from Orientation. In the Conceptualization phase they specify Questioning and Hypothesis Generation sub-phases. The Investigation phase has been divided into Exploration, Experimentation and Data Interpretation sub-phases. The final phase of the inquiry process is the Conclusion and Discussion phase, which is seen in parallel with all the other phases. It consists of Communication and Reflection sub-phases. According to the affordances, AR could be mainly used in the Orientation, Conceptualization and Investigation phases. For example, in the Orientation phase, learners could get acquainted with the situation where the problem occurs. If the situation, when presented in AR, could present more information, then learners’ awareness when defining the problems was higher. In the Conceptualization phase, one could discover information about the object that triggers the augmented world, but it could be also possible to augment the real environment with new objects according to the scenario. In the Investigation phase, it might be possible to interact with the objects under investigation and to collect data about them. In an advanced scenario it could be possible to manipulate the object and run experiments. A few less affordances of AR could be seen in the case of the Conclusion and Discussion phases. Indeed, in the Discussion phase, one might develop a scenario where a virtual assistant could ask questions from the learners and reply to questions.
Thus, AR has many affordances for application in inquiry-based learning, and to achieve not only the cognitive learning outcomes, but also the metacognitive, motivational and emotional aspects of learning. However, it’s not known how widely AR has been used for these purposes and what the effects and detected limitations have been. Therefore, our study used a systematic literature review approach to analyze studies that have applied an inquiry-based learning approach and used AR in one or more inquiry phases. Our intention was to focus on mobile AR, because this is accessible for most students worldwide. More specifically, four research questions were formulated:
What are the purposes of using mobile AR in an inquiry-based learning process?
What are the potential advantages of combining AR with inquiry-based learning?
What are the characteristics of AR-based applications used for inquiry-based learning?
What has been the effect of applying AR in inquiry-based learning?
2. Materials and Methods
The search was conducted in October, 2019, using an EBSCOhost Web service to access several databases: ERIC, Web of Science, IEEExplore, ACM Digital Library, Springer and Scopus. These databases cover the journals indexed in databases covering smaller amounts of publications, such as Web of Science. The advanced search function and the following search terms were selected: “augmented reality” OR “mixed reality” AND “learning” AND “inquiry”. Academic journals, conference materials and books were selected as the types of sources. The time period was specified as 2015–2019 because we were interested in the use of AR in the past five years, because the earlier studies might understand AR more broadly than as it was defined in the current study.

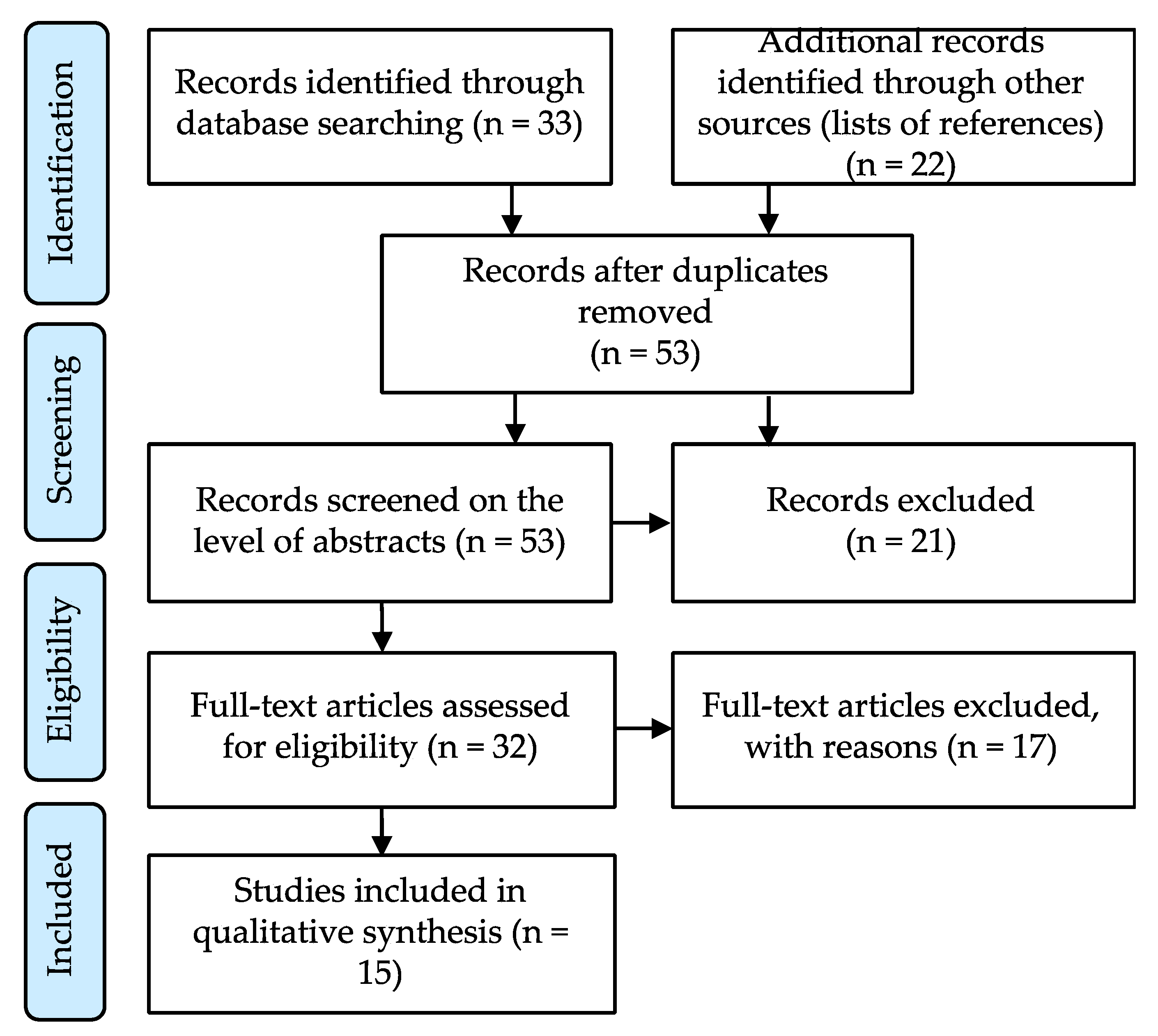

The search resulted in 33 articles (see Figure 1
). In addition, the list of references of the found articles were analyzed and this revealed 22 more articles for our analyses. Among the 55 identified records, two duplicates were removed, and the remaining 53 articles were screened by two researchers against the inclusion and exclusion criteria based on their titles and abstracts. During this screening phase, three inclusion criteria were adopted: focus on K12 education (age group from seven to 18), mobile-AR (excluding headset-based solutions) and inquiry-based learning (the broader term problem-based learning was considered under this because of the significant overlap of these two approaches). Both researchers evaluated each paper and excluded it only if it was clear that at least one of three inclusion criteria was not met. In case of doubt, the article was left in the analysis to make the decision based on the analysis of the full text. The consistency of the evaluations of the two researchers was found using Cohen’s Weighted Kappa. The result was 0.757, showing quite high agreement between the two raters. In case of differences, the evaluation of a third researcher was asked for, and the final decision about the inclusion or exclusion of the article was made collectively. If it was not possible to make the final decision based on the titles and abstracts only, then the full text of the article was studied. In the phase of screening the titles and abstracts, 21 records were excluded, and in the case of full texts, 17 more articles were excluded. Therefore, 15 articles were included in the final analysis of our study. The only exclusion criterion applied in the selection process was the focus of the article being on head-mounted displays.
The coding schema for analyzing all found articles was developed through discussion of the authors based on the research questions. First, the purposes of using mobile AR, potential advantages in inquiry-based learning, characteristics of AR-based applications, and effect of applying AR in inquiry-based learning were described according to the research questions. In addition, some background information was described: the country of the study, the age group, the number of learners and the subject of the study. Finally, we also focused on how the validity and reliability of the study were ensured. Unfortunately, it appeared that in the case of six out of 15 studies, this was not clearly described in the article, and we had to make our judgement based on the presentation of methods and findings of the study. This is one of the limitations of the current review. Therefore, the conclusions made in the current study cannot be taken as generalizations, but as ideas that need to be considered in designing new AR solutions for inquiry-based learning.
Our study focused first on finding the purposes of using mobile AR in inquiry-based learning. The analysis showed that the focus of the studies has been mainly on cognitive goals. This is in line with the other systematic literature reviews that also conclude that a particular form of AR is used to achieve cognitive learning outcomes, e.g., academic performance [15
], academic achievement [17
], knowledge comprehension [16
] and conceptual understanding [18
]. Altinpulluk [17
], Yilmaz [19
], and Ibáñez and Delgado-Kloos [18
] found, in addition, that AR has also had an effect on motivation and satisfaction. In line with this, we found in our review that often, AR had a motivational effect in the context of inquiry-based learning. Ibáñez and Delgado-Kloos [18
] also mentioned positive effects on enjoyment, which is in accordance with our theoretical framework describing emotional learning outcomes that were mentioned in a few articles in our study as well. Therefore, we can conclude that AR has been used in inquiry-based learning to achieve the same purposes that have been mentioned in previous literature reviews. However, two more purposes were revealed that haven’t been specified in other studies. First, one study also focused on developing learners’ metacognitive skills and another on collaboration skills in the context of inquiry-based learning. These seem to be emerging purposes that could be highlighted more in further studies and developmental work on AR scenarios.
The second research question in our study focused on the affordances of AR that could provide possibilities for combining AR with inquiry-based learning. It appears that inquiry-based learning has been applied in most of the found studies at a limited level. Only five studies out of 15 guided learners to all five phases of inquiry according to the inquiry cycle described by Pedaste et al. [25
]. The conceptualization phase was the only one that was present in all found studies. In most of these studies, except one, AR was integrated into the learning process in this phase. It shows that AR could be easily used to learn something about objects or processes to increase conceptual understanding. In addition, about half of the studies implemented AR scenarios in the Investigation phase, but only two studies did it in either the Orientation or Conclusion phase. Surprisingly, AR was applied in the Discussion phase in no studies, although this phase was supported in about half of the studies. Our findings reveal that AR has been used in inquiry-based learning at a quite limited level. According to Wu et al. [14
], the main affordances of AR lie in visualizing objects and allowing interaction with them, which are mainly needed in both the Conceptualization and Investigation phases; however, the third affordance of collaborative and situation learning could be perfectly applied in all other inquiry phases as well. For example, AR could be used in the Orientation phase to immerse learners in the situation where the problem appears, as was done in the case of a few studies found in the current literature review. However, the same scenario could also be used in the conclusion phase, where the learners could be situated at the initial situation where the problem appeared, but now with the information they collected in the Investigation phase to enable them to make a conclusion. The affordance to support collaborative learning could be well applied in the Discussion phase. For example, learners can share their augmented view with peers in order to discuss what they have found, what could be further done, etc. Thus, in conclusion, the affordances of AR could be easily used on all phases of inquiry-based learning, but, according to our literature review, there are no studies that have done this to date. The full potential of AR in inquiry-based learning needs to be revealed in further studies. In further studies, it would be especially important to concentrate on evaluating inquiry skills because, according to our literature review, the studies usually did not evaluate the effect of the interventions on inquiry skills. The main focus of the evaluation was on the conceptual understanding of knowledge and motivation.
Third, our review focused on the characteristics of AR-based applications used in the context of inquiry-based learning. The analysis revealed that diversity has been quite high in both marker-based versus markerless (see [11
]), and image-based indoors versus location-based outdoors solutions (see [12
]). Regarding AR triggering methods, both marker-based and markerless solutions were often in use, although image-based markers had been used a bit more often. This is surprising because we focused on mobile AR, which enables us to develop scenarios for markerless GPS-based learning. GPS-based AR was used only in four studies out of the 15 in our review. The GPS-based solutions could be used only outdoors, and the finding might also reflect the limitations schools might have in organizing studies outside the school building, although this might be beneficial for students’ health and allow for better immersion in real-world settings. Therefore, we suggest focusing more on developing GPS-based AR solutions for learning outdoors. For example, learners might get acquainted with a situation outdoors using AR in the Orientation phase by augmenting the real-world environment with information about objects, or videos of the same environment from the past or the future according to different predictions. Next, they could learn about different objects and processes in the learning scenario in the Conceptualization phases. After that, the learners could run some interactive experiments in AR and then draw conclusions in the Conclusion phase by selecting different developed scenarios in AR. All of these phases could be communicated and reflected on with peers in the Discussion phase in order to learn more about the studied case, but also to achieve an increase in inquiry skills.
Our fourth research question was asked about the effects revealed by applying AR in inquiry-based learning. As it was already found that inquiry skills were not assessed in almost all of the studies, we looked more closely at the more general cognitive, metacognitive, motivational, emotional and collaborational effects. Most of the studies confirmed the positive effect of AR scenarios on one or more learning outcomes. The diversity of cognitive effects was quite high—knowledge, conceptual understanding and the ability to take different perspectives into account. Motivational effect was operationalized through increases in attention, students’ interest, attitudes, satisfaction, engagement and levels of participation. The positive emotional effect was measured based on enjoyment, empathy, affective connection and positive emotions. It was found that the motivational effect usually appeared if the scenario focused on several inquiry phases, and in all cases where AR was also used in the Orientation or Conclusion phase. For some reason, the motivational effects were found mainly in cases of image-based AR technologies and less often in cases of GPS-based AR. In contrast, the results revealed that GPS-based markerless AR solutions often had positive effects on emotional aspects and that this was not the case for marker-based solutions. This does not show that the marker-based and markerless AR solutions do have different effects on learners’ motivation and emotion, but this needs to be studied more in the future. Currently, the number of studies is too small to make any generalizations.
Our study enabled us to answer all four research questions formulated in the beginning. First, we found that AR has been, in the context of inquiry-based learning, mainly used to achieve different cognitive learning outcomes, or higher motivation and more positive emotions. Metacognitive skills and collaboration have not often been in focus. Second, the affordances of AR have been applied at a limited level by focusing mainly on the Conceptualization and Investigation phases of the inquiry process. The Orientation phase has been in focus much less than expected, and the Discussion phase has been the focus of the studies, but AR has never been used to support discussion in the 15 studies found in the current literature review. Third, the variety of technical solutions for implementing AR in inquiry-based learning is quite diverse. Both maker-based and markerless solutions have been used successfully to achieve cognitive learning outcomes. However, for some reason, marker-based solutions have shown a greater effect on learners’ motivation, and markerless, GPS-based solutions a greater effect on positive emotions. This would be an interesting question to study further. In addition, further studies need to focus more on applying AR in different phases of inquiry and on assessing inquiry skills as well. Currently, none of the studies specifically evaluated the learning gain in inquiry skills.
Although the findings of the current study allow us to make several suggestions, it’s important to note that there are some limitations that have to be taken into account when applying the conclusions in the following studies. First, our literature review revealed only 15 studies that were in accordance with the inclusion criteria. This shows that this field of study is rather new and some of the potential effects of using AR in inquiry-based learning will be discovered in the future. In addition, the technology used for AR is improving very fast and, therefore, the affordances of mobile AR in education might be extended in the coming years. One more limitation of the current literature review is that the studies were based on quite small samples. For example, 10 of the studies considered the small sample size as a limitation to generalizing their findings, but sample size was quite small in all of the studies. This means that their findings may be relevant only to a specific group of students. One more important limitation is the novelty effect, which has been reported in six papers. Several studies also had concerns regarding the durability of the interventions. Only one paper reported a long-term study. According to this, long-term studies are needed in order to understand their findings better.
In conclusion, the systematic literature review shows that AR is, according to its affordances, a good tool to support inquiry-based learning. It could be applied both indoors and outdoors and the cognitive learning outcomes could be strengthened through positive effects on motivation and emotions. However, the effects of metacognitive and collaboration skills still need to be revealed in studies that focus more clearly on these aspects as well.
