All-Fiber Optic Sensing for Multiparameter Monitoring and Domain-Wide Deformation Reconstruction of Aerospace Structures in Thermally Coupled Environments

Abstract

This study introduces an all-fiber optic sensing network based on fiber Bragg grating (FBG) technology for structural health monitoring (SHM) of launch vehicle payload fairings under extreme thermo-mechanical conditions. A wavelength–space dual-multiplexing architecture enables full-field strain and temperature monitoring with minimal sensor deployment. Structural deformations are reconstructed from local measurements using the inverse finite element method (iFEM), achieving sub-millimeter accuracy. High-temperature experiments verified that FBG sensors maintain a strain accuracy of 0.8 με at 500 °C, significantly outperforming conventional sensors. Under 15 MPa mechanical loading and 420 °C thermal shock, the fairing structure exhibited no damage propagation. The sensing system captured real-time strain distributions and deformation profiles, confirming its suitability for aerospace SHM. The combined use of iFEM and FBG enables high-fidelity large-scale deformation reconstruction, offering a reliable solution for reusable aerospace structures operating in harsh environments.

1. Introduction

A payload fairing (PF) is a protective structure on a rocket that shields the spacecraft from aerodynamic heating and dynamic pressure during launch. It separates immediately after the rocket reaches outer space [1]. Fairing failure can lead to mission failure and significant financial loss. Notable incidents include the Taurus XL [2], PSLV-C39 (2017), and Astra Rocket 3.3 (2022) launches, all of which failed owing to PF separation anomalies. These cases highlight the need for effective structural health monitoring (SHM) systems to ensure payload protection and fairing reliability.

SHM enables real-time detection of cracks, deformations, and separation anomalies, playing a key role in both single-use and reusable PF systems. As reusable launch components gain prominence, SHM also aids in post-recovery evaluation, reducing operational cost and enhancing safety.

Fiber Bragg grating (FBG) sensors are crucial for SHM of PFs, owing to their light weight, high sensitivity, and resistance to harsh environments [3]. They enable real-time monitoring of strain, temperature, and vibration [4], thereby enhancing mission reliability and supporting PF reusability. The use of SHM technology in PFs has garnered significant attention both domestically and internationally, as evidenced by its integration in prominent launch vehicles, such as the Chinese Long March series [5] and NASA’s space launch system PF test. The next section delineates the primary content and current research status of FBGs in PF monitoring. In aerospace engineering, composite construction techniques for PFs have been investigated extensively. Building on this, Lin et al. [6] comprehensively examined the dynamics of FBG monitoring applications in spacecraft structures, including PFs. Their study emphasized sensor design and reliability validation in high-temperature, vibration, and shock environments. Wang et al. [7] proposed a multichannel FBG array network to capture vibration spectral characteristics during the launch phase and experimentally verified its performance over various vibration spectral characteristics. They later proposed a multichannel FBG array network to capture the vibration spectral characteristics of the PF during launch, experimentally verifying its accuracy in wideband vibration (0–500 Hz). Shafighfard and Mieloszyk [8] investigated FBG sensors for carbon-fiber composite PFs under complicated conditions. Li et al. [9] compared FBG with conventional piezoelectric sensors for PF vibration monitoring, demonstrating the advantages of FBG in anti-electromagnetic interference and long-term stability. Zhang et al. [10] developed a high-resolution FBG demodulation system for spacecraft PF monitoring, achieving an impressive accuracy of 500 Hz, and facilitated the concurrent acquisition of data from multiple sensors, enabling real-time data processing. Shi et al. [11] investigated the thermal–structural coupling effect of a composite PF in high-temperature environments. They embedded FBG sensors to monitor real-time temperature and strain distributions and analyzed the dynamic strain response of the FBG when the PF separated. Furthermore, they verified sensor data reliability through finite-element simulations. Mei et al. [12] tested the FBG stability at extreme temperatures above 300 °C and proposed a temperature compensation algorithm applicable to rocket PF thermal protection system monitoring. Similarly, Ranasinghe et al. [13] reviewed fiber-optic sensing applications in aerospace thermal and structural monitoring, specifically focusing on FBGs in PFs, wing leading edges, and other aircraft components. In collaborative research on FBGs and fairings, the China Aerospace Science and Technology Group and other academic institutions have integrated FBGs into carbon fiber reinforced polymer PF specimens. They have also developed an FBG-based SHM system that facilitates real-time strain and temperature monitoring [14]. Although numerous studies have focused on fundamental applications such as damage detection and separation monitoring, the domains of data processing algorithms and sensor integration processes can be improved considerably. Organizations such as NASA, the European Space Agency, and SpaceX have attained high proficiency in integrating FBGs with PFs [15,16,17,18]. Although numerous issues in practical engineering applications have been addressed successfully, others remain unresolved. The results obtained from this study should prove beneficial in this regard.

This study dynamically monitors PFs using FBG sensors. We deploy these sensors near the separation point of the PF to observe stress and dynamic responses during separation. Additionally, we analyze the thermal coupling effect by utilizing wavelength shift characteristics. The results of this analysis are combined with the strain data to examine the effect of thermal loads on the composite structure. This ensures the temperature safety of the internal payloads. The thermal protection design of the PF is also optimized. Finally, we ensure that the PF can separate smoothly after entering outer space, thereby preventing separation failure and subsequent mission failure. This study explores fiber-optic sensor applications, providing an in-depth understanding of large structure SHM. It also proposes a feasible method for testing PFs under thermally coupled loads by generating meaningful data. Given the expanding demand for space missions, further research in this field is expected to catalyze advances in PF design and monitoring technology.

The remainder of this paper is organized as follows: Section 2 introduces the background, followed by a detailed examination of the FBG sensing principle and strain sensitivity calibration experiment. Section 3 provides a detailed description of the PF of the launch vehicle as the test subject, along with an examination of the loading conditions and FBG sensor application. Section 4 analyzes the results, including temperature and strain sensing. Section 5 employs the inverse finite element method (iFEM) to reconstruct the structural deformation displacement field, and Section 6 concludes the paper.

Although FBG technology has been widely applied, most existing studies focus on vibration monitoring or low-temperature environments. The novelty of this paper lies in addressing the lack of monitoring solutions under extreme thermo-mechanical coupling conditions. Specifically, this study makes three main contributions: 1. Establishing an all-fiber sensing network capable of withstanding 500 °C thermal shock. 2. Proposing a wavelength–space dual-multiplexing method to overcome the cabling capacity bottleneck in large structures. 3. Coupling FBG strain data with the iFEM to achieve high-precision, global deformation reconstruction for payload fairings, thereby providing a direct basis for structural health assessment.

2. Monitoring and Reconstruction Methods

2.1. Basic Theory of FBG Sensors and Testing

FBG is a fiber-optic sensing component that periodically modulates the refractive index of the fiber core. This creates a narrow-band filter within the core. When broad-spectrum light passes through the FBG, the grating reflects narrow-band light with a central wavelength ${\lambda }_B$ while transmitting other wavelengths. Changes in temperature and strain induce changes in the period and refractive index of FBG, thereby altering its reflection and transmission spectra.

The fiber is subjected to axial stresses, resulting in axial strain ε. The strains in the two directions perpendicular to the axis are -με (where μ denotes Poisson’s ratio), and the shear stress is zero. Assuming a Cartesian coordinate system where the z-axis (direction 1) aligns with the longitudinal axis of the optical fiber, and the x- and y-axes (directions 2 and 3) lie in the cross-sectional plane, the fiber is subjected to a uniaxial stress state. Consequently, the strain tensor S applied to the fiber can be expressed as follows:

$$S=\left[\begin{array}{c}{S}_1\\ S_2\\ S_3\\ S_4\\ S_5\\ S_6\end{array}\right]=\left[\begin{array}{c}-\mu \epsilon \\ -\mu \epsilon \\ \epsilon \\ 0\\ 0\\ 0\end{array}\right]$$

(1)

The grating period change designated as $\Delta \Lambda$ is influenced by strain denoted as ε, according to the following equation:

$$\Delta \Lambda =\epsilon \Lambda$$

(2)

where $\Lambda$ denotes the femtosecond FBG (FsFBG) period.

The change in effective refractive index $\Delta n_{eff}$ is given by

$$\Delta n_{eff}={\displaystyle \frac{{n_{eff}}^3\epsilon }{2}}\left[\mu p_{11}-\left(1-\mu \right)p_{12}\right]$$

(3)

where $p_{11}$ and $p_{12}$ denote the optical elasticity coefficients of the fiber that define the effective optical elasticity coefficient $P_e$ as follows [19]:

$$P_e={\displaystyle \frac{n_{eff}^2}{2}}\left[p_{12}-\mu \left(p_{11}+p_{12}\right)\right]$$

(4)

and

$${\displaystyle \frac{\Delta {\lambda }_B}{{\lambda }_B}}={\displaystyle \frac{\Delta \Lambda }{\Lambda }}+{\displaystyle \frac{\Delta n_{eff}}{n_{eff}}}=\left(1-P_e\right)\epsilon .$$

(5)

Consequently, the Bragg wavelength drift at ambient temperature is directly proportional to the strain. For an ordinary quartz fiber, the effective elasticity coefficient $P_e$ is approximately 0.22. Assuming a wavelength of 1550 nm, the drift is approximately 1.21 pm for every $1 \mathsf{\mu }\mathsf{\epsilon }$ change in strain ε. However, in an actual high-temperature monitoring environment where an FBG is mounted on a component using ceramic adhesive, the temperature characteristics of the adhesive and its connection with both the component and optical fiber affect the strain transfer. Therefore, the FBG strain response requires further refinement.

2.2. Nonlinear Characterization Study of FsFBG

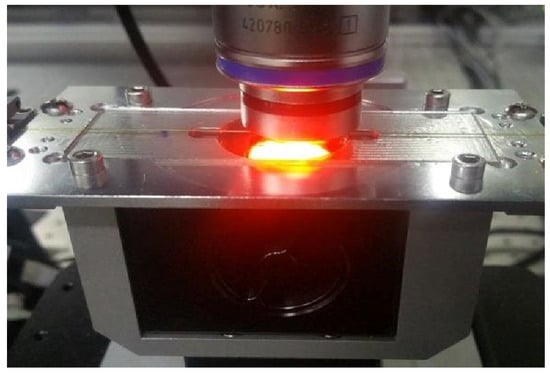

FsFBG was fabricated by directly inscribing a femtosecond laser point-by-point onto the fiber core. This sensor remained stable during extended operation at temperatures up to 850 °C and even survived brief exposure to 1000 °C. Consequently, it is particularly well-suited for strain measurements in high-temperature environments. The manufacturing process is shown in Figure 1 [20].

The peak reflection wavelength (${\lambda }_B$) of the FBG can be expressed as follows:

$${\lambda }_B=2n_{eff}\Lambda$$

(6)

Thus,

$${\displaystyle \frac{\Delta {\lambda }_B}{{\lambda }_B}}={\displaystyle \frac{\Delta \Lambda }{\Lambda }}+{\displaystyle \frac{\Delta n_{eff}}{n_{eff}}}$$

(7)

Accordingly, the Bragg wavelength of the FBG is subject to variation in accordance with refractive index $n_{eff}$ and grating period $\Lambda$. When the temperature changes, denoted by $\Delta T$, the alteration in the grating period, indicated by $\Delta \Lambda$, is attributable to the thermal expansion effect:

$$\Delta \Lambda =\alpha ∆$$

(8)

where $\alpha$ denotes the thermal expansion coefficient of the fiber. The change in effective refractive index, designated as $\Delta n_{eff}$, caused by the thermo-optic effect, is expressed as follows:

$$\Delta n_{eff}=\xi n_{eff}\Delta T$$

(9)

where $\xi$ denotes the thermo-optic coefficient of the fiber, representing the rate of change in refractive index with temperature. Substituting Equations (8) and (9) into Equation (7) yields

$${\displaystyle \frac{\Delta {\lambda }_B}{{\lambda }_B}}=\left(\alpha +\xi \right)\Delta T\equiv K_T\Delta T$$

(10)

where K_T denotes the temperature coefficient of the Bragg grating. When temperature fluctuations remain within small ranges, the thermal expansion coefficient $\alpha$ and the thermo-optic coefficient $\xi$ of the fiber can be regarded as constant. Consequently, Bragg wavelength drift can be modeled as a linear function of temperature, with a correlation coefficient R² > 0.99 for temperature variations below 150 °C. However, PF temperatures frequently exceed this range during actual operation. Consequently, the response of FsFBG to temperature becomes nonlinear, necessitating precise calibration. Given the complex material nonlinearities at high temperatures, a theoretical derivation based on constant coefficients is insufficient. Therefore, Equation (11) is established as an empirical calibration model to accurately describe the temperature–wavelength relationship:

$$\Delta {\lambda }_{\mathrm{B}}=K_{T0}+K_{T1}T+K_{T2}{T}^2+K_{T3}{T}^3$$

(11)

where $\Delta {\lambda }_{\mathrm{B}}$ denotes the temperature-induced wavelength drift, T denotes the temperature, and $K_{T0}$ to $K_{T3}$ are the center wavelength versus temperature coefficients.

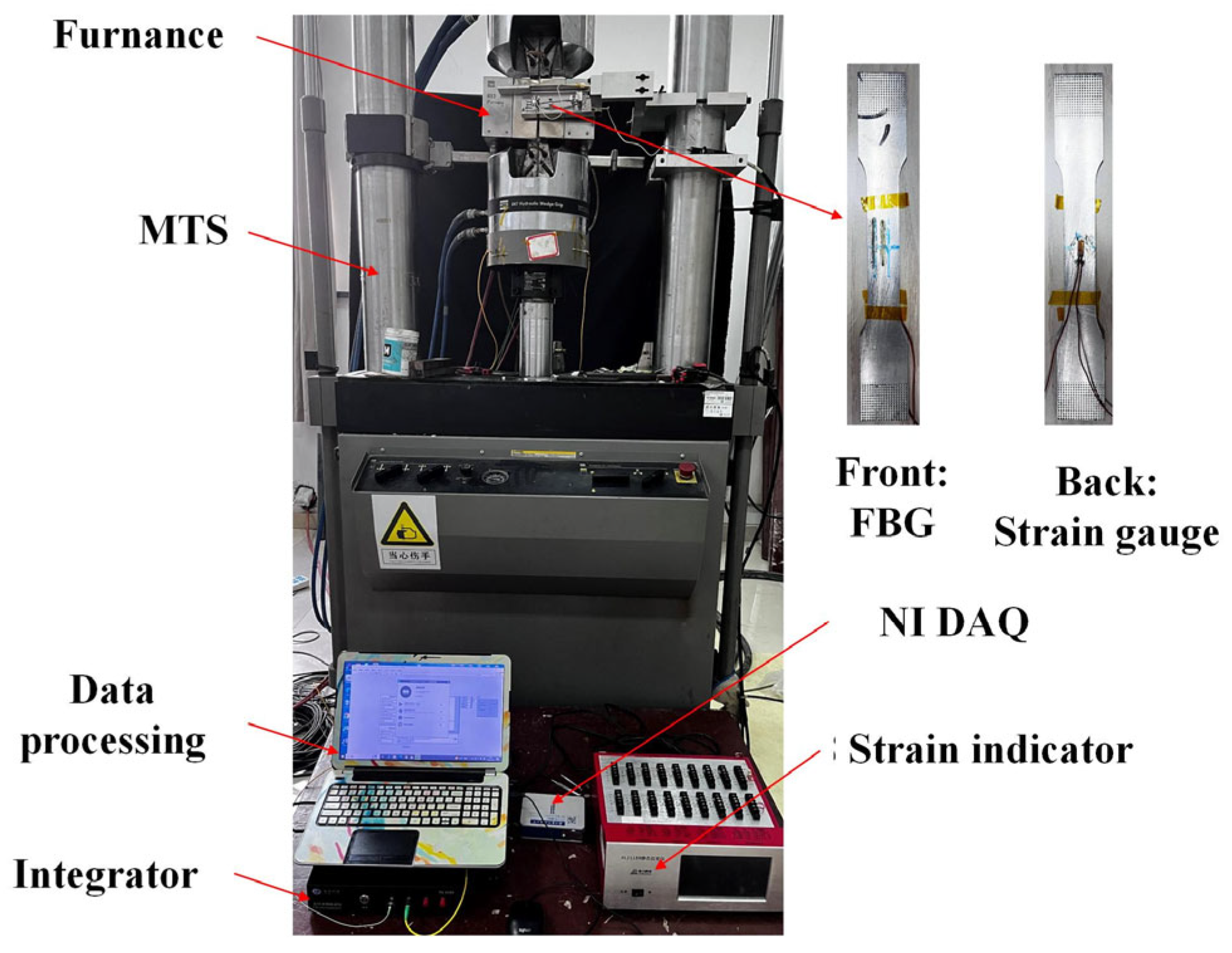

Therefore, an acrylic structural adhesive (Ergo 1690) (KISLING, Zurich, Switzerland) was used to attach the FsFBG sensors to the test piece. Figure 2 depicts the sensor arrangement at 20 °C. The FsFBG was attached to the front of the standard tensile member, with strain gauges attached to the back. Strain was generated using a high-temperature tensile machine, and the strain gauge data were collected in real-time using a static strain gauge (XL2118B) (Zengyi Testing Technology (Shanghai) Co., Ltd., Shanghai, China). A fiber grating demodulation instrument (TV1600) (Beijing Tongwei Technology Co., Ltd., Beijing, China) measured the FsFBG wavelength drift in real-time. Thermocouples (Bosheng Instrument, Chongqing, China) monitored the temperature to obtain the strain measurements from the strain gauges and the FsFBG center-wavelength drift over time.

During the temperature calibration test, changes in the thermocouple temperature and FsFBG wavelength were recorded over time. The initial FsFBG wavelength at 20 °C served as a reference, from which the wavelength drift was obtained. Polynomial constants were fitted by curve-fitting the collected temperature and wavelength drift values in chronological order.

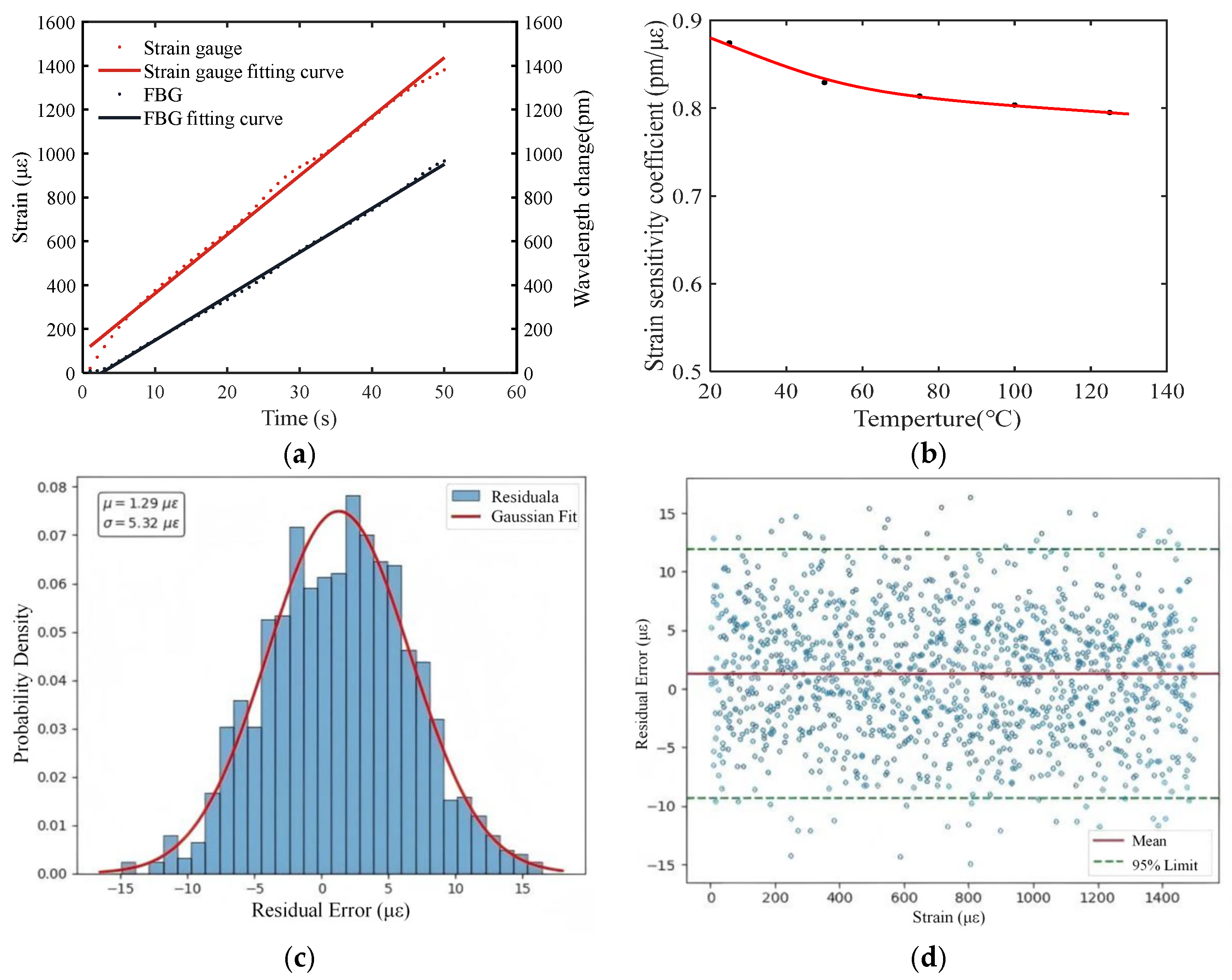

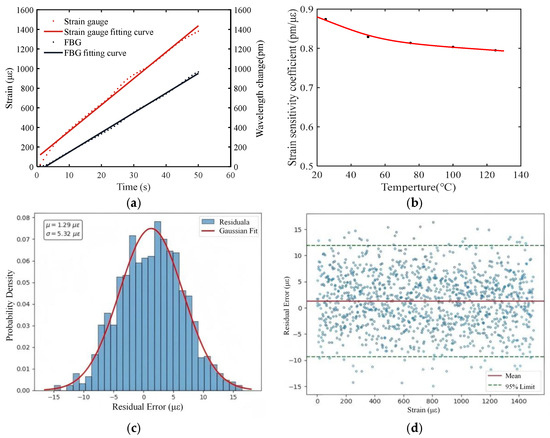

Figure 3a compares the applied strain and the corresponding FBG wavelength drift obtained during the tensile test at 100 °C. The strain sensitivity coefficients of the FBG sensor bonded with acrylic structural adhesive at different temperatures were calculated by fitting the strain and wavelength drift shift after each loading step. The resulting strain sensitivity coefficient curves over the full temperature range are shown in Figure 3b, with a coefficient of determination of R² = 0.9931. The histogram in Figure 3c exhibits a clear Gaussian distribution centered near zero ($Mean\approx 1.5 \mathsf{\mu }\mathsf{\epsilon }$). This confirms that the measurement discrepancies are dominated by random noise rather than systematic sensor bias. Figure 3d plots the residuals across the entire strain range, which are randomly scattered within a constant narrow band ($\pm 2\sigma$ limits). This behavior indicates that the FBG sensor maintains consistent accuracy and linearity throughout the loading process, without divergence at higher strain levels.

2.3. Theoretical Study of Strain-Based Structural Deformation Reconstruction

This subsection addresses the challenges of space limitations and large-area occlusion in measurement environments while ensuring real-time deformation monitoring of components. Accordingly, the theory of structural deformation reconstruction relies on strain information collected by fiber grating sensors. The objective is to achieve high-precision, real-time, in situ deformation monitoring of the workpiece positioner. The iFEM utilizes various error functions and problem-specific finite element approximations to address the inverse problem of full-field shape reconstruction. The displacement distribution of the structure was obtained using displacement calculation equations. Inverse cell selection depends on the structural characteristics under consideration [21,22].

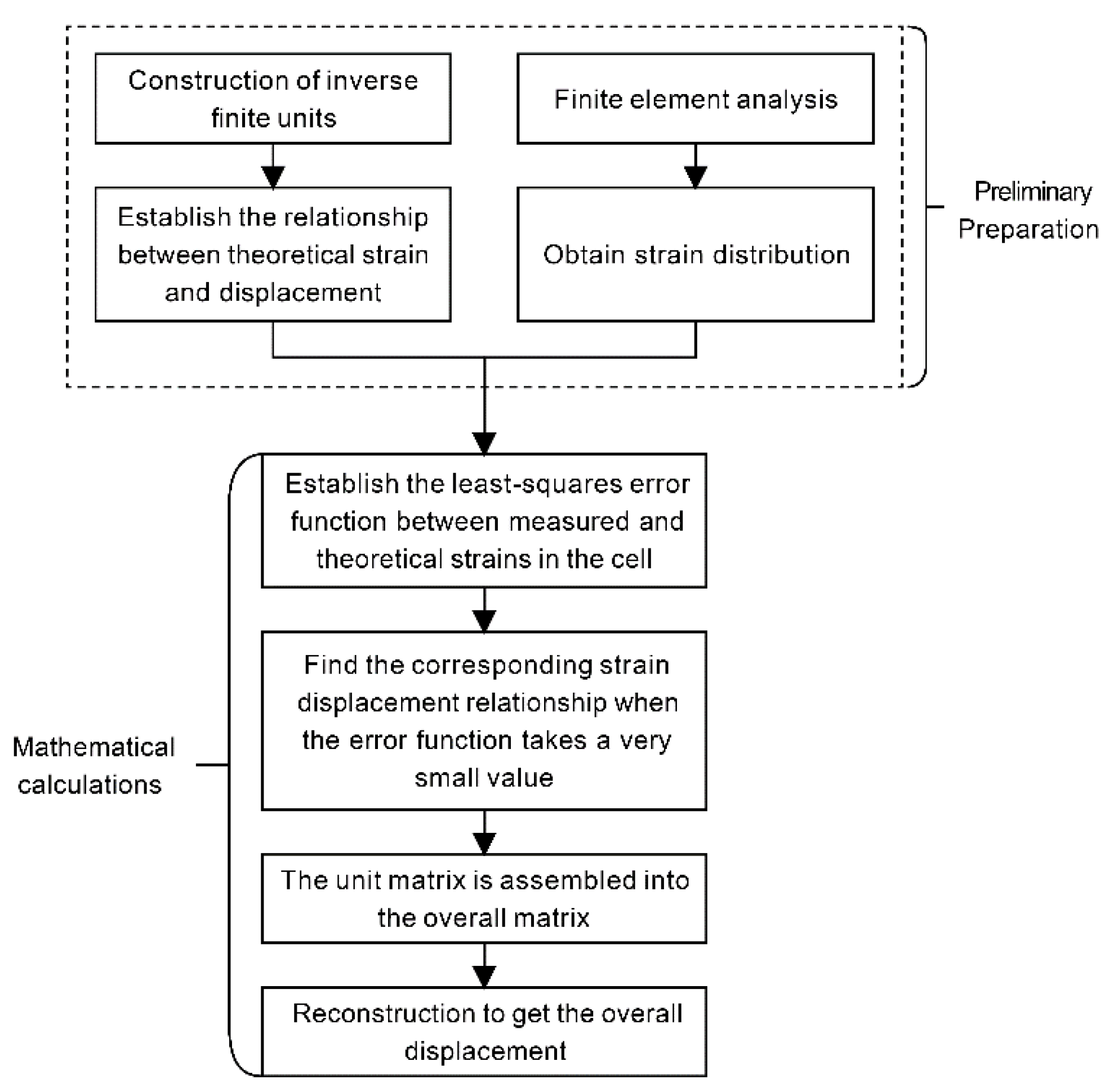

iFEM is a numerical method for solving partial differential equations. It uses the least squares method to relate the calculated strain ${\epsilon }^{\epsilon }\equiv \left\{{\epsilon }_k^{\epsilon }\right\}\left(k=1,\dots ,K\right)$ to the theoretical strain $\epsilon \left(u^e\right)$ to obtain the least squares function:

$${\mathsf{\Phi }}^{\mathrm{e}}\left(u^{\mathrm{e}}\right)={∥\mathsf{\epsilon }\left(u^{\mathrm{e}}\right)-{\mathsf{\epsilon }}^{\mathsf{\epsilon }}∥}^2$$

(12)

The least squares difference ${\mathsf{\Phi }}^e$ of a unit can be expressed as follows:

$${\mathsf{\Phi }}^e\left({\mathrm{u}}^e\right)={\sum }_{k=1}^K{\lambda }_k^e{w}_k^e{\mathsf{\Phi }}_k^e$$

(13)

where ${\mathsf{\Phi }}_k^e$ corresponds to the kth strain measurement, which is calculated from the strain measurements at n discrete locations:

$${\mathsf{\Phi }}_k^e={\displaystyle \frac{1}{n}}{\sum }_{i=1}^n{\left[{\epsilon }_{k\left(i\right)}\left(u^e\right)-{\epsilon }_{k\left(i\right)}^{\epsilon }\right]}^2\left(k=1,\dots ,K\right)$$

(14)

where $w_k^e$ represents a metric coefficient that ensures unit consistency of the summation terms in the equation, and ${\lambda }_k^e$ denotes a dimensionless coefficient that quantifies the correlation strength between the measured and theoretically calculated strains.

The error function, denoted by ${\mathsf{\Phi }}^e\left({\mathrm{u}}^e\right)$, is derived by varying the unknown vector of nodal degrees of freedom and setting it to zero. This process yields the minimum value of the error function, denoted by ${\mathsf{\Phi }}^e\left({\mathrm{u}}^e\right)$, and ultimately leads to the following unit matrix equation:

$${\displaystyle \frac{\mathit{\partial }{\mathsf{\Phi }}^e\left({\mathrm{u}}^e\right)}{\mathit{\partial }{q}^e}}=0\Rightarrow A^e{q}^e=b^e$$

(15)

Matrix A depends on the position of the strain transducer, and vector b relies on the experimentally measured strain data. The unknown nodal degrees of freedom are calculated as $q=A^{-1}b$ according to Equation (15), by introducing a geometric displacement boundary condition to prevent rigid-body motion.

Given that the iFEM formulation only discretizes the strain–displacement relationship, the method does not require knowledge of the material properties, damping properties, or applied loads of the test member. Consequently, the iFEM is well-suited for both static and dynamic loading problems (Figure 4) [23,24].

The primary advantage of iFEM lies in its ability to address the ‘sparse sensing’ issue. Traditional methods provide data only at locations where sensors are physically attached. In contrast, iFEM uses the collected discrete strain data (${\epsilon }^{\epsilon }$) as input constraints. By minimizing the least-squares error functional ${\mathsf{\Phi }}^e\left({\mathrm{u}}^e\right)$, the algorithm employs shape functions to continuously interpolate the displacement field across the entire domain. This enables the prediction of strain and deformation even in regions where no gratings are pasted, effectively reconstructing the global structural state from limited measurement points.

3. High-Temperature Strain Tests for PF

The PF comprised the ZL205A aluminum alloy (PF- ZL205A aluminum alloy: Shanghai Spaceflight Precision Machinery Institute, Shanghai, China) and was coated externally with a heat-insulating layer. It had a diameter of 0.4 m and was 1.4 m high. The PF was categorized into three sections: a 0.65 m high top section, middle section of 0.5 m, and bottom section of 0.25 m. An iron hoop fixture, positioned 0.4 m from the top on one side, was connected to an actuator to apply the force load. The other side was anchored to a steel cable fixed to the ground to maintain the level of the hoop and prevent tipping during loading. The PF was encircled by three quartz heating tubes to apply thermal loads, positioned at the same height as its three components. Its base was bolted to the foundation and secured with a ring of steel cables to prevent excessive bending moments from stressing the structure. The experimental design is illustrated in Figure 5a.

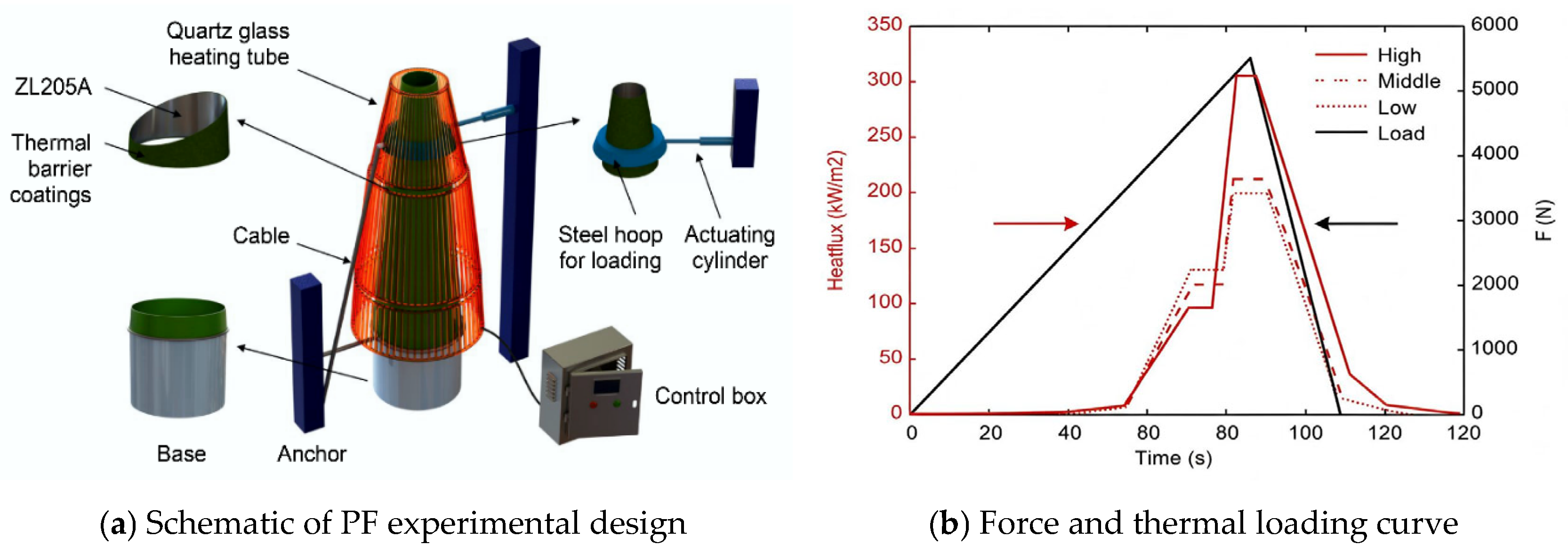

During tensile loading, three sets of lampshades (upper, middle, and lower) applied heat to the test pieces. Figure 5b depicts the resulting force and thermal loading curves. The tension force increased linearly in the range of 0–5.2 kN over 82 s, then unloaded, reducing to 0 N at 110 s. In the initial 42 s, only tension was applied, with the force increasing linearly from 0 to approximately 2.7 kN. Heating of the upper, middle, and lower shades then began, with heat flow reaching its maximum at 82 s, achieving 305, 220, and 200 kW/m², respectively. The cooling process ensued after a 10 s interval. After 110 s, the values decreased to 32 kW/m², 32 Wk/m², and 22 kW/m², respectively. The heat flow rate further decreased to zero after 137 s.

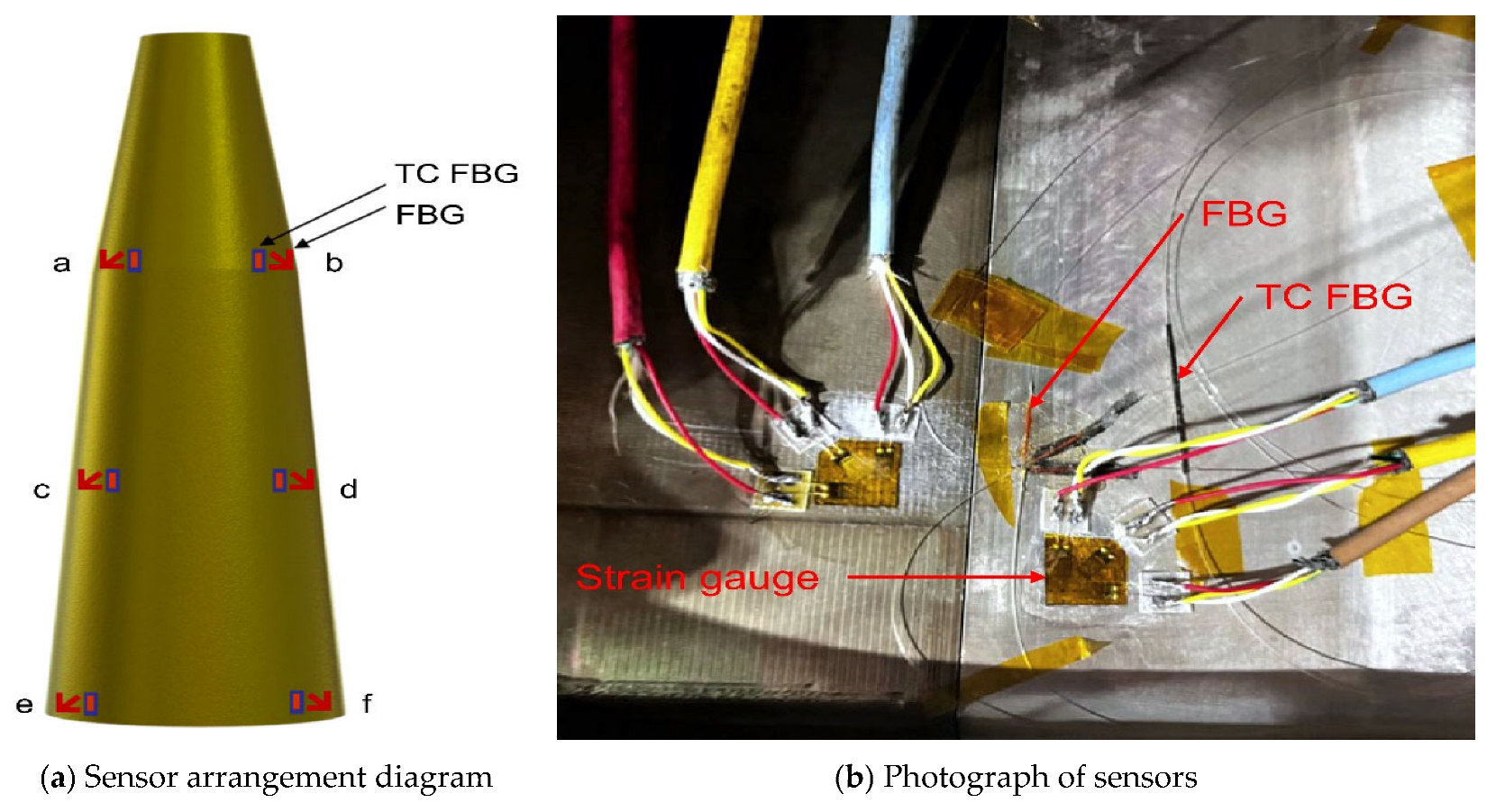

The FBGs were arranged as depicted in Figure 6a to detect the strains during the force-thermal loading test. A total of 18 FBGs, comprising six strain rosettes, were affixed to each of the upper, middle, and lower sections of the test piece and labeled with symbols $a$–$f$. A temperature-compensated FBG sensor was positioned adjacent to each strain rosette and divided into four channels for connection to a fiber grating demodulator (TV125) (Beijing Tongwei Technology Co., Ltd., Beijing, China). To ensure sensor survivability and bonding stability under the 500 °C thermal shock, a high-temperature ceramic adhesive (e.g., Sauereisen DCC) (KISLING, Zurich, Switzerland) was employed for installing the FBGs on the payload fairing. Unlike the acrylic adhesive used in the calibration phase, this ceramic binder offers excellent thermal stability and matches the thermal expansion characteristics of the metal substrate, thereby preventing peeling or shear failure during the heating process. As illustrated in Figure 6b, this sensor rejects the effect of temperature on wavelength change. The temperature-compensated FBG sensor utilizes a metal capillary sleeve over the FBG sensor grid to isolate force and mechanically decouple the fiber from structural strain, serving as a pure temperature reference, and rendering it exclusively sensitive to temperature variations. This FBG arrangement monitored strain at multiple key points on the PF. Although individual FBG sensors provide unidirectional strain data, the structural strain exhibits directionality. To resolve the principal strain direction, the rectangular rosette configuration deployed in Figure 6b was utilized. We adopted the $0$–$45$–$90°$ layout and calculated the principal stress directions and magnitudes using Mohr’s circle principle.

To ensure the accurate transmission of strain and the capability to measure potential compressive deformation, a pre-stressing technique was employed during sensor installation. The FBG sensors were bonded to the PF surface while maintained under slight axial tension. This pre-stress introduces an initial wavelength shift, effectively shifting the zero-strain baseline. Consequently, any compressive strain acting on the structure is registered as a reduction in the Bragg wavelength (relaxation of the pre-tension), allowing the sensor to capture negative strain values within the pre-stress range without fiber buckling.

4. Temperature and Strain Sensing Data Analysis

Throughout the 140 s loading and heating cycle, the FBG signal remained continuous and smooth. Post-experiment inspection confirmed that the ceramic adhesive layer remained intact without debonding or cracking, validating the durability of the installation method under coupled loads. We eliminated the temperature effect on the sensors and rectified it using the strain sensitivity coefficient. This enabled us to obtain strain versus time for different sensors (Figure 7).

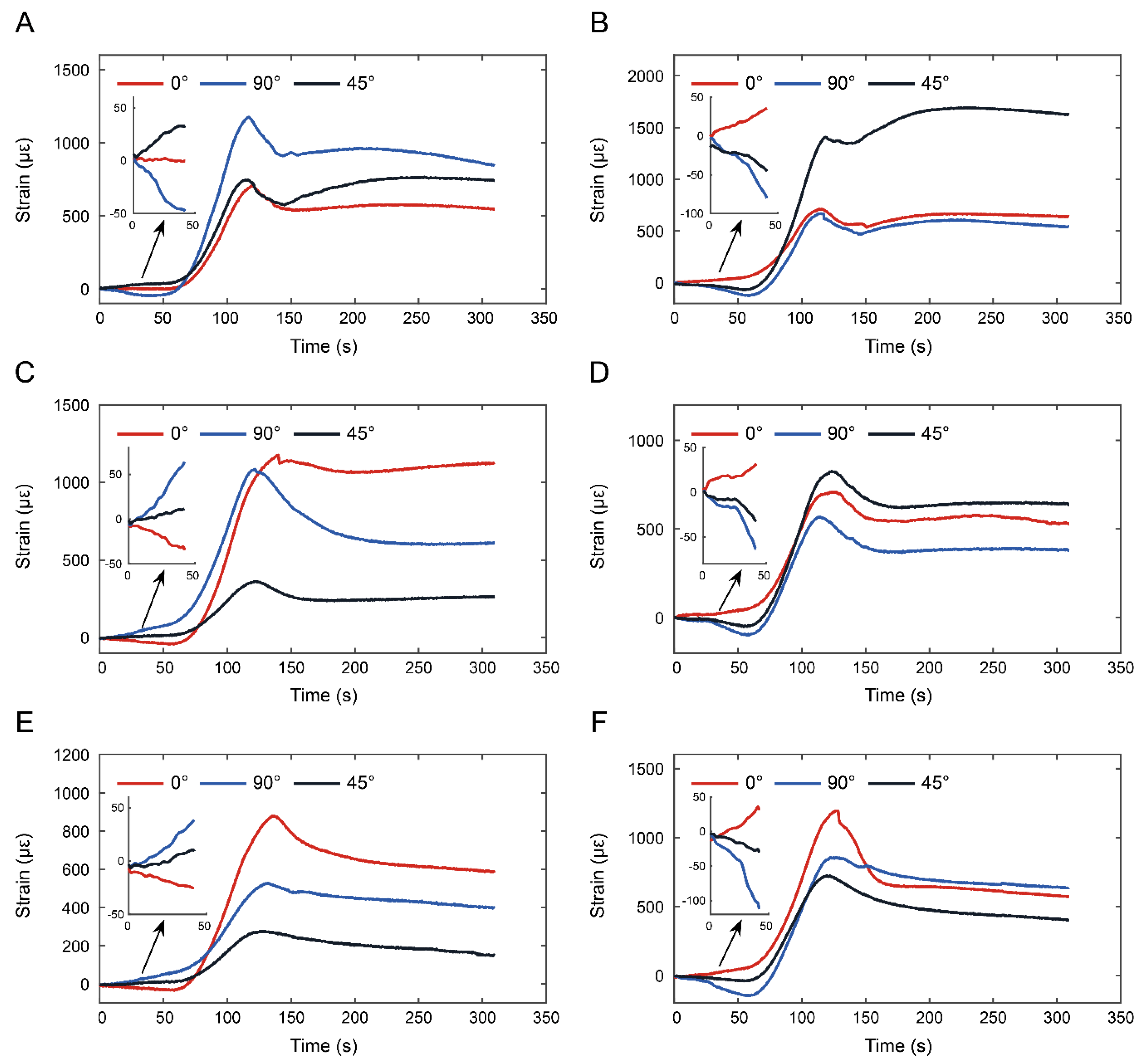

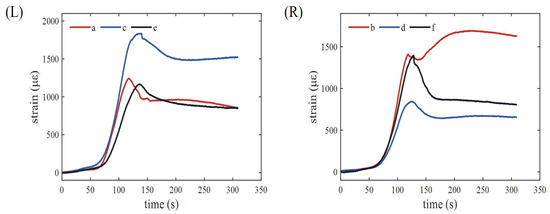

As shown in Figure 7, strain analysis on the left side of the PF at locations $\mathbf{a}$, $\mathbf{c}$, and $\mathbf{e}$ using 90°-arranged FBGs revealed peak strains of 1180 $\mathsf{\mu }\mathsf{\epsilon }$ after 115 s at point $\mathbf{a}$, 1090 $\mathsf{\mu }\mathsf{\epsilon }$ after 123 s at point $\mathbf{c}$, and 530 $\mathsf{\mu }\mathsf{\epsilon }$ after 135 s at point $\mathbf{e}$, decreasing from top to bottom. At approximately 50 s, the strain changes were minimal (<100 $\mathsf{\mu }\mathsf{\epsilon }$) owing to negligible tensile force deformation, which was significantly lower than the thermal expansion effects.

For the 45°-arranged FBGs, peak strains were 720 $\mathsf{\mu }\mathsf{\epsilon }$ after 110 s at $\mathbf{a}$, 370 $\mathsf{\mu }\mathsf{\epsilon }$ after 120 s at $\mathbf{c}$, and 280 $\mathsf{\mu }\mathsf{\epsilon }$ after 130 s at $\mathbf{e}$. The strain trend mirrored that of the 90°-arranged FBGs but with consistently lower values.

For the 0°-arranged FBGs, peak strains were 750 $\mathsf{\mu }\mathsf{\epsilon }$ after 120 s at $\mathbf{a}$, 1170 $\mathsf{\mu }\mathsf{\epsilon }$ after 140 s at $\mathbf{c}$, and 850 $\mathsf{\mu }\mathsf{\epsilon }$ after 140 s at $\mathbf{e}$. The strain at point $\mathbf{a}$ (upper section) was lower owing to the iron hoop, whose thermal expansion—half that of the ZL205A aluminum alloy—restricted the horizontal deformation, leading to reduced strain.

FBGs with a 45° configuration attained the peak strain earlier than those with 90° and 0° configurations. Their strain then stabilized with a variation under 200 $\mathsf{\mu }\mathsf{\epsilon }$, similar to post-unloading behavior.

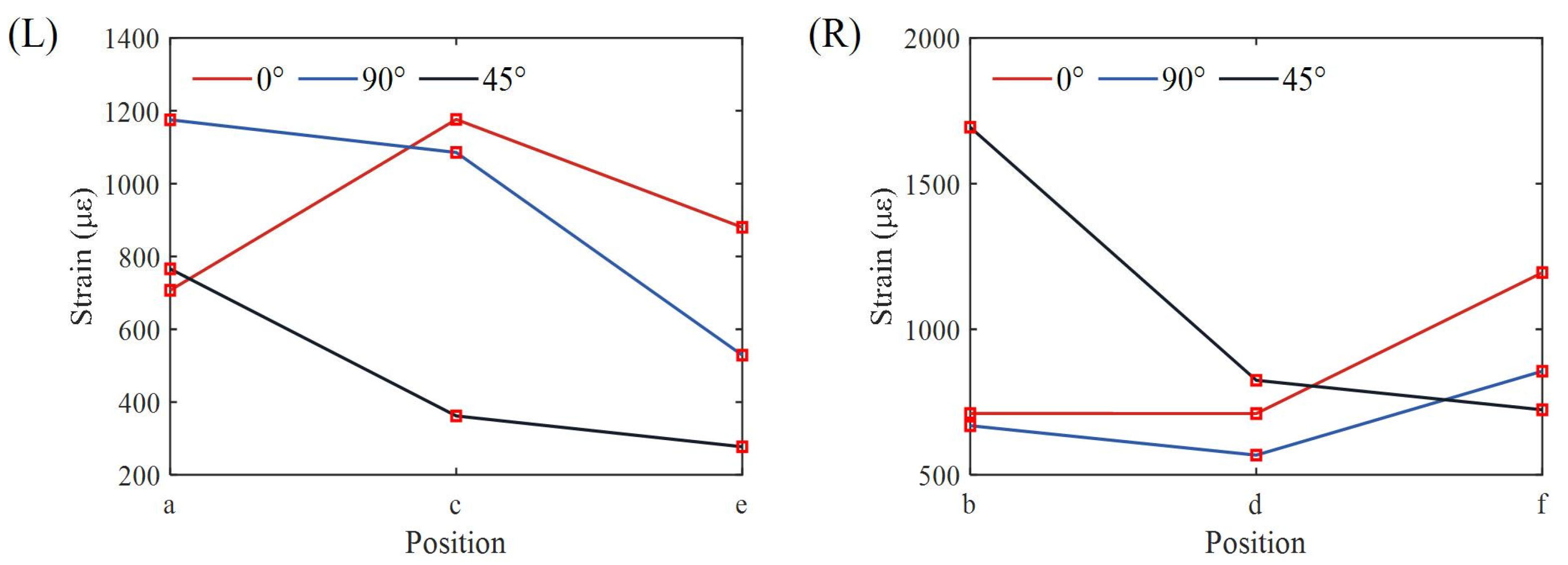

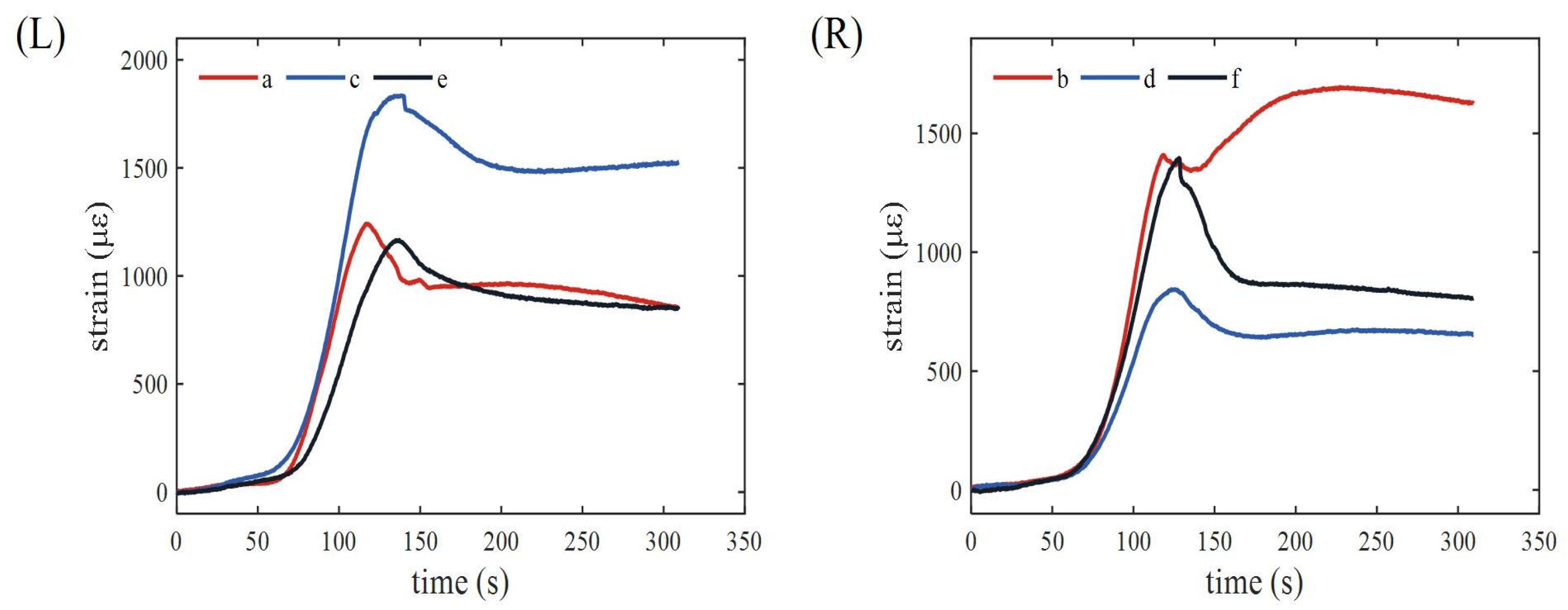

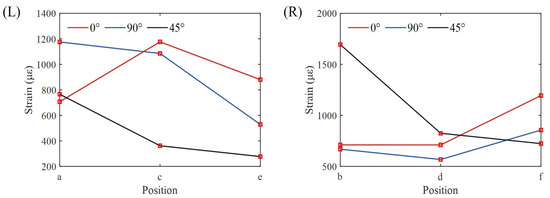

A comparative analysis of the maximum strain values at each location is shown in Figure 8. Figure 9 shows that the upper PF positions $\mathbf{a}$ and $\mathbf{b}$ attain their maximum value initially, with minimal time disparity among other sensor positions. Peak principal strain variations (black and red lines) at the upper and lower ends were negligible. The largest principal strains (1700 $\mathsf{\mu }\mathsf{\epsilon }$) occurred in the middle of the left side, whereas the smallest (800 $\mathsf{\mu }\mathsf{\epsilon }$) occurred in the middle of the right side. Figure 10a presents a cloud map of the principal strains in the PF, illustrating the principal strain information at each location within the monitoring range of the sensor.

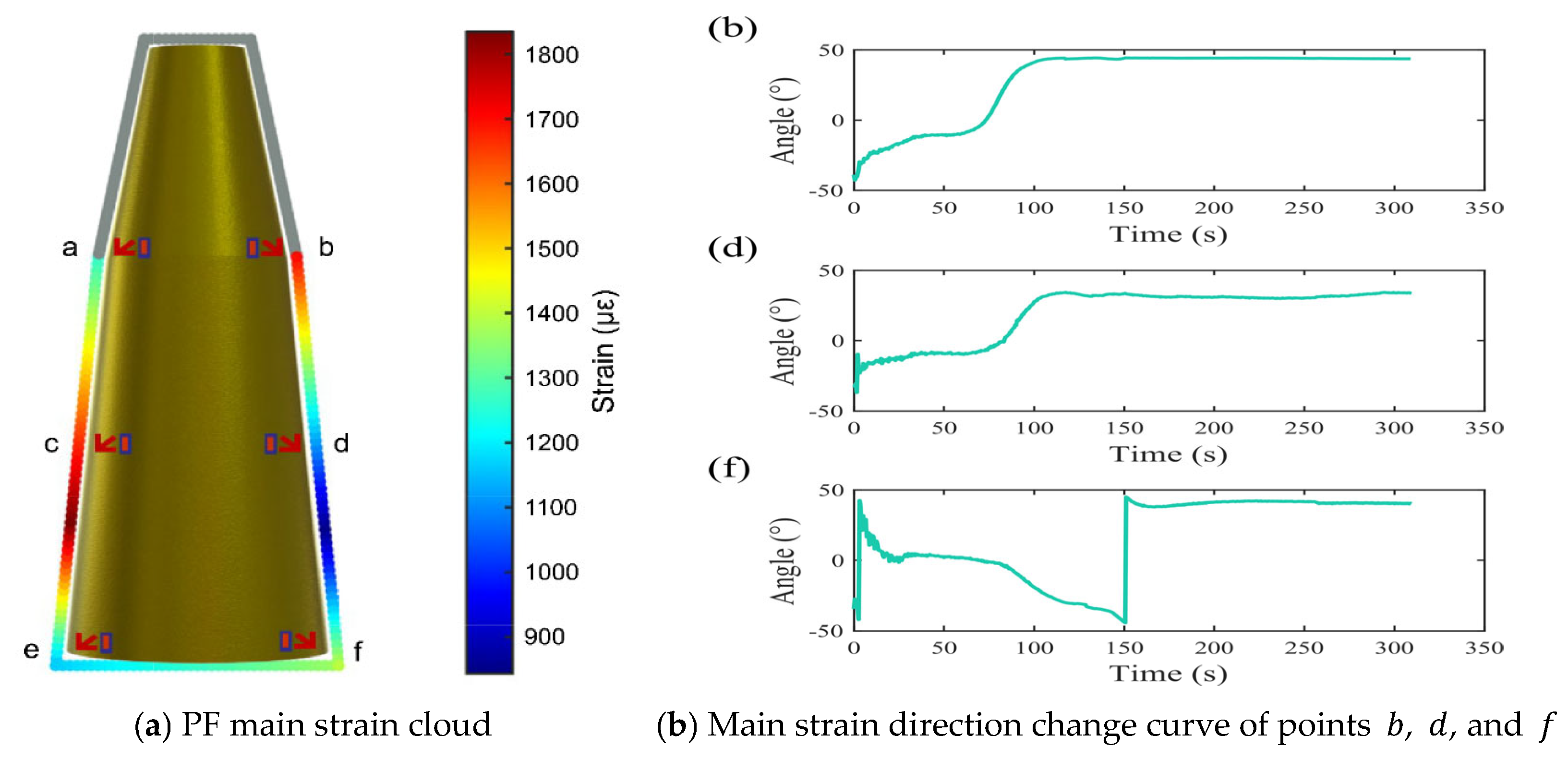

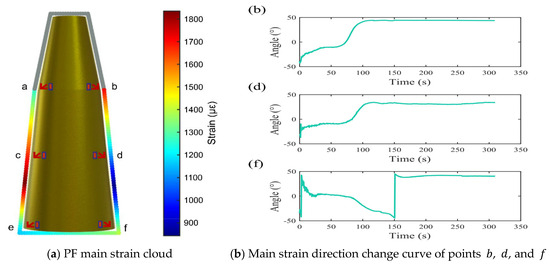

Principal strain direction was also evaluated. As shown in Figure 10b, the dominant orientation at the upper and lower right-side positions stabilized at ~43°, and ~33° in the middle. These results align with the rosette configuration and confirm the directional response under complex thermo-mechanical coupling. The spatial distribution of principal strain is presented in Figure 7F. A clear gradient was observed from top to bottom, with higher strain concentrations in the upper and middle regions. The measurements highlight the combined effect of thermal expansion and mechanical tension, validating the ability of the sensor network to capture global deformation patterns.

5. Structural Displacement Reconstruction

The accuracy of iFEM reconstruction is intrinsically linked to the discretization of the sensor network. Theoretically, the discretization density must be sufficient to capture the spatial variations in the structural strain field. In this study, the sensor layout, with 18 measuring points distributed across three key sections, was designed to match the dominant deformation modes of the payload fairing. Under the applied thermo-mechanical loads, the structure exhibits primarily global behavior, including axial elongation, thermal expansion, and bending. The current sensor spacing is well within the characteristic wavelength of these deformation patterns.

Based on the iFEM algorithm, the left and right sides of the PF were divided into three vertical elements. Strain data from multiple orientations in each region were used to reconstruct the displacement fields through inverse stiffness matrix calculations. Using the discrete strain inputs from the 18 FBG sensors, the displacement field was interpolated to reconstruct the full-surface deformation. As shown in Figure 11a, the iFEM algorithm successfully captured the continuous deformation gradient between the sensor nodes. This confirms that the limited sensor count is sufficient to reconstruct the domain-wide behavior without requiring dense sensor coverage.

Table 1. Critical node displacements of the PF.

Point	Displacement/mm	Point	Displacement/mm
a	19.719	b	27.307
c	6.533	d	9.442
e	1.158	f	1.910

summarizes the displacements at six critical nodes on the PF structure.

The upper section exhibited the largest displacements, with the displacements of nodes b and a reaching 27.3 mm and 19.7 mm, respectively. The displacements decreased toward the base, where nodes e and f exhibited minimal movement (≤2 mm). This gradient reflects the mechanical boundary conditions and the combined effect of thermal expansion and tensile loading. Using these nodal results, the displacement field was interpolated to reconstruct the full-surface deformation across the PF. As shown in Figure 11a, the maximum deformation occurred near the upper-right region, consistent with earlier strain measurements. The deformation field demonstrates clear spatial gradients, providing insights into structural flexibility under high-temperature conditions.

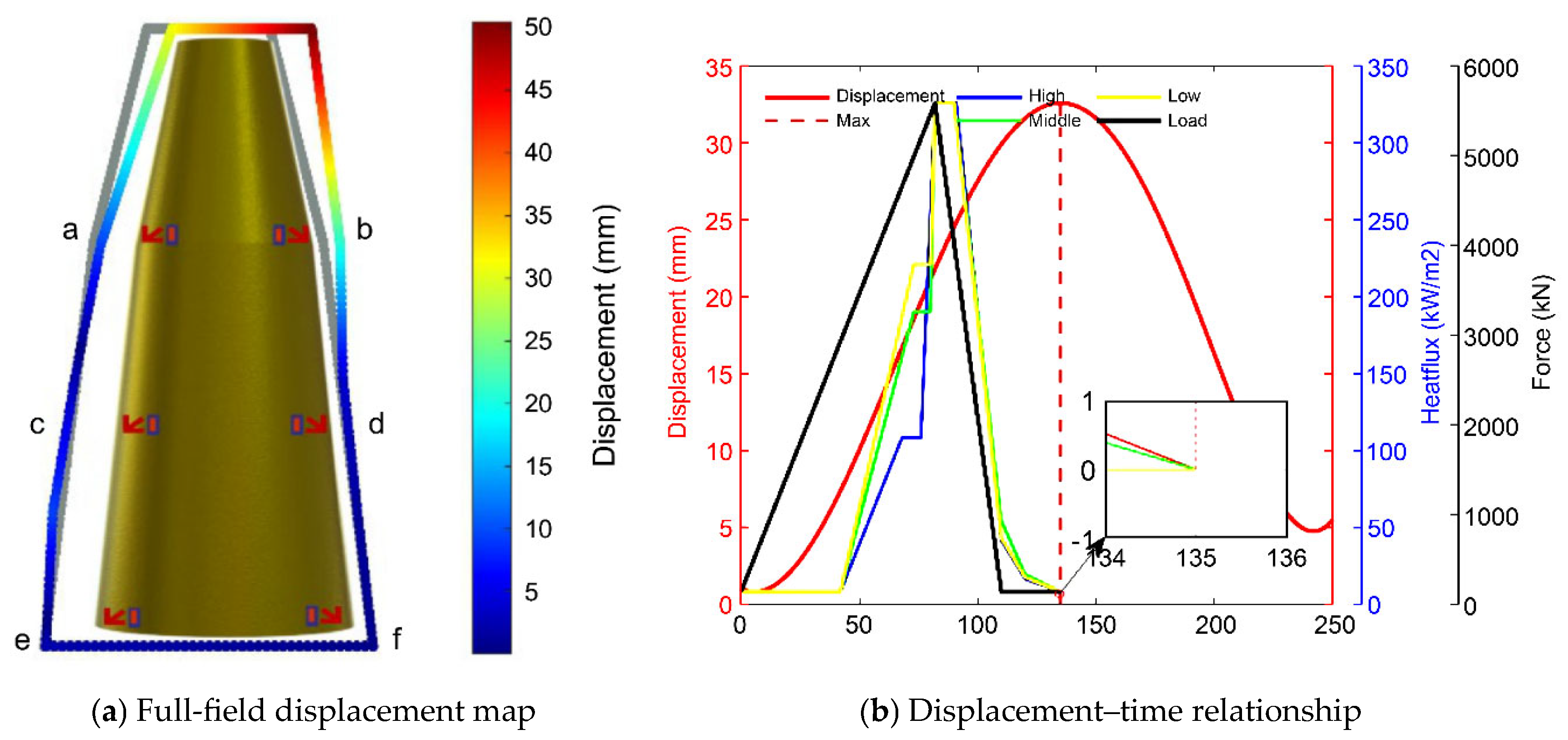

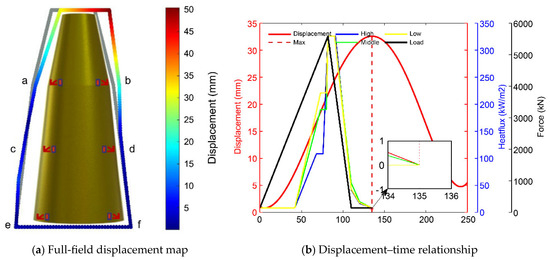

The time evolution of PF morphology is shown in Figure 11b. The displacement increased steadily during the loading and heating phases, with peak deformation occurring at ~110 s. The response exhibited both transient and sustained deformation, capturing both elastic and thermal expansion components. This indicates that the iFEM–FBG system can effectively resolve real-time shape evolution under coupled loads.

The reconstructed displacement resolution surpassed 0.1 mm/m, exceeding typical point-wise strain-based estimations. This enabled detailed identification of nonlinear stiffness changes, asymmetric separation behavior, and local accumulation of thermal strain. Such insight is critical for preventing mistimed separation and sealing mismatches in future reusable aerospace structures. While increasing the number of sensors could theoretically enhance the resolution of localized effects, the current configuration achieves a balance between high reconstruction precision and the rigorous weight and integration constraints of aerospace systems. The results indicate that the selected topology provides sufficient constraints for the inverse elements to accurately map the global displacement field without data redundancy.

6. Conclusions

This study verified the potential reliability of FBG sensors in large-scale aerospace structures by applying them to the thermodynamically coupled SHM of launch vehicle PFs. Experimental findings demonstrated the FBG capacity of the sensor to precisely measure temperature and strain under extreme conditions, such as high temperatures and pressures. This capability overcomes the limitations of conventional sensing technologies and provides effective technical support for real-time monitoring of aerospace structures. The displacement field reconstructed using the iFEM further demonstrates the application value of FBG sensors in structural deformation analysis.

This study introduced FBG sensors to the thermal coupling test of launch vehicle PFs, overcoming technical limitations of conventional electrical sensing in environments with high temperatures, high pressures, and electromagnetic interference. The all-fiber optic sensing network enables simultaneous, high-speed acquisition and transmission of multipoint temperature and strain data, offering a high-precision solution to SHM of ultra-high-speed vehicles under complex conditions. The all-fiber multiplexing grouping of the FBG sensor network is a key innovation.

We constructed an all-fiber-optic sensing network architecture using wavelength-space dual multiplexing technology. This architecture resolved the challenge of simultaneously monitoring multiple locations and physical quantities across large aerospace structures. When combined with iFEM, our innovative inversion of strain data into a structural displacement field enabled cross-scale analysis, moving from local measurements to global deformation reconstruction. This significantly improved the intuition and accuracy of SHM and assessment.

Additionally, we established a dual verification system for structural strength and sensor performance in thermal coupling tests. A comparison of the measurement error distribution (<5%) of FBG and strain gauges was performed to systematically quantify the measurement reliability of FBG sensors in high-temperature environments above 500 °C. This validation method provided standardized data support for subsequent high-temperature tests. This work extends existing FBG and iFEM approaches by demonstrating their integrated use and experimental validation in a reusable payload-fairing thermo-mechanical test scenario, which has been less explored in prior studies.

Optimizing FBG sensor performance for higher temperature ranges will be a key future research direction, adapting to increasingly demanding engineering environments. Concurrently, sensor arrangement and data processing algorithms must be enhanced to improve monitoring accuracy and computational efficiency. This study provides significant experimental data and technical expertise in aerospace SHM, establishing a foundation for advancing related technologies and engineering applications. In future work, we will further strengthen the proposed FBG–iFEM framework for reusable payload-fairing applications by conducting long-duration high-temperature durability and cyclic thermo-mechanical tests of the sensor–adhesive package, quantifying the effects of sensor density and placement on reconstruction accuracy, extending the current quasi-static protocol to separation-relevant transient scenarios, and incorporating uncertainty quantification to report confidence bounds for the reconstructed deformation.
