# Elucidation of the Correlation between Heme Distortion and Tertiary Structure of the Heme-Binding Pocket Using a Convolutional Neural Network

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

## 1. Introduction

_{551}, Sun et al. [19] suggested a significant role of ruffling distortion in redox control. In a systematic study, Imada et al. [20] examined the association between saddling and ruffling distortions and redox potential and indicated that saddling distortion increases the redox potential of heme, while ruffling distortion exhibits the opposite tendency. In another study, a novel distortion correlated with the chemical properties of heme was elucidated. Kanematsu et al. [21] analyzed the molecular structures of hemes in oxidoreductases and oxygen-binding proteins and successfully discovered a distortion correlated with both redox potential and oxygen affinity.

## 2. Materials and Methods

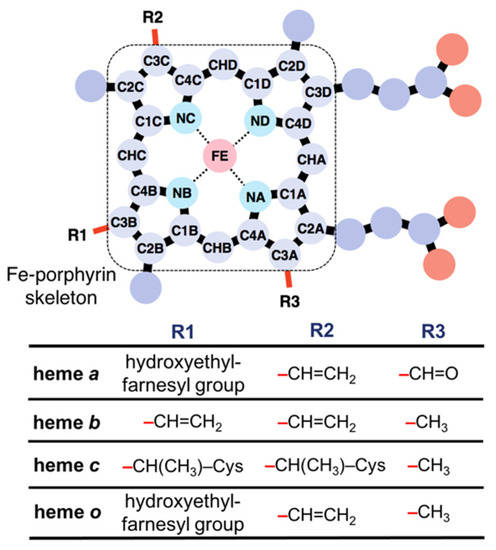

#### 2.1. Data Collation on Heme Proteins and Dataset Preparation for Deep Learning

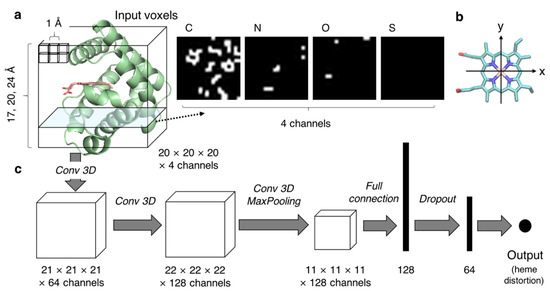

#### 2.2. CNN Model

- 1.
- A subset was split into validation and test datasets at a ratio of 0.2:0.8.
- 2.
- The model was trained using the remaining four subsets (training set) for 300 epochs. (In the training process, a network is trained to reduce the loss between the predicted and observed values by using an optimizer. The number of epochs indicates the number of times that training is carried out for the entire training dataset.)
- 3.
- The model with the minimum value of loss, calculated as the mean-square error, in the validation dataset was selected.
- 4.
- The resulting model was validated on the test dataset; prediction was performed by using the resulting model on the test dataset.

#### 2.3. Clustering and Principal Component Analyses of Heme-Binding Pockets

#### 2.4. Alignment of Amino Acid Sequences of Heme Proteins

## 3. Results and Discussion

#### 3.1. Prediction of Heme Distortion from the Tertiary Structure of the Heme-Binding Pocket Using a CNN Model

^{2}score calculated as follows:

^{2}score is a measure used to evaluate how well the model fits the regression, and its values ranges from –∞ to 1. A moderate correlation (correlation coefficient ≥ 0.6) was found between the observed and predicted values for saddling, ruffling, doming, and waving(y) distortions. Detailed prediction results are presented in Table S1, and the plot of observed and predicted values is shown in Figure S1 using results from the model with the maximum R

^{2}score among the five cross-validation runs as an example.

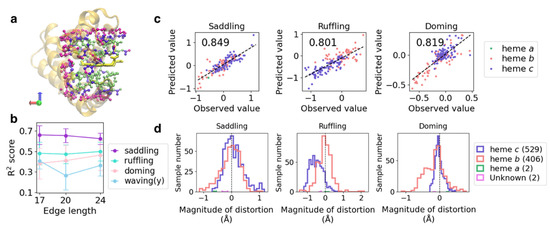

^{2}score. The means and standard deviations of R

^{2}scores of the five cross-validation runs are shown in Figure 3b. Except for the waving(y) mode, changes in R

^{2}score due to differences in the edge length of the input were very small, suggesting that information on the structure of the heme-binding pocket near the pocket surface is sufficient to predict heme distortion. In our previous study examining the correlation between the composition of amino acid residues in the heme-binding pocket and heme distortion [26], no correlation was detected for the waving(y) mode, as opposed to that for the first three vibrational modes. This might be because more detailed information on the tertiary structure of the pocket enabled us to predict even a small conformational difference.

^{2}scores were obtained for all three vibrational modes. The mean values and standard deviations of R

^{2}scores and the root-mean-square errors (RMSEs) of the five cross-validation runs are presented in Table 2, and the corresponding correlation coefficients are listed in Table S2. Although the variation in scores among the cross-validation runs was higher for the doming distortion than for the other two distortions, we noted a strong correlation between the observed and predicted values for all three modes. In particular, high correlation coefficients were obtained for the saddling distortion, regardless of the combination of the test and training datasets; the minimum value of the correlation coefficient was 0.77. The RMSE for each magnitude of distortion averaged over five-cross validation runs showed that the prediction tended to be failed in the region with large distortion as compared with the that around 0.0 (planar structure) (Figure S2). This would be caused by the difference in the number of data; data are abundant for heme with a planar structure but few for highly distorted heme to train a CNN model. A CNN model may be improved by increasing the data of highly distorted heme.

#### 3.2. Differences in the Importance of Information Included in Subsets of Input Data

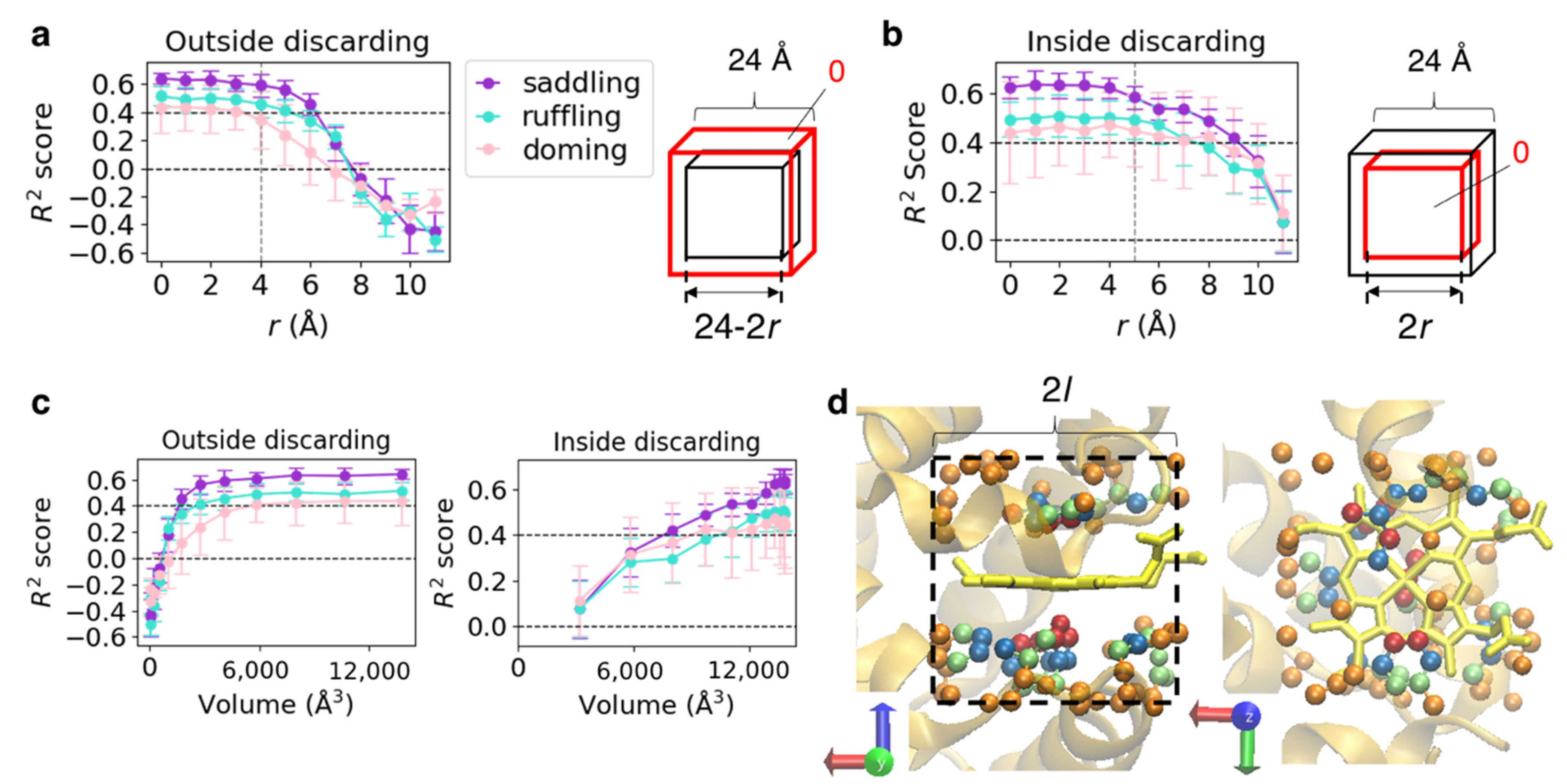

_{outer}and V

_{inner}, respectively. For “outside discarding,” the elements of V

_{outer}− V

_{inner}(a set of elements in V

_{outer}but not in V

_{inner}) were replaced by 0 (0 ≤ r < 12, Figure 4a), that is, the information was removed from the outside of the input voxels. For the “inside discarding,” the elements of V

_{inner}were replaced by 0 (0 ≤ r < 12, Figure 4b), that is, the information was removed from the inside. Since V

_{outer}is equivalent to the input voxels used to train the CNN model, the information is intact when r = 0 in both cases.

^{2}scores obtained from predictions for each test dataset in the five cross-validation runs are shown in the left panels of Figure 4a,b. Because the change in the amount of information loss for a change in r was not linear and differed between “outside discarding” and “inside discarding,” we also plotted the resulting R

^{2}scores against the volume of the region where the information remained (Figure 4c). As shown in Figure 4c, the change in R

^{2}scores was not correlated with the amount of information but depended on the region included in the input for the prediction. With “outside discarding” (Figure 4a), the scores started decreasing significantly at r = 4–6 Å, where the edge length of the inner cube was 16–12 Å, reaching almost 0 at r = 7 Å, where the edge length of the inner cube was 10 Å. Meanwhile, for “inside discarding” (Figure 4b), the scores did not largely change at r = 4 Å, where the edge length of the inner cube was 8 Å, but decreased slowly at r = 5 Å, where the edge length of the inner cube was 10 Å. Based on these results, information from an inclusion region with the edge length of 8–16 Å is essential, while that from an inclusion region with the edge length of 8 Å is non-essential, and A

_{l}is a set of atoms included in the cubic region with edge lengths of 2l. Examples of A

_{l}(l = 4, 5, 6, and 7) are illustrated in Figure 4d using PDB ID 1mba [46]. From these results, a cubic region with the edge length (2l) of < 8 Å contains very few protein atoms; therefore, the structure of the pocket surface is considered to be important for the prediction.

^{2}score decreased in the ruffling mode, whereas no large difference was noted in the saddling and doming modes, suggesting that the steric effect was dominant for the latter two distortions.

#### 3.3. Similarity of the Structure of Heme-Binding Pockets and Hemes

**v**

_{i}, and the similarity score between the ith and jth samples was calculated as the Tanimoto score between

**v**

_{i}and

**v**

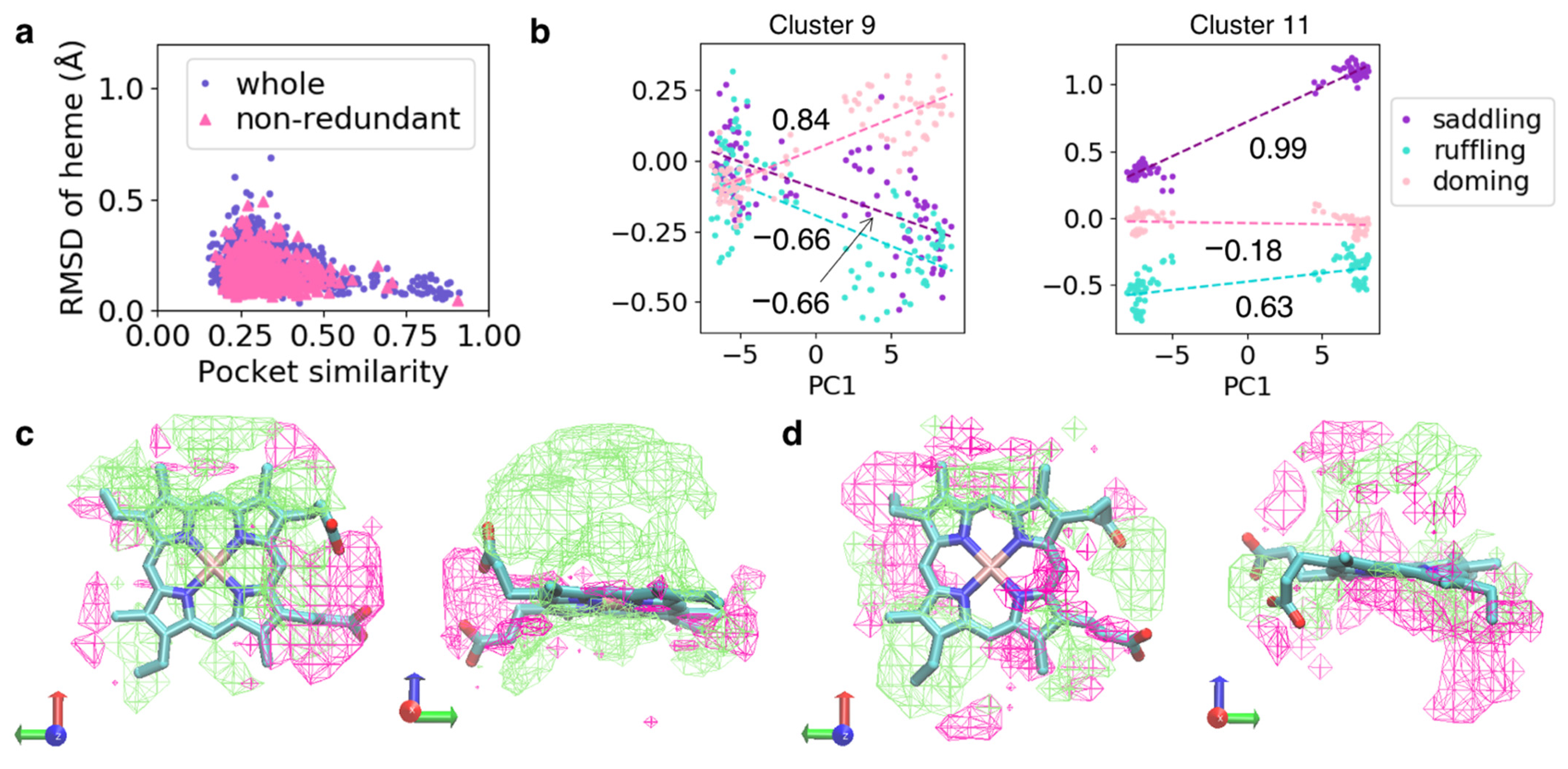

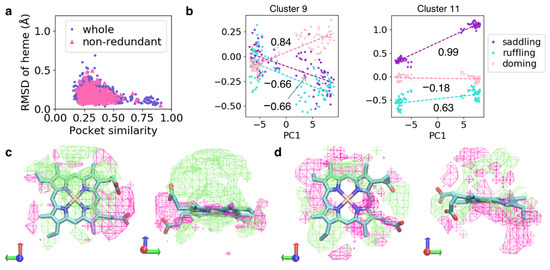

_{j}. The Tanimoto score ranges from zero to one, with one indicating identical shapes. Because the number of combinations of protein chains was very large for analysis, the pairs were randomly sampled without replacement from the whole or non-redundant dataset. The similarity score was plotted against the root-mean-square deviation (RMSD) of the heavy atoms of the heme Fe–porphyrin skeleton (Figure 5a). The pairs with high similarity scores showed small RMSD values for heme, indicating that hemes exhibit similar structures in protein pockets of similar structures. In addition, some pairs with low similarity scores showed small RMSD values for heme, indicating the lack of one-to-one correspondence between cavity shape and heme distortion.

#### 3.4. Similarity of the Structures of Heme-Binding Pockets between Protein Chains with Similar Amino Acid Sequences

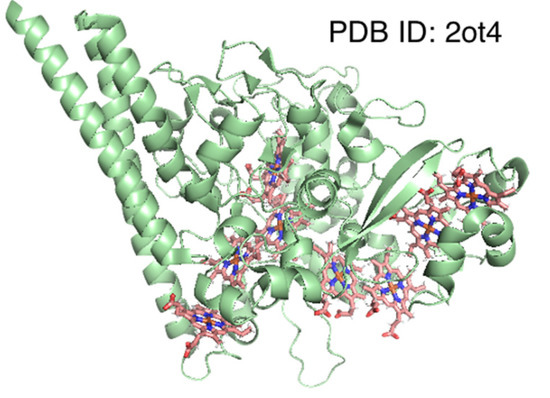

**v**

_{i}in each cluster as follows:

^{2}norm.

## 4. Conclusions

^{2}scores were obtained from prediction by the CNN model for saddling, ruffling, doming, and waving(y) distortions. In our previous study [26], no correlation was indicated for waving(y) distortion, as opposed to that for the remaining three distortions. This may be because detailed information on the tertiary structures of heme-binding pockets enabled us to predict even small conformational differences. These results of prediction based on partial information of the heme-binding pocket suggests that the structural information of the pocket surface is significant for the prediction of heme distortion, and the steric effect is dominant, particularly in the saddling and doming modes.
