# Full Duplex Component-Forward Cooperative Communication for a Secure Wireless Communication System

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Motivation and Contribution

- A component-forward cooperative communication is proposed to minimize the possibility of interference in IBFD with D2D, AN and modulation-based interference reduction [1].
- Artificial Noise (AN) is added to prevent the increasing security threats for the proposed FD component-forward (FD-CF) cooperative communication system. The AN increases the interference at the Eve’s node and declines the possible material decoding. It also drains Eve by providing high computational complexity and energy.
- The aforesaid approaches are used for refining the system’s secrecy capacity, outage probability and throughput.
- Alongside the basic system, RFEH is also used to further elaborate the proposed scheme with secrecy capacity, outage probability and throughput in the presence of a TS based RFEH circuit.

#### 1.2. Structure

## 2. System Model

#### 2.1. Addition of Artificial Noise for Better Security

#### 2.2. System Analysis

## 3. Performance Evaluation

#### 3.1. Computation of Secrecy Capacity

#### 3.2. Relay Selection

#### 3.3. Computation of Secrecy Outage Probability

#### 3.4. Radio Frequency Energy Harvesting (RFEH)

#### 3.5. Secrecy Throughput Evaluation

## 4. Numerical Results

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A

## References

- Khan, R.; Jayakody, D.N.K.; Pervaiz, H.; Tafazolli, R. Modulation Based Non-Orthogonal Multiple Access for 5G Resilient Networks. In Proceedings of the IEEE Globecom Workshops (GC Wkshps), Abu Dhabi, UAE, 9–13 December 2018; pp. 1–6. [Google Scholar]
- Singh, K.; Wang, K.; Biswas, S.; Ding, Z.; Khan, F.A.; Ratnarajah, T. Resource Optimization in Full Duplex Non-Orthogonal Multiple Access Systems. IEEE Trans. Wirel. Commun.
**2019**, 18, 4312–4325. [Google Scholar] [CrossRef] [Green Version] - Yue, X.; Liu, Y.; Kang, S.; Nallanathan, A.; Ding, Z. Exploiting Full/Half-Duplex User Relaying in NOMA Systems. IEEE Trans. Commun.
**2018**, 66, 560–575. [Google Scholar] [CrossRef] [Green Version] - Ata, S.; Erdogan, E. Secrecy outage probability of inter-vehicular cognitive radio networks. Int. J. Commun. Syst.
**2020**, 33, e4244. [Google Scholar] [CrossRef] - Mohammadi, M.; Chalise, B.K.; Hakimi, A.; Mobini, Z.; Suraweera, H.A.; Ding, Z. Beamforming Design and Power Allocation for Full-Duplex Non-Orthogonal Multiple Access Cognitive Relaying. IEEE Trans. Commun.
**2018**, 66, 5952–5965. [Google Scholar] [CrossRef] - Li, X.; Liu, M.; Deng, C.; Mathiopoulos, P.T.; Ding, Z.; Liu, Y. Full-Duplex Cooperative NOMA Relaying Systems With I/Q Imbalance and Imperfect SIC. IEEE Wirel. Commun. Lett.
**2020**, 9, 17–20. [Google Scholar] [CrossRef] - Khan, R.; Kumar, P.; Jayakody, D.N.K.; Liyanage, M. A Survey on Security and Privacy of 5G Technologies: Potential Solutions, Recent Advancements, and Future Directions. IEEE Commun. Surv. Tutorials
**2020**, 22, 196–248. [Google Scholar] [CrossRef] [Green Version] - Ding, Q.; Liu, M.; Deng, Y. Secrecy Outage Probability Analysis for Full-Duplex Relaying Networks Based on Relay Selection Schemes. IEEE Access
**2019**, 7, 105987–105995. [Google Scholar] [CrossRef] - Nguyen, B.C.; Thang, N.N.; Hoang, T.M.; Dung, L. Analysis of Outage Probability and Throughput for Energy Harvesting Full-Duplex Decode-and-Forward Vehicle-to-Vehicle Relay System. Wirel. Commun. Mobile Comput.
**2020**, 2020, 3539450. [Google Scholar] [CrossRef] - Xu, D.; Ren, P.; Lin, H. Combat Hybrid Eavesdropping in Power-Domain NOMA: Joint Design of Timing Channel and Symbol Transformation. IEEE Trans. Veh. Technol.
**2018**, 67, 4998–5012. [Google Scholar] [CrossRef] - Zhang, L.; Xiao, M.; Wu, G.; Alam, M.; Liang, Y.; Li, S. A Survey of Advanced Techniques for Spectrum Sharing in 5G Networks. IEEE Wirel. Commun.
**2017**, 24, 44–51. [Google Scholar] [CrossRef] - Do, D.-T.; Nguyen, T.-T.T.; Li, X.; Voznak, M. Uplink and Downlink NOMA Transmission Using Full-Duplex UAV. IEEE Access
**2020**, 8, 164347–164364. [Google Scholar] [CrossRef] - Chen, X.; Liu, G.; Ma, Z.; Zhang, X.; Fan, P.; Chen, S.; Yu, F.R. When Full Duplex Wireless Meets Non-Orthogonal Multiple Access: Opportunities and Challenges. IEEE Wirel. Commun.
**2019**, 26, 148–155. [Google Scholar] [CrossRef] - Rajaram, A.; Khan, R.; Tharranetharan, S.; Jayakody, D.N.K.; Dinis, R.; Panic, S. Novel SWIPT Schemes for 5G Wireless Networks. Sensors
**2019**, 19, 1169. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Gupta, A.; Singh, K.; Sellathurai, M. Time-Switching EH-Based Joint Relay Selection and Resource Allocation Algorithms for Multi-User Multi-Carrier AF Relay Networks. IEEE Trans. Green Commun. Netw.
**2019**, 3, 505–522. [Google Scholar] [CrossRef] - Pan, N.; Rajabi, M.; Claessens, S.; Schreurs, D.; Pollin, S. Transmission Strategy for Simultaneous Wireless Information and Power Transfer with a Non-Linear Rectifier Model. Electronics
**2020**, 9, 1082. [Google Scholar] [CrossRef] - Liu, D.; Wen, Z.; Liu, X.; Li, S.; Zou, J. Joint Source-Relay Optimization for MIMO Full-Duplex Bidirectional Wireless Sensor Networks with SWIPT. Sensors
**2019**, 19, 1827. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Li, S.; Wan, Z.; Jin, L.; Du, J. Energy Harvesting Maximizing for Millimeter-Wave Massive MIMO-NOMA. Electronics
**2020**, 9, 32. [Google Scholar] [CrossRef] [Green Version] - Rajaram, A.; Dinis, R.; Jayakody, D.N.K.; Beko, M. Secure Information Transmission with Self Jamming SWIPT. Electronics
**2020**, 9, 587. [Google Scholar] [CrossRef] [Green Version] - Van Nguyen, B.; Kim, K. Single Relay Selection for Secure Communication in a Cooperative System with Multiple Full-Duplex Decode-and-Forward relays. In Proceedings of the IEEE International Workshop on Information Forensics and Security (WIFS), Rome, Italy, 16–19 November 2015; pp. 1–6. [Google Scholar] [CrossRef]
- Khan, R.; Jayakody, D.N.K. An Ultra-Reliable and Low Latency Communications Assisted Modulation Based Non-Orthogonal Multiple Access Scheme. Phys. Commun.
**2020**, 101035. [Google Scholar] [CrossRef] - Goel, S.; Negi, R. Guaranteeing Secrecy using Artificial Noise. IEEE Trans. Wirel. Commun.
**2008**, 7, 2180–2189. [Google Scholar] [CrossRef]

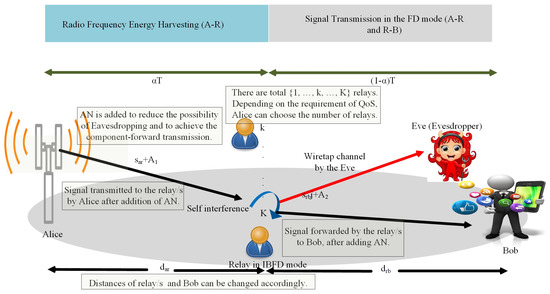

**Figure 1.**Full Duplex Component-Forward (FD-CF) cooperative communication system with one source (Alice), K relays with FD mode and the receiver (Bob) with no direct link with Alice. A shows the complex artificial noise added to the transmitted signal s. Alice modulates ${s}_{ar}$ on the real component of the constellation and the selected relay modulates ${s}_{rb}$ on the imaginary component of the 16-QAM modulation to prevent interference in the IBFD mode.

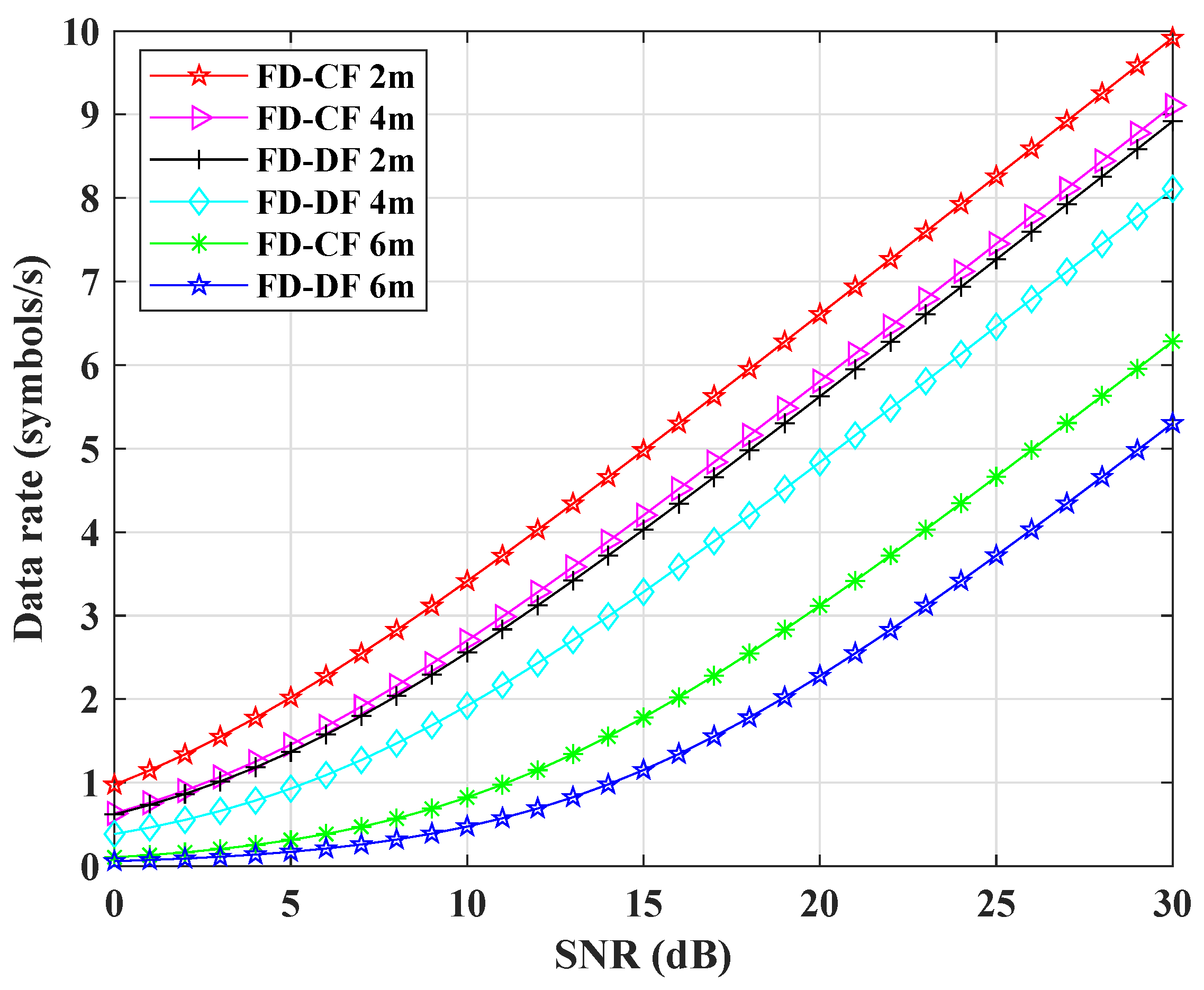

**Figure 2.**Data rate comparison for Full Duplex Component-Forward (FD-CF) and Full Duplex Decode-and-Forward (FD-DF) with three different value of distances ${d}_{ar}$ and ${d}_{rb}$.

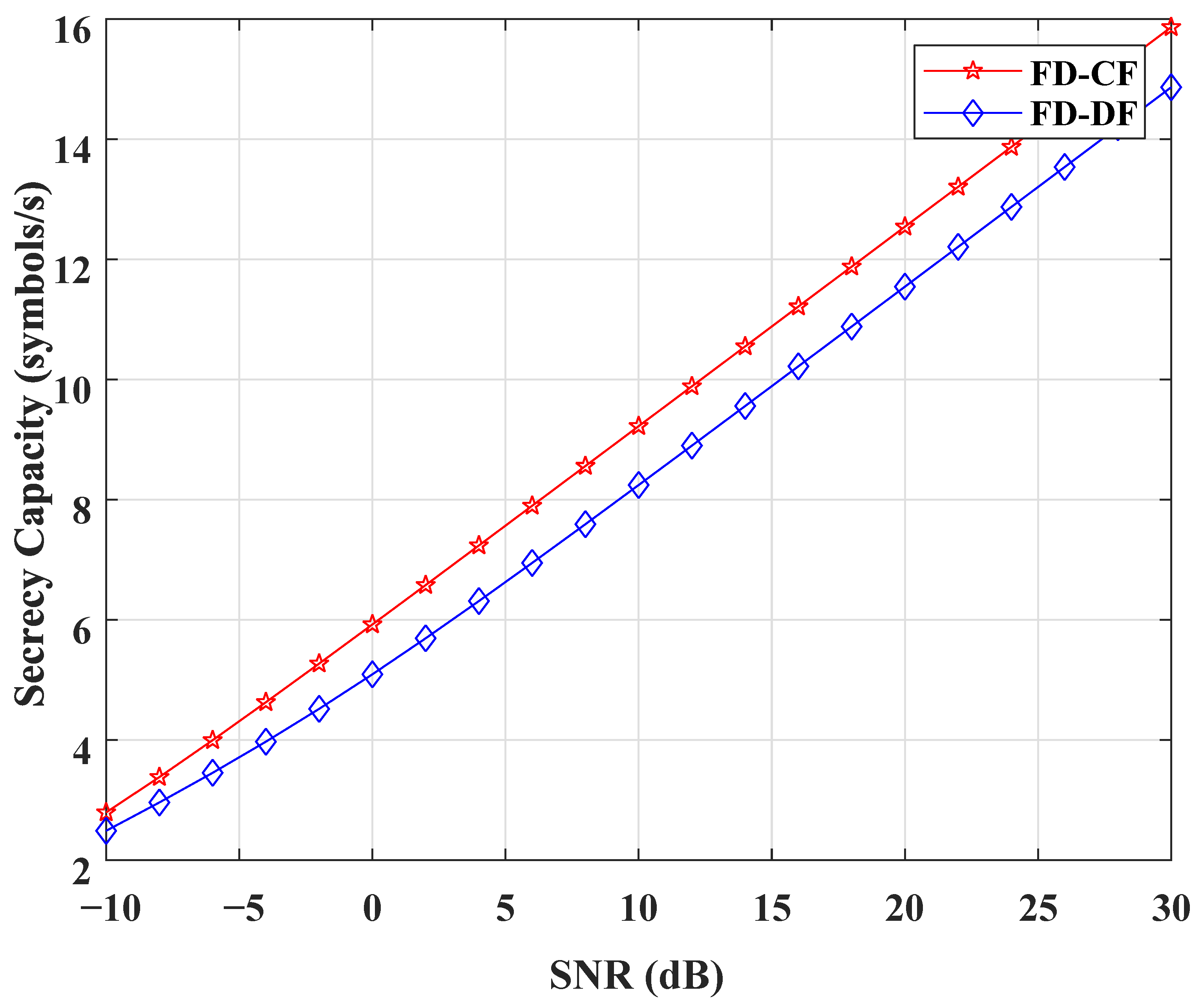

**Figure 3.**Secrecy capacity comparison for Full Duplex Component-Forward (FD-CF) and Full Duplex Decode-and-Forward (FD-DF).

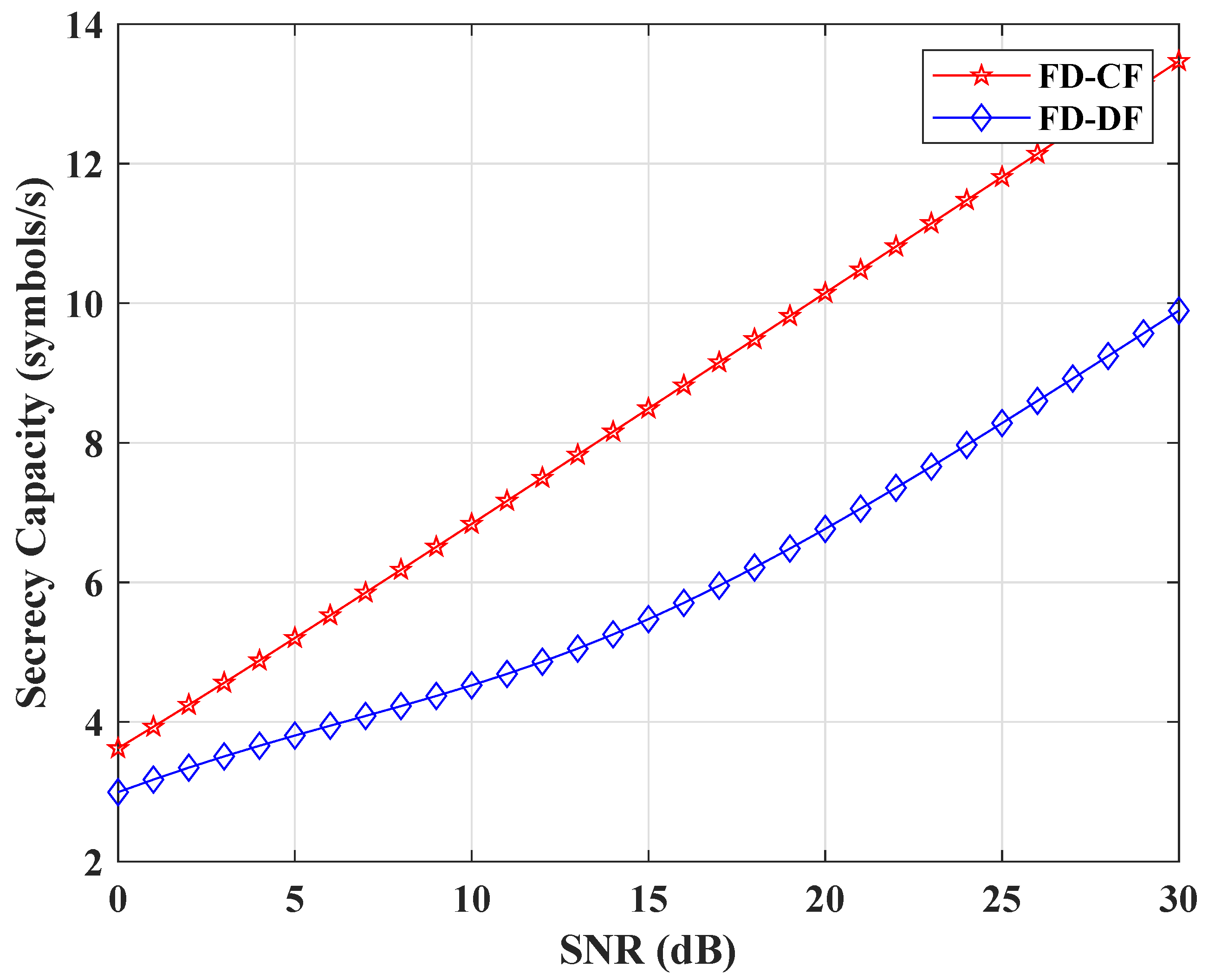

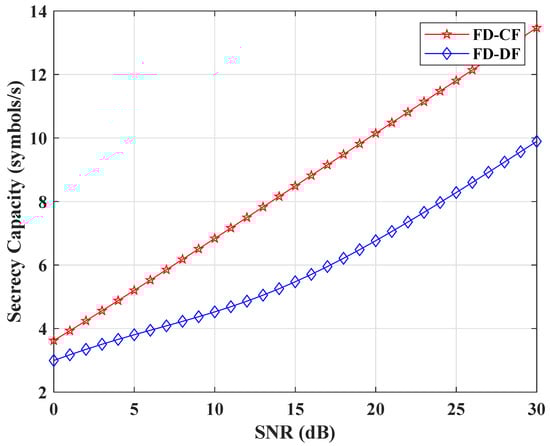

**Figure 4.**Secrecy capacity comparison for Full Duplex Component-Forward (FD-CF) and Full Duplex Decode-and-Forward (FD-DF) with harvested power ${P}_{r}$ and $eta=0.6$.

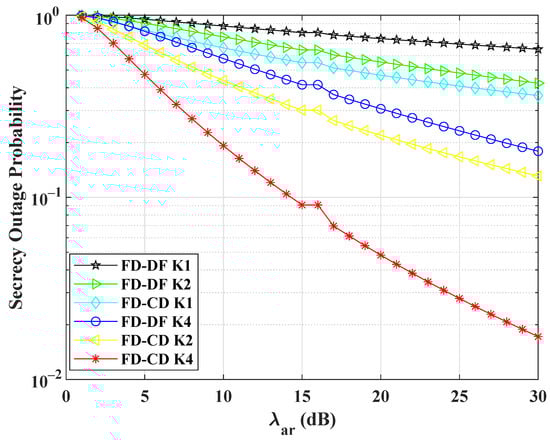

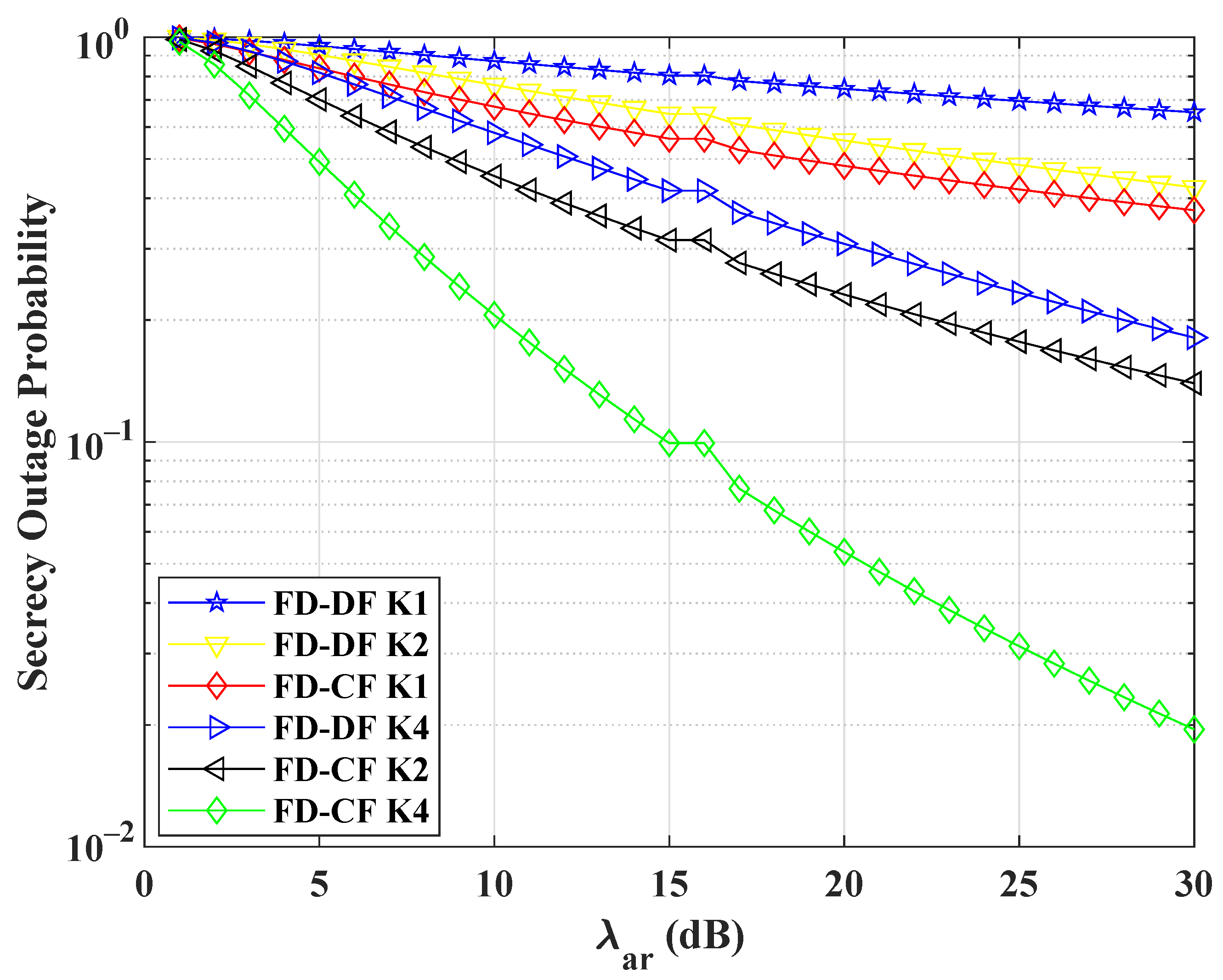

**Figure 5.**Secrecy outage probability comparison for Full Duplex Component-Forward (FD-CF) and Full Duplex Decode-and-Forward (FD-DF) with ${C}_{th}=1$, ${\zeta}_{rb}={\zeta}_{rr}=12$ dB, $K=1,2,4$ and ${\zeta}_{re}$ is calculated with respect to Rayleigh flat fading and respective interference.

**Figure 6.**Secrecy outage probability comparison for Full Duplex Component-Forward (FD-CF) and Full Duplex Decode-and-Forward (FD-DF) with ${C}_{th}=1$, ${\zeta}_{rb}={\zeta}_{rr}=12$ dB, $K=1,2,4$, ${\zeta}_{re}$ is calculated with respect to Rayleigh flat fading and respective interference and harvested power ${P}_{r}$ and $eta=0.6$.

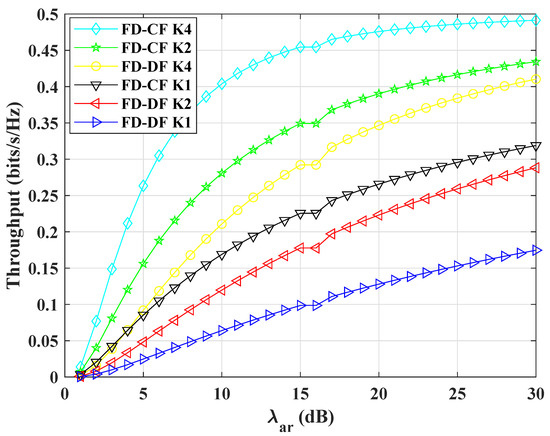

**Figure 7.**Throughput comparison for Full Duplex Component-Forward (FD-CF) and Full Duplex Decode-and-Forward (FD-DF) with ${C}_{th}=1$, ${\zeta}_{rb}={\zeta}_{rr}=12$ dB, $K=1,2,4$ and ${\zeta}_{re}$ is calculated with respect to Rayleigh flat fading and respective interference.

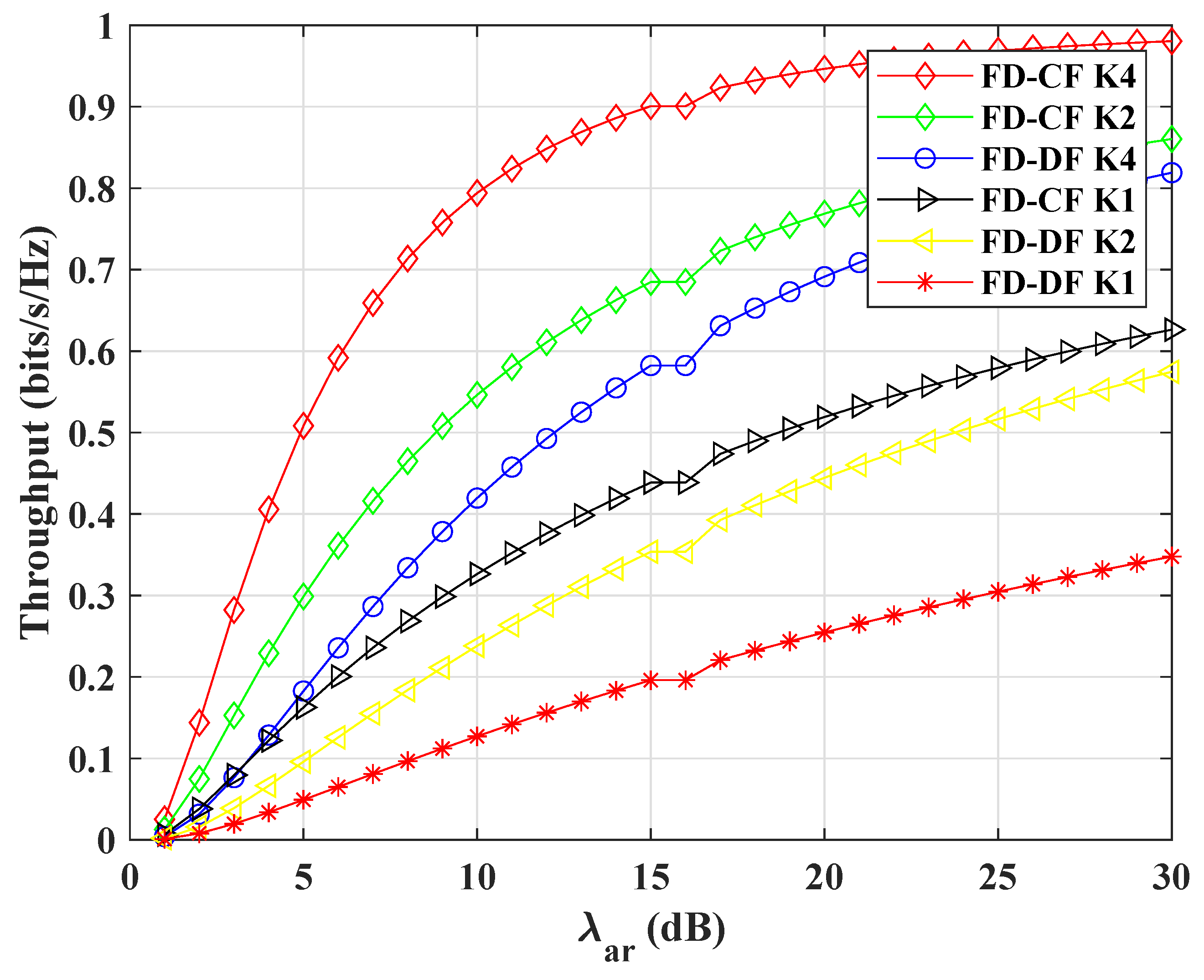

**Figure 8.**Throughput comparison for Full Duplex Component-Forward (FD-CF) and Full Duplex Decode-and-Forward (FD-DF) with ${C}_{th}=1$, ${\zeta}_{rb}={\zeta}_{rr}=12$ dB, harvested power ${P}_{r}$, $\alpha =0.5$, $\eta =0.6$, $\alpha =0.5$, $K=1,2,4$ and ${\zeta}_{re}$ is calculated with respect to Rayleigh flat fading and respective interference.

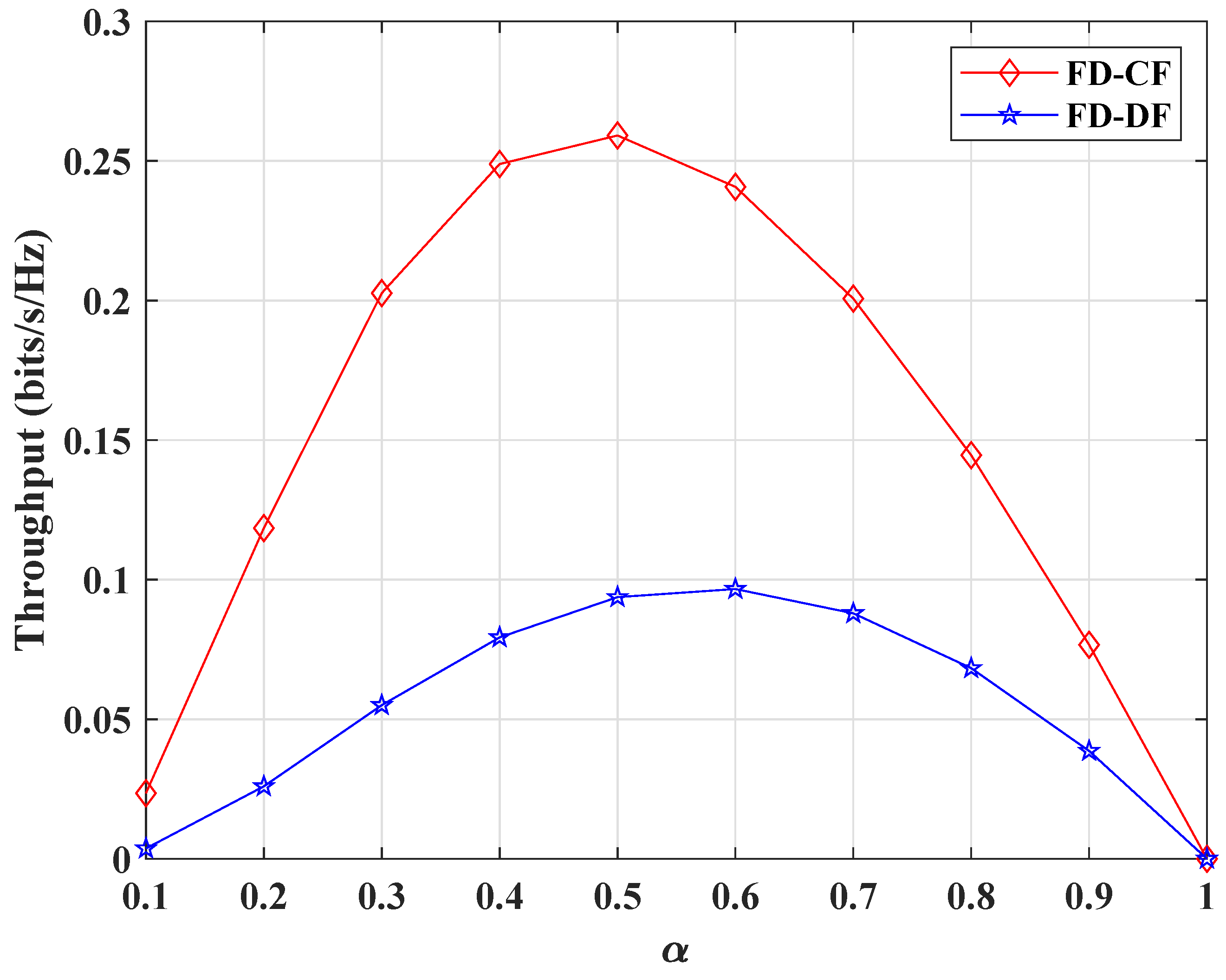

**Figure 9.**Throughput comparison for Full Duplex Component-Forward (FD-CF) and Full Duplex Decode-and-Forward (FD-DF) with harvested power ${P}_{r}$, $\sigma =0.25$ and $\eta =0.6$.
