A High-Power Density DC Converter for Medium-Voltage DC Distribution Networks
Abstract
:1. Introduction

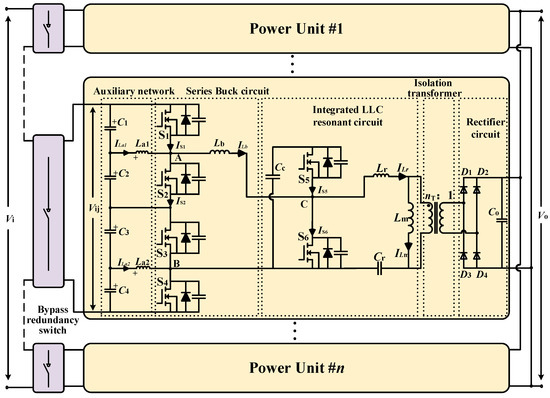

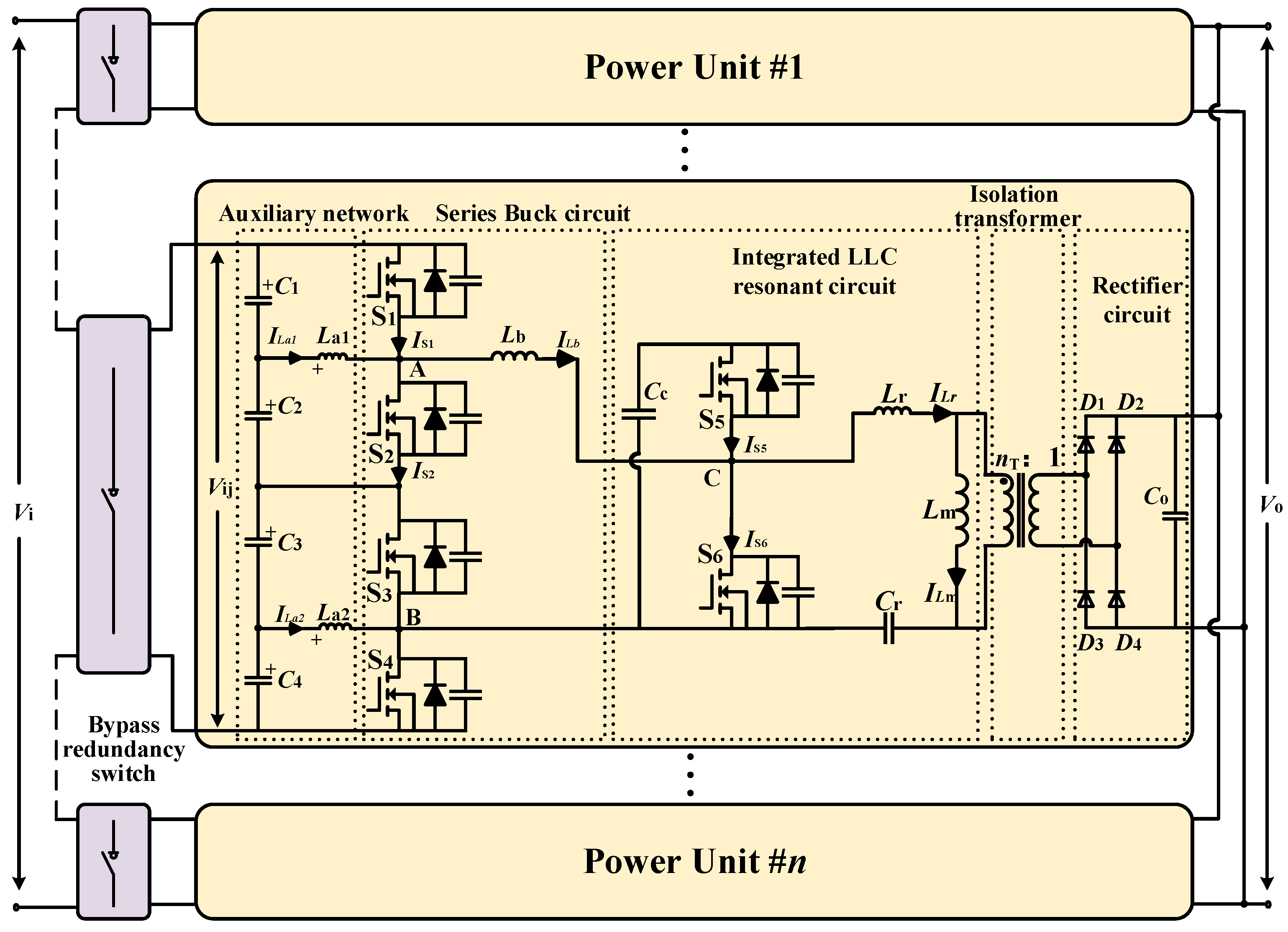

2. Modular Combined DC Converter Topology Based on Buck-LLC Integration
3. SDBuck-LLC’s Operating Principle and Steady-State Analysis

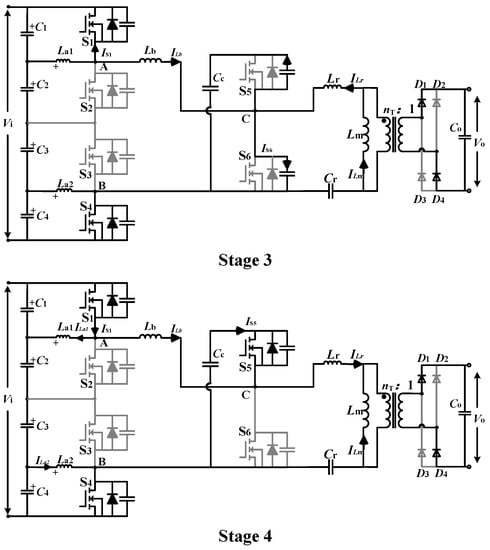

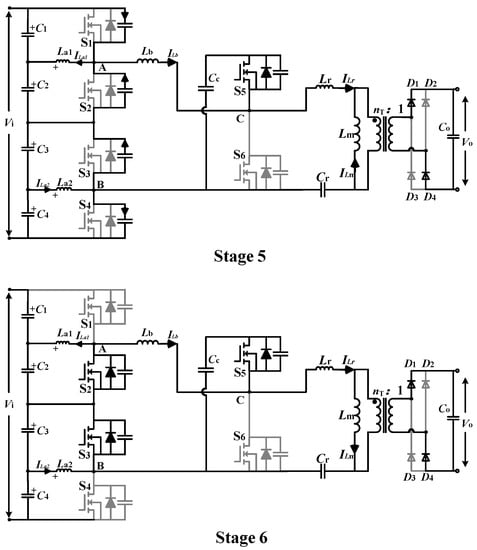

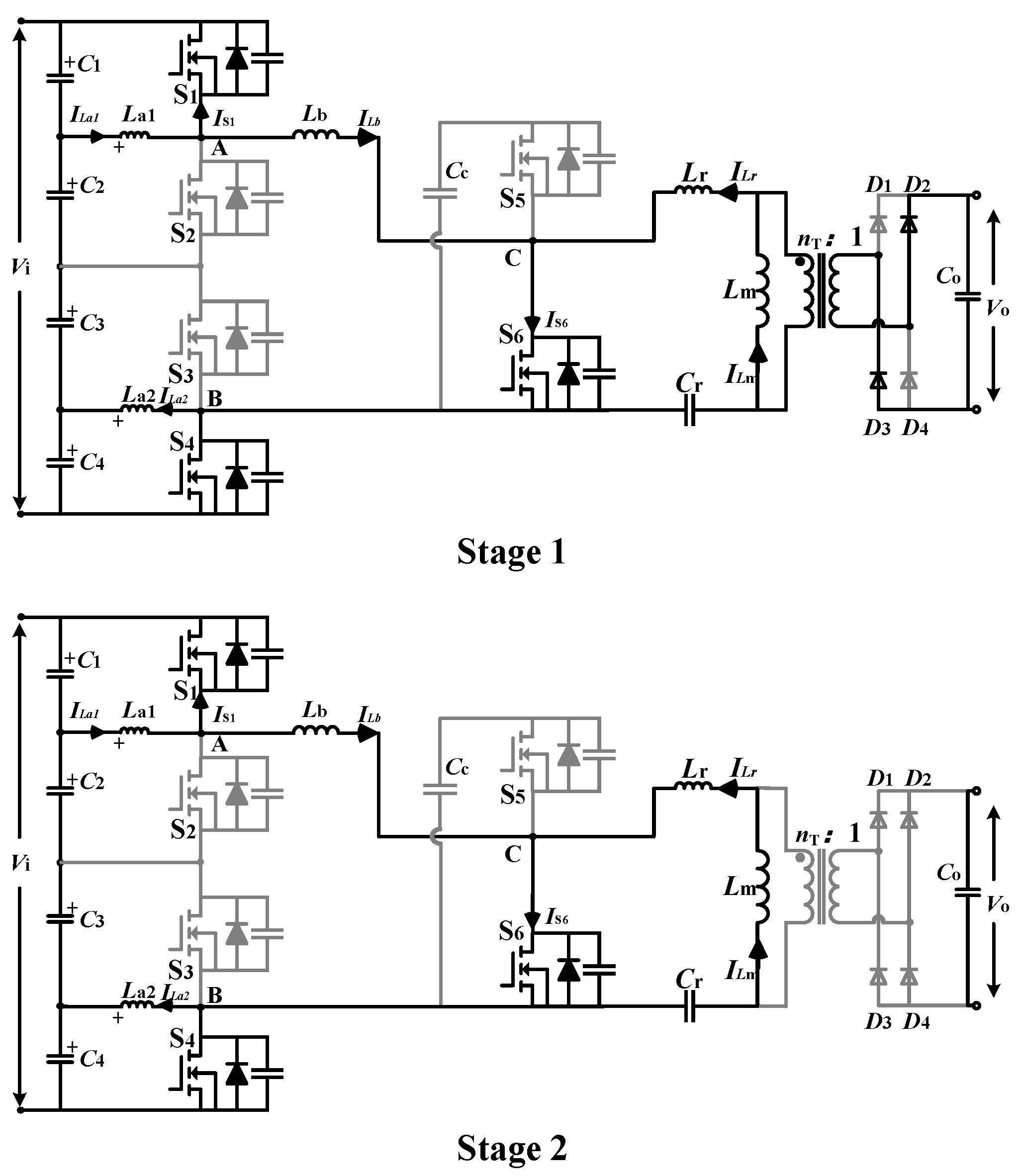

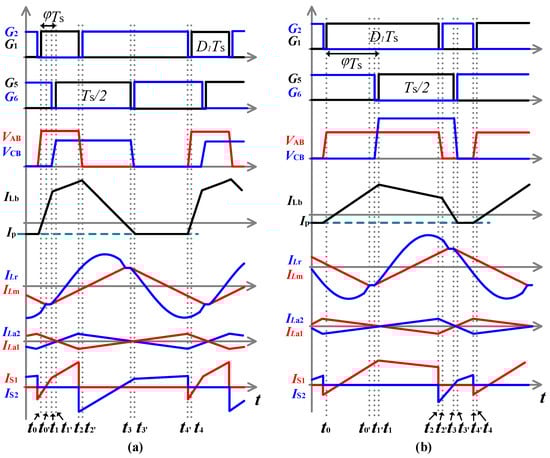

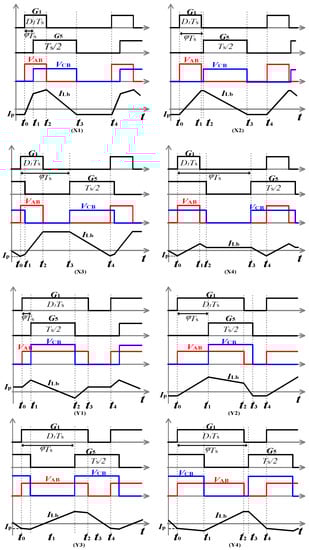

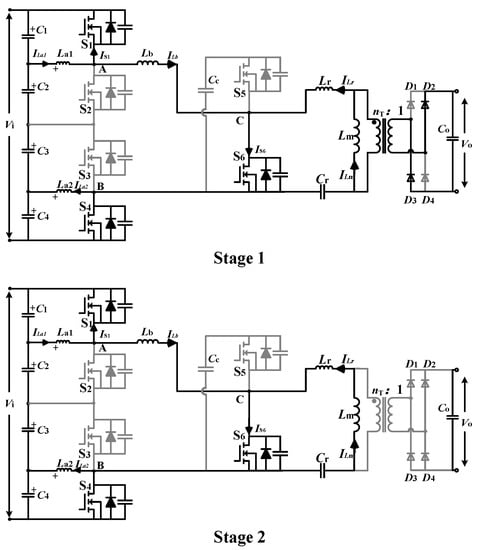

3.1. Analysis of Working Mode and Working Principle
- (a)

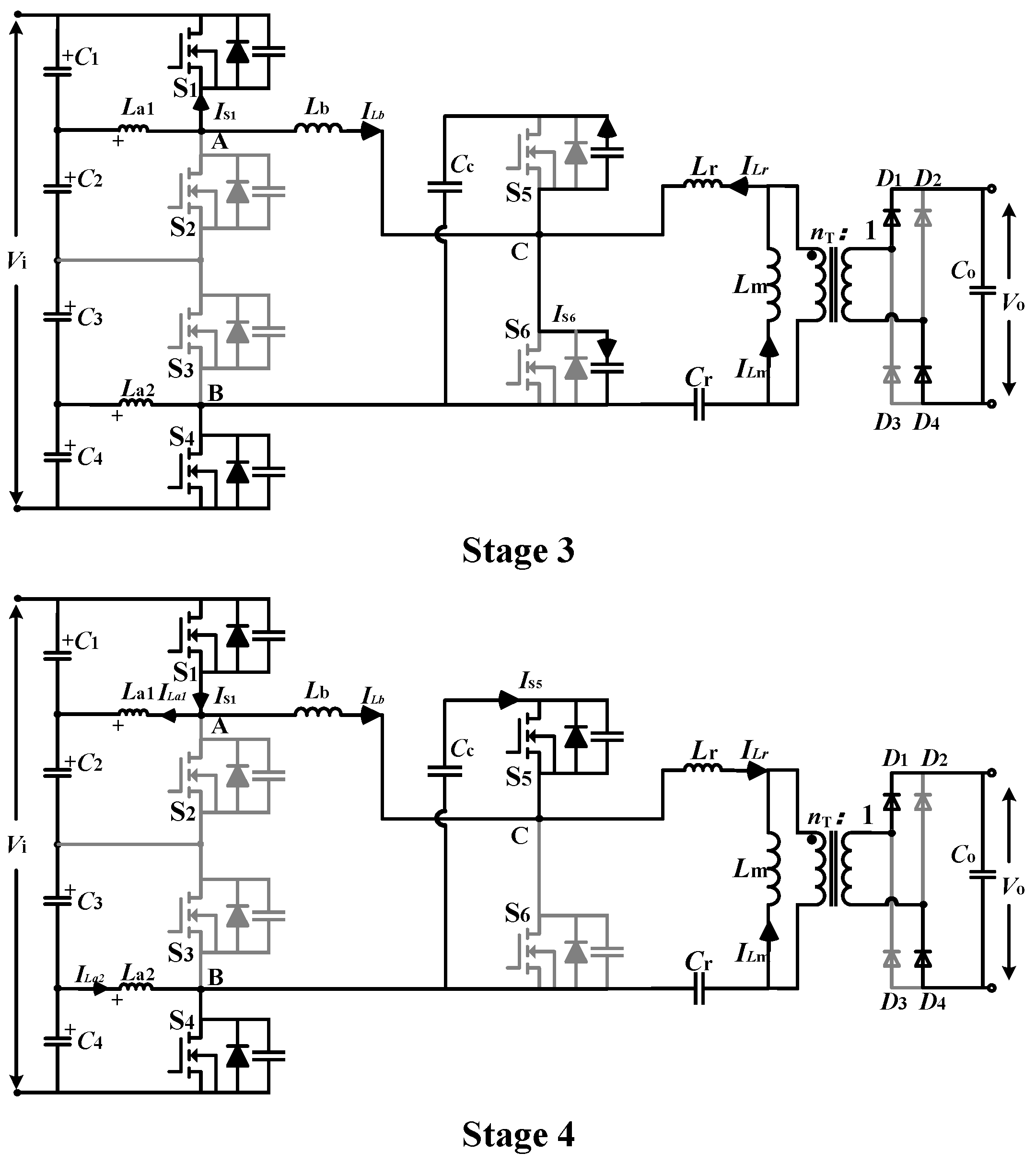

- In stage 4 of mode Y2, the voltage applied at both ends of Lb is Vi-VCc, which is negative at this time, in a low demagnetization state, and ILb slowly decreases.
- (b)
- The deep excitation state time corresponding to stages 1, 2, and 3 is lengthened, and the resonant negative half-cycle corresponding to this period is also lengthened.
- (c)

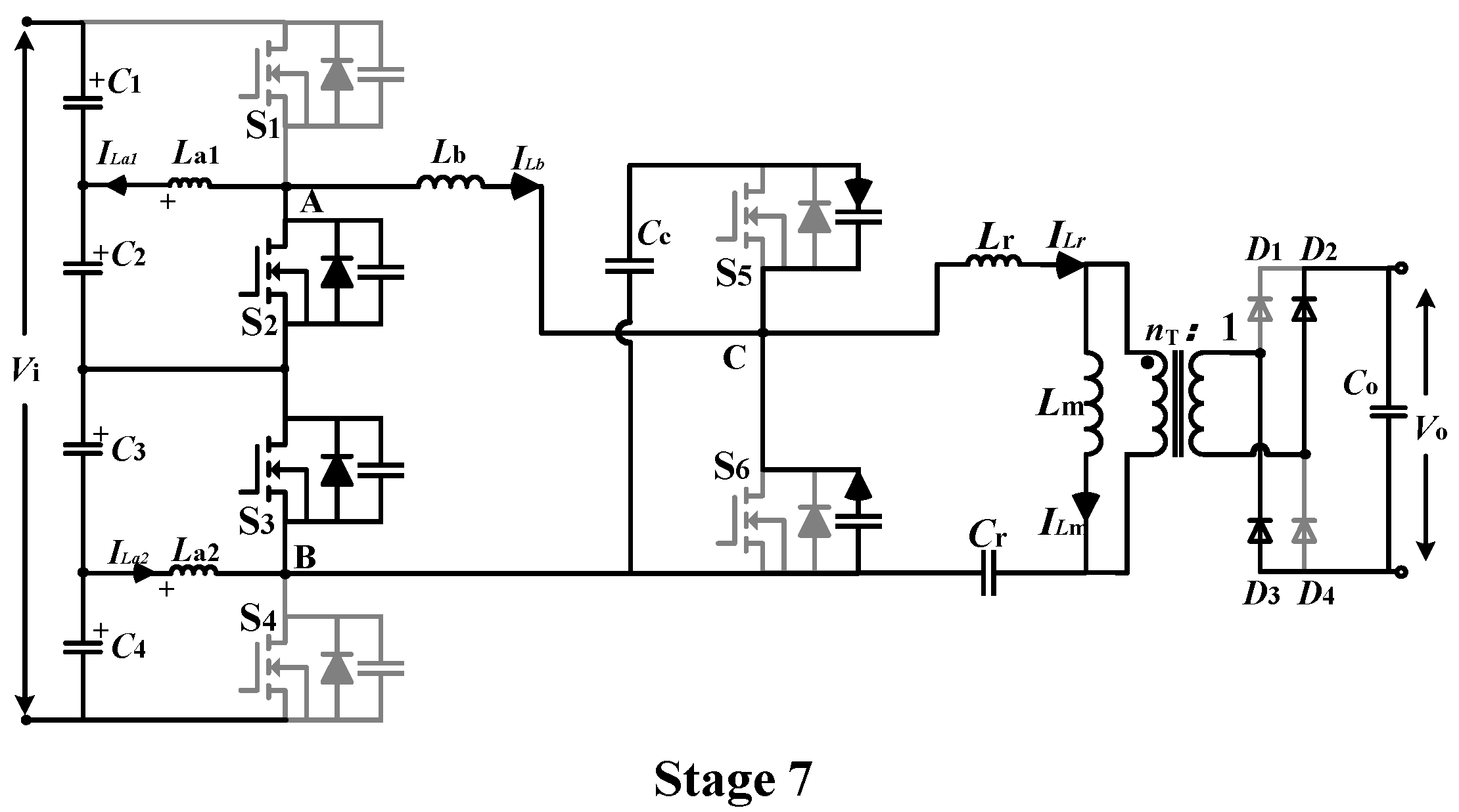

- The deep demagnetization state time corresponding to stages 6 and 7 is shortened, and the resonant positive half-period corresponding to this period is also shortened.

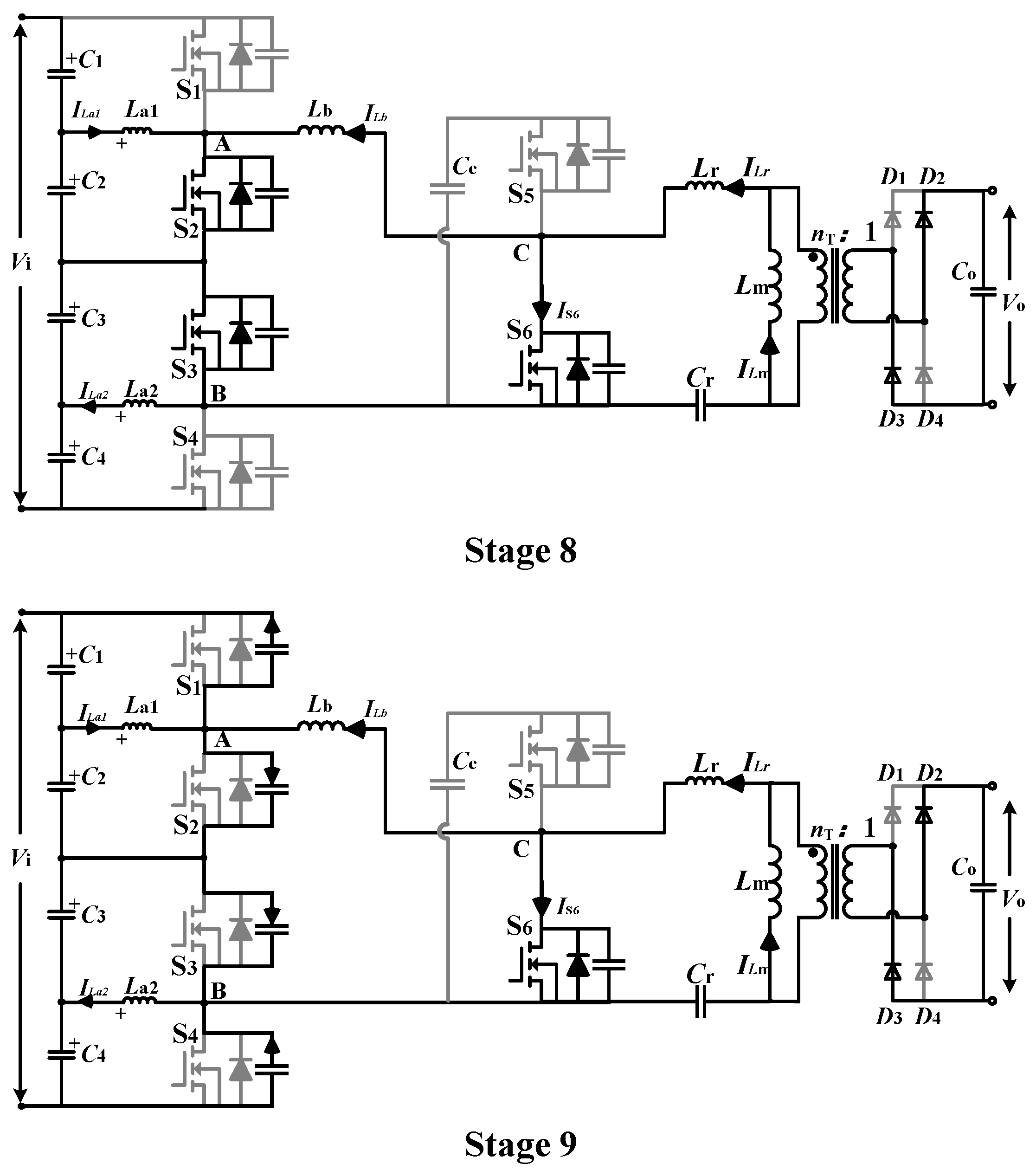

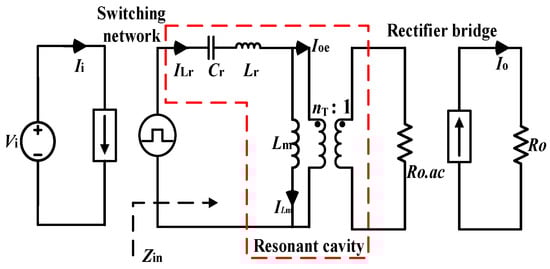

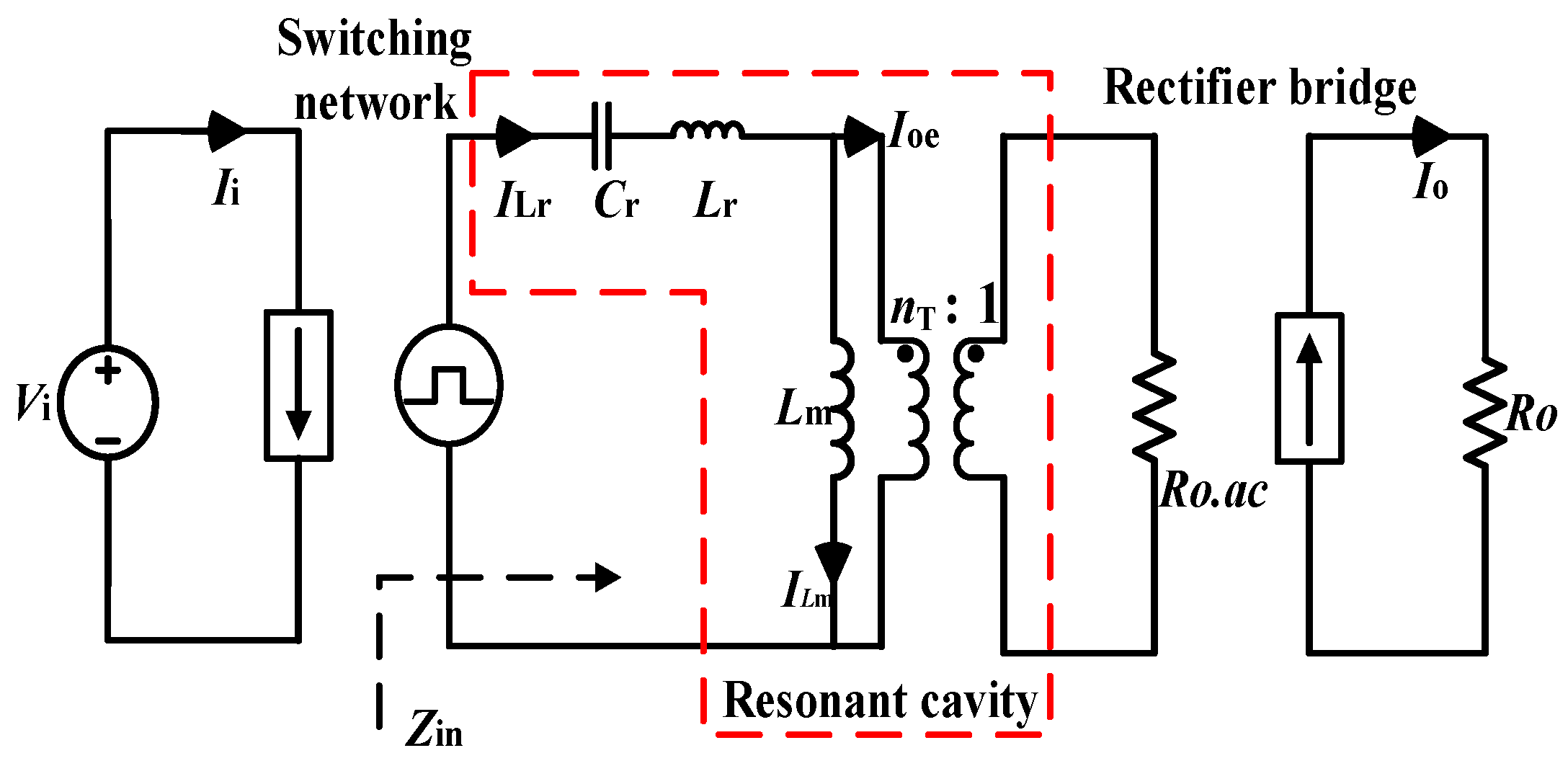

3.2. Characteristics of DC Voltage Gain

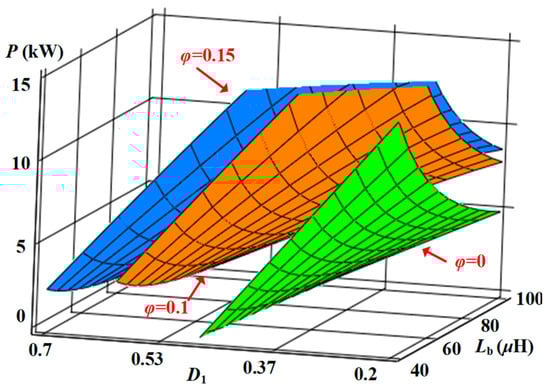

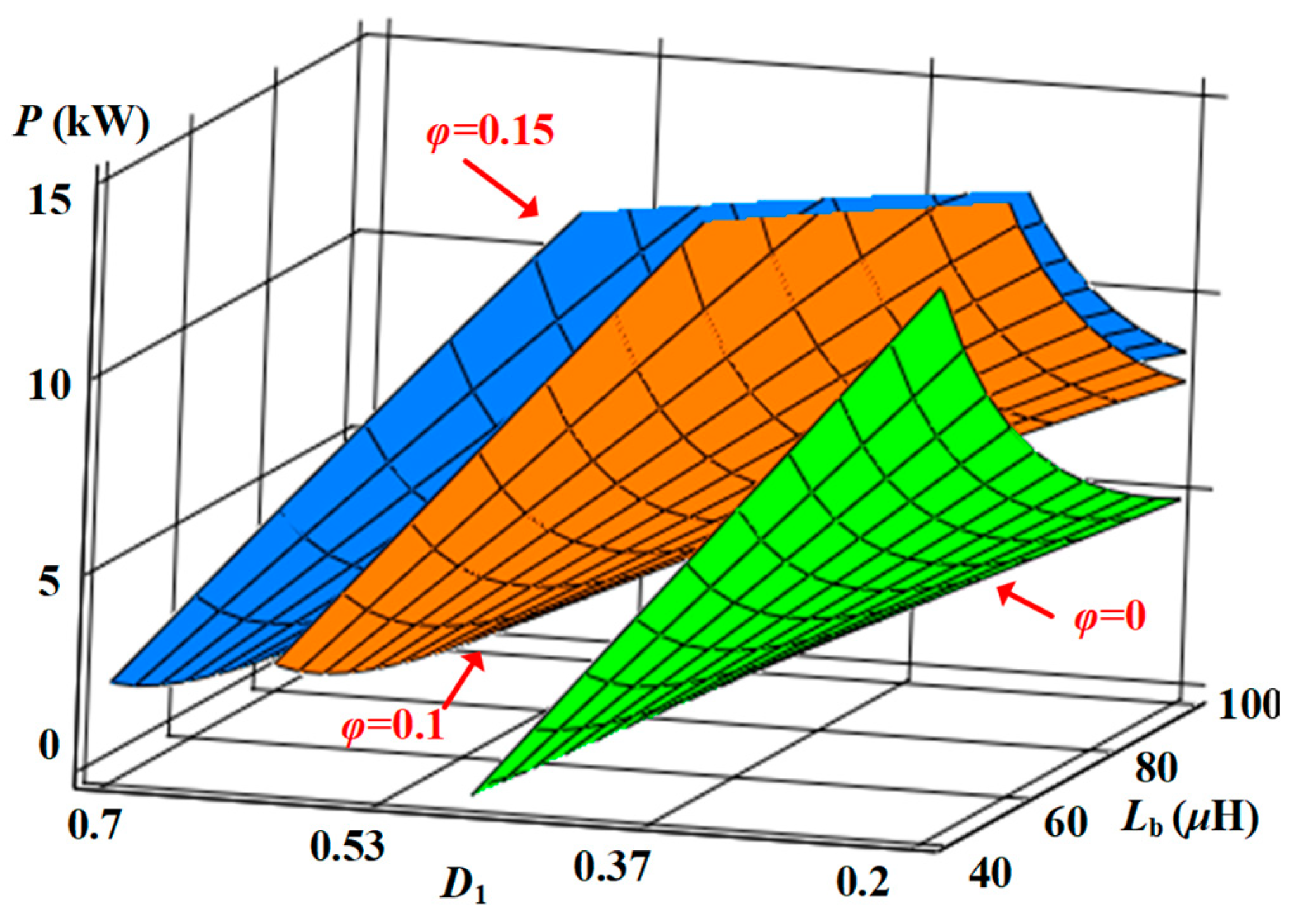

3.3. Voltage Stress and Power Characteristics

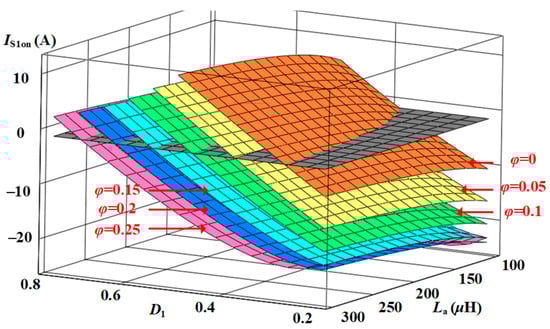

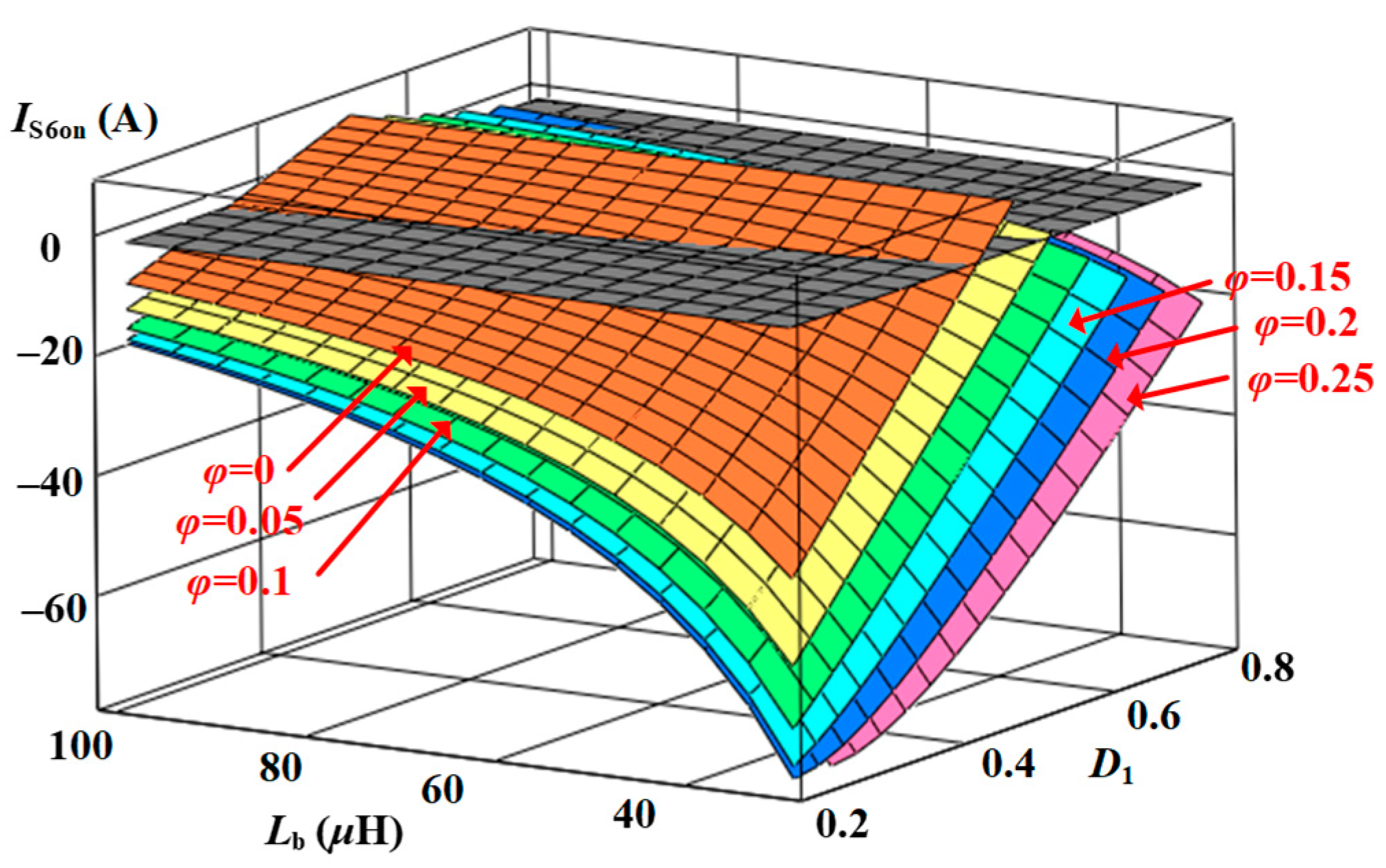

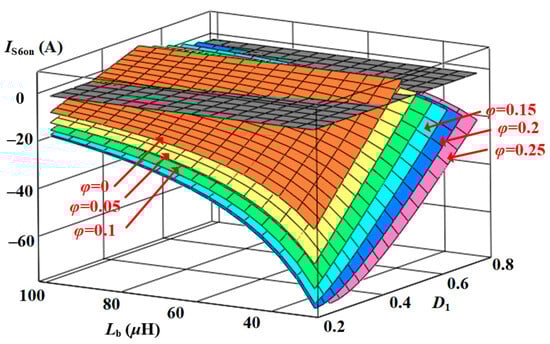

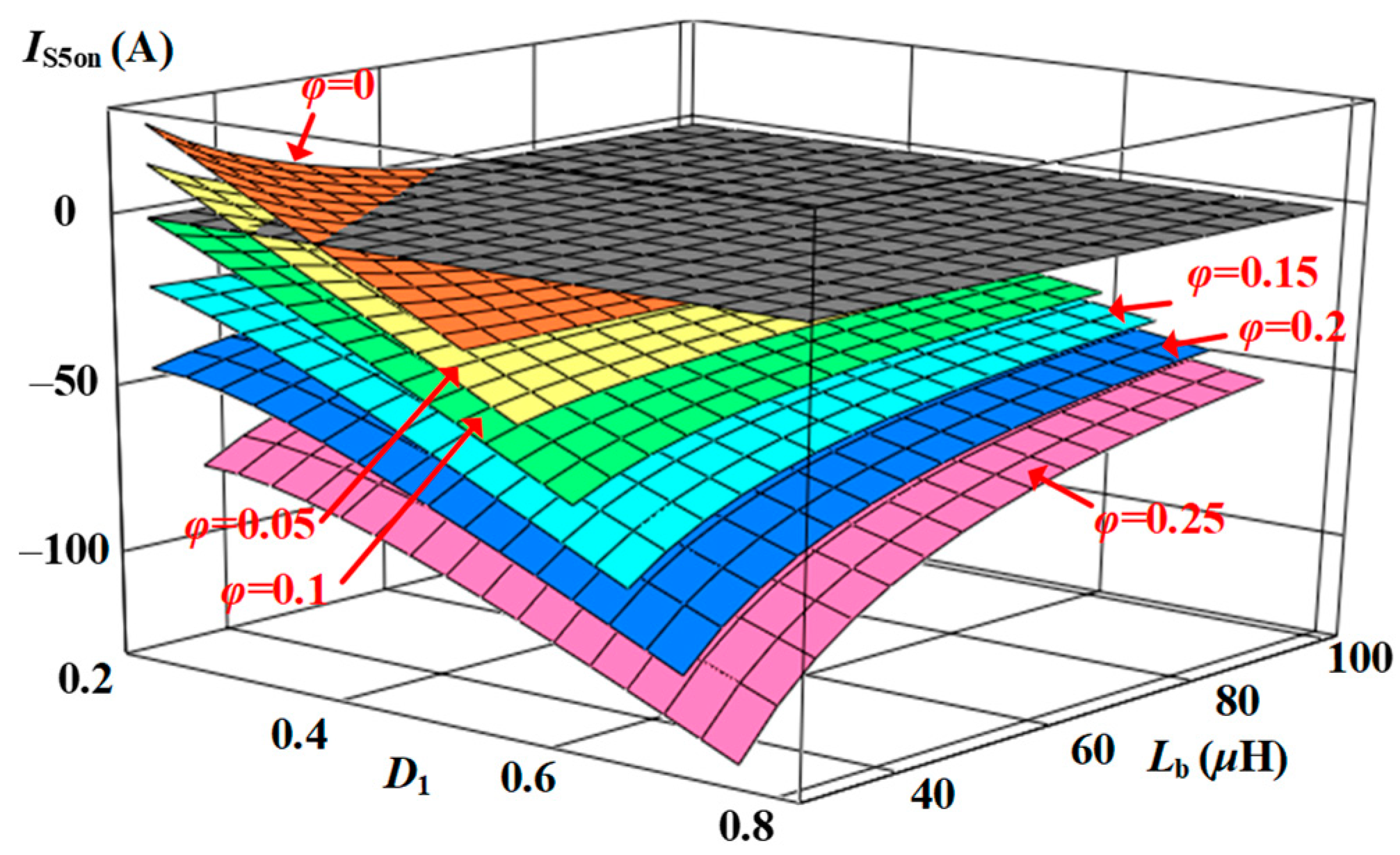

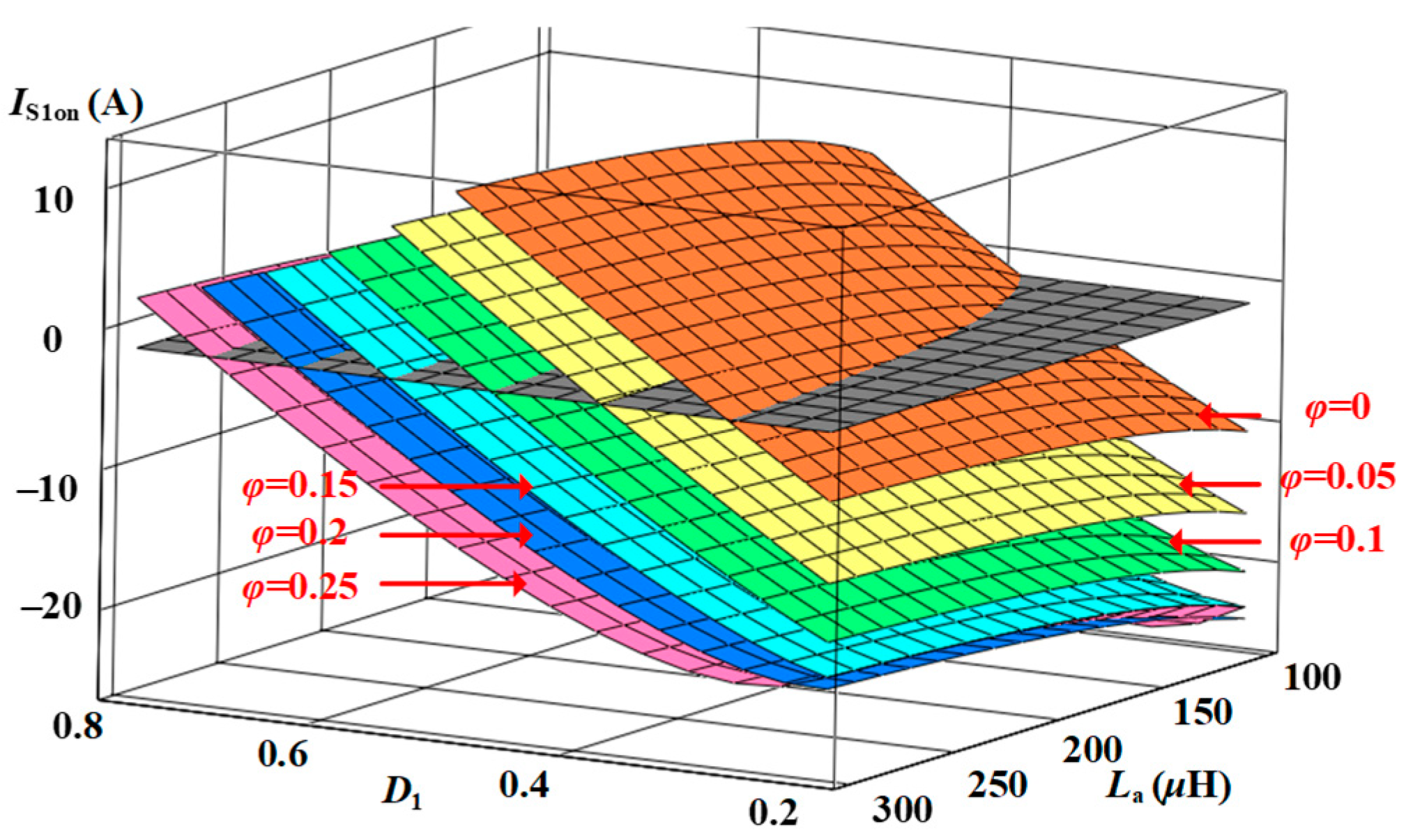

3.4. Soft-Switching Characteristics

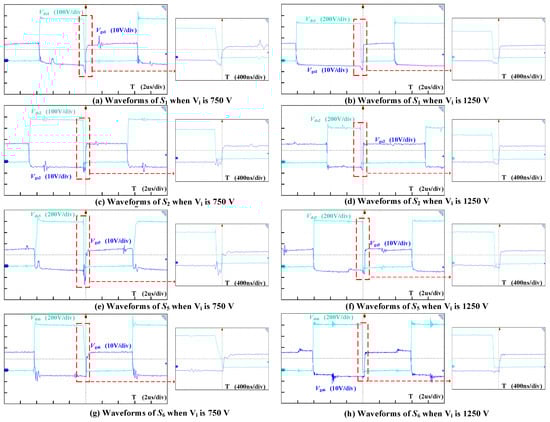

4. Experimental Verification

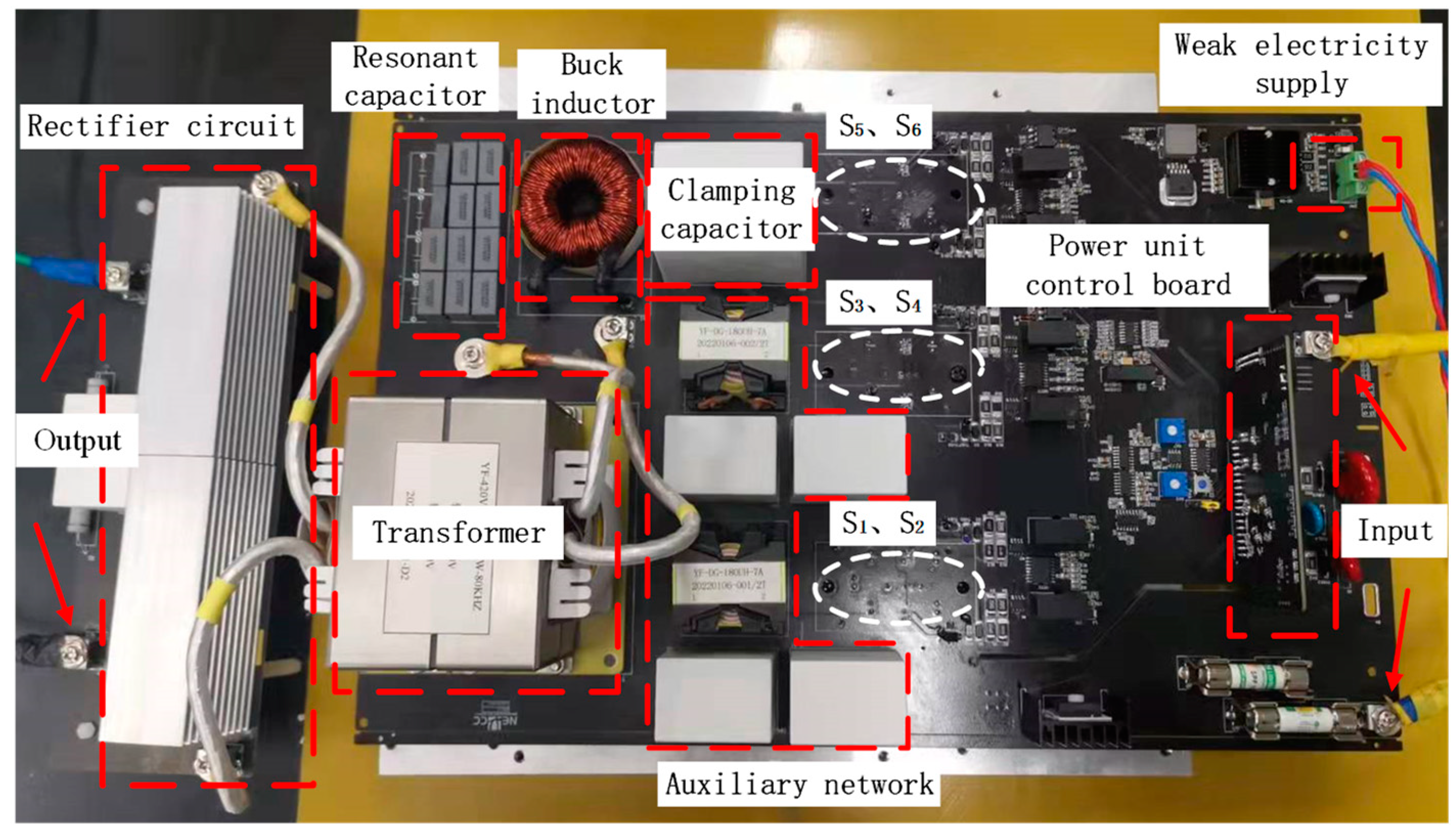

4.1. Experimental Prototype

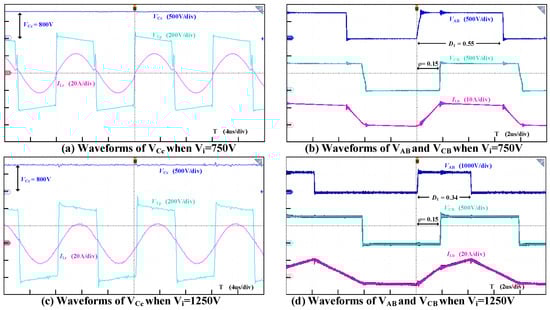

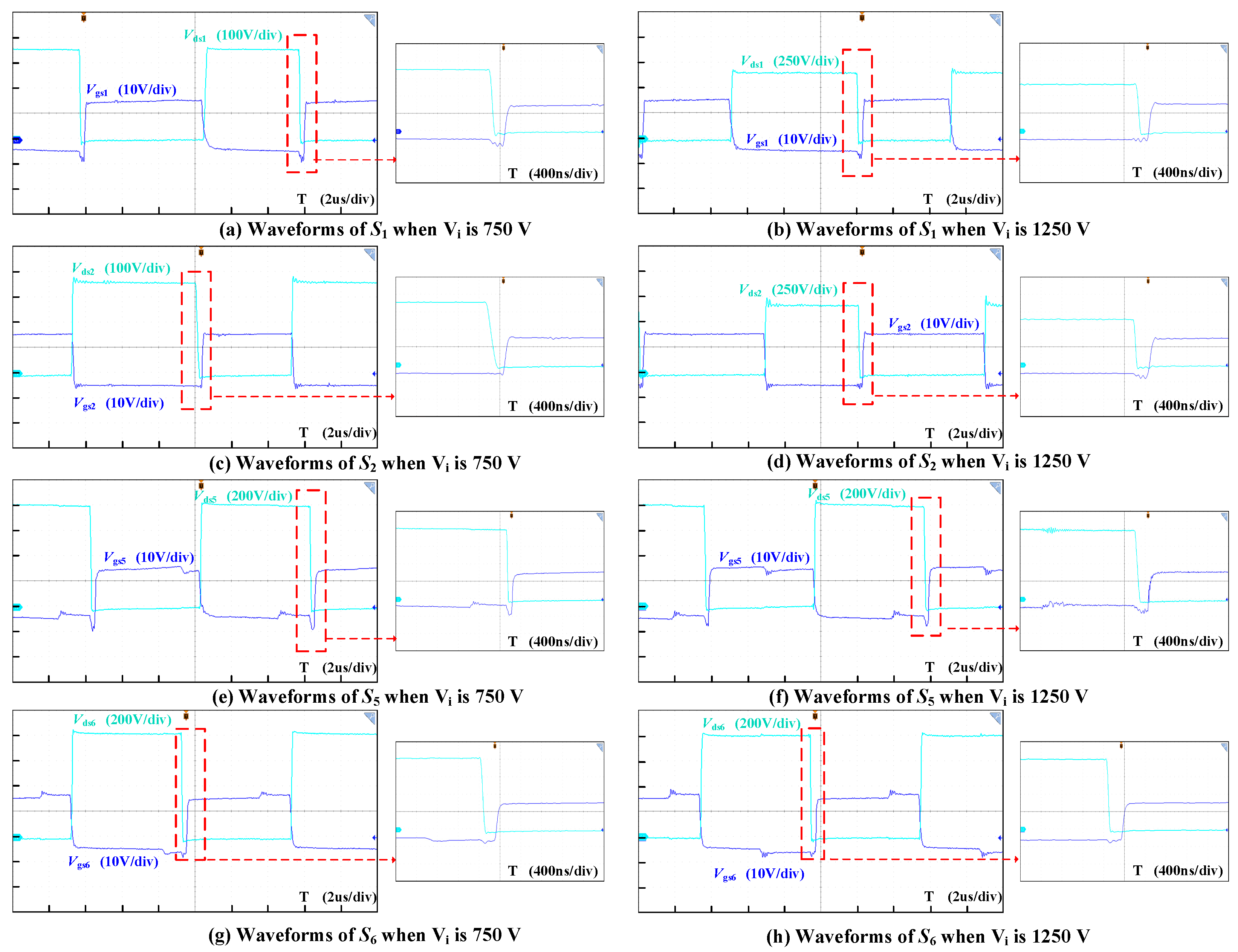

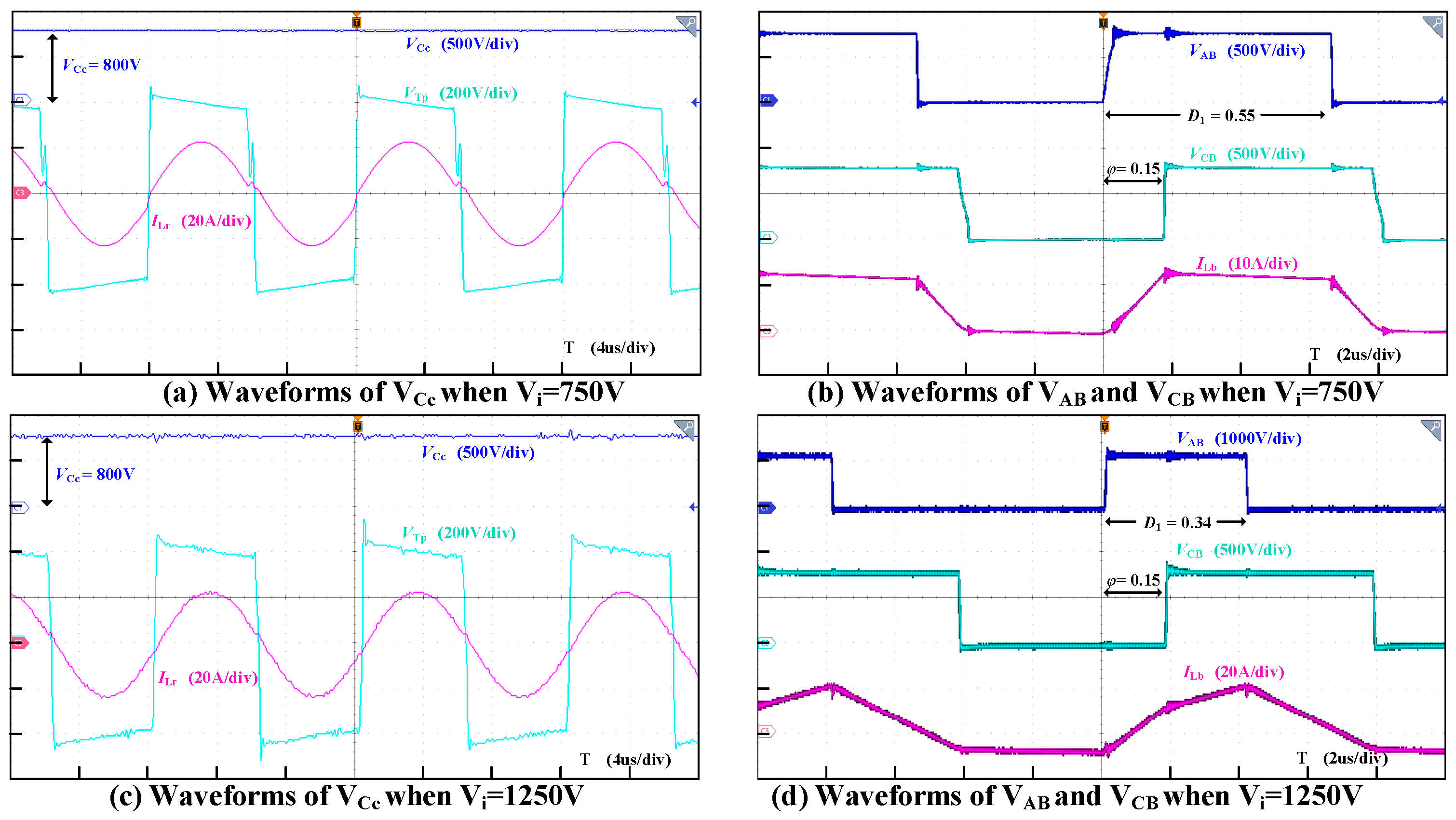

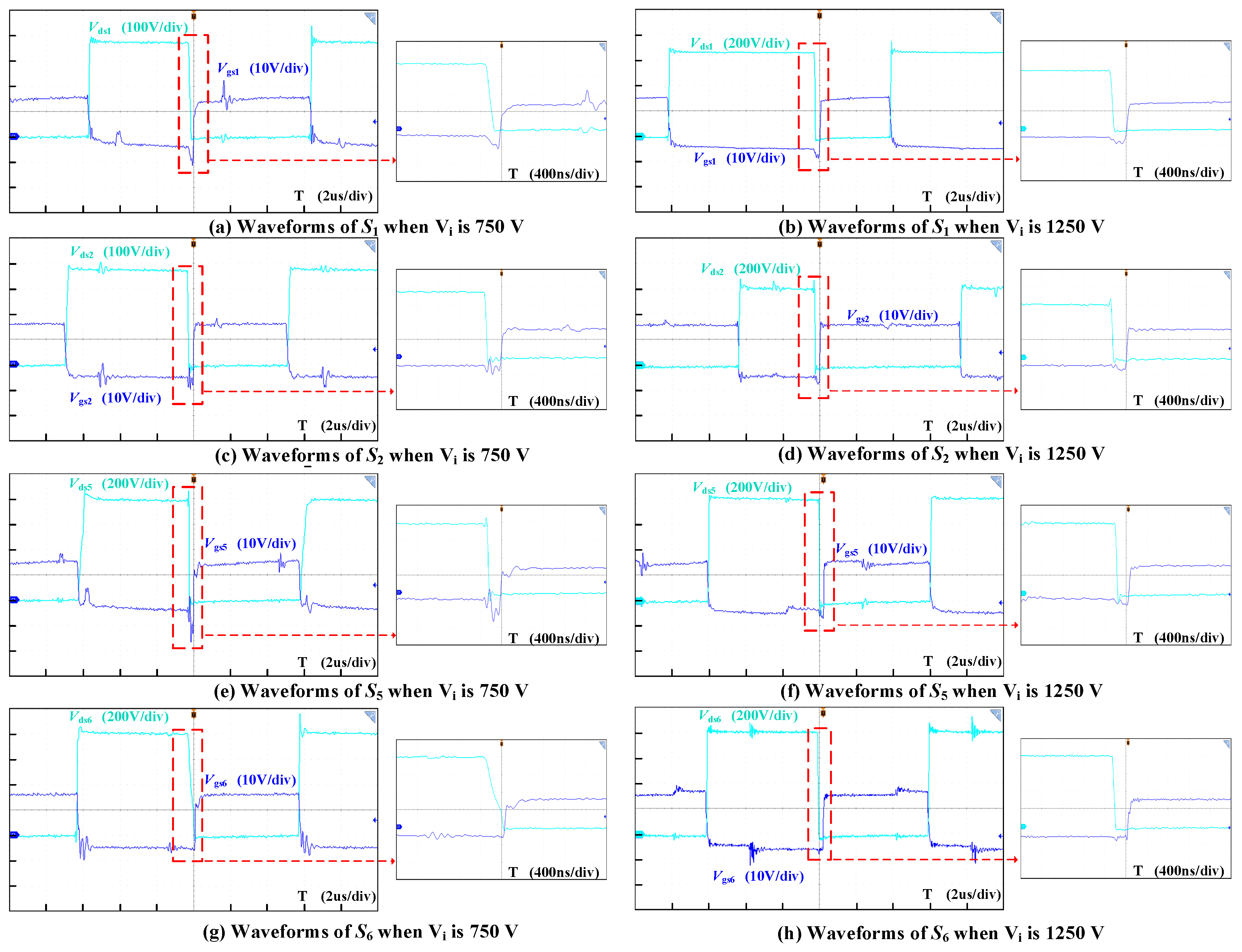

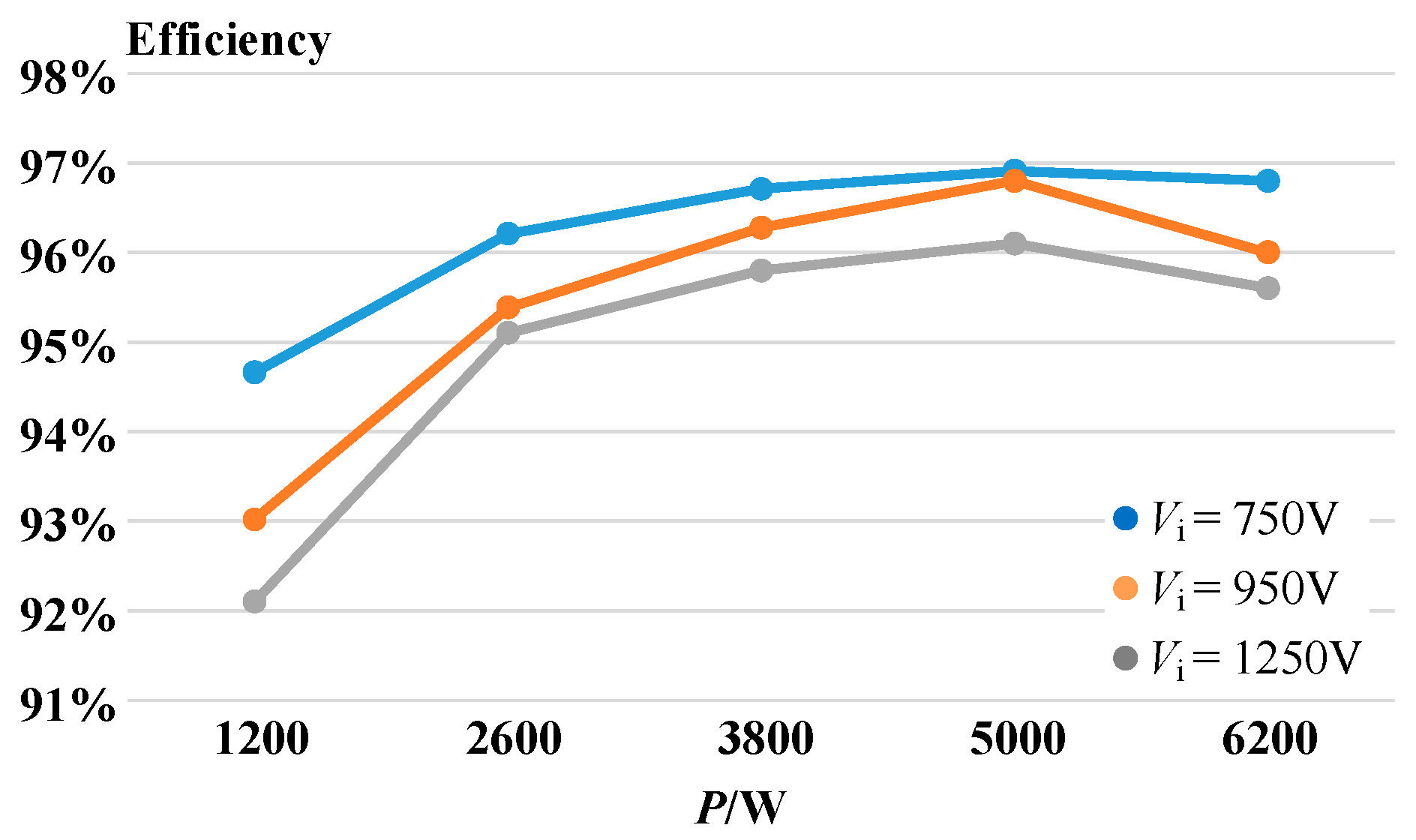

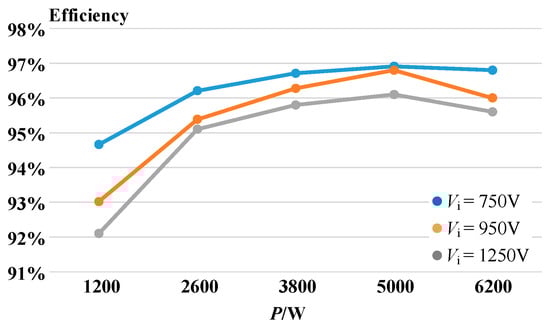

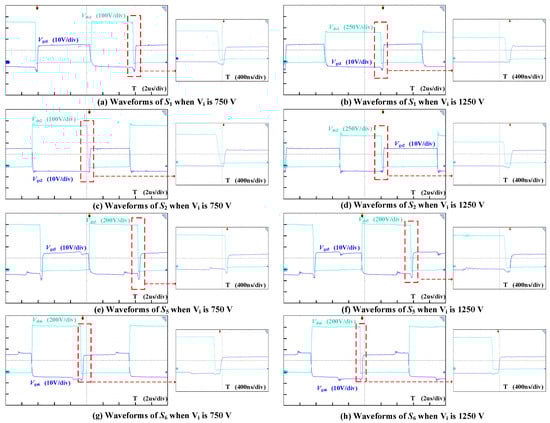

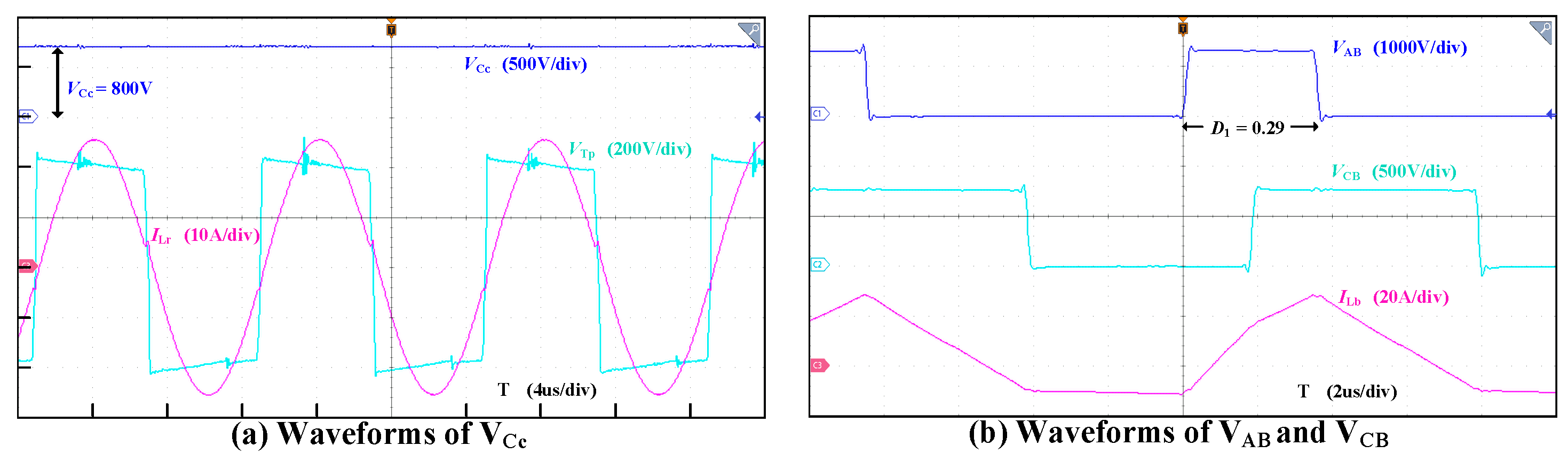

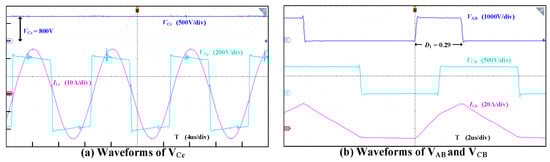

4.2. Experimental Scheme
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
