Next Article in Journal
The Acoustical Durability of Thin Noise Reducing Asphalt Layers
Next Article in Special Issue
Techniques and Challenges for Characterizing Metal Thin Films with Applications in Photonics
Previous Article in Journal
Sputter-Deposited Indium–Tin Oxide Thin Films for Acetaldehyde Gas Sensing
Previous Article in Special Issue
Influence of Material Composition on Structural and Optical Properties of HfO2-TiO2 Mixed Oxide Coatings
Open AccessArticle

Comparison of Single-Layer and Double-Layer Anti-Reflection Coatings Using Laser-Induced Damage Threshold and Photothermal Common-Path Interferometry

1
Helia Photonics Ltd., Livingston EH54 7EJ, UK
2
E. L. Ginzton Laboratory, Stanford University, Stanford, CA 94305, USA
3
Scottish Universities Physics Alliance, School of Physics and Astronomy, University of Glasgow, Glasgow G12 8QQ, UK
4
Scottish Universities Physics Alliance, Institute of Thin Films, Sensors & Imaging, School of Engineering and Computing, University of the West of Scotland, Paisley PA1 2BE, UK
*
Authors to whom correspondence should be addressed.
Coatings 2016, 6(2), 20; https://doi.org/10.3390/coatings6020020
Received: 29 February 2016 / Revised: 27 April 2016 / Accepted: 4 May 2016 / Published: 10 May 2016
(This article belongs to the Special Issue Recent Advances in Optical Coatings)
The dielectric thin-film coating on high-power optical components is often the weakest region and will fail at elevated optical fluences. A comparison of single-layer coatings of ZrO2, LiF, Ta2O5, SiN, and SiO2 along with anti-reflection (AR) coatings optimized at 1064 nm comprised of ZrO2 and Ta2O5 was made, and the results of photothermal common-path interferometry (PCI) and a laser-induced damage threshold (LIDT) are presented here. The coatings were grown by radio frequency (RF) sputtering, pulsed direct-current (DC) sputtering, ion-assisted electron beam evaporation (IAD), and thermal evaporation. Test regimes for LIDT used pulse durations of 9.6 ns at 100 Hz for 1000-on-1 and 1-on-1 regimes at 1064 nm for single-layer and AR coatings, and 20 ns at 20 Hz for a 200-on-1 regime to compare the //ZrO2/SiO2 AR coating. View Full-Text
Keywords: laser-induced damage; photothermal common-path interferometry; optical coatings; 1064 nm laser-induced damage; photothermal common-path interferometry; optical coatings; 1064 nm
Show Figures

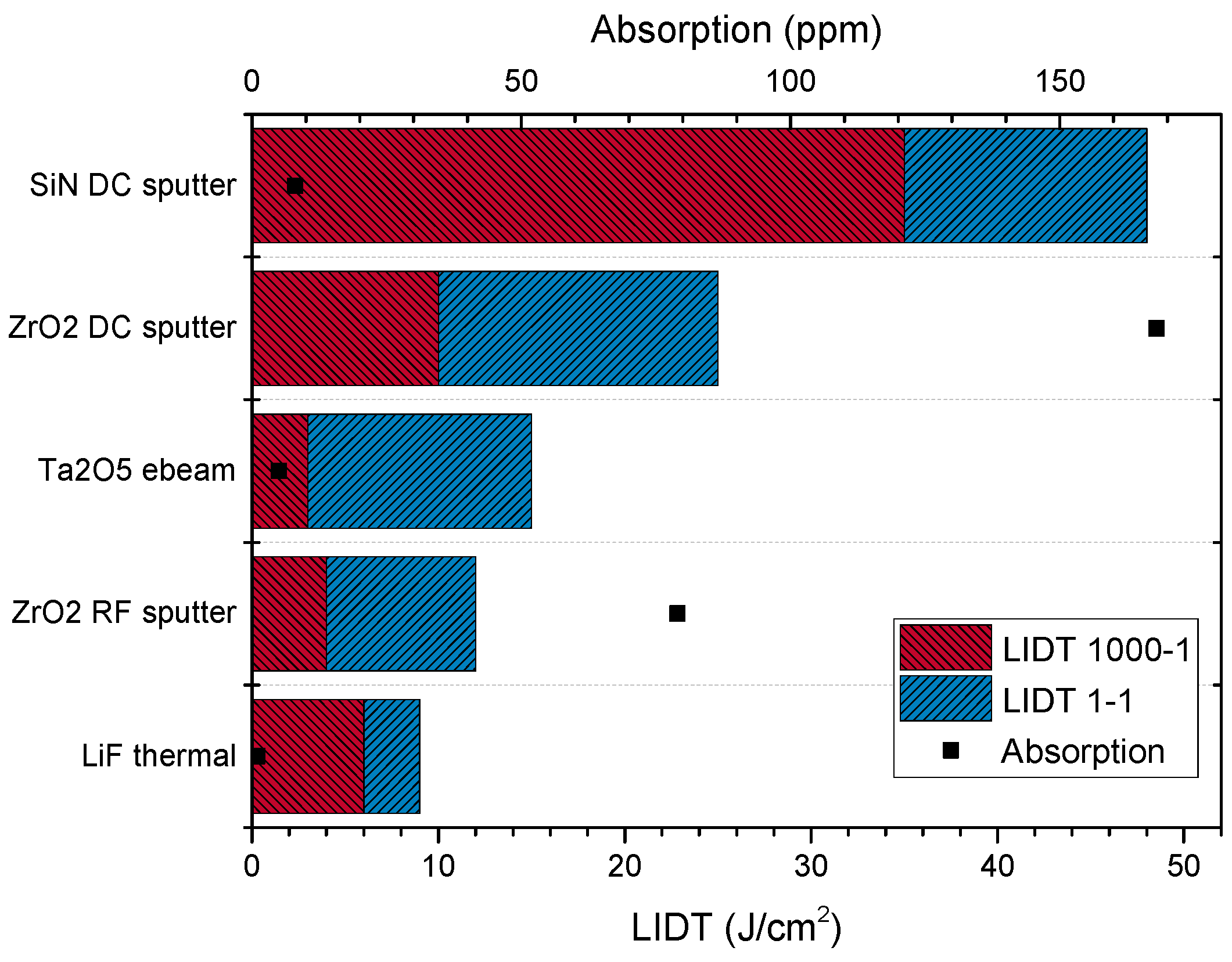

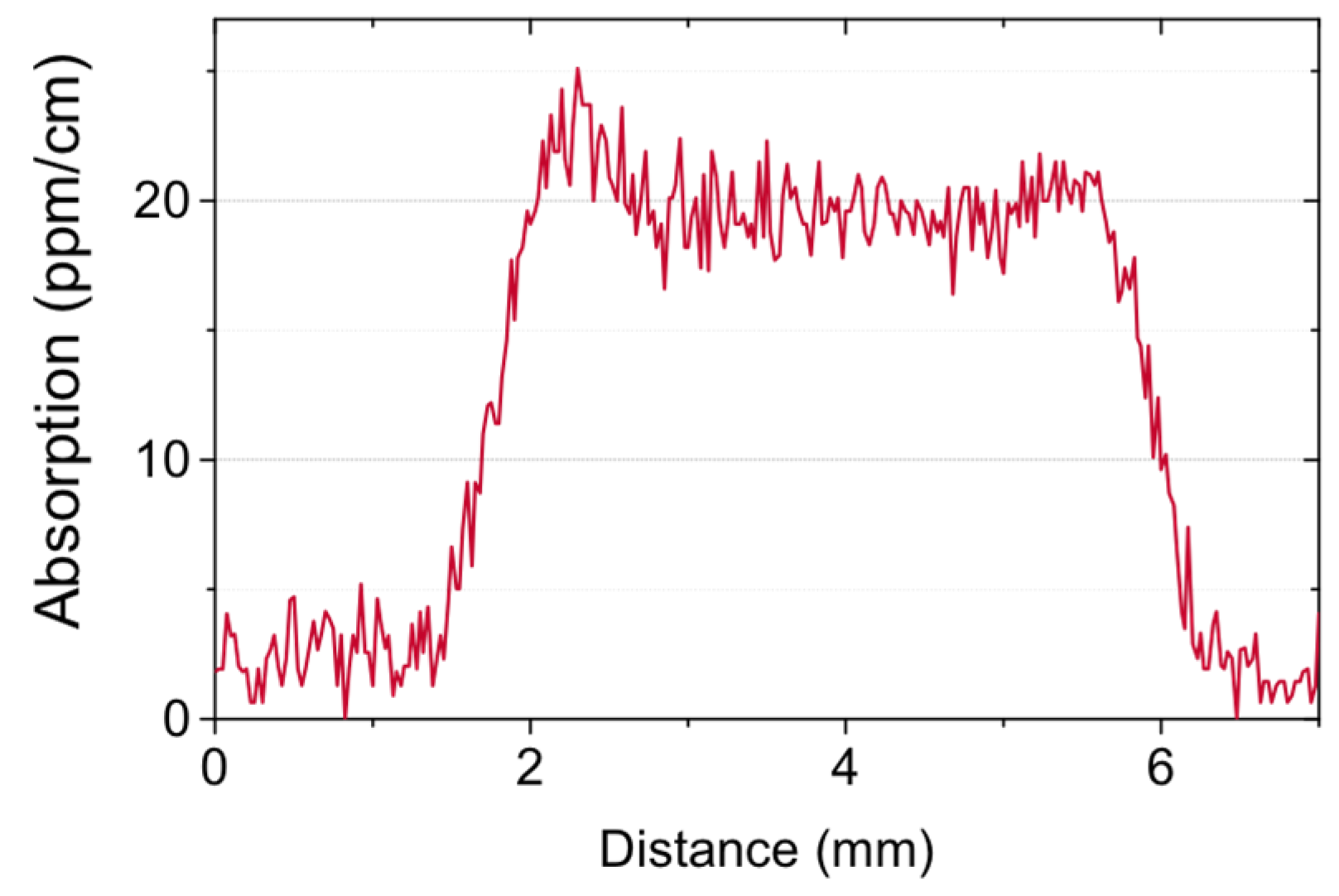

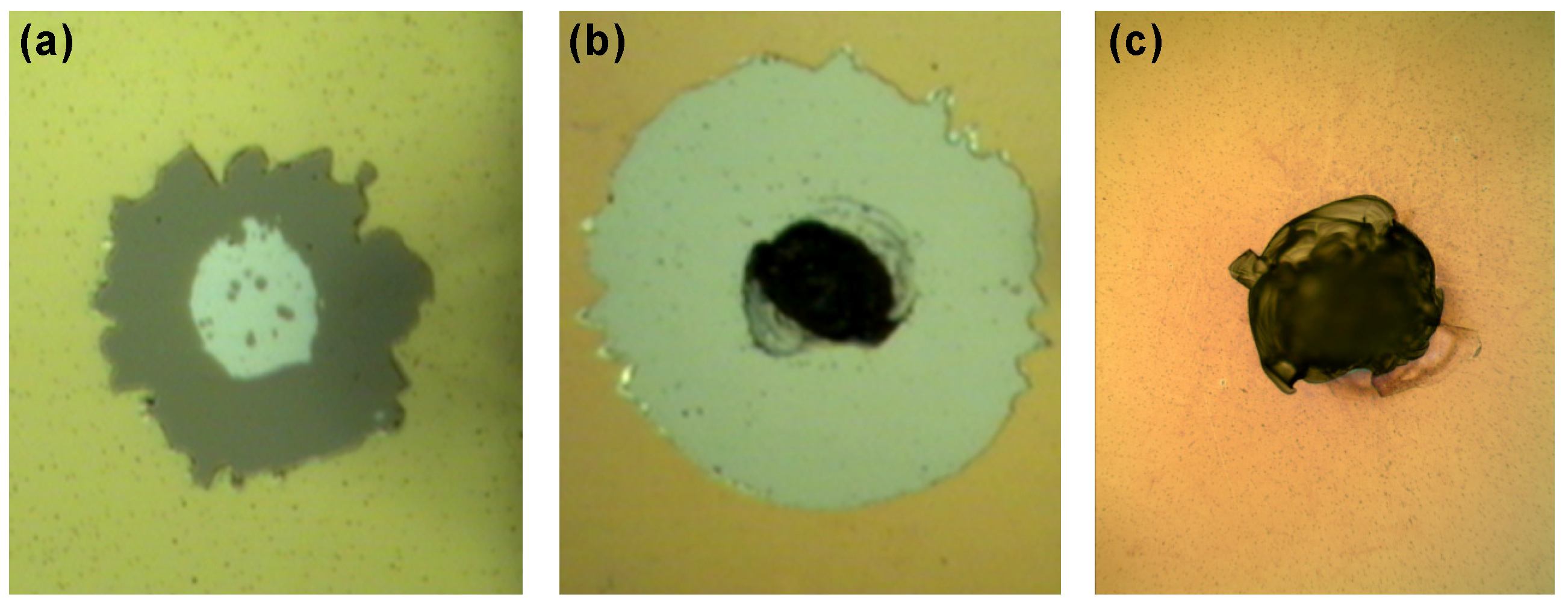

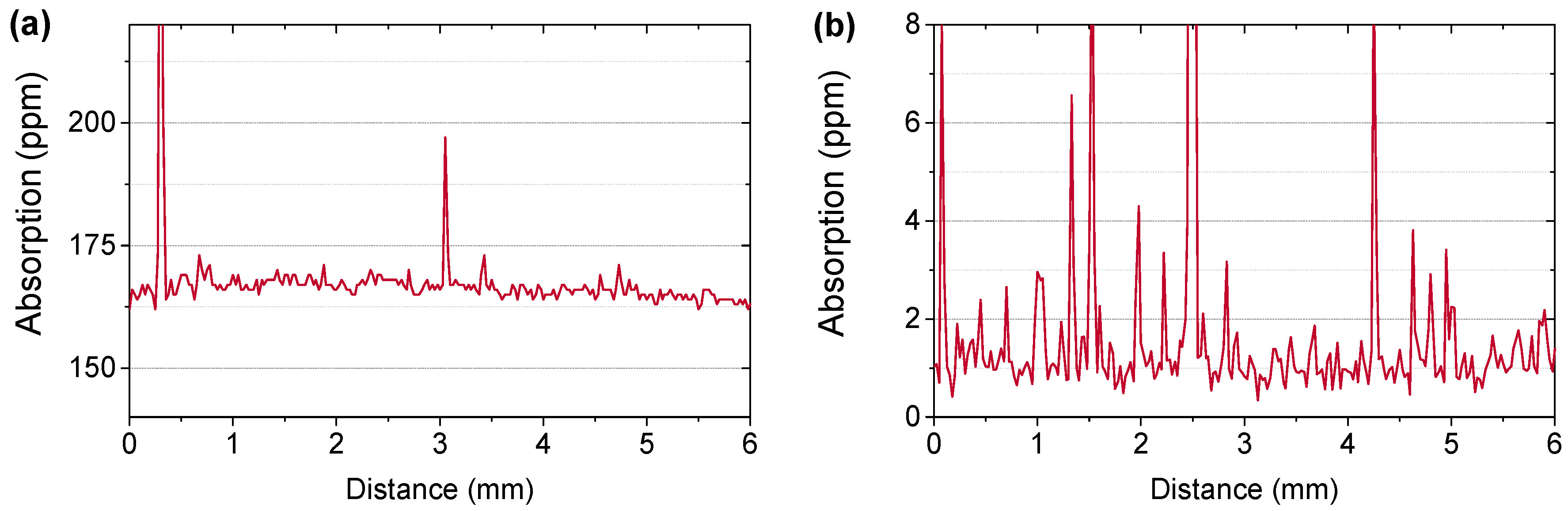

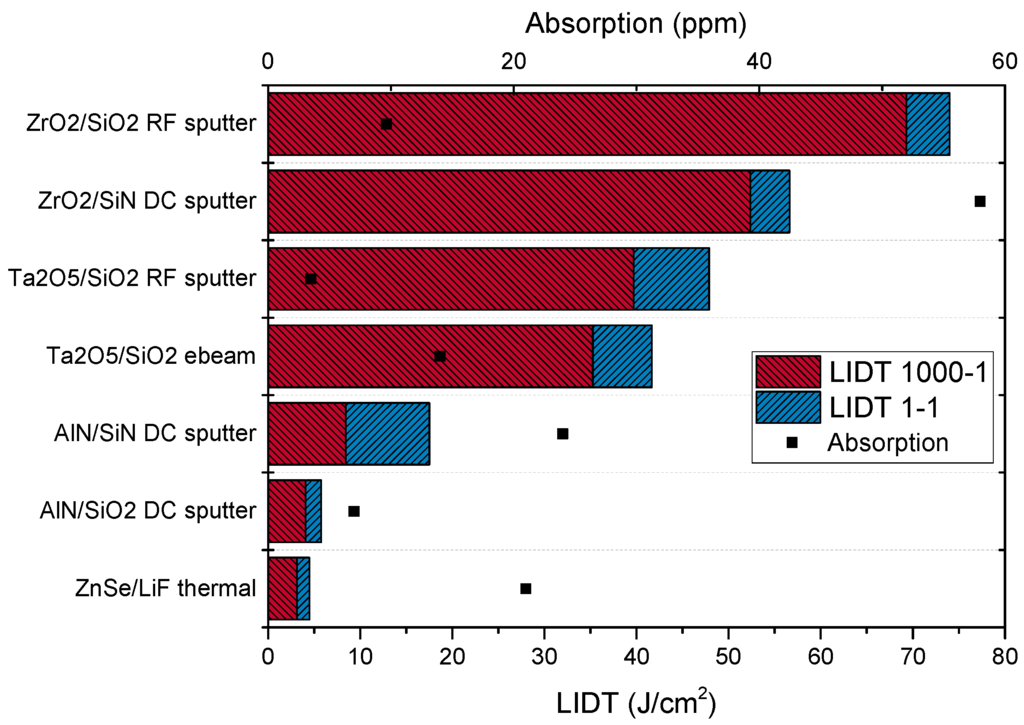

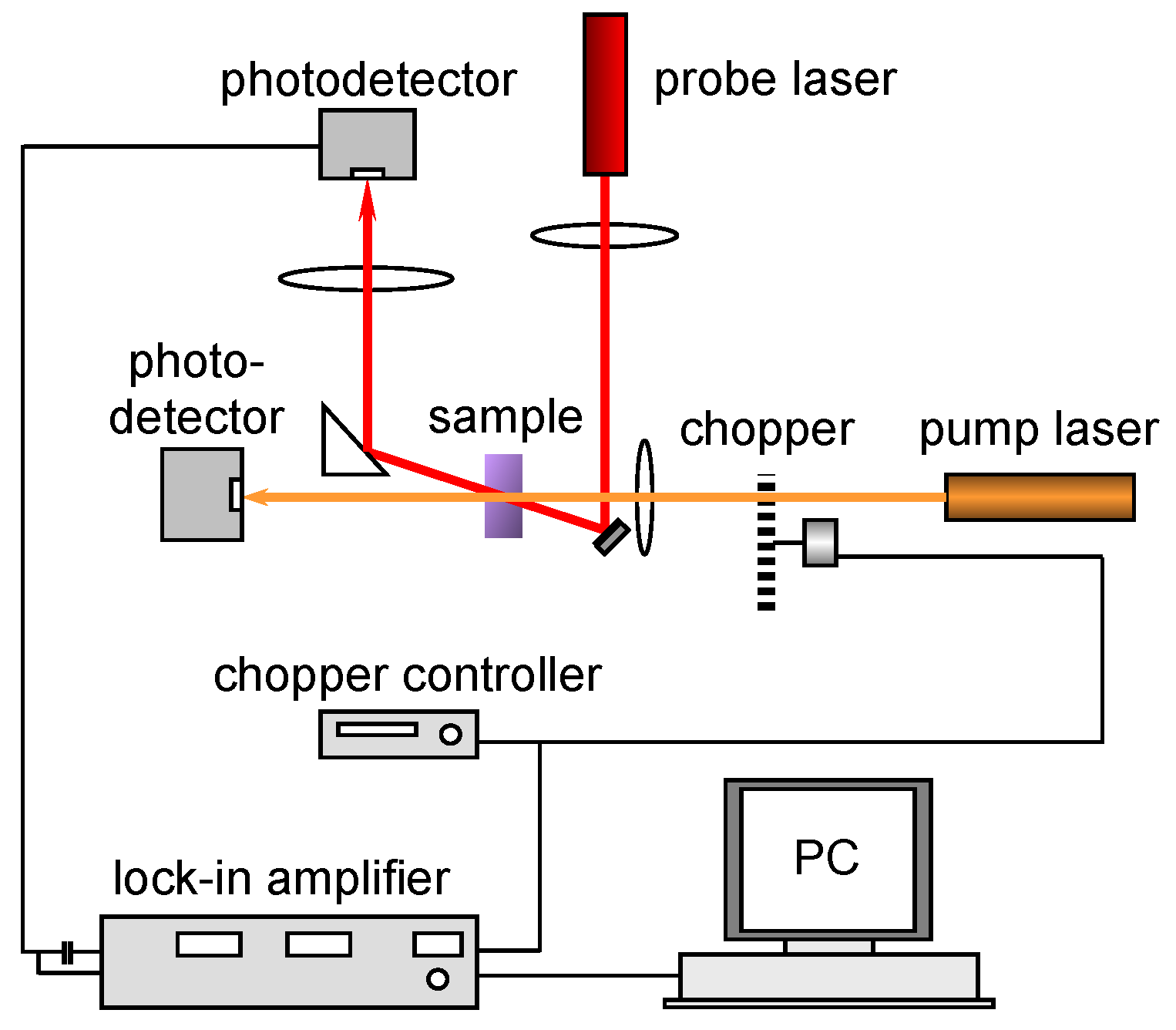

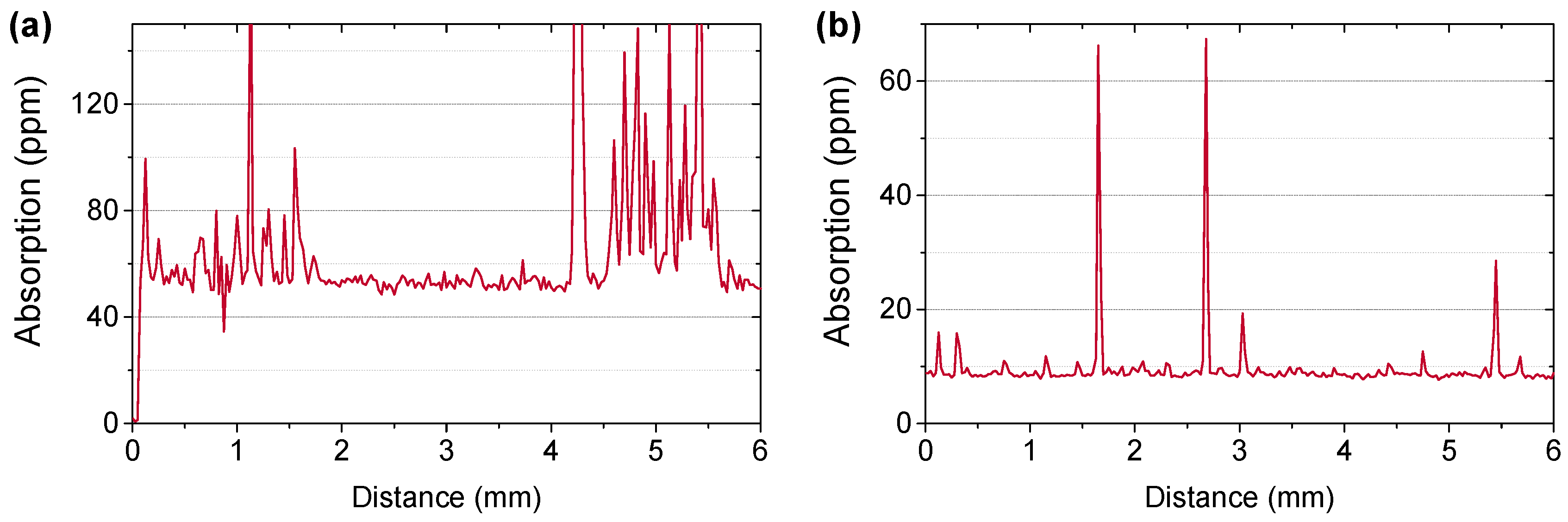

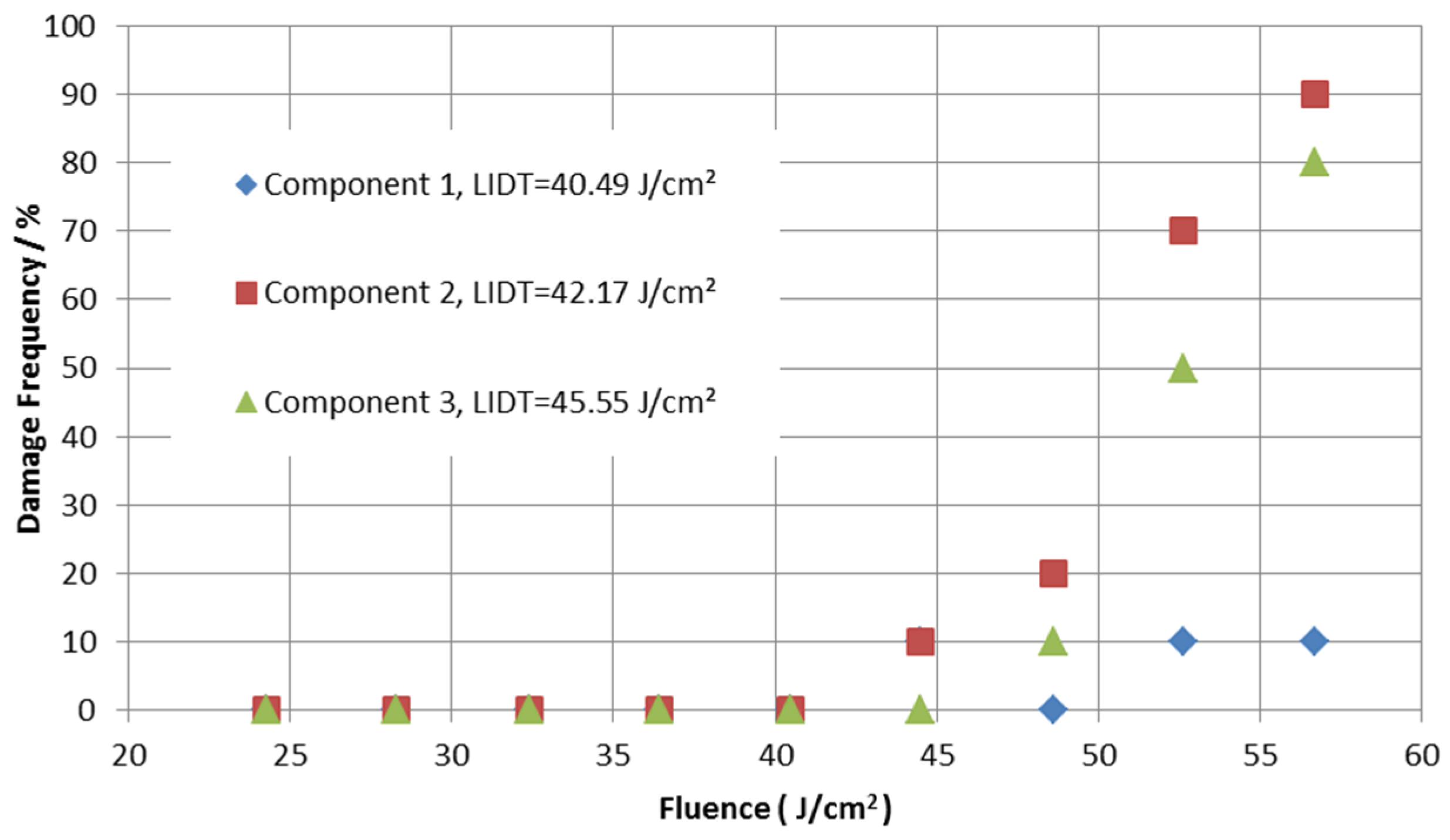

Figure 1

MDPI and ACS Style

Clark, C.; Bassiri, R.; Martin, I.W.; Markosyan, A.; Murray, P.G.; Gibson, D.; Rowan, S.; Fejer, M.M. Comparison of Single-Layer and Double-Layer Anti-Reflection Coatings Using Laser-Induced Damage Threshold and Photothermal Common-Path Interferometry. Coatings 2016, 6, 20.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map

1
Back to TopTop
