Analysis of Magnetic Properties of Nano-Particles Due to a Magnetic Dipole in Micropolar Fluid Flow over a Stretching Sheet

Abstract

This article explores the impact of a magnetic dipole on the heat transfer phenomena of different nano-particles Fe (ferromagnetic) and Fe₃O₄ (Ferrimagnetic) dispersed in a base fluid ($60\%$ water + $40\%$ ethylene glycol) on micro-polar fluid flow over a stretching sheet. A magnetic dipole in the presence of the ferrities of nano-particles plays an important role in controlling the thermal and momentum boundary layers. The use of magnetic nano-particles is to control the flow and heat transfer process through an external magnetic field. The governing system of partial differential equations is transformed into a system of coupled nonlinear ordinary differential equations by using appropriate similarity variables, and the transformed equations are then solved numerically by using a variational finite element method. The impact of different physical parameters on the velocity, the temperature, the Nusselt number, and the skin friction coefficient is shown. The velocity profile decreases in the order Fe (ferromagnetic fluid) and Fe₃O₄ (ferrimagnetic fluid). Furthermore, it was observed that the Nusselt number is decreasing with the increasing values of boundary parameter $(\delta )$, while there is controversy with respect to the increasing values of radiation parameter $(N)$. Additionally, it was observed that the ferromagnetic case gained maximum thermal conductivity, as compared to ferrimagnetic case. In the end, the convergence of the finite element solution was observed; the calculations were found by reducing the mesh size.

1. Introduction

The study of magnetic nano-particles plays an important role due to its inclusive use at many industrial applications and in several other flow phenomena. The enhancement of heat transferring in the two-phase fluid flow has been studied for many years. The fluids are often utilized in the heat transferring phenomena as a heat transporter. Therefore, over the last few decades, nano-fluids have been the subject of great attention for researchers. Nano-fluids have industrialized by the diffusion of nano-meter-scaled dense elements into fluids, which contain different materials (metal oxides, metals, etc.). Such attention is the due to their credible applications in heat transfer, innovative magnetic constituents, and microelectronic freezing. Magnetic nano-fluids create a different kind of nano-fluid that shows both fluidic and magnetic properties. These fluids interest researchers and scientists because they have several applications in the field of bio-medicine, chemical engineering, micro-electro-mechanical, compounds, colored stains, the refinement of melted metals, shock absorbers, pumps, etc. [1,2,3,4]. The transfer of heat is the elementary feature of the vast utilization via applications, which are subjected to the thermal conductivity of operational liquids, and include procedures with the capability of thermal utilization and erection. There are many periodicals on nano-fluids that seek to recognize their behavior so that it can be utilized wherever the transfer of heat enhancement is overriding, such as in several manufacturing appliances such as transportation, nuclear-powered reactors, and electronics and in bio-medicine and nutrition. Nano-fluid has been found wherever the heat transfer might be reduced or enhanced. Wen [5] represents the insufficient caring of the structure and mechanism of nano-fluids and their applications.

The suspension of particles is instigated by Brownian motion. Under normal conditions, the particles will not settle down. The magnetism of nano-scaled ferromagnetic particles has been truncated during surfactant van der Waals forces of appropriate strength to obstruct the magnetic forces. When the magnetizable supplies are rare to peripheral magnetizing field H, magnetic dipoles in the material will align and generate a magnetization M. Initially, Sakiadis [6] and Crane [7] explored the nano-fluid flow and the stretching sheet. Mee [8] showed that ferrofluids can be used to detain magnetic dominion structures on the surface of ferrofluids in the presence of a magnetic dipole. Neuringer [9] described the flow of ferrofluids under the influence of a magnetic field and thermal gradients. Nadeem et al. [10] illustrated the impact of a magnetic dipole through a porous medium in the flow of ferrofluid. Anderson et al. [11] investigated the stimulus of the magnetic field generated by a magnetic dipole through a stretched sheet, and the magnetic field was responsible for decreasing the motion of a fluid. Recently, Bognar et al. [12] investigated the magneto thermo-mechanical association concerning the heated viscid incompressible ferrofluid and the cold wall in the presence of a variable magnetic field. Tang and Fu [13] examined a natural macromolecule-based coating with adjoined magnetic Fe₃O₄ nano-particles that were formulated for wood surface modification. Liaqat et al. [14] investigated the impact of multi-slip and solutal boundary conditions on magneto-hydrodynamic (MHD), unsteady, bio-convective, micropolar nano-fluid, restraining gyrotactic microorganism heat and mass transfer effect over a stretching/shrinking sheet. Mabood et al. [15] showed that there is a direct relation of the magnetic parameter with Nusselt and Sherwood numbers. Magnetic nano-fluids (that contain colloidal mixtures of super-paramagnetic nano-particles suspended in a nonmagnetic carrier fluid) generate a special kind of nano-fluid that shows both magnetic and fluid properties. These fluids fascinate scientists and researchers because they have many applications, particularly in the field of colored pigments, chemical engineering, biomedicine, micro-electromechanical systems, catalysts, leak-proof seals, the purification of molten metals, coolers of nuclear reactors, shock absorbers, micro-fluidic valves and pumps, and lithographic patterning [16,17,18].

Turkyilmazoglu [19] analyzed the heat transfer and the micro-polar fluid flow through a stretching sheet. Pradhan et al. [20] carried out an analysis of the free convective fluid flow over an electrically conducted micro-polar fluid through a penetrable stretching sheet in the presence of the porous medium. Ishak et al. [21] studied stagnation point flow through a shrinking sheet in a micro-polar fluid. Eringen [22] established a philosophy of micro-polar fluid that cannot be explicated by classical Navier–Stokes equations due to micro inertia and gyration or micro-gyration impacts. Gorla [23] represented a study on micro-polar boundary layer flow at the stagnation point on the moving wall. Li et al. [24] analyzed the impacts of element volume fraction, surfactants, and the magnetic field on the transporting properties of water-based Fe magnetic nano-fluid. Yirga and Tesfay [25] conducted a heat and mass transfer investigation of nano-fluid over a penetrable stretching sheet. The authors disclosed that Ag water nano-fluid has greater skin friction as compared to Cu water nano-fluid. Further applications that are appropriate to the flow of liquors are suggested in [26,27]. Ibrahim and Shankar [28] revealed the heat transfer and the magneto-hydrodynamic boundary layer flow of nano-fluids through a penetrable stretching sheet with velocity, thermal, and solutal-slip boundary conditions. Das [29] investigated an imperative numerical analysis on the convective heat transfer narration of nano-fluids through a penetrable stretching sheet in the presence of partial slip, thermal buoyancy, and internal heat development/captivation. Abbas et al. [30] investigated the influences of radioactivity in the presence of a similar magnetic field for nano-fluids on a frizzy stretching sheet by integrating the implications of slip. The reimbursement of the accumulation of ferrimagnetic and ferromagnetic nano-particles increases the transfer of mass and dominates the consistency of the nano-fluid. Numerous nano-fluid imitations have been generated on the basis of different types of nano-particles and the reversing gesticulation scheme of fluid.

The literature lacks investigations on the impact of viscous dissipation and the different kinds of magnetic nano-particles Fe (ferromagnetic) and Fe₃O₄ (ferrimagnetic) on micro-polar fluid flow, heat transfer over the stretching sheets. H₂O (water) and C₂H₆O₂ (Ethylene glycol) are used as base fluids in the presence of a magnetic dipole. The foremost intention of the current study was to investigate the behavior of different magnetic nano-particles and thermal conductivity. The behavior of the existing parameters is demonstrated graphically. Moreover, the graphical representation of the Nusselt number and the concentration of magnetic ferrites is discussed. We numerically inspected the behavior of skin friction and also, describe the influence of various parameters of the flow. Subsequently, a numeral assessment of current results is represented and discussed using diagrams.

2. Problem Description

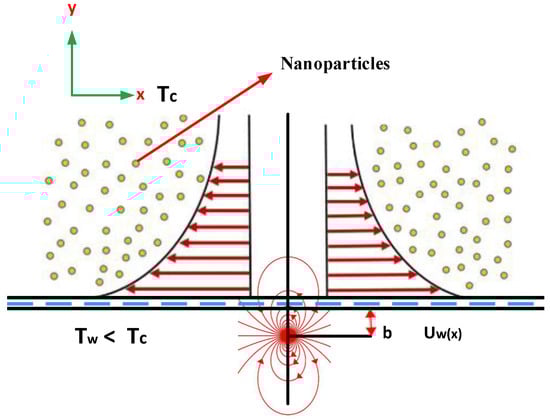

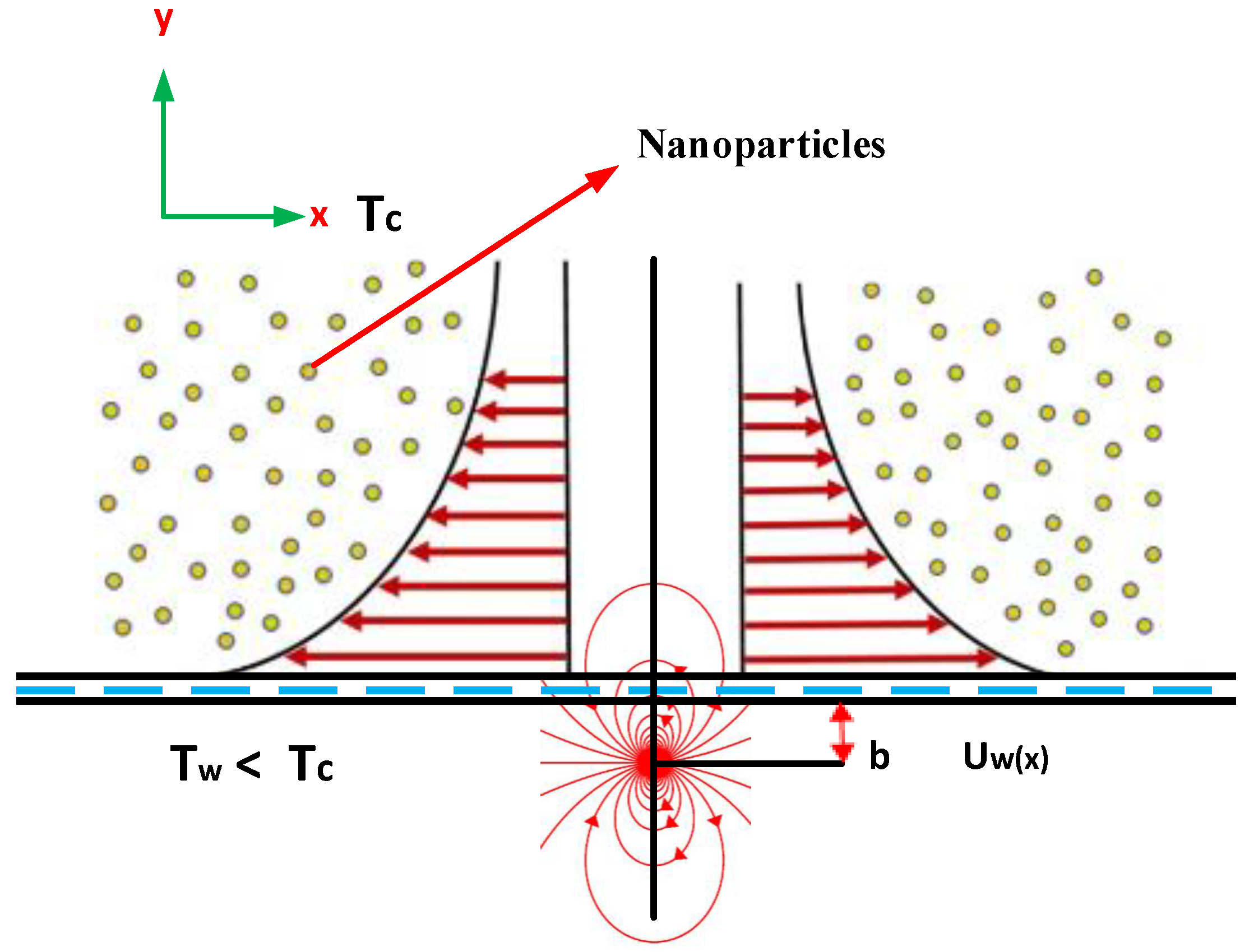

Considering a two-dimensional MHD, incompressible, boundary layer, micro-polar magnetic nano-fluid flow over an electrically nonconducted stretching surface, we found that the magnetic nano-fluid contains ferromagnetic and ferrimagnetic particles suspended with ethylene glycol C₂H₆O₂ as a conventional fluid over a stretching surface. We decided on a two-coordinate system so that the dimensions of the surface would be designated along the x-axis and the y-axis. $U_w$ is the velocity of the sheet, as shown in Figure 1. The stretching gives the impression in the sheet and is proportionate to the distance from the origin. Moreover, the magnetic dipole is located nearly at distance b from the x-axis outside the fluid and is retained in such a manner that its middle is accurately placed on the y-axis. The magnetic field points of the magnetic dipole are applied in the positive x-direction. By saturating the ferrofluid, the magnetic dipole substantially escalates the strength of the magnetic field. The temperature $T_w$ at the stretching sheet is lower than the cure temperature $T_c$, and $T=T_{\infty }$ is the temperature of the fluid away from the surface, where $T_c>T_{\infty }>T_w$ and the fluid that is away from $T_c$ are incapable of being magnetized. The variable temperature $T_w=T_0+d_{1}x$ is considered at the surface and is $T_{\infty }=T_0+d_{2}x$, away from the surface. The governing equations for flow can be expressed as [31]

$$\frac{\partial u}{\partial x}+\frac{\partial v}{\partial y}=0$$

(1)

$$u\frac{\partial u}{\partial x}+v\frac{\partial u}{\partial y}=-\frac{1}{\rho }\frac{\partial p}{\partial x}+\frac{{\mu }_0}{\rho }M\frac{\partial H}{\partial x}+(\frac{{\mu }_{nf}+\kappa }{{\rho }_{nf}})\frac{{\partial }^{2}u}{\partial y^2}+\frac{\kappa }{{\rho }_{nf}}\frac{\partial w}{\partial y}$$

(2)

$$u\frac{\partial w}{\partial x}+v\frac{\partial w}{\partial y}=\frac{{\gamma }_{nf}}{({\rho }_{nf})j}\frac{{\partial }^{2}w}{\partial y^2}-\frac{\kappa }{({\rho }_{nf})j}(2w+\frac{\partial u}{\partial y})$$

(3)

$$u\frac{\partial T}{\partial x}+v\frac{\partial T}{\partial y}+(u\frac{\partial H}{\partial x}+v\frac{\partial H}{\partial y})\frac{{\mu }_0}{{({\rho }_{cp})}_{nf}}T\frac{\partial M}{\partial T}={\alpha }_{nf}\frac{{\partial }^{2}T}{\partial y^2}-\frac{\partial q_r}{\partial y}+\frac{{\mu }_{nf}}{{({\rho }_{cp})}_{nf}}[{(\frac{\partial u}{\partial y})}^2+2{(\frac{\partial v}{\partial y})}^2]$$

(4)

The velocity components along the x-axis and y-axis are $(u,v)$, respectively. ${\alpha }_{nf}$ is the normal anxiety moduli, ${\rho }_{nf}$ is the fluid density, ${\mu }_{nf}$ is the dynamic viscosity of the fluid, p is the pressure, M is the magnetization, H is the magnetic field, ${\mu }_0$ is the magnetic penetrability, and ${({\rho }_{cp})}_{nf}$ is the thermal capability of the nano-fluid. The spin gradient viscosity is ${\gamma }_{nf}$ and is expressed as $\gamma =\sqrt{S\rho b^2}/\sqrt{\mu }$, where b is constant, and $q_r$ is the heat flux that is expressed as $q_r=-\frac{4{\sigma }^{*}}{3{\kappa }^{*}}\frac{\partial T^4}{\partial y}$, where ${\sigma }^{*}$ is the Stefan-Boltzmann number, and ${\kappa }^{*}$ represents the mean assimilation coefficients. The thermos-physical factors are [32]

$$\begin{array}{ccc}\hfill A_1& =& {\rho }_{nf}={(1-\varphi )}_{\rho f}+\varphi {\rho }_s,A_2={\mu }_{nf}={\mu }_f/{(1-\varphi )}^{2.5},\hfill \\ \hfill A_3& =& {(\rho C_p)}_{nf}=(1-\varphi ){(\rho C_p)}_f+\varphi {(\rho C_p)}_s,A_4=\frac{{\kappa }_{nf}}{{\kappa }_f}=\frac{({\kappa }_s+2{\kappa }_f)-2\varphi ({\kappa }_f-{\kappa }_s)}{({\kappa }_s+2{\kappa }_f)+\varphi ({\kappa }_f-{\kappa }_s)}\hfill \end{array}$$

Boundary conditions for the above mathematical model are given as

$$\begin{array}{c}u=U_w(x)=Sx,v=-v_0,T=T_w,w=-m\frac{\partial u}{\partial y},asy=0\\ U_e(x)=Qx,w=0,T\to T_{\infty },asy\to \infty \end{array}$$

(5)

$T_0$, $d_1$, and $d_2$ are allusion temperature and dimensionless quantities, respectively. The temperature at the surface is $T_w$, the Curie temperature is $T_c$, and $T_{\infty }$ is the temperature of the fluid away from the surface. S and Q are constants.

The magnetic nano-fluid flow is affected via the dipole field by means of magnetic scalar potential $\tau$ [11]:

$$\tau =(\frac{{\gamma }^{*}}{2\pi })x/(x^2+{(y+b)}^2)$$

(6)

At the source position, ${\gamma }^{*}$ denotes the strength of magnetic field, b represents the distance from the x-axis to the center of magnetic field, and the x, y components of the magnetic field H are

$$H_x=-\partial \tau /\partial x=(\frac{{\gamma }^{*}}{2\pi })(x^2-{(y+b)}^2)/{(x^2+{(y+b)}^2)}^2$$

(7)

$$H_y=-\partial \tau /\partial y=(\frac{{\gamma }^{*}}{2\pi })(2x(y+c))/{(x^2+{(y+c)}^2)}^2$$

(8)

The body force is proportionate to the gradient of magnitude H, which is

$$H=\sqrt{{(\partial \tau /\partial x)}^2+{(\partial \tau /\partial y)}^2}$$

(9)

By using Equations (7) and (8) to solve Equation (9) by expanding the power of x up to $x^2$, then we obtain

$$\partial H/\partial x=-\frac{{\gamma }^{*}}{2\pi }(2x/{(y+b)}^4)$$

(10)

$$\partial H/\partial y=\frac{{\gamma }^{*}}{2\pi }(-2/{(y+b)}^3+4x^2/{(y+b)}^5)$$

(11)

The impact of the variation of magnetization M with temperature T can be expressed as linear equation $M=K_1(T-T\infty )$, where $K_1$ is a pyromagnetic coefficient. Let us now introduce non-dimensional variables to solve the system of Equations (1)–(4). We substitute the similarity transformations as follows [11]:

$$\psi (\zeta ,\eta )=(\mu /\rho )\zeta f(\eta ),\theta (\zeta ,\eta )=(T_{\infty }-T)/(T_0-T_w)={\theta }_1(\eta )+{\zeta }^2{\theta }_2(\eta )$$

(12)

where $\mu$ is the dynamic viscosity, ${\theta }_1(\eta )$ and ${\theta }_2(\eta )$ are the dimensionless temperature resp, and the non-dimensional co-ordinates are

$$\eta =y\sqrt{(S{\rho }_f)/{\mu }_f},\zeta =x\sqrt{(S{\rho }_f)/{\mu }_f}$$

(13)

The components of the velocity for the stream function $\psi (\zeta ,\eta )$ and for temperature $\theta (\zeta ,\eta )$ are

$$u=\frac{\partial \psi }{\partial y}=Sx{f}^{\prime }(\eta ),v=-\frac{\partial \psi }{\partial x}=-\sqrt{(S{v}_f)}f(\eta )$$

(14)

According to similarity transformations, Equations (12)–(14), the system of Equations (1)–(4) are converted into a system of ordinary differential equations (ODEs):

$$(A_5+K)\frac{d^{3}f}{d{\eta }^3}-A_1{(\frac{df}{d\eta })}^2+A_{1}f\frac{d^{2}f}{d{\eta }^2}+K\frac{dg}{d\eta }-\frac{2\beta {\theta }_1}{{(\eta +\gamma )}^4}+A_1{R}^2=0$$

(15)

$$(A_5+\frac{K}{2})\frac{d^{2}g}{d{\eta }^2}-A_{1}f\frac{dg}{d\eta }+A_{1}g\frac{df}{d\eta }-K(2g+\frac{d^{2}f}{d{\eta }^2})=0$$

(16)

$$A_4(1+N)\frac{d^2{\theta }_1}{d{\eta }^2}+A_3(f\frac{d{\theta }_1}{d\eta }-2{\theta }_1\frac{df}{d\eta })+\frac{2\lambda \beta f({\theta }_1-ϵ)}{{(\eta +\gamma )}^3}-2\lambda A_5{(\frac{df}{d\eta })}^2=0$$

(17)

$$A_4(1+N)\frac{d^2{\theta }_2}{d{\eta }^2}+A_3(f\frac{d{\theta }_2}{d\eta }-4{\theta }_2\frac{df}{d\eta })+\frac{2\lambda \beta {\theta }_2}{{(\eta +\gamma )}^3}$$

$$-\lambda \beta ({\theta }_1-ϵ)[2\frac{df}{d\eta }/{(\eta +\gamma )}^4+4f/{(\eta +\gamma )}^5]-\lambda A_5{(\frac{d^{2}f}{d{\eta }^2})}^2=0$$

(18)

For the above problem, the transformed boundary conditions are

$$f(0)=f_0,\frac{df(0)}{d\eta }=1,g(0)=-\delta \frac{d^{2}f(0)}{d{\eta }^2},{\theta }_1=1,and{\theta }_2=0.$$

(19)

$$\frac{df(\infty )}{d\eta }\to R,g\to 0,{\theta }_1(\infty )\to 0,and{\theta }_2(\infty )\to 0$$

(20)

where $A_5={(1-\varphi )}^{-2.5}$, and the primes show the differentiation with respect to $\eta$. Parameters in Equations (15)–(18) are explained by the following:

$$\begin{array}{c}R=Q/S,P_r=\nu /\alpha ,\delta m=Sb/\rho \nu ,ϵ=T_{\infty }/T_0-T_w,\beta =\frac{{\gamma }^{\prime }}{2\pi }\frac{K{\mu }_0(T_0-T_w)\rho }{{\mu }_0^2},\hfill \\ \lambda =S{\mu }^2/\rho \kappa (T_0-T_w),{\gamma }^{\prime }=\sqrt{S\rho b^2}/\sqrt{\mu },N=(16{\sigma }^{*}{T}_{\infty }^3)/(3{\kappa }^{*}K)\hfill \end{array}$$

Here, $\beta$ is the ferromagnetic parameter, $\lambda$ is the viscous dissipation, K is the micro-rotation parameter, b is the distance from the origin to the magnetic dipole, $\delta$ is the boundary parameter, and $T_c$ is the Curie temperature. $\delta m$ is the elasticity parameter, N is the thermal radiation parameter, R is the ratio of Q and S, and $Pr$ is the Prandtl number. The thermophysical properties of the base fluid ($60\%$ water + $40\%$ ethylene glycol) and the two different magnetic nano-particles are displayed in

Table 1. Physical properties of the base fluid ($60\%$ water + $40\%$ ethylene glycol) and nano-particles.

Properties	Base Fluid [33]	Ferromagnetic (Fe) [34]	Ferrimagnetic (Fe3O4) [34]
$C_p(J·(kg·{(K)}^{-1})$	3752	447	670
$\rho (kg·(m^{-3}))$	1054	7870	5180
$\kappa (W·(m·{(K)}^{-1})$	0.416	80.2	9.7

. The most substantial corporeal measurements are the skin friction coefficient and the Nusselt number, and the explanation of these dimensionless corporal measurements is given as

$$C_{fx}=-2{\tau }_w/{\rho }_{nf}{U}_w^2,{\tau }_w={{\mu }_{nf}(\partial u/\partial y)}_{y=0},N_{ux}=-\frac{K_{nf}}{K_f}(1+N)\frac{x}{(T_0-T_w)}{[\partial T/\partial y]}_{y=0}$$

(21)

When Equations (13) and (14) are substituted in Equation (21), the resulting form is

$$C_f{(R{e}_x)}^{-1/2}=-(A5+(1-\delta )K)\frac{d^{2}f(0)}{d{\eta }^2}$$

(22)

$$N_u{(R{e}_x)}^{-1/2}=A_4(1+N)[\frac{d{\theta }_1(0)}{d\eta }+{\eta }^2\frac{d{\theta }_2(0)}{d\eta }]$$

(23)

where the local Reynolds number is $R{e}_x=\frac{x{u}_w(x)}{v_f}$.

3. Implementation of the Method

The finite element method was implemented to obtained the numerical solution of the coupled nonlinear system of differential equations that are detailed in Equations (15)–(18) with the boundary conditions expressed in Equations (19) and (20). The finite element method is most capable and reliable compared to many other numerical methods, such as Admoian decomposition method (ADM), homotopy perturbation method (HPM), and finite difference method (FDM). The inclusive features of the finite element method have been described by Reddy [35], who also used the finite element method (FEM) with commercial software such as MATLAB, ANSYS, ADINA, and ABAQUS. Swapna et al. and Rana et al. [36,37] showed that the variational finite element method solves the boundary value problem effectively, quickly, and accurately. To use the finite element method (FEM) and solve the system of differential equations, Equations (15)–(18), firstly we have to consider the following:

$$\begin{array}{c}\frac{df}{d\eta }=h\end{array}$$

(24)

Equations (15)–(18) take the form

$$(A_5+K)\frac{d^{2}h}{d{\eta }^2}+A_{1}f\frac{dh}{d\eta }-A_1{h}^2+K\frac{dg}{d\eta }-\frac{2\beta {\theta }_1}{{(\eta +\gamma )}^4}+A_1{R}^2=0$$

(25)

$$(A_5+\frac{K}{2})\frac{d^{2}g}{d{\eta }^2}-A_{1}f\frac{dg}{d\eta }+A_{1}gh-K(2g+\frac{dh}{d\eta })=0$$

(26)

$$A_4(1+N)\frac{d^2{\theta }_1}{d{\eta }^2}+A_3(f\frac{d{\theta }_1}{d\eta }-2{\theta }_{1}h)+\frac{2\lambda \beta f({\theta }_1-ϵ)}{{(\eta +\gamma )}^3}-2\lambda A_5{h}^2=0$$

(27)

$$A_4(1+N)\frac{d^2{\theta }_2}{d{\eta }^2}+A_3(f\frac{d{\theta }_2}{d\eta }-4{\theta }_{2}h)+\frac{2\lambda \beta {\theta }_2}{{(\eta +\gamma )}^3}$$

$$-\lambda \beta ({\theta }_1-ϵ)[2h/{(\eta +\gamma )}^4+4f/{(\eta +\gamma )}^5]-\lambda A_5{(\frac{dh}{d\eta })}^2=0$$

(28)

The correspondent boundary conditions are reduced to subsequential form:

$$f(0)=f_0,h(0)=1,g(0)=-\delta \frac{d^{2}f(0)}{d{\eta }^2},{\theta }_1=1,and{\theta }_2=0$$

(29)

$$h(\infty )\to R,g\to 0,{\theta }_1(\infty )\to 0,and{\theta }_2(\infty )\to 0$$

(30)

The given domain is divided into a finite number of subintervals known as finite elements. The assembly of finite elements is designated as the finite element mesh, and the physical boundary conditions are executed on the accumulated equations. From the mesh, a typical element is separated, and the variational formulation of the given problem over that element is constructed. The estimated solution of the variational problem is assumed. On substituting it into the variational form, the element equations are formed. The element matrix is constructed by using the element interpolation functions. The appropriate variational formulation details are given in Appendix A.

Subsequently, the accumulation of element equations, a substantial system of nonlinear equations, is achieved. Moreover, an iterative structure is needed to resolve the system of nonlinear equations for an efficient solution. At the inferior level of iterations, the functions $\overline{f}$, $\overline{h}$, $\overline{g}$, ${\overline{\theta }}_1$, and ${\overline{\theta }}_2$ are assumed to be known to linearize the framework and are required until an accuracy of $0.00005$ is not obtained. To ensure mesh independence, a mesh affectability practice was performed.

Table 2. FEM convergence results of $h(\eta )$, $g(\eta )$, ${\theta }_1(\eta )$, and ${\theta }_2(\eta )$ for different numbers of elements when $Pr=2$, $K=0.1$, $\lambda =0.01$, $\varphi =0$, $\beta =0.5$, $ϵ=2$, $\delta =0.5$, $f_0=0.2$, and $N=0.5.$

Number of Elements	$\mathit{h}(1.5)$	$\mathit{g}(1.5)$	${\mathit{\theta }}_1(1.5)$	${\mathit{\theta }}_2(1.5)$
40	0.191650	0.121507	0.087617	0.000102
100	0.192679	0.121595	0.089334	0.000101
160	0.192796	0.121602	0.089529	0.000101
240	0.192837	0.121604	0.089598	0.000101
340	0.192853	0.121605	0.089626	0.000101
400	0.192859	0.121606	0.089634	0.000100
480	0.192862	0.121606	0.089639	0.000100
500	0.192863	0.121606	0.089641	0.000100

shows the convergence of the results. The number of elements increased as follows: n = 40, 100, 160, 240, 340, 400, 480, and 500. Based on Table 2, there is no significant difference that can be seen in the values of functions $\overline{h}$, $\overline{g}$, ${\overline{\theta }}_1$, and ${\overline{\theta }}_2$ as number of elements increases beyond n = 480; thus, the last results are stated for n = 480 elements.

4. Results and Discussion

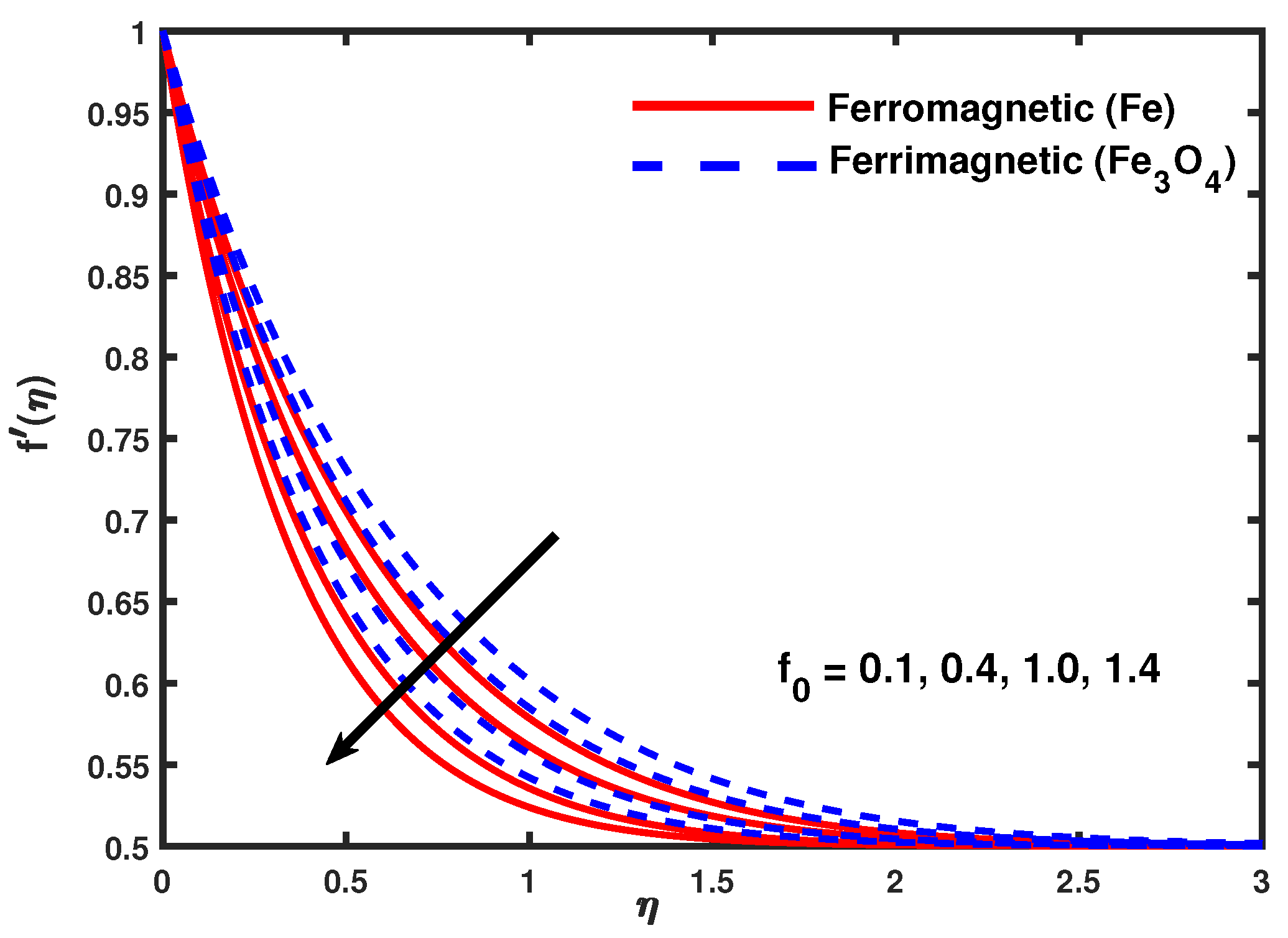

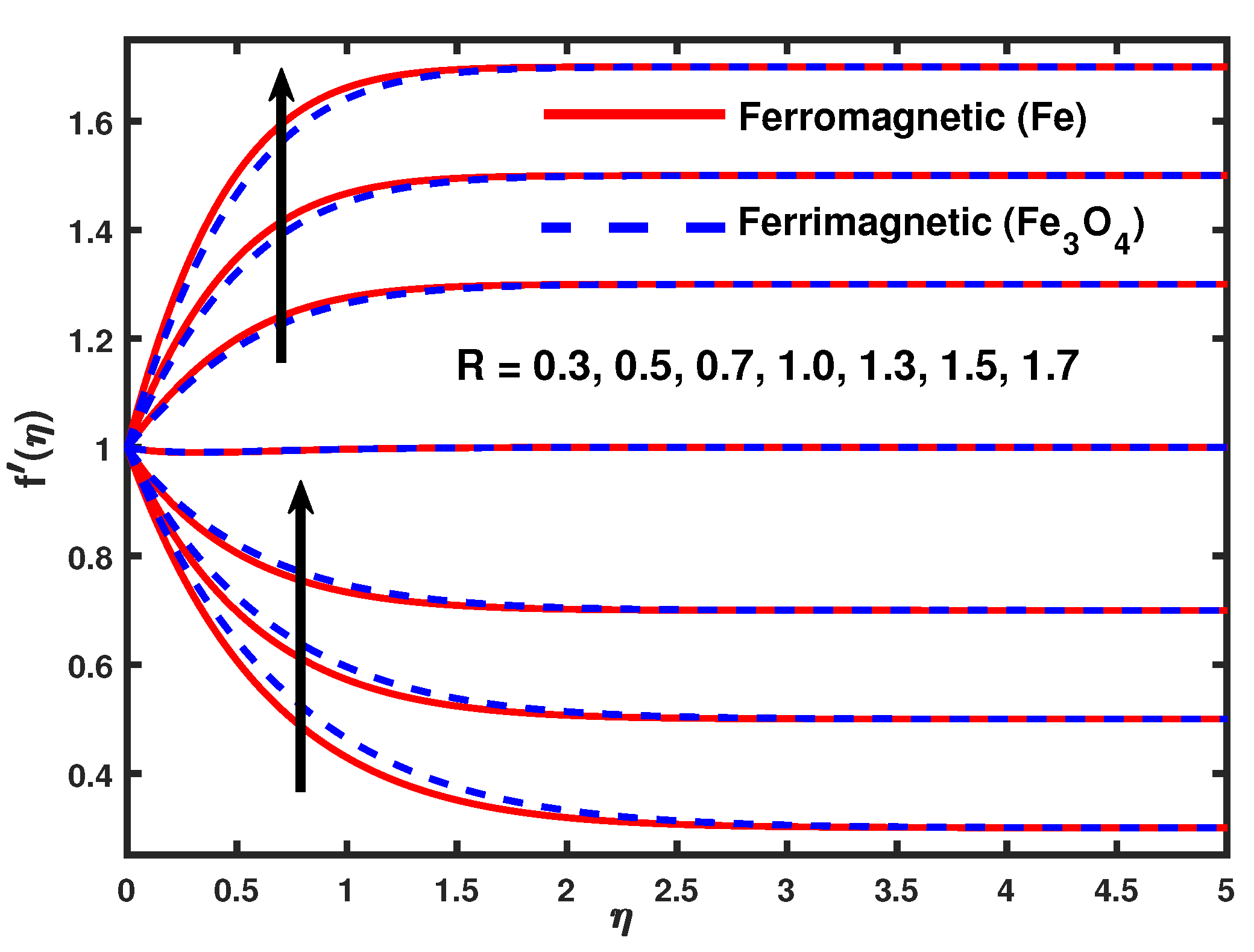

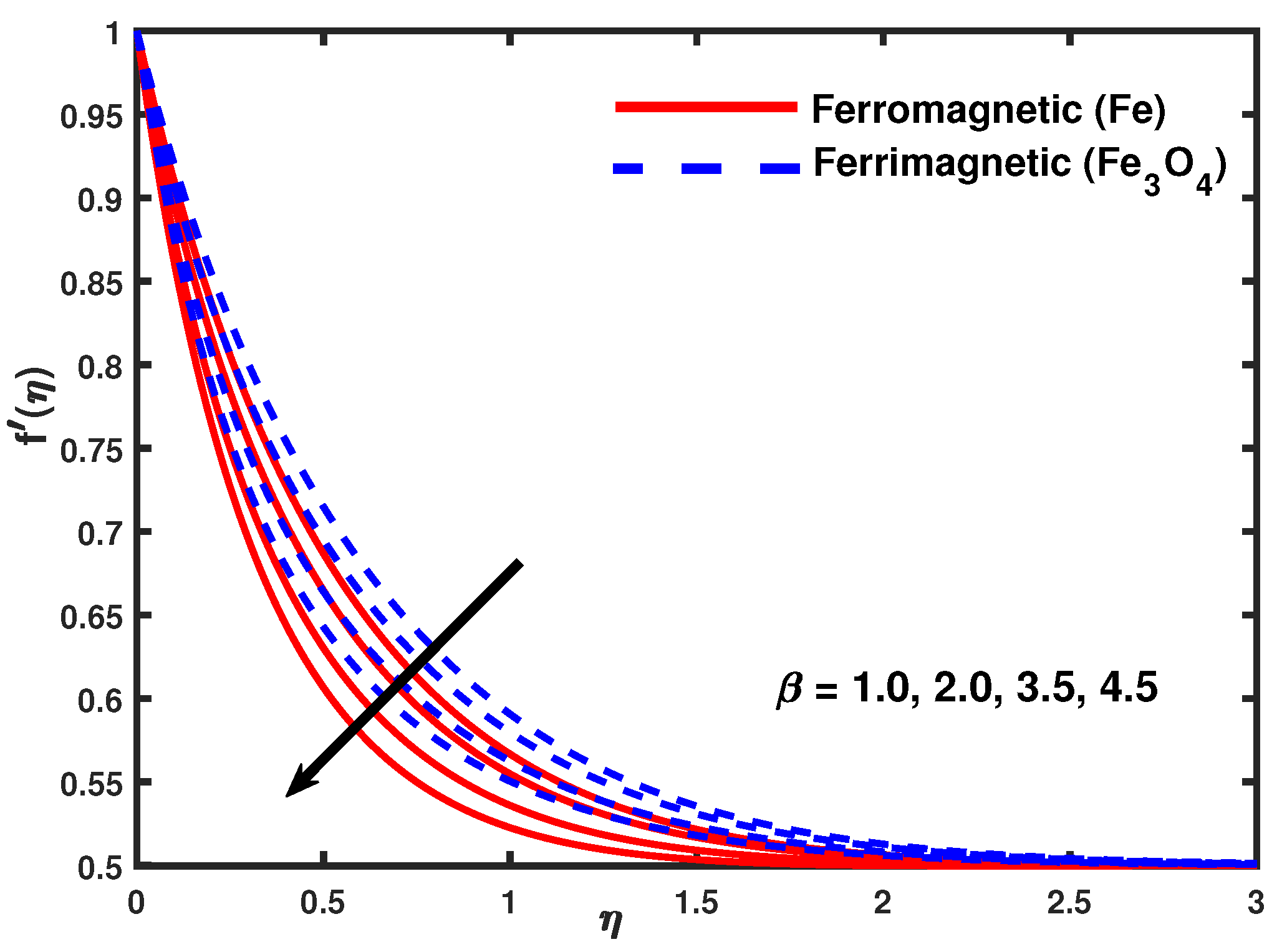

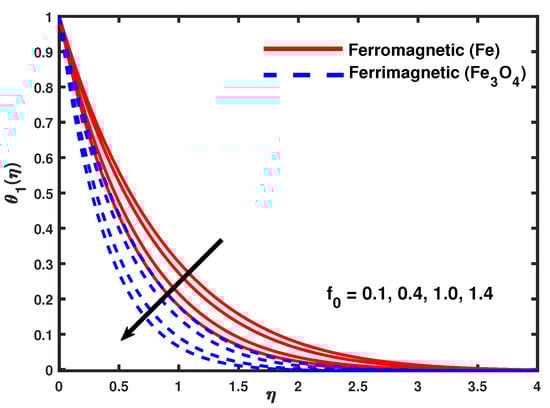

The features of miscellaneous parameters in the flow field have been shown. The impacts of different ferromagnetic and ferrimagnetic nano-particles on the flow velocity, temperature, Nusselt number, and skin friction were investigated with varying physical parameters, including $\beta$, $\lambda$, $ϵ$, $qr$, $\delta$, K, and $Pr$, i.e., the ferromagnetic parameter, viscous dissipation, Curie temperature, radiation, the boundary parameter, the micro-rotational parameter, and the Prandtl number, and R(ratio) are investigated.

Furthermore, all the other parameters were fixed ($Pr=2,k=0.1,\lambda =0.01,\beta =0.5,E=2,\delta =0.5,f_0=0.2,Nr=0.3,andR=0.5$). Our results have decent agreement with the published results that declare the legitimacy of the finite element method and is shown in

Table 3. Comparison of the Nusselt number $(-{\theta }^{\prime }(0))$ for different values of $Pr$, when all others parameters are zero.

Pr	Liaqat et al. [38]	Bagh et al. [39]	Majeed et al. [40]	Bachok et al. [41]	FEM (Current Results)
0.72	0.808634	0.808634	0.808640	0.8086	0.808634
1.00	1.000001	1.000001	1.000000	1.0000	1.000008
3.00	1.923678	1.923683	1.923609	1.9237	1.923678
10.0	3.720668	3.720674	3.720580	3.7207	3.720668

and

Table 4. Comparison of skin friction for different values of micro-rotation parameter K and boundary parameter $\delta$, when all others parameters are zero.

K	$\mathit{\delta }$	Qasim et al. [42]	Abid Hussanan et al. [43]	Kumar [44]	FEM (Current Results)
0.0	0.5	−1.000000	−1.0000000	–	−1.0000089
1.0	–	−1.224741	−1.2247448	–	−1.2248199
2.0	–	−1.414218	−1.4142135	–	−1.4144797
4.0	–	−1.732052	−1.7320508	–	−1.7332924
0.0	0.0	−1.000000	–	−1.000008	−1.0000089
1.0	–	−1.367872	–	−1.367996	−1.3679971
2.0	–	−1.621225	–	−1.621575	−1.6215754
4.0	–	−2.004133	–	−2.005420	−2.0054211

. Table 3 shows the consequences of the heat transfer proportion, which is assimilated through the finite element method and is associated through the results of earlier studies and with the exact solutions of [38,39,40,41]. To ensure the accuracy of the existing precise values, the conclusions attained by the finite element method for the Nusselt number, the steady flow and the computed results that are stated in earlier studies are shown in Table 3. The current results achieved the same intensity and are accurate. To determine the uniformity and validation of the results, the results were exhaustively compared with those of [42,43,44], and these results were effectively replicated, as shown in Table 4. The current results are in complete concurrence. The grid invariance test was performed to ensure accuracy to five decimal digits. Figure 2 shows the effects of the ferromagnetic and ferrimagnetic particles and the suction/injection parameter $f_0$ on the velocity profile $f^{\prime }(\eta )$ for both the linear and nonlinear sheet. The velocity profile is decreasing and the momentum boundary layer thickness increases as values of $f_0$ increase up to a certain distance $\eta$. The flow velocity form intensifies due to ferromagnetic (Fe) and ferrimagnetic (Fe₃O₄). This shows that the thickness of the boundary layer for nano-particle Fe₃O₄ is more progressive than that of Fe. Compatibly, Figure 3 illustrates that micro-rotation velocity fluctuates directly by inoculation through the stretching sheet and that the velocity field decreases with increasing values of $f_0$ up to a certain distance $\eta$. Figure 4 shows that the thickness of the thermal boundary layer of ferromagnetic (Fe) nano-particles is maximally intensified than ferrimagnetic (Fe₃O₄).

The thermal boundary layer becomes thinner. As a continuous stretch in the sheet causes fluid movement in the boundary layer region, the fluid absorbs heat, and a decrease in temperature results. Figure 5 illustrates that the influence of $\beta$, the distance from the origin to the center of magnetic dipole ${\alpha }_1$, and the Curie temperature $ϵ$ are very important for steadying the ferromagnetic and ferrimagnetic effects on the flow problem. The presence of nano-particles of ferrite in fluid leads to ferromagnetic fluid, the thickness of the fluid intensifies, and a decline, as a result, occurs in the velocity field with increasing values of $\beta$. From Figure 6 and Figure 7, it is clear that increments in the value of $\beta$ causes enhancements in micro-rotation velocity and in temperature dispersals.

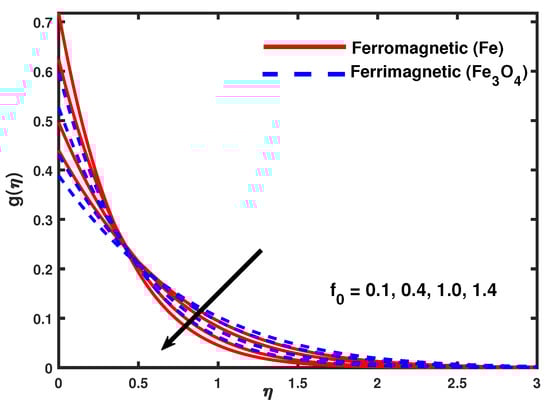

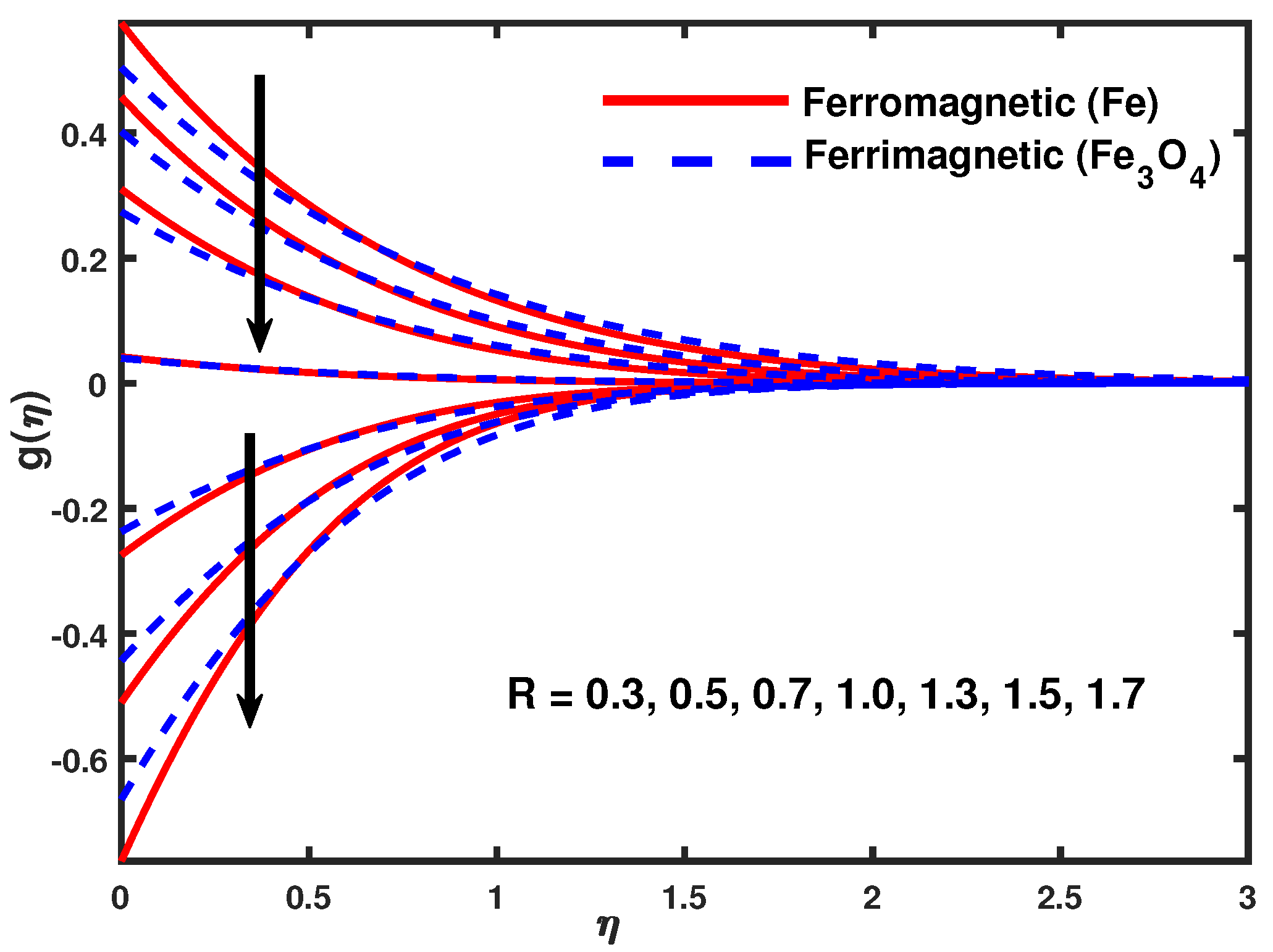

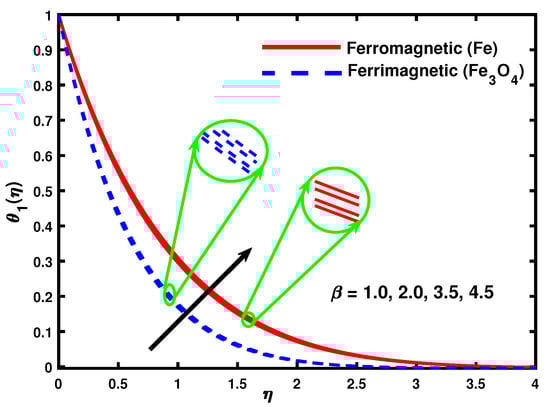

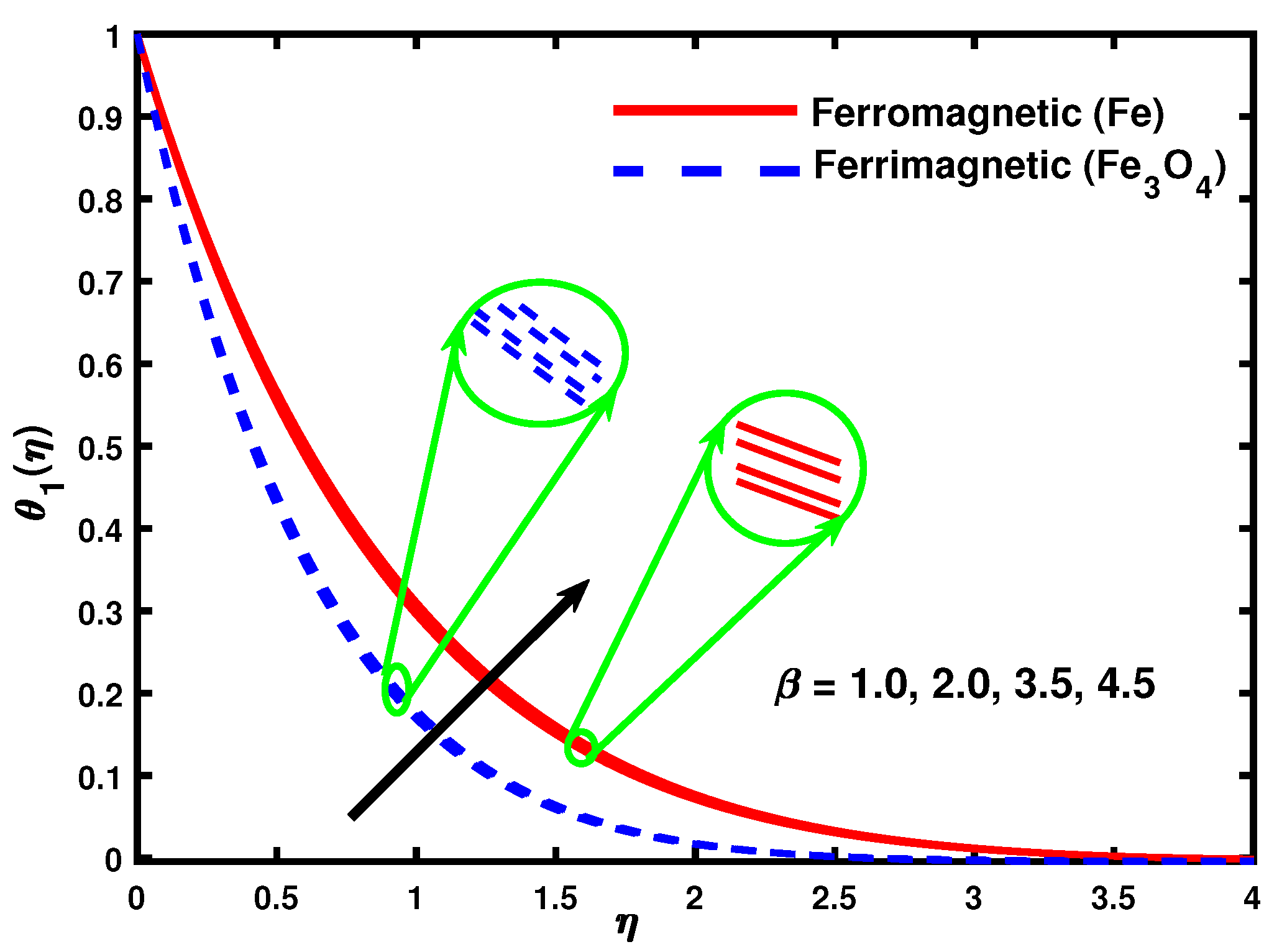

Additionally, it was observed that the micro-rotation and thermal boundary layers became thick, but the momentum boundary layer becomes thin. Besides this, the velocity, the micro-rotation velocity, and the temperature have a greater effect on the micro-polar nano-fluid, as it relates to the classical micro-polar fluid. From Figure 8, Figure 9 and Figure 10 can be perceived as the consequences of K on the velocity, micro-rotation velocity, and temperature by possessing the fixed values of other parameters. With snowballing values of K, as shown in Figure 8, the velocity profile increases.

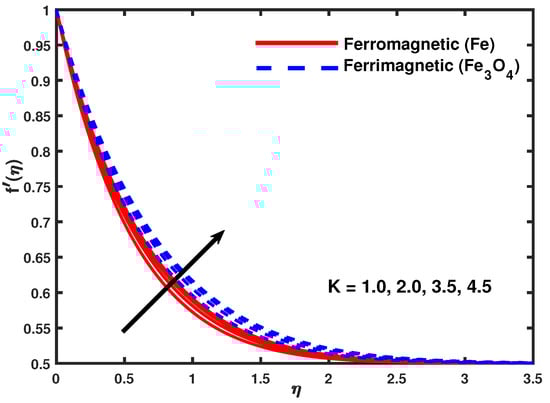

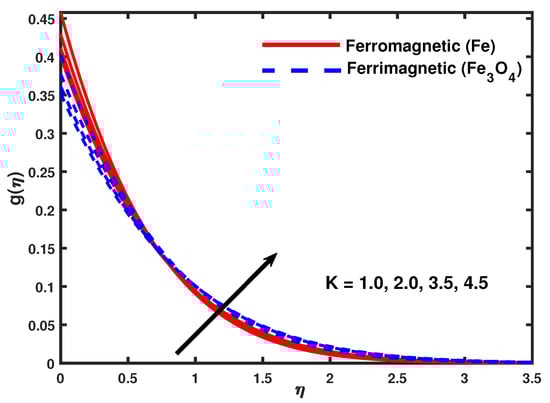

Figure 9 shows that, when K increases, the micro-rotation velocity becomes smoother and then approaches a free stream value far from the wall, because the antisymmetric portion of the pressure on the boundary that resembles the micro-elements’ weak concentration disappears. Figure 10 demonstrates that the thickness of the boundary layer in the temperature field gradually becomes weaker with increasing values of K, which shows that the rate of heat transference becomes faster. The generation of a thermal boundary layer will need slightly more time with increasing values of K. Figure 11 shows that thermal diffusivity declines as the value of $Pr$ increases.

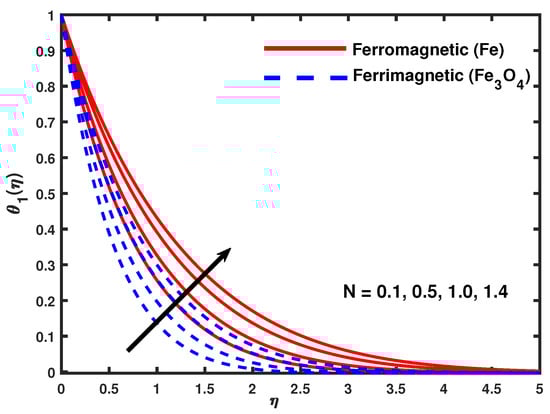

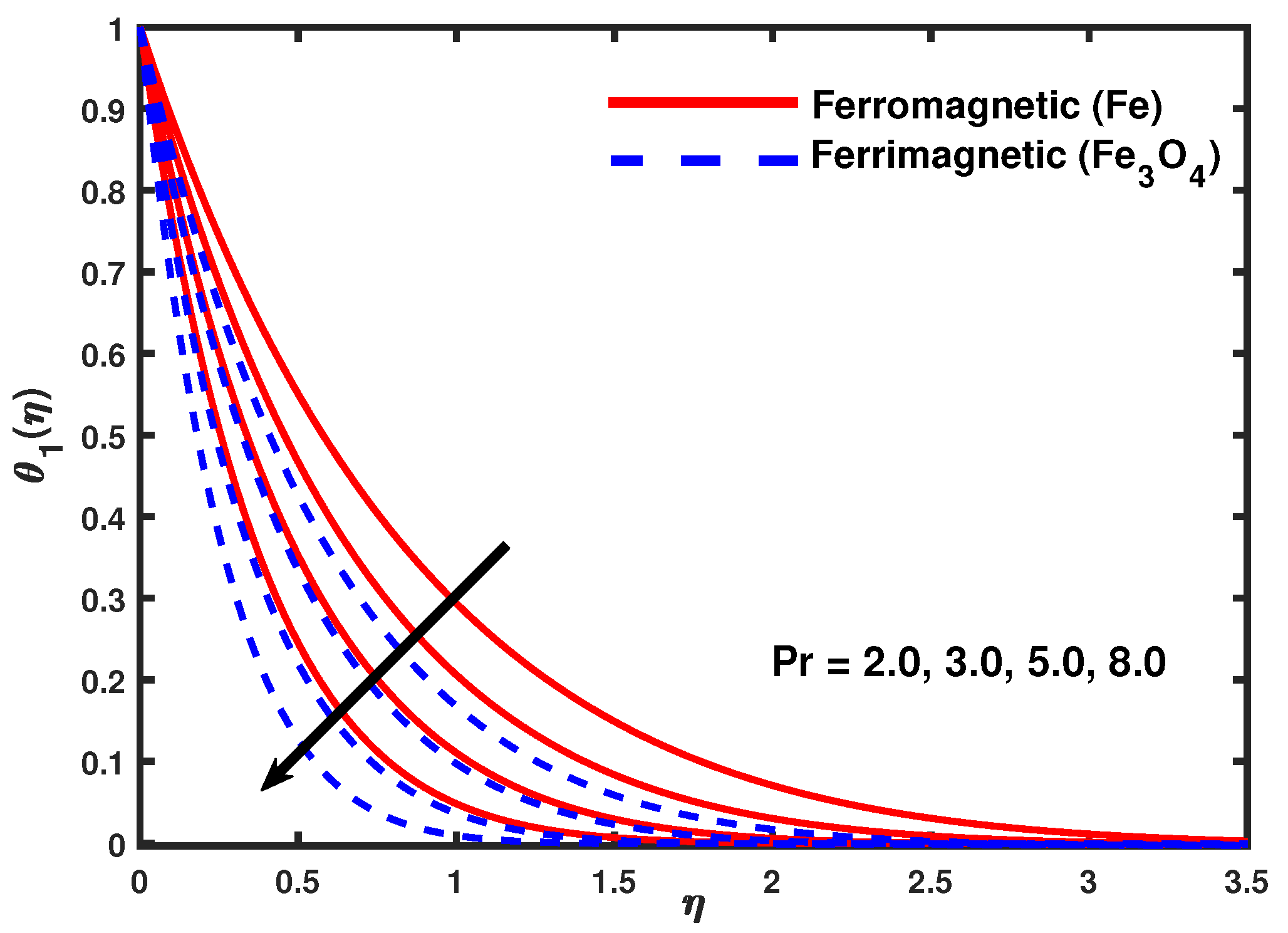

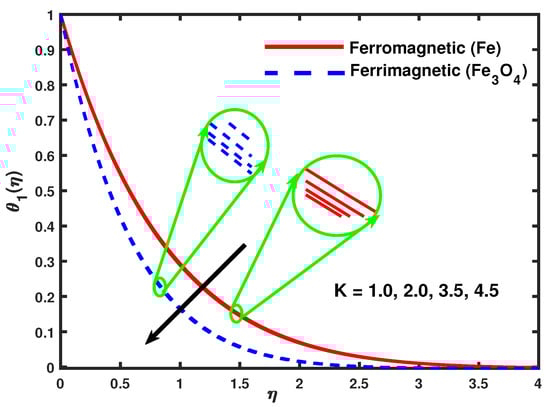

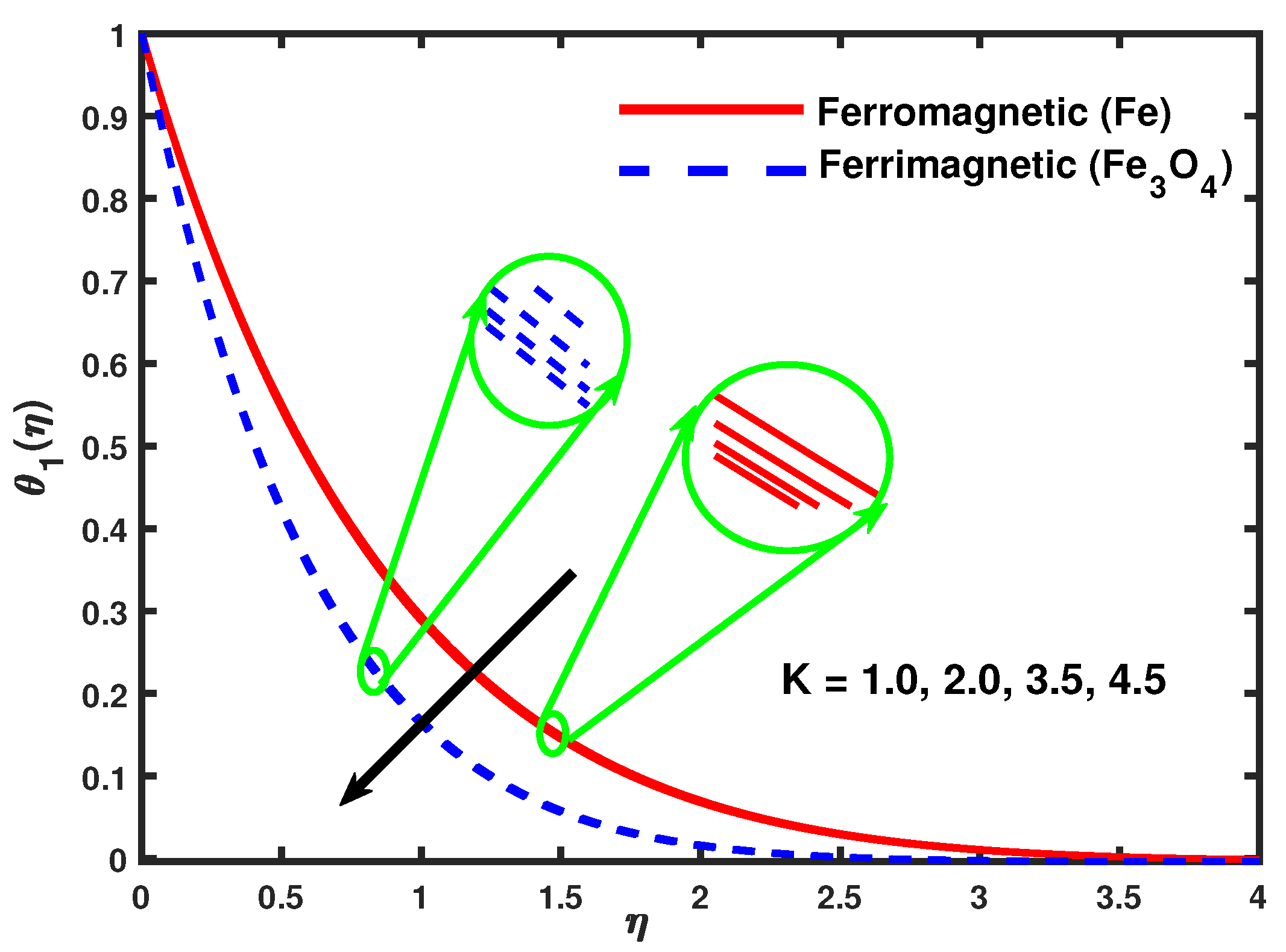

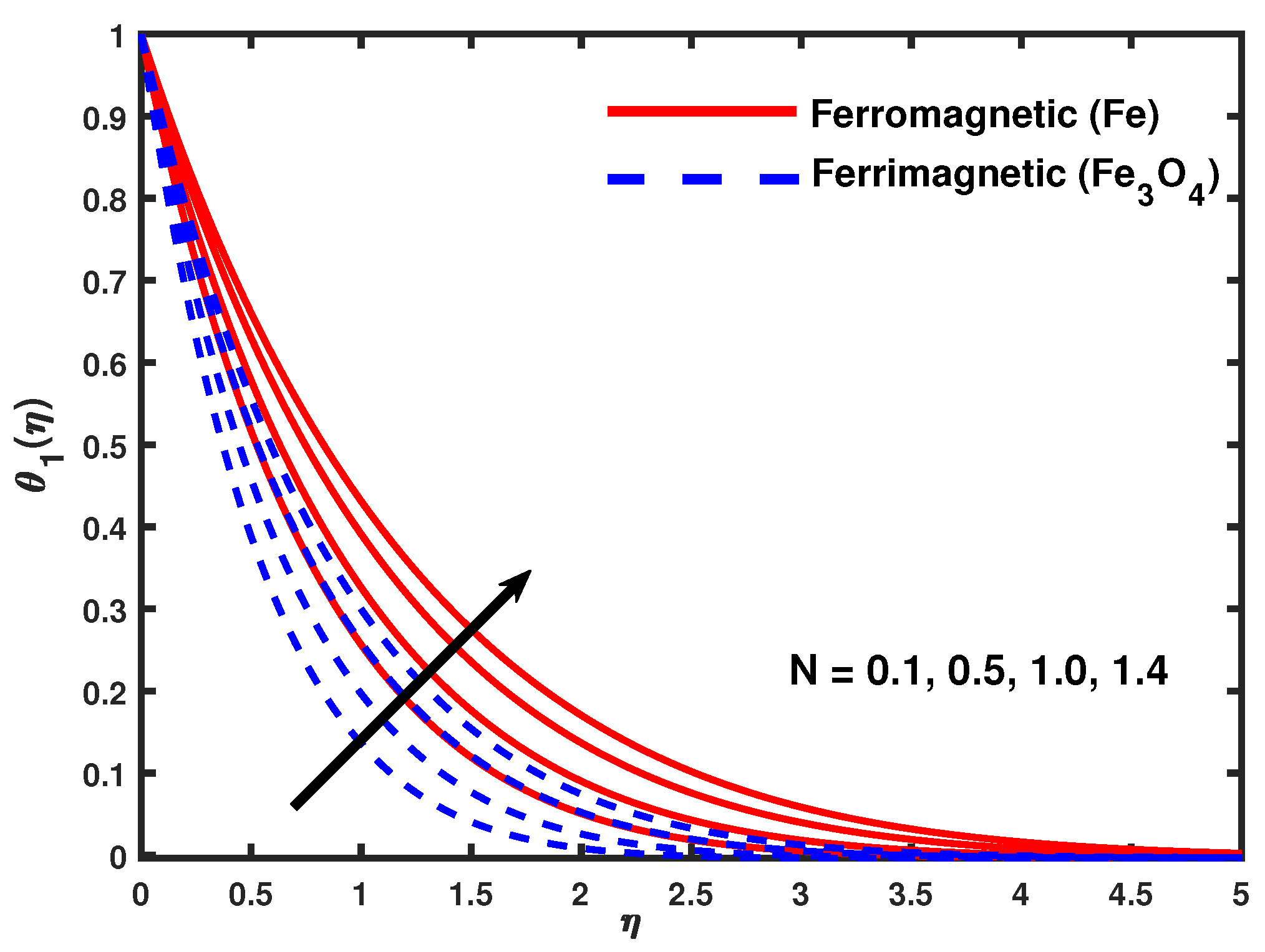

The decrease in thermal diffusivity causes heat diffusion in the heated sheet as the surface temperature increases. This reduces the capability of energy that worsens the thermal boundary layer thickness and raises the velocity. In Figure 12, the thermal diffusivity increases as the values of N increases. Figure 13 represents the impact of R (the ratio) on the axial flow velocity. The physiognomies of R are comparatively different for values $R>1$ and $R<1$. Furthermore, the variation in axial velocity for $R=1$ cannot be found, and Figure 14 shows that the micro-rotation velocity decreases with increasing values of R.

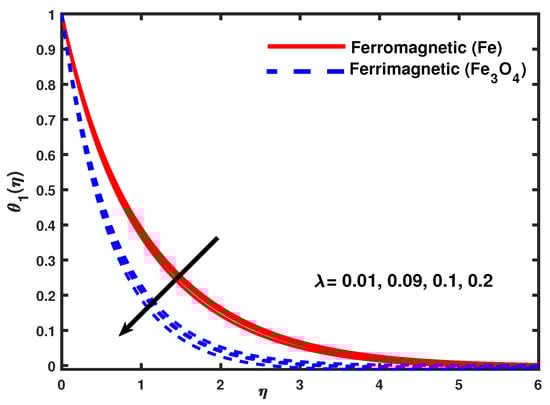

Figure 15 shows the effects of $\lambda$ on temperature. The increment in $\lambda$ increases the heat transfer coefficient, which increases the temperature of the ferromagnetic and ferrimagnetic nano-particles and decreases the thermal boundary layer width. The surface temperature is greater for high values of $\lambda$. The discrepancy in heat transfer rates with disparate values of N, $\beta$ and for different nano-particles is shown in Figure 16. The heat transfer rate is higher for growing values of N, and the boundary layer thickness is declining. Figure 17 shows that the Nusselt number is high for ferromagnetic nano-particles compared to ferrimagnetic nano-particles.

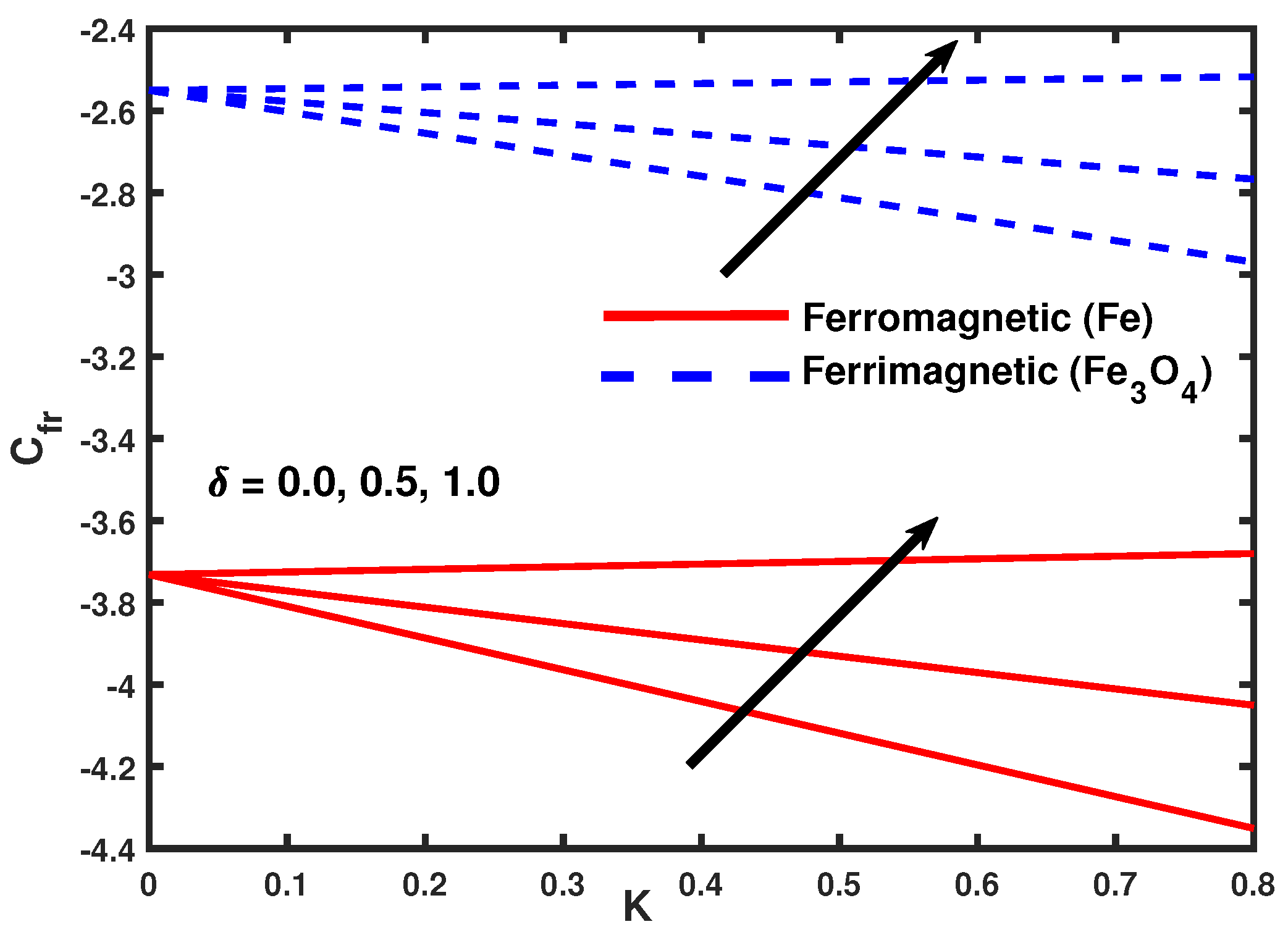

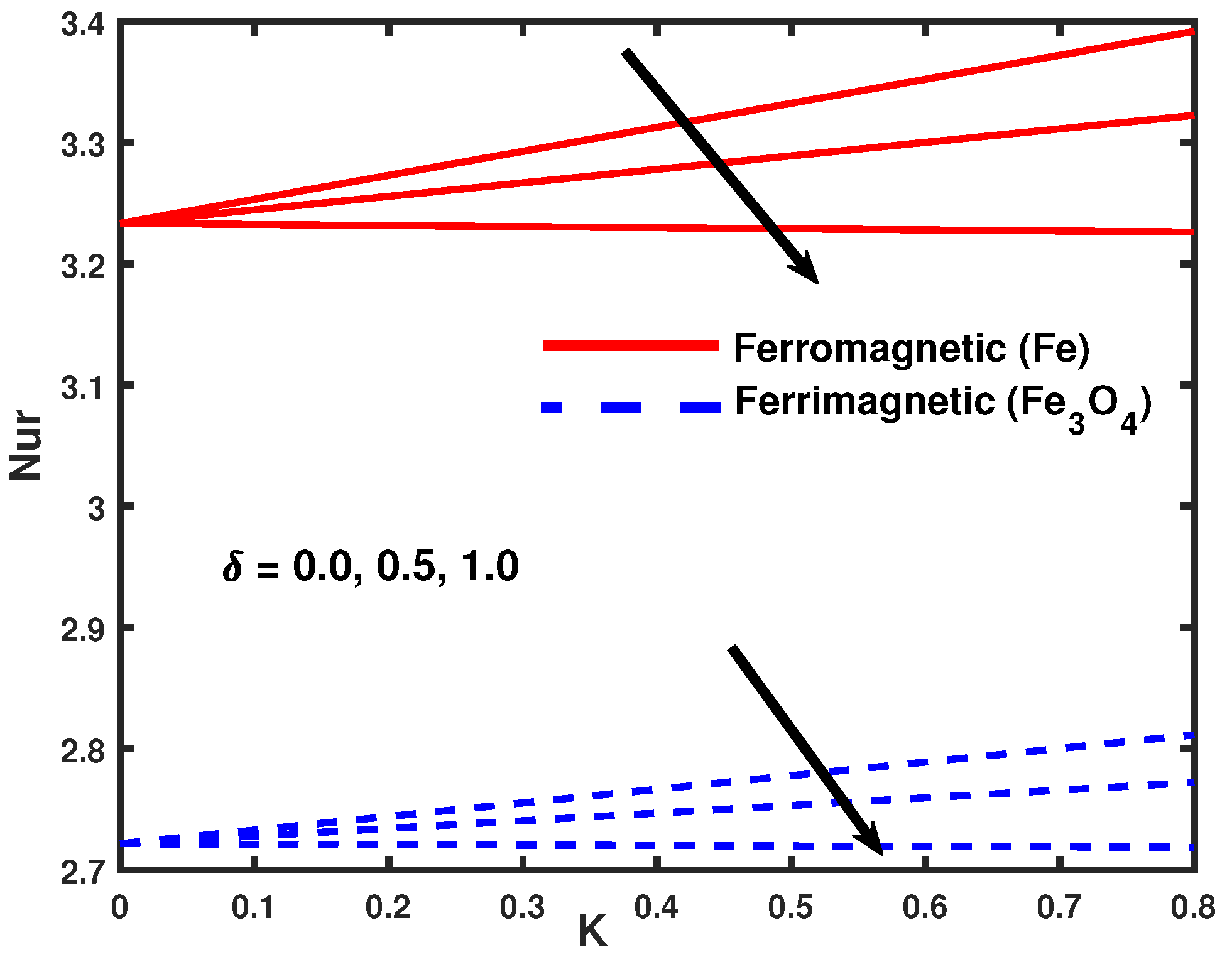

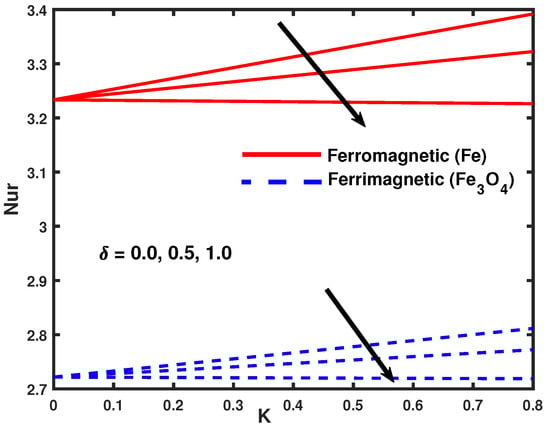

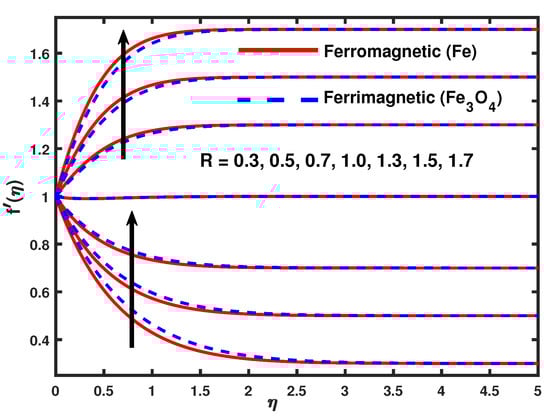

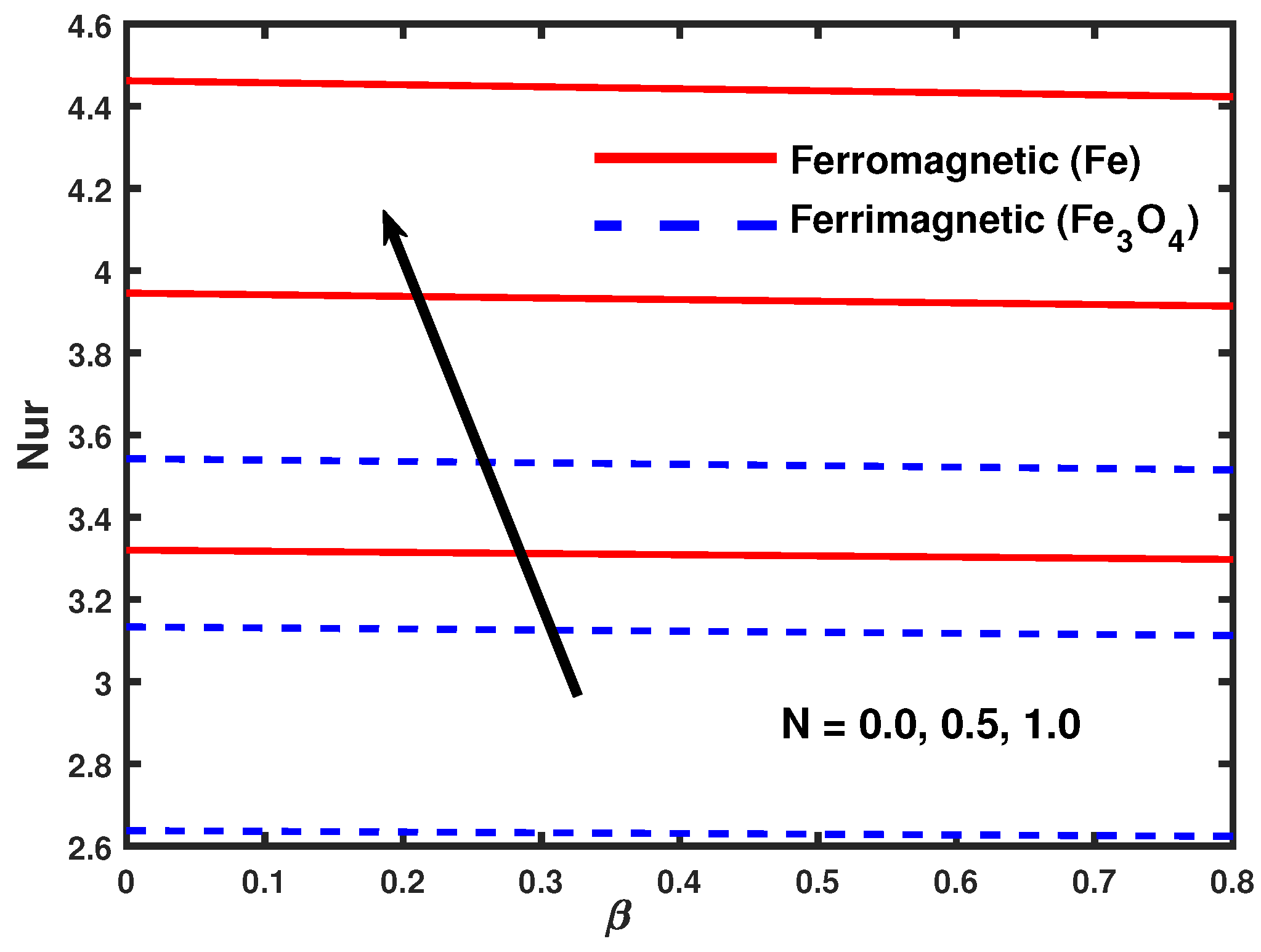

Additionally, the heat transfer rate increases with increasing values of $\delta$ and K. Figure 18 illustrates that the magnitude of the co-efficient of skin friction decreases by increasing values of the parameter $f_0$ and $\beta$. Figure 19 shows the skin friction coefficient affected in the presence of a magnetic dipole. The magnetic dipole affects on the Fe (ferromagnetic) and Fe₃O₄ (ferrimagnetic) nano-particles, so the viscosity of the nano-fluid inside the boundary layer is improved, and raises the wall shear stress. Therefore, the coefficient of skin friction increases by increasing values of the parameter $\delta$ and K.

5. Conclusions

In the present work, mathematical analysis is performed to explore the behavior of different magnetic nano-particles Fe and Fe₃O₄ on heat transfer and the boundary layer flow of nano-particles, and the the solution of magnetic properties having nano-particles was investigated by applying a magnetic dipole in the micro-polar fluid flow through a stretching sheet. After using the appropriate transformations on the mathematical model to convert the system of equations into ordinary differential equations, the finite element method (FEM) was used to evaluate it. Moreover, a particular case of the existing model is discussed to equate the current results with earlier studies. A parametric study was conducted to explore the effect of different parameters on the velocity, the temperature, the Nusselt number, and the properties of nano-particles. Furthermore, the heat transfer rate, the local skin friction, and the impact of the magnetic dipole on nano-particles were inspected explicitly. Some stirring expositions based on the present study are as follows:

• The velocity profile, the temperature, and the axial velocity are higher in the micro-polar ferromagnetic fluid compared to the ferrimagnetic fluid.
• The velocity profile decreases in the order Fe (ferromagnetic fluid) and Fe₃O₄ (ferrimagnetic fluid).
• Wall shears stress decreases at the variation in the value of parameter R (ratio), and the micro-rotation velocity is increased.
• The consequences of the ferromagnetic parameter generate a reduction in the velocity profile while micro-rotational velocity and temperature are incremented.
• The effects of K on the velocity profile and on the micro-rotational velocity are increasing, but the temperature is declining.
• The Nusselt number is declining for the increasing values of boundary parameter $\delta$, while there is controversy with respect to the increasing values of radiation parameter N.
