# Numerical Analysis of the Correlation between Arc Plasma Fluctuation and Nanoparticle Growth–Transport under Atmospheric Pressure

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Model Description

_{2}O

_{3}with a 60-degree tip angle. The anode was an iron plate with 40.0 mm diameter and 10.0 mm thickness. Argon shielding gas was injected at 15.0 L/min from an iron nozzle with a 12.2 mm inner diameter, 1.0 mm thickness, and 20.0 mm length. The current and voltage were set as 150.0 A and 10.5 V, respectively. The ground voltage was set at the anode bottom. To collect nanoparticles effectually, this arc plasma discharge part was covered by an iron case with a 100.0 mm diameter, 80.0 mm length, and 40.0 mm outlet diameter. A slow argon flow was also supplied from the top at 0.25 m/s to prevent metal vapor and nanoparticles from going out upward and to collect all the nanoparticles at the bottom outlet. It is noteworthy that this slow flow did not strongly affect the arc plasma. The temperature of this case was fixed at 300.0 K.

_{m}is the net production rate of mass from the molten pool surface to the fluid region, P denotes pressure, η represents viscosity, σ denotes electrical conductivity, E stands for the electric field, B denotes the magnetic flux density, g represents gravitational acceleration, h denotes enthalpy, λ stands for thermal conductivity, C

_{P}is the specific heat at constant pressure, Q

_{rad}represents the radiation loss, Q

_{con}denotes heat generation by condensation, Φ stands for viscous dissipation, S

_{e}is the net production rate of energy around the molten pool surface, and μ

_{0}represents permeability in vacuum. Subscripts z, r, and θ respectively denote the axial, radial, and azimuthal components. Equations (1)–(5) respectively describe conservation of mass, axial momentum, radial momentum, energy, and electric current density. Equation (6) expresses the relation between the electric current and the magnetic field. The momentum exchange at particle generation is negligible. The current balance considering electron emission and ion recombination at the electrode surfaces are treated as described in an earlier report [32].

_{v}is the net production rate of vapor molecules from the molten pool surface to the fluid region. Subscripts p, v, and s respectively denote particle, vapor, and saturated state. Variable f is defined as f = n

_{p}q, where q is the average monomer number in a particle. Equations (7)–(9) respectively describe conservations of vapor molecules, nanoparticles, and total number of monomers in both gas and particle phases at local positions. These equations are written in Eulerian expressions. Therein, it is assumed that the material vapor molecules move with a flow and gradually form nuclei and small nanoparticles that also move with the flow.

_{p}is the diffusion coefficient of particles derived from [27] as

_{B}is Boltzmann’s constant, T represents the temperature, d denotes the diameter, and l is the mean free path. In addition, D

_{v}is the diffusion coefficient of material vapor obtained from the second viscosity approximation in the literature [35]. J is the homogeneous nucleation rate. q

_{c}represents the number of monomers composing a particle in a critical state, as estimated using the modified self-consistent nucleation theory presented by Girshick et al. [36]. Additionally, β

_{0}is a parameter related to the collision frequency given as [33]:

_{v}denotes the latent heat of vaporization. The emission flux of iron vapor molecules from the molten pool surface can be estimated as approximately $\left({P}_{s}-{P}_{v}\right)/\sqrt{2\pi {m}_{v}{k}_{B}T}$ from the kinetic theory [37]. This growth–transport model obtains the spatial distributions of the number density and mean diameter of nanoparticles with a lower computational cost than those of other models [12,13,14,15,16,17,19,20,21,22,23,24,25,26,27].

## 3. Results and Discussion

_{0}denotes a time when the behavior is regarded as quasiperiodic. The present simulation produces a bell-like shape arc plasma with a maximum temperature of approximately 18,000 K, which agrees with the measurement result obtained using spectroscopy [42]. The inner part of the shielding gas flows into the arc plasma, gains thermal energy, flows out of the arc plasma on the base metal surface, and turns downward to the bottom of the domain. The outer part of the shielding gas flows outward, rolls up, merges with the downward flow, and finally flows out of the bottom exit.

_{1}− t

_{0}). Here, τ represents the time lag. The prime mark denotes fluctuation defined as the difference from the time-averaged value. The fixed position (z

_{0}, r

_{0}) = (28 mm, 6 mm) at the arc plasma’s fringe was selected for the temperature fluctuation as anchoring point A, as depicted in Figure 3.

## 4. Conclusions

- ➢
- The core region of the arc plasma is almost stationary, whereas the fringe fluctuates because of fluid dynamic instability between the arc plasma and the shielding gas.
- ➢
- Numerous small particles are generated around the arc plasma’s fringe because of supersaturation. In the downstream region, the vapor molecules decrease by condensation. The nanoparticles decrease by coagulation. These processes are important contributions to particle growth.
- ➢
- The correlation analysis results suggest that the distribution of growing nanoparticles distant from the arc plasma can be controlled via control of the temperature fluctuation at the arc plasma’s fringe.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Berlinger, B.; Benker, N.; Weinbruch, S.; L’Vov, B.V.; Ebert, M.; Koch, W.; Ellingsen, D.G.; Thomassen, Y. Physicochemical characterisation of different welding aerosols. Anal. Bioanal. Chem.
**2011**, 399, 1773–1780. [Google Scholar] [CrossRef] [PubMed] - Shigeta, M.; Tanaka, M. Visualization of electromagnetic-thermal-fluid phenomena in arc welding. Jpn. J. Appl. Phys.
**2019**, 59, SA0805. [Google Scholar] [CrossRef] [Green Version] - Yoshii, C.; Morimoto, Y.; Kido, M. Welder’s Pneumoconiosi—Pulmonary Disease Caused by Inhalation of Welding Fumes. J. Aerosol Res.
**2005**, 20, 238–242. (In Japanese) [Google Scholar] [CrossRef] - Shigeta, M.; Murphy, A.B. Thermal plasmas for nanofabrication. J. Phys. D Appl. Phys.
**2011**, 44, 174025. [Google Scholar] [CrossRef] - Julien, C.M.; Mauger, A. Nanostructured MnO
_{2}as Electrode Materials for Energy Storage. Nanomaterials**2017**, 7, 396. [Google Scholar] [CrossRef] [Green Version] - Akhtar, T.S.; Cooke, K.O.; Khan, T.I.; Shar, M.A. Nanoparticle Enhanced Eutectic Reaction during Diffusion Brazing of Aluminium to Magnesium. Nanomaterials
**2019**, 9, 370. [Google Scholar] [CrossRef] [Green Version] - Fang, J.; Aharonovich, I.; Levchenko, I.; Ostrikov, K.K.; Spizzirri, P.G.; Rubanov, S.; Prawer, S. Plasma-enabled growth of single-crystalline SiC/AlSiC core-shell nanowires on porous alumina templates. Cryst. Growth Des.
**2012**, 12, 2917–2922. [Google Scholar] [CrossRef] - Zhang, R.; Engholm, M. Recent Progress on the Fabrication and Properties of Silver Nanowire-Based Transparent Electrodes. Nanomaterials
**2018**, 8, 628. [Google Scholar] [CrossRef] [Green Version] - Tanaka, M.; Watanabe, T. Vaporization mechanism from Sn–Ag mixture by Ar–H
_{2}Arc for nanoparticle preparation. Thin Solid Films**2008**, 516, 6645–6649. [Google Scholar] [CrossRef] - Jenkins, N.T.; Eagar, T.W. Chemical analysis of welding nanoparticles—Airborne particle size is the most important factor in determining the accuracy of a method for chemical analysis. Weld. J. N. Y.
**2005**, 84, 87–93. [Google Scholar] - Carpenter, K.R.; Monaghan, B.J.; Norrish, J. Influence of Shielding Gas on Fume Size Morphology and Particle Composition for Gas Metal Arc Welding. ISIJ Int.
**2008**, 28, 1570–1576. [Google Scholar] [CrossRef] [Green Version] - Shigeta, M.; Watanabe, T. Growth mechanism of silicon-based functional nanoparticles fabricated by inductively coupled thermal plasmas. J. Phys. D Appl. Phys.
**2007**, 40, 2407–2419. [Google Scholar] [CrossRef] - Shigeta, M.; Watanabe, T. Numerical investigation of cooling effect on platinum nanoparticle formation in inductively coupled thermal plasmas. J. Appl. Phys.
**2008**, 103, 074903. [Google Scholar] [CrossRef] - Shigeta, M.; Watanabe, T. Two-dimensional analysis of nanoparticle formation in induction thermal plasmas with counterflow cooling. Thin Solid Films
**2008**, 516, 4415–4422. [Google Scholar] [CrossRef] - Shigeta, M.; Watanabe, T. Two-Directional Nodal Model for Co-Condensation Growth of Multi-Component Nanoparticles in Thermal Plasma Processing. J. Therm. Spray Technol.
**2009**, 18, 1022–1037. [Google Scholar] [CrossRef] - Shigeta, M.; Watanabe, T. Growth model of binary alloy nanopowders for thermal plasma synthesis. J. Appl. Phys.
**2010**, 108, 043306. [Google Scholar] [CrossRef] - Colombo, V.; Ghedini, E.; Gherardi, M.; Sanibondi, P.; Shigeta, M. A Two-Dimensional nodal model with turbulent effects for the synthesis of Si nano-particles by inductively coupled thermal plasmas. Plasma Sources Sci. Technol.
**2012**, 21, 025001. [Google Scholar] [CrossRef] - Shigeta, M. Simple nonequilibrium model of collective growth and transport of metal nanomist in a thermal plasma process. Theor. Appl. Mech. Jpn.
**2015**, 63, 147–154. [Google Scholar] [CrossRef] - Shigeta, M.; Watanabe, T. Effect of precursor fraction on silicide nanopowder growth under thermal plasma conditions: A computational study. Powder Technol.
**2016**, 288, 191–201. [Google Scholar] [CrossRef] - Shigeta, M.; Watanabe, T. Effect of Saturation Pressure Difference on Metal-Silicide Nanopowder Formation in Thermal Plasma Fabrication. Nanomaterials
**2016**, 6, 43. [Google Scholar] [CrossRef] [Green Version] - Shigeta, M. Numerical Study of Axial Magnetic Effects on a Turbulent Thermal Plasma Jet for Nanopowder Production Using 3D Time-Dependent Simulation. J. Flow Control Meas. Vis.
**2018**, 6, 107–123. [Google Scholar] [CrossRef] [Green Version] - Tashiro, S.; Zeniya, T.; Yamamoto, K.; Tanaka, M.; Nakata, K.; Murphy, A.B.; Yamamoto, E.; Yamazaki, K.; Suzuki, K. Numerical analysis of fume formation mechanism in arc welding. J. Phys. D Appl. Phys.
**2010**, 43, 434012. [Google Scholar] [CrossRef] [Green Version] - Sanibondi, P. Numerical investigation of the effects of iron oxidation reactions on the fume formation mechanism in arc welding. J. Phys. D Appl. Phys.
**2015**, 48, 345202. [Google Scholar] [CrossRef] - Shigeta, M.; Miyake, M.; Tanaka, M. Numerical analysis of collective growth of primary nanoparticles in arc welding. Q. J. Jpn. Weld. Soc.
**2015**, 33, 365–375. [Google Scholar] [CrossRef] [Green Version] - Shigeta, M.; Minami, S.; Tanaka, M. Modeling for collective growth of fume primary particles with charge effect in arc welding. Weld. World
**2018**, 62, 203–213. [Google Scholar] [CrossRef] - Boselli, M.; Colombo, V.; Ghedini, E.; Gherardi, M.; Sanibondi, P. Two-dimensional time-dependent modelling of fume formation in a pulsed gas metal arc welding process. J. Phys. D Appl. Phys.
**2013**, 46, 224006. [Google Scholar] [CrossRef] - Phanse, G.M.; Pratsinis, S.E. Theory for Aerosol Generation in Laminar Flow Condensers. Aerosol Sci. Technol.
**1989**, 11, 100–119. [Google Scholar] [CrossRef] - Shigeta, M. Modeling and Simulation of a Turbulent-like Thermal Plasma Jet for Nanopowder Production. IEEJ Trans. Electr. Electron. Eng.
**2019**, 14, 16–28. [Google Scholar] [CrossRef] [Green Version] - Shigeta, M. Turbulence modelling of thermal plasma flows. J. Phys. D Appl. Phys.
**2016**, 49, 493001. [Google Scholar] [CrossRef] - Terasaki, H.; Tanaka, M.; Ushio, M. Effect of Metal Vapor on Electron Temperature in Helium Gas Tungsten Arcs. Metall. Mater. Trans. A
**2002**, 33, 1183–1188. [Google Scholar] [CrossRef] - Guisbiers, G.; Kazan, M.; Overschelde, O.V.; Wautelet, M.; Pereira, S. Mechanical and thermal properties of metallic and semiconductive nanostructures. J. Phys. Chem.
**2008**, 112, 4097–4103. [Google Scholar] [CrossRef] - Tanaka, M.; Terasaki, H.; Ushio, M.; Lowke, J.J. Numerical Study of a Free-burning Argon Arc with Anode Melting. Plasma Chem. Plasma Process.
**2003**, 23, 585–606. [Google Scholar] [CrossRef] - Nemchinsky, V.A.; Shigeta, M. Simple equations to describe aerosol growth. Model. Simul. Mater. Sci. Eng.
**2012**, 20, 045017. [Google Scholar] [CrossRef] - Pratsinis, S.E. Simultaneous nucleation, condensation, and coagulation in aerosol reactors. J. Colloid Interface Sci.
**1988**, 124, 416–427. [Google Scholar] [CrossRef] - Murphy, A.B. A comparison of treatments of diffusion in thermal plasmas. J. Phys. D Appl. Phys.
**1996**, 29, 1922–1932. [Google Scholar] [CrossRef] - Girshick, S.L.; Chiu, P.C.; McMurry, P.H. Time-dependent aerosol models and homogeneous nucleation rates. Aerosol Sci. Technol.
**1990**, 13, 465–477. [Google Scholar] [CrossRef] - Friedlander, S.K. Smoke, Dust and Haze: Fundamentals of Aerosol Dynamics, 2nd ed.; Oxford University Press: New York, NY, USA, 2000; p. 283. [Google Scholar]
- Matsushita, Y. Outflow Boundary Condition in the Finite Volume Method for Unsteady–State Fluid Flow Computation with Variable Density. Comput. Therm. Sciences
**2011**, 3, 531–537. [Google Scholar] [CrossRef] - Boulos, M.I.; Fauchais, P.; Pfender, E. Thermal plasmas Fundamentals and Applications; Plenum Press: New York, NY, USA, 1994; Volume 1, pp. 385–392. [Google Scholar]
- Menart, J.; Lin, L. Numerical study of high-intensity free-burning arc. J. Thermophys. Heat Transf.
**1998**, 12, 500–506. [Google Scholar] [CrossRef] - The Japan Institute of Metals and Materials. Metals Data Book; Maruzen: Tokyo, Japan, 1993; pp. 8–98. (In Japanese) [Google Scholar]
- Konishi, K.; Shigeta, M.; Tanaka, M.; Murata, A.; Murata, T.; Murphy, A.B. Reliability evaluation of Fowler-Milne method in a temperature measurement of Gas Tungsten Arc. Q. J. Jpn. Weld. Soc.
**2015**, 33, 42–48. (In Japanese) [Google Scholar] [CrossRef] [Green Version] - Yoshida, T.; Akashi, K. Preparation of Ultrafine Iron Particles using an RF Plasma. Trans. Jpn. Inst. Met.
**1981**, 22, 371–378. [Google Scholar] [CrossRef] [Green Version] - Leparoux, M.; Schreuders, C.; Shin, J.W.; Siegman, S. Induction plasma synthesis of carbide nano-powders. Adv. Eng. Mater.
**2005**, 7, 349–353. [Google Scholar] [CrossRef] - Rao, N.; Girshick, S.L.; Heberlein, J.; McMurry, P.; Jones, S.; Hansen, D.; Micheel, B. Nanoparticle Formation Using a Plasma Expansion Process. Plasma Chem. Plasma Process.
**1995**, 15, 581–606. [Google Scholar] [CrossRef] - Leparoux, M.; Kihn, Y.; Paris, S.; Schreuders, C. Microstructure analysis of RF plasma synthesized TiCN nanopowders. Int. J. Refract. Met. Hard Mater.
**2008**, 26, 277–285. [Google Scholar] [CrossRef] - Leparoux, M.; Schreuders, C.; Fauchais, P. Improved Plasma Synthesis of Si-nanopowders by Quenching. Adv. Eng. Mater.
**2008**, 10, 1147–1150. [Google Scholar] [CrossRef] - Shigeta, M.; Watanabe, T.; Nishiyama, H. Numerical investigation for nano-particle synthesis in an RF inductively coupled plasma. Thin Solid Films
**2004**, 457, 192–200. [Google Scholar] [CrossRef]

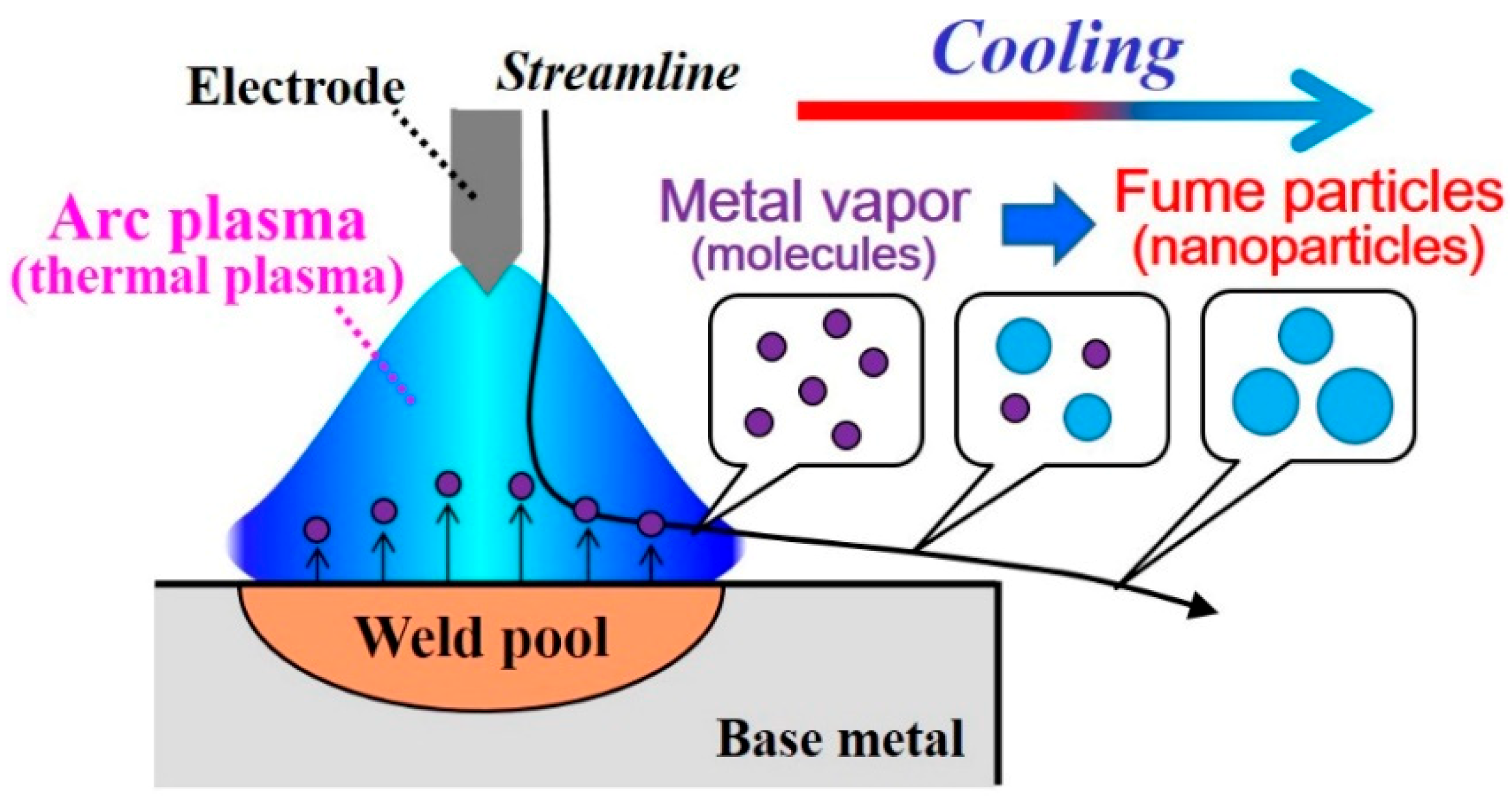

**Figure 1.**Schematic illustration of nanoparticle production by arc plasma. Metal vapor is generated by the high-temperature plasma. Vapor molecules are transported outside the plasma and therein form nanoparticles.

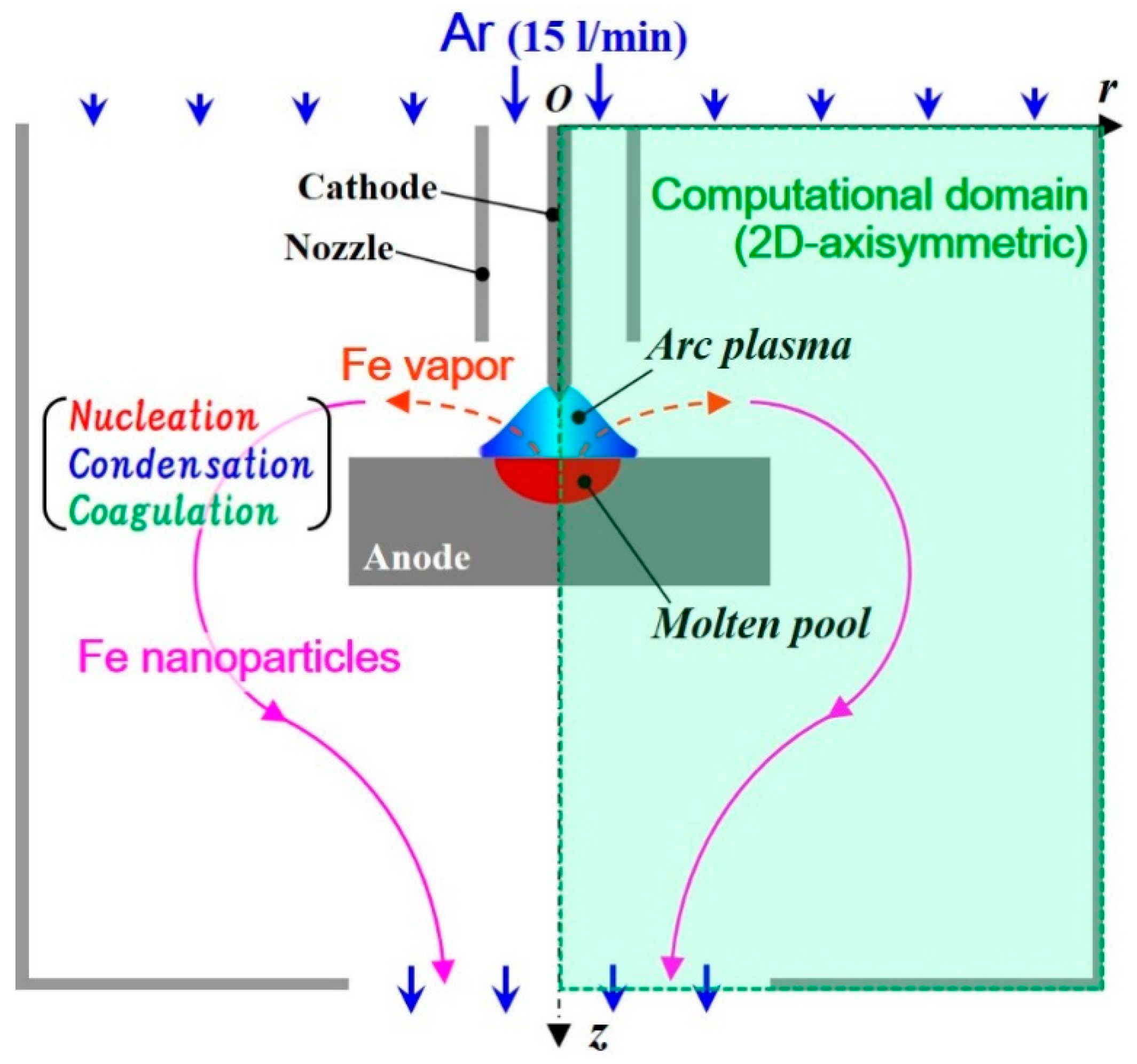

**Figure 2.**Computational domain of an arc plasma system for nanoparticle production and collection. Iron vapor molecules are emitted from a molten pool and transported outside the arc plasma. Therein, the molecules form nanoparticles through growth processes of nucleation, condensation, and coagulation.

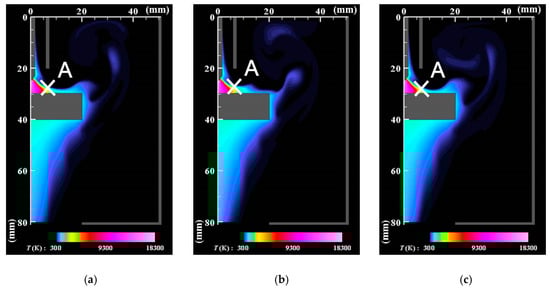

**Figure 3.**Instantaneous distributions of temperature. (

**a**) t = t

_{0}; (

**b**) t = t

_{0}+ 5 ms; (

**c**) t = t

_{0}+ 10 ms. The arc plasma has a bell-like shape with a maximum temperature of approximately 18,000 K. A recirculating flow is observed above the anode.

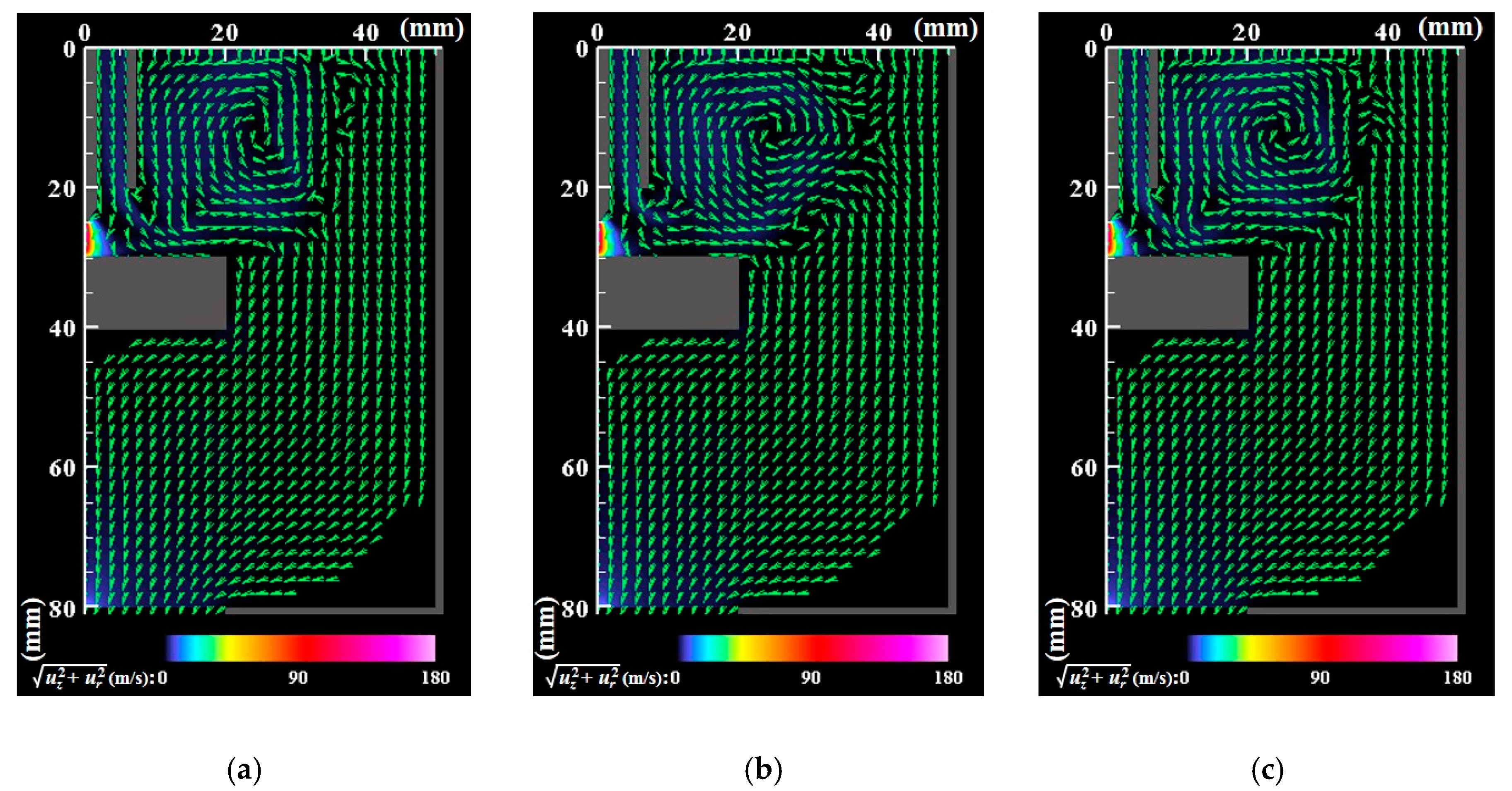

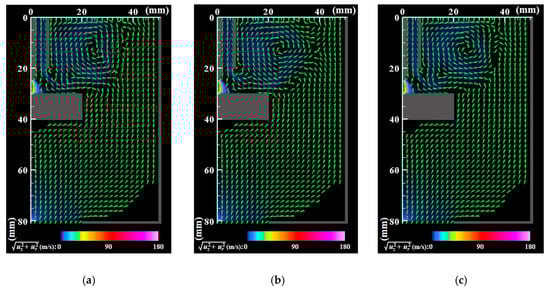

**Figure 4.**Instantaneous distributions of velocity vectors. Vectors slower than 0.1 m/s are blanked out. (

**a**) t = t

_{0}; (

**b**) t = t

_{0}+ 5 ms; (

**c**) t = t

_{0}+ 10 ms. The arc plasma has a maximum speed of approximately 180 m/s. The outer part of the shielding gas forms a recirculating flow above the anode, merges with the downward flow, and finally flows out of the bottom exit.

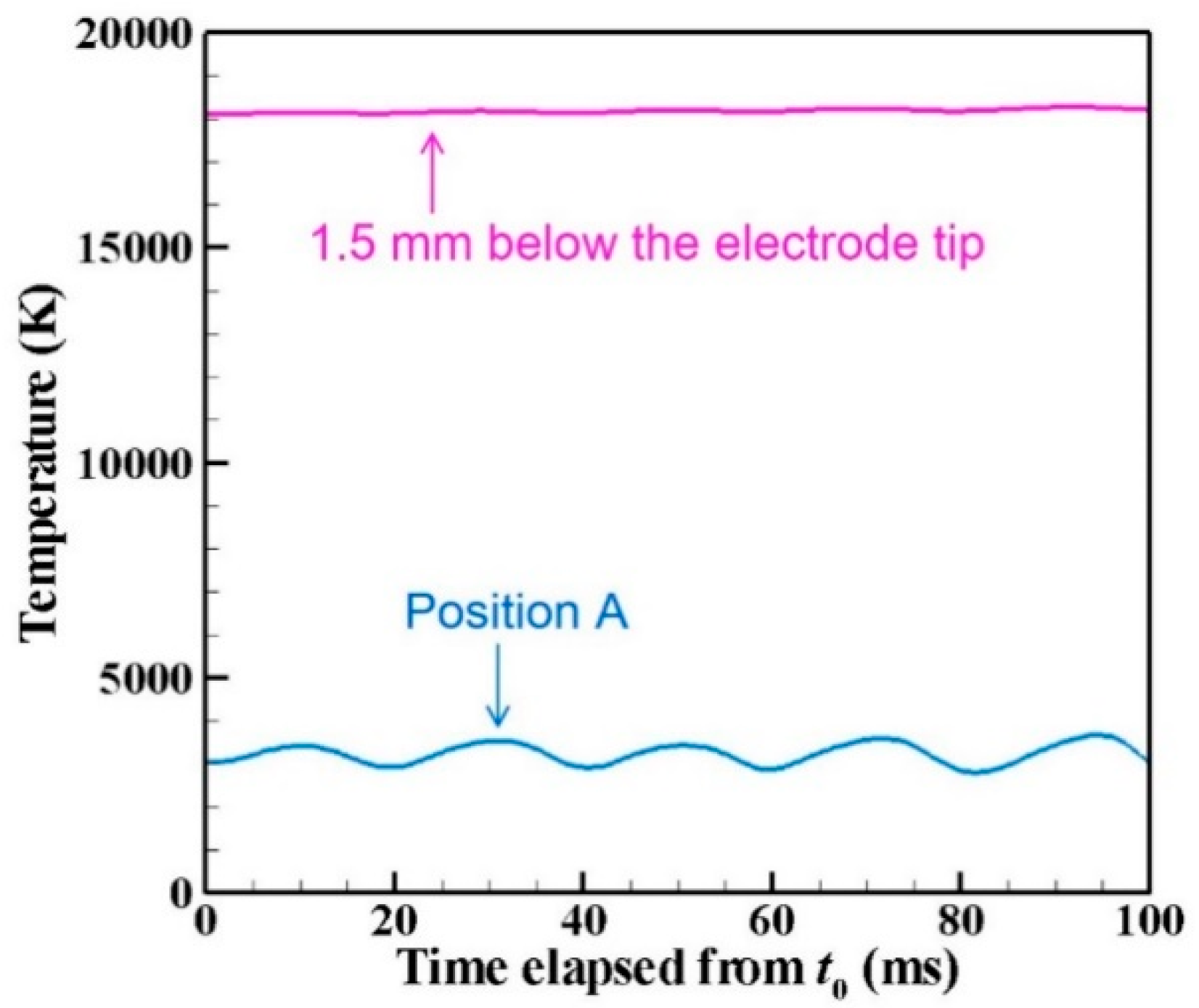

**Figure 5.**Time evolution of temperatures at two positions. The position below the electrode tip exhibits almost stationary temperature of approximately 18,000 K, whereas position A at the fringe shows fluctuating temperature around 3000 K.

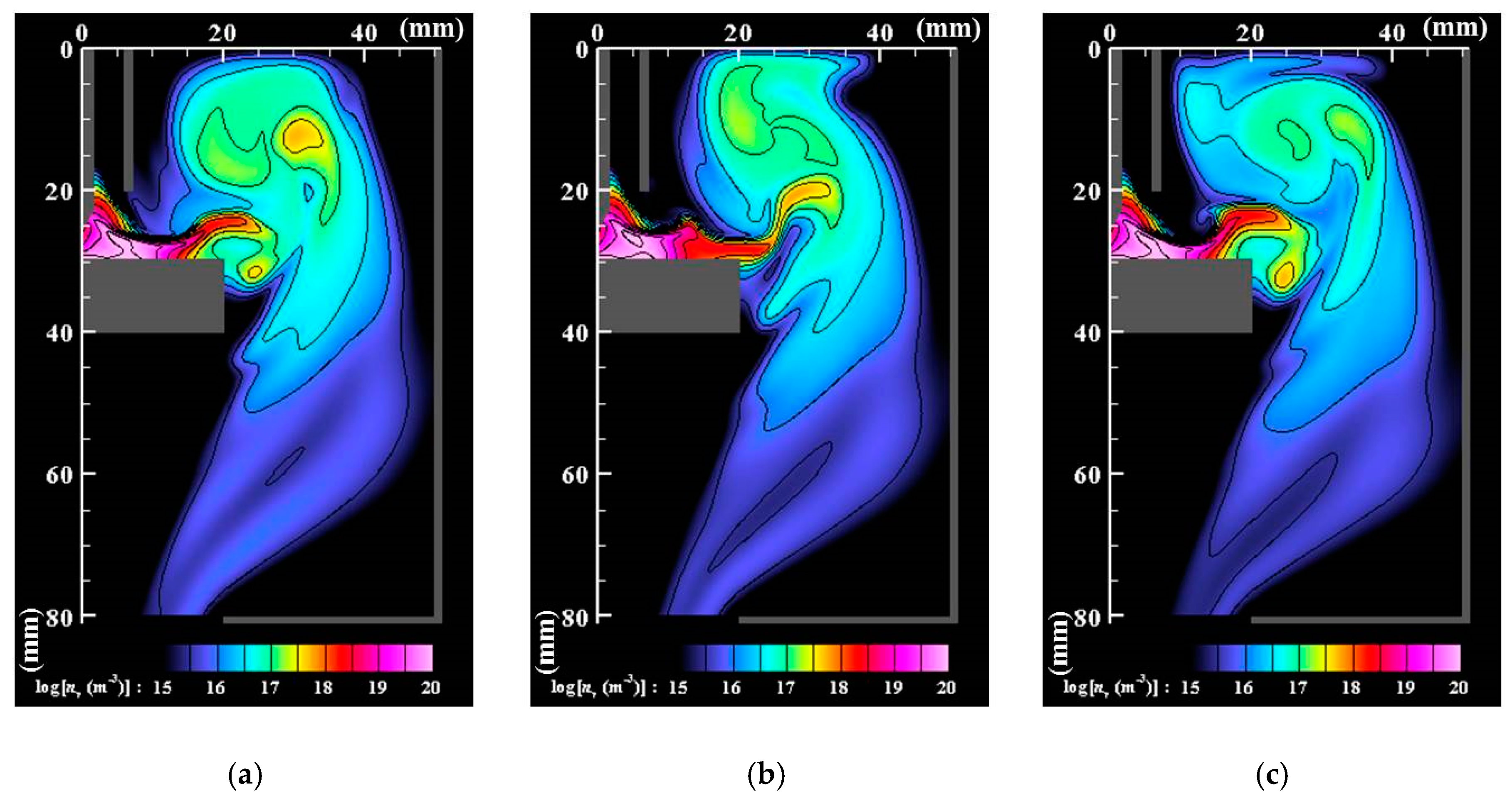

**Figure 6.**Instantaneous distributions of number density of vapor molecules. (

**a**) t = t

_{0}; (

**b**) t = t

_{0}+ 5 ms; (

**c**) t = t

_{0}+ 10 ms. The vapor molecules are emitted from the molten pool surface and are transported in and around the arc plasma. The number of vapor molecules decreases by condensation in the downstream region.

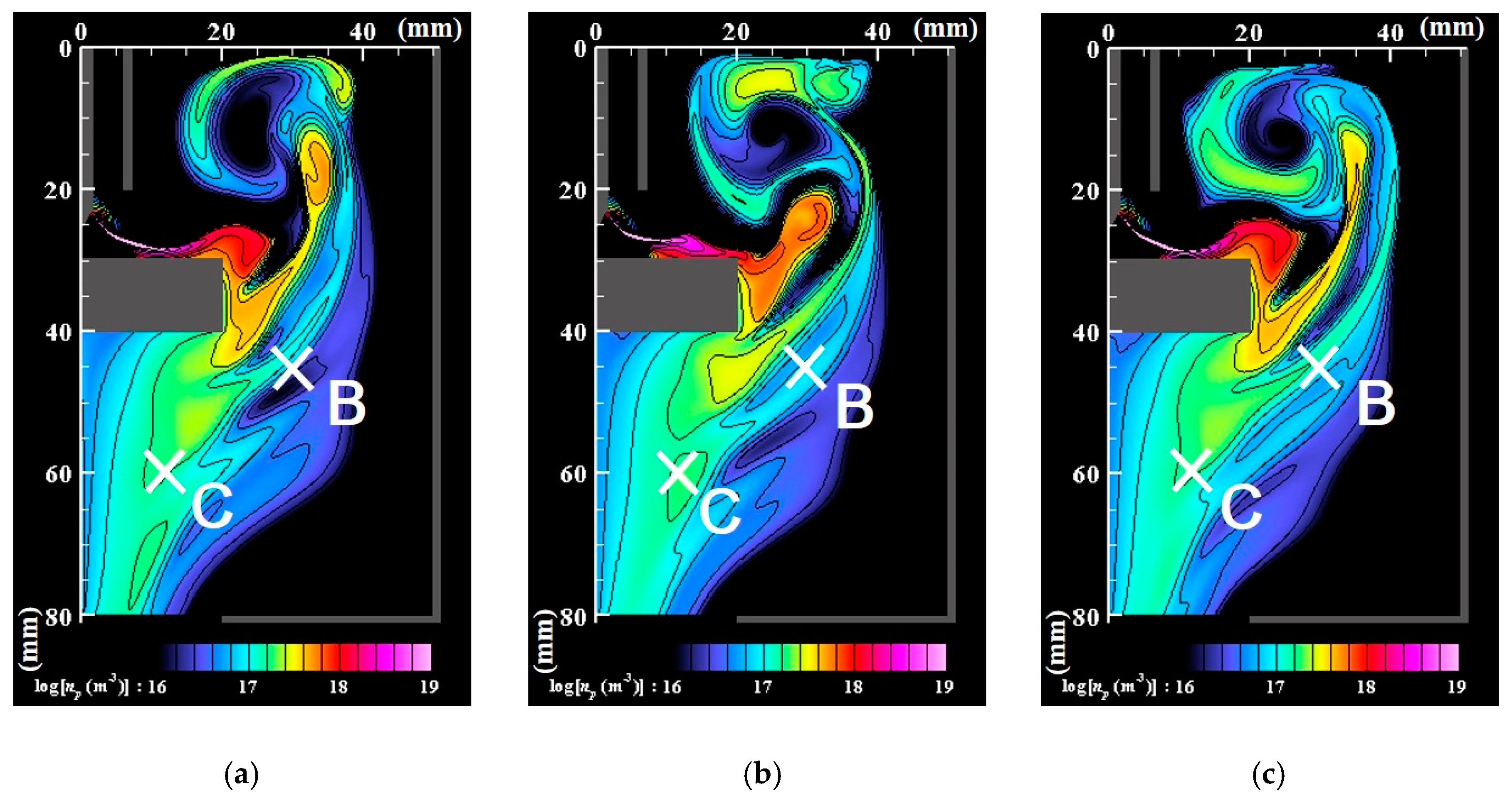

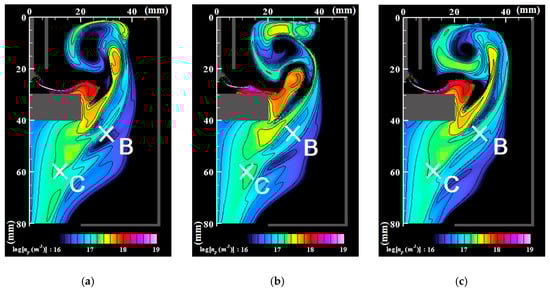

**Figure 7.**Instantaneous distributions of the number density of nanoparticles. (

**a**) t = t

_{0}; (

**b**) t = t

_{0}+ 5 ms; (

**c**) t = t

_{0}+ 10 ms. At the arc plasma fringe, the vapor molecules change their phase to particles through nucleation, condensation, and coagulation. The nanoparticles decrease in the downstream region because of coagulation.

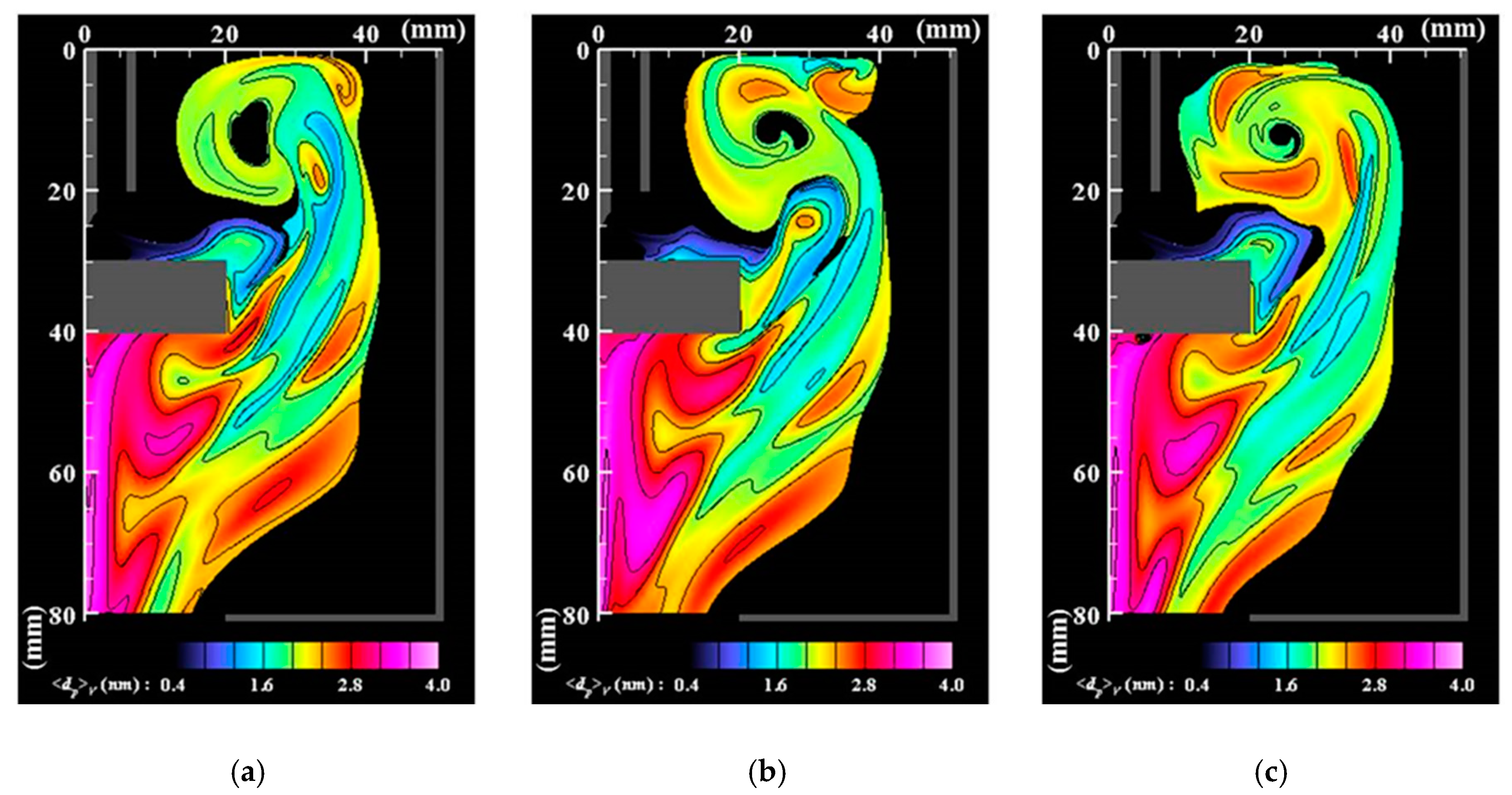

**Figure 8.**Instantaneous distributions of mean diameters of nanoparticles (cutoff for n

_{p}< 10

^{16}m

^{−3}). (

**a**) t = t

_{0}; (

**b**) t = t

_{0}+ 5 ms; (

**c**) t = t

_{0}+ 10 ms. The nanoparticles have larger sizes in downstream regions because of the growth of condensation and coagulation.

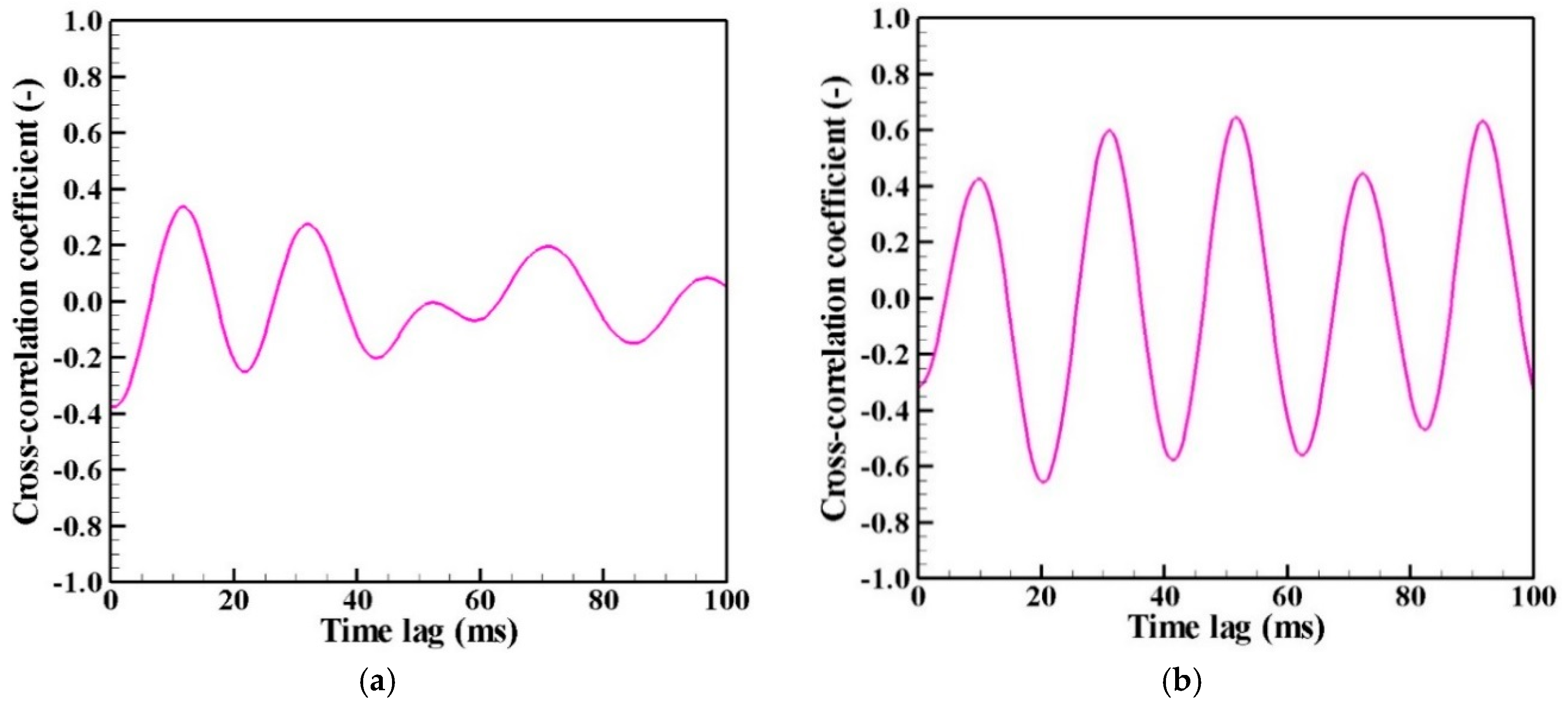

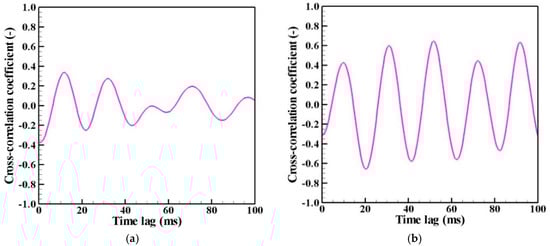

**Figure 9.**Cross-correlation coefficients: (

**a**) between A and B; (

**b**) between A and C. Distant position C exhibits stronger correlation than the more proximate position B.

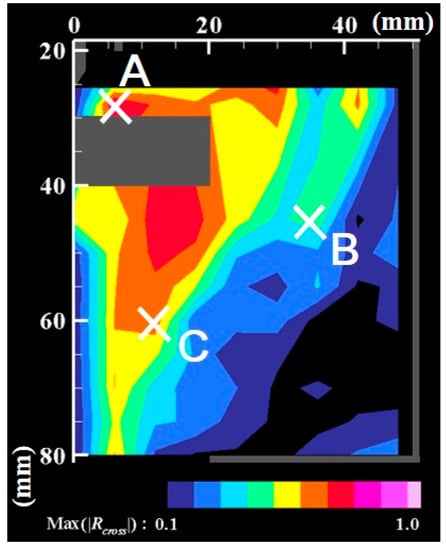

**Figure 10.**Map of maximum cross-correlation coefficient magnitudes. Temperature fluctuation at the arc plasma’s fringe affects the growth and transport of nanoparticles in a far downstream region.
