α- and β-Phase Ni-Mg Hydroxide for High Performance Hybrid Supercapacitors

by
Jingzhou Yin
1,2,*,
Guolang Zhou
1,
Xiaoliang Gao
1,
Jiaqi Chen
1,
Lili Zhang
1,*,
Jiaying Xu
2,3,
Pusu Zhao
1 and
Feng Gao
2,*
1
Jiangsu Key Laboratory for the Chemistry of Low-Dimensional Materials, School of Chemistry and Chemical Engineering, Huaiyin Normal University, Huai’an 223001, China
2
State Key Laboratory of Coordination Chemistry, Department of Materials Science and Engineering, Nanjing University, Nanjing 210093, China
3
School of Chemistry and Chemical Engineering, Yancheng Institute of Technology, Yancheng 224051, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(12), 1686; https://doi.org/10.3390/nano9121686
Submission received: 7 October 2019 / Revised: 14 November 2019 / Accepted: 20 November 2019 / Published: 25 November 2019
Browse Figures
Versions Notes

Abstract

Mg-substituted α- and β-phase nickel hydroxides with high specific capacitance and good stability have been synthesized via sacrificial metal-based replacement reaction. 2D α- and β-phase nickel-magnesium hydroxide (NiMg-OH) have been synthesized by sacrificing magnesium (Mg) powder with nickel salt aqueous solutions. Interestingly, the phase of the obtained NiMg-OH can be controlled by adjusting the nickel precursor. As well, the Mg powder is used not only as Mg source but also alkali source to form NiMg-OH. The α-phase nickel-magnesium hydroxide sample (α-NiMg-OH) exhibits lager surface area of 290.88 m2 g–1. The electrochemical performances show that the α-NiMg-OH presented a superior specific capacitance of 2602 F g–1 (1 A g–1) and β-phase nickel-magnesium hydroxide sample (β-NiMg-OH) exhibits better stability with 87% retention after 1000 cycles at 10 A g–1. The hybrid supercapacitor composed of α-NiMg-OH and activated carbon (AC) display high storage performance and cycle stability, it presents 89.7 F g–1 (1 A g–1) and of 0–1.6 V potential window and it maintains capacitance retention of 84.6% subsequent to 4000 cycles.

1. Introduction

A supercapacitor is an attractive rechargeable power device for its high-power density, ultrafast charge-discharge performance and prolonged cycling stability [1,2,3,4,5,6,7]. Supercapacitors store energy by means of fast surface redox reactions (pseudocapacitors) or ion adsorption (electric double layer capacitors, EDLCs). An EDLC containing carbon-based electrodes offer excellent power density and cycling life, whereas pseudocapacitors composed of transition metals and polymers deliver high energy density with good cycling stability and power density [8,9,10,11,12,13,14].
Nickel hydroxide (Ni(OH)2) is one of interesting electrode substances for high-performance supercapacitors owing to its low cost, high specific capacitance and environmental compatibility [15,16,17]. The α- and β-phases are the common phases of polymorphic forms of layered Ni(OH)2 [18]. β-phase Ni(OH)2 is the thermodynamically stable phase and commercially applied in alkaline secondary batteries [19]. α-Ni(OH)2 is metastable phase but displays a higher theoretical capacitance than that of β-Ni(OH)2. However, α-Ni(OH)2 tends to convert to β-Ni(OH)2 in alkaline solution or when subjected to charge-discharge cycles [20]. Doping or partially substituting with other metal ions, such as Mg [21,22], Al [23,24,25,26], Mn [27], Fe [4], Co [28,29,30,31,32] or Zn [33] in α-Ni(OH)2 has found to be an effective way to stabilize the crystal structure; the resulting complex nickel hydroxides have demonstrated much improved electrochemical properties and performance when used as electrodes in supercapacitors. For example, α-phase NiCoMn hydroxide demonstrated high power densities and high energy [34], CoAl hydroxide possessed enhanced electrochemical performance [35,36]. Among these metal ions, Mg is an alkaline-earth metals with smaller atomic weight. Meanwhile, Mg(OH)2 is stable in alkaline electrolyte. The brucite Mg(OH)2 is isostructural to β-Ni(OH)2 with hexagonal scalenohedral symmetry [37]. Guo et al., reported α-phase MgNi hybrid on Ni foam has demonstrated outstanding cycling stability as electrodes for asymmetric supercapacitor [21].
Displacement reaction is an important reaction in inorganic chemistry. Many groups employed and developed the reaction for synthesizing metals or alloys nanostructures [38]. Yet, very little research has addressed the synthesis of metal hydroxides or double metal hydroxides based on the reaction of galvanic replacement reaction. Mg is an active alkaline-earth metals with smaller atomic weight. It can gently react with water to form hydroxyl ion. As well, the solubility of the magnesium hydroxide relatively high in water. The Mg-doped nickel or cobalt hydroxide could be easily obtained when Ni2+ or Co2+ ions are added to the aqueous solution.
In the present study, both α- and β-phase nanostructured NiMg hydroxides are synthesized at room temperature through reacting Mg powder with a nickel salt aqueous solution. The crystalline phase of NiMg-OH was readily controlled by using different nickel salts as precursors. The crystal and microstructures and electrochemical properties of NiMg hydroxides were systematically characterized and investigated to elaborate the impacts of different crystalline phases on the electrochemical properties of NiMg-OH and the performance of supercapacitors.

2. Experimental Section

2.1. Preparation of Samples

The solution-based approach at room temperature is applied to synthesize the different metal hydroxides. Figure 1 displays the diagrammatic sketch of the fabrication process of different phases nickel hydroxides. For synthesis of α-NiMg-OH, 10 mmol of Mg powder was quickly added into the nickel chloride aqueous solution (0.5 M, 200 mL) under stirring. After five minutes of stirring, the mixture was stored in a glass vial at room temperature in ambient atmosphere for 36 h. After the reactions were completed, the apple green precipitates were obtained by centrifugation (4000 rpm, four minutes), rinsed with H2O and EtOH, followed by freeze-drying at approximately −45 °C. For synthesis of β-NiMg-OH, the same procedure was used except the NiAc2∙6H2O as precursor.

2.2. Characterization of Samples

The crystalline phases of NiMgOH have been analyzed by X-ray diffraction (XRD) on XRD-6000 (Shimadzu Corporation, Kyoto, Japan). The sample morphology has been studied using scanning electron microscope (SEM, FEI Quanta 450, Hillsboro, OR, USA) and the transmission electron microscope (TEM, JEM-200CX, JEOL, Tokyo, Japan). Brunauer-Emmett-Teller surface areas (BET) were tested via a Micrometrics ASAP 2020 Plus analyzer (N2 sorption isotherms, 77 K, Norcross, GA, USA). X-ray photoelectron spectra (XPS) were investigated on a Thermo Scientific Escalab-250xi (Thermo Fisher Scientific, Waltham, MA, USA).The content of Mg2+ was detected by inductively coupled plasma optima optical emission spectrometer (ICP-OES) on Optima 2000DV spectrometer (Perkin Elmer Instruments, Shelton, CT, USA).

2.3. Electrochemical Measurements

The working electrode was fabricated as follows: The active material (80%, NiMgOH), acetylene black (conductive material, 15%) and polyvinylidene fluoride (PVDF, binder, 5%) were mixed to form slurry by adding a few drops of ethanol. Then, the obtained slurry was coated on pure Ni foam followed by drying at 80 °C for 12 h. All the electrochemical properties were carried out on electrochemical analyzer (CHI 660E, Chenhua, Shanghai, China) in potassium hydroxide solution (KOH, 6 M). The working electrodes have been acquired by compressing the mixture-pasted Ni foam at 10 MPa. The work area of the electrode was 1 × 1 cm2 and the mass of the electroactive substance was approximately 2 mg. The three-electrode cell was composed with the nickel hydroxide, Hg/Hg2Cl2 and platinum. Gravimetric specific capacitance (GSC) has been determined through the galvanotactic charge/discharge (GCD) curve and calculated with Celectrode = IΔt/mΔV, C (F g−1), Δt (s), I (A), where m (g) is the specific capacitance, time, discharge current, and mass of the electroactive substance, respectively. Electrochemical impedance spectroscopy (EIS) was tested at open circuit potential (0.01 to 100 kHz) with an AC perturbation of 5 mV.
The asymmetric supercapacitor (ASC) has been assembled with the electrodes of α-NiMg-OH (positive) and active carbon (negative, AC, YP-80F); mass ratio of the active substance in the electrodes follows the equation:
m + / m − = C − Δ V − / C + Δ V +
The analogous electrochemical parameters, such as specific capacitance (Cdevice, F g−1), power density (P, W kg−1) and energy density (E, Wh kg−1), have been calculated through the equations [39]:
Cdevice = IΔt/mΔV
P = 3600E/Δt
E = 0.5 × CΔV2/3.6
where I (A), Δt (s), m (g) and ΔV (V) are discharge currents, times, and voltage range, combined mass of the two electroactive substances, respectively.

3. Results and Discussion

3.1. Characterization Results of NiMg-OH

The standard cards given at the bottom of Figure 2 were α-phase nickel hydroxide (α-Ni(OH)2·0.75H2O, JCPDS no. 38-0715), β-phase nickel hydroxide (β-Ni (OH)2, JCPDS no. 01-1047) and magnesium hydroxide (Mg (OH)2, JCPDS no. 44-1482). For nickel chloride as the nickel precursor (Figure 2a), all diffraction peaks correspond to α-phase nickel hydroxide. The broad diffraction lines of the as-prepared sample indicate the presence of small crystallites. It is noteworthy that there was negative shift for the (003) and (006) planes owing to water molecules and anions in the interlayer space [40] or magnesium doping. The asymmetric peak at 2θ = 33.4° signifies the creation of the turbostratic α-phase nickel hydroxide in literatures [41,42]. For nickel acetate as the nickel precursor, the diffraction peaks revealed that the obtained product with mixed phases (Figure 2b). The β-Ni(OH)2 structure is isostructural to brucite Mg(OH)2. The peaks at 17.2, 33.0, 38.5, 52.1 and 59.0° could be assigned to β-phase nickel hydroxide, with a minor shift for the (001) plane. The remaining peaks at 5.6, 11.3 and 22.5° can be affiliated to the (002), (003) and (006) planes, respectively. This corresponds to the typical α-phase nickel hydroxide structure, except for shifting to lower angles, which resulted from the increased d-spacing at the (00l) direction through the intercalation of acetate anions or magnesium doping. The similar results were obtained in previous reports [43,44]. The above results show that the anions of the precursors can influence the crystal phase of nickel hydroxide. The XPS results verify the presence of NiMg-OH. Figure 2b–d show the high-resolution XPS spectra for Ni 2p, Mg 1s and O 1s electrons, respectively. Figure 2b display the Ni 2p spectrum can be assigned to the Ni 2p3/2 and Ni 2p1/2 spin orbit levels. The peak at 1204 eV shown in Figure 2c are from Mg 1s electrons [45]. The XPS spectra at 531 eV shown in Figure 2d are from the O1s electrons. The XPS results indicated that the hybrid NiMg-OH were obtained. As well, the mol contents of Mg were further determined by ICP. The content of Mg in the α-NiMg-OH and β-NiMg-OH are 10.4%, 6.6% (mol%), respectively.
Morphological features of the different crystalline phase nickel hydroxide were studied by SEM (Figure 3). For α-NiMg-OH obtained from nickel chloride, Figure 3a,b depict nickel hydroxide as a uniform small nanoplate on a large scale with the thickness of <10 nm. For β-NiMg-OH obtained from NiAc2, Figure 3c,d depict β-NiMg-OH as a graphene-like 2D nanosheet. As well, the element mapping results showed that Ni and Mg were distributed homogeneous in the two samples (Figures S1 and S2). These results show that the different anions of nickel precursors dramatically influence the growth of nickel hydroxide crystals and the diverse morphologies were further confirmed by TEM images in Figure 4. For α-NiMg-OH, Figure 4a reveals that the sample contains ultra-thin nanoplates. The thickness of a single nanoplate was approximately 1.5 nm (Figure 4b). The TEM images in Figure 4c shows the lattice fringe spacing of 0.232 nm, indicating the (015) plane; diffused circles in the selected area electron diffraction (SAED) pattern (Figure 4d) substantiated the polycrystalline feature of nickel hydroxide nanoflakes. For β-NiMg-OH, the sample has a graphene-like structure with weak crystallization (Figure 4e,f).
The BET surface area results were shown in Figure 5 and with pore size distribution (PSD). As presented in Figure 5a,b, the curve type of the nickel hydroxides with different phase can be regarded as type IV (IUPAC classification), indicating the presence of mesopores [46]. It can be noted that for α-phase nickel hydroxide, the isotherm presents a H3 hysteresis loop and a greater surface area of 291 m2 g–1. For β-NiMg-OH, the surface area was 71 m2 g–1. The PSD of two samples describe a maximum peak centered at approximately 3.6 nm (Table S1). This 3.6-nm mesoporous structure would be beneficial for the unimpeded diffusion of electrode ions into the inner space/matrix of the supercapacitors [47]. This result would be conducive to the outstanding performance of electrochemical tests.
The α- and β-phase NiMg-OH have been prepared by the reaction between Mg powder and a nickel precursor aqueous solution at room temperature. The Mg powder can react in nickel salt aqueous solution with weak acidity for water partly ionizing. The reaction can also be illustrated in the following chemical Equations (1)–(3).
Mg + H2O → Mg2+ + 2OH− + H2↑
Mg2+ + 2OH− → Mg(OH)2↓
Ni2++ 2OH− → Ni(OH)2↓
The reaction process could be divided into two steps: First, the Mg powder reacts spontaneously with hydrogen ion to form Mg ions and hydrogen because the ΔG of Equation (1) is −376.4 kJ mol–1. Then the hydroxyl ions are surplus in mixed solution. Then, the nickel ions or magnesium ions can combine with hydroxyl ions to form hydroxide. According to the solubility rules if the value of [Mg2+] × [OH–]2 is lower than the value of solubility product equilibrium constant(Ksp(Mg(OH)2)), an apple green precipitate of Mg doped nickel hydroxide can obtained [48,49].
In this method, the presence of different anions (chlorine ion and acetate anion) can influence the phase structures (α- or β-phase) of obtained samples. The β-Ni(OH)2 structure is isostructural to brucite Mg(OH)2 and has hexagonal scalenohedral symmetry [50]. The α-Ni(OH)2 has trigonal symmetry containing of planes of β-Ni(OH)2 intercalated with H2O [37]. For synthesis of the well crystalline β-NiMg-OH, a distorted octahedral coordination complex would be generated at the early reaction stage. Then the amorphous coordination complex can be transformed to [Ni2O4]4− complex with the process of reaction. At the same time, the Mg2+ in the aqueous could replace the Ni2+ in the lattice. During the reaction process, the acetate and the [Ni2O4]4− complex are bound together by hydrogen bonds. As well, the acetate may play important roles as a structure-directing agent, and facilitate the anisotropic growth of β-NiMg-OH, with a typical layer structure [51,52]. For synthesis of α-NiMg-OH, the presence of chlorine ion could not play a role of a structure-directing agent. The uniform small α-NiMg-OH nanoplate were obtained.

3.2. Electrochemical Performance of 2D NiMg-OH

Electrochemical performance of nickel hydroxides with different phase has been initially explored by means of the three-electrode configuration in 6 M aq. KOH. Figure 6a depicts that the cyclic voltammogram (CV) curves of α-NiMg-OH, β-NiMg-OH, pure Ni(OH)2 and nickel foam electrolytes with potential ranging from −0.1–0.6 V at 10 mV s–1. The distinct redox peaks around 0.43 and 0.17 V of α-NiMg-OH electrolyte, and 0.47 and 0.13 V of β-NiMg-OH electrolyte reveal a characteristic pseudocapacitive behavior attributed to the quasi-reversible reactions of nickel hydroxides. The ΔE (the potential deviations between the cathodic and anodic peak) of α-NiMg-OH electrode is 220 mV which is smaller than β-NiMg-OH electrode (ΔE = 280 mV), indicates that better reversibility than β-NiMg-OH. The flat line of nickel foam indicates that the negligence of its electrochemical performance. Figure 6b,c depict the CV cures of the two kinds of Mg-doped nickel hydroxide samples within 5–50 mV s–1, respectively. With an enhanced scan rate, the reduction and oxidation peaks moved to further negative and positive positions, respectively.
Figure 6d depicts the relationship between Ip,c (the cathodic peak current) and v1/2(scan rate) of the two kinds of electrodes. The value of Ip,c increases linearly with the increasing of v1/2, confirming that two electrodes were limited OH– diffuse to active sites [27]. The slope of the curve Ip,c vs. v1/2 for the α-NiMg-OH electrode is larger than that for the β-NiMg-OH electrode indicating the beneficial effect of higher surface area of the α-NiMg-OH electrode. As well, this conclusion can be further confirmed by GCD tests.
The electrode capacitance has been estimated using GCD tests at a range of current densities (Figure 7a,b). The calculated results for α-NiMg-OH (Figure 7c) show that the specific capacitances are 2602, 2156, 1973, 1678, 1636, 1600 and 1502 F g−1 at 1, 2, 4, 8, 10, 12 and 15 A g−1, respectively. As well, the discharge capacitance at 10 A g–1 remained at approximately 70% retention when compared with the capacitance of 1 A g−1. Even at 15 A g-1, the specific capacitance was approximately 1502 F g−1; the result revealed a good charge-storage and rate capabilities. As for β-NiMg-OH, the specific capacitances are 1942, 1653.1, 1441, 1280, 1217.1, 1152 and 1100 F g−1 at a current density of 1, 2, 4, 8, 10, 12 and 15 A g−1, respectively. The NiMg-OH exhibit superior specific capacitance performance compared other hydroxide materials (Table S2). The cycling stability of the α-NiMg-OH and β-NiMg-OH for practical applications has been evaluated by means of a long-term GCD process at 10 A g−1 for 1000 cycles. The β-NiMg-OH exhibits superior cycle stability than α-NiMg-OH with an initial specific capacitance of 87% (Figure 7d). One possible reason is that the delta G of the conversion α-Ni(OH)2→β-Ni(OH)2 is −14.3 kJ mol–1 [53], so that α-Ni(OH)2 can convert β-Ni(OH)2 spontaneously. The α-NiMg-OH maybe convert to β-NiMg-OH with loss capacitance in the cycle process.
These outcomes show that the capacitance of the α-NiMg-OH from NiCl2 was better than β-NiMg-OH obtained from NiAc2. This property can be further estimated by the EIS results. Figure 7e shows the impedances of the α-NiMg-OH nanosheets and β-NiMg-OH composite electrodes. The EIS curve of α-NiMg-OH has a tiny semicircle in the high frequency region compared with β-NiMg-OH demonstrating lower charge transfer resistance of α-NiMg-OH. The results are consistent with the BET test; the larger electroactive surface can lower the charge-transfer resistance and improve the kinetics. After the cycle test, the larger semicircle diameter demonstrating the charge transfer resistance increases after cycling result in lower the specific capacitance (Figure 7f).
To elucidate the enhanced performance of NiMg-OH with different phase synthesized via this unique method, the Mg doped Ni(OH)2 with different content were fabricated by precipitated method is employed as comparison. The specific capacitance at different current densities of Ni(OH)2 with different Mg mol content and specific preparation process were shown in Figure S2. The specific capacitance of all Ni(OH)2 were less than the NiMg-OH synthesized by sacrificing Mg powder. On the other hand, the specific capacitance of Ni(OH)2 improved when the molar ratio of Mg is less than or equal to 10%. However, the specific capacitance of Ni(OH)2 reduces when the molar ratio of Mg is 50%. The results show that the appropriate amount of Mg doping can enhance the specific capacitance of Ni(OH)2. One possible reason is that the appropriate amount of stable Mg(OH)2 in alkaline electrolyte could increase the specific surface area, interlayer distance and pore volume [22]. The ICP results show that the two phase NiMg-OH synthesized via this unique method are 10.35% (α-NiMg-OH) and 6.63% (β-NiMg-OH). The Mg content is useful to improve the electrochemical properties.

3.3. Asymmetric Supercapacitor

With the aim of evaluating the practical utility of the fabricated nanosheets, an ASC has been fabricated with α-NiMg-OH nanosheets and AC YP-80F. The capacitive performance of YP-80F was investigated before measuring the performance of the ASC. Figure S3 shows the CVs of YP-80F under a range of scan rates from 0 V to −1.0 V. The quasi-rectangular CV curves indicate the electrical double-layer capacitance phenomenon of the YP-80F electrode. The GCD curves of YP-80F were shown in Figure S3. The YP-80F achieves specific capacitance of 192.9 and 145.0 F g−1 at 1 and 10 A g−1, respectively.
Figure 8a depicts the schematic illustration of a NiMg-OH//AC asymmetric supercapacitor configuration. Figure 8b depicts the CV curves of ASC at a range of scan rates, which lie within 10–200 mV s−1 with a potential ranging from of 0–1.6 V. The anodic at 1.1 V and 0.8 V, respectively ascribe to reversible reactions of Ni(OH)2−x. GCD curves at a range of current densities are almost symmetric, signifying the occurrence of reversible redox reactions (Figure 8c). These results are consistent with CV measurements. The calculated capacitances are 89.7, 78.9, 68.9, 66.6, 63.2, 58.9 and 53.5 F g−1 at 1, 2, 4, 5, 7, 10 and 15 A g−1 (Figure 8d). These high capacitances may be ascribed to their distinctive ultra-thin structures. The cycle stabilities of ASC for 4000 cycles at 5 A g−1 show that 84.6% of its initial capacitance is maintained (Figure 8e). These outcomes exhibit the good stability of the assembled ASC. The possible reason for the fading capacitance may be due to the increase of ohmic resistance of the ASC after cycling (Figure S5). Figure 8f shows the Ragone plot of ASC.
The energy densities were calculated as 31.9 Wh kg−1 at 800 W kg−1 and 19 Wh kg−1 at 12 kW kg−1. These results exhibit the excellent stability of the assembled ASC. Figure S6 shows the schematic illustration of the advantages of α-NiMg-OH nanosheets electrode for supercapacitor properties. The energy density of the ASC was greater than that of Ni(OH)2//AC (12.6 Wh kg−1 at 1.67 kW kg−1) [54], Ni-Al layered double hydroxide//AC nanofibers (20 Wh kg−1 at 0.75 kW kg−1) [55], and NiCoOH//AC (19.2 Wh kg−1 at 80.5 W kg−1) [56], and similar to 3D porous Ni(OH)2//HPC (34.9 Wh kg−1 at 800 W kg−1) [11]. The greater electrochemical performance of this device is ascribed to its higher specific capacitance (1171 C g–1) and wide potential range (1.6 V).

4. Conclusions

In summary, 2D NiMg-OH have been facilely synthesized by sacrificing Mg powder with nickel salt precursors at room temperature. The α- and β-phase of NiMg-OH can be obtained through different nickel salt precursors. This facile and economic process can also be extended for synthesizing other metal hydroxides like cobalt hydroxide. The as-obtained α-NiMg-OH nanosheets displayed high-capacitance i.e., 2602 F g–1 (1 A g–1), and a retention of 1502 F g–1 (15 A g–1). In the meantime, approximately 80% capacitance is retained following 1000 cycles at 10 A g–1. Importantly, as for ASC, the possessing specific capacitance of 89.7 F g–1 of 1 A g–1, within 0–1.6 V and a good electrochemical capacitance retention of 84.6% of initial capacitance after 4000 cycles. Moreover, the ASC possessed a gravimetric energy density of 31.9 Wh kg–1 at 800 W kg–1. Therefore, this work reports a facile process for preparing 2D nickel hydroxides with different phases and also highlights the path for other metal hydroxides.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/12/1686/s1, Figure S1: SEM and corresponding element mapping of α-NiMg-OH, Figure S2: SEM and corresponding element mapping of β-NiMg-OH, Figure S3: Specific capacitance of Mg doped Ni(OH)2 with different content fabricated by precipitated method at different current densities, Figure S4: (a) GCD curves of AC at a range of current densities measured in a three-electrode device; (b) Charge-discharge curve of AC at a range of current densities; (c) Specific capacitance of AC at different current densities, Figure S5: Nyquist plots of electrode α-NiMg-OH before and after charge-discharge cycling. Figure S6: The schematic illustration of the advantages of α-NiMg-OH nanosheets electrode for supercapacitor properties. Table S1: Summary of surface area, Table S2: Comparison between the supercapacitive performances of our work and the recent hydroxide nanomaterials from literatures.

Author Contributions

J.Y. and G.Z. conceived and designed the experiments; G.Z. and X.G. performed the experiments; J.C., L.Z., J.X., P.Z., and F.G. provided valuable suggestions; J.Y., L.Z., and F.G. acquired funding; J.Y. wrote the paper.

Funding

This research was funded by the National Natural Science Foundation of China grant number 21201072 and 51872109, China Postdoctoral Science Foundation grant number 2013T60517, the Natural Science Foundation of Jiangsu Province grant number BK2012241, the Natural Science Foundation of the Jiangsu Higher Education Institutions of China grant number 18KJA150002 and 17KJA150002, the State Key Laboratory of Coordination Chemistry grant number SKLCC191 and Qinglan Project of Jiangsu Province of China.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miller, J.R.; Simon, P. Materials science-electrochemical capacitors for energy management. Science 2008, 321, 651–652. [Google Scholar] [CrossRef] [PubMed]
  2. Li, M.; Yang, W.; Huang, Y.; Yu, Y. Hierarchical mesoporous Co3O4@ZnCo2O4 hybrid nanowire arrays supported on Ni foam for high-performance asymmetric supercapacitors. Sci. China Mater. 2018, 61, 1167–1176. [Google Scholar] [CrossRef]
  3. Xu, J.; Sun, Y.; Lu, M.; Wang, L.; Zhang, J.; Tao, E.; Qian, J.; Liu, X. Fabrication of the porous MnCo2O4 nanorod arrays on Ni foam as an advanced electrode for asymmetric supercapacitors. Acta Mater. 2018, 152, 162–174. [Google Scholar] [CrossRef]
  4. Gregoire, B.; Ruby, C.; Carteret, C. Hydrolysis of mixed Ni2+-Fe3+ and Mg2+-Fe3+ solutions and mechanism of formation of layered double hydroxides. Dalton. Trans. 2013, 42, 15687–15698. [Google Scholar] [CrossRef]
  5. Xu, J.; Zhang, H.; Xu, P.; Wang, R.; Tong, Y.; Lu, Q.; Gao, F. In situ construction of hierarchical Co/MnO@graphite carbon composites for highly supercapacitive and OER electrocatalytic performances. Nanoscale 2018, 10, 13702–13712. [Google Scholar] [CrossRef]
  6. Li, M.; Yang, W.; Li, J.; Feng, M.; Li, W.; Li, H.; Yu, Y. Porous layered stacked MnCo2O4 cubes with enhanced electrochemical capacitive performance. Nanoscale 2018, 10, 2218–2225. [Google Scholar] [CrossRef]
  7. Du, K.; Wei, G.; Zhao, F.; An, C.; Wang, H.; Li, J.; An, C. Urchin-like FeOOH hollow microspheres decorated with MnO2 for enhanced supercapacitor performance. Sci. China Mater. 2017, 61, 48–56. [Google Scholar] [CrossRef]
  8. Du, W.; Liu, R.; Jiang, Y.; Lu, Q.; Fan, Y.; Gao, F. Facile synthesis of hollow Co3O4 boxes for high capacity supercapacitor. J. Power Sources 2013, 227, 101–105. [Google Scholar] [CrossRef]
  9. Xie, M.J.; Xu, Z.C.; Duan, S.Y.; Tian, Z.F.; Zhang, Y.; Xiang, K.; Lin, M.; Guo, X.F.; Ding, W.P. Facile growth of homogeneous Ni(OH)2 coating on carbon nanosheets for high-performance asymmetric supercapacitor applications. Nano Res. 2018, 11, 216–224. [Google Scholar] [CrossRef]
  10. Yan, J.; Fan, Z.J.; Sun, W.; Ning, G.Q.; Wei, T.; Zhang, Q.; Zhang, R.F.; Zhi, L.J.; Wei, F. Advanced asymmetric supercapacitors based on Ni(OH)2/graphene and porous graphene electrodes with high energy density. Adv. Funct. Mater. 2012, 22, 2632–2641. [Google Scholar] [CrossRef]
  11. Liu, F.; Chu, X.; Zhang, H.; Zhang, B.; Su, H.; Jin, L.; Wang, Z.; Huang, H.; Yang, W. Synthesis of self-assembly 3D porous Ni(OH)2 with high capacitance for hybrid supercapacitors. Electrochim. Acta 2018, 269, 102–110. [Google Scholar] [CrossRef]
  12. Wang, D.; Guan, B.; Li, Y.; Li, D.; Xu, Z.; Hu, Y.; Wang, Y.; Zhang, H. Morphology-controlled synthesis of hierarchical mesoporous α-Ni(OH)2 microspheres for high-performance asymmetric supercapacitors. J. Alloys Comp. 2018, 737, 238–247. [Google Scholar] [CrossRef]
  13. Li, M.; Lei, W.; Yu, Y.; Yang, W.; Li, J.; Chen, D.; Xu, S.; Feng, M.; Li, H. High-performance asymmetric supercapacitors based on monodisperse MnO nanocrystals with high energy densities. Nanoscale 2018, 10, 15926–15931. [Google Scholar] [CrossRef] [PubMed]
  14. Xu, J.; Sun, Y.; Lu, M.; Wang, L.; Zhang, J.; Liu, X. One-step electrodeposition fabrication of Ni3S2 nanosheet arrays on Ni foam as an advanced electrode for asymmetric supercapacitors. Sci. China Mater. 2018, 62, 699–710. [Google Scholar] [CrossRef]
  15. Cui, H.; Xue, J.; Wang, M. Synthesis of high electrochemical performance Ni(OH)2 nanosheets through a solvent-free reaction for application in supercapacitor. Adv. Powder Techol. 2015, 26, 434–438. [Google Scholar] [CrossRef]
  16. Jiang, L.; Qiu, Y.; Luo, P.; Yu, Y. Nickel hydroxide-impregnated and-coated carbon nanotubes using an easily manipulated solvothermal route for supercapacitors. Ceram. Int. 2016, 42, 11634–11639. [Google Scholar] [CrossRef]
  17. Ke, X.; Zhang, Z.; Cheng, Y.; Liang, Y.; Tan, Z.; Liu, J.; Liu, L.; Shi, Z.; Guo, Z. Ni(OH)2 nanoflakes supported on 3D hierarchically nanoporous gold/Ni foam as superior electrodes for supercapacitors. Sci. China Mater. 2017, 61, 353–362. [Google Scholar] [CrossRef]
  18. Lee, J.W.; Ko, J.M.; Kim, J.-D. Hierarchical microspheres based on α-Ni(OH)2 nanosheets intercalated with different anions: Synthesis, anion exchange, and effect of intercalated anions on electrochemical capacitance. J. Phys. Chem. C 2011, 115, 19445–19454. [Google Scholar] [CrossRef]
  19. Dai, J.; Li, S.F.Y.; Xiao, T.D.; Wang, D.M.; Reisner, D.E. Structural stability of aluminum stabilized alpha nickel hydroxide as a positive electrode material for alkaline secondary batteries. J. Power Sources 2000, 89, 40–45. [Google Scholar] [CrossRef]
  20. Nunes, C.V.; Danczuk, M.; Bortoti, A.A.; Gonçalves, J.M.; Araki, K.; Anaissi, F.J. Unexpected effect of drying method on the microstructure and electrocatalytic properties of bentonite/alpha-nickel hydroxide nanocomposite. J. Power Sources 2015, 297, 408–412. [Google Scholar] [CrossRef]
  21. Xie, M.; Duan, S.; Shen, Y.; Fang, K.; Wang, Y.; Lin, M.; Guo, X. In-situ-grown Mg(OH)2-derived hybrid α-Ni(OH)2 for highly stable supercapacitor. ACS Energy Lett. 2016, 1, 814–819. [Google Scholar] [CrossRef]
  22. Yuan, S.; Wang, X.; Lu, C.; Chen, C. The fine control of porous pompon-like Mg-incorporated α-Ni(OH)2 for enhanced supercapacities. Funct. Mater. Lett. 2016, 9, 1650057. [Google Scholar] [CrossRef]
  23. Zhao, Y.L.; Wang, J.M.; Chen, H.; Pan, T.; Zhang, J.Q.; Cao, C.N. Al-substituted α-nickel hydroxide prepared by homogeneous precipitation method with urea. Int. J. Hydrogen Energy 2004, 29, 889–896. [Google Scholar] [CrossRef]
  24. Huang, J.; Lei, T.; Wei, X.; Liu, X.; Liu, T.; Cao, D.; Yin, J.; Wang, G. Effect of Al-doped β-Ni(OH)2 nanosheets on electrochemical behaviors for high performance supercapacitor application. J. Power Sources 2013, 232, 370–375. [Google Scholar] [CrossRef]
  25. Shangguan, E.; Li, J.; Guo, D.; Guo, L.; Nie, M.; Chang, Z.; Yuan, X.-Z.; Wang, H. A comparative study of structural and electrochemical properties of high-density aluminum substituted α-nickel hydroxide containing different interlayer anions. J. Power Sources 2015, 282, 158–168. [Google Scholar] [CrossRef]
  26. Liu, H.; Yu, T.; Su, D.; Tang, Z.; Zhang, J.; Liu, Y.; Yuan, A.; Kong, Q. Ultrathin Ni-Al layered double hydroxide nanosheets with enhanced supercapacitor performance. Ceram. Int. 2017, 43, 14395–14400. [Google Scholar] [CrossRef]
  27. Xia, Q.X.; San Hui, K.; Hui, K.N.; Kim, S.D.; Lim, J.H.; Choi, S.Y.; Zhang, L.J.; Mane, R.S.; Yun, J.M.; Kim, K.H. Facile synthesis of manganese carbonate quantum dots/Ni(HCO3)2–MnCO3 composites as advanced cathode materials for high energy density asymmetric supercapacitors. J. Mater. Chem. A 2015, 3, 22102–22117. [Google Scholar] [CrossRef]
  28. Liang, D.; Wu, S.; Liu, J.; Tian, Z.; Liang, C. Co-doped Ni hydroxide and oxide nanosheet networks: Laser-assisted synthesis, effective doping, and ultrahigh pseudocapacitor performance. J. Mater. Chem. A 2016, 4, 10609–10617. [Google Scholar] [CrossRef]
  29. Wang, Y.; Yin, Z.; Wang, Z.; Li, X.; Guo, H.; Wang, J.; Zhang, D. Facile construction of Co(OH)2@Ni(OH)2 core-shell nanosheets on nickel foam as three dimensional free-standing electrode for supercapacitors. Electrochim. Acta 2019, 293, 40–46. [Google Scholar] [CrossRef]
  30. Jin, H.; Yuan, D.; Zhu, S.; Zhu, X.; Zhu, J. Ni-Co layered double hydroxide on carbon nanorods and graphene nanoribbons derived from MOFs for supercapacitors. Dalton. Trans. 2018, 47, 8706–8715. [Google Scholar] [CrossRef]
  31. Le, K.; Wang, Z.; Wang, F.; Wang, Q.; Shao, Q.; Murugadoss, V.; Wu, S.; Liu, W.; Liu, J.; Gao, Q.; et al. Sandwich-like NiCo layered double hydroxide/reduced graphene oxide nanocomposite cathodes for high energy density asymmetric supercapacitors. Dalton. Trans. 2019, 48, 5193–5202. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, L.; Song, C.; Shi, Y.; Dang, L.; Jin, Y.; Jiang, H.; Lu, Q.; Gao, F. Generalized low-temperature fabrication of scalable multi-type two-dimensional nanosheets with a green soft template. Chem. Eur. J 2016, 22, 5575–5582. [Google Scholar] [CrossRef] [PubMed]
  33. You, Z.; Shen, K.; Wu, Z.; Wang, X.; Kong, X. Electrodeposition of Zn-doped α-nickel hydroxide with flower-like nanostructure for supercapacitors. Appl. Surf. Sci. 2012, 258, 8117–8123. [Google Scholar] [CrossRef]
  34. Zhu, Y.; Huang, C.; Li, C.; Fan, M.; Shu, K.; Chen, H.C. Strong synergetic electrochemistry between transition metals of α phase Ni-Co-Mn hydroxide contributed superior performance for hybrid supercapacitors. J. Power Sources 2019, 412, 559–567. [Google Scholar] [CrossRef]
  35. Liang, T.; Xuan, H.; Xu, Y.; Gao, J.; Han, X.; Yang, J.; Han, P.; Wang, D.; Du, Y. Rational assembly of CoAl-layered double hydroxide on reduced graphene oxide with enhanced electrochemical performance for energy storage. ChemElectroChem 2018, 5, 2424–2434. [Google Scholar] [CrossRef]
  36. Xiao, Y.; Su, D.; Wang, X.; Wu, S.; Zhou, L.; Fang, S.; Li, F. Layered double hydroxides with larger interlayer distance for enhanced pseudocapacitance. Sci. China Mater. 2017, 61, 263–272. [Google Scholar] [CrossRef]
  37. Hall, D.S.; Lockwood, D.J.; Poirier, S.; Bock, C.; MacDougall, B.R. Raman and infrared spectroscopy of alpha and beta phases of thin nickel hydroxide films electrochemically formed on nickel. J. Phys. Chem. A 2012, 116, 6771–6784. [Google Scholar] [CrossRef]
  38. Zhang, G.; Sun, S.; Li, R.; Sun, X. New insight into the conventional replacement reaction for the large-scale synthesis of various metal nanostructures and their formation mechanism. Chem. Eur. J 2010, 16, 10630–10634. [Google Scholar] [CrossRef]
  39. Huang, C.; Song, X.; Qin, Y.; Xu, B.; Chen, H.C. Cation exchange reaction derived amorphous bimetal hydroxides as advanced battery materials for hybrid supercapacitors. J. Mater. Chem. A 2018, 6, 21047–21055. [Google Scholar] [CrossRef]
  40. Miao, C.; Zhu, Y.; Zhao, T.; Jian, X.; Li, W. Synthesis and electrochemical performance of mixed phase α/β nickel hydroxide by codoping with ca2+ and PO4 3−. Ionics 2015, 21, 3201–3208. [Google Scholar] [CrossRef]
  41. Aghazadeh, M.; Ghaemi, M.; Sabour, B.; Dalvand, S. Electrochemical preparation of α-Ni(OH)2 ultrafine nanoparticles for high-performance supercapacitors. J. Solid State Electr. 2014, 18, 1569–1584. [Google Scholar] [CrossRef]
  42. Gao, M.; Sheng, W.; Zhuang, Z.; Fang, Q.; Gu, S.; Jiang, J.; Yan, Y. Efficient water oxidation using nanostructured α-nickel-hydroxide as an electrocatalyst. J. Am. Chem. Soc. 2014, 136, 7077–7084. [Google Scholar] [CrossRef] [PubMed]
  43. Morishita, M.; Kakeya, T.; Ochiai, S.; Ozaki, T.; Kawabe, Y.; Watada, M.; Sakai, T. Structural analysis by synchrotron X-ray diffraction, X-ray absorption fine structure and transmission electron microscopy for aluminum-substituted α-type nickel hydroxide electrode. J. Power Sources 2009, 193, 871–877. [Google Scholar] [CrossRef]
  44. Cheng, M.Y.; Hwang, B.J. Control of uniform nanostructured α-Ni(OH)2 with self-assembly sodium dodecyl sulfate templates. J. Colloid Interf. Sci. 2009, 337, 265–271. [Google Scholar] [CrossRef]
  45. Aksoy, S.; Caglar, Y.; Ilican, S.; Caglar, M. Sol–gel derived Li–Mg Co-doped ZnO films: Preparation and characterization via XRD, XPS, FESEM. J. Alloys Comp. 2012, 512, 171–178. [Google Scholar] [CrossRef]
  46. Du, H.; Jiao, L.; Cao, K.; Wang, Y.; Yuan, H. Polyol-mediated synthesis of mesoporous α-Ni(OH)2 with enhanced supercapacitance. ACS Appl. Mater. Interfaces 2013, 5, 6643–6648. [Google Scholar] [CrossRef]
  47. Du, H.; Wang, Y.; Yuan, H.; Jiao, L. Facile synthesis and high capacitive performance of 3D hierarchical Ni(OH)2 microspheres. Electrochim. Acta 2016, 196, 84–91. [Google Scholar] [CrossRef]
  48. Yue, X.; Pan, J.; Sun, Y.; Wang, Z. Synthesis and electrochemical properties of nano–micro spherical β-Ni(OH)2 with super high charge–discharge speed. Ind. Eng. Chem. Res. 2012, 51, 8358–8365. [Google Scholar] [CrossRef]
  49. Dong, C.; He, G.; Zheng, W.; Bian, T.; Li, M.; Zhang, D. Study on antibacterial mechanism of Mg(OH)2 nanoparticles. Mater. Lett. 2014, 134, 286–289. [Google Scholar] [CrossRef]
  50. Bernard, M.C.; Bernard, P.; Keddam, M.; Senyarich, S.; Takenouti, H. Characterisation of new nickel hydroxides during the transformation of α-Ni(OH)2 to β-Ni(OH)2 by ageing. Electrochim. Acta 1996, 41, 91–93. [Google Scholar] [CrossRef]
  51. Hu, X.; Liu, S.; Li, C.; Huang, J.; Luv, J.; Xu, P.; Liu, J.; You, X. Facile and environmentally friendly synthesis of ultrathin nickel hydroxide nanosheets with excellent supercapacitor performances. Nanoscale 2016, 8, 11797–11802. [Google Scholar] [CrossRef] [PubMed]
  52. Szytula, A.; Murasik, A.; Balanda, M. Neutron diffraction study of Ni(OH)2. Phys. Status Solidi B 1971, 43, 125–128. [Google Scholar] [CrossRef]
  53. Bode, H.; Dehmelt, K.; Witte, J. Zur kenntnis der nickelhydroxidelektrode—I. Über das nickel (II)-hydroxidhydrat. Electrochim. Acta 1966, 11, 1079–1087. [Google Scholar] [CrossRef]
  54. Li, H.B.; Yu, M.H.; Wang, F.X.; Liu, P.; Liang, Y.; Xiao, J.; Wang, C.X.; Tong, Y.X.; Yang, G.W. Amorphous nickel hydroxide nanospheres with ultrahigh capacitance and energy density as electrochemical pseudocapacitor materials. Nat. Commun. 2013, 4, 1894. [Google Scholar] [CrossRef]
  55. Wang, W.; Zhang, N.; Shi, Z.; Ye, Z.; Gao, Q.; Zhi, M.; Hong, Z. Preparation of Ni-Al layered double hydroxide hollow microspheres for supercapacitor electrode. Chem. Eng. J. 2018, 338, 55–61. [Google Scholar] [CrossRef]
  56. Tang, Y.; Liu, Y.; Yu, S.; Guo, W.; Mu, S.; Wang, H.; Zhao, Y.; Hou, L.; Fan, Y.; Gao, F. Template-free hydrothermal synthesis of nickel cobalt hydroxide nanoflowers with high performance for asymmetric supercapacitor. Electrochim. Acta 2015, 161, 279–289. [Google Scholar] [CrossRef]
Nanomaterials 09 01686 g001

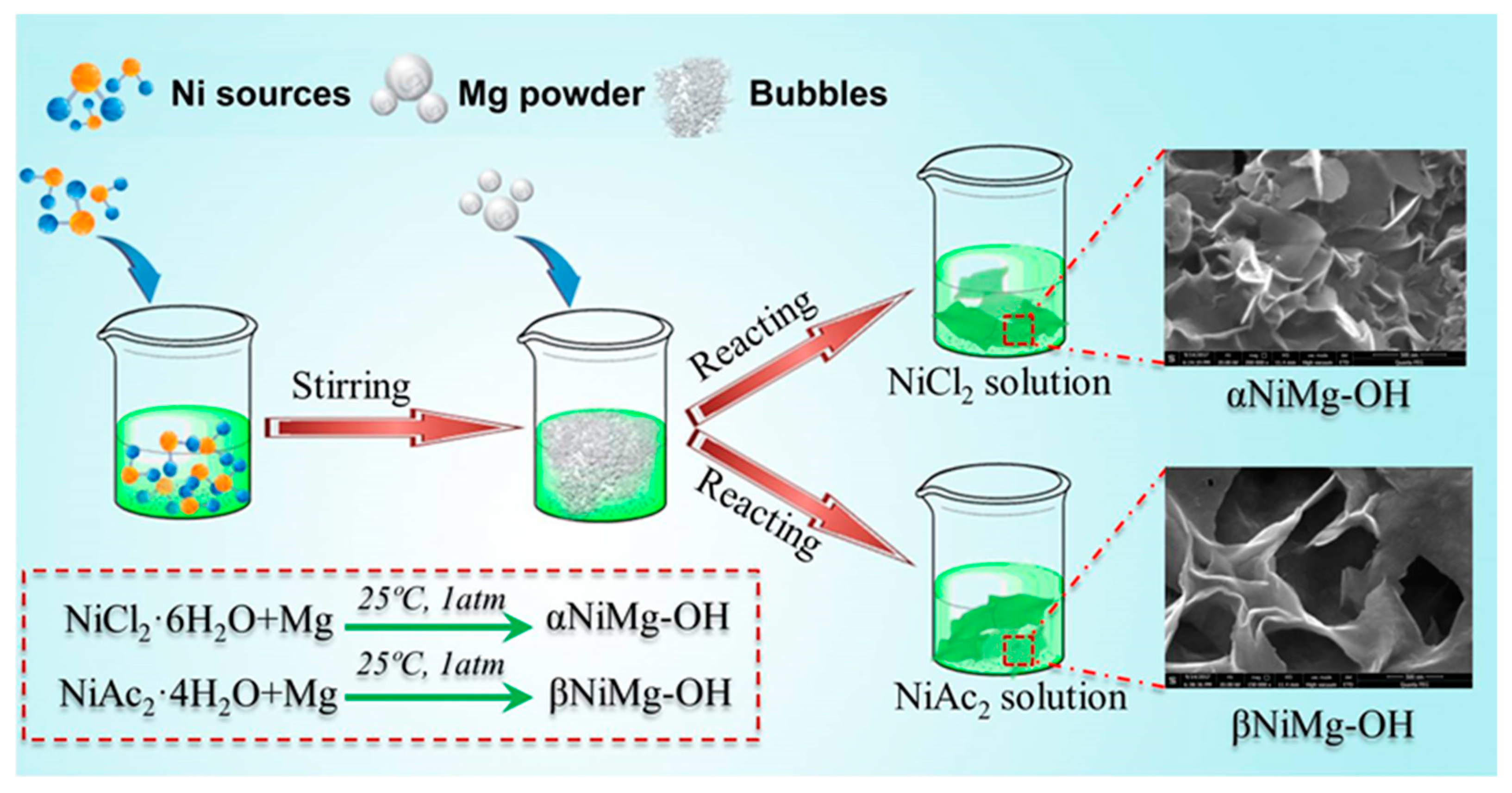

Figure 1. The diagram of the fabrication process for the α-NiMg-OH nanosheets.
Figure 1. The diagram of the fabrication process for the α-NiMg-OH nanosheets.
Nanomaterials 09 01686 g001
Nanomaterials 09 01686 g002

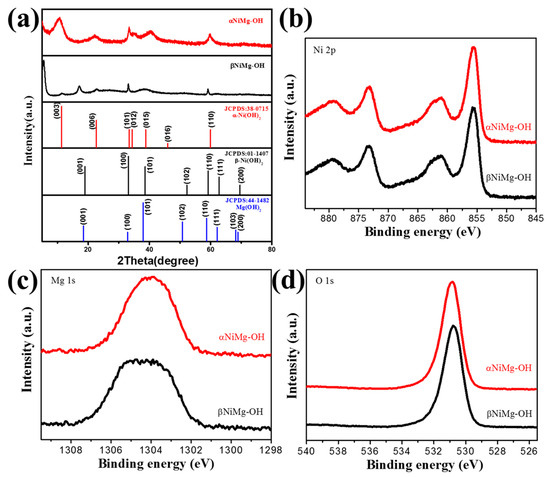

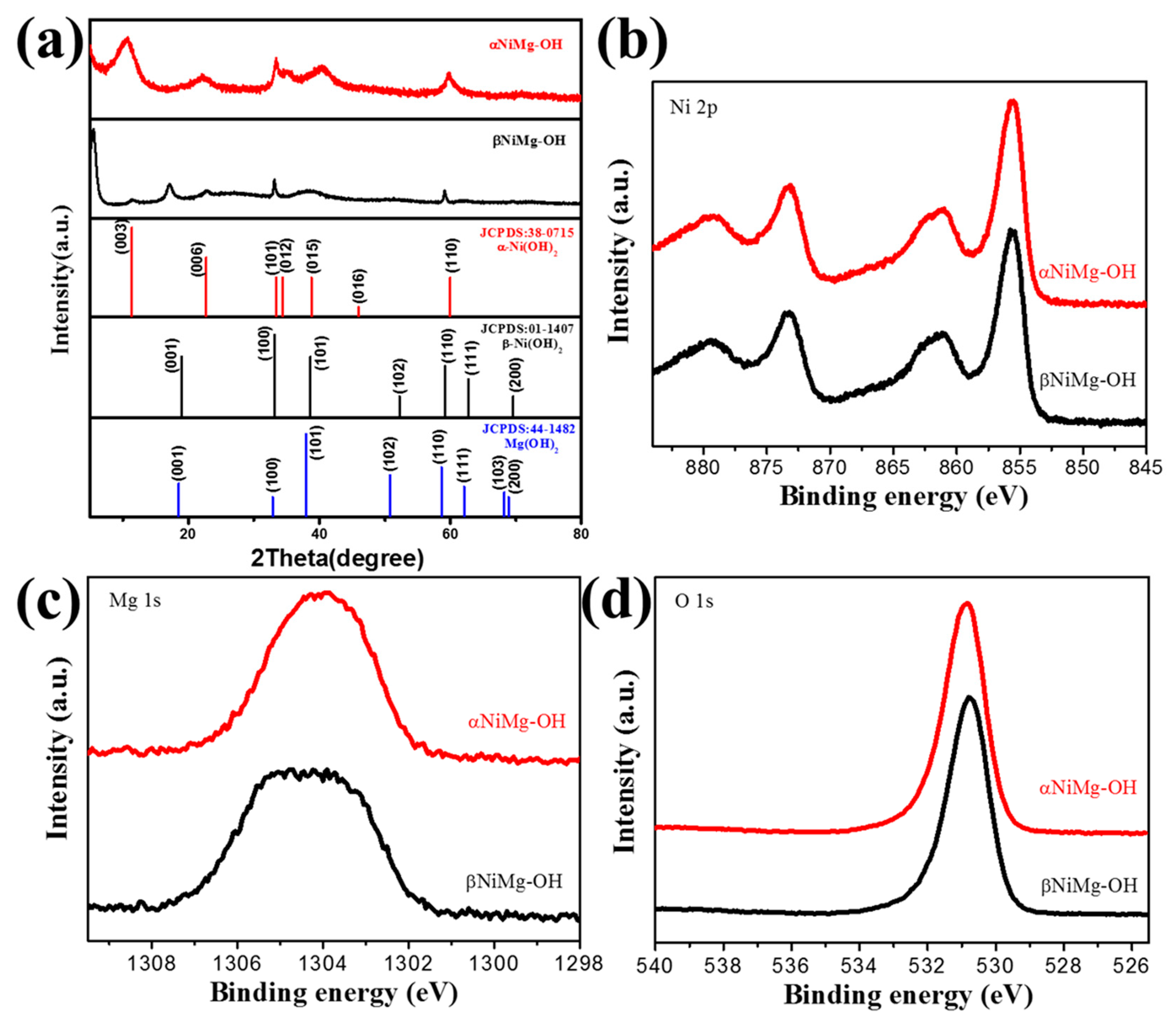

Figure 2. (a) XRD patterns of the α-NiMg-OH and β-NiMg-OH, (b) Ni 2p, (c) Mg 1s and (d) O 1s XPS spectra of the α-NiMg-OH and β-NiMg-OH.
Figure 2. (a) XRD patterns of the α-NiMg-OH and β-NiMg-OH, (b) Ni 2p, (c) Mg 1s and (d) O 1s XPS spectra of the α-NiMg-OH and β-NiMg-OH.
Nanomaterials 09 01686 g002
Nanomaterials 09 01686 g003
Figure 3. Morphologies (SEM) of the nickel hydroxide with different crystallization phases (a,b): α-NiMg-OH; (c,d): β-NiMg-OH.
Figure 3. Morphologies (SEM) of the nickel hydroxide with different crystallization phases (a,b): α-NiMg-OH; (c,d): β-NiMg-OH.
Nanomaterials 09 01686 g003
Nanomaterials 09 01686 g004
Figure 4. (a,b) TEMimages; (c) High Resolution TEM image; (d) SAED pattern of as-obtained products with α-NiMg-OH; TEM image (e,f) HRTEM image of as-obtained products with β-NiMg-OH.
Figure 4. (a,b) TEMimages; (c) High Resolution TEM image; (d) SAED pattern of as-obtained products with α-NiMg-OH; TEM image (e,f) HRTEM image of as-obtained products with β-NiMg-OH.
Nanomaterials 09 01686 g004
Nanomaterials 09 01686 g005

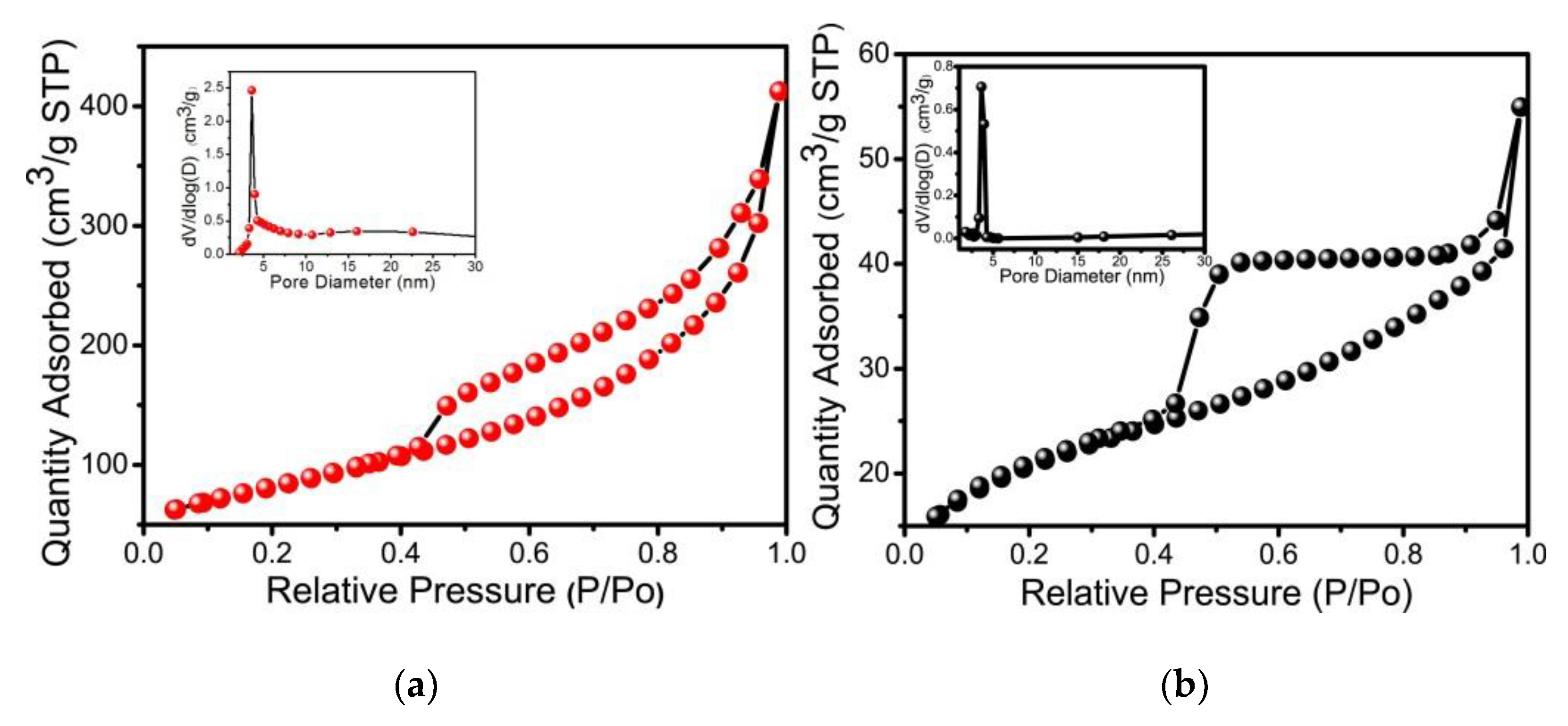

Figure 5. N2 adsorption/desorption isotherms and PSD curves (inset) of the nickel hydroxide with different crystallization phases (a): α-NiMg-OH; (b): β-NiMg-OH.
Figure 5. N2 adsorption/desorption isotherms and PSD curves (inset) of the nickel hydroxide with different crystallization phases (a): α-NiMg-OH; (b): β-NiMg-OH.
Nanomaterials 09 01686 g005
Nanomaterials 09 01686 g006

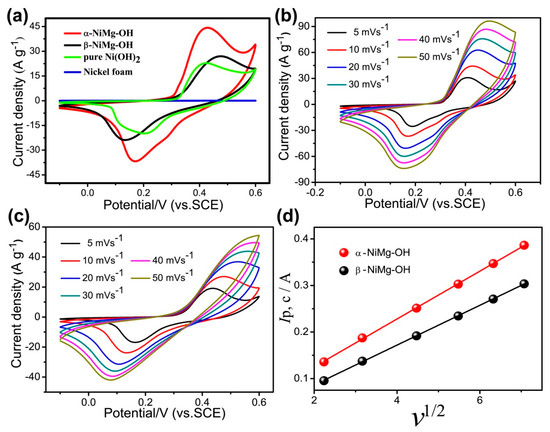

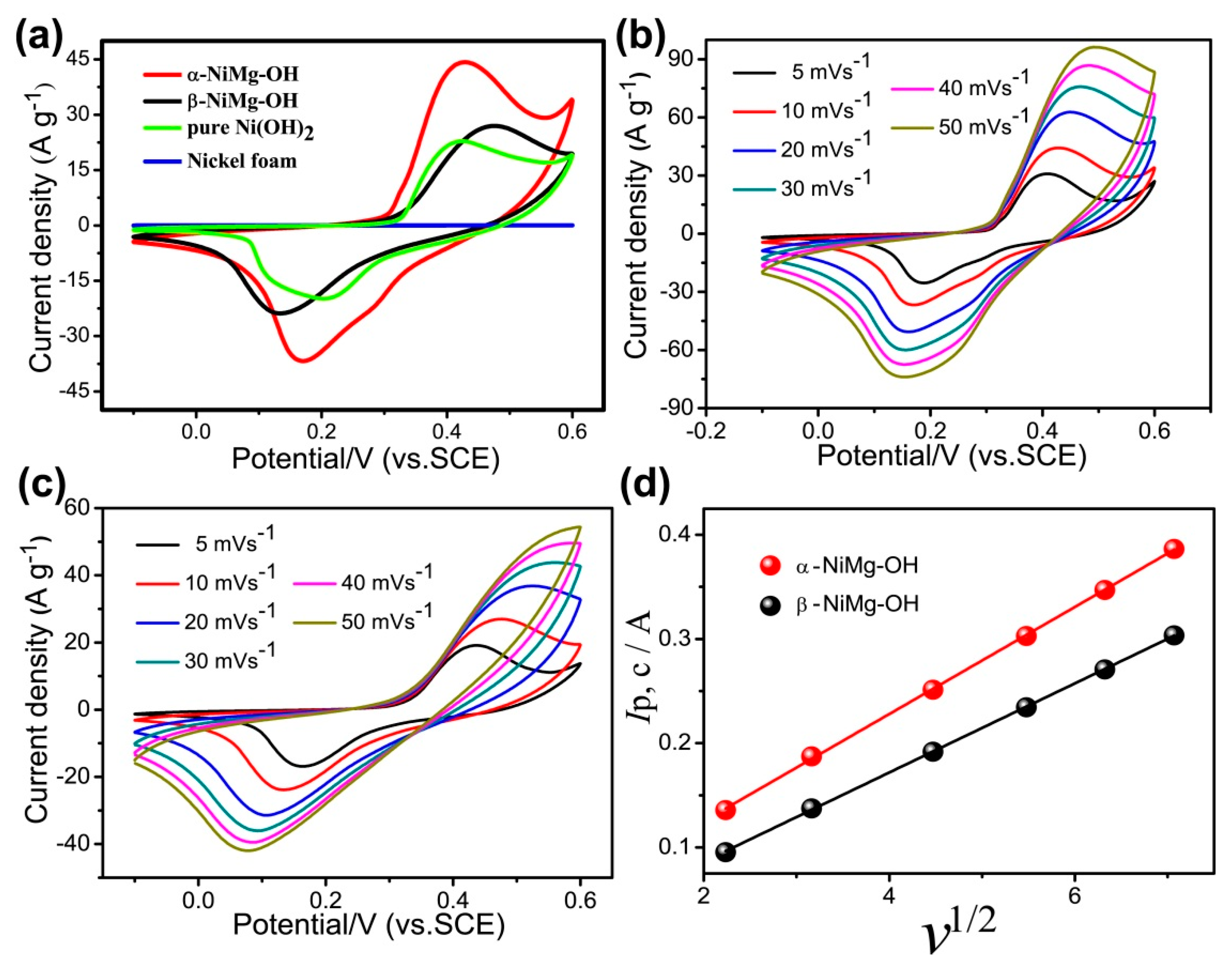

Figure 6. Electrochemical parameters of NiMg-OH and pure Ni(OH)2 electrodes in a three-electrode device: (a) CV curves at 10 mVs−1; (b) CV curves of α-NiMg-OH at a range of scan rates; (c) CV curves of β-NiMg-OH at a range of scan rates; (d) the cathodic peak current versus square root of the scan rate.
Figure 6. Electrochemical parameters of NiMg-OH and pure Ni(OH)2 electrodes in a three-electrode device: (a) CV curves at 10 mVs−1; (b) CV curves of α-NiMg-OH at a range of scan rates; (c) CV curves of β-NiMg-OH at a range of scan rates; (d) the cathodic peak current versus square root of the scan rate.
Nanomaterials 09 01686 g006
Nanomaterials 09 01686 g007

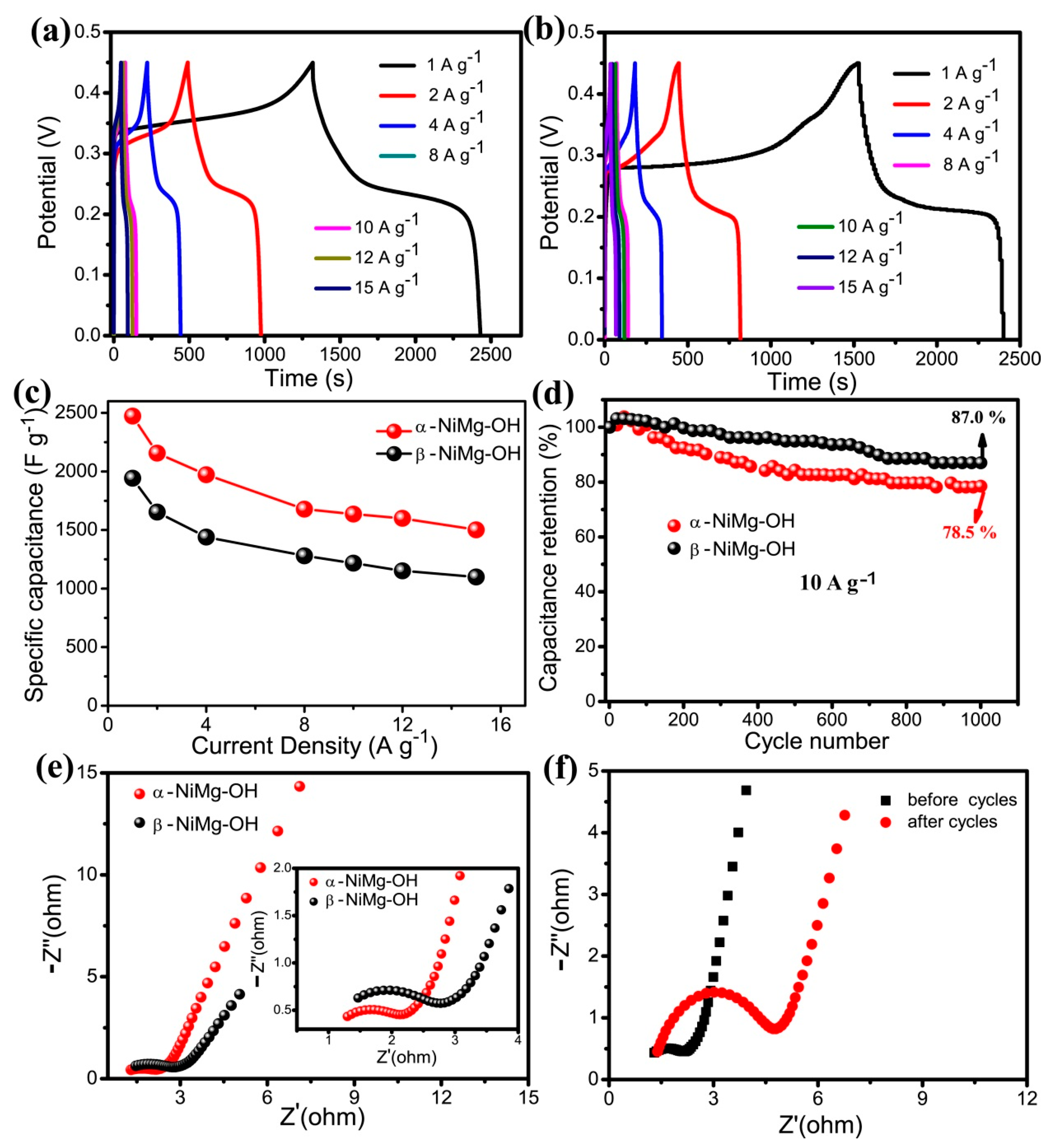

Figure 7. Electrochemical parameters of as-obtained Ni(OH)2 electrodes in a three-electrode device: (a) GCD curves at a range of current densities of α-NiMg-OH; (b) GCD curves at a range of current densities of β-NiMg-OH; (c) GSC vs. current density; (d) cycling test at 10 A g−1; (e) EIS spectrum of the two phases Ni(OH)2 samples; (f) Before and after cycling test of α-NiMg-OH.
Figure 7. Electrochemical parameters of as-obtained Ni(OH)2 electrodes in a three-electrode device: (a) GCD curves at a range of current densities of α-NiMg-OH; (b) GCD curves at a range of current densities of β-NiMg-OH; (c) GSC vs. current density; (d) cycling test at 10 A g−1; (e) EIS spectrum of the two phases Ni(OH)2 samples; (f) Before and after cycling test of α-NiMg-OH.
Nanomaterials 09 01686 g007
Nanomaterials 09 01686 g008

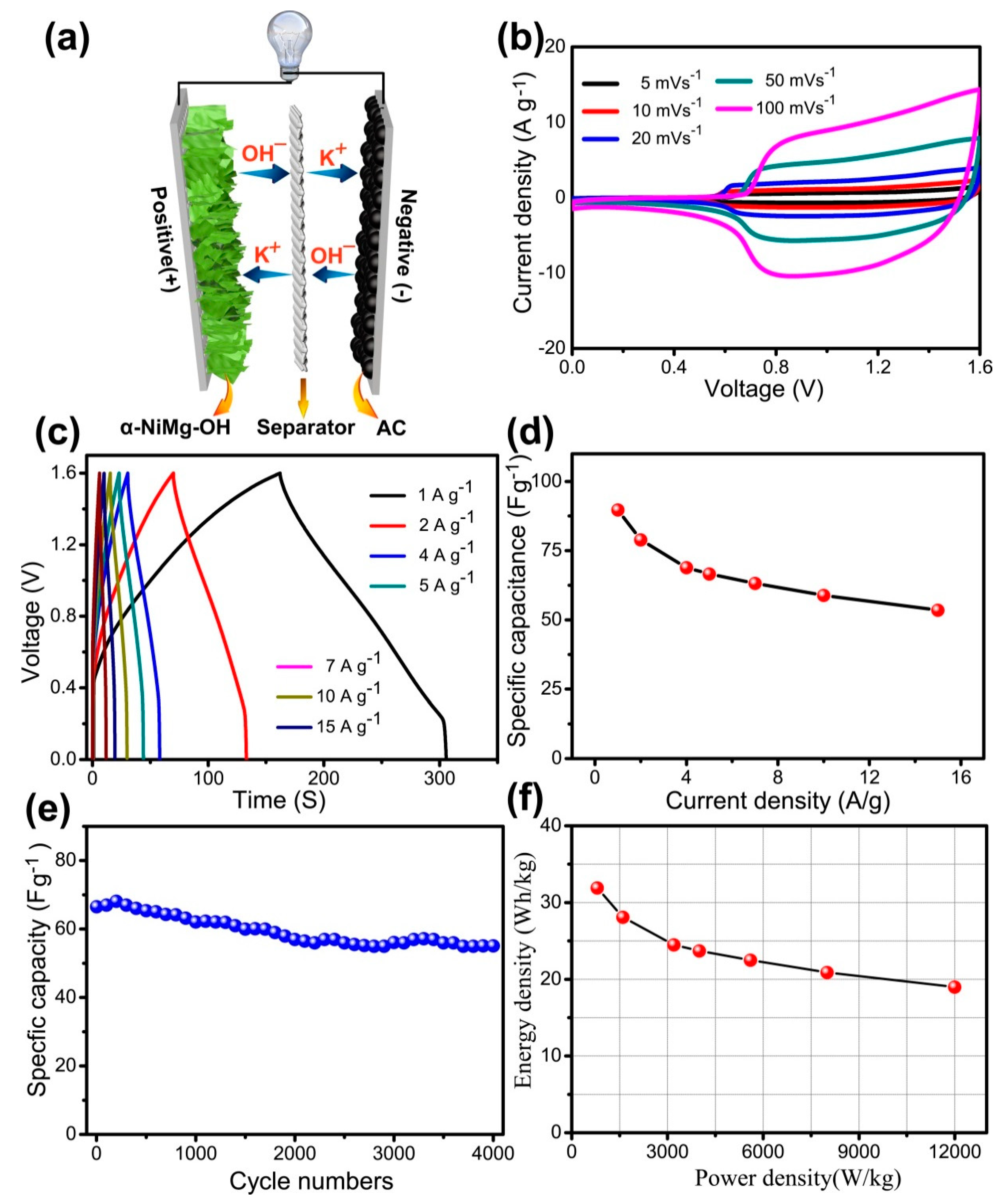

Figure 8. Electrochemical parameters of the two-electrode ASC with α-NiMg-OH nanoplates and AC as the electrodes in 6 M aqueous KOH. (a) Schematic illustration of α-NiMg-OH//AC asymmetric supercapacitor configuration; (b) CV curves at a range of scan rates with voltages ranging from 0–1.6 V; (c) GCD curves at a range of current densities; (d) GSC vs. current density; (e) cycling stability at 5 A g−1; (f) Ragone plot of the α-NiMg-OH//AC asymmetric supercapacitor device.
