Next Article in Journal
Core-Shell Heterostructured and Visible-Light-Driven Titanoniobate/TiO2 Composite for Boosting Photodegradation Performance
Previous Article in Journal
Applications of Carbon Nanotubes in Bone Tissue Regeneration and Engineering: Superiority, Concerns, Current Advancements, and Prospects
Previous Article in Special Issue
Electrochemical Synergies of Heterostructured Fe2O3-MnO Catalyst for Oxygen Evolution Reaction in Alkaline Water Splitting
Open AccessArticle

Mesoporous Tungsten Trioxide Photoanodes Modified with Nitrogen-Doped Carbon Quantum Dots for Enhanced Oxygen Evolution Photo-Reaction

1
Electrochemical Sciences Research Chair (ESRC), Chemistry Department, College of Science, King Saud University, Riyadh 11451, Saudi Arabia
2
Department of Astronomy and Physics, College of Science, King Saud University, Riyadh 11451, Saudi Arabia
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(10), 1502; https://doi.org/10.3390/nano9101502
Received: 29 September 2019 / Revised: 17 October 2019 / Accepted: 18 October 2019 / Published: 22 October 2019
(This article belongs to the Special Issue Nanostructured Catalysts for Sustainable Applications)

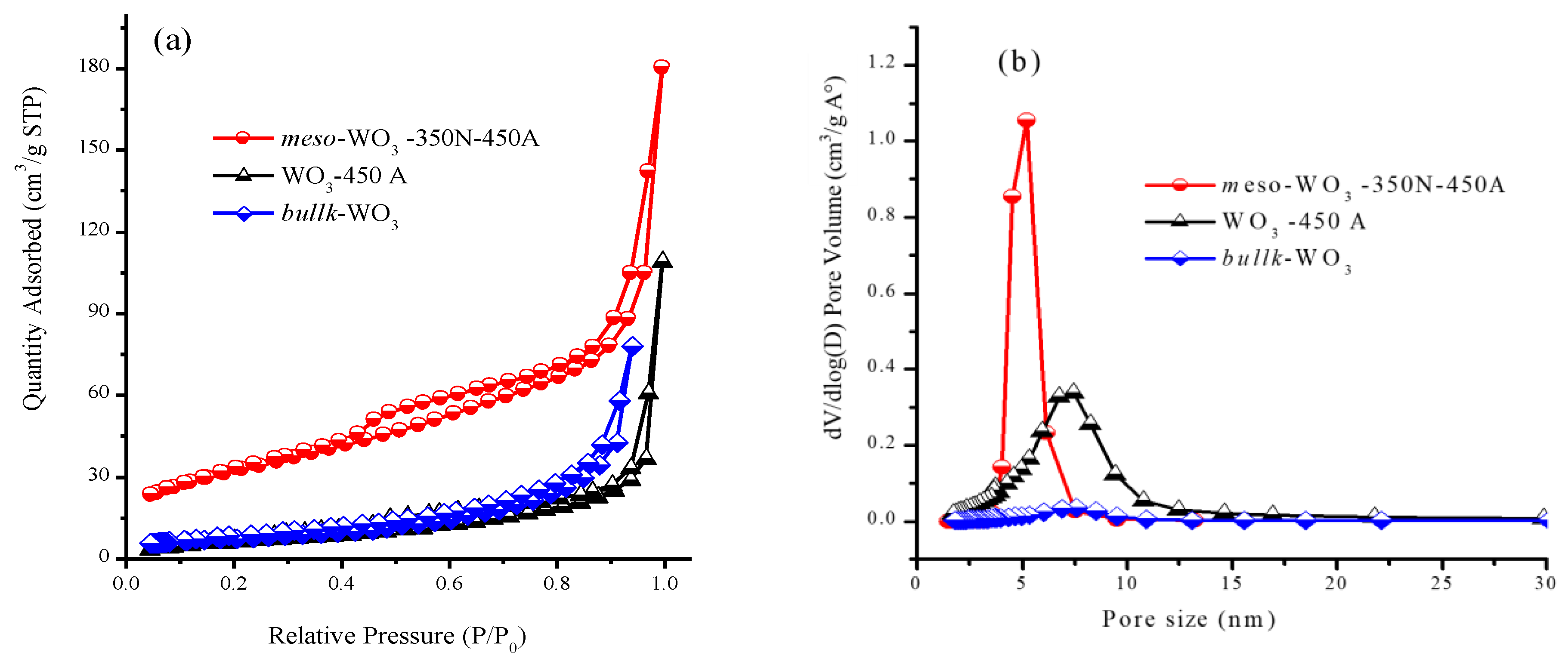

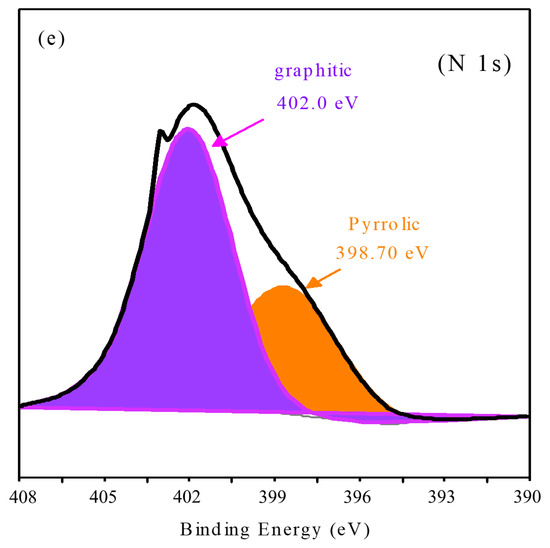

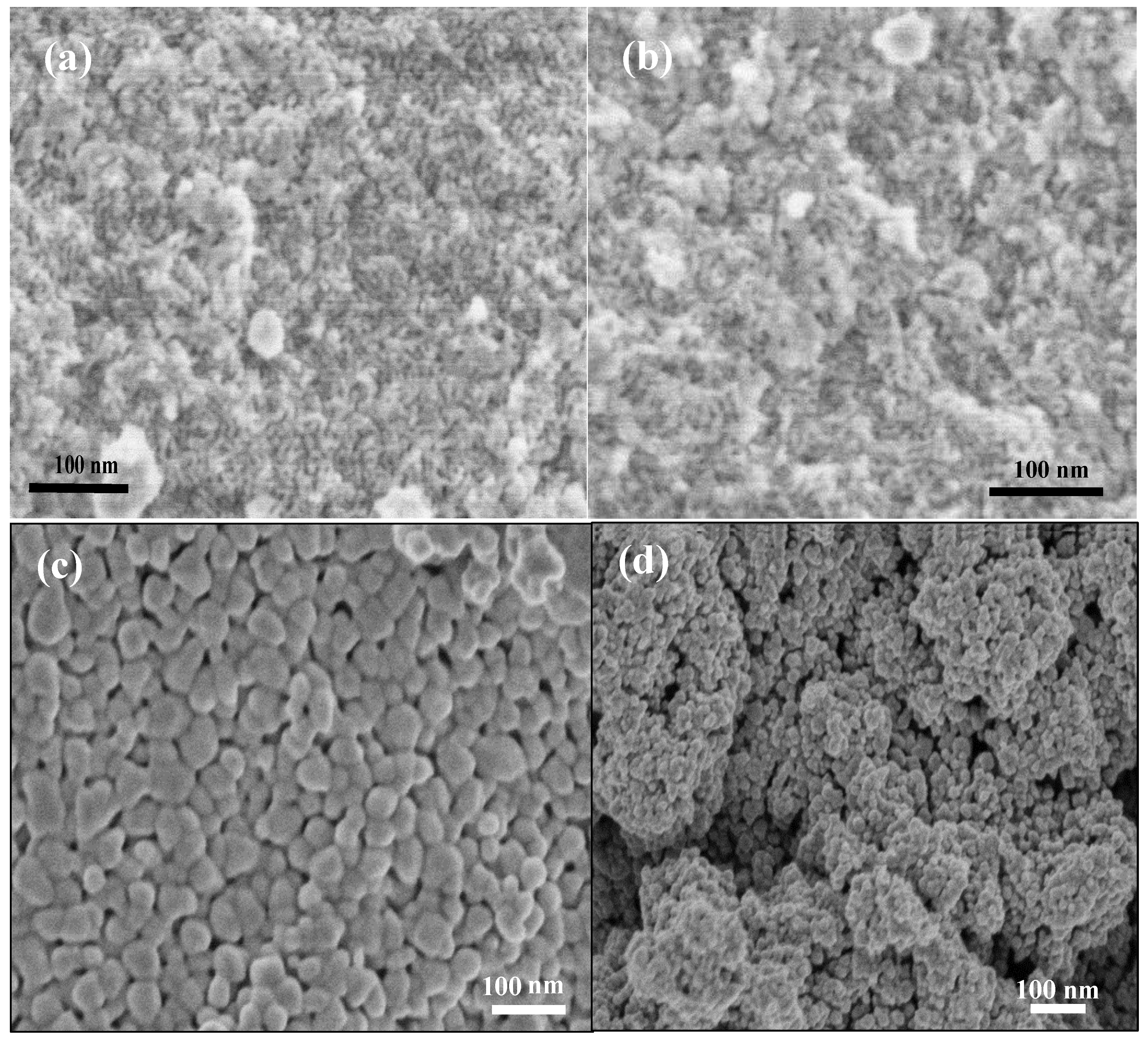

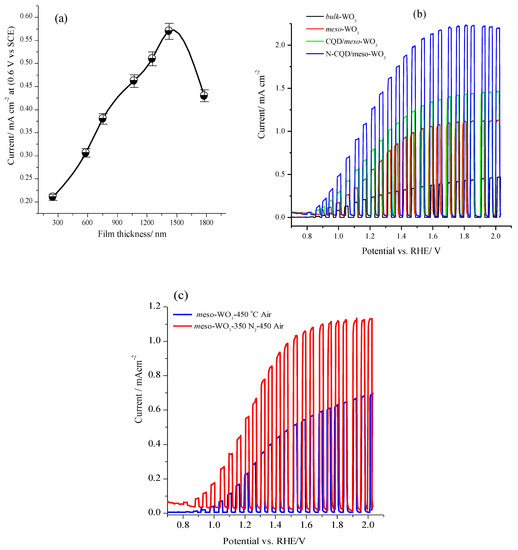

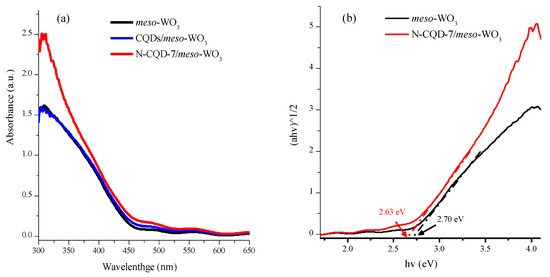

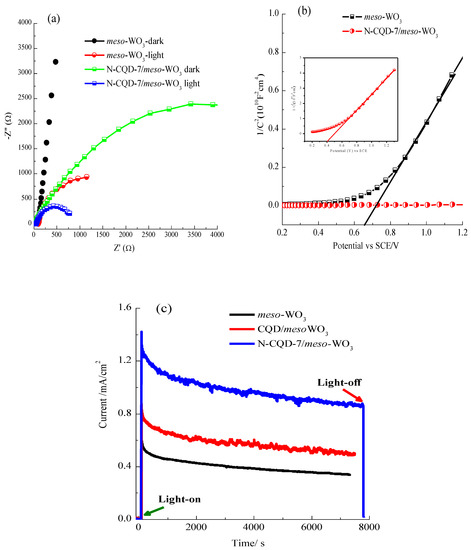

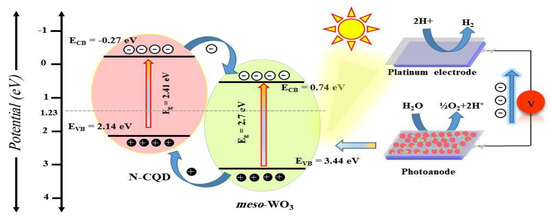

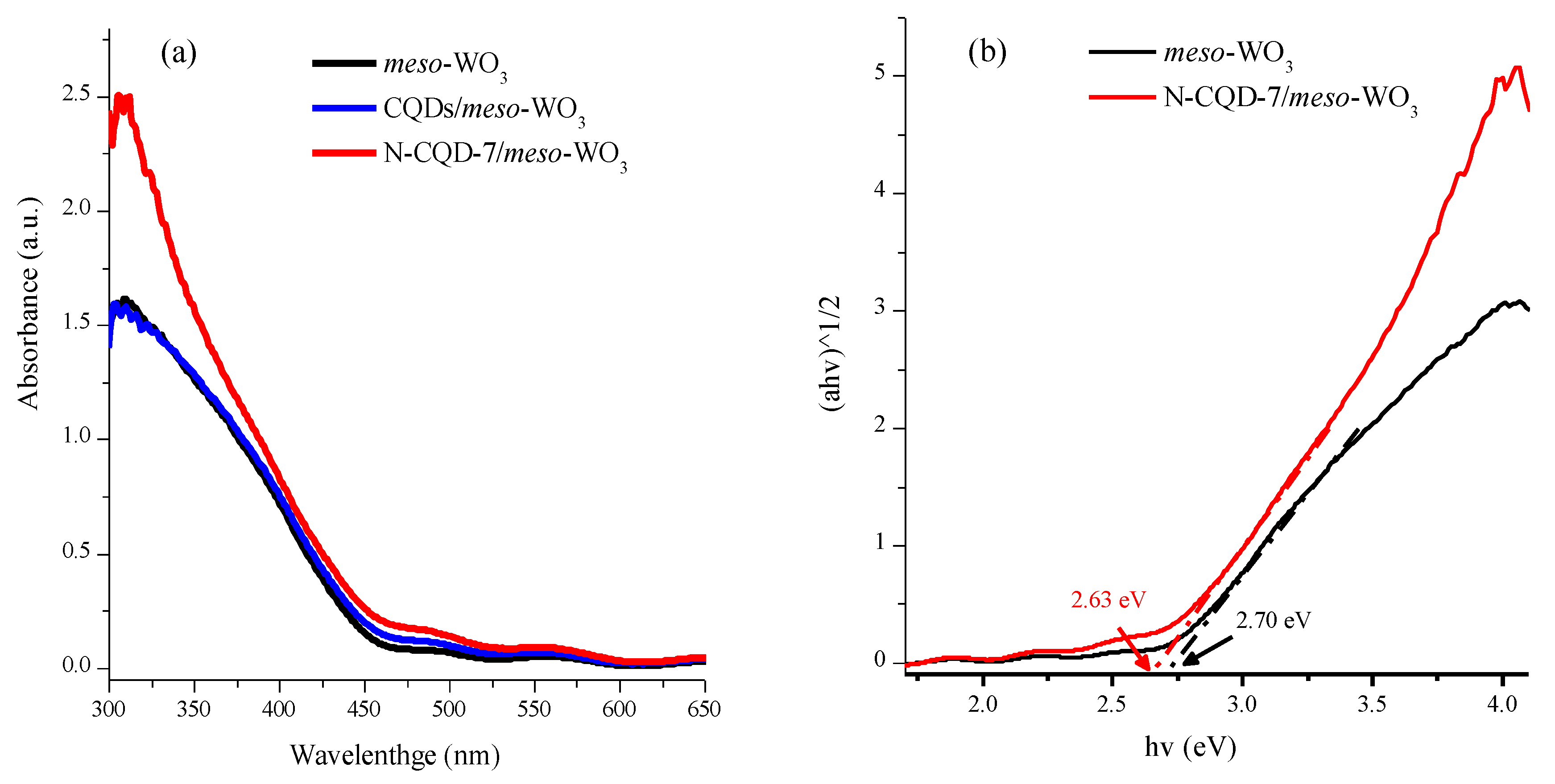

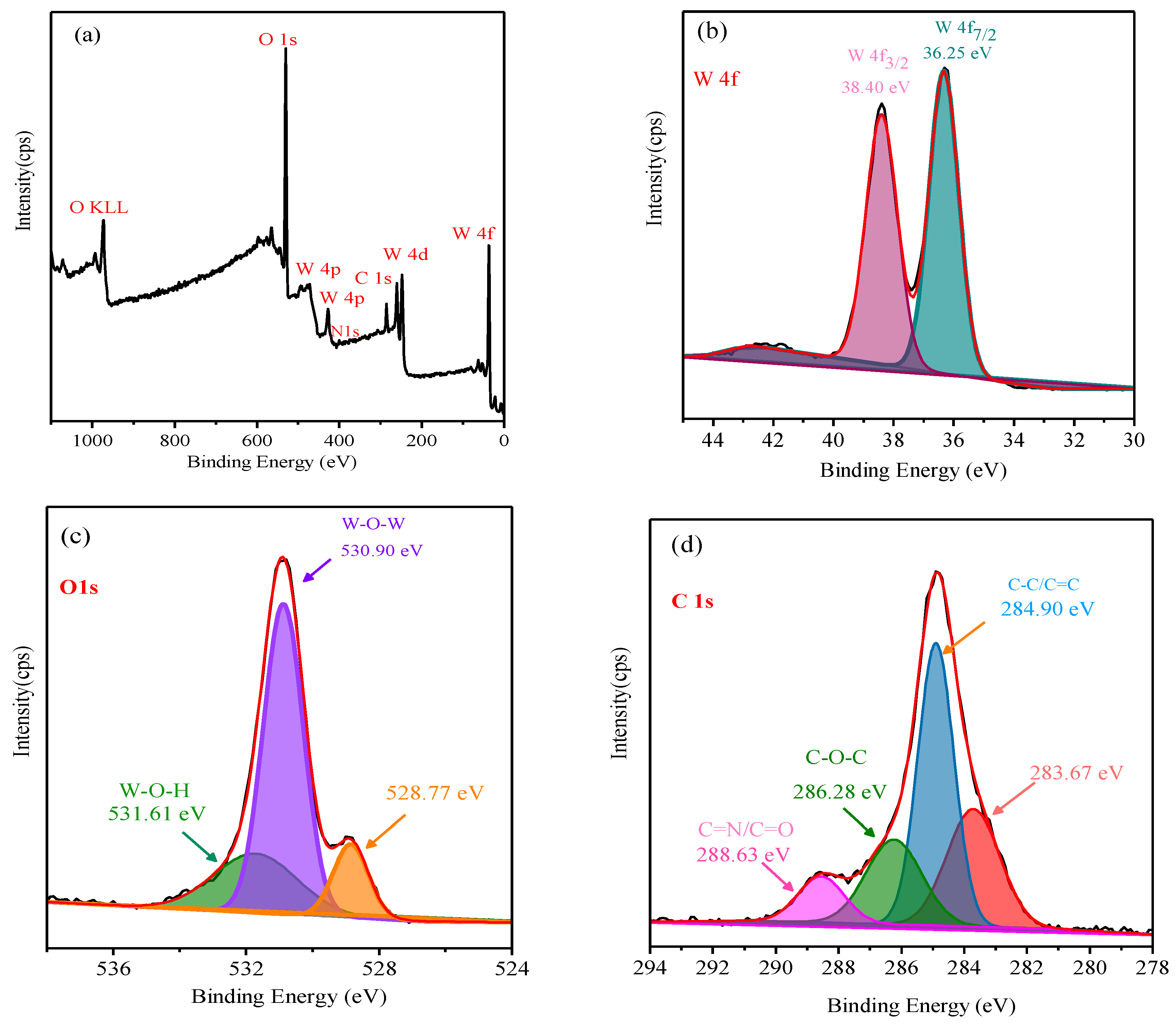

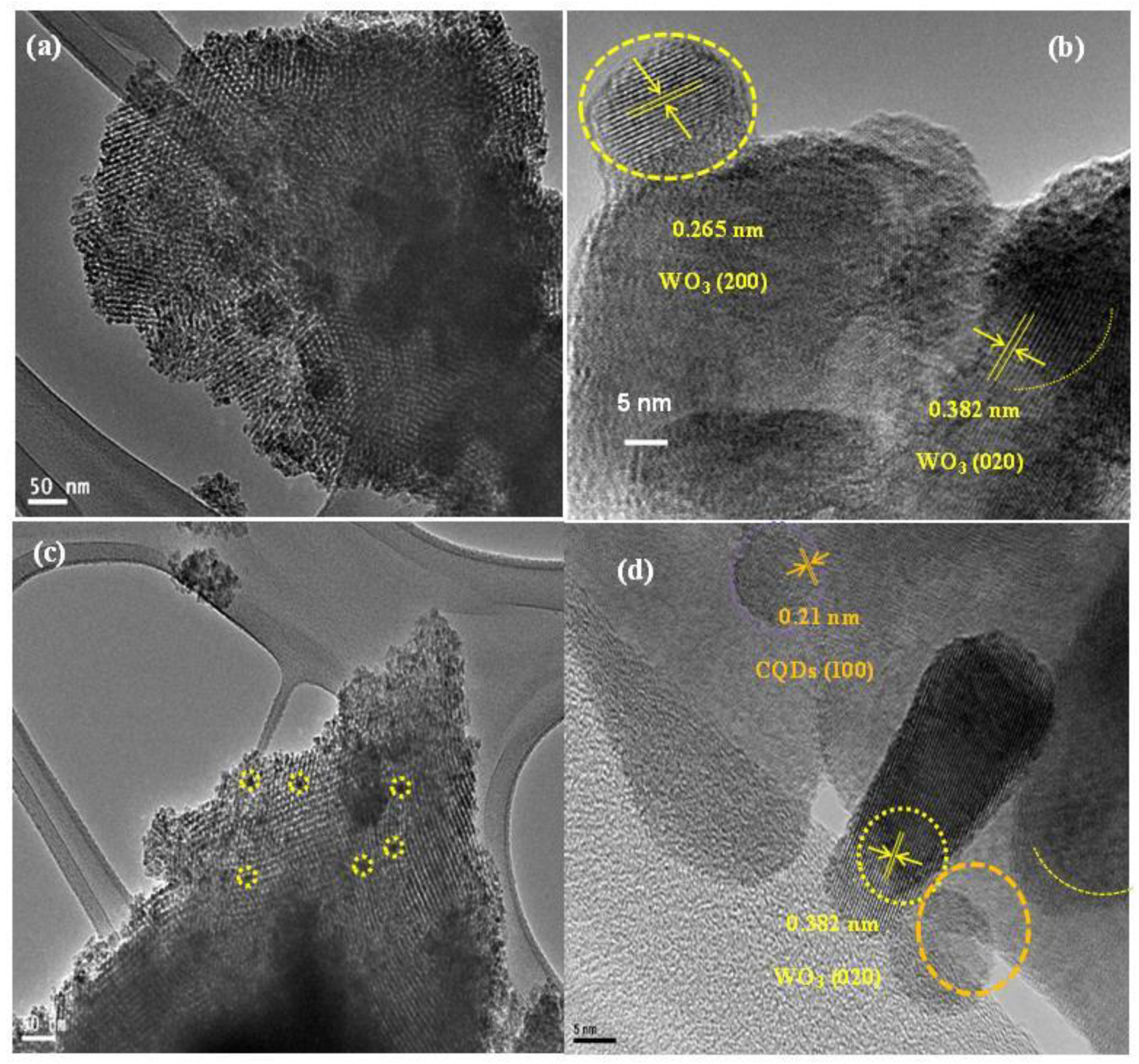

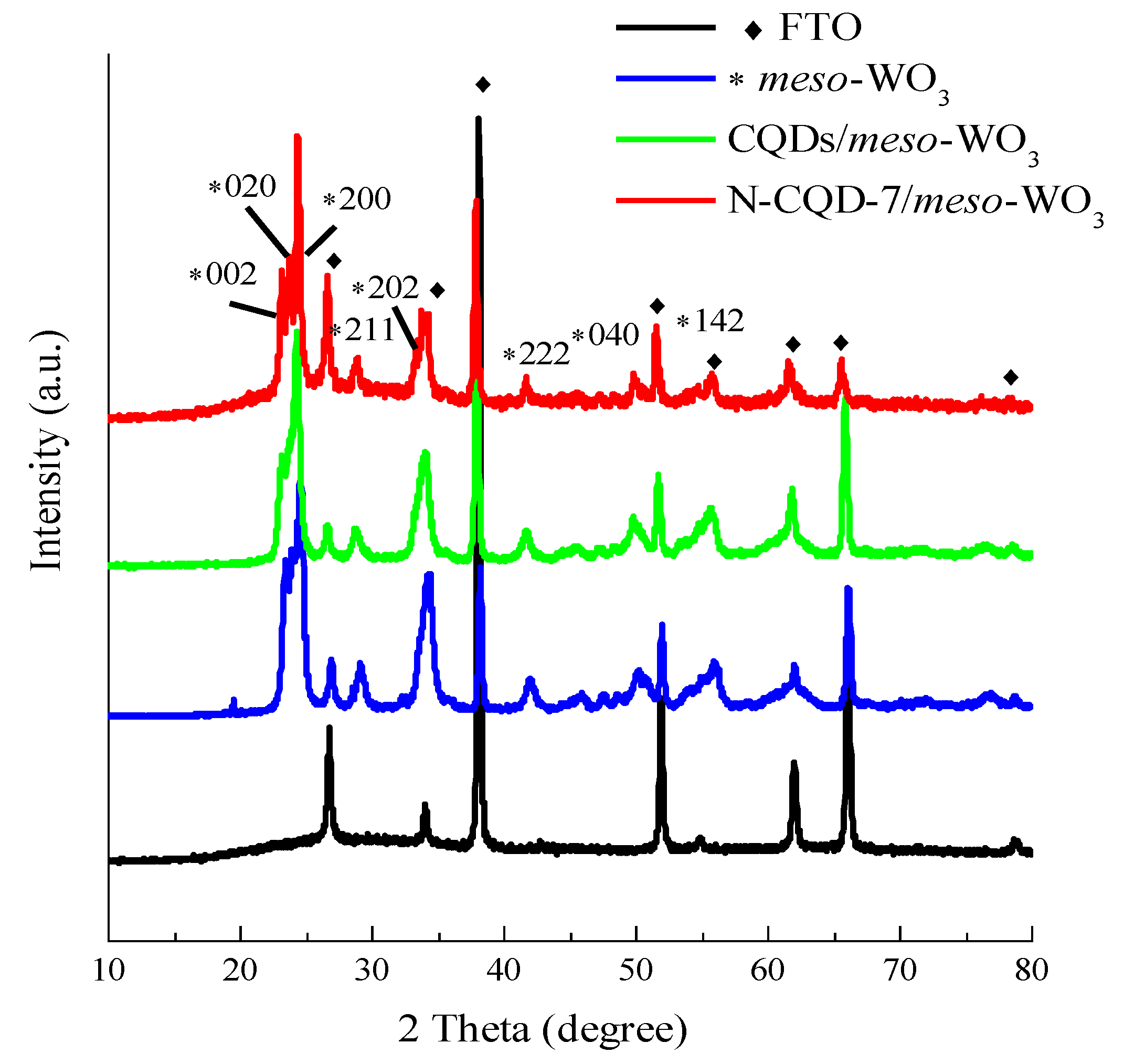

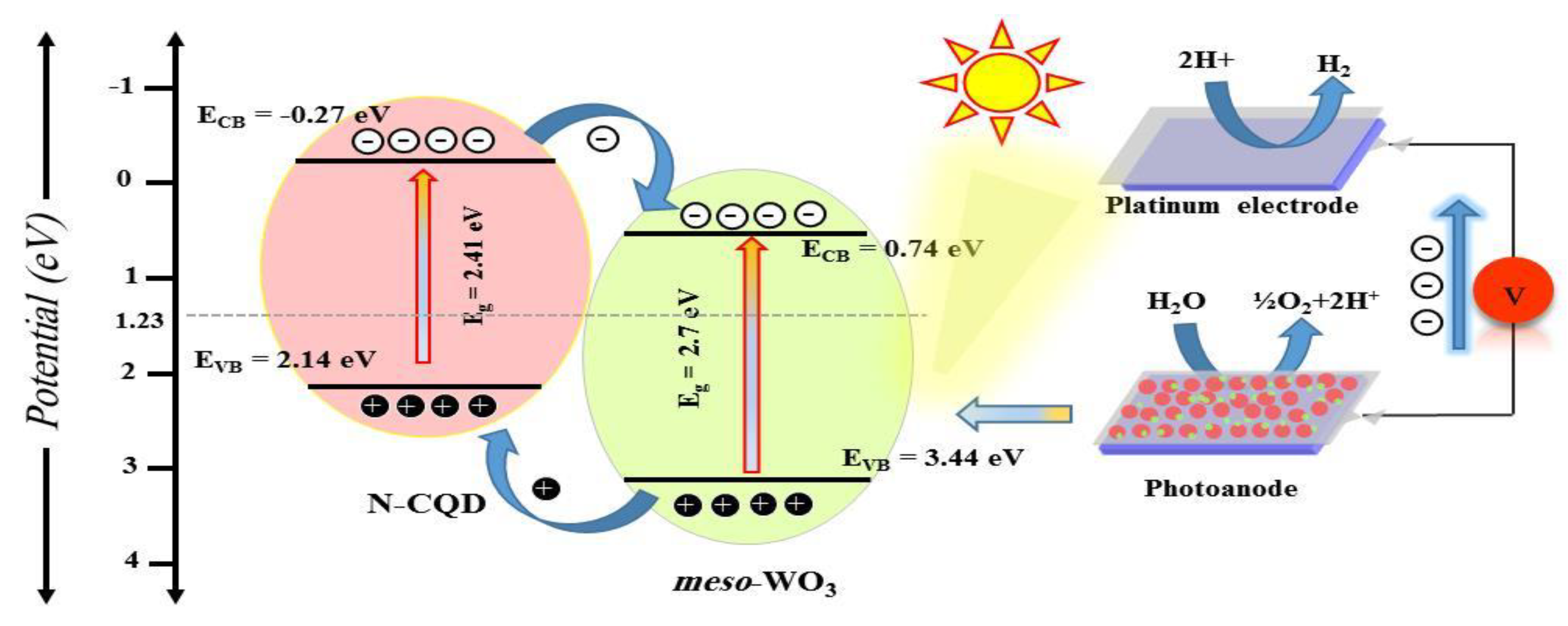

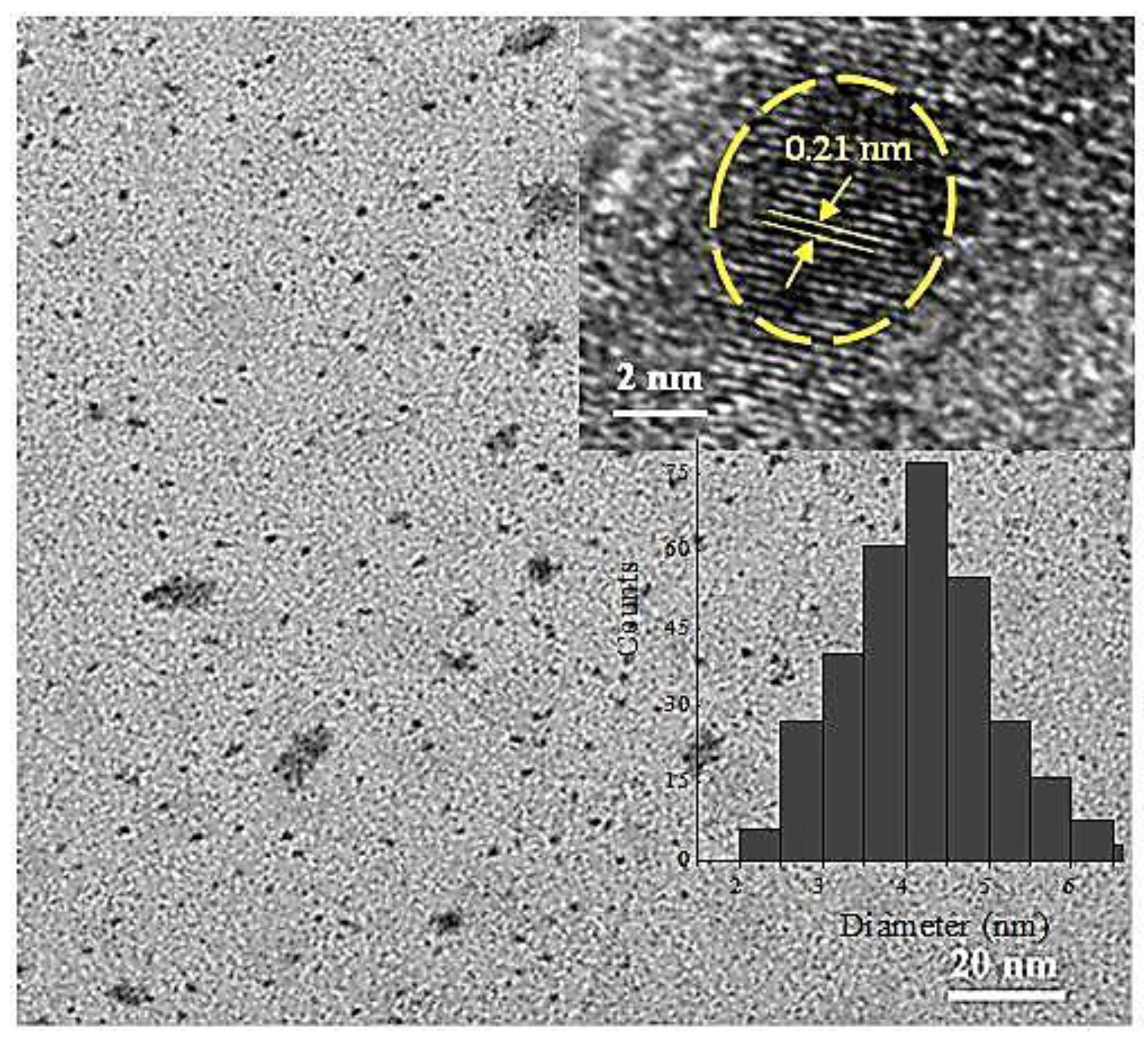

Nanostructured photoanodes are attractive materials for hydrogen production via water photo-electrolysis process. This study focused on the incorporation of carbon quantum dots doped with nitrogen as a photosensitizer into mesoporous tungsten trioxide photoanodes (N-CQD/meso-WO3) using a surfactant self-assembly template approach. The crystal structure, composition, and morphology of pure and N-CQD- modified mesoporous WO3 photoanodes were investigated using scanning electron and transmission microscopy, X-ray diffraction, and X-ray photoelectron spectroscopy. Due to their high surface area, enhanced optical absorption, and charge-carrier separation and transfer, the resulting N-CQD/meso-WO3 photoanodes exhibited a significantly enhanced photocurrent density of 1.45 mA cm−2 at 1.23 V vs. RHE under AM 1.5 G illumination in 0.5 M Na2SO4 without any co-catalysts or sacrificial reagent, which was about 2.23 times greater than its corresponding pure meso-WO3. Moreover, the oxygen evolution onset potential of the N-CQD/meso-WO3 photoanodes exhibited a negative shift of 95 mV, signifying that both the charge-carrier separation and transfer processes were promoted. View Full-Text
Keywords: mesoporous; tungsten; trioxide; carbon; quantum; dots; photo-electrochemical; water splitting mesoporous; tungsten; trioxide; carbon; quantum; dots; photo-electrochemical; water splitting
Show Figures

Figure 1

MDPI and ACS Style

Amer, M.S.; Arunachalam, P.; Al-Mayouf, A.M.; Prasad, S.; Alshalwi, M.N.; Ghanem, M.A. Mesoporous Tungsten Trioxide Photoanodes Modified with Nitrogen-Doped Carbon Quantum Dots for Enhanced Oxygen Evolution Photo-Reaction. Nanomaterials 2019, 9, 1502.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
  • Supplementary File 1:

    PDF-Document (PDF, 973 KB)

  • Externally hosted supplementary file 1
    Link: https://zenodo.org/deposit/3464406
    Description: Figure S1: FTIR spectra of CQDs and N-CQDs samples, Figure S2: (a) XPS survey spectra for the CQDs, N-CQD-7 and N-CQD-20 samples. The only elements identified were carbon, nitrogen, and oxygen. (c) C 1s, (d) N 1s and (E) O 1s high resolution XPS spectra for N-CQD-7 sample, Figure S3: EDX spectra of N-CQDs samples, (a) N-CQD-3, (b) N-CQD-5, (c) N-CQD-7, and (d) N-CQD-20, Figure S4: (a) UV-Vis absorption spectra for the CQDs and N-CQDs samples. Inserts show digital photos of aqueous N-CQD-7 (left) and their bright blue PL (right) under UV, (b,c,d) PL spectra for the N-CQD-7, N-CQD-13, and N-CQD-20. The excitation wavelength was increased from 340 to 540 nm in 20 nm increments. (e) External quantum yields for the N-CQDs samples under 360 nm excitation, calibrated against quinine sulfate, Figure S5: steps for the synthesis of meso-WO3 and modification with CQDs, Figure S6: Thickness of meso-WO3 and modification with CQDs as measured by a profilometer, Table S1: a comparison the photocurrent density of WO3 based composite materials.
Back to TopTop
