# Switchable Ultra-Wideband All-Optical Quantum Dot Reflective Semiconductor Optical Amplifier

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Concept and Modeling

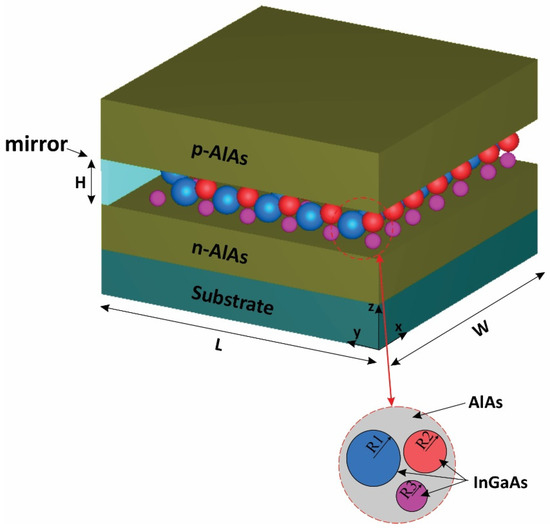

#### 2.1. Proposed Structure

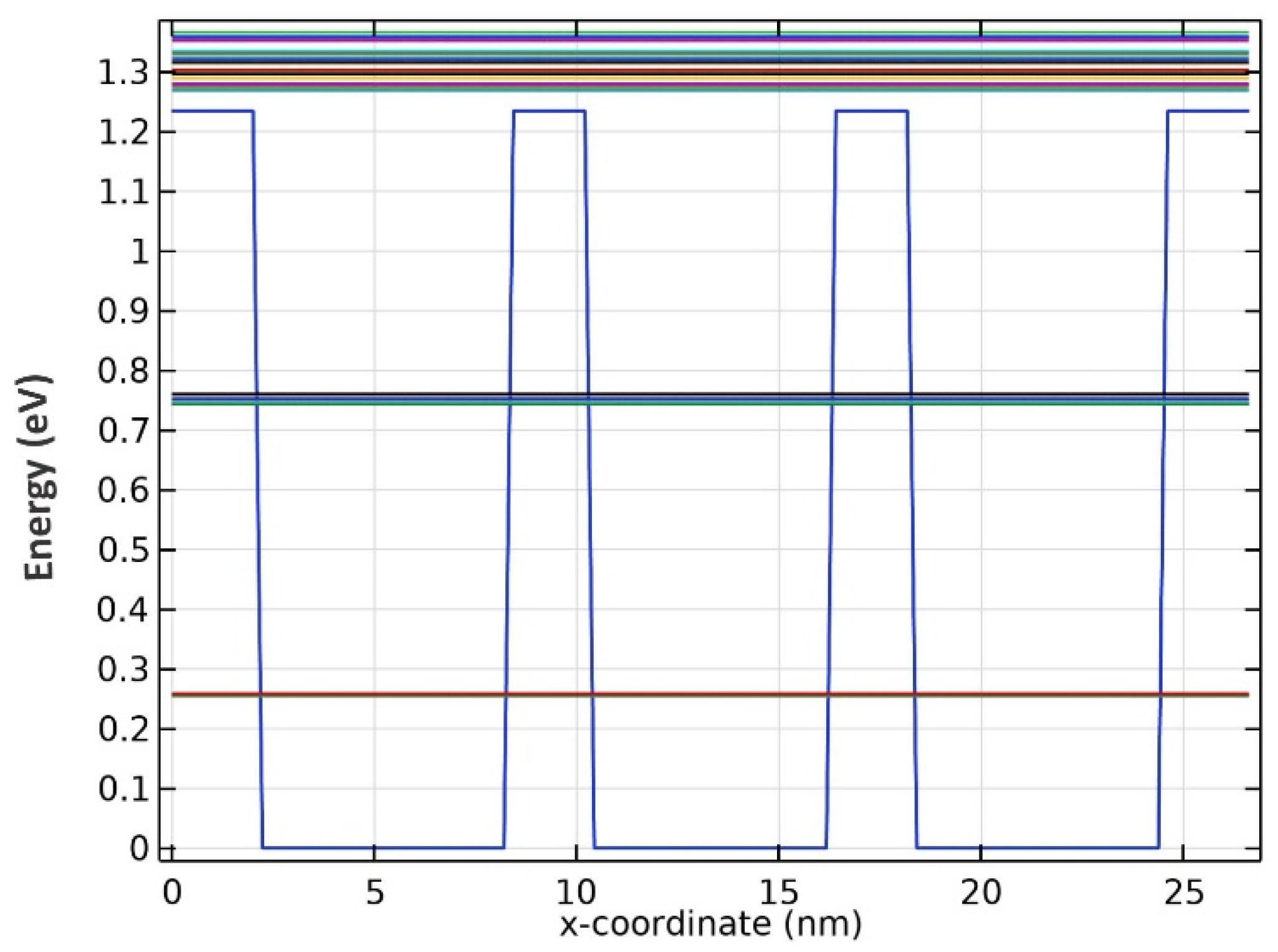

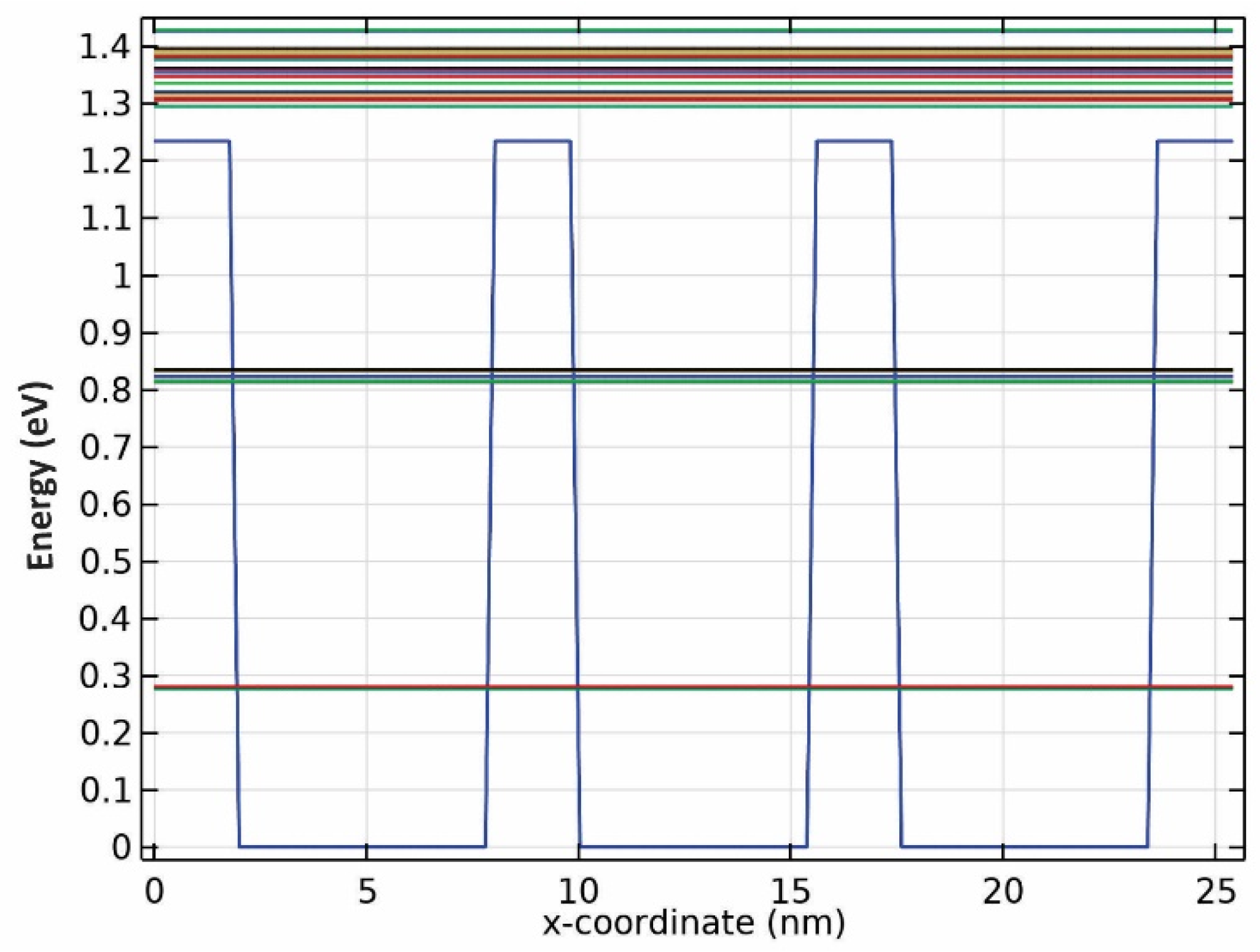

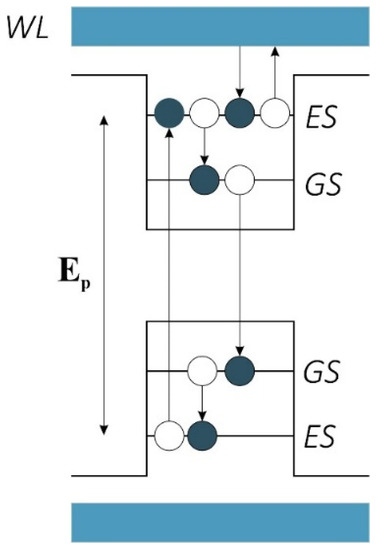

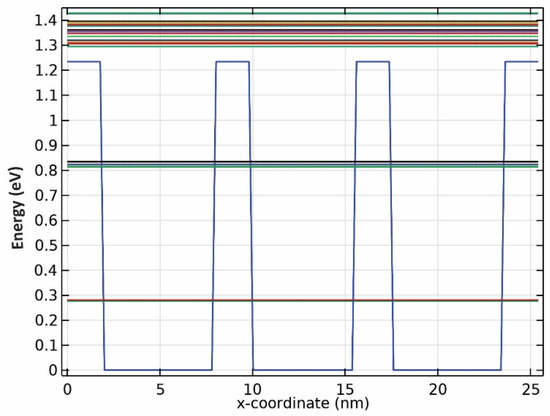

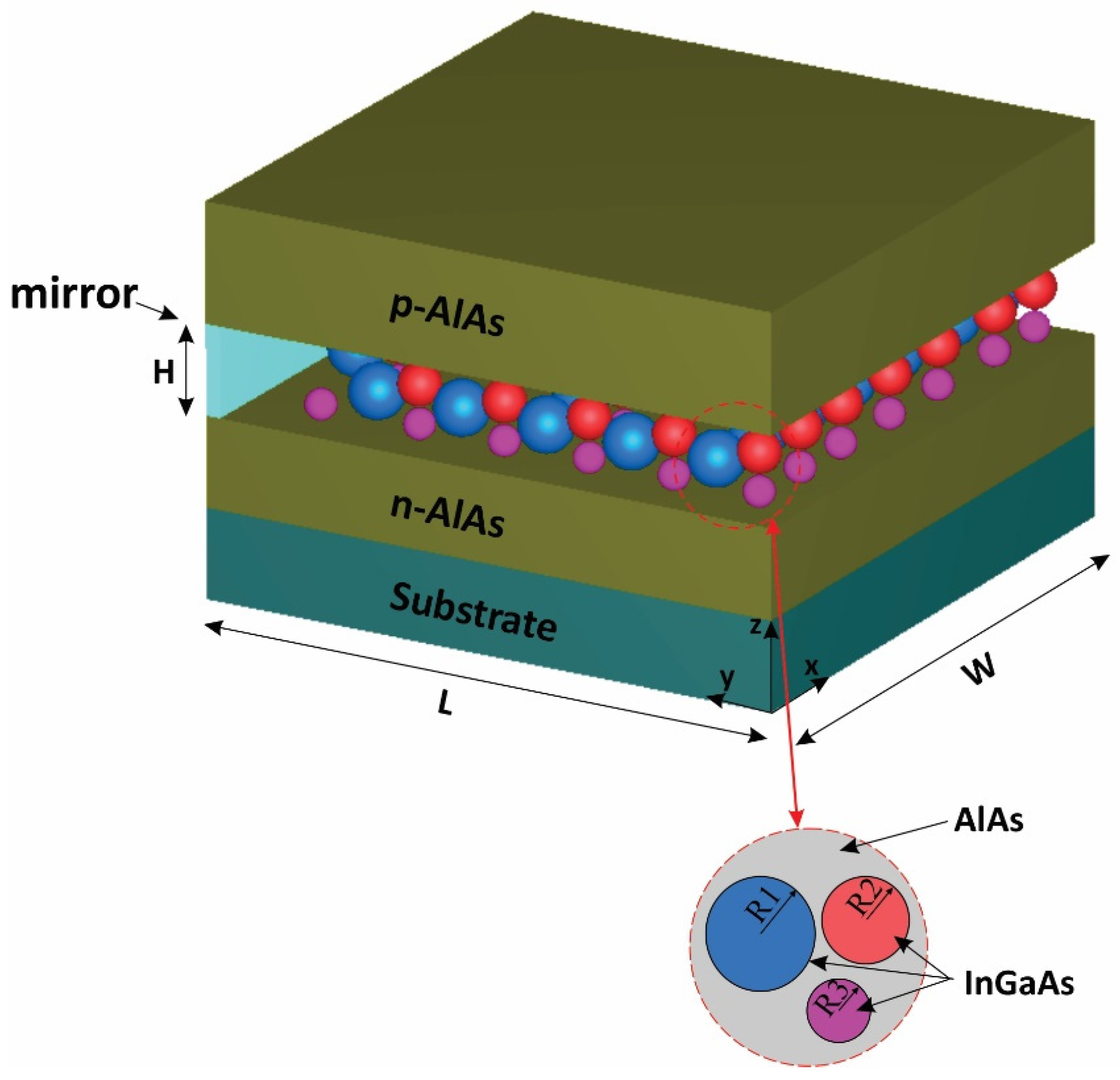

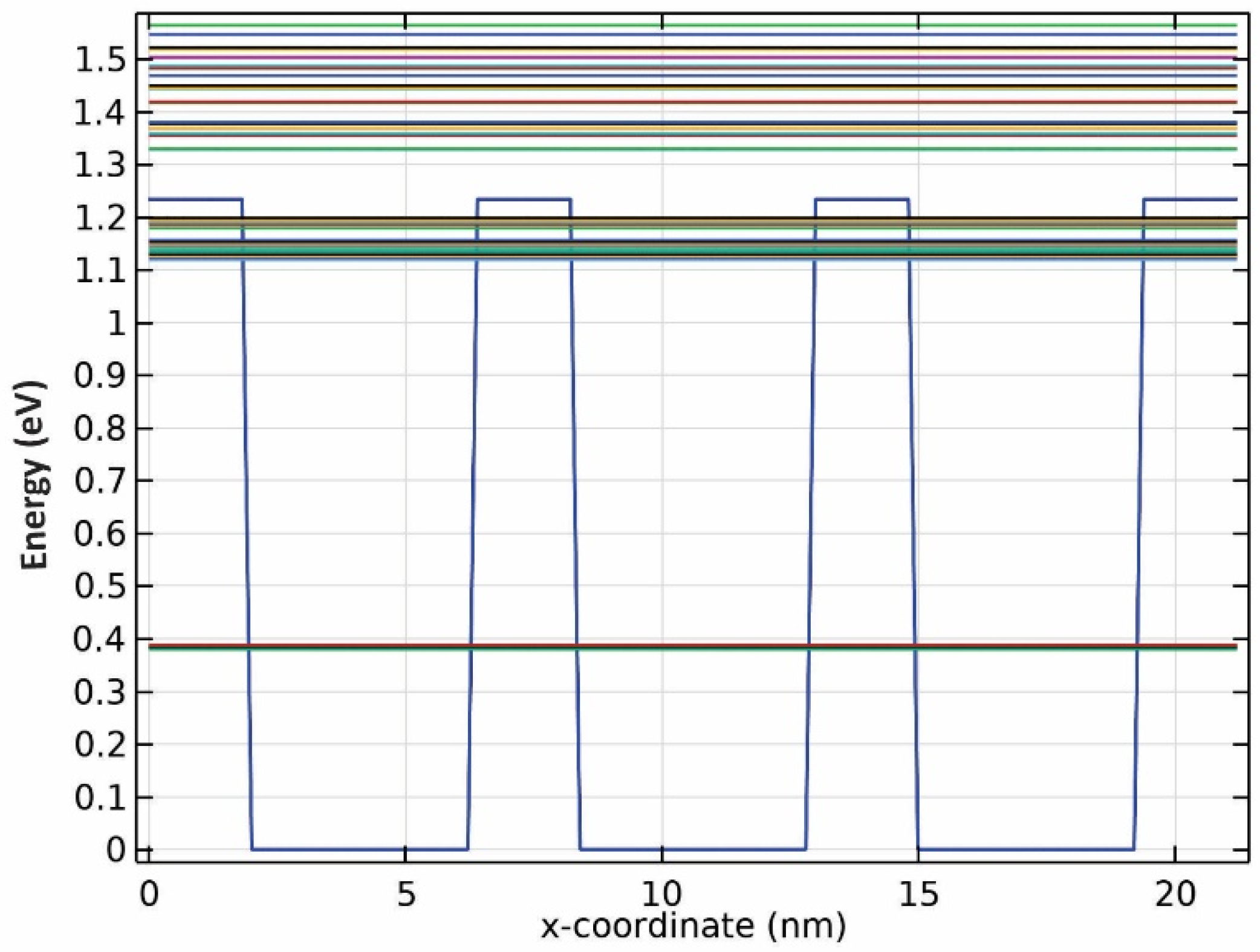

_{p}to pump the carriers to the ES in the conduction band. Otherwise, we will not have enough carriers, and the system will not work.

#### 2.2. Selective Amplification

_{p}must be adjusted for each of these groups to be activated. Figure 7 depicts the energy difference between the ESs in the conduction and the valence band versus the QD’s radius. We know that without enough carriers in the conduction band, the QDs cannot perform their task as an amplifier. This fact is used to have selective amplification for any desired group with its specified radius. In other words, by applying a pump with the energy of E

_{p1}, only the QDs with the corresponding radii R1 are activated, and the other two groups are deactivated. In addition, pumps with the energy E

_{p2}and E

_{p3}can activate QDs groups with radii R2 and R3, respectively.

#### 2.3. Homogenous and Inhomogeneous Broadenings

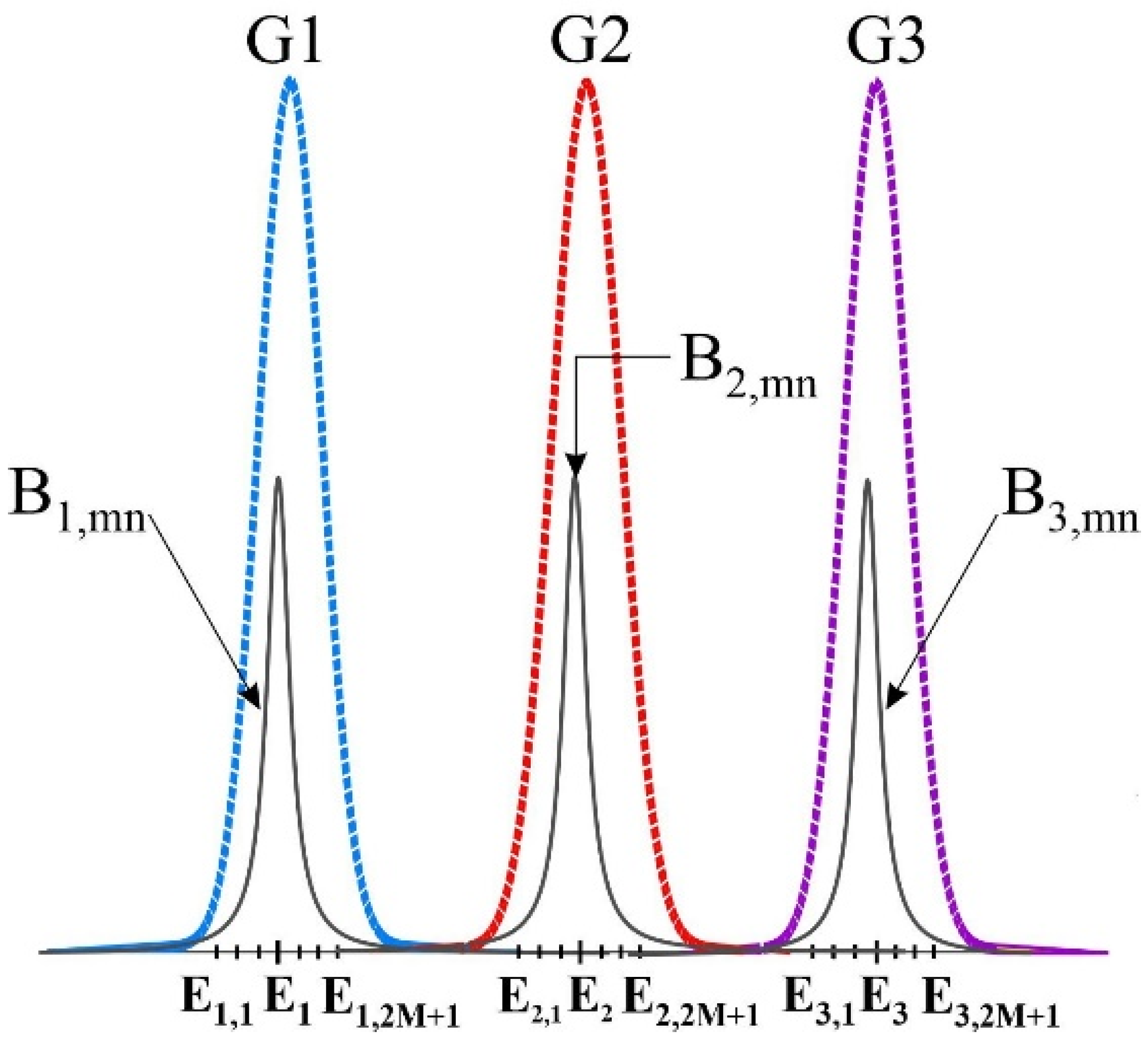

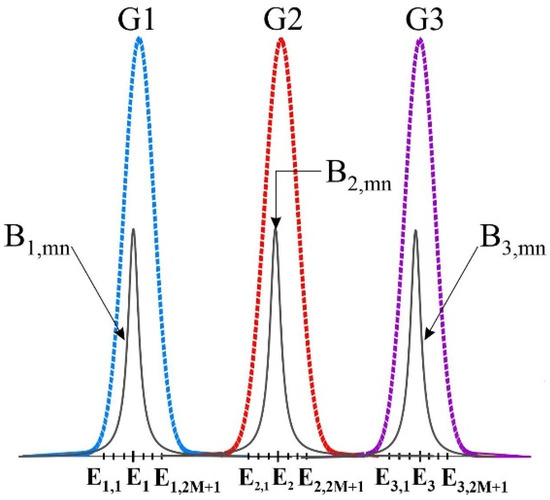

_{1}= E

_{1,n}, E

_{2}= E

_{2,n}, and E

_{3}= E

_{3,n}. Homogenous Broadening (HB) and Inhomogeneous Broadening (IHB) can be derived by [2]:

_{h}denotes the Full Width Half Maximum (FWHM) of the Lorentzian profile, and ξ the coverage of the channel. If we use N groups of QDs with distinct radii, the total Gaussian profile can be obtained by:

#### 2.4. Numerical Algorithm

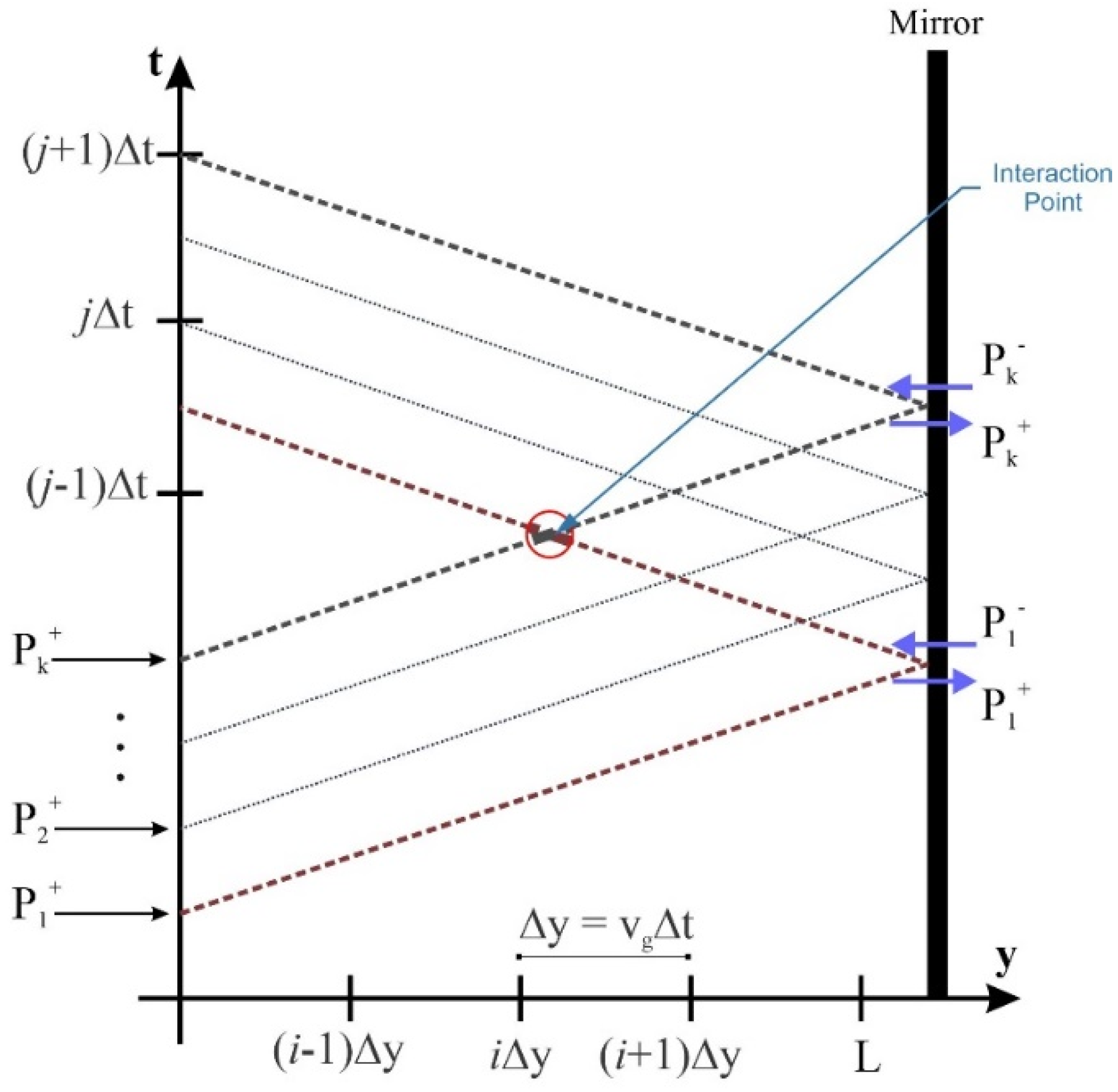

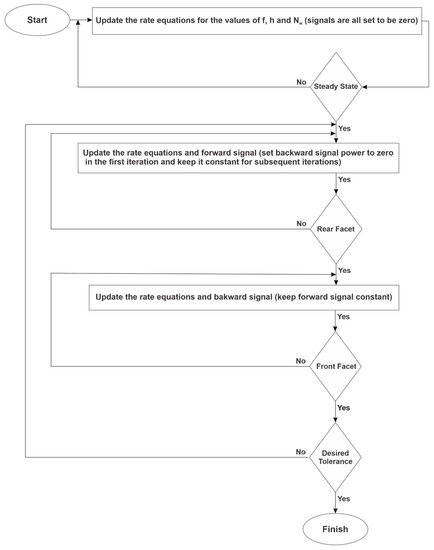

_{g}∆t. To figure out the optimum step size, several quantities were assessed. Finally, we derived enough accuracy and stability by implementing ∆t = 50 fs. Furthermore, at each spatial step, pulses are delayed by ∆t. To derive the dynamic results, static simulation outcomes are utilized [35,36]. Figure 9 demonstrates how the solutions are extracted using this numerical approach.

## 3. Results and Discussion

#### 3.1. Coupled Differential Rate and Signal Propagation Equations

_{w}. τ

_{w−e}and τ

_{e−w}are the electron relaxation lifetime from the wetting layer to the excited state and the electron escape lifetime from the excited state to the wetting layer, respectively. τ

_{w−r}, τ

_{g−r}, and τ

_{e−r}are the spontaneous radiative lifetimes in the WL, GS, and ES. In addition, the electron relaxation lifetime from the ES to the GS is denoted by τ

_{e−g}. The electron escape lifetime from the GS to the ES is shown by τ

_{g−e}. N

_{Q}and V

_{g}are the volume density of the QDs, and the group velocity of light, respectively. α

_{max}identifies the maximum modal absorption coefficient. As can be seen, the term (1 − 2h) defines ES carrier dynamics. When 2h > 1, we have optical gain. However, when it is less than one, absorption is the dominant mechanism. Due to the optical pump power (last term in Equation (7)), h escalates toward 0.5. As a result, the term 1 − 2h vanishes. In this case, a transient decrease in the h value makes the term 1 − 2h positive. Hence, absorption is achieved using optical pumping [39]. g

_{i,mn}denotes the linear gain for a specified group of QDs (n) and a particular photon mode (m) [19,40].

_{0}and q, respectively. ε

_{0}is the vacuum permittivity. The refractive index is denoted by n

_{r}. D is the degeneracy rate, and N

_{Q}is the QD volume density. |M

_{env}|

^{2}and <|e.p

_{cv}|

^{2}> are the envelope function and the momentum matrix element.

^{+}, P

^{−}, P

_{p}

^{+}, and P

_{p}

^{−}represent the backward and forward signal and pump powers. α

_{int}denotes the material absorption coefficient. The modal absorption coefficient of the pump can be derived from α

_{abs}= −α

_{max}(1 − 2h) − α

_{int}. Material gain is denoted by ${g}_{{w}_{s}}$, which can be calculated by:

#### 3.2. Stimulation Parameters

#### 3.3. Ultra-Wideband Optical Gain

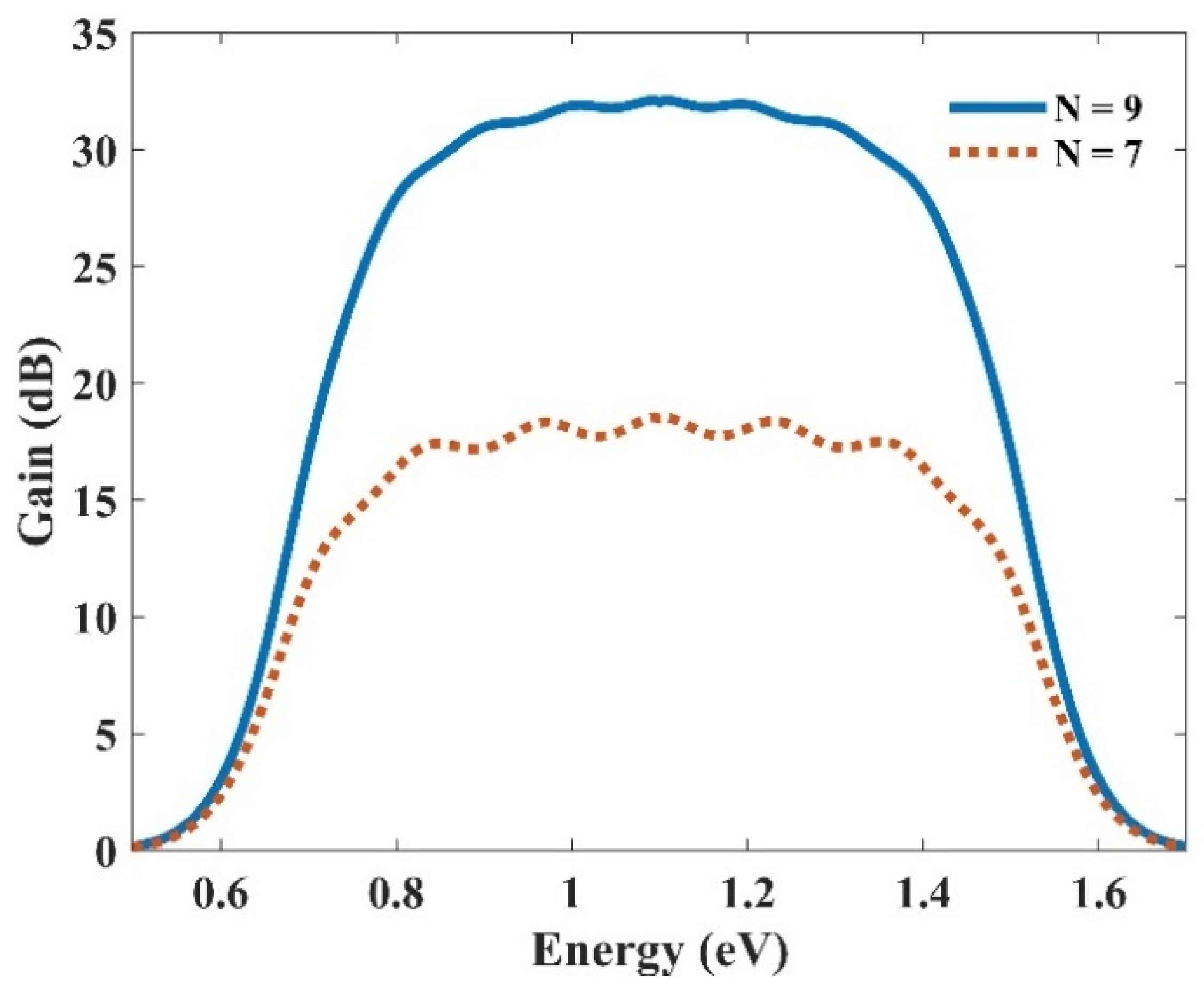

_{Q}is increased. This leads to higher optical gain. This is why the optical gain is about 32 dB for nine groups of QDs; whereas this number is about 18 dB for seven groups. Furthermore, a smoother surface is achieved by using more QD groups. However, increasing the QDs results in a more sophisticated model, therefore increasing the cost of fabrication. Hence, there is a trade-off between the device’s performance and the cost of fabrication. One can engineer the desired model based on one’s needs, using the appropriate number of groups with distinct radii. In addition, one can alter the materials of the QDs and the cladding layers to cover a different wavelength spectrum. The only thing that must be taken care of is the procedure, which is described in the concept and modeling section. First, the energy levels for the corresponding materials must be calculated. Then, by sweeping the QD’s radius, energy differences between the conduction and valence band for each eigenstate versus the QD’s radius must be derived. Figure 2 and Figure 6 depict these profiles for QD mode from InGaAs with AlAs claddings.

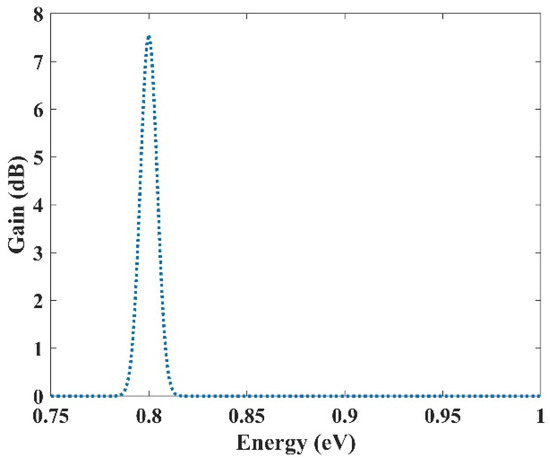

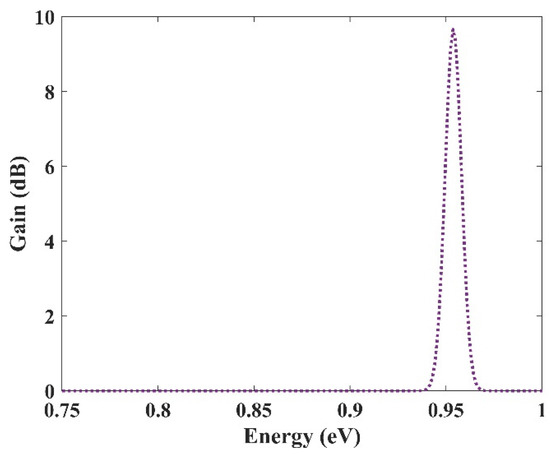

#### 3.4. Selective Amplification

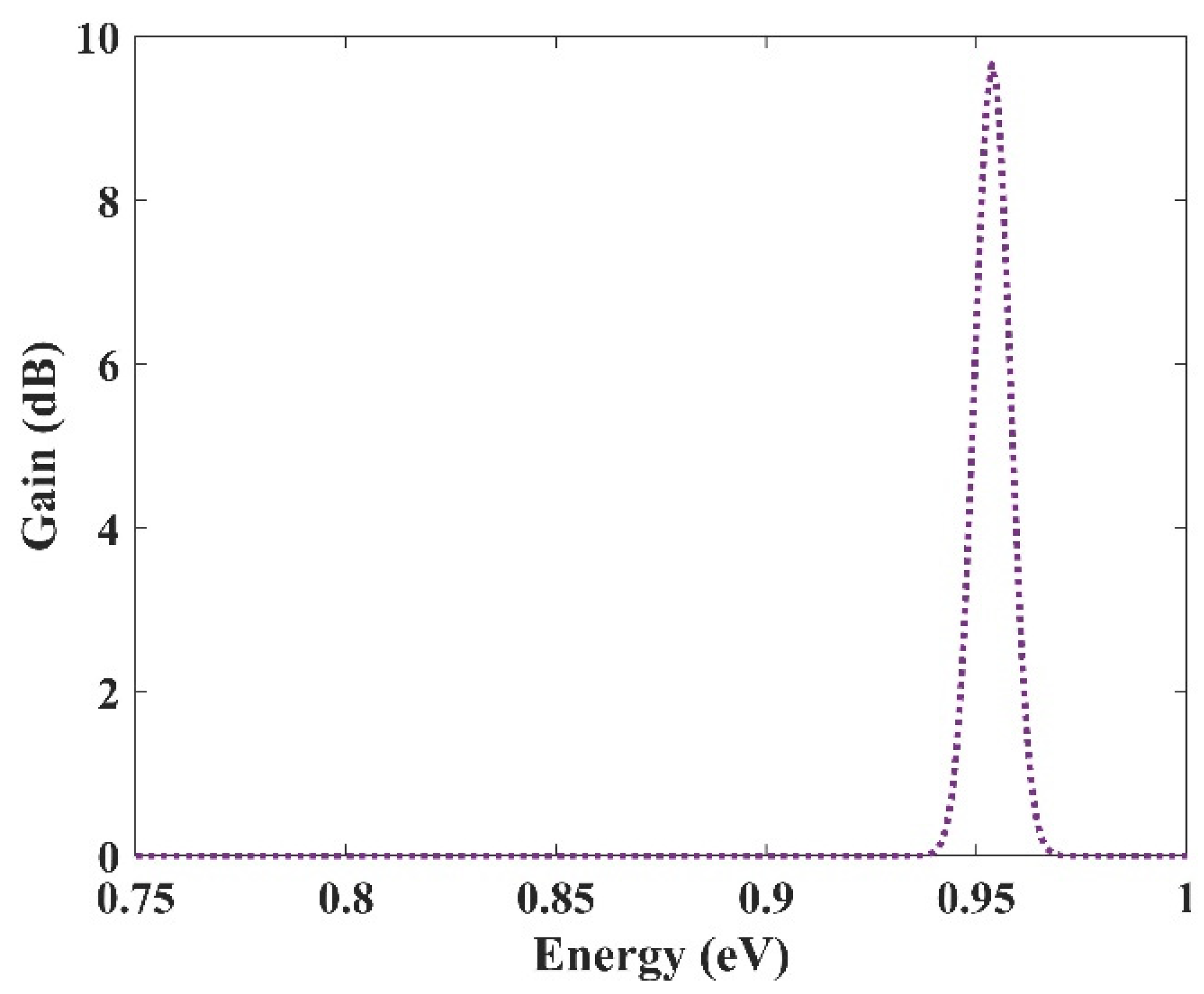

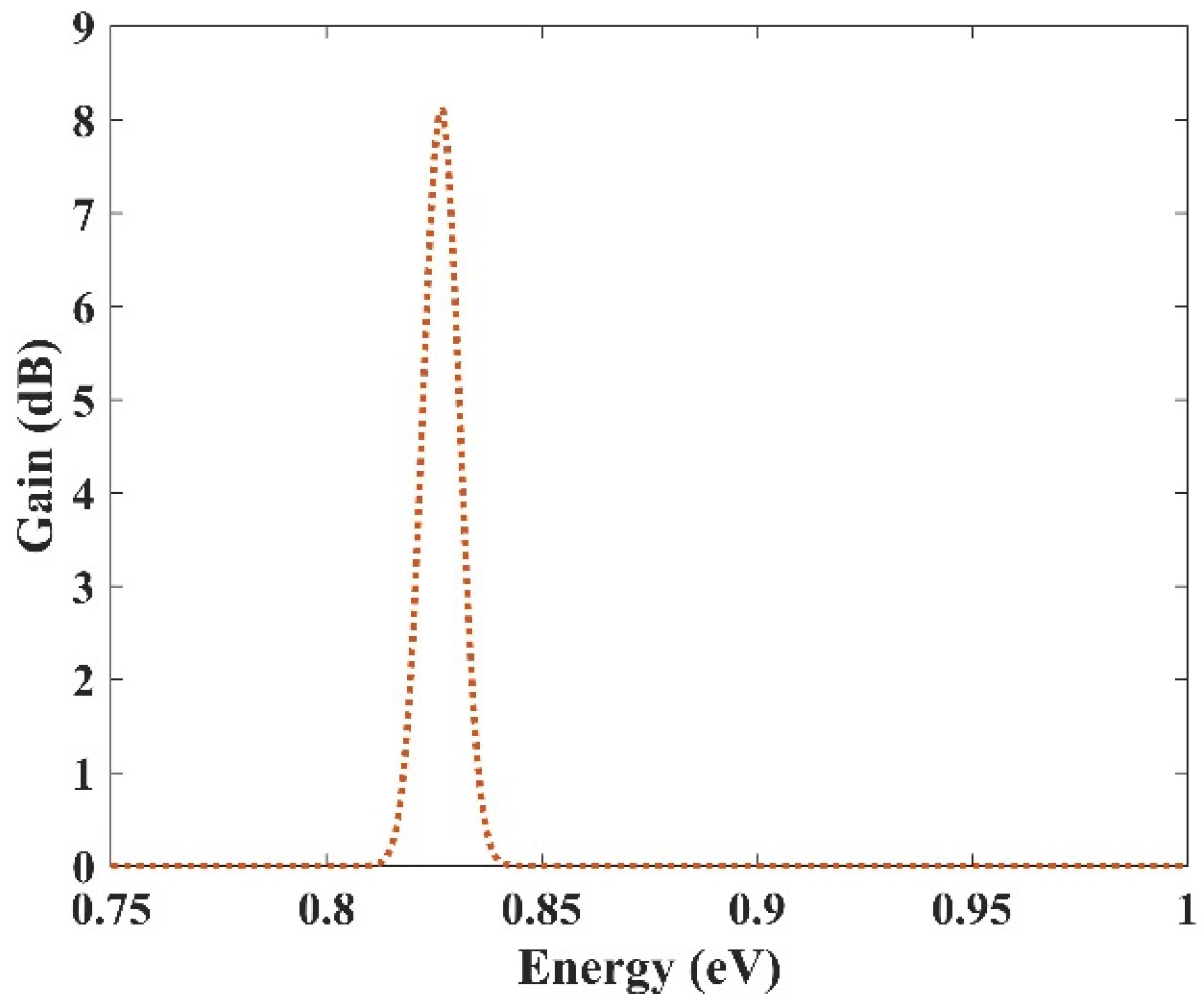

_{Q}(volume density of QDs) is distinct for each of these channels, which explains the difference in the amplification quantities between them.

#### 3.5. Gain Versus Length

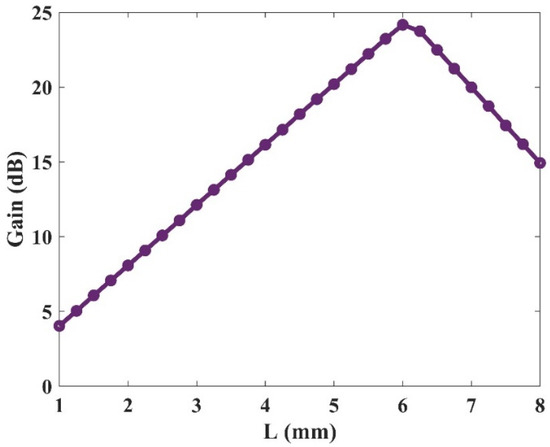

_{max}≈ 6 mm). After this length, the device saturates, and the gain drops. This is because, in this region, the gain is dominated by material loss. As a result, the device attenuates the signal instead of amplifying it. In this paper, a 2 mm length has been selected for the amplifier. Hence, it is guaranteed that we are not in the saturation regime.

#### 3.6. Dynamic Characteristics

_{ew}. Since more carriers are absorbed to the ES in the case of higher optical pumping power, more of them move to the wetting layer with the time rate of τ

_{ew}. Figure 18 depicts the time evolution of f and h for different input powers. Higher input powers engage more carriers in the amplification process. As a result, the transient drops in f and h values are higher when high input power is utilized. This can be somehow recompensated by using higher optical pump power. As a result, more carriers are absorbed. Hence, the decrease in f and h values will be lower.

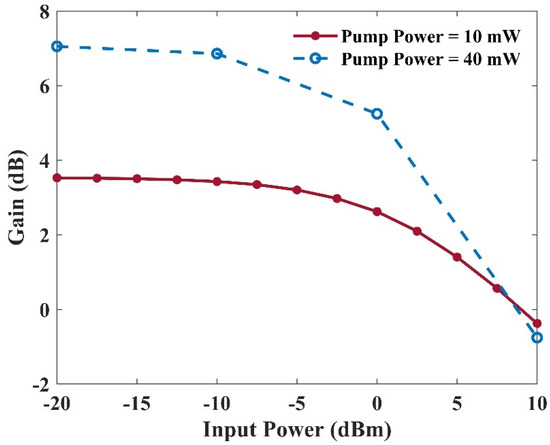

#### 3.7. Gain Versus Input Power

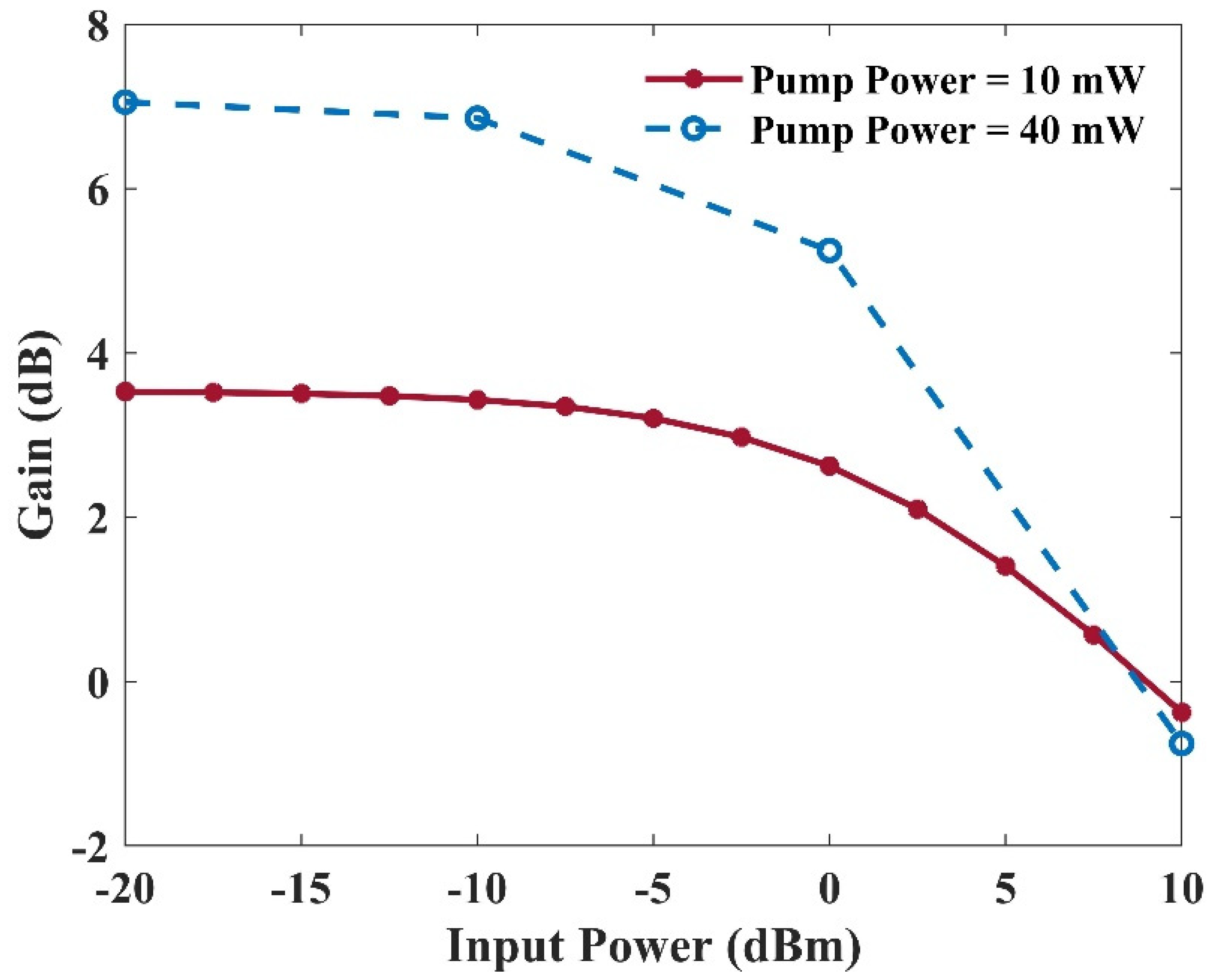

#### 3.8. Optical Bandwidth Comparison

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Ezra, Y.B.; Lembrikov, B.; Haridim, M. Ultrafast all-optical processor based on quantum-dot semiconductor optical amplifiers. IEEE J. Quantum Electron.
**2008**, 45, 34–41. [Google Scholar] [CrossRef] - Sugawara, M.; Mukai, K.; Nakata, Y.; Ishikawa, H.; Sakamoto, A. Effect of homogeneous broadening of optical gain on lasing spectra in self-assembled in x Ga 1− x A s/GaAs quantum dot lasers. Phys. Rev. B
**2000**, 61, 7595. [Google Scholar] [CrossRef] - Nahaei, F.S.; Rostami, A.; Matloub, S. Selective band amplification in ultra-broadband superimposed quantum dot reflective semiconductor optical amplifiers. Appl. Opt.
**2022**, 61, 4509–4517. [Google Scholar] [CrossRef] [PubMed] - Xiao, J.-L.; Huang, Y.-Z. Numerical analysis of gain saturation, noise figure, and carrier distribution for quantum-dot semiconductor-optical amplifiers. IEEE J. Quantum Electron.
**2008**, 44, 448–455. [Google Scholar] [CrossRef] - Berg, T.W.; Mork, J. Saturation and noise properties of quantum-dot optical amplifiers. IEEE J. Quantum Electron.
**2004**, 40, 1527–1539. [Google Scholar] [CrossRef] - Uskov, A.V.; Berg, T.W.; Mrk, J. Theory of pulse-train amplification without patterning effects in quantum-dot semiconductor optical amplifiers. IEEE J. Quantum Electron.
**2004**, 40, 306–320. [Google Scholar] [CrossRef] - Eliseev, P.G.; Van Luc, V. Semiconductor optical amplifiers: Multifunctional possibilities, photoresponse, and phase shift properties. Pure Appl. Opt. J. Eur. Opt. Soc. Part A
**1995**, 4, 295. [Google Scholar] [CrossRef] - Saini, S.S.; Bowser, J.L.; Luciani, V.K.; Heim, P.J.; Dagenais, M. Semiconductor optical amplifier having a non-uniform injection current density. Nanomaterials
**2008**, 12, 2143. [Google Scholar] - Nahaei, F.S.; Rostami, A.; Mirtaheri, P. Quantum Dot Reflective Semiconductor Optical Amplifiers: Optical Pumping Compared with Electrical Pumping. Nanomaterials
**2022**, 12, 2143. [Google Scholar] [CrossRef] - Jayaraman, V.; Goodnough, T.; Beam, T.; Ahedo, F.; Maurice, R. Continuous-wave operation of single-transverse-mode 1310-nm VCSELs up to 115/spl deg/C. IEEE Photonics Technol. Lett.
**2000**, 12, 1595–1597. [Google Scholar] [CrossRef] - Bjorlin, E.S.; Riou, B.; Abraham, P.; Piprek, J.; Chiu, Y.-Y.; Black, K.A.; Keating, A.; Bowers, J.E. Long wavelength vertical-cavity semiconductor optical amplifiers. IEEE J. Quantum Electron.
**2001**, 37, 274–281. [Google Scholar] [CrossRef] - Jin, C.; Shevchenko, N.A.; Li, Z.; Popov, S.; Chen, Y.; Xu, T. Nonlinear coherent optical systems in the presence of equalization enhanced phase noise. J. Light. Technol.
**2021**, 39, 4646–4653. [Google Scholar] [CrossRef] - Schmeckebier, H.; Bimberg, D. Quantum-dot semiconductor optical amplifiers for energy-efficient optical communication. In Green Photonics and Electronics; Springer: Berlin/Heidelberg, Germany, 2017; pp. 37–74. [Google Scholar]
- Totović, A.R.; Crnjanski, J.V.; Krstić, M.M.; Gvozdić, D.M. Numerical study of the small-signal modulation bandwidth of reflective and traveling-wave SOAs. J. Light. Technol.
**2015**, 33, 2758–2764. [Google Scholar] [CrossRef] - Zhou, P.; Zhan, W.; Mukaikubo, M.; Nakano, Y.; Tanemura, T. Reflective semiconductor optical amplifier with segmented electrodes for the high-speed self-seeded colorless transmitter. Opt. Express
**2017**, 25, 28547–28555. [Google Scholar] [CrossRef] - Nahaei, F.S.; Rostami, A.; Matloub, S. Ultrabroadband reflective semiconductor optical amplifier using superimposed quantum dots. J. Nanophotonics
**2021**, 15, 036009. [Google Scholar] - Kim, J.; Laemmlin, M.; Meuer, C.; Bimberg, D.; Eisenstein, G. Static gain saturation model of quantum-dot semiconductor optical amplifiers. IEEE J. Quantum Electron.
**2008**, 44, 658–666. [Google Scholar] [CrossRef] - Yin, Y.; Ling, Y.; Li, H.; Du, X.; Qiu, K. High order demodulation scheme based on R-QDSOA at colorless ONU. In Proceedings of the 2017 16th International Conference on Optical Communications and Networks (ICOCN), Wuzhen, China, 7–10 August 2017; pp. 1–3. [Google Scholar]
- Kim, J.; Laemmlin, M.; Meuer, C.; Bimberg, D.; Eisenstein, G. Theoretical and experimental study of high-speed small-signal cross-gain modulation of quantum-dot semiconductor optical amplifiers. IEEE J. Quantum Electron.
**2009**, 45, 240–248. [Google Scholar] [CrossRef] - Huang, L.; Hong, W.; Jiang, G. All-optical power equalization based on a two-section reflective semiconductor optical amplifier. Opt. Express
**2013**, 21, 4598–4611. [Google Scholar] [CrossRef] - Jiang, Q.; Zhang, L.; Wang, H.; Yang, X.; Meng, J.; Liu, H.; Yin, Z.; Wu, J.; Zhang, X.; You, J. Enhanced electron extraction using SnO2 for high-efficiency planar-structure HC (NH2) 2PbI3-based perovskite solar cells. Nat. Energy
**2016**, 2, 16177. [Google Scholar] [CrossRef] - Voznyy, O.; Sutherland, B.R.; Ip, A.H.; Zhitomirsky, D.; Sargent, E.H. Engineering charge transport by heterostructure solution-processed semiconductors. Nat. Rev. Mater.
**2017**, 2, 17026. [Google Scholar] [CrossRef] - Liu, M.; Chen, Y.; Tan, C.-S.; Quintero-Bermudez, R.; Proppe, A.H.; Munir, R.; Tan, H.; Voznyy, O.; Scheffel, B.; Walters, G. Lattice anchoring stabilizes solution-processed semiconductors. Nature
**2019**, 570, 96–101. [Google Scholar] [CrossRef] - García de Arquer, F.P.; Armin, A.; Meredith, P.; Sargent, E.H. Solution-processed semiconductors for next-generation photodetectors. Nat. Rev. Mater.
**2017**, 2, 16100. [Google Scholar] [CrossRef][Green Version] - Dolatyari, M.; Rostami, A.; Mathur, S.; Klein, A. Trap engineering in solution-processed PbSe quantum dots for high-speed MID-infrared photodetectors. J. Mater. Chem. C
**2019**, 7, 5658–5669. [Google Scholar] [CrossRef] - Debnath, R.; Bakr, O.; Sargent, E.H. Solution-processed colloidal quantum dot photovoltaics: A perspective. Energy Environ. Sci.
**2011**, 4, 4870–4881. [Google Scholar] [CrossRef] - Ma, Q.; Ren, G.; Mitchell, A.; Ou, J.Z. Recent advances in hybrid integration of 2D materials on integrated optics platforms. Nanophotonics
**2020**, 9, 2191–2214. [Google Scholar] [CrossRef] - Wang, J.; Paesani, S.; Ding, Y.; Santagati, R.; Skrzypczyk, P.; Salavrakos, A.; Tura, J.; Augusiak, R.; Mančinska, L.; Bacco, D. Multidimensional quantum entanglement with large-scale integrated optics. Science
**2018**, 360, 285–291. [Google Scholar] [CrossRef] [PubMed] - Zeuner, J.; Sharma, A.N.; Tillmann, M.; Heilmann, R.; Gräfe, M.; Moqanaki, A.; Szameit, A.; Walther, P. Integrated-optics heralded controlled-NOT gate for polarization-encoded qubits. NPJ Quantum Inf.
**2018**, 4, 13. [Google Scholar] [CrossRef] - Handelman, A.; Lapshina, N.; Apter, B.; Rosenman, G. Peptide integrated optics. Adv. Mater.
**2018**, 30, 1705776. [Google Scholar] [CrossRef] - Anzabi, K.S.; Habibzadeh-Sharif, A.; Connelly, M.J.; Rostami, A. Wideband steady-state and pulse propagation modeling of a reflective quantum-dot semiconductor optical amplifier. J. Light. Technol.
**2020**, 38, 797–803. [Google Scholar] [CrossRef] - Li, X. Optoelectronic Devices: Design, Modeling, and Simulation; Cambridge University Press: Cambridge, UK, 2009. [Google Scholar]
- Vujičić, Z.; Dionísio, R.P.; Shahpari, A.; Pavlović, N.B.; Teixeira, A. Efficient dynamic modeling of the reflective semiconductor optical amplifier. IEEE J. Sel. Top. Quantum Electron.
**2013**, 19, 3000310. [Google Scholar] [CrossRef] - Antonelli, C.; Mecozzi, A. Reduced model for the nonlinear response of reflective semiconductor optical amplifiers. IEEE Photonics Technol. Lett.
**2013**, 25, 2243–2246. [Google Scholar] [CrossRef] - Connelly, M.J. Wideband semiconductor optical amplifier steady-state numerical model. IEEE J. Quantum Electron.
**2001**, 37, 439–447. [Google Scholar] [CrossRef][Green Version] - Zhou, E.; Zhang, X.; Huang, D. Analysis on dynamic characteristics of semiconductor optical amplifiers with certain facet reflection based on detailed wideband model. Opt. Express
**2007**, 15, 9096–9106. [Google Scholar] [CrossRef] [PubMed] - Qasaimeh, O. Characteristics of cross-gain (XG) wavelength conversion in quantum dot semiconductor optical amplifiers. IEEE Photonics Technol. Lett.
**2004**, 16, 542–544. [Google Scholar] [CrossRef] - Rostami, A.; Nejad, H.B.A.; Qartavol, R.M.; Saghai, H.R. Tb/s optical logic gates based on quantum-dot semiconductor optical amplifiers. IEEE J. Quantum Electron.
**2010**, 46, 354–360. [Google Scholar] [CrossRef] - Steiner, T.D. Semiconductor Nanostructures for Optoelectronic Applications; Artech House: New York, NY, USA, 2004. [Google Scholar]
- Abedi, K.; Taleb, H. Phase recovery acceleration in quantum-dot semiconductor optical amplifiers. J. Light. Technol.
**2012**, 30, 1924–1930. [Google Scholar] [CrossRef] - Bhattacharya, P.; Klotzkin, D.; Qasaimeh, O.; Zhou, W.; Krishna, S.; Zhu, D. High-speed modulation and switching characteristics of In (Ga) As-Al (Ga) As self-organized quantum-dot lasers. IEEE J. Sel. Top. Quantum Electron.
**2000**, 6, 426–438. [Google Scholar] [CrossRef] - Baghban, H.; Ghorbani, R.; Rostami, A. Equivalent circuit model of quantum dot semiconductor optical amplifiers: Dynamic behavior and saturation properties. J. Opt. A Pure Appl. Opt.
**2009**, 11, 105205. [Google Scholar] - Berg, T.W.; Bischoff, S.; Magnusdottir, I.; Mork, J. Ultrafast gain recovery and modulation limitations in self-assembled quantum-dot devices. IEEE Photonics Technol. Lett.
**2001**, 13, 541–543. [Google Scholar] [CrossRef] - Motaweh, T.; Morel, P.; Sharaiha, A.; Brenot, R.; Verdier, A.; Guegan, M. Wideband gain MQW-SOA modeling and saturation power improvement in a tri-electrode configuration. J. Light. Technol.
**2017**, 35, 2003–2009. [Google Scholar] [CrossRef] - Morito, K.; Tanaka, S.; Tomabechi, S.; Kuramata, A. A broad-band MQW semiconductor optical amplifier with high saturation output power and low noise figure. IEEE Photonics Technol. Lett.
**2005**, 17, 974–976. [Google Scholar] [CrossRef] - Sudo, S.; Mizutani, K.; Okamoto, T.; Tsuruoka, K.; Sato, K.; Kudo, K. C-and L-Band External Cavity Wavelength Tunable Lasers Utilizing a Wideband SOA With Coupled Quantum Well Active Layer. IEEE Photonics Technol. Lett.
**2008**, 20, 1506–1508. [Google Scholar] [CrossRef]

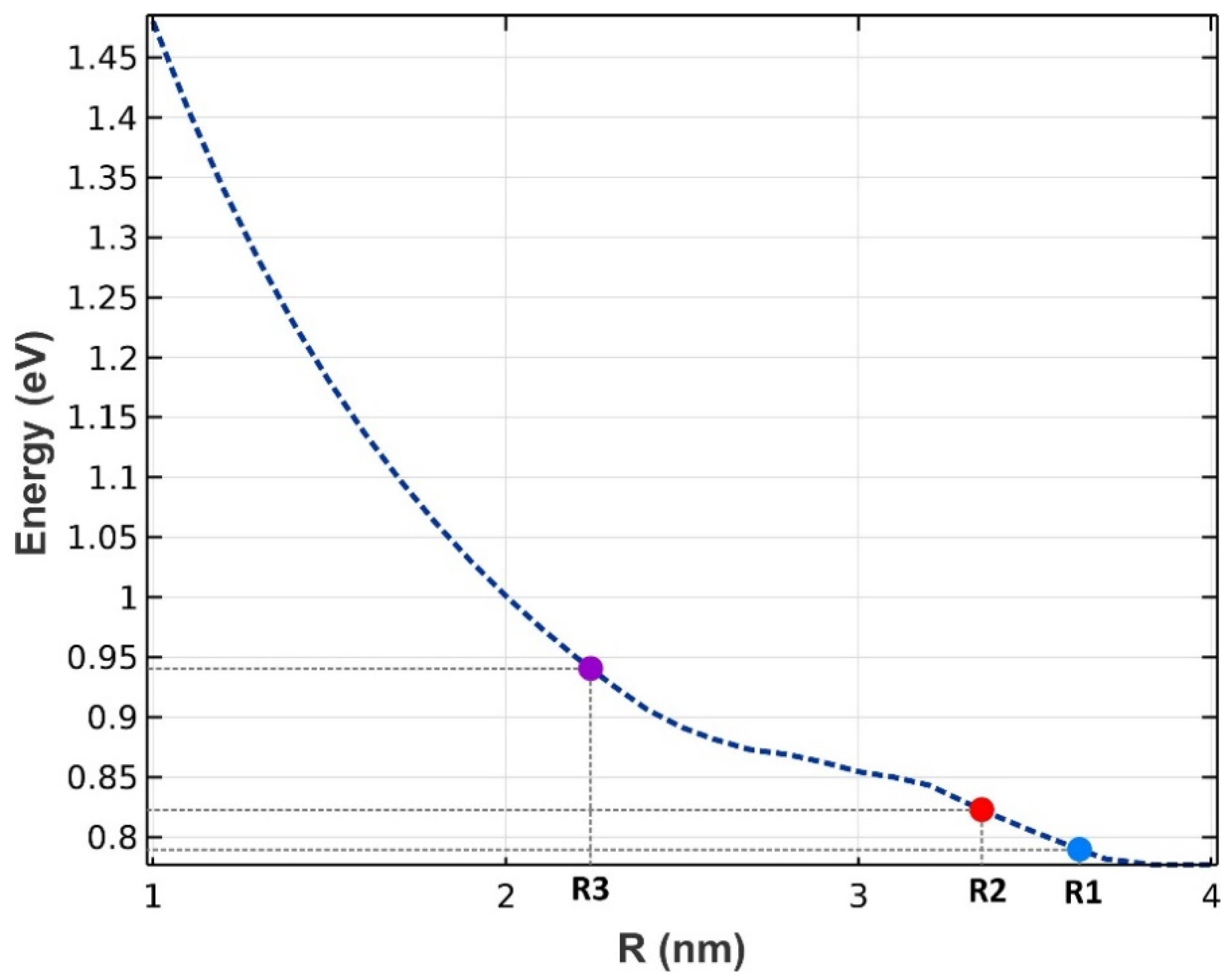

**Figure 2.**The energy difference between the ground states in the conduction band and the valence band (radiated energy) as a function of the QD’s radius. Three groups have been chosen (R1, R2, and R3).

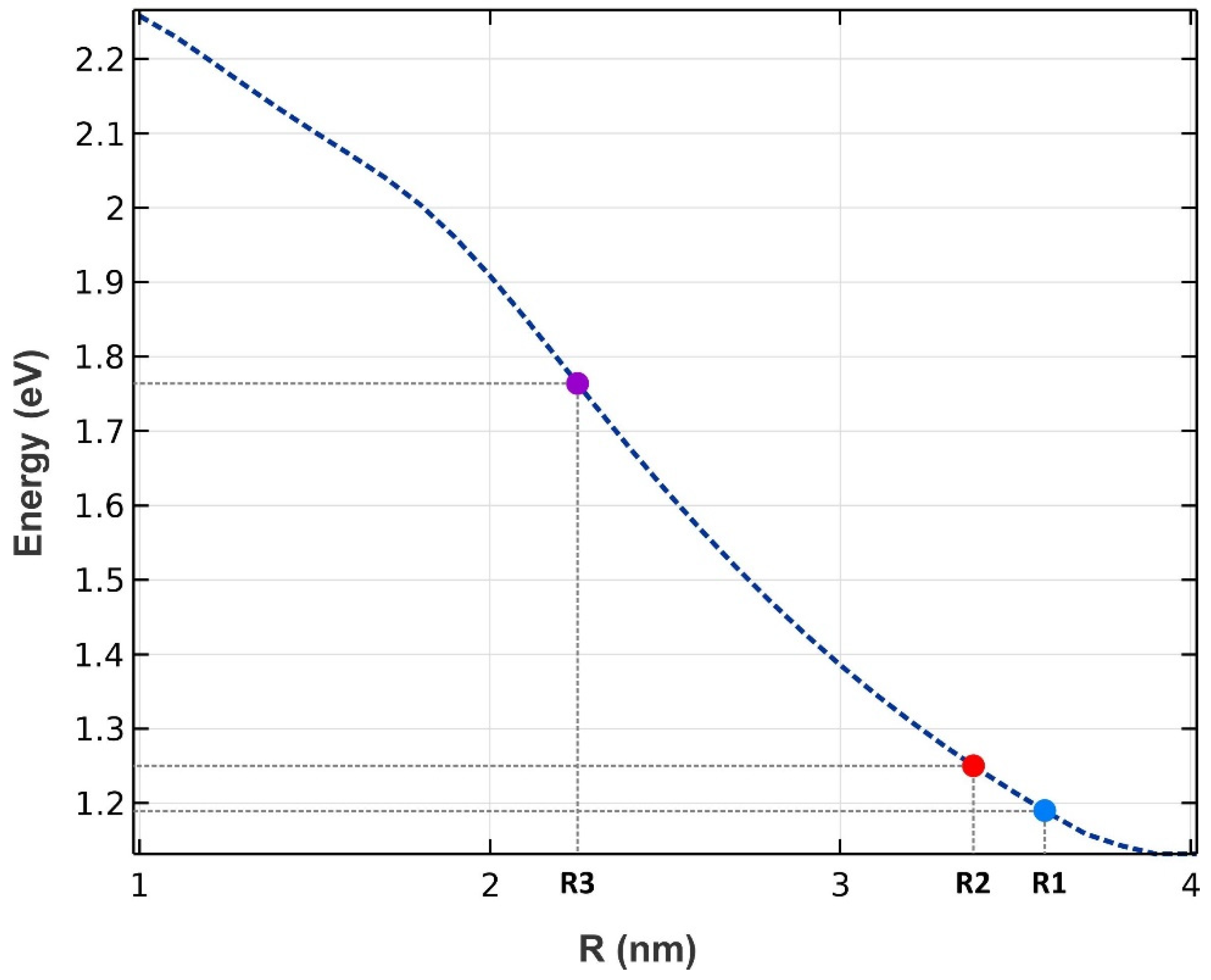

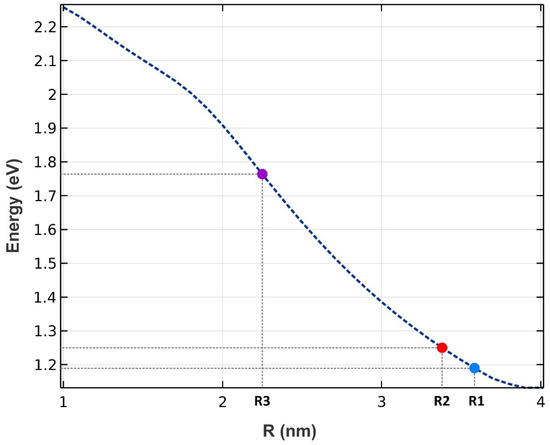

**Figure 7.**The energy difference between the excited states in the conduction band and the valence band (pump energies) as a function of the radii of the QDs. Three groups of QDs have been chosen (R1, R2, and R3).

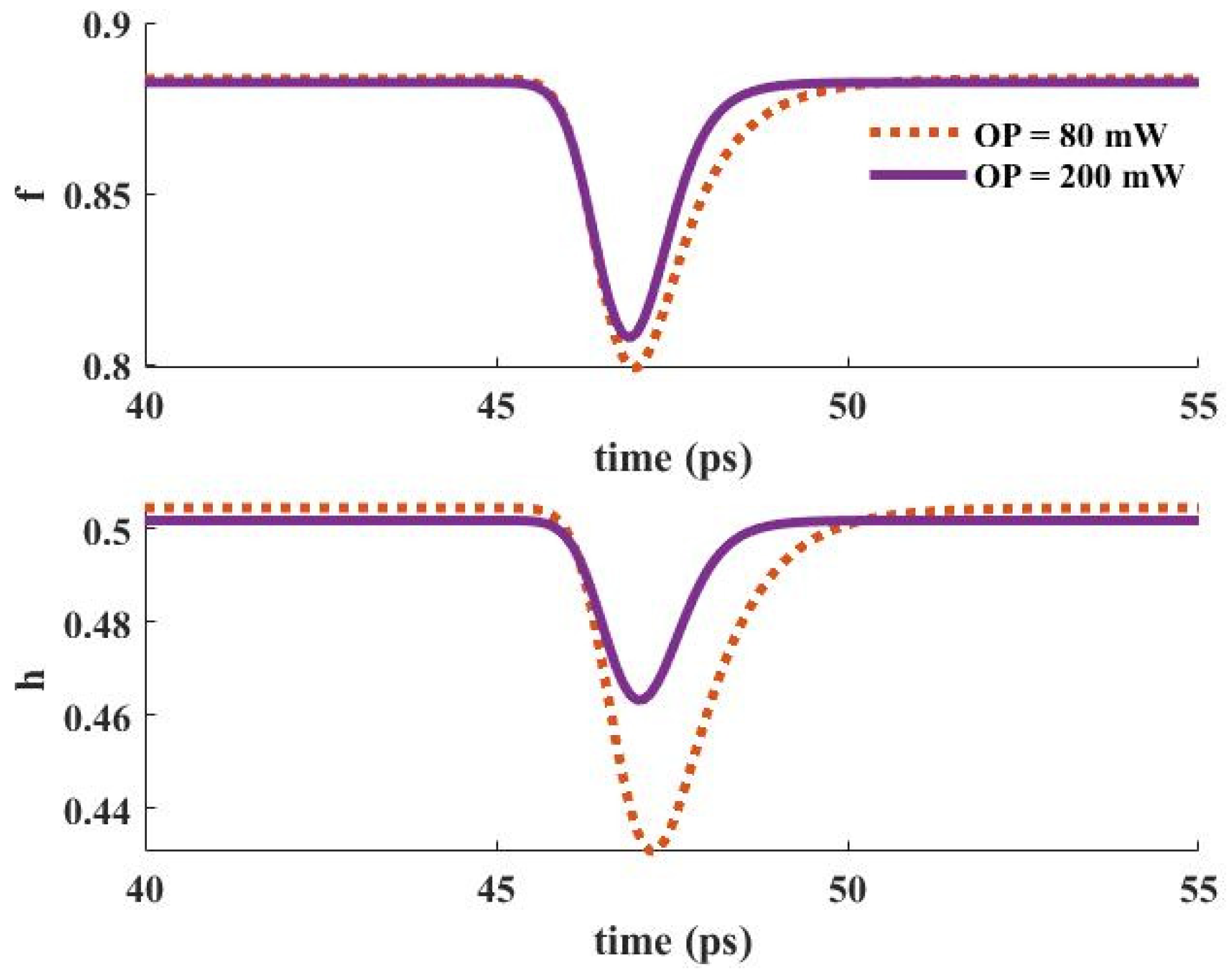

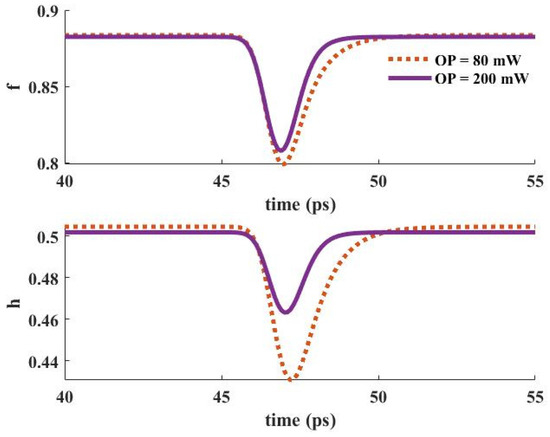

**Figure 16.**Occupation probability in the ground and excited states versus time for distinct pump powers (input signal power = 1 μW). f and h can vary between 0 to 1.

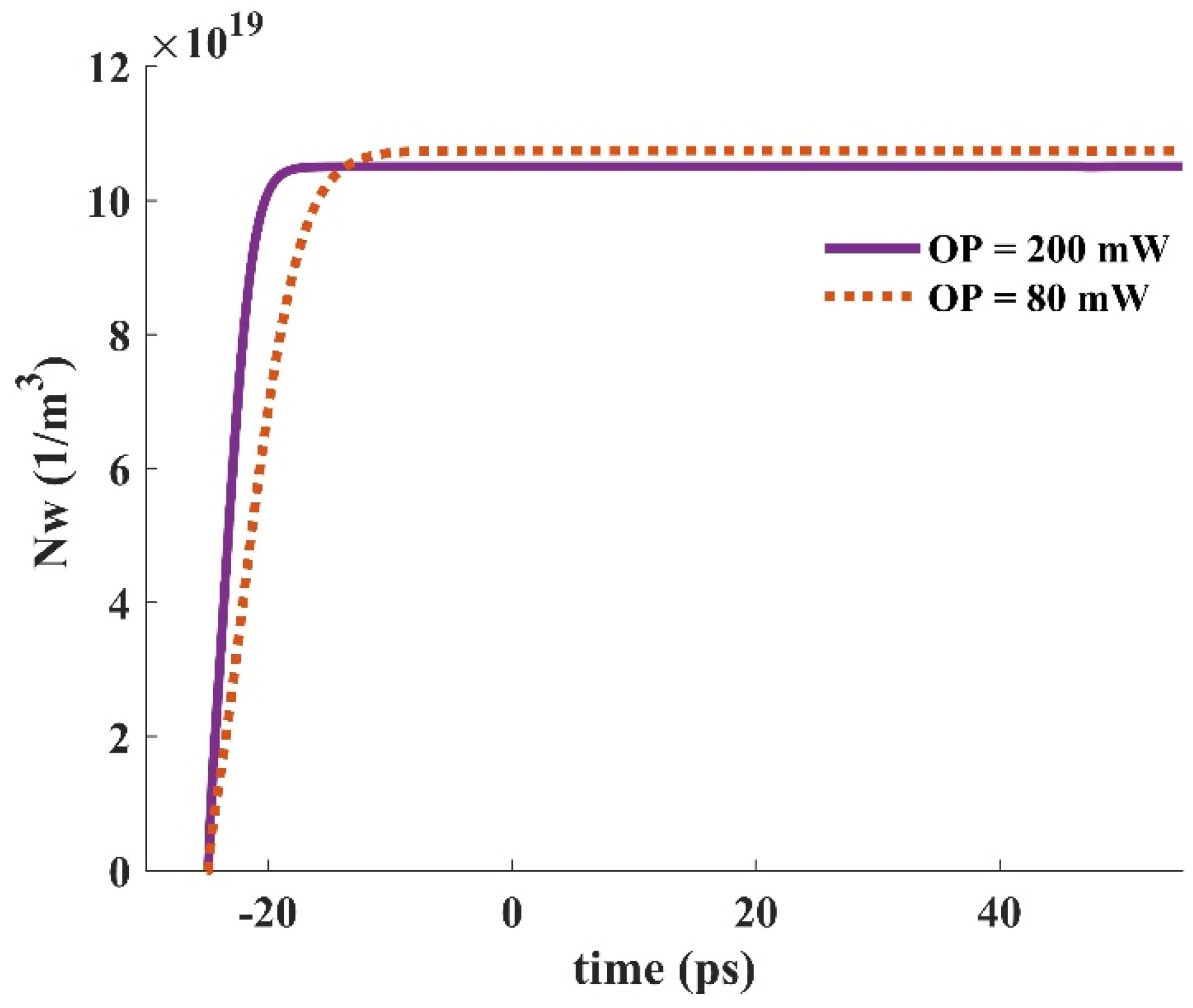

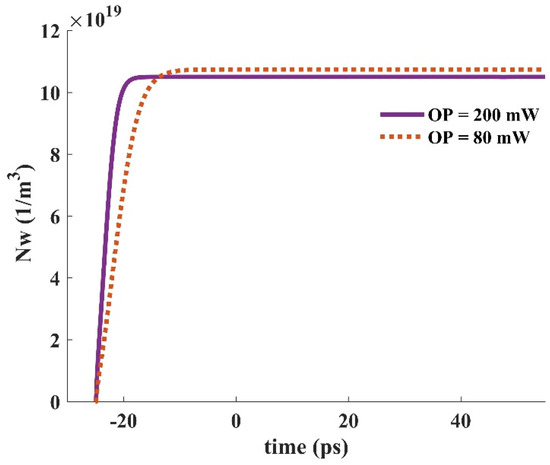

**Figure 17.**The electron concentration in the wetting layer for distinct optical pump power (input signal power = 1 μW).

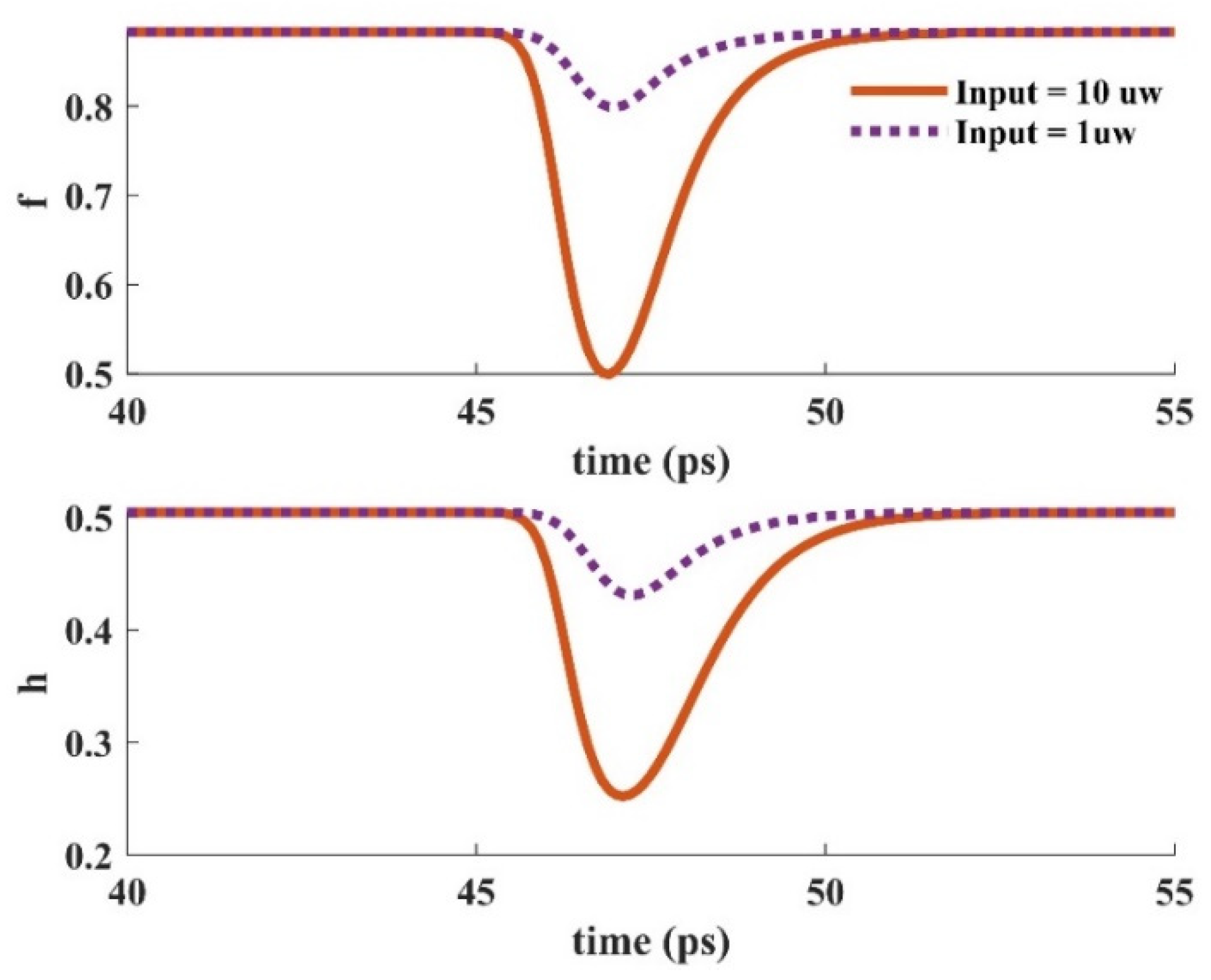

**Figure 18.**Occupation probability in the ground and excited states versus time for distinct input signal powers (Pump power = 80 mW).
