Article

In-Situ SERS Detection of Hg2+/Cd2+ and Congo Red Adsorption Using Spiral CNTs/Brass Nails

Department of Physics, Faculty of Science, Islamic University of Madinah, Madinah 42351, Saudi Arabia
Nanomaterials 2022, 12(21), 3778; https://doi.org/10.3390/nano12213778
Submission received: 4 October 2022 / Revised: 19 October 2022 / Accepted: 24 October 2022 / Published: 26 October 2022

Abstract

:
Brass spiral nails were functionalized with CoFe2O4 nanoparticles and utilized as a substrate for the growth of extremely long CNTs with helical structures and diameters smaller than 20 nm. Different methods were used to characterize the grown CNTs’ structures and morphologies. The characteristic Raman peaks of CNTs were amplified four times after being uploaded on the spiral nail, making the substrates for surface-enhanced Raman spectroscopy (SERS) more sensitive. To detect Hg2+ and Cd2+ at concentrations ranging from 1 to 1000 ppb, a CNT/spiral brass nail was used as a SERS substrate. The proposed sensor demonstrated high sensitivity and selectivity between these heavy metal ions. As a result, the proposed CNTs/spiral brass sensor can be an effective tool for identifying heavy metal ions in aqueous solutions. In addition, Congo red (CR) adsorption as a function of initial dye concentration and contact time was investigated. For CR dye solutions with concentrations of 5, 10, and 20 mg/L, respectively, the highest removal percentage was determined to be ~99.9%, 85%, and 77%. According to the kinetics investigation, the pseudo-first-order and pseudo-second-order models effectively handle CR adsorption onto CNTs/spiral nails. The increase in the dye concentration from 5 ppm to 20 ppm causes the rate constant to drop from 0.053 to 0.040 min−1. Therefore, our sample can be employed for both the effective degradation of CR dye from wastewater and the detection of heavy metals.

1. Introduction

A significant global challenge is the removal of heavy metals and dyes from water sources. To remove dyes and heavy metals, many technologies have been developed, including the low-cost adsorption technique using different adsorbents such as layered double hydroxides, clays, zeolites, and carbon-based nanoadsorbents [1,2,3,4,5]. Carbon nanotubes (CNTs) are attracting a lot of attention because of their distinctive optoelectronic applications in flat panel displays, very sensitive electromechanical and chemical sensors, and hydrogen storage devices [6,7,8,9]. CNTs have also been used to remove harmful pollutants from gas streams and aqueous solutions because of their sizable specific surface area, highly hollow and porous structure, low mass density, and effective interactions with pollutant molecules [10,11]. Several experimental studies on the adsorption of heavy metal ions on single- and multi-wall CNTs have already been conducted [10,12,13]. Carbon nanotubes (CNTs) are a typical adsorbent used to extract organic and other inorganic pollutants from wastewater [14,15,16]. CNTs are used as adsorbents more frequently than conventional adsorbents due to their superior volume-area ratios, functional surfaces, strong electrostatic interactions, cylindrical hollow structures, high mechanical strengths, and quicker equilibrium durations [17,18,19]. Single-walled carbon nanotubes (SWCNTs) and multi-walled carbon nanotubes are the two varieties of CNTs (MWCNTs). By enhancing interactions with organic dye molecules and heavy metals through hydrophobic surfaces, electrostatic forces, van der Waals forces, and hydrogen bonding, both of their structural configurations are more effective [20]. MWCNTs are also superior to SWCNTs at removing cationic dyes because of interactions between charged dye molecules and their surface [15]. So far, MWCNTs have only been used for CR removal in a small number of experiments that showed strong adsorption performance [21,22,23,24].
Additionally, by guiding, amplifying, emitting, and altering optical fields, CNTs placed on substrates can be used for novel and efficient applications, such as sensors based on SERS [25,26,27,28]. SERS is a technique that enhances Raman scattering by molecules adsorbed onto particular, meticulously created rough metal surfaces. The SERS-based sensor is one of the most important nanooptical-based detection methods for the chemical speciation of hazardous heavy metal ions in water at trace levels. Li et al. [29] evaluated and offered a summary of the successes and challenges in the determination of heavy metals, organic pollutants, ions, and pathogens based on SERS. A porous anodic alumina membrane functionalized with hexagonal arrays of Au nanoparticles was developed by Shaban et al. [30,31,32] as a SERS substrate for the detection of several heavy metals, including Hg2+, Cd2+, and Pb2+ at nM concentrations. To create highly sensitive SERS biosensors for the detection of organic or inorganic contaminants and diseases, Wei et al. [33] compiled the uses of plasmonic nanoparticles. Chemical and electromagnetic enhancements are the two processes for SERS enhancement that are discussed in the literature. The chemical effect is improving by two orders of magnitude, while the electromagnetic (EM) effect dominates. The high costs and reproducibility of sensor fabrication continue to hinder the practical environmental applications of SERS-based sensors despite their rapid growth. There is still a high demand for the creation of quick, cheap, repeatable, and scalable detection platforms.
Numerous methods, including arc discharge, laser ablation, plasma enhancement, and chemical vapour deposition (CVD) of hydrocarbon gasses (methane, ethane, and acetylene) at relatively high temperatures over a catalytic material, have been used to create CNTs [34,35]. The band gap of semiconducting nanotubes can be adjusted by varying the tube diameter, and the deposited CNTs may be made of metals, semiconductors, or dielectrics [36]. Along with MWCNTs, amorphous carbon is also present during the creation of MWCNTs. These amorphous carbons are unwanted in many applications; thus, they are etched out of the structure. Another problem is the need for unique methods to remove the nanoadsorbent from the aqueous solution after usage. Additionally, finding novel methods to produce MWCNTs at high yields is crucial. In order to address these problems, it is suggested in this work that a coating of CNTs with a diameter no greater than 20 nm be applied to the spiral nail’s upper surface. As synthetic materials for the SERS-based detection of heavy metals and the adsorption of the CR dye from aqueous solutions, the developed MWCNTs/spiral brass nails are used. Hg2+ and Cd2+ were chosen as the test objects due to their numerous detrimental effects on human health as well as the economy. Therefore, the continuous detection and monitoring of these harmful heavy metal levels in soil, pharmaceuticals, and water resources require the development of rapid, trustworthy, and sensitive sensor networks [37,38,39,40]. Processing speed, operation costs, product yield, reusability, and sustainability all benefit from this. To detect traces of Hg2+ and Cd2+ ions in water, CNTs and spiral brass nails are made. The in-situ user’s spectroscopy serves as the cornerstone of the sensing principle. Research is being conducted on sensitivity and selectivity. The use of the samples for the adsorption of CR is also being explored, as=is the impact of the initial dye concentration and adsorption period. The mechanics of the reaction and its tenfold repeatability are also highlighted.

2. Methods

2.1. Functionalization of Spiral Nail with CoFe2O4 Nanoparticles

Brass spiral nails were cleaned, made functional, and utilized to generate CNTs in high yield. The spiral nail was cleaned and functionalized using CoFe2O4 nanoparticles. A 1:1 mixture of 0.5 M Fe(NO3) and 0.5 M Co(NO3)2·6H2O was created. The cleaned nail was then submerged in the solution and placed in the ultrasonic for one hour. The produced nail was dried for one hour in an oven at 500 °C.

2.2. Growth of CNTs on Functionalized Nail

In a ceramic tube with a temperature and gas flow controller, C2H2 chemical vapour deposition was performed (CVD). Spiral brass nails functionalized with CoFe2O4 were heated to 600 °C for 10 min while being exposed to nitrogen (N2) gas. The system was then subjected to a mixture of N2/C2H2 (5:1 v/v) for 50 min. The tube furnace’s temperature decreased as the N2 gas passed through the reaction chamber. In a 120 °C oven, the prepared CNTs/spiral brass nails were cured.

2.3. Characterization Techniques

The produced nanostructured films underwent morphological studies using field emission-scanning electron microscopy, or FE-SEM (model: ZEISS SUPRA 55 VP and ZEISS LEO, Gemini Column, Jena, Germany). Transmission electron microscopes (TEM, JEOL-2010F, Tokyo, Japan) were also used to analyze the interior morphology. Research of the chemical composition was performed using energy-dispersive X-ray analysis (EDX; Oxford Link ISIS 300 EDX, Oxford, UK). To produce an accurate quantitative analysis, the reaction was calibrated using standard additions.

2.4. SERS Measurements

The sensing approach is based on heavy metal detection utilizing surface-enhanced Raman scattering (SERS) spectroscopy after injecting very small amounts (0.1 l) of water polluted with heavy metals on the surface. Using an Enwave Optronics Raman microscope with a 514 nm excitation wavelength and a 1 μm spot size, SERS measurements were made on CNT and nail samples. P = 50 mW and t = 20 s were the excitation laser power and exposure times, respectively.

2.5. Adsorption Measurements

Adsorption studies were performed on CNTs/spiral brass nail adsorbents, utilizing a variety of starting dye concentrations and adsorption periods. With a variety of experimental conditions, including starting dye concentrations (5–20 mg/L), adsorption periods (0–90 min), adsorbent dose (0.05 g per 50 mL of CR solution), pH (7.0), and room temperature, all CR adsorption tests were conducted on a batch mode scale. The UV/Vis spectrophotometer (PerkinElmer, Lambda 950, Boston, MA, USA) was used to determine the variance in CR concentration by tracing the absorption peak. With 0.05 g in 50 mL of initial CR concentration of 5 mg/L for 90 min of contact time at room temperature and pH 7, the adsorbent’s reusability was examined ten times. After each run, the adsorbent was washed with DI water and set for the next run.
The CR dye elimination percentage was calculated using Equation (1) [41,42]:
  CR   dye   removal   % = ( C o C t ) C o × 100
where Co and Ct are, respectively, the starting and final concentrations of CR in mg/L. The data that were displayed were the averages from three separate studies.

3. Results and Discussions

3.1. Morphological Study

CNTs were grown on the top surface of the spiral nail using CVD to enhance its sensing and adsorbent capabilities. By using FE-SEM and HR-TEM images, the surface morphology of the CNT-coated spiral nail was identified. Top-view HRTEM and FE-SEM images of CNTs at various magnifications are shown in Figure 1A–D. The CoFe2O4 nanoparticles on the top surface of the spiral have served as seeds for growing extremely long CNTs with diameters of 17 ± 3 nm, as seen in SEM and TEM pictures, Figure 1A,C. Helix-shaped carbon nanotubes with a sizable specific surface area were displayed in Figure 1B,C. One CNT’s helical shape is depicted in the inset of Figure 1C. The inner diameter was 8 ± 2 nm and the CNT wall width was 8 ± 1 nm, according to Figure 1D.
It is vital to note that this process yields about 17 g of CNTs. The great stability of the manufactured helical CNTs on the spiral brass nail, in addition to their low cost and high yield, makes these innovative nanostructures promising candidates for SERS substrates and may find a wide range of new applications, such as in sensors and environmental monitoring. It can also be utilized as a potential nano-adsorbent nail for the purification of water. Energy-dispersive X-ray (EDX) analysis of the chemical makeup of the mechanically etched CNTs is used to confirm the purity of the prepared CNTs, as shown in Figure 2. The signals of the elements C and O are seen in the CNT powder’s EDX spectrum. From this EDX chart, no impurity signs have been identified.

3.2. Raman Spectra

The Raman spectra of MWCNTs and MWCNTs loaded on spiral nails are displayed in Figure 3. Three distinctive peaks are depicted at 870, 1370, and 1590 cm−1, as seen in Figure 3a. As illustrated in Figure 3b, two prominent first-order characteristic peaks for MWCNTs were found at 1573 cm−1 (G band) and 1341 cm−1 (D band). The G band represents the E2g phonons, whereas the D band is the A1g symmetry breathing modes of rings or K-point phonons [43]. Because the nanotubes are graphitic, the G band is connected to the in-plane stretching vibrations of sp2-bonded carbon atoms [43]. Defects and disorders in the hexagonal lattice, such as carbonaceous impurities and broken sp2 bonds in the sidewalls, are associated with the D band [44]. The graphitic lattice of the system is measured by the D/G intensity ratio (ID/IG), which also reflects how faulty it is. The calculated ID/IG ratio is 0.955. In addition, the G’ band (D overtone or 2D-band) was observed at ~2670 cm−1 in Figure 3b. The weak band at 2317 cm−1 is ascribed to highly oriented pyrolytic graphite (HOPG). The weak bands observed before 1120 cm−1 are related to the vibrational modes of the used brass nail and used catalyst. The peaks at ~1120 and 1041 cm−1 are attributed to multi-phonon transitions of brass [45]. Additionally, four peaks at 740 (A1g(1)), 615(A1g(2)), 467 T2g(2), and 340 (Eg) cm−1 are related to the Raman active modes of CoFe2O4 [46,47].
All the peaks are moved to lower wavenumbers by uploading the CNTs on the spiral nail (Figure 3b). This change suggests some decreases at the CNT/spiral nail interfaces during CNT growth in a high-temperature N2 environment [48]. Additionally, the ID/IG value rising to 1.12 suggests that the disorders and flaws of CNTs on spiral nail surfaces are more severe than those of free-standing CNTs. The low crystallinity of the CNTs is shown by the high intensity of the D band. Three factors make the deposition of very long helical CNTs on the spiral nail’s outer surface crucial for sensing applications. The CNTs on the spiral’s outer surface have a greater chance of coming into contact with the reactant, to start. Second, the increased surface area of CNTs and the spiral nail membrane, along with the improved Raman characteristics, might improve the sensing properties. Last but not least, the presence of abnormalities and illnesses may function as additional hot spots. For these reasons, this CNT/spiral nail array SERS substrate is intriguing.

3.3. Sensing Properties and SERS Measurements

Surface-sensitive Raman scattering (SERS) is a technique that makes molecules adsorbed on rough metal surfaces boost Raman scattering. SERS measurements are used to investigate the vibrational properties of the adsorbed molecules, revealing structural information about the molecule and its local relationships. SERS measurements, therefore, allow for and specifically identify individual detection [49,50]. The unique properties of CNTs/spiral nail nanostructures enable high sensitivity and selectivity in a novel manner. Figure 4a,b display the SERS spectra of CNT/spiral nails contaminated with 1–1000 ppb of Hg2+ and Cd2+. The Raman Hg peaks are more intense than their Cd counterparts. Additionally, as shown in the inset of Figure 4b, increasing the detected ions’ concentration enhances the contrast and intensities of the SERS peaks. Figure 4c shows the fluctuation of the peak I, II, and peak III intensities at 1000 ppb of Hg2+ and Cd2+. Peak I exhibits the biggest change in intensity. The inset of Figure 4c displays the selectivity of Hg2+ over Cd2+ ions using IHg/(IHg − ICd). The corresponding values for the three peaks were 2.5, 1.9, and 1.7. In addition, the presence of Cd2+ ions boosts the strength of peak II (Figure 4d).
As the concentration rises from 1 to 1000 ppb, the intensity of peak II for Cd increases from 1 to 370. According to Figure 4d, there was a linear relationship between the peak II values’ intensity and the concentrations of Cd2+ ions. Since the curve is linear, Equation (2) provides a good match:
Y = 0.352 X + 1.55,      (R2 = 0.98)
This may be related to the chemical modification of the spiral nail’s surface and more potent hotspots, which are active nanodots with diameters of less than 20 nm [30,51]. As a result, compared to Cd2+ ions, Hg2+ ions were more sensitive and selective. The interference of the reflected rays from the air/metal contacts may also lead to electromagnetic enhancement and significant signal amplification [51]. The trapping of CNT with adsorbed heavy metals then enhances the sensing performance because of the increase in the number of analyte molecules in SERS-active hot spots and the electromagnetic amplification caused by the interference of optical signals inside the interaction volume. Raw CNTs are infrequently employed for the selective sorption of ion metals because of the van der Waals interactions between the carbon atoms in graphene sheets. The functionalization of CNTs improves medium dispersion while also improving metal ion sorption through chemical bonding, making modified CNTs better sorbents and more selective for metal ions than raw CNTs [52]. Helical carbon nanotubes with a large specific surface area have been used to successfully detect heavy metals on the spiral nail’s upper surface. The developed spiral CNT/brass nail is tested for ten cycles of Hg2+ ion detection, and the results are shown in Figure S1 (Supplementary Materials), along with the descriptive statistics results in the inset table. The results confirm the high reusability of the designed SERS sensor.

3.4. Congo Red Adsorption and Kinetic Models

The amount of dye removed by adsorption is significantly influenced by the starting concentration of the adsorbate. Using CNT/spiral nail nanoadsorbents at different initial CR concentrations, Figure 5A shows the variations in the removal percentage of CR adsorbed over time. The dye removal percentage normally begins the adsorption process at a relatively high level and then gradually decreases until it achieves equilibrium. Once equilibrium is attained while using fresh sorbents, contact time has no discernible effect on the adsorption process. The reason for the rapid removal rate during the early stages of adsorption progression is the presence of numerous exposed active adsorption patches on the surfaces of the adsorbent. By lengthening the contact time between the adsorbent and the adsorbate, the hot spots were transformed into fully occupied CR sites. As a result, there is an increase in the repulsive forces between CR molecules in the bulk liquid phase and CR molecules adsorbed on adsorbent surfaces [41]. The dye removal percentage falls as the initial CR dye concentration is raised. In contrast, the key factor driving the increase in the amount of adsorbed CR by the adsorbent is the high driving force for mass transfer at a high starting CR concentration. This may be attributed to the gradient’s increase with increasing beginning CR concentration. In order to overcome the mass transfer resistance between the CR adsorbate and the nanoadsorbent active sites, an appropriate rise in the draft forces, therefore, takes place [53,54]. At pH 7 and 25 °C, the highest removal rates for CR dye solutions with concentrations of 5, 10, and 20 mg/L, respectively, were determined to be 99.9%, 85%, and 77% at 90 min. The findings indicated that CNT growth on the surface of spiral nails produced higher values than had previously been observed for CNT-based adsorbents [55,56,57], indicating the viability of the employed strategy to improve CR removal performance, particularly at lower concentrations.
To select the best adsorption kinetics model, the adsorption performance of CNTs/spiral nails at various initial CR concentrations was examined. Previous reports stated that the non-linear forms of kinetic models are more suitable than the linear forms for fitting the experimental data and that nonlinear fitting is more accurate than linear fitting to obtain the values of the constants for each model [58,59,60]. By plotting the proportion of dye removal percentage vs. time, Figure 5B–D depict the first-order, second-order, and Elovich kinetics nonlinear graphs [61,62]. The adsorption kinetics parameters for the assessment model; k1, k2, qe, β, and α; as well as R2, were derived using nonlinear fitting and are displayed in Table 1. The pseudo-first-order and second-order models are effective at handling CR adsorption onto the proposed nanoadsorbent at low and high CR concentrations, respectively, according to the nonlinear fit and regression coefficient values in Table 1 for all the studied kinetic models. This was further supported by the accurate approximation between the calculated dye removal percentage and the experimental removal percentage. According to the first-order model, the rate constant is lowered from 0.053 to 0.040 min−1 by raising the dye concentration from 5 ppm to 20 ppm. With the pseudo-first-order model at low concentrations and the pseudo-first-order model at high concentrations, the CR adsorption on CNTs/spiral nails is effectively addressed.

3.5. Reusability Test

Figure 6 illustrates a reusability test for CR elimination using the same adsorbent and dose ten times. The results showed that over the ten adsorption cycles, the removal percentage of the used adsorbent varied significantly. The dye removal percentage for our adsorbent was 99.9% at the beginning of the experiment and decreased to ~56.0% towards the end. The decrease in the CR removal percentage might be attributed to the CR molecules adhering to the adsorbent’s surface, which then blocked the surface from the dissolved CR molecules and resulted in a drop in adsorption capacity [63].
As a result, a new approach was used to produce high-yield CNTs and to produce spiral CNTs/brass nails. The samples that are generated can be used to continually detect and track the levels of harmful heavy metals (Hg2+ and Cd2+) in pharmaceuticals, food processing, and soil. Additionally, recycling industrial wastewater from the paper, textile, and plastics industries is another application for the developed spiral CNTs/brass nanoadsorbent.

4. Conclusions

Here, we introduced a brand-new type of SERS sensor for the detection of heavy metals (Hg2+ and Cd2+) at ppb concentrations (1–1000) with good sensitivity and selectivity. On the surface of spiral brass nails functionalized with CoFe2O4 nanoparticles, very long helical CNTs with diameters < 20 nm were generated by CVD. As a more dependable and sensitive heavy metal sensor, CNTs/nail has been proven. The lowest measurable concentration at room temperature in this investigation was 1 ppb, and the CNTs/brass nail sensor demonstrated remarkable sensitivity and selectivity for Hg2+ over Cd2+. The direct and high sensitivity, selectivity, low cost of production, low cost of monitoring, and simplicity of the suggested CNTs/spiral brass nail sensor are all present. Therefore, a portable Raman spectrometer can use the current sensor as a potent tool to determine the presence of heavy metal ions on-site. The adsorption activity of helical CNTs/spiral brass nails is demonstrated as a function of the starting dye concentration and contact time. For CR dye solutions with concentrations of 5, 10, and 20 mg/L, the highest removal percentage was determined to be 99.9%, 85%, and 77%, respectively. The kinetics analysis reveals that at low and high concentrations, respectively, CR adsorption onto CNTs/spiral nails is successfully explained by the pseudo-first-order and second-order models. The rate constant decreases from 0.053 to 0.040 min−1 with an increase in dye concentration from 5 ppm to 20 ppm. Because of this, our sample may be used to effectively degrade CR dye in wastewater and identify heavy metals. Consequently, a brand-new, reasonably priced green nanoadsorbent that would aid in the best industrial wastewater recycling might be produced. The suggested SERS sensor can also be quickly integrated into an automated signal detection platform on a fabrication-friendly sensing platform for further functionality.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12213778/s1, Figure S1: Reusability test of the of SERS sensor for ten cycles provided with a table for the descriptive statistics of the results.

Funding

The researcher wishes to extend his sincere gratitude to the Deanship of Scientific Research at the Islamic University of Madinah for the support provided through the Post-Publishing Program 1/2022.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data is available on reasonable request from the corresponding author.

Acknowledgments

The author would like to express his appreciation for the support provided by the Islamic University of Madinah.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mrózek, O.; Ecorchard, P.; Vomáčka, P.; Ederer, J.; Smržová, D.; Slušná, M.Š.; Machálková, A.; Nevoralová, M.; Beneš, H. Mg-Al-La LDH-MnFe2O4 hybrid material for facile removal of anionic dyes from aqueous solutions. Appl. Clay Sci. 2019, 169, 1–9. [Google Scholar] [CrossRef]
  2. Zhu, S.; Khan, M.A.; Kameda, T.; Xu, H.; Wang, F.; Xia, M.; Yoshioka, T. New insights into the capture performance and mechanism of hazardous metals Cr3+ and Cd2+ onto an effective layered double hydroxide based material. J. Hazard. Mater. 2022, 426, 128062. [Google Scholar] [CrossRef] [PubMed]
  3. Rady, D.; Shaban, M.; Elsayed, K.N.M.; Hamd, A.; Soliman, N.K.; El-Mageed, H.R.A.; Elzanaty, A.M.; El-Sayed, R.; Morada, M.; El-Bahy, S.M.; et al. Experimentally and theoretically approaches for Congo red dye adsorption on novel kaolinite-alga nano-composite. Int. J. Environ. Anal. Chem. 2021, 1–23. [Google Scholar] [CrossRef]
  4. Abukhadra, M.R.; Shaban, M. Adsorption removal of safranin dye contaminants from water using various types of natural zeolite. Silicon 2019, 11, 1635–1647. [Google Scholar] [CrossRef]
  5. Gneedy, A.H.; Dryaz, A.R.; Said, M.S.; Ahmed, S.A.; Soliman, N.K.; AlMohamadi, A.H.; Elsayed, R. Application of marine algae separate and in combination with natural zeolite in dye adsorption from wastewater; A review. Egypt. J. Chem. 2022. [Google Scholar] [CrossRef]
  6. Wang, Q.H.; Yan, M.; Chang, R.P.H. Flat panel display prototype using gated carbon nanotube field emitters. Appl. Phys. Lett. 2001, 78, 1294–1296. [Google Scholar] [CrossRef]
  7. Agnihotri, S.; Rood, M.J.; Rostam-Abadi, M. Adsorption equilibrium of organic vapors on single-walled carbon nanotubes. Carbon 2005, 43, 2379–2388. [Google Scholar] [CrossRef]
  8. Tan, X.; Fang, M.; Chen, C.; Yu, S.; Wang, X. Counterion effects of nickel and sodium dodecylbenzene sulfonate adsorption to multiwalled carbon nanotubes in aqueous solution. Carbon 2008, 46, 1741–1750. [Google Scholar] [CrossRef]
  9. Rakhi, R.; Sethupathi, K.; Ramaprabhu, S. Synthesis and hydrogen storage properties of carbon nanotubes. Int. J. Hydrogen Energy 2008, 33, 381–386. [Google Scholar] [CrossRef]
  10. Chen, C.; Hu, J.; Shao, D.; Li, J.; Wang, X. Adsorption behavior of multiwall carbon nanotube/iron oxide magnetic composites for Ni(II) and Sr(II). J. Hazard. Mater. 2009, 164, 923–928. [Google Scholar] [CrossRef]
  11. Chen, C.-H.; Huang, C.-C. Hydrogen adsorption in defective carbon nanotubes. Sep. Purif. Technol. 2009, 65, 305–310. [Google Scholar] [CrossRef]
  12. Li, Y.-H.; Ding, J.; Luan, Z.; Di, Z.; Zhu, Y.; Xu, C.; Wu, D.; Wei, B. Competitive adsorption of Pb2+, Cu2+ and Cd2+ ions from aqueous solutions by multiwalled carbon nanotubes. Carbon 2003, 41, 2787–2792. [Google Scholar] [CrossRef]
  13. Li, Y.-H.; Wang, S.; Wei, J.; Zhang, X.; Xu, C.; Luan, Z.; Wu, D.; Wei, B. Lead adsorption on carbon nanotubes. Chem. Phys. Lett. 2002, 357, 263–266. [Google Scholar] [CrossRef]
  14. Ferreira, G.M.D.; Ferreira, G.M.D.; Hespanhol, M.C.; Rezende, J.D.; Pires, A.C.D.; Gurgel, L.V.A.; da Silva, L.H.M. Adsorption of red azo dyes on multi-walled carbon nanotubes and activated carbon: A thermodynamic study. Colloid Surf. A 2017, 529, 531–540. [Google Scholar] [CrossRef]
  15. Karimifard, S.; Moghaddam, M.R.A. Removal of an anionic reactive dye from aqueous solution using functionalized multi-walled carbon nanotubes: Isotherm and kinetic studies. Desalin. Water Treat. 2016, 57, 16643–16652. [Google Scholar] [CrossRef]
  16. Ali, I.; Alharbi, O.M.L.; Alothman, Z.A.; Al-Mohaimeed, A.M.; Alwarthan, A. Modeling of fenuron pesticide adsorption on CNTs for mechanistic insight and removal in water. Environ. Res. 2019, 170, 389–397. [Google Scholar] [CrossRef]
  17. Vuono, D.; Catizzone, E.; Aloise, A.; Policicchio, A.; Agostino, R.G.; Migliori, M.; Giordano, G. Modelling of adsorption of textile dyes over multi-walled carbon nanotubes: Equilibrium and kinetic. Chin. J. Chem. Eng. 2017, 25, 523–532. [Google Scholar] [CrossRef]
  18. Baghapour, M.A.; Pourfadakari, S.; Mahvi, A.H. Investigation of Reactive Red Dye 198 removal using multiwall carbon nanotubes in aqueous solution. J. Ind. Eng. Chem. 2014, 20, 2921–2926. [Google Scholar] [CrossRef]
  19. Burakova, E.A.; Dyachkova, T.P.; Rukhov, A.V.; Tugolukov, E.N.; Galunin, E.V.; Tkachev, A.G.; Basheer, A.A.; Ali, I. Novel and economic method of carbon nanotubes synthesis on a nickel magnesium oxide catalyst using microwave radiation. J. Mol. Liq. 2018, 253, 340–346. [Google Scholar] [CrossRef]
  20. Machado, F.M.; Carmalin, S.A.; Lima, E.C.; Dias, S.L.P.; Prola, L.D.T.; Saucier, C.; Jauris, I.M.; Zanella, I.; Fagan, S.B. Adsorption of Alizarin Red S Dye by Carbon Nanotubes: An Experimental and Theoretical Investigation. J. Phys. Chem. C 2016, 120, 18296–18306. [Google Scholar] [CrossRef]
  21. Sheibani, M.; Ghaedi, M.; Marahel, F.; Ansari, A. Congo red removal using oxidized multiwalled carbon nanotubes: Kinetic and isotherm study. Desalin. Water Treat. 2015, 53, 844–852. [Google Scholar] [CrossRef]
  22. Szlachta, M.; Wójtowicz, P. Adsorption of methylene blue and Congo red from aqueous solution by activated carbon and carbon nanotubes. Water Sci. Technol. 2013, 68, 2240–2248. [Google Scholar] [CrossRef] [PubMed]
  23. Ramazani, S.; Ghaedi, M.; Mortazavi, K. Multiwalled carbon nanotubes as efficient adsorbent for the removal of congo red. Fresen. Environ. Bull. 2011, 20, 2514–2520. [Google Scholar]
  24. Selen, V.; Güler, Ö. Modeling of Congo Red Adsorption onto Multi-walled Carbon Nanotubes Using Response Surface Methodology: Kinetic, Isotherm and Thermodynamic Studies. Arab. J. Sci. Eng. 2021, 46, 6579–6592. [Google Scholar] [CrossRef]
  25. Kasumov, A.Y.; Deblock, R.; Kociak, M.; Reulet, B.; Bouchiat, H.; Khodos, I.I.; Gorbatov, Y.B.; Volkov, V.T.; Journet, C.; Burghard, M. Supercurrents Through Single-Walled Carbon Nanotubes. Science 1999, 284, 1508–1511. [Google Scholar] [CrossRef] [Green Version]
  26. Chun, K.-Y.; Oh, Y.; Rho, J.; Ahn, J.-H.; Kim, Y.-J.; Choi, H.R.; Baik, S. Highly conductive, printable and stretchable composite films of carbon nanotubes and silver. Nat. Nanotechnol. 2010, 5, 853–857. [Google Scholar] [CrossRef]
  27. Kim, J.-Y.; Lee, W.H.; Suk, J.W.; Potts, J.R.; Chou, H.; Kholmanov, I.N.; Piner, R.D.; Lee, J.; Akinwande, D.; Ruoff, R.S. Chlorination of Reduced Graphene Oxide Enhances the Dielectric Constant of Reduced Graphene Oxide/Polymer Composites. Adv. Mater. 2013, 25, 2308–2313. [Google Scholar] [CrossRef]
  28. Yoon, Y.; Samanta, K.; Lee, H.; Lee, K.; Tiwari, A.P.; Lee, J.; Yang, J.; Lee, H. Highly Stretchable and Conductive Silver Nanoparticle Embedded Graphene Flake Electrode Prepared by In situ Dual Reduction Reaction. Sci. Rep. 2015, 5, srep14177. [Google Scholar] [CrossRef] [Green Version]
  29. Li, D.-W.; Zha, W.-L.; Li, Y.-T.; Long, Y.-T. Recent progress in surface enhanced Raman spectroscopy for the detection of environmental pollutants. Microchim. Acta 2014, 181, 23–43. [Google Scholar] [CrossRef]
  30. Shaban, M.; Hady, A.G.A.; Serry, M. A New Sensor for Heavy Metals Detection in Aqueous Media. IEEE Sens. J. 2014, 14, 436–441. [Google Scholar] [CrossRef]
  31. Shaban, M.; Galaly, A.R. Highly Sensitive and Selective In-Situ SERS Detection of Pb2+, Hg2+, and Cd2+ Using Nanoporous Membrane Functionalized with CNTs. Sci. Rep. 2016, 6, 25307. [Google Scholar] [CrossRef]
  32. Ahmed, A.M.; Shaban, M. Nanoporous chromium thin film for active detection of toxic heavy metals traces using surface-enhanced Raman spectroscopy. Mater. Res. Express 2020, 7, 015084. [Google Scholar] [CrossRef]
  33. Wei, H.; Abtahi, S.M.H.; Vikesland, P.J. Plasmonic colorimetric and SERS sensors for environmental analysis. Environ. Sci. Nano 2015, 2, 120–135. [Google Scholar] [CrossRef] [Green Version]
  34. Gogotsi, Y.; Presser, V. Carbon Nanomaterials; CRC Press: Boca Raton, FL, USA, 2013. [Google Scholar]
  35. Su, S.; Wu, W.; Gao, J.; Lu, J.; Fan, C. Nanomaterials-based sensors for applications in environmental monitoring. J. Mater. Chem. 2012, 22, 18101–18110. [Google Scholar] [CrossRef]
  36. Ajayan, P.M.; Zhou, O.Z. Applications of carbon nanotubes. In Carbon Nanotubes; Springer: Berlin/Heidelberg, Germany, 2001; Volume 80, pp. 391–425. [Google Scholar]
  37. Zhang, M.; Zou, Y.; Zhou, X.; Yan, F.; Ding, Z. Vertically-Ordered Mesoporous Silica Films for Electrochemical Detection of Hg(II) Ion in Pharmaceuticals and Soil Samples. Front. Chem. 2022, 10, 952936. [Google Scholar] [CrossRef]
  38. Huang, R.; Zhang, K.; Sun, H.; Zhang, D.; Zhu, J.; Zhou, S.; Li, W.; Li, Y.; Wang, C.; Jia, X.; et al. Star-shaped porous nitrogen-doped metal-organic framework carbon as an electrochemical platform for sensitive determination of Cd(II) in environmental and tobacco samples. Anal. Chim. Acta 2022, 1228, 340309. [Google Scholar] [CrossRef]
  39. Patle, A.; Kurrey, R.; Deb, M.K.; Patle, T.K.; Sinha, D.; Shrivas, K. Analytical approaches on some selected toxic heavy metals in the environment and their socio-environmental impacts: A meticulous review. J. Indian Chem. Soc. 2022, 99, 100545. [Google Scholar] [CrossRef]
  40. Yan, Z.; Cai, Y.; Zhang, J.; Zhao, Y. Fluorescent sensor arrays for metal ions detection: A review. Measurement 2022, 187, 110355. [Google Scholar] [CrossRef]
  41. Soliman, N.K.; Moustafa, A.F.; Aboud, A.A.; Halim, K.S.A. Effective utilization of Moringa seeds waste as a new green environmental adsorbent for removal of industrial toxic dyes. J. Mater. Res. Technol. 2019, 8, 1798–1808. [Google Scholar] [CrossRef]
  42. Khedr, M.; Halim, K.A.; Soliman, N. Synthesis and photocatalytic activity of nano-sized iron oxides. Mater. Lett. 2009, 63, 598–601. [Google Scholar] [CrossRef]
  43. Eklund, P.; Holden, J.; Jishi, R. Vibrational modes of carbon nanotubes; Spectroscopy and theory. Carbon 1995, 33, 959–972. [Google Scholar] [CrossRef]
  44. Dresselhaus, M.S.; Eklund, P.C. Phonons in carbon nanotubes. Adv. Phys. 2000, 49, 705–814. [Google Scholar] [CrossRef]
  45. Shaban, M.; Abdelkarem, K.; El Sayed, A.M. Structural, optical and gas sensing properties of Cu2O/CuO mixed phase: Effect of the number of coated layers and (Cr + S) co-Doping. Phase Transit. 2019, 92, 347–359. [Google Scholar] [CrossRef]
  46. Georgiadou, V.; Tangoulis, V.; Arvanitidis, I.; Kalogirou, O.; Samara, C.D. Unveiling the physicochemical features of CoFe2O4 nanoparticles synthesized via a variant hydrothermal method: NMR relaxometric properties. J. Phys. Chem. C 2015, 119, 8336–8348. [Google Scholar] [CrossRef]
  47. Singh, S.; Munjal, S.; Khare, N. Strain/defect induced enhanced coercivity in single domain CoFe2O4 nanoparticles. J. Magn. Magn. Mater. 2015, 386, 69–73. [Google Scholar] [CrossRef]
  48. Lim, S.P.; Pandikumar, A.; Lim, Y.S.; Huang, N.M.; Lim, H.N. In-situ electrochemically deposited polypyrrole nanoparticles incorporated reduced graphene oxide as an efficient counter electrode for platinum-free dye-sensitized solar cells. Sci. Rep. 2014, 4, 5305. [Google Scholar] [CrossRef] [Green Version]
  49. Serry, M.; Gamal, A.; Shaban, M.; Sharaf, A. High sensitivity optochemical and electrochemical metal ion sensor. Micro Nano Lett. 2013, 8, 775–778. [Google Scholar] [CrossRef]
  50. Soleimani, M.; Afshar, M.G.; Sedghi, A. Amino-Functionalization of Multiwall Carbon Nanotubes and Its Use for Solid Phase Extraction of Mercury Ions from Fish Sample. ISRN Nanotechnol. 2013, 2013, 674289. [Google Scholar] [CrossRef] [Green Version]
  51. Shaban, M.; Ali, M.; Abdel-Hady, K.; Hamdy, H. Self- Agglomeration of Tin Nanoparticle Array on Porous Anodic Alumina Membranes: Fabrication and Characterization. Curr. Nanosci. 2015, 11, 214–221. [Google Scholar] [CrossRef]
  52. Dehghani, M.H.; Faraji, M.; Mohammadi, A.; Kamani, H. Optimization of fluoride adsorption onto natural and modified pumice using response surface methodology: Isotherm, kinetic and thermodynamic studies. Korean J. Chem. Eng. 2017, 34, 454–462. [Google Scholar] [CrossRef]
  53. Mohamed, H.S.; Soliman, N.; Moustafa, A.; Abdel-Gawad, O.F.; Taha, R.R.; Ahmed, S.A. Nano metal oxide impregnated Chitosan-4-nitroacetophenone for industrial dye removal. Int. J. Environ. Anal. Chem. 2019, 101, 1850–1877. [Google Scholar] [CrossRef]
  54. Sharma, Y.C. Uma Optimization of Parameters for Adsorption of Methylene Blue on a Low-Cost Activated Carbon. J. Chem. Eng. Data 2009, 55, 435–439. [Google Scholar] [CrossRef]
  55. Chatterjee, S.; Lee, M.W.; Woo, S.H. Adsorption of congo red by chitosan hydrogel beads impregnated with carbon nanotubes. Bioresour. Technol. 2010, 101, 1800–1806. [Google Scholar] [CrossRef]
  56. Zare, K.; Sadegh, H.; Shahryari-Ghoshekandi, R.; Maazinejad, B.; Ali, V.; Tyagi, I.; Agarwal, S.; Gupta, V.K. Enhanced removal of toxic Congo red dye using multi walled carbon nanotubes: Kinetic, equilibrium studies and its comparison with other adsorbents. J. Mol. Liq. 2015, 212, 266–271. [Google Scholar] [CrossRef]
  57. Wu, C.-H. Adsorption of reactive dye onto carbon nanotubes: Equilibrium, kinetics and thermodynamics. J. Hazard. Mater. 2007, 144, 93–100. [Google Scholar] [CrossRef]
  58. Lin, J.; Wang, L. Comparison between linear and non-linear forms of pseudo-first-order and pseudo-second-order adsorption kinetic models for the removal of methylene blue by activated carbon. Front. Environ. Sci. Eng. China 2009, 3, 320–324. [Google Scholar] [CrossRef]
  59. Shukla, S.P.; Kisku, G.C. Linear and Non-Linear Kinetic Modeling for Adsorption of Disperse Dye in Batch Process. Res. J. Environ. Toxicol. 2015, 9, 320–331. [Google Scholar] [CrossRef] [Green Version]
  60. López-Luna, J.; Ramírez-Montes, L.E.; Martinez-Vargas, S.; Martínez, A.I.; Mijangos-Ricardez, O.F.; González-Chávez, M.D.C.A.; Carrillo-González, R.; Solís-Domínguez, F.A.; Cuevas-Díaz, M.D.C.; Vázquez-Hipólito, V. Linear and nonlinear kinetic and isotherm adsorption models for arsenic removal by manganese ferrite nanoparticles. SN Appl. Sci. 2019, 1, 950. [Google Scholar] [CrossRef] [Green Version]
  61. Hamd, A.; Dryaz, A.R.; Shaban, M.; AlMohamadi, H.; Abu Al-Ola, K.A.; Soliman, N.K.; Ahmed, S.A. Fabrication and Application of Zeolite/Acanthophora Spicifera Nanoporous Composite for Adsorption of Congo Red Dye from Wastewater. Nanomaterials 2021, 11, 2441. [Google Scholar] [CrossRef]
  62. Dayez, A.; Shaban, M.; AlMohamadi, H.; Al-Ola, K.A.A.; Hamd, A.; Soliman, N.K.; Ahmed, S.A. Design, characterization, and adsorption properties of Padina gymnospora/zeolite nanocomposite for congo red dye removal from wastewater. Sci. Rep. 2021, 11, 21058. [Google Scholar]
  63. Naghizadeh, A. Regeneration of Carbon Nanotubes Exhausted with Humic Acid Using Electro-Fenton Technology. Arab. J. Sci. Eng. 2016, 41, 155–161. [Google Scholar] [CrossRef]
Figure 1. Top view (A,B) FE-SEM and (C,D) TEM image of CNTs/spiral nail. The inset of (C) shows the helical shape of one CNT.
Figure 1. Top view (A,B) FE-SEM and (C,D) TEM image of CNTs/spiral nail. The inset of (C) shows the helical shape of one CNT.
Nanomaterials 12 03778 g001

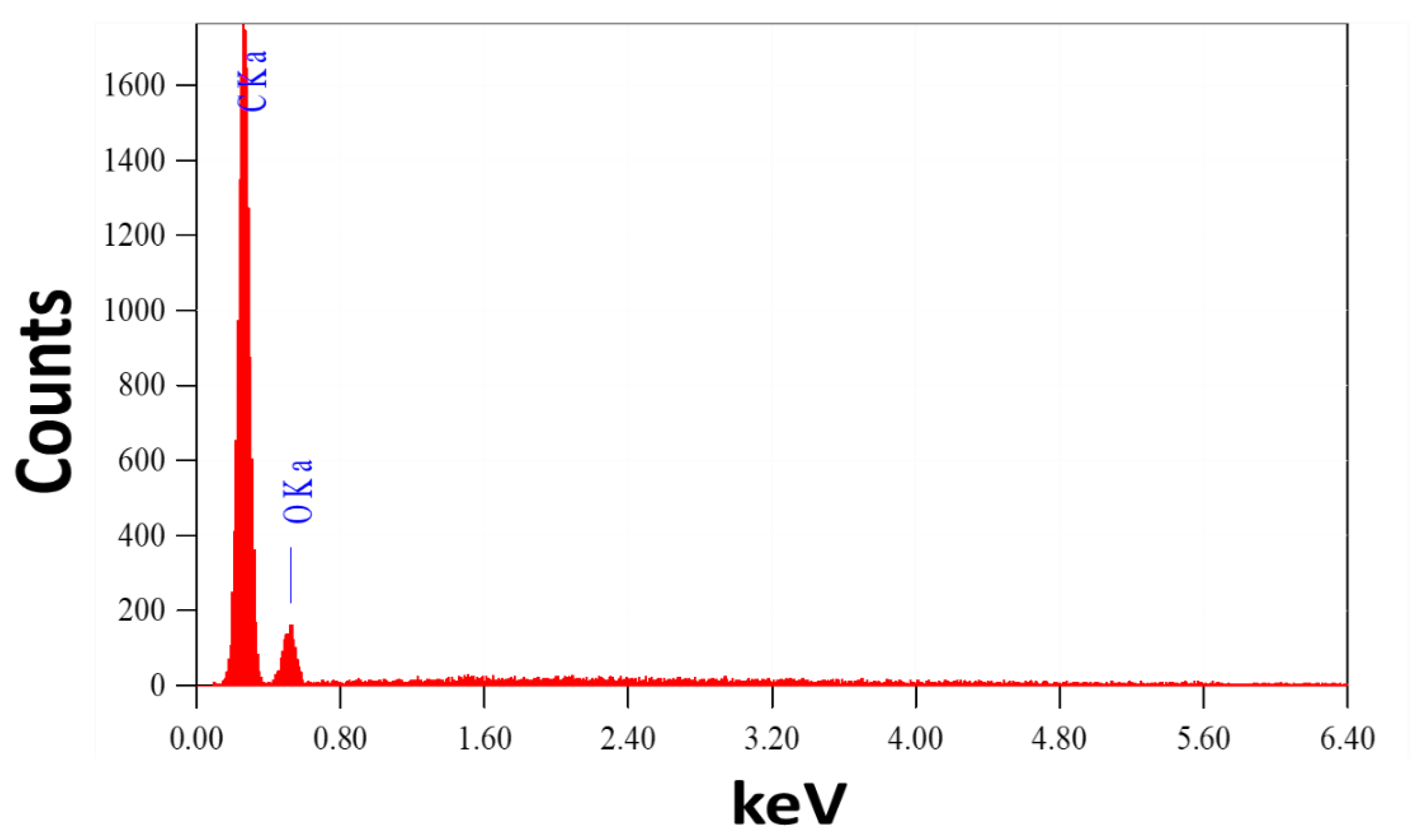

Figure 2. EDX spectrum of CNTs powder etched from the surface of the brass nail.
Figure 2. EDX spectrum of CNTs powder etched from the surface of the brass nail.
Nanomaterials 12 03778 g002

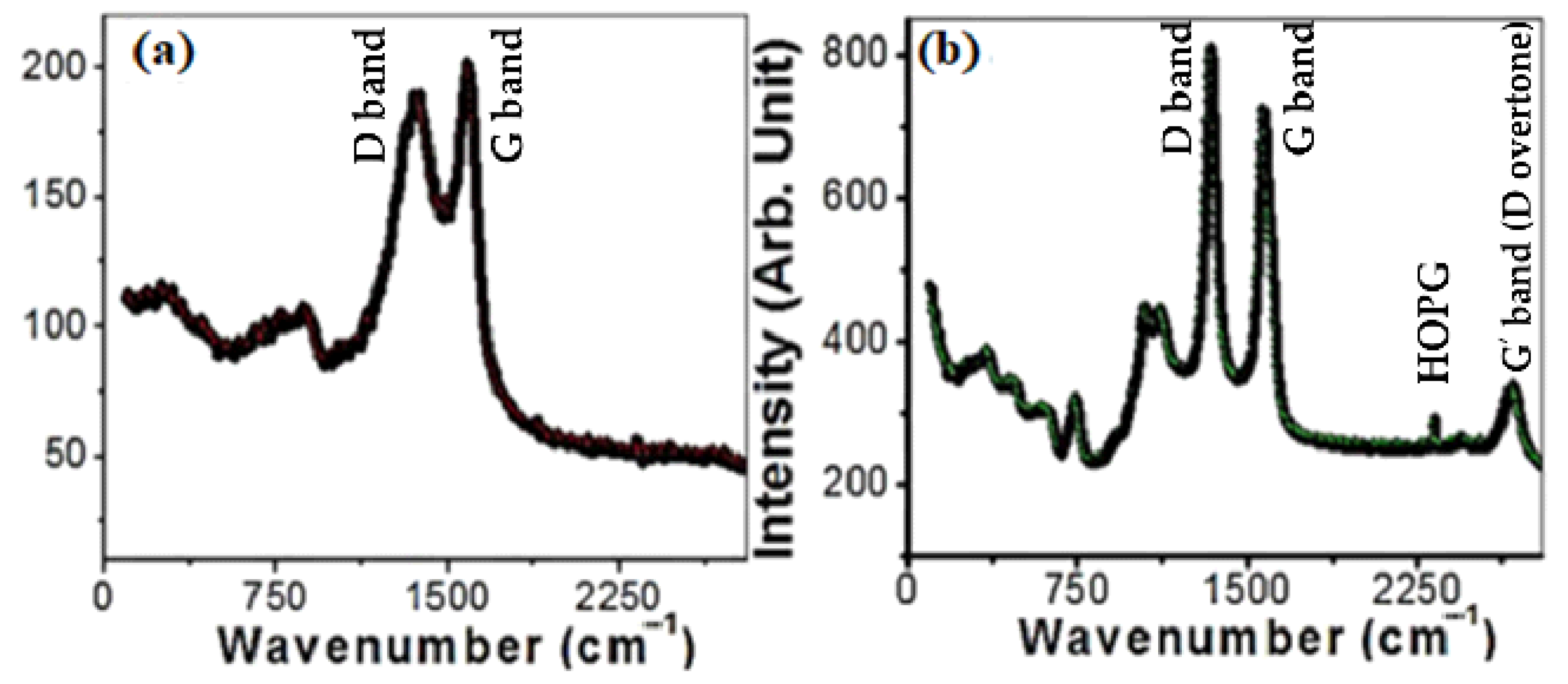

Figure 3. Raman spectra of (a) CNTs powder and (b) CNTs/ spiral nail.
Figure 3. Raman spectra of (a) CNTs powder and (b) CNTs/ spiral nail.
Nanomaterials 12 03778 g003

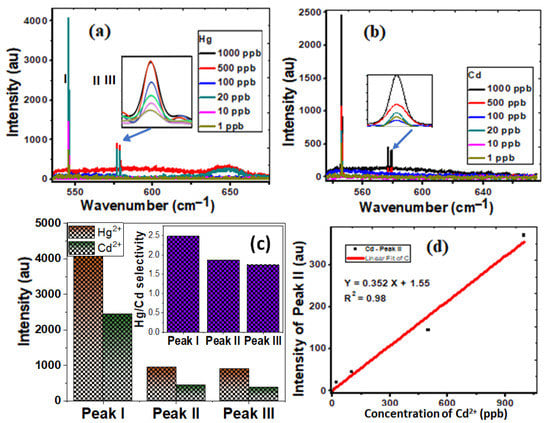

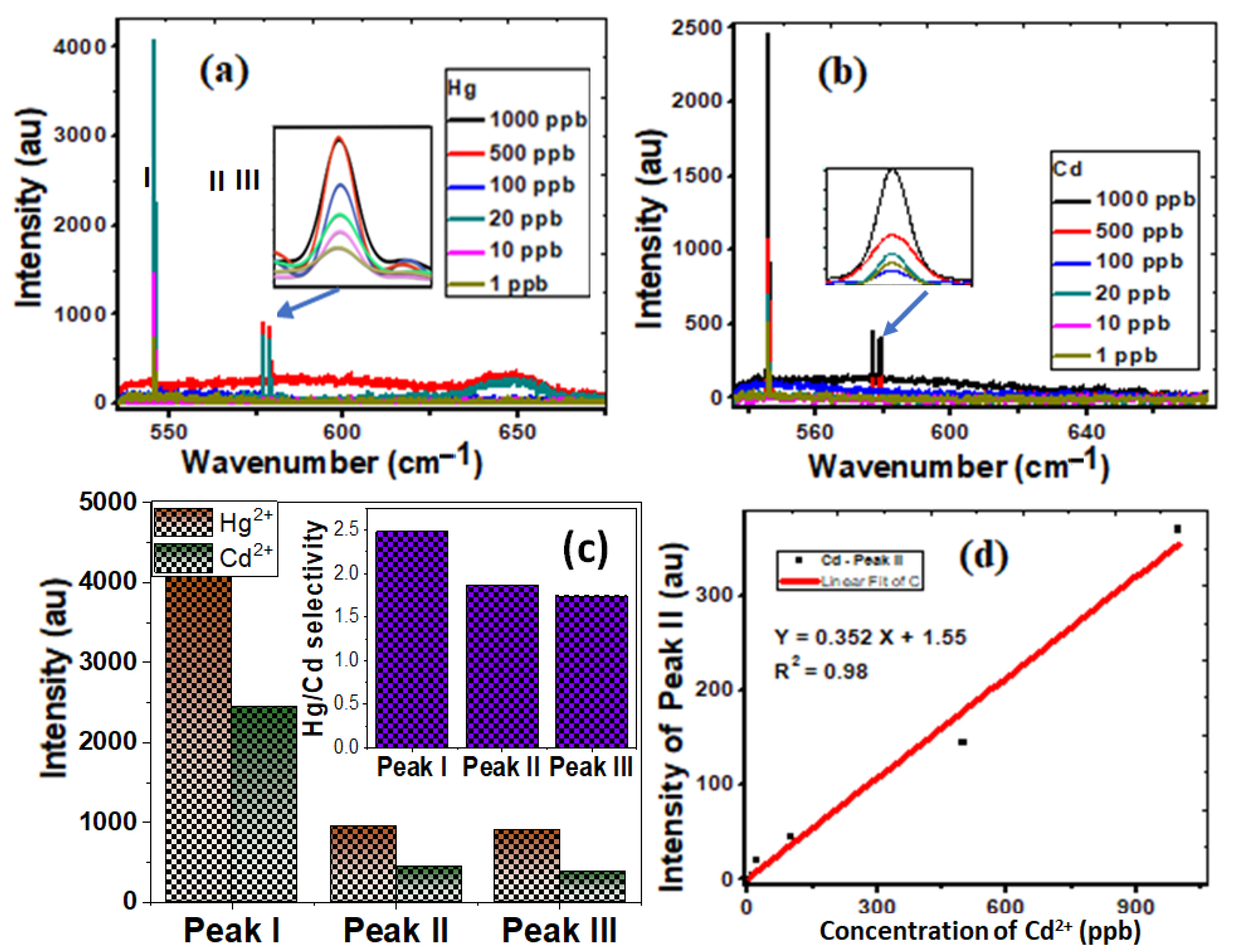

Figure 4. Demonstrating the sensitivity and selectivity of spiral CNT/brass nails uploaded with (a) Hg2+ and (b) Cd2+ of concentration 1–1000 ppb; (c) the variation of intensity of the characteristic peaks, I, II, and III, for Hg2+ and Cd2+ ions; (d) the linear variation of intensity of the characteristic peak II for Cd2+. The inset of (c) shows the selectivity of Hg2+ ions over Cd2+ ions.
Figure 4. Demonstrating the sensitivity and selectivity of spiral CNT/brass nails uploaded with (a) Hg2+ and (b) Cd2+ of concentration 1–1000 ppb; (c) the variation of intensity of the characteristic peaks, I, II, and III, for Hg2+ and Cd2+ ions; (d) the linear variation of intensity of the characteristic peak II for Cd2+. The inset of (c) shows the selectivity of Hg2+ ions over Cd2+ ions.
Nanomaterials 12 03778 g004

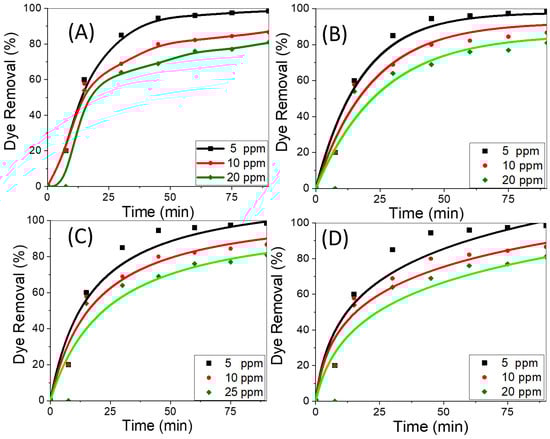

Figure 5. (A) Removal percentage versus time at different dye concentrations, (B) nonlinear pseudo-first-order, (C) nonlinear pseudo-second-order, and (D) nonlinear Elovich sorption kinetics of CR dye at 25 °C and pH 7.
Figure 5. (A) Removal percentage versus time at different dye concentrations, (B) nonlinear pseudo-first-order, (C) nonlinear pseudo-second-order, and (D) nonlinear Elovich sorption kinetics of CR dye at 25 °C and pH 7.
Nanomaterials 12 03778 g005

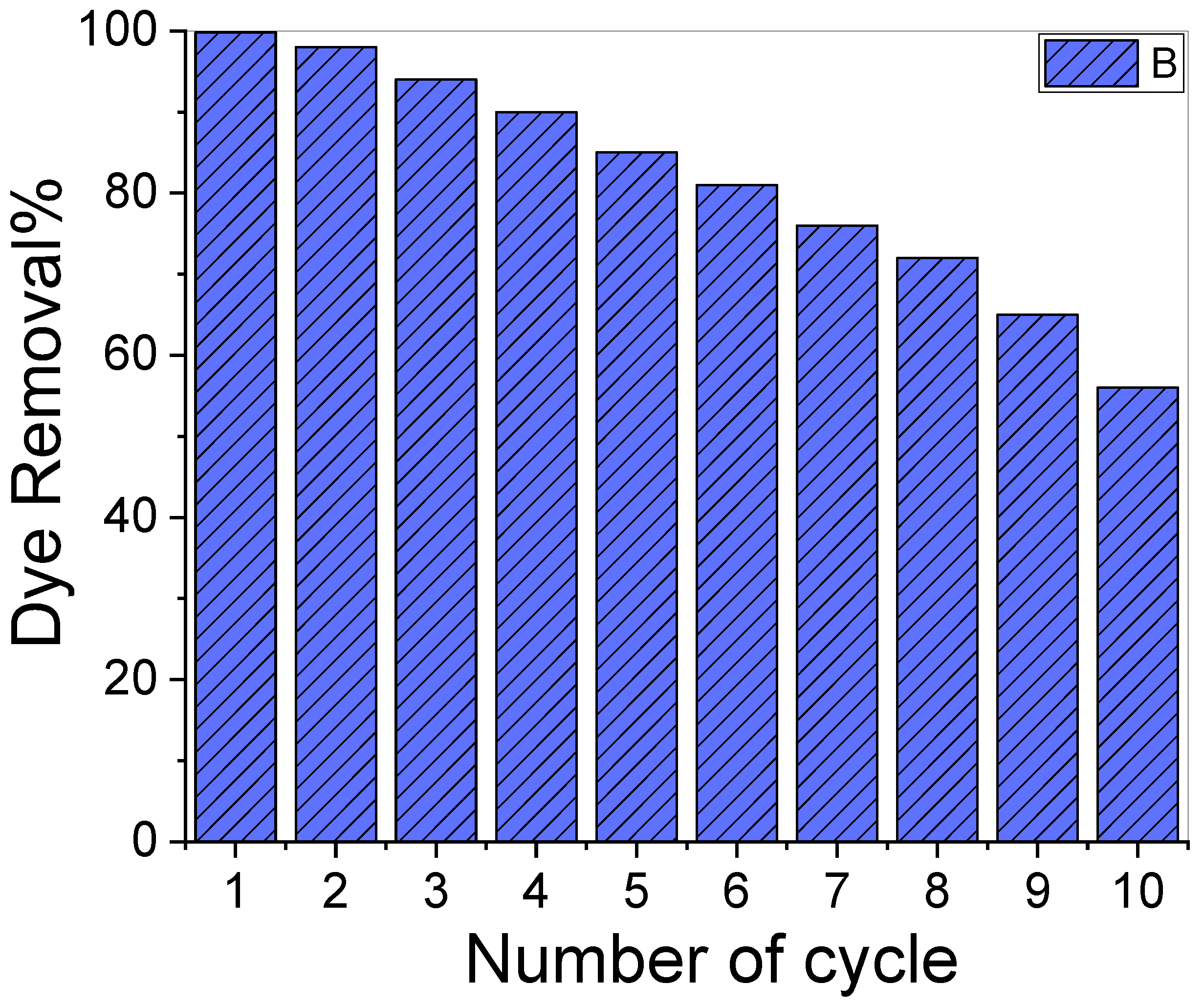

Figure 6. Reusability test of the sample for ten cycles.
Figure 6. Reusability test of the sample for ten cycles.
Nanomaterials 12 03778 g006
Table 1. Parameters of the nonlinear kinetic models for CR dye adsorption on the surface of the sample.
Table 1. Parameters of the nonlinear kinetic models for CR dye adsorption on the surface of the sample.
Pseudo-first order: Y = qe [1 − exp(−k1X)]
5 ppm Rate   constant = k 1 (min−1)0.05335 ± 0.00598
maximum amount of CR uptake = qe (mg/g)100.66688 ± 2.67081
R20.98094
10 ppm k 1 0.04689 ± 0.00559
qe92.32928 ± 2.43059
R20.97063
20 ppm k 1 0.03962 ± 0.00817
qe85.63994 ± 4.24925
R2 0.92628
Pseudo-second order: Y   = k 2 q e 2 X 1 +   k 2 q e   X
5 ppm Rate   constant = k 2 (min−1)4.91311 × 10−4 ± 1.49132 × 10−4
qe (mg/g)119.81004 ± 7.39609
R20.96082
10 ppm k 2 5.02665 × 10−4 ± 9.92576 × 10−5
qe108.36312 ± 4.08751
R20.97633
20 ppm k 2 4.03958 × 10−4 ± 1.64286 × 10−4
qe103.71385 ± 8.88065
R20.92994
Elovich Kinetic model: Y = 1 β ln ( α β X + 1 )
5 ppmAdsorption rate at 0 min = α (mg/min)11.93295 ± 5.97565
The extent of surface coverage = β (g/mg)0.03643 ± 0.00759
Correlation Coefficient = R20.92883
10 ppmα10.91733 ± 3.61829
β0.04217 ± 0.00532
R20.96147
20 ppmα6.42892 ± 3.18597
β0.03914 ± 0.00897
R20.89915
