Article

Nanostructure of Porous Si and Anodic SiO2 Surface Passivation for Improved Efficiency Porous Si Solar Cells

1
Department of Chemical Science and Engineering, Tokyo Institute of Technology, 2-12-1 Ookayama, Meguro, Tokyo 152-8552, Japan
2
Department of Mechanical Engineering, Tokyo Institute of Technology, 2-12-1 Ookayama, Meguro, Tokyo 152-8552, Japan
3
Department of Chemistry, Tokyo Institute of Technology, 2-12-1 Ookayama, Meguro, Tokyo 152-8552, Japan
4
Univ Lyon, INSA Lyon, ECL, CNRS, UCBL, CPE Lyon, INL, UMR5270, 69621 Villeurbanne, France
*
Authors to whom correspondence should be addressed.
Academic Editor: Zafar Iqbal
Nanomaterials 2021, 11(2), 459; https://doi.org/10.3390/nano11020459
Received: 30 December 2020 / Revised: 26 January 2021 / Accepted: 1 February 2021 / Published: 11 February 2021
(This article belongs to the Special Issue Nanostructured Materials for Solar Cell Applications)

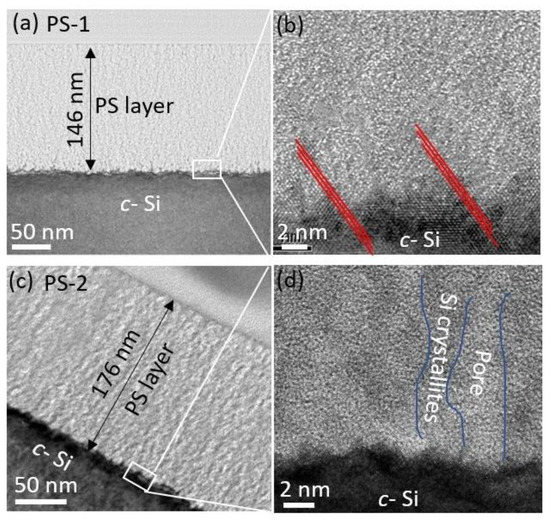

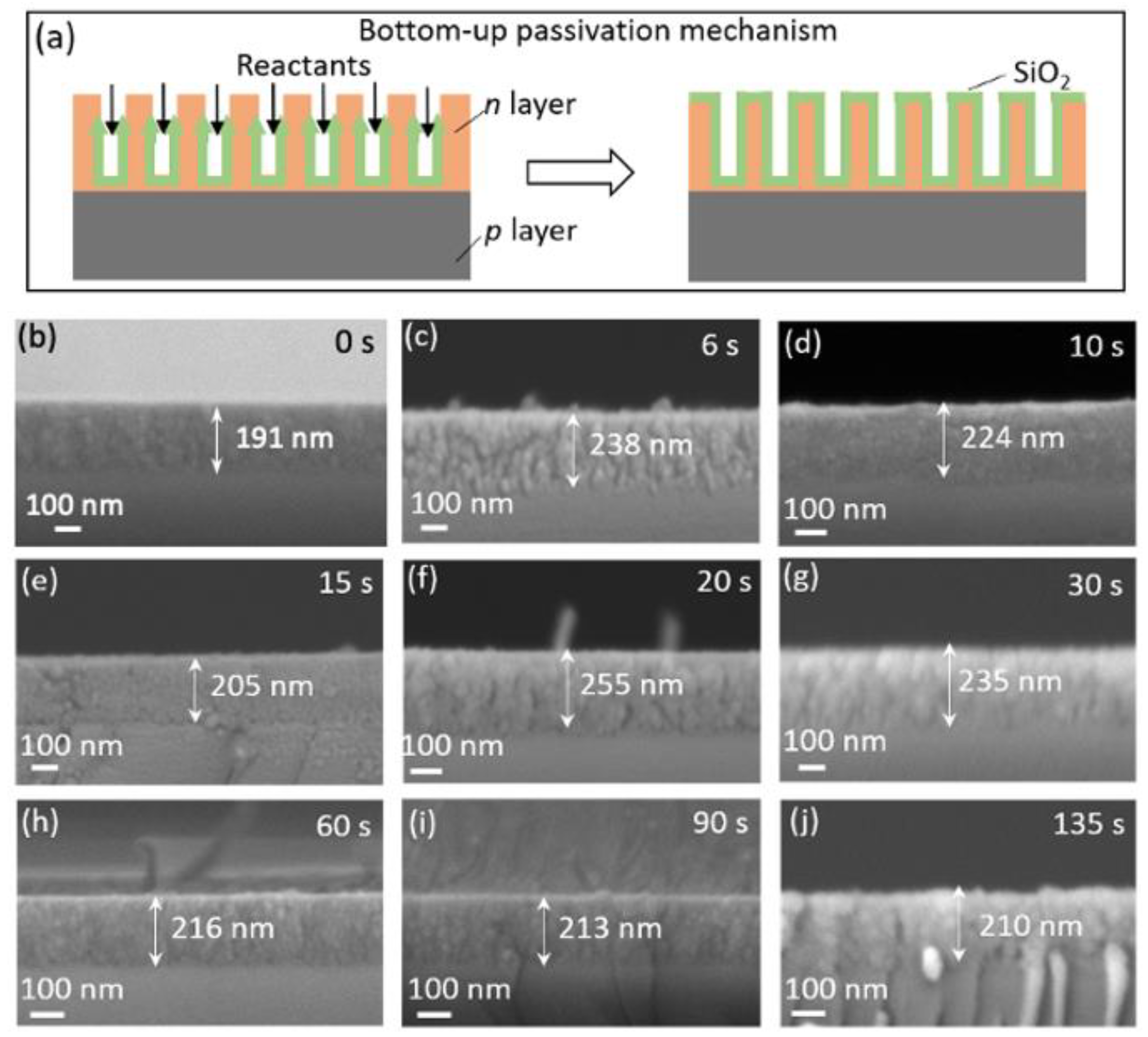

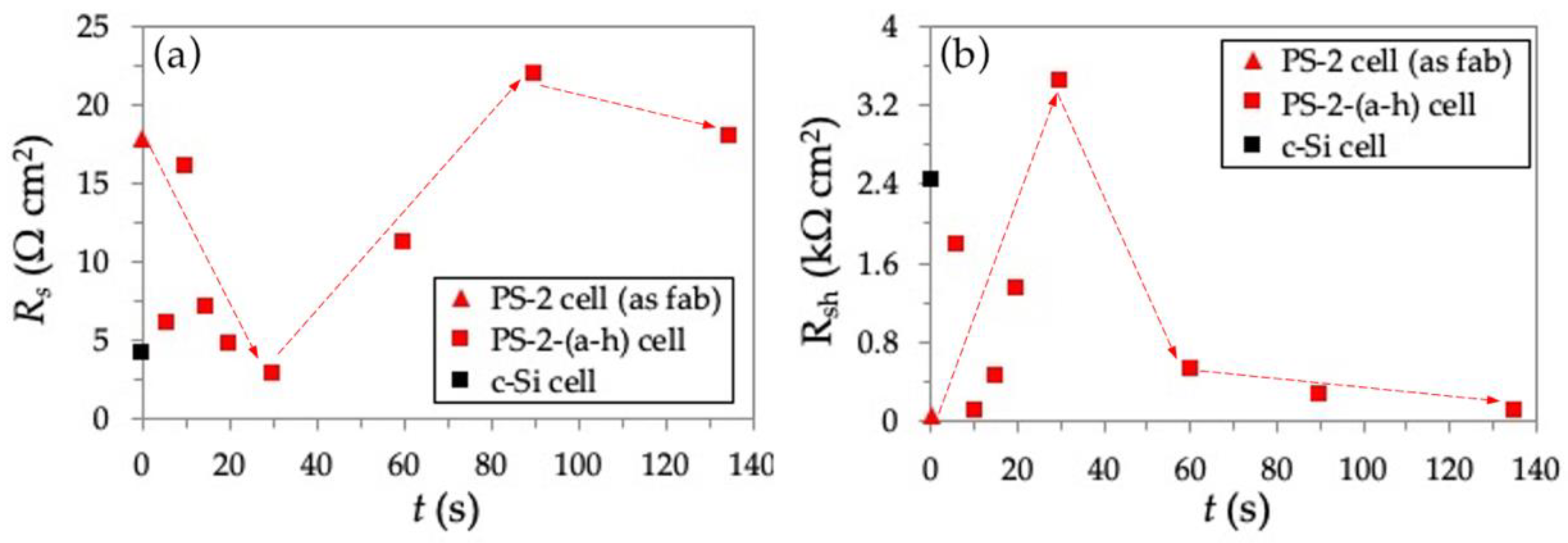

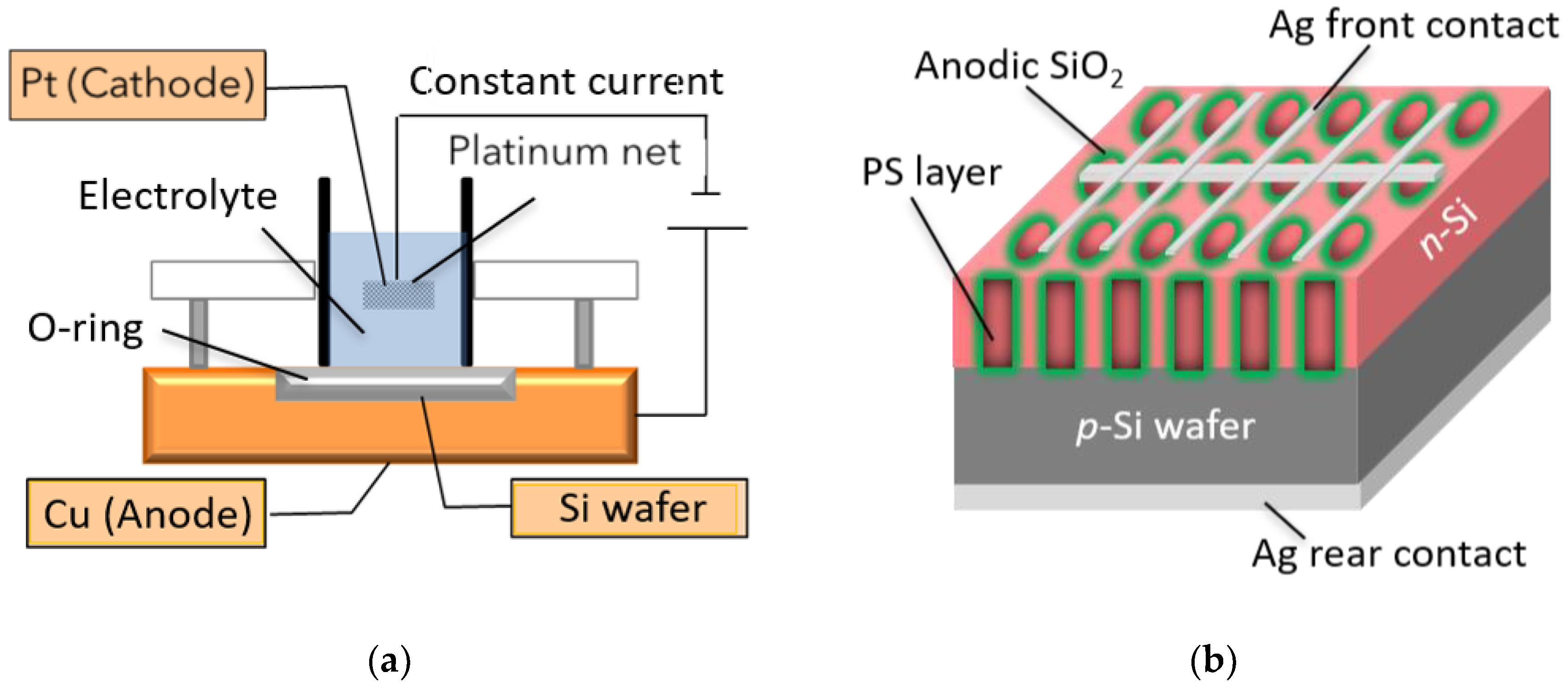

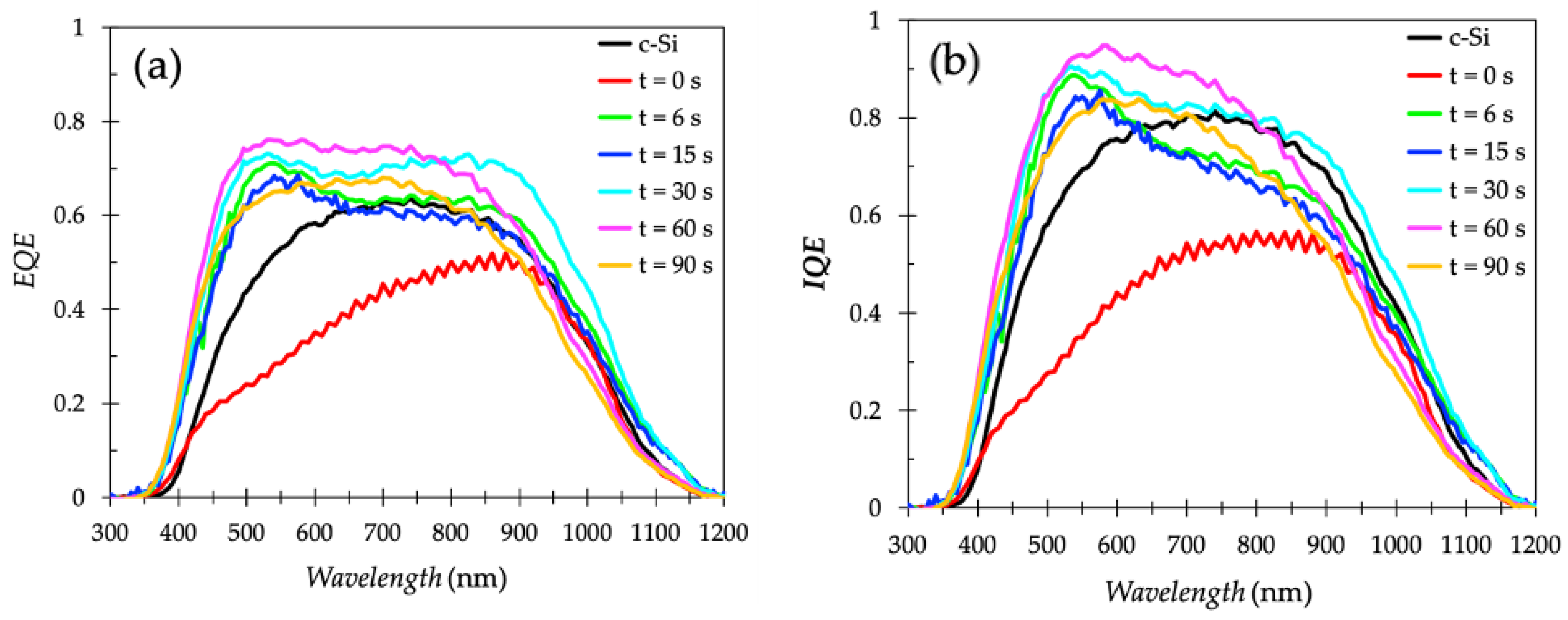

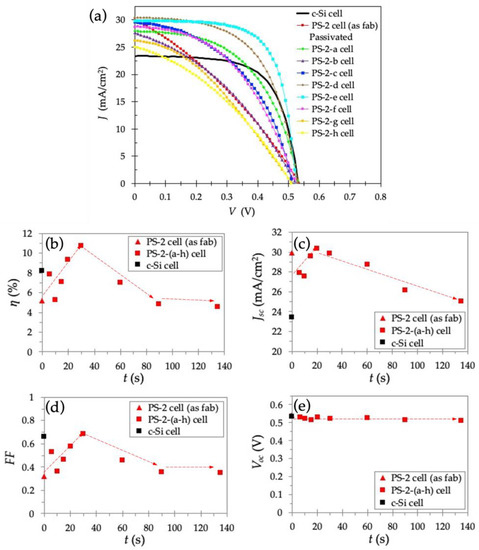

The photovoltaic effect in the anodic formation of silicon dioxide (SiO2) on porous silicon (PS) surfaces was investigated toward developing a potential passivation technique to achieve high efficiency nanostructured Si solar cells. The PS layers were prepared by electrochemical anodization in hydrofluoric acid (HF) containing electrolyte. An anodic SiO2 layer was formed on the PS surface via a bottom-up anodization mechanism in HCl/H2O solution at room temperature. The thickness of the oxide layer for surface passivation was precisely controlled by adjusting the anodizing current density and the passivation time, for optimal oxidation on the PS layer while maintaining its original nanostructure. HRTEM characterization of the microstructure of the PS layer confirms an atomic lattice matching at the PS/Si interface. The dependence of photovoltaic performance, series resistance, and shunt resistance on passivation time was examined. Due to sufficient passivation on the PS surface, a sample with anodization duration of 30 s achieved the best conversion efficiency of 10.7%. The external quantum efficiency (EQE) and internal quantum efficiency (IQE) indicate a significant decrease in reflectivity due to the PS anti-reflection property and indicate superior performance due to SiO2 surface passivation. In conclusion, the surface of PS solar cells could be successfully passivated by electrochemical anodization. View Full-Text
Keywords: solar cell; porous silicon; surface passivation; anodic oxidation solar cell; porous silicon; surface passivation; anodic oxidation
