Review

Titanium Dioxide Microscale and Macroscale Structures: A Mini-Review

1
Department of BioNano Technology, Gachon University, 1342 Seongnamdaero, Sujeong-gu, Seongnam-si, Gyeonggi-do 13120, Korea
2
Department of Beauty Design Management, Hansung University, 116 Samseongyoro-16gil, Seoul 02876, Korea
3
Korea Railroad Research Institute (KRRI), 176 Cheoldobakmulkwan-ro, Uiwang-si, Gyeonggi-do 16105, Korea
*
Authors to whom correspondence should be addressed.
Nanomaterials 2020, 10(6), 1190; https://doi.org/10.3390/nano10061190
Submission received: 27 May 2020 / Revised: 12 June 2020 / Accepted: 16 June 2020 / Published: 18 June 2020
(This article belongs to the Section Energy and Catalysis)

Abstract

:
Titanium dioxide nanoparticles (TiO2 NPs) have some limitations, such as their low surface area, high bandgap energy, and low recycling ability. To overcome these limitations, TiO2 can be prepared in microscale/macroscale structures. TiO2 microscale structures, in comparison with TiO2 nanopowder, have higher surface areas, more tunable pore structures, and better top photocatalytic activity. In contrast, for TiO2 macroscale structures, although the surface area is lower than TiO2 nanopowder in many cases, they still achieve similar or better photocatalytic performance due to their unique properties. Moreover, both TiO2 microscale and macroscale structures can be easily recovered from reaction media. The difference between these two types of TiO2 structures is a function not only of size but also of the preparation process. Every type of TiO2 structure has its own advantages and disadvantages, as will be discussed further in the following pages. Future perspectives on this research field also will be discussed.

Graphical Abstract

1. Introduction

Titanium dioxide nanoparticles (TiO2 NPs) are widely applied in various areas, such as wastewater treatment, dye-sensitized solar cells (DSSCs), lithium-ion batteries (electrodes), chemical sensing, hydrogen production, antimicrobial applications, and cosmetics [1,2,3,4]. TiO2 is an n-type semiconductor due to its oxygen deficiency [5]. It has three types of polymorphs, including tetrahedral anatase, rutile, and orthorhombic brookite. Among them, anatase TiO2 NPs have the highest photocatalytic activity due to the retardancy of the recombination of holes and electrons [6,7]. The energy bandgaps of anatase, rutile, and brookite are 3.2, 3.0, and ~3.2 eV, respectively [8,9,10]. Many studies have claimed that the combination of the anatase and rutile phases at a suitable ratio has higher photocatalytic activity than the single anatase or rutile phase [11,12,13,14,15]. TiO2 NPs can be produced via different methods, such as sol–gel, hydrothermal or solvothermal, pulsed laser deposition, chemical decomposition (CVD), chemical vapor decomposition, micelle and inverse micelle, direct oxidation, or sonochemical methods [16,17,18]. The advantages of TiO2 NPs over other photocatalytic semiconductors come from their photostability, low-cost of production, as well as chemical and biological inertness [19,20].

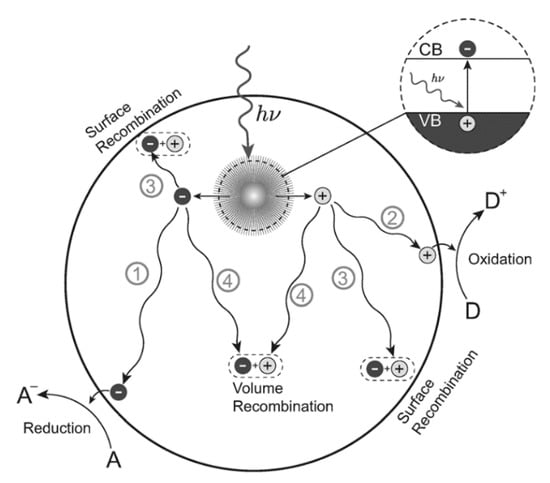

There are three basic steps in photocatalysis: light absorption, charge separation, and surface reaction [21]. When photons are irradiated by sunlight, which has an energy equal to or exceeding the optical bandgap (Eg) of a photocatalyst, the excited electron moves from the valence band to the conduction band, leaving a hole in the valence band as it does so. This phenomenon is called “charge separation”. Photogenerated electrons and holes can either recombine or react with electron donors or acceptors to produce different reactive oxygen species (ROS), such as •O2, •OH, and •OOH, which have the capacity to remove pollutants from water and air [7,22]. Among these ROS, •OH is the most powerful oxidizing species, second only to fluorine [23,24].
The photocatalytic mechanism is represented by the following chemical equations [8]:
TiO2 + hv → hvb+ + ecb
H2O + hvb+ → ●OH + H+
O2 + ecb → ●O2
●OH + pollutant → H2O + CO2
●O2 + H+ → ●OOH
●OOH + ●OOH → H2O2 + O2
●O2 + pollutant → H2O + CO2
●OOH + pollutant → H2O + CO2.
In photocatalytic reactions, the reactants are diffused and absorbed at actives sites of TiO2 NPs. Then, the products are formed on the surfaces of TiO2 NPs via the arrangement of the reactant surfaces and charge exchange between TiO2 NPs and pollutants. These products are consequently desorbed and diffused to the surrounding environment [21]. This photocatalytic mechanism is schematized in Figure 1. In addition, oxygen vacancies thus formed can function as photo-excited electron–hole pair separators, thereby enhancing photocatalytic activity [25,26]. Additionally, the formation of oxygen vacancies could lead to the creation of unpaired electrons or centers of Ti3+, which could form donor levels in the TiO2 electronic structure [27]. Defective TiO2 with oxygen vacancies could be obtained via different processes, such as hydrogen thermal treatment, high energy particle bombardment, doping of metals or non-metals, or thermal treatment under oxygen-depleted conditions [28]. Moreover, oxygen vacancies can be formed under photocatalytic reaction [29]. However, high-density oxygen vacancies can act as charge recombination centers, thus decreasing the mobility of free carriers and photocatalytic performance [30,31,32].
Besides their advantages, TiO2 NPs have three main limitations: fast recombination of electron–hole pairs, poor light-source utilization, and difficulty in recycling [34]. The limitations of the large energy bandgap and the fast recombination of electron–hole pairs can be overcome by different strategies, such as coupling with a narrower bandgap semiconductor, doping or co-doping with metal or non-metal ions, surface sensitization by metal complexes or organic dyes, deposition of noble metals, surface fluorination, and surface sulfation [35]. Another limitation is related to the low recycling utility of TiO2 NPs, which could result in secondary pollution problems [36]. TiO2 NPs’ recycling limitation can be overcome by their immobilization on different substrates [37,38]. A serious drawback of this strategy, however, is the detachment of TiO2 NPs from their carrier substrates via hydraulic blow and collision [39].
Compared with powder TiO2 NPs, TiO2 microscale structures have a higher surface area and tunable pore structure [40,41]. According to its narrower and uniform pore size distribution, TiO2 microscale structures have high surface areas and a uniform porous structure compared with powder TiO2 NPs [42]. Due to their unique properties, TiO2 microscale structures display higher catalytic activities than powder TiO2 NPs in most cases [43,44,45,46,47,48]. Beside their higher surface area and tunable pore structure, another remarkable reason is the ability to multiscatter incident light, which leads to higher light utilization and the suppression of charge separation [21]. TiO2 microscale structures are also easy to be recovered and repeatedly utilized [49]. TiO2 microscale structures such as hollow spheres offer the potential for utilization not only in environmental treatment contexts, but also in other applications, such as controlled-release capsules, artificial cells, and drug delivery [50].
In contrast, TiO2 macroscale structures mostly have a lower surface area than powder TiO2 NPs [32,51]. The sintering processes at a high temperature can explain the reduction of the surface area of TiO2 pellets [32,52,53]. However, compared to TiO2 NPs, TiO2 macroscale structures such as TiO2 porous ceramic pellets have more optical activity centers and more carriers, while the photocatalytic activity lasts for a longer time [51]. In techniques such as hot isostatic pressing (HIPing), the contamination of carbon could lower the bandgap and increase the photocatalytic performance [1]. In addition, TiO2 macroscale structures are easy to recover from the media due to big size. In the case of TiO2 floating structures, the photocatalytic activity is higher than the powder form [54]. One remarkable reason is their ease in directing exposure to light sources [34,54].

2. TiO2 Microscale Structures

2.1. TiO2 Solid Microscale Structures

TiO2 solid spheres can be synthesized via various methods, such as through addition of surfactants, hydrothermally, spray-drying, freeze-drying, templating, or just by modifying the order of reactant addition.
Different ionic and non-ionic surfactants have been used to synthesize mesoporous materials [55]. Wang et al. (2000) synthesized mesoporous TiO2 spheres via the slow hydrolysis of titanium alkoxide with neutral surfactant dodecylamine as a template under the condition of environmental humidity. They suggested that the surfactant takes on more important roles in the formation of the mesoporous structure than in the formation of spherical morphologies. In contrast, under low concentrations of titanium tetraisopropoxide Ti(OPr)4, the spherical shapes of TiO2 are more favorable in the reaction system. The template was removed by diluting 0.3 g of sample in a mixture of ethanol (40 mL) and HCl (1 mL). The presence of an acidified ethanol extraction process is necessary. The obtained TiO2 mesoporous spheres had a spherical form and smooth surfaces. The sizes of obtained materials ranged from hundreds of nanometers up to several micrometers, with Brunauer–Emmett–Teller (BET) surface areas of 115 m2/g, specific pore volume of 0.19 cm3/g, and an average pore diameter of 5.4 nm. They found that static treatment is critical and that the synthesis of TiO2 materials by stirring or dropping water results in particles lacking specific shape [56].
However, TiO2 spheres can also be obtained without the use of surfactants or templates. Zhang et al. (2005) prepared both solid TiO2 spheres (200–300 nm) and hollow TiO2 spheres (200–500 nm) simply by changing the order of reactant addition. In their preparation of TiO2 solid spheres, titanium butoxide (TB, 6 mL) was dissolved in absolute ethanol (40 mL). Then, citric acid (0.0015 mol), distilled (DI) water (2 mL), and NH3●H2O (20 mL) were successively added to the above solution. The solution was stirred for several hours and left to stand overnight. Subsequently, the white precipitate was filtered, washed with DI water and ethanol, and dried at 60 °C for 8 h. Lastly, the powder was sintered at 500 °C for 4 h. As for the mesoporous TiO2 hollow spheres, citric acid (0.0015 mol) was first dissolved in ethanol solution (40 mL) and DI water (2 mL). Afterward, NH3●H2O (10 mL) was added to the mixture solution to form and grow ammonium citrate crystals. Lastly, TB (6 mL) and ammonium (10 mL) were added to the mixture solution at the same time. The dipping rate for ammonia is about two times that of TB. The following steps were the same for both solid and hollow TiO2 spheres. After the calcination process, the spheres were composed of small particles (7 nm) and formed mesoporous structures (a disordered wormhole framework) that could not be seen before calcination. Zhang et al. (2005) explained that ammonium citrate plays an important role in mesoporous sphere formation, in that mesoporous TiO2 solid or hollow sphere formation is highly influenced by the extent of TiO2 condensation that exists at the beginning of ammonium citrate crystal growth. Therefore, they fabricated mesoporous solid spheres simultaneously with the TiO2 condensation process and the formation of ammonium citrate crystals. In contrast, mesoporous hollow spheres were formed in the presence of ammonium citrate crystal growth and the TiO2 condensation process, in order (Figure 2). Additionally, both the TiO2 solid and hollow spheres had a mesoporous structure with average pore sizes of 6.8 and 7.0 nm; and average BET surface areas of 162 and 90 m2/g, respectively. The bandgap energy values of the TiO2 solid and hollow spheres were 3.68 and 3.75 eV, respectively [50].
The pulsed laser ablation in liquid (PLAL) technique is easy, fast, and eco-friendly. Balati et al. (2019) recently applied the PLAL technique to prepare black titanium dioxide with a TiO2 rutile microsphere as the core and hydrogenated anatase TiO2 as the outer layer. The pristine anatase TiO2 was added into DI water and irradiated with the laser ablation for 5–120 min. The maximum particle size growth was obtained when the sample was irradiated for 120 min. The photocatalytic reaction showed that 99% of methylene blue (MB) was removed after 60 min under visible light irradiation. The enhancement of visible light absorption and the increase of charge carrier lifetime according to the formation of different types of heterojunctions could be explained by the high photocatalytic performances. In addition, the hydroxyl radical (●OH) was proven to act as the main active species in the photocatalytic reaction [57].
TiO2 NPs can also be packed into granule form by using the spray-drying method. In spray-drying, a hot gas is used to rapidly dry a NP suspension. Afterward, a spray nozzle is applied to distribute the slurry into a controlled drop-size spray. Vicent et al. (2011) used spray-drying techniques to prepare TiO2 granules from a P25 nanopowder suspension. The nanosuspension was stabilized by a polyacrylic acid (PAA)-based polyelectrolyte and an ultrasound probe (5 min) was used to increase the solid loading up to 30 vol.%. The obtained granules were spherical and of ~60 µm size and 1335 kg/m3 density [58]. Faure et al. (2010) used the spray-drying technique to prepare redispersible granules with a size between 20 and 50 μm from TiO2 NPs. Interestingly, the granules could be converted to TiO2 NPs with a size distribution similar to TiO2 powder by ultrasonication [59]. Pal et al. (2014) also used a spray-drying method to prepare TiO2 microspheres with a diameter of 2 to 10 μm from a hydrothermally cured aqueous suspension of TiO2 nanoparticles. The obtained TiO2 microspheres had both anatase and rutile phases. It was shown that the rutile fraction increases with annealing temperature and dominates anatase when the annealing temperature was over 500 °C. Compare with TiO2 powder, TiO2 microspheres showed higher photocatalytic activity towards rhodamine B (RhB), MB, and methyl orange (MO). TiO2 microspheres obtained with an annealing temperature of 400 °C showed the highest degradation efficiency [60].
Vicent et al. (2012) compared TiO2 granules prepared by freeze-drying and spray-drying. In their study, various parameters such as temperature, pressure, nozzle diameter, and solid loading were evaluated for both methods. They found that only the solids contents of the suspension influenced the morphology and characteristics of dried granules. There were some differences between the TiO2 granules prepared from freeze-drying and spray-drying. The TiO2 granules from spray-drying had a monomodal distribution with a higher granule size, while those from freeze-drying were more porous, with a bimodal intragranular distribution. Thus, the TiO2 granules obtained from spray-drying displayed better flowability (in terms of the Hausner ratio), while those from freeze-drying were softer and of higher porosity [61].
Another popular means of TiO2 sphere preparation is the hydrothermal or solvothermal method. Du et al. (2011) prepared TiO2 microspheres using the hydrothermal method under different temperatures (140, 160, 180, and 200 °C) and times (0.5, 2, 24, and 36 h). The temperature condition affected the morphology of the obtained TiO2 microspheres. At 140 °C, the microspheres were formed with a diameter of about 1–2 µm. When the temperature was increased to 160 °C, the inhomogeneous microspheres were obtained with the largest diameter (~3 µm). At 180 °C, well-defined porous microspheres were obtained and only small ratios of irregular particles could be observed. However, with continued increase of temperature, more irregular particles were seen. The BET surface area of the TiO2 prepared at 180 °C was five times larger than that of P25 (265.4 m2/g vs. 50 m2/g). The optimal reaction time was around 24 h, while the increase of temperature led eventually to the destruction of microsphere structures. The apparent Oswald ripening could be attributed to the formation of the TiO2 microspheres. In an air purification application, the optimal TiO2 microspheres (temperature: 180 °C, time: 24 h) could covert 90% of benzene to CO2 and H2O after 50 min. In contrast, the removal efficiency for P25 was only 45% under the sample photocatalytic reaction conditions. In addition, having seen no color change on the surfaces of the TiO2 microspheres, the authors concluded that the intermediate products had been completely removed from the environment [42].
Mesoporous TiO2 spheres can be synthesized via hydrothermal methods with sodium salicylate as a template, as was accomplished in a previous study [16]. The as-synthesized TiO2 was composed of tiny TiO2 NPs (12–20 nm). With the entrapping of the photosensitizer inside the mesoporous materials, the obtained TiO2 spheres had photocatalytic activity under the irradiation of visible light. Regarding the formation mechanism of TiO2 microscale structures via electrostatic interaction, positively charged TiO2 NPs could react with negative carboxylate groups of sodium salicylate. The presence of the ortho phenolic-OH group in the salicylate molecule formed a supramolecular assembly among the ligated salicylate moieties under mildly acidic synthesis conditions via hydrogen bonding and hydrophobic interactions. This resulted in the formation of the cage-like structure inside the TiO2 nanocrystals. During the calcination process, the template moieties were removed and mesoporous TiO2 spheres were formed [16].
Solvothermal synthesis is similar to the hydrothermal methods, but the precursor solution is non-aqueous. Mun et al. (2017) synthesized TiO2 spheres by solvothermal methods at different temperatures. They observed that the mixed anatase and rutile spheres were collected at 800 °C. At higher temperatures (≥900 °C), the anatase was transferred to the rutile phase. Such spheres have been applied to produce white-light-emitting diodes (WLEDs) with 43.6% higher light extraction efficiency than WLED combinations of commercial YAG:Ce3+ and blue LED chips [62].
Recently, Pulido Melian et al. (2019) used the sol–gel method to synthesize TiO2 microspheres. In their study, TiO2 microspheres were prepared by hydrolysis and condensation processes from TB precursor and calcinated at 150 °C for 24 h, 400 °C for 1 h, and 630 °C for 1 h. TiO2 microspheres calcinated at 150 °C had a diameter of 1.25 μm, while both TiO2 microspheres calcinated at 400 °C and 630 °C had a diameter of 1.75 μm. TiO2 microspheres were then decorated with Au or Pt particles by photodeposition. They found that TiO2 microspheres calcinated at 400 °C and modified with Pt (0.27 wt%) showed the highest production rate of hydrogen (2121 μmol/h) [41].
Besides pure TiO2 solid microscale structures, composite TiO2 solid microscale structures have been tested. For example, carbon dots (CDs) have been applied to prepare TiO2 microscale structures due to their good photoelectric properties [63]. Hydroxyl groups and carboxyl groups are formed on the surfaces of CDs that have high water solubility and suitable chemical reactivity [64,65]. By modification of surface groups, the fluorescent properties of such CDs can be controlled [66,67]. In the study by Zhang et al. (2018), CDs were coupled with TiO2 mesocrystals (CDs/MT), where CDs took the role of both electron collectors and active sites (Figure 3). The 0.75 wt% CDs/MT displayed 5.4 times higher activity than the pure TiO2 mesocrystals. The loading of CDs did not affect the morphology of the TiO2 mesocrystals. The CDs/MT of 0.75 wt% retained 60% of its photocatalytic performance after ten cycles, whereas the pure TiO2 mesocrystals retained only 3% of its photocatalytic performance after five cycles. The 0.75 wt% CDs/MT composite had higher durability and stability due to its positive surface, which is an advantage of the removal of Cr(III) cation through the photocatalytic reaction. The reason for the decrease of photocatalytic performance after only a few cycles could be explained by the coverage of the active surface sites by photocatalytic reduction products (Cr(III)). Additionally, with the increase of the amount of CDs, the BET, pore volume (Vp), and pore diameter of the TiO2 microscale structures were slightly reduced. Therefore, the coupling of CDs may cause blockage of pores in TiO2 mesocrystals. The positive charges on the CD/MT surface play a role in the selective adsorption of Cr(VI) and rapid desorption of Cr(III), thus improving the photocatalytic reduction of Cr(VI) and the retention of photoreduction activity. The pure TiO2 mesocrystals had a Cr(VI)/Cr(III) adsorption capacity ratio of 7.1, while that for the 0.75 wt% CDs/MT composite was 15. Additionally, the existence of CDs on TiO2 mesocrystals accelerated the separation of the photogenerated charge. At a pH of 3.0, the 0.75 wt% CDs/MT sample had a zeta-potential of +34.6 mV, higher than the +24.6 mV of the pure TiO2 mesocrystals. However, the zeta potential was significantly decreased at the pH of 5.0 to ~ + 8.2 mV for the 0.75 wt% CDs/MT sample, and to +20.5 mV for the pure TiO2 mesocrystals samples. Due to this reduction, the 0.75 wt% CDs/MT sample achieved only 65% photoreduction activity as compared to the pure TiO2 mesocrystals at the same pH value (5.0) [63].
In addition, TiO2 NPs have been coated onto different polymers to form TiO2 microscale structures. According to Singh et al. (2013), the advantages of polymer-support TiO2 come from the maximal light-utilization efficiency, economic advantages, high degradation efficiency, and easy recovery after photocatalytic reaction [68].
Fabiyi et al. (2000) used a simple thermal treatment method to coat P25 onto expanded polystyrene (PS) for methylene blue (MB) photodegradation. Under thermal treatment (~150 °C), the polystyrene could be expanded 2–4 times larger than its original size, thus lowering its density (from ~0.9 g/cm3 to ~0.62 g/cm3). These TiO2/PS beads could be used to remove MB from an aqueous solution for ten consecutive cycles with a removal efficiency reduced by only about 30%, thus confirming their reuse ability. However, the limitation of this study was the lack of visible light activation of the resulting TiO2 microscale structures [37].
In the study by Magalhaes et al. (2009), 18 wt% TiO2 was permanently coated onto expanded polystyrene (EPS). A PS solution (10 wt%) in ethyl acetate (EA) was sprayed onto the EPS particles (1 g, 2–4 mm) and TiO2 (1 g) was immediately dispersed onto the PS/EA surface. The EA was removed after drying at 80 °C for 1 h and the TiO2 particles were immobilized on the EPS surface by a rigid PS layer. This floating TiO2/EPS was used for four consecutive cycles without any significant reduction in dye removal efficiency. Interestingly, the total organic carbon (TOC) removal efficiencies even increased after the first cycle. These authors explained that the enhancement of the TOC removal efficiencies could have come from the “aging” process of the catalysts, whereby in the second cycle the catalyst was wetter and had better interaction with the aqueous surface. The TiO2 was strongly grafted and could not be removed from the surface of the EPS after 1 h of vigorous stirring in water. However, the surface area of the TiO2/EPS (4 m2/g) was lower than the P25 powder (45 m2/g). Even though TiO2/EPS had a lower surface area, it was better than the P25 powder in the photocatalytic test. This could be explained by the precipitation of the P25 powder to the bottom of the reactor, which could not be irradiated by ultraviolet (UV) or solar light. Infrared (IR) spectroscopy analysis also confirmed that the EPS surfaces had not been attacked by the generated ROS during photocatalytic degradation [69].

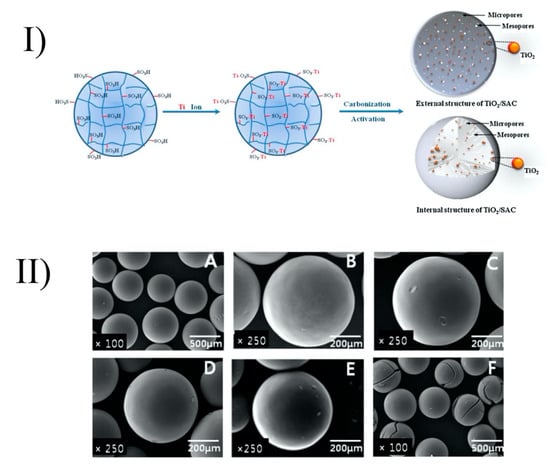

Baek et al. (2013) prepared TiO2-activated carbon spheres (TiO2-SAC) by coating of TiO2 onto strong acid ion exchange resin (Diaon SK1BH) (Figure 4). However, with the high activation temperature (900 °C), the peaks of rutile were shown in a powder X-ray diffraction (XRD) analysis. The anatase crystallite size of the TiO2-SAC decreased with increasing activation time. Activation time increased the specific surface area and enhanced the porosity. Thus, TiO2-SAC with activation times of 6 and 9 h (which are mesoporous spheres) showed adsorption towards humic acid and the best photocatalytic performance. The TiO2-SAC with an activation time of 9 h had the same photocatalytic ability as TiO2-SAC with an activation time of 6 h, even though it had the highest titanium content (10 wt%) and the largest specific surface area (1427 m2/g) and total pore volume (1.2 cm3/g). This phenomenon could be explained by the former’s higher proportions of the rutile phase, as mentioned above. From the inductively coupled plasma optical emission spectroscopy (ICP-OES) analysis, the leaching of titanium into the environment after the photocatalytic reaction was negligible. The TiO2-SAC spheres exhibited recycling abilities with only a small decrease (~13%) of removal efficiency in the following cycles. By using the exchange method and activation process, TiO2 can be immobilized onto ion exchange resin without any binder and can maintain a smooth surface (Figure 4) [70].
Floating structures have some advantages, such as the ability to receive sufficient light energy to produce free radicals [71]. In order to create floating structures, one strategy is the immobilization of TiO2 NPs onto different substrates, such as hollow glass beads, exfoliated vermiculite, or EPS beads [69,71,72,73]. In addition, floating photocatalytic composite structures can be prepared by injection of lipid (sunflower oil or liquefied cocoa butter) into the TiO2 suspension to control the size of emulsion via the membrane emulsification process. TiO2 microscale structures have diameters ranging from 80 to 300 μm. In a previous study, the photocatalytic activity of floating structures was enhanced by the introduction of silver particles. The composite particles based on cocoa butter were shown to be more robust and were not affected by the consequences of the UV photocatalytic reaction. Through the combination of cocoa butter and hexane, the obtained composites floating structures contained 36 mg of TiO2 per gram of particle. Interestingly, optimal dye decomposition was achieved with a particle surface coverage of between 60 and 80%. Complete surface coverage affected a reduction in photocatalytic activity due to the reflection of UV light [74].
High-speed granulation can be used to convert powder of nanoparticles into micrometer- or millimeter-sized granules. Goedecke et al. (2017) immobilized TiO2 NPs on the surface of SiO2 granules using a high shear granulation process with nanozirconia used as the inorganic binder. TiO2-coated granules tempered at 300 °C displayed high stability in an aqueous solution up to several hours. The structure with SiO2 as the core and TiO2 at the outer layer was confirmed by energy-dispersive X-ray spectroscopy (EDX). From SEM images, the thickness of the TiO2 layer was around 5–10 μm. Interestingly, the smaller fraction (250–500 μm) with the higher surface area displayed lower photocatalytic activity against MB than the coarse fraction (500–1000 μm). The uneven structure of the TiO2 layer in the smaller fraction granules explained these results. The photocatalytic of TiO2-coated granules remained nearly the same after recycling by washing with ultrapure water and drying [75].
Al2O3 is a good substrate to coat with TiO2 to form TiO2/Al2O3 structures [76,77]. For example, Xu et al. (2009) prepared TiO2/Al2O3 microspheres using the sol–spray–calcination method. Briefly, powder TiO2 NPs (Degussa P25) were mixed with the Al2O3 powder in a TiO2/Al2O3 molar ratio of 50:1. Then, a spray layer was used to produce microspheres. The TiO2/Al2O3 microspheres, therefore, were calcined at 500 °C for 3 h. The obtained TiO2/Al2O3 microspheres had a diameter in the range of 20–100 μm with a surface area of 33.86 m2/g. The TiO2/Al2O3 microspheres showed good photocatalytic activity, whereby 80% of humic acid (HA) was degraded after 140 min. The photocatalytic activity of TiO2/Al2O3 microspheres remained at around 70% after 20 cycles of reuse [77].
TiO2 could also be coated on the porous activated carbon (AC) to form TiO2/AC photocatalysts. Arana et al. (2004) coated TiO2 NPs on the surface of activated carbon (AC) by mixing and stirring with activated carbon (7% w/w) for 1 h. The obtained TiO2/AC had a diameter of 6 μm. Compared with bareTiO2, TiO2/AC photocatalysts displayed almost no deactivation in any degradation experiments against gas-phase alcohols (methanol, ethanol, 1-propanol, and 1-butanol) [78]. In addition, Ouzzine et al. (2014) used a sol–gel method to coat TiO2 on the surface of spherical AC. The advantages of spherical activated carbon compared to the powdered and the granular activated carbon come from its smoother surface, better fluidity, and higher mechanical strength. The oxidation treatment at low temperatures is enough to obtain the TiO2/AC with high photocatalytic activity against propene at low concentration [79].

2.2. TiO2 Hollow Microscale Structures

TiO2 with hollow structures has many advantages, such as improved light scattering and slow photon effects, charge combination suppression, as well as a large number of reactive sites on the surfaces of the shells [21]. A solid structure with an empty side inside a distinct shell can be defined as a “hollow nanostructure”. According to Xiao et al. (2018), hollow-nanostructure TiO2 has enhanced photocatalytic activities due to the improvement of the harvesting of light energy via light scattering and slow photon effects, the suppression of charge separation by the decrease of charge transfer distance and separation of charge carriers, and the promotion of surface reactions due to a large accessible surface area [21].

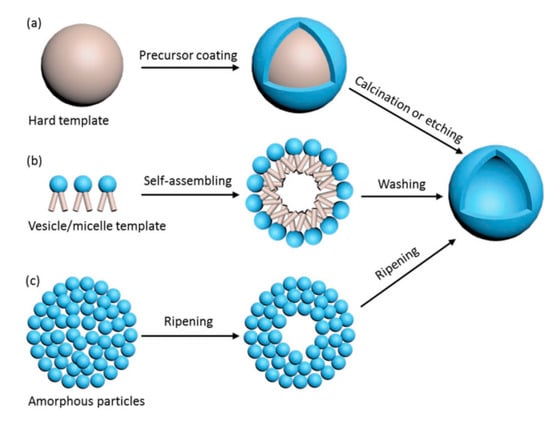

There are different ways to synthesize TiO2 hollow sphere structures: the template-free method, the self-templating method, the soft-templating method, and the hard-templating method (Figure 5) [21]. The details of these synthesis methods, as well as the advantages and disadvantages of TiO2 hollow nanostructures, can be found in the outstanding review of Xiao et al. (2018) [21]. In the present review, we introduce only some remarkable examples of the preparation of hollow structures.
Briefly, in the hard-templating methods, the TiO2 precursor is coated outside the rigid template and the hollow structure is obtained after the calcination or etching process (Figure 5a). The limitation of these methods is due to the complexity of the template removal process (requiring calcination at high temperature or etching in alkaline and acid solutions) [21]. In soft-templating methods, the formation of hollow nanostructures is achieved via the difference of surface tension at the interfaces, such as water–oil or liquid–gas interfaces (Figure 5b). In most of these cases, removal of the soft template is not required. The limitations of the soft-templating methods derive from the lesser controllability of the shape, the shell thickness, and the size uniformity of the final products [21].
In contrast to the two above-noted synthesis strategies, the self-templating method has attracted interest due to its lower production cost and feasibility for scaling up to the industrial scale. Ostwald ripening is attributed in some papers to the mechanism of the growth of TiO2 spheres and hollow spheres [80,81]. Ostwald ripening is a thermodynamic process that is tailored by the differences in Gibbs energy (∆G) between the high G of the precursor and the low G of the resultant hollow nanostructure. A hollow nanostructure can be achieved by the formation of the shell, which is composed of large particles, while the core is left vacant (Figure 5c). Other remarkable principles entailed in the self-templating of hollow spheres are the Kirkendall effect, galvanic replacement, and surface-protected etching [82,83,84].
Similarly to the case of TiO2 spheres, the hydrothermal technique can be used to prepare TiO2 hollow spheres via the self-templating approach. According to Yang et al. (2004), there are two basic types of hollow spheres: type (i) and type (ii) (Figure 6) [80].

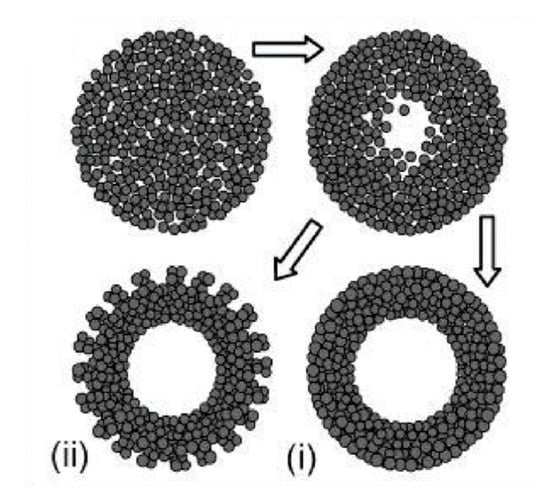

Yang et al. (2004) prepared hollow anatase TiO2 spheres via Oswald ripening under hydrothermal conditions. TiO2 was prepared with titanium tetrafluoride (TiF4) as a precursor and the hydrothermal process was operated at 140–220 °C for 1.5–100 h. They observed that when the reaction time is short TiO2 spheres have a solid core, and that hollow spheres are observed when the reaction time is prolonged. The high concentration of TiF4 imparts a thicker shell due to the higher growth rate. Additionally, different additives have different effects on the growth of a hollow structure. For example, while thiourea can accelerate the hollowing process, the effect of urea is negligible. This can be explained by the difference of chelating abilities between: S = C and :O = C with respect to the titanium cations, as well as the difference in the chemical natures of their hydrolysis products. The obtained TiO2 hollow structure has a diameter in the range of 30–50 nm and lengths in the range of 150–250 nm. With 30 mL of TiF4 at 180 °C for 50 h of reaction time the TiO2 nanosphere type (i) can be obtained, while the TiO2 nanosphere type (ii) can be obtained with TiF4 (30 mL) + thiourea (10 mg) at 180 °C for 10 h. Yang et al. (2004) also concluded that a suitable temperature should be ≥ 160 °C. To obtain hollow TiO2 spheres, when the temperature reaches 220 °C, the reaction time can be reduced to 5 h [80]. Kang (2012) prepared mesoporous TiO2 hollow spheres with titanium butoxide (TB) as a precursor via a solvothermal process without the use of any templates or surfactants. The obtained hollow spheres had a specific surface area of 141 m2/g, a diameter of 700 nm, and a shell thickness of 90 nm. Their photocatalytic degradation of methyl orange (MO) was 98% after 30 min irradiation of UV light (300 W) [85]. Ma et al. (2019) found that TiO2 hollow spheres can be composed of different nanobuilding blocks by adjusting the starting solution. In detail, the presence of NH3●H2O could lead to TiO2 hollow microspheres composed of nanoparticles (THPs), the absence of NH3●OH could produce TiO2 hollow microspheres composed of mesoporous nanospheres (THSs), and the hydrothermal treatment in NaOH could result in TiO2 hollow microspheres composed of nanowires (THWs). The differences in the structure of TiO2 hollow microspheres could lead to the differences in photocatalytic performances. The THPs showed the lowest photocatalytic activity, while the THSs displayed the highest photocatalytic activity against Rhodamine B (RhB) in the same conditions. The advantages of THPs could be explained by its highest surface areas [48]. Recently, Xie et al. (2019) applied solvothermal to prepare SnO2/TiO2 microspheres. The obtained SnO2/TiO2 microspheres continued to anneal at 450 °C for 2 h. In the results, microspheres with diameters in the range of 500–1000 nm were assembled with a surface area of 199.3 m2/g. SnO2/TiO2 granules were then utilized as a scattering layer for dye-sensitized solar cells, showing 28.1% improvement of the photovoltaic conversion efficiency when compared with bare nanocrystalline-based cells [86]. The TiO2 microsphere was also coated with noble metal to improve its photocatalytic performances. Chowhury et al. (2019) decorated gold (Au) nanoparticles on TiO2 microspheres to degrade phenol under visible light irradiation. They found that the TiO2 microspheres with 5 wt% Au showed the highest photocatalytic performances, whereby 97% of phenol was removed after irradiation for 1 h by visible light [87].
In comparison with the conventional methods, which localize overheating output from the hot surface of the reaction vessels, possibly leading to product composition changes in cases of heating for elongated periods, the microwave method takes advantage of the potential to produce uniform internal heating by direct coupling of microwave energy with the polar molecules present in the reaction mixture [81]. In order to produce TiO2 hollow spheres, Alosfur et al. (2018) recently utilized a 100 mL solution of titanium (IV) isopropoxide (TTIP 0.2 M; 95% ethanol) placed in a microwave oven with a reflux device and magnetic stirrers at 550 W for 5 min. Then, the precipitate was centrifuged (4000 rpm for 5 min), dried at 90 °C in air overnight, and calcined at 500 °C for 1 h to obtain anatase TiO2 hollow spheres. The resultant spheres had sizes in the range of 200 to 500 nm, with pore sizes in the range of 2–50 nm and a surface area of 172.3 m2/g. The growth mechanism of the TiO2 hollow spheres was attributed to the Ostwald ripening process during heating. The photocatalytic activity of the TiO2 hollow spheres for MB was high under both UV and visible light irradiation; this was attributed to the organization of the NPs into a hierarchical structure that can prevent random aggregation [81].
Recently, Balati et al. (2020) used pulsed laser ablation (PLAL) to prepare hydrogenated anatase- and rutile-based inorganic hollow microspheres (HBTiO2/RBIHM). Thus, HBTiO2/RBIHM was decorated with MoS2 nanosheets (HBTiO2/RBIHM-MoS2) by microwave irradiation for the visible light arsenic photooxidation. The interconnected layers of MoS2 resulted in the formation of porous 3D nanostructures in HBTiO2/RBIHM-MoS2. HBTiO2/RBIHM-MoS2 could achieve 96.6% arsenite photooxidation efficiency, and 70.3% and 5200 μg/g arsenate adsorption capacity. The synergetic effects from RBIHM-HBTiO2, RBIHM-MoS2, and HBTiO2/RBIHM heterojunctions explained the performance of HBTiO2/RBIHM-MoS2 [88].
The soft-templating method is also a popular method used for the preparation of TiO2 hollow spheres. Similar to TiO2 solid spheres, different surfactants can be used to synthesize mesoporous TiO2 spheres with particle sizes ranging from submicrometers to micrometers using dodecyl-amine as a surfactant [43]. In the study by Ren et al. (2003), TiO2 hollow microspheres were synthesized with poly(ethylene oxide) as a surfactant. The obtained hollow microspheres had a surface area of 0.378 m2/g, a pore volume of 0.34 cm3/g, and a pore size of 2.6 nm. The TiO2 hollow microsphere formation could be explained as follows: the hydrolyzed alkoxides (nanosized Ti-O particles) interacted with amphiphilic surfactant molecules via weak hydrogen bonding, forming mesostructured hybrid inorganic–organic precursory NPs, then gelling to form an -O-Ti-O-Ti- network under autoclaving by polycondensation between NP precursors, finally leading to mesostructured spherical shells. However, the authors stated that the obtained TiO2 hollow microspheres had an irregular shape due to the lack of complete hydrolysis, and thus could be destroyed in the calcination process. Due to the incomplete condensation, there was a large number of hydroxyl groups on the surfaces of the TiO2 microspheres. These hydroxyl groups could function as active sites in catalysis or as binding sites for further surface modification [89].
Zhang et al. (2005) used the micelles of salicylic acid (SA) anions and anilinium cations containing TiO2 for formation of polyaniline (PANI)/TiO2 microspheres. PANI has been widely applied in the preparation of TiO2 hollow spheres due to its cheap, simple preparation, uniquely controllable properties via oxidation and protonation states, outstanding environmental stability, and potential application to electronic devices [90]. The molar ratios of aniline (ANI) to SA and ammonium per-sulfate ((NH4)2S2O8), APS) were both 1:1. The PANI-SA microsphere was formed by the hydrogen bond between the -OH group of SA and the amine group of PANI. The PANI/TiO2 microsphere was believed to have a core–shell structure with TiO2 as the “core” due to its hydrophobicity and ANI/SA as the “shell” due to the hydrophilicity of the SA dopant (-COOH groups). The polymerization process was expected to occur at the interface of micelle–water due to the hydrophobicity of APS as an oxidant, while the growth of the microspheres was managed by the accretion process [91,92,93,94]. The obtained polyaniline/TiO2 microspheres (PANI-SA/TiO2) had an average diameter of around 2.5–3.6 µm, while the thickness of the TiO2 layer was ~15 nm. The TiO2 NPs’ position in the composite could be confirmed by water contact angle measurements. TiO2 NPs are hydrophobic, and so the water contact angle of PANI-SA/TiO2 was increased to 57.5°, while this number for bare PANI-SA/TiO2 was 41.2°. However, the water contact angle of PANI-SA/TiO2 was still lower than that of PANI-β-NSA/TiO2 nanotubes (β-NSA: β-naphthalenesulfonic acid) prepared by Zhang et al. (2003) in another study. The lower contact angle of PANI-SA/TiO2 indicated that most of the TiO2 NPs were filled in the hollow interior of the PANI-SA microspheres [90].
In addition, Zhang and Wan (2003) prepared polyaniline/TiO2 (PANI-TiO2) composite nanotubes with diameters in the range of 90–130 nm in the presence of β-naphthalenesulfonic acid (β-NSA). They observed that the morphology of the polyaniline-β-NSA/TiO2 (PANI-β-NSA/TiO2) composite was influenced by the TiO2 concentration. When the TiO2 concentration was lower than 0.08 M, the PANI-β-NSA/TiO2 composites formed fibers; but when the concentration was 0.12 M, the morphology of PANI-β-NSA/TiO2 composites was changed to the granule form. The “core–shell” structure of PANI-β-NSA/TiO2 was similar to that of PANI-SA/TiO2 above. However, energy-dispersive X-ray data showed that the TiO2 NPs were on the walls of the PANI-β-NSA/TiO2 nanotubes rather than inside of them. This phenomenon was confirmed by the PANI-β-NSA/TiO2 hydrophobicity (water contact angle: 98.5°) [95].
Gelatin-filled reverse emulsion can also be applied to the preparation of TiO2 hollow spheres on the nanoscale with water as the polar phase, n-dodecane as the non-polar phase, titanium tetrachloride (TiCl4) as a precursor, cetyltrimethylammonium bromide (CTAB) as the surfactant, and 1-hexanol as the co-surfactant. The obtained hollow structures showed an outer diameter of 25–35 nm and a wall thickness of 15–20 nm. Although the TiO2 hollow spheres were covered by gelatin, their photocatalytic activity was nonetheless similar to that of TiO2 powder (P25) in their removal of MB (pH = 8) under visible light irradiation [96].
In the hard-templating method, different polymers can be used as the hard template. For example, Wang et al. (2002) prepared hollow shells via the layer-by-layer self-assembly strategy with exfoliated unilamellar titania nanosheets used as inorganic shell building blocks. Spheres of polystyrene (PS) and poly(methyl methacrylate) (PMMA) were used as colloidal templates, and while adjusting the surface charge of these spheres, polyethylenimine was applied. The TiO2 shell thickness could be adjusted by coating cycles. The polymer core was removed via the calcination process at 500 °C or by UV-irradiation, thereby obtaining titania hollow shells with a smooth surface and small thickness (~5 nm). UV irradiation is a “green” technique by which low temperature is applied to remove the polymer template [97,98]. Interestingly, different treatments, therefore, lead to differences in the optical properties of titania hollow spheres. In another study, the ultraviolet-visible (UV-vis) spectra of calcined hollow spheres were red-shifted compared to UV-irradiated hollow spheres. The transformation of nanosheets with a molecular thickness to the anatase phase could explain the visible differences [99].
Syoufian et al. (2007) applied sulfonated PS latex particles as a hard template in order to prepare submicrometer-sized titania hollow spheres. Titania-PS composites were calcined at 400 °C to remove the template and form TiO2 hollow spheres. The authors found that the low titanium butoxide (TB) concentration could lead to the formation of hollow spheres with a fragile shell. In contrast, the high TB concentration could result in a relatively smooth and rigid shell. Additionally, when the TB concentrations were 0.15, 0.20, 0.25, and 0.50 M, the shell thicknesses of the titania hollow spheres were 9, 14, 17, and 23 nm, respectively, while their void sizes were 147, 151, 155 and 159 nm, respectively [100]. Hollow spheres synthesized from 0.20 M of TB have the highest anatase phase. In another study, this time on the photodecomposition of MB under the irradiation of a 150 W xenon lamp, the reaction rate was increased two times by the injection of peroxydisulfate as an electron scavenger at an optimal concentration (10 mM). The enhancements of the photocatalytic reaction by electron acceptors can be explained in different ways: (i) the prevention of the recombination of electron–hole pairs by acceptance of the electron from the conduction band, (ii) the increase of the concentration of hydroxyl radical (●OH), and (iii) the generation of other oxidizing species (e.g., ●SO4) to promote the intermediate compound oxidation rate [101,102,103]. Further increase of peroxydisulfate leads to saturation of the reaction rate due to excess amounts of SO42− species [73].
SiO2 can also be a candidate for the hard-templating method. One strategy to shift the TiO2 photocatalytic activity towards the visible region is the combination with narrower bandgap semiconductors, such as cadmium sulfide (CdS) [104,105]. Sue et al. (2014) used the sonochemical method to synthesize a CdS-TiO2 hollow structure. First, a TiO2 nanolayer was coated on the surface of SiO2 via the hydrolysis of TB in DI water under vigorous stirring. Then, CdS was deposited on the SiO2-TiO2 core–shell structure via the sonochemical process. SiO2 was removed via the addition of NaOH, thus forming the CdS-TiO2 hollow structure. The obtained structures have an average diameter of 300 nm, with the thickness of the TiO2 shells being about 30 nm, and the diameter of the voids being about 237 nm. Compared with the pure TiO2 samples, the UV-vis diffuse spectra of the CdS-TiO2 hollow structure was shifted to the visible light region. With rhodamine B (RhB), >90% of pollutants was removed by the CdS-TiO2 hollow structure after 120 min under visible light irradiation, more so than other samples, such as P25, CdS, and SiO2-TiO2. However, after three cycles of the photocatalytic reaction, the degradation efficiency of the CdS-TiO2 hollow structure was reduced to ~30%. This reduction was attributed to the photocorrosion of CdS, as well as the mass loss of the catalyst [106].
Besides the above strategies, TiO2 hollow microspheres can be prepared by spray-drying of an exfoliated titanate sheet suspension without the assistance of any templates. Afterward, the spray-dried gel is calcined at 650 °C/h to destroy the lamellar structure and promote the growth of TiO2 anatase. The obtained TiO2 hollow spheres are 10 to 50 μm in size and have a shell thickness of 0.1 μm [107].

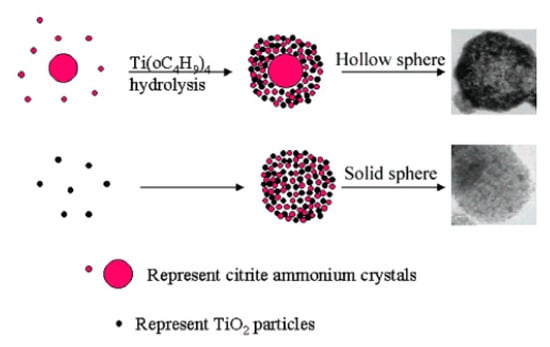

There are some differences between TiO2 dense microscale structures and TiO2 hollow microscale structures. For the same diameter, titania hollow spheres have a lower density and larger surface area compared with TiO2 dense spheres [108]. Additionally, compared with TiO2 dense spheres, the UV absorption spectra of hollow spheres show redshift [109]. This redshift could come from oxygen defects during the formation of TiO2 particles or by the doping of C or S atoms into TiO2 particles [109,110,111,112,113].
In both TiO2 solid and hollow microscale structures, there are still many challenges that remain, notwithstanding their advantages. Firstly, the photocatalytic mechanism of these materials is not fully understood. Secondly, the complexity of synthesis methods also prevents industrial applications of TiO2 solid and hollow spheres. Besides, the fabrication of these materials with both high crystallinity and large surface areas is still a major challenge. For TiO2 hollow spheres, the effects of morphological variations of shape, diameter, shell thickness, and numbers of shells should be further investigated [21].

3. TiO2 Macroscale Structures

3.1. Pure TiO2 Pellets

The advantages of TiO2 pellets come from their ease of production, low required amounts of raw materials, lack of substrate necessity, and compatibility with mass production [20,51]. Compared with the above microscale TiO2 pellets, TiO2 pellets can be prepared by different and simple conventional methods, such as tumble growth, tableting, and extrusion. However, these methods have some limitations, such as poor mechanical strength and low attrition resistance [53].
Dervos et al. (2004) pressed powder uniaxially in a hydraulic press at 250 psi into pellets measuring 10 mm in diameter and 3 mm in thickness. The pellets were calcinated at different temperatures (850, 1050, 1150, and 1180 °C) for 2 h. The results showed that at 915 °C, the anatase crystal structure was converted into the rutile structure. TiO2 pellets, which were calcinated at 1180 °C, had high packing microcrystal density [114]. Yao et al. (2009) also prepared TiO2 ceramic pellets from TiO2 powder. Briefly, TiO2 powders of 7–8 and 20–50 nm diameters were mixed with DI water (25–30 wt%) and kneaded into TiO2 ceramic pellets (diameter: 2–4 nm). Then, ceramic pellets were dried and calcined at different times and temperatures. It was observed that the ceramic pellets from the 20–50 nm TiO2 powder were unstable and easily broken down when immersed into aqueous solution. The obtained XRD patterns showed that the TiO2 ceramic pellets were similar to TiO2 powder. Still, wider diffraction peaks were observed, indicating that the small-size quantum effects were more significant, the grain size was smaller, and the surface activity was higher. After the calcination process, the crystallization defects of the ceramic pellets were reduced. TiO2 ceramic pellets are structured with array stacking of NPs and possess a porous structure with high porosity, irregular pores, and rarely closed pores. Compared with titanium sol and silica sol, water is the better adhesive, with which the TiO2 ceramic pellets showed better sterilization performance. The antimicrobial activity against Colibacillus was 99% after 3 h of photocatalytic reaction. The photocatalytic activity of porous TiO2 ceramic pellets did not change after their regeneration by calcination at 600 °C for 2 h [51].
Ultrasound has been used for wastewater treatment [115,116,117]. In ultrasound techniques, very high temperatures (up to several thousand Kelvin) and pressures (up to several hundred atmospheres) can be produced by cavitation in the collapse of gas bubbles in aqueous solution, resulting in the thermal division of water molecules into H atoms and ●OH [118,119]. The combination of photocatalytic and ultrasonic irradiation could lead to an increase in pollutant degradation due to the increase of ●OH. Additionally, the existence of a heterogeneous catalyst could increase the formation rate of cavitation bubbles by supplying additional nuclei [120,121,122], which would accelerate the thermal dissociation of H2O molecules and the ●OH formation. Shimizu et al. (2007) studied MB degradation by ultrasound irradiation (60 min, frequency: 39 kHz, emission power: 200 W) of TiO2 pellets (2.0 mm) in aqueous solution. A significant reduction in the MB concentration was achieved after 60 min. With the addition of H2O2, the MB degradation was increased from 22 to 85%. By contrast, the H2O2 addition did not affect the removal of MB when Al2O3 was present in the system. Dimethyl sulfoxide (DMSO), methanol, and mannitol were used to investigate the influence of radical scavenging agents on the removal of MB. The results showed that DMSO was the most effective scavenging agent. The optimal pH for the removal process was 7 [119].

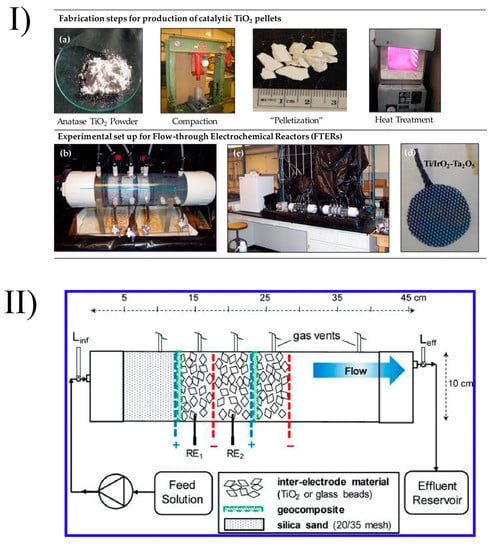

Recently, Jasmann et al. (2016) prepared TiO2 pellets of between 3.3 and 9.42 mm in mesh size via conventional compacting that had been prepared and embedded into a flow-through electrochemical reactor for the removal of 1,4-dioxane via advanced electrochemical oxidation. After compacting, the pellets were calcined at 500–1000 °C for 4 h (Figure 7). They found that TiO2 pellets sintered at 500–800 °C were friable and readily subject to abrasion. However, TiO2 pellets sintered at a higher temperature (880–1000 °C) had high mechanical strength. The sintering temperature affected the crystallinity of TiO2 pellets. For example, TiO2 pellets calcined at 700 and 880 °C contained 98% anatase and 2% rutile, while these numbers for TiO2 calcined at 1000 °C were 14% and 86%, respectively. They showed that the TiO2 pellets had high removal efficiency (>97%)—4.6 times higher than the non-catalyzed electrolytic reactor. It was found that TiO2 could be activated in the dark even when the electrodes were electrically insulated. The most significant advantages of these TiO2 pellets came from their high catalytic activity in low-ionic-strength water, where conventional electrochemical processes commonly fail [123].
In the production of ceramic materials, pressing for densification is the most important step. There are different pressing methods, such as conventional uniaxial pressing, cold isostatic pressing, and hot isostatic pressing. Among them, hot isostatic pressing (HIPing) is considered to be an advanced technique due to the volumetric uniformity in the pressure make-up and continuous densification [124,125]. Application of high-pressure during heating, which leads to high densification, is the most important reason to choose hot isostatic pressing for preparation of TiO2 pellets. Additionally, phase stability and transformation in oxide ceramics can be altered under an argon atmosphere [125]. Importantly, both temperature and pressure influence the phase transition from the anatase phase to the rutile phase during the sintering process [126,127].
As mentioned in the Introduction, TiO2 has three different polymorphic structures, which are anatase, rutile, and brookite. Among them, rutile is the thermodynamically stable phase and is the one mostly utilized in optical applications. In contrast, anatase is a metastable phase, is hydrophilic, and has higher photocatalytic activity [11]. However, as mentioned above, many studies have claimed that the mixture of anatase and rutile at a suitable ratio has a higher photocatalytic activity than only anatase or rutile in the structure of material [11,12,13,14,15]. Erol and Ertugul (2018) investigated the influence of the heating method and temperature on the physical, structural, and photocatalytic performances of TiO2 pellets produced by either conventional heating (CH) or hot isostatic pressing (HIPing). The pellets of submicron TiO2 powders were then calcined at 600, 650, 700, 750, and 1000 °C in order to compare the densification behaviors and the transformation between the two methods. In the HIPing method, an HIPing furnace was used with graphite heating elements under an argon atmosphere and 15,000 Psi pressure. One advantage of HIPing relative to CH was found to come from its shorter cycle duration. The average heating rates were 8 °C/min and 12 °C/min for HIPing and CH, respectively. The authors found that the transformation from anatase to rutile by conventional heating was slightly faster, and that densification was higher for lower temperatures, while HIPing showed high densification above 750 °C, as it also delayed rutile transformation. The lower porosity and higher densification of the CH samples heated at 650, 700, and 750 °C relative to the HIPing samples could be explained by the degree of carbon contamination during the process, which would have delayed the phase transformation and inhibited densification. The carbon contamination could be explained by the graphite heating elements in HIPing. Because of the driving forces of temperature and pressure, some amount of carbon contamination could effect a change of TiO2 pellet structure [128,129,130]. Additionally, the phase transformation differences between the two methods come from the difference in the applied pressure and atmosphere. In addition, results have shown that HIPing samples with mixed-phase structures display the highest photocatalytic activity. In detail, the Langmuir–Hinshelwood (L-H) kinetics model can be used to explain the heterogeneous catalytic processes. For both methods, the highest photocatalytic performance is displayed at 700 °C. The best sample involved HIPing at 700 °C, which had a ratio of anatase-to-rutile of close to 1:1. Additionally, carbon contamination lowers the optical bandgap and thereby improves the photocatalytic performance of TiO2 [1].
Black TiO2, which was first introduced by Chen et al. [131], has recently attracted attention due to its outstanding photocatalytic activity under visible light. The common method to prepare black TiO2 is thermal treatment under a hydrogen atmosphere. However, working with hydrogen is dangerous. Due to its flammability, hydrogen can immediately explode when it interacts with oxygen. Katal et al. (2018) synthesized black TiO2 by sintering P25 pellets under a vacuum atmosphere at various temperatures (500–800 °C). In their observations, the high sintering temperatures transferred the TiO2 phase from anatase to rutile, similarly to other reports in the literature [132,133]. Additionally, the increase of the sintering temperatures increased the crystal size, while the surface area, porosity, and pore volume were decreased. The pellets were prepared using the conventional processing technique at ambient temperature. The differences between sintered powder and pellets via the formation of oxygen vacancy density and changes of color were also investigated. In the results, P25 powder changed to a darker color but was not completely black, as with the P25 pellets. The loss of oxygen and the oxygen vacancy formation could explain the change of color from white to black [54,134]. Importantly, with the increase in the sintering temperature, the energy bandgap decreased. Compared with P25, the red-shift absorbance spectra in the bandgap were achieved in the case of the black TiO2 pellets. From the XPS spectra, the stronger shoulder peaks in the higher binding energy of the O 1s peaks of the black TiO2 samples could explain the formation of the oxygen vacancy (Figure 8) [135]. Under a hydrogen atmosphere, the formation of the oxygen vacancy (Vo) was explained by the following reaction:
H2 + OL → H2O + Vo + e
where OL is the oxygen in the lattice of TiO2.
However, under a vacuum atmosphere, the oxygen vacancy could be formed by the following reaction:
OL = ½ O2(g) + Vo + e
In addition, the oxygen vacancy in the black TiO2 pellets was higher than the powder form, as confirmed by EPR (Figure 8). Figure 8 shows that the sintering process leads to an interface region between the low-energy site and particle changes (neck region) as a result of compaction. These low-energy sites, thus, may lead to the decease of the O2 adsorption sites, which is beneficial for the formation of the diamagnetic oxygen species. Additionally, the decrease of the energy bandgap could explain the photocatalytic performances of black TiO2 under visible light irradiation. With regard to photocatalytic activity against acetaminophen (ACE), the as-prepared samples showed similar performances to black TiO2 synthesized under the hydrogen atmosphere. In contrast, the P25 pellets sintered at 500 °C showed the best photocatalytic performances under AM 1.5 G solar light illumination. The presence of the oxygen vacancy was maintained, even after 6 months. Additionally, the stability of black TiO2 pellets was acceptable in both the short (one month) and the long term (six months) [32].
Floating photocatalysts confer many remarkable benefits due to the optimal light illumination process, especially for a system using solar irradiation, while the oxygenation process could be maximized according to the closeness to the air–water interface, especially for a non-stirring system. These properties, thus, lead to increases in both the formation rate of radicals and oxidation efficiency [69]. Due to the different highlighted characteristics, such as the light weight, large surface area, high specific strength, and exceptional permeability, porous TiO2 ceramics are usable for pollutant transfer and diffusion [136]. Freeze-drying is a simple, low-cost, and eco-friendly synthetic technique for the fabrication of porous ceramics. Compared with conventional techniques, freeze-drying is a better way to adjust pore distribution [137,138,139,140]. The formation of three-dimensional interconnected pore channels can be obtained when the frozen vehicle network exists in the body of ceramics. The pore structure and pore size of ceramics can be easily modified by adjusting the parameters of free-drying processes [141]. H2O and tert-butanol can be used as frozen vehicles to produce porous ceramics. In order to eliminate the expensive sub-0 °C freezing process, camphene can be used as a novel frozen vehicle [142].
Xing et al. (2014) prepared floating TiO2 ceramics via a camphene-based freeze-drying route for photocatalytic degradation of a micropollutant pesticide. The results showed that the resultant ethanediamine (EN)-modified TiO2 ceramics can prevent the growth of undesirable TiO2 particles, as well as the transformation of the anatase to the rutile phase, even at 800 °C. This was explained by the interaction and binding of EN on the surface of Degussa P25 [143]. The BET surface area of TiO2 was maintained by the EN modification. With the rise of the TiO2 solid content from 10 to 20 wt%, the porosity was decreased from 95.2 to 89.6%, while the compressive strength was increased from 0.59 to 0.98 MPa. The TiO2 ceramic with an original content of ~15 wt% had the optimal compressive strength and porosity. In the photodegradation of atrazine and thiobencarb, the TOC removal efficiencies were as high as 95.7 and 96.7%, respectively. These efficiencies could be maintained for up to 6 cycles with no obvious changes [34].

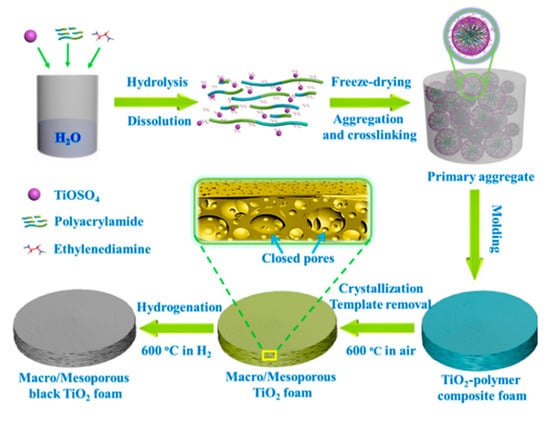

Recently, Zhang et al. (2017) prepared self-floating amphiphilic black TiO2 via a freeze-drying method combined with cast-molding technology and sintering at high temperature under a hydrogen atmosphere. In their study, ethylenediamine was used as an acid–base equilibrium agent, as well as to prevent the collapse of 3D macro-mesoporous networks. The presence of ethylenediamine also prevented the transformation of anatase to rutile and the growth of undesirable particles under hydrogen atmospheres at 600 °C (Figure 9). The obtained black TiO2 foams could easily float on the surface of the water, and their photocatalytic activity could be shifted to the visible light region. The photocatalytic activity of the self-floating amphiphilic black TiO2 foams was seven times higher than that of commercial Degussa P25 under a 300 W Xenon lamp with air mass (AM) 1.5 filters. The 3D macro-mesoporous networks, which are beneficial for mass transport; the super amphiphilicity, which is beneficial for rapid adsorption; the floating ability; and the presence of Ti3+ in the frameworks explained the high photocatalytic capacity of the black TiO2 foams [54].

3.2. TiO2 Composite Pellets

Besides pure TiO2 pellets, TiO2 composite pellets have been used as well. Although TiO2 pellets have proved to the better than TiO2 powder in gas-phase applications [144,145], the activity of TiO2 was lost because of both the pelletization process and the drying step [146]. The loss of photocatalytic activity can be partially recovered via pelletization due to the existence of carbon materials. The pelletization of TiO2 with the existence of carbon materials has been shown in the literature [147,148,149,150,151]. The improvement of photocatalytic activity could come from the condensation of organic molecules on the carbon surface [148]. In an aqueous solution, according to the existence of activated carbon, the acid–base characteristics of TiO2 have been changed [152]. Lillo-Rodenas et al. (2006) prepared a series of TiO2/C pellets using activated carbon, activated carbon fibers, carbon nanofibers, single-wall carbon nanotubes, multiwalled carbon nanotubes, expanded graphite, and carbon black. Relative to 100% TiO2 pellets, the TiO2/C pellets showed higher photocatalytic performance [146].
Bouazza et al. (2008) showed that besides carbon-based materials, composite TiO2 pellets with white additives, such as MCM-41, zeolites, metal-organic framework, SiO2, Al2O3, glass wool, and quartz wool, have higher photocatalytic performance in terms of propene degradation than 100% TiO2 pellets. A homogeneous mixture of TiO2 (0.7 g), M (chosen additive) (0.3 g) and DI water (1 mL) was extruded by a plastic syringe (5 mL) to form TiO2/M pellets. These pellets (~1 mm of diameter) were then cut into pieces measuring 10 mm in length and dried at 383 K for 12 h. TiO2/M pellets have variable specific surface areas, from very high (MCM-41, 1000 m2/g) to almost zero, such as for glass wool and quartz wool. In the results, neither the addition of different additives nor the pelletization process changed either the original crystalline composition or the crystalline sizes of the P25 powder. However, according to transmission electron microscopy (TEM) images, the dispersion of TiO2 was changed depending on the chosen additive. For example, TiO2/M1 showed high dispersion, while the dispersion of TiO2/M6 and TiO2/M8 was poorer. The authors also found that the flow rate can affect the photocatalytic ability of TiO2 pellets. For example, under the irradiation of UV light at 257.7 nm, complete oxidation could be obtained for most of the photocatalysts; however, when the flows were increased up to 30 and 60 mL/min, the photocatalytic activity was decreased. A similar phenomenon was obtained in the case of 365 nm irradiation. Surprisingly, Bouazza et al. (2008) made no recommendation for porosity or any mesoporous additives for maximization of photocatalytic activity. They claimed that neither the low electrical conductivity of TiO2/M pellets nor the UV-absorption spectra could be used to describe the high or low photocatalytic conversion of propene. Even the understanding of the differences in the photocatalytic activity of TiO2/M was not clear; they assumed that the variation in the hole-electron recombination characterizations could be used to explain these differences. Compared with the best TiO2/C pellets (TiO2/C1), their TiO2/M1 sample showed better photocatalytic performance, although C1 is larger than M1 in terms of both porosity and electric conductivity. Therefore, the authors concluded that the addition of white additives can recover the activity loss of TiO2 better after pelletization by introduction of carbon materials. Additionally, the activity of the TiO2/M pellets was retained after several cycles. Besides, no intermediate oxidation compounds were observed after finishing the propene oxidation [153].
Other than strategies such as noble metal loading, ion doping, and metal ion-implantation, binary metal oxides can be used to shift the wavelength range of TiO2 towards the visible region [52]. For example, Pal et al. (1999) showed that TiO2/Fe2O3 mixed oxides prepared via the sol–gel impregnation method had excellent absorption (570–600 nm) in the visible spectral region [154]. At the laboratory scale, magnetic α-Fe2O3 and γ-Fe2O3 can be recovered via magnetic separation. However, at the industrial scale, it is difficult to apply a magnetic force to isolate and recover photocatalysts from an aqueous solution system [52]. To overcome this limitation, Li et al. (2015) developed Fe2O3/TiO2 composite ceramics with 45 wt% of Fe2O3 for water treatment. The sintering temperature effects on the crystalline phase, physical characteristics, and photocatalytic activities of the composite pellets were evaluated. With the increase of sintering temperature, TiO2 was transformed from the anatase to the rutile phase and reacted with α-Fe2O3 to produce pseudo-brookite Fe2TiO5. However, above the 800 °C sintering temperature, only rutile TiO2 and Fe2TiO5 were obtained. In general, TiO2 can be converted from the anatase to the rutile phase with iron as the catalyst. Fe2TiO5 was present via the bulk reaction between α-Fe2O3 and rutile TiO2. The porosity and the photocatalytic performance of the Fe2O3/TiO2 composite pellets were reduced when the sintering temperature was increased, especially when it reached 1000 °C. This phenomenon explained the decrease in the photocatalytic properties of the composite ceramics. In general, the Fe2O3/TiO2 ceramics sintered at 880 °C (FTC-880) showed high photocatalytic activity for the removal of MB under both UV and visible light. Even in the third cycle, this composite sample still displayed a high decomposition rate (78% vs. 88% when first used under visible light, MB = 25 mg/L, pH = 4). The reduction of the photocatalytic activity of the composite ceramics was explained by the intermediate catalytic products on the catalyst surfaces. From scanning electron microscope (SEM) images, FTC-880 samples were formulated of the plate-like and rod-like structure. Besides, the FTC-880 sample displayed strong absorption in both the UV region (<400 nm) and the visible light (400–700 nm) regions. In addition, it showed high compressive strength (11 × 103 kN/m2). However, the Fe2O3/TiO2 nanopowder still had higher photocatalytic performance compared with the Fe2O3/TiO2 ceramics. These results could be attributed to the higher surface area and the main TiO2 anatase of the Fe2O3/TiO2 nanopowder relative to the Fe2O3/TiO2 ceramics [52].

3.3. Immobilized TiO2 Macroscale Structure

Commercial P25 powder has been immobilized on different substrates, such as small glass spheres or beads, to improve its potential in wastewater treatment. A mixture of sol–gel TiO2 and TiO2-P25 immobilized on glass spheres via the dip-coating method showed excellent treatment performance for the removal of contaminants and pesticides in a pilot compound parabolic concentrator (CPC)-type reactor. Additionally, the immobilization of P25 on glass beads via the heat attachment method was successfully applied to degrade dyes and pharmaceuticals under UV radiation instead of sunlight [24]. In that same study, different regeneration methods were evaluated, such as chemicals (single or combination of HNO3, NaOH, NH4OH, and H2O2, with the assistance of UV irradiation) and water washing; UV exposure with pure air; high-humidity conditions for air-pollutant treatment; sonication treatment with water and methanol; and thermal processes.

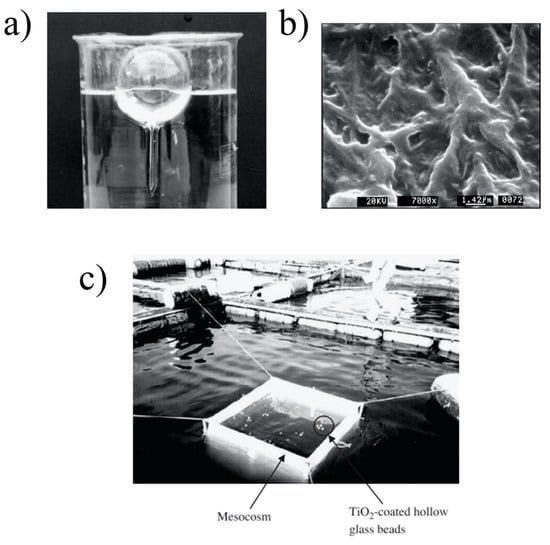

Floating glass beads can also be used to prepare TiO2 floating structures. Algal problems in eutrophic water are serious and tend to result in the blocking of filters in drinking water supply facilities [155]. In addition, the presence of toxic cyanobacterial blooms in drinking water can lead to various human health problems [156]. Kim et al. (2005) prepared TiO2-coated hollow glass beads via a dip-coating method for the control of algal growth (Figure 10). The thickness of the TiO2 layer on the surface of the glass beads was 0.3 μm. Under the irradiation of UV-A light, Anabaena and Microcystis (cyanobacteria) lost their photosynthetic properties, while the string of Anabaena cells and the colonies of Microcystis cells were completely isolated into individual spherical ones. However, the TiO2-coated hollow glass beads displayed lower photocatalytic inactivation efficiency (60%) due to the presence of the inorganic siliceous wall surrounding the Melosira (diatom) cells. In a further real-world application, TiO2-coated hollow glass beads were inserted into a mesocosm installed at the Nakdong river (Kimhae City, Korea) (Figure 10). The results showed that vast amounts of chlorophyll-a were removed by the application of TiO2 glass beads [155].
According to Hosseini et al. (2007), even TiO2 immobilized on glass plates has excellent mechanical stability, with the leakage of TiO2 in their study being as low as 5 and 7% after the two reactions. In the same study, the authors immobilized TiO2 (Degussa P-25) on perlite granules for photocatalytic degradation of phenol. With a porosity of more than 95%, the granules easily floated on the water surface. The obtained XRD results showed that there were no significant changes to the TiO2 structure after the immobilization process. The uniform coating of TiO2 was confirmed by SEM images. In the photocatalytic reaction, 83.3% of 1 mM phenol was removed after 4 h under 125 W UV lamp irradiation. This was compared with 39.7% for the reaction under an 80 W UV lamp [38]. Hinojosa-Reyes et al. (2013) also used a similar coating method to coat indium-doped TiO2 (In-TiO2) on the surface of perlite granules for the gas-phase degradation of ethylbenzene in the plug flow reactor. The incorporation of In3+ into TiO2 frameworks prohibits the formation of hexacoordinated titanium and allows the creation of oxygen vacancies. A homogenous coating was achieved after 60 min. The coatings with 5% indium displayed enhanced photocatalytic activity compared to the undoped one [157].
In the study by Kim et al. (2005), TiO2 ceramic foam pellets were prepared using the dip-coating method. The three most significant steps were slurry preparation, foaming, and pelletizing. Silica powder (particle size: 3 μm) was used as the raw material in the fabrication of ceramic foam pellets. The pellets undergoing the final pelletizing process were sifted for constant size in the range of 3 to 5 nm and for close-to-spherical shape [158].
Aluminum (Al2O3) can be used as a supporting material due to its high surface area and abrasion resistance [53]. Mesoporous TiO2/γ-Al2O3 has been prepared using a combination of the sol–gel and oil-drop methods. The authors observed that the increase of TiO2 concentration led to the easily aggregated crystalline phase and rough surface formation on the composite granule (poor sphericity). The increase of TiO2 concentration also led to the formation of the rutile phase, in addition to the anatase phase. Additionally, the increase in the calcination temperature resulted in the increase of TiO2 crystallite sizes. In general, the optimal conditions for preparation of TiO2/γ-Al2O3 composite granules were: TiO2/(TiO2 + Al2O3) = 0.25, temperature calcination = 450 °C. The obtained composite granules had a diameter of around ~2 mm, the largest surface area measuring 306 m2/g and the smallest anatase crystalline size measuring 4.2 nm [53].
Han et al. (2009) prepared to float TiO2/polypropylene (PP) granules via hydrothermal methods at low temperature and to dope them with nitrogen by using trimethylamine (TEA) to activate photocatalysis under visible light. Acetic acid (AcOH) and acetylacetone (Acac) have been used as inhibiting agents in the preparation of TiO2 NPs. Between these two inhibiting agents, Acac can be used to dope nitrogen into a TiO2 lattice due to the stronger effects on the hydrolysis of the TiO2 precursor (titanium-n-butoxide), whereas AcOH cannot. Han et al. (2009) noted that the MO degradation by TEA-treated TiO2 with Acac under visible light was higher than by TEA-treated TiO2 with AcOH. However, when TEA-treated TiO2 with Acac was immobilized on PP granules, the photocatalysis was still lower than for the powder particles due to the low loading rate of TiO2 onto these granules, not to mention the small surface areas. Therefore, a strategy to improve loading rates should be found so as to improve the photocatalytic behavior of N-doped TiO2/PP granules [159]. In another study, Velasquez et al. (2012) coated TiO2 NPs (Degussa P25) on the surface of PP and low-density polyethylene (PE) at 153 °C and 106 °C, respectively, for 20 min. However, both PP-TiO2 and PE-TiO2 lost weigh due to the loss of TiO2 coating during the erosion test. The coated pellets showed high photocatalytic activity, with above 50% of 4-chlorophenol at the initial concentration of 100 ppm being removed after 6 h. The loading of PP-TiO2 and PE-TiO2 was 40 g. After 4 cycles, the photocatalytic activity of PP-TiO2 and PE-TiO2 was reduced to around 40% and 38%, respectively. The strong adsorption and accumulation of partially oxidized 4-chlorophenol intermediates on the active site of TiO2 could explain the results. They also suggested that the treatment under UV irradiation (220 nm) and H2O2 (10 wt%) could regenerate the TiO2 pellets [160].
Recently, Cunha et al. (2018) immobilized TiO2 on borosilicate glass spheres and applied them to a compound parabolic concentrator (CPC) for degradation of MB. The results showed that the detachment of TiO2 from the glass surface was very low (0.03%). The leaking of titanium into the water was analyzed by ICP-OES according to the standard method 3120. At 400 °C, the TiO2 was deposited onto the surface of the glass, without any changes in the characteristics of the photocatalyst. In the photocatalytic reaction, the TiO2 glass spheres removed 96% of the MB after 90 min and were recovered by washing in water under UV-vis irradiation. The TiO2 layers on the glass surface remained unchanged after five photocatalytic treatment cycles. The crystalline phase composition, crystalline size, BET surface area, and pore volume of TiO2, likewise, were nearly unchanged after the thermal treatment process [24].
In this section, various types of TiO2 macroscale structures have been introduced, including pure TiO2 pellets, composite TiO2 pellets, and immobilized TiO2 macroscale structures. In general, the preparation of TiO2 macroscale structures is more straightforward than TiO2 microscale structures. This makes TiO2 macroscale structures more comfortable to mass-produce. A number of methods have been used to prepare TiO2 macroscale structures, such as conventional compacting and pelletizing techniques, freeze-drying, and immobilization techniques. In addition, some advanced techniques and materials, such as HIPing and black TiO2, have also been utilized in the preparation of TiO2 macroscale structures.

4. Conclusions

TiO2 microscale structures and macrostructures have many advantages compared to TiO2 powders, such as their tunable structure, higher photocatalytic activity, and ease of recovery. TiO2 microscale structures are prepared from both TiO2 precursors (surfactants, hydrothermal or solvothermal techniques, or microwave techniques) and TiO2 NPs (spray-drying, freeze-drying, or immobilization techniques), while TiO2 macroscale structures are prepared mostly from TiO2 NPs (compacting and pelletizing techniques, freeze-drying, or immobilization). The advantages and disadvantages of TiO2 microscale and macroscale structures are briefly summarized below (Table 1).
For TiO2 microscale structures, solid spheres and hollow spheres share some similar synthesis methods, such as hydrothermal or solvothermal, surfactants, or templates. Recently, spray-drying, freeze-drying, pulsed laser ablation (PLAL), and microwave techniques have been used to prepare microscale structures. In some cases, solid and hollow TiO2 spheres could be obtained by adjusting the synthesis process [50,80]. In addition, the application of TiO2 microscale structures has been extended from wastewater treatment to other areas, such as controlled-release capsules, artificial cells, drug delivery, and even white-light-emitting diode (WLED) production [50,62]. However, due to the complexity of the synthesis process, microscale TiO2 spheres and hollow spheres are not easily mass produced. Therefore, simple and inexpensive methods of microscale TiO2 sphere preparation should be more thoroughly investigated.
In contrast, the preparation of TiO2 macroscale structures seems to be easier than TiO2 microscale structures. Different conventional methods, such as tumble growth, tableting, and extrusion, are still applied to prepare TiO2 pellets. The main limitation of these methods is the weak mechanical strength and low attrition resistance of the resultant pellets [53]. Recently, some studies have endeavored to improve the mechanical properties of TiO2 pellets by sintering them at very high temperatures (>880 °C) [52,123]. Additionally, freeze-drying and immobilization techniques for the preparation of pellets have been attempted. Immobilization of TiO2 on different substrates can lead to TiO2 macroscale structures with high mechanical stability. However, the leakage of TiO2 NPs into the surrounding environment is a critical problem. Recently, some advanced techniques, such as HIPing, along with advanced materials, such as black TiO2, have been used to prepare TiO2 pellets [1,32,54]. In the future, cheap and straightforward techniques, as well as new materials suitable for fabrication of macroscale TiO2 pellets high in both photocatalytic and mechanical strength, should be investigated more thoroughly. Additionally, the photocatalytic mechanism and properties of new materials such as the mentioned black TiO2 are still debated and should be clarified before any application to the preparation of TiO2 macroscale structures [161].
In conclusion, although TiO2 microscale and macroscale structures still face many problems, they still have considerable potential in a variety of areas due to their unique properties, especially their recycling efficiency. The recent efforts to overcome the limitations of these TiO2 structures should be continued and intensified.

Author Contributions

V.K.H.B.: conceptualization, writing—original draft, writing—review and editing, visualization. V.V.T.: resources. J.-Y.M.: resources. D.P.: resources, review and editing, supervision, funding acquisition. Y.-C.L.: conceptualization, writing—review and editing, supervision, project administration, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by a grant from the Subway Fine Dust Reduction Technology Development Project of the Ministry of Land Infrastructure and Transport (19QPPW-B152306-01) and the Ministry of Environment acting as the Korea Environmental Industry and Technology Institute (KEITI) (NO. 2018000120004).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Erol, M.; Ertugrul, O. HIPed TiO2 dense pellets with improved photocatalytic performance. Ceram. Int. 2018, 44, 2991–2999. [Google Scholar] [CrossRef]
  2. Mai, N.X.D.; Bae, J.; Kim, I.T.; Park, S.H.; Lee, G.-W.; Kim, J.H.; Lee, D.; Son, H.B.; Lee, Y.-C.; Hur, J. A recyclable, recoverable, and reformable hydrogel-based smart photocatalyst. Environ. Sci. Nano 2017, 4, 955–966. [Google Scholar] [CrossRef]
  3. Kadam, A.N.; Salunkhe, T.T.; Kim, H.; Lee, S.W. Biogenic synthesis of mesoporous N–S–C tri-doped TiO2 photocatalyst via ultrasonic-assisted derivatization of biotemplate from expired egg white protein. Appl. Surf. Sci. 2020, 518, 146194. [Google Scholar] [CrossRef]
  4. Scrimieri, L.; Serra, A.; Manno, D.; Alifano, P.; Tredici, S.M.; Calcagnile, M.; Calcagnile, L. TiO2 films by sol-gel spin-coating deposition with microbial antiadhesion properties. Surf. Interface Anal. 2019, 51, 1351–1358. [Google Scholar] [CrossRef]
  5. Wisitsoraat, A.; Tuantranont, A.; Comini, E.; Sberveglieri, G.; Wlodarski, W. Characterization of n-type and p-type semiconductor gas sensors based on NiOx doped TiO2 thin films. Thin Solid Films 2009, 517, 2775–2780. [Google Scholar] [CrossRef]
  6. Miyagi, T.; Kamei, M.; Mitsuhashi, T.; Ishigaki, T.; Yamazaki, A. Charge separation at the rutile/anatase interface: A dominant factor of photocatalytic activity. Chem. Phys. Lett. 2004, 390, 399–402. [Google Scholar] [CrossRef]
  7. Bui, V.K.H.; Park, D.; Lee, Y.-C. Chitosan combined with ZnO, TiO2 and Ag nanoparticles for antimicrobial wound healing applications: A mini review on the research trends. Polymers 2017, 9, 21. [Google Scholar] [CrossRef] [Green Version]
  8. Pelaez, M.; Nolan, N.T.; Pillai, S.C.; Seery, M.K.; Falaras, P.; Kontos, A.G.; Dunlop, P.S.M.; Hamilton, J.W.J.; Byrne, J.A.; O’Shea, K.; et al. A review on the visible light active titanium dioxide photocatalysts for environmental applications. Appl. Catal. B Environ. 2012, 125, 331–349. [Google Scholar] [CrossRef] [Green Version]
  9. Asahi, R.; Taga, Y.; Mannstadt, W.; Freeman, A.J. Electronic and optical properties of anatase TiO2. Phys. Rev. B 2000, 61, 7459–7465. [Google Scholar] [CrossRef]
  10. Koelsch, M.; Cassaignon, S.; Ta Thanh Minh, C.; Guillemoles, J.F.; Jolivet, J.P. Electrochemical comparative study of titania (anatase, brookite and rutile) nanoparticles synthesized in aqueous medium. Thin Solid Films 2004, 451, 86–92. [Google Scholar] [CrossRef]
  11. Arias, L.M.F.; Duran, A.A.; Cardona, D.; Camps, E.; Gomez, M.E.; Zambrano, G. Effect of annealing treatment on the photocatalytic activity of TiO2 thin films deposited by DC reactive magnetron sputtering. J. Phys. Conf. Ser. 2015, 614, 012008. [Google Scholar] [CrossRef]
  12. Zachariah, A.; Baiju, K.V.; Shukla, S.; Deepa, K.S.; James, J.; Warner, K.G.K. Synergistic effect in photocatalysis as observed for mixed-phase nanocrystalline titania processed via sol-gel solvent mixing and calcination. J. Phys. Chem. C 2008, 112, 11345–11356. [Google Scholar] [CrossRef]
  13. Luttrell, T.; Halpegamage, S.; Tao, J.; Kramer, A.; Sutter, E.; Batzill, M. Why is anatase a better photocatalyst than rutile? - model studies on epitaxial TiO2 films. Sci. Rep. 2015, 4, 1–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Yuangpho, N.; Le, S.T.T.; Treerujiraphapong, T.; Khanitchaidecha, W.; Nakaruk, A. Enhanced photocatalytic performance of TiO2 particles via effect of anatase-rutile ratio. Phys. E 2015, 67, 18–22. [Google Scholar] [CrossRef]
  15. Shahi, S.K.; Kaur, N.; Singh, V. Fabrication of phase and morphology controlled pure rutile and rutile/anatase TiO2 nanostructures in functional ionic liquid/water. Appl. Surf. Sci. 2016, 360, 953–960. [Google Scholar] [CrossRef]
  16. Patra, A.K.; Das, S.K.; Bhaumik, A. Self-assembled mesporous TiO2 spherical nanoparticles by a new templating pathways and its enhanced photoconductivity in the presence of an organic dye. J. Mater. Chem. 2011, 21, 3925–3930. [Google Scholar] [CrossRef]
  17. Velardi, L.; Scrimieri, L.; Serra, A.; Manno, D.; Calcagnile, L. The synergistic role of pH and calcination temperature in sol–gel titanium dioxide powders. Appl. Phys. A-Mater. 2019, 125, 1–7. [Google Scholar] [CrossRef]
  18. Yan, X.; Chen, X. Titanium dioxide nanomaterials. In Encyclopedia of Inorganic and Bioinorganic Chemistry; John Wiley & Sons: Hoboken, NJ, USA, 2015; pp. 1–38. [Google Scholar]
  19. Mills, A.; Le Hunte, S. An overview of semiconductor photocatalysis. J. Photochem. Photobiol. A 1997, 108, 1–35. [Google Scholar] [CrossRef]
  20. Lazar, M.; Varghese, S.; Nair, S. Photocatalytic water treatment by titanium dioxide: Recent updates. Catalysts 2012, 2, 572–601. [Google Scholar] [CrossRef] [Green Version]
  21. Xiao, M.; Wang, Z.; Lyu, M.; Luo, B.; Wang, S.; Liu, G.; Cheng, H.M.; Wang, L. Hollow nanostructures for photocatalysis: Advantages and challenges. Adv. Mater. 2018, 31, 1801369. [Google Scholar] [CrossRef]
  22. MiarAlipour, S.; Friedmann, D.; Scott, J.; Amal, R. TiO2/porous adsorbents: Recent advances and novel applications. J. Hazard. Mater. 2018, 341, 404–423. [Google Scholar] [CrossRef] [PubMed]
  23. Kim, Y.; Hwang, H.M.; Wang, L.; Kim, I.; Yoon, Y.; Lee, H. Solar-light photocatalytic disinfection using crystalline/amorphous low energy bandgap reduced TiO2. Sci. Rep. 2016, 6, 25212. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Cunha, D.L.; Kuznetsov, A.; Achete, C.A.; Machado, A.E.d.H.; Marques, M. Immobilized TiO2 on glass spheres applied to heterogeneous photocatalysis: Photoactivity, leaching and regeneration process. PeerJ 2018, 6, e4464. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Li, J.; Zhang, M.; Guan, Z.; Li, Q.; He, C.; Yang, J. Synergistic effect of surface and bulk single-electron-trapped oxygen vacancy of TiO2 in the photocatalytic reduction of CO2. Appl. Catal. B Environ. 2017, 206, 300–307. [Google Scholar] [CrossRef]
  26. Wang, J.; Liu, P.; Fu, X.; Li, Z.; Han, W.; Wang, X. Relationship between oxygen defects and the photocatalytic property of ZnO nanocrystals in nafion membranes. Langmuir 2009, 25, 1218–1223. [Google Scholar] [CrossRef] [PubMed]
  27. Nowotny, M.K.; Sheppard, L.R.; Bak, T.; Nowotny, J. Defect chemistry of titanium dioxide. Application of defect engineering in processing of TiO2-based photocatalysts. J. Phys. Chem. C 2008, 112, 5275–5300. [Google Scholar] [CrossRef]
  28. Pan, X.; Yang, M.-Q.; Fu, X.; Zhang, N.; Xu, Y.-J. Defective TiO2 with oxygen vacancies: Synthesis, properties and photocatalytic applications. Nanoscale 2013, 5, 3601–3614. [Google Scholar] [CrossRef]
  29. Pan, X.; Zhang, N.; Fu, X.; Xu, Y.J. Selective oxidation of benzyl alcohol over TiO2 nanosheets with exposed {0 0 1} facets: Catalyst deactivation and regeneration. Appl. Catal. A Gen. 2013, 453, 181–187. [Google Scholar] [CrossRef]
  30. Su, R.; Tiruvalam, R.; He, Q.; Dimitratos, N.; Kesavan, L.; Hammond, C.; Lopez-Sanchez, J.A.; Bechstein, R.; Kiely, C.J.; Hutchings, G.J.; et al. Promotion of phenol photodecomposition over TiO2 using Au, Pd, and Au-Pd nanoparticles. ACS Nano 2012, 6, 6284–6292. [Google Scholar] [CrossRef]
  31. Tan, H.; Zhao, Z.; Niu, M.; Mao, C.; Cao, D.; Cheng, D.; Feng, P.; Sun, Z. A facile and versatile method for preparation of colored TiO2 with enhanced solar-driven photocatalytic activity. Nanoscale 2014, 6, 10216–10223. [Google Scholar] [CrossRef]
  32. Katal, R.; Salehi, M.; Davood Abadi Farahani, M.H.; Masudy-Panah, S.; Ong, S.L.; Hu, J. Preparation of a new type of black TiO2 under a vacuum atmosphere for sunlight photocatalysis. ACS Appl. Mater. Interfaces 2018, 10, 35316–35326. [Google Scholar] [CrossRef]
  33. Habisreutinger, S.N.; Schmidt-Mende, L.; Stolarczyk, J.K. Photocatalytic reduction of CO2 on TiO2 and other semiconductors. Angew. Chem. Int. Edit. 2013, 52, 7372–7408. [Google Scholar] [CrossRef] [PubMed]
  34. Xing, Z.; Zhou, W.; Du, F.; Zhang, L.; Li, Z.; Zhang, H.; Li, W. Facile synthesis of hierarchical porous tio2 ceramics with enhanced photocatalytic performance for micropolluted pesticide degradation. ACS Appl. Mater. Interfaces 2014, 6, 16653–16660. [Google Scholar] [CrossRef] [PubMed]
  35. Kumar, S.G.; Devi, L.G. Review on modified TiO2 photocatalysis under UV/visible light: Selected results and related mechanisms on interfacial charge carrier transfer dynamics. J. Phys. Chem. A 2011, 115, 13211–13241. [Google Scholar] [CrossRef] [PubMed]
  36. Bui, V.K.H.; Park, D.; Pham, T.N.; An, Y.; Choi, J.S.; Lee, H.-U.; Kwon, O.-H.; Moon, J.-Y.; Kim, K.-T.; Lee, Y.-C. Synthesis of MgAC-Fe3O4/TiO2 hybrid nanocomposites via sol-gel chemistry for water treatment by photo-fenton and photocatalytic reactions. Sci. Rep. 2019, 9, 11855. [Google Scholar] [CrossRef] [Green Version]
  37. Fabiyi, M.E.; Skelton, R.L. Photocatalytic mineralisation of methylene blue using buoyant TiO2-coated polystyrene beads. J. Photochem. Photobiol. A 2000, 132, 121–128. [Google Scholar] [CrossRef]
  38. Hosseini, S.N.; Borghei, S.M.; Vossoughi, M.; Taghavinia, N. Immobilization of tio2 on perlite granules for photocatalytic degradation of phenol. Appl. Catal. B Environ. 2007, 74, 53–62. [Google Scholar] [CrossRef]
  39. Modestov, A.; Glezer, V.; Marjasin, I.; Lev, O. Photocatalytic degradation of chlorinated phenoxyacetic acids by a new buoyant titania-exfoliated graphite composite photocatalyst. J. Phys. Chem. B 1997, 101, 4623–4629. [Google Scholar] [CrossRef]
  40. Yada, M.; Ohya, M.; Machida, M.; Kijima, T. Mesoporous gallium oxide structurally stabilized by yttrium oxide. Langmuir 2000, 16, 4752–4755. [Google Scholar] [CrossRef]
  41. Pulido Melián, E.; Nereida Suárez, M.; Jardiel, T.; Calatayud, D.G.; del Campo, A.; Doña-Rodríguez, J.M.; Araña, J.; González Díaz, O.M. Highly photoactive TiO2 microspheres for photocatalytic production of hydrogen. Int. J. Hydrog. Energy 2019, 44, 24653–24666. [Google Scholar] [CrossRef]
  42. Du, J.; Chen, W.; Zhang, C.; Liu, Y.; Zhao, C.; Dai, Y. Hydrothermal synthesis of porous TiO2 microspheres and their photocatalytic degradation of gaseous benzene. Chem. Eng. J. 2011, 170, 53–58. [Google Scholar] [CrossRef]
  43. Wang, Y.; Tang, X.; Yin, L.; Huang, W.; Hacohen, Y.R.; Gedanken, A. Sonochemical synthesis of mesoporous titanium oxide with wormhole-like framework structures. Adv. Mater. 2000, 12, 1183–1186. [Google Scholar] [CrossRef]
  44. Kluson, P.; Kacer, P.; Cajthaml, T.; Kalaji, M. Preparation of titania mesoporous materials using a surfactant-mediated sol-gel method. J. Mater. Chem. 2001, 11, 644–651. [Google Scholar] [CrossRef]
  45. Yun, H.S.; Miyazawa, K.; Zhou, H.S.; Honma, I.; Kuwabara, M. Synthesis of mesoporous thin TiO2 films with hexagonal pore structures using triblock copolymer templates. Adv. Mater. 2001, 13, 1377–1380. [Google Scholar] [CrossRef]
  46. Yu, J.C.; Zhang, L.; Yu, J. Direct sonochemical preparation and characterization of highly active mesoporous TiO2 with a bicrystalline framework. Chem. Mater. 2002, 14, 4647–4653. [Google Scholar] [CrossRef]
  47. Luo, H.; Wang, C.; Yan, Y. Synthesis of mesostructured titania with controlled crystalline framework. Chem. Mater. 2003, 15, 3841–3846. [Google Scholar] [CrossRef]
  48. Ma, X.; Wang, X.; Yu, C.; Song, Y.; Liang, J.; Min, Q.; Zhang, F. Effects of primary nanobuilding blocks on the photocatalytic performance of TiO2 hierarchical hollow microspheres. J. Alloys Compd. 2019, 773, 352–360. [Google Scholar] [CrossRef]
  49. Baolong, Z.; Baishun, C.; Keyu, S.; Shangjin, H.; Xiaodong, L.; Zongjie, D.; Kelian, Y. Preparation and characterization of nanocrystal grain TiO2 porous microspheres. Appl. Catal. B Environ. 2003, 40, 253–258. [Google Scholar] [CrossRef]
  50. Zhang, Y.; Li, G.; Wu, Y.; Luo, Y.; Zhang, L. The formation of mesoporous TiO2 spheres via a facile chemical process. J. Phys. Chem. B 2005, 109, 5478–5481. [Google Scholar] [CrossRef] [PubMed]
  51. Yao, Y.; Li, Y.; Shao, W.; Kang, Y.; Wang, H.; Huang, Z.; Liao, X.; Yin, G. Antibacterial properties of TiO2 ceramic pellets prepared using nano TiO2 powder. J. Wuhan Univ. Technol. 2009, 24, 337. [Google Scholar] [CrossRef]
  52. Li, R.; Jia, Y.; Bu, N.; Wu, J.; Zhen, Q. Photocatalytic degradation of methyl blue using Fe2O3/TiO2 composite ceramics. J. Alloys Compd. 2015, 643, 88–93. [Google Scholar] [CrossRef]
  53. Choi, J.; Kim, J.; Yoo, K.S.; Lee, T.G. Synthesis of mesoporous TiO2/γ-Al2O3 composite granules with different sol composition and calcination temperature. Powder Technol. 2008, 181, 83–88. [Google Scholar] [CrossRef]
  54. Zhang, K.; Zhou, W.; Zhang, X.; Sun, B.; Wang, L.; Pan, K.; Jiang, B.; Tian, G.; Fu, H. Self-floating amphiphilic black TiO2 foams with 3D macro-mesoporous architectures as efficient solar-driven photocatalysts. Appl. Catal. B Environ. 2017, 206, 336–343. [Google Scholar] [CrossRef]
  55. Meynen, V.; Cool, P.; Vansant, E.F. Verified syntheses of mesoporous materials. Micropor. Mesopor. Mater. 2009, 125, 170–223. [Google Scholar] [CrossRef]
  56. Wang, L.; Tomura, S.; Maeda, M.; Ohashi, F.; Inukai, K.; Suzuki, M. Synthesis of mesoporous TiO2 spheres under static condition. Chem. Lett. 2000, 29, 1414–1415. [Google Scholar] [CrossRef]
  57. Balati, A.; Tek, S.; Nash, K.; Shipley, H. Nanoarchitecture of TiO2 microspheres with expanded lattice interlayers and its heterojunction to the laser modified black TiO2 using pulsed laser ablation in liquid with improved photocatalytic performance under visible light irradiation. J. Colloid Interface Sci. 2019, 541, 234–248. [Google Scholar] [CrossRef]
  58. Vicent, M.; Sánchez, E.; Santacruz, I.; Moreno, R. Dispersion of TiO2 nanopowders to obtain homogeneous nanostructured granules by spray-drying. J. Eur. Ceram. Soc. 2011, 31, 1413–1419. [Google Scholar] [CrossRef]
  59. Faure, B.; Sæderup Lindeløv, J.; Wahlberg, M.; Adkins, N.; Jackson, P.; Bergström, L. Spray drying of TiO2 nanoparticles into redispersible granules. Powder Technol. 2010, 203, 384–388. [Google Scholar] [CrossRef]
  60. Pal, S.; Laera, A.M.; Licciulli, A.; Catalano, M.; Taurino, A. Biphase tio2 microspheres with enhanced photocatalytic activity. Ind. Eng. Chem. Res. 2014, 53, 7931–7938. [Google Scholar] [CrossRef]
  61. Vicent, M.; Sánchez, E.; Molina, T.; Nieto, M.I.; Moreno, R. Comparison of freeze drying and spray drying to obtain porous nanostructured granules from nanosized suspensions. J. Eur. Ceram. Soc. 2012, 32, 1019–1028. [Google Scholar] [CrossRef] [Green Version]
  62. Mun, J.Y.; Park, J.Y.; Kwak, M.; Moon, B.K.; Jang, K.; Yang, H.K. Synthesis of TiO2 spheres and their utilization in the enhancement light-extraction efficiency of wleds. Mater. Res. Bull. 2017, 94, 456–462. [Google Scholar] [CrossRef]
  63. Zhang, Y.; Xu, M.; Li, H.; Ge, H.; Bian, Z. The enhanced photoreduction of Cr(VI) to Cr(III) using carbon dots coupled TiO2 mesocrystals. Appl. Catal. B Environ. 2018, 226, 213–219. [Google Scholar] [CrossRef]
  64. Zhang, L.-W.; Fu, H.-B.; Zhu, Y.-F. Efficient TiO2 photocatalysts from surface hybridization of TiO2 particles with graphite-like carbon. Adv. Funct. Mater. 2008, 18, 2180–2189. [Google Scholar] [CrossRef]
  65. Li, H.; Kang, Z.; Liu, Y.; Lee, S.-T. Carbon nanodots: Synthesis, properties and applications. J. Mater. Chem. 2012, 22, 24230–24253. [Google Scholar] [CrossRef]
  66. Baker, S.N.; Baker, G.A. Luminescent carbon nanodots: Emergent nanolights. Angew. Chem. Int. Edit. 2010, 49, 6726–6744. [Google Scholar] [CrossRef]
  67. Zheng, X.T.; Ananthanarayanan, A.; Luo, K.Q.; Chen, P. Glowing graphene quantum dots and carbon dots: Properties, syntheses, and biological applications. Small 2015, 11, 1620–1636. [Google Scholar] [CrossRef]
  68. Singh, S.; Mahalingam, H.; Singh, P.K. Polymer-supported titanium dioxide photocatalysts for environmental remediation: A review. Appl. Catal. A Gen. 2013, 462, 178–195. [Google Scholar] [CrossRef]
  69. Magalhães, F.; Lago, R.M. Floating photocatalysts based on TiO2 grafted on expanded polystyrene beads for the solar degradation of dyes. Sol. Energy 2009, 83, 1521–1526. [Google Scholar] [CrossRef]
  70. Baek, M.-H.; Jung, W.-C.; Yoon, J.-W.; Hong, J.-S.; Lee, Y.-S.; Suh, J.-K. Preparation, characterization and photocatalytic activity evaluation of micro- and mesoporous TiO2/spherical activated carbon. J. Ind. Eng. Chem. 2013, 19, 469–477. [Google Scholar] [CrossRef]
  71. Rosenberg, I.; Brock, J.R.; Heller, A. Collection optics of TiO2 photocatalyst on hollow glass microbeads floating on oil slicks. J. Phys. Chem. A 1992, 96, 3423–3428. [Google Scholar] [CrossRef]
  72. Berry, R.J.; Mueller, M.R. Photocatalytic decomposition of crude oil slicks using TiO2 on a floating substrate. Microchem. J. 1994, 50, 28–32. [Google Scholar] [CrossRef]
  73. Syoufian, A.; Nakashima, K. Degradation of methylene blue in aqueous dispersion of hollow titania photocatalyst: Optimization of reaction by peroxydisulfate electron scavenger. J. Colloid Interface Sci. 2007, 313, 213–218. [Google Scholar] [CrossRef] [PubMed]
  74. Holdich, R.G.; Ipek, I.Y.; Lazrigh, M.; Shama, G. Production and evaluation of floating photocatalytic composite particles formed using pickering emulsions and membrane emulsification. Ind. Eng. Chem. Res. 2012, 51, 12509–12516. [Google Scholar] [CrossRef] [Green Version]
  75. Goedecke, C.; Sojref, R.; Nguyen, T.Y.; Piechotta, C. Immobilization of photocatalytically active TiO2 nanopowder by high shear granulation. Powder Technol. 2017, 318, 465–470. [Google Scholar] [CrossRef]
  76. Shelimov, B.N.; Tolkachev, N.N.; Tkachenko, O.P.; Baeva, G.N.; Klementiev, K.V.; Stakheev, A.Y.; Kazansky, V.B. Enhancement effect of TiO2 dispersion over alumina on the photocatalytic removal of NOx admixtures from O2-N2 flow. J. Photochem. Photobiol. A 2008, 195, 81–88. [Google Scholar] [CrossRef]
  77. Xu, S.; Zhang, X.; Ng, J.; Sun, D.D. Preparation and application of TiO2/Al2O3 microspherical photocatalyst for water treatment. Water Sci. Technol. Water Supply 2009, 9, 39–44. [Google Scholar] [CrossRef]
  78. Araña, J.; Doña-Rodríguez, J.M.; Cabo, C.G.I.; González-Díaz, O.; Herrera-Melián, J.A.; Pérez-Peña, J. Ftir study of gas-phase alcohols photocatalytic degradation with TiO2 and AC-TiO2. Appl. Catal. B Environ. 2004, 53, 221–232. [Google Scholar] [CrossRef]
  79. Ouzzine, M.; Romero-Anaya, A.J.; Lillo-Ródenas, M.A.; Linares-Solano, A. Spherical activated carbon as an enhanced support for TiO2/AC photocatalysts. Carbon 2014, 67, 104–118. [Google Scholar] [CrossRef]
  80. Yang, H.G.; Zeng, H.C. Preparation of hollow anatase TiO2 nanospheres via Ostwald ripening. J. Phys. Chem. B 2004, 108, 3492–3495. [Google Scholar] [CrossRef]
  81. Alosfur, F.K.M.; Ridha, N.J.; Jumali, M.H.H.; Radiman, S. One-step formation of TiO2 hollow spheres via a facile microwave-assisted process for photocatalytic activity. Nanotechnology 2018, 29, 145707. [Google Scholar] [CrossRef] [PubMed]
  82. Skrabalak, S.E.; Au, L.; Li, X.; Xia, Y. Facile synthesis of Ag nanocubes and Au nanocages. Nat. Protoc. 2007, 2, 2182–2190. [Google Scholar] [CrossRef] [PubMed]
  83. Zhang, Q.; Zhang, T.; Ge, J.; Yin, Y. Permeable silica shell through surface-protected etching. Nano Lett. 2008, 8, 2867–2871. [Google Scholar] [CrossRef] [PubMed]
  84. Cheng, H.; Huang, B.; Liu, Y.; Wang, Z.; Qin, X.; Zhang, X.; Dai, Y. An anion exchange approach to Bi2WO6 hollow microspheres with efficient visible light photocatalytic reduction of CO2 to methanol. Chem. Commun. 2012, 48, 9729–9731. [Google Scholar] [CrossRef] [PubMed]
  85. Kang, S.; Yin, D.; Li, X.; Li, L.; Mu, J. One-pot template-free preparation of mesoporous TiO2 hollow spheres and their photocatalytic activity. Mater. Res. Bull. 2012, 47, 3065–3069. [Google Scholar] [CrossRef]
  86. Xie, F.; Wang, J.; Li, Y.; Dou, J.; Wei, M. One-step synthesis of hierarchical SnO2/TiO2 composite hollow microspheres as an efficient scattering layer for dye-sensitized solar cells. Electrochim. Acta 2019, 296, 142–148. [Google Scholar] [CrossRef]
  87. Chowdhury, I.H.; Roy, M.; Kundu, S.; Naskar, M.K. TiO2 hollow microspheres impregnated with biogenic gold nanoparticles for the efficient visible light-induced photodegradation of phenol. J. Phys. Chem. Solids 2019, 129, 329–339. [Google Scholar] [CrossRef]
  88. Balati, A.; Matta, A.; Nash, K.; Shipley, H.J. Heterojunction of vertically aligned MoS2 layers to hydrogenated black TiO2 and rutile based inorganic hollow microspheres for the highly enhanced visible light arsenic photooxidation. Compos. Part B Eng. 2020, 185, 107785. [Google Scholar] [CrossRef]
  89. Ren, T.-Z.; Yuan, Z.-Y.; Su, B.-L. Surfactant-assisted preparation of hollow microspheres of mesoporous TiO2. Chem. Phys. Lett. 2003, 374, 170–175. [Google Scholar]
  90. Zhang, L.; Wan, M.; Wei, Y. Polyaniline/TiO2 microspheres prepared by a template-free method. Synthetic Met. 2005, 151, 1–5. [Google Scholar] [CrossRef]
  91. Fuhrhop, J.H.; Helfrich, W. Fluid and solid fibers made of lipid molecular bilayers. Chem. Rev. 1993, 93, 1565–1582. [Google Scholar] [CrossRef]
  92. Kim, B.J.; Oh, S.G.; Han, M.G.; Im, S.S. Preparation of polyaniline nanoparticles in micellar solutions as polymerization medium. Langmuir 2000, 16, 5841–5845. [Google Scholar] [CrossRef]
  93. Wei, Z.; Zhang, Z.; Wan, M. Formation mechanism of self-assembled polyaniline micro/nanotubes. Langmuir 2002, 18, 917–921. [Google Scholar] [CrossRef]
  94. Zhang, Z.; Wei, Z.; Wan, M. Nanostructures of polyaniline doped with inorganic acids. Macromolecules 2002, 35, 5937–5942. [Google Scholar] [CrossRef]
  95. Zhang, L.; Wan, M. Polyaniline/TiO2 composite nanotubes. J. Phys. Chem. B 2003, 107, 6748–6753. [Google Scholar] [CrossRef]
  96. Zurmühl, C.; Popescu, R.; Gerthsen, D.; Feldmann, C. Microemulsion-based synthesis of nanoscale TiO2 hollow spheres. Solid State Sci. 2011, 13, 1505–1509. [Google Scholar] [CrossRef]
  97. Hozumi, A.; Yokogawa, Y.; Kameyama, T.; Hiraku, K.; Sugimura, H.; Takai, O.; Okido, M. Photocalcination of mesoporous silica films using vacuum ultraviolet light. Adv. Mater. 2000, 12, 985–987. [Google Scholar] [CrossRef]
  98. Thurn-Albrecht, T.; Schotter, J.; Kastle, G.A.; Emley, N.; Shibauchi, T.; Krusin-Elbaum, L.; Guarini, K.; Black, C.T.; Tuominen, M.T.; Russell, T.P. Ultrahigh-density nanowire arrays grown in self-assembled diblock copolymer templates. Science 2000, 290, 2126–2129. [Google Scholar] [CrossRef] [Green Version]
  99. Wang, L.; Sasaki, T.; Ebina, Y.; Kurashima, K.; Watanabe, M. Fabrication of controllable ultrathin hollow shells by layer-by-layer assembly of exfoliated titania nanosheets on polymer templates. Chem. Mater. 2002, 14, 4827–4832. [Google Scholar] [CrossRef]
  100. Syoufian, A.; Inoue, Y.; Yada, M.; Nakashima, K. Preparation of submicrometer-sized titania hollow spheres by templating sulfonated polystyrene latex particles. Mater. Lett. 2007, 61, 1572–1575. [Google Scholar] [CrossRef]
  101. Wang, Y.; Hong, C.-S. Effect of hydrogen peroxide, periodate and persulfate on photocatalysis of 2-chlorobiphenyl in aqueous TiO2 suspensions. Water Res. 1999, 33, 2031–2036. [Google Scholar] [CrossRef]
  102. Irmak, S.; Kusvuran, E.; Erbatur, O. Degradation of 4-chloro-2-methylphenol in aqueous solution by UV irradiation in the presence of titanium dioxide. Appl. Catal. B Environ. 2004, 54, 85–91. [Google Scholar] [CrossRef]
  103. Muruganandham, M.; Swaminathan, M. Photocatalytic decolourisation and degradation of reactive orange 4 by TiO2-UV process. Dyes Pig. 2006, 68, 133–142. [Google Scholar] [CrossRef]
  104. Liu, Y.; Zhou, L.; Hu, Y.; Guo, C.; Qian, H.; Zhang, F.; Lou, X.W. Magnetic-field induced formation of 1D Fe3O4/C/Cds coaxial nanochains as highly efficient and reusable photocatalysts for water treatment. J. Mater. Chem. 2011, 21, 18359–18364. [Google Scholar] [CrossRef]
  105. Meng, H.L.; Cui, C.; Shen, H.L.; Liang, D.Y.; Xue, Y.Z.; Li, P.G.; Tang, W.H. Synthesis and photocatalytic activity of TiO2@Cds and Cds@TiO2 double-shelled hollow spheres. J. Alloys Compd. 2012, 527, 30–35. [Google Scholar] [CrossRef]
  106. Xue, C.; Wang, T.; Yang, G.; Yang, B.; Ding, S. A facile strategy for the synthesis of hierarchical TiO2/Cds hollow sphere heterostructures with excellent visible light activity. J. Mater. Chem. A 2014, 2, 7674–7679. [Google Scholar] [CrossRef]
  107. Iida, M.; Sasaki, T.; Watanabe, M. Titanium dioxide hollow microspheres with an extremely thin shell. Chem. Mater. 1998, 10, 3780–3782. [Google Scholar] [CrossRef]
  108. McDonald, C.J.; Devon, M.J. Hollow latex particles: Synthesis and applications. Adv. Colloid Interface Sci. 2002, 99, 181–213. [Google Scholar] [CrossRef]
  109. Ohno, T.; Akiyoshi, M.; Umebayashi, T.; Asai, K.; Mitsui, T.; Matsumura, M. Preparation of S-doped TiO2 photocatalysts and their photocatalytic activities under visible light. Appl. Catal. A Gen. 2004, 265, 115–121. [Google Scholar] [CrossRef]
  110. Umebayashi, T.; Yamaki, T.; Itoh, H.; Asai, K. Band gap narrowing of titanium dioxide by sulfur doping. Appl. Phys. Lett. 2002, 81, 454–456. [Google Scholar] [CrossRef]
  111. Martyanov, I.N.; Uma, S.; Rodrigues, S.; Klabunde, K.J. Structural defects cause TiO2-based photocatalysts to be active in visible light. Chem. Commun. 2004, 21, 2476–2477. [Google Scholar] [CrossRef]
  112. Irie, H.; Washizuka, S.; Hashimoto, K. Hydrophilicity on carbon-doped TiO2 thin films under visible light. Thin Solid Films 2006, 510, 21–25. [Google Scholar] [CrossRef]
  113. Syoufian, A.; Satriya, O.H.; Nakashima, K. Photocatalytic activity of titania hollow spheres: Photodecomposition of methylene blue as a target molecule. Catal. Commun. 2007, 8, 755–759. [Google Scholar] [CrossRef]
  114. Dervos, C.T.; Thirios, E.; Novacovich, J.; Vassiliou, P.; Skafidas, P. Permittivity properties of thermally treated TiO2. Mater. Lett. 2004, 58, 1502–1507. [Google Scholar] [CrossRef]
  115. Destaillats, H.; Hung, H.M.; Hoffmann, M.R. Degradation of alkylphenol ethoxylate surfactants in water with ultrasonic irradiation. Environ. Sci. Technol. 2000, 34, 311–317. [Google Scholar] [CrossRef]
  116. Nagata, Y.; Nakagawa, M.; Okuno, H.; Mizukoshi, Y.; Yim, B.; Maeda, Y. Sonochemical degradation of chlorophenols in water. Ultrason. Sonochem. 2000, 7, 115–120. [Google Scholar] [CrossRef]
  117. Stavarache, C.; Yim, B.; Vinatoru, M.; Maeda, Y. Sonolysis of chlorobenzene in Fenton-type aqueous systems. Ultrason. Sonochem. 2002, 9, 291–296. [Google Scholar] [CrossRef]
  118. Suslick, K.S.; Hammerton, D.A.; Cline, R.E. The sonochemical hot spot. J. Am. Ceram. Soc. 1986, 108, 5641–5642. [Google Scholar] [CrossRef]
  119. Shimizu, N.; Ogino, C.; Dadjour, M.F.; Murata, T. Sonocatalytic degradation of methylene blue with TiO2 pellets in water. Ultrason. Sonochem. 2007, 14, 184–190. [Google Scholar] [CrossRef]
  120. Sekiguchi, H.; Saita, Y. Effect of alumina particles on sonolysis degradation of chlorobenzene in aqueous solution. J. Chem. Eng. Jpn. 2001, 34, 1045–1048. [Google Scholar] [CrossRef]
  121. Marschall, H.B.; Morch, K.A.; Keller, A.P.; Kjeldsen, M. Cavitation inception by almost spherical solid particles in water. Phys. Fluids 2003, 15, 545–553. [Google Scholar] [CrossRef] [Green Version]
  122. Tuziuti, T.; Yasui, K.; Sivakumar, M.; Iida, Y. Correlation between acoustic cavitation noise and yield enhancement of sonochemical reaction by particle addition. J. Phys. Chem. A 2005, 109, 4869–4872. [Google Scholar] [CrossRef] [PubMed]
  123. Jasmann, J.R.; Borch, T.; Sale, T.C.; Blotevogel, J. Advanced electrochemical oxidation of 1,4-dioxane via dark catalysis by novel titanium dioxide (TiO2) pellets. Environ. Sci. Technol. 2016, 50, 8817–8826. [Google Scholar] [CrossRef] [PubMed]
  124. Itatani, K.; Tsujimoto, T.; Kishimoto, A. Thermal and optical properties of transparent magnesium oxide ceramics fabricated by post hot-isostatic pressing. J. Eur. Ceram. Soc. 2006, 26, 639–645. [Google Scholar] [CrossRef]
  125. Ergun, C. Enhanced phase stability in hydroxylapatite/zirconia composites with hot isostatic pressing. Ceram. Int. 2011, 37, 935–942. [Google Scholar] [CrossRef]
  126. Ahn, J.P.; Park, J.K.; Kim, G. Effect of compact density on phase transition kinetics from anatase phase to rutile phase during sintering of ultrafine titania powder compacts. Nanostruct. Mater. 1998, 10, 1087–1096. [Google Scholar] [CrossRef]
  127. Mazaheri, M.; Razavi Hesabi, Z.; Sadrnezhaad, S.K. Two-step sintering of titania nanoceramics assisted by anatase-to-rutile phase transformation. Scripta Mater. 2008, 59, 139–142. [Google Scholar] [CrossRef]
  128. Kitamura, A.; Kubodera, S.; Yamamoto, H.; Miyamoto, A.; Tsukui, T. Prevention of the color change in hip′ing of zirconia ceramics. In Hot Isostatic Pressing-Theory and Applications; Koizumi, M., Ed.; Springer: Dordrecht, The Netherlands, 1992; pp. 171–174. [Google Scholar]
  129. Gan, L.; Park, Y.-J.; Park, M.-J.; Kim, H.; Kim, J.-M.; Ko, J.-W.; Lee, J.-W. Facile fabrication of highly transparent yttria ceramics with fine microstructures by a hot-pressing method. J. Am. Ceram. Soc. 2015, 98, 2002–2004. [Google Scholar] [CrossRef]
  130. Michálek, M.; Michálková, M.; Blugan, G.; Kuebler, J. Effect of carbon contamination on the sintering of alumina ceramics. J. Eur. Ceram. Soc. 2018, 38, 193–199. [Google Scholar] [CrossRef]
  131. Chen, X.; Liu, L.; Yu, P.Y.; Mao, S.S. Increasing solar absorption for photocatalysis with black hydrogenated titanium dioxide nanocrystals. Science 2011, 331, 746–750. [Google Scholar] [CrossRef]
  132. Yu, J.G.; Su, Y.R.; Cheng, B. Template-free fabrication and enhanced photocatalytic activity of hierarchical macro-/mesoporous titania. Adv. Funct. Mater. 2007, 17, 1984–1990. [Google Scholar] [CrossRef]
  133. Wang, G.; Xu, L.; Zhang, J.; Yin, T.; Han, D. Enhanced photocatalytic activity of TiO2 powders (P25) via calcination treatment. Int. J. Photoenergy 2012, 2012, 265760. [Google Scholar] [CrossRef] [Green Version]
  134. Gamboa, J.A.; Pasquevich, D.M. Effect of chlorine atmosphere on the anatase-rutile transformation. J. Am. Ceram. Soc. 1992, 75, 2934–2938. [Google Scholar] [CrossRef]
  135. Su, T.; Yang, Y.; Na, Y.; Fan, R.; Li, L.; Wei, L.; Yang, B.; Cao, W. An insight into the role of oxygen vacancy in hydrogenated TiO2 nanocrystals in the performance of dye-sensitized solar cells. ACS Appl. Mater. Interfaces 2015, 7, 3754–3763. [Google Scholar] [CrossRef] [PubMed]
  136. Koh, Y.-H.; Lee, E.-J.; Yoon, B.-H.; Song, J.-H.; Kim, H.-E.; Kim, H.-W. Effect of polystyrene addition on freeze casting of ceramic/camphene slurry for ultra-high porosity ceramics with aligned pore channels. J. Am. Ceram. Soc. 2006, 89, 3646–3653. [Google Scholar] [CrossRef]
  137. Soon, Y.M.; Shin, K.H.; Koh, Y.H.; Lee, J.H.; Kim, H.E. Compressive strength and processing of camphene-based freeze cast calcium phosphate scaffolds with aligned pores. Mater. Lett. 2009, 63, 1548–1550. [Google Scholar] [CrossRef]
  138. Liu, H.; Du, X.; Xing, X.; Wang, G.; Qiao, S.Z. Highly ordered mesoporous Cr2O3 materials with enhanced performance for gas sensors and lithium ion batteries. Chem. Commun. 2012, 48, 865–867. [Google Scholar] [CrossRef]
  139. Liu, J.; Yang, T.; Wang, D.W.; Lu, G.Q.; Zhao, D.; Qiao, S.Z. A facile soft-template synthesis of mesoporous polymeric and carbonaceous nanospheres. Nat. Commun. 2013, 4, 1–7. [Google Scholar] [CrossRef]
  140. Liu, H.; Chen, S.; Wang, G.; Qiao, S.Z. Ordered mesoporous core/shell SnO2/C nanocomposite as high-capacity anode material for lithium-ion batteries. Chem. Eur. J. 2013, 19, 16897–16901. [Google Scholar] [CrossRef]
  141. Hong, C.; Du, J.; Liang, J.; Zhang, X.; Han, J. Functionally graded porous ceramics with dense surface layer produced by freeze-casting. Ceram. Int. 2011, 37, 3717–3722. [Google Scholar] [CrossRef]
  142. Araki, K.; Halloran, J.W. New freeze-casting technique for ceramics with sublimable vehicles. J. Am. Ceram. Soc. 2005, 87, 1859–1863. [Google Scholar] [CrossRef] [Green Version]
  143. Zhou, W.; Sun, F.; Pan, K.; Tian, G.; Jiang, B.; Ren, Z.; Tian, C.; Fu, H. Well-ordered large-pore mesoporous anatase TiO2 with remarkably high thermal stability and improved crystallinity: Preparation, characterization, and photocatalytic performance. Adv. Funct. Mater. 2011, 21, 1922–1930. [Google Scholar] [CrossRef]
  144. Inagaki, M.; Kojin, F.; Tryba, B.; Toyoda, M. Carbon-coated anatase: The role of the carbon layer for photocatalytic performance. Carbon 2005, 43, 1652–1659. [Google Scholar] [CrossRef]
  145. Keller, N.; Rebmann, G.; Barraud, E.; Zahraa, O.; Keller, V. Macroscopic carbon nanofibers for use as photocatalyst support. Catal. Today 2005, 101, 323–329. [Google Scholar] [CrossRef]
  146. Lillo-Ródenas, M.A.; Bouazza, N.; Berenguer-Murcia, A.; Linares-Salinas, J.J.; Soto, P.; Linares-Solano, A. Photocatalytic oxidation of propene at low concentration. Appl. Catal. B Environ. 2007, 71, 298–309. [Google Scholar] [CrossRef]
  147. Ibusuki, T.; Takeuchi, K. Removal of low concentration nitrogen oxides through photoassisted heterogeneous catalysis. J. Mol. Catal. 1994, 88, 93–102. [Google Scholar] [CrossRef]
  148. Takeda, N.; Torimoto, T.; Sampath, S.; Kuwabata, S.; Yoneyama, H. Effects of inert supports for titanium dioxide loading on enhancement of photodecomposition rate of gaseous propionaldehyde. J. Phys. Chem. 1995, 99, 9986–9991. [Google Scholar] [CrossRef]
  149. Takeda, N.; Ohtani, M.; Torimoto, T.; Kuwabata, S.; Yoneyama, H. Evaluation of diffusibility of adsorbed propionaldehyde on titanium dioxide-loaded adsorbent photocatalyst films from its photodecomposition rate. J. Phys. Chem. B 1997, 101, 2644–2649. [Google Scholar] [CrossRef]
  150. Tsumura, T.; Kojitani, N.; Umemura, H.; Toyoda, M.; Inagaki, M. Composites between photoactive anatase-type TiO2 and adsorptive carbon. Appl. Surf. Sci. 2002, 196, 429–436. [Google Scholar] [CrossRef]
  151. Jitianu, A.; Cacciaguerra, T.; Benoit, R.; Delpeux, S.; Béguin, F.; Bonnamy, S. Synthesis and characterization of carbon nanotubes-TiO2 nanocomposites. Carbon 2004, 42, 1147–1151. [Google Scholar] [CrossRef]
  152. Araña, J.; Doña-Rodríguez, J.M.; Tello Rendón, E.; Garriga, I.; Cabo, C.; González-Díaz, O.; Herrera-Melián, J.A.; Pérez-Peña, J.; Colón, G.; Navío, J.A. TiO2 activation by using activated carbon as a support: Part I. Surface characterisation and decantability study. Appl. Catal. B Environ. 2003, 44, 161–172. [Google Scholar] [CrossRef]
  153. Bouazza, N.; Lillo-Ródenas, M.A.; Linares-Solano, A. Enhancement of the photocatalytic activity of pelletized TiO2 for the oxidation of propence at low concentration. Appl. Catal. B Environ. 2008, 77, 284–293. [Google Scholar] [CrossRef]
  154. Pal, B.; Sharon, M.; Nogami, G. Preparation and characterization of TiO2/Fe2O3 binary mixed oxides and its photocatalytic properties. Mater. Chem. Phys. 1999, 59, 254–261. [Google Scholar] [CrossRef] [Green Version]
  155. Kim, S.C.; Lee, D.K. Preparation of TiO2-coated hollow glass beads and their application to the control of algal growth in eutrophic water. Microchem. J. 2005, 80, 227–232. [Google Scholar] [CrossRef]
  156. Feitz, A.J.; Waite, T.D.; Jones, G.J.; Boyden, B.H.; Orr, P.T. Photocatalytic degradation of the blue green algal toxin microcystin-LR in a natural organic-aqueous matrix. Environ. Sci. Technol. 1999, 33, 243–249. [Google Scholar] [CrossRef]
  157. Hinojosa-Reyes, M.; Arriaga, S.; Diaz-Torres, L.A.; Rodriguez-Gonzalez, V. Gas-phase photocatalytic degradation of ethylbenzene over perlite granules coated with indium doped TiO2. Chem. Eng. J. 2013, 224, 106–113. [Google Scholar] [CrossRef]
  158. Kim, H.; Lee, S.; Han, Y.; Park, J. Preparation of dip-coated TiO2 photocatalyst on ceramic foam pellets. J. Mater. Sci. 2005, 41, 6150–6153. [Google Scholar] [CrossRef]
  159. Han, H.; Bai, R. Buoyant photocatalyst with greatly enhanced visible-light activity prepared through a low temperature hydrothermal method. Ind. Eng. Chem. Res. 2009, 48, 2891–2898. [Google Scholar] [CrossRef]
  160. Velásquez, J.; Valencia, S.; Rios, L.; Restrepo, G.; Marín, J. Characterization and photocatalytic evaluation of polypropylene and polyethylene pellets coated with P25 TiO2 using the controlled-temperature embedding method. Chem. Eng. J. 2012, 203, 398–405. [Google Scholar] [CrossRef]
  161. Rajaraman, T.S.; Parikh, S.P.; Gandhi, V.G. Black TiO2: A review of its properties and conflicting trends. Chem. Eng. J. 2019, 389, 123918. [Google Scholar] [CrossRef]
Figure 1. Formation of electron–hole pairs in semiconductor materials. Reprinted with permission from [33]. Copyright 2013, Wiley.
Figure 1. Formation of electron–hole pairs in semiconductor materials. Reprinted with permission from [33]. Copyright 2013, Wiley.
Nanomaterials 10 01190 g001
Figure 2. Scheme of mesoporous hollow and solid spheres formation. Reprinted with permission from [50]. Copyright 2005, American Chemistry Society.
Figure 2. Scheme of mesoporous hollow and solid spheres formation. Reprinted with permission from [50]. Copyright 2005, American Chemistry Society.
Nanomaterials 10 01190 g002

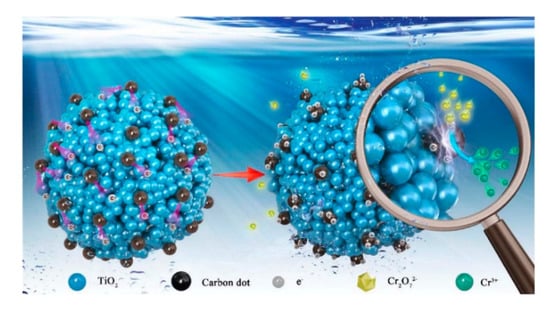

Figure 3. Adsorption–photoreduction–desorption mechanism of Cr(VI) in the presence of the CDs/MT composite. Reprinted with permission from [63]. Copyright 2018, Elsevier.
Figure 3. Adsorption–photoreduction–desorption mechanism of Cr(VI) in the presence of the CDs/MT composite. Reprinted with permission from [63]. Copyright 2018, Elsevier.
Nanomaterials 10 01190 g003
Figure 4. Formation of TiO2/SAC spheres (I) and their surfaces after heat treatment (II) at different temperatures: strong acid ion exchange resin (A), TiO2/SAC-700 (B), TiO2/SAC-900–0.5 (C), TiO2/SAC-900-2 (D), TiO2/SAC-900-6 (E), and TiO2/SAC-900-9 (F). Reprinted with permission from [70]. Copyright 2013, Elsevier.
Figure 4. Formation of TiO2/SAC spheres (I) and their surfaces after heat treatment (II) at different temperatures: strong acid ion exchange resin (A), TiO2/SAC-700 (B), TiO2/SAC-900–0.5 (C), TiO2/SAC-900-2 (D), TiO2/SAC-900-6 (E), and TiO2/SAC-900-9 (F). Reprinted with permission from [70]. Copyright 2013, Elsevier.
Nanomaterials 10 01190 g004
Figure 5. Preparation of TiO2 hollow spheres via the hard-templating method (a), soft-templating method (b), and self-templating method (c). Reprinted with permission from [21]. Copyright 2018, John Wiley and Sons.
Figure 5. Preparation of TiO2 hollow spheres via the hard-templating method (a), soft-templating method (b), and self-templating method (c). Reprinted with permission from [21]. Copyright 2018, John Wiley and Sons.
Nanomaterials 10 01190 g005
Figure 6. Two types of TiO2 hollow structures via Oswald ripening by hydrothermal process. Type (i) shows a dense and smooth surface, while type (ii) displays a less compact surface due to the achieved crystallite extrusion. Reprinted with permission from [80]. Copyright 2004, American Chemical Society.
Figure 6. Two types of TiO2 hollow structures via Oswald ripening by hydrothermal process. Type (i) shows a dense and smooth surface, while type (ii) displays a less compact surface due to the achieved crystallite extrusion. Reprinted with permission from [80]. Copyright 2004, American Chemical Society.
Nanomaterials 10 01190 g006
Figure 7. Fabrication steps for production of catalytic TiO2 pellets (I) and scheme of the flow-through electrochemical reactor (II). RE are reference electrodes. Reprinted with permission from [123]. Copyright 2016, American Chemical Society.
Figure 7. Fabrication steps for production of catalytic TiO2 pellets (I) and scheme of the flow-through electrochemical reactor (II). RE are reference electrodes. Reprinted with permission from [123]. Copyright 2016, American Chemical Society.
Nanomaterials 10 01190 g007
Figure 8. (I) XPS spectra of Ti 2p (a) and O 1s (b) of P25 and black TiO2 samples. (II) Electron paramagnetic resonance (EPR) spectra of compact pellets sintering at 500 °C (BT500) and P25 powder sintering at 500 °C (PBT500) under vacuum condition. (III) Scheme of formation of low-energy sites via sintering in a vacuum. Reprinted with permission from [32]. Copyright 2018, American Chemical Society.
Figure 8. (I) XPS spectra of Ti 2p (a) and O 1s (b) of P25 and black TiO2 samples. (II) Electron paramagnetic resonance (EPR) spectra of compact pellets sintering at 500 °C (BT500) and P25 powder sintering at 500 °C (PBT500) under vacuum condition. (III) Scheme of formation of low-energy sites via sintering in a vacuum. Reprinted with permission from [32]. Copyright 2018, American Chemical Society.
Nanomaterials 10 01190 g008
Figure 9. Scheme of the formation of self-floating amphiphilic macro/mesoporous black TiO2 foams. Reprinted with permission from [54]. Copyright 2017, Elsevier.
Figure 9. Scheme of the formation of self-floating amphiphilic macro/mesoporous black TiO2 foams. Reprinted with permission from [54]. Copyright 2017, Elsevier.
Nanomaterials 10 01190 g009
Figure 10. (a) Photo of a TiO2 hollow glass bead floating in water. (b) SEM images of a TiO2 hollow glass bead. (c) Photo of mesocosm at Nakdong River, Korea. Reprinted with permission from [155]. Copyright 2005, Elsevier.
Figure 10. (a) Photo of a TiO2 hollow glass bead floating in water. (b) SEM images of a TiO2 hollow glass bead. (c) Photo of mesocosm at Nakdong River, Korea. Reprinted with permission from [155]. Copyright 2005, Elsevier.
Nanomaterials 10 01190 g010
Table 1. Summary of TiO2 microscale and macroscale structures.
Table 1. Summary of TiO2 microscale and macroscale structures.
AdvantagesDisadvantagesFuture Perspectives
TiO2 microscale structures
  • Solid TiO2 spheres and hollow TiO2 spheres could be obtained via modification of the synthesis process
  • High surface area
  • Tunable structure
  • Complex preparation methods
  • Inexpensive and straightforward methods should be found
TiO2 macroscale structures
  • Simple preparation methods
  • Easy for mass production
  • Poor mechanical strength
  • Low attrition resistance
  • Immobilized TiO2 structures may have more mechanical stability, but the leakage of TiO2 to surroundings could be a critical problem
  • Simple, inexpensive methods to prepare TiO2 macroscale structures high in both photocatalytic and mechanical strength should be further investigated
  • Novel materials should be applied to the fabrication of TiO2 macroscale structures

Share and Cite

MDPI and ACS Style

Bui, V.K.H.; Tran, V.V.; Moon, J.-Y.; Park, D.; Lee, Y.-C. Titanium Dioxide Microscale and Macroscale Structures: A Mini-Review. Nanomaterials 2020, 10, 1190. https://doi.org/10.3390/nano10061190

AMA Style

Bui VKH, Tran VV, Moon J-Y, Park D, Lee Y-C. Titanium Dioxide Microscale and Macroscale Structures: A Mini-Review. Nanomaterials. 2020; 10(6):1190. https://doi.org/10.3390/nano10061190

Chicago/Turabian Style

Bui, Vu Khac Hoang, Vinh Van Tran, Ju-Young Moon, Duckshin Park, and Young-Chul Lee. 2020. "Titanium Dioxide Microscale and Macroscale Structures: A Mini-Review" Nanomaterials 10, no. 6: 1190. https://doi.org/10.3390/nano10061190

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
