# Integrated Source of Path-Entangled Photon Pairs with Efficient Pump Self-Rejection

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Scheme

## 3. Results and Discussions

#### 3.1. Operational Regime

#### 3.2. Quantum Perturbation Theory

#### 3.3. Realizations

#### 3.4. Extention to NOON States

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Heisenberg-Picture Operator Perturbation Expansion for the Photon Number

## Appendix B. NOON State Generator

## References

- Pirandola, S.; Bardhan, B.R.; Gehring, T.; Weedbrook, C.; Lloyd, S. Advances in photonic quantum sensing. Nat. Phot.
**2018**, 12, 724. [Google Scholar] [CrossRef] - Moreau, P.-A.; Toninelli, E.; Gregory, T.; Padgett, M.J. Imaging with quantum states of light. Nat. Rev. Phys.
**2019**, 1, 367. [Google Scholar] [CrossRef] [Green Version] - Berchera, I.R.; Degiovanni, I.P. Quantum imaging with sub-Poissonian light: Challenges and perspectives in optical metrology. Metrologia
**2019**, 56, 024001. [Google Scholar] [CrossRef] - Agrawal, G.P. Nonlinear Fiber Optics, 3rd ed.; Academic Press: New York, NY, USA, 1995. [Google Scholar]
- Fiorentino, M.; Voss, P.L.; Sharping, J.E.; Kumar, P. All-fiber photon-pair source for quantum communications. IEEE Photonics Technol. Lett.
**2002**, 14, 983–985. [Google Scholar] [CrossRef] - Caspani, L.; Xiong, C.; Eggleton, B.; Bajoni, D.; Liscidini, M.; Galli, M.; Morandotti, R.; Moss, D.J. Integrated sources of photon quantum states based on nonlinear optics. Light Sci. Appl.
**2017**, 6, e17100. [Google Scholar] [CrossRef] [PubMed] - Knill, E.; Laflamme, R.; Milburn, G.J. A scheme for efficient quantum computation with linear optics. Nature
**2001**, 409, 46. [Google Scholar] [CrossRef] [PubMed] - Diamanti, E.; Lo, H.-K.; Qi, B.; Yuan, Z. Practical challenges in quantum key distribution. NPJ Quant. Inf.
**2016**, 2, 16025. [Google Scholar] [CrossRef] [Green Version] - Solntsev, A.S.; Sukhorukov, A.A. Path-entangled photon sources on nonlinear chips. Rev. Phys.
**2017**, 2, 19–31. [Google Scholar] [CrossRef] - Silverstone, J.W.; Bonneau, D.; O’Brien, J.L.; Thompson, M.G. Silicon Quantum Photonics. IEEE J. Sel. Top. Quantum Electron.
**2016**, 22, 390. [Google Scholar] [CrossRef] [Green Version] - Kruse, R.; Sansoni, L.; Brauner, S.; Ricken, R.; Hamilton, C.S.; Jex, I.; Silberhorn, C. Dual-path source engineering in integrated quantum optics. Phys. Rev. A
**2015**, 92, 053841. [Google Scholar] [CrossRef] [Green Version] - Oser, D.; Tanzilli, S.; Mazeas, F.; Alonso-Ramos, C.; Roux, X.L.; Sauder, G.; Hua, X.; Alibart, O.; Vivien, L.; Cassan, É.; et al. High-quality photonic entanglement out of a stand-alone silicon chip. NPJ Quantum Inf.
**2020**, 6, 31. [Google Scholar] [CrossRef] [Green Version] - Piekarek, M.; Bonneau, D.; Miki, S.; Yamashita, T.; Fujiwara, M.; Sasaki, M.; Terai, H.; Tanner, M.G.; Natarajan, C.M.; Hadfield, R.H.; et al. High-extinction ratio integrated photonic filters for silicon quantum photonics. Opt. Lett.
**2017**, 42, 815. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Pérez-Galacho, D.; Alonso-Ramos, C.; Mazeas, F.; Roux, X.L.; Oser, D.; Zhang, W.; Marris-Morini, D.; Labonte, L.; Tanzilli, S.; Cassan, É.; et al. Optical pump-rejection filter based on silicon sub-wavelength engineered photonic structures. Opt. Lett.
**2017**, 42, 1468. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Minkov, M.; Savona, V. A compact, integrated silicon device for the generation of spectrally filtered, pair-correlated photons. J. Opt.
**2016**, 18, 054012. [Google Scholar] [CrossRef] [Green Version] - Wu, C.W.; Solntsev, A.S.; Neshev, D.N.; Sukhorukov, A.A. Photon pair generation and pump filtering in nonlinear adiabatic waveguiding structures. Opt. Lett.
**2014**, 39, 953. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Solntsev, A.S.; Liu, T.; Boes, A.; Nguyen, T.G.; Wu, C.W.; Setzpfandt, F.; Mitchell, A.; Neshev, D.N.; Sukhorukov, A.A. Towards on-chip photon-pair bell tests: Spatial pump filtering in a LiNbO3 adiabatic coupler. Appl. Phys. Lett.
**2017**, 111, 261108. [Google Scholar] [CrossRef] - Mitchell, M.; Lundeen, J.; Steinberg, A. Super-resolving phase measurements with a multiphoton entangled state. Nature
**2004**, 429, 161–164. [Google Scholar] [CrossRef] [Green Version] - Dowling, J.P. Quantum optical metrology–the lowdown on high-N00N states. Contemp. Phys.
**2008**, 49, 125–143. [Google Scholar] [CrossRef] - Kowalewska-Kudłaszyk, A.; Leoński, W.; Peřina, J., Jr. Generalized Bell states generation in a parametrically excited nonlinear coupler. Phys. Scr.
**2012**, 2012, 014016. [Google Scholar] [CrossRef] - Olsen, M.K. Spreading of entanglement and steering along small Bose-Hubbard chains. Phys. Rev.
**2015**, 92, 033627. [Google Scholar] [CrossRef] [Green Version] - Kalaga, J.K.; Leoński, W.; Szczȩśniak, R. Quantum steering and entanglement in three-mode triangle Bose–Hubbard system. Quantum Inf. Process.
**2017**, 16, 265. [Google Scholar] [CrossRef] - Peřina, J., Jr.; Peřina, J. Quantum Statistics of Nonlinear Optical Couplers; Progress in Optics; Wolf, E., Ed.; Elsevier: Amsterdam, The Netherlands, 2000; p. 361. [Google Scholar]
- Korolkova, N.; Peřina, J. Quantum statistics and dynamics of Kerr nonlinear couplers. Opt. Commun.
**1997**, 136, 135–149. [Google Scholar] [CrossRef] - Korolkova, N.; Peřina, J. Kerr nonlinear coupler with varying linear coupling coefficient. J. Mod. Opt.
**1997**, 44, 1525–1534. [Google Scholar] [CrossRef] - Thapliyal, K.; Pathak, A.; Sen, B.; Peřina, J. Higher-order nonclassicalities in a codirectional nonlinear optical coupler: Quantum entanglement, squeezing, and antibunching. Phys. Rev. A
**2014**, 90, 013808. [Google Scholar] [CrossRef] [Green Version] - Mogilevtsev, D.; Korolkova, N.; Peřina, J. Band-gap quantum coupler. J. Mod. Opt.
**1997**, 44, 1293–1307. [Google Scholar] [CrossRef] - Meany, T.; Gräfe, M.; Heilmann, R.; Perez-Leija, A.; Gross, S.; Steel, M.J.; Withford, M.J.; Szameit, A. Laser written circuits for quantum photonics. Laser Photonics Rev.
**2015**, 9, 363–384. [Google Scholar] [CrossRef] [Green Version] - Mogilevtsev, D.; Shchesnovich, V.S. Single-photon generation by correlated loss in a three-core optical fiber. Opt. Lett.
**2010**, 35, 3375. [Google Scholar] [CrossRef] - Mukherjee, S.; Mogilevtsev, D.; Slepyan, G.Y.; Doherty, T.H.; Thomson, R.R.; Korolkova, N. Dissipatively coupled waveguide networks for coherent diffusive photonics. Nat. Commun.
**2017**, 8, 1909. [Google Scholar] [CrossRef] [Green Version] - Thornton, M.; Sakovich, A.; Mikhalychev, A.; Ferrer, J.D.; Hoz, P.d.; Korolkova, N.; Mogilevtsev, D. Coherent Diffusive Photon Gun for Generating Nonclassical States. Phys. Rev. Appl.
**2019**, 12, 064051. [Google Scholar] [CrossRef] [Green Version] - Shchesnovich, V.; Mogilevtsev, D. Three-site Bose-Hubbard model subject to atom losses: Boson-pair dissipation channel and failure of the mean-field approach. Phys. Rev. A
**2010**, 82, 043621. [Google Scholar] [CrossRef] [Green Version] - Nasu, Y.; Kohtoku, M.; Hibino, Y. Low-loss waveguides written with a femtosecond laser for flexible interconnection in a planar light-wave circuit. Opt. Lett.
**2005**, 30, 723. [Google Scholar] [CrossRef] [PubMed] - Gross, S.; Withford, M.J. Ultrafast-laser-inscribed 3D integrated photonics: Challenges and emerging applications. Nanophotonics
**2015**, 4, 332. [Google Scholar] [CrossRef] [Green Version] - Russell, P.S.J. Photonic crystal fibers. Science
**2003**, 299, 358. [Google Scholar] [CrossRef] [PubMed] - Nielsen, M.D.; Jacobsen, C.; Mortensen, N.A.; Folkenberg, J.R.; Simonsen, H.R. Low-loss photonic crystal fibers for transmission systems and their dispersion properties. Opt. Exp.
**2004**, 12, 1372. [Google Scholar] [CrossRef] [Green Version] - Thomson, D.; Zilkie, A.; Bowers, J.E.; Komljenovic, T.; Reed, G.T.; Vivien, L.; Marris-Morini, D.; Cassan, E.; Virot, L.; Fedeli, J.-M.; et al. Roadmap on silicon photonics. J. Opt.
**2016**, 18, 073003. [Google Scholar] [CrossRef] - Augustin, L.M.; Santos, R.; den Haan, E.; Kleijn, S.; Thijs, P.A.; Latkowski, S.; Zhao, D.; Yao, W.; Bolk, J.; Ambrosius, H.; et al. InP-Based Generic Foundry Platform for Photonic Integrated Circuits. IEEE J. Sel. Top. Quantum Electron.
**2018**, 24, 10. [Google Scholar] [CrossRef] - Dong, P.; Qian, W.; Liao, S.; Liang, H.; Kung, C.; Feng, N.; Shafiiha, R.; Fong, J.; Feng, D.; Krishnamoorthy, A.V.; et al. Low loss shallow-ridge silicon waveguides. Opt. Exp.
**2010**, 18, 14474. [Google Scholar] [CrossRef] - Sato, T.; Makino, S.; Ishizaka, Y.; Fujisawa, T.; Saitoh, K. A rigorous definition of nonlinear parameter and effective area Aeff for photonic crystal optical waveguides. JOSA B
**2015**, 32, 1245. [Google Scholar] [CrossRef] [Green Version] - Agrawal, G. Nonlinear Fiber Optics; Elsevier Academic Press: Amsterdam, The Netherlands, 2013. [Google Scholar]
- Clark, A.S.; Collins, M.J.; Judge, A.C.; Magi, E.C.; Xiong, C.; Eggleton, B.J. Raman scattering effects on correlated photon-pair generation in chalcogenide. Opt. Exp.
**2012**, 20, 16807. [Google Scholar] [CrossRef] - Dezfouli, M.K.; Dignam, M.M.; Steel, M.J.; Sipe, J.E. Heisenberg treatment of pair generation in lossy coupled-cavity systems. Phys. Rev. A
**2014**, 90, 043832. [Google Scholar] [CrossRef]

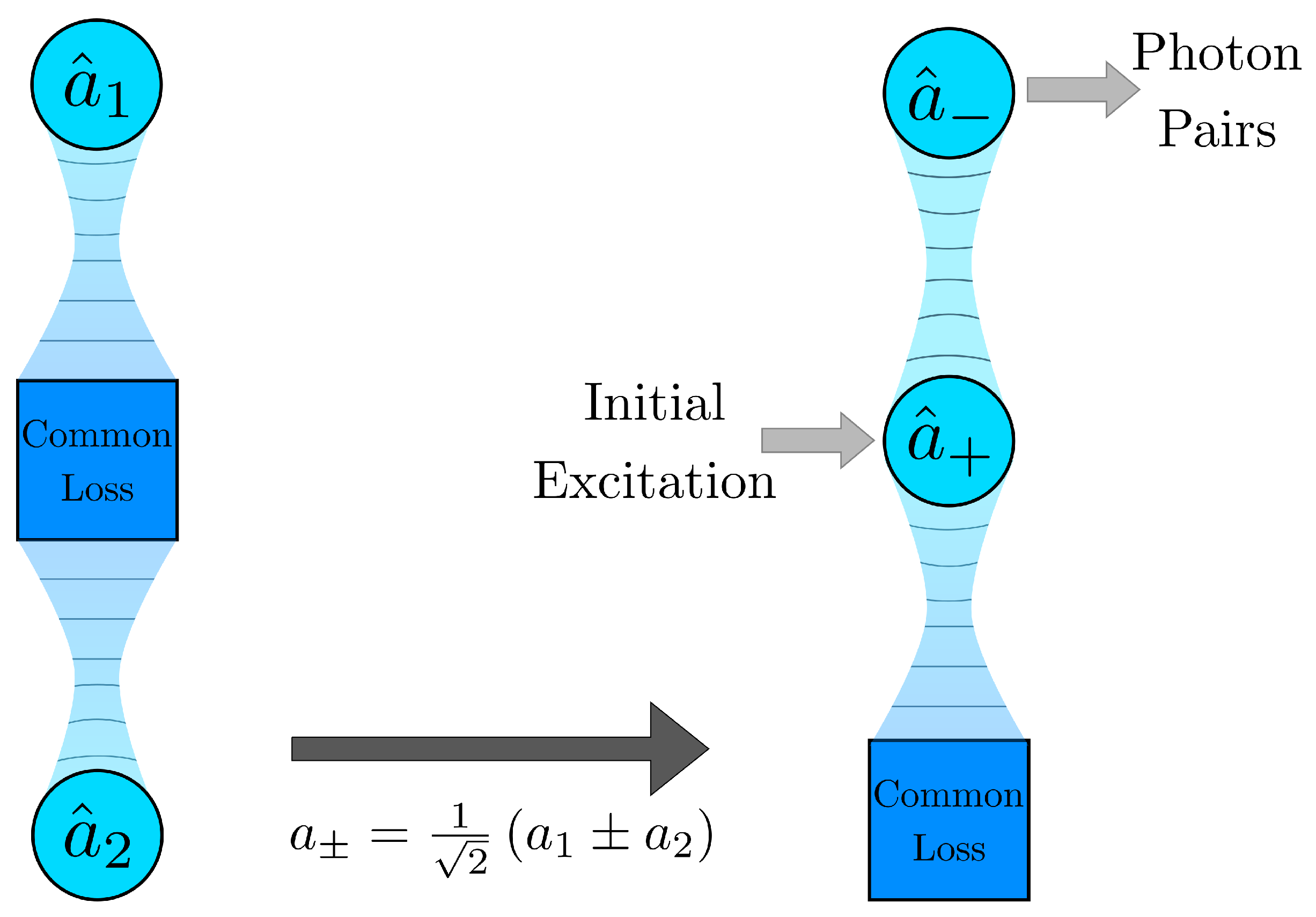

**Figure 1.**The scheme of the photon-pair generator with in-built pump rejection on the basis of two single-mode waveguides coupled to the common loss reservoir.

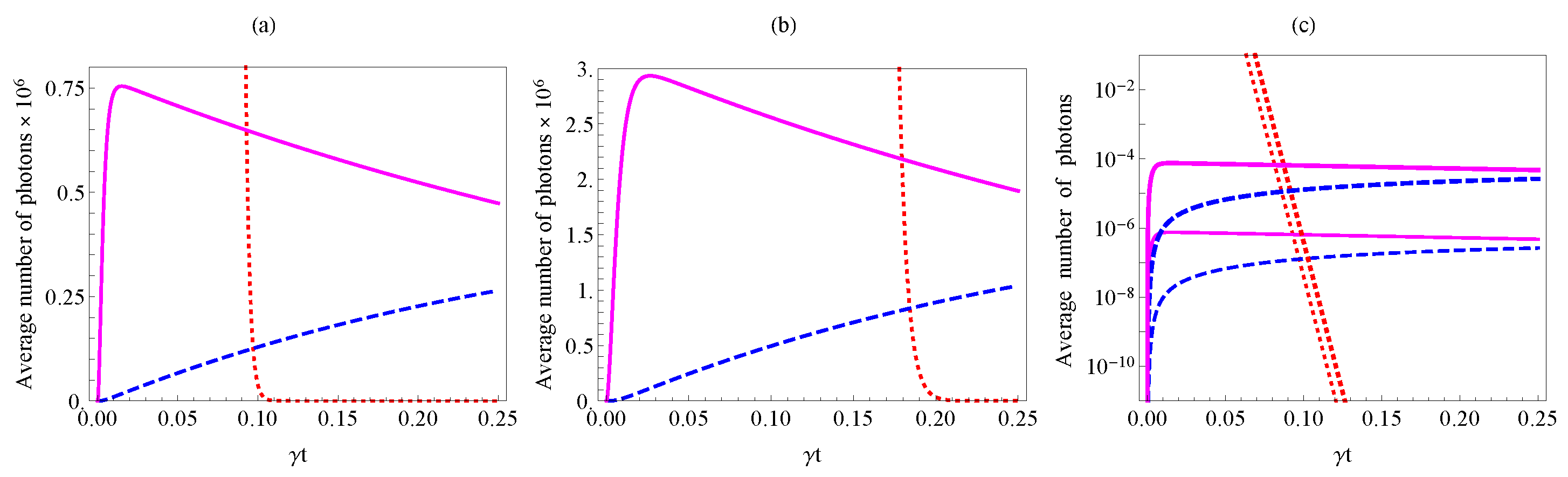

**Figure 2.**Average number of twin-photons (solid lines), single-photons (dashed lines), and pump photons (dotted lines) as given by Equations (7), (10) and (12). (

**a**,

**b**) correspond to $\mathsf{\Gamma}=400\gamma $ and $\mathsf{\Gamma}=200\gamma $ respectively and the initial average number of photons of the pump $|{\alpha}_{+}{(0)|}^{2}={10}^{10}$. (

**c**) corresponds to $|{\alpha}_{+}{(0)|}^{2}={10}^{10}$ (thin lines) and $|{\alpha}_{+}{(0)|}^{2}={10}^{11}$ (thick lines) and $\mathsf{\Gamma}=400\gamma $. For all of the figures, the squared nonlinearity is ${U}^{2}={10}^{-20}{\gamma}^{2}$.

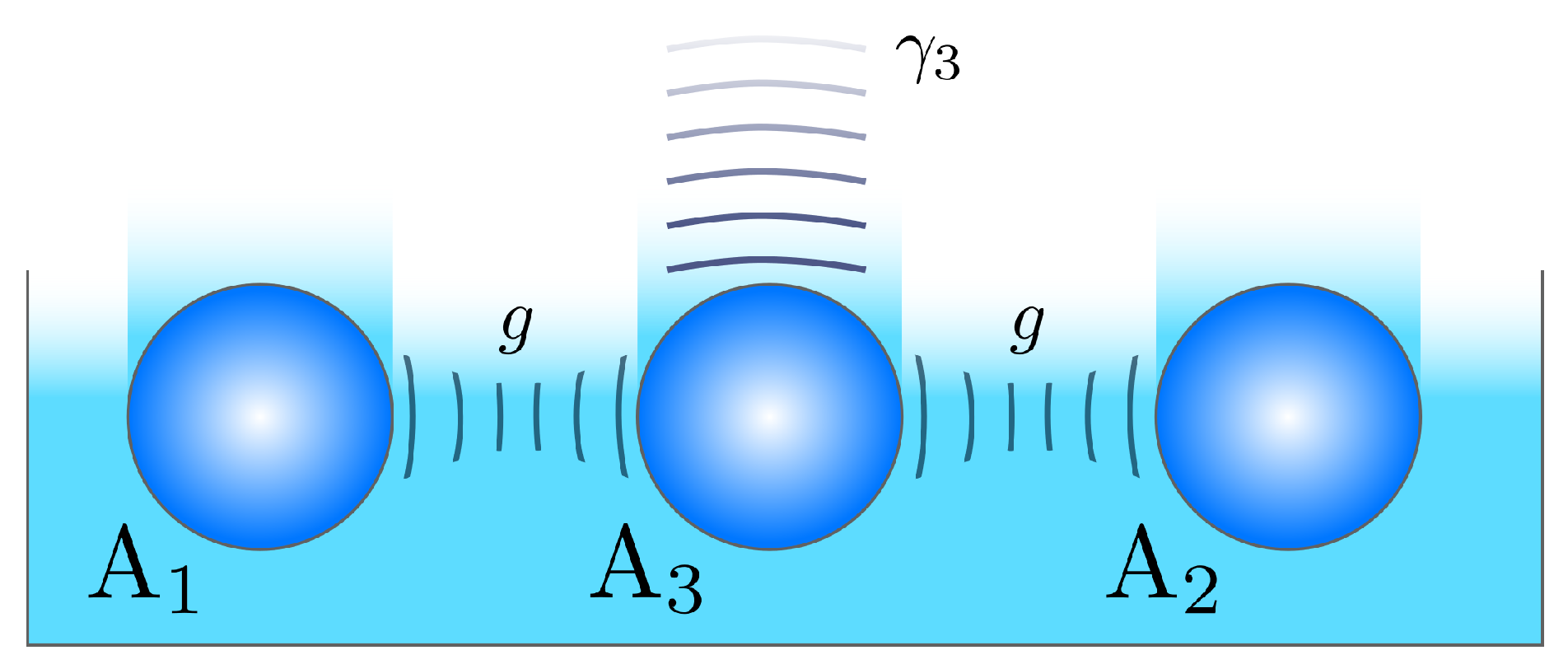

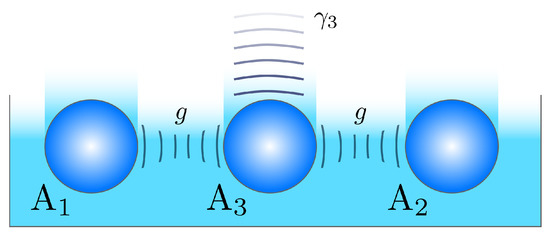

**Figure 3.**An example of three-waveguide realization of the basic Scheme (1). The waveguide ${A}_{3}$ is subjected to engineered loss with the rate ${\gamma}_{3}$. Both waveguides ${A}_{1}$ and ${A}_{2}$ are unitary coupled to the waveguide ${A}_{3}$; the coupling constant is g.

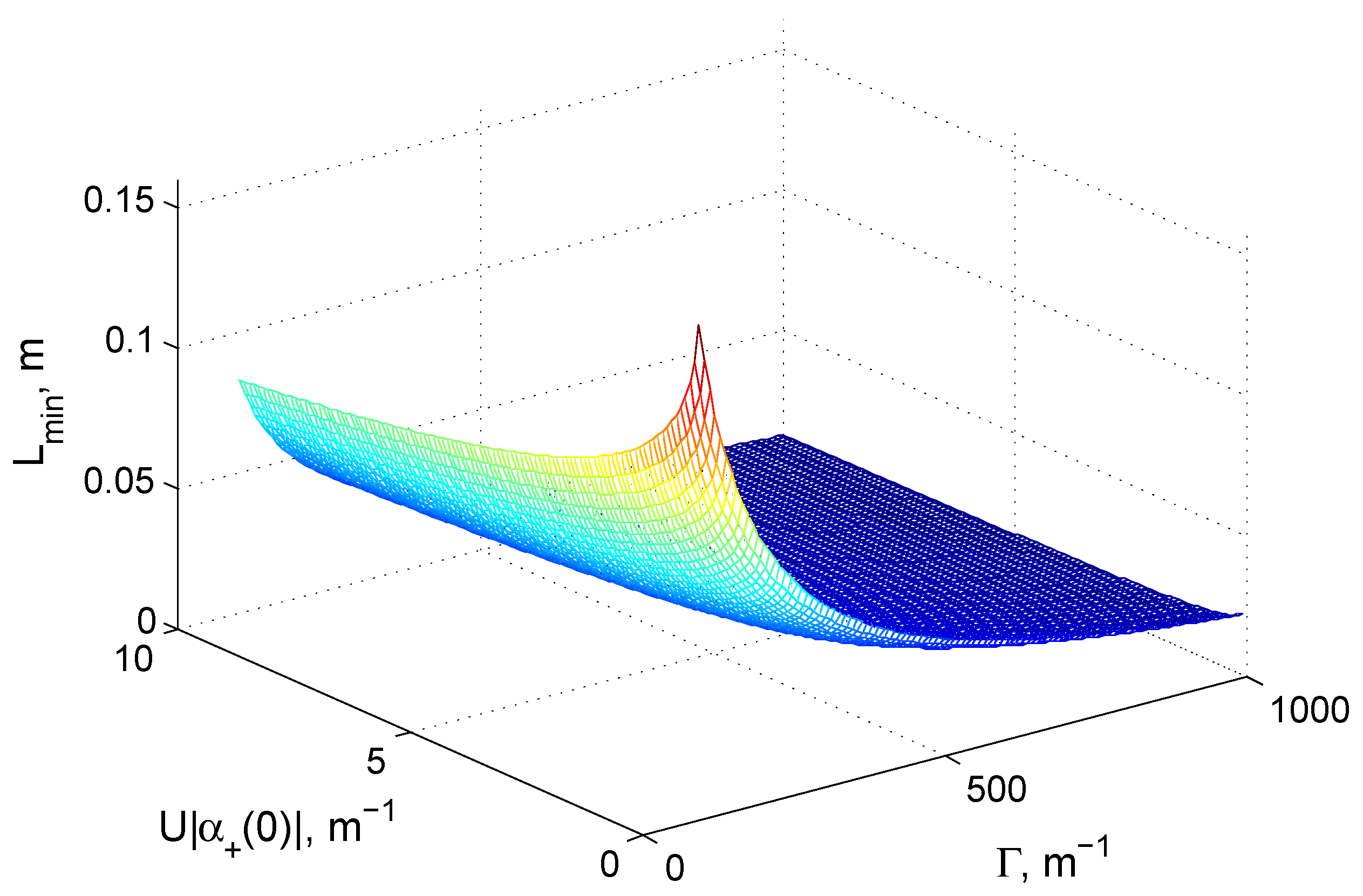

**Figure 4.**A minimal waveguide length, ${L}_{min}$, providing for pump rejection with $\delta =0.1$ for typical parameters of the glass waveguides and weak pump.

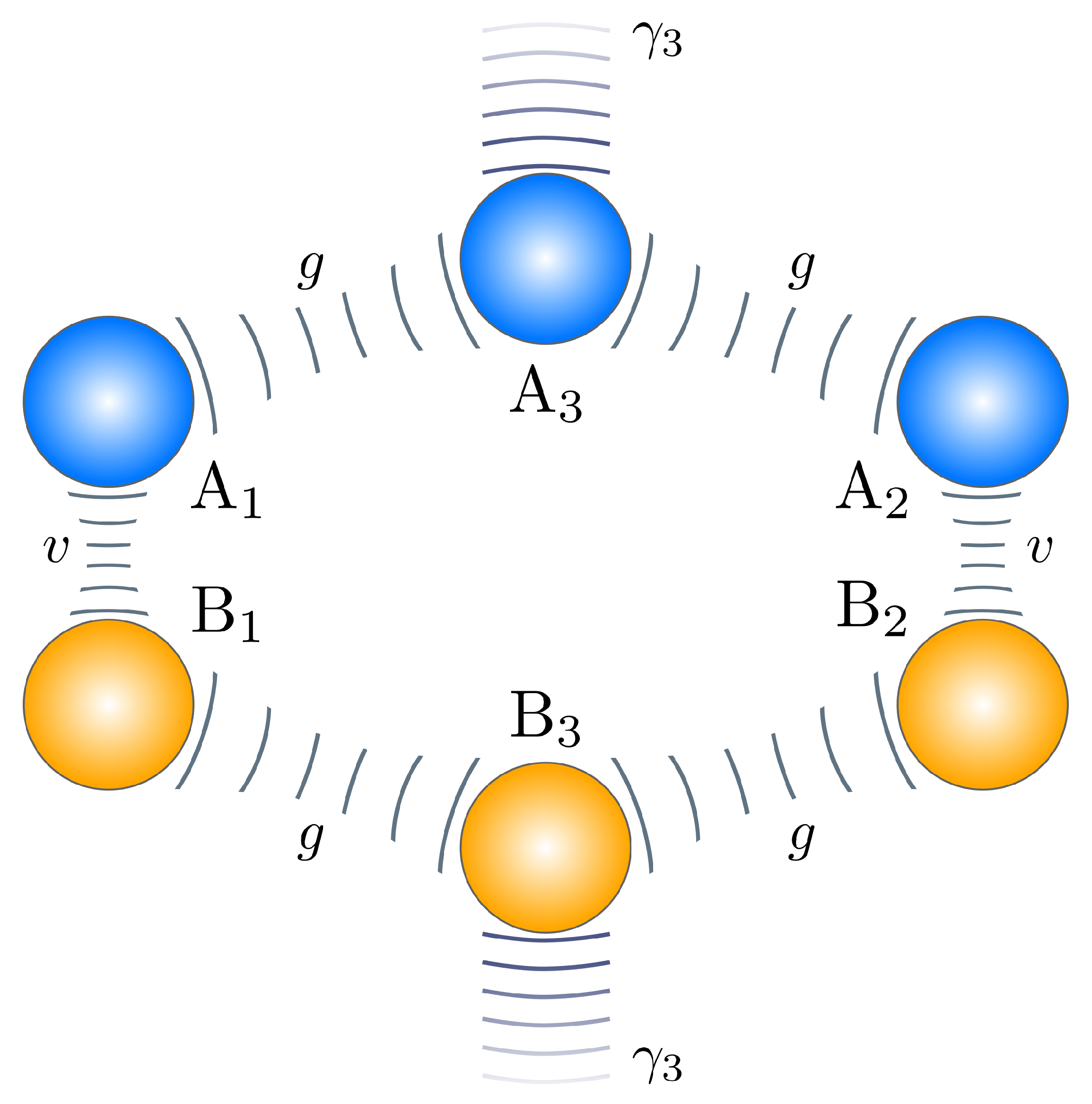

**Figure 5.**An example of six-waveguide realization of the NOON state generation scheme. The depicted structure shows two mirrored three-waveguide structures of Figure 3 with waveguides labeled as ${A}_{j}$ for the upper, and ${B}_{j}$ for the lower structures. The waveguides ${A}_{3}$ and ${B}_{3}$ are subject to strong engeneered loss. The waveguide ${A}_{1}$ is unitary coupled with the waveguide ${B}_{1}$, the waveguide ${A}_{2}$ is unitary coupled with the waveguide ${B}_{2}$; the coupling constant is v. Other parameters are shown in Figure 3.

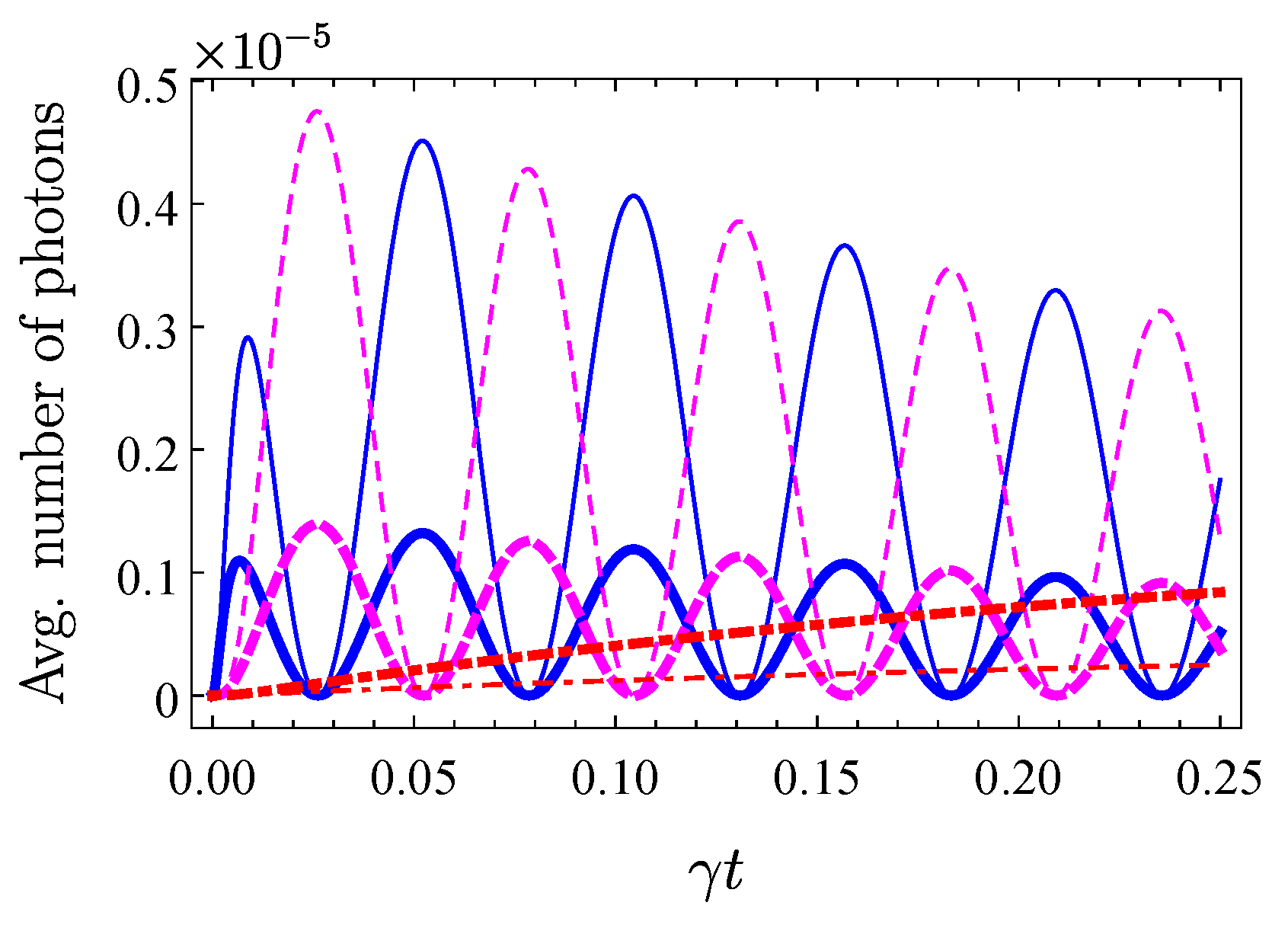

**Figure 6.**Average number of photons corresponding to the generation of two photons in one of the antisymmetric modes (blue solid lines) and of two photons being simultaneously in both antisymmetric modes (magenta dashed lines) according to Equation (17) (they are, respectively, $2\times {P}_{2,0}$ and ${P}_{1,1}$). Red dashed-dotted lines show the probability of finding a single photon only in one of the antisymmetric modes, due to photon loss from one of the previous configurations. The coupling constant has been chosen to be $v=30\gamma $. Thick lines correspond to $\mathsf{\Gamma}=400\gamma $, thin lines correspond to $\mathsf{\Gamma}=200\gamma $. Other parameters are the same as in Figure 2.
