Article

Organic Geochemical Signatures of the Upper Miocene (Tortonian—Messinian) Sedimentary Succession Onshore Crete Island, Greece: Implications for Hydrocarbon Prospectivity

by
Angelos G. Maravelis
1,*,
George Kontakiotis
2,*,
Spyridon Bellas
3,
Assimina Antonarakou
2,
Chrysanthos Botziolis
4,
Hammad Tariq Janjuhah
5,
Panayota Makri
2,
Pierre Moissette
2,6,
Jean-Jacques Cornée
7,
Nikolaos Pasadakis
3,
Emmanouil Manoutsoglou
8,
Avraam Zelilidis
4 and
Vasileios Karakitsios
2
1
Department of Geology, Aristotle University of Thessaloniki, 54124 Thessaloniki, Greece
2
Department of Historical Geology-Paleontology, Faculty of Geology and Geoenvironment, School of Earth Sciences, National and Kapodistrian University of Athens, Panepistimiopolis, Zografou, 15784 Athens, Greece
3
Institute of Geoenergy—Foundation for Research and Technology—Hellas (FORTH/IG), Building M1, University Campus, Akrotiri, 73100 Chania, Greece
4
Laboratory of Sedimentology, Department of Geology, University of Patras, 26504 Rion, Greece
5
Department of Geology, Shaheed Benazir Bhutto University, Sheringal 18050, KPK, Pakistan
6
Département Origines et Evolution, UMR7207 CR2P, Muséum National d’Histoire Naturelle, 8 rue Buffon, 75005 Paris, France
7
Géosciences Montpellier, Université des Antilles-Université de Montpellier-CNRS, Pointe à Pitre (FWI), 34095 Montpellier, France
8
Laboratory of Geology, School of Mineral Resources Engineering, Technical University of Crete, 73100 Chania, Greece
*
Authors to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2022, 10(9), 1323; https://doi.org/10.3390/jmse10091323
Submission received: 25 July 2022 / Revised: 9 September 2022 / Accepted: 12 September 2022 / Published: 18 September 2022
(This article belongs to the Special Issue Recent Advances in Geological Oceanography)

Abstract

:
The definition of pre-Messinian source rocks in the eastern Mediterranean is of paramount importance for hydrocarbon exploration because of the ability of salt to act as a high-quality seal rock. This research evaluates the organic geochemical features of the Upper Miocene (Tortonian—Messinian) sedimentary succession onshore Crete Island, Greece. The study employs original (Messinian, Agios Myron Fm) and published (Tortonian, Viannos Fm, Skinias Fm, Moulia Fm, and Messinian Ploutis section) results from organic geochemical analyses of mudstone samples. One hundred and one samples were examined using standard organic geochemistry methodology (Rock-Eval II and VI-TOC) to define the origin, type, and degree of organic matter maturity. The data indicate that the studied samples have poor to fair gas-prone source rock potential. These possible source rock units have not experienced great temperatures during burial, and, thus, their organic matter is thermally immature. The sub-salt (Tortonian—Messinian) source rock units are likely to be of higher thermal maturity in the western and eastern south Cretan trenches because of tectonic subsidence and a thicker sedimentary overburden. Several traps can grow in these regions, associated with normal faults, rotated blocks and unconformities (both below and above the unconformities). This research provides a basis for the further evaluation of the hydrocarbon potential in Crete Island. It is an area that shares geological similarities with the surrounding regions that contain proven reserves and is of crucial economic and strategic importance.

1. Introduction

Technological advances (including modeling and 3D mapping) in geophysical research have been the driving force for hydrocarbon exploration in tectonically complicated settings, such as the eastern Mediterranean [1,2,3]. The petroleum industry has paid more attention to the eastern sector of the Mediterranean Sea because of recent discoveries of significant gas resources and the existence of promising frontier regions [3,4,5]. These promising results stimulated interest in further and more detailed exploration activities in the region. An important parameter that enhances the prospectivity of the eastern Mediterranean is the widespread accumulation of thick Messinian evaporitic successions. Such rock types are related to first-class seal rocks in numerous regions across the world, such as the Middle East, Russia, the Gulf of Mexico, and offshore Brazil [6,7,8,9]. Thus, the documentation of suitable source and reservoir rocks below the Messinian evaporites in the eastern Mediterranean could be very beneficial for future exploration activities.
There is active exploration in the region, such as in the Levantine Basin, Egypt, Israel, and, more recently, offshore Cyprus, while additional promising regions (e.g., Herodotus Basin and offshore Crete) have also been suggested [10,11,12,13,14]. The Levantine Basin contains significant conventional and unconventional resources, thus, there is a high likelihood for future significant discoveries offshore Cyprus [12]. Exploration in Egypt and Israel has proven very successful, resulting in a number of discoveries, which in turn has prompted extensive regional exploration [15]. The Hellenic part of the Herodotus Basin is largely unexplored, despite the active mud volcanoes that have been documented on seismic profiles in several locations along the Mediterranean Ridge [16,17,18,19,20]. The areas west of Crete Island exhibit comparable geotectonic histories to those of nearby regions, such as Cyprus, Egypt, and Israel, where major discoveries have been reported (e.g., Zohr, Calypso, Tamar, Leviathan, and Glafkos). This information is of paramount importance for Greece and has stimulated the petroleum industry to explore the potential for hydrocarbon resources located outside the already established petroleum province of western Greece [14,21,22,23,24,25,26]. As a result, exclusive right licenses were granted for west and south Crete. The potential for onshore Crete and nearby regions to contain Tortonian to Messinian (sub-salt) source and reservoir rocks has been suggested based on studies from Gavdos Island south of Crete [27], the Messara and Heraklion Basin in central Crete [28,29,30,31], and the Levantine Basin in the south-eastern Mediterranean [4,5,10,11,12].
Rock Eval (RE) pyrolysis is viewed as an economic and reliable methodology to evaluate the hydrocarbon generative potential and maturation level of potential source rocks in sedimentary basins [32,33,34]. This study integrates both original and already published data derived from outcrop-based organic geochemical studies to assess the hydrocarbon generative potential of the Upper Miocene sub-salt formations in onshore Crete. This research examines available data from the Tortonian deposits that belong to Viannos Fm, Skinias Fm, and Moulia Fm (at Faneromeni) and from the Messinian Ploutis section (central Crete). Additionally, it presents new numerical constraints to the organic geochemical signatures of the Messinian Agios Myron Fm (new data), providing information about the type, quantity, quality, and maturation level of the organic material. Our results offer a comprehensive insight into the existence and nature of Late Miocene source rocks in the region. The results obtained from an inland frontier basin could enhance current exploration activities in the region and stimulate future exploration activity, such as the drilling of new exploration wells and the acquisition of new seismic data.

2. Geological Setting

The Aegean Sea has attracted both scientific and economic attention. The Aegean region is positioned on continental crust that comprises several stacked upper crustal nappes [35,36] (Figure 1). These nappes were stacked because of the northward dipping subduction of the African plate under the European plate that has occurred since the Cretaceous [35,36,37]. These plate tectonics were responsible for: (1) the orogenic processes, (2) the disruption of the marine junctions to the Indo-Pacific and Paratethys, and (3) the progressive restriction of the marine passage to the Atlantic Ocean [38]. The southeast Hellenides form part of a synorogenic orocline that illustrates modifications regarding the internal deformational pattern and the nature of the margin, as evidenced by geotectonic analysis [39]. Although orthogonal collision prevails in the western edge of the orocline, the central and eastern part is developed because of oblique subduction that is influenced by strike-slip tectonics (NE-directed transpressional faults). These strike-slip faults developed transverse zones that split apart some of the structural elements, such as salients, recesses and linear segments [40,41]. Structural and stratigraphic analyses have documented that the style of the compressional tectonic activity and the total thickness of Mesozoic sedimentary successions [41,42,43] are highly variable across strike, suggesting that these transverse zones had an impact on the Mesozoic sedimentary basins. From the Late Miocene to more recently, the regional post-orogenic extension occurred along these transverse zones that are oriented parallel to the thrust belt in eastern Crete [39,44,45].
The Island of Crete includes several nappes of Triassic to Quaternary rock units that belong to different geotectonic zones (Figure 2). The nappes are subdivided into a lower member that contains high pressure and low temperature (HP-LT) metamorphic rocks and an upper member with no metamorphic rocks [46,47,48]. These nappes are thought to have been placed together through south-directed subduction and/or collision and accretion to the northern Gondwanan edge [49,50]. The pre-Miocene basement rocks were tectonically fragmented into numerous parts because of uplift and exhumation of the nappe pile and were responsible for the development of Lower to Middle Miocene sedimentary basins. Several mechanisms have been proposed to explain this uplift and exhumation and involve both extensional [51,52,53] and contractional tectonics [50,54,55]. Younger (Late Miocene to Early Pleistocene) thrust-associated depocenters are ascribed to the migration of thrust activity to the southwest [56,57]. Comprehensive studies in central Crete have revealed two phases of compression [54]: An early phase of ductile exhumation of high-pressure metamorphic rocks that is related to NNW–SSE compression, responsible for the formation of low-angle reverse faults (thrusts) that contributed to nappe emplacement. A subsequent phase of brittle exhumation ascribed to NNE–SSW compression and dominated by large fault-associated folds and tectonic imbrication. The older, underlying nappes are commonly intersected by younger, large-scale thrust faults [54].

3. Stratigraphic and Environmental Constraints

Updating former lithostratigraphic models [58], the Tortonian-upper Messinian stratigraphic succession of central Crete has been divided into five formations, namely Viannos, Skinias, Kasteliana, Moulia, and Agios Myron formations that are overlain by the Marine Upper Messinian (MUM) and Lago Mare deposits [48] (Figure 3).
The pre-Neogene basement underlies Viannos Fm, and its boundary contains abundant coarse, angular debris [48]. Viannos Fm is approximately 400 m thick and includes sandstone and mudstone alternations, with some rare conglomeratic beds. Additionally, mud-rich (silty) limestone occurs, whereas fine-grained material (mud) with an increased level of coalification is rarely present. Viannos Fm includes a broad array of depositional elements and environments that include channel-belts, overbanks, and lakes. The clasts within the conglomeratic deposits are mainly sub-angular, pointing to an alluvial fan with sheet-flood deposition as the most suitable depositional environment [48]. Paleocurrent directions suggest a westward transport direction within this formation. The contact between Viannos Fm and the overlying Skinias Fm is conformable. Skinias Fm is 150–250 m thick and is represented by marine fine-grained (muddy) deposits that are intercalated with sandstone beds. Coarser-grained deposits are represented by scarce pebbly beds [48]. The depositional environments for Skinias Fm are regarded as shallow to deep marine (from the bottom to the middle of the formation) and display an upward trend towards shallower environments [48]. Paleocurrent measurements in this area suggest an east to southeast transport direction. The overlying Kasteliana Fm is 300–350 m thick and consists of both fine- and coarse-grained deposits (mudstone, siltstone, sandstone, and conglomerate). Deposits, such as travertine and lignite, along with oyster beds and coral bioherms, are scarcely present. Kasteliana Fm is interpreted to include several depositional environments, including fluvial-lacustrine, lagoonal, and inner neritic. The contact between Kasteliana Fm and the underlying Skinias Fm is unconformable [48]. Moulia Fm overlies Kasteliana Fm and is 70–80 m thick. It is represented by both siliciclastic and carbonate deposits and is divided into two members. The lower part contains sediments that have been deposited in an inner neritic environment, and the upper part illustrates an upward increase in water depth towards deeper marine environments [48]. In most of the cases, Moulia Fm conformably overlies Kasteliana Fm.
The samples from Moulia Fm have been collected from the Faneromeni section that comprises a sedimentary succession (up to 37-m-thick) and can be subdivided into two members. Coarse-grained deposits (conglomerate) separate these members, with the lower one containing thick-bedded sandstone and mudstone couplets (12 m thick) and the upper one including thin-bedded sandstone and mudstone alterations [59,60]. Sapropels occur in the upper parts of the succession. Agios Myron Fm is approximately 120 m thick and consists of bioturbated and fossiliferous sandstone, along with calcarenite and calcrete palaeosols. The upper parts, Messinian in age, designated here by the analyzed samples from the eponymous section (7.2–6.5 Ma) contain cyclically-bedded alternations of deep marine bluish-grey homogeneous and laminated brownish marls (sapropels) along with three distinct ash beds [48,61]. Paleobathymetric calculations of the samples from this location have shown that this sedimentary succession was deposited under upper bathyal conditions of 350–650 m [62]. Overall, Agios Myron Fm displays an upward increase in water depth, similar to the trend observed in Moulia Fm, and unconformably overlies Viannos Fm [48]. The overlying formation consists of Upper Messinian alternations of turbidites, sapropels and marls (up to 40 m thick, MUM, Marine Upper Messinian in Zachariasse et al. [63]) that are overlain by evaporites, where exposed (e.g., Ploutis section) [30], and Lago Mare deposits (generally up to 60 m thick) [63,64] or Lower Pliocene gravity failure deposits (mass wasting deposits of Zachariasse et al. [63]).

4. Material and Methods

One hundred and one (101) samples in total were selected for organic geochemical analysis. Forty-eight (48) samples from Vianos Fm, eighteen (18) samples from Skinias Fm, nine (9) samples from Moulia Fm (at Faneromeni), sixteen (16) samples from Agios Myron Fm, and ten (10) samples from Ploutis section, respectively. The samples from Agios Myron are new data (16 samples) and the data from the other formations come from previous studies (85 samples). Most of the samples that belong to Vianos and Skinias Fms come from an exploration well (well D, Figure 2). The samples that belong to the other Fms were collected from outcrops. The outer surface of the sections was removed prior to sampling in order to avoid contamination from weathering. The fresh samples were immediately placed, and protected from oxidization, in plastic sample bags.
The organic geochemical features of the sedimentary rocks studied were assessed using RE analysis. After overnight drying, the rock samples were crushed and sieved using a 60 mesh (250 μm) sieve. The analysis was performed using RE II and VI (Delsi Inc., Edison, NJ, USA) analyzers under standard conditions utilizing ~100 mg of pulverized rock. The samples were then heated in a helium atmosphere using a suitable oven [65,66,67]. The RE analysis was performed at the Technical University of Crete, Greece (Hydrocarbons Chemistry and Technology Research Unit). Analytical descriptions of the RE VI methodology and interpretations of the obtained results have been offered by several authors [66,67,68,69,70,71,72,73]. Principal parameters, including total organic carbon content (TOC, wt%), free (S1, mg HC/g rock) and pyrolysable (S2, mg HC/g rock) hydrocarbons, total hydrocarbon generative potential (SP, S1 + S2, mg HC/g rock), hydrogen index (HI, mg HC/g Corg), oxygen index (OI, mg CO2/g Corg), Tmax (°C), and production index (PI, S1/S1 + S2) were documented. The data assessment was based on the works of Tissot and Welte [74], Peters [70], Burwood et al. [75] and Dymann et al. [76].

5. Results

The experimental data of the RE VI-TOC analysis for the 101 samples are illustrated in Supplementary Materials, Table S1.
The TOC contents fluctuated within the examined samples, from 0.4% (D304–307) to 0.63% (D415–420) in Viannos Fm, 0.42% (D128–132) to 0.64% (D14–17) in Skinias Fm, 1.01% (DT15) to 1.84% (DT16) in Moulia Fm (at Faneromeni), 0.14% (PL04) to 2.19% (PL07) in Ploutis section and 0.2% (AM18C) to 1.54% (AM14) in Agios Myron Fm. Based on the TOC values and the criteria established by Peters [70] and Dembicki [77], the studied samples could possess poor to excellent hydrocarbon generation potential. The studied sections included samples that could serve as source rocks (0.5% > TOC > 1%, Table S1) and samples that deserve a more thorough evaluation (TOC >1%, Table S1). Nevertheless, TOC values alone are not sufficient to characterize the samples as potential source rocks. The determination of the hydrocarbon generative potential is a function of the TOC and the hydrogen that is related to the organic material (Dembicki, 2009). Therefore, additional parameters (e.g., S2 values) need to be taken into consideration. The samples exhibited S2 values that fluctuated between 0.24 (D234–238 and D254–260) to 0.64 mg HC/g rock (D420–424) in Viannos Fm, 0.22 (D128–132) to 0.41 mg HC/g rock (D14–17) in Skinias Fm, 1.09 (DT15) to 4.1 mg HC/g rock (DT18) in Moulia Fm (at Faneromeni), 0.26 (PL04) to 6.87 mg HC/g rock (PL02) in Ploutis section, and 0.02 (AM4) to 2.62 mg HC/g rock (AM14) in Agios Myron Fm.
Several parameters from RE analysis were utilized to define the type of organic matter in the sedimentary rocks, including S1, HI and OI values, and the S2/S3 ratio [73]. The examined samples exhibited S1 values that ranged between 0.01 (D402–406 and D406–409) and 0.05 mg HC/g TOC (D415–420) in Viannos Fm, 0.01 (D210–214) and 0.04 mg HC/g TOC (D6–14) in Skinias Fm, 0.07 (DT5) and 0.22 mg HC/g TOC (DT16) in Moulia Fm (at Faneromeni), 0 (PL04) and 0.7 mg HC/g TOC (PL02) in Ploutis section and 0 and 0.04 mg HC/g TOC (AM14) in Agios Myron Fm (Table S1). The mean HI values in the studied succession were 74 mg HC/g Corg (Viannos Fm), 59 mg HC/g Corg (Skinias Fm), 209.7 mg HC/g Corg (Moulia Fm at Faneromeni), 285.3 mg HC/g Corg (Ploutis section) and 72 mg HC/g Corg (Agios Myron Fm). The average S2/S3 ratios were 0.5 (Viannos Fm), 0.43 (Skinias Fm), 1.82 (Moulia Fm at Faneromeni), 3.52 (Ploutis section) and 0.23 (Agios Myron Fm). The average OI values were 146 mg CO2/g Corg (Viannos Fm), 144 mg CO2/g Corg (Skinias Fm), 115.3 mg CO2/g Corg (Moulia Fm at Faneromeni), 105.9 mg CO2/g Corg (Ploutis section) and 410 mg CO2/g Corg (Agios Myron Fm). The level of thermal maturity of the examined samples can be assessed using Tmax values. The mean Tmax values were 420 °C (Viannos Fm), 413 °C (Skinias Formation), 422.7 °C (Moulia Fm at Faneromeni), 415.6 °C (Ploutis section), and 432 °C (Agios Myron Fm). Most of the samples exhibited values of S2 > 0.2 mg HC/g rock, and, therefore, the obtained Tmax values were thought trustworthy [70]. Seven samples from the Agios Myron Fm exhibited S2 values that were below 0.2 mg HC/g rock and were not included in the interpretations relating to thermal maturity [73].

6. Discussion

6.1. Amount, Type and Maturation Level of the Organic Material

The diagrams of S2 vs. TOC [77] (Figure 4A) and SP vs. TOC plot [74,76] (Figure 4B) indicate the potential of the sedimentary rocks to generate hydrocarbons. The examined samples exhibited poor to good hydrocarbon generative potential. The most promising samples came from Moulia Fm (at Faneromeni) and the Ploutis section, whereas the Viannos, Skinias and Agios Myron samples exhibited little hydrocarbon generative potential. Analogous information was obtained from the HI vs. TOC [78] (Figure 4C), where, additionally, the samples clustered in the fields of both oil and gas generative potential. However, the determination of oil prone source rocks requires the integration of additional information (i.e., gas chromatography–mass spectrometry data; GC-MS). Except for Moulia Fm (at Faneromeni), such data were not available for the other formations and sections. The GC-MS data in Moulia Fm illustrate the prevalence of type III kerogen and a gas-prone source rock [59]. It needs to be borne in mind that processes such as surface weathering and oxidization need to be taken into consideration when evaluating organic geochemical data because it is possible to reduce the S1, S2 and TOC values obtained by the RE analysis [66,70,79]. Although the sampling was performed with the purpose of reducing the impact of weathering and oxidization in the samples (see methodology section), it is highly possible that the studied samples may exhibit more promising organic geochemical signatures.
The integration of S2/S3 ratios and HI values suggest that the organic matter contained is of kerogen types II, III and IV. A similar interpretation of the kerogen type is provided by the HI vs OI, S2 vs. TOC and the S2/S3 vs. TOC plots that illustrate a well-oxygenated environment of deposition and a terrestrial origin for the contained organic matter (Figure 5A–C). The samples that contain type IV kerogen organic material suggest severe alteration and/or oxidation of organic material in the depositional site [74]. The diagrams suggest that Moulia Fm (at Faneromeni) and Ploutis section could represent source rocks with the potential to generate gas. In contrast, Viannos Fm, Skinias Fm and Agios Myron Fm principally contain kerogen IV organic matter, with no or little hydrocarbon generative potential. The distinction between migrated and autochthonous hydrocarbons, as well as evaluation of sample contamination and kerogen mixing are important when defining the organic geochemical features of sedimentary rocks [80]. The application of S1 vs. TOC cross-plot [81] can shed light on the determination of hydrocarbons and suggests that autochthonous hydrocarbons predominate in all the studied samples and have the potential to generate gas (Figure 5D). The kerogen mixture can obscure the nature of the generated hydrocarbons [77,82]. However, the studied samples contain kerogen of type III and IV only and provide a correct representation of the source rocks.
A low maturation status resulting from low temperatures during burial is suggested for the studied succession by the HI vs. Tmax diagram [73,74] (Figure 6). The PI index is also considered as a parameter to evaluate thermal maturity, with mature rocks displaying values above 0.1 and post-mature rocks displaying values over 0.4 [83]. PI values below 0.1 point to low levels of thermal maturity. The studied succession has PI values that fall below the bottom threshold of 0.1, supporting the interpretation of a thermally immature succession.
In sum, the studied sections exhibit a similar degree of thermal maturity, but a different quantity and quality of organic material. This could be partly related to the nature of the depositional environments and sub-environments that encompass the different sections, and partly to the shoreline trajectories that are associated with their accumulation. The stratigraphic framework proposed by Zachariasse et al. [48] implies that, in contrast to Vianos and Skinias Fms, Moulia Fm (at Faneromeni) and the Ploutis section exhibit a deepening upward trend and associated transgression during their deposition. Relative sea level rise increases the available accommodation space, favoring the accumulation of organic material [2]. Furthermore, shoreline transgression decreases the sediment supply in the deep parts of the sedimentary basins because the terrigenous clastic material is accumulated in the nearshore environments. This depositional trend develops condensed sections that are often rich in organic matter [84]. Additionally, enriched organic productivity, eutrophication, and water stratification often lead to anoxia [85]. The difference in the quantity and quality of organic material between the different Fms and sections could also be associated with the nature of the depositional environments, with the continental-in-origin Vianos Fm being less favorable for accumulation and preservation of organic material. Furthermore, even though shallow marine settings contain sufficient sources that can deliver organic material, their high oxygenation levels can prevent the formation of suitable source rocks and can explain the unpromising geochemical signatures of the marine Skinias and Agios Myron Fms.

6.2. Exploration Opportunities

With worldwide energy demand rising and stricter environmental regulations being introduced, natural gas has become an increasingly important substitute for fuel oil. In this context, prospective regions that deserve further investigation have been the focus of the petroleum industry, despite existing technical challenges (stemming from the complex geology and deep water depths). The eastern Mediterranean is a region with proven hydrocarbon reserves and is the subject of extensive exploration and exploitation activity [4,10,11,12]. Despite the promising exploration results in western Greece [14,21,22,23,24,25,26,86] and the Thrace Basin [87], several regions in the Hellenic Domain are still underexplored. In Crete, this study enriches existing knowledge about the potential regional source rocks by including new organic geochemical results on the pre-evaporitic (Tortonian–Messinian) sedimentary succession. This study defines the organic geochemical signatures of the Agios Myron Fm (Messinian, weak source-rock potential and low maturation levels) and builds on the hydrocarbon generative potential of the pre-evaporitic deposits that contain units with fair to good source-rock attributes (Tortonian Moulia Fm at Faneromeni [59], and Mesinian Ploutis [30] section). A common feature of all existing onshore rock units, with merit for further exploration, is their low maturity levels that indicate low thermal evolution. Nevertheless, the offshore counterparts of these units may have experienced higher burial temperatures because of a thicker sedimentary overburden. Indeed, the sedimentary succession that crops out in Gavdos Island reflects the deepest parts of the Crete Basin and contains units with more promising organic geochemical signatures. The organic material in these units (Tortonian—Messinian, Metochia Fm) is of kerogen types II, III and IV, with fair to very good potential for hydrocarbon generation [27]. Despite the promising results, the organic material in Metochia Fm is thermally immature. The regional structural framework suggests tectonic subsidence and the accumulation of thick Pliocene—Pleistocene deposits in the offshore central parts of the region (western and eastern south Cretan trenches) that cover the Tortonian—Messinian potential source rocks [14,88]. This thicker sedimentary cover could likely facilitate the maturation of organic material and the development of source rocks that have reached the oil and/or gas window [29,31,59]. Pre-Messinian mature source rocks have been reported in the eastern Mediterranean. In the adjacent Levantine Basin, the occurrence of asphalt in the Upper Cretaceous sedimentary succession onshore Lebanon suggests the existence of a thermogenic petroleum system (Nader [89]). As in the region covered by the present study, the source rocks in the Levantine Basin are likely pre-Messinian in age (Jurassic—Cretaceous and Cretaceous—Miocene) and occur at the margins and deeper parts of the basin, where they have probably reached the oil/gas window [3,90].

6.3. Eastern Mediterranean Petroleum Plays Related to the Messinian Evaporites

The seismic profiles illustrate the occurrence of numerous normal faults that crosscut the Tortonian—Pleistocene succession and develop smaller-scale graben, horst, and domino structures [88]. These tectonic configurations are highly prone to form migration paths terminating in structural traps constrained by evaporitic cap rocks and sealing faults. Similar trap styles are recognized in the Levantine and Herodotus Basins, where a combination of normal and reverse faults developed several large four-way closure structures, as well as Oligocene—Miocene tilted fault blocks [12]. These active basin tectonics promoted the development of regional-scale unconformities [88] that can form stratigraphic traps [14,91]. In this situation, hydrocarbon plays could exist both beneath and above the unconformity. The regional deepening that followed the accumulation of the Messinian evaporites likely provided the conditions for the accumulation of coastal, sand-dominated deposits. These deposits are often covered by finer-grained transgressive facies and can trap oil and/or gas above the unconformities. Apart from these mud-rich deposits that can prevent the upward movement of fluids (oil and/or gas), Messinian salt deposits constitute the principal regional seal rocks. Despite the mode of formation (e.g., shallow-water deep-basin vs. deep-water, non-desiccated scenario; [92,93]), these deposits are thick, potentially offering sufficient seal capacity. Further, they are laterally continuous, influencing the size of the potential plays. It should be noted that the thick evaporitic layer can hold fluids within the underlying sedimentary successions and cause increased overpressures, stimulated by sediment unloading ascribed to the relative sea level fall that occurred in the Mediterranean, and can increase overpressures and deteriorate the quality of the seal rock [94].

7. Conclusions

The Tortonian—Messinian sedimentary succession onshore Crete Island (eastern Mediterranean, Greece) was examined to assess the quantity, quality, and maturation level of organic matter as a source rock. Several samples yielded TOC values above 0.5 wt%, suggesting some hydrocarbon generating potential. The studied succession included samples that are likely to be interesting (TOC between 0.5 and 1.0%), and samples that are very promising (TOC above 1.0%). The organic geochemical analysis illustrates the presence of source rocks that exhibit poor to good potential to generate hydrocarbons. Rock units with fair to good geochemical values include the Moulia Fm (at Faneromeni, Tortonian) and Ploutis section (Messinian), whereas Viannos Fm, Skinias Fm, and Agios Myron Fm exhibit little hydrocarbon generative potential. Most of the samples contain organic matter that is of type III and IV kerogen, suggesting gas-prone source rocks. Maturity parameters (Tmax and PI) suggest that the analyzed samples have not reached the oil window. Despite the low levels of maturation, the offshore equivalents of the studied succession (in the western and eastern south Cretan trenches) could possibly have reached the oil and/or gas window because of tectonic subsidence and thicker sedimentary overburden. The hydrocarbons, possibly expelled by these mature source rock units, could be trapped in the hanging walls of normal faults, in the margins or the corners of tilted fault blocks, and below (and/or above) unconformities. The study region is a promising frontier basin with potential future exploration opportunities. As technological advances in the petroleum industry allow for the more precise evaluation of vintage geological, geochemical, and geophysical data, as well as the acquisition of high-quality new data, an updated re-evaluation of the regional geotectonic models is suggested. A better understanding of the regional geology can be achieved by refining the data from vintage seismic profiles and wells, along with the surveying of additional seismic campaigns and the drilling of new exploration wells.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jmse10091323/s1, Table S1: Experimental data of Rock Eval-TOC analysis.

Author Contributions

Conceptualization, A.G.M. and G.K.; methodology, A.G.M., N.P. and G.K.; software, A.G.M. and G.K.; validation, A.G.M., N.P. and G.K.; formal analysis, N.P. and S.B.; investigation, A.G.M., G.K., S.B., A.A., C.B., P.M. (Panayota Makri) and H.T.J.; resources, A.G.M., G.K., A.A., E.M. and A.Z.; data curation, A.G.M., G.K., S.B., E.M. and N.P.; writing—original draft preparation, A.G.M. and G.K.; writing—review and editing, A.G.M., G.K., S.B., P.M. (Pierre Moissette), J.-J.C., H.T.J., V.K.; visualization, A.G.M. and G.K.; supervision, A.A., A.Z. and V.K.; project administration, A.A., A.Z. and V.K.; funding acquisition, A.G.M. and G.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data used in this work is available on request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bruneton, A.; Konofagos, E.; Foscolos, A. Economic and geopolitical importance of Eastern Mediterranean gas fields for Greece and the E. U. Emphasis on the probable natural gas deposits occurring in the Libyan Sea within the Exclusive Economic Zone of Greece. Miner. Wealth 2011, 160, 7–30. [Google Scholar]
  2. Bertoni, C.; Cartwright, J.A. Major erosion at the end of the Messinian Salinity Crisis: Evidence from the Levant Basin, Eastern Mediterranean. Basin Res. 2007, 19, 1–18. [Google Scholar] [CrossRef]
  3. Bou Daher, S.; Ducros, M.; Michel, P.; Hawie, N.; Nader, F.H.; Littke, R. 3D thermal history and maturity modelling of the Levant Basin and its eastern margin, offshore–onshore Lebanon. Arab. J. Geosci. 2016, 9, 440. [Google Scholar] [CrossRef]
  4. Grohmann, S.; Romero-Sarmiento, M.-F.; Nader, F.H.; Baudin, F.; Littke, R. Geochemical and petrographic investigation of Triassic and Late Miocene organic-rich intervals from onshore Cyprus, Eastern Mediterranean. Int. J. Coal Geol. 2019, 209, 94–116. [Google Scholar] [CrossRef]
  5. Esestime, P.; Hewitt, A.; Hodgson, N. Zohr—A newborn carbonate play in the Levantine Basin, East-Mediterranean. First Break 2016, 34, 87–93. [Google Scholar] [CrossRef]
  6. Warren, J.K. Evaporites: Sediments, Resources and Hydrocarbons; Springer: Berlin/Heidelberg, Germany, 2006. [Google Scholar] [CrossRef]
  7. Morley, C.K.; King, R.; Hillis, R.; Tingay, M.; Backe, G. Deepwater fold and thrust belt classification, tectonics, structure and hydrocarbon prospectivity: A review. Earth-Sci. Rev. 2011, 104, 41–91. [Google Scholar] [CrossRef]
  8. Basso, M.; Belila, A.M.P.; Chinelatto, G.F.; Souza, J.P.d.P.; Vidal, A.C. Sedimentology and petrophysical analysis of pre-salt lacustrine carbonate reservoir from the Santos Basin, southeast Brazil. Int. J. Earth Sci. 2021, 110, 2573–2595. [Google Scholar] [CrossRef]
  9. De Freitas, V.A.; Vital, J.C.d.S.; Rodrigues, B.R.; Rodrigues, R. Source rock potential, main depocenters, and CO2 occurrence in the pre-salt section of Santos Basin, southeast Brazil. J. S. Am. Earth Sci. 2022, 115, 103760. [Google Scholar] [CrossRef]
  10. Gardosh, M.A.; Druckman, Y. Seismic stratigraphy, structure and tectonic evolution of the Levantine Basin, offshore Israel. Geol. Soc. Lond. Spec. Publ. 2006, 260, 201–227. [Google Scholar] [CrossRef]
  11. Roberts, G.; Peace, D. Hydrocarbon plays and prospectivity of the Levantine Basin, offshore Lebanon and Syria from modern seismic data. GeoArabia 2007, 12, 99–124. [Google Scholar] [CrossRef]
  12. Semb, P.H. Possible seismic hydrocarbon indicators in offshore Cyprus and Lebanon. GeoArabia 2009, 14, 49–66. [Google Scholar] [CrossRef]
  13. Elia, C.; Konstantopoulos, P.; Maravelis, A.G.; Zelilidis, A. The tectono-stratigraphic evolution of SE Mediterranean with emphasis on Herodotus Basin prospectivity for the development of hydrocarbon fields. Bull. Geol. Soc. Greece 2013, 47, 1970–1979. [Google Scholar] [CrossRef]
  14. Maravelis, A.G.; Koukounya, A.; Tserolas, P.; Pasadakis, N.; Zelilidis, A. Geochemistry of Upper Miocene–Lower Pliocene source rocks in the Hellenic Fold and Thrust Belt, Zakynthos Island, Ionian Sea, western Greece. Mar. Pet. Geol. 2015, 66, 217–230. [Google Scholar] [CrossRef]
  15. Ford, J. Eastern Mediterranean Hydrocarbon Hotspot. NVentures. 2017. Available online: https://www.geoexpro.com/articles/2018/07/hydrocarbon-developments-in-the-eastern-mediterranean (accessed on 24 July 2022).
  16. Montadert, L.; Nikolaides, S. The geological structure of the Eratosthenes continental block and its margins with the Levantine and Herodotus Basins (Eastern Mediterranean) from new seismic reflection data. In Proceedings of the AAPG European Region Conference, Athens, Greece, 18–21 November 2007. [Google Scholar]
  17. Krois, P.; Hannke, K.; Novotny, B.; Bayoumi, T.; Hussein, H.; Tari, G. The emerging deepwater province of Northwest Egypt. In Proceedings of the AAPG International Conference and Exhibition, Rio de Janeiro, Brazil, 15–18 November 2009. [Google Scholar]
  18. Panagiotopoulos, I.P.; Paraschos, F.; Rousakis, G.; Hatzianestis, I.; Parinos, C.; Morfis, I.; Gogou, A. Assessment of the eruptive activity and identification of the mud breccia’s source in the Olimpi mud volcano field, Eastern Mediterranean. Deep Sea Res. Part II Top. Stud. Oceanogr. 2020, 171, 104701. [Google Scholar] [CrossRef]
  19. Maravelis, A.; Manutsoglu, E.; Konstantopoulos, P.; Pantopoulos, G.; Makrodimitras, G.; Zoumpouli, E.; Zelilidis, A. Hydrocarbon Plays and Prospectivity of the Mediterranean Ridge. Energy Sources Part A Recovery Util. Environ. Eff. 2015, 37, 347–355. [Google Scholar] [CrossRef]
  20. Bertoni, C.; Kirkham, C.; Cartwright, J.; Hodgson, N.; Rodriguez, K. Seismic indicators of focused fluid flow and cross-evaporitic seepage in the Eastern Mediterranean. Mar. Pet. Geol. 2017, 88, 472–488. [Google Scholar] [CrossRef]
  21. Zelilidis, A.; Piper, D.J.W.; Vakalas, I.; Avramidis, P.; Getsos, K. Oil and gas plays in Albania: Do equivalent plays exist in Greece? J. Pet. Geol. 2003, 26, 29–48. [Google Scholar] [CrossRef]
  22. Karakitsios, V. Western Greece and Ionian petroleum systems. AAPG Bull. 2013, 97, 1567–1595. [Google Scholar] [CrossRef]
  23. Maravelis, A.G.; Makrodimitras, G.; Zelilidis, A. Hydrocarbon prospectivity in western Greece. Oil Gas Eur. Mag. 2012, 38, 84–89. [Google Scholar]
  24. Makri, V.I.; Panagopoulos, G.; Nikolaou, K.; Bellas, S.; Pasadakis, N. Evaluation of Gas Generation Potential Using Thermal Maturity Modelling—The Katakolo Case: A Probable Pathway to Energy Transition. Mater. Proc. 2021, 5, 70. [Google Scholar] [CrossRef]
  25. Kontakiotis, G.; Karakitsios, V.; Maravelis, A.G.; Zarkogiannis, S.D.; Agiadi, K.; Antonarakou, A.; Pasadakis, N.; Zelilidis, A. Integrated isotopic and organic geochemical constraints on the depositional controls and source rock quality of the Neogene Kalamaki sedimentary successions (Zakynthos Island, Ionian Sea). Mediterr. Geosci. Rev. 2021, 3, 193–217. [Google Scholar] [CrossRef]
  26. Mavromatidis, A. Review of Hydrocarbon Prospectivity in the Ionian Basin, Western Greece. Energy Sources Part A Recovery Util. Environ. Eff. 2009, 31, 619–632. [Google Scholar] [CrossRef]
  27. Pyliotis, I.; Zelilidis, A.; Pasadakis, N.; Panagopoulos, G.; Manoutsoglou, E. Source rock potential of the late Miocene Metochia formation of Gavdos island, Greece. Bull. Geol. Soc. Greece 2013, 43, 871–879. [Google Scholar] [CrossRef]
  28. Pasadakis, N.; Dagounaki, V.; Chamilaki, E.; Vafidis, A.; Zelilidis, A.; Piliotis, I.; Panagopoulos, G.; Manoutsoglou, E. Organic geochemical evaluation of Neogene formations in Messara (Heraklion, Crete) basin as source rocks of biogenetic methane. Miner. Wealth 2012, 166, 8–26. [Google Scholar]
  29. Maravelis, A.G.; Panagopoulos, G.; Piliotis, J.; Pasadakis, N.; Manoutsoglou, E.; Zelilidis, A. Pre-Messinian (sub-salt) source-rock potential on back-stop basins of the Hellenic Trench System (Messara Basin, Central Crete, Greece). Oil Gas Sci. Technol. Rev. IFP Energ. Nouv. 2016, 71, 1–19. [Google Scholar] [CrossRef]
  30. Kontakiotis, G.; Karakitsios, V.; Cornée, J.-J.; Moissette, P.; Zarkogiannis, S.D.; Pasadakis, N.; Koskeridou, E.; Manoutsoglou, E.; Drinia, H.; Antonarakou, A. Preliminary results based on geochemical sedimentary constraints on the hydrocarbon potential and depositional environment of a Messinian sub-salt mixed siliciclastic-carbonate succession onshore Crete (Plouti section, eastern Mediterranean). Mediterr. Geosci. Rev. 2020, 2, 247–265. [Google Scholar] [CrossRef]
  31. Panagopoulos, G.; Vafidis, A.; Soupios, P.; Manoutsoglou, E. A study on the Gas-bearing Miocene Sediments of MESSARA Basin in Crete (Greece) by Using Seismic Reflection, Geochemical and Petrophysical Data. Arab. J. Sci. Eng. 2022, 47, 7449–7465. [Google Scholar] [CrossRef]
  32. Safaei-Farouji, M.; Kamali, M.; Hakimi, M.H. Hydrocarbon source rocks in Kazhdumi and Pabdeh formations—a quick outlook in Gachsaran oilfield, SW Iran. J. Pet. Explor. Prod. Technol. 2021, 12, 1489–1507. [Google Scholar] [CrossRef]
  33. Ahmed, A.; Jahandad, S.; Hakimi, M.H.; Gharib, A.F.; Mehmood, S.; Kahal, A.Y.; Khan, M.A.; Munir, M.N.; Lashin, A. Organic matter characteristics and conventional oil potentials of shales from the Early Jurassic Datta Formation in the Upper Indus Basin, Northern Pakistan. J. Asian Earth Sci. 2022, 224, 104975. [Google Scholar] [CrossRef]
  34. Chan, S.A.; Hassan, A.M.; Usman, M.; Humphrey, J.D.; Alzayer, Y.; Duque, F. Total organic carbon (TOC) quantification using artificial neural networks: Improved prediction by leveraging XRF data. J. Pet. Sci. Eng. 2022, 208, 109302. [Google Scholar] [CrossRef]
  35. Jacobshagen, V. Geologie von Griechenland; Borntraeger: Berlin-Stuttgart, Germany, 1986; pp. 257–269. [Google Scholar]
  36. Faccenna, C.; Jolivet, L.; Piromallo, C.; Morelli, A. Subduction and the depth of convection in the Mediterranean mantle. J. Geophys. Res. Solid Earth 2003, 108, 2099. [Google Scholar] [CrossRef]
  37. Van Hinsbergen, D.J.J.; Kouwenhoven, T.J.; van der Zwaan, G.J. Paleobathymetry in the backstripping procedure: Correction for oxygenation effects on depth estimates. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2005, 221, 245–265. [Google Scholar] [CrossRef]
  38. Rögl, F.; Steininger, F.-F. Neogene Paratethys, Mediterranean and Indo-Pacific Seaways; J. Wiley & Sons: London, UK, 1984; pp. 171–200. [Google Scholar]
  39. Kokkalas, S.; Xypolias, P.; Koukouvelas, I.; Doutsos, T. Postcollisional contractional and extensional deformation in the Aegean region. In Postcollisional Tectonics and Magmatism in the Mediterranean Region and Asia; Dilek, Y., Pavlides, S., Eds.; Geological Society of America: Boulder, CO, USA, 2006; Volume 409, pp. 97–123. [Google Scholar]
  40. Kokkalas, S.; Doutsos, T. Kinematics and strain partitioning in the southeast Hellenides (Greece). Geol. J. 2004, 39, 121–140. [Google Scholar] [CrossRef]
  41. Skourlis, K.; Doutsos, T. The Pindos Fold-and-thrust belt (Greece): Inversion kinematics of a passive continental margin. Int. J. Earth Sci. 2003, 92, 891–903. [Google Scholar] [CrossRef]
  42. Robertson, A.H.F.; Clift, P.D.; Degnan, P.J.; Jones, G. Palaeogeographic and palaeotectonic evolution of the Eastern Mediterranean Neotethys. Palaeogeogr. Palaeoclimatol. Palaeoecol. 1991, 87, 289–343. [Google Scholar] [CrossRef]
  43. Doutsos, T.; Koukouvelas, I.K.; Xypolias, P. A new orogenic model for the External Hellenides. Geol. Soc. Lond. Spec. Publ. 2006, 260, 507. [Google Scholar] [CrossRef]
  44. Ten Veen, J.H.; Postma, G. Neogene tectonics and basin fill patterns in the Hellenic outer-arc (Crete, Greece). Basin Res. 1999, 11, 223–241. [Google Scholar] [CrossRef]
  45. Caputo, R.; Catalano, S.; Monaco, C.; Romagnoli, G.; Tortorici, G.; Tortorici, L. Active faulting on the island of Crete (Greece). Geophys. J. Int. 2010, 183, 111–126. [Google Scholar] [CrossRef]
  46. Van Hinsbergen, D.J.J.; Meulenkamp, J.E. Neogene supradetachment basin development on Crete (Greece) during exhumation of the South Aegean core complex. Basin Res. 2006, 18, 103–124. [Google Scholar] [CrossRef]
  47. Papanikolaou, D.; Vassilakis, E. Thrust faults and extensional detachment faults in Cretan tectono-stratigraphy: Implications for Middle Miocene extension. Tectonophysics 2010, 488, 233–247. [Google Scholar] [CrossRef]
  48. Zachariasse, W.J.; van Hinsbergen, D.J.J.; Fortuin, A.R. Formation and fragmentation of a late Miocene supradetachment basin in central Crete: Implications for exhumation mechanisms of high-pressure rocks in the Aegean forearc. Basin Res. 2011, 23, 678–701. [Google Scholar] [CrossRef]
  49. Xypolias, P.; Dörr, W.; Zulauf, G. Late Carboniferous plutonism within the pre-Alpine basement of the External Hellenides (Kithira, Greece): Evidence from U–Pb zircon dating. J. Geol. Soc. 2006, 163, 539. [Google Scholar] [CrossRef]
  50. Zulauf, G.; Dörr, W.; Fisher-Spurlock, S.C.; Gerdes, A.; Chatzaras, V.; Xypolias, P. Closure of the Paleotethys in the External Hellenides: Constraints from U–Pb ages of magmatic and detrital zircons (Crete). Gondwana Res. 2015, 28, 642–667. [Google Scholar] [CrossRef]
  51. Meulenkamp, J.E.; Wortel, M.J.R.; van Wamel, W.A.; Spakman, W.; Hoogerduyn Strating, E. On the Hellenic subduction zone and the geodynamic evolution of Crete since the late Middle Miocene. Tectonophysics 1988, 146, 203–215. [Google Scholar] [CrossRef]
  52. Fassoulas, C. The tectonic development of a Neogene basin at the leading edge of the active European margin: The Heraklion basin, Crete, Greece. J. Geodyn. 2001, 31, 49–70. [Google Scholar] [CrossRef]
  53. Meulenkamp, J.E.; Sissingh, W. Tertiary palaeogeography and tectonostratigraphic evolution of the Northern and Southern Peri-Tethys platforms and the intermediate domains of the African–Eurasian convergent plate boundary zone. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2003, 196, 209–228. [Google Scholar] [CrossRef]
  54. Chatzaras, V.; Xypolias, P.; Doutsos, T. Exhumation of high-pressure rocks under continuous compression: A working hypothesis for the southern Hellenides (central Crete, Greece). Geol. Mag. 2006, 143, 859–876. [Google Scholar] [CrossRef]
  55. Chatzaras, V.; Dörr, W.; Finger, F.; Xypolias, P.; Zulauf, G. U–Pb single zircon ages and geochemistry of metagranitoid rocks in the Cycladic Blueschists (Evia Island): Implications for the Triassic tectonic setting of Greece. Tectonophysics 2013, 595–596, 125–139. [Google Scholar] [CrossRef]
  56. Tortorici, L.; Caputo, R.; Monaco, C. Late Neogene to Quaternary contractional structures in Crete (Greece). Tectonophysics 2010, 483, 203–213. [Google Scholar] [CrossRef]
  57. Vafidis, A.; Andronikidis, N.; Economou, N.; Panagopoulos, G.; Zelilidis, A.; Manoutsoglou, E. Reprocessing and interpretation of seismic reflection data at Messara Basin, Crete, Greece. J. Balk. Geophys. Soc. 2012, 15, 31–40. [Google Scholar]
  58. Meulenkamp, J.E.; Dermitzakis, M.; Georgiadou-Dikeoulia, E.; Jonkers, H.A.; Boger, H. Field Guide to the Neogene of Crete; University of Athens: Athens, Greece, 1979. [Google Scholar]
  59. Zelilidis, A.; Tserolas, P.; Chamilaki, E.; Pasadakis, N.; Kostopoulou, S.; Maravelis, A.G. Hydrocarbon prospectivity in the Hellenic trench system: Organic geochemistry and source rock potential of upper Miocene–lower Pliocene successions in the eastern Crete Island, Greece. Int. J. Earth Sci. 2016, 105, 1859–1878. [Google Scholar] [CrossRef]
  60. Moissette, P.; Cornée, J.J.; Antonarakou, A.; Kontakiotis, G.; Drinia, H.; Koskeridou, E.; Tsourou, T.; Agiadi, K.; Karakitsios, V. Palaeoenvironmental changes at the Tortonian/Messinian boundary: A deep-sea sedimentary record of the eastern Mediterranean Sea. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2018, 505, 217–233. [Google Scholar] [CrossRef]
  61. Kontakiotis, G.; Butiseacă, G.A.; Antonarakou, A.; Agiadi, K.; Zarkogiannis, S.D.; Krsnik, E.; Besiou, E.; Zachariasse, W.J.; Lourens, L.; Thivaiou, D.; et al. Hypersalinity accompanies tectonic restriction in the eastern Mediterranean prior to the Messinian Salinity Crisis. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2022, 592, 110903. [Google Scholar] [CrossRef]
  62. Zachariasse, W.J.; Kontakiotis, G.; Lourens, L.J.; Antonarakou, A. The Messinian of Agios Myron (Crete, Greece): A key to better understanding of diatomite formation on Gavdos (south of Crete). Palaeogeogr. Palaeoclimatol. Palaeoecol. 2021, 581, 110633. [Google Scholar] [CrossRef]
  63. Zachariasse, W.J.; van Hinsbergen, D.J.J.; Fortuin, A.R. Mass wasting and uplift on Crete and Karpathos during the early Pliocene related to initiation of south Aegean left-lateral, strike-slip tectonics. Geol. Soc. Am. Bull. 2008, 120, 976–993. [Google Scholar] [CrossRef]
  64. Cosentino, D.; Gliozzi, E.; Pipponzi, G. The late Messinian Lago-Mare episode in the Mediterranean Basin: Preliminary report on the occurrence of Paratethyan ostracod fauna from central Crete (Greece). Geobios 2007, 40, 339–349. [Google Scholar] [CrossRef]
  65. Espitalie, J.; Deroo, G.; Marquis, F. La pyrolyse Rock-Eval et ses applications. Troisième partie. Rev. Inst. Fr. Pét. 1986, 41, 73–89. [Google Scholar] [CrossRef]
  66. Lafargue, E.; Marquis, F.; Pillot, D. Rock-Eval 6 Applications in Hydrocarbon Exploration, Production, and Soil Contamination Studies. Oil Gas Sci. Technol. Rev. IFP Energ. Nouv. 1998, 53, 421–437. [Google Scholar] [CrossRef]
  67. Behar, F.; Beaumont, V.; Penteado, H.L.D.B. Technologie Rock-Eval 6: Performances et développements. Oil Gas Sci. Technol. Rev. IFP 2001, 56, 111–134. [Google Scholar] [CrossRef]
  68. Espitalié, J.; Laporte, J.L.; Madec, M.; Marquis, F.; Leplat, P.; Paulet, J.; Boutefeu, A. Méthode rapide de caractérisation des roches mères, de leur potentiel pétrolier et de leur degré d’évolution. Rev. L’institut Français Pétrole 1977, 32, 23–42. [Google Scholar] [CrossRef]
  69. Espitalie, J.; Marquis, F.; Sage, L.; Barsony, I. Géochimie organique du bassin de Paris. Rev. Inst. Fr. Pét. 1987, 42, 271–302. [Google Scholar] [CrossRef]
  70. Peters, K.E. Guidelines for evaluating petroleum source rock using programmed pyrolysis. Am. Assoc. Pet. Geol. Bull. 1986, 70, 318–329. [Google Scholar]
  71. Jarvie, D.M. Total organic carbon (TOC) analysis. In Treatise of Petroleum Geology: Handbook of Petroleum Geology, Source and Migration Processes and Evaluation Techniques; Merril, R.K., Ed.; American Association of Petroleum Geologists: Tulsa, OK, USA, 1991; pp. 113–118. [Google Scholar]
  72. Bostick, N.H.; Daws, T.A. Relationships between data from Rock-Eval pyrolysis and proximate, ultimate, petrographic, and physical analyses of 142 diverse U.S. coal samples. Org. Geochem. 1994, 21, 35–49. [Google Scholar] [CrossRef]
  73. Peters, K.E.; Cassa, M.R. Applied source rock geochemistry. In The Petroleum System—From Source to Trap; Memoir 60; Magoon, L.B., Dow, W.G., Eds.; American Association of Petroleum Geologists: Tulsa, OK, USA, 1994; pp. 93–120. [Google Scholar]
  74. Tissot, B.P.; Welte, D.H. Petroleum Formation and Occurrence, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 1984. [Google Scholar]
  75. Burwood, R.; De Witte, S.; Mycke, B.; Paulet, J. Petroleum geochemical characterization of the Lower Congo coastal basin Bucomazi Formation. In Petroleum Source Rocks; Katz, B.J., Ed.; Springer: Berlin/Heidelberg, Germany, 1995; pp. 235–263. [Google Scholar]
  76. Dymann, T.S.; Palacas, J.G.; Tysdal, R.G.; Perry, W.J.; Pawlewicz, M.J. Source rock potential of Middle Cretaceous rocks in southwestern Montana. AAPG Bull. 1996, 80, 1177–1184. [Google Scholar]
  77. Dembicki, H., Jr. Three common source rock evaluation errors made by geologists during prospect or play appraisals. Am. Assoc. Pet. Geol. Bull. 2009, 93, 341–356. [Google Scholar] [CrossRef]
  78. Jackson, K.S.; Hawkins, P.J.; Bennett, A.J.R. Regional facies and geochemical evaluation of southern Denison Trough, Queensland. APPEA J. 1985, 20, 143–158. [Google Scholar] [CrossRef]
  79. Maravelis, A.G.; Makrodimitras, G.; Pasadakis, N.; Zelilidis, A. Stratigraphic evolution and source rock potential of a Lower Oligocene to Lower-Middle Miocene continental slope system, Hellenic Fold and Thrust Belt, Ionian Sea, northwest Greece. Geol. Mag. 2014, 151, 394–413. [Google Scholar] [CrossRef]
  80. Maravelis, A.G.; Boutelier, D.; Catuneanu, O.; Seymour, K.S.; Zelilidis, A. A review of tectonics and sedimentation in a forearc setting: Hellenic Thrace Basin, North Aegean Sea and Northern Greece. Tectonophysics 2017, 674, 1–19. [Google Scholar] [CrossRef]
  81. Hunt, J.M. (Ed.) Petroleum Geochemistry and Geology, 2nd ed.; W.H. Freeman and Company: New York, NY, USA, 1996. [Google Scholar]
  82. Katz, B.J. Limitations of ‘Rock-Eval’ pyrolysis for typing organic matter. Org. Geochem. 1983, 4, 195–199. [Google Scholar] [CrossRef]
  83. Peters, K.E.; Moldowan, J.M. The Biomarker Guide: Interpreting Molecular Fossils in Petroleum and Ancient Sediments; Prentice-Hall, Inc.: Englewood Cliffs, NJ, USA, 1993. [Google Scholar]
  84. Catuneanu, O. Principles of Sequence Stratigraphy; Elsevier: Amsterdam, The Netherlands, 2006; p. 375. [Google Scholar]
  85. Vasiliev, I.; Karakitsios, V.; Bouloubassi, I.; Agiadi, K.; Kontakiotis, G.; Antonarakou, A.; Triantaphyllou, M.; Gogou, A.; Kafousia, N.; de Rafélis, M.; et al. Large Sea Surface Temperature, Salinity, and Productivity-Preservation Changes Preceding the Onset of the Messinian Salinity Crisis in the Eastern Mediterranean Sea. Paleoceanogr. Paleoclimatol. 2019, 34, 182–202. [Google Scholar] [CrossRef]
  86. Kontakiotis, G.; Moforis, L.; Karakitsios, V.; Antonarakou, A. Sedimentary Facies Analysis, Reservoir Characteristics and Paleogeography Significance of the Early Jurassic to Eocene Carbonates in Epirus (Ionian Zone, Western Greece). J. Mar. Sci. Eng. 2020, 8, 706. [Google Scholar] [CrossRef]
  87. Maravelis, A.; Zelilidis, A. Organic geochemical characteristics of the late Eocene–early Oligocene submarine fans and shelf deposits on Lemnos Island, NE Greece. J. Pet. Sci. Eng. 2010, 71, 160–168. [Google Scholar] [CrossRef]
  88. Mascle, J.; Le Quellec, P.; Leité, O.; Jongsma, D. Structural sketch of the Hellenic continental margin between the western Peloponnesus and eastern Crete. Geology 1982, 10, 113–116. [Google Scholar] [CrossRef]
  89. Nader, F.H. Insights into the petroleum prospectivity of Lebanon. In Petroleum Systems of the Tethyan Region; AAPG Special volumes memoir; Marlow, L., Kendall, C.C.G., Yose, L.A., Eds.; American Association of Petroleum Geologists: Tulsa, OK, USA, 2014; Volume 160, pp. 241–278. [Google Scholar]
  90. Nader, F.H.; Inati, L.; Ghalayini, R.; Hawie, N.; Bou Daher, S. Key geological characteristics of the Saida-Tyr Platform along the eastern margin of the Levant Basin, offshore Lebanon: Implications for hydrocarbon exploration. Oil Gas Sci. Technol. Rev. IFP Energ. Nouv. 2018, 73, 50. [Google Scholar] [CrossRef]
  91. Karakitsios, V.; Rigakis, N. Evolution and petroleum potential of Western Greece. J. Pet. Geol. 2007, 30, 197–218. [Google Scholar] [CrossRef]
  92. Roveri, M.; Flecker, R.; Krijgsman, W.; Lofi, J.; Lugli, S.; Manzi, V.; Sierro, F.J.; Bertini, A.; Camerlenghi, A.; De Lange, G.; et al. The Messinian Salinity Crisis: Past and future of a great challenge for marine sciences. Mar. Geol. 2014, 352, 25–58. [Google Scholar] [CrossRef]
  93. Roveri, M.; Gennari, R.; Lugli, S.; Manzi, V.; Minelli, N.; Reghizzi, M.; Riva, A.; Rossi, M.E.; Schreiber, B.C. The Messinian salinity crisis: Open problems and possible implications for Mediterranean petroleum systems. Pet. Geosci. 2016, 22, 283. [Google Scholar] [CrossRef]
  94. Iadanza, A.; Sampalmieri, G.; Cipollari, P. Deep-seated hydrocarbons in the seep “Brecciated Limestones” of the Maiella area (Adriatic foreland basin): Evaporitic sealing and oil re-mobilization effects linked to the drawdown of the Messinian Salinity Crisis. Mar. Pet. Geol. 2015, 66, 177–191. [Google Scholar] [CrossRef]

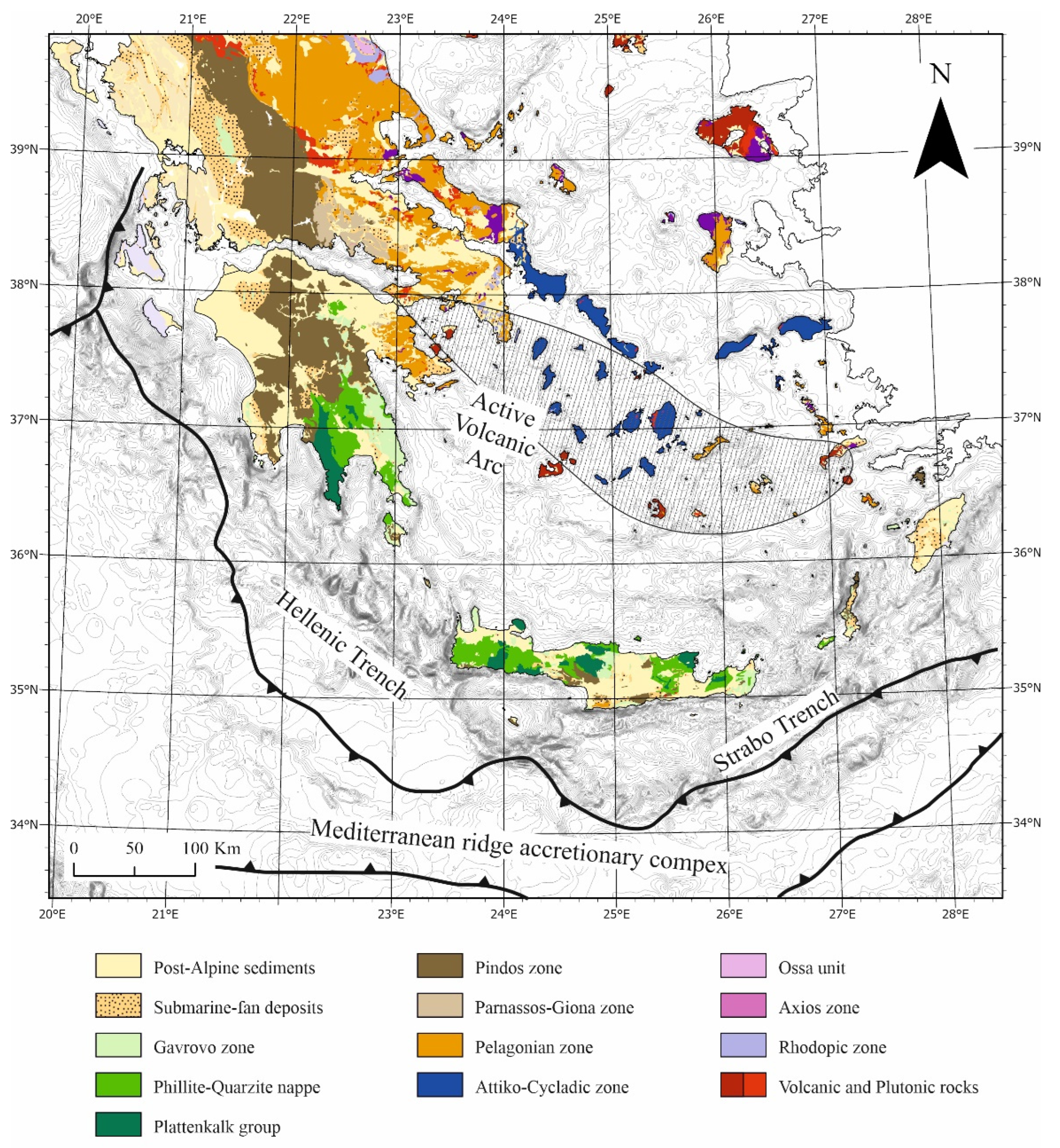

Figure 1. Scheme illustrating the tectonic zonation of Greece based on the main tectonostratigraphic zones (modified after [14]).
Figure 1. Scheme illustrating the tectonic zonation of Greece based on the main tectonostratigraphic zones (modified after [14]).
Jmse 10 01323 g001

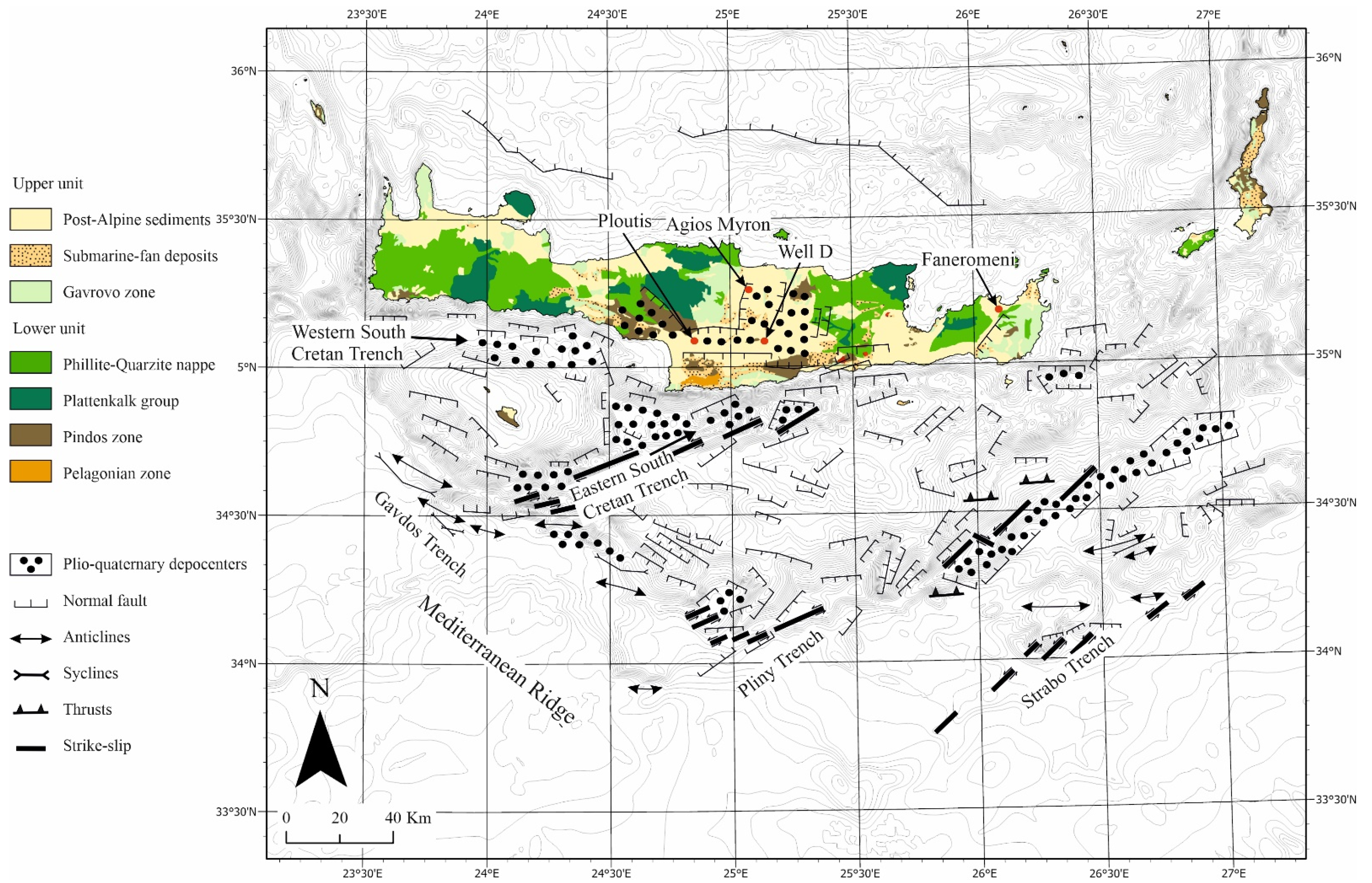

Figure 2. Scheme illustrating the tectonic zonation and main structural elements and depocenters of Crete Island and surrounding regions. Red cycles correspond to the sampling locations.
Figure 2. Scheme illustrating the tectonic zonation and main structural elements and depocenters of Crete Island and surrounding regions. Red cycles correspond to the sampling locations.
Jmse 10 01323 g002

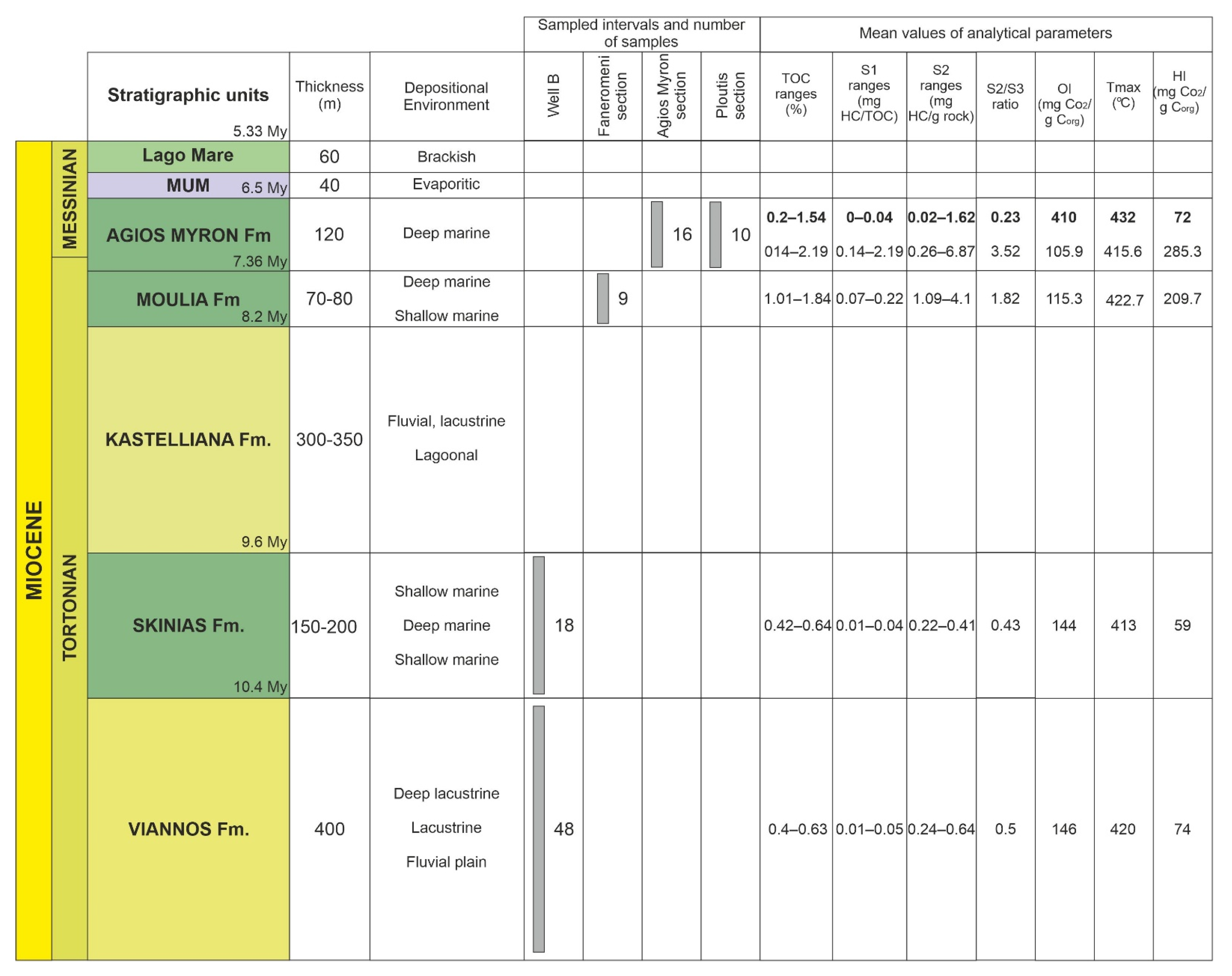

Figure 3. Stratigraphic column of the study region that illustrates the evolution of the Upper Miocene (Tortonian—Messinian) depositional environments. The age constraints of the study formations come from Zachariasse et al. [48]. To the left upper corner, the stratigraphic interval that the study sections and formations cover is displayed. Abbreviation, MUM: Marine Upper Messinian.
Figure 3. Stratigraphic column of the study region that illustrates the evolution of the Upper Miocene (Tortonian—Messinian) depositional environments. The age constraints of the study formations come from Zachariasse et al. [48]. To the left upper corner, the stratigraphic interval that the study sections and formations cover is displayed. Abbreviation, MUM: Marine Upper Messinian.
Jmse 10 01323 g003

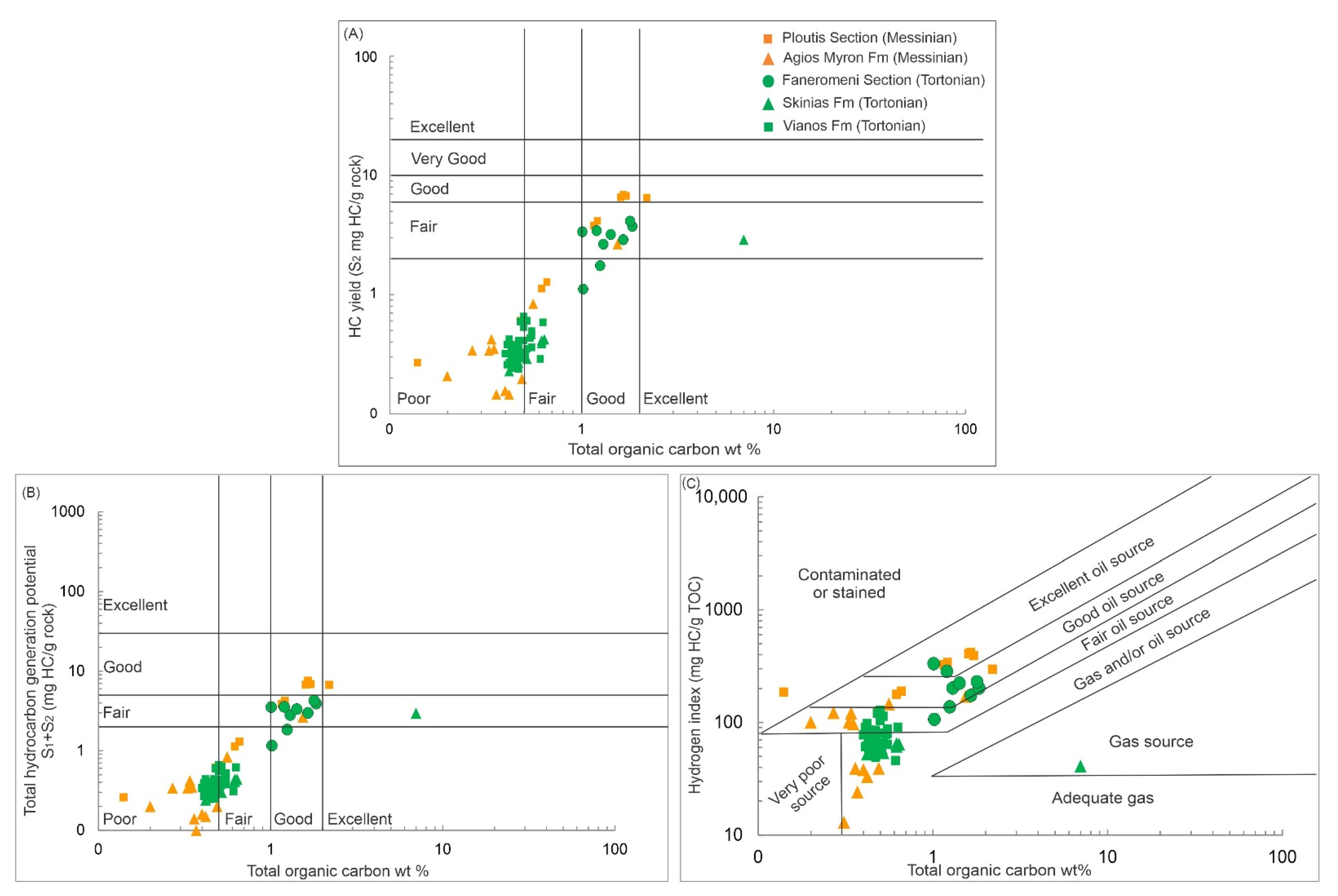

Figure 4. Evaluation of hydrocarbon generative potential of the examined samples from Crete Island. (A) Cross-plot of S2 vs. total organic carbon, (B) Classification diagram of total hydrocarbon generating potential vs. total organic carbon and, (C) Cross-plot of hydrogen index vs. total organic carbon. These diagrams suggest that the most promising samples come from Moulia Fm (at Faneromeni) and Ploutis section, whereas Viannos, Skinias Fm and Agios Myron Fm exhibit little hydrocarbon generative potential. Green color refers to samples that are Tortonian in age, whereas orange color refers to samples that are Messinian in age.
Figure 4. Evaluation of hydrocarbon generative potential of the examined samples from Crete Island. (A) Cross-plot of S2 vs. total organic carbon, (B) Classification diagram of total hydrocarbon generating potential vs. total organic carbon and, (C) Cross-plot of hydrogen index vs. total organic carbon. These diagrams suggest that the most promising samples come from Moulia Fm (at Faneromeni) and Ploutis section, whereas Viannos, Skinias Fm and Agios Myron Fm exhibit little hydrocarbon generative potential. Green color refers to samples that are Tortonian in age, whereas orange color refers to samples that are Messinian in age.
Jmse 10 01323 g004

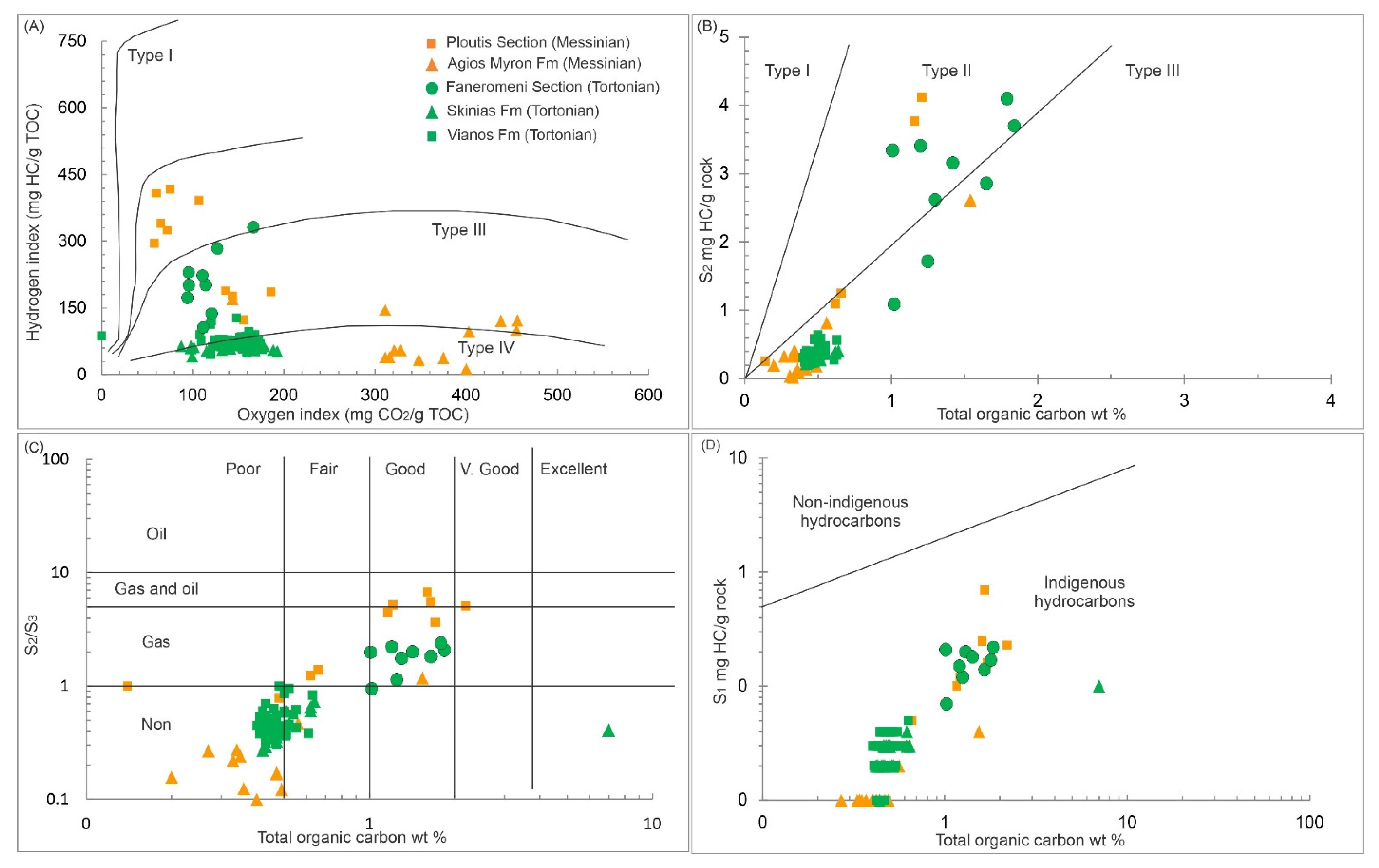

Figure 5. Evaluation of the kerogen type in the examined sedimentary rocks: (A) Classification diagram of hydrogen index vs. oxygen index kerogen, (B) Bi-plot of S2 vs. total organic carbon, (C) S2/S3 vs. total organic carbon, and (D) S1 vs. total organic carbon cross-plots. These plots suggest that Moulia Fm (at Faneromeni) and Ploutis section could represent source rocks with potential to generate gas. In contrast, Viannos Fm, Skinias Fm and Agios Myron Fm contain principally organic matter of kerogen IV, with no or little hydrocarbon generative potential. Green color refers to samples that are Tortonian in age, whereas orange color refers to samples that are Messinian in age.
Figure 5. Evaluation of the kerogen type in the examined sedimentary rocks: (A) Classification diagram of hydrogen index vs. oxygen index kerogen, (B) Bi-plot of S2 vs. total organic carbon, (C) S2/S3 vs. total organic carbon, and (D) S1 vs. total organic carbon cross-plots. These plots suggest that Moulia Fm (at Faneromeni) and Ploutis section could represent source rocks with potential to generate gas. In contrast, Viannos Fm, Skinias Fm and Agios Myron Fm contain principally organic matter of kerogen IV, with no or little hydrocarbon generative potential. Green color refers to samples that are Tortonian in age, whereas orange color refers to samples that are Messinian in age.
Jmse 10 01323 g005

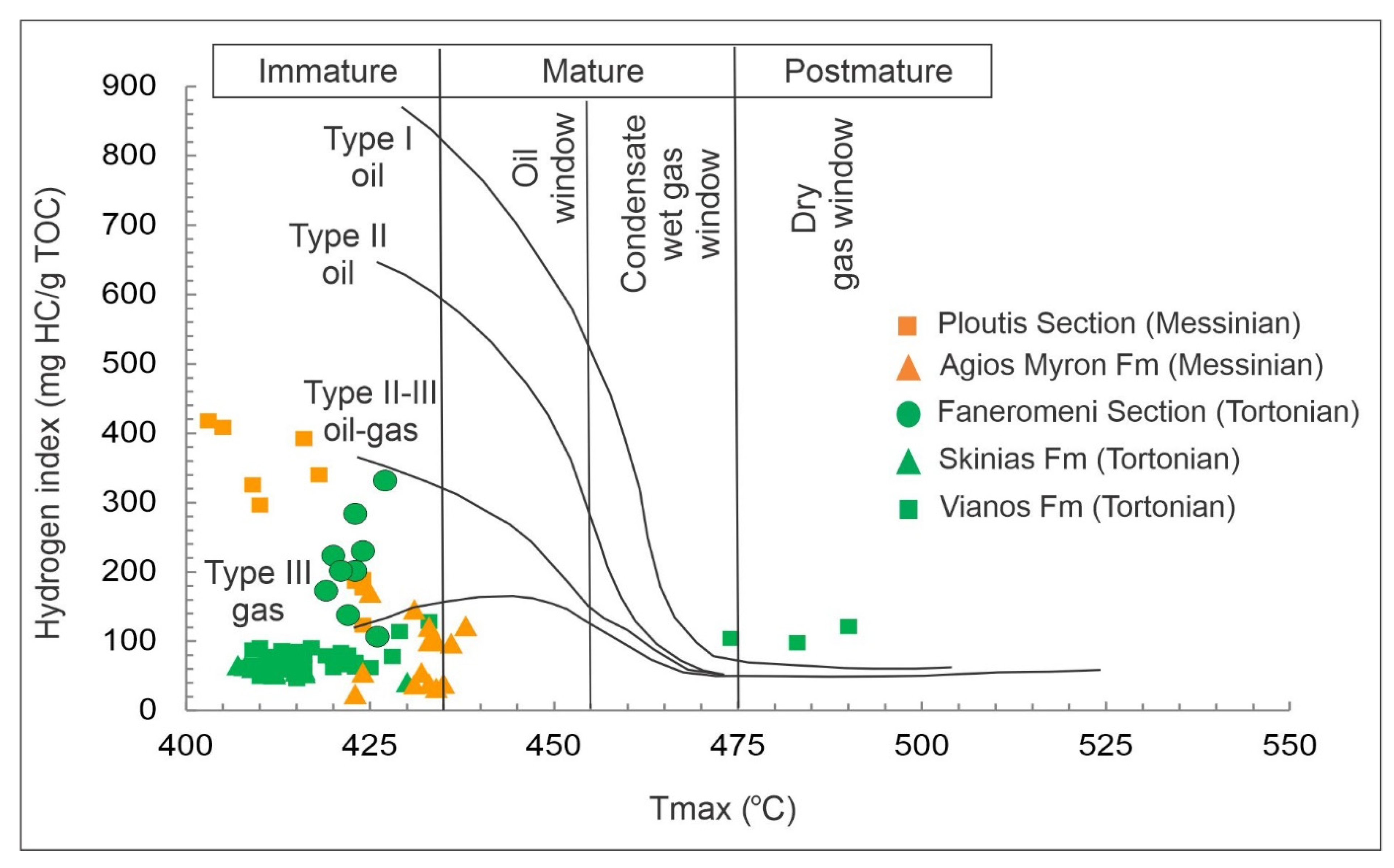

Figure 6. Assessment of maturation status of the examined samples, based on hydrogen index vs. Tmax cross-plot. The samples derived from all formations are thermally immature. Green color refers to samples that are Tortonian in age, whereas orange color refers to samples that are Messinian in age.
Figure 6. Assessment of maturation status of the examined samples, based on hydrogen index vs. Tmax cross-plot. The samples derived from all formations are thermally immature. Green color refers to samples that are Tortonian in age, whereas orange color refers to samples that are Messinian in age.
Jmse 10 01323 g006
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Maravelis, A.G.; Kontakiotis, G.; Bellas, S.; Antonarakou, A.; Botziolis, C.; Janjuhah, H.T.; Makri, P.; Moissette, P.; Cornée, J.-J.; Pasadakis, N.; et al. Organic Geochemical Signatures of the Upper Miocene (Tortonian—Messinian) Sedimentary Succession Onshore Crete Island, Greece: Implications for Hydrocarbon Prospectivity. J. Mar. Sci. Eng. 2022, 10, 1323. https://doi.org/10.3390/jmse10091323

AMA Style

Maravelis AG, Kontakiotis G, Bellas S, Antonarakou A, Botziolis C, Janjuhah HT, Makri P, Moissette P, Cornée J-J, Pasadakis N, et al. Organic Geochemical Signatures of the Upper Miocene (Tortonian—Messinian) Sedimentary Succession Onshore Crete Island, Greece: Implications for Hydrocarbon Prospectivity. Journal of Marine Science and Engineering. 2022; 10(9):1323. https://doi.org/10.3390/jmse10091323

Chicago/Turabian Style

Maravelis, Angelos G., George Kontakiotis, Spyridon Bellas, Assimina Antonarakou, Chrysanthos Botziolis, Hammad Tariq Janjuhah, Panayota Makri, Pierre Moissette, Jean-Jacques Cornée, Nikolaos Pasadakis, and et al. 2022. "Organic Geochemical Signatures of the Upper Miocene (Tortonian—Messinian) Sedimentary Succession Onshore Crete Island, Greece: Implications for Hydrocarbon Prospectivity" Journal of Marine Science and Engineering 10, no. 9: 1323. https://doi.org/10.3390/jmse10091323

APA Style

Maravelis, A. G., Kontakiotis, G., Bellas, S., Antonarakou, A., Botziolis, C., Janjuhah, H. T., Makri, P., Moissette, P., Cornée, J. -J., Pasadakis, N., Manoutsoglou, E., Zelilidis, A., & Karakitsios, V. (2022). Organic Geochemical Signatures of the Upper Miocene (Tortonian—Messinian) Sedimentary Succession Onshore Crete Island, Greece: Implications for Hydrocarbon Prospectivity. Journal of Marine Science and Engineering, 10(9), 1323. https://doi.org/10.3390/jmse10091323

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
