Radiographic and Clinical Outcomes of Laser-Enhanced Disinfection in Endodontic Therapy
Abstract
:1. Introduction
2. Materials and Methods
2.1. Ethical Considerations
2.2. Diagnostic Criteria
2.3. Endodontic Treatment Protocol
2.4. Laser Disinfection Protocol
2.5. CBCT Imaging and Assessment
- -
- Volumetric lesion size: calculated from three-dimensional measurements across buccal-lingual, mesial-distal, and coronal-apical axes.
- -
- CBCT Periapical Index (CBCT-PAI): scored according to Estrela et al. [3] to assess lesion progression or regression.
- -
- Bone density classification: assigned based on Misch’s D1–D5 system to evaluate healing potential relative to bone quality.
2.6. Statistical Analysis
3. Results
3.1. Baseline Characteristics and Initial Lesion Distribution
- -
- Well-defined radiolucent lesions: 76 cases (63.3%)
- -
- Chronic apical periodontitis: 44 cases (36.7%)
- -
- Experimental group (chemical irrigation + Er,Cr:YSGG laser disinfection): 6.42 ± 1.23 mm
- -
- Control group (chemical irrigation only): 6.51 ± 1.18 mm
- -
- D1 (dense cortical bone): 11%
- -
- D2 (thick trabecular bone): 21%
- -
- D3 (intermediate trabecular bone): 28%
- -
- D4 (sparse trabecular bone): 30%
- -
- D5 (low density/osteoporotic bone): 10%
3.2. Lesion Size Evolution over Time
3.3. Lesion Type and Healing Outcome

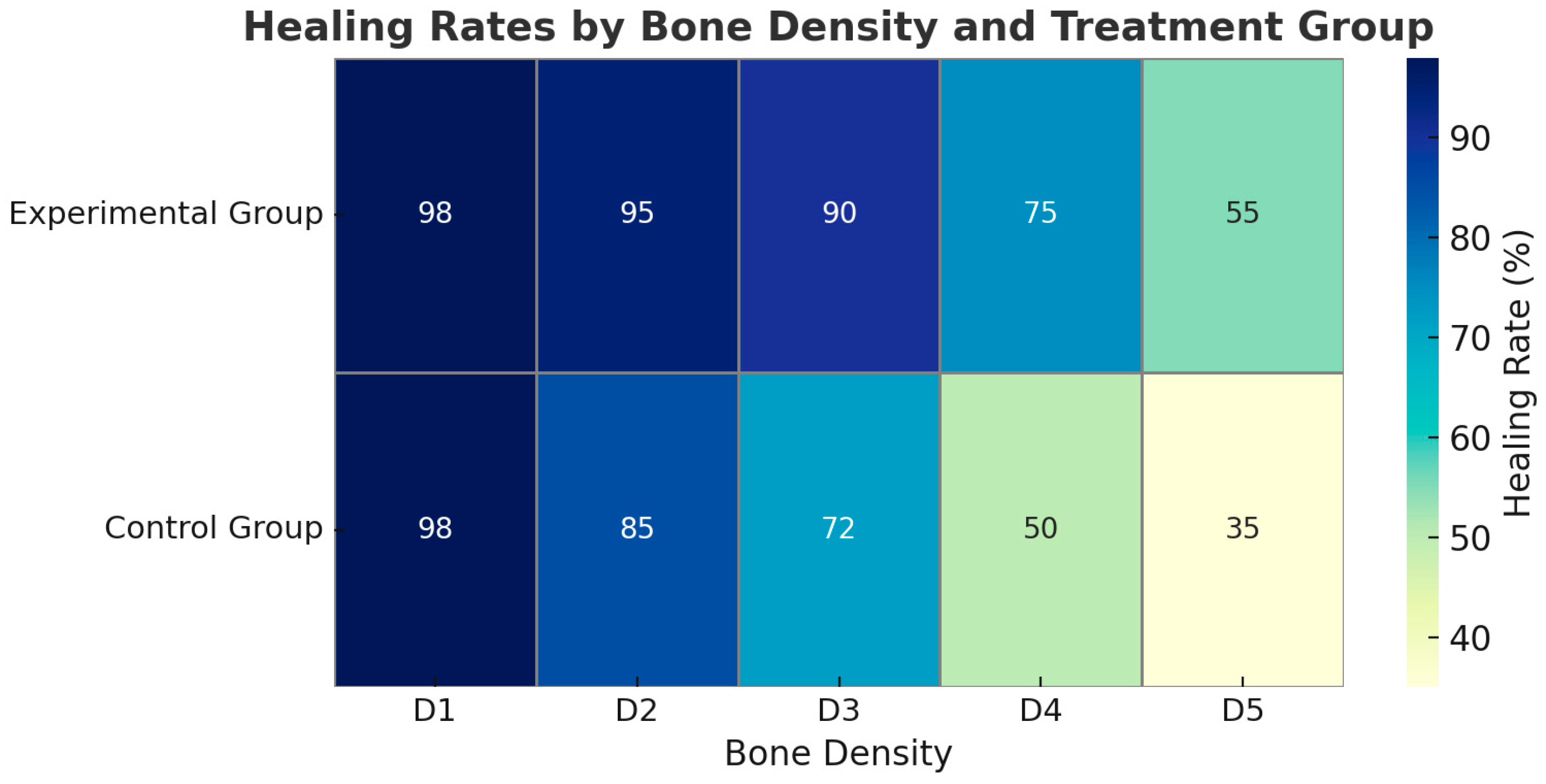

3.4. Healing Outcome by Bone Density

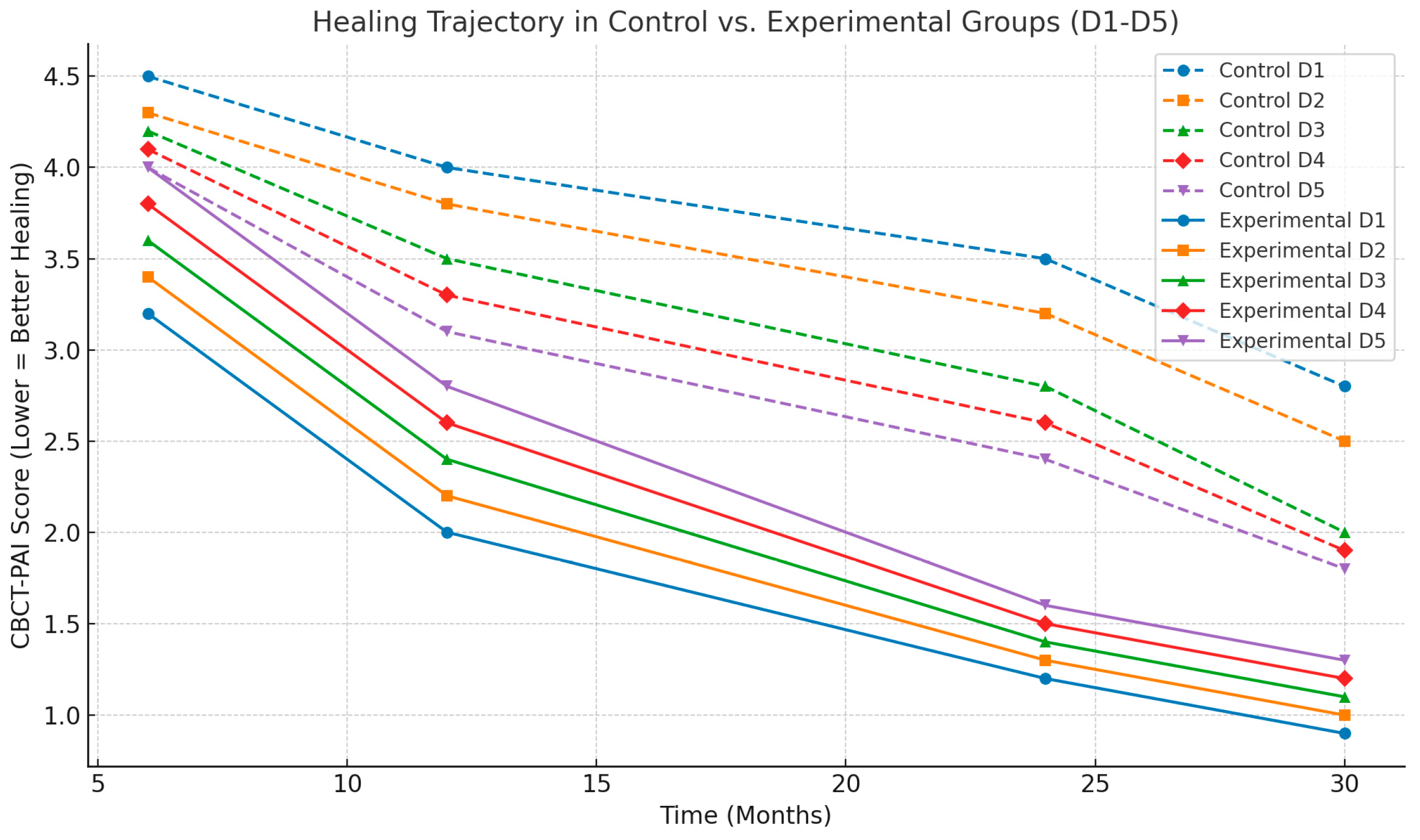

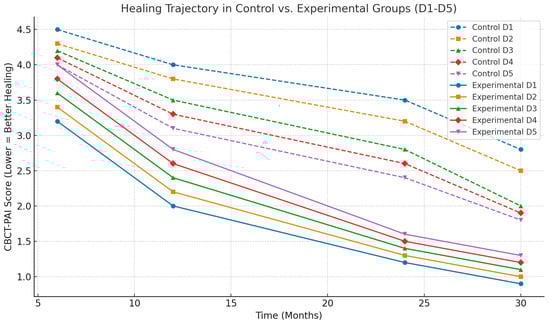

3.5. CBCT-PAI Score Reduction

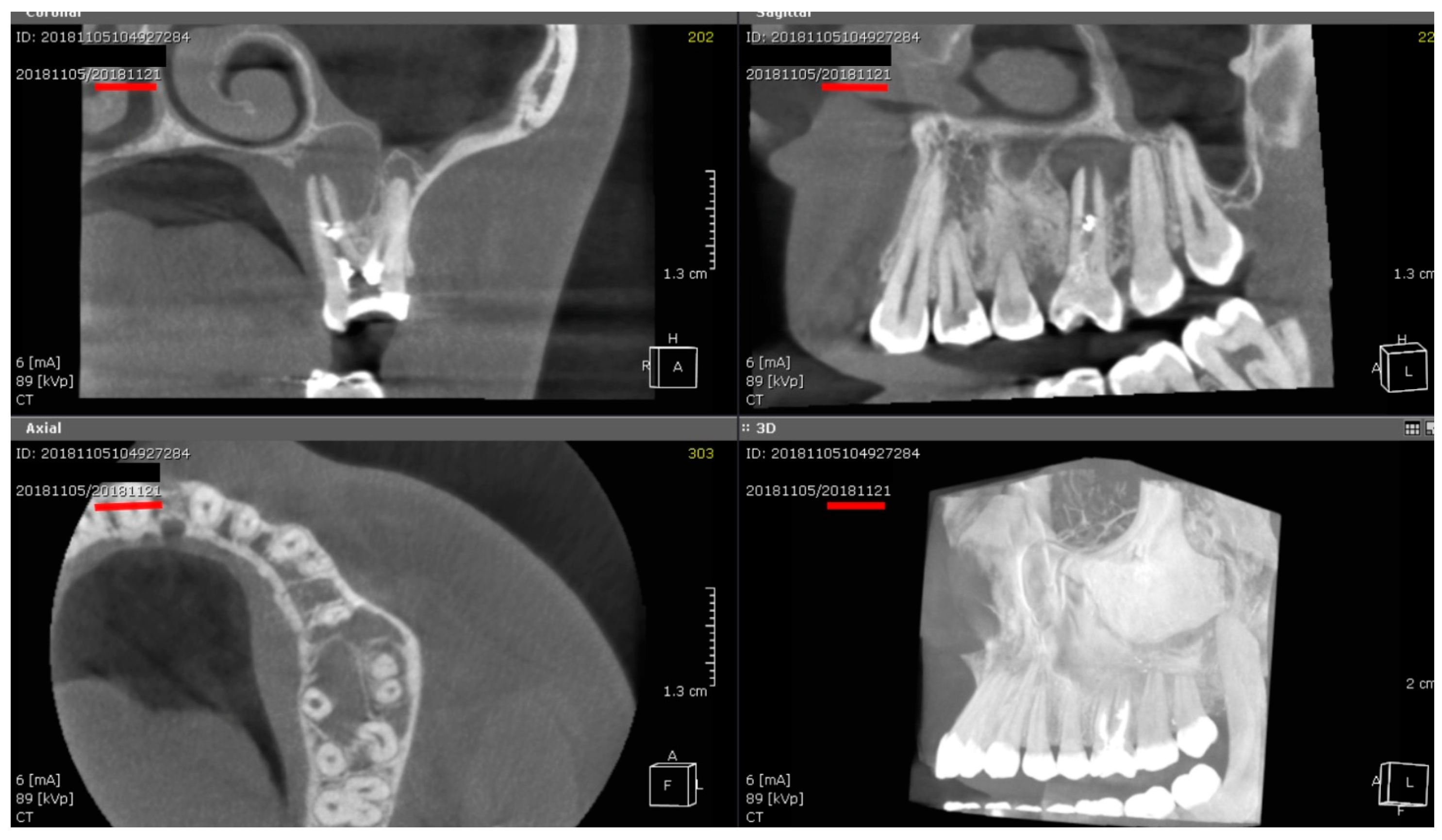

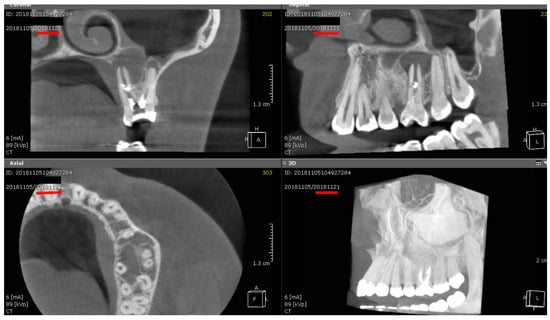

3.6. Representative Imaging and Healing Patterns
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Iqbal, A.; Sharari, T.A.; Khattak, O.; Chaudhry, F.A.; Bader, A.K.; Saleem, M.M.; Issrani, R.; Almaktoom, I.T.; Albalawi, R.F.H.; Alserhani, E.D.M. Guided Endodontic Surgery: A Narrative Review. Medicina 2023, 59, 678. [Google Scholar] [CrossRef] [PubMed]
- Estrela, C.; Bueno, M.R.; Leles, C.R.; Azevedo, B.; Azevedo, J.R. Accuracy of Cone Beam Computed Tomography and Panoramic and Periapical Radiography for Detection of Apical Periodontitis. J. Endod. 2008, 34, 273–279. [Google Scholar] [CrossRef] [PubMed]
- Peters, O.A. Current Challenges and Concepts in the Preparation of Root Canal Systems: A Review. J. Endod. 2004, 30, 559–567. [Google Scholar] [CrossRef] [PubMed]
- Hülsmann, M.; Schinkel, I. Influence of Several Factors on the Success or Failure of Removal of Fractured Instruments from the Root Canal. Endod. Dent. Traumatol. 1999, 15, 252–258. [Google Scholar] [CrossRef]
- Yapp, K.E.; Brennan, P.; Ekpo, E. Endodontic Disease Detection: Digital Periapical Radiography versus Cone-Beam Computed Tomography—A Systematic Review. J. Med. Imaging. 2021, 8, 041205. [Google Scholar] [CrossRef]
- Van Nieuwenhuysen, J.-P.; Aouar, M.; D’hoore, W. Retreatment or Radiographic Monitoring in Endodontics. Int. Endod. J. 1994, 27, 75–81. [Google Scholar] [CrossRef]
- Fernández, R.; Cadavid, D.; Zapata, S.M.; Álvarez, L.G.; Restrepo, F.A. Impact of Three Radiographic Methods in the Outcome of Nonsurgical Endodontic Treatment: A Five-Year Follow-Up. J. Endod. 2013, 39, 1097–1103. [Google Scholar] [CrossRef]
- Setzer, F.C.; Lee, S.-M. Radiology in Endodontics. Dent. Clin. N. Am. 2021, 65, 475–486. [Google Scholar] [CrossRef]
- Nur, M.; Kayipmaz, S.; Bayram, M.; Celikoglu, M.; Kilkis, D.; Sezgin, O.S. Conventional Frontal Radiographs Compared with Frontal Radiographs Obtained from Cone Beam Computed Tomography. Angle Orthod. 2012, 82, 579–584. [Google Scholar] [CrossRef]
- Olmez, H.; Gorgulu, S.; Akin, E.; Bengi, A.O.; Tekdemir, I.; Ors, F. Measurement Accuracy of a Computer-Assisted Three- Dimensional Analysis and a Conventional Two-Dimensional Method. Angle Orthod. 2011, 81, 375–382. [Google Scholar] [CrossRef]
- Park, C.S.; Park, J.K.; Kim, H.; Han, S.S.; Jeong, H.G.; Park, H. Comparison of Conventional Lateral Cephalograms with Corresponding CBCT Radiographs. Imaging Sci. Dent. 2012, 42, 201–205. [Google Scholar] [CrossRef]
- Kaasalainen, T.; Ekholm, M.; Siiskonen, T.; Kortesniemi, M. Dental Cone Beam CT: An Updated Review. Phys. Medica 2021, 88, 193–217. [Google Scholar] [CrossRef] [PubMed]
- Wikner, J.; Hanken, H.; Eulenburg, C.; Heiland, M.; Gröbe, A.; Assaf, A.T.; Riecke, B.; Friedrich, R.E. Linear Accuracy and Reliability of Volume Data Sets Acquired by Two CBCT-Devices and an MSCT Using Virtual Models: A Comparative in-Vitro Study. Acta Odontol. Scand. 2016, 74, 51–59. [Google Scholar] [CrossRef]
- Patel, S.; Brown, J.; Pimentel, T.; Kelly, R.D.; Abella, F.; Durack, C. Cone Beam Computed Tomography in Endodontics—A Review of the Literature. Int. Endod. J. 2019, 52, 1138–1152. [Google Scholar] [CrossRef] [PubMed]
- Patel, S.; Durack, C.; Abella, F.; Shemesh, H.; Roig, M.; Lemberg, K. Cone Beam Computed Tomography in Endodontics—A Review. Int. Endod. J. 2015, 48, 3–15. [Google Scholar] [CrossRef] [PubMed]
- Scarfe, W.C.; Farman, A.G.; Sukovic, P. Clinical Applications of Cone-Beam Computed Tomography in Dental Practice. J. Can. Dent. Assoc. 2006, 72, 75–80. [Google Scholar]
- Pauwels, R.; Jacobs, R.; Singer, S.R.; Mupparapu, M. CBCT-Based Bone Quality Assessment: Are Hounsfield Units Applicable? Dentomaxillofac. Radiol. 2015, 44, 20140238. [Google Scholar] [CrossRef]
- Hao, Y.; Zhao, W.; Wang, Y.; Yu, J.; Zou, D. Assessments of Jaw Bone Density at Implant Sites Using 3D Cone-Beam Computed Tomography. Eur. Rev. Med. Pharmacol. Sci. 2014, 18, 1398–1403. [Google Scholar]
- Khader, A.; Jain, S.; Sarah; Mishra, S.; Saleem, S.; Vijayan, A. Comparing Radiation Doses in CBCT and Medical CT Imaging for Dental Applications. J. Pharm. Bioallied Sci. 2024, 16 (Suppl. S2), S1795–S1797. [Google Scholar] [CrossRef]
- Aljawad, H.; Kang, N.; Lee, K.C. Integration Accuracy of Craniofacial Cone-Beam Computed Tomography Images with Three-Dimensional Facial Scans According to Different Registration Areas. Angle Orthod. 2023, 93, 66–70. [Google Scholar] [CrossRef]
- Yildizer Keris, E.; Demirel, O.; Ozdede, M. Evaluation of Motion Artifacts in Cone-Beam Computed Tomography with Three Different Patient Positioning. Oral Radiol. 2021, 37, 276–281. [Google Scholar] [CrossRef] [PubMed]
- Lagos de Melo, L.P.; Queiroz, P.M.; Moreira-Souza, L.; Nadaes, M.R.; Santaella, G.M.; Oliveira, M.L.; Freitas, D.Q. Influence of CBCT Parameters on Image Quality and the Diagnosis of Vertical Root Fractures in Teeth with Metallic Posts: An Ex Vivo Study. Restor. Dent. Endod. 2023, 48, e16. [Google Scholar] [CrossRef]
- Misch, C.E.; Kircos, L.T. Diagnostic Imaging and Techniques. In Contemporary Implant Dentistry, 2nd ed.; Misch, C.E., Ed.; Mosby: St. Louis, MO, USA, 1999; pp. 73–87. [Google Scholar]
- Misch, C.E. Density of Bone: Effect on Treatment Plans, Surgical Approach, Healing, and Progressive Bone Loading. Int. J. Oral Implantol. 1990, 6, 23–31. [Google Scholar]
- Salceanu, M.; Giuroiu, C.; Topoliceanu, C.; Agop-Forna, D.; Decoli, Y.; Antohi, C.; Hamburda, T.; Melian, A. Evaluation of Periapical Healing Using CBCT: A Case Series. Rom. J. Oral Rehabil. 2021, 13, 168–175. [Google Scholar]
- Karamifar, K.; Tondari, A.; Saghiri, M.A. Endodontic Periapical Lesion: An Overview on the Etiology, Diagnosis, and Current Treatment Modalities. Eur. Endod. J. 2020, 5, 54–67. [Google Scholar] [CrossRef] [PubMed]
- Duncan, H.; El-Karim, I. Endodontic S3-level clinical practice guidelines: The European Society of Endodontology process and recommendations. Br. Dent. J. 2025, 238, 580–586. [Google Scholar] [CrossRef] [PubMed]
- Banomyong, D.; Arayasantiparb, R.; Sirakulwat, K.; Kasemsuwan, J.; Chirarom, N.; Laopan, N.; Lapthanasupkul, P. Association between Clinical/Radiographic Characteristics and Histopathological Diagnoses of Periapical Granuloma and Cyst. Eur. J. Dent. 2023, 17, 1241–1247. [Google Scholar] [CrossRef]
- Rios Osorio, N.; Caviedes-Bucheli, J.; Mosquera-Guevara, L.; Adames-Martinez, J.S.; Gomez-Pinto, D.; Jimenez-Jimenez, K.; Avendano Maz, H.; Bornacelly-Mendoza, S. The Paradigm of the Inflammatory Radicular Cyst: Biological Aspects to be Considered. Eur. Endod. J. 2023, 8, 20–36. [Google Scholar] [CrossRef]
- De Rosa, C.S.; Bergamini, M.L.; Palmieri, M.; Sarmento, D.J.S.; de Carvalho, M.O.; Ricardo, A.L.F.; Hasseus, B.; Jonasson, P.; Braz-Silva, P.H.; Ferreira Costa, A.L. Differentiation of Periapical Granuloma from Radicular Cyst Using Cone Beam Computed Tomography Images Texture Analysis. Heliyon 2020, 6, e05194. [Google Scholar] [CrossRef]
- Fortea, L.; Sanz-Serrano, D.; Luz, L.B.; Bardini, G.; Mercade, M. Update on chelating agents in endodontic treatment: A systematic review. J. Clin. Exp. Dent. 2024, 16, e516–e538. [Google Scholar] [CrossRef]
- Avcı, F.; Etöz, M.; Üstün, Y.; Arslan, T. Evaluation of Ultrasonography as a Diagnostic Tool in the Management of Periapical Cysts and Granulomas: A Clinical Study. Imaging Sci. Dent. 2022, 52, 209–217. [Google Scholar] [CrossRef] [PubMed]
- AlQahtani, S.M. A Novel Method of Assessment of BMD Using CBCT for Implant Placement: A Retrospective Study. Medicine (Baltimore) 2023, 102, e34203. [Google Scholar] [CrossRef]
- Morar, L.; Băciuț, G.; Băciuț, M.; Bran, S.; Colosi, H.; Manea, A.; Almășan, O.; Dinu, C. Analysis of CBCT Bone Density Using the Hounsfield Scale. Prosthesis 2022, 4, 414–423. [Google Scholar] [CrossRef]
- Sachelarie, L.; Cristea, R.; Burlui, E.; Hurjui, L.L. Laser Technology in Dentistry: From Clinical Applications to Future Innovations. Dent. J. 2024, 12, 420. [Google Scholar] [CrossRef] [PubMed]
- Huang, Q.; Li, Z.; Lyu, P.; Zhou, X.; Fan, Y. Current Applications and Future Directions of Lasers in Endodontics: A Narrative Review. Bioengineering 2023, 10, 296. [Google Scholar] [CrossRef]
- Ahrari, F.; Akhondian, S.; Shakiba, R.; Tolouei, A.; Salehi, A.; Valizadeh, M.; Hosseini, K. Laser Applications in Regenerative Endodontics: A Review. J. Lasers Med. Sci. 2024, 15, e1. [Google Scholar] [CrossRef]
- Schoop, U.; Kluger, W.; Moritz, A.; Nedjelik, N.; Georgopoulos, A.; Sperr, W. Bactericidal Effect of Different Laser Systems in the Deep Layers of Dentin. Lasers Surg. Med. 2004, 35, 111–116. [Google Scholar] [CrossRef]
- Merigo, E.; Bufflier, P.; Rocca, J.P.; Chevalier, M.; Medioni, E.; Meng, Z.; Fornaini, C. Bactericidal Effect of Er,Cr:YSGG Laser Irradiation on Endodontic Biofilm: An Ex Vivo Study. J. Photochem. Photobiol. B 2021, 218, 112185. [Google Scholar] [CrossRef]
- Gomes, B.P.F.A.; Aveiro, E.; Kishen, A. Irrigants and Irrigation Activation Systems in Endodontics. Braz. Dent. J. 2023, 34, 1–33. [Google Scholar] [CrossRef]
- Xu, H.; Ye, Z.; Zhang, A.; Lin, F.; Fu, J.; Fok, A.S.L. Effects of concentration of sodium hypochlorite as an endodontic irrigant on the mechanical and structural properties of root dentine: A laboratory study. Int. Endod. J. 2022, 55, 1091–1102. [Google Scholar] [CrossRef]
- Amaroli, A.; Colombo, E.; Zekiy, A.; Aicardi, S.; Benedicenti, S.; De Angelis, N. Interaction between Laser Light and Osteoblasts: Photobiomodulation as a Trend in the Management of Socket Bone Preservation—A Review. Biology 2020, 9, 409. [Google Scholar] [CrossRef] [PubMed]
- Zhou, Y.; Sun, F.; Zhang, Z.; Duan, X.; Long, X.; Liu, X.; Zou, D.; He, J. Influence of Er:YAG Laser Irradiation on the Outcomes of Alveolar Ridge Preservation at the Infected Molar Sites: A Randomized Controlled Trial. BMC Oral Health 2023, 23, 317. [Google Scholar] [CrossRef] [PubMed]
- Do, Q.L.; Gaudin, A. The Efficiency of the Er:YAG Laser and Photon-Induced Photoacoustic Streaming (PIPS) as an Activation Method in Endodontic Irrigation: A Literature Review. J. Lasers Med. Sci. 2020, 11, 316–334. [Google Scholar] [CrossRef] [PubMed]
- Folwaczny, M.; Aggstaller, H.; Mehl, A.; Hickel, R. Removal of Bacterial Endotoxin from Root Surface with Er:YAG Laser. Am. J. Dent. 2003, 16, 3–5. [Google Scholar]
- Nair, P.N. On the Causes of Persistent Apical Periodontitis: A Review. Int. Endod. J. 2006, 39, 249–281. [Google Scholar] [CrossRef]
- Bai, J.; Li, L.; Kou, N.; Bai, Y.; Zhang, Y.; Lu, Y.; Gao, L.; Wang, F. Low-Level Laser Therapy Promotes Bone Regeneration by Coupling Angiogenesis and Osteogenesis. Stem Cell Res. Ther. 2021, 12, 432. [Google Scholar] [CrossRef]
- Dompe, C.; Moncrieff, L.; Matys, J.; Grzech-Leśniak, K.; Kocherova, I.; Bryja, A.; Bruska, M.; Dominiak, M.; Mozdziak, P.; Skiba, T.H.I.; et al. Photobiomodulation—Underlying Mechanism and Clinical Applications. J. Clin. Med. 2020, 9, 1724. [Google Scholar] [CrossRef]
- Pestana de Vasconcelos, N.; Martins, I.S.; Afonso, A.S.; Braga, A.C.; Pina-Vaz, I. Osteoporosis and Apical Periodontitis Prevalence: A Systematic Review. Dent. J. 2024, 12, 272. [Google Scholar] [CrossRef]
- Kaya, S.; Yavuz, I.; Uysal, I.; Akkuş, Z. Measuring Bone Density in Healing Periapical Lesions by Using Cone Beam Computed Tomography: A Clinical Investigation. J. Endod. 2012, 38, 28–31. [Google Scholar] [CrossRef]
- Ameyaroy, D.K.; Ramabhadran, B.K.; Emmatty, R.; Paul, T.P.; Jose, P. Comparative Evaluation of the Effect of Ozone Therapy and Photodynamic Therapy in Non-Surgical Management of Chronic Periodontitis: A Split Mouth Longitudinal Study. J. Indian Soc. Periodontol. 2020, 24, 447–453. [Google Scholar] [CrossRef]
Time Interval | Experimental Group | Control Group | p-Value |
---|---|---|---|
Baseline | 6.42 ± 1.23 | 6.51 ± 1.18 | 0.812 |
6 Months | 4.21 ± 0.98 | 5.13 ± 1.02 | 0.041 |
1 Year | 2.85 ± 0.82 | 4.02 ± 1.01 | 0.008 |
2 Years | 1.49 ± 0.64 | 2.83 ± 0.88 | 0.003 |
2.5 Years | 0.85 ± 0.32 | 1.92 ± 0.56 | 0.002 |
Lesion Type | Experimental Group | Control Group | p-Value |
---|---|---|---|
Well-defined radiolucent lesions | 89.5% (68/76) | 68.4% (52/76) | 0.027 |
Undefined lesions | 81.8% (36/44) | 59.1% (26/44) | 0.043 |
Bone Density | Experimental Group | Control Group | p-Value |
---|---|---|---|
D1 | 98% | 98% | 1.000 |
D2 | 95% | 85% | 0.088 |
D3 | 90% | 72% | 0.032 |
D4 | 75% | 50% | 0.019 |
D5 | 55% | 35% | 0.009 |
Time Interval | Experimental Group | Control Group | p-Value |
---|---|---|---|
Baseline | 4.3 ± 0.7 | 4.2 ± 0.8 | 0.76 |
6 Months | 3.1 ± 0.6 | 3.8 ± 0.7 | 0.041 |
1 Year | 2.0 ± 0.5 | 3.1 ± 0.6 | 0.008 |
2 Years | 1.1 ± 0.4 | 2.4 ± 0.5 | 0.002 |
2.5 Years | 0.7 ± 0.2 | 1.8 ± 0.4 | 0.001 |
