Deep Learning in the Biomedical Applications: Recent and Future Status
Previous Article in Journal
Refractive Index Sensing of Monolayer Molecules Using Both Local and Propagating Surface Plasmons in Mid-Infrared Metagrating
Article Menu

Export Article

Open AccessArticle
Appl. Sci. 2019, 9(8), 1525; https://doi.org/10.3390/app9081525

Comparison of the Pullout Strength of Pedicle Screws According to the Thread Design for Various Degrees of Bone Quality

1
Spine Center and Department of Orthopedic Surgery, Seoul National University College of Medicine and Seoul National University Bundang Hospital, 166 Gumiro, Bundang-gu, Sungnam 463-707, Korea
2
Department of Mechanical Engineering, Yonsei University, 134 Shinchon-dong, Seodaemun-gu, Seoul 100-011, Korea
*
Author to whom correspondence should be addressed.
Received: 4 March 2019 / Revised: 31 March 2019 / Accepted: 6 April 2019 / Published: 12 April 2019
(This article belongs to the Special Issue Biomaterials and Biofabrication)
  |
PDF [2886 KB, uploaded 15 April 2019]
  |     |

Abstract

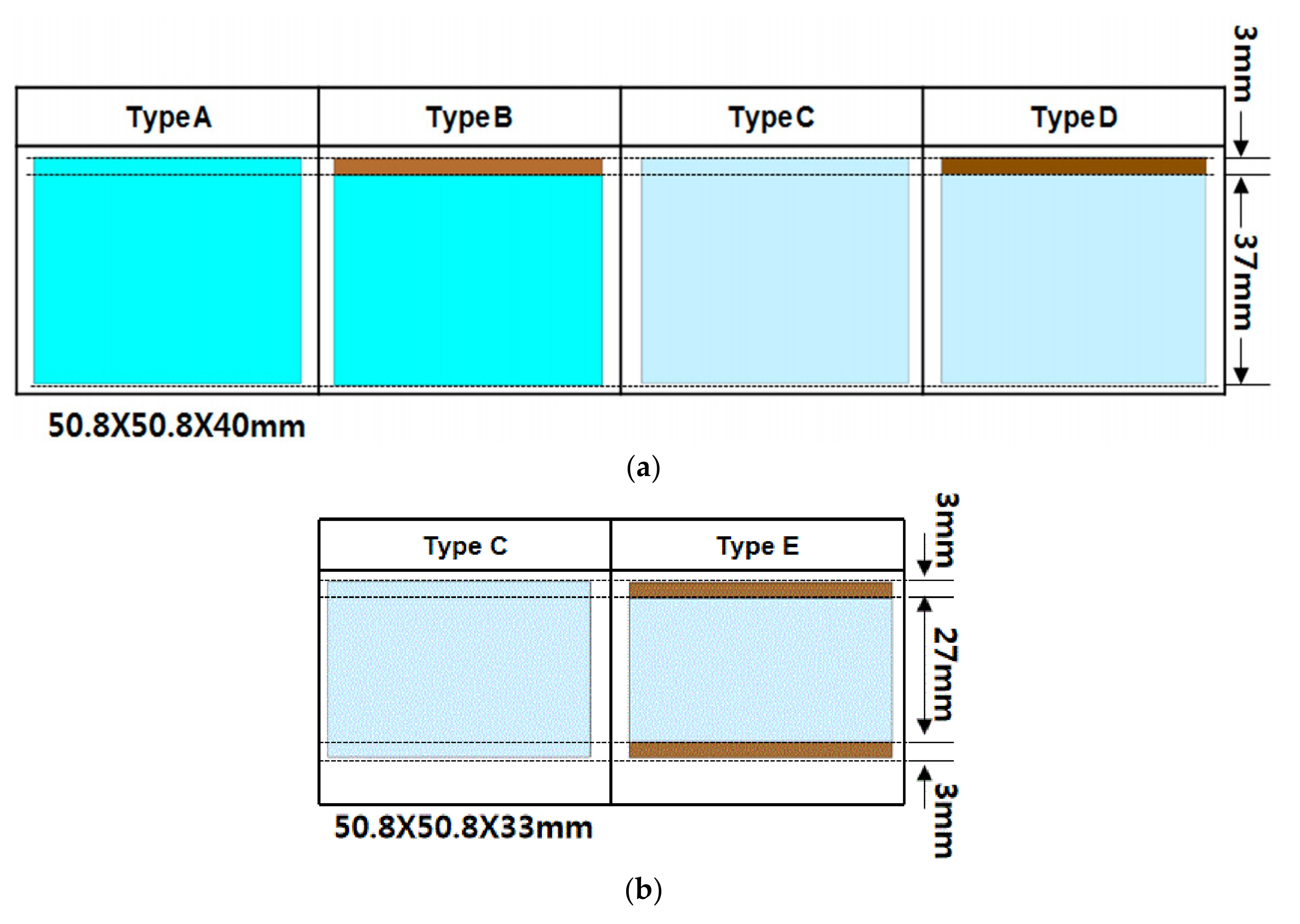

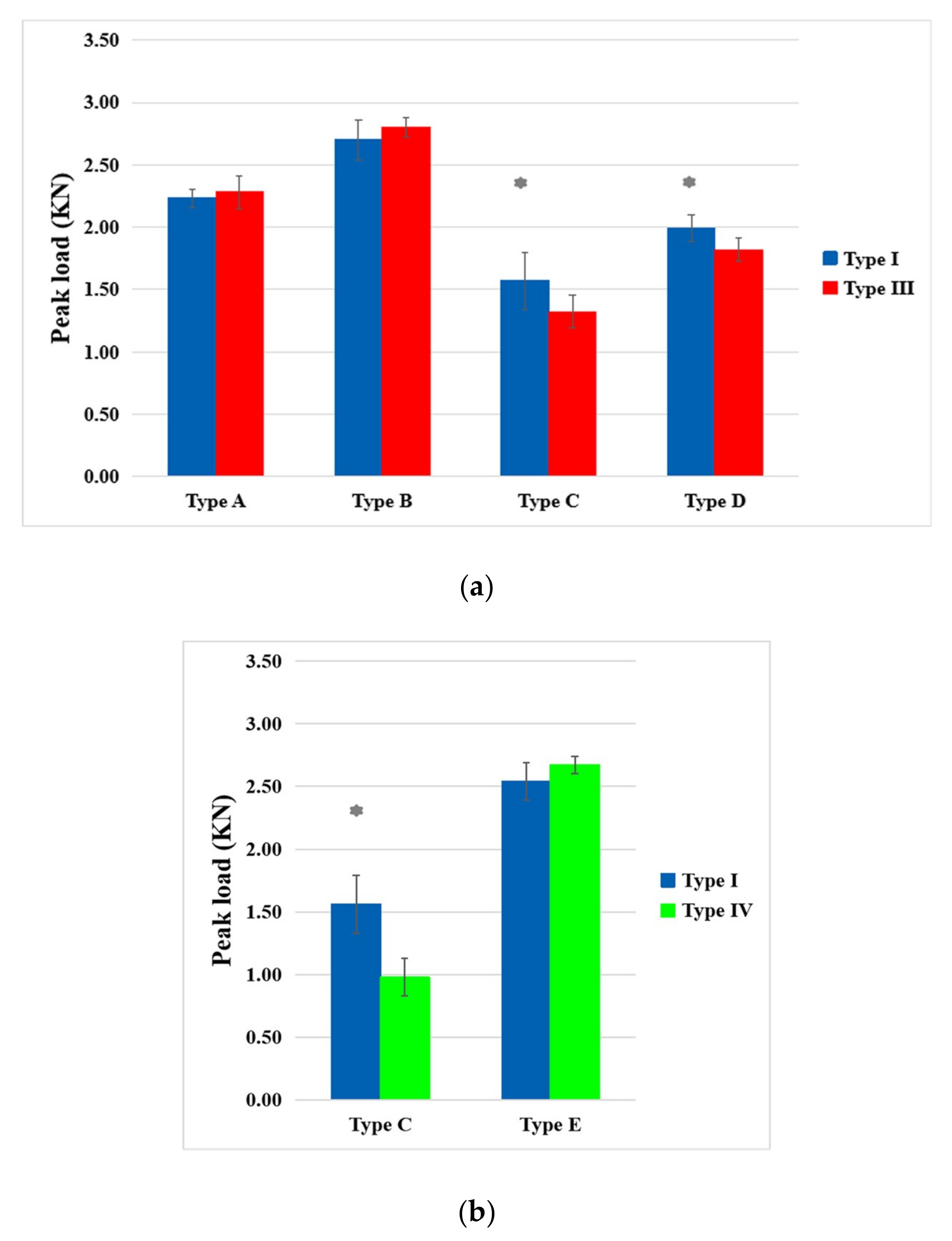

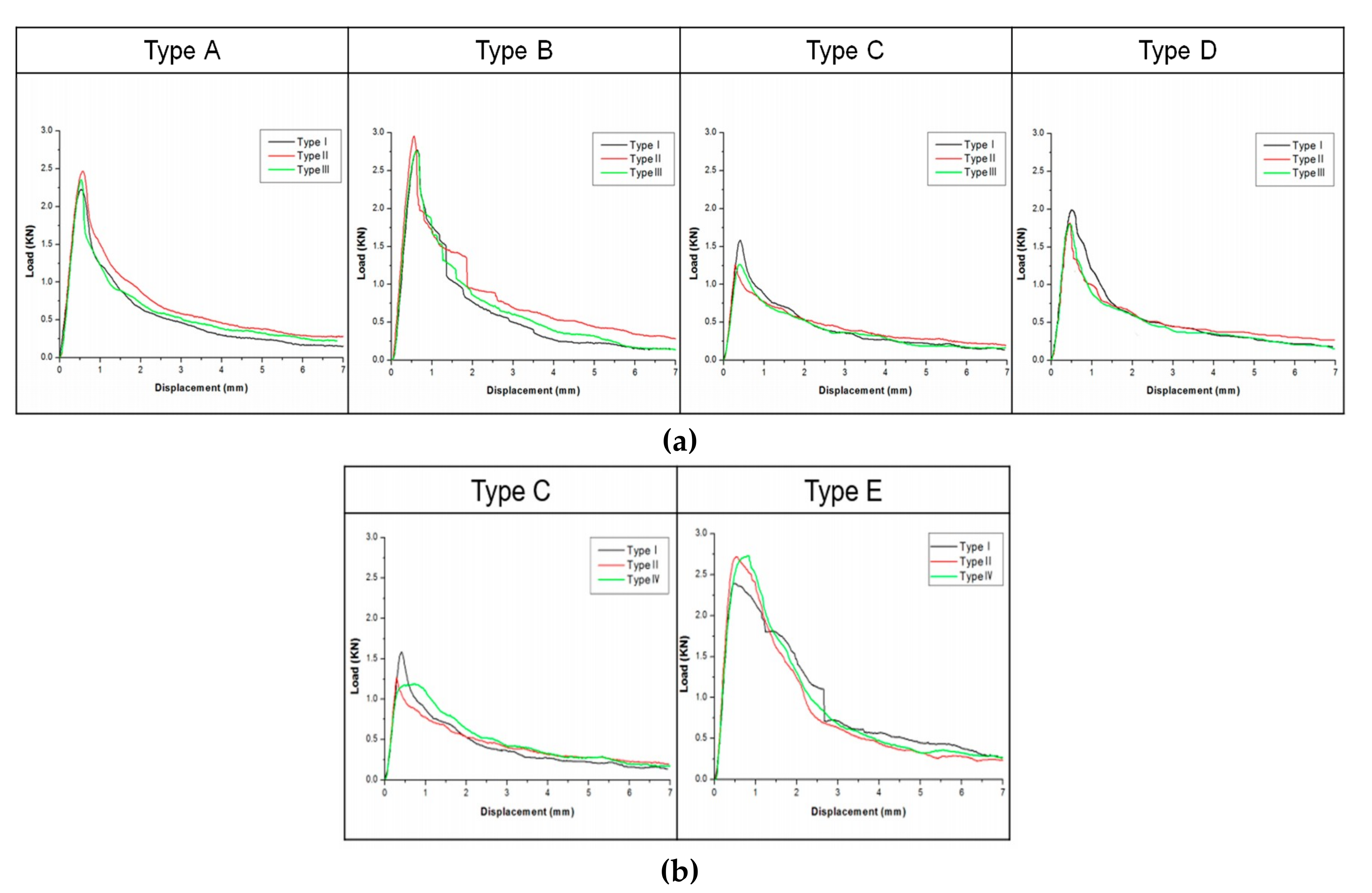

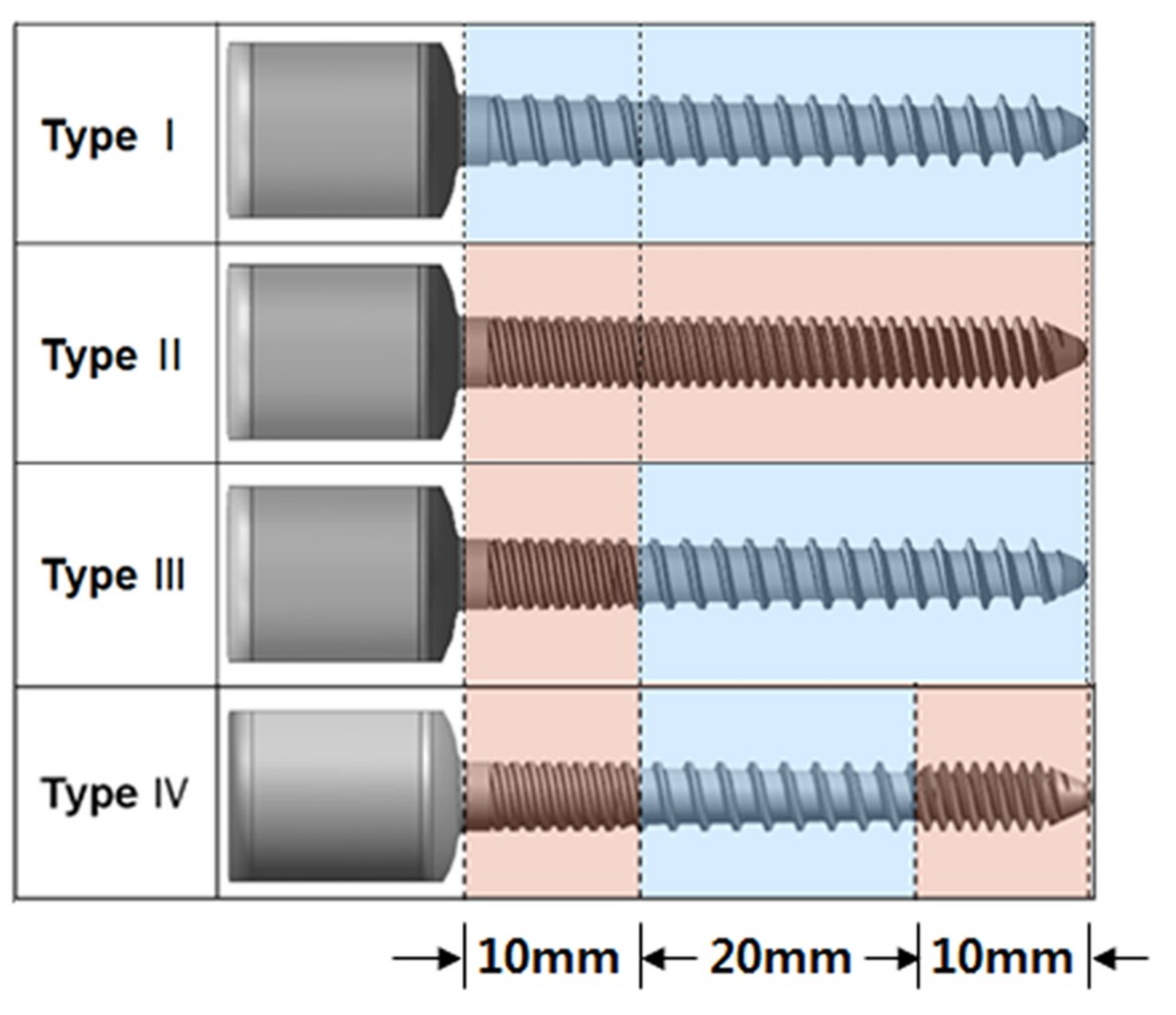

Although dual-threaded pedicle screws have been developed, the advantages over single-threaded screws remain controversial. We aimed to investigate the biomechanical performance of two types of dual-threaded pedicle screw by comparing their pullout strength with that of a single-threaded screw in relation to bone quality. Four types of pedicle screw with different thread patterns were designed. Type I: single-threaded screw; Type II: double-threaded screw; Type III: dual-threaded screw; Type IV: a newly designed double dual-threaded screw. Five types of polyurethane foams simulating various degrees of bone quality were used. These were: Type A: cancellous bone; Type B: cancellous bone with cortical bone in the upper margin; Type C: osteoporotic cancellous bone; Type D: osteoporotic cancellous bone with cortical bone in the upper margin; and Type E: osteoporotic bone with cortical bone in the upper and lower margins. A comparison of the pullout strength of Type I, II, and III screws in Type A, B, C and D bone specimens was performed. Type C and E bone specimens were used for comparisons among Type I, II, and IV screws. Compared to the single-threaded screw, the dual-threaded pedicle screws exhibited higher pullout strength in normal-quality bone and significantly lower pullout strength in compromised osteoporotic bone. However, the double dual-threaded screw exhibited better pullout biomechanics in osteoporotic bone with bi-cortical bone. View Full-Text
Keywords: pedicle screw; dual-threaded; pullout strength; polyurethane foam block pedicle screw; dual-threaded; pullout strength; polyurethane foam block
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Shen, F.; Kim, H.-J.; Kang, K.-T.; Yeom, J.S. Comparison of the Pullout Strength of Pedicle Screws According to the Thread Design for Various Degrees of Bone Quality. Appl. Sci. 2019, 9, 1525.
