Next Article in Journal
Magnetic Properties of NiZn Ferrite Nanofibers Prepared by Electrospinning
Previous Article in Journal
Development and Control of an Electro-Hydraulic Actuator System for an Exoskeleton Robot
Open AccessArticle

Physical and Mechanical Properties of Composite Scaffolds with or without Collagen Impregnation

1
Department of Dentistry, Federal University of Santa Catarina (UFSC), s/n-Trindade, Florianópolis SC 88040-900, Brazil
2
Department of Medical, Oral and Biotechnological Sciences, University G. d’Annunzio Chieti-Pescara, Via dei Vestini, 31, 66100 Chieti, Italy
3
Biocenter, Federal University of Santa Catarina (UFSC), s/n-Trindade, Florianópolis SC 88040-900, Brazil
4
Center for Education and Research on Dental Implants (CEPID), Federal University of Santa Catarina (UFSC), Florianópolis SC 88040-900, Brazil
*
Authors to whom correspondence should be addressed.
These Authors contributed equally to this work.
Appl. Sci. 2019, 9(20), 4296; https://doi.org/10.3390/app9204296
Received: 11 September 2019 / Revised: 9 October 2019 / Accepted: 10 October 2019 / Published: 12 October 2019
(This article belongs to the Special Issue Bio-Inspired Biodegradable Scaffold Constructs for Bone Tissue Repair)

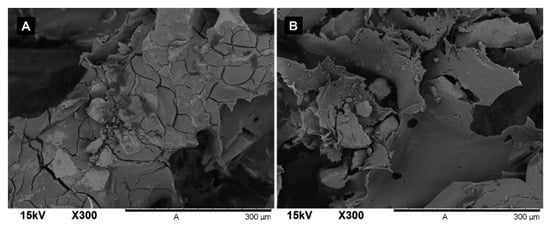

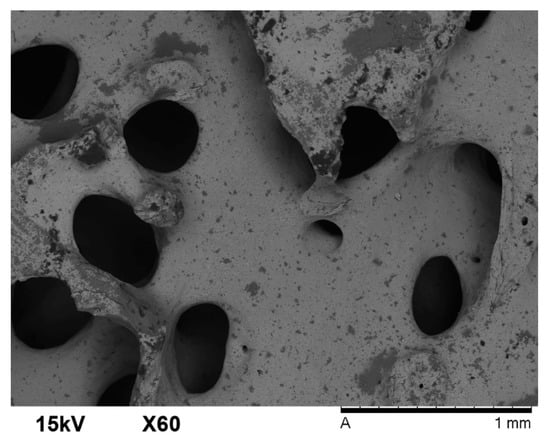

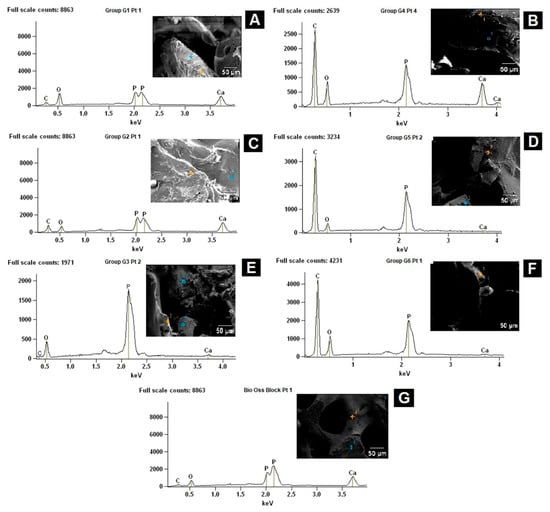

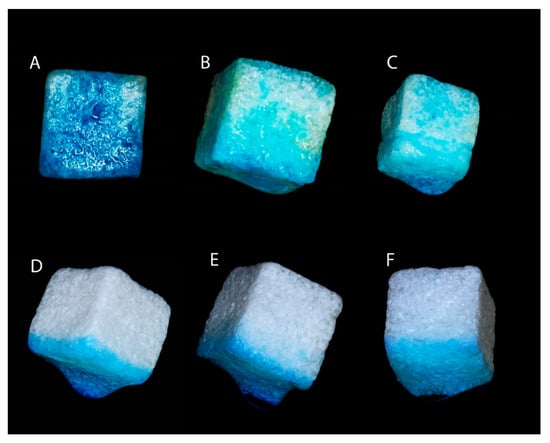

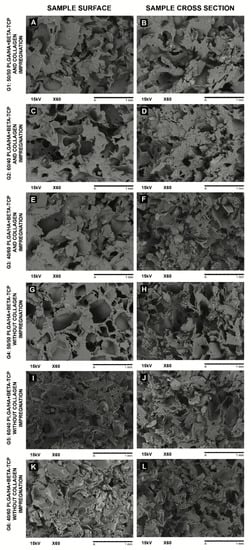

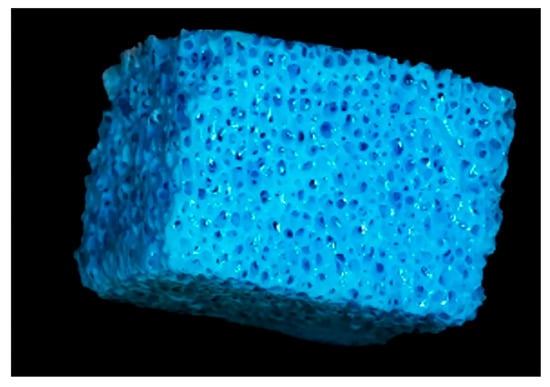

This in vitro study aimed at evaluating the physical and mechanical properties of newly developed scaffolds of poly (lactic-co-glycolic acid) (PLGA) and biphasic ceramic (Hydroxyapatite HA + beta-tricalciumphosphate β-TCP) with or without collagen impregnation to be used for bone regeneration in the oral and maxillofacial district. Solvent casting and particle leaching techniques were used to produce the scaffolds, which were then divided into six groups according to PLGA/HA + β-TCP ratio and impregnation with collagen: G1 (50/50) + collagen; G2 (60/40) + collagen; G3 (40/60) + collagen; G4 (50/50); G5 (60/40); G6 (40/60). As control group, inorganic xenogenous bone was used. Structure and porosity were evaluated by scanning electron microscopy, and a chemical analysis was performed through an energy-dispersive spectrometer. Moreover, to evaluate the hydrophilicity of the samples, a wettability test was conceived, and finally, mechanical properties were examined by a compression test. High porosity and interconnectivity, resulting in a large surface area and great fluid retention capacity, were presented by the PLGA/HA + β-TCP scaffolds. In the composite groups, collagen increased the wettability and the mechanical resistance, although the latter was not statistically affected by the percentage of HA + β-TCP added. Further in vitro and in vivo studies are needed for a deeper understanding of the influence of collagen on the biological behavior of the developed composite materials and their potential, namely biocompatibility and bioactivity, for bone tissue regeneration.
Keywords: collagen; composite; hydrophilicity; polymers; wettability collagen; composite; hydrophilicity; polymers; wettability
Show Figures

Graphical abstract

MDPI and ACS Style

Marcos, J.J.L.; Perrotti, V.; Iaculli, F.; Aragones, Á.; Benfatti, C.A.M.; Magrin, G.L.; Piattelli, A.; Bianchini, M.A. Physical and Mechanical Properties of Composite Scaffolds with or without Collagen Impregnation. Appl. Sci. 2019, 9, 4296.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
