Low Noise High-Energy Dissipative Soliton Erbium Fiber Laser for Fiber Optical Parametric Oscillator Pumping

Abstract

We report on a mode-locked erbium-doped fiber laser delivering highly-chirped pulses with several tens of nanojoules of energy around 1560 nm and its exploitation to efficiently pump a fiber optical parametric oscillator (FOPO), thus enabling picosecond pulse generation around 1700 nm. The laser cavity features a high normal dispersion and mode-locking is sustained using tailored spectral filtering combined with nonlinear polarization evolution and a semiconductor saturable absorber. Numerical simulations show that the laser dynamics is governed by a strong mode-locking mechanism compensating for the large spectral and temporal pulse evolution along the cavity. In the frame of high energy picosecond pulse generation around 1700 nm, we then demonstrate that using highly-chirped pulses as pump pulses allows for the efficient tuning of the FOPO idler wavelength between 1620 and 1870 nm. In addition, satisfying noise characteristics have been achieved both for the Er-laser and the FOPO, with respective relative intensity noises (RIN) of −154 and −140 dBc/Hz, thus paving the way for the use of such sources in ultrafast instrumentation.

1. Introduction

The development of high-energy ultrafast fiber lasers has attracted much interest owing to their inherent advantages including compactness, high stability, high-power capability, and turnkey operation. Motivated by demands from several key industrial and scientific applications, such as material processing, nonlinear microscopy, and high-field physics, impressive progress has been achieved in the past few decades due to both the development of novel fiber technologies and the discovery and control of novel mode-locking regimes, especially the exploitation of dissipative soliton regimes, in which significant energy scaling is achieved [1,2,3,4]. Erbium-doped fiber lasers are now a widespread technology in many applications such as free-space telecommunications, range finding, remote sensing, and medical procedures. Another category of applications of interest concerns the generation of ultrashort pulses outside the wavelength window covered by rare-earth-based fiber lasers, in particular for applications in biophotonics [5,6] and sensing [7], where low-noise pulses are required. In this frame, efficient fiber laser systems based on frequency conversion processes, e.g., four-wave mixing (FWM), have been developed, enabling wavelength tunability over several hundreds of nanometers [8]. To date, the best performances in terms of noise are obtained with synchronously pumped fiber optical parametric oscillators (FOPOs). Their combination with spectral or dispersion-based filters allowed broad tunability and high energies in the 0.7–1.3 µm wavelength range [5,6,9]. The extension of this technology in the range around 1.7 µm, which is attractive due to the enhanced penetration depth in nonlinear bio-imaging [10], and is now a challenge attracting strong attention from the scientific community [11,12,13,14,15,16,17]. Different fiber-based solutions have then been proposed, from systems relying on soliton self-frequency shift [10,18,19] to a FOPO driven by a master-oscillator-power-amplifier (MOPA) [12,20,21], to name a few. The noise characteristics of these systems and/or the use of bulky and fragile components, such as rod-type fibers, are however limiting factors for real-world applications in nonlinear imaging or ultrafast instrumentation. There is thus an identified need not only for FOPO systems emitting around 1.7 µm but also for efficient and versatile fiberized pump sources featuring at the same time relatively high energies, good noise characteristics, and the possibility to directly generate highly-chirped pulses as, in this case, dispersive tuning within the FOPO cavity can offer a supplementary degree of freedom for the FOPO’s tunability.

A common method developed to initially obtain high-energy ultrashort pulses from Er-doped fiber lasers relies on the principle of a chirped pulse oscillator (CPO), which takes advantage of the concept of a dissipative soliton laser [22,23,24]. In this configuration, stable mode-locked operation can be achieved using strong mode-locking mechanisms, which could include either components with high-nonlinearity such as semiconductor saturable absorber mirrors (SESAMs) [25] or nonlinear polarization evolution (NPE). The pulses are then highly chirped due to the high-normal group dispersion delay (GDD) nature of such oscillators and could be linearly de-chirped to produce ultrashort pulses with high peak powers.

In this article, we first review the various developments of the all-normal-dispersion fiber lasers in the last few years. We then report and review the design and realization of a large normal dispersion mode-locked erbium-doped fiber laser emitting dissipative solitons at 1560 nm and use numerical simulations to highlight the specific self-similar dynamics occurring within the cavity. We then show that this source possesses the particular above-mentioned characteristics in terms of noise and energy to be efficiently used as the pumping source of a FOPO in order to generate picosecond pulses around 1.7 µm. We also evaluate the noise performances of both the pump and parametric pulses in order to attest to the possibility of using such an ultrafast system for specific applications such as nonlinear imaging.

2. Materials and Methods

2.1. Large Normal Dispersion Er-Fiber Laser: State-of-the-Art and Our Contribution

In 2006, Andy et al. experimentally demonstrated for the first time the possibility and potential of normal dispersion regimes regarding the energy scaling [26]. They reported the generation of 3 nJ pulses that could be de-chirped to 170 fs from an “All Normal Dispersion” (ANDi) fiber laser based on an ytterbium-doped active fiber without any dispersive delay line or anomalous dispersion in the cavity. Further exploitation of this idea significantly increased the performances with an optimized design leading to the production of 200-fs pulses reaching the energy of 20 nJ from an ytterbium-doped fiber oscillator operating at 1 µm wavelength [23]. This energy scaling was possible because the effect of nonlinear phase accumulation in such a regime could be compensated by a strong pulse-shaping mechanism provided by a passive spectral filter, which is also a key mechanism for the laser operations presented in this review and will be addressed later. It is worth noting that the combination of this concept with large mode-area ytterbium doped fibers has allowed to reach record pulse energies directly produced from a fiber oscillator by approaching the µJ level [2,3,4].

To generalize this method to fiber lasers emitting at ≈1550 nm, the main limitation lies in the fact that commercially available components are mainly based on normal single mode fibers, such as SMF28, OFS980, or Hi1080, which exhibit anomalous dispersion at this wavelength. In 2010, Nikolai et al. reported high-power dissipative soliton generation from an all-normal dispersion erbium fiber oscillator [27]. The Metrocor fiber from Corning, which has an anomalous dispersion of 9.5 ps²/km, was used to build the laser cavity and the key component enabling the all-normal-dispersion design was a homemade wavelength division multiplexer (WDM) based on the Metrocor fiber. With this laser setup, they succeeded in generating 53-ps pulses with energy of 20 nJ, and the pulses could be de-chirped to 750 fs. The de-chirped pulse quality was however compromised as it exhibits a large pedestal as revealed by the auto-correlation measurements. This phenomenon is attributed to the uncompensated third-order dispersion, which is estimated to be around 0.2 ps³ by simulation matching the auto-correlation (AC) trace. Later, in 2014, a self-similar Er-fiber laser drawing on this concept was demonstrated [28]. It produced high-energy (3.5 nJ) chirped pulses with a spectrum spreading from 1500 nm to 1570 nm, which could be de-chirped down to 70 fs. Most of these results have been achieved using nonlinear polarization evolution as a mode-locking mechanism in combination with a passive spectral filter. In this section, we discuss the features of a dissipative soliton laser operation at large normal dispersion and using a high nonlinearity semiconductor saturable absorber in combination with a nonlinear polarization.

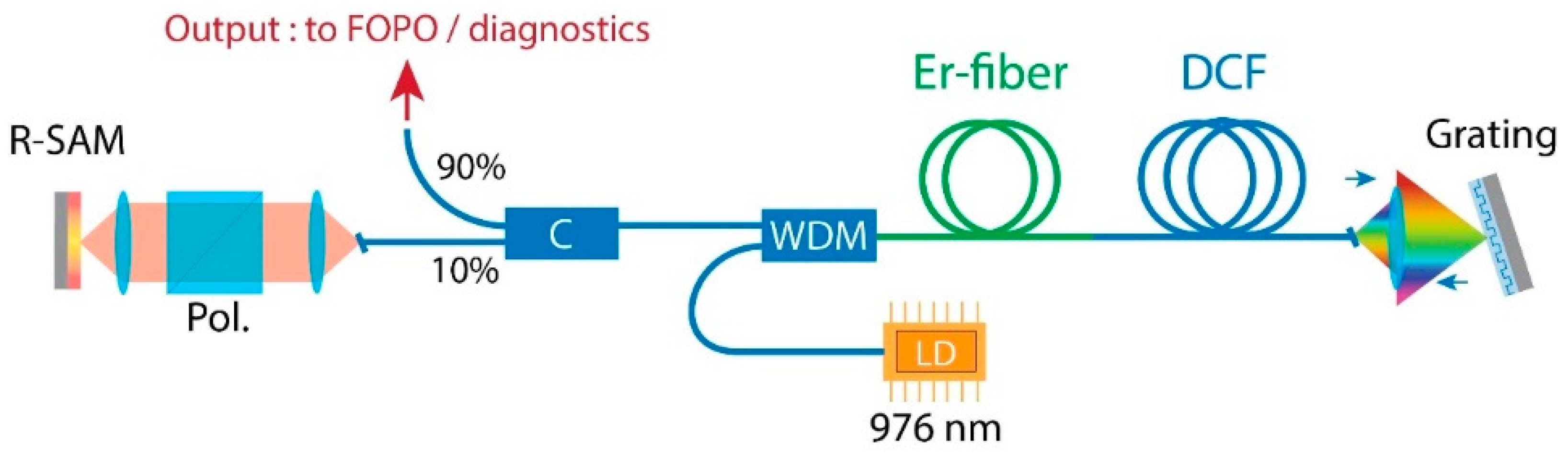

The typical design of our large normal dispersion oscillator, based on the principle of CPO, is schematically described in Figure 1 and in Ref. [29]. The gain medium is a piece of 1.2 m heavily erbium-doped single mode fiber (EDF), which has a mode field diameter of 4.3 µm and a numerical aperture of 0.29 at ≈1550 nm. The EDF presents an unpumped peak absorption of 80 dB/m at 1530 nm, and still exhibits normal group velocity dispersion (GVD) around 1550 nm. The dispersion compensating fiber (DCF) is the main component used to introduce and optimize high normal dispersion in the oscillator. A single-mode Yb-doped fiber laser (Azur light system Inc., Pessac, France), which can supply up to 5 W optical power output, was used to pump the system through a 980/1550 WDM. A 90/10 coupler was used to extract 90% of the power out of the cavity. One end of the Fabry-Pérot cavity consisted in a resonant saturable absorber mirror (R-SAM, developed by C2N laboratory, Marcoussis, France), whose modulation depth was 35% and relaxation time was 2 ps, along with coupling lenses and a polarization controller, providing nonlinear reflectivity acting as the mode-locking mechanism. A blazed grating (600 lines/mm) was used at the other end of the cavity with a coupling lens, which together formed a Gaussian profile bandpass filter allowing us to stabilize the laser oscillation, adjust the operation wavelength, and ensure pulse self-consistency.

Compared to the previous works mentioned above, which all take the design of a ring cavity to use the NPE as the mode-locking mechanism, we based our set-up on the Fabry-Pérot cavity design with the SESAM incorporation, which has proved practical in the previous work of our group reported in 2011 [25], where different SESAMs were tested for a laser with a similar but more primitive design.

2.2. Numerical Simulations

In order to characterize and understand the pulse dynamics inside this cavity and have a prospect of the output performances, we performed numerical simulations using commercial software (Fiberdesk, Ref. [30]) allowing us to resolve the extended nonlinear Schrödinger equation (NLSE):

$$\frac{\partial A}{\partial z}=g\left(\mathrm{E}\right)A+\frac{ig}{∆{\mathsf{\Omega }}_g^2}\frac{{\partial }^{2}A}{\partial t^2}+{{\displaystyle \sum }}_{m\ge 2}\frac{i^{m+1}}{m!}{\beta }_m\frac{{\partial }^{m}A}{\partial t^m}+i\gamma {\left|A\right|}^{2}A,$$

(1)

where A is the slowly varying complex pulse envelope, β_m is the mth order dispersion coefficient, the ig/$∆{\mathsf{\Omega }}_g^2$ term denotes spectral filtering due to the limited gain bandwidth, and $\gamma$ corresponds to the contribution from Kerr non-linearity through self-phase modulation and is classically defined as:

$$\gamma =\frac{n_2{\omega }_0}{c{A}_{eff}},$$

(2)

where n₂ is the nonlinear index and A_eff is the effective mode field area. The effect of gain saturation is indicated by g, which stands for the saturated gain that is related to low signal gain g₀ by:

$$g\left(E\right)=g_0/\left(1+\frac{E}{E_{sat}}\right),$$

(3)

where E_sat is the saturation energy transferable from the pump.

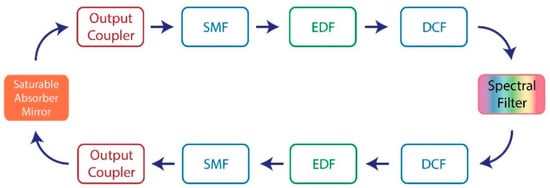

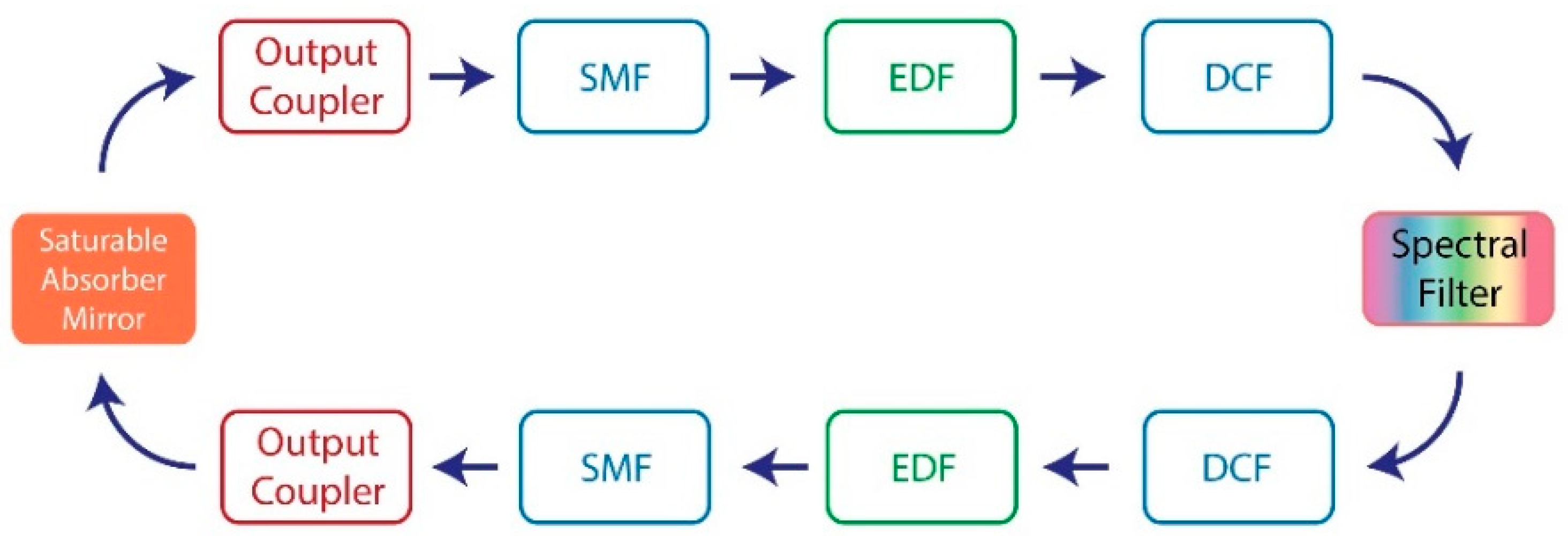

Equation (1) is solved using the split-step method along the cavity elements, as depicted in Figure 2 and with the parameters listed in

Table 1. Fiber parameters used in the simulation.

Parameter	Units	Er-Fiber	SMF	DCF
Length	m	1.2	0.6	10
Mode field diameter	µm	4.9	10	6
GVD (β2@1550 nm)	ps2/m	+0.06	−0.023	+0.116
Effective area (Aeff)	µm2	18.8	78.5	28.26
Nonlinear coefficient (γ)	W−1·m−1	6.4 × 10−3	1.5 × 10−3	4.2 × 10−3
Peak small signal gain (g0)	m−1	4.6	0	0
Gain bandwidth (Δλg)	nm	10	-	-

. The effect of the real R-SAM and of the polarization controller are modeled as a single effective SAM with 90% modulation depth, which is a modulation depth that is fairly rational for the nonlinear effect of R-SAM and the NPE combined.

3. Numerical and Experimental Results

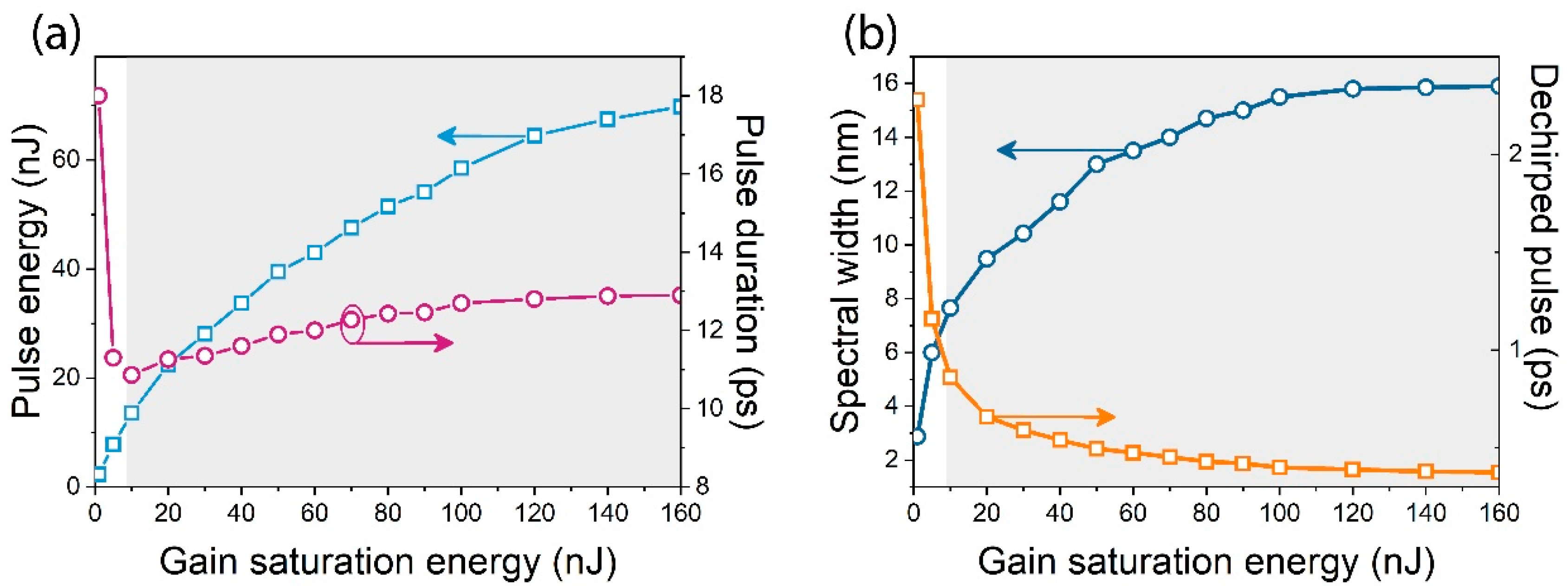

We first look at the manner in which characteristic parameters of the output pulses under mode-locking operations would evolve with the increase of pump level. The results are shown in Figure 3, where the pump power is represented by the gain saturation energy of the doped fiber. Pump powers beyond the limit shown in the figures are also emulated, and the results are not included because only undesired multi-pulse operations are retrievable.

We can see that the pulse energy, duration, and spectral bandwidth monotonically increased while the duration of the de-chirped pulse monotonically decreased. The simulation predicted pulse energies up to 70 nJ for this cavity design, and with a spectral bandwidth of ≈16 nm, the de-chirped pulse duration could reach less than 400 fs. It should be noticed that at higher energy levels, single and multiple pulse operations coexist, meaning that mode transition is possible in our configuration, which uses an NPE-SAM cooperated mode-locking mechanism. We then characterized the pulse properties under different GDD configuration (i.e., for different lengths of DCF) so that the impact of the dispersion management to the energy scaling could be compared and studied. As we focused on high-energy pulse delivery, the results and discussion concerning the laser with similar configuration but with very low normal GDD are not discussed and can be found in Ref. [31].

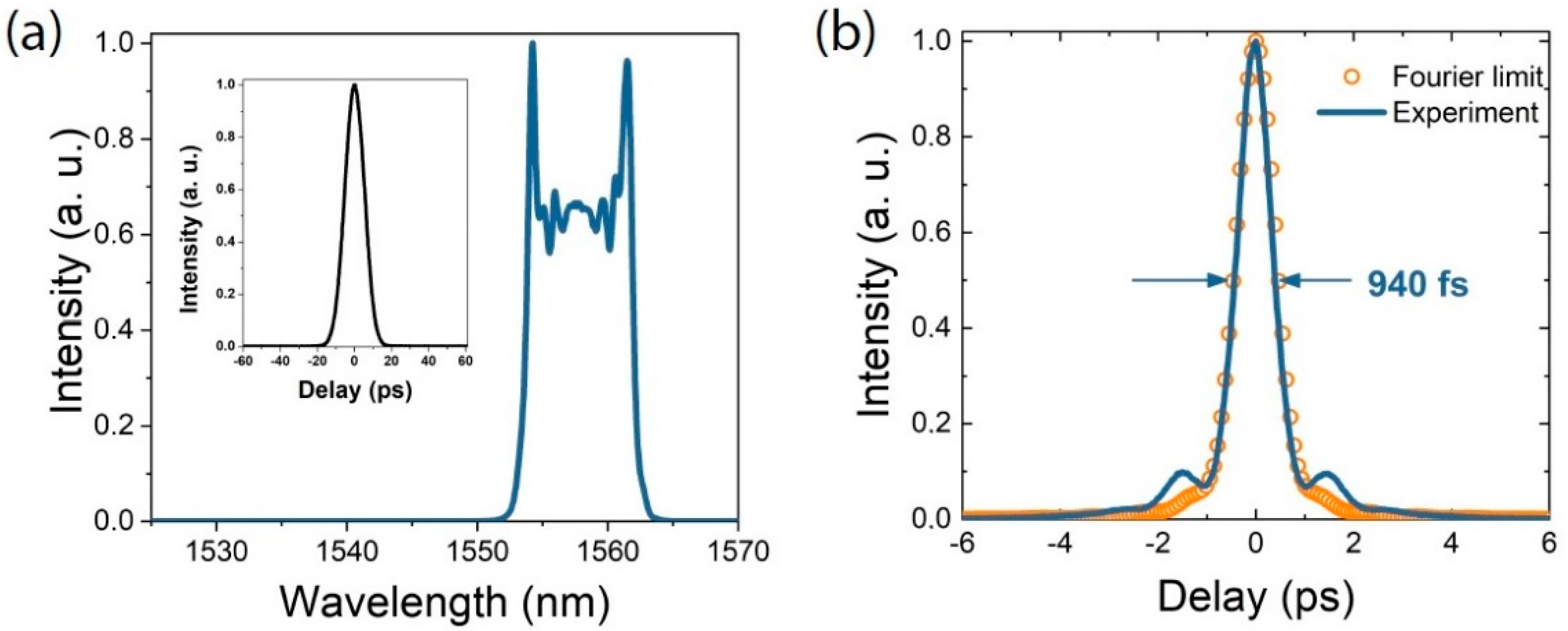

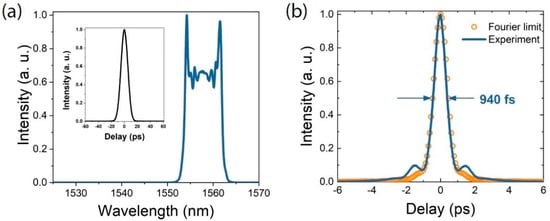

Motivated by the results of the simulations, we first built the oscillator with 10 m of DCF inside the cavity, corresponding to a cavity length of ≈12.5 m and a GDD around +1.22 ps². Stable mode-locking was achievable by adjusting the focusing conditions of the coupling lenses and fine-tuning of the polarization components. Figure 4 shows the output pulse characterizations of a typical regime under this configuration: the pulse energy was about 22 nJ derived from the measured average power of 176 mW at a repetition rate of 7.9 MHz. The pulse duration was 12.4 ps (NB: measured pulse durations were inferred from the AC trace full width at half maximum (FWHM), and the same criterion applies to all following measurements unless otherwise mentioned. The values are $\sqrt{2}$ times the actual pulses’ durations.) and could be de-chirped down to 940 fs outside the cavity using a pair of transmission gratings with 1000 lines/mm and 92% diffraction efficiency (Figure 4b), which is very close to the Fourier limit of its 8.1 nm bandwidth spectrum. The required de-chirping dispersion was measured to be about −0.416 ps². We also observe the transitions between single-pulse and multi-pulse operations when the pump power was increased, a phenomenon predicted by the simulation, which was mitigated by careful tuning of the polarization components; this is an indication of NPE being a part of the mode-locking mechanism.

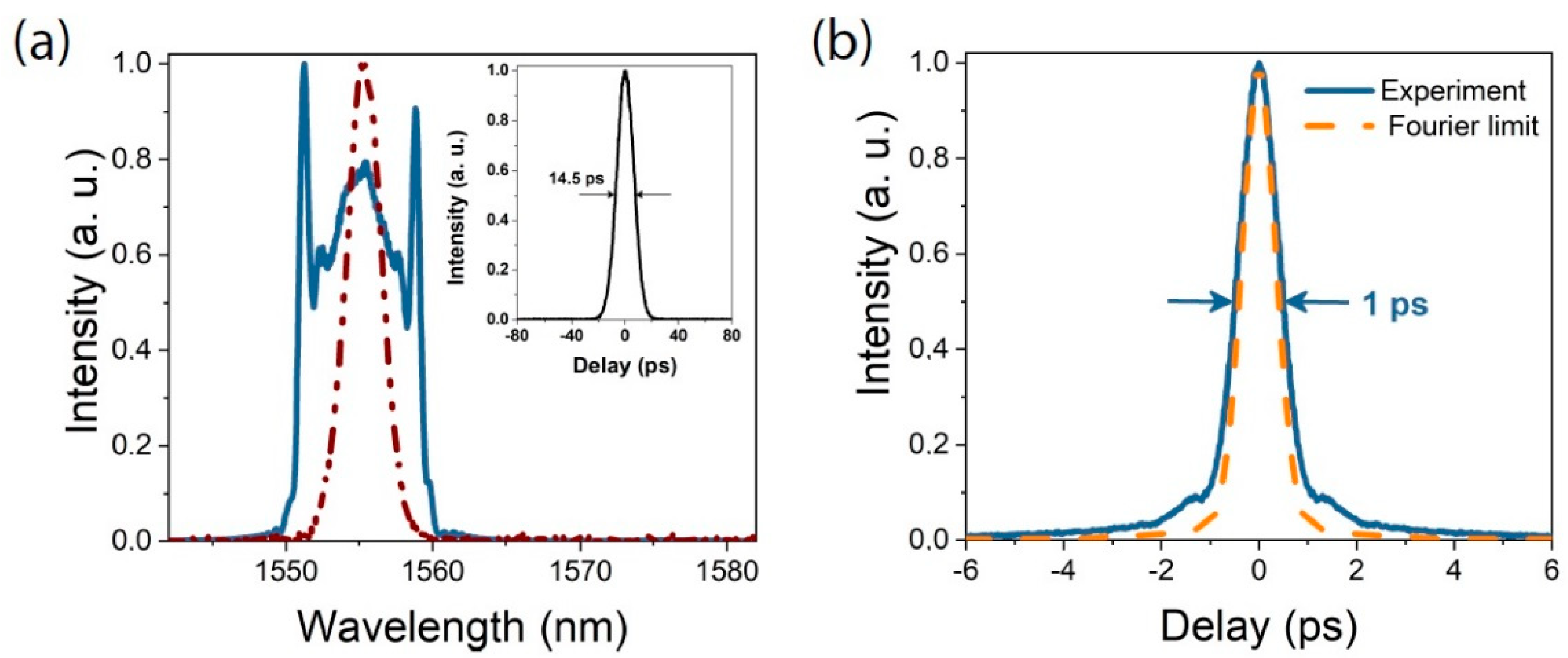

We then increased the DCF length to 15 m, consequently increasing the cavity GDD to +1.83 ps², its length to ≈20 m, and reducing the repetition rate to 5.33 MHz for the single pulse mode-locked operations. Stable mode-locking regimes were achievable with the same tuning methods as in the previous stage and Figure 5 shows the typical output pulse characteristics of such regimes. An average optical power of 204 mW was measured from the laser output, corresponding to 38 nJ of pulse energy. The pulse duration was 14.5 ps, and could be compressed to 1 ps with the same de-chirping mechanism. The de-chirped pulse’s AC is shown in Figure 5b, together with the Fourier limit calculated from the measured spectrum (shown in Figure 5a), from which it can be concluded that the pulse was de-chirped to 1.2 times its Fourier limit at best. This configuration brought a higher pulse energy and a shorter pulse duration, but with decreased pulse quality, as the pulse could not be de-chirped completely. This was attributed to excessive nonlinear phase in the pulse indicating that the linear stretching effect of dispersion was not enough to compensate for the nonlinearity introduced by high peak powers. The results of configurations with longer DCF lengths in the cavity confirming this method could not be extended to achieve a much better energy scaling.

We eventually implemented configurations with higher GDD, for instance using 30 m of DCF in the cavity, which corresponded to a GDD of +3.57 ps². In this case, the stability of the mode-locking regimes was more and more compromised in this process as Q-switching mode-locking regimes started to dominate the laser operation.

4. Discussion and Application

4.1. Intracavity Dynamics

Simulations were carried out to better understand the intracavity evolution of the pulse. The filtering effect was measured to be equivalent to a 3.6 nm FWHM Gaussian profile bandpass filter by splicing a 2 × 2-10/90 coupler to the DCF and comparing the measured spectra from both 10% output ports. The coupler was minimized in length and has negligible influence on GDD, which was confirmed by the unchanged pulse parameters measured after its incorporation. With a 10-m long DCF, the numerical simulations were in good agreement with the experimental results shown in Figure 4, as the main pulse features were reproduced. Figure 6 indeed shows the simulated pulse spectrum and temporal profile at a gain saturation energy of 15 nJ, corresponding to a pulse energy of 20 nJ.

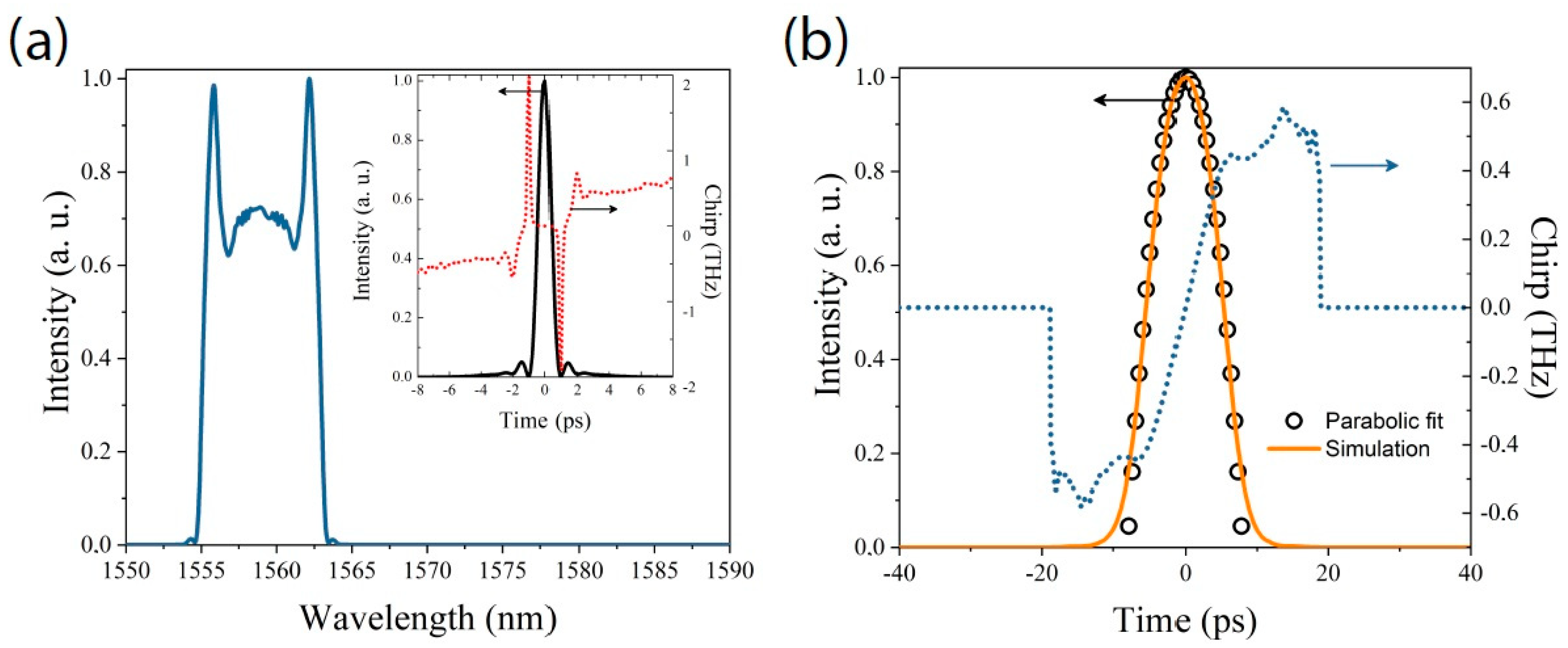

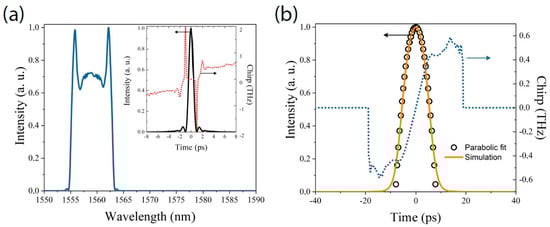

The simulated pulse had a spectral bandwidth of 7.7 nm and a quasi-parabolic temporal shape with a FWHM of 10.8 ps, and could be de-chirped to 862 fs. The fact that our simulation was in good agreement with the experimental results proved the numerical modeling of this cavity under this energy level was viable and can be used to have a better comprehension of the pulse evolution inside the cavity.

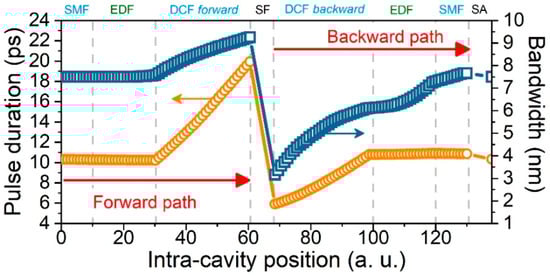

Figure 7 depicts the pulse’s temporal and spectral evolution along the cavity under stable mode-locking operation. We can notice that the DCF contributes the most to the pulse stretching as expected, but also contributed the most to the SPM-induced spectral broadening, outweighing the effect from the EDF. This meant that the DCF was the main source of nonlinearity in the cavity, and explained why increasing its length to 15 m resulted in a regime where pulses suffered excessive nonlinear phase and could not be linearly de-chirped. It is also worth noticing that the spectral filter (SF) played an important role in the mode-locking by ensuring the pulse self-consistency. While the effect of the R-SAM was negligible at steady state, it was crucial for the mode-locking initiation.

The pulse shown in Figure 6b was fitted assuming a parabolic shape as the common Gaussian shape was not matching. This made it worth investigating the pulse shape evolution inside the cavity. We could represent such an evolution in terms of pulse kurtosis (denoted by “κ”). The kurtosis is defined as $\mathsf{\kappa }={\mathsf{\mu }}_4/{\sigma }^4-3$, where μ₄ is the fourth centered moment and ${\sigma }^4$ is the square of the variance. For instance, κ = −0.86 corresponds to a parabolic pulse shape and κ = 0 to a Gaussian shape. This metric has thereby been used to analyze laser pulse temporal shapes [30,32]. Figure 8 shows the evolution of κ and highlights the fact that the pulse shape evolves from a Gaussian to a parabola when propagating along the cavity. The parabolic shape was reached at the end of the DCF in the forward direction, just before the spectral filter. It was also clear that the pulse shape did not evolve significantly in the EDF and SMF, which exhibited anomalous dispersion.

The performances in terms of output energy were, however, satisfying for the objective of pumping a fiber OPO based on a small-core dispersion-shifted fiber, with the extra advantage of this laser directly generating highly-chirped pulses, then enabling broad OPO tunability, as detailed in the following section.

4.2. Application: Fiber OPO Pumping

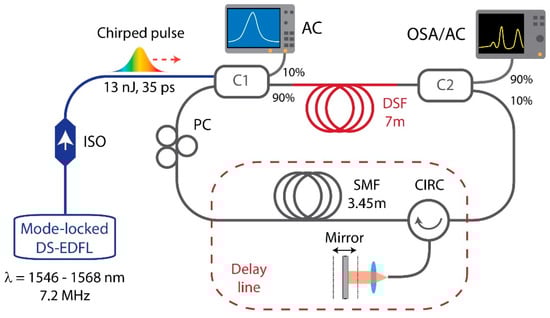

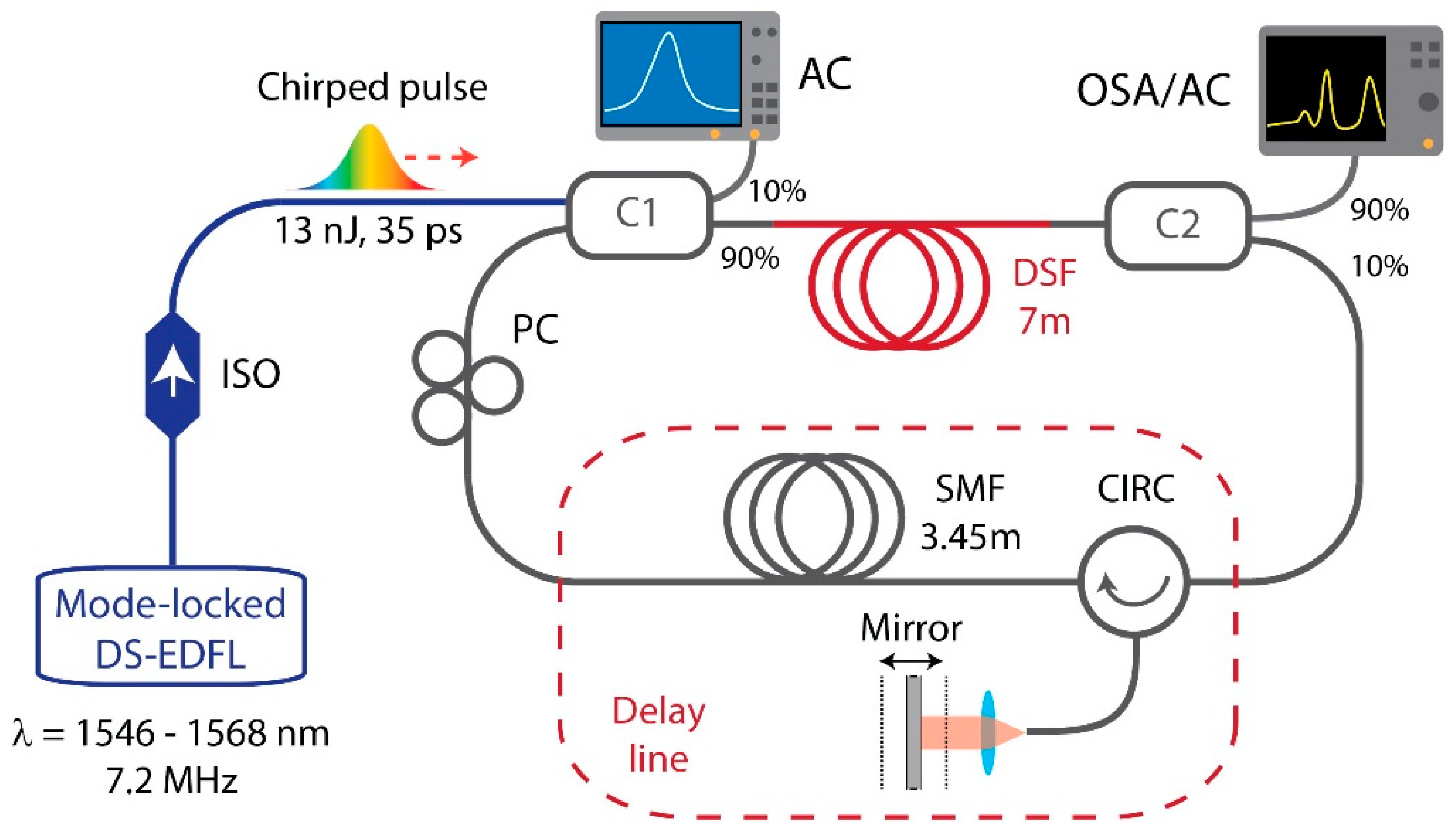

In the frame of achieving efficient pulse generation in the so-called biological window around 1.7 µm, we then used the homemade erbium fiber laser described above as the pump source of a fiber optical parametric oscillator (FOPO), as shown in Figure 9. In the configuration yielding optimal FOPO performances, the laser delivered pump pulses with a 35-ps duration, 4-nm bandwidth, and 13 nJ, corresponding to a peak power of 370 W. To reach such long pulse durations, the filter bandwidth was increased to lower its impact on pulse shortening inside the laser cavity. The resultant mode-locking regime exhibited longer pulses with a narrower spectra. Considering the anomalous dispersion FOPO reported here (for the idler wave), we stress that the pump pulse chirp must be high enough to allow for an overlap between the pump pulse and the idler pulse, which was long enough to get high conversion efficiencies. The chirp parameter was hence optimized by increasing the width of the pump laser intra-cavity filter, yielding pulses ≈40 times longer than their Fourier limit. A fibered isolator was used to avoid any back-reflection, which could perturb the mode-locked operation. The FOPO was then pumped through the 90% port of the input coupler (C1). In its cavity, a 7-m-long dispersion shifted fiber (DSF) was used as the parametric gain medium. It had a core diameter of 3.98 μm, the nonlinear coefficient at 1560 nm was estimated to be γ = 6.6 W⁻¹·km⁻¹, and its zero dispersion wavelength was estimated to be 1563 ± 5 nm. More details on the DSF can be found in Ref. [13].

After the DSF, 90% of the power was coupled out to diagnostics instruments through the second coupler and 10% was sent into the FOPO feedback loop. Synchronization of the resonating pulses’ roundtrip time with the repetition rate of the mode-locked laser was achieved by adding an optical delay line (ODL) comprising a segment of single-mode fiber (SMF), a fiber circulator (CIRC), and free-space elements for fine adjustments. The total length of SMF (including the fiber components) used in the ODL was about 19 m. The cavity-averaged dispersion was then estimated to −0.095 ps/nm around 1400 nm, and its losses were estimated to be about 29.5 dB.

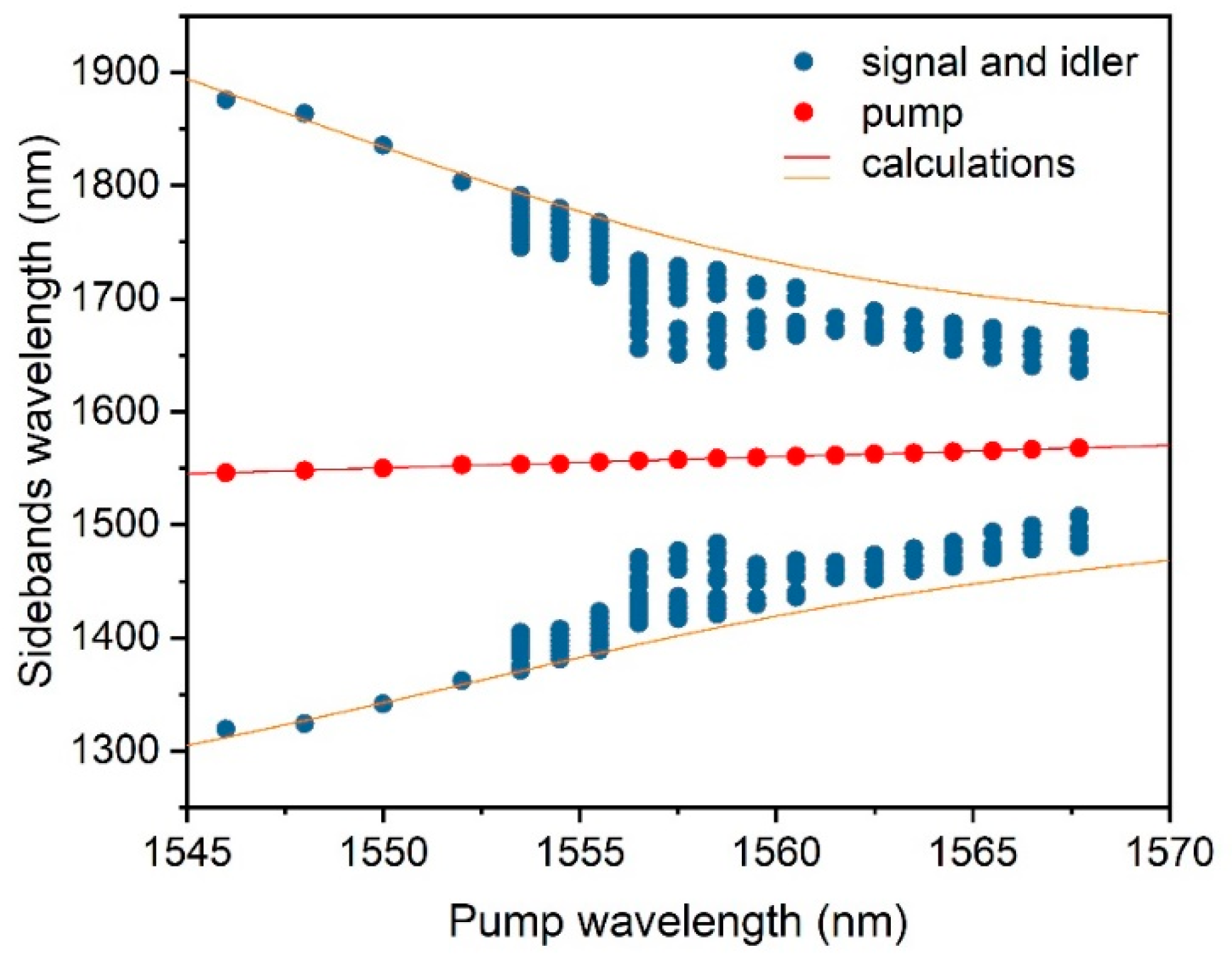

Tuning of the FOPO output wavelength could then be achieved by adjusting the two following parameters: (i) by changing the pump laser wavelength through the adjustment of its intracavity spectral filter while maintaining the same level of output energy; and (ii) via the time-dispersion-tuning technique by adjusting the FOPO cavity length, i.e., the delay in the ODL. It is worth noting that in our specific case, using highly-chirped pump pulses synchronized with the resonating idler waves at each round-trip, which are much shorter in time, provided an extra degree of freedom in wavelength selectivity as only overlapping spectral components were amplified. The combination of these two techniques allowed us to obtain a tunability of the parametric sidebands signal and idler waves ranging from 1319 to 1518 nm, and from 1617 to 1876 nm, respectively, as shown in Figure 10. A good agreement between experimental measurements of the FOPO sideband positions and the numerical computation of the phase-matched parametric sidebands as a function of the pump wavelength was obtained as also shown Figure 10. It is worth noting that the nanojoule level was only reached in an 80 nm-bandwidth with wavelengths between 1640 nm and 1720 nm while pumping between 1556 nm and 1568 nm.

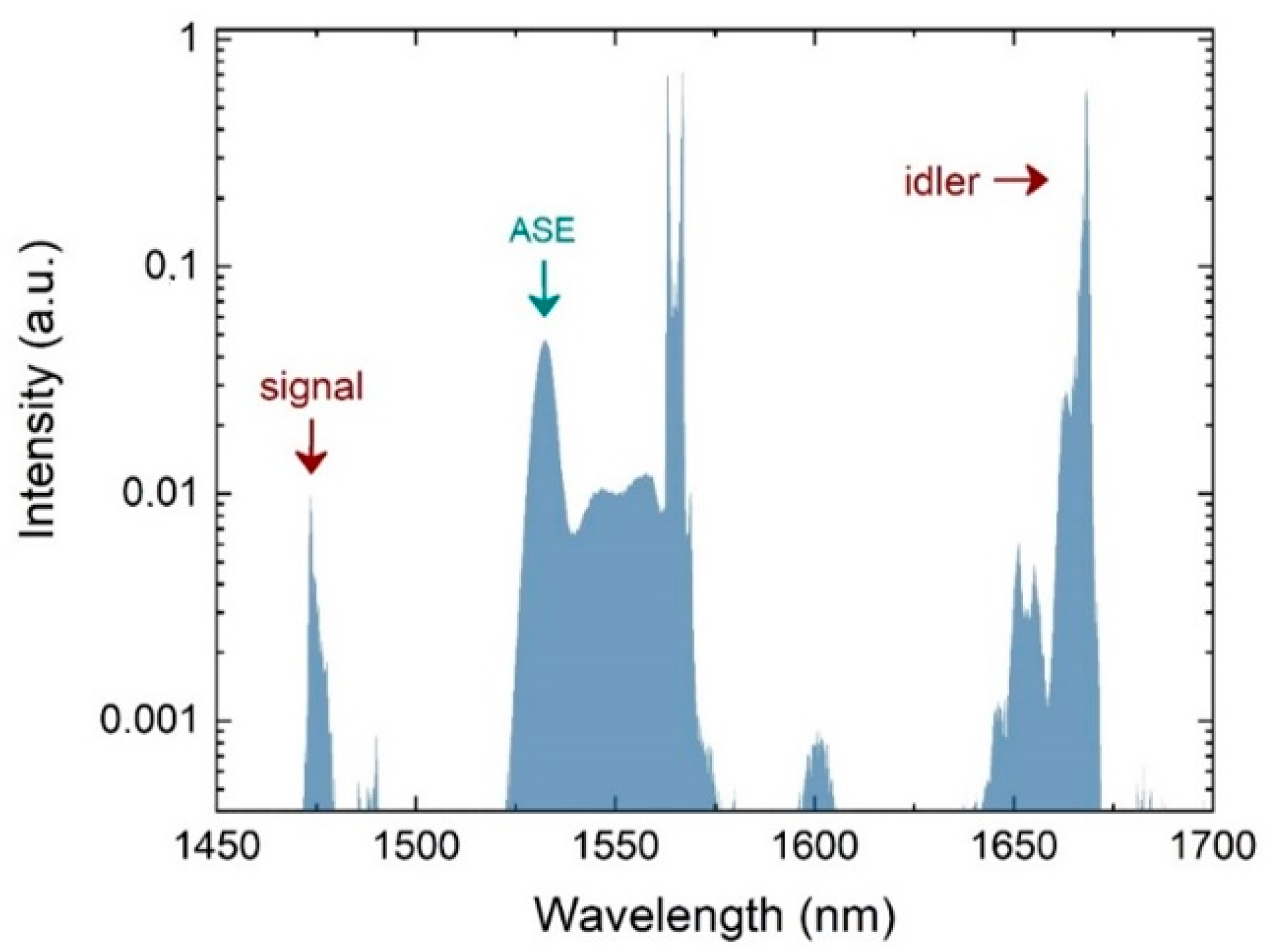

A typical FOPO output spectrum for a pump wavelength of 1566 nm is then shown in Figure 11. In this particular and optimal situation, the pump was synchronized with the idler wave and the position of the delay line allowed us to obtain signal and idler waves at wavelengths of 1475 nm and 1668 nm, respectively. The idler pulse duration, measured with an autocorrelator (Femtochrome FR-103XL), was found to be 2.5 times shorter than the pump pulse around 14 ps and its peak power was as high as 140 W. The peak emission at 1530 nm represents the amplified spontaneous emission (ASE) in erbium, and the emission around 1600 nm represents the wave resulting from the interaction by FWM of the pump with the ASE at 1530 nm.

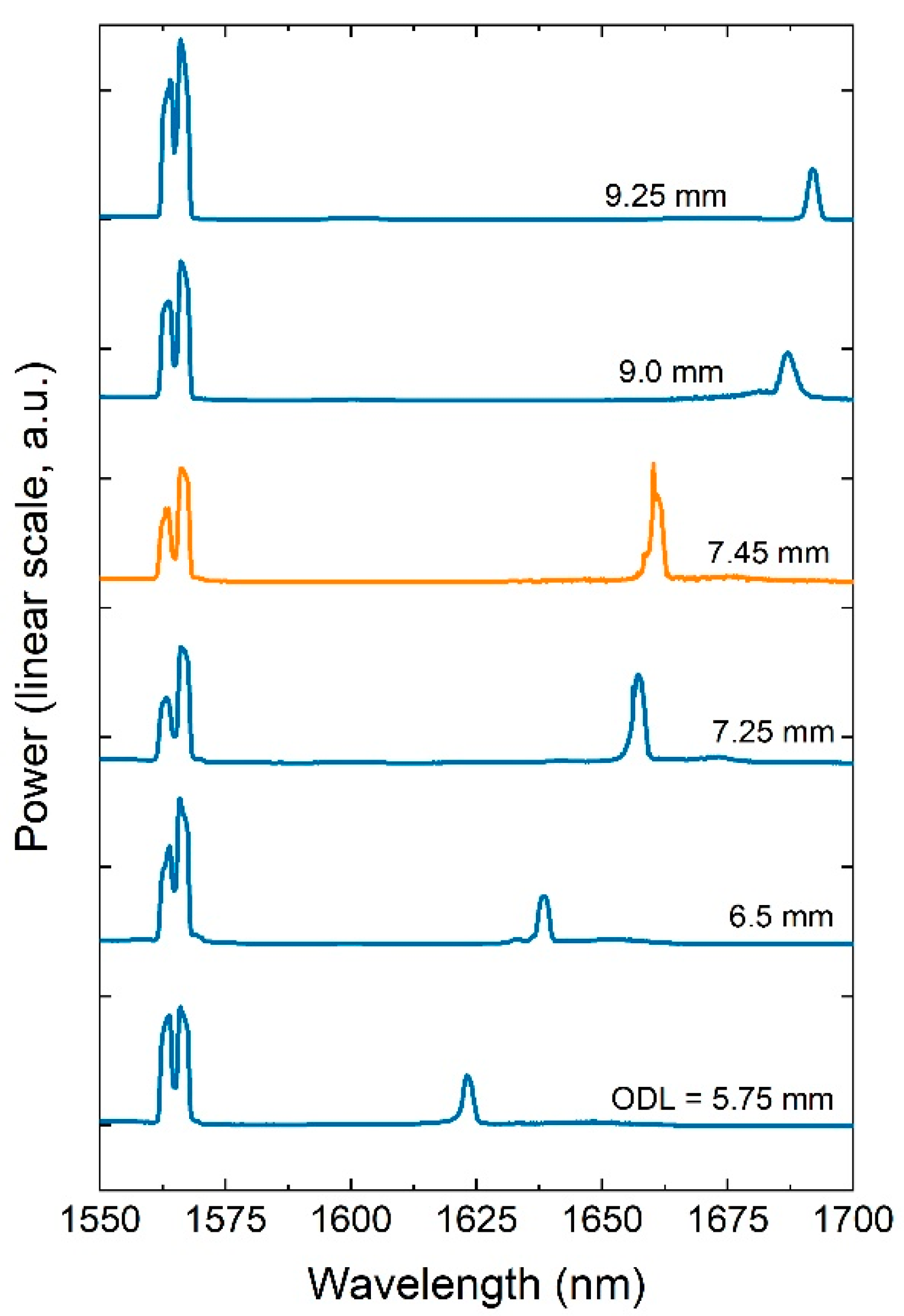

When the pump pulse at 1566 nm and the idler pulse were overlapped, the adjustment of the optical delay line in a range of 7 mm allowed for a fine tuning of the idler wave between 1620 nm and 1690 nm, as can be seen from Figure 12. For this pumping wavelength, the nanojoule level was reached in a 30 nm-bandwidth with wavelengths between 1655 nm and 1685 nm. In addition, we show in Figure 13 the FOPO tuning as a function of both the pump wavelength and ODL adjustment. With these combined techniques, the idler wavelength could be tuned between 1619 nm and 1790 nm (Figure 13) when pump pulses and idler pulses were synchronized. This limitation was caused by the rapid walk-off between pump and idler pulses. Another important process that participates in the enhancement of the idler energy around this window close to 1660 nm was the overlapping of the Raman and FWM gain bandwidths. This Raman assistance to the parametric process can be seen as an energy transfer from the up-shifted parametric component (i.e., signal) to the down-shifted component (i.e., idler) [33]. Furthest idler wavelengths beyond 1800 nm could be obtained with the synchronization of the pump and signal pulses inside the FOPO cavity while pumping the DSF in its normal dispersion. We thus show the FOPO spectra for the two pump wavelengths 1546 nm and 1548 nm in Figure 14. The conversion efficiencies were relatively low compared to those in the band around 1700 nm. When the pump was set at 1548 nm, the signal and idler were generated at wavelengths of 1322 nm and 1864 nm with conversion efficiencies of 5.93% and 2.46%, corresponding to energies of 0.23 nJ and 0.1 nJ, respectively. The extreme experimental signal and idler sidebands were centered at wavelengths of 1319 nm and 1876 nm with lower conversion efficiencies of 1.15% and 0.6%, respectively, for a pump wavelength of 1546 nm (Figure 14).

4.3. Noise Characterizations

As previously discussed, applications, e.g., in biophotonics and sensing, require highly stable and low-noise pulsed sources. We therefore performed relative intensity noise (RIN) measurements of both the pump dissipative soliton erbium doped fiber laser (DS-EDFL) and the FOPO. The measurement system essentially consists in an InGaAs PIN photodetector (DET08CFC) with a response r(λ) = 0.9 around 1550 nm, an amplifier (MITEQ AU-1442) with a gain of 34 dB, and a noise figure of 1 dB, and an electric spectrum analyzer (Rohde&Schwarz FSV 7 GHz). As the laser delivers high power, and does not have to operate near the threshold either (to avoid additional quantum noise), measurements were performed at the 10% output of coupler C1 using an optical attenuator, while blocking the FOPO feedback branch. Signals were then measured with a power meter and/or sent to the RIN measurement system. Concerning the FOPO characterization, the filtered idler from the 90% output of coupler C2 was sent for RIN measurements in the same way. The attenuator was used to control the power that arrived on the detector (DET08CFC) in order to characterize its optical response. From preliminary measurements, we confirmed that the photodetector guaranteed a linear response for incident optical powers up to 1.5 mW.

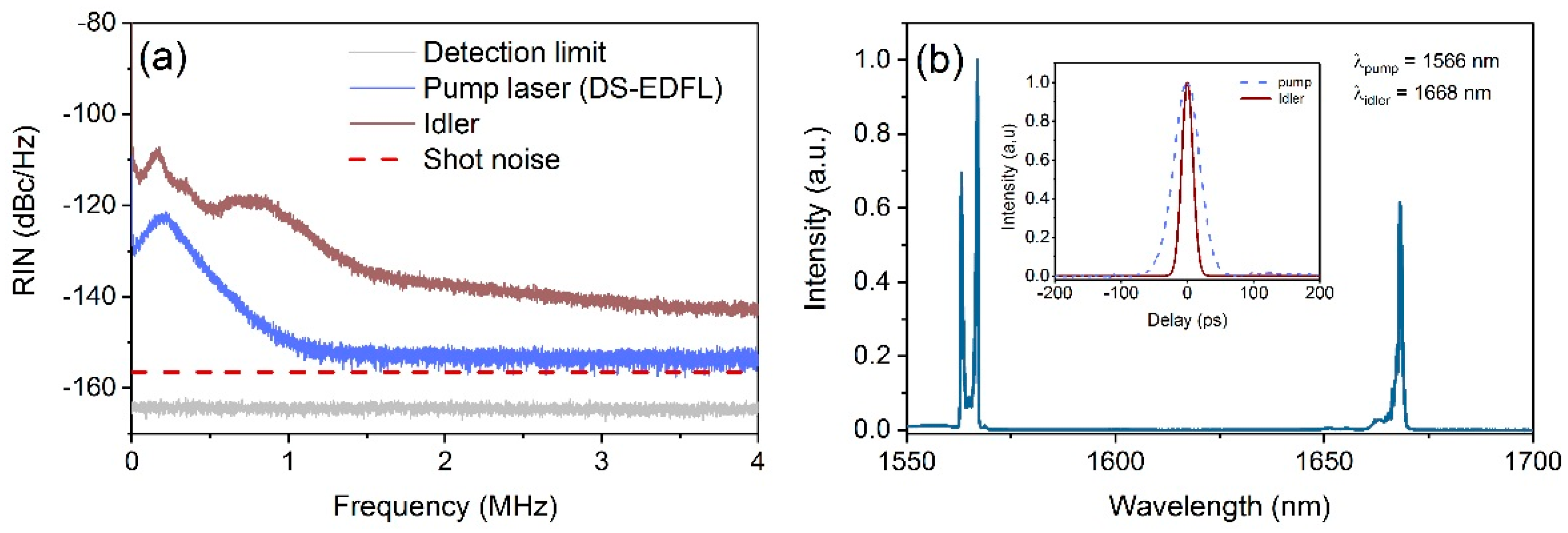

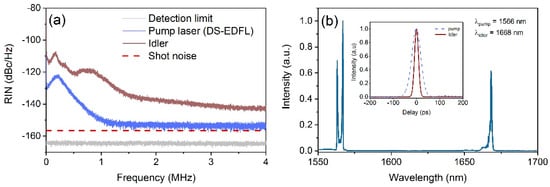

The performed RIN measurements using this system are shown in Figure 15a. Our pump laser exhibited a good RIN of −154 dBc/Hz at λp = 1566 nm, comparable to the system used in Ref. [6]. The FOPO increased it to around −140 dBc/Hz, considering only the filtered idler signal in the −3 dB-bandwidth between 1655 nm and 1685 nm, which represents a satisfying performance in the frame bio-imaging applications. More investigations are however now needed to further enhance the RIN of the whole system beyond this value.

5. Conclusions

In conclusion, we have demonstrated the generation of high-energy, ultra-short pulses from a dissipative soliton mode-locked fiber laser operating at 1560 nm. Chirped picosecond pulses with up to 38 nJ energy, which can be de-chirped down to 700 fs duration, have been generated in a large normal dispersion laser configuration with an optimized length of dispersion compensating fiber. This versatile source has then been applied, in a configuration enabling highly-chirped pulses, to advantageously pump a fiber OPO in order to generate picosecond pulses at the nanojoule level in the biological wavelengths window around 1.7 µm. Such a pumping mode indeed allowed a broad tuning range of more than 200 nm for the idler wave, with a 30 nm bandwidth around 1670 nm where pulses reach the nanojoule level. In addition, the good noise properties of both the erbium fiber laser and parametric oscillator with respective relative intensity noises around −154 and −140 dBc/Hz confirm the possibility to implement such a FOPO in the frame of bio-photonics applications.
