Systematic Trends in the Melting Temperature and Composition of Eutectic Binary Mixtures with One Component from a Homologous Series

Abstract

Materials that store a significant amount of heat in a narrow temperature range by phase change solid–liquid or solid–solid are called Phase Change Materials (PCMs). Many PCMs are members of homologous groups of materials with similar composition and properties. Often, similarities are due to a common molecular composition with a repeating unit, e.g., for n-alkanes H-(CH₂)_n-H. An n related trend is typical in the melting temperature. Based on observations on solvents, the question arises whether such a trend also exists in eutectic binary mixtures with one component fixed while the other, from a homologous series, is varied. For verification, data from the literature were collected, specifically experimental data, each set having at least three variations from a single source. Eight data sets were collected, covering eutectic binary mixtures of n-alkanes, n-alkanols, and n-alkanoic acids. With one exception, all data sets show a systematic trend in the melting temperature and the composition. It is shown that the trends can be understood from thermodynamic theories of mixtures (Schröder–van Laar equation) combined with typical trends within homologous series. The findings offer new options in PCM development as well as the selection of PCMs for specific application temperatures.

1. Introduction

Materials that store a significant amount of heat in a narrow temperature range by phase change solid–liquid or solid–solid are called Phase Change Materials (PCMs), which are often also latent heat storage materials (even if a temperature change is involved) [1]. In addition, suitable materials should also be technically and economically viable, e.g., sufficiently available, affordable, long-term stable, compatible, and safe. Due to their ability to store a large amount of heat in a narrow temperature range, PCMs are preferably used for heat storage with high storage density (per mass or volume) in a narrow temperature range, and for passive temperature stabilization (temperature control).

PCMs can be pure substances (elements and compounds) as well as non-pure substances (mixtures). Both have distinct advantages as well as potential drawbacks. Pure substances, like water and n-alkanes, commonly change phase at a phase change temperature T_pc. Their number, and thus also the choice of T_pc, is limited. Non-pure substances, like water–salt, water–alkanol, and alkane–alkane mixtures, offer a much larger choice. Mixing also affects other technical and economical properties. If a component is abundant and at low cost, then it makes the mixture easier available and more affordable. With regard to long-term stability, mixtures, by their nature, possibly decompose by phase separation. The main focus of PCM R&D, due to the usually higher storage density, is on the phase change solid–liquid, commonly called melting. A peritectic mixture is a mixture where the transition is between a single solid and a solid and a liquid (peritectic transition) before becoming completely liquid. Thus, phase change solid–liquid in peritectics occurs in a temperature range and possibly with decomposition by phase separation [1]. In contrast, a eutectic mixture is a mixture where the transition is between two or more solid phases and a liquid phase (eutectic transition). The solid phases (usually) crystallize simultaneously from the liquid. Thus, eutectics have a solid–liquid phase change temperature T_sl, also called eutectic temperature T_e, and (usually; Quant et al. [2] observed an exception) no decomposition by phase separation. Due to their long-term stability, pure substances (no risk of phase separation) and eutectic mixtures (little risk) are in the focus of solid–liquid phase change PCM development and selection.

In the past decades, hundreds, if not thousands, of materials were identified as potentially useful as PCMs [3,4]. This significantly increased the options to choose materials for an application temperature. However, if the options are from different material classes, often with different crucial material properties (e.g., availability, affordability, long-term stability, compatibility, safety), finding the best is difficult. Moreover, if looking for PCMs with a different phase change temperature for the same application, especially for the same material composite or encapsulation, it is desirable to avoid repeating the process. For this, a group of PCMs is needed with different phase change temperatures to cover a broader temperature range in small increments, behaving similarly to other key properties.

A solution is the members of a homologous series. In general, “homologous” expresses that a number of things have a common origin and are similar. In chemistry, “homologous” is commonly used for a group of materials with similar composition and properties. The term is sometimes used for the elements of a group in the Periodic System of Elements (PSE) that are different in their atomic composition. More common is the use for compounds that are different in their molecular composition. Specifically in organic chemistry, “homologous” is used for a series of compounds with a “repeating unit” in the molecular composition. The simplest example of a homologous series are the n-alkanes (linear alkanes), having the general chemical formula H-(CH₂)_n-H with the repeating unit CH₂. Other homologous series derived from the n-alkanes share the backbone with the repeating unit and have an additional functional group at one end. Among them are, e.g., the n-alkanols (also called fatty alcohols) with the functional group -OH and the general chemical formula H-(CH₂)_n-OH, and the n-alkanoic acids (also called fatty acids, members of the carboxylic acids) with the functional group -COOH and the general chemical formula H-(CH₂)_n-COOH. Each homologous series has its distinct physical and chemical properties, often with an n related trend. Figure 1 gives an overview of the solid–liquid phase change temperature T_sl, commonly also called melting temperature, and the molar solid–liquid phase change enthalpy Δ_slH_m versus n (number of C atoms) for some members of the homologous series of the n-alkanes, n-alkanols, and n-alkanoic acids (data source: Mehling and White [5]). It must be noted that in organic chemistry it is common to denote with n the number of C atoms, and that n is then equal to the number of repeating units CH₂ in the case of the n-alkanes and n-alkanols, but larger by 1 for the n-alkanoic acids as the functional groups have one C atom. As Figure 1 shows, each of these homologous series has a trend in T_sl and Δ_slH_m to rise with increasing n, with deviations. Specifically, each allows to “adjust” T_sl in steps of roughly 5 °C to 10 °C by adjusting n. Additional options, with the functional group at both ends, are the α,ω-diols and α,ω-dicarboxylic acids.

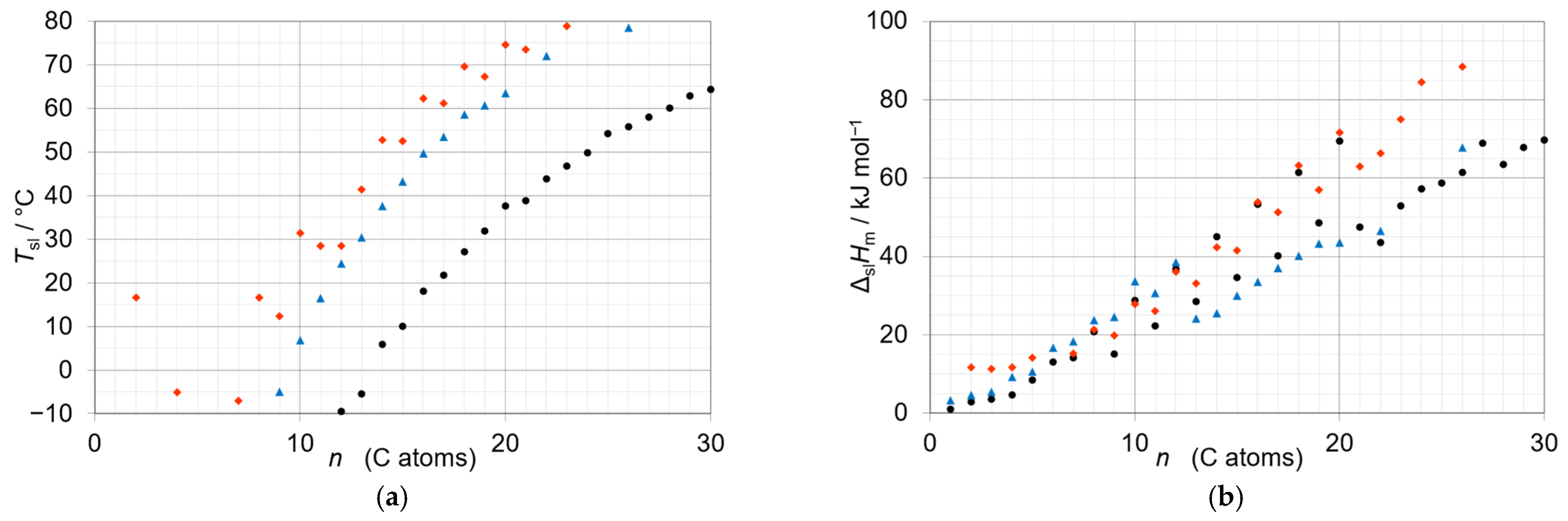

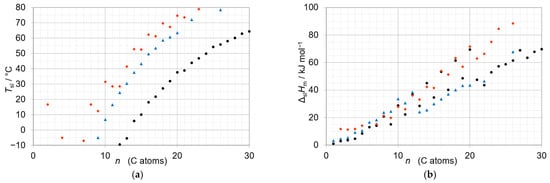

Figure 1. Solid–liquid phase change temperature T_sl (a) and molar solid–liquid phase change enthalpy Δ_slH_m (b) versus n (number of C atoms) for some n-alkanes ●, n-alkanols ▲, and n-alkanoic acids ♦.

Soodoo et al. [6] plotted T_sl and Δ_slH versus n (number of C atoms) besides for n-alkanes, n-alkanols, and n-alkanoic acids, also for esters, ethers, sulfones, amides, and amines. Other homologous series exist among the polymers, specifically the homopolymers. For example, PolyEthylene (PE) has the general chemical formula H-(CH₂)_n-H, like n-alkanes, but with very large n. Another example is PolyEthyleneGlycol (PEG), which has the chemical formula H-(O-CH₂-CH₂)_n-OH. Hence, PEG has C₂H₄O mers as a repeating unit for the homologous series. Generally, PEG is labeled PEG X, where X is value of the molar mass in g/mol, e.g., PEG 800 for 800 g/mol. Commonly, the term PEG is used for molar masses larger than about 200 g/mol, which corresponds roughly to n = 5, as the molar mass of a mer is (2∙12 + 4∙1 + 16) g/mol = 44 g/mol. Figure 2 gives an overview of some T_sl and Δ_slH for X up to 20,000 (n about 450), collected by Mishra et al. [7]. Typically, in a homologous series, T_sl tends to rise with n, and the same holds for the mol-specific Δ_slH_m (Figure 1); however, the mass-specific Δ_slH (Figure 2) tends towards a constant value.

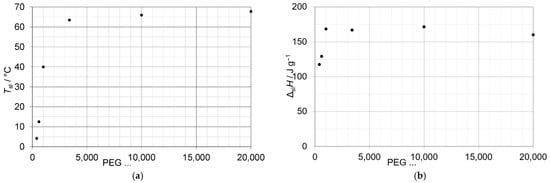

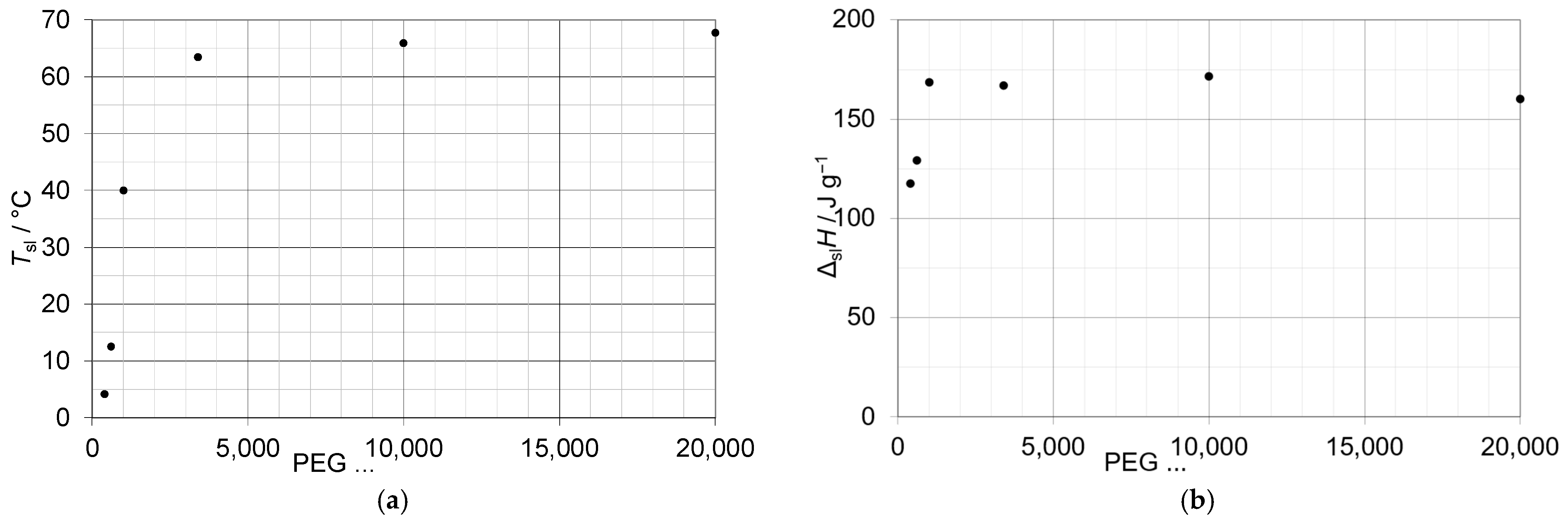

Figure 2. Solid–liquid phase change temperature T_sl (a) and enthalpy Δ_slH (b) for PEGs of different molar mass.

As the examples show, PCMs from homologous series, in principle, allow to “adjust” T_sl by adjusting n, thus allowing us to cover a broader temperature range in small increments. Otherwise, they usually have the same or at least similar physical and chemical properties, e.g., compatibility or safety. However, members of the discussed homologous series are not always technically and economically viable as PCMs. For example, among the n-alkanes, n-alkanols, and n-alkanoic acids, not all members are easily available and at an acceptable cost (e.g., according Kahwaji and White [8], even-numbered-carbon fatty acids are preferable to odd-numbered due to their lower cost). Further on, all are combustible, and not thermally stable beyond 400 °C. This holds for all organic materials. As a result, it is desirable to find additional options.

Up to now, the term “homologous” series has, in chemistry, only been used for elements and compounds, and thus for pure substances, and not in connection with mixtures. In PCM R&D, mixtures of members of many homologous series have been investigated intensively, e.g., n-alkane-n-alkane mixtures and n-alkane-n-alkanol mixtures, but not systematically. Especially, up to now, the results have been discussed individually, without looking for systematic trends. In a very different area, however, that of solvents, water–PEG mixtures have been studied systematically, and Jablonski [9] noted a systematic shift in the eutectic temperature and composition with PEG molar mass (Figure 3). From the perspective of PCM R&D, this corresponds to “adjustable” T_sl, here T_e, observed in binary mixtures of water, a fixed component, and PEG with varying molar mass, and thus members of a homologous series as varied component. It is notable that eutectic mixtures such as PCMs have the advantage of a phase change temperature and not a range, and usually no phase separation, and that, with water as a fixed component, a significant fraction is cheap and abundant.

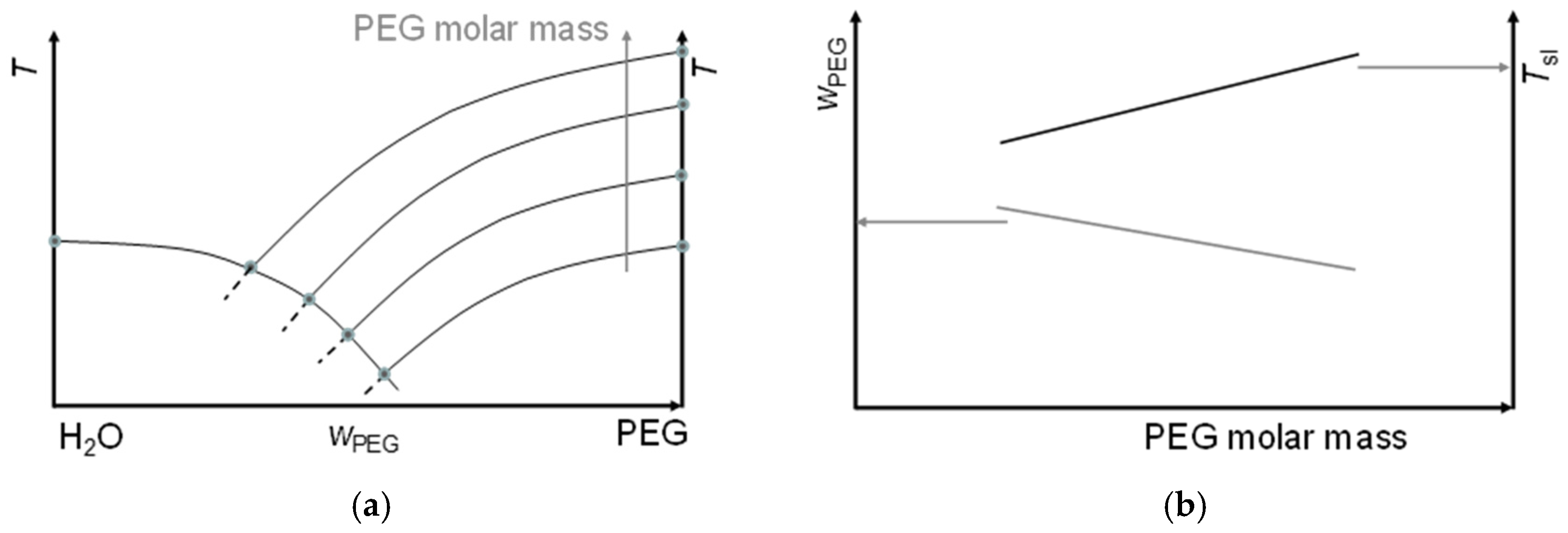

Figure 3. Schematic phase diagram (a) of water–PEG mixtures for PEG of varying molar mass (adapted from Jablonski [9]). There is a systematic shift in the eutectic point. (b) Shift in the composition and the melting temperature as function of PEG molar mass.

As a consequence, several questions arise. The goal of this work is to answer them. First, is the case of the eutectic water–PEG mixtures useful as PCM for heat storage? Second, are there other, similar mixtures based on other homologous series that show the advantage of “adjustable” T_sl, useful as PCMs? Third, is the observed effect just occasional, or has it a physical and chemical basis to be understood?

2. Materials and Methods

2.1. Materials

Based on the observations of Jablonski [9], the investigation here is limited to binary mixtures that have a eutectic composition, and with the material of one component fixed while the other component is from a homologous series and varied. To answer the previously stated questions, the following binary mixtures were selected. For the first question, water–PEG mixtures with varying PEGs are used. For the second question, as n-alkanes, n-alkanols, and n-alkanoic acids are homologous series and already used as pure substance PCMs, they are also used here to look for promising binary mixtures. This results in three options using a single homologous series, e.g., n-alkane-n-alkane mixtures with the first n-alkane fixed and the other varied, and three options using different ones, e.g., n-alkane-n-alkanol mixtures.

2.2. Methods

Binary mixtures with eutectic composition have been in the focus of PCM R&D for decades, and for the materials selected literature on mixtures with information on composition, melting temperature, and melting enthalpy, is abundant. Thus, for this early-stage investigation, to cover a range of options, published information is used. In a literature study, publications on the selected mixtures were identified. They were then screened regarding three criteria. The first criterion is that data for at least three members of the homologous series should be available to see if there is a trend. The second criterion refers to the accuracy of data. As data predicted from theory have additional sources of uncertainty, only experimental data were used. Yet, experimental data often have an unclear or even low accuracy. Faden et al. [10] analyzed the literature data for octadecane (n = 18), and found even for high purity samples (≥99%) T_sl values from the extrapolated onset that vary by 2.9 K. Thus, to see trends in T_sl, no reviews with collected data are used, but only single sources; thus, there is a consistent experimental method throughout. The third criterion refers to the reliability of data. To ensure that data really refer to eutectics, only publications were considered that experimentally verified the type of transition. After the relevant literature sources were identified, the data corresponding to each set of binary mixtures were extracted, tabulated, and then plotted.

2.3. Units and Notation

The units and notation required refer to composition, phase change temperature, and enthalpy. Generally, in PCM R&D as well as in the other literature in physics and chemistry, different ways are used, some not standard. Here, as far as possible, all data are given in a standard and consistent way.

The composition of mixtures of components, denoted by i, can be performed in different ways. Sometimes the composition is given by the ratio of the components. However, commonly it is given by the fraction of the total, denoted by tot, as the mass fraction w_i = m_i/m_tot or the molar fraction x_i = n_i/n_tot. Here, n is the amount of the substance. Often, % values are used. Generally, for binary mixtures a statement of the fraction for one component is sufficient; the other can be calculated. In this work, w or x is used, depending on the data source.

The enthalpy, according the International Union of Pure and Applied Chemistry, IUPAC [11], should be denoted by H, its changes by Δ, and subscripts to Δ should be used to denote a process. For molar values, IUPAC recommends a subscript m. While, for the phase change solid–liquid, meaning melting or fusion, IUPAC recommends fus for fusion, commonly the literature also uses f, m, or sl. To avoid confusion with molar, and also to allow denoting solid–solid transitions if needed, solid–liquid is here denoted sl. Thus, the solid–liquid phase change enthalpy is denoted by Δ_slH, and its molar value by Δ_slH_m. Mass-specific values are given, e.g., in J/g, amount specific (molar) values e.g., in J/mol. For mixtures, the use of mass-specific values is commonly preferred. The solid–liquid phase change temperature is denoted T_sl. It is given in K or in °C, where the value in K is that in °C plus 273.15.

3. Results

3.1. Mixtures of Water with PEG

Based on Figure 3, showing a shift in the eutectic temperature with varying PEG molar mass, the first question is whether this case is useful as a PCM for heat storage. This requires us to look at the resulting eutectics, specifically their melting temperature T_sl and enthalpy Δ_slH, and furthermore their phase change behavior in general.

All relevant data were extracted (Table S1, Supplementary Information) from the work of Jablonski [9], and are plotted in Figure 4. The data comprise PEG 300, 400, 600, 900, 1500, 20,000, and 35,000, corresponding to about n = 7 to 795. As is already visible in the schematic phase diagram of water–PEG mixtures in Figure 3, the data for the eutectic compositions show with increasing PEG molar mass a shift in the eutectic T_sl to higher values, and, for the fraction w of PEG, a shift to lower values. For the lowest PEG molar masses, the difference between T_sl is larger than 10 K; however, the corresponding values of n suggest that smaller differences are possible with other n. The melting enthalpy Δ_slH, where values are available, is in a range that is still interesting for PCMs. And the weight fraction w of PEG is in a range where about half of the eutectic mixtures is water, which reduces the cost of the mixtures. This makes the mixtures interesting as PCMs. However, besides the positive impression from material data, there are also negative issues. Looking at the phase change behavior, Jablonski [9] as well as Huang and Nishinari [12] report difficulties performing calorimetric measurements due to glass formation and recrystallization on heating. Further on, in the low molar weight range, no eutectic is observed at all (Figure 4). At large molar weight, where T_sl of the pure PEG is not changing (Figure 2), the T_sl shift effect in the eutectic mixtures ceases (Figure 4). Accordingly, water–PEG mixtures are sometimes subdivided into three regions [12]. The first is low PEG molar mass, where no eutectic is observed, but instead glass formation is observed. The second is where a eutectic is observed and T_sl changes with molar mass. The third is where a change does not cause a change in T_sl anymore, at large molar mass. There is also some interesting information on the composition of the eutectics. As shown in the phase diagram (Figure 3), the eutectic is composed of a water phase and a second phase; the latter, in some sources, is described as pure PEG (Huang and Nishinari [12], Kuttich et al. [13]), while in others it is described as PEG with small amounts of water (Jablonski [9]).

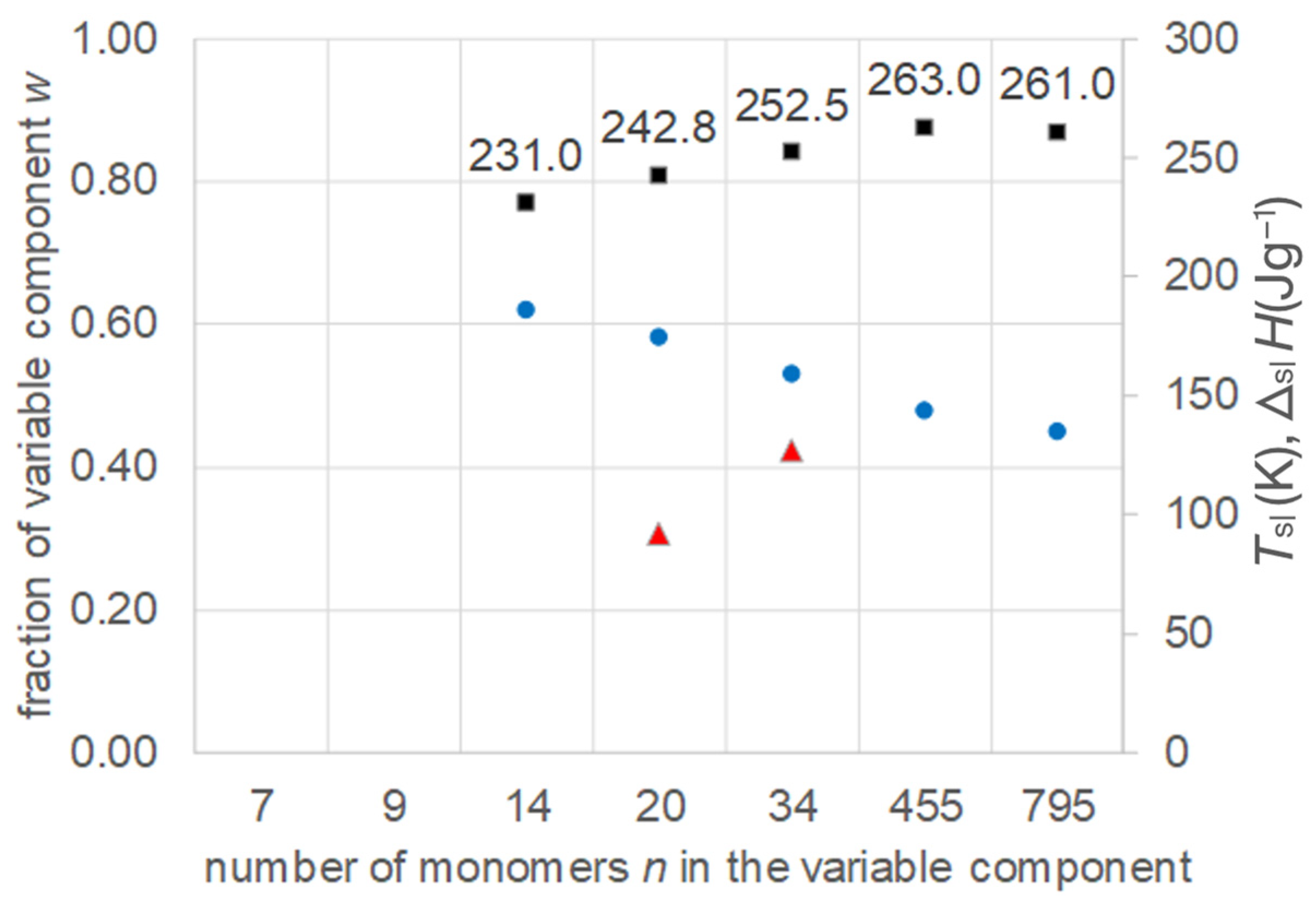

Figure 4. Data of eutectic mixtures of water with PEG of different molar mass (Table S1, Supplementary Information): ● w, ■ T_sl, ▲ Δ_slH.

In summary, regarding the first question, despite the fact that eutectic water–PEG mixtures have many advantages for use as PCMs, the phase change behavior might cause problems. Therefore, more R&D to gain detailed information is needed. Generally, the systematic shift in the melting temperature T_sl is demonstrated for binary mixtures of water and PEG with systematically changing molar mass; thus, they are members of a homologous series.

The next, crucial question is thus whether there are other material classes that in binary mixtures offer the advantage of “adjustable” T_sl.

3.2. Mixtures of n-Alkanes with n-Alkanes

The n-alkanes have been investigated for use as PCMs at least since the 1980s (Abhat [14]). They are also the simplest example of a homologous series, having the chemical formula H-(CH₂)_n-H. In the literature, n denotes the number of C atoms, here also equal to the number of CH₂ units. Binary mixtures of n-alkanes with other n-alkanes are well investigated. Already in 1998 Bo et al. [15] investigated binary mixtures of tetra-, penta-, and hexadecane (n = 14, 15, 16). With regard to the goal of the investigation here, the focus is now on eutectic binary mixtures with both components from the same material class: one component being a fixed n-alkane and the other being a varying member of the homologous series of n-alkanes.

Many n-alkanes show not only a solid–liquid phase change but also one or several solid–solid phase changes. These cause small deviations in the general trend of T_sl, and larger ones in Δ_slH (Figure 1), as recently shown by Mehling et al. [16]. Consequently, the phase diagrams of binary mixtures of n-alkanes can be rather complex. Mondieig et al. [17] investigated binary mixtures of n-alkanes, including their crystal structure. Specifically, they covered mixtures of n = 8 to 28 with a difference Δn = n − n’ of components being 1 or 2. For binary mixtures of n = 16 to 23 with n’ = n + 1, only the first three show eutectics. For n’ = n + 2, odd n with n = 17 to 25 show no eutectic, while even n = 8, 14, 16, and 18 show a eutectic. Hence, it seems that if n and n’ are too similar and/or if n is too large then no eutectic exists. This can be expected, because for a solid eutectic to form on cooling from the liquid it is necessary that the components separate, which they probably do not if they are chemically too similar.

Więckowski et al. [18] investigated binary mixtures of n-alkanes, specifically of fixed n = 14 mixed with varied n = 17, 19, and 21 (thus Δn ≥ 3). They determined the phase diagrams, and plotted the liquidus lines (Figure 5). In contrast to Figure 3, the pure fixed component n = 14 is on the right, the pure varied component n = 17, 19, and 21 on the left. Figure 5 shows the existence of a eutectic in all mixtures, with a systematic increase in its T_sl with increasing n of the varied component, while the molar fraction x of the varied component decreases (depicted is the fraction of the fixed component, which increases).

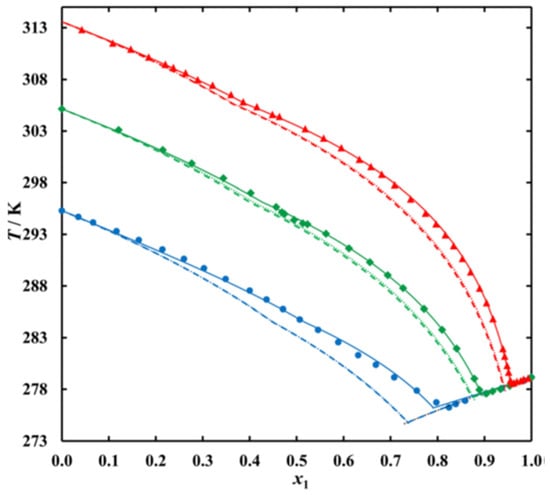

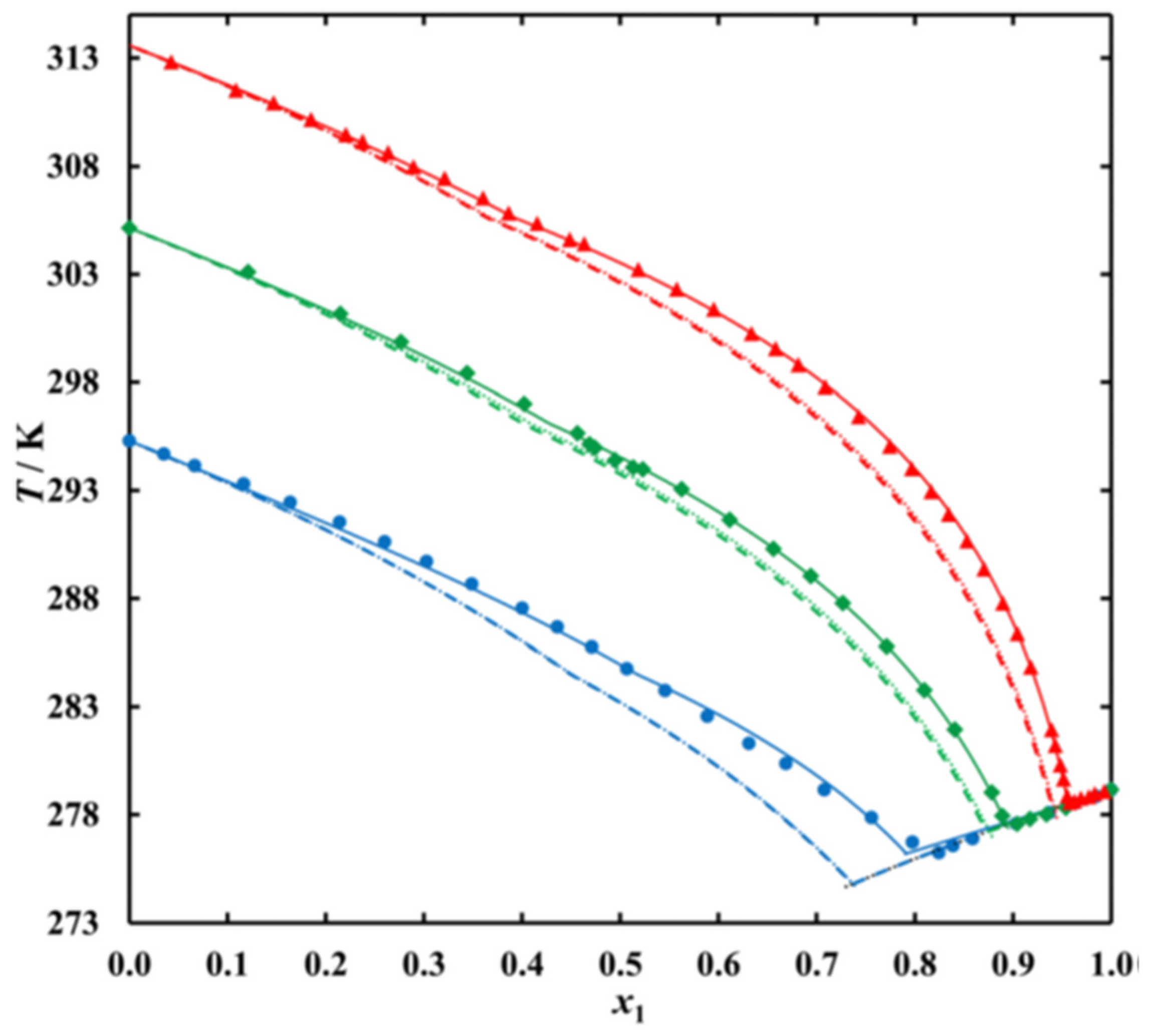

Figure 5. Liquidus curves of systems: ● n₁ = 14 – n₂ = 17, ♦ n₁ = 14 – n₂ = 19, ▲ n₁ = 14 – n₂ = 21. Points represent experimental data, solid lines NRTL correlation, dashed lines UNIFAC (Do) prediction, dotted lines ideal solubility (source: Więckowski et al. [18]).

The data of the eutectic compositions, as determined by Więckowski et al. [18], were extracted (Table S2, Supplementary Information). To allow a comparison of all observed trends, the fraction of the varied component (here molar) was calculated from the original, given for the fixed component. Figure 6 shows all data in a single plot. It shows, as with a common homologous series, that the eutectic binary mixtures of an n-alkane, here n = 14, with other members of the same homologous series, here n = 17, 19, and 21, show a systematic trend in T_sl. All trends are the same as for the water–PEG binary mixtures: with increasing n, T_sl of the eutectic increases; the same holds for Δ_slH, while the fraction of the varied component decreases.

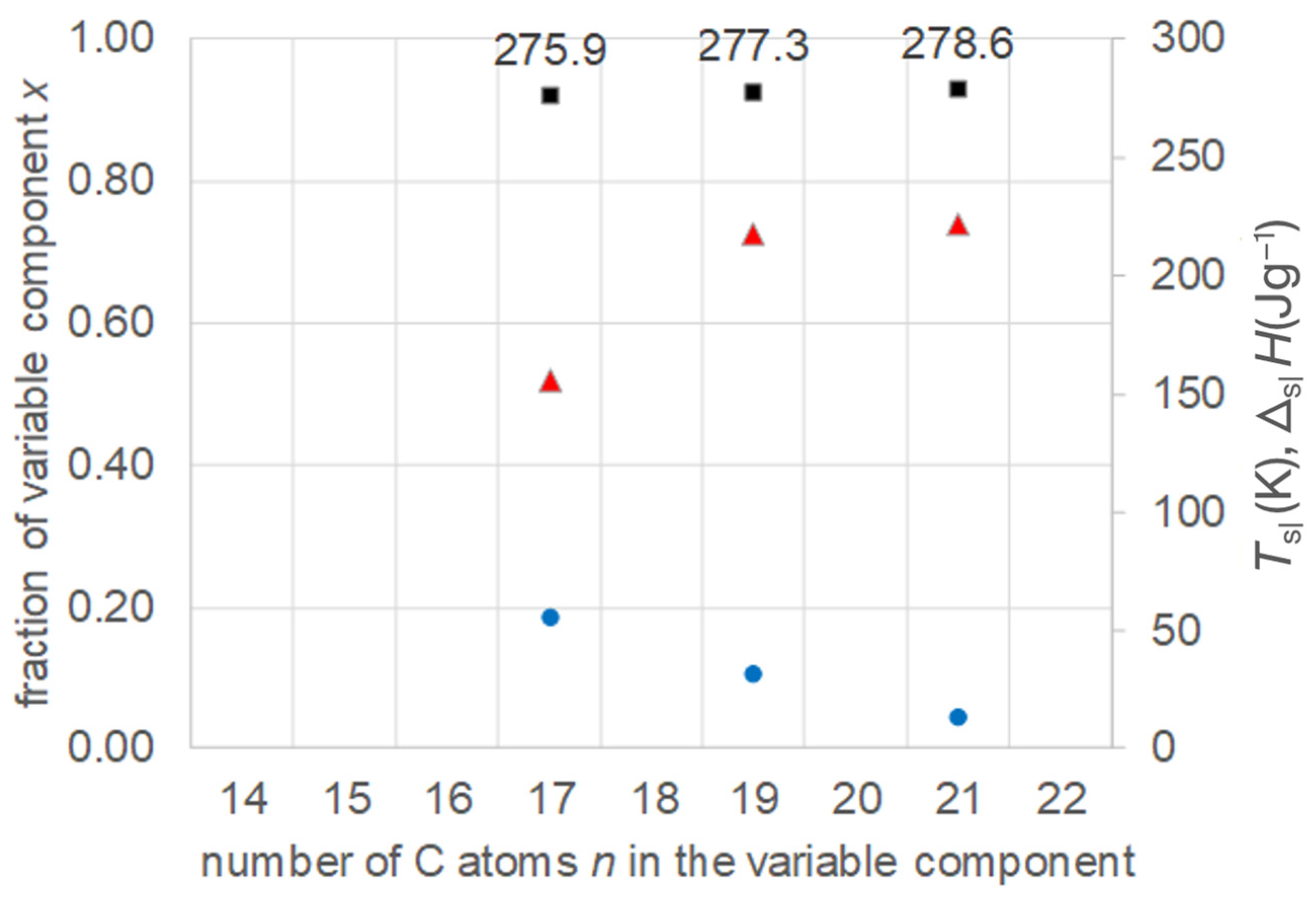

Figure 6. Data of eutectic mixtures of n-alkane n = 14 with other n-alkanes (Table S2, Supplementary Information): ● x, ■ T_sl, ▲ Δ_slH.

3.3. Mixtures of n-Alkanols with n-Alkanols

Like n-alkanes, n-alkanols (fatty alcohols) show not only a solid–liquid phase change but also different solid–solid phase changes (Mehling and White [5]), which are related to small deviations of the general trend of T_sl, and larger deviations in Δ_slH (Figure 1). Consequently, the phase diagrams of binary mixtures of n-alkanols can be rather complex. Ventola et al. [19] studied 10 systems of n-alkanols: for Δn = 1 the combinations 15/16 until 19/20, for Δn = 2 the combinations 15/17 until 18/20, and for Δn = 4 the combination 16/20. As in the case of binary mixtures of n-alkanes, the presence of solid–solid transitions leads to complex phase diagrams, such that eutectics need to be verified.

Li et al. [20] investigated binary mixtures of n-alkanols, specifically of fixed n = 12 with varied n = 14, 16, and 18 (thus Δn ≥ 2). Their calculated phase diagrams show a eutectic for all three combinations, but for the first combination they observed no eutectic in their DSC measurements. Thus, the data collected comprise only two eutectics (Table S3, Supplementary Information). Nevertheless, the results confirm again the existence of eutectics, and the values plotted in Figure 7 show the expected increase in their T_sl with increasing n of the varied component, while the fraction of the varied component decreases.

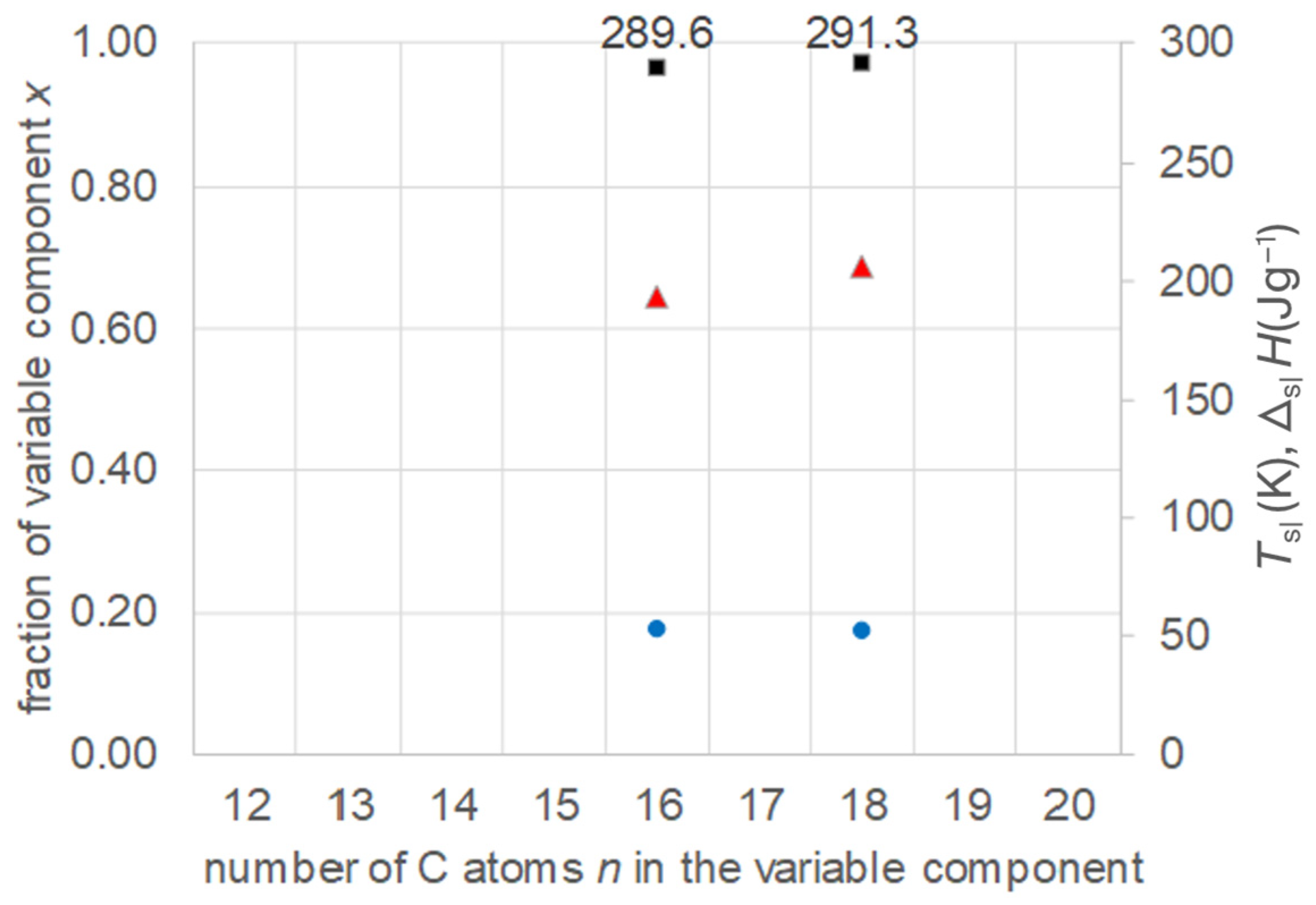

Figure 7. Data of eutectic mixtures of n-alkanol n = 12 with other n-alkanols (Table S3, Supplementary Information): ● x, ■ T_sl, ▲ Δ_slH.

3.4. Mixtures of n-Alkanoic Acids with n-Alkanoic Acids

Zhou et al. [21] investigated 10 binary mixtures of n-alkanoic acids (fatty acids) with n = 10, 12, 14, 16, and 18. Specifically, they calculated the eutectic composition, its melting temperature, and melting enthalpy. Afterwards, the composition was adjusted by measuring a variation in compositions, and the final values of the eutectic were determined. The data allow a comparison of a series of mixtures with fixed n = 10 and n = 12. The data were collected (Tables S4 and S5, Supplementary Information) and are plotted in Figure 8 and Figure 9. The results confirm again the existence of eutectics, and show the expected increase in their T_sl with increasing n of the varied component, while the fraction of the varied component decreases. It is noteworthy that, in the case with n = 12 fixed, the varied component covers not only larger but also smaller n. Regarding the melting enthalpy Δ_slH, not all mixtures show a systematic trend.

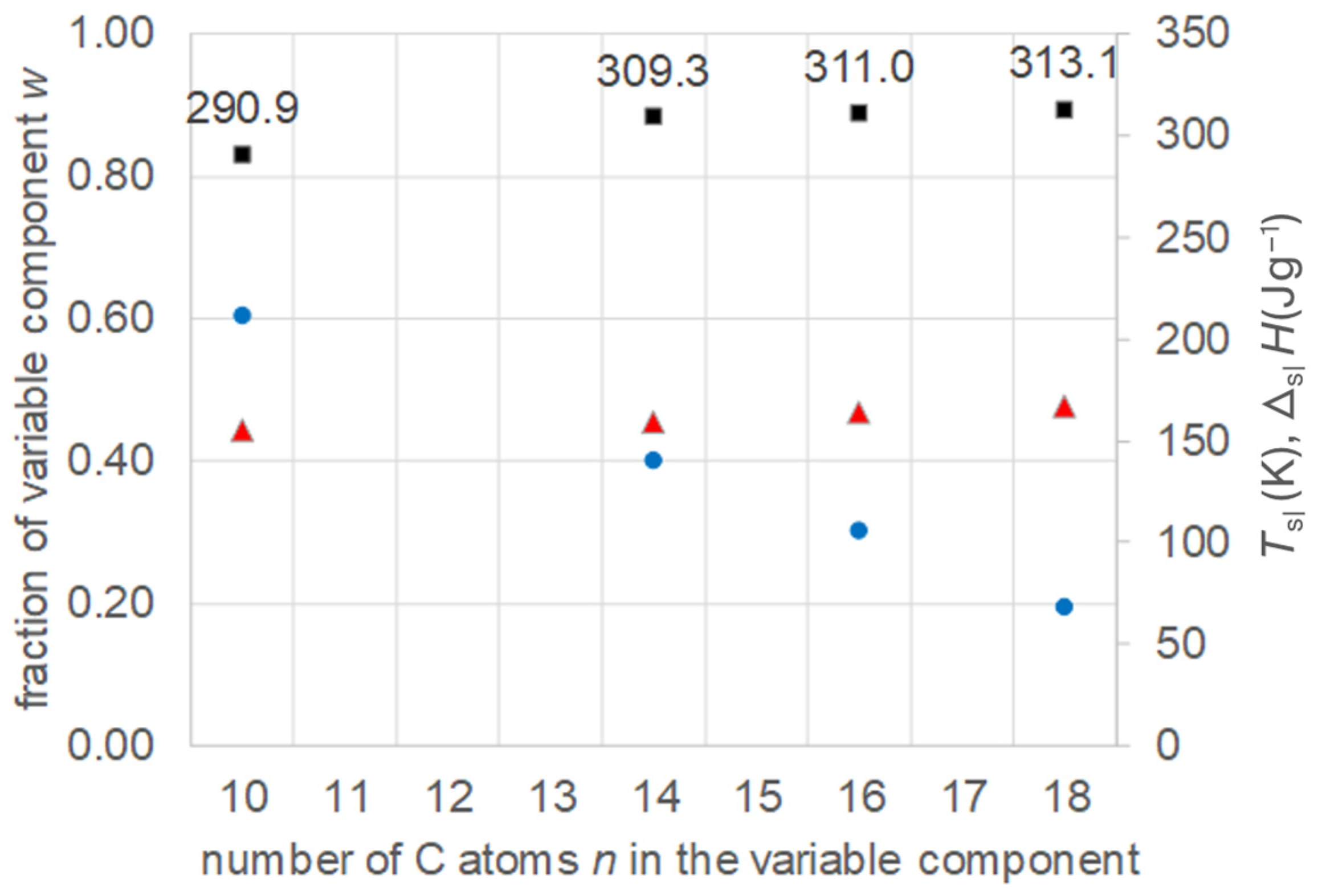

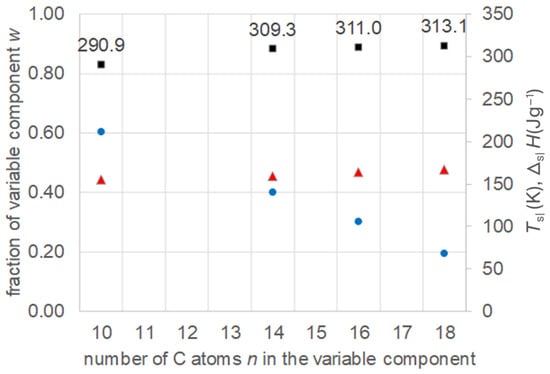

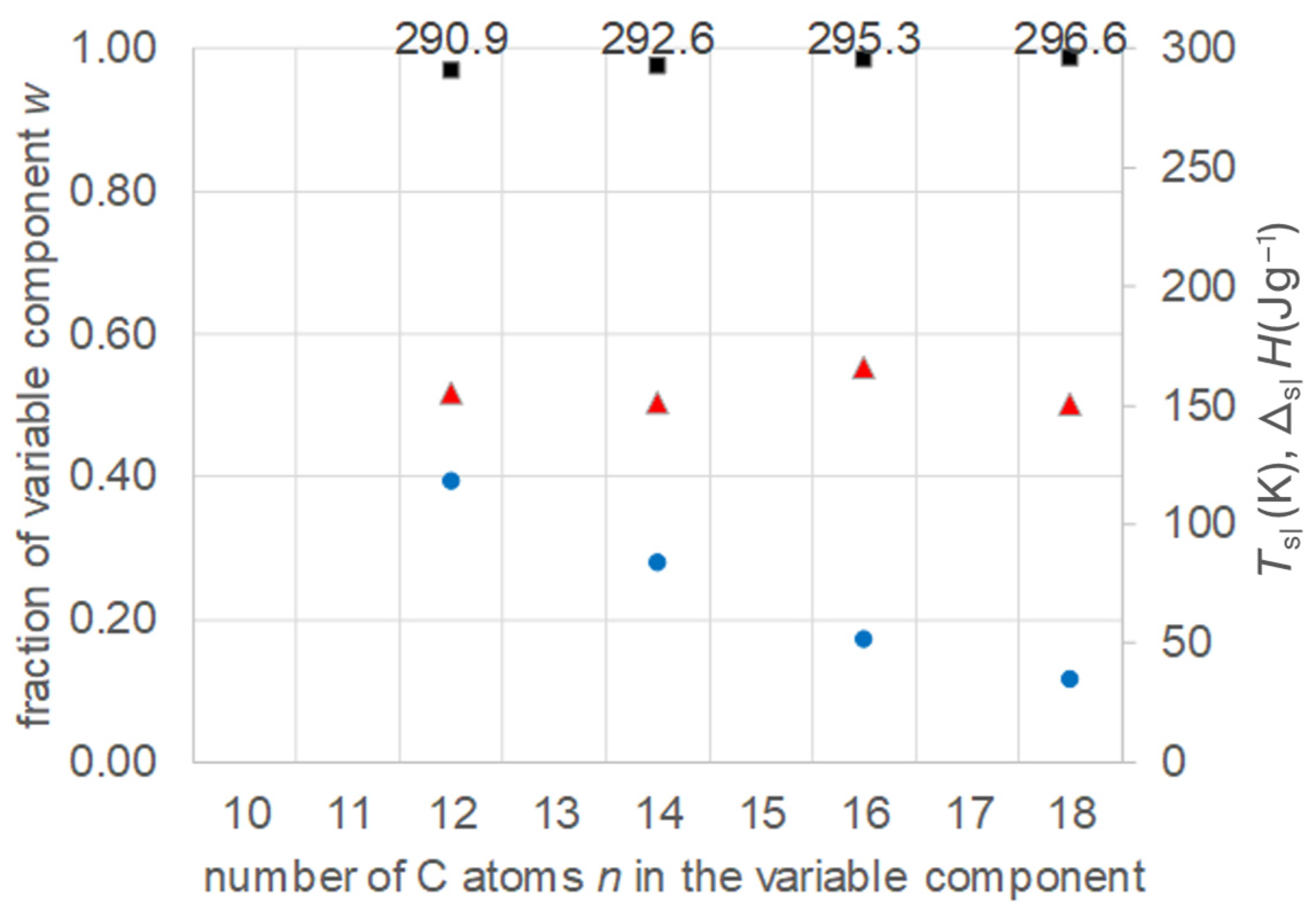

Figure 8. Data of eutectic mixtures of n-alkanoic acid n = 10 with other n-alkanoic acids (Table S4, Supplementary Information): ● w, ■ T_sl, ▲ Δ_slH.

Figure 9. Data of eutectic mixtures of n-alkanoic acid n = 12 with other n-alkanoic acids (Table S5, Supplementary Information): ● w, ■ T_sl, ▲ Δ_slH.

3.5. Mixtures of n-Alkanoic Acids with n-Alkanes

Więckowski and Królikowski [22] investigated mixtures of fixed decanoic acid, n = 10, with varied n-alkanes, namely n-tetradecane, n-pentadecane, n-hexadecane, and n-heptadecane, thus n = 14, 15, 16, and 17. They theoretically predicted the liquidus curves and eutectic points, and verified them experimentally. The data collected (Table S6, Supplementary Information) are plotted in Figure 10. The results show again the existence of eutectics, and an increase in their T_sl with increasing n of the varied component, while the fraction of the varied component decreases. The melting enthalpy Δ_slH shows no trend at all.

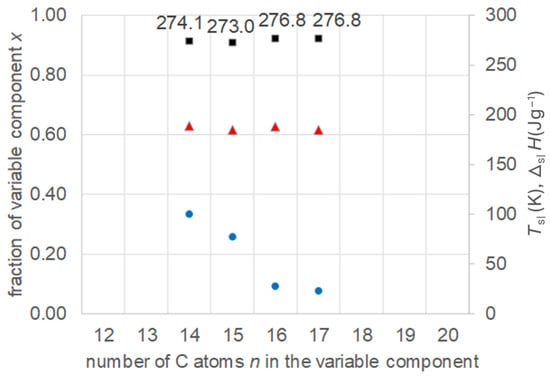

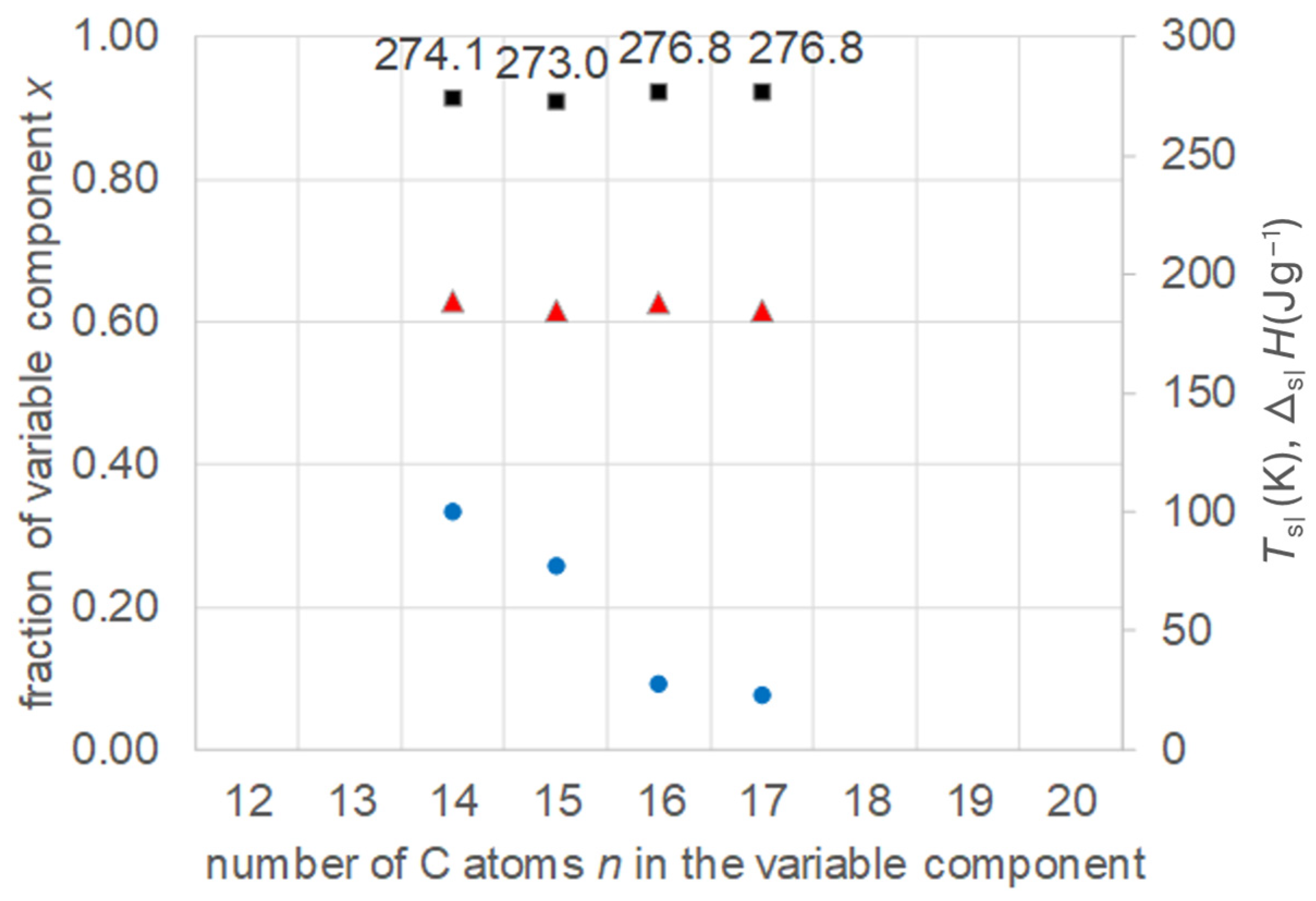

Figure 10. Data of eutectic mixtures of n-alkanoic acid n = 10 with n-alkanes (Table S6, Supplementary Information): ● x, ■ T_sl, ▲ Δ_slH.

Bidiyasar et al. [23] investigated mixtures of a fixed n-alkane, namely eicosane (n = 20), with varied n-alkanoic acids, namely dodecanoic acid (lauric acid), tetradecanoic acid (myristic acid), and hexadecanoic acid (palmitic acid), thus for n = 12, 14, and 16. They studied models to theoretically predict thermal properties of binary eutectic mixtures and used examples to verify their work experimentally. The data collected (Table S7, Supplementary Information) are plotted in Figure 11. The results show again the existence of eutectics, and an increase in T_sl with increasing n of the varied component, while the fraction of the varied component decreases. Regarding the melting enthalpy Δ_slH, a systematic trend to increase is observed.

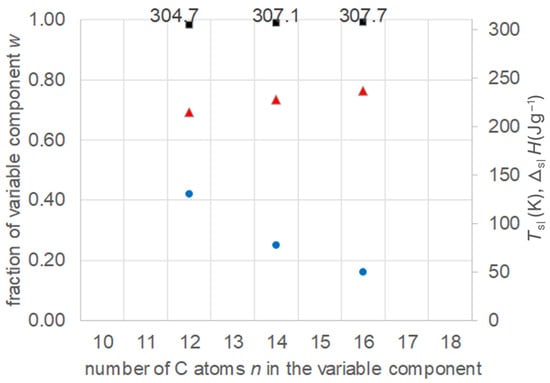

Figure 11. Data of eutectic mixtures of n-alkane n = 20 with n-alkanoic acids (Table S7, Supplementary Information): ● w, ■ T_sl, ▲ Δ_slH.

3.6. Mixtures of n-Alkanols with n-Alkanes

Więckowski and Królikowski [22] investigated mixtures of fixed 1-decanol, n = 10, with varied n-alkanes, namely n-tetradecane, n-pentadecane, n-hexadecane, and n-heptadecane, thus n = 14, 15, 16, and 17. They theoretically predicted the liquidus curves and eutectic points, and verified them experimentally. The collected data (Table S8, Supplementary Information) are plotted in Figure 12. The results show again the existence of eutectics. However, in this case, no clear trend for T_sl with increasing n of the varied component is observed in the data. Due to the small differences in T_sl and the unknown uncertainty of the experimental data, which could be of a similar size, it is however not clear whether there is no trend in reality or if it is just not observed in the data. The fraction of the varied component decreases again systematically, while the melting enthalpy Δ_slH shows no systematic trend.

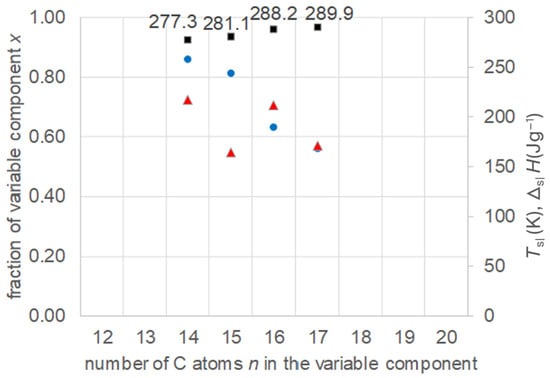

Figure 12. Data of eutectic mixtures of n-alkanol n = 10 with n-alkanes (Table S8, Supplementary Information): ● x, ■ T_sl, ▲ Δ_slH.

3.7. Mixtures of n-Alkanols with n-Alkanoic Acids

Kumar et al. [24] investigated mixtures of fixed 1-dodecanol, n = 10, with varied n-alkanoic acids with n = 12, 14, and 16. They theoretically predicted the eutectic points, and verified them experimentally. The collected data (Table S9, Supplementary Information) are plotted in Figure 13. The results show again the existence of eutectics, with increasing n of the varied component a systematic increase of T_sl, a decrease in the fraction of the varied component, and an increase in Δ_slH.

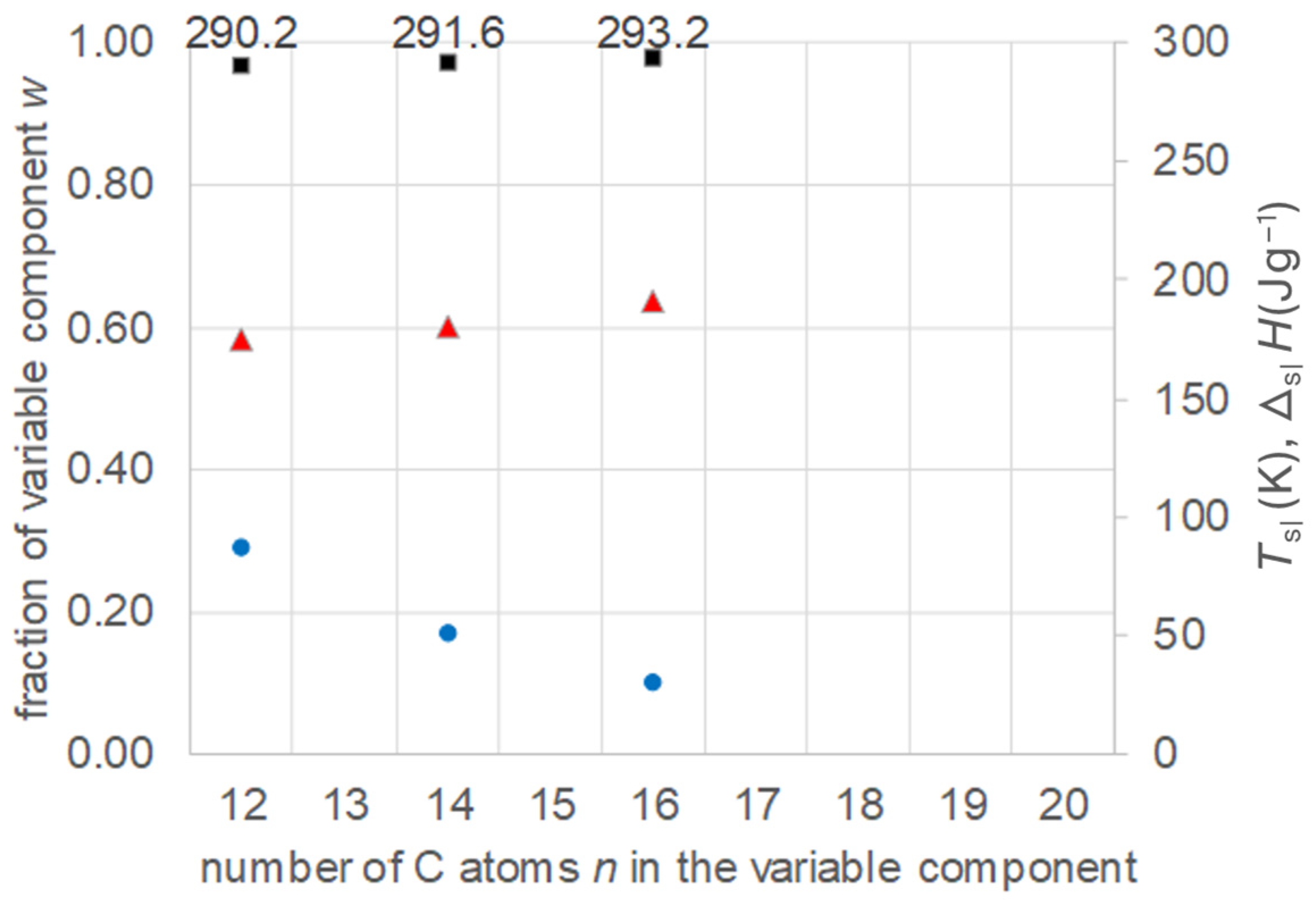

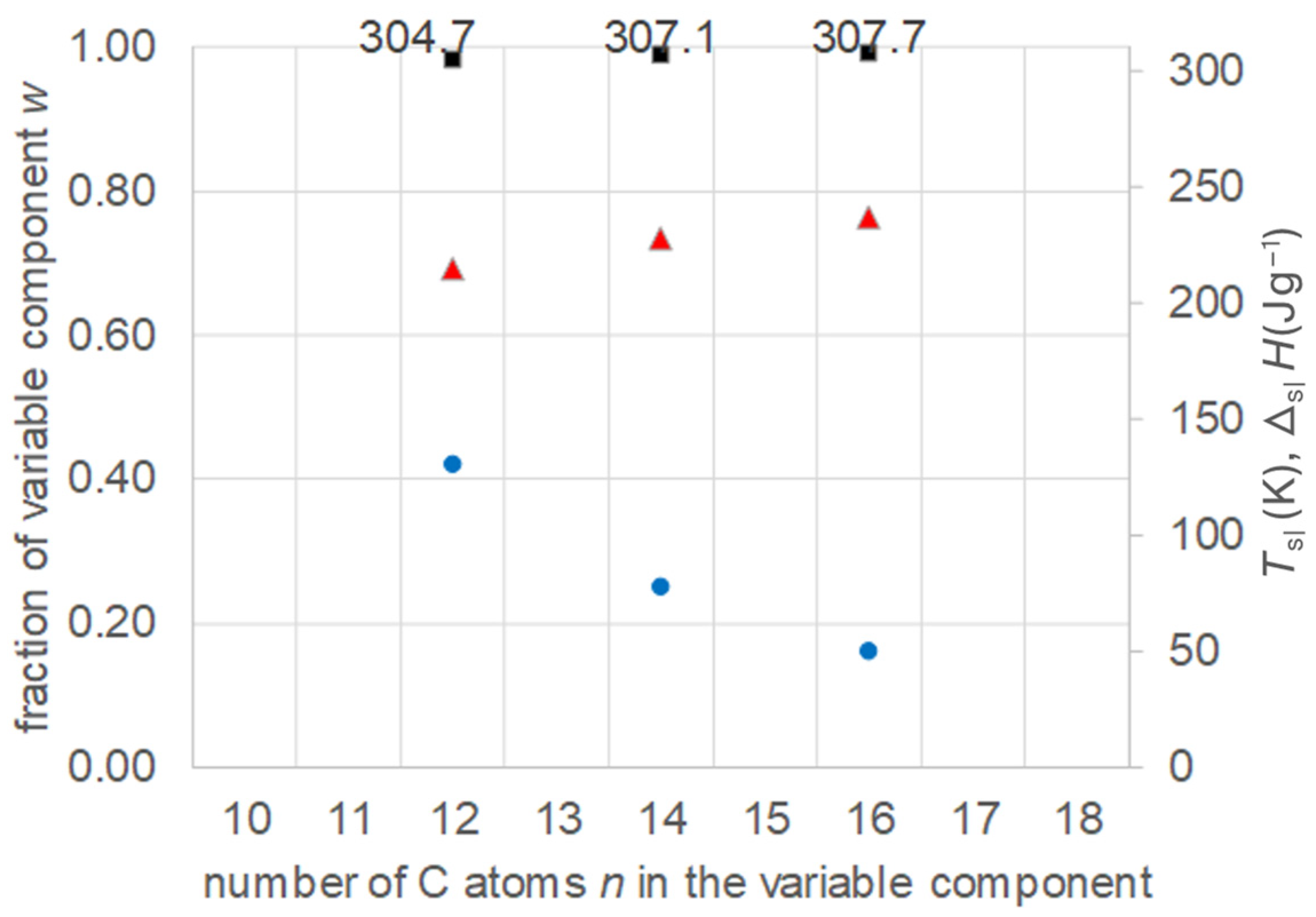

Figure 13. Data of eutectic mixtures of n-alkanol n = 12 with n-alkanoic acids (Table S9, Supplementary Information): ● w, ■ T_sl, ▲ Δ_slH.

4. Discussion

Mixtures, specifically eutectic binary mixtures, have been intensively investigated as PCMs for decades. Theoretical models to predict phase diagrams are studied, and experimental values listed, e.g., in reviews. Until now, their property values have been viewed isolated, and not analyzed for systematic trends. In the area of solvents, Jablonski [9] systematically studied water–PEG mixtures and noted a systematic shift in T_sl of the eutectics with PEG molar mass (Figure 3). This promises a new option to adjust T_sl for PCM development and selection, in addition to using pure members of homologous series. As a consequence, several questions arise and are now discussed based on the results in Section 3.1.

4.1. Mixtures of Water with PEG

Section 3.1 investigated the observation by Jablonski [9] on eutectic water–PEG mixtures in detail. As it is the basis for the rest of the work, the relevant issues were already discussed in Section 3.1 and are just repeated here. Regarding the first question, despite the fact that that eutectic water–PEG mixtures have many advantages for use as PCMs, the phase change behavior might cause problems. Therefore, more R&D to gain detailed information is needed. The systematic shift in the melting temperature T_sl allows us to draw some conclusions on the potential of mixtures for PCMs with adjustable T_sl. In general, eutectic water–PEG mixtures can be seen as an example of eutectic mixtures of a fixed component, here water, with a varied component from a homologous series, here PEG. The results show, for the water–PEG mixtures, the option to adjust T_sl by adjusting n, but that the effect is limited to a composition range. These results encourage us to investigate other, similar mixtures.

4.2. Other Mixtures with a Fixed Component and a Varied Component from a Homologous Series

The next, crucial question was thus whether there are other, similar mixtures based on other homologous series that show the advantage of “adjustable” T_sl, potentially useful as PCMs. As other homologous series the n-alkanes, n-alkanols, and n-alkanoic acids were selected. This results in six general options: three options using a single homologous series, e.g., n-alkane-n-alkane mixtures with the first n-alkane fixed and the other varied, and three options with different homologous series, e.g., n-alkane-n-alkanol mixtures. The results of a literature study for each individual combination are plotted in Section 3.2, Section 3.3, Section 3.4, Section 3.5, Section 3.6 and Section 3.7. The data show for all options investigated, except mixtures of n-alkanols with n-alkanes (Figure 12 and Table S8, Supplementary Information), a systematic increase in T_sl with increasing n (number of C atoms in the variable component). Thus, the observation on eutectic water–PEG mixtures that T_sl rises systematically with the molar mass of PEG is not a coincidence. The different examples suggest that a systematic change in T_sl is rather typical for mixtures with a fixed component and a varied component from a homologous series. Moreover, in all investigated options, the change in T_sl is less than 3 °C between individual mixtures. This observation would not be possible with data from different sources, as e.g., found in reviews; only single sources with the same experimental method throughout, as used here, allow it (Section 2.2). Like the trend for T_sl to rise with n, the fraction of the varied component w or x has a systematic trend to decrease. The melting enthalpy Δ_slH, however, rises in several cases, and in other cases increases and decreases. As Figure 1 shows, the pure components in a homologous series already have a general trend in Δ_slH but with significant deviations. Thus, the trends seem to be typical, but occasionally with exceptions.

In summary, mixtures of a fixed component and a varied component from a homologous series typically show the trends sketched in Figure 14. The systematic trend in T_sl, in many cases differing by only a few K, makes them very promising for “adjustable” PCMs. As in the investigated examples, all Δ_slH are larger than 150 J/g, and all components are already useful as PCMs; it can be concluded that all mixtures are also useful as PCMs.

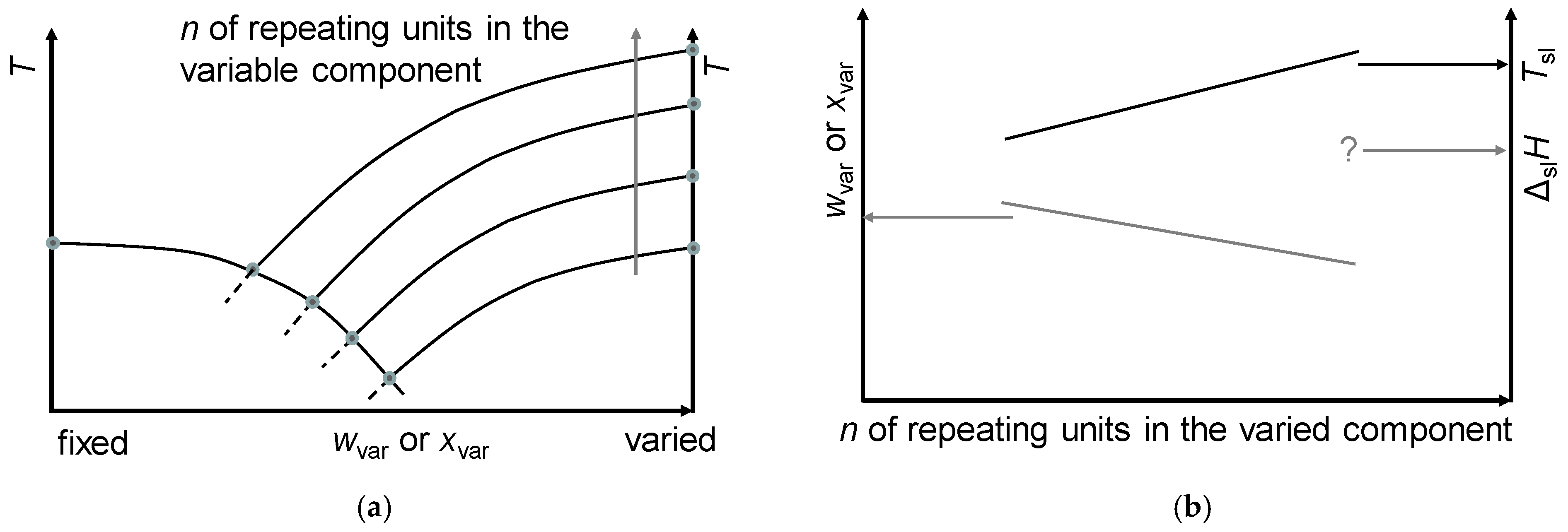

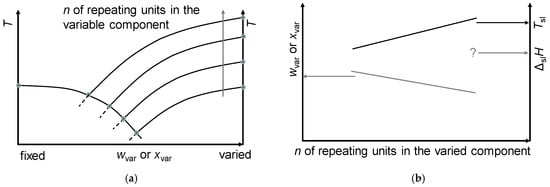

Figure 14. Systematic trends observed in eutectic mixtures with a fixed component and a varied component, where the varied component is from a homologous series with n repeating units: (a) phase diagram, and (b) crucial properties versus n.

4.3. Investigation of the Physical and Chemical Basis

The systematic trends with increasing number n of the repeating unit (Figure 14) of the melting temperature T_sl to increase, and the fraction of the variable component to decrease, are not occasional. In the cases tested, they are almost always observed (Section 3). Consequently, it must be assumed that there is a common physical and chemical basis. For the application of the trends in future R&D, specifically to select optimized materials for the components, it is essential to understand this basis.

Works that combine theoretical predictions and experimental verification connect experimental results with the physical and chemical basis of the observed systematic trends. For example, in Section 3.2 on eutectic binary mixtures of n-alkanes with n-alkanes, Więckowski et al. [18] used several theoretical models to calculate phase diagrams and compared them with experimental data. Figure 5 shows that the systematic trend in T_sl and x already exists in the predicted phase diagrams. It is thus straightforward to analyze the theoretical models to find the basis of the trends. As a mixture, the simplest case is a binary eutectic system with both components completely miscible in the liquid and immiscible in the solid with no compound formation. For an ideal system (ideal solubility), the liquidus curves in a temperature-composition phase diagram (Figure 14) can, e.g., be determined by the Schröder–van Laar equation (Kahwaji and White [8])

$$\mathrm{l}\mathrm{n}\left(x_i\right)=-{\displaystyle \frac{{∆}_{\mathrm{s}\mathrm{l}}{H}_{\mathrm{m},i}}{R}}·\left({\displaystyle \frac{1}{T}}-{\displaystyle \frac{1}{T_{\mathrm{s}\mathrm{l},i}}}\right).$$

(1)

Here x_i is the mol fraction of the compound i at temperature T, R the gas constant (8.3145 J K⁻¹ mol⁻¹), and T_sl,i and Δ_slH_m,i the solid–liquid phase change temperature and molar enthalpy of the pure compound i. Reorganizing Equation (1) gives

$$\mathrm{l}\mathrm{n}\left(x_i\right)·{\displaystyle \frac{R}{{∆}_{\mathrm{s}\mathrm{l}}{H}_{\mathrm{m},i}}}={\displaystyle \frac{1}{T_{\mathrm{s}\mathrm{l},i}}}-{\displaystyle \frac{1}{T}}$$

(2)

For a pure compound x_i = 1, ln(1) = 0, and for the temperature of the liquidus curve T holds T = T_sl,i. Mixing with another substance results in x_i < 1, ln(x_i) < 0, and therefore T < T_sl,i. Accordingly, in a phase diagram, the temperatures of liquidus curves decrease inwards. The eutectic is located where both liquidus curves meet. If one component is varied such that its pure substance T_sl is higher (Figure 14), then its liquidus curve moves to higher T, and consequently T_sl of the eutectic mixture increases while the fraction of the varied component w_i or x_i decreases. The variation in a pure substance T_sl to higher values is typical for members of a homologous series (Figure 1 and Figure 2) with increasing number n of repeating units; thus, the observed trends in T_sl and x_i or w_i of the eutectic with n (Figure 14) result. The inclination of the liquidus curve of the fixed component affects the observed trends. The same holds if Δ_slH_m,i of the varied component changes with n as well. Commonly, Δ_slH_m,i rises in a homologous series with n (Figure 1), which in Equation (2) slows down the left side becoming negative, which in turn slows down T to decrease; thus, the liquidus curve becomes flatter. Consequently, an increase in Δ_slH_m,i in a homologous series with n increases the changes forming the trends (Figure 14). If Δ_slH_m,i decreases, the trends might become reversed. As Figure 1 shows, homologous series can show significant deviations from the overall typical trends. This is especially the case at small n, or between n being even or odd (Figure 1, Soodoo et al. [6], Mehling and White [5]), more precise depending on the presence of solid-solid transitions (Mehling et al. [16]). Then also, deviations in the derived trends of eutectic binary mixtures with a component from that homologous series result. However, the observed overall trends seem to be quite robust. For eutectic binary mixtures of n-alkanes with n-alkanes, Więckowski et al. [18] determined the phase diagrams for all data points in Figure 6. All phase diagrams show complex structures due to solid–solid transitions. For eutectic binary mixtures of n-alkanoic acids with n-alkanoic acids, Costa et al. [25,26] determined phase diagrams of some of the data points in Figure 8 and Figure 9, and they show somewhat complex structures due to solid–solid transitions too. Thus, the identified trends do not only exist in simple eutectics.

Due to the above discussion, the question arises why the existence of general systematic trends was not discovered earlier. Many researchers tested eutectic mixtures with one component fixed and the other a varied member from a homologous series as PCM, and their data show trends, as the literature used as data basis for Section 3.1, Section 3.2, Section 3.3, Section 3.4, Section 3.5, Section 3.6 and Section 3.7 shows. Królikowski et al. [27], who systematically studied eutectic mixtures of two ionic liquids ([(i-Quin)₂C₆][2Br] and [(i-Quin)₂C₁₀][2Br]) with members of the homologous series of the n-alkanediols (1,6-hexanediol, 1,8-octanediol, 1,10-decanediol, or 1,12-dodecanediol), even mention a systematic trend in T_sl of the eutectic to rise with n, the number of C atoms in the n-alkanediols. However, neither the data of the fraction x of the n-alkanediol nor the data of the eutectic Δ_slH show a continuous trend. As the collected literature shows, in general the focus was on the development of new PCM, to have more options of T_sl if selecting a PCM, and the improvement of theoretical models to predict properties of eutectic mixtures and whole phase diagrams. Despite the fact that data showing trends are available, the crucial question if trends are typical for such eutectic mixtures has not yet been discussed. Especially, an analysis of a broader range of options of such eutectic mixtures, with one component fixed and the other a varying member from a homologous series, which is critical to see if trends are typical or not, was not conducted before.

5. Conclusions

5.1. Applications of Systematic Trends

It is necessary to stress the importance of the findings for PCM development and selection again. That eutectic mixtures with one component fixed and the other a varying member from a homologous series have typical systematic trends in T_sl and w or x has two crucial consequences:

• Regarding PCM selection, the use of eutectic mixtures with one component fixed and the other a varying member from a homologous series allows us to vary and adjust T_sl, due to the discovered systematic trends, while other properties stay rather constant. The latter is the crucial difference to other mixtures. For example, for pure n-alkanes, microencapsulation is an established process, widely used for thermal management in clothes, and composites with graphite are used for thermal management, e.g., of batteries. In both cases, the compatibility of the materials and processes used with pure n-alkanes is established, and consequently also for eutectic mixtures of them. To adjust T_sl to an application, pure n-alkanes or eutectic mixtures of them are thus the primary choice. While pure n-alkanes, however, have limited choice of T_sl, e.g., between 0 °C and 10 °C only 5.9 °C and 10 °C (Figure 1), and thus can only be used to “adjust” T_sl in larger steps, their eutectic mixtures already with n = 14 as a fixed basis offer 2.8 °C, 4.1 °C, and 5.4 °C (Figure 6), thus allowing us to “adjust” in T_sl small steps. This could be an interesting option, e.g., when incorporating PCMs into clothes or building walls, as in these applications small adjustments of T_sl to specific use cases are required.
  The literature data covering all possible eutectic mixtures does not exist; thus, awareness of their existence is insufficient. Here, the variation by systematic trends helps too.

2.

Regarding PCM development, a systematic trend in T_sl and in the fraction w or x of eutectics (Figure 14) allows us to predict probable T_sl and w or x of new eutectics from a few known ones. For example, knowing T_sl for mixtures of n-alkane n = 14 with n = 17, 19, and 21 (Figure 6), it is likely that mixtures with other odd n outside that n range have higher T_sl for higher n, and lower T_sl for lower n, or to fill gaps with regard to n. This can be performed as well by theoretical models. Theoretical models work for any mixture, can even predict what can be mixed, the phase diagram which allows to assess the phase change behavior, even if a eutectic exists at all. However, specifically regarding T_sl, the trends seem to be more precise than some models. Even more, theoretical models require at least knowledge of T_sl and Δ_slH of the components, thus literature data or own measurements. However, if a component decomposes before melting, these data cannot be determined at all.

5.2. Future R&D

Based on the previous discussion, future R&D can be split up into three areas.

The first area of future R&D should be to extend the data basis for eutectic mixtures with one component fixed and the other a varying member from a homologous series. This should cover a wider variation in n in the general options already investigated here (water–PEG, and binary mixtures between n-alkanes, n-alkanols, and n-alkanoic acids), specifically identify n ranges where the trends exist, where the trend has outliers or ceases, and where no eutectics exist at all. Further on, this should also include the use of a wider variation in material classes. The results by Królikowski et al. [27] on IL-n-alkane diols (IL = Ionic Liquid) already showed the same trends, and, as the discussion in Section 4.3 showed, the trends should not be limited to any specific material classes.

The second area of future R&D should be to extend the understanding of the basis of the observed trends. Section 4.3 discussed simple binary eutectic systems where both components are in the liquid completely miscible and in the solid immiscible with no compound formation. More insight promises the study of more complex systems, and also the use of more detailed theoretical models to predict phase diagrams.

The third area of future R&D should be to study the application of the observed trends, e.g., on the application examples already discussed in Section 5.1. For this, further properties of the eutectic mixtures have to be studied, not only T_sl and Δ_slH. An example are PCM composites, e.g., testing the infiltration of a set of eutectic mixtures in a given graphite matrix.

Finally, if the trends are observed in general, as is expected from the results and discussion here, it could also be worth discussing whether the term “homologous” should be used in the future in a wider sense, including mixtures.
