Hybrid Frequency–Temporal Modeling with Transformer for Long-Term Satellite Telemetry Prediction

Abstract

Reliable forecasting of satellite telemetry is critical for spacecraft health management and mission planning. However, conventional data-driven methods often struggle to effectively capture both the long-term dependencies and local dynamics inherent in telemetry data. To tackle these challenges, we introduce FFT1D-Dual, a hybrid Transformer framework that unifies frequency-domain and temporal-domain modeling, effectively capturing both long-term dependencies and local features in telemetry data to enable more accurate satellite forecasting. The encoder replaces computationally expensive self-attention with a novel Dual-Path Mixer encoder that combines one-dimensional Fast Fourier Transform (FFT) and temporal convolutions, adaptively fused via a learnable channel-wise gating mechanism. A standard attention-based decoder with dynamic positional encodings preserves temporal reasoning capability. Experiments on real-world satellite telemetry datasets demonstrate that FFT1D-Dual mostly outperforms baselines across both short- and long-term horizons across three representative telemetry variables while maintaining consistently lower error growth in long-horizon predictions. Ablation studies confirm that the combination of frequency-domain modeling and dual-path fusion jointly contributes to these gains. The proposed approach provides an efficient solution for accurate long-term forecasting in complex satellite telemetry scenarios.

1. Introduction

With the increasing complexity of space missions, accurate and timely forecasting of satellite telemetry has become a critical prerequisite for on-board system monitoring, fault prevention, and autonomous decision-making [1]. Telemetry signals are collected from multiple subsystems such as power distribution, thermal control, and sensor feedback, and exhibit highly diverse temporal dynamics characterized by non-stationary trends, abrupt transitions, and pronounced long-term dependencies [2]. Among these properties, effectively modeling long-term dependencies remains the most challenging task: on the one hand, telemetry data often span extremely long time scales, where crucial state evolutions occur sparsely and in subtle positions across sequences; on the other hand, local perturbations and noise can amplify prediction errors and accumulate over time, making it difficult for models to maintain stable accuracy across long forecasting horizons [3,4]. Consequently, the ability to capture and leverage long-range dependency structures efficiently has become a central challenge in satellite time series forecasting research.

In the field of satellite telemetry time series forecasting, Recurrent Neural Network (RNN)-based methods remain mainstream. For instance, Neto et al. (2025) proposed integrating GAN and BiLSTM for multidimensional telemetry forecasting in the context of digital twins [5]. Lin and Junyu (2025) applied LSTM networks for satellite orbit prediction based on Two-Line Element data [6]. Guo et al. (2025) proposed the BiLSTM-TS model for medium-orbit satellite orbit prediction [7]. Kricheff et al. (2024) applied explainable methods to LSTM and a hybrid IF-CBLOF model for anomaly detection in satellite telemetry data [8]. Xu et al. (2024) proposed a hybrid Monte Carlo quantile EMD-LSTM method for satellite in-orbit temperature prediction and uncertainty quantification [9]. Knap et al. (2024) used a LSTM network to predict solar power for controlling charging current and extending battery life in CubeSats [10]. Peng et al. (2024) proposed an Attention-BiLSTM model leveraging telemetry correlations for accurate satellite operation predictions [11]. Xu et al. (2023) developed a multivariate anomaly detector for satellite telemetry using a temporal attention-based LSTM autoencoder [12]. Wang et al. (2022) proposed a deep learning framework for satellite telemetry anomaly detection using synthetic anomalies [13]. Zeng et al. (2022) proposed an anomaly detection method for satellite telemetry using a causal network and feature-attention-based LSTM [14]. Yang et al. (2021) developed an improved deep learning approach for telemetry anomaly detection to enhance spacecraft operation reliability [15]. Tao et al. (2021) proposed a GRU-GARCH and MD hybrid method for long-term satellite degradation prediction using heteroscedastic telemetry data [16].

In addition to RNN-based models, Convolutional Neural Network (CNN)-based methods have also been explored for satellite telemetry prediction and anomaly detection. Gallon et al. (2025) proposed a multi-channel CNN for detecting and isolating “stuck” sensor values in accelerometers and IMUs of SSSB exploration spacecraft [17]. Tang et al. (2024) introduced an unsupervised anomaly detection framework combining Graph Attention Networks (GATs) and TCNs for continuous monitoring of ACS telemetry [18]. Zeng et al. (2022) proposed a Causal Multivariate Temporal Convolutional Network (CMTCN), which first constructs a causal graph using Anomalous Transfer Entropy (ATE) and then applies a multi-feature Temporal Convolutional Network (TCN) for data prediction [19].

Traditional forecasting methods, including RNNs (e.g., GRU and LSTM) and temporal CNNs, often struggle with long-term accuracy: RNNs can capture short-term dependencies but suffer from vanishing gradients and error accumulation over long horizons, while temporal CNNs efficiently model local patterns but have limited receptive fields for long-range dependencies [20,21].

Recently, Transformer-based models have demonstrated strong performance on time series forecasting tasks, owing to their parallelism and long-range attention [22,23,24,25]. Qiao et al. (2025) proposed TEMPO, a time-evolving multi-period method for anomaly detection in space probe data [26]. Song et al. (2025) applied a Transformer-based model for time series forecasting of telemetry data in spacecraft environmental control and life support systems [27]. Park and Yun (2025) proposed a data-driven method for estimating battery degradation in low-Earth-orbit satellites [28]. Gao et al. (2025) proposed a lightweight Transformer enhanced with FastDTW for fault warning in satellite momentum wheels [29]. Zhao et al. (2024) developed an advanced Transformer architecture for early anomaly detection in non-stationary satellite telemetry data [30]. Lan et al. (2024) proposed a fault prediction method for satellite rotating mechanisms using SSA and an improved Informer model [31].

However, Transformer models suffer from a computational cost that scales quadratically with sequence length. This scaling issue not only increases memory consumption and training time but also limits their practicality when handling large-scale telemetry datasets, where both efficiency and responsiveness are critical [32].

To address these limitations, we introduce FFT1D-Dual, a novel Transformer architecture that fuses frequency-domain modeling and temporal-domain convolution within a dual-path encoder. Our design departs from the conventional reliance on self-attention in the encoder by leveraging a 1D Fast Fourier Transform (FFT) to capture periodic and global structures, and a 1D convolution to model local variations. These two representations are adaptively fused through a channel-wise gating mechanism, enabling the model to learn modality preference per feature. The decoder follows a standard Transformer configuration, augmented with learnable dynamic positional encodings to enhance temporal sensitivity. Our contributions are threefold:

• We propose a new Transformer architecture with a frequency-aware hybrid encoder, eliminating attention from the encoder and enabling efficient modeling of both global periodicity and local transitions.
• We introduce a Dual-Path Mixer with a channel-wise fusion gate, allowing adaptive time–frequency fusion at the feature-channel granularity.
• We conduct extensive experiments on real satellite telemetry data, demonstrating significant improvements over baseline models in terms of forecasting accuracy, stability, and scalability, especially on long-term horizons.

2. Methods

2.1. Method Overview

2.1.1. Data Processing

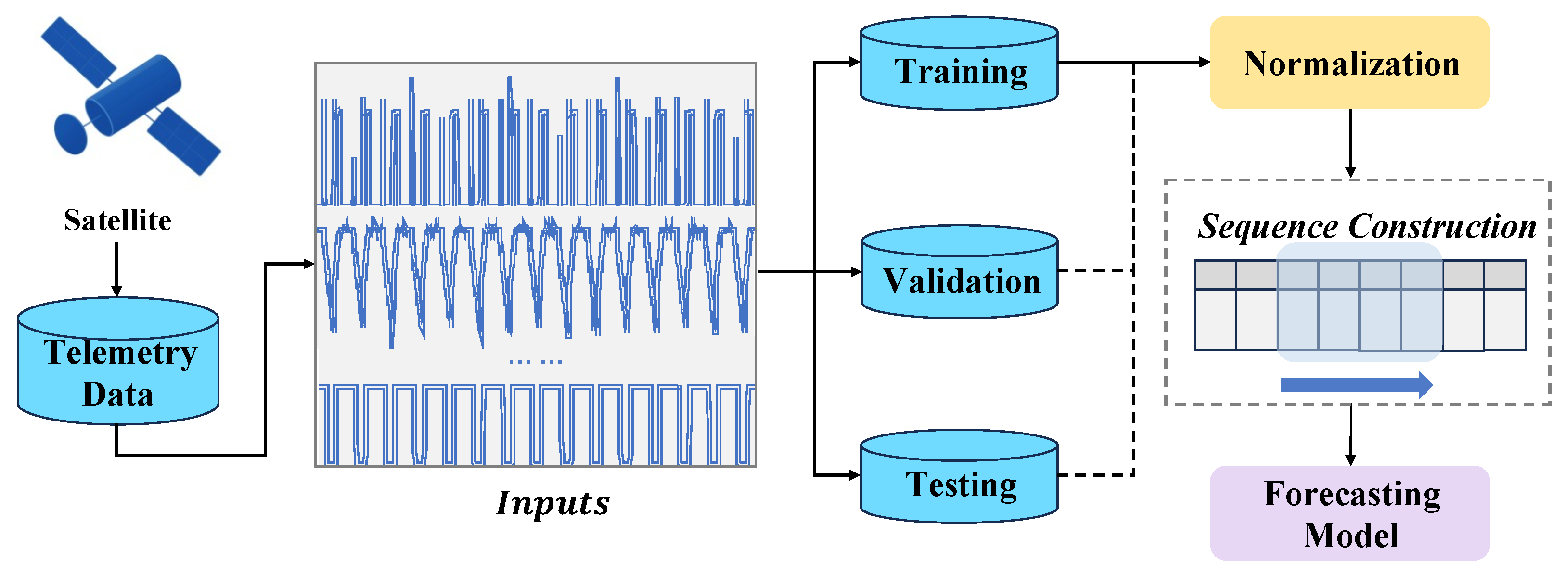

We propose a time series forecasting framework specifically designed for satellite telemetry data as shown in Figure 1, comprising two main components: data preprocessing and the prediction model. In our case, we use delayed telemetry from the EP satellite power subsystem, sampled every 30 s, which includes 69 multivariate features from various subsystems, including power system diagnostics (e.g., bus voltages and battery currents), component-specific telemetry (e.g., sensor voltages), and thermal control indicators (e.g., internal temperatures). A representative summary is provided in

Table 1. Representative summary of dataset parameters.

Parameter	Type	Unit	Description
TMD01	Integer	Counts	Total count of telemetry request commands (CAN bus)
TMD07	Float	V	Voltage of the 42 V main power bus
TMD08	Float	V	Voltage of the 30 V power bus
TMD09	Float	V	Total voltage of the battery pack
TMD11	Float	V	Voltage of BEA (specific module/component)
TMD12	Float	V	Voltage of the 1st lithium-ion cell in the pack
TMD21	Float	V	Voltage measured across the 1st shunt
TMD37	Float	V	Output of charge voltage setpoint (charging module)
TMD52	Float	A	Total load current of the 42 V bus
TMD54	Float	A	Battery charging current
TMD55	Float	A	Battery discharging current
TMD56	Float	A	Output current of the S4R1 solar array
TMD59	Float	A	Output current of BDR (module 1)
TMD69	Float	°C	Internal temperature of the power controller
TMD74	Float	°C	Temperature from the 5th battery-pack sensor

.

The raw telemetry data are reorganized according to feature type, where either a single target variable (S), multiple variables (M), or multiple-to-single mapping (MS) is considered. Let the dataset be denoted as

$$\mathcal{D}={\left\{(x_t,y_t,{\tau }_t)\right\}}_{t=1}^T,$$

(1)

where $x_t\in {\mathbb{R}}^d$ represents the multivariate features at time t, $y_t\in \mathbb{R}$ is the target variable, and ${\tau }_t$ denotes the timestamp. The telemetry data are first processed through a standard preprocessing pipeline. The dataset is then partitioned chronologically into training, validation, and test subsets with proportions of 0.7:0.1:0.2:

$$\mathcal{D}={\mathcal{D}}_{\mathrm{train}}\cup {\mathcal{D}}_{\mathrm{val}}\cup {\mathcal{D}}_{\mathrm{test}},|{\mathcal{D}}_{\mathrm{train}}|:|{\mathcal{D}}_{\mathrm{val}}|:|{\mathcal{D}}_{\mathrm{test}}|=7:1:2.$$

(2)

For each feature dimension $j\in \{1,\dots ,d\}$, the mean and variance are computed on the training set:

$${\mu }_j={\displaystyle \frac{1}{|{\mathcal{D}}_{\mathrm{train}}|}}\sum _{(x,y,\tau )\in {\mathcal{D}}_{\mathrm{train}}}{x}^{\left(j\right)},{\sigma }_j^2={\displaystyle \frac{1}{|{\mathcal{D}}_{\mathrm{train}}|}}\sum _{(x,y,\tau )\in {\mathcal{D}}_{\mathrm{train}}}{\left(x^{\left(j\right)}-{\mu }_j\right)}^2.$$

(3)

All features are standardized as

$$z_t^{\left(j\right)}={\displaystyle \frac{x_t^{\left(j\right)}-{\mu }_j}{{\sigma }_j}}.$$

(4)

Using a sliding-window mechanism, each training instance consists of the following:

Input sequence:

$$X=(x_t,x_{t+1},\dots ,x_{t+L-1}),X\in {\mathbb{R}}^{L\times d},$$

(5)

where L is the input length.

Output sequence:

$$Y=(y_{t+L},\dots ,y_{t+L+H-1}),Y\in {\mathbb{R}}^H,$$

(6)

where H is the forecasting horizon.

Thus, the dataset for model training can be expressed as

$$\mathcal{S}={\left\{(X_i,Y_i,{\tau }_i)\right\}}_{i=1}^N.$$

(7)

Timestamps ${\tau }_t$ are preserved as auxiliary covariates and extrapolated for future steps under the assumption of a uniform sampling interval $\Delta \tau$.

2.1.2. Model Architecture

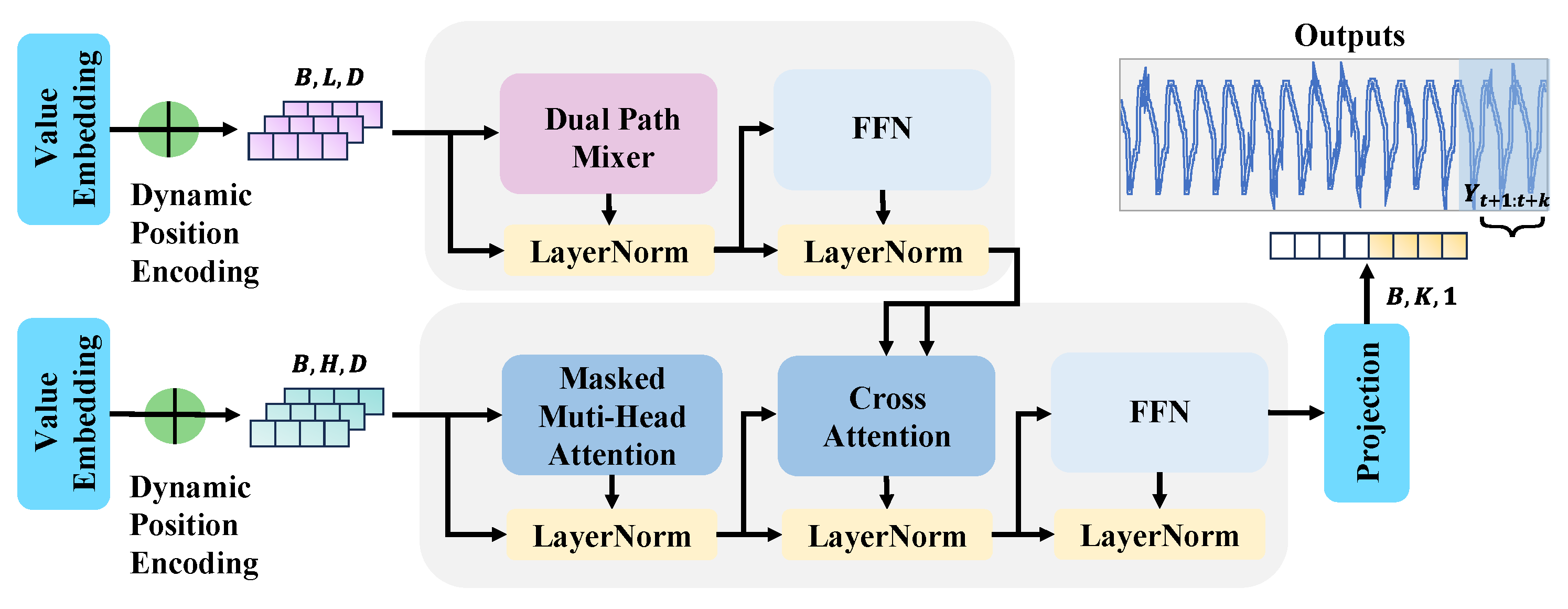

The proposed FFT1D-Dual, a hybrid forecasting framework that integrates frequency-domain modeling with attention mechanisms. The architecture consists of three major components: (i) a Dual-Path Mixer (DPM)-based encoder combining Fourier and convolutional operations; (ii) a standard Transformer-based decoder; (iii) a learnable dynamic positional encoding module. As illustrated in Figure 2, the encoder leverages the proposed DPM to jointly capture temporal and frequency-domain dependencies, effectively reducing the reliance on traditional self-attention layers.

Given a multivariate time series

$$X=(x_t,x_{t+1},\dots ,x_{t+L-1}),X\in {\mathbb{R}}^{L\times d},$$

where L is the input length and d is the feature dimension, the corresponding target sequence is defined as

$$Y=(y_{t+L},\dots ,y_{t+L+H-1}),Y\in {\mathbb{R}}^H,$$

The input sequence X is first projected into a hidden space of dimension D:

$$\tilde{X}=\mathrm{Linear}\left(X\right)+P,\tilde{X}\in {\mathbb{R}}^{B\times L\times D},$$

where B denotes the batch size and P is the learnable dynamic positional encoding.

The encoder applies a Dual-Path Mixer to capture temporal and spectral dependencies. Formally, for each hidden representation $\tilde{X}$, we compute

$$F=\mathcal{F}\left(\tilde{X}\right),{\widehat{X}}_f={\varphi }_f\left(F\right),$$

where $\mathcal{F}$ denotes the one-dimensional Fourier Transform, and ${\varphi }_f$ is a frequency-domain filter. Meanwhile, a temporal convolutional operation is applied:

$${\widehat{X}}_t={\varphi }_t\left(\tilde{X}\right),$$

where ${\varphi }_t$ represents a depthwise convolution capturing local temporal patterns. The outputs are fused as

$$Z=\alpha ·{\widehat{X}}_f+(1-\alpha )·{\widehat{X}}_t,$$

where $\alpha$ is a learnable gating parameter. This design allows the encoder to capture both global periodicity (via ${\widehat{X}}_f$) and local variations (via ${\widehat{X}}_t$).

The decoder follows the standard attention-based design. Given the encoder representation Z and the autoregressively masked target embedding $\tilde{Y}\in {\mathbb{R}}^{B\times H\times D}$, the decoder applies multi-head attention:

$$\mathrm{DecOut}=\mathrm{TransformerDecoder}(\tilde{Y},Z).$$

Finally, the prediction is obtained by projecting into the target space:

$$\widehat{Y}=W_o·\mathrm{DecOut}+b_o,\widehat{Y}\in {\mathbb{R}}^{B\times H}.$$

The model generates predictions of horizon length H, i.e.,

$$\widehat{Y}=({\widehat{y}}_{t+L},{\widehat{y}}_{t+L+1},\dots ,{\widehat{y}}_{t+L+H-1}),$$

which correspond to the forecasted values of the target variable.

The proposed method offers several advantages: (1) Efficiency: The encoder eliminates quadratic self-attention, reducing computational cost. (2) Adaptability: Dual-path fusion enables dynamic learning of both spectral and temporal patterns. (3) Long-term forecasting capability: Frequency-domain modeling captures periodicity and long-range dependencies, making FFT1D-Dual especially effective for mid- to long-term forecasting tasks.

2.2. DPM-Based Encoder

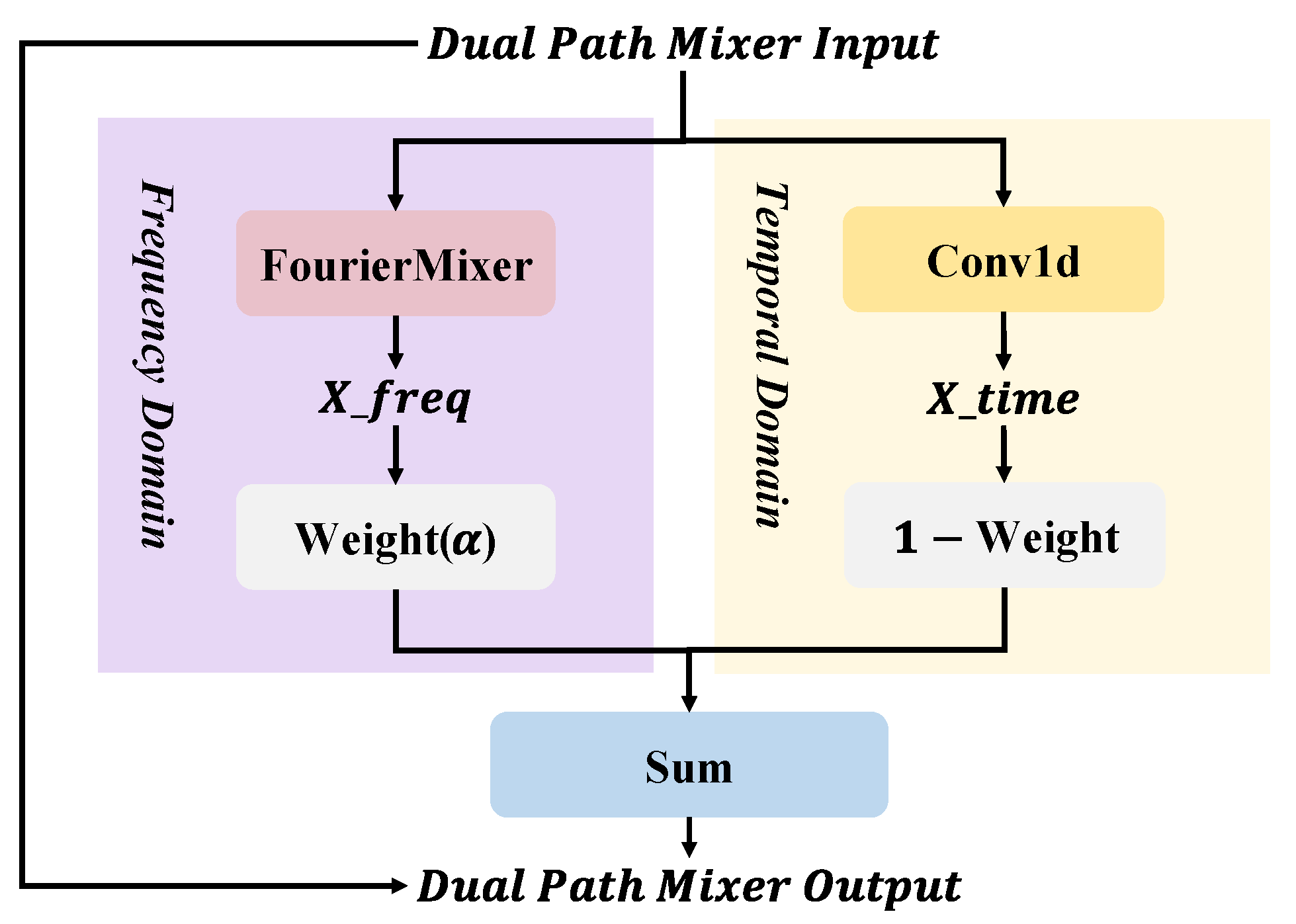

To effectively integrate both local and global patterns in sequential data, we propose a Dual-Path Mixer(DPM), as illustrated in Figure 3. The module consists of four main components: (1) a frequency-domain path based on the Fourier transform; (2) a temporal convolution path; (3) a channel-wise gating mechanism for adaptive fusion; (4) residual connections with feedforward layers to enhance stability and nonlinear modeling capacity.

2.2.1. Parallel Frequency and Temporal Paths

Given an input sequence

$$X\in {\mathbb{R}}^{B\times L\times D},$$

where B is the batch size, L the sequence length, and D the feature dimension; the data is processed in parallel along two paths:

Frequency path:

$$X_{\mathrm{freq}}=\mathrm{FourierMixer}\left(X\right),X_{\mathrm{freq}}\in {\mathbb{R}}^{B\times L\times D},$$

(8)

where the FourierMixer applies a Fast Fourier Transform (FFT) along the temporal axis and a learnable complex-valued projection to extract spectral representations.

Temporal path:

$$X_{\mathrm{time}}=\mathrm{Conv}1\mathrm{D}\left(X\right),X_{\mathrm{time}}\in {\mathbb{R}}^{B\times L\times D},$$

(9)

where a one-dimensional convolution captures local temporal dependencies.

2.2.2. Channel-Wise Gating Fusion

Rather than applying a uniform fusion strategy, we introduce a channel-wise gating mechanism that adaptively balances the contribution from frequency and temporal features. Specifically, a learnable parameter vector

$$\alpha \in {\mathbb{R}}^D$$

is applied channel-wise and passed through a sigmoid activation:

$$w=\sigma \left(\alpha \right),w\in {(0,1)}^D.$$

(10)

The fused representation is then computed element-wise as

$$X_{\mathrm{fused}}[:,:,d]=w_d·X_{\mathrm{freq}}[:,:,d]+(1-w_d)·X_{\mathrm{time}}[:,:,d],d=1,\dots ,D.$$

(11)

This formulation enables each feature channel to independently adjust its reliance on frequency-domain information (e.g., periodic or global patterns) versus temporal-domain information (e.g., local transitions or abrupt changes).

2.2.3. Residual Enhancement

To promote gradient flow and stabilize training, we employ a residual connection:

$$Y=X_{\mathrm{fused}}+X,$$

(12)

where $Y\in {\mathbb{R}}^{B\times L\times D}$ serves as the output of the fusion module.

2.2.4. Advantages

Compared to fixed or globally shared fusion strategies, the proposed channel-wise fusion provides fine-grained adaptability across heterogeneous time series channels. This improves representational flexibility and allows the model to dynamically adjust to diverse temporal dynamics. Moreover, the learned gating weights w offer interpretable insights into the relative importance of spectral versus temporal information, which is particularly valuable in applications such as satellite telemetry forecasting and multivariate time series modeling.

2.3. Fourier Mixer Module

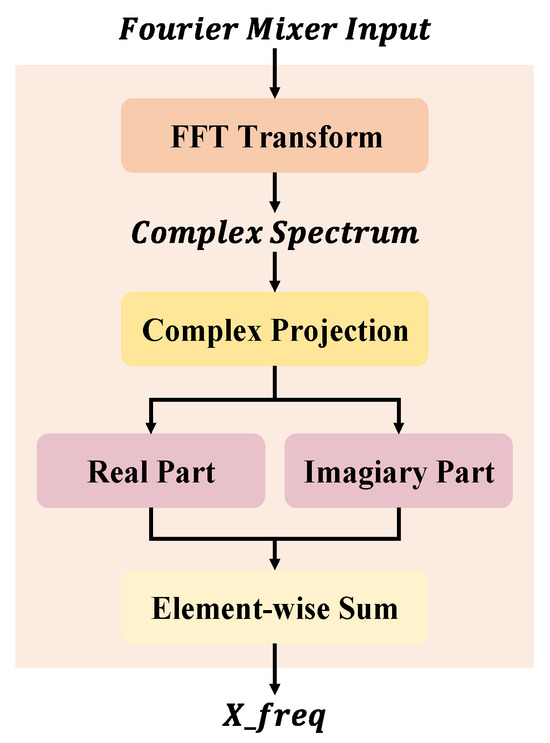

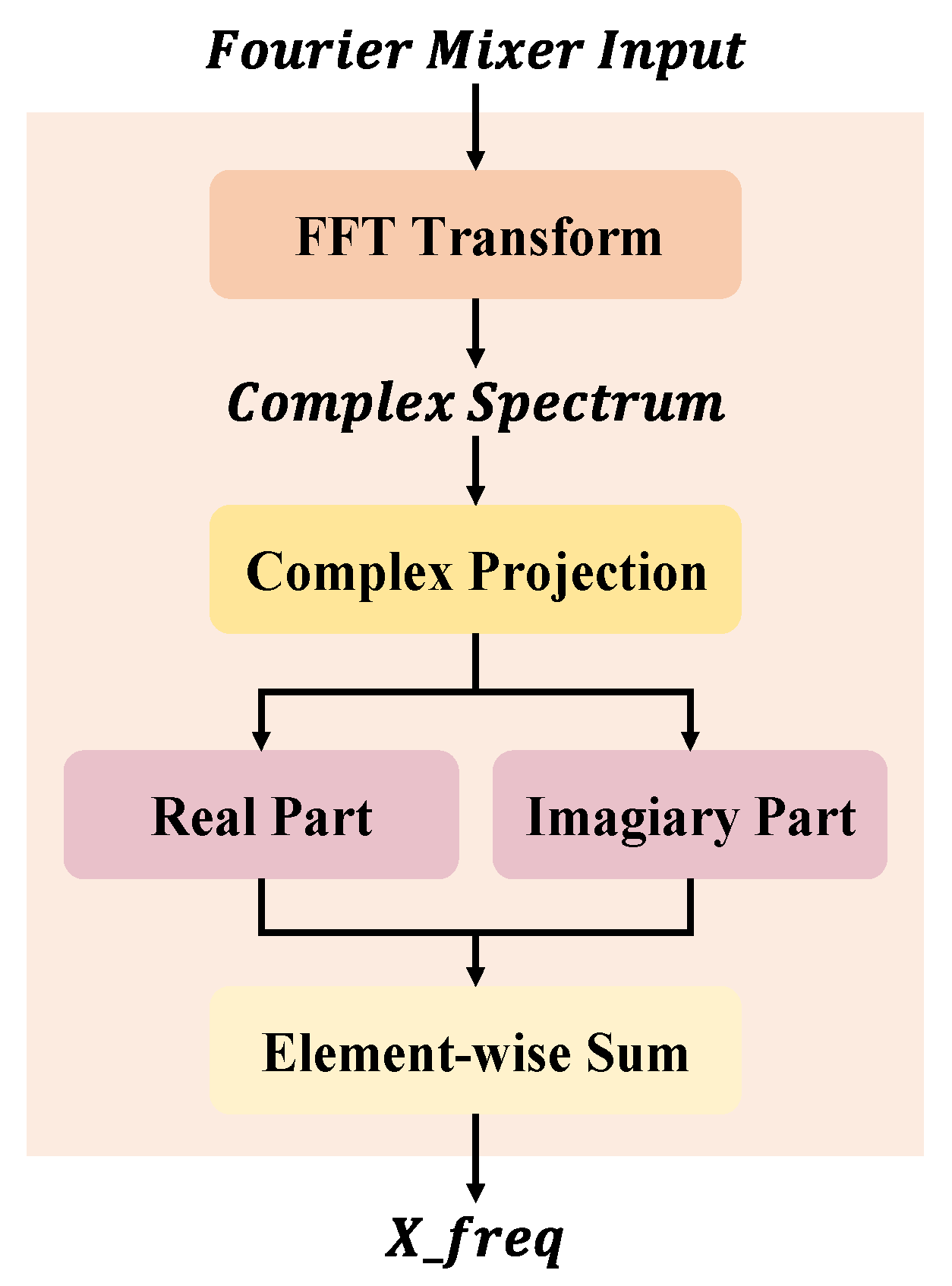

The proposed Fourier Mixer Module (FMM), illustrated in Figure 4, serves as the core component for the frequency-domain path within the Dual-Path Mixer (Section 2.2). It introduces a one-dimensional Fast Fourier Transform to efficiently capture spectral representations. This module focuses solely on the frequency-domain transformation. Its output is subsequently sent to the channel-wise gating mechanism of the Dual-Path Mixer (Section 2.2) for fusion with the temporal path.

2.3.1. Fourier Transform Path

Given an input sequence

$$x\in {\mathbb{R}}^{B\times L\times D},$$

where B denotes the batch size, L the sequence length, and D the feature dimension, a one-dimensional Fourier transform is applied along the temporal axis:

$$X_{\mathrm{fft}}={\mathcal{F}}_t\left(x\right)=\mathrm{FFT}(x,\dim =1),X_{\mathrm{fft}}\in {\mathbb{C}}^{B\times L\times D}.$$

(13)

This produces a complex-valued representation encoding frequency components of the input signal. To fully utilize both the real and imaginary parts, we introduce a complex projection mechanism, which applies independent linear projections:

$$\begin{array}{cc}\hfill \mathrm{Real}& =W_r·\Re \left(X_{\mathrm{fft}}\right),\hfill \end{array}$$

(14)

$$\begin{array}{cc}\hfill \mathrm{Imag}& =W_i·\Im \left(X_{\mathrm{fft}}\right),\hfill \end{array}$$

(15)

where $W_r,W_i\in {\mathbb{R}}^{D\times D}$ are learnable projection matrices. The frequency-domain representation is then reconstructed as

$$X_{\mathrm{out}}=\mathrm{Real}+\mathrm{Imag},X_{\mathrm{out}}\in {\mathbb{R}}^{B\times L\times D}.$$

(16)

This learnable complex-domain projection enables flexible transformations of spectral features, enhancing the model’s capacity to capture long-term periodicity and non-stationary dynamics.

2.3.2. Temporal Convolution Path and Fusion

In parallel, a temporal convolution path is applied:

$$X_{\mathrm{time}}=\mathrm{Conv}1\mathrm{D}\left(x\right).$$

(17)

The outputs of the frequency and temporal paths are fused using the channel-wise gating mechanism (see Equation (11)), producing the final representation $X_{\mathrm{fused}}$.

2.3.3. Complexity Analysis and Advantages

Unlike conventional convolutional or attention-based mechanisms, the Fourier Mixer operates in the frequency domain with a computational complexity of

$$\mathcal{O}(LlogL),$$

which is significantly more efficient than self-attention $\mathcal{O}\left(L^2\right)$ for long sequences. Moreover, frequency-domain modeling inherently provides stronger global representation capacity by capturing periodic structures and long-range dependencies. This makes the Fourier Mixer Module both computationally efficient and highly effective for long-term forecasting tasks, while maintaining stability and spectral fidelity.

2.4. Decoder and Attention Mechanisms

In contrast to the encoder, which eliminates self-attention, the decoder retains the standard Transformer-style attention architecture to preserve strong temporal reasoning capability. Each decoder layer consists of three sub-blocks: self-attention, cross-attention, and a feedforward network (FFN), with residual connections and normalization applied to enhance stability.

The core operation is the Scaled Dot-Product Attention, defined as

$$\mathrm{Attention}(Q,K,V)=\mathrm{Softmax}\left({\displaystyle \frac{Q{K}^{\top }}{\sqrt{d_k}}}\right)V,$$

(18)

where $Q,K,V\in {\mathbb{R}}^{B\times L\times d_k}$ denote query, key, and value matrices, and $d_k$ is the key dimension. This mechanism enables the decoder to model temporal dependencies while preventing information leakage via causal masking in the self-attention block, and to align predictions with encoder outputs via cross-attention.

To further enrich representational capacity, we employ Multi-Head Attention, which projects $Q,K,V$ into h subspaces and performs attention in parallel:

$$\begin{array}{cc}\hfill {\mathrm{head}}_i& =\mathrm{Attention}(Q{W}_i^Q,K{W}_i^K,V{W}_i^V),\hfill \end{array}$$

(19)

$$\begin{array}{cc}\hfill \mathrm{MHA}(Q,K,V)& =\mathrm{Concat}({\mathrm{head}}_1,\dots ,{\mathrm{head}}_h)W^O.\hfill \end{array}$$

(20)

Finally, the decoder output $X_{\mathrm{dec}}\in {\mathbb{R}}^{B\times K\times D}$ is projected to the forecasting target dimension through a linear mapping:

$$\widehat{Y}=\mathrm{Linear}\left(X_{\mathrm{dec}}\right)\in {\mathbb{R}}^{B\times K\times 1},$$

(21)

where K is the prediction horizon. This projection aligns the learned high-dimensional representations with the target variable space, producing the final forecasting results.

Overall, by retaining attention mechanisms in the decoder, the model preserves strong expressive power to capture complex temporal dependencies and align encoder representations with forecasting tasks.

2.5. Dynamic Positional Encoding

To effectively incorporate temporal order into the model, we introduce a Dynamic Positional Encoding (DPE) module. Given the input sequence

$$X\in {\mathbb{R}}^{B\times L\times d_{\mathrm{model}}},$$

we define a learnable positional embedding matrix

$$P\in {\mathbb{R}}^{1\times L_{max}\times d_{\mathrm{model}}},$$

where $L_{max}$ is the maximum sequence length and $d_{\mathrm{model}}$ is the hidden dimension.

Unlike fixed sinusoidal encodings, DPE introduces a learnable channel-wise scaling vector

$$\gamma ={[{\gamma }_1,{\gamma }_2,\dots ,{\gamma }_d]}^{\top }\in {\mathbb{R}}^d,{\gamma }_i\in [0,1],$$

which adaptively controls the contribution of each positional channel. The dynamic positional embedding is computed as

$${\tilde{P}}_{(:,t,i)}=P_{(:,t,i)}·{\gamma }_i,\mathrm{for}t=1,\dots ,L,i=1,\dots ,d.$$

(22)

Finally, the encoded input is obtained by combining token representations with the dynamic positional embeddings:

$$X_{\mathrm{enc}}=X+\tilde{P}.$$

(23)

This design allows the model to dynamically adjust the relative importance of positional information across different feature channels, enabling better adaptation to diverse temporal dynamics compared to fixed or fully learnable positional embeddings.

3. Results

3.1. Dataset Description

The dataset employed in this study consists of delayed telemetry data collected from the EP satellite over a continuous 24 h period in January. The raw telemetry was sampled at 1 s intervals, resulting in $\mathrm{86,400}$ records. To mitigate redundancy and improve modeling efficiency, we downsampled the data to a 30 s interval, yielding

$$N={\displaystyle \frac{\mathrm{86,400}}{30}}=2880$$

time steps.

The dataset contains 69 multivariate features encompassing various satellite subsystems, including the following:

• Power system diagnostics: multiple bus voltages, battery voltages, and current readings;
• Component-specific telemetry: sensor voltages (e.g., star sensor, gyroscope);
• Thermal control indicators: internal temperatures from distributed sensors.

This heterogeneous dataset presents significant challenges due to its temporal complexity, non-stationary behavior, and the diversity of subsystem signals.

Table 1 provides a representative summary of selected variables, including their names, units, and subsystem categories. This facilitates interpretation by linking raw telemetry parameters to their physical meaning in satellite operation.

3.2. Experimental Settings

To evaluate the effectiveness of the proposed FFT1D-Dual model, we conduct a series of multivariate time series forecasting experiments on satellite telemetry data. The forecasting task is formulated under a multivariate-to-univariate (MS) setup, where all 69 features are used as input, while a single target variable is predicted. Specifically, three representative telemetry parameters—TMD11, TMD12 and TMD74—are selected as forecasting targets.

3.2.1. Model Configuration

The architectural configuration of FFT1D-Dual is summarized in

Table 2. Model configuration and training settings.

Category	Configuration
Model Architecture
Encoder input dimension	69
Decoder input dimension	69
Output dimension	1
Model dimension ($d_{model}$)	512
Feedforward dimension ($d_{ff}$)	2048
Encoder layers	2
Decoder layers	1
Attention heads	4
Attention type	Full (scaled dot-product)
Dropout rate	0.03
Activation function	GELU
Distillation	Disabled
Dynamic positional encoding	Enabled
Training Hyperparameters
Batch size	32
Learning rate	$3\times {10}^{-4}$
Loss function	MAE
Learning rate adjustment	Type-1 scheduler
Training epochs	50
Patience (early stopping)	3
Precision	FP32 (AMP disabled)
Optimizer workers	0 (single-threaded dataloader)
Prediction Settings
Prediction length ($L_{pred}$)	1–100
Label length ($L_{label}$)	$=L_{pred}$
Input length ($L_{input}$)	$=2\times L_{pred}$

. The encoder employs a frequency-enhanced Dual-Path Mixer in place of the standard self-attention mechanism, while the decoder retains the Transformer architecture with scaled dot-product attention and a multi-head design. Both encoder and decoder adopt dynamically learnable positional encodings.

3.2.2. Sequence Setup

To evaluate performance across different forecasting horizons, we configure dynamic prediction settings with the prediction length $L_{\mathrm{pred}}$ varying from 1 to 100 (step size $=1$). For each prediction step, the decoder label length is set equal to the prediction length:

$$L_{\mathrm{label}}=L_{\mathrm{pred}},$$

and the input sequence length is set to twice the prediction length:

$$L_{\mathrm{input}}=2\times L_{\mathrm{pred}}.$$

This proportional setup ensures a consistent ratio of historical context to prediction target across all settings, enabling fair performance comparison under different temporal spans.

3.2.3. Evaluation Metrics

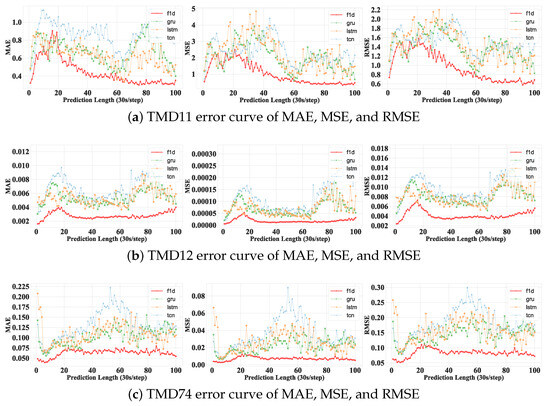

We adopt two widely used regression metrics: Mean Squared Error (MSE) and Mean Absolute Error (MAE). They are formally defined as follows:

$$\mathrm{MSE}={\displaystyle \frac{1}{n}}\sum _{i=1}^n{\left(y_i-{\widehat{y}}_i\right)}^2,\mathrm{MAE}={\displaystyle \frac{1}{n}}\sum _{i=1}^n|y_i-{\widehat{y}}_i|,$$

where $y_i$ and ${\widehat{y}}_i$ denote the ground truth and predicted values, respectively. MSE penalizes larger deviations more severely, reflecting overall prediction accuracy, while MAE provides an intuitive measure of average prediction error magnitude. These metrics are computed on the test set for each prediction horizon, with lower values indicating better forecasting performance.

While RMSE is a widely used metric, it is mathematically correlated with MSE and was omitted to avoid redundancy; MSE and MAE together could provide a complementary and sufficient assessment of prediction accuracy and error distribution.

3.2.4. Hardware and Implementation

All experiments were conducted using the PyTorch 2.1.0 deep learning framework with Python3.8.20. The detailed hardware and software configurations are summarized in

Table 3. Experimental hardware and software environment.

Category	Configuration
Framework	PyTorch 2.1.0
Language	Python 3.8.20
GPU	NVIDIA GeForce RTX 4060 Laptop GPU, 8 GB VRAM
CUDA/Driver	CUDA 12.6/NVIDIA Driver 560.94
CPU	Intel Core i7-13650HX, 14 Cores/20 Threads, 2.6 GHz
Memory	24 GB DDR5 4800 MHz
Storage	512 GB SSD
OS	Microsoft Windows 11

.

3.3. Comparison with Baselines

3.3.1. Quantitative Evaluation of Forecasting Performance

To comprehensively evaluate the effectiveness of the proposed approach, we benchmark our model against several representative baselines, including GRU, LSTM, and TCN. The comparison is conducted on three telemetry variables (TMD11, TMD12, and TMD74), with prediction horizons ranging from 1 to 100 steps. Forecasting performance is assessed using two widely adopted regression metrics: Mean Squared Error (MSE) and Mean Absolute Error (MAE).

As reported in

Table 4. Forecasting results on TMD11 with different prediction horizons.

Horizon	F1D (Proposed)		GRU		LSTM		TCN
	MSE	MAE	MSE	MAE	MSE	MAE	MSE	MAE
1	0.5589	0.3570	1.1089	0.4568	1.2602	0.4614	0.7010	0.4686
10	2.2619	0.7298	1.3630	0.6737	2.2500	0.8761	3.0238	1.1381
20	2.0615	0.7201	2.7341	0.8023	2.0022	0.6416	2.8871	1.0630
30	1.6141	0.5290	1.7556	0.5798	3.7219	0.6692	2.9599	0.9361
40	0.9151	0.4358	3.3284	0.6810	2.7973	0.6502	3.6741	0.9034
50	0.6674	0.3873	1.6462	0.6783	2.9623	0.6083	3.0700	0.8588
60	0.5788	0.3686	0.6247	0.4371	0.8159	0.3611	1.4289	0.6582
70	0.5105	0.3476	1.9781	0.6461	1.7336	0.6218	1.9826	0.7837
80	0.4882	0.3583	2.2666	0.9422	1.0332	0.5741	1.8660	0.9531
90	0.5228	0.3605	1.8598	0.7721	2.7893	0.7358	2.1879	1.0832
100	0.4706	0.3520	0.6860	0.3994	1.4760	0.5245	2.1660	0.9379

Note: Bold values indicate the best performance (lowest MSE and MAE) for each prediction horizon.

,

Table 5. Forecasting results on TMD12 with different prediction horizons.

Horizon	F1D (Proposed)		GRU		LSTM		TCN
	MSE	MAE	MSE	MAE	MSE	MAE	MSE	MAE
1	4.3 $\times {10}^{-6}$	0.0014	1.6 $\times {10}^{-5}$	0.0024	1.3 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0023	1.7 $\times {10}^{-6}$	0.0029
10	2.6 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0030	0.0001	0.0067	9.7 $\times {10}^{-5}$	0.0060	0.0001	0.0076
20	2.9 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0034	6.8 $\times {10}^{-5}$	0.0053	0.0001	0.0068	0.0001	0.0087
30	1.3 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0025	6.2 $\times {10}^{-5}$	0.0048	6.1 $\times {10}^{-5}$	0.0054	7.1 $\times {10}^{-5}$	0.0056
40	1.1 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0023	6.9 $\times {10}^{-5}$	0.0053	5.5 $\times {10}^{-5}$	0.0049	5.6 $\times {10}^{-5}$	0.0050
50	1.4 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0025	4.8 $\times {10}^{-5}$	0.0047	5.1 $\times {10}^{-5}$	0.0050	6.3 $\times {10}^{-5}$	0.0054
60	1.4 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0027	4.1 $\times {10}^{-5}$	0.0047	4.4 $\times {10}^{-5}$	0.0047	6.4 $\times {10}^{-5}$	0.0062
70	1.5 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0027	7.0 $\times {10}^{-5}$	0.0057	5.7 $\times {10}^{-5}$	0.0048	8.0 $\times {10}^{-5}$	0.0067
80	1.5 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0026	0.0001	0.0069	0.0001	0.0071	0.0002	0.0084
90	2.0 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0031	0.0001	0.0072	0.0001	0.0066	0.0003	0.0113
100	3.2 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0040	5.2 $\times {10}^{-5}$	0.0045	0.0001	0.0059	0.0003	0.0114

Note: Bold values indicate the best performance (lowest MSE and MAE) for each prediction horizon.

and

Table 6. Forecasting results on TMD74 with different prediction horizons.

Horizon	F1D (Proposed)		GRU		LSTM		TCN
	MSE	MAE	MSE	MAE	MSE	MAE	MSE	MAE
1	0.0035	0.0473	0.0075	0.0666	0.0058	0.0580	0.0070	0.0638
10	0.0044	0.0488	0.0128	0.0725	0.0114	0.0748	0.0101	0.0711
20	0.0097	0.0695	0.0141	0.0802	0.0165	0.0897	0.0233	0.1055
30	0.0094	0.0703	0.0116	0.0737	0.0255	0.0919	0.0289	0.1151
40	0.0067	0.0626	0.0203	0.0944	0.0273	0.1096	0.0379	0.1364
50	0.0075	0.0686	0.0276	0.1147	0.0411	0.1331	0.0610	0.1744
60	0.0068	0.0649	0.0247	0.1137	0.0344	0.1270	0.0518	0.1629
70	0.0064	0.0638	0.0208	0.1055	0.0201	0.1001	0.0319	0.1270
80	0.0065	0.0638	0.0266	0.1216	0.0223	0.1004	0.0260	0.1156
90	0.0064	0.0624	0.0296	0.1222	0.0161	0.0941	0.0247	0.1222
100	0.0052	0.0545	0.0240	0.1204	0.0227	0.1056	0.0312	0.1290

Note: Bold values indicate the best performance (lowest MSE and MAE) for each prediction horizon.

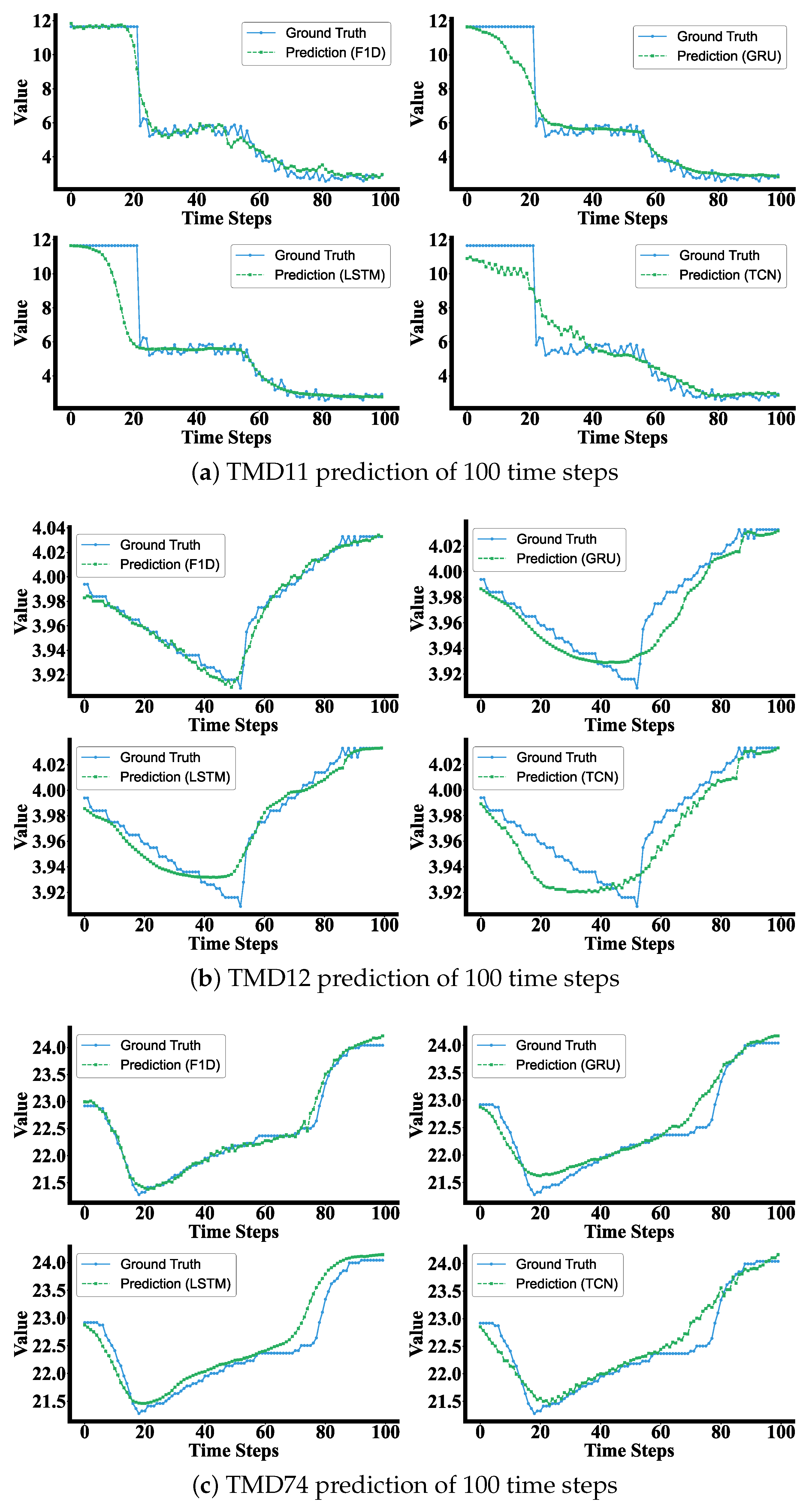

and illustrated in Figure 5, which shows one-shot predictions for individual representative samples, the proposed FFT1D-Dual (hereafter referred to as F1D), consistently outperforms the baseline methods across most horizons and target variables. On TMD11, where the telemetry exhibits irregular and delayed variations, F1D delivers more stable and accurate forecasts compared to GRU, LSTM, and TCN, particularly for long-range horizons. On TMD12, which is characterized by smooth fluctuations and a narrow numerical range, F1D still achieves the lowest error values across all horizons, demonstrating robustness on low-variance signals. On TMD74, F1D achieves substantially lower MSE and MAE in both short-term (1–10 steps) and long-term (60–100 steps) forecasts, highlighting its capability to capture both abrupt changes and gradual temporal trends.

The line plots in Figure 5 visualize the predicted trajectories overlaid with ground truth signals for representative cases. It is evident that F1D produces predictions that closely follow the actual patterns, with reduced phase shifts and improved amplitude alignment. Collectively, these results demonstrate that the proposed frequency-aware architecture yields more accurate and stable forecasting performance than conventional sequence models.

3.3.2. Error Curve Analysis

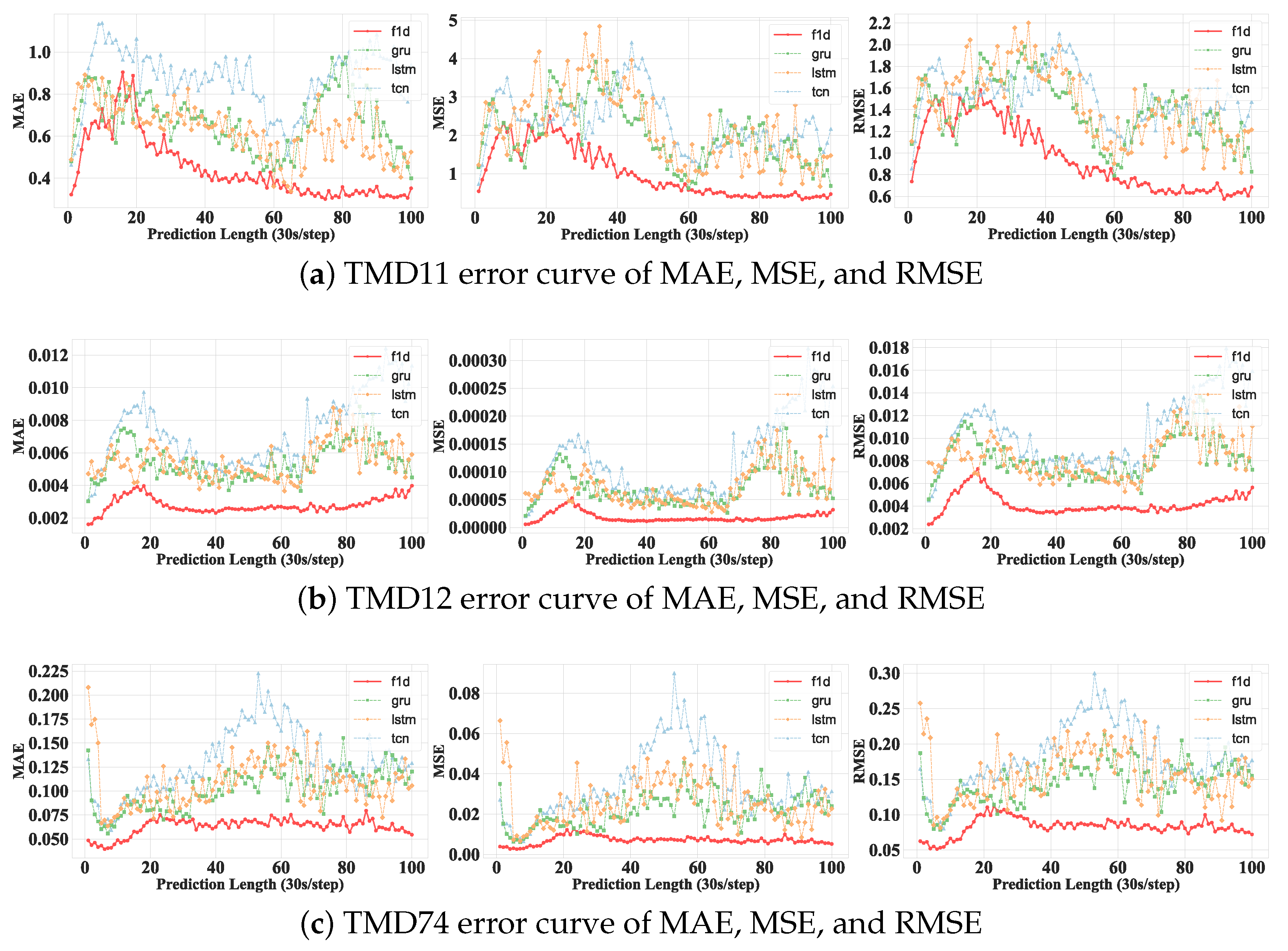

To further assess model performance under varying prediction horizons, we plotted the MAE, MSE, and RMSE curves across forecasting lengths ranging from 1 to 100 steps for three representative telemetry features: TMD11, TMD12, and TMD74. As shown in Figure 6 each curve illustrates the quantitative evolution of prediction error as the horizon increases, providing a more explicit trajectory of accuracy degradation across different models.

Across all three datasets, the proposed F1D model consistently achieves superior performance under all metrics. Its error curves remain substantially lower than those of GRU, LSTM, and TCN, particularly in long-horizon forecasting. Notably, F1D maintains a stable error trajectory with minimal fluctuation and negligible accumulation as the prediction length increases. This observation is consistent with the heatmap results, where F1D exhibited more dispersed and lower-magnitude error distributions without strong diagonal accumulation.

In contrast, the GRU and LSTM baselines display pronounced error growth as the horizon extends, often with oscillatory patterns and peak values at specific steps, highlighting their susceptibility to long-term error propagation. The TCN model, while occasionally competitive in short-range settings, demonstrates the largest and most volatile errors for medium-to-long horizons, indicating limited generalization capacity in modeling long temporal dependencies.

Overall, the comparative analysis of error curves provides strong evidence for the effectiveness of the proposed F1D model in time series forecasting. It not only reduces absolute error but also mitigates cumulative degradation over time, thereby outperforming recurrent and convolutional baselines in both accuracy and stability.

3.3.3. Samples Comparative Visualization

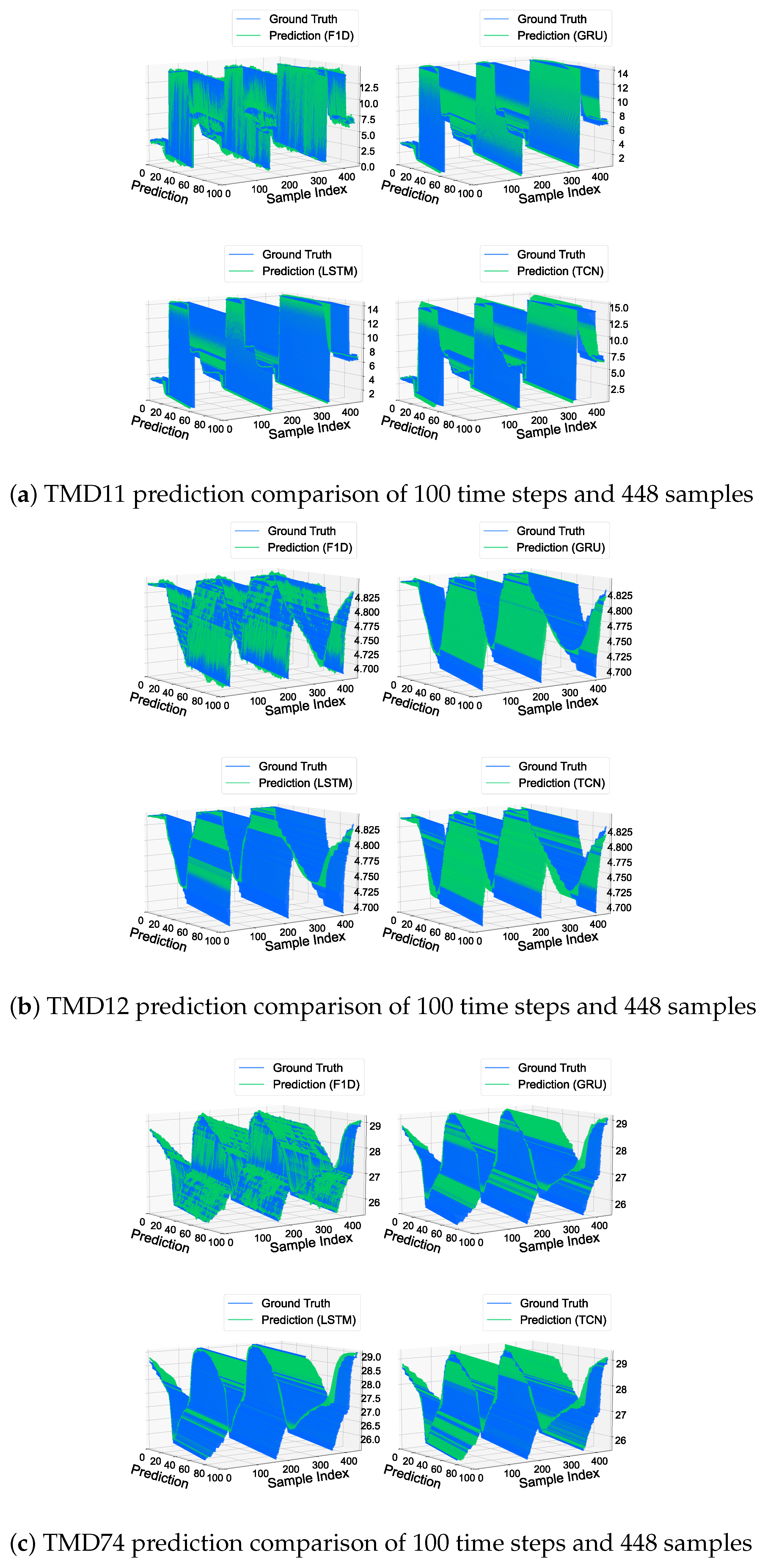

To provide a more intuitive understanding of the models’ forecasting performance, we present 3D comparative visualizations of predicted and ground truth values across 448 test samples for three representative telemetry variables: TMD11, TMD12, and TMD74. As shown in Figure 7, in each subplot, the X-axis represents the prediction step, the Y-axis corresponds to the sample index, and the Z-axis denotes the telemetry value. Ground truth trajectories are depicted as green curves, while the predicted trajectories are plotted in blue.

The proposed F1D model consistently exhibits superior predictive accuracy across all three variables. Its predicted curves are almost indistinguishable from the ground truth, particularly for TMD11 and TMD12, where prediction errors are negligible. Even for the more volatile and challenging TMD74 dataset, F1D demonstrates robust trend-tracking capability and maintains low forecasting errors over extended horizons.

In contrast, GRU and LSTM models produce noticeably larger deviations from the ground truth, especially at longer prediction steps and near the sequence boundaries. Their predicted curves exhibit visible gaps and oscillations, reflecting cumulative error propagation. The TCN model performs the worst overall, with substantial divergence from the ground truth and the presence of high-frequency noise, failing to capture the intrinsic temporal dynamics.

3.3.4. Mean Trajectory Analysis

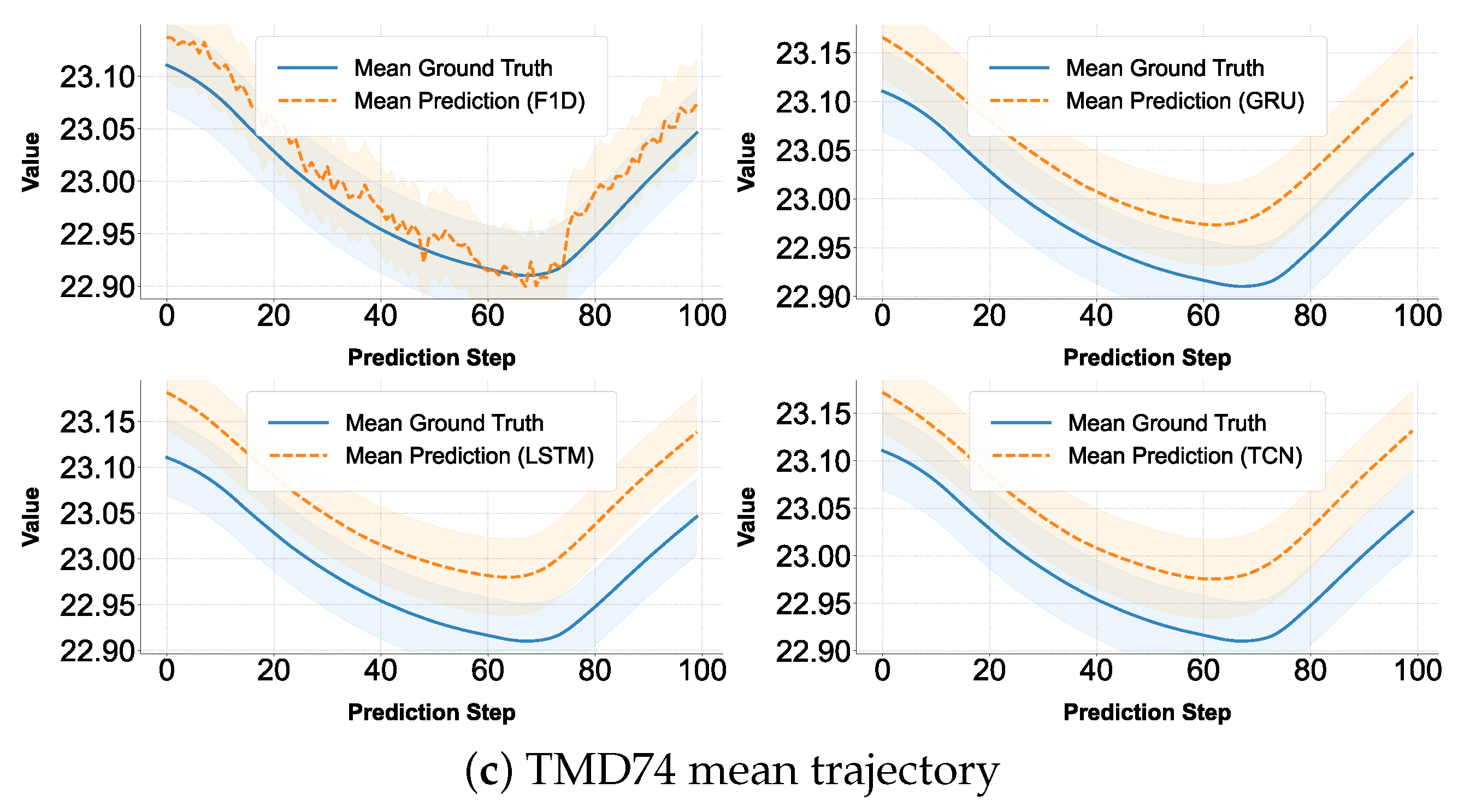

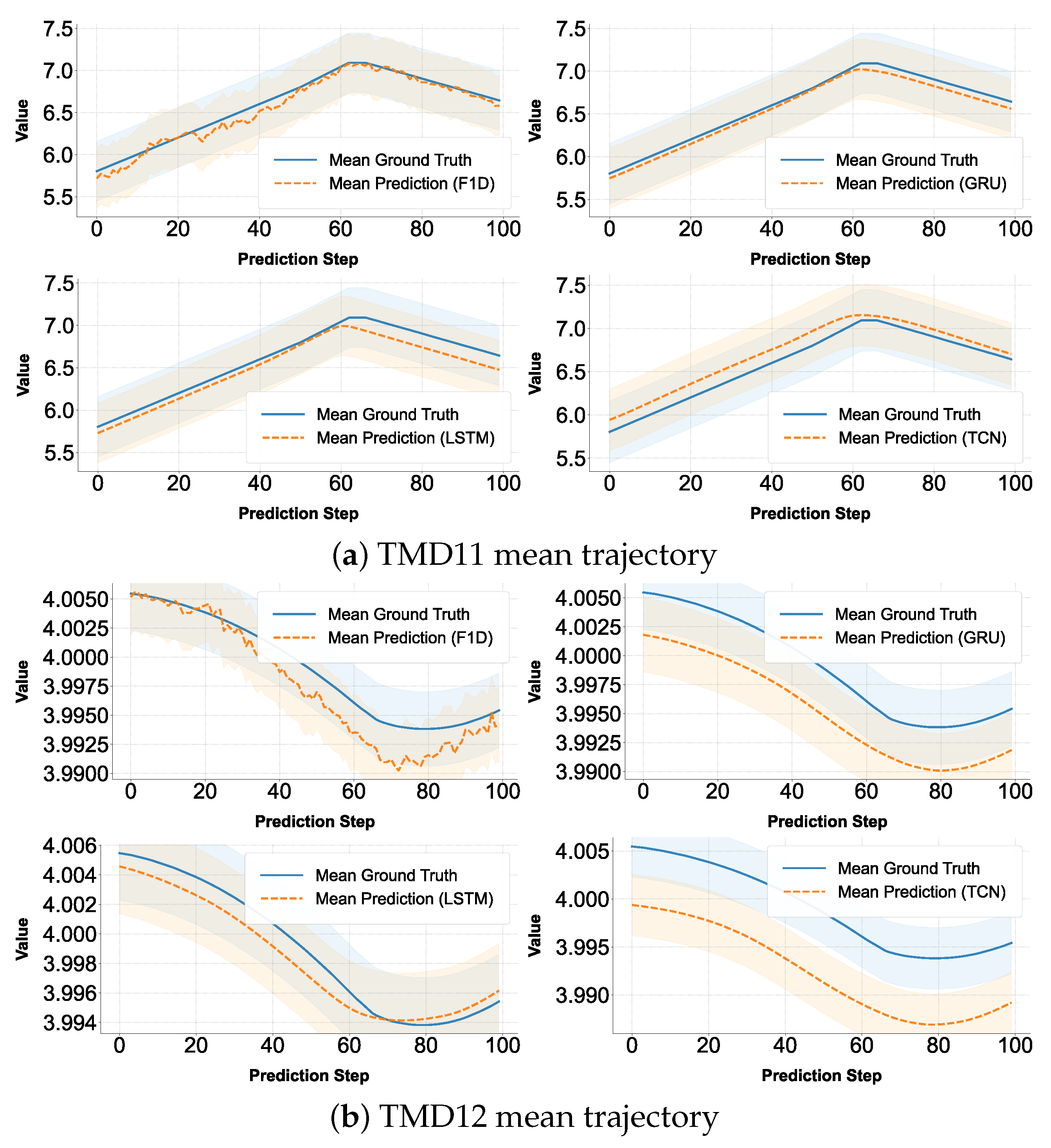

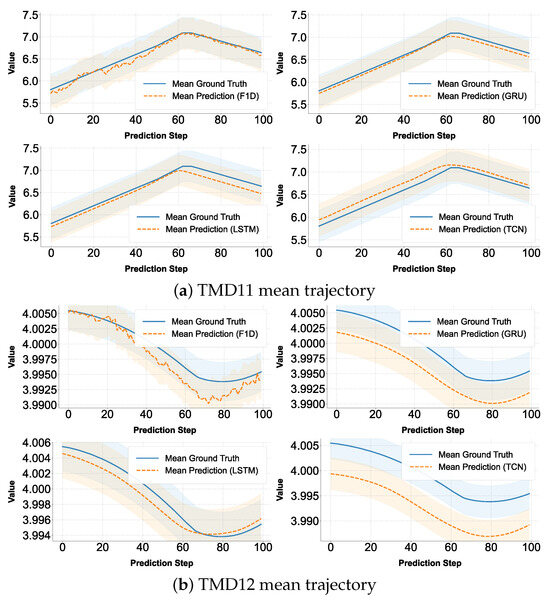

To evaluate each model’s ability to capture global temporal trends, we analyze the mean predicted trajectories against the mean ground truth trajectories across 448 test samples over 100 prediction steps. As shown in Figure 8, in the visualizations, average ground truth values are shown as blue solid lines, while average predicted values are represented as red dashed lines. This perspective emphasizes how well each model approximates the overall structural dynamics of the sequence beyond individual sample accuracy.

Across all three datasets, the proposed F1D model achieves the highest fidelity in following the true mean trajectory. On the challenging TMD11 dataset, which exhibits sharp “V-shaped” variations, F1D maintains the closest correspondence, with only minor deviations near turning points. For TMD12, characterized by a concave “U-shaped” pattern, F1D accurately captures both the trough and the flanking slopes, consistently outperforming all baselines. On TMD74, F1D demonstrates nearly perfect alignment with the ground truth across ascending, plateau, and descending phases.

In contrast, GRU and LSTM tend to over-smooth the mean trajectory and display systematic deviations at inflection points, particularly on TMD12 and TMD74. The TCN model performs the most weakly overall, with predicted trajectories diverging substantially from the actual means across the entire forecasting horizon.

3.3.5. Error Heatmap Analysis

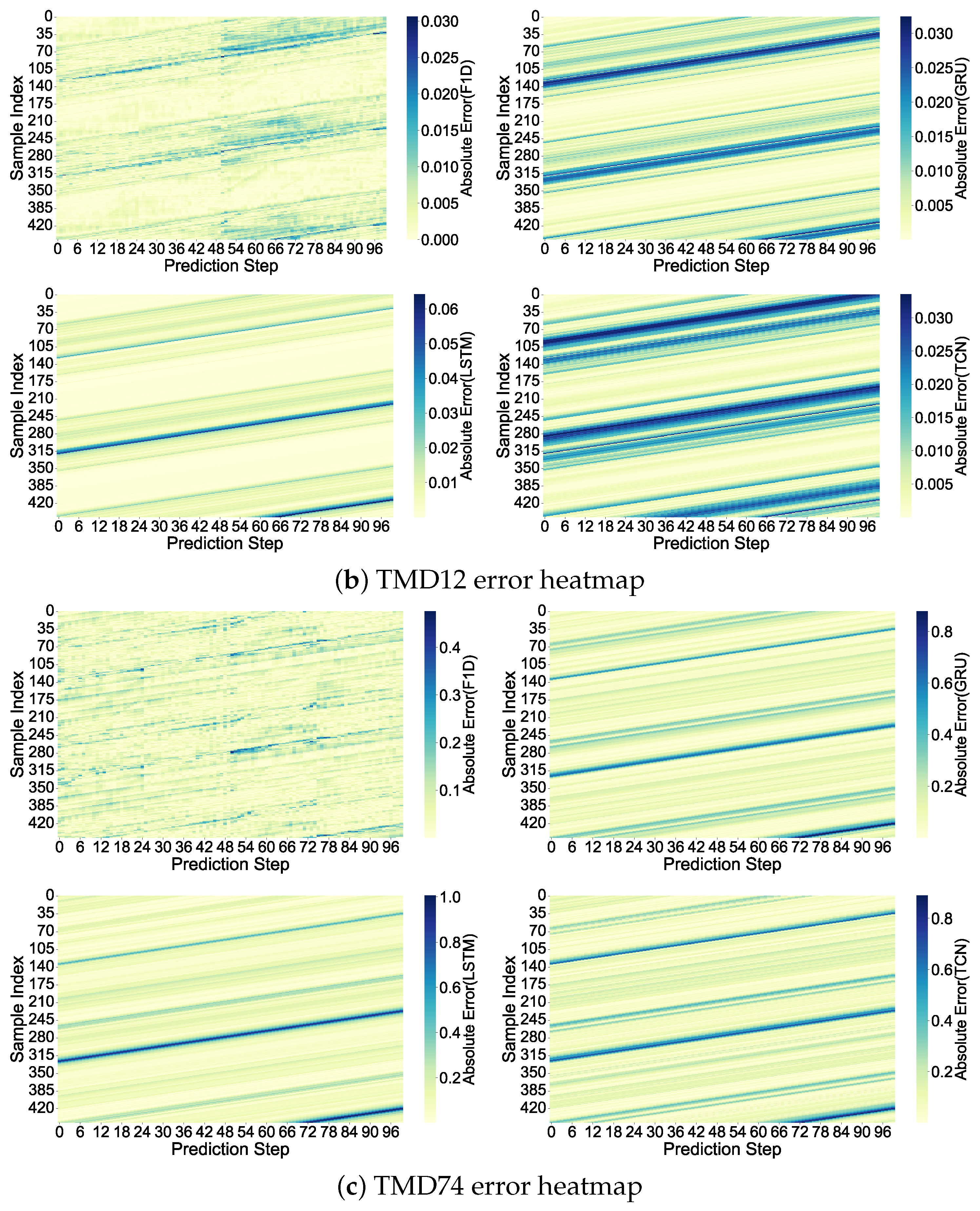

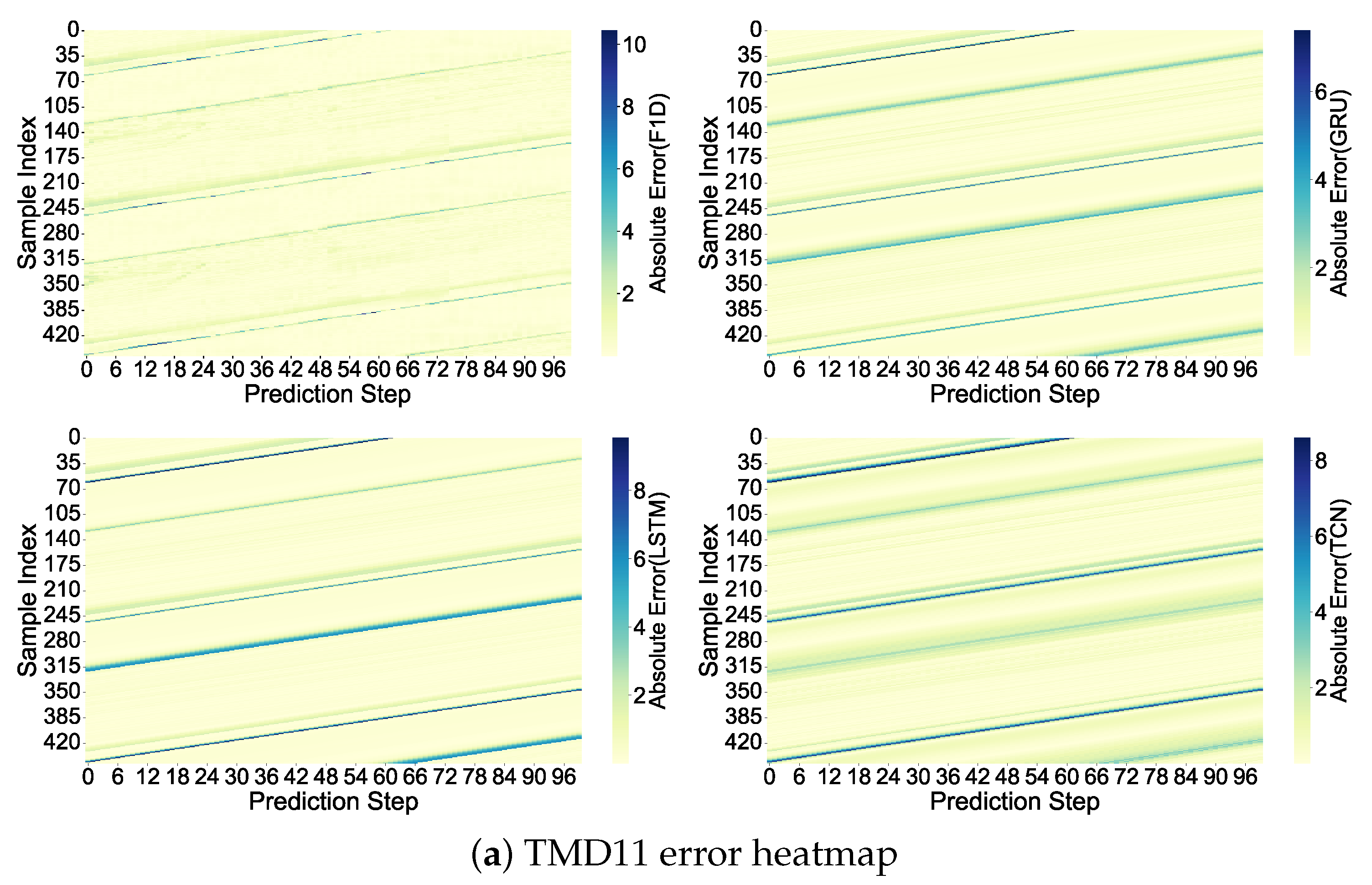

To further assess model performance across the forecasting horizon, we visualize absolute prediction errors for 448 test samples over 100 forecast steps using heatmaps as shown in Figure 9. The GRU, LSTM, and TCN models exhibit a pronounced diagonal pattern, where errors gradually accumulate with longer prediction horizons. Their maximum absolute errors fall within the range of 0.8 to 1.0, reflecting substantial degradation in long-term accuracy.

In contrast, the proposed F1D model demonstrates a markedly different error distribution. Its errors appear more localized and scattered, without the diagonal accumulation trend observed in the baselines. Moreover, its maximum error remains consistently below 0.4, indicating enhanced stability and robustness. These results suggest that F1D not only achieves lower overall prediction errors but also effectively mitigates error drift in long-horizon forecasting, likely owing to its superior ability to capture temporal dependencies.

3.4. Ablation Study

3.4.1. Quantitative Evaluation of Forecasting Performance

To investigate the individual contributions of different architectural components in the proposed model, we construct four ablated variants in addition to a baseline Transformer. These variants are defined as follows:

• F1D (Full Model): The complete architecture, which incorporates a 1D Fast Fourier Transform (FFT) for temporal frequency decomposition, followed by a Dual-Path Mixer that integrates both time-domain and frequency-domain processing streams. It also includes dynamic positional encoding for adaptive representation of temporal positions.
• F1: A variant that retains only the 1D FFT-based frequency encoder while removing the dual-path design. This isolates the effect of 1D frequency transformation alone.
• F2D: A version that replaces the 1D FFT with a 2D FFT encoder, capturing joint time–frequency correlations across both temporal and feature dimensions. The dual-path mixer is retained.
• F2: A variant that applies only the 2D FFT module without dual-path modeling or positional encoding, aiming to evaluate the standalone effectiveness of global spectral representations.
• Transformer: The standard Transformer encoder with self-attention and fixed sinusoidal positional encoding, but without any frequency-domain modeling. This serves as the baseline.

As shown in

Table 7. Forecasting results on TMD11 with different prediction horizons.

Horizon	F1D (Proposed)		F1		F2D		F2		Transformer
	MSE	MAE	MSE	MAE	MSE	MAE	MSE	MAE	MSE	MAE
1	0.5589	0.3570	0.5415	0.3281	0.5497	0.3346	0.5346	0.3122	0.5574	0.3398
10	2.2619	0.7298	2.1974	0.6348	1.7490	0.7386	1.8149	0.6788	2.0300	0.6027
20	2.0615	0.7201	2.1138	0.6116	2.0954	0.6403	1.9407	0.6642	2.0033	0.7147
30	1.6141	0.5290	1.7554	0.5172	1.3371	0.5027	1.4567	0.5125	1.4070	0.5198
40	0.9151	0.4358	1.2588	0.4503	1.2251	0.4795	1.1874	0.4662	1.3014	0.4345
50	0.6674	0.3873	0.8931	0.3982	0.7897	0.3918	0.6690	0.4207	0.7678	0.4587
60	0.5788	0.3686	0.4862	0.3295	0.4712	0.3495	0.3980	0.3471	0.9499	0.4716
70	0.5105	0.3476	0.4136	0.3236	0.5245	0.3410	0.5079	0.3498	0.9739	0.5393
80	0.4882	0.3583	0.4829	0.3611	0.4901	0.3302	0.6304	0.3984	0.8272	0.5436
90	0.5228	0.3605	0.4215	0.3197	0.4302	0.3340	0.4624	0.3452	0.9519	0.5456
100	0.4706	0.3520	0.4536	0.3551	0.4848	0.3648	0.5451	0.3968	0.8516	0.5395

Note: Bold values indicate the best performance (lowest MSE and MAE) for each prediction horizon.

,

Table 8. Forecasting results on TMD12 with different prediction horizons.

Horizon	F1D (Proposed)		F1		F2D		F2		Transformer
	MSE	MAE	MSE	MAE	MSE	MAE	MSE	MAE	MSE	MAE
1	4.3 $\times {\mathbf{10}}^{-\mathbf{6}}$	0.0014	6.1 $\times {10}^{-6}$	0.0017	5.5 $\times {10}^{-6}$	0.0016	5.3 $\times {10}^{-6}$	0.0015	5.3 $\times {10}^{-6}$	0.0015
10	2.6 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0030	2.9 $\times {10}^{-5}$	0.0033	2.7 $\times {10}^{-5}$	0.0034	3.1 $\times {10}^{-5}$	0.0037	2.7 $\times {10}^{-5}$	0.0031
20	2.9 $\times {10}^{-5}$	0.0034	2.9 $\times {10}^{-5}$	0.0034	3.4 $\times {10}^{-5}$	0.0038	2.4 $\times {10}^{-5}$	0.0034	2.3 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0032
30	1.3 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0025	1.6 $\times {10}^{-5}$	0.0028	1.6 $\times {10}^{-5}$	0.0028	1.7 $\times {10}^{-5}$	0.0029	2.0 $\times {10}^{-5}$	0.0031
40	1.1 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0023	1.4 $\times {10}^{-5}$	0.0025	1.8 $\times {10}^{-5}$	0.0029	1.6 $\times {10}^{-5}$	0.0027	1.8 $\times {10}^{-5}$	0.0029
50	1.4 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0025	1.6 $\times {10}^{-5}$	0.0028	1.6 $\times {10}^{-5}$	0.0027	1.7 $\times {10}^{-5}$	0.0028	1.6 $\times {10}^{-5}$	0.0026
60	1.4 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0027	1.7 $\times {10}^{-5}$	0.0029	1.9 $\times {10}^{-5}$	0.0030	2.0 $\times {10}^{-5}$	0.0030	1.8 $\times {10}^{-5}$	0.0030
70	1.5 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0027	1.5 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0027	1.9 $\times {10}^{-5}$	0.0032	2.0 $\times {10}^{-5}$	0.0033	1.7 $\times {10}^{-5}$	0.0029
80	1.5 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0026	1.6 $\times {10}^{-5}$	0.0027	1.9 $\times {10}^{-5}$	0.0030	1.9 $\times {10}^{-5}$	0.0029	2.4 $\times {10}^{-5}$	0.0034
90	2.0 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0031	2.0 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0030	2.3 $\times {10}^{-5}$	0.0033	2.4 $\times {10}^{-5}$	0.0034	2.7 $\times {10}^{-5}$	0.0037
100	3.2 $\times {10}^{-5}$	0.0040	3.1 $\times {\mathbf{10}}^{-\mathbf{5}}$	0.0040	3.1 $\times {10}^{-5}$	0.0040	3.2 $\times {10}^{-5}$	0.0041	4.9 $\times {10}^{-5}$	0.0050

Note: Bold values indicate the best performance (lowest MSE and MAE) for each prediction horizon.

and

Table 9. Forecasting results on TMD74 with different prediction horizons.

Horizon	F1D (Proposed)		F1		F2D		F2		Transformer
	MSE	MAE	MSE	MAE	MSE	MAE	MSE	MAE	MSE	MAE
1	0.0035	0.0473	0.0027	0.0410	0.0032	0.0450	0.0027	0.0425	0.0025	0.0398
10	0.0044	0.0488	0.0040	0.0465	0.0041	0.0471	0.0050	0.0529	0.0053	0.0527
20	0.0097	0.0695	0.0093	0.0654	0.0095	0.0674	0.0089	0.0715	0.0169	0.0802
30	0.0094	0.0703	0.0107	0.0723	0.0113	0.0774	0.0113	0.0762	0.0104	0.0687
40	0.0067	0.0626	0.0082	0.0708	0.0111	0.0833	0.0116	0.0818	0.0092	0.0436
50	0.0075	0.0686	0.0081	0.0736	0.0088	0.0744	0.0094	0.0780	0.0113	0.0850
60	0.0068	0.0649	0.0073	0.0690	0.0103	0.0809	0.0090	0.0770	0.0107	0.0807
70	0.0064	0.0638	0.0088	0.0733	0.0091	0.0721	0.0101	0.0778	0.0116	0.0872
80	0.0065	0.0638	0.0082	0.0731	0.0108	0.0824	0.0116	0.0833	0.0198	0.1113
90	0.0064	0.0624	0.0080	0.0710	0.0078	0.0704	0.0078	0.0696	0.0124	0.0855
100	0.0052	0.0545	0.0067	0.0623	0.0075	0.0668	0.0067	0.0623	0.0162	0.0973

Note: Bold values indicate the best performance (lowest MSE and MAE) for each prediction horizon.

, F1D consistently achieves the lowest MSE and MAE across nearly all prediction lengths and datasets (TMD11, TMD12, and TMD74). Several key insights can be drawn from these comparisons: On TMD11, F1D demonstrates a clear advantage over all ablations, particularly in long-term forecasting (60–100 steps). For example, at step 100, F1D achieves an MSE of 0.4706, outperforming F1 (0.4536), F2D (0.4848), and Transformer (0.8516), confirming its superior ability to capture long-range dependencies and structural transitions. On TMD12, which exhibits low-magnitude and smooth fluctuations, all models achieve small errors. Nevertheless, F1D still performs marginally better in most cases, validating its robustness on low-variance signals. On TMD74, characterized by irregular and non-stationary telemetry dynamics, F1D consistently outperforms the baselines in both short- and long-horizon settings. Notably, from step 30 onward, F1D maintains consistently lower MAE and MSE. For instance, at step 100, F1D yields an MAE of 0.0545 compared to 0.0623 (F1), 0.0668 (F2D), and 0.0973 (Transformer).

Overall, these results highlight that each component—frequency-aware representation and dual-path modeling—are critical to enhancing forecasting performance. The full model (F1D), benefiting from their joint effect, achieves the most accurate and stable predictions, thereby confirming the effectiveness of the proposed architectural design.

3.4.2. Error Curve Analysis

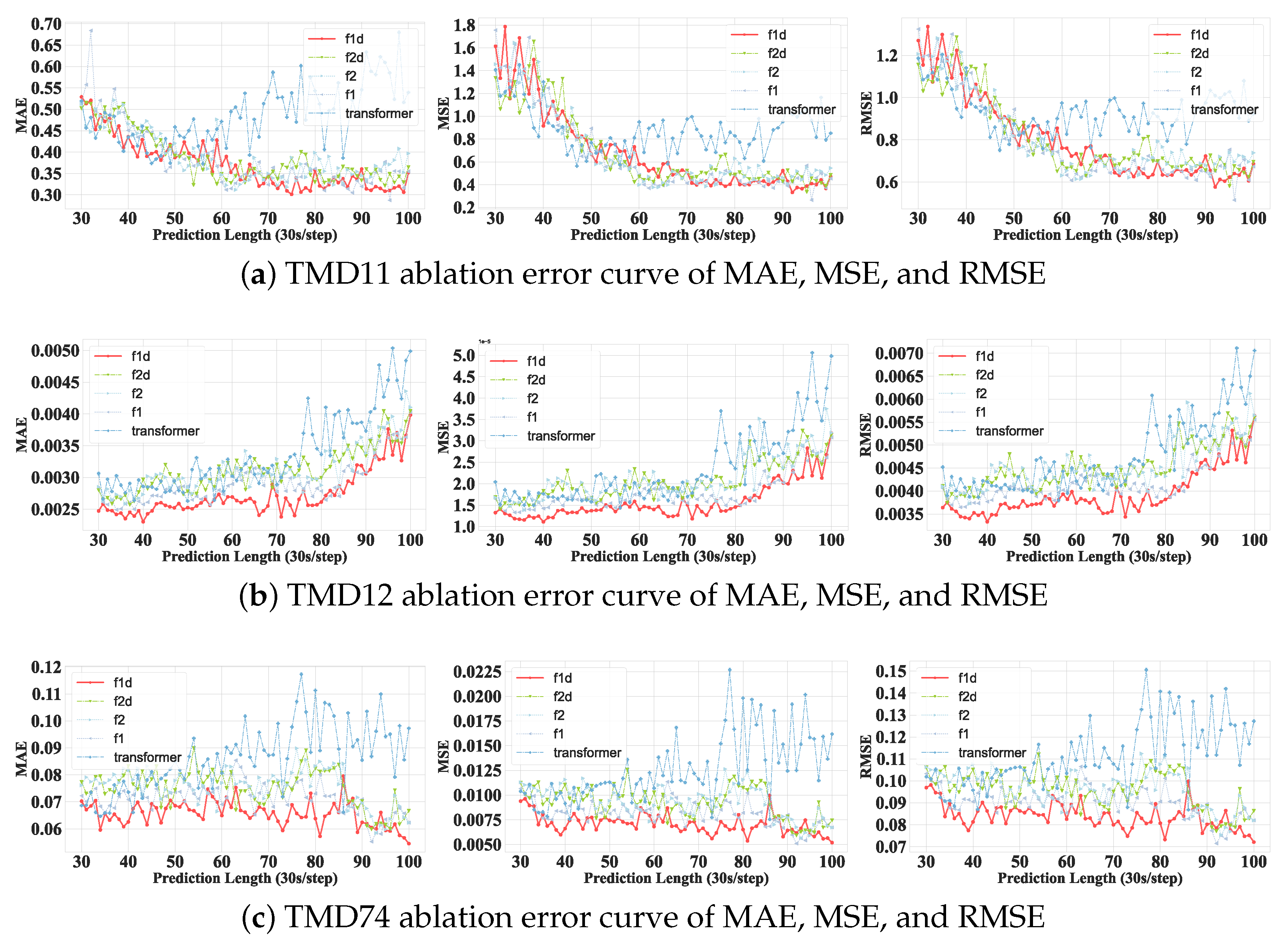

To further assess model performance under varying prediction horizons, we plotted the MAE, MSE, and RMSE curves across forecasting lengths ranging from 1 to 100 steps for three representative telemetry features: TMD11, TMD12, and TMD74. As shown in Figure 10 each curve illustrates the quantitative evolution of prediction error as the horizon increases, providing a more explicit trajectory of accuracy degradation across different models.

On the TMD11 dataset, which exhibits both smooth trends and sharp fluctuations, the proposed F1D model demonstrates strong overall performance with relatively low and stable errors, particularly in the long-term prediction range (beyond 60 steps). During the earlier stages (30–50 steps), however, certain variants such as F2 and F2D occasionally outperform F1D in terms of MAE, indicating that although F1D is not consistently superior at every step, it maintains a favorable overall trend and robustness across varying horizons. Notably, the error curves of F1D and F2D are highly similar, frequently alternating in lead. This observation highlights the importance of the Dual-Path Mixer, which is retained in both models and appears to be a key driver of performance. In contrast, the simplified variants—F1 (1D FFT only) and F2 (2D FFT only)—exhibit noticeably higher errors and greater volatility, particularly over the medium-to-long term, reflecting performance degradation due to the removal of critical architectural components. The standard Transformer performs the worst across all three metrics, with large fluctuations and the highest overall errors, further demonstrating its limitations in modeling complex, high-variance telemetry signals.

On the TMD12 dataset, which features smoother and lower-amplitude fluctuations, the F1D model again exhibits the best overall performance. Its error curves remain consistently low and flat across the entire prediction range. Although the differences between models are relatively small due to the simplicity of the signal, F1D and F2D clearly outperform the other variants. This consistency suggests that F1D is not only effective on complex signals but also generalizes well to simpler, low-variance settings. F2D’s performance closely follows F1D, reaffirming the strength of the Dual-Path Mixer. The simplified variants F1 and F2 show a moderate increase in both MAE and MSE, particularly in mid-to-long-term horizons. Meanwhile, the standard Transformer once again yields the highest errors and the greatest instability, underscoring the advantage of incorporating frequency-domain modeling even when the signal variance is low.

On the TMD74 dataset, which contains more irregular and delayed patterns, the advantage of F1D becomes more pronounced in the later prediction steps (60–100). Its error curves remain the lowest across most horizons, indicating its strong capacity to capture long-term dependencies and handle signal irregularities. Interestingly, F2D performs nearly on par with F1D throughout, with both models significantly outperforming the rest. This suggests that the combination of 2D FFT and the Dual-Path Mixer is already highly effective in capturing the complex dynamics of TMD74. Simplified models such as F2 and F1 experience a clear drop in performance, with higher and more fluctuating error curves. The Transformer again ranks last in all metrics, struggling to track the temporal complexity of the signal. These results further validate the value of frequency-aware modeling and hybrid time–frequency representations in handling diverse telemetry characteristics.

While the F2D variant exhibits competitive performance in some cases, it is not the most consistent alternative to FFT1D-Dual. As summarized in

Table 10. Model winning counts across all horizons and variables.

Model	Count
F1D (Proposed)	37
F1	20
F2D	5
F2	4
Transformer	4

, FFT1D-Dual achieves the highest number of best results across all prediction horizons and datasets, followed by the 1D FFT variant (F1). This suggests that applying the Fourier transform solely along the temporal dimension provides a more natural inductive bias for capturing long-range periodicity and maintaining temporal coherence. In contrast, the 2D FFT jointly transforms temporal and feature dimensions, which blurs their semantic distinction and weakens the model’s ability to represent pure temporal dependencies. Therefore, FFT1D-Dual was selected as the main architecture due to its superior consistency, stronger temporal interpretability, and more principled design for time series forecasting.

4. Discussion

The proposed FFT1D-Dual model tackles a key challenge in satellite telemetry forecasting: jointly capturing global periodic structures and local irregular dynamics in long, high-dimensional sequences. By integrating frequency- and time-domain representations through a channel-adaptive Dual-Path Mixer, FFT1D-Dual achieves higher forecasting accuracy with improved efficiency. Replacing the encoder’s self-attention with this mixer substantially enhances long-horizon stability, showing that attention is not always essential when spectral and convolutional features are fused effectively.

Compared with GRU, LSTM, and TCN, which suffer from error drift in long-term prediction, FFT1D-Dual produces more stable error trajectories and lower maximum errors across variables. Gains are evident on both high-variance (TMD11) and low-amplitude (TMD12) signals, confirming its robustness. Ablation studies further indicate the following: (i) frequency-domain modeling alone improves over Transformers but is less robust; and (ii) the Dual-Path Mixer is crucial for handling heterogeneous dynamics.

Limitations include the assumption of regularly sampled data and the limited interpretability of the gating mechanism. Future work will extend to irregular, multivariate, and event-driven telemetry, while exploring physical interpretations of gating dynamics.

In conclusion, FFT1D-Dual offers a scalable and interpretable solution for long-term satellite forecasting, balancing accuracy and efficiency, and showing strong potential for real-time health monitoring and predictive control.
