# Torque Vectoring Control Strategies Comparison for Hybrid Vehicles with Two Rear Electric Motors

^{1}

^{2}

^{*}

## Abstract

**:**

## Featured Application

**The methodology presented in this paper can be applied to the design and evaluation of torque vectoring systems in hybrid electric vehicles. Comparison of different controllers is helpful in making design choices in these applications.**

## Abstract

## 1. Introduction

## 2. Vehicle Modelling and Maneuvers

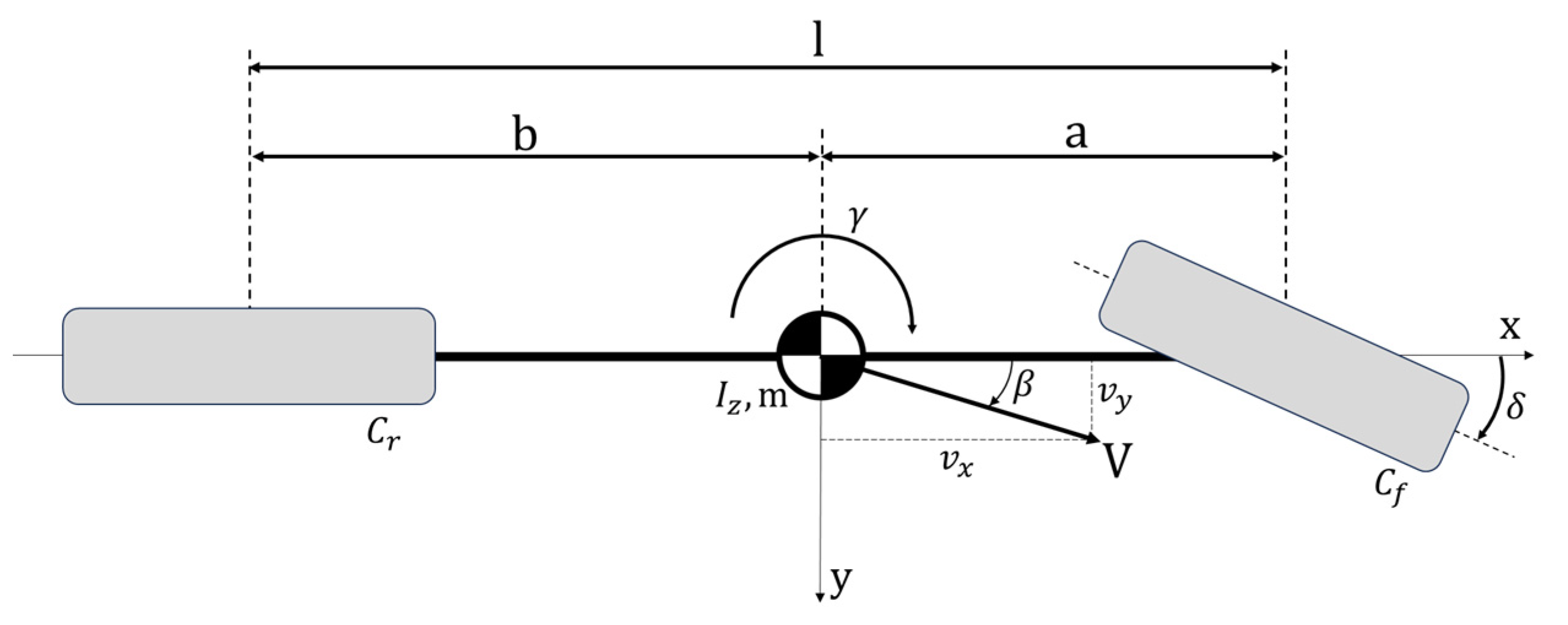

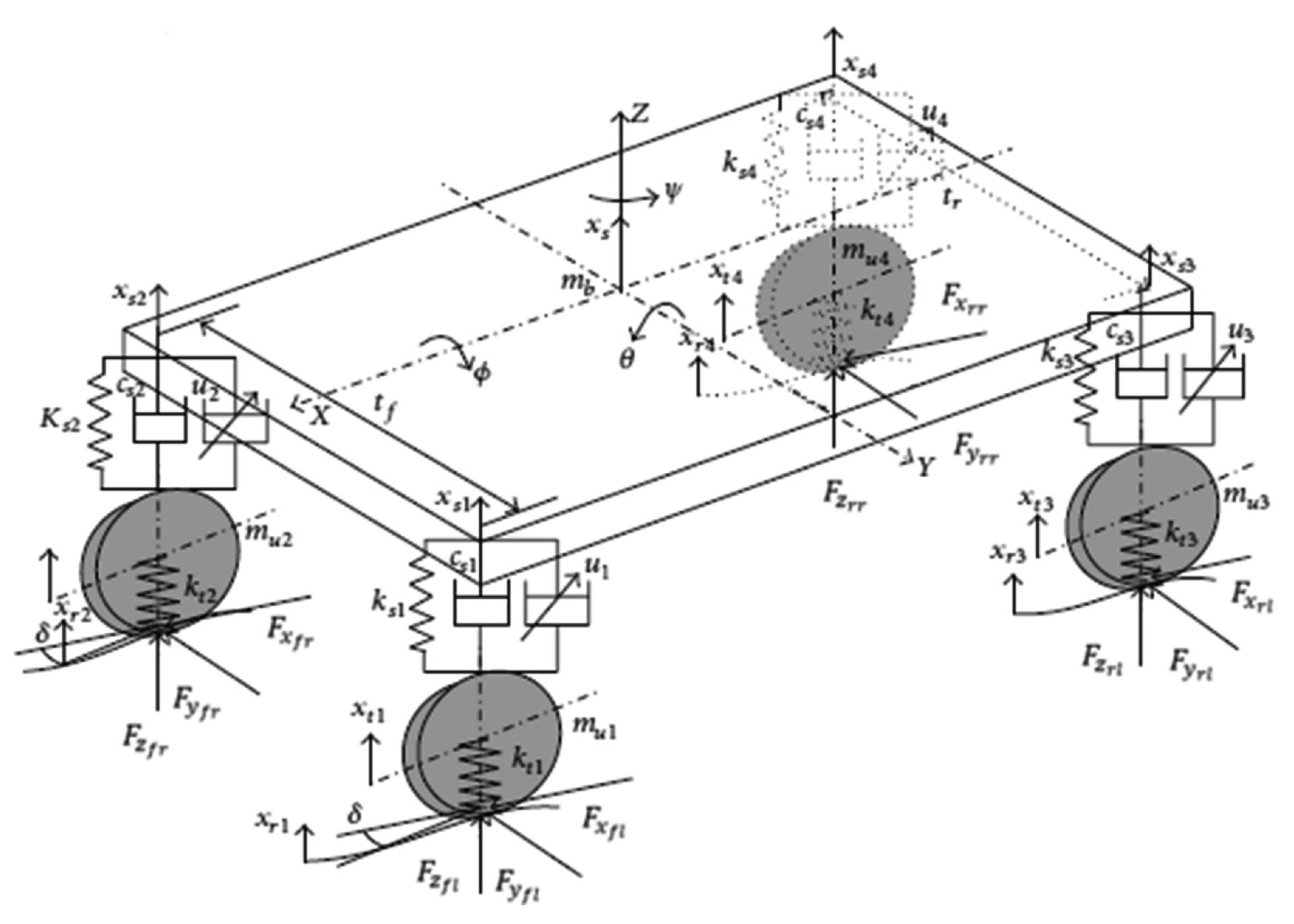

#### 2.1. Vehicle Dynamics

- 6 DoF describe the free body motion of the vehicle sprung mass;
- 2 DoF for each of the four wheels represent the generalized position with respect to the body of the vehicle ζ (derived from the suspension kinematics) and the longitudinal slip of the tire.

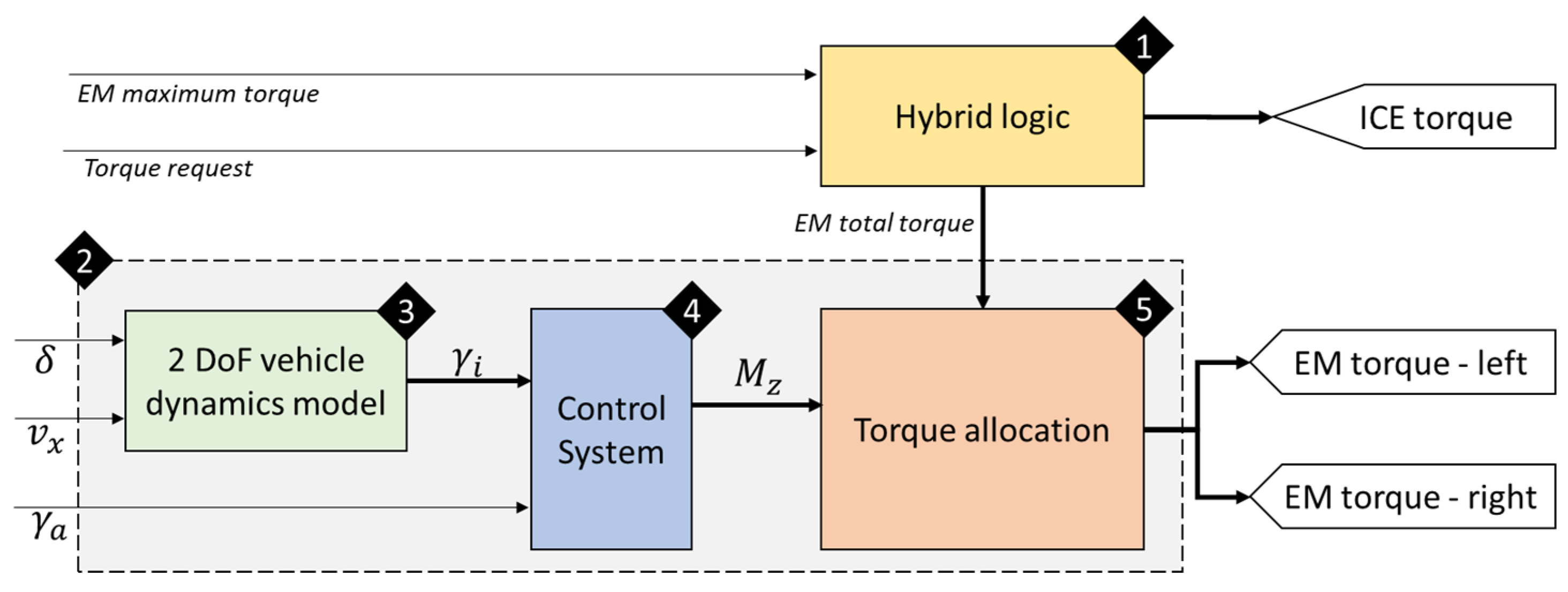

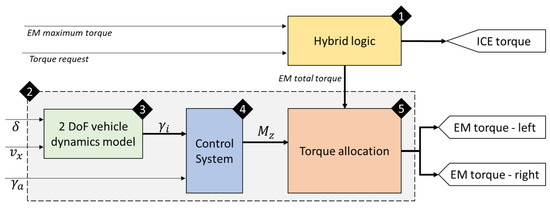

#### 2.2. Model and Torque Allocation of the Hybrid Powertrain

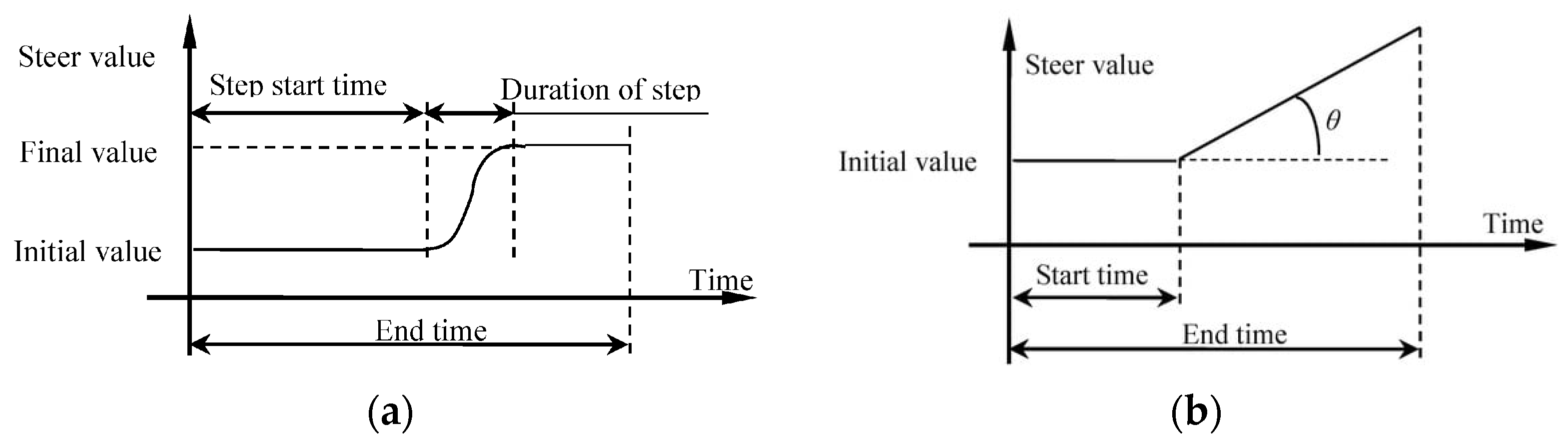

#### 2.3. Steering Maneuver

**step steering**. In this standard open loop maneuver, the driver quickly passes from a null steering condition to a fixed value, as described in Table 3. The step steering is repeated in two conditions: the first one far from the limit conditions with a steering angle of 50° (equivalent to a lateral acceleration of around 0.5 g) and the second one with a higher steering (80°) condition in which the actuators are saturated and the tires near the maximum grip.

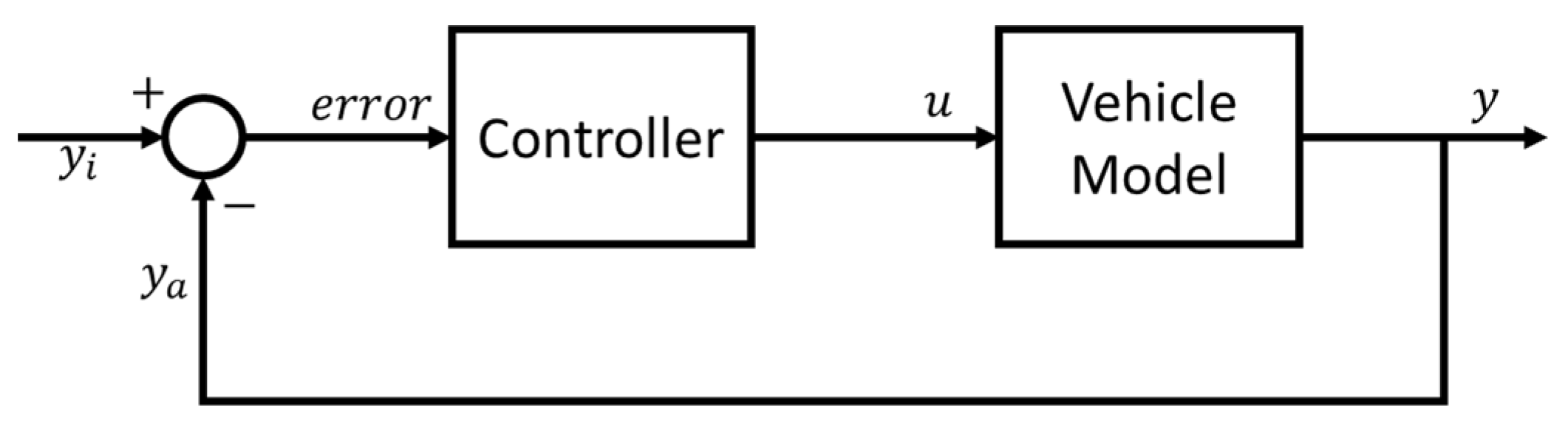

## 3. Control Systems and Performance Evaluation

#### 3.1. PID Controller

_{P}, K

_{I}, K

_{D}, and F are the gains of the proportional, integral, and derivative components, as well as the filtering frequency of the derivative term, respectively; γ

_{i}is the ideal reference yaw rate; and γ

_{a}is the actual yaw rate.

#### 3.2. First-Order Sliding Mode (FOSM)

#### 3.2.1. FOSM with a Low-Pass Filter

#### 3.2.2. FOSM with Continuous Approximation of the Sign Function

#### 3.3. Linear-Quadratic Regulator (LQR)

#### 3.4. Second-Order Sliding Mode (SOSM)

#### 3.4.1. SOSM Twisting Algorithm

#### 3.4.2. SOSM Suboptimal Algorithm

_{Mk}is defined as the last moment in which $\dot{S}=0$. For the practical application of the simulation environment, in which the timesteps are small yet discrete, t

_{Mk}is updated when there is a change of sign in the variation in S between two subsequent timesteps: S(t) − S(t − 1). The simulation begins with t

_{Mk}= t

_{M0}= 0, and thus S

_{1}(t

_{M0}) equals the initial value of $\left({\gamma}_{i}-{\gamma}_{a}\right)$.

_{r}must be sufficiently high to guarantee stability [23]. In the studied application, the chosen value to satisfy such a condition is ${k}_{r}=28.8$. To further reduce some of the residual chattering, known as the “ringing effect”, especially during the step steering maneuvers, the sign function was substituted with the continuous equivalent with a value of $\varnothing =4.5$, as in (5).

#### 3.5. Performance Evaluation

**performance factor (PF)**is composed of three indexes:

- The
**control penalty (CP)**is related to the effort of the controller in applying the control law, meaning that control systems that require more torque bias to stabilize the vehicle must be negatively evaluated. - The
**error penalty (EP)**directly evaluates the distance between the actual and target yaw rate during the maneuver, in such a way that less precise controllers are the most penalized. - The
**timed error penalty (TEP)**also takes into consideration the evolution of the error in time, meaning that controllers can afford a higher overshoot or initial displacement relative to the ideal behavior, if they are able to quickly eliminate the error. Steady-state error is heavily penalized in this indicator.

## 4. Simulation Results

- The baseline HEV without TV (
**OFF**); - The PID controller (
**PID**); - The FOSM controller with the low-pass filter (
**FOSM lowpass**); - The FOSM controller with continuous function (
**FOSM continuous**); - The LQR (
**LQR**); - The SOSM controller with the twisting algorithm (
**SOSM twisting**); - The SOSM controller with the suboptimal algorithm (
**SOSM suboptimal**).

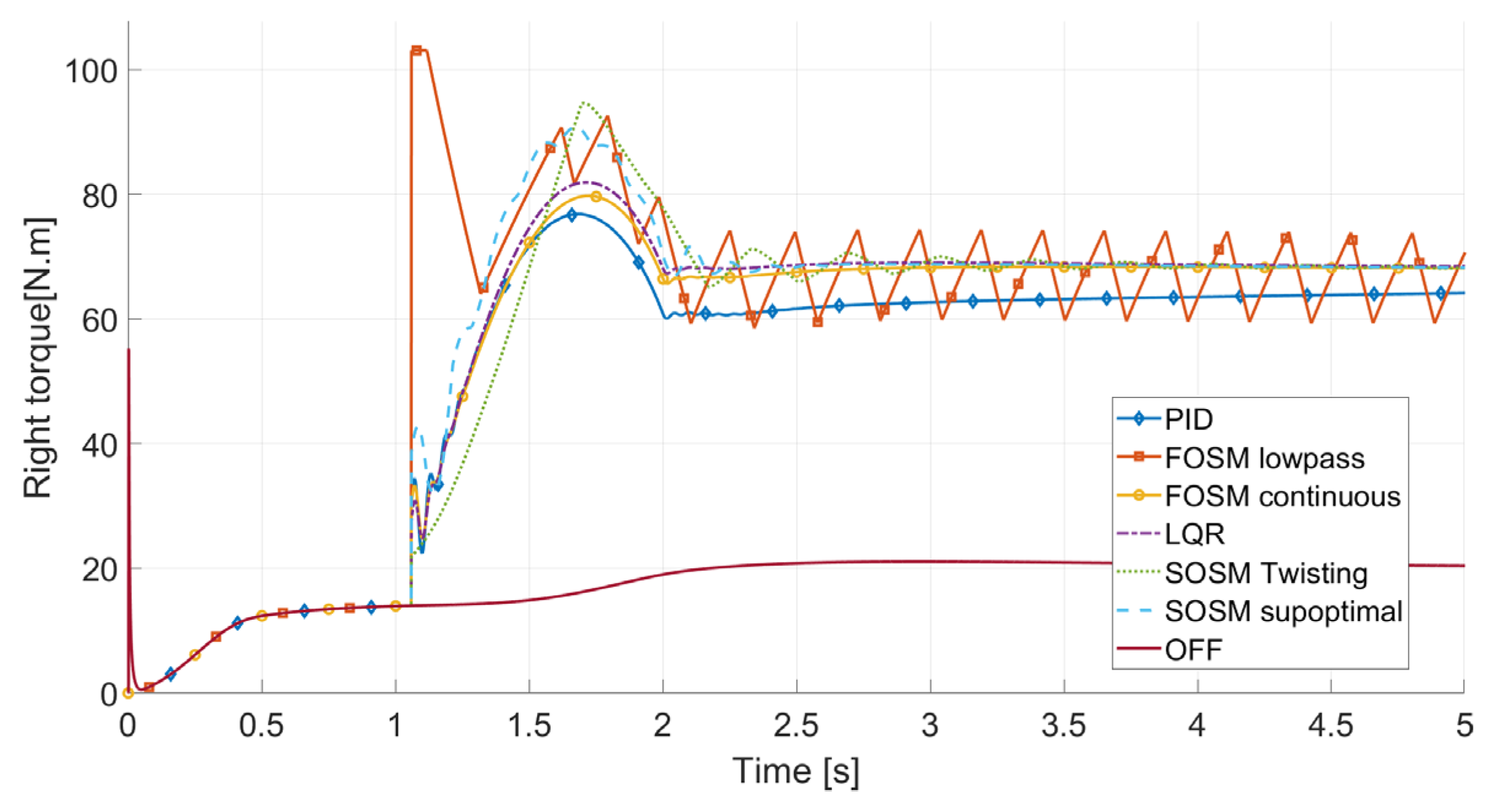

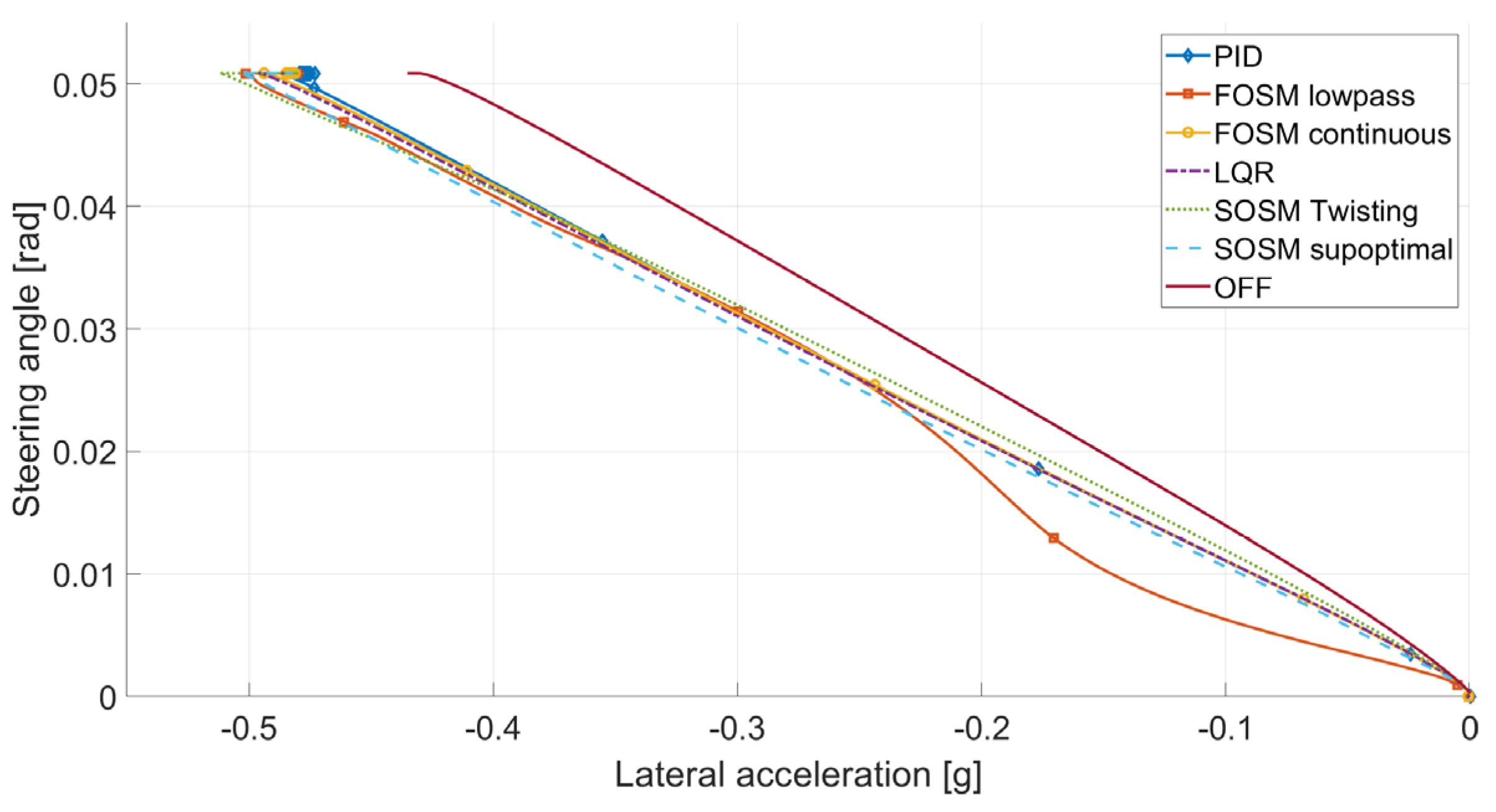

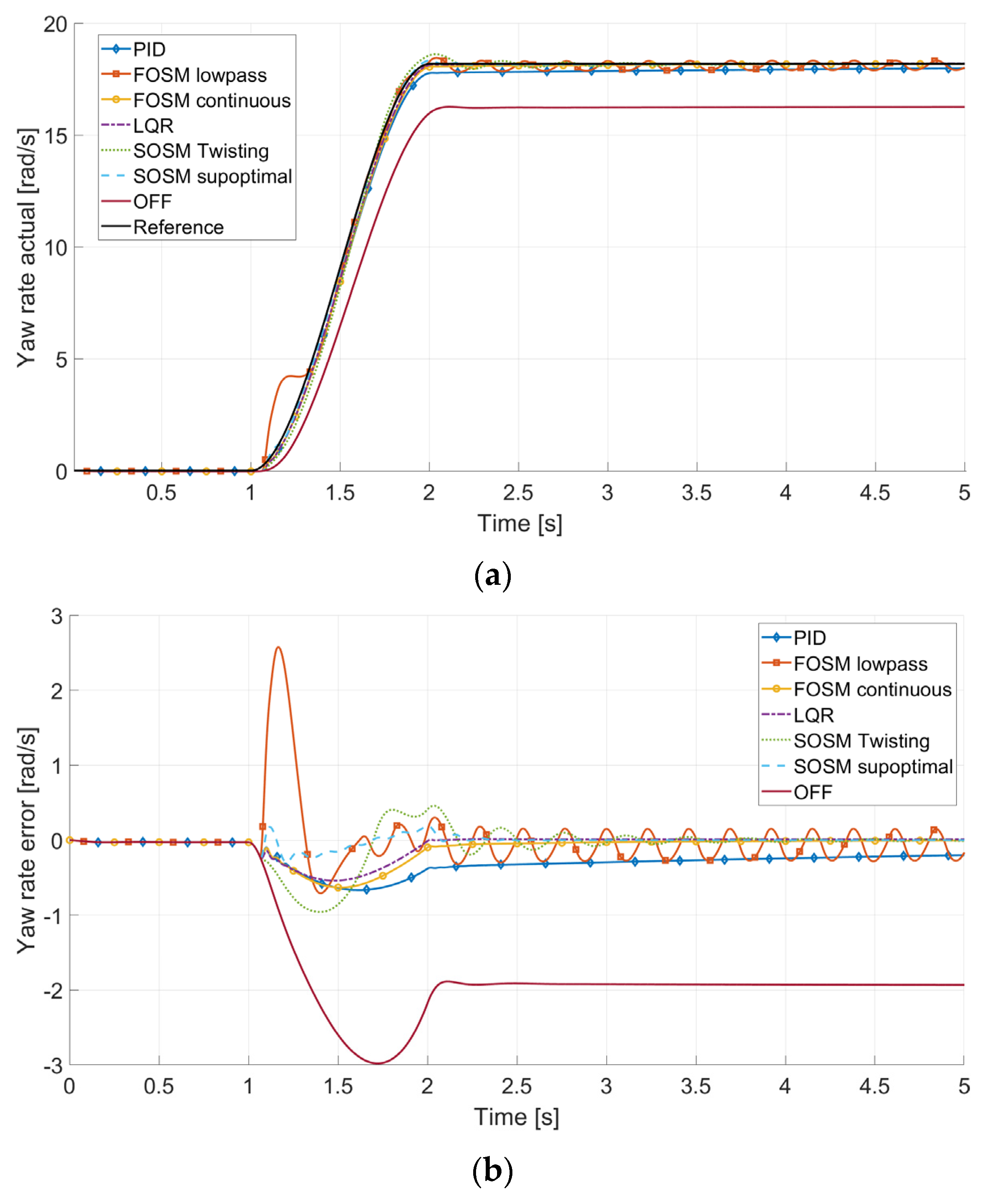

#### 4.1. 50° Step Steering

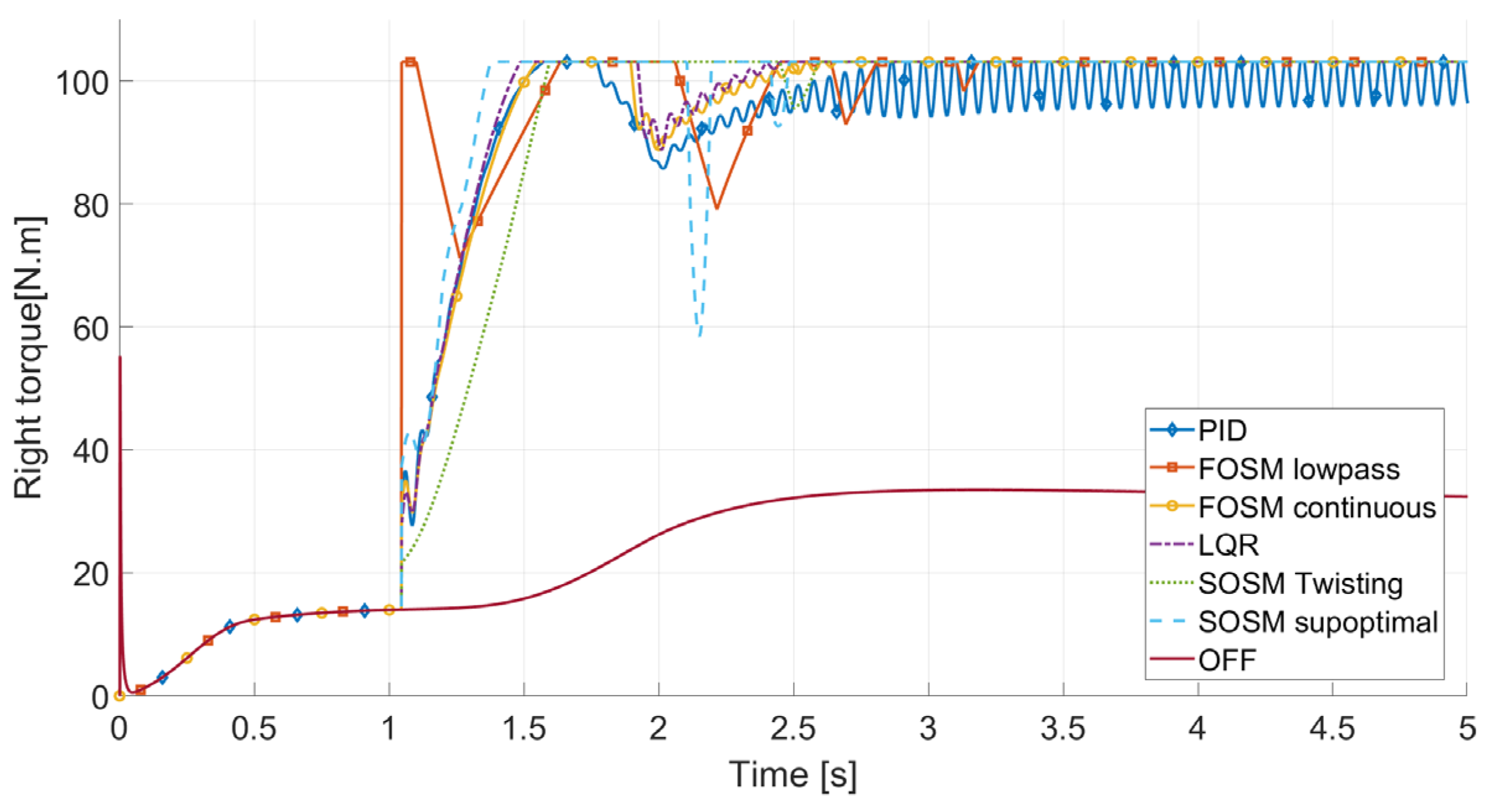

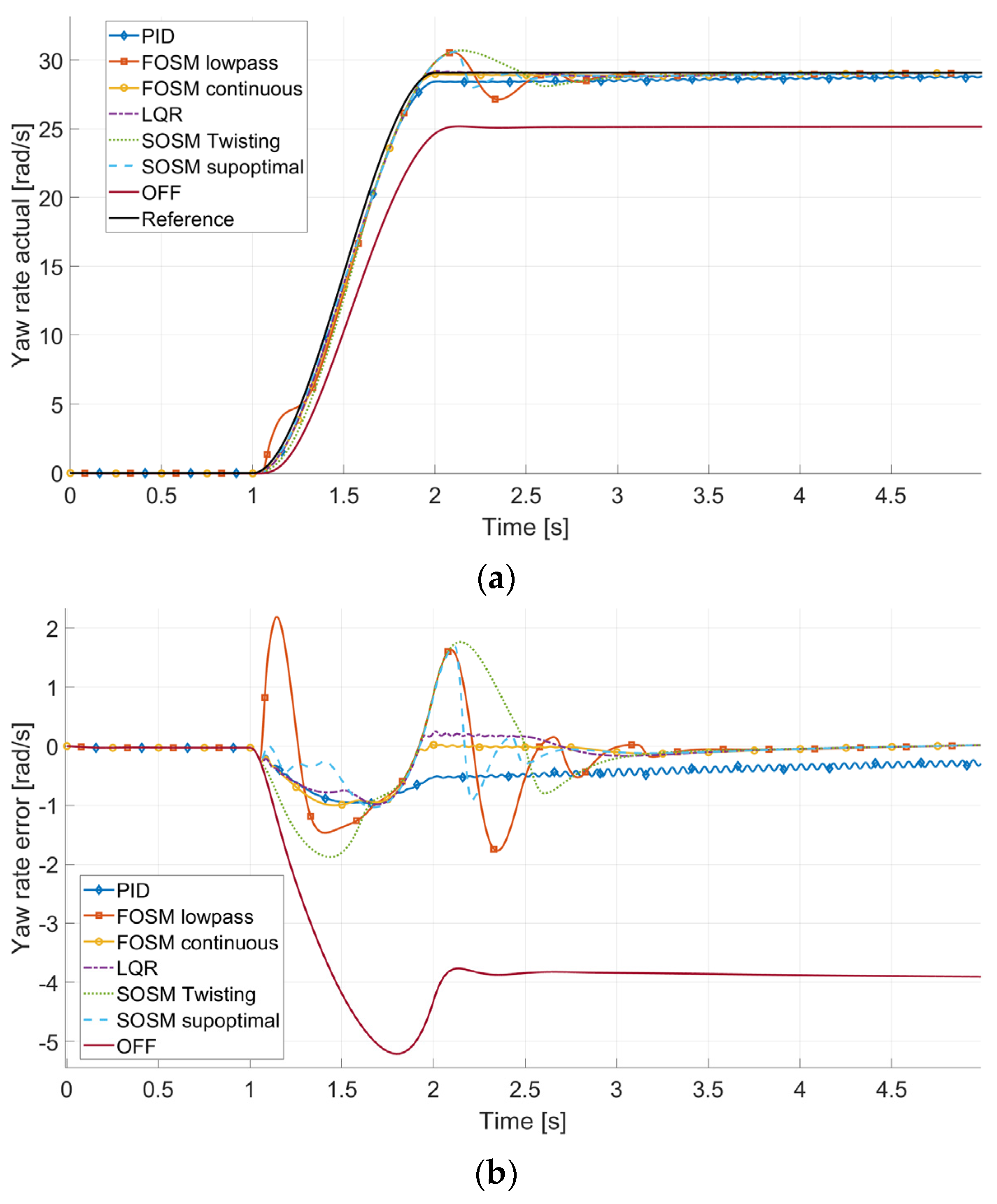

#### 4.2. 80° Step Steering

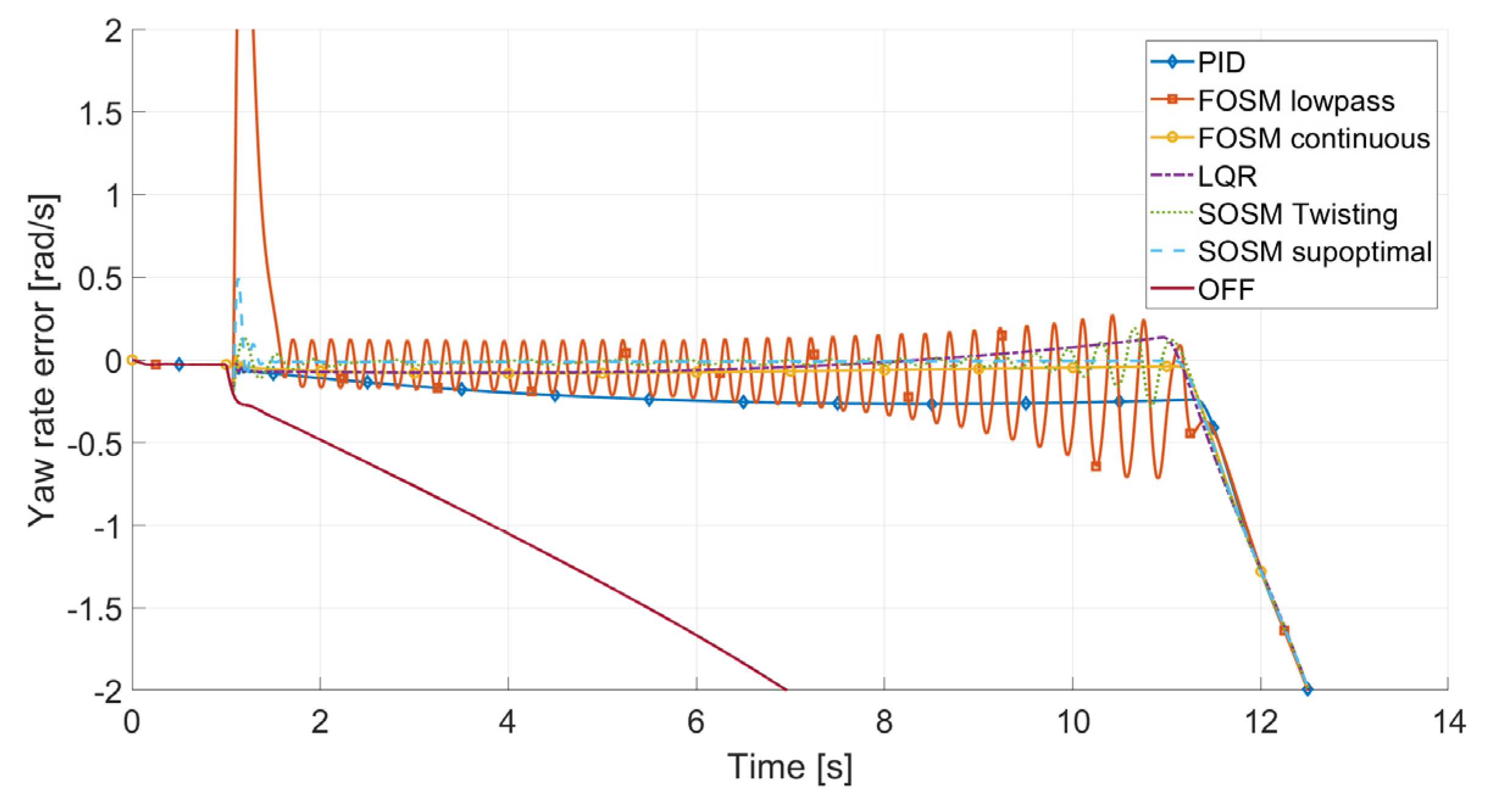

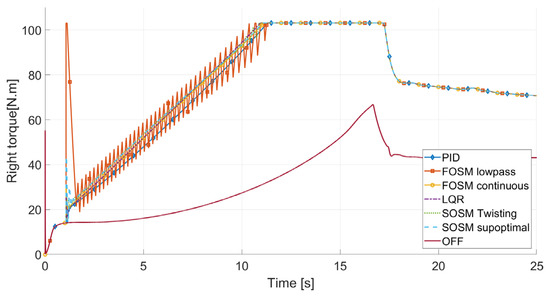

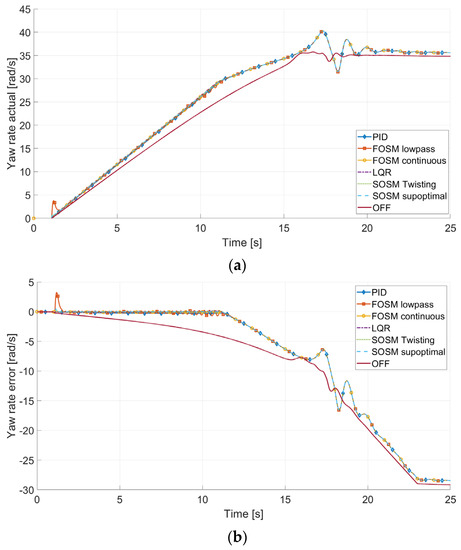

#### 4.3. Ramp Steering

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Carello, M.; Bonansea, P.; D’Auria, M. Driveline Optimization for a Hybrid Electric City Vehicle to Minimize Fuel Consumption. In Proceedings of the SAE 2014 World Congress & Exhibition, Detroit, MI, USA, 8–10 April 2014. SAE Technical Paper 2014-01-1090. [Google Scholar] [CrossRef]
- Pinheiro, H.D.C.; Messana, A.; Sisca, L.; Ferraris, A.; Airale, A.G.; Carello, M. Torque Vectoring in Electric Vehicles with In-wheel Motors. In Advances in Mechanism and Machine Science; Springer International Publishing: Cham, Switzerland, 2019; pp. 3127–3136. [Google Scholar] [CrossRef]
- Assadian, F.; Hancock, M. A comparison of yaw stability control strategies for the active differential. In Proceedings of the IEEE International Symposium on Industrial Electronics, Dubrovnik, Croatia, 20–23 June 2005; Volume 1, pp. 373–378. [Google Scholar] [CrossRef]
- Siampis, E.; Velenis, E.; Longo, S. Predictive rear wheel torque vectoring control with terminal understeer mitigation using nonlinear estimation. In Proceedings of the 2015 54th IEEE Conference on Decision and Control (CDC), Osaka, Japan, 15–18 December 2015; pp. 4302–4307. [Google Scholar] [CrossRef]
- Siampis, E.; Velenis, E.; Longo, S. Model Predictive torque vectoring control for electric vehicles near the limits of handling. In Proceedings of the 2015 European Control Conference (ECC), Linz, Austria, 15–17 July 2015; pp. 2553–2558. [Google Scholar] [CrossRef]
- Hu, X.; Chen, H.; Li, Z.; Wang, P. An Energy-Saving Torque Vectoring Control Strategy for Electric Vehicles Considering Handling Stability Under Extreme Conditions. IEEE Trans. Veh. Technol.
**2020**, 69, 10787–10796. [Google Scholar] [CrossRef] - Goggia, T.; Sorniotti, A.; De Novellis, L.; Ferrara, A. Torque-vectoring control in fully electric vehicles via integral sliding modes. In Proceedings of the 2014 American Control Conference, Portland, OR, USA, 4–6 June 2014; pp. 3918–3923. [Google Scholar] [CrossRef]
- Canale, M.; Fagiano, L.; Ferrara, A.; Vecchio, C. Vehicle Yaw Control via Second-Order Sliding-Mode Technique. IEEE Trans. Ind. Electron.
**2008**, 55, 3908–3916. [Google Scholar] [CrossRef] - Wang, Z.; Wang, Y.; Zhang, L.; Liu, M. Vehicle Stability Enhancement through Hierarchical Control for a Four-Wheel-Independently-Actuated Electric Vehicle. Energies
**2017**, 10, 947. [Google Scholar] [CrossRef] [Green Version] - Xu, X.; Xiong, L.; Feng, Y. Torque Vectoring Control for Handling Improvement of 4WD EV. Adv. Mater. Res.
**2013**, 765–767, 1893–1898. [Google Scholar] [CrossRef] - Chae, M.; Hyun, Y.; Yi, K.; Nam, K. Dynamic Handling Characteristics Control of an in-Wheel-Motor Driven Electric Vehicle Based on Multiple Sliding Mode Control Approach. IEEE Access
**2019**, 7, 132448–132458. [Google Scholar] [CrossRef] - Tota, A.; Lenzo, B.; Lu, Q.; Sorniotti, A.; Gruber, P.; Fallah, S.; Velardocchia, M.; Galvagno, E.; De Smet, J. On the Experimental Analysis of Integral Sliding Modes for Yaw Rate and Sideslip Control of an Electric Vehicle with Multiple Motors. Int. J. Automot. Technol.
**2018**, 19, 811–823. [Google Scholar] [CrossRef] - Zehetner, J.; Horn, M. Vehicle dynamics control with torque vectoring and active rear steering using sliding mode control. IFAC Proc. Vol.
**2007**, 40, 1–8. [Google Scholar] [CrossRef] - Carello, M.; Pinheiro, H.D.C.; Longega, L.; Di Napoli, L. Design and Modelling of the Powertrain of a Hybrid Fuel Cell Electric Vehicle. SAE Tech. Pap. Ser.
**2021**, 3, 2878–2892. [Google Scholar] [CrossRef] - de Carvalho Pinheiro, H.; Punta, E.; Carello, M.; Ferraris, A.; Airale, A.G. Torque Vectoring in Hybrid Vehicles with In-Wheel Electric Motors: Comparing SMC and PID control. In Proceedings of the 2021 IEEE International Conference on Environment and Electrical Engineering and 2021 IEEE Industrial and Commercial Power Systems Europe (EEEIC/I CPS Europe), Bari, Italy, 7–10 September 2021; pp. 1–6. [Google Scholar] [CrossRef]
- Levant, A. Sliding order and sliding accuracy in sliding mode control. Int. J. Control
**1993**, 58, 1247–1263. [Google Scholar] [CrossRef] - Levantovsky, L.V. Second order sliding algorithms: Their realization. In Dynamics of Heterogeneous Systems; Institute for System Studies Moscow: Moscow, Russia, 1985; pp. 32–43. [Google Scholar]
- Bartolini, G.; Ferrara, A.; Usai, E. Applications of a Sub-Optimal Discontinuous Control Algorithm for Uncertain Second Order Systems. Int. J. Robust Nonlinear Control
**1997**, 7, 299–319. [Google Scholar] [CrossRef] - Milliken, W.F.; Milliken, D.L.; Metz, L.D. Race Car Vehicle Dynamics; Society of Automotive Engineers: Warrendale, PA, USA, 1995. [Google Scholar]
- Genta, G.; Morello, L. The Automotive Chassis: Volume 1–2; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
- Setiawan, J.D.; Safarudin, M.; Singh, A. Modeling, simulation and validation of 14 DOF full vehicle model. In Proceedings of the International Conference on Instrumentation, Communication, Information Technology, and Biomedical Engineering, Bandung, Indonesia, 23–25 November 2009; pp. 1–6. [Google Scholar] [CrossRef]
- Pacejka, H.B. Tyre and Vehicle Dynamics, 2nd ed.; Butterworth-Heinemann: Oxford, UK, 2006. [Google Scholar]
- De Novellis, L.; Sorniotti, A.; Gruber, P.; Pennycott, A. Comparison of Feedback Control Techniques for Torque-Vectoring Control of Fully Electric Vehicles. IEEE Trans. Veh. Technol.
**2014**, 63, 3612–3623. [Google Scholar] [CrossRef] - Utkin, V.I. Sliding Modes in Control and Optimization; Springer: Berlin/Heidelberg, Germany, 1992. [Google Scholar]
- Bartolini, G.; Punta, E. Multi-Input Sliding Mode Control of Nonlinear Uncertain Non-Affine Systems with Mono-Directional Actuation. IEEE Trans. Autom. Control
**2014**, 60, 393–403. [Google Scholar] [CrossRef] - Harashima, F.; Hashimoto, H.; Maruyama, K. Practical robust control of robot arm using variable structure system. In Proceedings of the 1986 IEEE International Conference on Robotics and Automation Proceedings, San Francisco, CA, USA, 7–10 April 1986; pp. 532–539. [Google Scholar] [CrossRef]
- Menhour, L.; Lechner, D.; Charara, A. Sliding mode control to design a driver model for vehicle steering: Experimental validation and stability evaluation of sideslip motion. IFAC Proc. Vol.
**2010**, 43, 7–12. [Google Scholar] [CrossRef] - De Martino, M.; Farroni, F.; Pasquino, N.; Sakhnevych, A.; Timpone, F. Real-time estimation of the vehicle sideslip angle through regression based on principal component analysis and neural networks. In Proceedings of the 2017 IEEE International Systems Engineering Symposium (ISSE), Vienna, Austria, 11–13 October 2017; pp. 1–6. [Google Scholar] [CrossRef]
- Chindamo, D.; Gadola, M.; Bonera, E.; Magri, P. Experimental Comparison of The Two Most Used Vehicle Sideslip Angle Estimation Methods for Model-Based Design Approach. J. Phys. Conf. Ser.
**2021**, 1888, 012006. [Google Scholar] [CrossRef] - de Carvalho Pinheiro, H.; Russo, F.; Sisca, L.; Messana, A.; De Cupis, D.; Ferraris, A.; Airale, A.G.; Carello, M. Active Aerodynamics through Active Body Control: Modelling and Static Simulator Validation. In Proceedings of the ASME 2020 International Design Engineering Technical Conferences and Computers and Information in Engineering Conference, Virtual, 17–19 August 2020. [Google Scholar] [CrossRef]

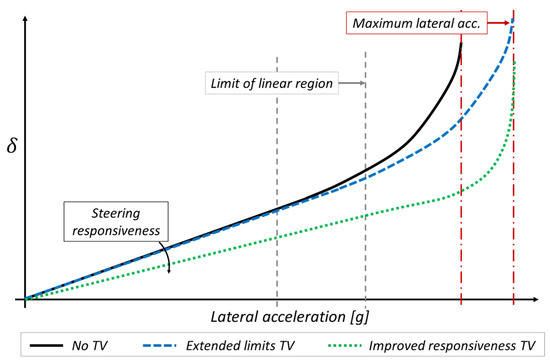

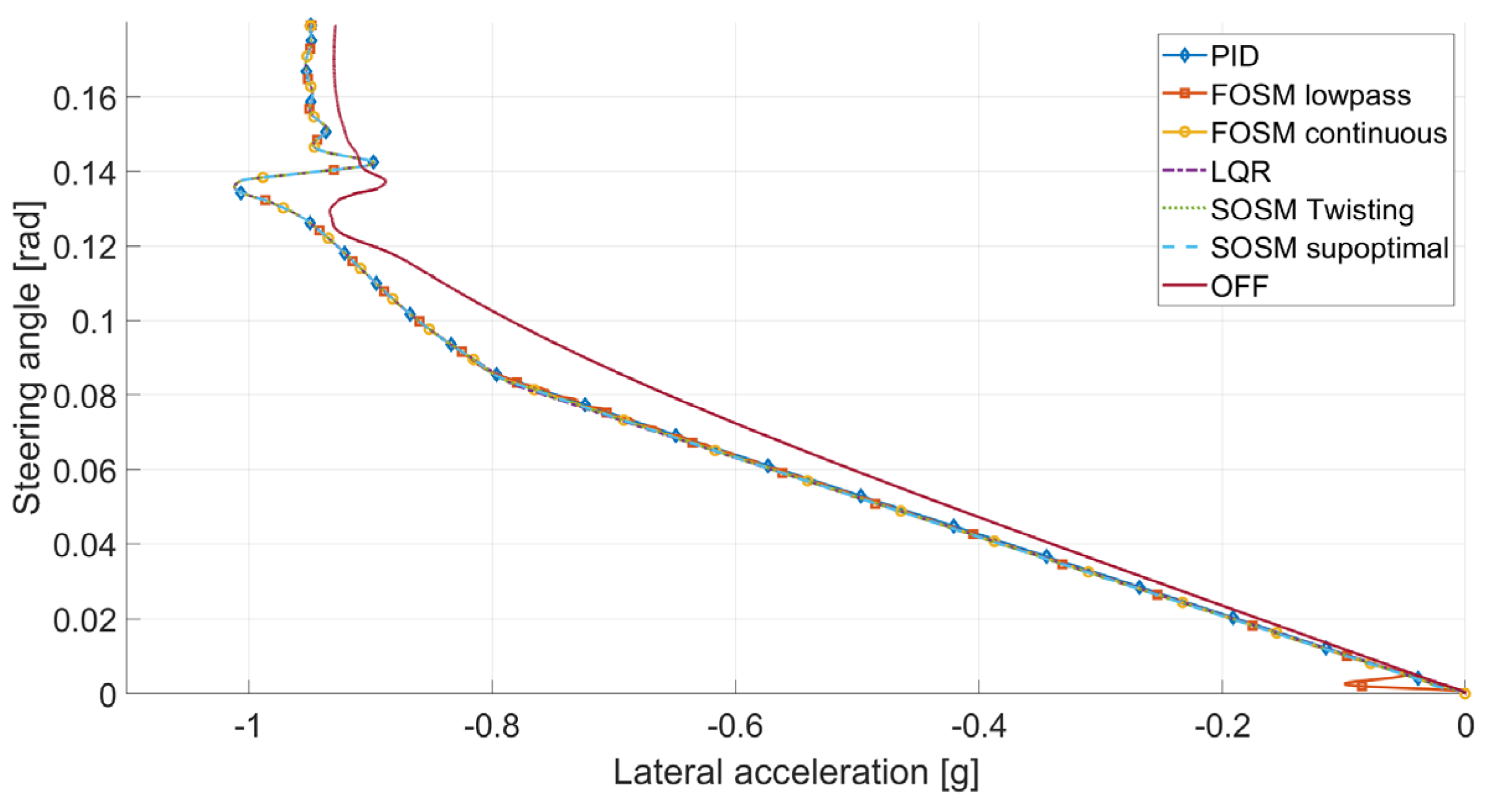

**Figure 1.**Input steering angle ($\delta $) versus lateral acceleration (${a}_{y}$ ). The graph is changed by TV.

**Figure 4.**Simulink model organized in different blocks and subsystems [15].

**Table 1.**Parameters of the vehicle [15].

Property | Symbol | Value |
---|---|---|

Total mass | M | 1006 kg |

Wheelbase | l | 2.3 m |

Distance between CoG and front axle | a | 0.805 m |

Distance between CoG and rear axle | b | 1.495 m |

Track | t | 1.413 m |

CoG height | h_{cg} | 0.537 m |

Yaw inertia | I_{z} | 965.6 kg·m^{2} |

Tire radius (no load) | r | 0.291 m |

Lateral stiffness (front tires) | C_{f} | 21,094 N/rad |

Lateral stiffness (rear tires) | C_{r} | 14,556 N/rad |

Motor peak torque | T_{EM} | 103 N·m |

Motor peak power | P_{EM} | 25 kW |

Property | Value |
---|---|

Longitudinal velocity | 15 m/s |

Initial steering angle | 0° |

SWA increment rate $\theta $ | 8°/s |

Turning direction | Left |

Total maneuver time | 25 s |

Steering start | 1 s |

Steering end | 22 s |

Total maneuver time | 25 s |

Transmission gear | Fixed 3rd |

Turning direction | Left |

Property | Value |
---|---|

Longitudinal velocity | 15 m/s |

Initial steering angle | 0° |

Final SWA | 50° and 80° |

Turning direction | Left |

Total maneuver time | 5 s |

Steering start | 1 s |

Step duration | 1 s |

Total maneuver time | 5 s |

Transmission gear | Fixed 3rd |

Turning direction | Left |

Property | Unit | Value |
---|---|---|

K_{P} | - | 40 |

K_{I} | - | 10 |

K_{D} | - | 0.01 |

F | Hz | 100 |

**Table 5.**Numerical comparison of the control systems in the three conditions studied using the proposed PF.

Controller | Step 50° | Step 80° | Ramp Steering |
---|---|---|---|

OFF | 3.740 | 7.258 | 58.543 |

PID | 1.000 | 1.469 | 35.981 |

FOSM lowpass | 0.926 | 1.577 | 35.445 |

FOSM continuous | 0.641 | 1.009 | 35.011 |

LQR | 0.608 | 1.104 | 35.042 |

SOSM twisting | 0.728 | 2.084 | 34.776 |

SOSM suboptimal | 0.525 | 1.491 | 34.802 |
