Sentence Compression Using BERT and Graph Convolutional Networks

,
,
and
1
Department of Radio and Information Communications Engineering, ChungNam National University, 99 Daehak-ro, Yuseong-gu, Daejeon 34134, Korea
2
AI Laboratory, Drama & Company, Seoul 06158, Korea
*
Author to whom correspondence should be addressed.
This article belongs to the Section Computing and Artificial Intelligence

Abstract

Sentence compression is a natural language-processing task that produces a short paraphrase of an input sentence by deleting words from the input sentence while ensuring grammatical correctness and preserving meaningful core information. This study introduces a graph convolutional network (GCN) into a sentence compression task to encode syntactic information, such as dependency trees. As we upgrade the GCN to activate a directed edge, the compression model with the GCN layers can distinguish between parent and child nodes in a dependency tree when aggregating adjacent nodes. Furthermore, by increasing the number of GCN layers, the model can gradually collect high-order information of a dependency tree when propagating node information through the layers. We implement a sentence compression model for Korean and English, respectively. This model consists of three components: pre-trained BERT model, GCN layers, and a scoring layer. The scoring layer can determine whether a word should remain in a compressed sentence by relying on the word vector containing contextual and syntactic information encoded by BERT and GCN layers. To train and evaluate the proposed model, we used the Google sentence compression dataset for English and a Korean sentence compression corpus containing about 140,000 sentence pairs for Korean. The experimental results demonstrate that the proposed model achieves state-of-the-art performance for English. To the best of our knowledge, this sentence compression model based on the deep learning model trained with a large-scale corpus is the first attempt for Korean.

1. Introduction

Sentence compression is a natural language-processing (NLP) task where the primary objective is to generate a short paraphrase of an input sentence [1]. Deletion-based compression is the most common approach to sentence compression—it is a sequence-labeling problem that determines whether each word should be retained or deleted from a source sentence to form a compressed sentence [2]. With this approach, only the remaining words are used to compose a compressed sentence. Syntactic information, such as a syntactic tree, has been adopted as a feature in many sentence compression systems to maintain the grammaticality of a compressed sentence.
A graph neural network (GNN) is a powerful architecture for modeling structural data such as trees or graphs [3]. The GNN has recently gained popularity in the dependency parsing research domain because it can appropriately represent a node of a dependency tree by aggregating its parent and child nodes and by gradually incorporating higher-order information of a dependency tree by collecting neighboring nodes.
We adopt a deletion-based approach to sentence compression that performs word-based deletion from a source sentence. Thus, representing a word with as much information as possible is critical in a sentence compression model. In this study, we introduce a graph convolutional network (GCN) [4] to obtain structural information of words in a dependency tree. The GCN is one of the most common GNNs because it operates using the same convolution used in conventional convolutional neural networks. The GCN can support node representation in a dependency tree, allowing neighboring nodes to be integrated with shared weights. Furthermore, we use pre-trained Bidirectional Encoder Representations from Transformers (BERT) [5] to obtain contextualized information of words in a sentence.
In this study, we upgrade GCNs to activate directed edges; therefore, the proposed GCNs can distinguish between parent and child nodes when aggregating adjacent nodes. In addition, as the number of layers in GCNs increases, the GCNs gradually collect high-order information of a dependency tree by propagating information through the layers. The sentence compression model equipped with the upgraded GCN can glean information within nodes two hops away from a given node by differentiating ancestors and descendants when the GCN has two layers. We implement a sentence compression model for Korean and English in this study. The model has three components: a BERT pre-trained model, GCN layers, and a scoring layer. First, a sequence of word vectors of an input sentence can be obtained using the BERT pre-trained model. The word vectors contain contextualized information of a sentence. Syntactic information—such as parent and child nodes of a dependency tree—is then embedded into the word vectors using the GCN aggregation operation. Finally, the scoring layer decides whether a word should remain in a compressed sentence based on information on the word vector.
To train the proposed sentence compression model, we require a parallel corpus consisting of pairs of original and corresponding compressed sentences. We use the Google sentence compression dataset for English. For Korean, we use the Korean sentence compression corpus [6], which contains approximately 140,000 sentence pairs. We evaluate the proposed model on the Korean and English corpora. To the best of our knowledge, this proposed deletion-based sentence compression is the first attempt for Korean. For English, the proposed model can achieve state-of-the-art performance.
Our contributions to sentence compression are as follows:
(1)
We introduce GCNs to sentence compression tasks to efficiently exploit a dependency tree when representing words.
(2)
This study is the first to build a sentence compression model for Korean based on deep neural networks and to evaluate sentence compression on a large-scale Korean corpus.
(3)
The proposed model achieves state-of-the-art performance in English sentence compression.
The rest of the paper is organized as follows. We first explore related studies in Section 2. In Section 3, we present a sentence compression model based on BERT and GCNs. The experimental results are presented in Section 4, and the conclusion is presented in Section 5.

3. Sentence Compression Using BERT and GCNs

This section describes a baseline model and then introduces GCNs to the baseline model. Next, we propose directed GCNs representing a dependency structure to improve the aforementioned models.
Given a sentence consisting of n words, s = { w 1 , w 2 , , w n } is a sequence of word representations of a sentence. A score layer uses the word representation w k as an input and computes a final score to predict if the k-th word corresponding to w k remains in a compressed sentence. Therefore, if the score is less than 0.5, the k-th word is deleted (“0” indicates deletion in Figure 1); otherwise, the word remains (“1”). In this study, the score layer consists of two linear layers and a logistic sigmoidal function in the final layer, as described in Equation (1).
S c o r e L a y e r ( w k ) = σ ( W s r e l u ( W i w k + b i ) + b s )
where w k is a vector representation of the k-th word and can be obtained by concatenating a token embedding ( t o k e n e m b k ) and a dependency label embedding ( d e p e m b k ) according to Equation (2). The dependency label indicates a syntactic role between the k-th word and its parent word in a dependency tree.
w k = r e l u ( W w [ t o k e n e m b k | | d e p e m b k ] )

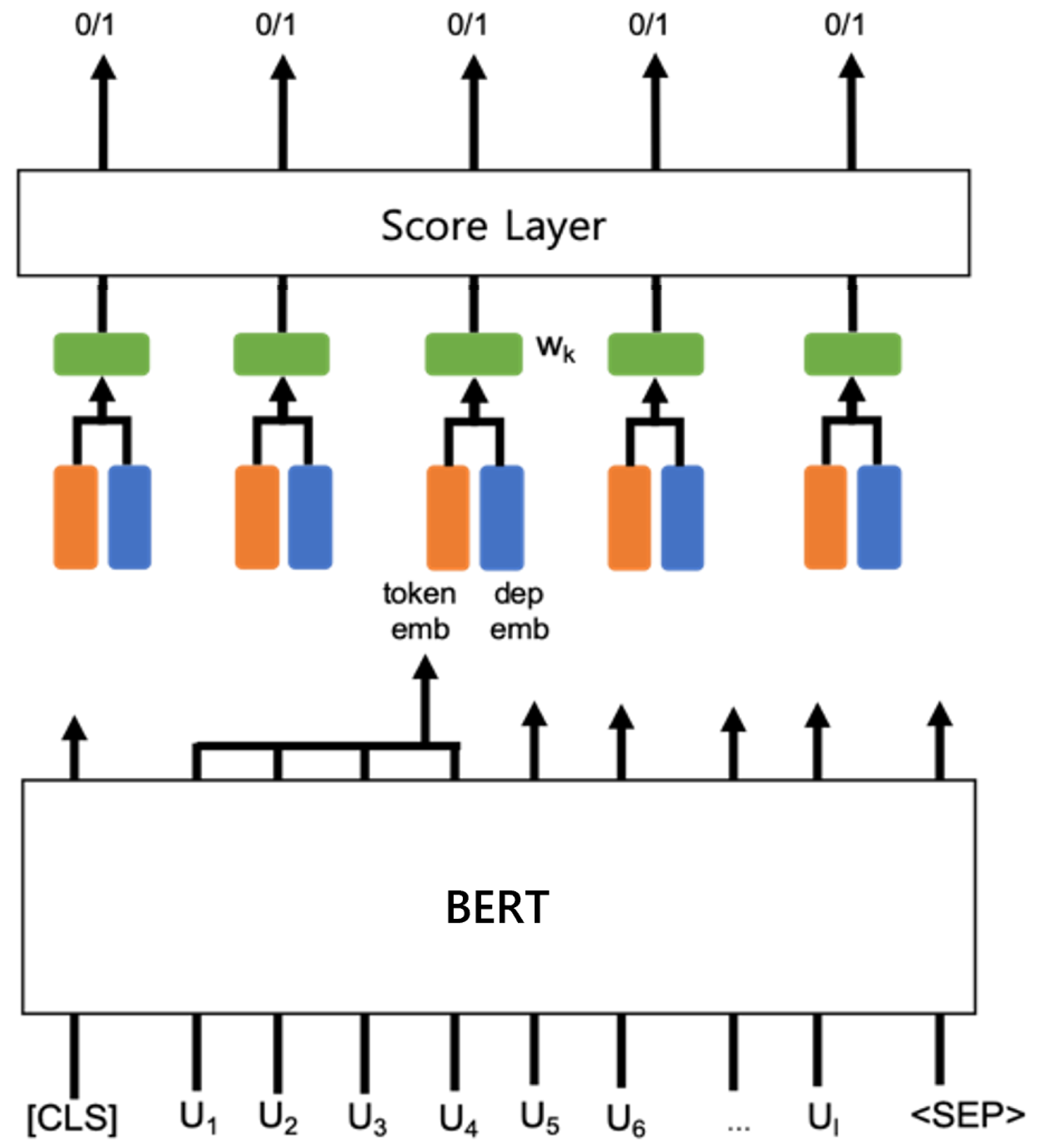

Figure 1. Baseline model representing sentence compression.

3.1. Baseline Model

Figure 1 illustrates a basic sentence compression model [11] with BERT and a score layer.
BERT, a well-known pre-trained model, can provide a sequence of contextualized word embeddings for an input sentence. As BERT adopts sub-word tokenization (a word may be split up into multiple tokens), a sentence compression model using word-based deletion must combine multiple tokens from BERT outputs into a word. A token embedding t o k e n e m b k for the k-th word consisting of m sub-word tokens can be obtained by concatenating two final hidden states of bi-LSTMs, as in Equation (3).
t o k e n e m b k = [ L S T M ( t k m | t k 1 , t k 2 , , t k m 1 ) | | L S T M ( t k 1 | t k 2 , t k 3 , , t k m ) ] ,
where t k i is an output of BERT for the i-th sub-word token of the k-th word.

3.2. Sentence Compression Using GCNs

Figure 2 depicts a basic architecture representing sentence compression using a GNN to process syntactic information. An input sequence s = { w 1 , w 2 , , w n } is re-calculated by the GNN and its syntactic parse tree. Node T k , the output of the GNN layer for the k-th word, becomes an input for the score layer.
Figure 2. Sentence compression model with a GNN.
In a graph, each node is naturally defined by its features and related nodes. The objective of GNNs is to learn a node embedding that contains the neighbors’ information of the node. From a parsing perspective, the node embedding of a syntactic dependency tree is represented by aggregating with its parent and child nodes.
A GCN is one of the most commonly used GNNs. A basic aggregator in GCNs is a convolution operation that shares all the weights within the same layer. GCNs, similar to GNNs, can consider multi-hop neighboring nodes when they have multiple layers. In this study, we introduce two types of GCNs to obtain a node’s embeddings: (1) GCNs with undirected edges and (2) directed GCNs where all edges have directions.
In GCNs, a node can be propagated to the next layer by aggregating the neighbors’ information using a convolutional operation. Equation (4) is a layer-wise propagation rule in a multi-layer GCN [4]:
T h = σ ( D ˜ 1 2 A ˜ D ˜ 1 2 T h 1 W g h ) ,
where A ˜ = A + I N is an adjacency matrix of an undirected graph with self-connections added. I N is the identity matrix, D ˜ i i = j A ˜ i j , and W g h is a layer-specific learnable weight matrix. σ is an activation function, and the rectified linear unit (ReLU) was used in this study. The adjacency matrix was normalized by D ˜ 1 2 A ˜ D ˜ 1 2 . T k h 1 is an input matrix to the h-th layer of a GCN that is propagated to T h by Equation (4) and T 0 = [ w 1 , w 2 , , w n ] T .
Figure 3 illustrates an example of how to propagate a node T k h 1 with two child nodes and a parent node (indicated by arrows at the bottom) to T k h in the h-th layer. As all edges in a GCN have no direction, the adjacency matrix for this example is symmetric. In the h-th GCN layer, the node T k h 1 itself, its parent, and two child nodes are all aggregated by a convolutional operation and applied by the ReLU function for propagation to a new T k h in the next layer.

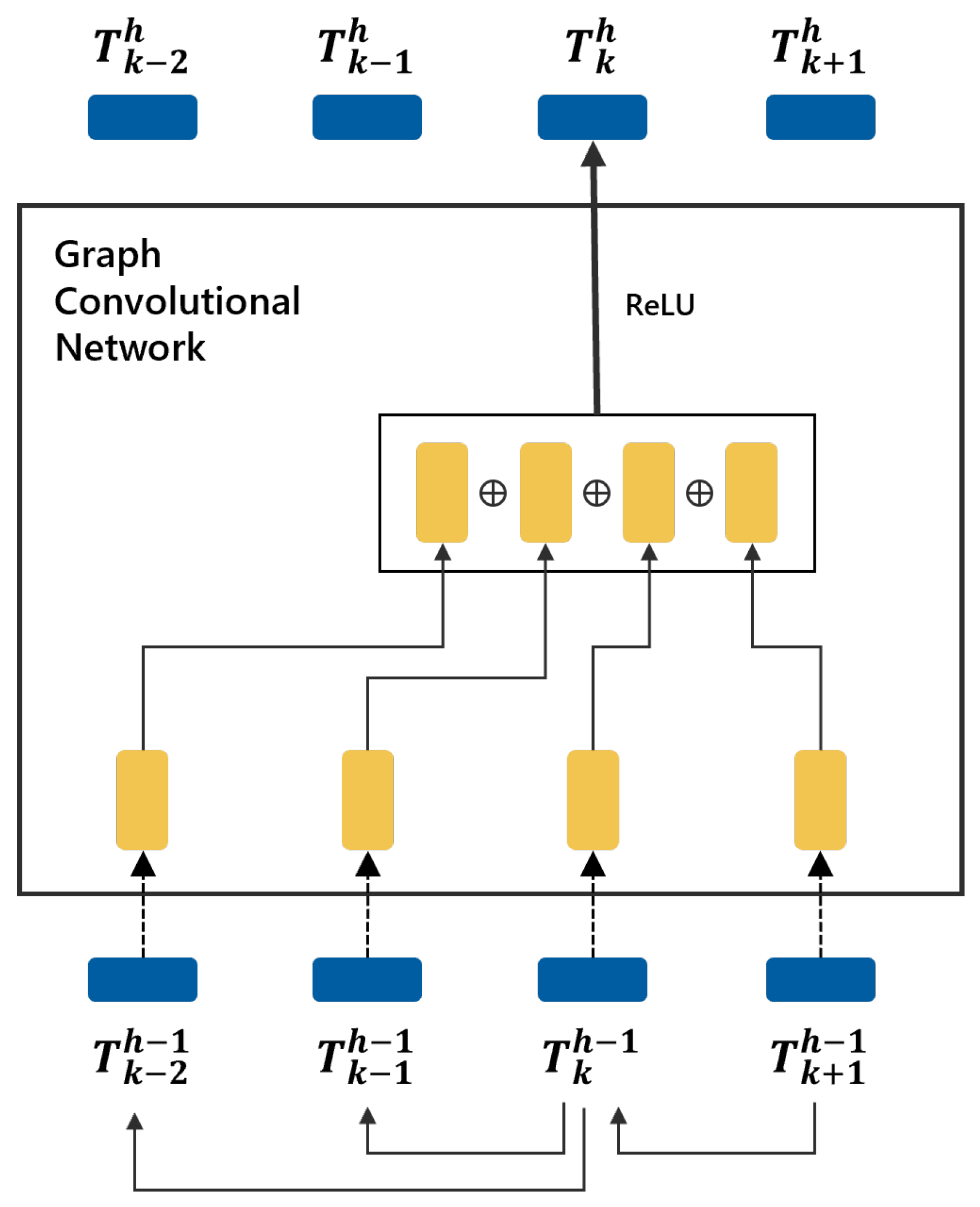

Figure 3. Example of node propagation in the h-th GCN layer.

3.3. Sentence Compression Using Directed GCNs

As a dependency tree inherently has directional information between a node and its parent, GCNs with undirected edges cannot fully represent syntactic tree information. We addressed this shortcoming by extending the GCNs to include directional information on edges—referred to as directed GCNs(d-GCNs) in this study.
To fully utilize the directed edges in a directed graph, the propagation steps of parent and child nodes should be treated differently. Therefore, two types of weight matrixes are incorporated in Equation (5) to glean more precise structural information [12]:
T h = σ ( D p 1 A p σ ( D c 1 A c T h 1 θ c h ) θ p h ) ,
where D p 1 A p and D c 1 A c are the normalized adjacency matrixes for the parent and child nodes, respectively, and θ p h and θ c h are learnable weight matrixes at the h-th layer to linearly transform parent and child nodes, respectively.
We modify the propagation rule in Equation (5) slightly for this study. Equation (6) is a node propagation rule of the d-GCN proposed in this study. Figure 4 further explains Equation (6). The k-th input node T k h 1 to the layer h can be propagated to T k h by Equation (6):
T k h = σ ( ( σ ( T k h 1 θ I h )   σ ( T P ( k ) h 1 θ p h )   m a x p o o l i n g c C ( k ) ( { σ ( T c h 1 θ c h ) } ) ) θ l h ) ,
where the functions P ( k ) and C ( k ) return a parent index and child indexes of the k-th word in a dependency tree.

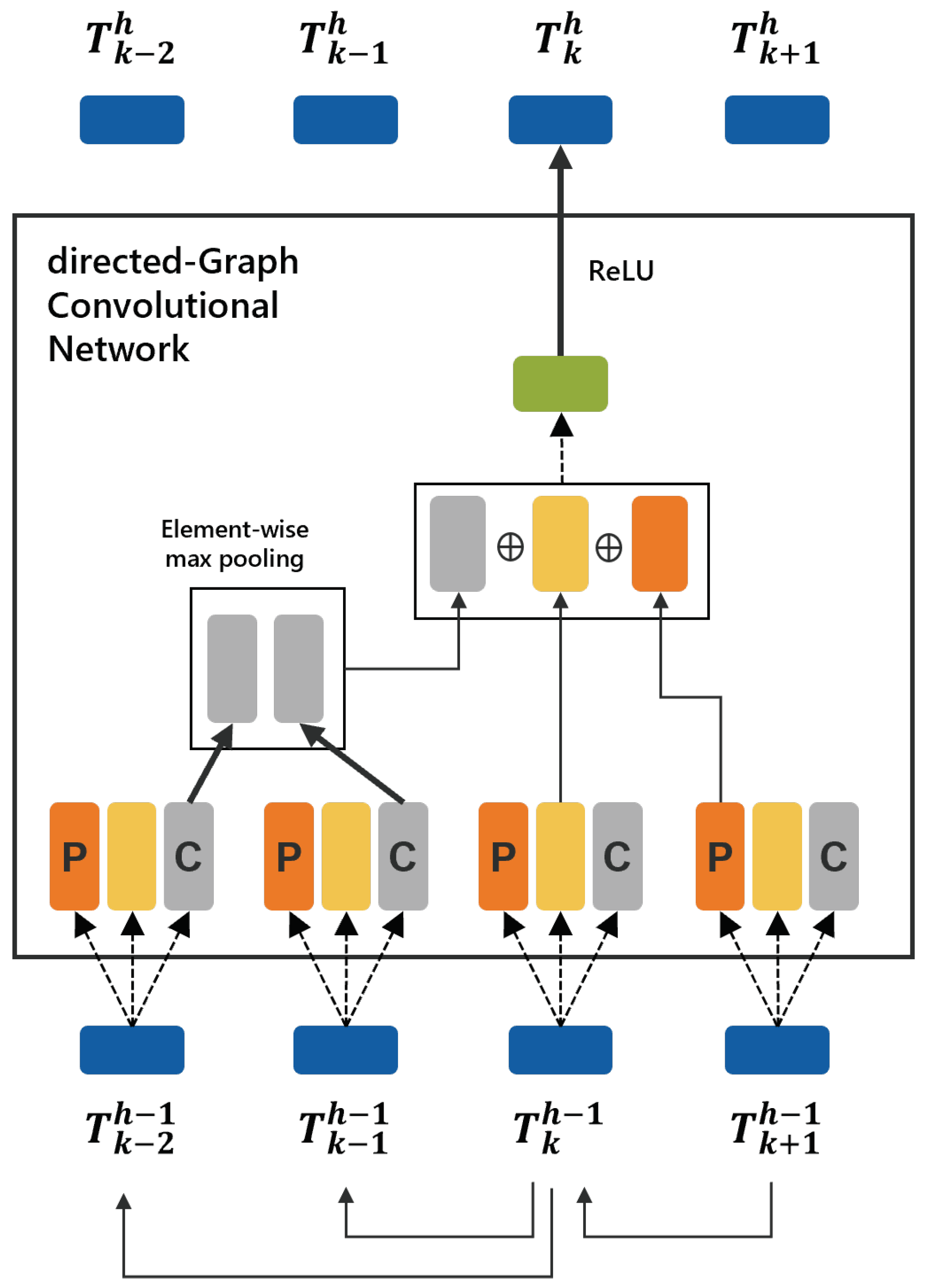

Figure 4. Example of node propagation in the h-th d-GCN layer.
As a node can have several child nodes in a dependency tree, an aggregator is necessary to combine all child nodes’ information. In Equation (5), all child nodes are aggregated by a simple element-wise mean. In this study, we adopt an element-wise max-pooling aggregator to combine child information because not all child nodes are equally important to their parent. In the final step of node propagation, another linear transformation is performed by multiplying the weight matrix θ l h . This step is then followed by the non-linearity ReLU function.

4. Experiments

In this section, we first describe the details of datasets and experimental enviroments and then present experimental results of the performance of the compression models. Some examples of compressed sentences are also provided at the end of this section.

4.1. Datasets and Experimental Setup

Training a sentence compression model based on deep learning requires a parallel corpus consisting of pairs of original and compressed sentences.
We use the Korean sentence compression corpus [6] consisting of 144,987 pairs, of which 117,252 are part of the training set, 13,130 are used as the validation set, and 14,605 are used as a testing set. This corpus was built by a sentence compression algorithm that deletes nodes from a syntactic dependency tree of an original sentence while preserving the grammaticality of a compressed sentence. The algorithm chooses nodes to be deleted using the structural constraints and semantically required information on a sentence. The Korean sentence compression corpus was successfully built by applying the algorithm to headlines and the first sentences of news articles. The average number of words in source sentences is 16.5, and that of words in compressed sentences is 12.0. The average compression ratio (CR) for word-based is about 72.5, and that for character-based is about 75.5.
This study used the Google sentence compression dataset for English (https://github.com/google-research-datasets/sentence-compression, accessed on 16 September 2021). The first 1000 pairs of “comp-data.eval.json” were used as a testing set, and the last 1000 pairs were used as a validation set. Of the 200,000 pairs in sent-com.train*.json, 199,915 pairs in which the original sentence lengths were less than 512 tokens were used as a training set. The average CR for the dataset is 42.3.
The hyperparameters used in the experiments are depicted in Table 1. The version of BERT we used is BERT-BASE (https://huggingface.co/bert-base-uncased, accessed on 16 September 2021) for English and KorBERT (http://aiopen.etri.re.kr, accessed on 16 September 2021) for Korean.
Table 1. Hyperparameters used in experiments.

4.2. Results and Evaluation

As this study is the first attempt to compress Korean sentences using a deep learning model, the experimental results cannot be compared with those of previous studies. Therefore, we establish a pruning model for an initial comparison model that compresses a sentence by pruning its dependency tree at a specified depth. The experimental results for Korean sentence compression are described in Table 2. The CR is the average number of characters of a compressed sentence divided by that of an original sentence, and Δ C is the CR of sentences compressed by a model minus the CR of a training set. We set the depth of the pruning model to 5 to generate compressed sentences as close as possible to the CR of the training set.
Table 2. Evaluation results for Korean sentence compression. indicates that the difference of the F1 score from the BASELINE is statistically significant with 0.95 confidence. We used paired-bootstrap-resampling [13] with 14,605,000 random samples.
The baseline model with only BERT and the score layer achieved a high F1 score of 90.33. This result implies that contextualized information of a sentence calculated by self-attention operations in BERT is helpful for deciding which words should remain in compressed Korean sentences.
When the model was equipped with the GCN, its F1 score was similar to the baseline model, but the CR increased. The model that adopted the d-GCN achieved a higher F1 score, but the CR became higher than the comparison models.
We reason that the d-GCN layers were well-trained in choosing appropriate nodes for compressing a sentence while preserving the grammaticality of the compressed sentences. Although the model with d-GCN produced the longest compressed sentences, the number of sub-trees in the compressed sentences was the smallest among the comparison models besides the pruning model. The model with the d-GCN tends to generate a longer compressed sentence in which all words are connected in a valid syntactic tree. “LONG” is the evaluation result only for the sentences in which the average lengths exceeded those in the testing set. The percentage of the “LONG” sentences in the testing set is also presented in the table.
The experimental results for English sentence compression are described in Table 3. The compression model with GCN had a similar F1 score as the baseline model and the previous studies. However, the model with d-GCN achieved state-of-the-art performance. The gap in the F1 scores of the models with d-GCN and without d-GCN widened more for “LONG” sentences than for “ALL”. The performance improvements are attributed to the propagation rules in the d-GCN layers that differentiate parent and child nodes and aggregate child nodes with a max-pooling operation.
Table 3. Evaluation results for English sentence compression. indicates that the difference of the F1 score from the baseline is statistically significant with 0.95 confidence. We used paired-bootstrap-resampling [13] with 1,000,000 random samples.
In order to conduct human evaluation of the three compression models, we collected 100 sentences each from the Korean and English testing sets. The compression ratio strongly correlates with human judgments of informativeness and grammaticality [14]. Therefore, only sentences with a compression ratio difference of less than 10.0% were collected and evaluated. All sentence–compression pairs were assessed by three human raters who were asked to rate them on a five-point Likert scale from one to five. These pairs were evaluated for both readability and informativeness. Table 4 summarizes the human evaluation results. In Korean and English, the system with d-GCN outperformed the other models under both metrics. The performance of the compression model using GCN is not as good as we would expect, and the readability score of English is even lower than that of the baseline. However, the model adopting d-GCN has shown significant improvements in both metrics.
Table 4. Results of human evaluation of Korean and English sentence compression. indicates that the difference of the score from the BASELINE is statistically significant with 0.95 confidence. We used the same method as in Table 2 and Table 3 with 100,000 random samples.
Examples of the compressed sentences are listed in Table 5.
Table 5. Examples of compressed sentences.

5. Conclusions

This study introduced d-GCN into a sentence compression task to represent a word with a dependency tree. As the d-GCNs can handle directed edges and can be stacked with multiple layers, the compression model with the d-GCNs could distinguish between descendants and ancestors when aggregating neighbors and could gradually collect high-order information by propagating across the layers.
The proposed sentence compression model consists of a BERT pre-trained model, d-GCN layers, and a scoring layer. The scoring layer of the model determines whether a word should remain in a compressed sentence by judging the word vector containing contextual and syntactic information encoded by BERT and the d-GCN layers.
The proposed model achieved state-of-the-art performance for English sentence compression. As this is the first attempt to use GCNs for Korean sentence compression, the current experimental results are a cornerstone for future studies.

Author Contributions

Conceptualisation, G.-H.L. and K.-J.L.; methodology, G.-H.L. and Y.-H.P.; software, Y.-H.P.; validation, Y.-S.C. and Y.-H.P.; writing—original draft preparation, G.-H.L. and K.-J.L.; writing—review and editing, Y.-H.P. and K.-J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) (NRF-2019R1F1A1053136 and NRF-2019S1A5A2A03041296).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this published article.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
BERTBidirectional Encoder Representations from Transformers
d-GCNdirected Graph Convolutional Network
CNNConvolutional Neural Networks
CRCompression Ratio
GCNGraph Convolutional Network
GNNGraph Neural Network
ILPInteger Linear Programming
LSTMLong Short-Term Memory
ReLURectified Linear Unit
SLAHANSyntactically Look-A-Head Attention Network

References

  1. Filippova, K.; Altun, Y. Overcoming the Lack of Parallel Data in Sentence Compression. In Proceedings of the 2013 Conference on Empirical Methods in Natural Language Processing, Seattle, WA, USA, 18–21 October 2013; pp. 1481–1491. [Google Scholar]
  2. Filippova, K.; Alfonseca, E.; Colmenares, C.A.; Kaiser, L.; Vinyals, O. Sentence Compression by Deletion with LSTMs. In Proceedings of the 2015 Conference on Empirical Methods in Natural Language Processing, Lisbon, Portugal, 17–21 September 2015; pp. 360–368. [Google Scholar]
  3. Hamilton, W.L.; Ying, Z.; Leskovec, J. Inductive Representation Learning on Large Graphs. In Proceedings of the Advances in Neural Information Processing Systems, Long Beach, CA, USA, 4–9 December 2017; Volume 30, pp. 1024–1034. [Google Scholar]
  4. Kipf, T.N.; Welling, M. Semi-Supervised Classification with Graph Convolutional Networks. In Proceedings of the ICLR (Poster), San Juan, Puerto Rico, 2–4 May 2016. [Google Scholar]
  5. Devlin, J.; Chang, M.W.; Lee, K.; Toutanova, K.N. BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding. In Proceedings of the 2019 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long and Short Papers), Minneapolis, MN, USA, 2–7 June 2018; pp. 4171–4186. [Google Scholar]
  6. Lee, G.; Park, Y.H.; Lee, K.J. Building a Korean Sentence-Compression Corpus by Analyzing Sentences and Deleting Words. J. KIISE 2021, 48, 183–194. [Google Scholar] [CrossRef]
  7. Wang, L.; Jiang, J.; Chieu, H.L.; Ong, C.H.; Song, D.; Liao, L. Can syntax help? Improving an LSTM-based Sentence Compression Model for New Domains. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), Vancouver, BC, Canada, 30 July–4 August 2017; Volume 1, pp. 1385–1393. [Google Scholar]
  8. Zhao, Y.; Luo, Z.; Aizawa, A. A Language Model based Evaluator for Sentence Compression. In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (Volume 2: Short Papers), Melbourne, Australia, 15–20 July 2018; Volume 2, pp. 170–175. [Google Scholar]
  9. Kamigaito, H.; Okumura, M. Syntactically Look-Ahead Attention Network for Sentence Compression. In Proceedings of the AAAI Conference on Artificial Intelligence, New York, NY, USA, 7–12 February 2020; Volume 34, pp. 8050–8057. [Google Scholar]
  10. Choi, S.J.; Jung, I.; Park, S.; Park, S.B. Abstractive Sentence Compression with Event Attention. Appl. Sci. 2019, 9, 3949. [Google Scholar] [CrossRef] [Green Version]
  11. Lee, G. A Study on Korean Document Summarization Using Extractive Summarization and Sentence Compression. Ph.D. Thesis, Chungnam National University, Daejeon, Korea, 2020. [Google Scholar]
  12. Kampffmeyer, M.; Chen, Y.; Liang, X.; Wang, H.; Zhang, Y.; Xing, E.P. Rethinking Knowledge Graph Propagation for Zero-Shot Learning. In Proceedings of the 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Long Beach, CA, USA, 16–20 June 2019; pp. 11479–11488. [Google Scholar]
  13. Koehn, P. Statistical Significance Tests for Machine Translation Evaluation. In Proceedings of the 2004 Conference on Empirical Methods in Natural Language Processing, Barcelona, Spain, 25–26 July 2004; Association for Computational Linguistics: Barcelona, Spain, 2004; pp. 388–395. [Google Scholar]
  14. Napoles, C.; Durme, B.V.; Callison-Burch, C. Evaluating sentence compression: Pitfalls and suggested remedies. In Proceedings of the Workshop on Monolingual Text-To-Text Generation, Portland, OR, USA, 19–24 June 2011; Association for Computational Linguistics: Portland, OR, USA, 2011; pp. 91–97. [Google Scholar]
