# Adaptive Tracking PID and FOPID Speed Control of an Elastically Attached Load Driven by a DC Motor at Almost Step Disturbance of Loading Torque and Parametric Excitation

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Scope of the Selected Achievements

- Knowledge of real-time estimation of disturbances and system parameters are unnecessary in Reference [3] to suppress time-varying disturbances of a higher order.
- The results found in Reference [7] confirm that the PSO-based controller is very promising.
- A fractional-order adaptive law presented in Reference [8] shows the path that we follow at a final stage of this work.
- FOPID controller is proposed in Reference [9] for BLDC motor to achieve effective control of torque and speed.
- An adaptive FLC considered in Reference [10] in the DC motor speed control improves disturbance rejection of the motor response due to the load.

#### 1.2. The Improved Control Strategy Demonstrated in This Work

## 2. The Physical Model

## 3. The Trajectories of Disturbances

## 4. Control Strategies

#### 4.1. Block Diagram of the Object of Control

#### 4.2. The First Strategy

#### 4.3. The Second Strategy

#### 4.4. The Third Strategy

## 5. Results

- classical PID—see Section 4.2,
- FOPID (PID${}^{\alpha}$)—see Section 4.3,
- adaptive PID with PI action at the second stage of error compensation—see Section 4.4.

## 6. Effectiveness of the Proposed Solutions

#### 6.1. Estimating Performance of the Control System

#### 6.2. Verifying Robustness of the Control System

## 7. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

ANN | Artificial Neural Network |

BAT | Bat Algorithm |

BLDC | Brushless DC |

DC | Direct Current |

FFA | Firefly Algorithm |

FLC | Fuzzy Logic Controller |

FOPID | Fractional-Order PID |

ITAE | Integral Time-Weighted Absolute Error |

LQR | Liner Quadratic Regulator |

PID | Proportional Integral Derivative |

PSO | Particle Swarm Optimization |

WSA | Wolf Search Algorithm |

## References

- Buzi, E.; Marango, P. A comparison of conventional and nonconventional methods of DC motor speed control. IFAC Proc. Vol.
**2013**, 46, 50–53. [Google Scholar] [CrossRef] - Mahmud, M.; Motakabber, S.M.A.; Alam, A.H.M.Z.; Nordin, A.N. Adaptive PID controller using for speed control of the BLDC motor. In Proceedings of the 2020 IEEE International Conference on Semiconductor Electronics (ICSE), Kuala Lumpur, Malaysia, 28–29 July 2020. [Google Scholar]
- Beltran-Carbajal, F.; Tapia-Olvera, R.; Lopez-Garcia, I.; Guillen, D. Adaptive dynamical tracking control under uncertainty of shunt DC motors. Electr. Power Syst. Res.
**2018**, 164, 70–78. [Google Scholar] [CrossRef] - Ramírez-Cárdenas, O.D.; Trujillo-Romero, F. Sensorless speed tracking of a brushless DC motor using a neural network. Math. Comput. Appl.
**2020**, 25, 57. [Google Scholar] [CrossRef] - Mercorelli, P.; Lehmann, K.; Liu, S. Robust flatness based control of an electromagnetic linear actuator using adaptive PID controller. In Proceedings of the 42nd IEEE International Conference on Decision and Control, Regency Maui, HI, USA, 9–12 December 2003; Volume 4, pp. 3790–3795. [Google Scholar]
- Zhang, W.; Li, D.; Lou, X.; Xu, D. Prescribed performance adaptive backstepping control for winding segmented permanent magnet linear synchronous motor. Math. Comput. Appl.
**2020**, 25, 18. [Google Scholar] [CrossRef] [Green Version] - Rodríguez-Molina, A.; Villarreal-Cervantes, M.G.; Aldape-Pérez, M. An adaptive control study for a DC motor using meta-heuristic algorithms. Soft Comput.
**2019**, 23, 889–906. [Google Scholar] [CrossRef] - Luo, S.; Li, S.; Tajaddodianfar, F.; Hu, J. Anti-oscillation and chaos control of the fractional-order brushless DC motor system via adaptive echo state networks. J. Frankl. Inst.
**2018**, 355, 6435–6453. [Google Scholar] [CrossRef] - Kommula, B.N.; Kota, V.R. Direct instantaneous torque control of brushless DC motor using firefly algorithm based fractional order PID controller. J. King Saud Univ. Eng. Sci.
**2020**, 32, 133–140. [Google Scholar] [CrossRef] - Zaki, A.M.; El-Bardini, M.; Soliman, F.; Sharaf, M.M. Embedded two level direct adaptive fuzzy controller for DC motor speed control. Ain Shams Eng. J.
**2018**, 9, 65–75. [Google Scholar] [CrossRef] [Green Version] - Kunikowski, W.; Olejnik, P.; Awrejcewicz, J. A fuzzy logic PI trajectory following control in a chaotically loaded real mechatronic dynamical system with stick-slip friction. J. Vib. Test. Syst. Dyn.
**2018**, 2, 91–107. [Google Scholar] [CrossRef] - Kunikowski, W.; Czerwiński, E.; Olejnik, P.; Awrejcewicz, J. An overview of ATmega AVR microcontrollers used in scientific research and industrial applications. Pomiary Autom. Robot.
**2015**, 19, 15–20. [Google Scholar] [CrossRef] [Green Version] - Rodríguez-Molina, A.; Villarreal-Cervantes, M.G.; Álvarez Gallegos, J.; Aldape-Pérez, M. Bio-inspired adaptive control strategy for the highly efficient speed regulation of the DC motor under parametric uncertainty. Appl. Soft Comput.
**2019**, 75, 29–45. [Google Scholar] [CrossRef] - De la Guerra, A.; Alvarez–Icaza, L.; Torres, L. Brushless DC motor control with unknown and variable torque load. IFAC Papersonline
**2018**, 51, 644–649. [Google Scholar] [CrossRef] - Dini, P.; Saponara, S. Cogging torque reduction in brushless motors by a nonlinear control technique. Energies
**2019**, 12, 2224. [Google Scholar] [CrossRef] [Green Version] - Xu, L. Application of Hamiltonian approach to an oscillation of a mass attached to a stretched elastic wire. Math. Comput. Appl.
**2010**, 15, 901–906. [Google Scholar] [CrossRef] [Green Version] - Wang, J.; Sun, D.; Liu, S.; Zhang, X. Damping characteristics of viscoelastic damping structure under coupled condition. Math. Comput. Appl.
**2017**, 22, 27. [Google Scholar] [CrossRef] [Green Version] - Masroor, S.; Peng, C.; Ali, Z.A. Event triggered multi-agent consensus of dc motors to regulate speed by LQR scheme. Math. Comput. Appl.
**2017**, 22, 14. [Google Scholar] [CrossRef] [Green Version] - Olejnik, P.; Awrejcewicz, J. Low-speed voltage-input tracking control of a DC-motor numerically modelled by a dynamical system with stick-slip friction. Differ. Equ. Dyn. Syst.
**2012**, 21, 3–13. [Google Scholar] [CrossRef] - Vahaj, A.; Rahideh, A.; Moayed-Jahromi, H.; Ghaffari, A. Exact two-dimensional analytical calculations for magnetic field, electromagnetic torque, UMF, back-EMF, and inductance of outer rotor surface inset permanent magnet machines. Math. Comput. Appl.
**2019**, 24, 24. [Google Scholar] [CrossRef] [Green Version] - Diethelm, K. The Analysis of Fractional Differential Equations; Lecture Notes in Mathematics; Springer: Berlin, Germany, 2010; Volume 2004. [Google Scholar]
- Atanacković, T.M.; Stanković, B. On a numerical scheme for solving differential equations of fractional order. Mech. Res. Comm.
**2008**, 35, 429–438. [Google Scholar] [CrossRef] - Tao, G. Adaptive Control Design and Analysis; Wiley-IEEE Press: New York, NY, USA, 2003. [Google Scholar]

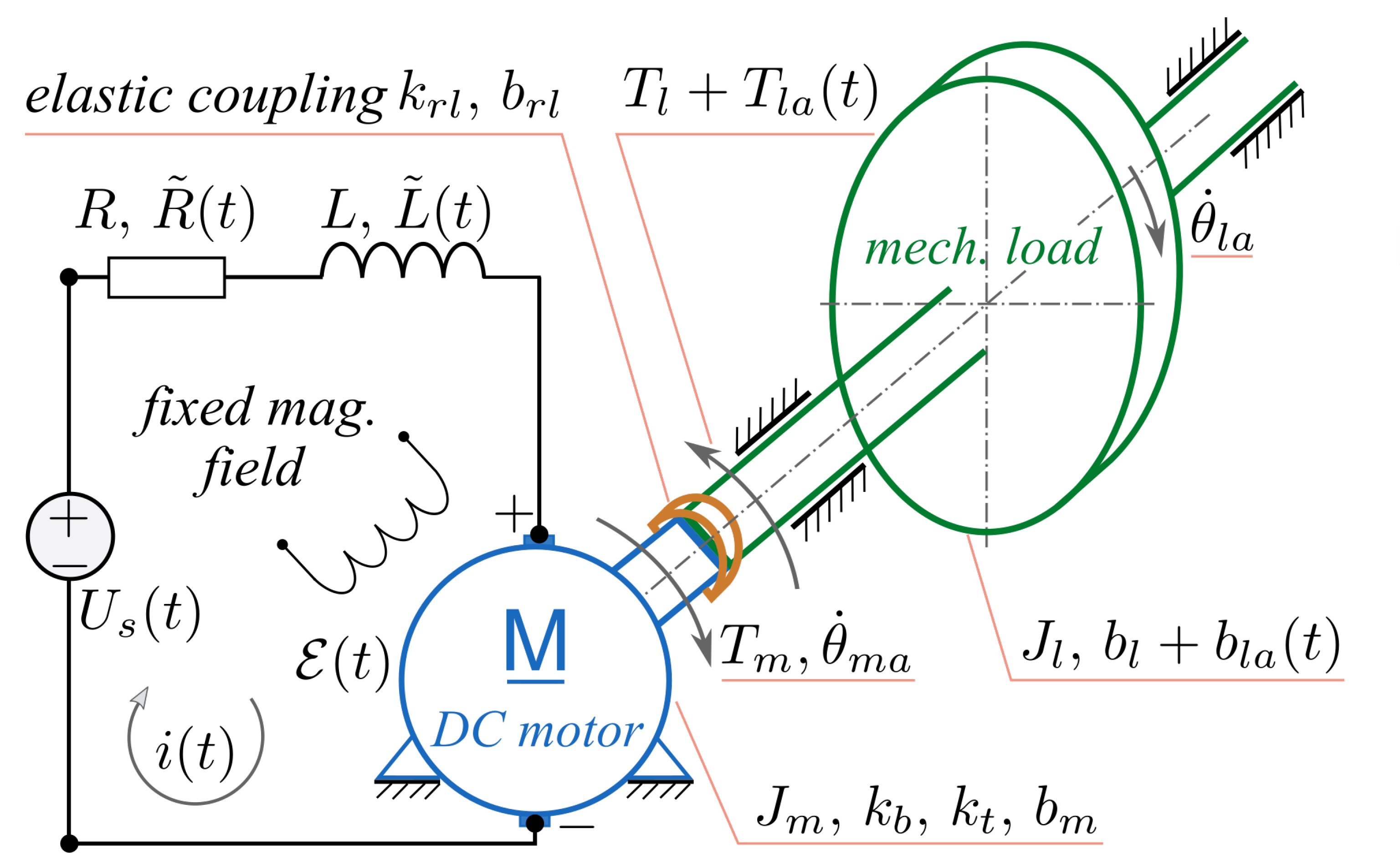

**Figure 1.**Physical model of the Direct Current (DC) permanent magnet motor driving a softly attached mechanical load.

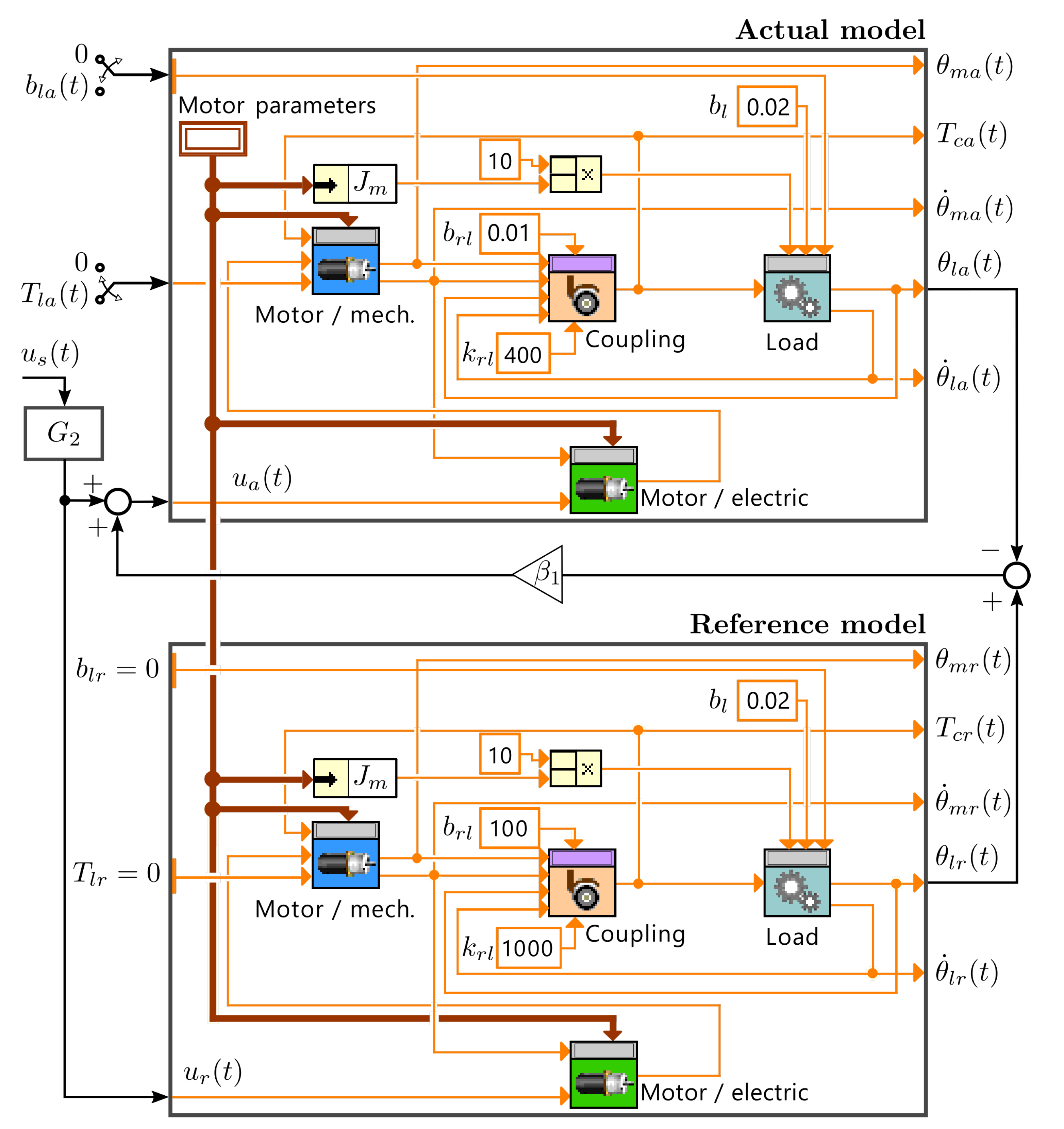

**Figure 2.**Block diagram of the open-loop model reference control system with the additional time-dependent loading disturbance ${T}_{la}\left(t\right)$, while variation of the additional damping coefficient ${b}_{la}\left(t\right)$ is turned off, ${G}_{2}$ is the second-order dynamical operator given by Equation (9).

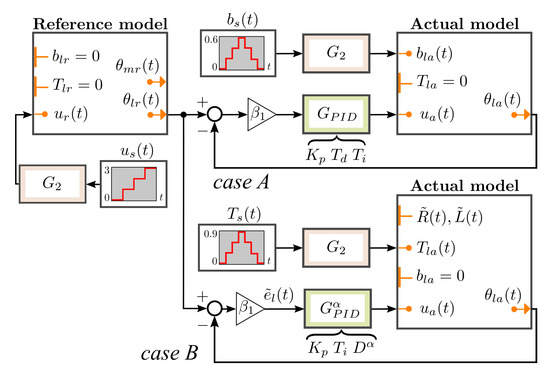

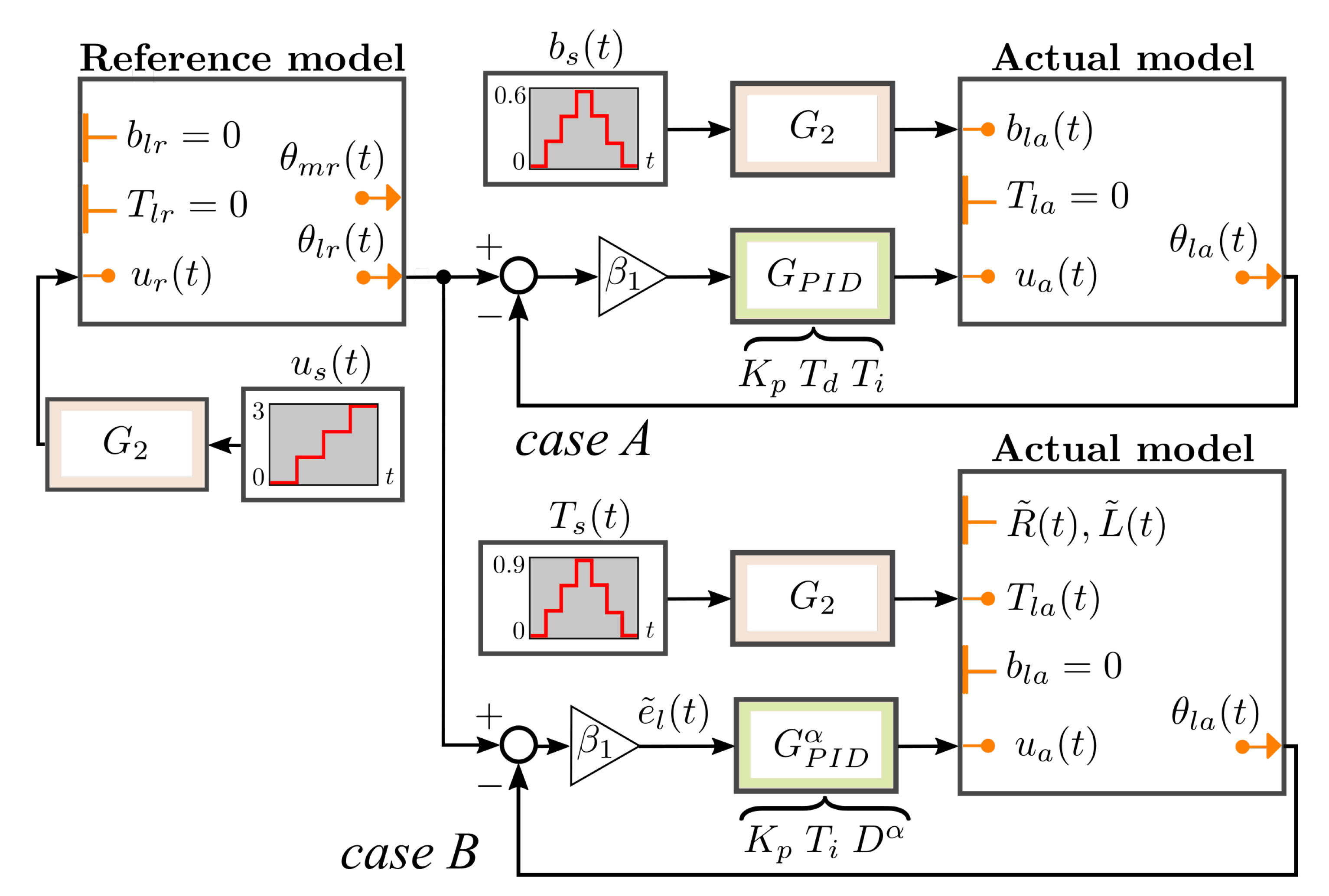

**Figure 3.**Block diagram of the closed-loop model reference Proportional Integral Derivative (PID) control with the additional time-dependent disturbances of the damping coefficient ${b}_{la}\left(t\right)$ (case A) and the loading torque ${T}_{la}\left(t\right)$ (case B).

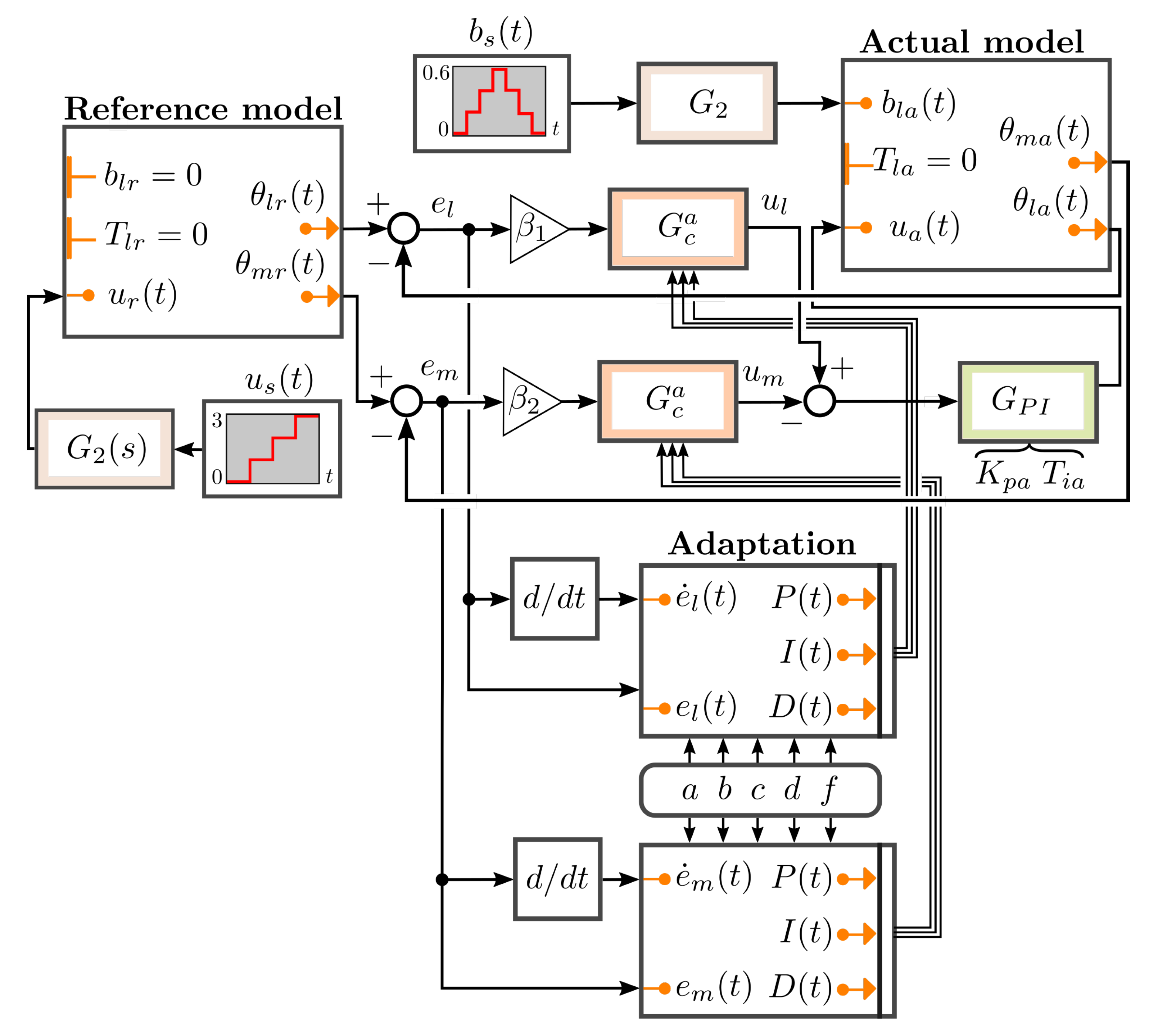

**Figure 4.**Block diagram of the closed-loop model reference adaptive PID (fractional PID, as well) control system with the additional time-dependent disturbances of the damping coefficient ${b}_{la}\left(t\right)$, and a PI compensation of the resulting second-stage error dynamics.

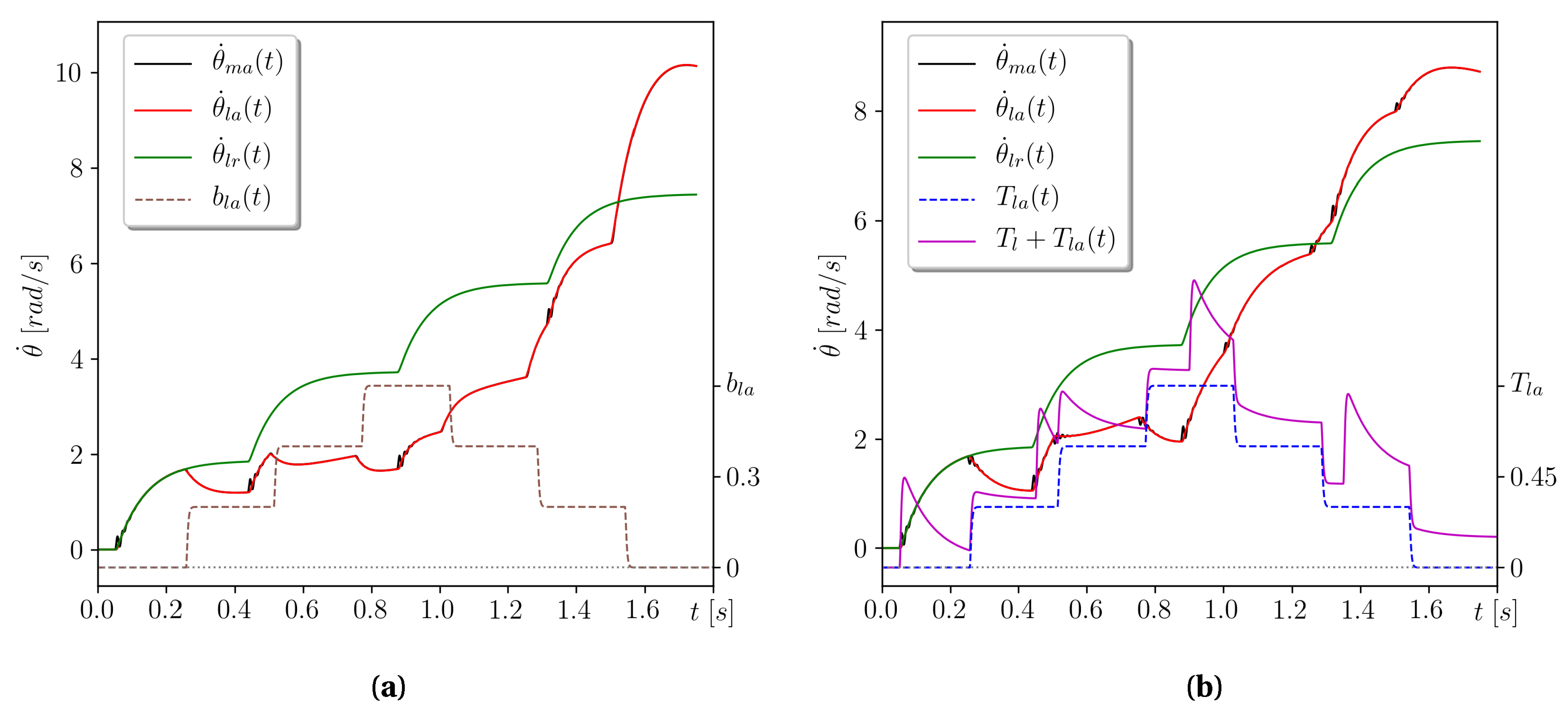

**Figure 5.**The open-loop reference model control system response at the presence of the additional time-dependent disturbances of: (

**a**) damping of load ${b}_{la}\left(t\right)$—see on the right-hand vertical axis; (

**b**) load ${T}_{la}\left(t\right)$ with adaptation of PID parameters and PI compensation of error dynamics. Green line represents the desired rotational velocity trajectory, while the red line the actual velocity of the load (low-frequency case).

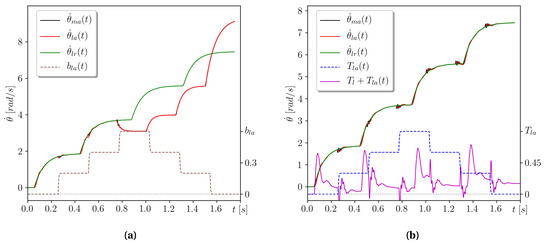

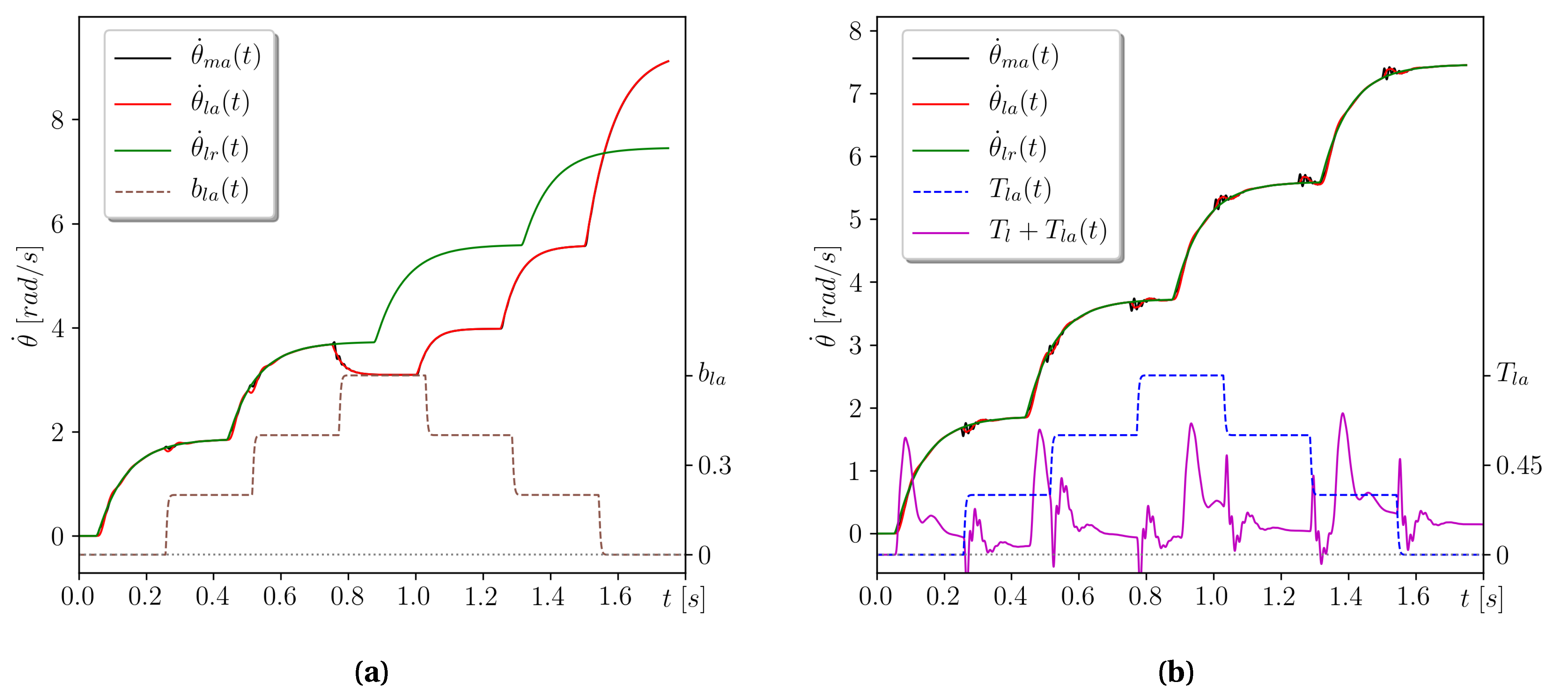

**Figure 6.**The closed-loop reference model control system response at the presence of: (

**a**) ${b}_{la}\left(t\right)$; (

**b**) ${T}_{la}\left(t\right)$ disturbance and a PID regulator (low frequency)—see case A in the block diagram in Figure 3.

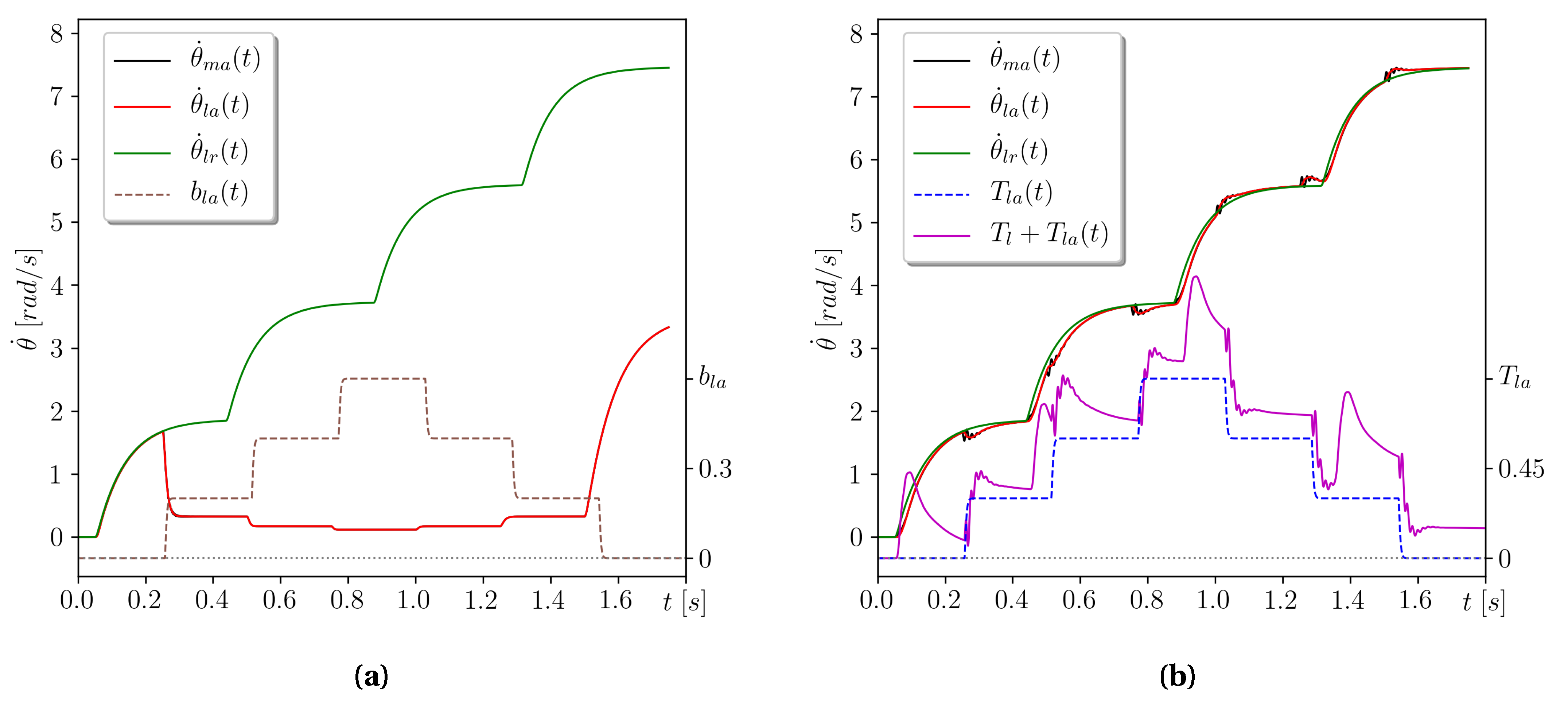

**Figure 7.**The closed-loop reference model control system response at the presence of: (

**a**) ${b}_{la}\left(t\right)$; (

**b**) ${T}_{la}\left(t\right)$ disturbance and a Fractional-Order PID (FOPID) regulator (low frequency)—see case B in the block diagram in Figure 3.

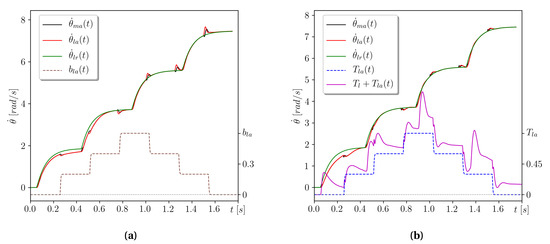

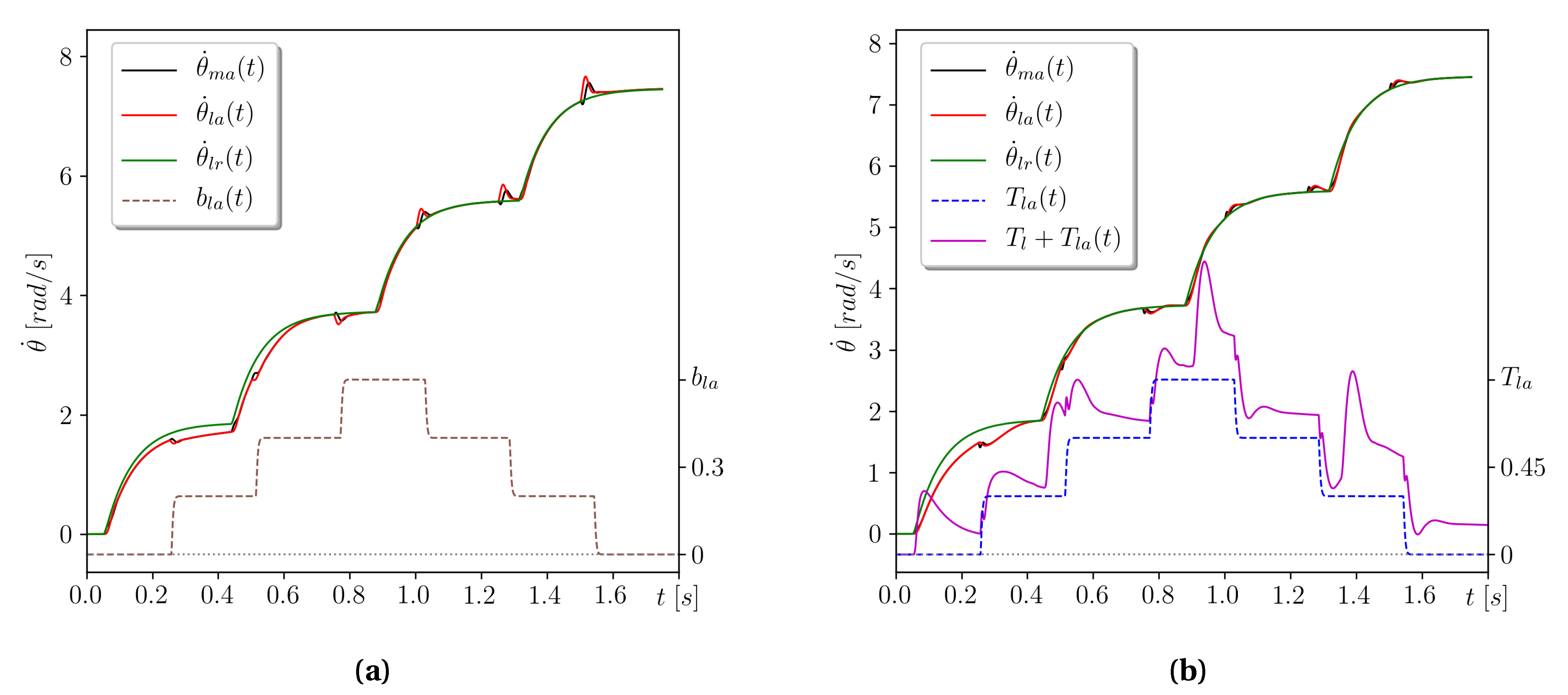

**Figure 8.**The closed-loop reference model control system response at the presence of the disturbed ${b}_{la}\left(t\right)$ (

**a**) and ${T}_{la}\left(t\right)$ (

**b**) and an adaptive PID regulator with PI compensation of error dynamics (low frequency)—see case B in the block diagram in Figure 4.

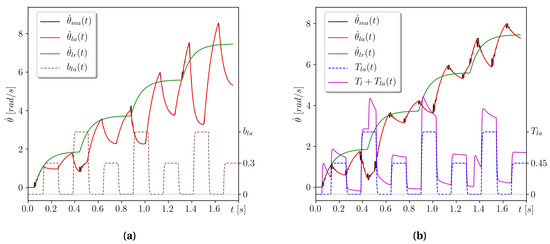

**Figure 9.**The open-loop reference model control system response at presence of the additional time-dependent disturbances of damping (

**a**) ${b}_{la}\left(t\right)$ and loading (

**b**) ${T}_{la}\left(t\right)$ (high frequency).

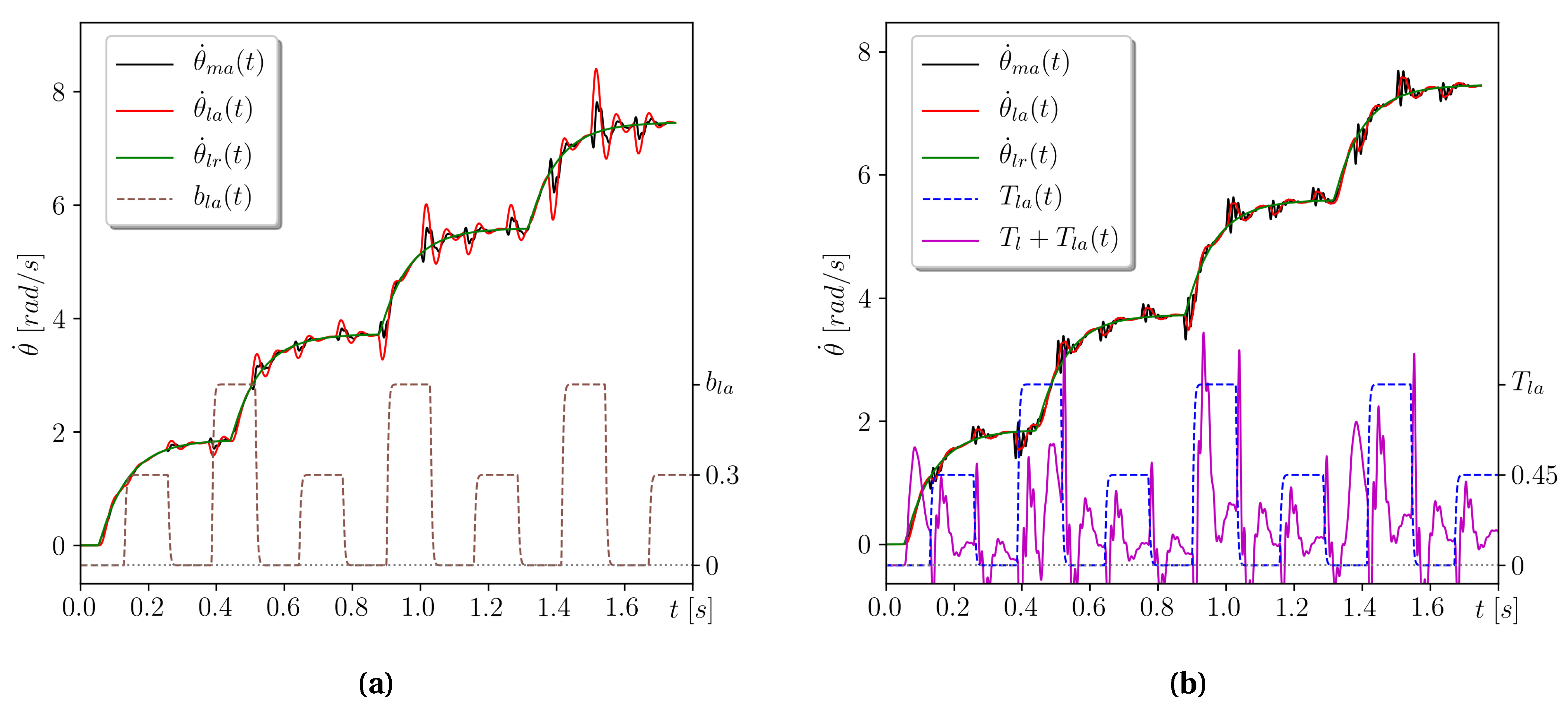

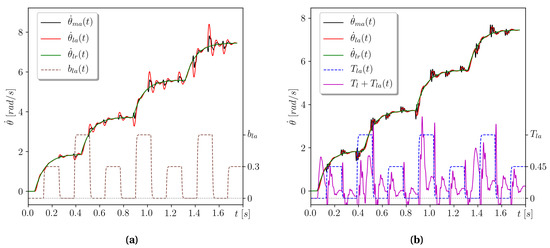

**Figure 10.**The closed-loop reference model control system response at the presence of ${b}_{la}\left(t\right)$ (

**a**) and ${T}_{la}\left(t\right)$ (

**b**) disturbance and a PID regulator (high frequency)—see case A in the block diagram in Figure 3.

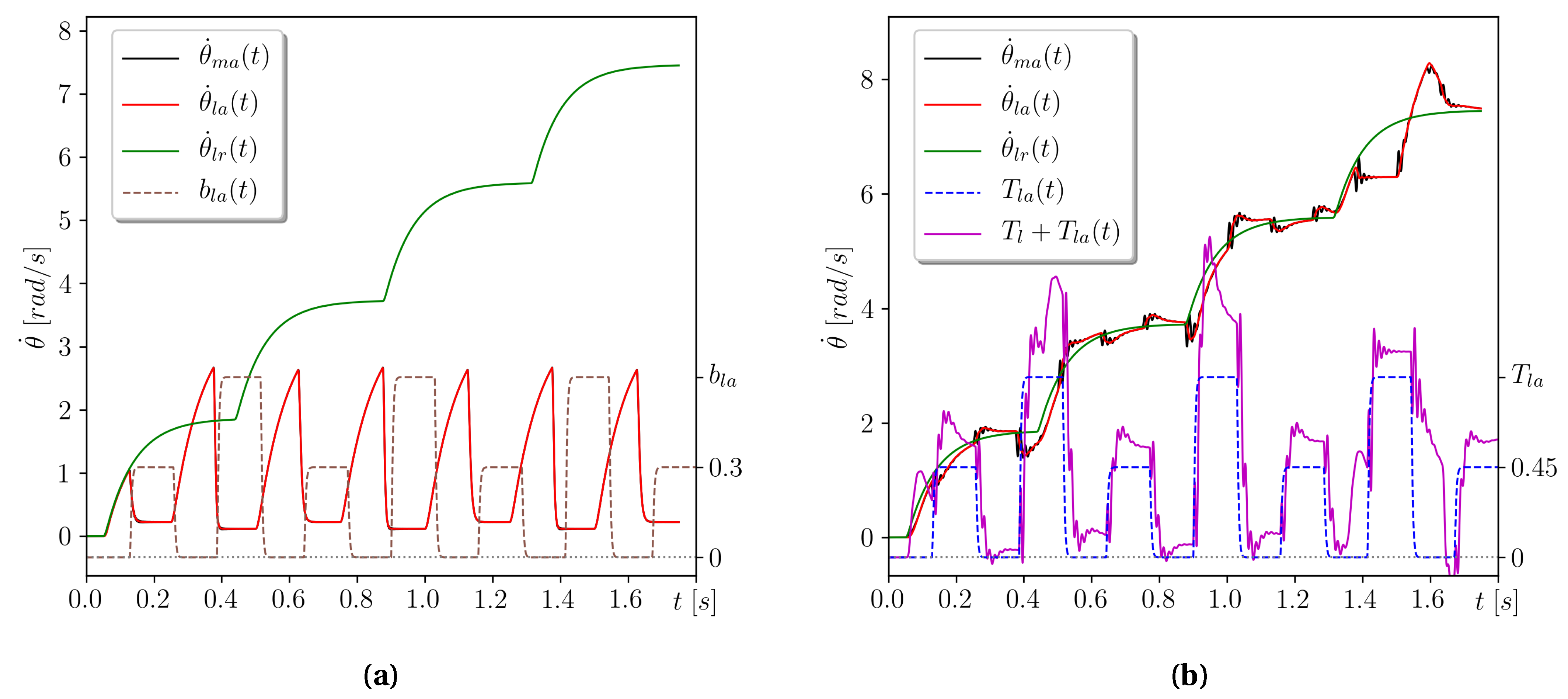

**Figure 11.**The closed-loop reference model control system response at the presence of the disturbed ${b}_{la}\left(t\right)$ (

**a**) and ${T}_{la}\left(t\right)$ (

**b**) and a FOPID regulator (high frequency)—see case B in the block diagram in Figure 3.

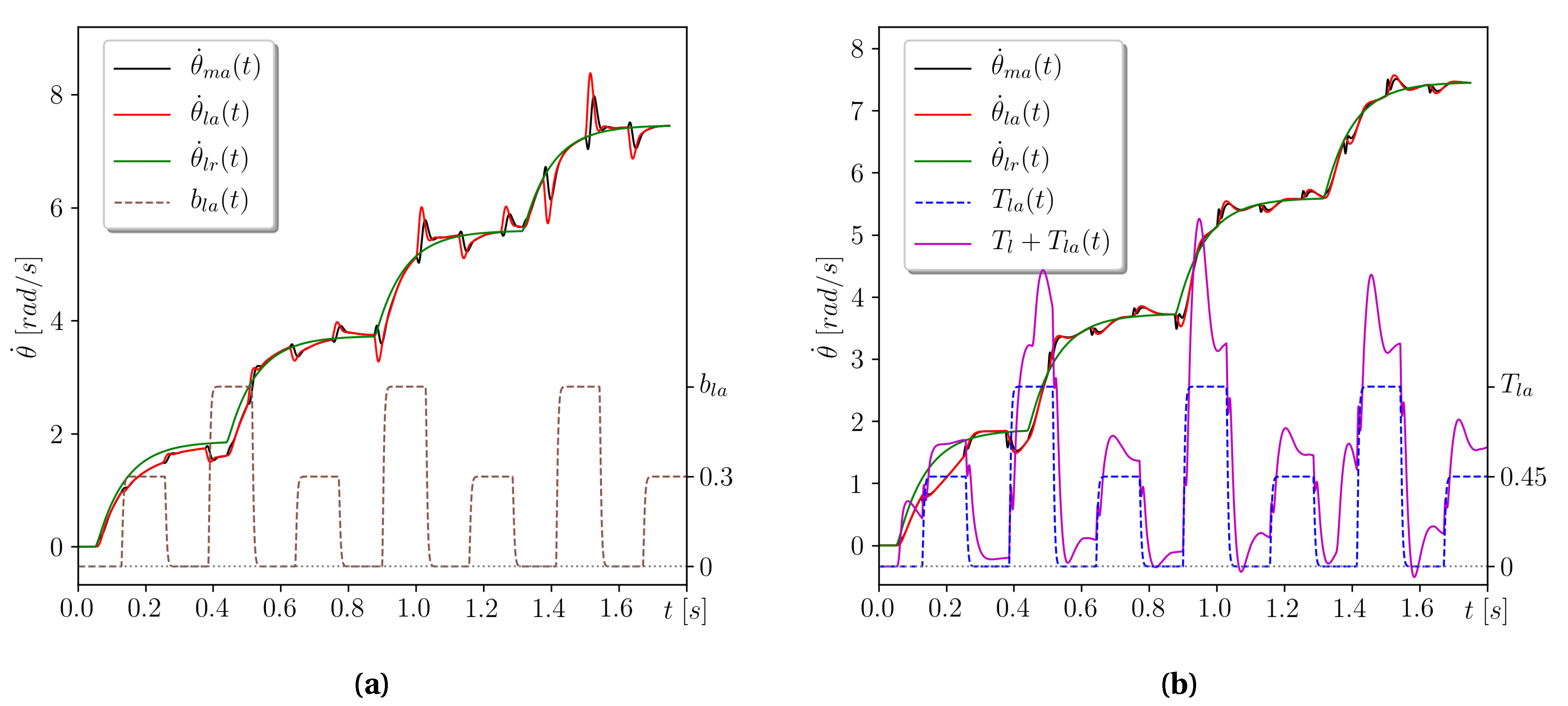

**Figure 12.**The closed-loop reference model control system response at the presence of ${b}_{la}\left(t\right)$ (

**a**) and ${T}_{la}\left(t\right)$ (

**b**) and an adaptive PID + PI (high frequency)—see case B in the block diagram in Figure 4.

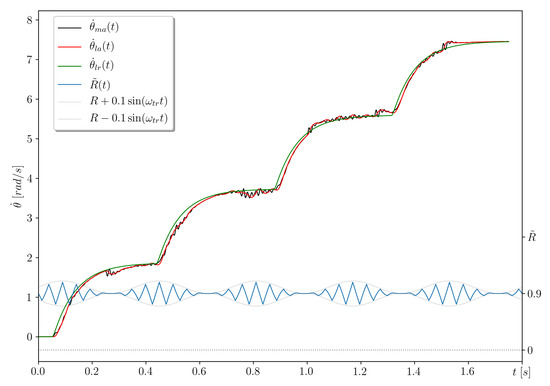

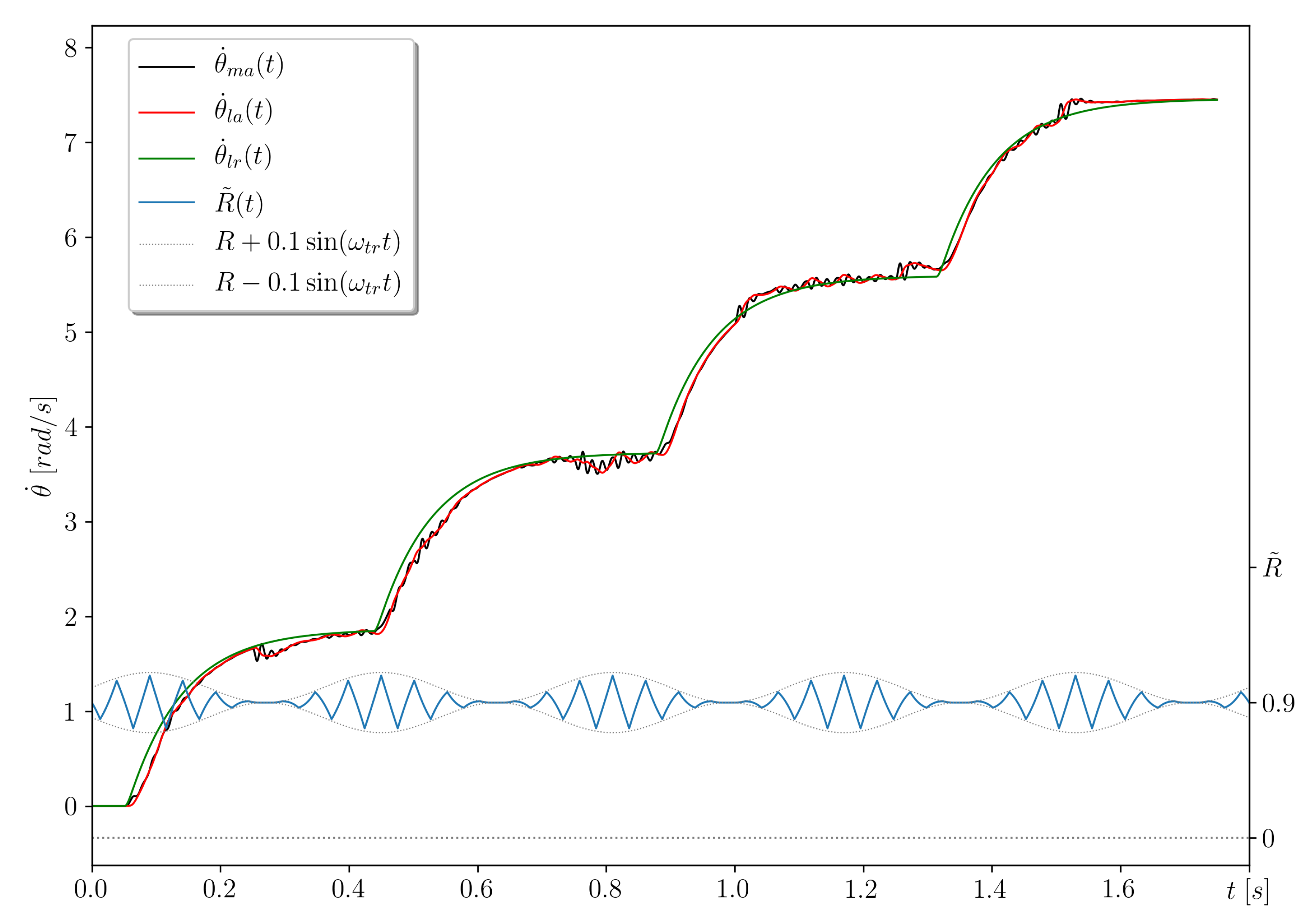

**Figure 13.**The closed-loop reference model FOPID control system response at the presence of low-frequency ${T}_{la}\left(t\right)$ and the disturbances of electric model parameters: R (see $\tilde{R}\left(t\right)$) and L (not shown here as $\tilde{L}\left(t\right)$ has an opposite and scaled form). This solution is comparable with Figure 7b.

Parameter | Notation | Value | Unit |
---|---|---|---|

rotor inertia | ${J}_{m}$ | $2.3\xb7{10}^{-3}$ | $\mathrm{kg}\xb7{\mathrm{m}}^{2}$ |

load inertia | ${J}_{l}$ | $10\xb7{J}_{m}$ | $\mathrm{kg}\xb7{\mathrm{m}}^{2}$ |

motor damping | ${b}_{m}$ | $1.2\xb7{10}^{-4}$ | $\mathrm{N}\xb7\mathrm{m}\xb7\mathrm{s}/\mathrm{rad}$ |

load damping | ${b}_{l}$ | $0.02$ | $\mathrm{N}\xb7\mathrm{m}\xb7\mathrm{s}/\mathrm{rad}$ |

torque constant | ${K}_{t}$ | $0.5$ | $\mathrm{N}\xb7\mathrm{m}/\mathrm{A}$ |

inductance | L | $1.4\xb7{10}^{-4}$ | H |

resistance | R | $0.9$ | $\mathsf{\Omega}$ |

back-EMF | ${K}_{b}$ | $0.5$ | $\mathrm{V}\xb7\mathrm{s}/\mathrm{rad}$ |

stiffness | ${k}_{rl}$ | 400 | $\mathrm{N}\xb7\mathrm{m}/\mathrm{rad}$ |

damping | ${b}_{rl}$ | $0.01$ | $\mathrm{N}\xb7\mathrm{m}\xb7\mathrm{s}/\mathrm{rad}$ |

reference control | $\beta $ | 1 | $\mathrm{V}/\mathrm{rad}$ |

**Table 2.**The Integral Time-Weighted Absolute Error (ITAE) performance index for various numerical experiments.

ITAE | Controller | Control Loop | Disturbed Parameter | Disturbance Frequency | Figure |
---|---|---|---|---|---|

$0.0368$ | PID | closed | ${T}_{l}$ | low | Figure 6b |

$0.0551$ | Adaptive PID | closed | ${T}_{l}$ | low | Figure 8b |

$0.0839$ | Adaptive PID | closed | ${b}_{l}$ | low | Figure 8a |

$0.0962$ | FOPID | closed | ${T}_{l}$ | low | Figure 7b |

$0.1104$ | PID | closed | ${T}_{l}$ | high | Figure 10b |

$0.1313$ | Adaptive PID | closed | ${T}_{l}$ | high | Figure 12b |

$0.2210$ | PID | closed | ${b}_{l}$ | high | Figure 10a |

$0.2263$ | Adaptive PID | closed | ${b}_{l}$ | high | Figure 12a |

$0.2383$ | FOPID | closed | ${T}_{l}$ | high | Figure 11b |

$0.4780$ | FOPID | closed | ${b}_{l}$ | low | Figure 7a |

$0.7453$ | – | open | ${T}_{l}$ | high | Figure 9b |

$1.2115$ | FOPID | closed | ${b}_{l}$ | high | Figure 11a |

$1.4949$ | – | open | ${T}_{l}$ | low | Figure 5b |

$1.5168$ | PID | closed | ${b}_{l}$ | low | Figure 6a |

$1.9720$ | – | open | ${b}_{l}$ | high | Figure 9a |

$2.4874$ | – | open | ${b}_{l}$ | low | Figure 5a |
