Measurements of Acoustical Parameters in the Ancient Open-Air Theatre of Tyndaris (Sicily, Italy) ^†

Abstract

The emerging field of archaeoacoustics is attracting increasing research attention from scholars of different disciplines: the investigation of the acoustic features of ancient open-air theatres is possibly one of its main themes. In this paper, the outcomes of a measurement campaign of acoustical parameters in accordance with ISO 3382-1 in the ancient theatre of Tyndaris (Sicily) are presented and compared with datasets from other sites. Two sound sources were used (firecrackers and dodecahedron) and their differences were analysed. A very good reproducibility has been shown between the two measurement chains, with differences on average of 0.01 s for reverberation time T₂₀, and less than 0.3 dB for Clarity C₅₀ and C₈₀ and for sound strength. In general, results show that the reverberation time and strength of sound values are relatively low when compared with other theatres because of the lack of the original architectural element of the scaenae frons. When combining this effect with the obvious condition of an unroofed space, issues emerge in terms of applicability of the protocols recommended in the ISO standard. This raises the question of whether different room acoustics parameters should be used to characterise open-air ancient theatres.

1. Introduction

In recent years, there has been a growing interest in the acoustical characterization of ancient open-air theatres, which led to the development of several research projects (see, e.g., in [1,2,3,4]) and a prolific production of scientific literature on the topic (see, e.g., in [5,6,7,8,9,10,11,12,13,14]). This reflects a general trend observable in the broader field of archaeoacoustics [15]. There is indeed a renewed attention to the “acoustics of past” [16,17,18], which is driven by both a pure scholarly interest and a more practical need to adapt historical facilities to contemporary use [9,19,20,21] and historical relevance, which could help to better understand the design and evolution of other performance spaces [22,23]. However, performing acoustical measurements poses a number of challenges because room acoustics parameters and standards are conceived for enclosed spaces and might not be straightforwardly applicable in outdoor contexts [24,25]. Above all, the ISO 3382-1:2009 standard [26] deals with “performance spaces” but mostly refers to indoor environments (e.g., auditoria, concert halls, etc.). The topic of acoustical characterisation has already been examined in detail for indoor spaces through statistical analysis, in order to investigate the reproducibility of the measures, the accuracy of the parameter calculation [27], the influence of source–receiver position displacement, the measurement chains of different systems [28,29,30] and the sensitivity to materials characteristics variation [31,32,33]. The aim of this work was to compare two measurement techniques for ancient theatres, using the archaeological site of Tyndaris as case study [34,35]. Particularly, traditional room acoustics measurements have been carried out according to the reference standard ISO 3382-1:2009, with both a dodecahedron source and with firecrackers. The behaviours of the reverberation time, early-to-late energy and sound energy parameters were assessed. The results of the measurements were compared with the findings of other measurement campaigns available in literature and considerations about the applicability of ISO 3382-1 for open-air ancient theatres are presented.

2. Case Study

The ancient theatre of Tyndaris was chosen as case study for this measurement campaign that was carried out in September 2015 by the Applied Acoustics Research Group of the Department of Energy of the Politecnico di Torino. The theatre has Greek origins and it was later changed into an arena by the Romans (for this reason Latin terminology has been used throughout this work). Its cavea, made of yellowish local sandstone, has a diameter (d) of 76 m and only fragments of the monumental scaenae frons still exist (Figure 1). At the time of the measurements the cavea was in part covered by wooden benches and a wooden platform covered the orchestra floor. To the best of the authors’ knowledge, no previous room acoustics measurements have been carried out directly in the theatre of Tyndaris.

3. In Situ Measurements

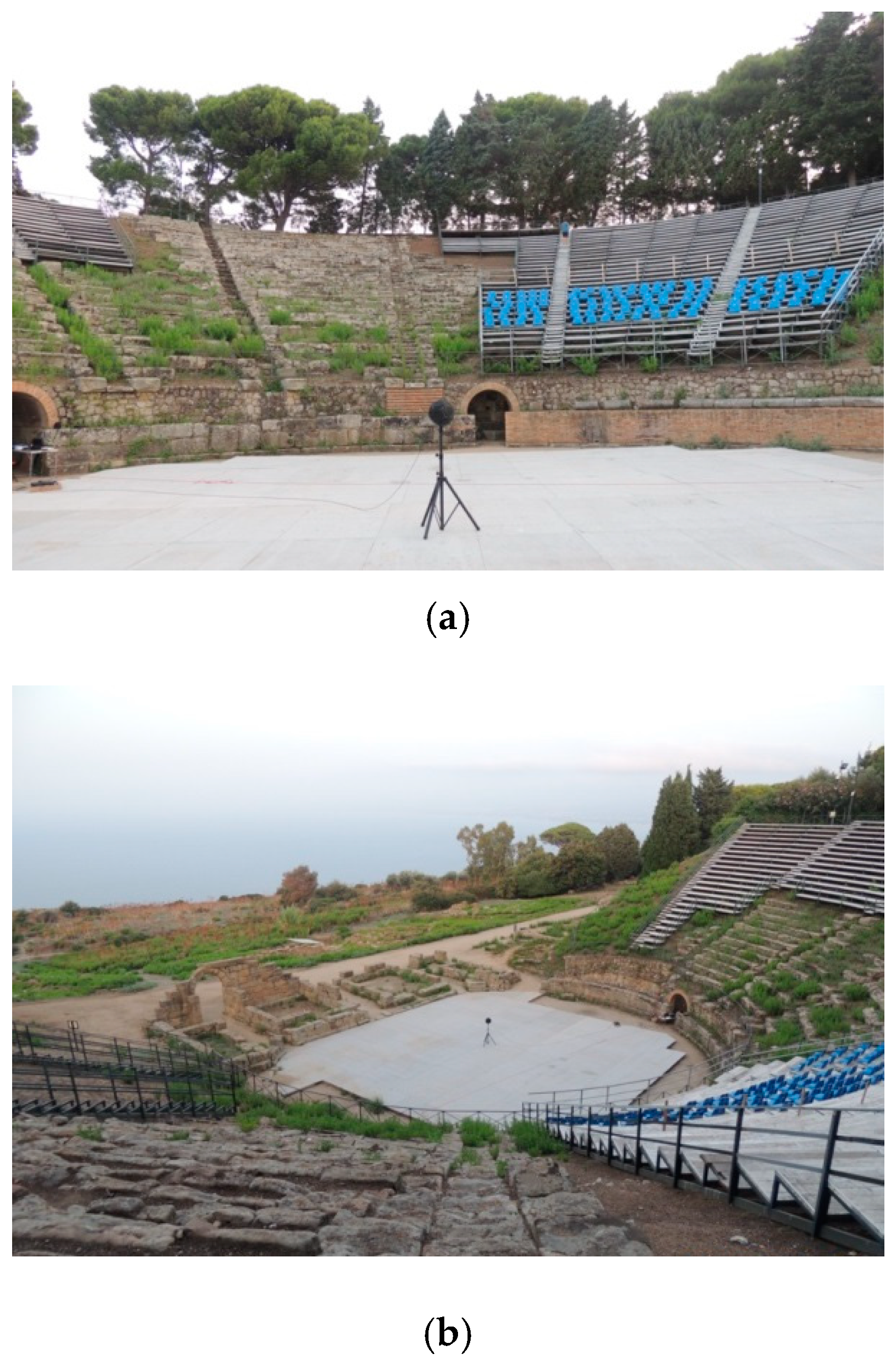

Acoustical measurements were performed in the theatre in unoccupied conditions, with omnidirectional sound sources and receivers, as per the protocol of the ISO 3382-1:2009 [26]. Further guidance on practical aspects related to the applicability of the ISO standard in the context of ancient open-air theatres was retrieved from other works in literature [1,25].

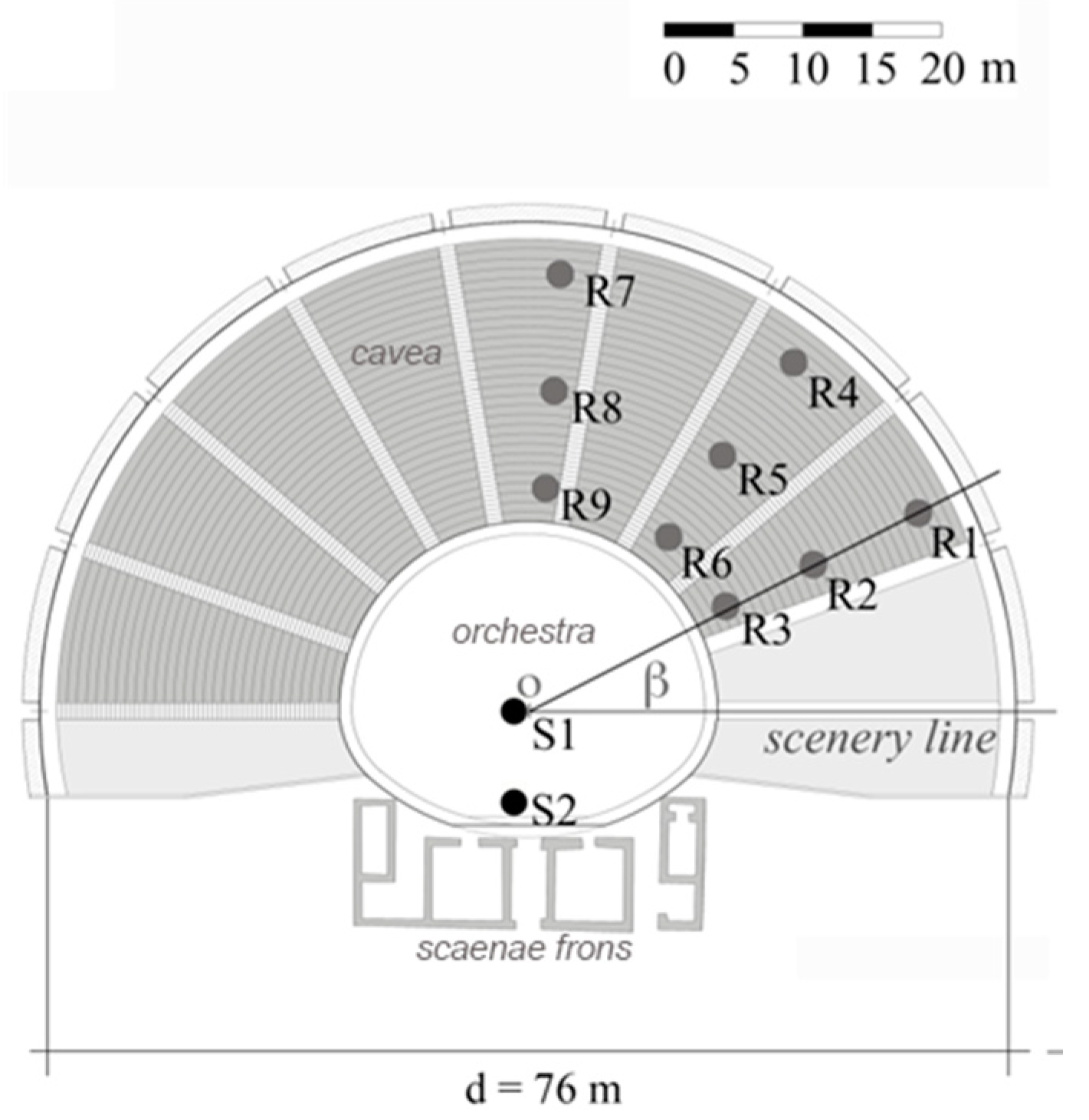

Nine receivers were positioned on three radial axes of the cavea (Figure 2), 1.2 m off the ground (ear height). An omnidirectional microphone (Schoeps CMC 5-U) was used to record the impulse responses (IRs). For most of the measurement positions, 2–3 repetitions were performed to subsequently evaluate the repeatability of the results. Two source positions were considered: S1 was shifted horizontally by 1 m from the centre of the orchestra, and S2 was located behind S1, closer to the ancient scaenae frons position. The distance between S1 to S2 was 6.6 m.

Table 1. Source to receiver distances and angle β from the scenery line and the direction that joins the source and the receivers, related to the measurement campaign in September 2015 at the theatre of Tyndaris.

Receiver	S1-R (m)	S1-β (°)	S2-R (m)	S2-β (°)
R1	32.4	25	35.7	35
R2	24.0	25	27.4	37
R3	17.0	25	20.7	42
R4	32.1	52	37.5	58
R5	23.7	51	29.1	59
R6	16.7	50	22.2	61
R7	31.6	83	38.1	85
R8	23.2	82	29.7	84
R9	16.2	82	22.7	84

shows the distances between the sources and the receivers. Two types of sources were used to measure the IRs as it was considered acoustically and metrologically relevant [36]: firecrackers (“Raudo Manna New Ma1b” and “Perfetto C00015 Raudo New”) and a dodecahedral source (Bruel & Kjaer Omnipower sound source 4296). In the former case, the IRs were measured directly by recording the impulse produced by the firecracker blast, while in the latter case, the IRs were obtained after deconvolution of the recorded exponential sine sweep signal, which was 2.73 s long [26]. The firecracker measurements were only carried out with the source in position S1, apart from one measurement replication that was conducted at receiver R6 with the source in position S2. The IRs from the dodecahedral source were obtained for both source positions S1 and S2. Firecrackers maximize the signal-to-noise ratio (SNR) which is a considerable advantage in outdoor measurements, but they are also more affected by random effects (e.g., atmospheric conditions) [25,36].

The Background Noise Level (BNL) was measured as an A-weighted equivalent sound level over a period of 10 min (L_{Aeq, 10min}), in between measurement sessions and did not overcome 34 dB(A). The air temperature and relative humidity were monitored during the whole measurement campaign, using a thermometer/hygrometer, Testo 608-H1 (Croydon South, VIC, Australia). The wind speed was measured by means of an anemometer, Testo 450-V1 (Croydon South, VIC, Australia).

Table 2. Environmental conditions during the two measurement campaigns in September 2015 at the theatre of Tyndaris.

	5th September 2015	6th September 2015
Type of source	Dodecahedron	Firecrackers
Positions of source	2	1
Number of receivers	9	9
Measuring sessions	21:00–0:30	15:00–17:30
Temperature, t, (°C)	26.2–26.5 °C	26.9–28.8 °C
Relative Humidity, RH, (%)	77.4–79.4 %	45.0–69.9 %
Wind Speed, (m/s)	0.25–0.30 m/s	1.30–1.70 m/s

shows a summary of the environmental conditions during the measurement campaign.

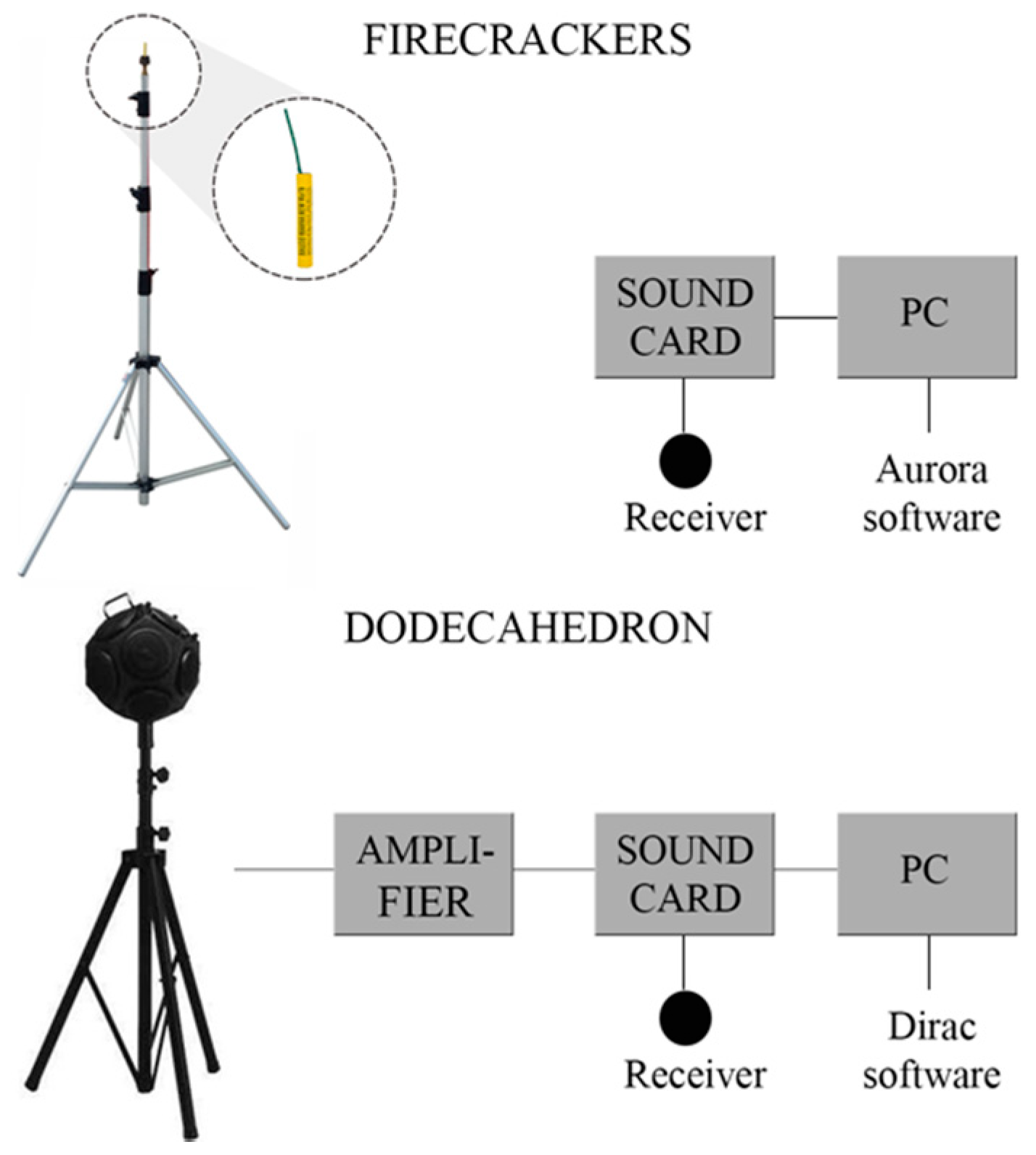

The dodecahedral source, powered by an amplifier (Lab.gruppen LAB-300), was connected to a laptop through a soundcard (Tascam US-144). The sound source was positioned at a height of 1.5 m off the ground, and a custom-made tripod was used to hold the firecrackers in a fixed position. Figure 3 shows the measurement chains of the two source types and a picture of the tripod customized for the firecrackers and the dodecahedron used during the measurements. Two kinds of acquisition software were used for the two measurement chains: Aurora for Audacity 2.4.1 and Dirac version 5.

The following parameters, which are commonly used for the acoustical characterization of open-air theatres [7], were computed from the IRs measured at each receiver position; Reverberation Time, T₂₀ (s), which is s a measure of perceived reverberance; Clarity or early-to-late sound index C₈₀ (dB), which is usually applied for clarity in music [37], and early-to-late sound index C₅₀ (dB), which is usually applied for clarity for speech [38,39]; and Sound Strength, G (dB), which represents a measure of perceived level. A detailed description of the acoustical parameters is reported in the ISO 3382-1 [26] and in [25].

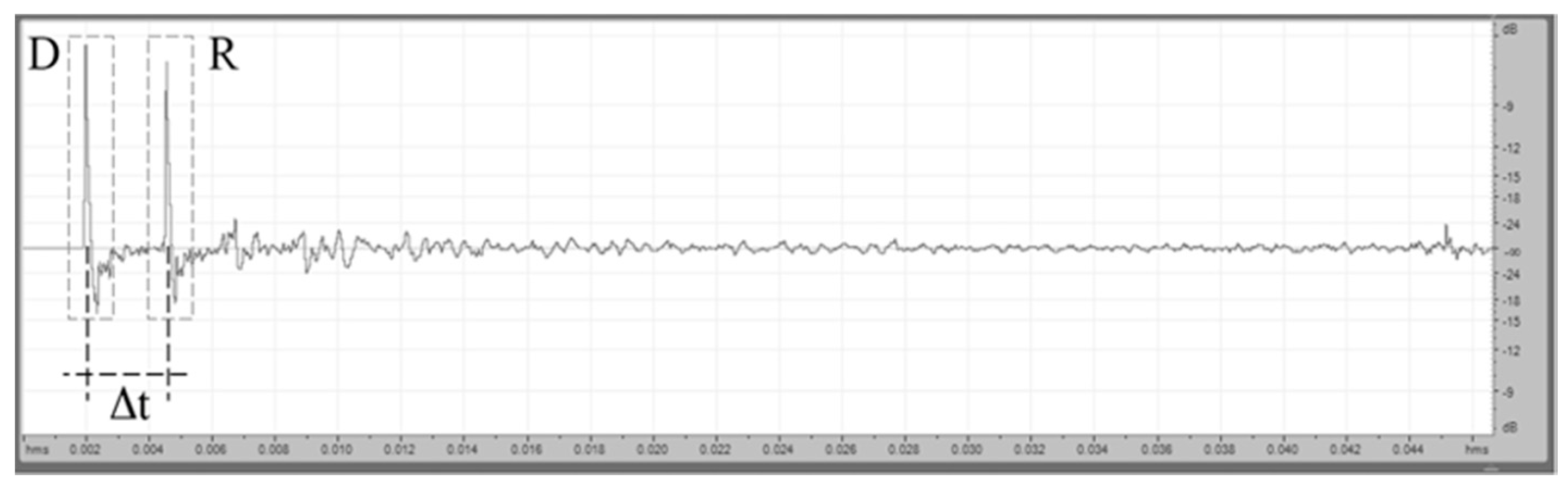

Figure 4 shows a typical IR measured with the firecracker source where, after the direct sound, the main recognisable reflection comes from the orchestra floor, that is, between 2.4 and 2.6 ms after the direct sound for the first row, between 2.8 and 3.0 ms for the second row and between 3.1 and 3.2 ms for the third row. Minor scattered reflections from the cavea steps are distinguishable in the latter part.

The measurements dataset consists of the octave-band values, from 125 Hz to 8 kHz, of the acoustic parameters obtained from the IRs measured with the Dirac software, version 5, for T₂₀, C₅₀ and C₈₀, in the case of both the dodecahedral and the firecrackers sources. The G estimation was performed through Dirac software and Aurora software for Audacity 2.4.1 for the dodecahedral and firecracker sources, respectively. Furthermore, a full compatibility has been checked and verified for the T₂₀, C₅₀ and C₈₀ parameters between the two software packages.

Sound Strength, G, is a measure that quantifies the amplification due to the space boundaries relative to a 10 m free-field reference [26]. A calibration is needed in order to obtain the reference measure. This can consist in the extrapolation of the free-field sound pressure level at 10 m from the source starting from measurements made at a short distance from the source, in situ, according to the basic spherical spreading law while accounting for source directivity through rotation of the source.

The Dirac software suggests an in situ free-field G calibration consisting of impulse response measurements with the microphone relatively close to the source, at several equally distanced microphone positions around the source [40]. When the measured impulse responses are loaded and a suitable time window, referring to the direct sound and the floor reflection gap, is entered, the system performs the calibration. In this case, three IRs, measured at a distance of 2.5 m from the source, at different angles all around, in steps of 120° (in order to average its directivity), were used selecting a time window of 6 ms, which allowed accurate results to be obtained, starting from the 250 Hz octave band.

Aurora software was used for the G measurement and the analyses of the IRs obtained with the firecrackers signals. According to the procedure suggested on the plugin website [41], the anechoic segment (direct sound) of any IR can be used for calibration, in a similar way to that in [42]. It is recommended to keep a length of the IR of at least 1 s and to silence the signal just after the end of the direct sound. In this way, the time spread caused by the octave filtering will not result in energy being pushed outside the time window, even at low frequencies, and the correct value of the signal level can be computed. A calibration file was obtained from each analysed IR and was used to calculate the G value for that measurement path, adding the exact source-to-receiver distance. The IR under analysis should be of the same length of the IR used for calibration (at least 1 s). Further details are given in [25].

According to the work in [43], in situ G calibration should be avoided because of the uncertainty of individual octave band values, which is much larger than the Just Noticeable Difference (JND) of 1 dB. Actually, repeatability for this measure can bring to differences up to 2 dB in closed theatres [42]. Nevertheless, the difficulties in performing accurate laboratory calibrations, due to the distant location of the theatre and the likely unsteady outdoor environmental conditions, determined the choice of conducting an in situ calibration.

4. Results of the Measurements

The measurement results are reported in

Table 3. Mean values of the T₂₀, C₈₀ and G acoustical parameters measured with a dodecahedral (D) source at the theatre of Tyndaris with the source in the S1_D and S2_D positions. The data refer to the averages of the 500 Hz and 1 kHz octave bands and to the repetitions for the same receiver position. The rows and overall spatial means are also reported. The standard deviations of the spatial means outside the JND range are shown in bold.

	S1D
Acoustical Parameter	Receivers
	First Row				Central Row				Last Row				Overall
	R3	R6	R9	Sp. Mean	R2	R5	R8	Sp. Mean	R1	R4	R7	Sp. Mean	Sp. Mean
N. of repetitions	2	4	4		2	2	5		2	2	3
T20 (s)	0.50	0.59	0.52	0.54	0.56	0.60	0.61	0.59	0.57	0.59	0.60	0.59	0.57
St. Dev. T20	0.03	0.05	0.05	0.05	0.01	0.01	0.06	0.03	0.05	0.02	0.05	0.02	0.04
C50 (dB)	9.7	13.3	13.4	12.1	10.8	12.8	14.3	12.3	11.0	12.2	13.1	12.1	12.3
St. Dev. C50	1.1	2.4	2.5	2.1	1.2	1.4	3.0	1.8	0.2	0.2	2.4	1.1	1.5
C80 (dB)	17.2	17.2	19.7	18.0	16.7	16.9	18.1	17.2	17.2	17.0	16.8	17.0	17.4
St. Dev. C80	0.8	1.2	0.7	1.5	1.2	1.4	1.5	0.8	1.2	0.8	0.6	0.2	1.0
G (dB)	0.4	−2.2	−1.0	−0.9	−4.9	−4.1	−4.2	−4.3	−7.8	−6.8	−7.1	−7.2	−4.2
St. Dev. G	0.8	1.3	0.6	1.3	0.7	1.0	0.9	0.4	0.8	0.8	0.7	0.5	2.8
	S2D
Acoustical Parameter	Receivers
	First Row				Central Row				Last Row				Overall
	R3	R6		Sp. Mean	R2	R5	R8	Sp. Mean	R1	R4	R7	Sp. Mean	Sp. Mean
N. of repetitions	1	1			1	1	1		1	2	3
T20 (s)	0.53	0.51		0.52	0.46	0.60	0.43	0.50	0.46	0.54	0.49	0.50	0.50
St. Dev. T20	0.00	0.03		0.01	0.07	0.01	0.01	0.09	0.05	0.03	0.02	0.04	0.06
C50 (dB)	11.2	12.4		11.8	11.2	13.5	16.4	13.7	10.1	13.2	15.0	12.8	12.9
St. Dev. C50	1.0	2.4		0.8	0.9	1.6	1.5	2.6	2.6	1.7	1.9	2.5	2.1
C80 (dB)	16.3	18.5		17.4	18.1	17.8	19.2	18.4	17.1	17.4	18.4	17.6	17.8
St. Dev. C80	1.3	1.4		1.6	1.5	1.4	1.9	0.8	2.2	1.6	1.2	0.7	0.9
G (dB)	−2.6	−3.0		−2.8	−4.9	−6.2	−5.5	−5.6	−7.4	−7.6	−7.6	−7.5	−5.6
St. Dev. G	0.8	1.2		0.3	1.1	1.2	1.0	0.6	1.9	1.7	1.4	0.1	2.0

, expressed as T₂₀, C₅₀, C₈₀ and G acoustical parameters, with the dodecahedral source in positions S1 (receivers R1 to R9) and S2 (R1–R8), while

Table 4. Mean values of the T₂₀, C₈₀ and G acoustical parameters measured with firecrackers (F) at the theatre of Tyndaris with the source in the S1_F and S2_F positions. The data refer to the averages of the 500 Hz and 1 kHz octave bands and to the repetitions for the same receiver position. The rows and overall spatial means are also reported. The standard deviations of the spatial means outside the JND range are shown in bold.

	S1F
Acoustical Parameter	Receivers
	First Row				Central Row				Last Row				Overall
	R3	R6	R9	Sp. Mean	R2	R5	R8	Sp. Mean	R1	R4	R7	Sp. Mean	Sp. Mean
N. of repetitions	3	2	2		2	2	2		2	2	2
T20 (s)	0.48	0.68	0.55	0.57	0.51	0.63	0.61	0.58	0.54	0.56	0.63	0.57	0.58
St. Dev. T20	0.10	0.07	0.07	0.10	0.10	0.06	0.05	0.06	0.04	0.06	0.02	0.05	0.06
C50 (dB)	8.2	14.0	12.4	11.5	9.7	12.9	14.1	12.3	10.8	10.9	14.7	12.1	12.0
St. Dev. C50	2.6	1.2	1.2	3.0	2.5	0.6	0.8	2.3	0.9	0.5	0.8	2.2	2.2
C80 (dB)	15.8	16.9	18.1	17.0	16.6	17.1	17.5	17.1	18.2	16.5	18.0	17.6	17.2
St. Dev. C80	1.5	1.3	1.3	1.2	1.0	0.4	1.7	0.5	1.1	1.0	1.2	0.9	0.8
G (dB)	0.0	−1.7	−1.2	−1.0	−4.6	−3.9	−4.2	−4.2	−6.8	−6.7	−6.3	−6.6	−3.9
St. Dev. G	0.4	0.4	0.1	0.8	0.7	0.9	0.3	0.4	0.5	0.6	1.0	0.3	2.5
	S2F
Acoustical Parameter	Receiver
	First Row
	R6
N. of repetitions	2
T20 (s)	0.52 0.52
St. Dev. T20	0.05
C50 (dB)	11.7
St. Dev. C50	1.4
C80 (dB)	17.8 17.8
St. Dev. C80	1.6 0.4
G (dB)	−1.9 −5.2
St. Dev. G	0.8 0.09

reports those obtained with firecrackers in positions S1 (R1–R9) and S2 (R6). All the values are the averages of at least two repetitions (apart from some receivers with S2 with dodecahedron) in the same receiver position and of the central 500 Hz and 1 kHz octave band frequencies, as indicated in ISO 3382-1. Moreover, the spatial average is indicated for each row and as an overall value of the theatre. The Impulse Response-to-Noise Ratio (INR), which is a parameter that establishes the reliability of the acoustical measurements [40], was between 42 dB and 73 dB over all the measurements. According to ISO 3382-1, the source level should be at least 35 dB above the background noise level in the corresponding frequency band for the case of T₂₀. With good measurements most practical INR values range from 35 to 60 dB, thus all the measurements considered in this study, for the octave bands from 125 Hz to 8 kHz, comply with this rule.

The results shown in Table 3 and Table 4 were obtained from one to five repetitions and give a general overview of the situation, but they are not robust enough to draw conclusions on the uncertainty of the results, due to the high variability of the standard deviations. It is worth highlighting that, in acoustics, parameters are indicators for the perceptual evaluation of an acoustic signal, namely, the average capability of a “conventional” listener to detect sound variations. An important factor that correlates the subjective field to objective measures is the JND, that is, the smallest perceivable change in a given acoustical parameter, which was defined in ISO 3382-1 for central frequencies (500 Hz and 1 kHz).

Table 5. Just Noticeable Difference (JND) of the T₂₀, C₅₀, C80 and G acoustical parameters according to ISO 3382-1 (Annex A) [26] and the work in [44].

Acoustical Parameter	JND
T20 (s)	5% ≈ 0.03
C50 (dB)	1.1
C80 (dB)	1
G (dB)	1

shows the JNDs of the acoustical parameters considered in this study [26,44]. Within this framework, a tendency of a uniform pattern of the standard deviations of the spatial means of the parameters can be seen, with values that are closer to the JND values for T₂₀ and G, and slightly higher for C₅₀ and C₈₀. In the case of G, as the distance from the source affects the parameter, spatial standard deviations are quite uniform across the different rows, as expected. As general observation, it can be seen that the standard deviations reveal much higher values than the JNDs with the firecracker than with the dodecahedron source.

4.1. Reverberation Time

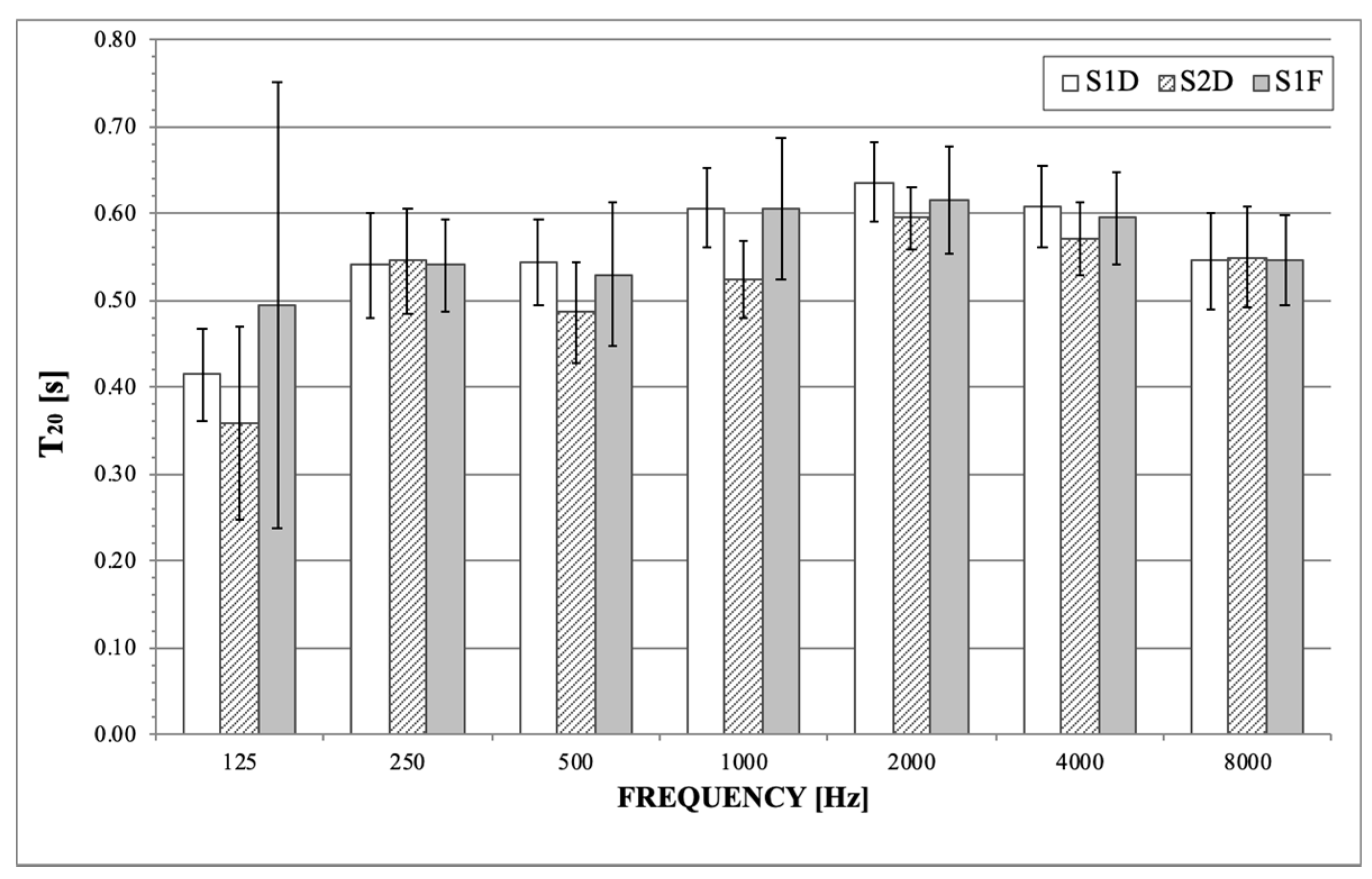

Figure 5 shows the averaged values of T₂₀ of all the receivers, considering both source typologies and positions: dodecahedral source in positions S1 and S2, and firecrackers in position S1. The whole theatre mean value, calculated on 0.5–1 kHz octave band frequency range, considering the results from all the sources, is 0.57 s. Standard deviations are approximately 0.04–0.05 for frequencies from 250 Hz to 8 kHz. Only the firecracker source shows a higher standard deviation at 125 Hz. In general, measurements with both sources in position S1 give similar results for all octave band frequencies, showing higher values with respect to measurements with source S2 in the furthest position.

4.2. Early-to-Late Energy Parameters

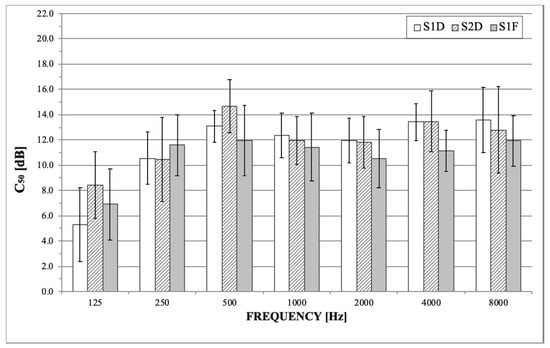

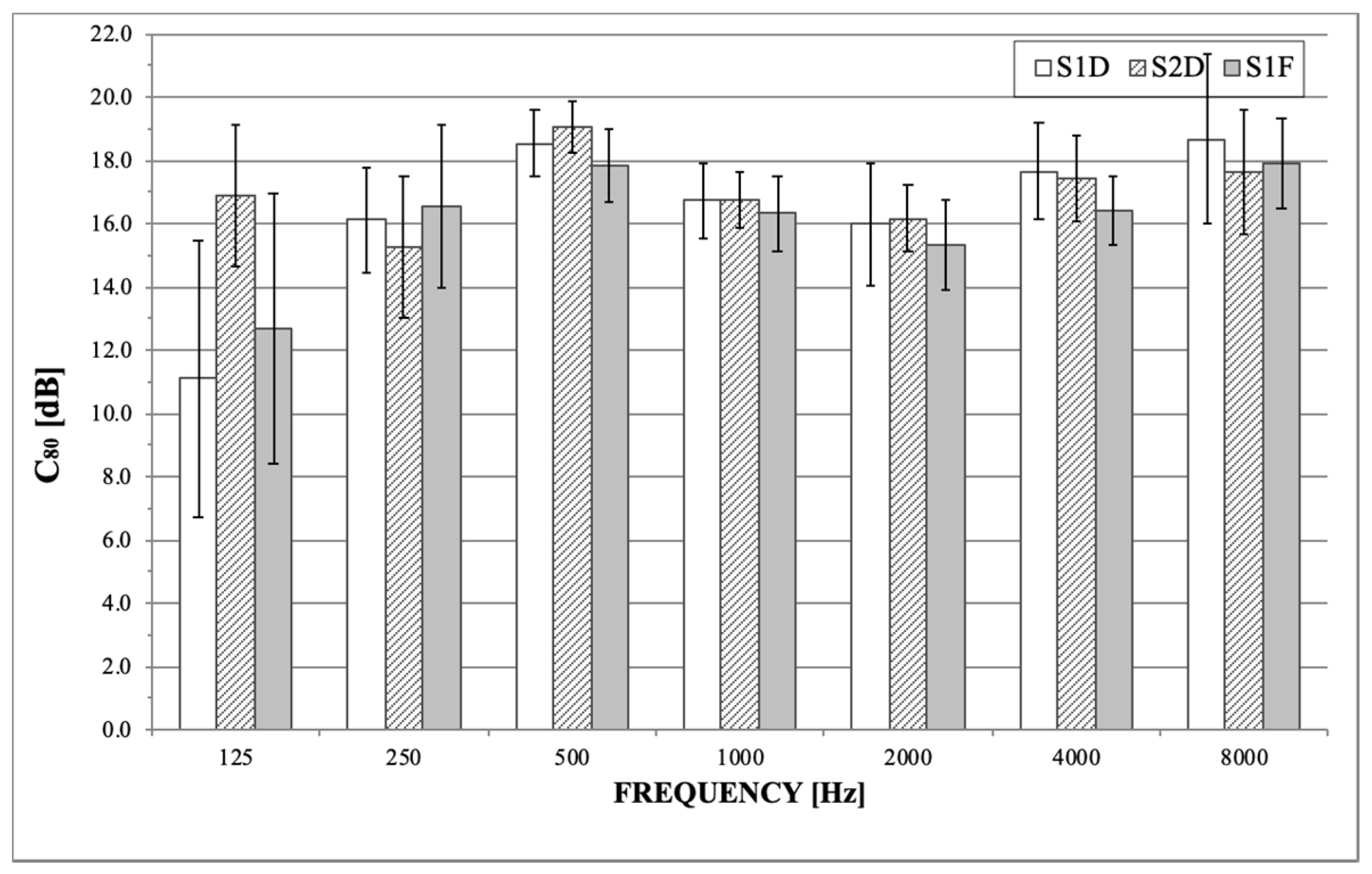

Figure 6 and Figure 7 show, respectively, the averaged values of C₅₀ and C₈₀ of all the receivers as a function of frequency. The whole theatre mean value, calculated on 0.5–1 kHz octave band frequency range, is 12.6 dB in the case of C₅₀, while it is 17.5 dB in the case of C₈₀. Due to the open-air conditions not allowing a proper reverberant tail (that is, late energy), it is not possible to assume that the results are in the typical ISO 3382-1 ranges. The standard deviation of the C₅₀ is ~2.5 dB for all octave band frequencies, while for C₈₀ is lower, ~1 dB. Compatible values are shown for all the sources with slightly lower values for S1_F, i.e., with firecrackers.

4.3. Sound Strength

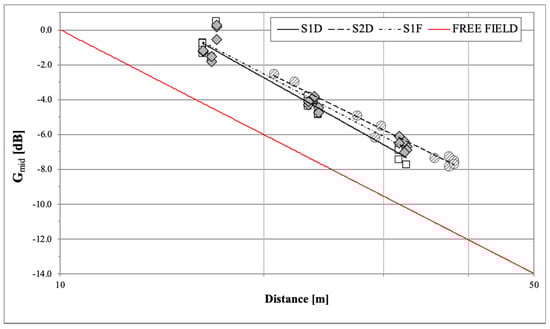

In Figure 8, the averaged values of Sound Strength G for 0.5–1 kHz octave band frequency range, G_mid, are shown for each receiver as a function of source-to-receiver distance (d), expressed on a logarithmic scale (the free field linear regression is also reported as a reference). In

Table 6. Linear regression parameters for the Sound Strength decays in Figure 8 (G_mid = A_i + B_i log₁₀ d), and the related R² coefficient.

Source	Ai (dB)	Bi (dB)	R2
Free field	20	−20	1
S1D	25.6	−21.8	0.95
S2D	22.7	−19.2	0.98
S1F	23.9	−20.3	0.94

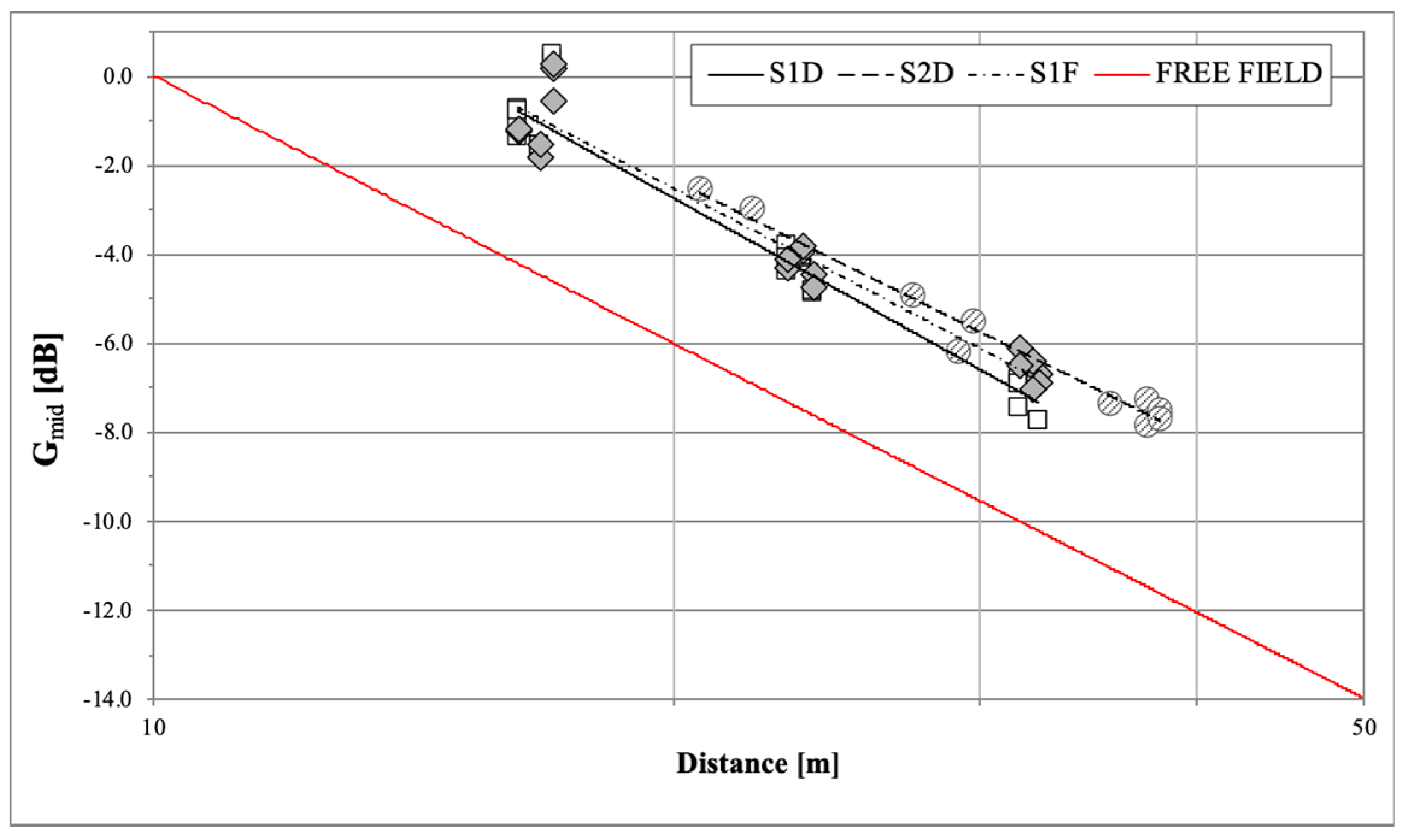

, the values of the parameters A_i and B_i of the equation G_mid = A_i + B_i log₁₀ (d) are reported for each source position. In all the considered cases, the decay of the G_mid with distance seems to follow quite well the behaviour around a source in free field. The gap between the curves with respect to the free field trend is approximately 3–4 dB depending on source typology and position. It is possible to conclude that in the theatre the sound strength is low, i.e., in the range from −1 to −8 dB. Moreover, the source typology seems not to influence the G_mid results, with differences between S1_D and S1_F on average values of the first and the second rows of 0.1 dB, and less than 0.6 dB for the third row, and overall across the theatre of 0.3 dB. This is very promising, as variations of G_mid results between 1 and 2 dB are reported in literature for closed theatres related to different calibration procedures and measurement chains [42,45].

5. Discussion

5.1. General Results and Comparison with Other Ancient Theatres

A first analysis is conducted on the collected IRs structure. The sound field in ancient theatres is generally considered more similar to a free field than a diffuse one. As previously mentioned, there is a limited energetic contribution after the direct sound. This characteristic has consequences both on the extrapolation of the acoustical parameters and their analysis. In fact, all the parameters were calculated from the IRs through their integration in reverse time, strongly affected by the first reflections. Thus, before analysing the whole structure of the IRs, some conclusions are drawn focusing on the Early Decay Curve (EDC), calculated on the squared impulse response.

Figure 9 shows a measured EDC of a typical IR from open-air theatres. The analysis was made with Dirac version 5. As an example, receiver position R6 with dodecahedral source in S1 was chosen as typical EDC. On the x-axis, the arrival time of the direct sound, after the so-called “flight time” starting with the emission of the signal from the source, is indicated. The corresponding IR (S1_D-R₆) is shown in the following Figure 10.

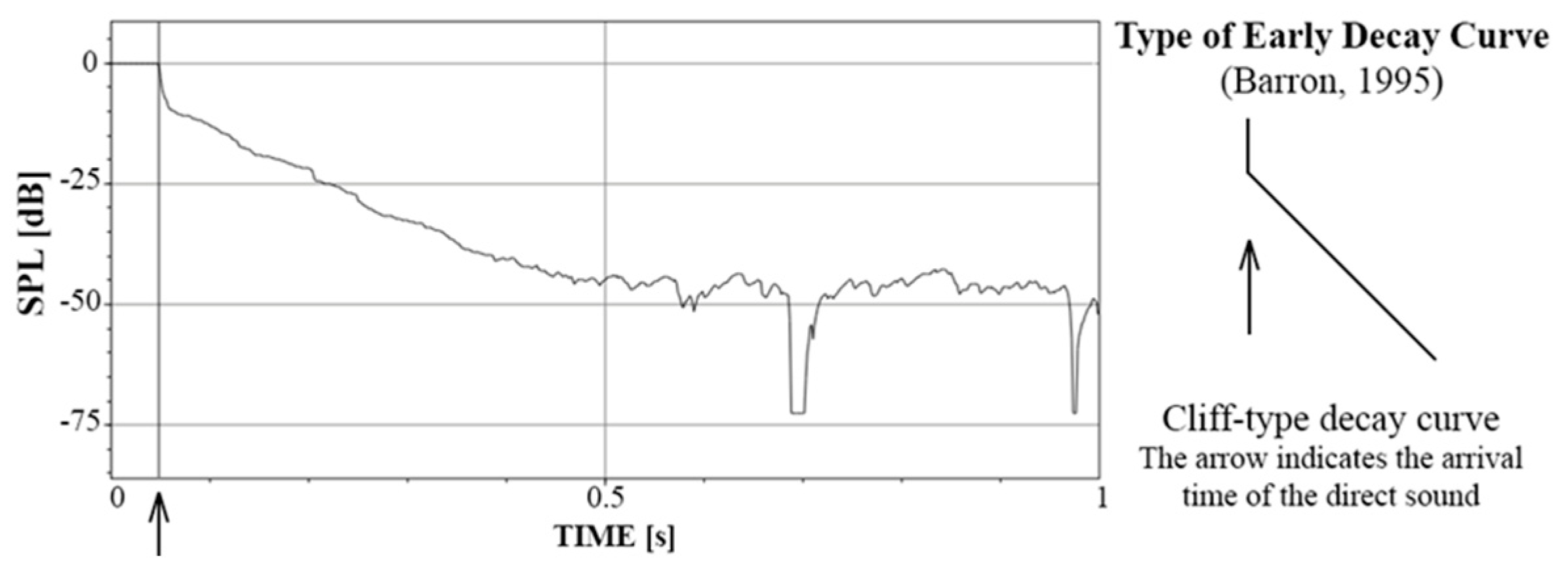

Considering the classification made by Barron [46], this type of EDC is described as “Cliff-type” decay. In this case, either the direct sound or the early reflections are very strong and the direct sound itself could turn out to be not significant with measurements made beyond 10 m from the source, as in the case of this example. Consequently, Barron reports that this type of EDC is usually leading to Early Decay Time (EDT) shorter than reverberation time such as T₂₀ or T₃₀, due to the difference between the slopes considered in the decay. EDT is determined from a best fit straight line to the first 10 dB of sound decays obtained the reverse-time integration of the squared impulse response curve, while for T₂₀ the evaluation range of the slope is from −5 dB to −25 dB.

In an open-air theatre, when the sound field substantially differs from a diffuse field, reverberation time is not in principle applicable, but despite this, it is largely used for the acoustic qualification of ancient theatres and for their comparison [2,3,10,21,47]. The main contributions to reverberation are few energetic reflections and the scattered sound energy coming from the steps in the cavea. Generally, reverberation time T₂₀ or T₃₀ show a limited variability in the theatre and for this reason they are used for comparison with other similar theatres. On the contrary, EDT shows a higher variability in the theatre as it is obtained from the very first part of the decay curve and its value is mostly affected by the arrival time and by the energy of the reflections after the direct sound. It is thus not used to obtain an overall qualification of the theatres that allows comparisons between different architectural typologies [7]. In this study, EDT resulted lower than reverberation time and is highly instable, thus in order to avoid the reader making misleading conclusions, it was decided not to show its values.

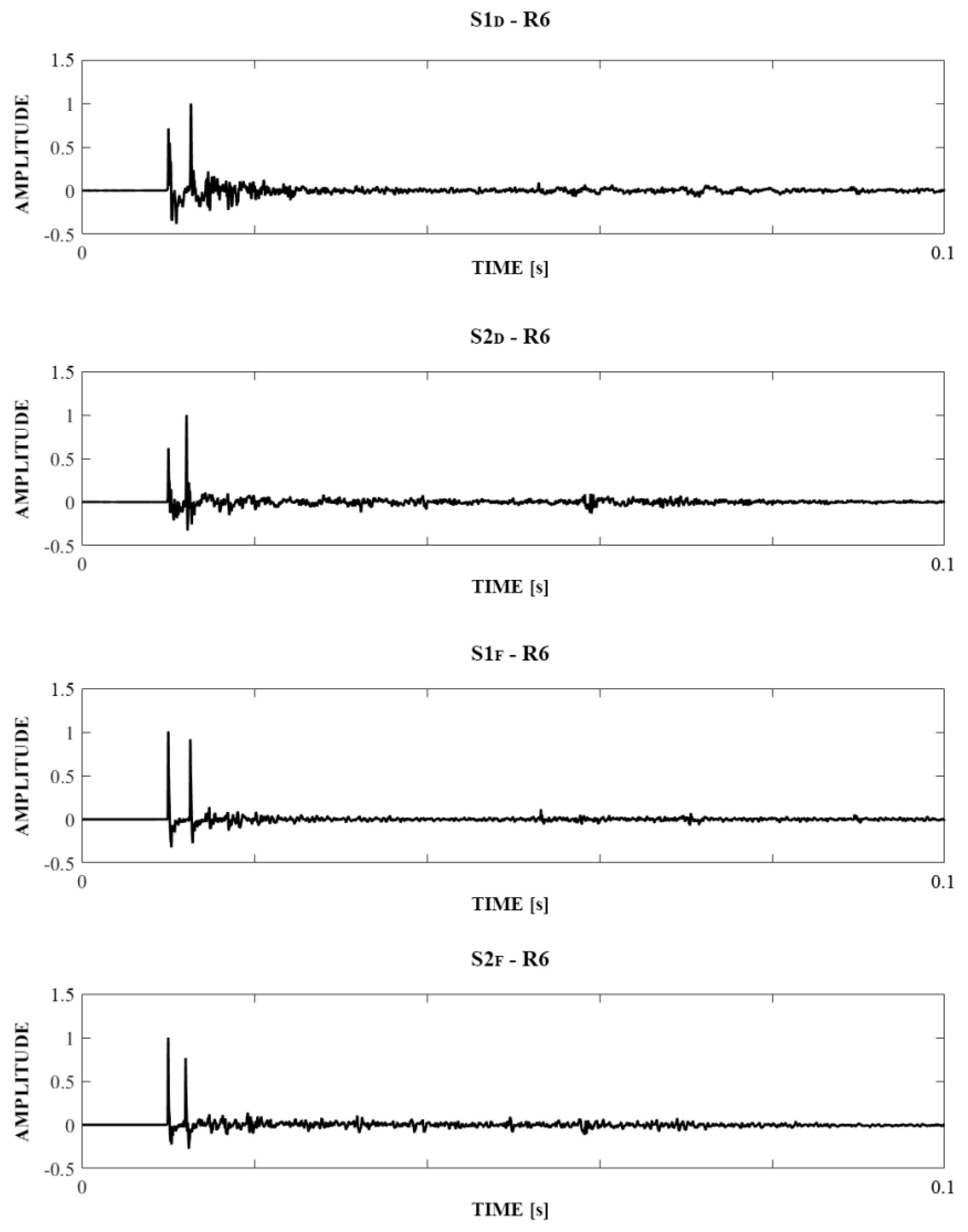

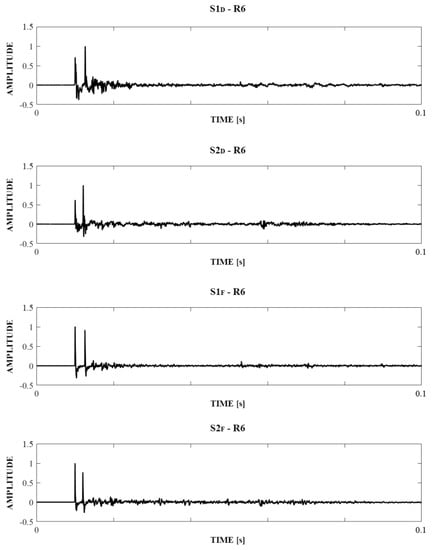

Figure 10 shows the fine structure of the typical IRs measured in the theatre with the two source typologies, i.e., the dodecahedron and the firecrackers, obtained for S1–R6 and S2–R6 paths with MATLAB version 2015b.

The IRs clearly show that the main contribution to the direct sound is coming from the first reflection from the orchestra, that is between 2.4 and 2.6 ms after the direct sound. Then, the first reflection is followed by minor scattered reflections from the cavea steps, distinguishable in the latter part. The absence of a scenic building is responsible for the absence of the third main reflection.

In Figure 10, the IRs obtained with the dodecahedral source show the direct sound with a lower level than the first reflection. This could happen in the case of acoustical focusing, that is, as already mentioned, an effect quite common in ancient theatres [2]. The effect is shown along the R4-R5-R6 and R7-R8-R9 lines for both S1 and S2 only for the dodecahedral source, and it is not observed along the R1-R2-R3 line. It could be due to the lack of omnidirectionality of the dodecahedral source at the highest frequencies [26,36] that determines selected focusing effects due to the loudspeakers position. Considering firecrackers, it does not exhibit directional characteristics or a very good repeatability [36,48]. Moreover, IR with the dodecahedral source results to be less sharp than those obtained with firecrackers. This indicates the firecracker source as more suitable than the dodecahedron to obtain defined IRs, at least to investigate the fine structure of the reflection pattern.

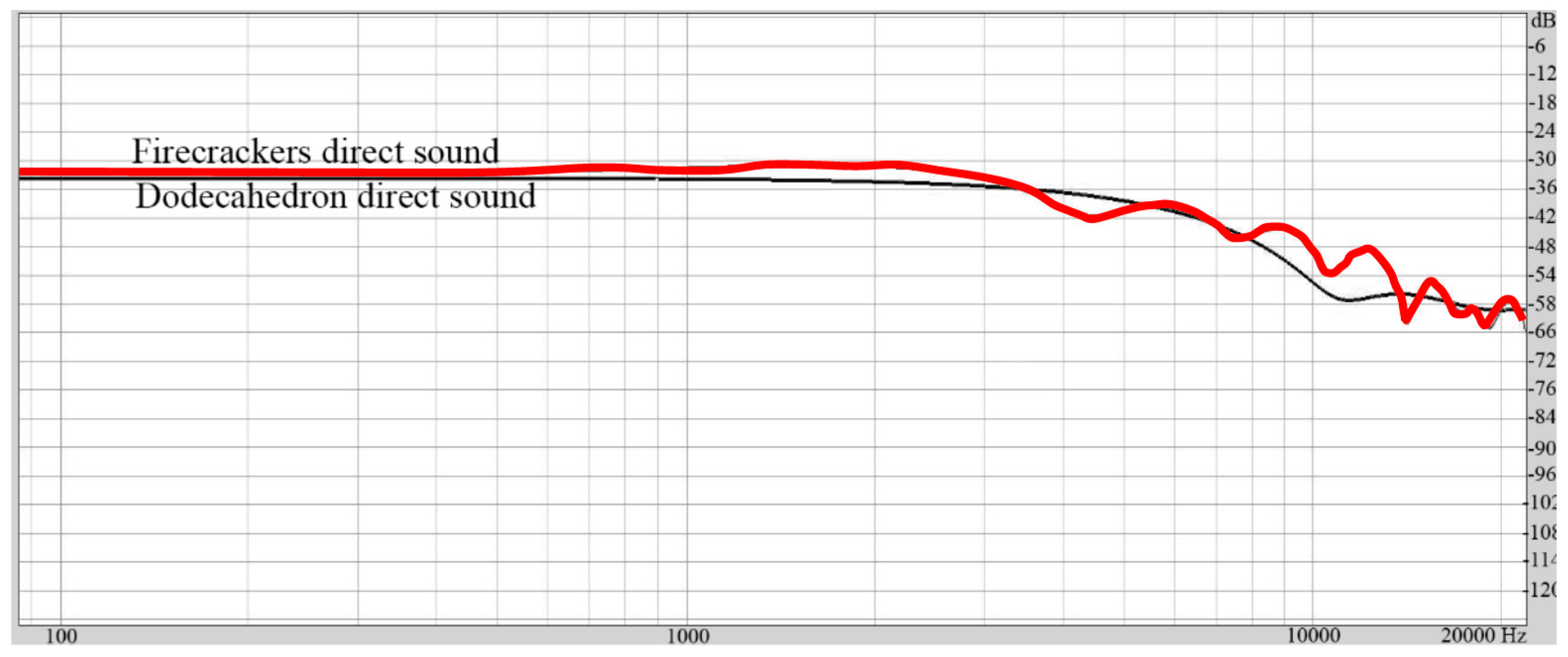

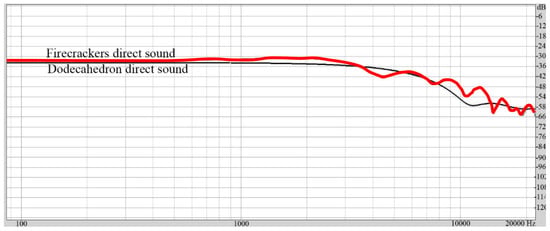

Figure 11 reports the frequency trend of the direct sounds extrapolated from the firecracker and dodecahedral sources and compared (measurement path: S1 and R6). The firecrackers direct sound is quite stable and flat until almost 10 kHz. However, the firecracker is more subject to problem of repeatability, as shown by the higher level of standard deviations obtained during measurements.

A further comparison with other case studies measurements is proposed. The cases considered are the in situ measurements realized on six theatres: Syracusae, Aspendos, Jerash, Taormina, Delphi and Segesta [6,25]. Regarding the in situ measurements, results for Syracusae (Italy, V cent. BCE; Greek-Roman theatre) in this study come from a measurement campaign conducted by the Acoustics Group at Politecnico di Torino in 2015 [25]. Aspendos (Turkey, I cent. CE; Roman theatre) and Jerash (Jordan, I cent. CE; Roman theatre) were the object of measurements during the aforementioned ERATO project. In particular, Aspendos is considered one of the best conserved ancient theatres in the world, as it still preserves architectural elements such as a complete scaenae frons and porticus; Jerash does not have any more a porticus, but it has a partially conserved scaenae frons. Instead, Taormina (Italy, 265-215 BCE, then modified in arena II-III cent. CE; Greek-Roman theatre), Delphi (Greece, II-I cent. BCE, Greek theatre) and Segesta (Italy, IV-I cent. BCE; Greek theatre) were object of another measurement campaign, performed by the University of Ferrara in collaboration with Kobe University [5]. Taormina has a partially conserved scenae frons, while Delphi and Segesta do not have any stage building. This further comparison allows understanding if the performed measurements in Tyndaris are comparable to those realized in previous experiences.

The results are presented in terms of RT_mid, that is the average value between reverberation time in the octave bands 0.5, 1 and 2 kHz, together with the architectural characteristics of the aforementioned theatres as reported in [7], in the following

Table 7. Main characteristics of the theatre investigated in this work (in bold) compared with other ancient theatres.

Theatre	Cavea Diameter (m)	Seating Capacity	Cavea Slope	Scaenae frons	Scaenae frons Height (m)	Porticus	RTmid (s)
Tyndaris	76	7000	27°	No	-	No	0.57
Syracusae	105	* 10,000	20–25°	No	-	No	0.78
Aspendos	98	15,000	33°	Yes	26.0	Yes	1.68
Jerash	63	* 3000	43°	Yes (part.)	8.5	No	1.19
Taormina	109	* 5500	39°	Yes (part.)	20.0	No	1.16
Delphi	50	5000	28°	No	-	No	0.50
Segesta	63	4000	26°	No	-	No	0.45

* Current conditions.

. It is evident that the complete absence of scaenae frons corresponds to a drastic reduction of the reverberation inside the theatre. Furthermore, it is important to underline that in Tyndaris the theatre cavea is covered by grass and topsoil for some of the area.

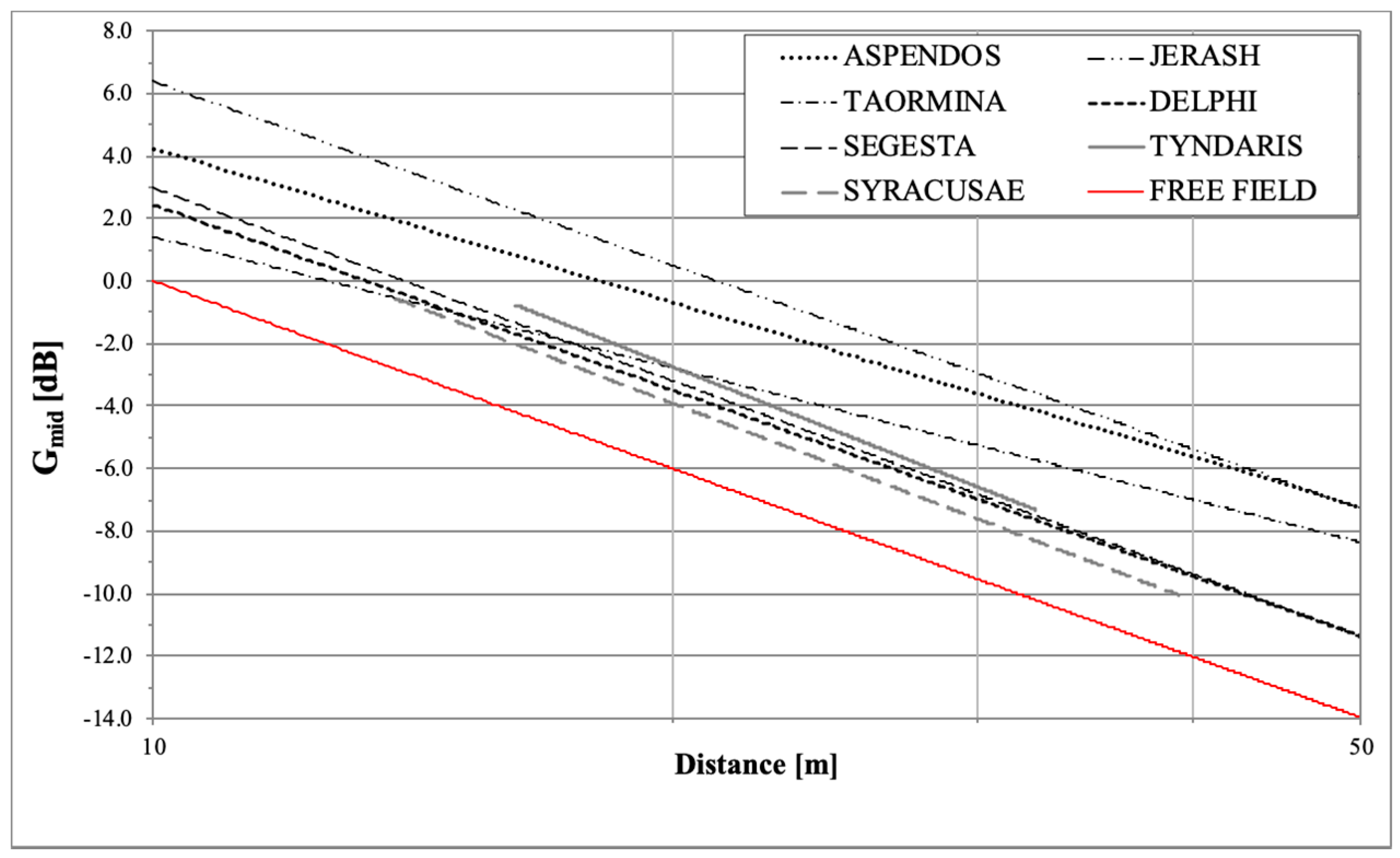

The G_mid regression lines of the measurements performed in this research are compared to those presented in [7,25] in Figure 12. Considering the in situ measurements, it is evident that to a better state of conservation (i.e., Aspendos and Jerash) corresponds a higher acoustic performance. In particular, for Tyndairs results are in line with those obtained from theatres without preserved scenic building (i.e., Segesta and Delphi), as in all these cases it is possible to count only on the orchestra as acoustic mirror.

5.2. Applicability of the ISO 3382-1

Performing acoustic measurements at archaeological sites is a challenging task and researchers often face a number of practical issues that may require some deviations from standardized protocols [18]. In particular, ISO 3382-1 is meant for roofed performance spaces, thus its straightforward applicability to open-air ancient theatres is problematic at least.

Table 8. ISO 3382-1 recommendations and their applications in the measurement campaign in Tyndaris.

ISO 3382-1 Section	Recommendation	Implemented	Notes
4. Measurement conditions	Temperature and Relative Humidity: these quantities should be measured with an accuracy of ±1 °C and 5%, respectively.	Yes	In the case of inter-measurement temperature change, the recommended deviation that allows for accurate measurements of room acoustic parameters is 2 °C [30].
	Equipment: omnidirectional sources and receivers. Maximum deviations of directivity for an omnidirectional source are indicated.	Yes	The deviation of directivity of the used sound source respected the maximum values indicated by the reference standards.
	Number of source positions: minimum 2, located where the natural sound source would take position. Height of sources: 1.5 m.	Yes	Besides taking measurements in two source positions, also measurements with two sound source types were performed.
	Number of microphone positions: Microphone positions should be at positions representative of positions where listeners would normally be located. For reverberation time measurements, it is important that the measurement positions sample the entire space; for the room acoustic parameters, they should also be selected to provide information on possible systematic variations with position in the room. Height of the receivers: 1.2 m.	Yes
5. Measurement procedures	Integrated Impulse Response method: any source is allowed provided that its spectrum is broad enough to cover from 125 Hz to 4 kHz. The peak sound pressure level has to ensure a decay curve starting at least 35 dB above the BNL.	Yes	In some receiving positions, the 125 Hz frequency band did not guarantee the required 35 dB over the BNL, with the firecrackers.
6. Decay curves	Regression analysis: a least-squares fit line shall be computed for the decay curve.	No	The open-air condition is characterised by a cliff-decay curve linked to a few strong reflections, but this case is not considered by the standard.
7. Uncertainty	If the impulse response is not exactly repeatable, results should be the average of several repeated measurements at the same position.	No	The standard does not indicate a suggested number of repetitions, or a methodology to define it. Since the priority was to keep stable the boundary conditions (Temperature, air Velocity, Relative Humidity), it was not possible to repeat many measurements in each position.
A4. Positions	A minimum of between 6 and 10 microphone positions should be used, depending on the size of the hall. Above 2000 seats, at least 10 positions are suggested.	Yes	Open-air theatres easily reach more than 2000 seats, but at farther positions the measurements may have easily unreliable results.

reports some key recommendations mentioned in different sections of ISO 3382-1 and a brief comment on whether (if applicable and to what extent) those were implemented in the current study. A similar analysis was conducted in [25] and the emerging issues are comparable.

The application of ISO recommendations to the open-air case study is questionable in the evaluation of the correct decay curves, of the measurement uncertainty (using Integrated Impulse Response method) and of the repeatability of the IRs. Thus, it seems fair to assume that the ISO 3382-1 and its parameters, although referred to performance environments, are not completely applicable to open-air spaces. A specific standard for the acoustical measurements in open-air conditions should probably be taken into consideration and added as a further part to the ISO 3382 series.

6. Conclusions

This work presents the results of an acoustical measurements campaign in the ancient open-air theatre of Tyndaris. Measurements based on ISO 3382-1 were conducted in situ in unoccupied conditions using omnidirectional sound sources and receivers. The impulse responses (IRs) were measured directly using a firecracker as the impulse source, and a dodecahedral source, which generated a sine sweep. The acoustical parameters described in the ISO 3382-1 standard, that is, Reverberation Time (T₂₀), Clarity (C₅₀) and (C₈₀) and Sound Strength (G), were obtained from the IRs measured at each receiver position. The following main results are highlighted.

• For Reverberation Time (T₂₀), the measurements with the firecrackers and the dodecahedron sources returned similar results. When looking at the average value across all source types and positions in the mid-frequencies range, T₂₀ was 0.57 s; this value is relatively lower if compared to similar open-air ancient theatres, which is a common trait for those sites where the scaenae frons is no longer in place.
• For the Early-to-Late Energy parameters, the average theatre values in the mid-frequencies ranges are: C₅₀ = 12.6 dB and C₈₀ = 17.5 dB; yet, such figures should be interpreted with caution as due to operational constraints (open-air conditions) it was not possible to accurately assess the results in alignment with the ISO 3382-1 guidance.
• For the parameter Strength of Sound G, the values for the theatre in the mid-frequency range are typically low, going from −1 to −8 dB, depending on sound source type and position.

A very good reproducibility has been shown between the measurements obtained with the two different measurement chains, with differences on average spatial values for the whole theatre that are equal to 0.01 s for T₂₀, and less than 0.3 dB for C₅₀, C₈₀ and G.

Future research should explore additional parameters that could be more suitable for the characterization of the ancient theatre, and unroofed historical spaces more broadly [49]. At other sites, the context should also be taken into account, considering the possible influence of the state of conservation of the architectural elements and materials.
