# Seismic Coda-Waves Imaging Based on Sensitivity Kernels Calculated Using an Heuristic Approach

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Theoretical (Energy Transport) Model

#### 2.1. The Energy Transport Model and Its Approximations

#### 2.2. 2D Formulations of ETM

#### 2.3. Scattering Regimes

- (1)
- ${l}_{a}$ is the “absorption” or “intrinsic attenuation” mean path. ${l}_{a}=\frac{v{Q}_{i}}{2\pi f}$.
- (2)
- ${l}_{g}$ is the “scattering” mean free path. ${l}_{g}=\frac{v{Q}_{s}}{2\pi f}$.

#### 2.4. Application to Real Data to Estimate the Seismic Attributes

#### 2.5. The Time Evolution of Coda Waves Studies

## 3. The Heuristic Method to Calculate Sensitivity Kernels

#### 3.1. Early Q-Coda Images

#### 3.2. The Introduction of Peak Delay Time and the First Attempts to Separate Intrinsic from Scattering Q

#### 3.3. Sensitivity Kernels for Scattering Radiation

#### 3.4. Numerical Simulation to Estimate the Sensitivity Kernels for Coda Waves

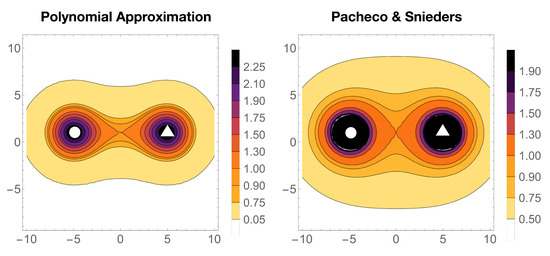

## 4. Analytical Approximation of the Space Weighting Functions

## 5. Sensitivity Kernel for Q-Coda

## 6. Imaging Methods Based on SWF

#### 6.1. Imaging Methods Based on SWF’s in Diffusive Media

#### 6.2. The Projection Method

#### 6.3. The Inversion Method

#### 6.4. Equivalency of the Two Approaches

#### 6.5. Sensitivity Tests

#### 6.6. The “Resolution” Function for the Projection Method

- The weighting functions (each normalized for their maximum) are represented by the quantities ${w}_{ij}$ where i is the event-source index and j represents the j-$th$ pixel of generic coordinates $\{x,y\}$. i spans from 1 to N where N is the number of source-receiver couples in the data set. j spans from 1 to M where M is the number of pixels (square regions in which the input image is divided).
- $\overline{{q}_{ij}}$ is the j-$th$ Q-value (or its inverse) measured for the i-$th$ source-receiver couple
- ${q}_{j}$ is the output of the method for the j-$th$ pixel.

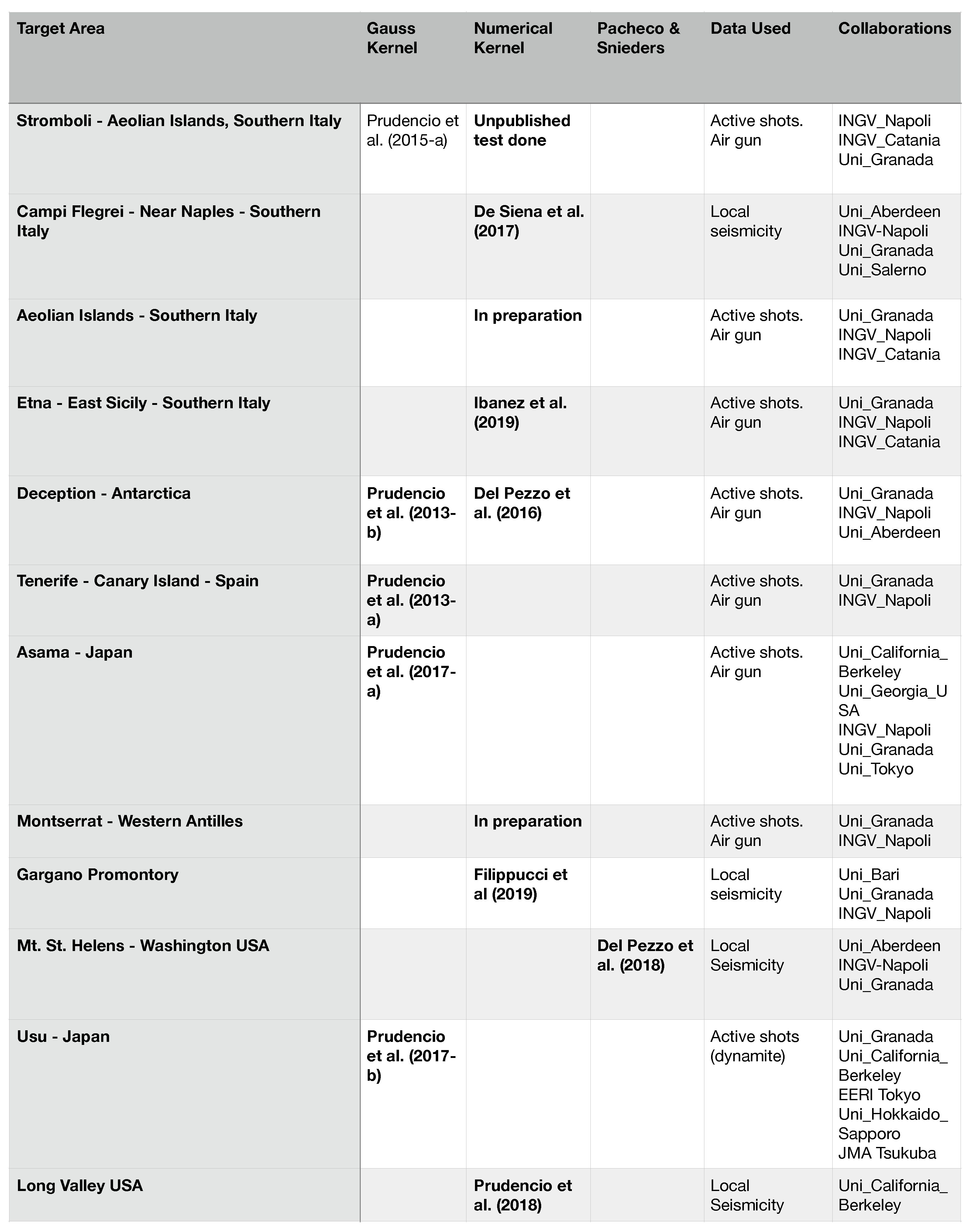

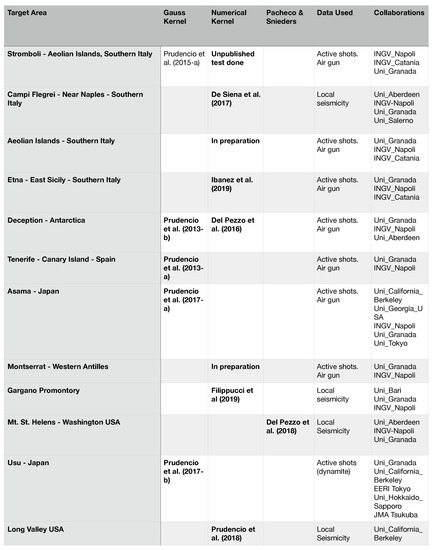

## 7. Application to Real Data

#### 7.1. Projection Method in the Diffusion Assumption

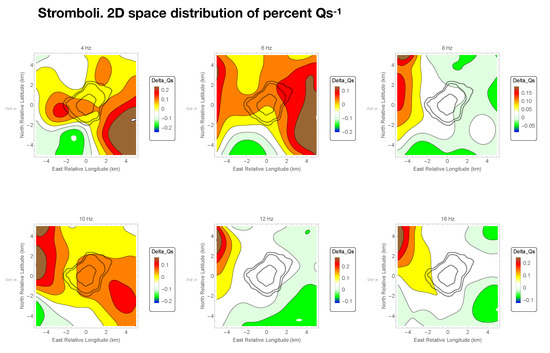

#### 7.2. Projection Method Applied to Stromboli Volcano: A Revision of the Results

#### 7.3. Inversion Method in the Single Scattering Approximation

## 8. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

Symbol | Explanation |

N | Number of wave-particles in the simulation |

${\eta}_{s}$ | Scattering coefficient. $g={\eta}_{s}=\frac{2\pi f}{v{Q}_{s}}$ where f is the frequency |

v | Wave speed |

${t}_{lapse}$ | Lapse time (measured from origin) |

${\eta}_{i}$ | Intrinsic attenuation coefficients. ${\eta}_{i}=\frac{2\pi f}{v{Q}_{i}}$ where f is the frequency |

${B}_{0}$ | Seismic Albedo. ${B}_{{}^{0}}=\frac{{\eta}_{s}}{{\eta}_{i}+{\eta}_{s}}$ |

$Le$ | Extinction Length. $L{e}^{-1}=$${\eta}_{i}+{\eta}_{s}$ |

${n}_{sc},{n}_{i}$ | Space density of scatterers and paths, respectively, or Space Weighting Functions |

$\{{x}_{s},{y}_{s}\}$ | Source coordinates |

$\{{x}_{r},{y}_{r}\}$ | Receiver coordinates |

D | $\sqrt{{({x}_{s}-{x}_{r})}^{2}+{({y}_{s}-{y}_{r})}^{2}}$ source-receiver distance |

$\delta t$ | time step used in simulations |

${Q}_{i},{Q}_{s}$ | Intrinsic and Scattering Quality Factor |

${K}_{num}{}^{3D},{K}_{num}{}^{2D}$ | Analytical expression of ${n}_{sc},{n}_{i}$ for high heterogeneity (diffusion) |

E | Energy envelope |

${E}_{d}$ | Energy envelope in the Diffusion approximation |

${E}_{ss}$ | Energy envelope in case of Single scattering |

$\overline{q}$ | Measured Q-value |

${w}_{ij}$ | The same of $Knum$ (to simplify notations) |

${R}_{j}$ | Resolution function at j-$th$ pixel |

Acronym | Explanation |

ETM | Energy Transport Model |

DM | Diffusion Model |

SSM | Single Scattering Model |

SEE | Seismogram Energy Envelope |

SWF | Space Weighting Functions |

## References

- Obermann, A.; Planes, T.; Hadziioannou, C.; Campillo, M. Lapse time dependent coda wave depth sensitivity to local velocity perturbations in 3-D heterogeneous elastic media. Geophys. J. Int.
**2016**, 207, 59–66. [Google Scholar] [CrossRef][Green Version] - Sato, H.; Fehler, M.; Maeda, T. Seismic Wave Propagation and Scattering in the Heterogeneous Earth, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 2012. [Google Scholar]
- Aki, K. Analysis of the Seismic Coda of Local Earthquakes as Scattered Waves. J. Geophys. Res. Solid Earth
**1969**, 74, 615–631. [Google Scholar] [CrossRef] - Aki, K.; Chouet, B. Origin of coda waves: Source, attenuation, and scattering effects. J. Geophys. Res. Solid Earth
**1975**, 80, 3322–3342. [Google Scholar] [CrossRef] - Sato, H. Single isotropic scattering model including wave convesions Simple theoretical model of the short period body wave propagation. J. Phys. Earth
**1977**, 25, 163–176. [Google Scholar] [CrossRef] - Larose, E.; Planes, T.; Rossetto, V.; Margerin, L. Locating a small change in a multiple scattering environment. Appl. Phys. Lett.
**2010**, 96, 204101. [Google Scholar] [CrossRef][Green Version] - Snieder, R. Coda wave interferometry. In McGraw-Hill 2004 Yearbook of Science & Technology; McGraw-Hill: New York, NY, USA, 2004; p. 3. [Google Scholar]
- Mayor, J.; Calvet, M.; Margerin, L.; Vanderhaeghe, O.; Traversa, P. Crustal structure of the Alps as seen by attenuation tomography. Earth Planet. Sci. Lett.
**2016**, 439, 71–80. [Google Scholar] [CrossRef] - Prudencio, J.; Del Pezzo, E.; Garcia Yeguas, A.; Ibanez, J.M. Spatial distribution of intrinsic and scattering seismic attenuation in active volcanic islands-I: Model and the case of Tenerife Island. Geophys. J. Int.
**2013**, 195, 1942–1956. [Google Scholar] [CrossRef][Green Version] - Rossetto, V. Local time in diffusive media and applications to imaging. Phys. Rev. E
**2013**, 88, 022103. [Google Scholar] [CrossRef] [PubMed][Green Version] - Planès, T.; Larose, E.; Margerin, L.; Rossetto, V.; Sens-Schönfelder, C. Decorrelation and phase-shift of coda waves induced by local changes: Multiple scattering approach and numerical validation. Waves Random Complex Media
**2014**, 24, 99–125. [Google Scholar] [CrossRef] - Obermann, A.; Planès, T.; Larose, E.; Sens-Schönfelder, C.; Campillo, M. Depth sensitivity of seismic coda waves to velocity perturbations in an elastic heterogeneous medium. Geophys. J. Int.
**2013**, 194, 372–382. [Google Scholar] [CrossRef][Green Version] - Pacheco, C.; Snieder, R. Time-lapse traveltime change of singly scattered acoustic waves. Geophys. J. Int.
**2006**, 485–500. [Google Scholar] [CrossRef][Green Version] - Mayor, J.; Margerin, L.; Calvet, M. Sensitivity of coda waves to spatial variations of absorption and scattering: Radiative transfer theory and 2-D examples. Geophys. J. Int.
**2014**, 197, 1117–1137. [Google Scholar] [CrossRef][Green Version] - Margerin, L.; Planes, T.; Mayor, J.; Calvet, M. Sensitivity kernels for coda-wave interferometry and scattering tomography: Theory and numerical evaluation in two-dimensional anisotropically scattering media. Geophys. J. Int.
**2016**, 204, 650–666. [Google Scholar] [CrossRef][Green Version] - Del Pezzo, E.; Ibañez, J.; Prudencio, J.; Bianco, F.; De Siena, L. Absorption and scattering 2-D volcano images from numerically calculated space-weighting functions. Geophys. J. Int
**2016**, 206, 742–756. [Google Scholar] [CrossRef][Green Version] - Zeng, Y.; Su, F.; Aki, K. Scattering wave energy propagation in a random isotropic scattering medium. Part 1. Theory. J. Geophys.-Res.-Solid Earth
**1991**, 96, 607–619. [Google Scholar] [CrossRef] - Paasschens, J. Solution of the time-dependent Boltzmann equation. Phys. Rev. E
**1997**, 56, 1135–1141. [Google Scholar] [CrossRef] - Aki, K.; Richards, P.G. Quantitative Seismology; University Science Books: Sausalito, CA, USA, 2002. [Google Scholar]
- De Siena, L.; Calvet, M.; Watson, K.J.; Jonkers, A.R.T.; Thomas, C. Seismic scattering and absorption mapping of debris flows, feeding paths, and tectonic units at Mount St. Helens volcano. Earth Planet. Sci. Lett.
**2016**, 442, 21–31. [Google Scholar] [CrossRef][Green Version] - Wegler, U.; Luhr, B. Scattering behaviour at Merapi volcano(Java) revealed from an active seismic experiment. Geophys. J. Int.
**2001**, 145, 579–592. [Google Scholar] [CrossRef][Green Version] - Del Pezzo, E. Seismic Wave Scattering in Volcanoes. Adv. Geophys.
**2008**, 50, 353–371. [Google Scholar] - Del Pezzo, E.; Zollo, A. Attenuation of coda waves and turbidity coefficient in central Italy. Bull. Seismol. Soc. Am.
**1984**, 74, 2655–2659. [Google Scholar] - Dainty, A. High-frequency acoustic backscattering and seismic attenuation. J. Geophys. Res.
**1984**, 89, 3172–3176. [Google Scholar] [CrossRef] - Jin, A.; Cao, T.; Aki, K. Regional change of coda Q in the oceanic lithosphere. J. Geophys. Res.
**1985**, 90, 8651–8659. [Google Scholar] [CrossRef] - Singh, S.; Herrmann, R.B. Regionalization of Crustal Coda Q in the continental United States. J. Geophys. Res.
**1983**, 88, 527–538. [Google Scholar] [CrossRef] - Pulli, J.J. Attenuation of coda waves in New England. Bull. Seism. Soc. Am.
**1984**, 74, 1149–1166. [Google Scholar] - Xie, J.; Mitchell, B. A Back-Projection Method for Imaging Large-Scale Lateral Variations of Lg Coda Q with Application to Continental Africa. Geophys. J. Int.
**1990**, 100, 161–181. [Google Scholar] [CrossRef][Green Version] - Carcolé, E.; Sato, H. Spatial distribution of scattering loss and intrinsic absorption of short-period S waves in the lithosphere of Japan on the basis of the Multiple Lapse Time Window Analysis of Hi-net data. Geophys. J. Int.
**2010**, 180, 268–290. [Google Scholar] [CrossRef][Green Version] - Calvet, M.; Sylvander, M.; Margerin, L.; Villasenor, A. Spatial variations of seismic attenuation and heterogeneity in the Pyrenees: Coda Q and peak delay time analysis. Tectonophysics
**2013**, 608, 428–439. [Google Scholar] [CrossRef][Green Version] - Rossetto, V.; Margerin, L.; Planès, T.; Larose, É. Locating a weak change using diffuse waves (LOCADIFF): Theoretical approach and inversion procedure. arXiv
**2010**, arXiv:1007.3103. [Google Scholar] - Xie, F.; Larose, E.; Moreau, L.; Zhang, L.; Planes, T. Characterizing extended changes in multiple scattering media using coda wave decorrelation: Numerical simulations. Waves Random Complex Media
**2018**, 1, 1–14. [Google Scholar] [CrossRef] - Nakahara, H.; Emoto, K. Deriving Sensitivity Kernels of Coda-Wave Travel Times to Velocity Changes Based on the Three-Dimensional Single Isotropic Scattering Model. Pure Appl. Geophys.
**2017**, 174, 327–337. [Google Scholar] [CrossRef] - Yoshimoto, K. Monte Carlo simulation of seismogram envelopes in scattering media. J. Geophys. Res.
**2000**, 105, 6153–6161. [Google Scholar] [CrossRef] - Fehler, M.; Hoshiba, M.; Sato, H.; Obara, K. Separation Of Scattering And Intrinsic Attenuation for the Kanto-tokai Region, Japan, Using Measurements of S-wave Energy Versus Hypocentral Distance. Geophys. J. Int.
**1992**, 108, 787–800. [Google Scholar] [CrossRef][Green Version] - Del Pezzo, E.; De La Torre, A.; Bianco, F.; Ibanez, J.; Gabrielli, S.; De Siena, L. Numerically Calculated 3D Space-Weighting Functions to Image Crustal Volcanic Structures Using Diffuse Coda Waves. Geosciences
**2018**, 8, 175. [Google Scholar] [CrossRef][Green Version] - Gusev, A.; Abubakirov, I. Vertical profile of effective turbidity reconstructed from broadening of incoherent body-wave pulses-I. General approach and the inversion procedure. Geophys. J. Int.
**1999**, 136, 295–308. [Google Scholar] [CrossRef][Green Version] - Wegler, U. Diffusion of seismic waves in a thick layer: Theory and application to Vesuvius volcano. J. Geophys. Res.
**2004**, 109. [Google Scholar] [CrossRef] - Nishigami, K. A new inversion method of coda waveforms to determine spatial distribution of coda scatterers in the crust and uppermost mantle. Geophys. Res. Lett.
**1991**, 18, 2225–2228. [Google Scholar] [CrossRef] - Nolet, G. A Breviary of Seismic Tomography; CUP: Cambridge, UK, 2008. [Google Scholar]
- Castellano, M. Seismic Tomography Experiment at Italy’s Stromboli Volcano. EOS AGU
**2008**, 30. [Google Scholar] [CrossRef][Green Version] - Prudencio, J.; Del Pezzo, E.; Ibanez, J.; Giampiccolo, E.; Patane, D. Two-dimensional seismic attenuation images of Stromboli Island using active data. Geophys. Res. Lett.
**2015**, 42. [Google Scholar] [CrossRef] - De Siena, L.; Amoruso, A.; Pezzo, E.D.; Wakeford, Z.; Castellano, M.; Crescentini, L. Space-weighted seismic attenuation mapping of the aseismic source of Campi Flegrei 1983–1984 unrest. Geophys. Res. Lett.
**2017**, 44, 1740–1748. [Google Scholar] - Gusev, A.A.; Abubakirov, I.R. Monte-Carlo simulation of record envelope of a near earthquake. Phys. Earth Planet. Inter.
**1987**, 49, 306. [Google Scholar] [CrossRef]

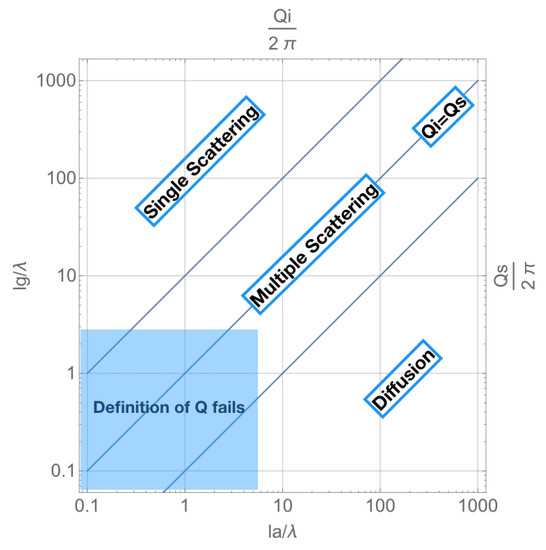

**Figure 1.**The units in the axes are normalized for $\lambda $, the wavelength. The blue transparent zone marks the domain in which Q definition fails. The central strip (multiple scattering) separates the zone where the “Diffusion” and “Single Scattering” regimes properly hold.

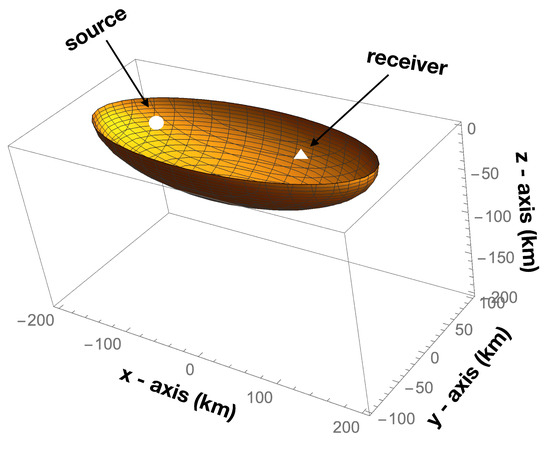

**Figure 2.**Scattering ellipsoid in case of surface source and receiver, at a distance of 230 km for max lapse time of 100 s.

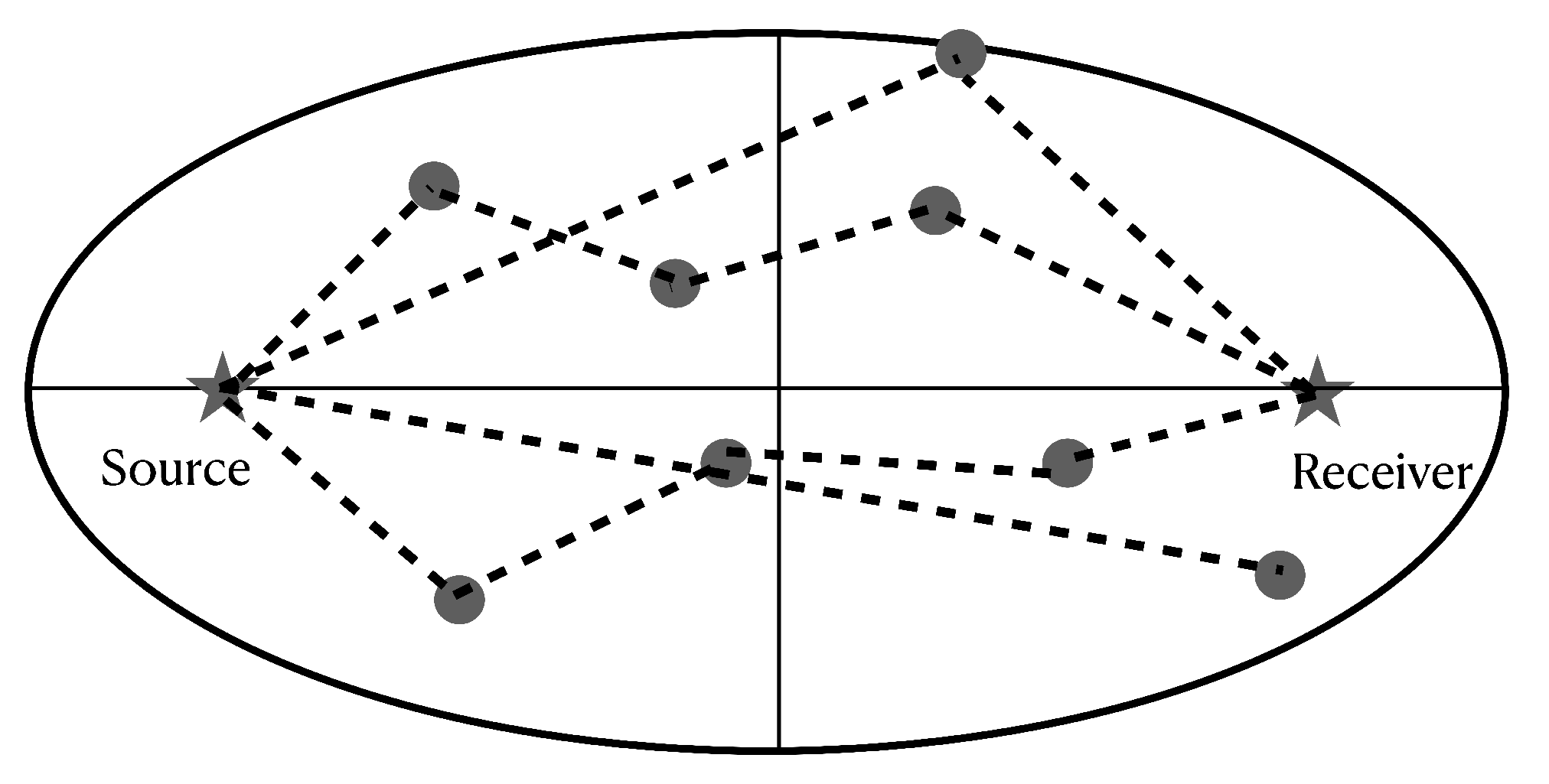

**Figure 3.**Energy particles emitted by the source travel (dashed paths) inside the scattering ellipse, following the Fermat’s rules. Collisions with heterogeneities are marked with dark grey circles. When arrived at the Receiver, the particles are counted and a time histogram is calculated.

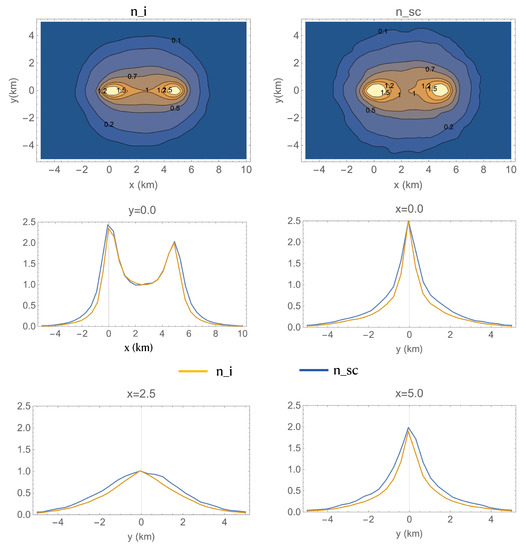

**Figure 4.**Redrawn from [16]. Contour plots (upper panels) of the numerically generated SWF (2D) for ${\eta}_{i}$ = 0.001 km${}^{-1}$, ${\eta}_{s}$ = 0.628 km${}^{-1}$${t}_{lapse}$ = 15 s v = 2 km/s. The time step in the simulation was set at 0.05 s. Source and receiver are positioned at {0 km, 0 km}, and $\{5$ km, 0 km}, respectively. Both SWF are normalized at the middle point between source and receiver. In the central panels, the values of normalized ${n}_{i}$ and ${n}_{sc}$ at y = 0.0 are plotted as a function of x (

**left panel**) and the corresponding pattern at x = 0.0 as a function of y (

**right panel**). In the lowermost panels the values of normalized ${n}_{i}$ and ${n}_{sc}$ at x = 2.5 are plotted as a function of y (

**left panel**) and the corresponding pattern at x = 5.0 as a function of y (

**right panel**). In this example, scattering attenuation predominates and ${n}_{i}$ and ${n}_{sc}$ are practically coincident.

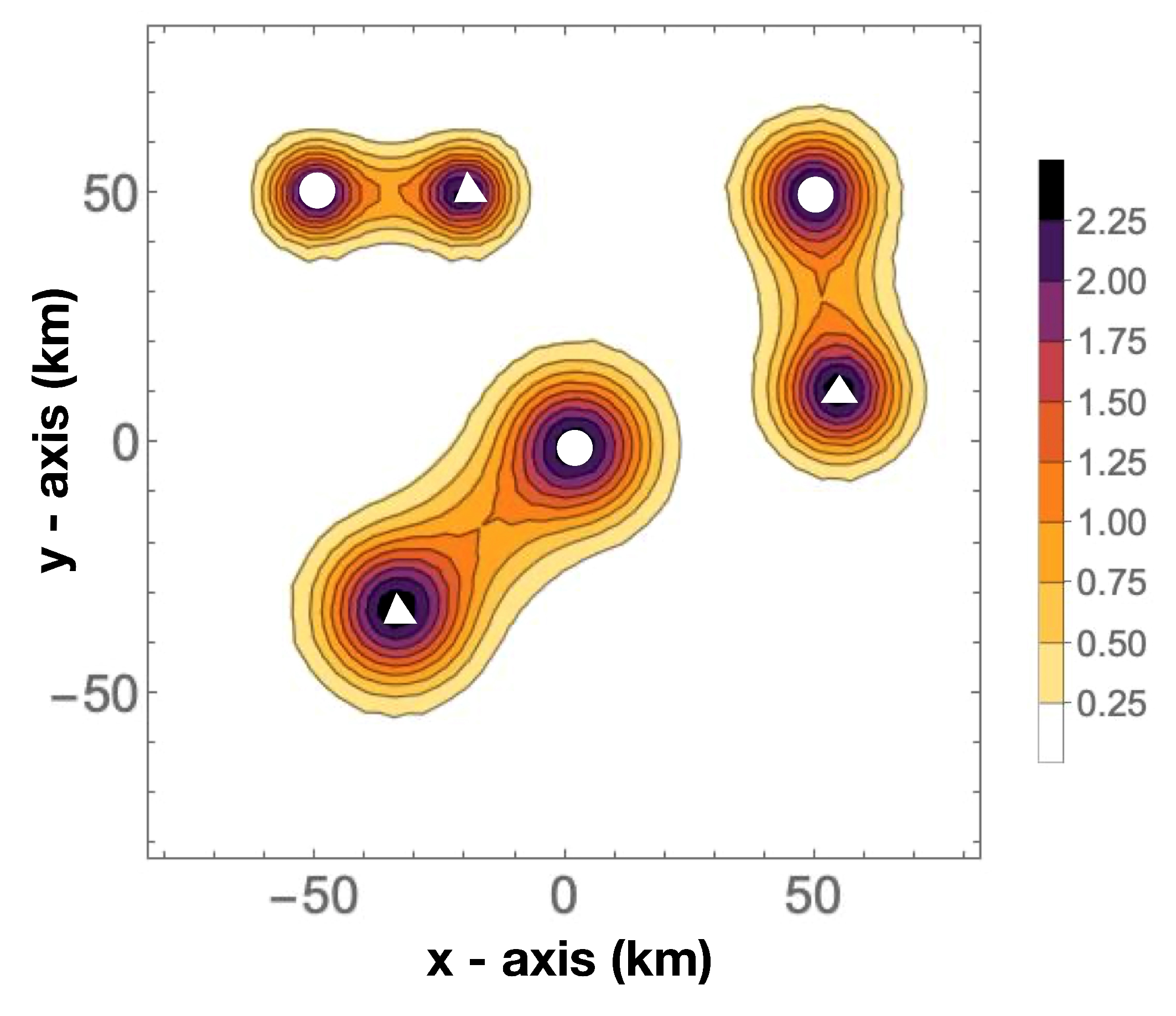

**Figure 5.**Three examples of 2D Kernels. Sources are indicated with a small white circle. Receivers with a small white triangle. Isoline values in the color scale. Kernel values are normalized at the midpoint between the source and receiver.

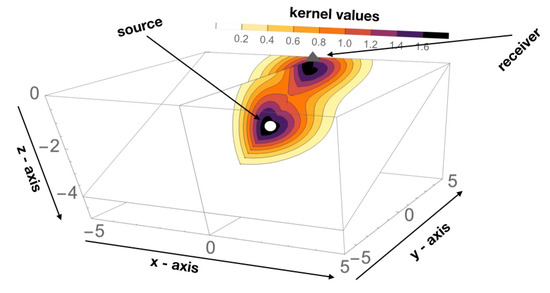

**Figure 6.**Isolines of the 3D Kernel are depicted in a plane (parallel to x-axis) and in a vertical plane, both cutting source and receiver. Kernel values are normalized at the midpoint between source and receiver.

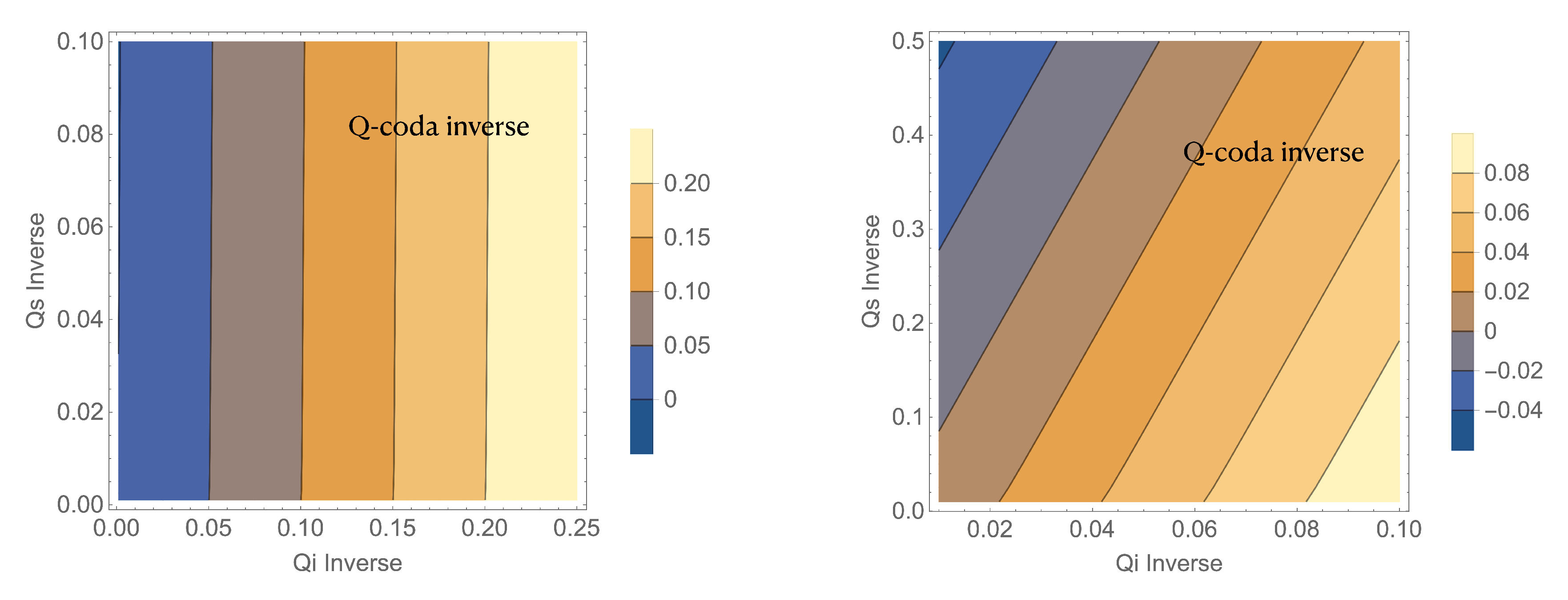

**Figure 7.**Contours of ${Q}_{c}^{-1}$ as a function of ${Q}_{i}^{-1}$ and ${Q}_{s}^{-1}$ calculated fitting ETM with SSM in the time interval between origin time and 30s lapse. (

**Left**) ${Q}_{c}^{-1}$ does not depend on ${Q}_{s}^{-1}$ for media with low ${Q}_{s}^{-1}$. (

**Right**) in the case of high heterogeneity (${Q}_{s}^{-1}>0.1)$ the trade off appears.

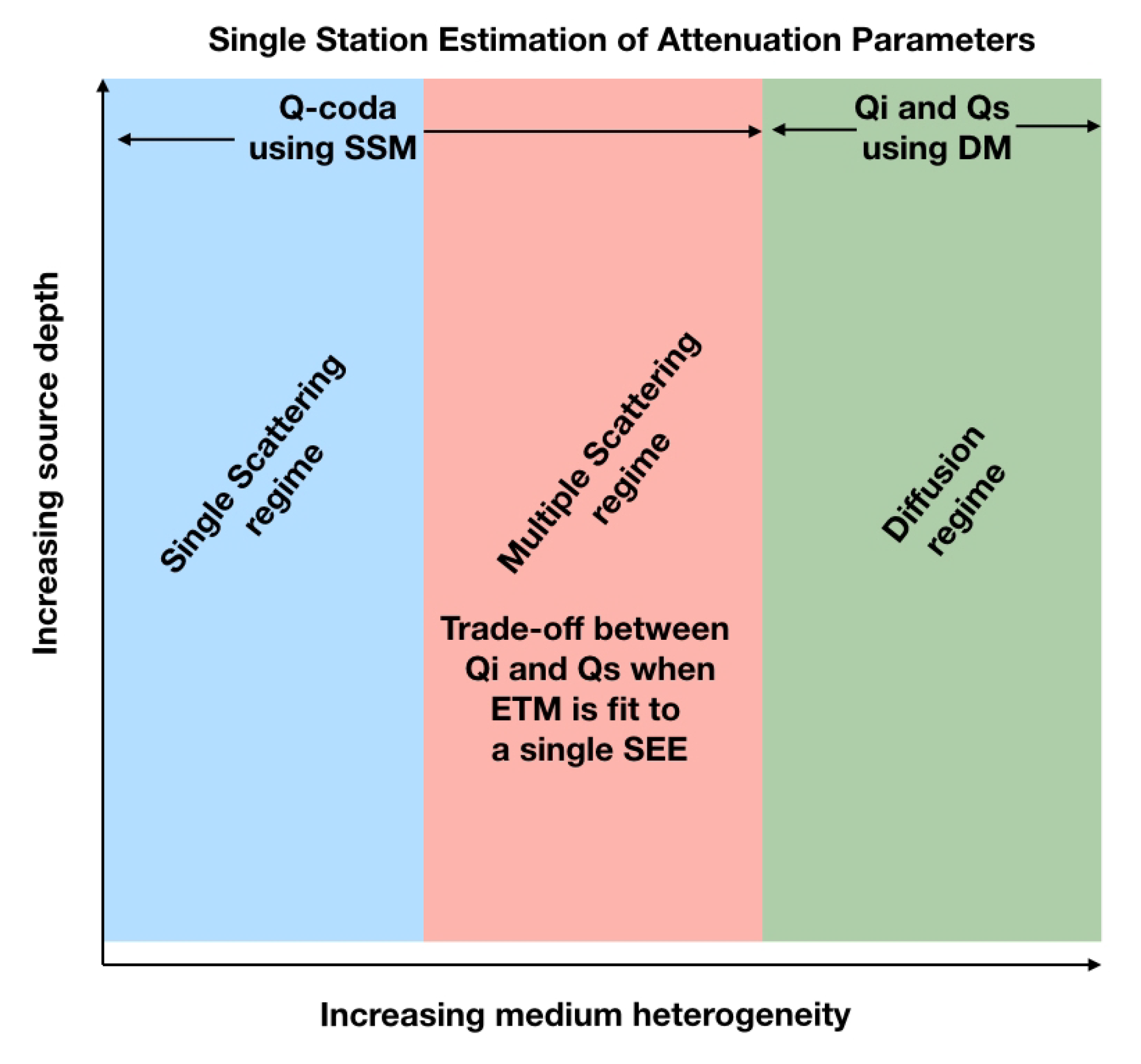

**Figure 9.**Qualitative scheme to show how SEE should be fitted. SEE measured from single seismograms recorded in media with increasing heterogeneity and shallow source depths are candidate for being fitted to DM.

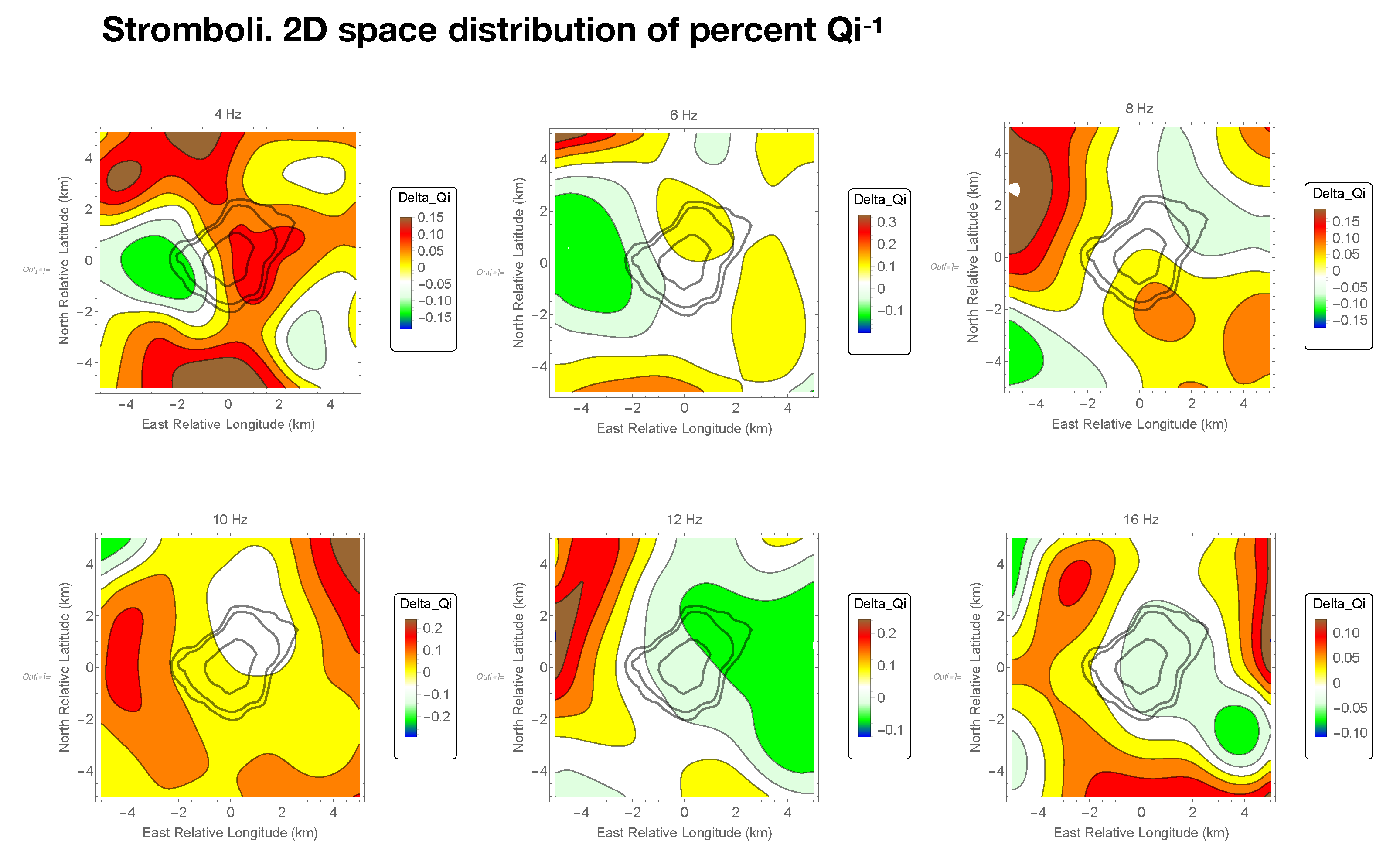

**Figure 11.**2D space distribution of intrinsic attenuation parameters. Instead of the absolute values of inverse ${Q}_{i}^{-1}$, we plot their percent fluctuations respect to the space average of ${Q}_{i}^{-1}$. In this way, the reader is focused to the attenuation space changes, more useful for the geological interpretation. The six panels represent the intrinsic attenuation fluctuations in six frequency bands, indicated at the top of each panel.

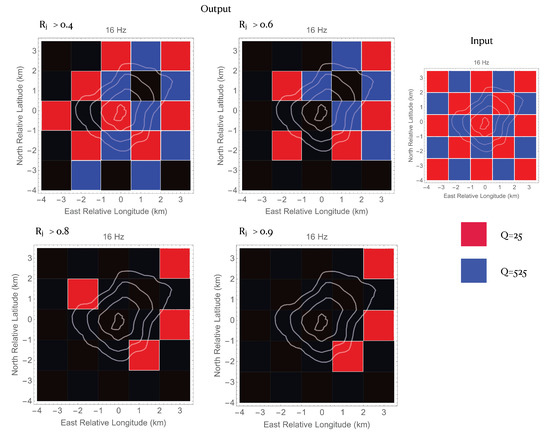

**Figure 13.**To the input checkerboard (rightmost panel, 1.5 × 1.5 km cells) is superimposed a black cell when ${R}_{j}$ of Equation (25) is smaller than 0.4 (upper left panel), 0.6 (upper right panel), 0.8 (down left panel), and 0.9 (down right panel). Once assumed, an acceptable level for ${R}_{j}$, for example, ${R}_{j}>0.6$, the cells with insufficient resolution are colored in black. We remark here that the quantity ${R}_{j}$ is just proportional to the Resolution. In other words these plots are useful for a relative comparison among different images, once that a given value of ${R}_{j}$ is assumed for all the images.
