# Numerical Evaluation of Natural Periods and Mode Shapes of Earth Dams for Probabilistic Seismic Hazard Analysis Applications

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology and Data

^{−9}.

_{S}(and of the shear modulus, G), of soil with depth. Over the last few decades, several authors investigated this effect for different boundary conditions and soil types [8,18,19,20,21,22,23,24,25]. The scheme used by Dakoulas and Gazetas [8] considers the dependency of the variability with depth of the shear modulus in dams and embankments on an inhomogeneity factor, m, varying from 0 to 1 (Equation (4)):

_{b}is the shear modulus at the base of the dam, z is the depth starting from the top of the model, and H is the total height of the dam. Similarly, it is possible to calculate the variation of V

_{S}with depth using the well-known Equation (5):

_{H}is the shear wave velocity at the base of the model, n is the inhomogeneity factor that accounts for the variation of V

_{S}with depth (notice that n differs than the inhomogeneity factor used in Equation (4), m—the latter is defined as the inhomogeneity factor relative to the shear modulus profile), and b is defined by Equation (6):

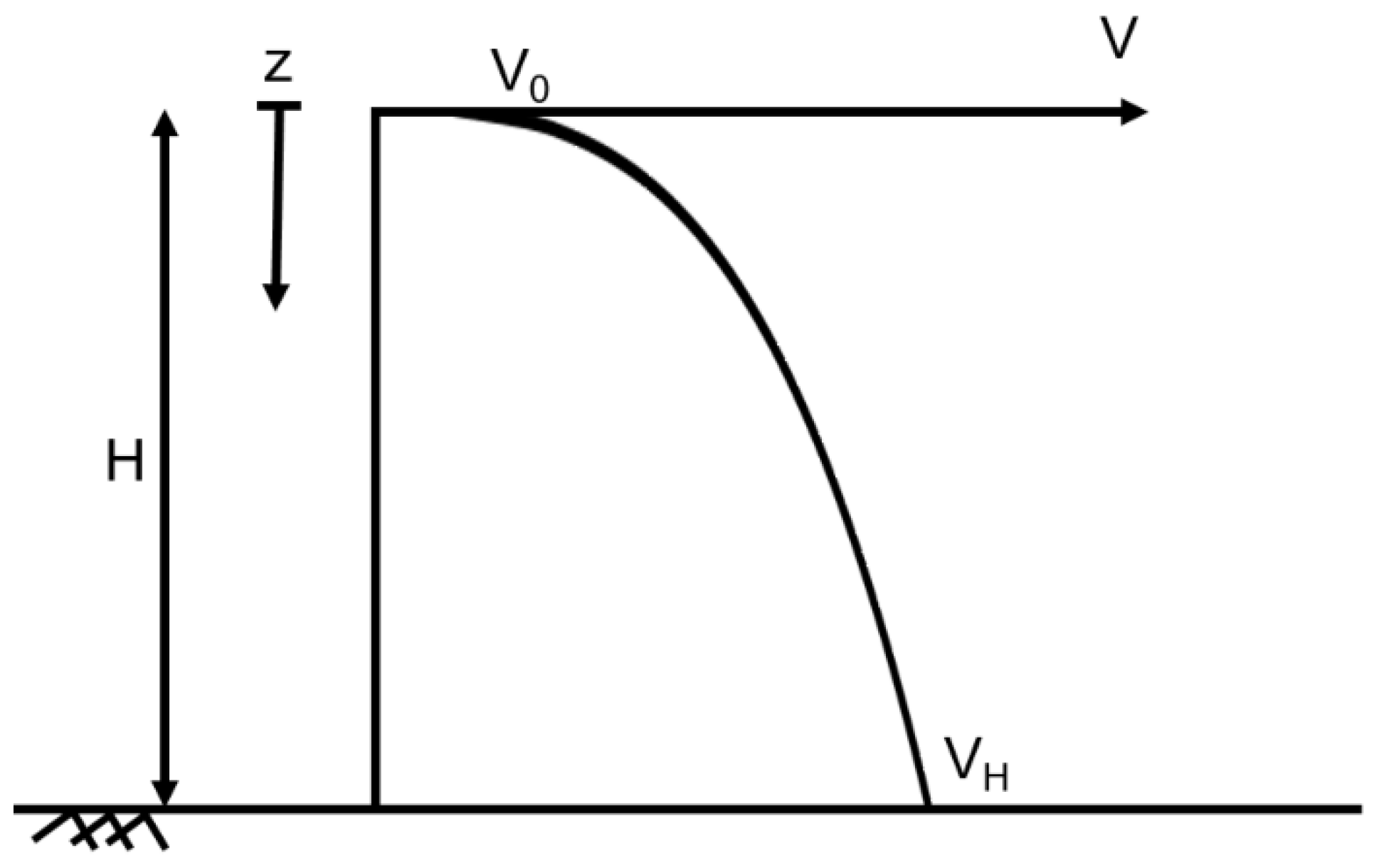

_{0}is the initial shear wave velocity at the top of the model (crest of the dam), as shown in the geometrical scheme presented in Figure 3.

_{H}= 550 m/s and V

_{0}= 250 m/s, for the shells of Farneto del Principe dam. For the core, we decided to use a constant, V

_{S}= 250 m/s (inhomogeneity factor n = 0, according to previous studies for overconsolidated clays [28,29]). These values are in good agreement with available measurements at the Farneto del Principe, San Valentino, Camastra, and Bilancino dam cores [2,30,31]. Input parameters for models 1–5 are summarized in Table 2.

_{i}is a parameter that depends on the geometry of the dam (provided by the authors for several modes). For the case of i = 1 (fundamental period of the dam, T

_{1}), Equation (7) becomes the well-known Equation (8):

^{th}mode, m is the inhomogeneity factor (m = 0 corresponds to the homogeneous case—i.e., a

_{i}≡ β

_{i}—in this case, Equation (9) can be reduced to Equation (7)) that is provided by the authors for different dam geometries (m = 0.57 for the Farneto del Principe dam), a

_{i}is dependent on the inhomogeneity factor m and soil properties (stiffness, geometry, etc.), and $\overline{{V}_{S}}$ is the average shear wave velocity of the dam, calculated using Equation (10):

_{b}is the shear wave velocity at the base of the dam and λ is the so-called truncation ratio of the dam, equal to 0.05 for the case study, that can be calculated using Equation (11):

## 3. Results

_{1}) is equal to 22%. Such elongation is also evident, looking at the second modal period, where ΔT

_{2}= 29%. These results highlight the importance of considering the dam foundation when performing modal analyses. SSI effects due to the flexibility of the foundation have a strong impact on all important modes of earth dams. This finding is consistent with other studies on the vibrational characteristics of earth dams [33]. Such effect is much more important than that of the degree of saturation within the dam and the variability of shear modulus values in the dam core.

## 4. Discussion and Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Penman, A.D.M. On the embankment dam. Geotechnique
**1986**, 36, 301–348. [Google Scholar] [CrossRef] [Green Version] - Zimmaro, P. Seismic Response of the Farneto del Principe Dam in Italy Using Hazard-consistent and Site-specific Ground Motions. Ph.D. Thesis, University Mediterranea, Reggio Calabria, Italy, March 2015. [Google Scholar]
- Norme Tecniche per la Progettazione e la Costruzione Degli Sbarramenti di Ritenuta (Dighe e Traverse); Ministry of Infrastructures and Transport of Italy: Rome, Italy, 14 June 2014. (In Italian)
- Aggiornamento delle Norme Tecniche per le Costruzioni; Ministry of Infrastructures and Transport of Italy: Rome, Italy, 17 January 2018. (In Italian)
- Verifiche Sismiche delle Grandi dighe, degli Scarichi e delle opere Complementari e Accessorie; Ministry of Infrastructures and Transport of Italy: Rome, Italy, 3 July 2019. (In Italian)
- Baker, J.W. Conditional Mean Spectrum: Tool for ground motion selection. J. Struct. Eng.
**2011**, 137, 322–331. [Google Scholar] [CrossRef] - Baker, J.W.; Cornell, C.A. Spectral shape, epsilon and record selection. Earthq. Eng. Struct. Dyn.
**2006**, 35, 1077–1095. [Google Scholar] [CrossRef] - Dakoulas, P.; Gazetas, G. A class of inhomogeneous shear models for seismic response of dams and embankments. Soil Dyn. Earthq. Eng.
**1985**, 4, 166–182. [Google Scholar] [CrossRef] - Watanabe, H.; Kikuchi, K.; Cao, Z. Vibration Modes of Rockfill Dam Based on the Observations of Microtremors and an Earthquake; Research report; Thammasat Univ. Rangsit Campus: Pathum Thani, Thailand, 1995. [Google Scholar]
- Castro, R.R.; Mucciarelli, M.; Pacor, F.; Federici, P.; Zaninetti, A. Determination of the characteristic frequency of two dams located in the region of Calabria. Bull. Seismol. Soc. Am.
**1998**, 88, 503–511. [Google Scholar] - Rainieri, C.; Fabbrocino, G. Operational Modal Analysis of Civil Engineering Structures; Springer: New York, NY, USA, 2014. [Google Scholar]
- Aloisio, A.; Di Pasquale, A.; Alaggio, R.; Fragiacomo, M. Assessment of seismic retrofitting interventions of a masonry palace using operational modal analysis. Int. J. Archit. Herit.
**2020**, 1–13. [Google Scholar] [CrossRef] - Chugh, A.K. Natural vibration characteristics of gravity structures. Int. J. Numer. Anal. Methods Geomech.
**2007**, 31, 607–648. [Google Scholar] [CrossRef] - Chakraborty, S.; Das, J.T.; Puppala, A.J.; Banerjee, A. Natural frequency of earthen dams at different induced strain levels. Eng. Geol.
**2019**, 248, 330–345. [Google Scholar] [CrossRef] - Yaseri, A.; Konrad, J.M. Estimation of natural periods of earth dam-flexible canyon systems with 3D coupled FEM-SBFEM. Comput. Geotech.
**2020**, 123, 103546. [Google Scholar] [CrossRef] - Zimmaro, P.; Stewart, J.P. Site-specific seismic hazard analysis for Calabrian dam site using regionally customized seismic source and ground motion models. Soil Dyn. Earthq. Eng.
**2017**, 94, 179–192. [Google Scholar] [CrossRef] - CSI Analysis Reference Manual for SAP2000, ETABS and SAFE; Computers and Structures, Inc.: Berkeley, CA, USA, 2013.
- Ambraseys, N.N. A note on the response of an elastic overburden of varying rigidity to an arbitrary ground motion. Bull. Seismol. Soc. Am.
**1959**, 49, 211–220. [Google Scholar] - Seed, H.B.; Idriss, I.M. The influence of ground conditions on ground motions during earthquakes. J. Soil Mech. Found. Div.
**1969**, 94, 93–137. [Google Scholar] - Dobry, R.; Whitman, R.; Roesset, J.M. Soil Properties and the One-dimensional Theory of Earthquake Amplification; Research Report R71-18; M.I.T.: Cambridge, MA, USA, May 1971. [Google Scholar]
- Schreyer, H. One-dimensional elastic waves in inhomogeneous media. J. Eng. Mech. Div.
**1977**, 103, 979–990. [Google Scholar] - Gazetas, G. Vibrational characteristics of soil deposits with variable wave velocity. Int. J. Numer. Anal. Methods Geomech.
**1982**, 6, 1–20. [Google Scholar] [CrossRef] - Towhata, I. Seismic wave propagation in elastic soil with continuous variation of shear modulus in the vertical direction. Soil. Found.
**1996**, 36, 61–72. [Google Scholar] [CrossRef] [Green Version] - Rovithis, E.; Parashakis, C.; Mylonakis, G. 1D harmonic response of layered inhomogeneous soil: Analytical investigation. Soil Dyn. Earthq. Eng.
**2011**, 31, 879–890. [Google Scholar] [CrossRef] - Durante, M.G.; Karamitros, D.; Di Sarno, L.; Sica, S.; Taylor, C.A. Characterisation of shear wave velocity profiles of non-uniform bi-layer soil deposits: Analytical evaluation and experimental validation. Soil Dyn. Earthq. Eng.
**2015**, 75, 44–54. [Google Scholar] [CrossRef] [Green Version] - Bishop, A.W.; Height, D.W. The value of Poisson’s ratio in saturated soils and rocks stressed under undrained conditions. Geotechnique
**1977**, 27, 369–384. [Google Scholar] [CrossRef] - Ausilio, E.; Dente, G.; Zimmaro, P. Geotechnical Investigation and Field Performance of a Zoned Earth Dam in Italy. In Proceedings of the 1st IMEKO TC4 International Workshop on Metrology for Geotechnics, Benevento, Italy, 16–18 March 2016. [Google Scholar]
- Richart, F.E.; Hall, J.R.; Woods, R.D. Vibrations of Soils and Foundations; Prentice-Hall, Inc.: Upper Saddle River, NJ, USA, 1970. [Google Scholar]
- Hardin, B.O.; Drnevich, V.P. Shear modulus and damping in soils: Measurement and parameter effects, Terzaghi Lecture. J. Soil Mech. Found. Div.
**1972**, 98, 603–624. [Google Scholar] - Mancuso, C. Aspetti Metodologici ed Applicazione della Tecnica Sperimentale SASW. Riv. Ital. Geotec.
**1995**, 4, 271–288. [Google Scholar] - Pagano, L.; Mancuso, C.; Sica, S. Prove in sito sulla diga del Camastra: Tecniche sperimentali e risultati. Riv. Ital. Geotec.
**2008**, 3, 11–28. [Google Scholar] - Jacobsen, L.S. Motion of a soil subjected to a simple harmonic ground vibration. Bull. Seismol. Soc. Am.
**1930**, 20, 160–195. [Google Scholar] - Idriss, I.M.; Mathr, J.M.; Seed, H.B. Earth Dam-foundation interaction during earthquakes. Earthq. Eng. Struct. Dyn.
**1973**, 2, 313–323. [Google Scholar] [CrossRef] - Carlton, B.; Abrahamson, N. Issues and approaches for implementing conditional mean spectra in practice. Bull. Seismol. Soc. Am.
**2014**, 104, 503–512. [Google Scholar] [CrossRef]

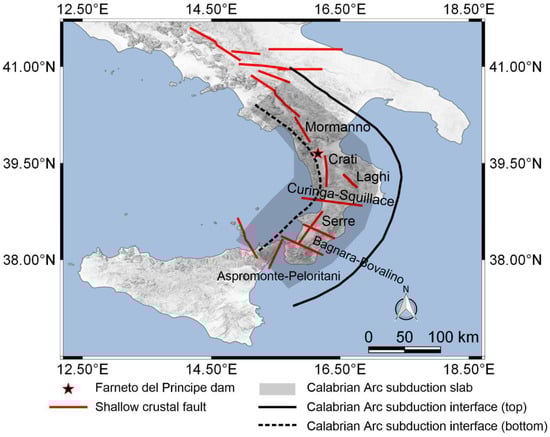

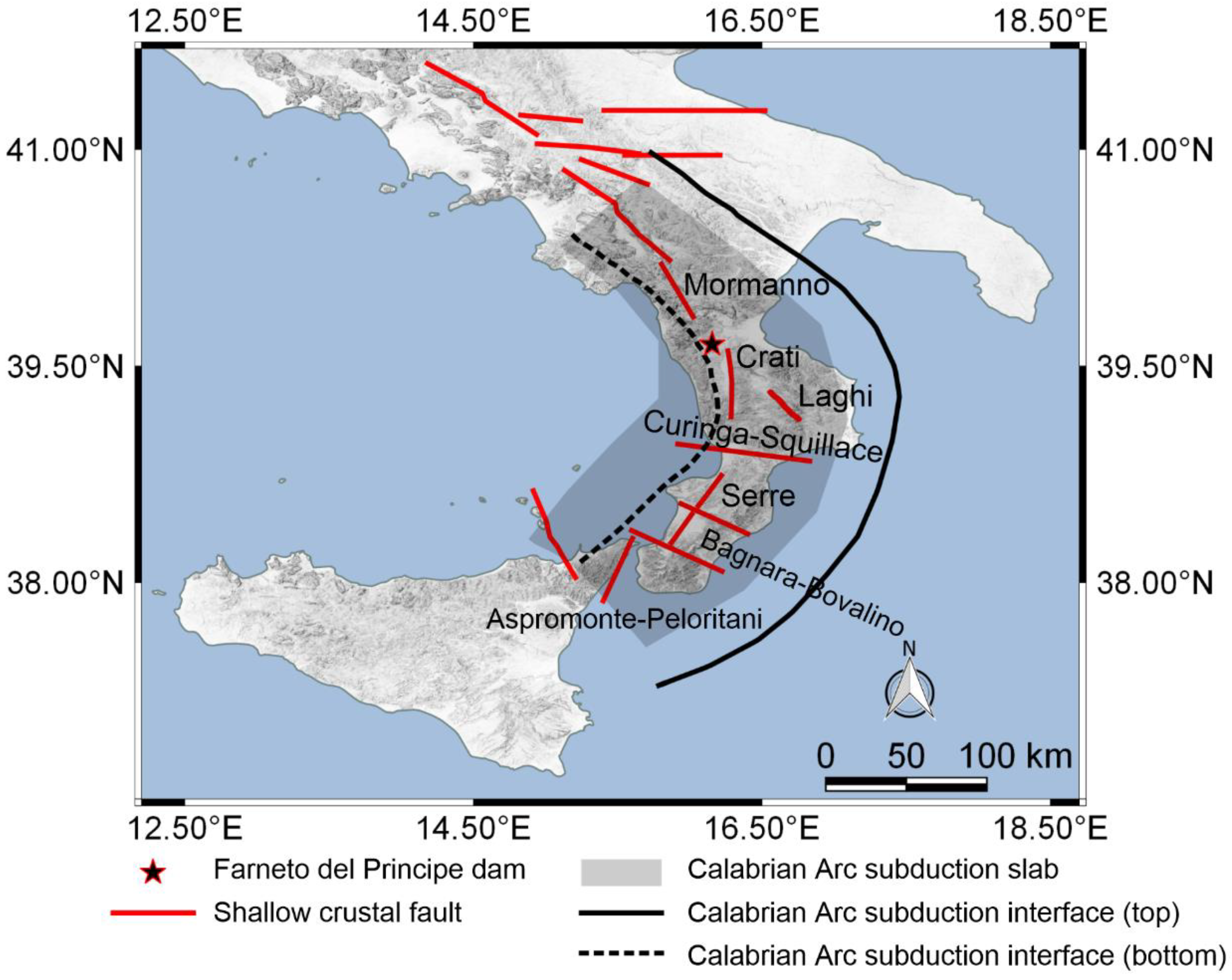

**Figure 1.**Location of the Farneto del Principe dam (Southern Italy), shallow crustal seismogenic faults, and Calabrian Arc subduction zone.

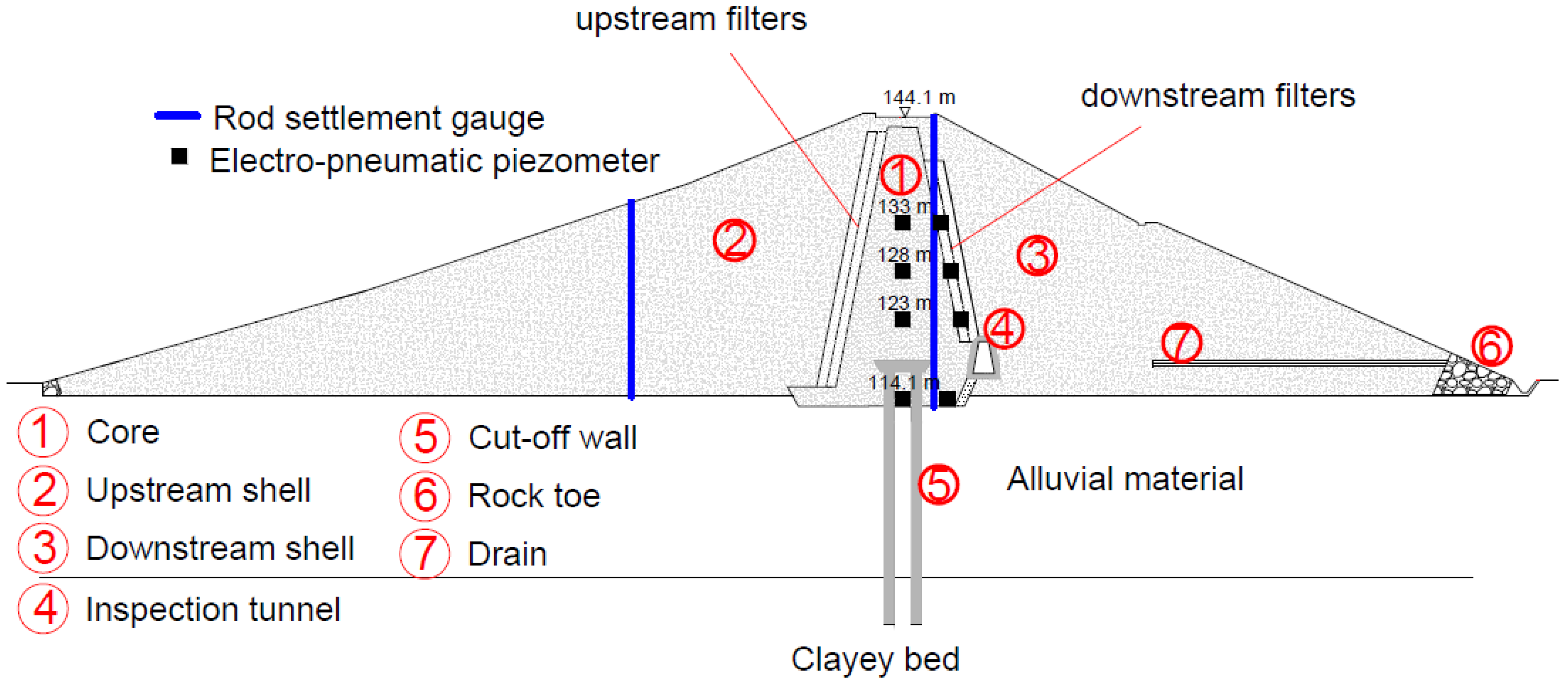

**Figure 2.**Representative cross-section and location of the monitoring instrumentation of the Farneto del Principe dam (adapted from [2]).

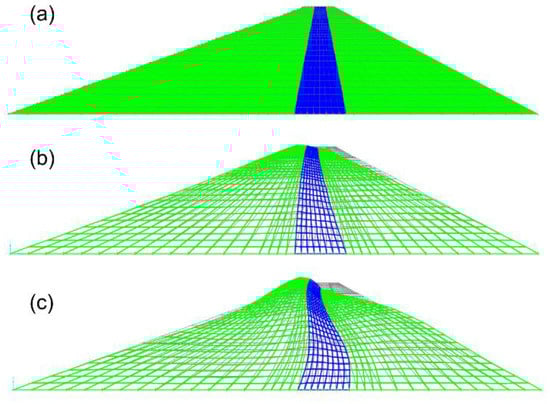

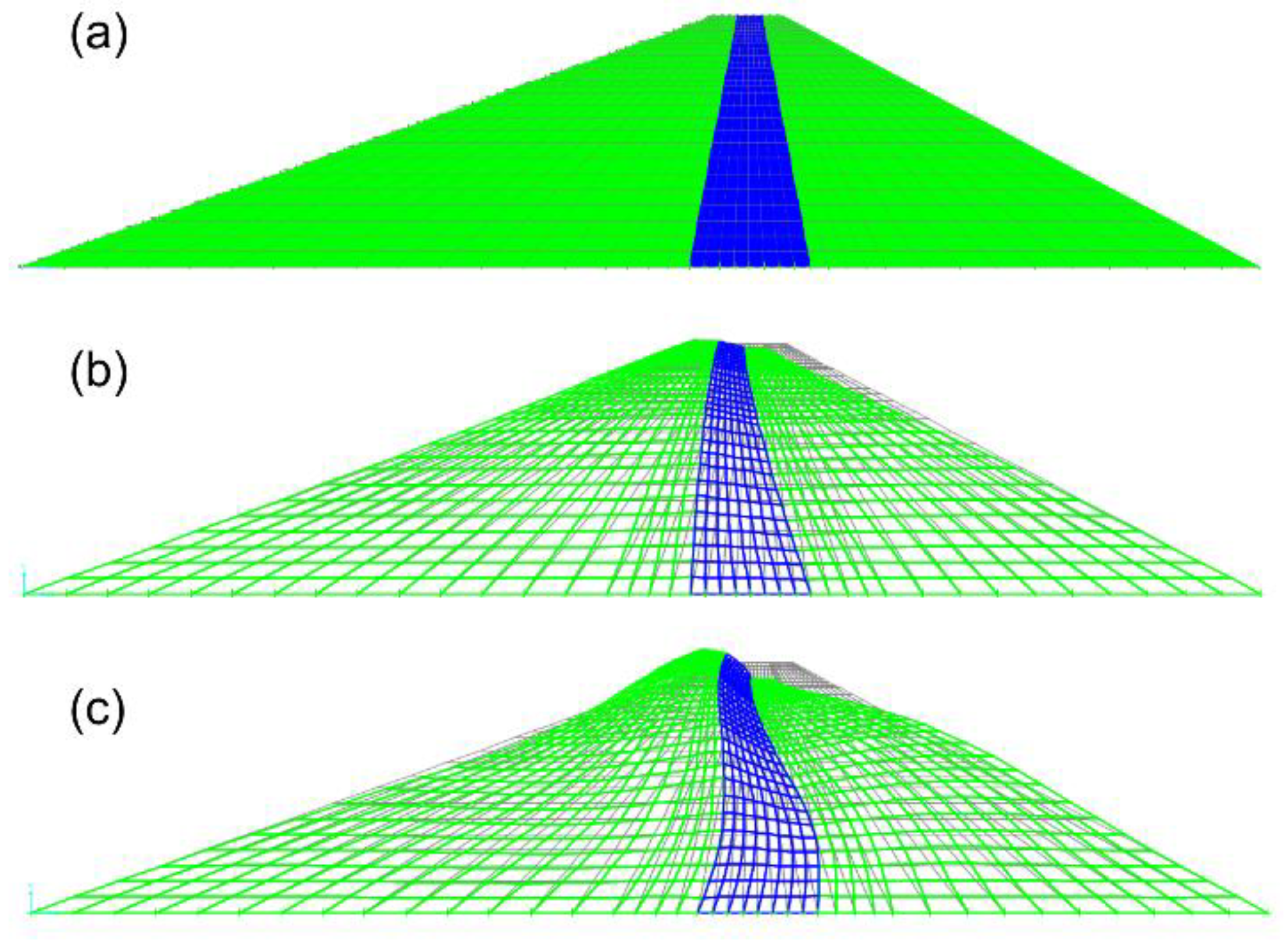

**Figure 4.**Finite element method (FEM) Model 1: (

**a**) undeformed mesh, (

**b**) first mode shape, and (

**c**) second mode shape.

Model # | Rigid Base | Flexible Base | Presence of Water | V_{S} Variable with Depth |
---|---|---|---|---|

1 | ✓ | ✗ | ✗ | ✗ |

2 | ✓ | ✗ | ✓ | ✗ |

3 | ✓ | ✗ | ✗ | ✓ |

4 | ✓ | ✗ | ✓ | ✓ |

5 | ✗ | ✓ | ✓ | ✓ |

^{1}✓: modelling assumption is present in the model; ✗: modelling assumption is not present in the model.

Parameter | Above the Phreatic Surface | Below the Phreatic Surface | Foundation | ||
---|---|---|---|---|---|

Core | Shells | Core | Shells | ||

γ (kN/m^{3}) | 18 | 24 | 21.3 | 25.1 | 24.1 |

Poisson’s ratio | 0.35 | 0.33 | 0.49 | 0.49 | 0.33 |

V_{S} (m/s) | 250 | Variable with depth (models 4 and 5) | 250 | Variable with depth models 4 and 5) | 650 |

Mode | Model 1 | Model 2 | Model 3 | Model 4 | ||||
---|---|---|---|---|---|---|---|---|

Period (s) | MPMR (%) | Period (s) | MPMR (%) | Period (s) | MPMR (%) | Period (s) | MPMR (%) | |

1 | 0.213 | 63 | 0.205 | 65 | 0.205 | 60 | 0.197 | 62 |

2 | 0.102 | 14 | 0.099 | 10 | 0.099 | 16 | 0.097 | 12 |

3 | 0.059 | 2 | 0.055 | 2 | 0.062 | 2 | 0.063 | 2 |

4 | 0.045 | 1 | 0.040 | 2 | 0.004 | 1 | 0.038 | 2 |

Model | Period (s) | Period Elongation (%) | ||
---|---|---|---|---|

T1 | T2 | ΔT_{1} | ΔT_{2} | |

4 (fixed base) | 0.197 | 0.097 | - | - |

5 (flexible base) | 0.240 | 0.126 | 22 | 29 |

**Table 5.**Modal periods for three analytical solutions used in this study and complete fixed-base FEM solution (Model 4).
