Article

The Presence and Distribution of TRPM7 in the Canine Mammary Glands

by
Sungin Lee
1,
Seulji Lee
1,
Aeri Lee
2,
Hun Ju Sim
1,
Geon A. Kim
1,
Byung-Jae Kang
1 and
Wan Hee Kim
1,*
1
Department of Veterinary Clinical Sciences, College of Veterinary Medicine and Research Institute for Veterinary Science, Seoul National University, 1 Gwanak-ro, Gwanak-gu, Seoul 08826, Korea
2
Seeu Animal Medical Center, 24, Ichon-ro 64 gil, Younsan-gu, Seoul 04427, Korea
*
Author to whom correspondence should be addressed.
Animals 2020, 10(3), 466; https://doi.org/10.3390/ani10030466
Submission received: 17 February 2020 / Revised: 4 March 2020 / Accepted: 9 March 2020 / Published: 11 March 2020
(This article belongs to the Section Animal Physiology)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Mammary gland tumors are one of the major causes of mortality in dogs. It is, therefore, imperative to clarify the nature of this disease. Transient receptor potential melastatin-subfamily member 7 (TRPM7), a bifunctional ion channel found in human cells, plays a role in normal physiological processes such as cell development, survival, proliferation, differentiation, and migration. However, TRPM7 is also active in several types of cancers in humans, and blocking the expression of this pathway leads to a decrease in the proliferation, migration, and invasion of cancer cells. We have proved the presence of TRPM7 in healthy canine mammary tissues, which could help further studies that aim to establish the relationship between TRPM7 and its physiological and pathophysiological effects in the canine mammary glands and, possibly, tumors.

Abstract

The transient receptor potential melastatin-subfamily member 7 (TRPM7) cation channel is a bifunctional ion channel with intrinsic kinase activity and is ubiquitously expressed in the animal/human body. Accumulated knowledge of TRPM7 suggests that it plays an essential role in normal physiological processes, including the development, survival, proliferation, differentiation, and migration of cells. The aim of this study was to demonstrate the presence and expression patterns of TRPM7 in normal canine mammary glands using reverse transcription-polymerase chain reaction (RT-PCR), Western blotting, and immunohistochemistry. Normal mammary gland tissue samples were obtained from five female beagle dogs. RT-PCR and sequencing of the amplified PCR products demonstrated the presence of TRPM7 mRNA in normal mammary glands, and the presence of TRPM7 protein was confirmed by Western blotting. Immunohistochemical investigations demonstrated the expression of TRPM7 in the apical membrane of acinar and ductal epithelial cells in the canine mammary glands. These results provide the first evidence of the presence and distribution of TRPM7 in the canine mammary gland and could help explain the physiological and pathological roles of TRPM7 in the canine mammary gland; however, additional studies are required to elucidate these roles.

1. Introduction

Ion channels are ubiquitous transmembrane proteins that facilitate the selective transport of ions and solutes across the plasma membrane, or between different intracellular compartments [1]. These channels play important roles in essential physiological functions such as muscle and nerve excitation, cell proliferation, sensory transduction, hormonal secretion, and water and sodium balance regulation [2]. It is suggested that one of these ion channels, the transient receptor potential channels (TRP channels), plays an important part in the pathophysiology of various diseases such as cancer by modulating ion-entry driving forces, and the Mg2+ and Ca2+ transport machinery in the cell membrane associated with cell proliferation and apoptosis [3,4,5,6]. The transient receptor potential (TRP) channels are divided into seven subfamilies based on amino acid sequences, including TRPA (“A” for ankyrin), TRPC (“C” for canonical), TRPM (“M” for melastatin), TRPML (“ML” for mucolipin), TRPN (“N” for mechanoreceptor potential C), TRPP (“P” for polycystic), and TRPV (“V” for vanilloid). Among these, the subfamily TRPM7 is the most extensively studied ion channel.
The TRPM7 channel is distinctive as a bifunctional protein and consists of an enzymatically active kinase domain and an ion transport domain [7]. The expression of the TRPM7 channel has been reported in almost all human cell lines and tissues, including the mammary glands, indicating that TRPM7 may be a key factor responsible for various physiological functions in each organ [6,8,9,10]. This channel has been characterized as a divalent cation-permeable ion channel essential for Mg2+ intracellular homeostasis, and it is related to various physiological processes and cellular responses [6,11]. Recently, new knowledge pertaining to TRPM7 has emerged, linking it to cell proliferation, survival, and development, and identifying its role as a pathophysiological modulator in several disease conditions such as ischemic stroke [12], hypertension [13,14], defective ossification [15], and cancers [16,17,18,19]. In particular, these studies are prominent in the field of cancer; in fact, inhibition of TRPM7 expression impairs the proliferation, migration, and invasion of breast cancer cells [9,10]. Based on these results, several researchers have suggested that TRPM7 may act as not only a biomarker for early diagnosis but also a therapeutic target.
To the best of our knowledge, although earlier research performed in both animals and humans has revealed the expression of TRPM7 in various organs, there is no information regarding the relationship between TRPM7 expression and canine mammary glands. The objective of this study was to demonstrate the presence and distribution of TRPM7 in the normal canine mammary gland by using reverse transcription-polymerase chain reaction (RT-PCR), Western blotting, and immunohistochemistry. The present study could lay a foundation for further studies on the role of the TRPM7 channel in both normal physiological and abnormal conditions of the mammary gland, namely tumors.

2. Materials and Methods

2.1. Sample Preparation

In the present study, we used five intact female 2-year-old laboratory female beagle dogs, with no previous experience of pregnancy, housed in the Department of Veterinary Surgery, College of Veterinary Medicine at Seoul National University (SNU), to collect normal mammary gland tissues. Only laboratory dogs confirmed to be in the anestrus period, determined using the vaginal smear test, were included in this research. All dogs included in this study were confirmed to be healthy, based on physical examination, complete blood counts, serum biochemistry, and imaging tests such as thoracic and abdominal X-rays, and abdominal ultrasonography. To analyze the presence and distribution of TRPM7, the mammary gland tissue samples were obtained from the five beagle dogs that were euthanized due to reasons (SNU-181214-3) that would not affect the results of this study. Twenty mammary gland samples from each dog were aseptically collected through right unilateral mastectomy immediately after euthanasia and were divided into two portions randomly. Ten mammary glands were promptly frozen in liquid nitrogen, and then stored at −80 °C until needed for RT-PCR and Western blotting. For immunohistochemical investigation, the remaining ten mammary glands were fixed with 10% neutral buffered formalin for 24 h at room temperature, and subsequently embedded in paraffin blocks. All mammary gland samples were reconfirmed to be normal by histopathological examination (hematoxylin and eosin staining). All procedures in this study were approved by the Seoul National University Institutional Animal Care and Use Committees (SNU-190930-8).

2.2. Reverse Transcription-PCR

The total RNA was extracted from the mammary gland samples using the Hybrid-R RNA Extraction kit (GeneAll Biotechnology, Seoul, Korea) according to the manufacturer’s instructions, and the extracted total RNA concentration was quantified using an automated microplate spectrophotometer (Epoch, BioTek Instruments Inc., Winooski, VT, USA). cDNA synthesis was performed using the PrimeScript™ First Strand cDNA Synthesis kit (6110A, Takara Bio, Tokyo, Japan) with 1000 ng of extracted total RNA as a template, and each synthesized cDNA template was amplified using conventional PCR with GeneAmp® PCR System 9700 (Applied Biosystems; Thermo Fisher Scientific, Foster City, CA, USA). The total PCR mixtures (20 μL) contained 10 μL of PCR Premix (i-starTaq, iNtRON, Sungnam, Korea), 1 μL of cDNA, 7 μL of DNase/RNase-free distilled water (UltrapureTM, Thermo Fisher Scientific, Waltham, MA, USA), and 1 μL of each gene-specific primer (forward and reverse) (Standard Oligo, Bioneer, Daejeon, Korea). A specific primer for canine TRPM7 was designed using Primer 3 Software [20] with the following criteria: Tm  of  forward and reverse primers at 57.84 and 58.11 °C, respectively, 20 bp long, close to the 3′ end, GC content in the forward primer 55% and reverse primer 50%, and PCR product 373 bp. Its specificity was checked with the National Center for Biotechnology Information (NCBI) Primer-BLAST [21]. As a negative control, sterile DNase/RNase-free distilled water was used to evaluate contamination by other DNA. In addition, to confirm the integrity of the extracted RNA, amplified DNA fragments of the housekeeping gene, glyceraldehyde 3-phosphate dehydrogenase (GAPDH), were used as the positive controls. Primer sequences used in this study are shown in Table 1. The PCR amplifications were conducted under the following cycling conditions: initial denaturation at 94 °C for 5 min, followed by 35 cycles of denaturation at 94 °C for 40 s each, annealing at 60 °C for 40 s, extension at 72 °C for 1 min, and final elongation at 72 °C for 7 min. The PCR amplicons were analyzed by electrophoresis on a 1.5% agarose gel (Agarose LE, iNtRON, Sungnam, Korea).
The PCR amplicons specific for canine TRPM7 were verified by DNA sequencing. Purification and isolation of the amplified PCR products from 1.5% TAE agarose gels were conducted using the PureLink™ Quick Gel Extraction and Purification Combo kit (K220001; Invitrogen, Carlsbad, CA, USA) according to the manufacturer’s protocols, and subsequently sequenced.

2.3. Western Blotting

The proteins were extracted from canine mammary gland tissue samples by homogenization in radioimmunoprecipitation assay lysis and extraction buffer (Sigma–Aldrich, Saint Louis, MO, USA) according to the manufacturer’s instructions. The protein concentrations were determined with the BCA Protein Assay Kit (Pierce, Rockland, NY, USA). For denaturation, the extracted proteins (20 µg) were mixed with sodium dodecyl sulfate (SDS) loading buffer (GenDEPOT, Barker, TX, USA) and boiled at 100 °C for 5 min before loading. The samples were run on a 10% SDS-polyacrylamide gel and transferred onto Amersham™ Protran™ nitrocellulose blotting membrane (GE Healthcare Bio-Sciences, Pittsburgh, PA, USA). The membranes were blocked with 5% skim milk (BD, Franklin Lakes, NJ, USA) for 1 h at room temperature and probed overnight at 4 °C with the primary goat polyclonal anti-TRPM7 antibody (ab729, 1:500, Abcam, Cambridge, UK) and mouse monoclonal anti-β-actin antibody (sc-47778, 1:5000, SantaCruz Biotechnology, CA, USA) as the loading control. After washing with Tris-buffered saline with Tween 20, the membrane was incubated with secondary antibodies conjugated with horseradish peroxidase (GenDEPOT, Barker, TX, USA). The protein expression was observed by chemiluminescence with ECL detection reagent (Advansta, Manlo Park, CA, USA) and visualized under the ImageQuant LAS 4000 mini biomolecular imager (GE Healthcare Bio-Sciences, Pittsburgh, PA, USA).

2.4. Immunohistochemistry

Neutral buffered formalin-fixed (10%) paraffin-embedded canine mammary gland tissues were cut into 4-µm-thick sections. These sections were placed in an incubator at 60 °C, and then dewaxed with xylene and rehydrated through a graded series of ethanol (100%, 100%, 90%, 80%, 70%, and tap water for 3 min each). Dewaxed, rehydrated tissue sections were incubated for 20 min, and antigen retrieval was carried out using the 2100-retriever pressure cooker (PickCell Laboratories, Amsterdam, the Netherlands) in 10 mM citric acid (pH 6.0) buffer. Peroxidase-blocking (3% hydrogen peroxide) solution was applied to tissue sections for 15 min to block endogenous peroxidase activity. Nonspecific primary antibody binding was quenched by immersing the tissue sections in normal horse serum (10% v/v in phosphate-buffered saline) for 1 h.
The sections were incubated overnight at 4 °C with goat polyclonal anti-TRPM7 antibody (1:300; ab729, Abcam, Cambridge, MA, USA), and goat IgG polyclonal antibody (ab37373, Abcam, Cambridge, MA, USA) to serve as the negative control. The sections were exposed to the secondary antibody horseradish peroxidase (HRP)-conjugated anti-goat IgG (ImmPRESS™ HRP Anti-Goat IgG Polymer Detection Kit, MP-7405, Vector Laboratories, Burlingame, CA, USA) for 1 h. They were developed with 3,3′-diaminobenzidine (DAB Peroxidase Substrate kit, SK-4100, Vector, CA, USA) for colorimetric visualization of antigen, and the slides were counterstained with Mayer’s hematoxylin. The C57BL/6J mouse brain was used as a positive control.
The immunostained sections were analyzed and photographed using an optical microscope (OlympusBX50, Olympus Optical Co., Tokyo, Japan) connected to a high quality, efficiently cooled, scientific CMOS camera FL-20 (TucsenPhotonics, Gaishan Town, China).

3. Results

3.1. Reverse Transcription-PCR

The presence of mRNA encoding TRPM7 was confirmed in all the normal canine mammary gland tissue samples (Figure 1A). GAPDH, used as the positive control, was amplified simultaneously, whereas the negative control samples were not amplified (Figure 1B). These results confirmed good RNA integrity and proper product amplification of TRPM7 (Figure 2).

3.2. Analysis of Amplified PCR Products

The sequence of each amplified PCR product was analyzed using the ClustalW multiple sequence alignment program. The sequence of each amplified PCR product matched the published sequences of canine TRPM7 from the National Center for Biotechnology Information (Figure 2).

3.3. Western Blotting

The expression of the TRPM7 protein was confirmed by immunoreactive bands of approximately 210 kDa in all the normal canine mammary gland tissue samples studied (Figure 3). The expression of β-actin was used as the loading control and was also detected simultaneously.

3.4. Immunohistochemistry

The immunohistochemical analysis revealed positive immunoreactivity for TRPM7 (Figure 4A,B) in the normal canine mammary gland. Specific immuno-positive staining of TRPM7 was observed on the apical membrane of ductal epithelial cells. In the positive control, specific immune-staining of TRPM7 was confirmed in the perinuclear regions and cytoplasm of the neurons in the mouse brain (Figure 4C) [22]. However, no positive reactions for TRPM7 were observed in the negative control (Figure 4D).

4. Discussion

The results of this study confirmed the presence of TRPM7 in normal canine mammary glands at the mRNA and protein levels through RT-PCR and Western blotting, respectively. Previous research on mouse and human cell lines and tissues has reported the expression of TRPM7 transcripts throughout the animal/human body [23,24,25,26]. TRPM7 is most abundantly expressed in the human heart, pituitary glands, bones, and adipose tissues, as observed by quantitative real-time RT-PCR [8]. In addition, the presence and distribution of TRPM7 in normal human breast tissue was also confirmed at the mRNA and protein levels by studies carried out on human breast cancer [9,18]. In our study, the size of the immunoreactive band confirmed by Western blotting was approximately 210 kDa. This result was consistent with that of several previous studies that performed Western blotting using the same antibody for TRPM7 (anti-TRPM7 antibody ab729) [27,28,29]. This is also supported by a review showing that the TRPM7 protein contained six transmembrane segments, each formed of approximately 21 amino acids and composed of 1865 amino acids of molecular weight 210 kDa [30]. Although TRPM7 orthologs have been identified in Canis lupus familiaris (dog) [26], this is the first study to prove the presence of TRPM7 in normal canine tissues.
Immunohistochemistry was conducted to validate protein location, and TRPM7 was found to be located in the apical membranes of ductal epithelial cells. This is different from the findings of previous studies on normal human mammary glands and mammary gland tumors, wherein it was mainly located in the perinuclear membrane and cytoplasm [9,18]. TRPM7 is known as the integral membrane-protein and immuno-stained at both punctate membrane and cytoplasm, mainly in the plasma membrane [24]. The intracellular location of TRPM7 varies depending on the kinase activity and phosphorylation state of cells [7]. In a previous study that evaluated the differences in TRPM7 expression among normal pancreas, chronic pancreatitis tissue, pre-malignant tissues, and malignant neoplasms (pancreatic adenocarcinoma, pancreatic adenosquamous carcinoma, solid pseudopapillary neoplasm, and acinar cell carcinoma), the expression level and localization of TRPM7 varied depending on the pathophysiological state of the pancreas [11]. In addition, internalization of normal plasma membrane TRPM8 was observed in the prostate tumor, and internalization and subsequent degradation of cancer cells were correlated with the severity of prostate cancer [31,32]. Based on the conclusions of these studies, it is expected that the localization of TRPM7 in normal canine mammary glands would be a basis for studying the expression pattern of TRPM7 under pathologic conditions including mastitis and mammary gland tumor.
Among the TRPM channels, TRPM7 has been widely studied and found to be the most extensively located channel. In concert with its presence at various locations, TRPM7 is known to perform a variety of physiological functions. TRPM7 is known to govern the survival and anoxic death of various type of cells, such as neurons [33], hepatic cells [34,35], and bone marrow-derived mesenchymal stem cells [36]. In addition, some of these studies demonstrated that these functional roles of TRPM7 were induced by mitogens, oxidative and mechanical stresses, and inflammatory cytokines [35,37]. Therefore, it is suggested that TRPM7 plays an important role in responding, protecting, and maintaining the homeostasis under physiological or external changes and stimuli. Furthermore, it has a role in developing and performing specific organ functions. TRPM7 has a critical role in early cardiogenesis; it also affects the gene expression in the myocardium and subsequently, influences ventricular function, conduction, depolarization, repolarization, and automaticity [38,39]. TRPM7 is also located in the small intestine and colon, as it is required for intestinal pacemaking and peristalsis [40,41]. Other studies have demonstrated that TRPM7 has several specific functions, including synaptic neurotransmissions [42,43] and bone growth [44,45]. To date, however, the physiological function of TRPM7 in the normal mammary gland has not been studied, and therefore, further studies are required.
In human medicine, previous research on TRPM7 has suggested that it acts as a pathophysiological regulator in several diseases including various types of tumors. A change in the level of expression occurred in pancreatic adenocarcinoma and breast cancer [11,18], and the mutation of TRPM7 was identified in colon cancer [46] and ovarian carcinoma [47]. In addition, TRPM7 expression was positively associated with the size, stage, and histological grade in pancreatic adenocarcinoma and breast cancer in humans [11,18,19]. One study showed that the deficiency of TRPM7 in human pancreatic cancer cells resulted in impaired proliferation and arrested the G0/G1 phases of the cell cycle by regulating Mg2+-sensitive suppressors of cytokine signaling 3a pathway [48]. Another study demonstrated that TRPM7 is involved in the proliferation of retinoblastoma cells and in the progression of the G1/S cell division cycle by modulating spontaneous activated Ca2+-influx pathways [16]. TRPM7 also modulates pathophysiological mechanisms in the mammary gland, either indirectly or directly, including regulation of myosin II-based cellular tension or mitogen-activated protein kinases, as well as being involved in the migration and invasion of breast cancer cells [9,10]. Intracellular calcium regulated by TRPM7 also induces epithelial–mesenchymal transition (EMT), converting epithelial cells to mesenchymal-like cells, crucial for the metastasis of breast cancer [49]. Furthermore, a research using ovarian cancer confirmed TRPM7 silencing reduces the EMT process, which eventually reduces migration, invasion, and wound healing of cancer cells [50]. In addition, the fact that the blockade of TRPM7 or suppression of TRPM7 expression induced the inhibition of cancer cell growth and survival was verified in gastric, breast, and squamous cell carcinoma [51,52,53]. Taken together, these results suggest that an aberrant TRPM7-mediated signaling mechanism is associated with oncogenesis and metastasis and that TRPM7 could have potential as a predictive biomarker and therapeutic target.
Although various disorders related to aberrant expression of TRPM7 have been increasingly researched, their exact pathogenesis and etiology are not fully understood. As in humans, the mammary gland tumor is one of the most life-threatening tumors in dogs. The results of our study and various studies on the physiological and pathological functions of TRPM7 may be key to understanding the physiology and pathology of canine mammary glands. Further studies are needed to investigate the role of TRPM7 in the mammary glands, and to determine its value as a prognostic factor and a therapeutic target.

5. Conclusions

In conclusion, we demonstrated the presence of mRNA and protein of TRPM7 in the canine mammary glands. We also confirmed that TRPM7 was localized in the apical membrane of acinar and ductal epithelial cells. The results prove the presence and distribution of TRPM7 in normal canine tissues and suggest that the canine mammary gland tissue may be affected by TRPM7. These findings could increase our understanding of the associations between TRPM7 and normal physiological roles of the mammary gland tissue as well as the pathophysiological mechanisms of canine mammary gland diseases such as inflammation and tumor characterized by TRPM7 system dysfunction.

Author Contributions

Conceptualization, S.L. (Sungin Lee), S.L. (Seulji Lee) and W.H.K.; data curation, S.L. (Sungin Lee), S.L. (Seulji Lee), H.J.S., G.A.K. and W.H.K.; formal analysis, S.L. (Sungin Lee), S.L. (Seulji Lee), A.L., G.A.K., B.-J.K. and W.H.K.; funding acquisition, W.H.K.; investigation, S.L. (Sungin Lee), S.L. (Seulji Lee), A.L., H.J.S., G.A.K., B.-J.K. and W.H.K.; methodology, S.L. (Sungin Lee), S.L. (Seulji Lee), A.L., H.J.S. and W.H.K.; supervision, B.-J.K. and W.H.K.; writing—original draft, S.L. (Sungin Lee) and A.L.; review and editing, S.L. (Sungin Lee), A.L. and W.H.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the “Cooperative Research Program of Center for Companion Animal Research (Project No. PJ01499001),” Rural Development Administration, Republic of Korea. The APC was funded by the Research Institute for Veterinary Science, Seoul National University.

Conflicts of Interest

The authors have declared that no competing interests exist. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Devarapu, S.; Lorenz, G.; Kulkarni, O.; Anders, H.-J.; Mulay, S. Cellular and molecular mechanisms of autoimmunity and lupus nephritis. Int. Rev. Cell Mol. Biol. 2017, 332, 43–154. [Google Scholar] [PubMed]
  2. Ashcroft, F.M. Ion. Channels and Disease, 1st ed.; Academic Press: San Diego, CA, USA, 1999. [Google Scholar]
  3. Sánchez, M.G.; Sánchez, A.M.; Collado, B.; Malagarie-Cazenave, S.; Olea, N.; Carmena, M.J.; Prieto, J.C.; Diaz-Laviada, I. Expression of the transient receptor potential vanilloid 1 (TRPV1) in LNCaP and PC-3 prostate cancer cells and in human prostate tissue. Eur. J. Pharmacol. 2005, 515, 20–27. [Google Scholar] [CrossRef] [PubMed]
  4. Schwarz, E.C.; Wissenbach, U.; Niemeyer, B.A.; Strauss, B.; Philipp, S.E.; Flockerzi, V.; Hoth, M. TRPV6 potentiates calcium-dependent cell proliferation. Cell Calcium 2006, 39, 163–173. [Google Scholar] [CrossRef] [PubMed]
  5. Bödding, M. TRP proteins and cancer. Cell Signal. 2007, 19, 617–624. [Google Scholar] [CrossRef]
  6. Park, H.S.; Hong, C.; Kim, B.J.; So, I. The pathophysiologic roles of TRPM7 channel. Korean J. Physiol. Pharmacol. 2014, 18, 15–23. [Google Scholar] [CrossRef] [Green Version]
  7. Cai, N.; Lou, L.; Al-Saadi, N.; Tetteh, S.; Runnels, L.W. The kinase activity of the channel-kinase protein TRPM7 regulates stability and localization of the TRPM7 channel in polarized epithelial cells. J. Biol. Chem. 2018, 293, 11491–11504. [Google Scholar] [CrossRef] [Green Version]
  8. Fonfria, E.; Murdock, P.R.; Cusdin, F.S.; Benham, C.D.; Kelsell, R.E.; McNulty, S. Tissue distribution profiles of the human TRPM cation channel family. J. Recept. Signal. Transduct. 2006, 26, 159–178. [Google Scholar] [CrossRef]
  9. Middelbeek, J.; Kuipers, A.J.; Henneman, L.; Visser, D.; Eidhof, I.; van Horssen, R.; Wieringa, B.; Canisius, S.V.; Zwart, W.; Wessels, L.F.; et al. TRPM7 is required for breast tumor cell metastasis. Cancer Res. 2012, 72, 4250–4261. [Google Scholar] [CrossRef] [Green Version]
  10. Meng, X.; Cai, C.; Wu, J.; Cai, S.; Ye, C.; Chen, H.; Yang, Z.; Zeng, H.; Shen, Q.; Zou, F. TRPM7 mediates breast cancer cell migration and invasion through the MAPK pathway. Cancer Lett. 2013, 333, 96–102. [Google Scholar] [CrossRef]
  11. Yee, N.S.; Kazi, A.A.; Li, Q.; Yang, Z.; Berg, A.; Yee, R.K. Aberrant over-expression of TRPM7 ion channels in pancreatic cancer: Required for cancer cell invasion and implicated in tumor growth and metastasis. Biol. Open. 2015, 4, 507–514. [Google Scholar] [CrossRef] [Green Version]
  12. Sun, H.-S.; Jackson, M.F.; Martin, L.J.; Jansen, K.; Teves, L.; Cui, H.; Kiyonaka, S.; Mori, Y.; Jones, M.; Forder, J.P.; et al. Suppression of hippocampal TRPM7 protein prevents delayed neuronal death in brain ischemia. Nat. Neurosci. 2009, 12, 1300–1307. [Google Scholar] [CrossRef] [PubMed]
  13. He, Y.; Yao, G.; Savoia, C.; Touyz, R.M. Transient receptor potential melastatin 7 ion channels regulate magnesium homeostasis in vascular smooth muscle cells: Role of angiotensin II. Circ. Res. 2005, 96, 207–215. [Google Scholar] [CrossRef] [Green Version]
  14. Touyz, R.M. Transient receptor potential melastatin 6 and 7 channels, magnesium transport, and vascular biology: Implications in hypertension. Am. J. Physiol. Heart Circ. Physiol. 2008, 294, H1103–H1118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Elizondo, M.R.; Arduini, B.L.; Paulsen, J.; MacDonald, E.L.; Sabel, J.L.; Henion, P.D.; Cornell, R.A.; Parichy, D.M. Defective skeletogenesis with kidney stone formation in dwarf zebrafish mutant for trpm7. Curr. Biol. 2005, 15, 667–671. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Hanano, T.; Hara, Y.; Shi, J.; Morita, H.; Umebayashi, C.; Mori, E.; Inoue, R. Involvement of TRPM7 in cell growth as a spontaneously activated Ca2+ entry pathway in human retinoblastoma cells. J. Pharmacol. Sci. 2004, 95, 403–419. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Kim, B.J.; Park, E.J.; Lee, J.H.; Jeon, J.H.; Kim, S.J.; So, I. Suppression of transient receptor potential melastatin 7 channel induces cell death in gastric cancer. Cancer Sci. 2008, 99, 2502–2509. [Google Scholar] [CrossRef]
  18. Guilbert, A.; Gautier, M.; Dhennin-Duthille, I.; Haren, N.; Sevestre, H.; Ouadid-Ahidouch, H. Evidence that TRPM7 is required for breast cancer cell proliferation. Am. J. Physiol. Cell Physiol. 2009, 297, C493–C502. [Google Scholar] [CrossRef]
  19. Dhennin-Duthille, I.; Gautier, M.; Faouzi, M.; Guilbert, A.; Brevet, M.; Vaudry, D.; Ahidouch, A.; Sevestre, H.; Ouadid-Ahidouch, A. High expression of transient receptor potential channels in human breast cancer epithelial cells and tissues: Correlation with pathological parameters. Cell. Physiol. Biochem. 2011, 28, 813–822. [Google Scholar] [CrossRef]
  20. Primer 3. Available online: http://bioinfo.ut.ee/primer3-0.4.0/ (accessed on 10 March 2020).
  21. National Center for Biotechnology Information (NCBI) Primer-BLAST. Available online: https://www.ncbi.nlm.nih.gov/tools/primer-blast/ (accessed on 10 March 2020).
  22. Etem, E.O.; Bal, R.; Akağaç, A.E.; Kuloglu, T.; Tuzcu, M.; Andrievsky, G.V.; Buran, I.; Nedzvetsky, V.S.; Baydas, G. The effects of hydrated C (60) fullerene on gene expression profile of TRPM2 and TRPM7 in hyperhomocysteinemic mice. J. Recept. Sig. Transd. 2014, 34, 317–324. [Google Scholar] [CrossRef]
  23. Nadler, M.J.; Hermosura, M.C.; Inabe, K.; Perraud, A.-L.; Zhu, Q.; Stokes, A.J.; Kurosaki, T.; Kinet, J.P.; Penner, R.; Scharenberg, A.M. LTRPC7 is a Mg·ATP-regulated divalent cation channel required for cell viability. Nature 2001, 411, 590–595. [Google Scholar] [CrossRef]
  24. Runnels, L.W.; Yue, L.; Clapham, D.E. TRP-PLIK, a bifunctional protein with kinase and ion channel activities. Science 2001, 291, 1043–1047. [Google Scholar] [CrossRef] [PubMed]
  25. Kunert-Keil, C.; Bisping, F.; Krüger, J.; Brinkmeier, H. Tissue-specific expression of TRP channel genes in the mouse and its variation in three different mouse strains. BMC Genomics 2006, 7, 159. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Fleig, A.; Chubanov, V. TRPM7. In Mammalian Transient Receptor Potential (TRP) Cation Channels, 1st ed.; Nilius, B., Flockerzi, V., Eds.; Springer: Berlin Heidelberg, Germany, 2014; Volume 1, pp. 521–546. [Google Scholar]
  27. Yu, W.; Hill, W.G.; Apodaca, G.; Zeidel, M.L. Expression and distribution of transient receptor potential (TRP) channels in bladder epithelium. Am. J. Physiol. Ren. Physiol. 2010, 300, F49–F59. [Google Scholar] [CrossRef] [Green Version]
  28. Sun, H.; Leng, T.; Zeng, Z.; Gao, X.; Inoue, K.; Xiong, Z.-G. Role of TRPM7 channels in hyperglycemia-mediated injury of vascular endothelial cells. PLoS ONE 2013, 8, e79540. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Liu, A.; Wu, J.; Yang, C.; Wu, Y.; Zhang, Y.; Zhao, F.; Wang, H.; Yuan, L.; Song, L.; Zhu, T.; et al. TRPM7 in CHBP-induced renoprotection upon ischemia reperfusion-related injury. Sci. Rep. 2018, 8, 5510. [Google Scholar] [CrossRef]
  30. Yee, N.S.; Kazi, A.A.; Yee, R.K. Cellular and developmental biology of TRPM7 channel-kinase: Implicated roles in cancer. Cells 2014, 3, 751–777. [Google Scholar] [CrossRef]
  31. Asuthkar, S.; Demirkhanyan, L.; Mueting, S.R.; Cohen, A.; Zakharian, E. High-throughput proteome analysis reveals targeted TRPM8 degradation in prostate cancer. Oncotarget 2017, 8, 12877–12890. [Google Scholar] [CrossRef] [Green Version]
  32. Asuthkar, S.; Velpula, K.K.; Elustondo, P.A.; Demirkhanyan, L.; Zakharian, E. TRPM8 channel as a novel molecular target in androgen-regulated prostate cancer cells. Oncotarget 2015, 6, 17221–17236. [Google Scholar] [CrossRef] [Green Version]
  33. Aarts, M.; Iihara, K.; Wei, W.-L.; Xiong, Z.-G.; Arundine, M.; Cerwinski, W.; MacDonald, J.K.; Tymianski, M. A key role for TRPM7 channels in anoxic neuronal death. Cell 2003, 115, 863–877. [Google Scholar] [CrossRef] [Green Version]
  34. Fang, L.; Zhan, S.; Huang, C.; Cheng, X.; Lv, X.; Si, H.; Li, J. TRPM7 channel regulates PDGF-BB-induced proliferation of hepatic stellate cells via PI3K and ERK pathways. Toxicol. Appl. Pharmacol. 2013, 272, 713–725. [Google Scholar] [CrossRef]
  35. Zhu, Y.; Men, R.; Wen, M.; Hu, X.; Liu, X.; Yang, L. Blockage of TRPM7 channel induces hepatic stellate cell death through endoplasmic reticulum stress-mediated apoptosis. Life Sci. 2014, 94, 37–44. [Google Scholar] [CrossRef] [PubMed]
  36. Cheng, H.; Feng, J.-M.; Figueiredo, M.L.; Zhang, H.; Nelson, P.L.; Marigo, V.; Beck, A. Transient receptor potential melastatin type 7 channel is critical for the survival of bone marrow derived mesenchymal stem cells. Stem Cells Dev. 2009, 19, 1393–1403. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Su, L.T.; Chen, H.C.; González-Pagán, O.; Overton, J.D.; Xie, J.; Yue, L.; Runnels, L.W. TRPM7 activates m-calpain by stress-dependent stimulation of p38 MAPK and c-Jun N-terminal kinase. J. Mol. Biol. 2010, 396, 858–869. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Sah, R.; Mesirca, P.; Mason, X.; Gibson, W.; Bates-Withers, C.; Van den Boogert, M.; Chaudhuri, D.; Pu, W.T.; Mangoni, M.E.; Clapham, D.E. Timing of myocardial TRPM7 deletion during cardiogenesis variably disrupts adult ventricular function, conduction, and repolarization. Circulation 2013, 128, 101–114. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Sah, R.; Mesirca, P.; Van den Boogert, M.; Rosen, J.; Mably, J.; Mangoni, M.E.; Clapham, D.E. Ion channel-kinase TPRM7 is required for maintaining cardiac automaticity. Proc. Natl. Acad. Sci. USA 2013, 110, E3037–E3046. [Google Scholar] [CrossRef] [Green Version]
  40. Kim, B.J.; Park, K.J.; Kim, H.W.; Choi, S.; Jun, J.Y.; Chang, I.Y.; Jeon, J.H.; Kim, S.J. Identification of TRPM7 channels in human intestinal interstitial cells of Cajal. World J. Gastroenterol. 2009, 15, 5799–5804. [Google Scholar] [CrossRef]
  41. Kim, B.J.; Lim, H.H.; Yang, D.K.; Jun, J.Y.; Chang, I.Y.; Park, C.S.; So, I.; Stanfield, P.R.; Kim, K.W. Melastatin-type transient receptor potential channel 7 is required for intestinal pacemaking activity. Gastroenterology 2005, 129, 1504–1517. [Google Scholar] [CrossRef]
  42. Krapivinsky, G.; Mochida, S.; Krapivinsky, L.; Cibulsky, S.M.; Clapham, D.E. The TRPM7 ion channel functions in cholinergic synaptic vesicles and affects transmitter release. Neuron 2006, 52, 485–496. [Google Scholar] [CrossRef] [Green Version]
  43. Brauchi, S.; Krapivinsky, G.; Krapivinsky, L.; Clapham, D.E. TRPM7 facilitates cholinergic vesicle fusion with the plasma membrane. Proc. Natl. Acad. Sci. USA 2008, 105, 8304–8308. [Google Scholar] [CrossRef] [Green Version]
  44. Abed, E.; Moreau, R. Importance of melastatin-like transient receptor potential 7 and magnesium in the stimulation of osteoblast proliferation and migration by platelet-derived growth factor. Am. J. Physiol. Cell Physiol. 2009, 297, C360–C368. [Google Scholar] [CrossRef] [Green Version]
  45. Abed, E.; Moreau, R. Importance of melastatin-like transient receptor potential 7 and cations (magnesium, calcium) in human osteoblast-like cell proliferation. Cell Prolif. 2007, 40, 849–865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Dai, Q.; Shrubsole, M.J.; Ness, R.M.; Schlundt, D.; Cai, Q.; Smalley, W.E.; Li, M.; Shyr, Y.; Zheng, W. The relation of magnesium and calcium intakes and a genetic polymorphism in the magnesium transporter to colorectal neoplasia risk. Am. J. Clin. Nutr. 2007, 86, 743–751. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Greenman, C.; Stephens, P.; Smith, R.; Dalgliesh, G.L.; Hunter, C.; Bignell, G.; Davis, H.; Teague, J.; Butler, A.; Stevens, C.; et al. Patterns of somatic mutation in human cancer genomes. Nature 2007, 446, 153–158. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Yee, N.S.; Zhou, W.; Liang, I.C. Transient receptor potential ion channel Trpm7 regulates exocrine pancreatic epithelial proliferation by Mg2+-sensitive Socs3a signaling in development and cancer. Dis. Model. Mech. 2011, 4, 240–254. [Google Scholar] [CrossRef] [Green Version]
  49. Davis, F.M.; Azimi, I.; Faville, R.A.; Peters, A.A.; Jalink, K.; Putney Jr, J.W.; Goodhill, G.J.; Thompson, E.W.; Roberts-Thomson, S.J.; Monteith, G.R. Induction of epithelial-mesenchymal transition (EMT) in breast cancer cells is calcium signal dependent. Oncogene 2014, 33, 2307–2316. [Google Scholar] [CrossRef] [Green Version]
  50. Liu, L.; Wu, N.; Wang, Y.; Zhang, X.; Xia, B.; Tang, J.; Cai, J.; Zhao, Z.; Liao, Q.; Wang, J. TRPM7 promotes the epithelial-mesenchymal transition in ovarian cancer through the calcium-related PI3K/AKT oncogenic signaling. J. Exp. Clin. Cancer Res. 2019, 38, 106. [Google Scholar] [CrossRef]
  51. Kim, B.J.; Nam, J.H.; Kwon, Y.K.; So, I.; Kim, S.J. The role of waixenicin a as transient receptor potential melastatin 7 blocker. Basic Clin. Pharmacol. Toxicol. 2013, 112, 83–89. [Google Scholar] [CrossRef]
  52. Kim, B.J. Involvement of melastatin type transient receptor potential 7 channels in ginsenoside Rd-induced apoptosis in gastric and breast cancer cells. J. Ginseng Res. 2013, 37, 201–209. [Google Scholar] [CrossRef] [Green Version]
  53. Dou, Y.; Li, Y.; Chen, J.; Wu, S.; Xiao, X.; Xie, S.; Tang, L.; Yan, M.; Wang, Y.; Lin, J.; et al. Inhibition of cancer cell proliferation by midazolam by targeting transient receptor potential melastatin 7. Oncol. Lett. 2013, 5, 1010–1016. [Google Scholar] [CrossRef]
Animals 10 00466 g001 550

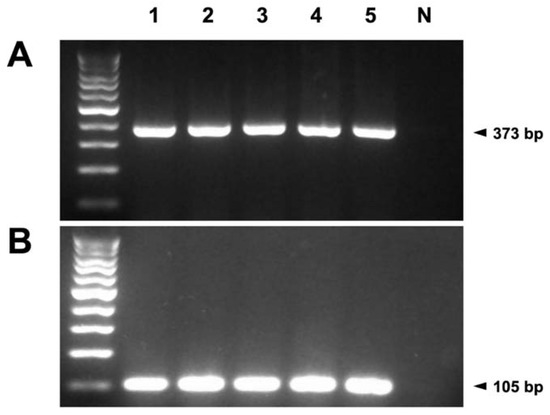

Figure 1. (A) mRNA of TRPM7 was detected in five (1–5) canine mammary gland tissues by reverse transcription-polymerase chain reaction (RT-PCR). The amplified products of TRPM7 (373 bp) were observed in all canine mammary gland samples. (B) To confirm the integrity of the extracted RNA, the amplified products of glyceraldehyde 3-phosphate dehydrogenase (105 bp) were used as the positive controls. The negative controls (N) are the last lanes on the right.
Figure 1. (A) mRNA of TRPM7 was detected in five (1–5) canine mammary gland tissues by reverse transcription-polymerase chain reaction (RT-PCR). The amplified products of TRPM7 (373 bp) were observed in all canine mammary gland samples. (B) To confirm the integrity of the extracted RNA, the amplified products of glyceraldehyde 3-phosphate dehydrogenase (105 bp) were used as the positive controls. The negative controls (N) are the last lanes on the right.
Animals 10 00466 g001
Animals 10 00466 g002 550

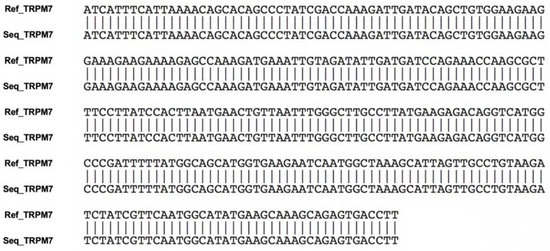

Figure 2. Nucleotide sequences of the amplified PCR products. Ref_TRPM7 indicates the TRPM7 sequences obtained from the National Center for Biotechnology Information sequence database. Seq_TRPM7 indicates the TRPM7 sequences obtained using RT-PCR in the present study. Each nucleotide sequence matched the expected sequences of canine TRPM7.
Figure 2. Nucleotide sequences of the amplified PCR products. Ref_TRPM7 indicates the TRPM7 sequences obtained from the National Center for Biotechnology Information sequence database. Seq_TRPM7 indicates the TRPM7 sequences obtained using RT-PCR in the present study. Each nucleotide sequence matched the expected sequences of canine TRPM7.
Animals 10 00466 g002
Animals 10 00466 g003 550

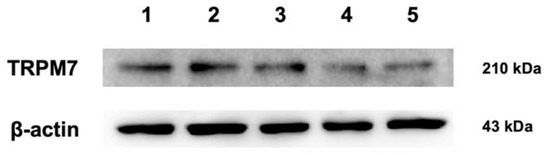

Figure 3. Protein expression of TRPM7 in the five (1–5) canine mammary gland tissues revealed by Western blotting. The immunoreactive bands of approximately 210 kDa were confirmed in all samples. β-Actin (43 kDa) was used as the loading control.
Figure 3. Protein expression of TRPM7 in the five (1–5) canine mammary gland tissues revealed by Western blotting. The immunoreactive bands of approximately 210 kDa were confirmed in all samples. β-Actin (43 kDa) was used as the loading control.
Animals 10 00466 g003
Animals 10 00466 g004 550
Figure 4. TRPM7 (A,B) immunohistochemistry in the canine mammary gland. Immuno-positive staining localized in the apical membrane of ductal epithelial cells (C) In the positive control, positive immune-reactions were observed in the perinuclear compartments and cytoplasm of the neurons in the mouse brain. (D) No specific staining was observed in the negative control. Cell nuclei were stained with Mayer’s hematoxylin. (A, C, D original magnification ×400; B original magnification ×1000).
Figure 4. TRPM7 (A,B) immunohistochemistry in the canine mammary gland. Immuno-positive staining localized in the apical membrane of ductal epithelial cells (C) In the positive control, positive immune-reactions were observed in the perinuclear compartments and cytoplasm of the neurons in the mouse brain. (D) No specific staining was observed in the negative control. Cell nuclei were stained with Mayer’s hematoxylin. (A, C, D original magnification ×400; B original magnification ×1000).
Animals 10 00466 g004
Table
Table 1. Specific oligonucleotide primer sequences used for reverse transcription-polymerase chain reaction with amplicon sizes in this study.
Table 1. Specific oligonucleotide primer sequences used for reverse transcription-polymerase chain reaction with amplicon sizes in this study.
Target GeneAccession NumberPrimer Sequence (5′ to 3′)Amplicon Size (bp)
ForwardReverse
GAPDHNM_001003142.2CATTGCCCTCAATGACCACTTCCTTGGAGGCCATGTGGAC105
TRPM7XM_022413007.1CTGGCCGAAATACCTCTAGCAGGTCACTCTGCTTTGCTTC373
GAPDH, glyceraldehyde-3-phosphate dehydrogenase; TRPM7, transient receptor potential cation channel, subfamily M, member 7.
