# Analysis of a Shaftless Semi-Hard Magnetic Material Flywheel on Radial Hysteresis Self-Bearing Drives

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. System Layout

## 3. Mechanical Design, Energy and Rotordynamic Analysis

#### 3.1. Mechanical Design and Energy Analysis

^{®}Mechanical APDL 15.0 (Pennsylvania, Canonsburg, USA). Due to the axisymmetry of both geometry and loads, a two-dimensional model is sufficient. The axisymmetric formulation of the PLANE82 element is used to reduce the size of the problem. The rotor, spun at 18,000 rpm, is constrained only in the axial direction, since other translations are constrained by the axial symmetric formulation of the problem. Resulting stresses from the plane stress and the FE approaches are evaluated along the radius and compared in Figure 4. The difference between the two solutions is lower than the $0.5\%$. This comparison demonstrates that the analytical solution well describes the stress field under the centrifugal loading.

#### 3.2. Rotordynamics

^{®}Mechanical APDL 15.0. Even if the rotor is axisymmetric, the three-dimensional model is needed to evaluate the three-dimensional mode shapes. ANSYS Solid95 elements (twenty-node brick elements) are used because they embed both gyroscopic and Coriolis effects. The latter fulfills an important role in the dynamics of thin-walled rotating cylinders.

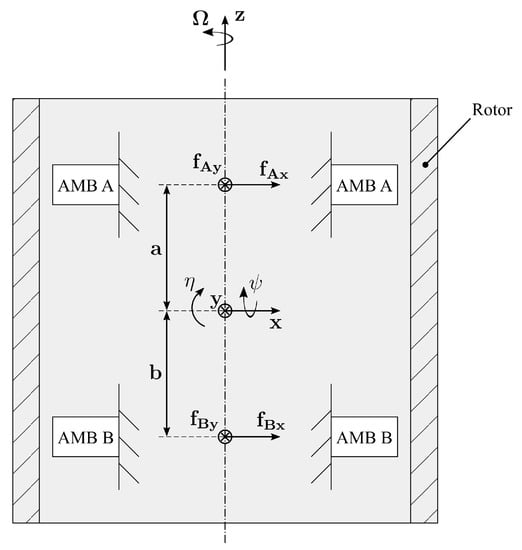

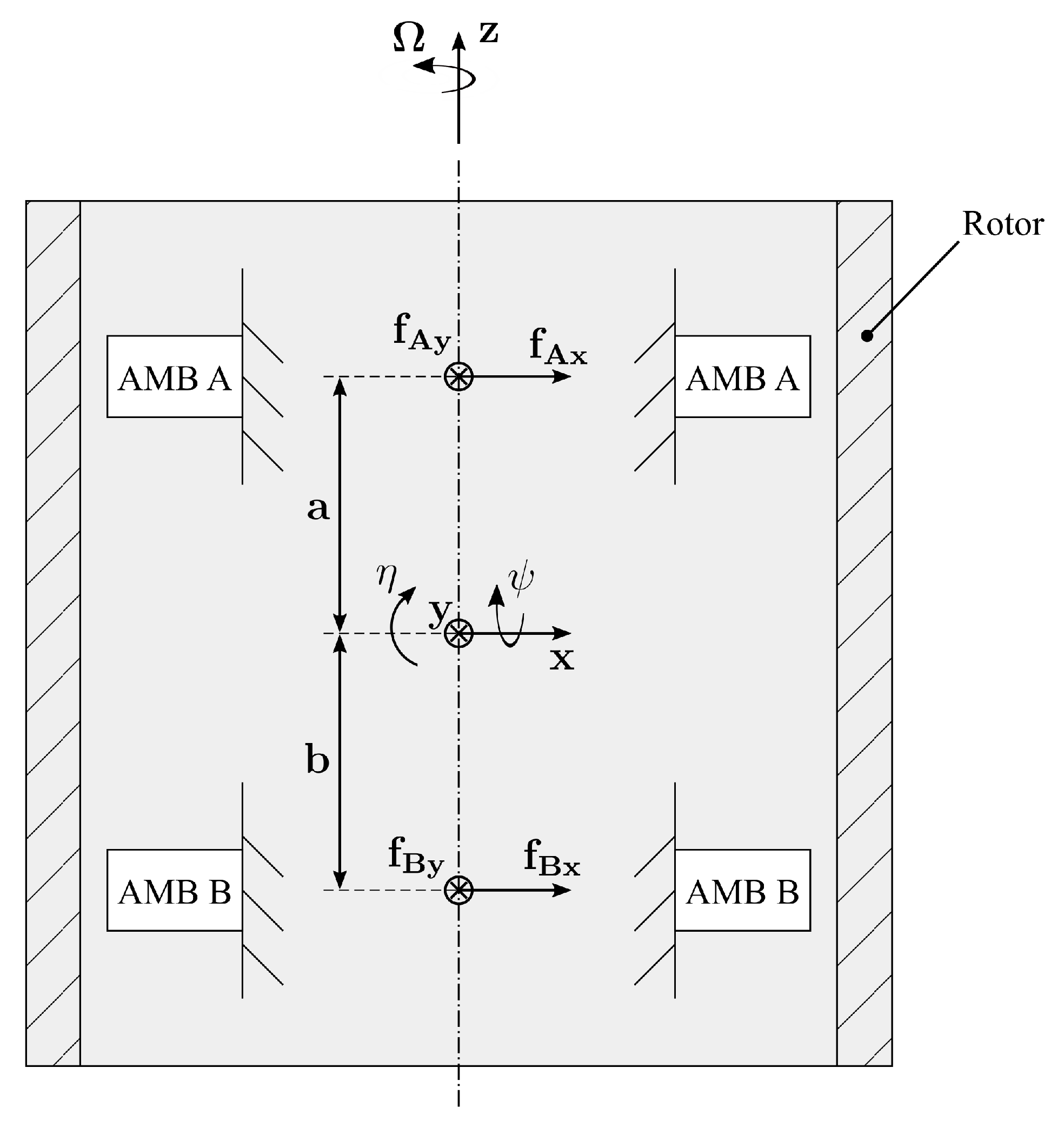

## 4. Radial Active Magnetic Suspension

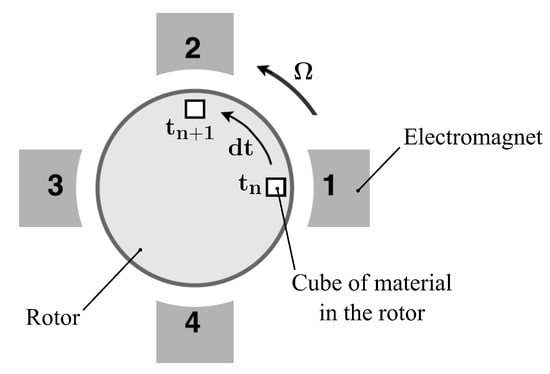

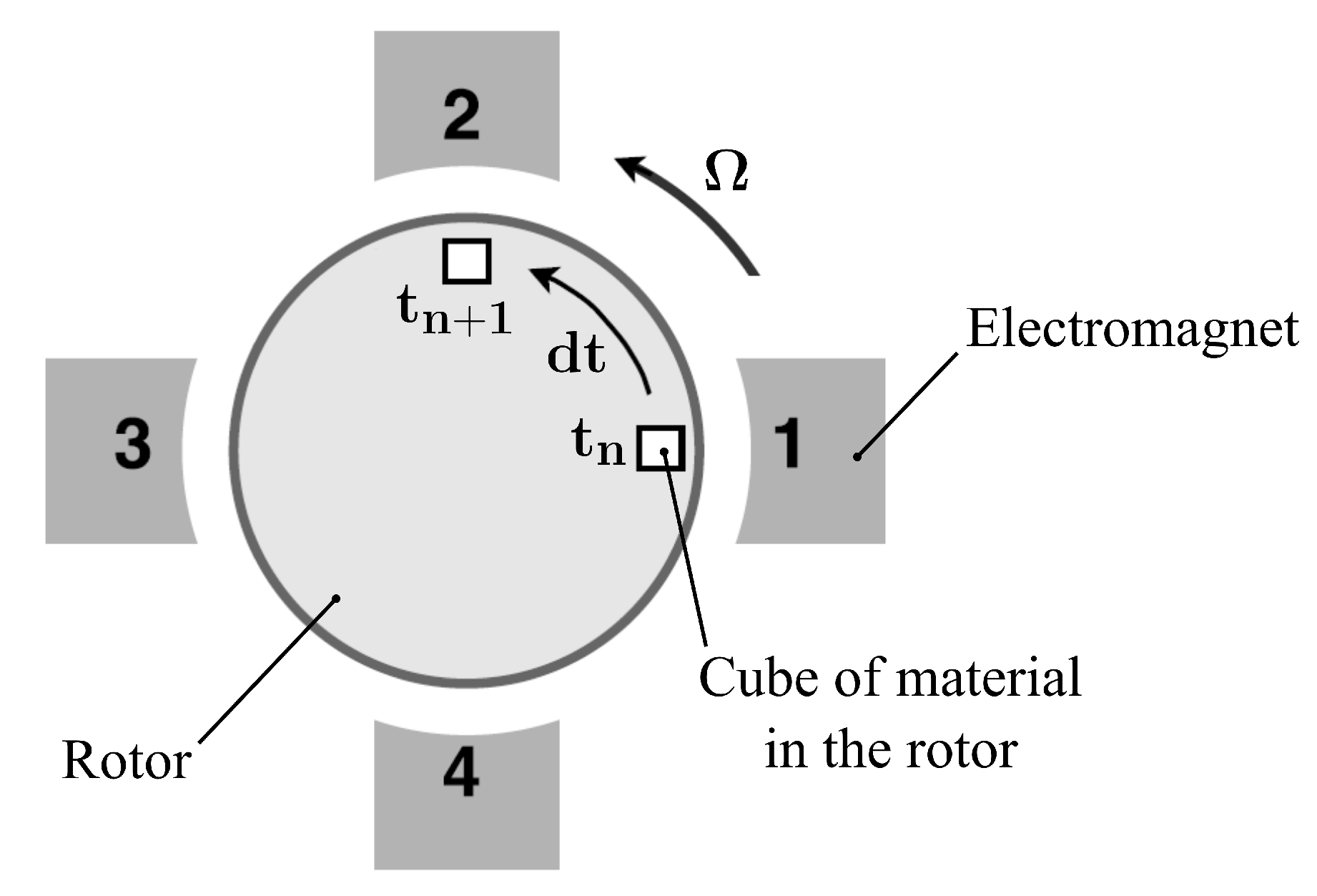

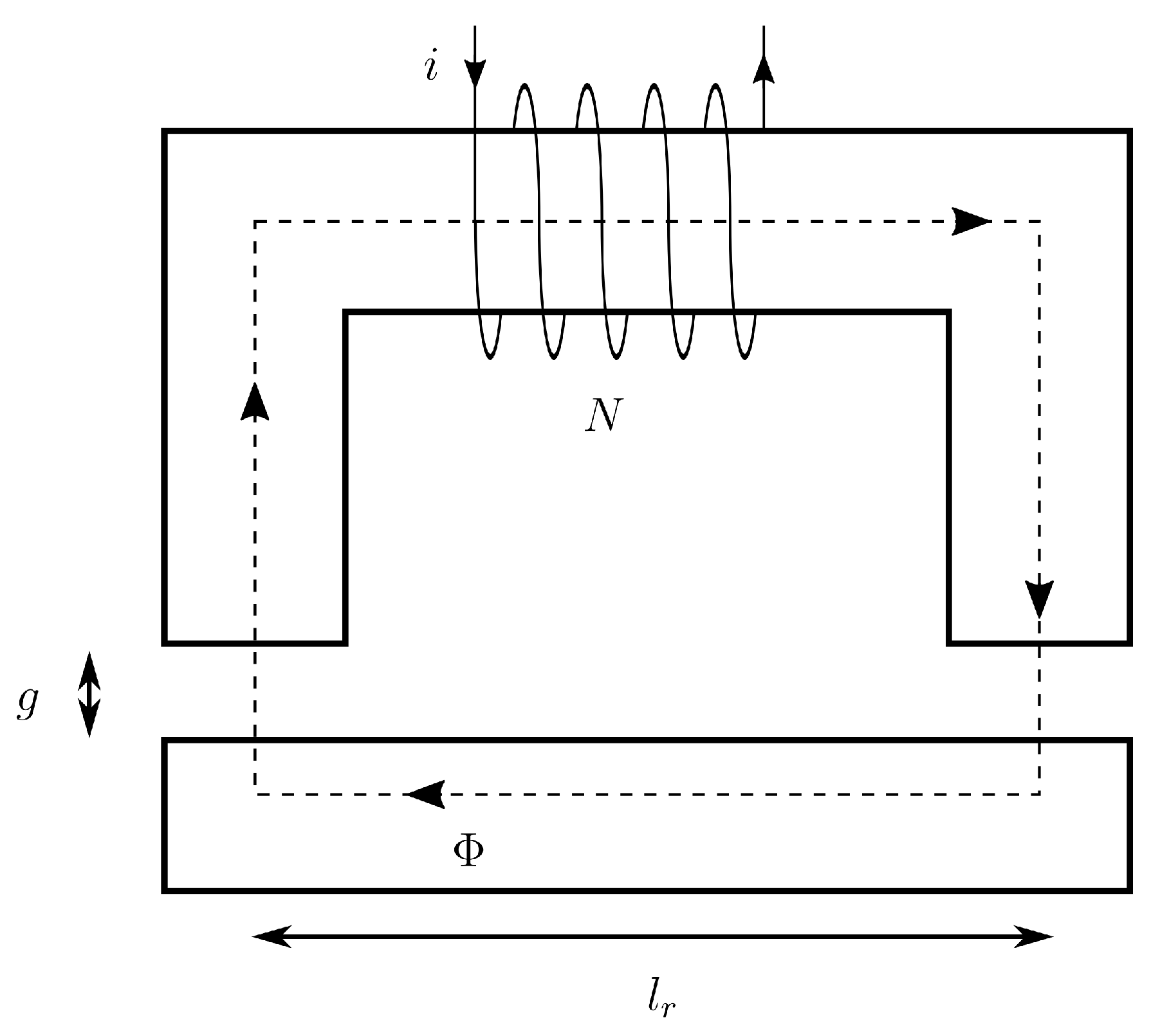

#### Modeling

## 5. Results

#### 5.1. Response to the External Disturbance at Standstill

#### 5.2. Response to the Unbalance at Maximum Speed

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Nomenclature

Symbol | Description | Unit |

${A}_{p}$ | Pole area | m^{2} |

${A}_{s}$ | Cross-sectional area of the stator | m^{2} |

$\beta $ | Ratio between the inner and outer radius | - |

${\mathbf{B}}_{\mathbf{T}}$ | Transformation matrix for the AMBs forces | - |

B | Magnetic flux density | T |

$\chi ({I}_{p}-{I}_{t})$ | Couple unbalance | kgm^{2} |

${E}_{Max}$ | Storage capability | J |

${\mathbf{f}}_{\mathbf{AMB}}$ | Vector of the AMBs forces | - |

${\mathbf{f}}_{\mathbf{ext}}$ | Vector of the external forces | - |

${\mathbf{f}}_{\mathbf{unb}}$ | Vector of the unbalance force | - |

${f}_{e}$ | Electromagnetic force | N |

${f}_{e,\phantom{\rule{0.166667em}{0ex}}ij}^{+}$ | Force provided by the electromagnet supplied with the current ${i}_{0}+{i}_{c,\phantom{\rule{0.166667em}{0ex}}ij}$ | N |

${f}_{e,\phantom{\rule{0.166667em}{0ex}}ij}^{-}$ | Force provided by the electromagnet supplied with the current ${i}_{0}-{i}_{c,\phantom{\rule{0.166667em}{0ex}}ij}$ | N |

${f}_{ij}$ | Force of the AMB i along the j-axis | N |

$\mathbf{G}$ | Gyroscopic matrix | - |

g | Magnetic gap length | m |

${g}_{0}$ | Nominal magnetic gap | m |

${\overline{H}}_{r},\overline{B}$ | Magnetic operating point of the rotor material | A/m |

h | Flywheel height | m |

${H}_{g}$ | Magnetic field strength in the magnetic gap | A/m |

${H}_{r}$ | Magnetic field strength in the rotor | A/m |

${H}_{s}$ | Magnetic field strength in the stator | A/m |

i | Current | A |

${i}_{0}$ | Bias current | A |

${I}_{p}$ | Polar moment of inertia | kgm${}^{2}$ |

${I}_{t}$ | Transversal moment of inertia | kgm${}^{2}$ |

${i}_{c,\phantom{\rule{0.166667em}{0ex}}ij}$ | Control current at the j-axis of the AMB i | A |

${i}_{max}$ | Maximum continuous current | A |

K | Flywheel shape factor | - |

${l}_{r}$ | Length of the magnetic flux path in the rotor | m |

${l}_{s}$ | Length of the magnetic flux path in the stator | m |

${\mu}_{0}$ | Magnetic permeability of the free-space | H/m |

${\mu}_{r}$ | Magnetic permeability of the linearized rotor material | - |

${\mu}_{s}$ | Magnetic permeability of the stator material | - |

$\mathbf{M}$ | Mass matrix | - |

m_{ϵ} | Static unbalance | kgm |

m | Mass | kg |

$\nu $ | Poisson ratio | - |

N | Turns per electromagnet | - |

$\mathsf{\Omega}$ | Spin speed | rad/s |

$\omega $ | Natural frequency | rad/s |

${\mathsf{\Omega}}_{Burst}$ | Burst spin speed | rad/s |

${\mathsf{\Omega}}_{Max}$ | Maximum spin speed | rad/s |

$\mathsf{\Phi}$ | Magnetic flux | Wb |

$\mathbf{q}$ | Vector of the generalized coordinates | - |

$\rho $ | Mass density | kg/m${}^{3}$ |

${r}_{i}$ | Flywheel inner radius | m |

${r}_{o}$ | Flywheel outer radius | m |

r | Flywheel radius | m |

${\sigma}_{h}$ | Hoop stress | Pa |

${\sigma}_{eq}$ | Von Mises equivalent stress | Pa |

${\sigma}_{lim}$ | Maximum equivalent stress in normal operation | Pa |

$S{F}_{\mathsf{\Omega}}$ | Safety factor on the spin speed | - |

${\sigma}_{r}$ | Radial stress | Pa |

${S}_{UT}$ | Tensile strength | Pa |

t | Simulation time | s |

## References

- Aneke, M.; Wang, M. Energy storage technologies and real life applications—A state of the art review. Appl. Energy
**2016**, 179, 350–377. [Google Scholar] [CrossRef] - Amirante, R.; Cassone, E.; Distaso, E.; Tamburrano, P. Overview on recent developments in energy storage: Mechanical, electrochemical and hydrogen technologies. Energy Convers. Manag.
**2017**, 132, 372–387. [Google Scholar] [CrossRef] - Bleuler, H.; Cole, M.; Keogh, P.; Larsonneur, R.; Maslen, E.; Okada, Y.; Schweitzer, G.; Traxler, A. Magnetic Bearings: Theory, Design, and Application to Rotating Machinery; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2009. [Google Scholar]
- Baumgartner, T.; Burkart, R.M.; Kolar, J.W. Analysis and Design of a 300-W 500,000-r/min Slotless Self-Bearing Permanent-Magnet Motor. IEEE Trans. Ind. Electron.
**2014**, 61, 4326–4336. [Google Scholar] [CrossRef] - Filatov, A.; Hawkins, L.; McMullen, P. Homopolar Permanent-Magnet-Biased Actuators and Their Application in Rotational Active Magnetic Bearing Systems. Actuators
**2016**, 5, 26. [Google Scholar] [CrossRef] - Lusty, C.; Bailey, N.Y.; Keogh, P.S. Control of Flexible Rotor Vibration with Flexibly Mounted Active Magnetic Bearings. In Proceedings of the 10th International Conference on Rotor Dynamics—IFToMM; Cavalca, K.L., Weber, H.I., Eds.; Springer International Publishing: Cham, Switzerland, 2019; pp. 65–73. [Google Scholar]
- Bonfitto, A.; Botto, G.; Chiaberge, M.; Suarez Cabrera, L.; Tonoli, A. A multi-purpose control and power electronic architecture for active magnetic actuators. In Proceedings of the 2012 15th International Power Electronics and Motion Control Conference (EPE/PEMC); Novi Sad, Serbia, 4–6 September 2012.
- Ferreira, J.; Maslen, E.; Fittro, R. Transpermeance Amplifier Applied to Magnetic Bearings. Actuators
**2017**, 6, 9. [Google Scholar] [CrossRef] - Bonfitto, A.; Castellanos Molina, L.M.; Tonoli, A.; Amati, N. Offset-Free Model Predictive Control for Active Magnetic Bearing Systems. Actuators
**2018**, 7, 46. [Google Scholar] [CrossRef] - Bonfitto, A.; Tonoli, A.; Silvagni, M. Sensorless active magnetic dampers for the control of rotors. Mechatronics
**2017**, 47, 195–207. [Google Scholar] [CrossRef] - Castellanos, L.M.; Bonfitto, A.; Tonoli, A.; Amati, N. Identification of Force-Displacement and Force-Current Factors in an Active Magnetic Bearing System. In Proceedings of the 18th Annual IEEE International Conference on Electro Information Technology, Rochester, MI, USA, 3–5 May 2018. [Google Scholar]
- Noshadi, A.; Shi, J.; Lee, W.S.; Shi, P.; Kalam, A. System Identification and Robust Control of Multi-Input Multi-Output Active Magnetic Bearing Systems. IEEE Trans. Control Syst. Technol.
**2016**, 24, 1227–1239. [Google Scholar] [CrossRef] - Morais, T.; Der Hagopian, J.; Steffen, V., Jr; Mahfoud, J. Modeling and identification of electromagnetic actuator for the control of rotating machinery. Shock Vib.
**2013**, 20, 171–179. [Google Scholar] [CrossRef] - Chiba, A.; Fukao, T.; Ichikawa, O.; Oshima, M.; Takemoto, M.; Dorrell, D.G. Magnetic Bearings and Bearingless Drives; Elsevier: Oxford, UK, 2005. [Google Scholar]
- Noh, M.; Gruber, W.; Trumper, D.L. Hysteresis Bearingless Slice Motors With Homopolar Flux-Biasing. IEEE/ASME Trans. Mech.
**2017**, 22, 2308–2318. [Google Scholar] [CrossRef][Green Version] - Gruber, W.; Rothbock, M.; Schob, R.T. Design of a Novel Homopolar Bearingless Slice Motor With Reluctance Rotor. IEEE Trans. Ind. Appl.
**2015**, 51, 1456–1464. [Google Scholar] [CrossRef] - Mousavi, G.S.; Faraji, F.; Majazi, A.; Al-Haddad, K. A comprehensive review of Flywheel Energy Storage System technology. Renew. Sustain. Energy Rev.
**2017**, 67, 477–490. [Google Scholar] [CrossRef] - Sun, Y.; Tang, J.; Shi, K. Design of a Bearingless Outer Rotor Induction Motor. Energies
**2017**, 10, 705. [Google Scholar] - Severson, E.; Nilssen, R.; Undeland, T.; Mohan, N. Suspension force model for bearingless AC homopolar machines designed for flywheel energy storage. In Proceedings of the 2013 7th IEEE GCC Conference and Exhibition (GCC), Doha, Qatar, 17–20 November 2013; pp. 274–279. [Google Scholar]
- Ooshima, M.; Kobayashi, S.; Tanaka, H. Magnetic suspension performance of a bearingless motor/generator for flywheel energy storage systems. In Proceedings of the 2010 IEEE Power and Energy Society General Meeting, Providence, RI, USA, 25–29 July 2010; pp. 1–4. [Google Scholar]
- Asami, K.; Chiba, A.; Rahman, M.A.; Hoshino, T.; Nakajima, A. Stiffness analysis of a magnetically suspended bearingless motor with permanent magnet passive positioning. IEEE Trans. Magn.
**2005**, 41, 3820–3822. [Google Scholar] [CrossRef] - Stevens, K.; Thornton, R.; Clark, T.; Beaman, B.G.; Dennehy, N.; Day, J.H. A Shaftless Magnetically Levitated Multifunctional Spacecraft Flywheel Storage System. In Proceedings of the 25th Annual AAS Guidance and Control Conference, Breckenridge, CO, USA, 6–10 February 2002. [Google Scholar]
- Schaede, H.; Schneider, M.; Vandermeer, J.; Mueller-Stoffels, M.; Rinderknecht, S. Development of kinetic energy storage systems for island grids. In Proceedings of the 2015 International Renewable Energy Symposium, Windhoek, Namibia, 29–30 October 2015. [Google Scholar]
- Kailasan, A.; Dimond, T.; Allaire, P.; Sheffler, D. Design and Analysis of a Unique Energy Storage Flywheel System—An Integrated Flywheel, Motor/Generator, and Magnetic Bearing Configuration. J. Eng. Gas Turb. Power
**2015**, 137, 042505. [Google Scholar] [CrossRef] - Tsao, P.; Senesky, M.; Sanders, S. An integrated flywheel energy storage system with homopolar inductor motor/generator and high-frequency drive. IEEE Trans. Ind. Appl.
**2003**, 39, 1710–1725. [Google Scholar] [CrossRef][Green Version] - Li, X.; Anvari, B.; Palazzolo, A.; Wang, Z.; Toliyat, H. A Utility-Scale Flywheel Energy Storage System with a Shaftless, Hubless, High-Strength Steel Rotor. IEEE Trans. Ind. Electron.
**2018**, 65, 6667–6675. [Google Scholar] [CrossRef] - Amiryar, M.E.; Pullen, K.R. A Review of Flywheel Energy Storage System Technologies and Their Applications. Appl. Sci.
**2017**, 7, 286. [Google Scholar] [CrossRef] - Sanders, S.; Senesky, M.; He, M.; Chiao, E. Low-Cost Flywheel Energy Storage Demonstration. In Energy Research and Development Division Final Project Report; Amber Kinetics, Inc.: Union City, CA, USA, 2015. [Google Scholar]
- Galluzzi, R.; Tonoli, A.; Amati, N. Magnetic hysteresis machines for next-generation electric turbochargers. In Proceedings of the 2017 International Conference of Electrical and Electronic Technologies for Automotive, Torino, Italy, 15–16 June 2017; pp. 1–5. [Google Scholar]
- Nasiri-Zarandi, R.; Mirsalim, M.; Tenconi, A. A Novel Hybrid Hysteresis Motor With Combined Radial and Axial Flux Rotors. IEEE Trans. Ind. Electron.
**2016**, 63, 1684–1693. [Google Scholar] [CrossRef] - Kandil, M.S.; Dubois, M.R.; Bakay, L.S.; Trovao, J.P.F. Application of Second-Order Sliding-Mode Concepts to Active Magnetic Bearings. IEEE Trans. Ind. Electron.
**2018**, 65, 855–864. [Google Scholar] [CrossRef] - Genta, G. Kinetic Energy Storage: Theory and Practice of Advanced Flywheel Systems; Butterworth-Heinemann: Oxford, UK, 2014. [Google Scholar]
- Kubota, T.; Wakui, G.; Itagaki, M. Hysteresis motor using magnetically anisotropic Fe-Cr-Co magnet. IEEE Trans. Magn.
**1998**, 34, 3888–3896. [Google Scholar] [CrossRef] - Genta, G. Vibration Dynamics and Control; Springer: New York, NY, USA, 2009. [Google Scholar]
- Park, C.H.; Choi, S.K.; Son, Y.S.; Han, Y.H. Development of 5kWh Flywheel Energy Storage System Using MATLAB/xPC Target. In Proceedings of the 2009 WRI World Congress on Computer Science and Information Engineering, Los Angeles, CA, USA, 31 March–2 April 2009; pp. 701–705. [Google Scholar]
- Darrelmann, H. Comparison of high power short time flywheel storage systems. In Proceedings of the 1999 21st International Telecommunication Energy Conference (INTELEC’99), Copenhagen, Denmark, 9 June 1999; p. 589. [Google Scholar]
- Gruber, W.; Hinterdorfer, T.; Sima, H.; Schulz, A.; Wassermann, J. Comparison of different motor-generator sets for long term storage flywheels. In Proceedings of the 2014 International Symposium on Power Electronics, Electrical Drives, Automation and Motion (SPEEDAM), Ischia, Italy, 18–20 June 2014; pp. 161–166. [Google Scholar]
- Li, H.; Lam, K.Y.; Ng, T.Y. Rotating Shell Dynamics; Elsevier: Oxford, UK, 2005; Volume 50. [Google Scholar]
- Daneshjou, K.; Talebi, T.M.; Talebi, T.R. Vibration and Critical Speed of Axially loaded Rotating Orthotropic Cylindrical Shells. JAST
**2007**, 4, 1–7. [Google Scholar] - Huang, S.; Hsu, B. Resonant phenomena of a rotating cylindrical shell subjected to a harmonic moving load. J. Sound Vib.
**1990**, 136, 215–228. [Google Scholar] [CrossRef] - Furlani, E.P. Permanent Magnet and Electromechanical Devices: Materials, Analysis, and Applications; Academic Press: Cambridge, MA, USA, 2001. [Google Scholar]
- Szewczyk, R.; Zieliński, C.; Kaliczyńska, M. Recent Advances in Automation, Robotics and Measuring Techniques; Springer: New York, NY, USA, 2014; Volume 267. [Google Scholar]
- Bergqvist, A. A simple vector generalization of the Jiles–Atherton model of hysteresis. IEEE Trans. Magn.
**1996**, 32, 4213–4215. [Google Scholar] [CrossRef] - Kis, P.; Iványi, A. Parameter identification of Jiles-Atherton model with nonlinear least-square method. Phys. B Condens. Matter
**2004**, 343, 59–64. [Google Scholar] [CrossRef] - Circosta, S.; Galluzzi, R.; Bonfitto, A.; Castellanos, L.M.; Amati, N.; Tonoli, A. Modeling and Validation of the Radial Force Capability of Bearingless Hysteresis Drives. Actuators
**2018**, 7, 69. [Google Scholar] [CrossRef]

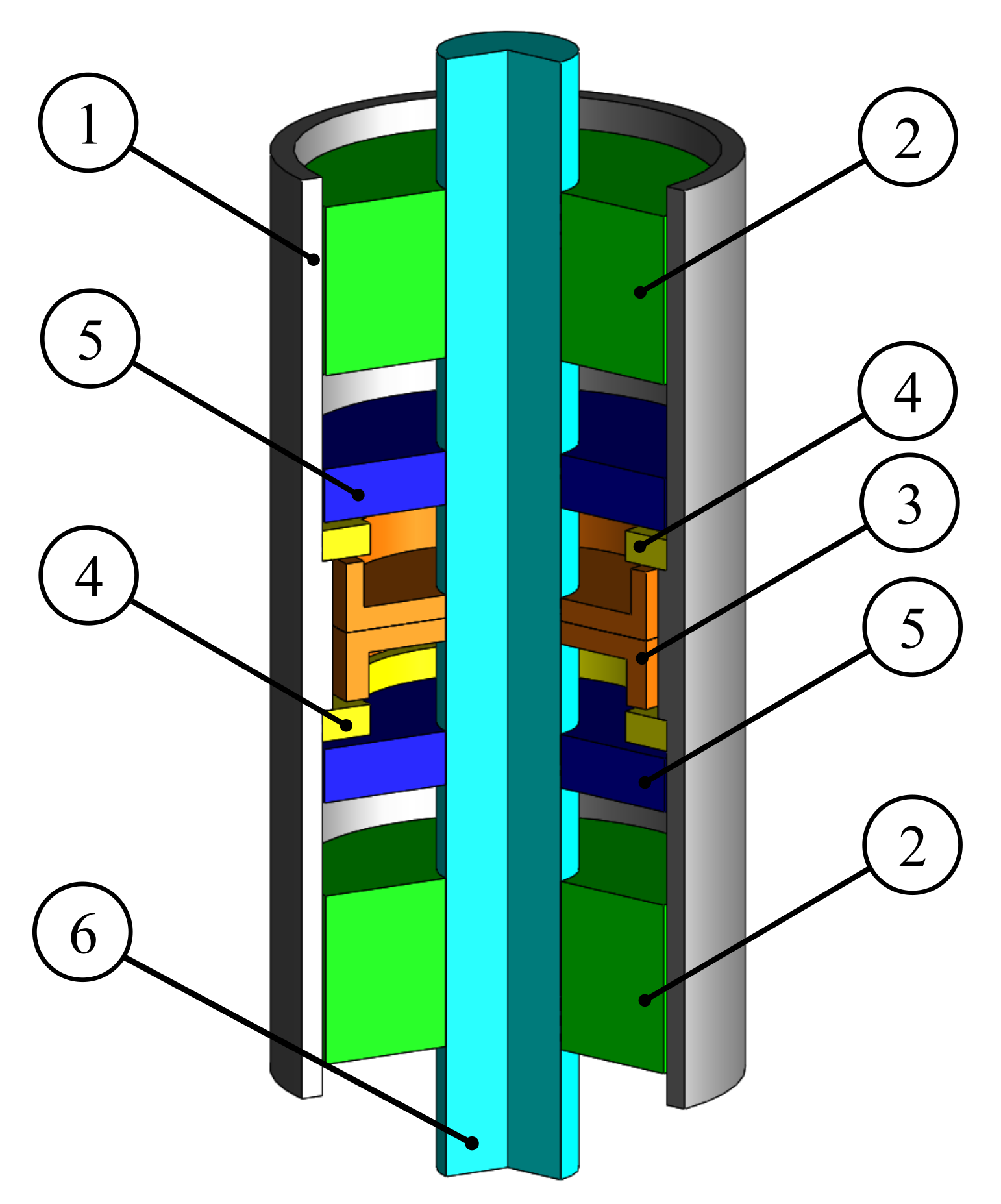

**Figure 1.**3D cross-section view of the proposed FESS layout: ① Rotor; ② Hysteresis self-bearing drive; ③ Thrust AMB; ④ Flange; ⑤ Backup bearing; ⑥ Inner stator.

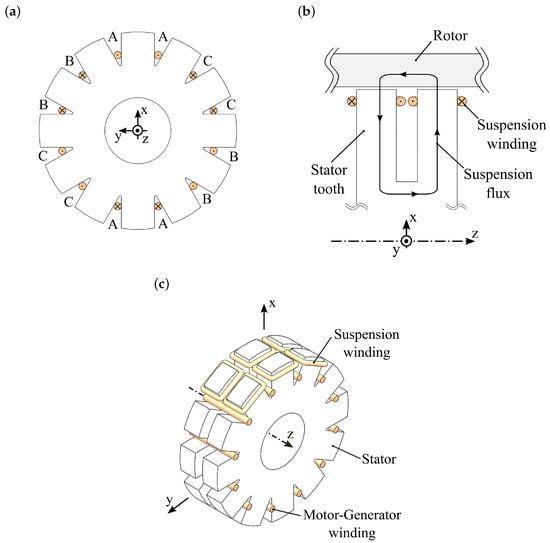

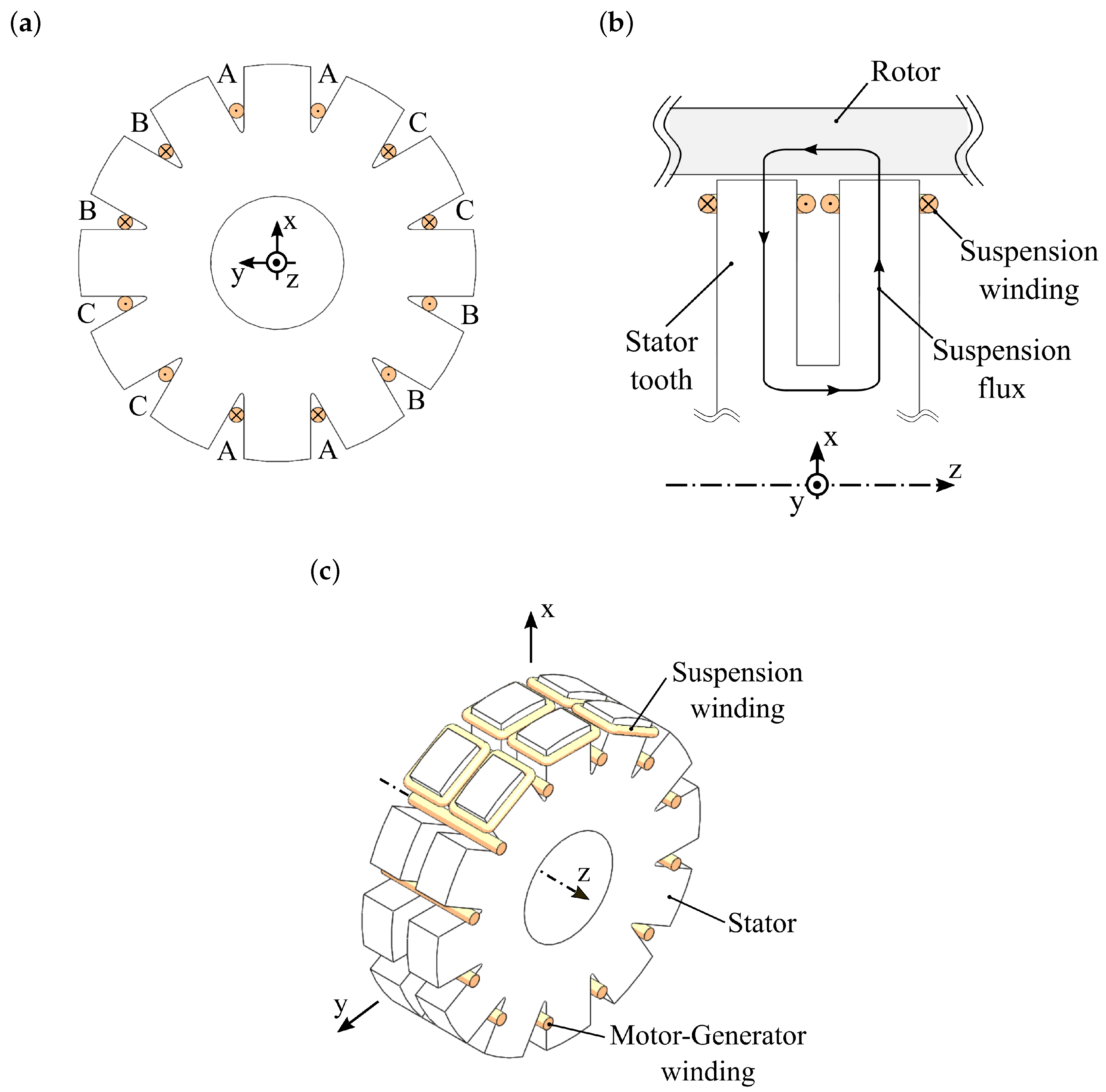

**Figure 2.**Schematic of the self-bearing hysteresis drive. (

**a**) View in the $xy$-plane (the transversal plane of the flywheel) with the three-phase (A, B, C) winding scheme of the motor-generator function. (

**b**) Partial cross-section in the $xz$-plane (the longitudinal plane of the flywheel) with the winding scheme responsible for the suspension flux generation only. (

**c**) Isometric view.

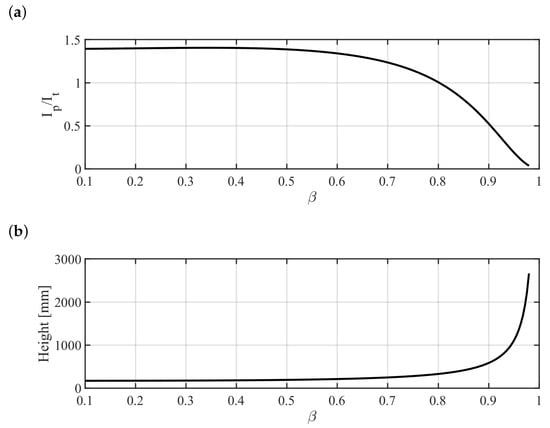

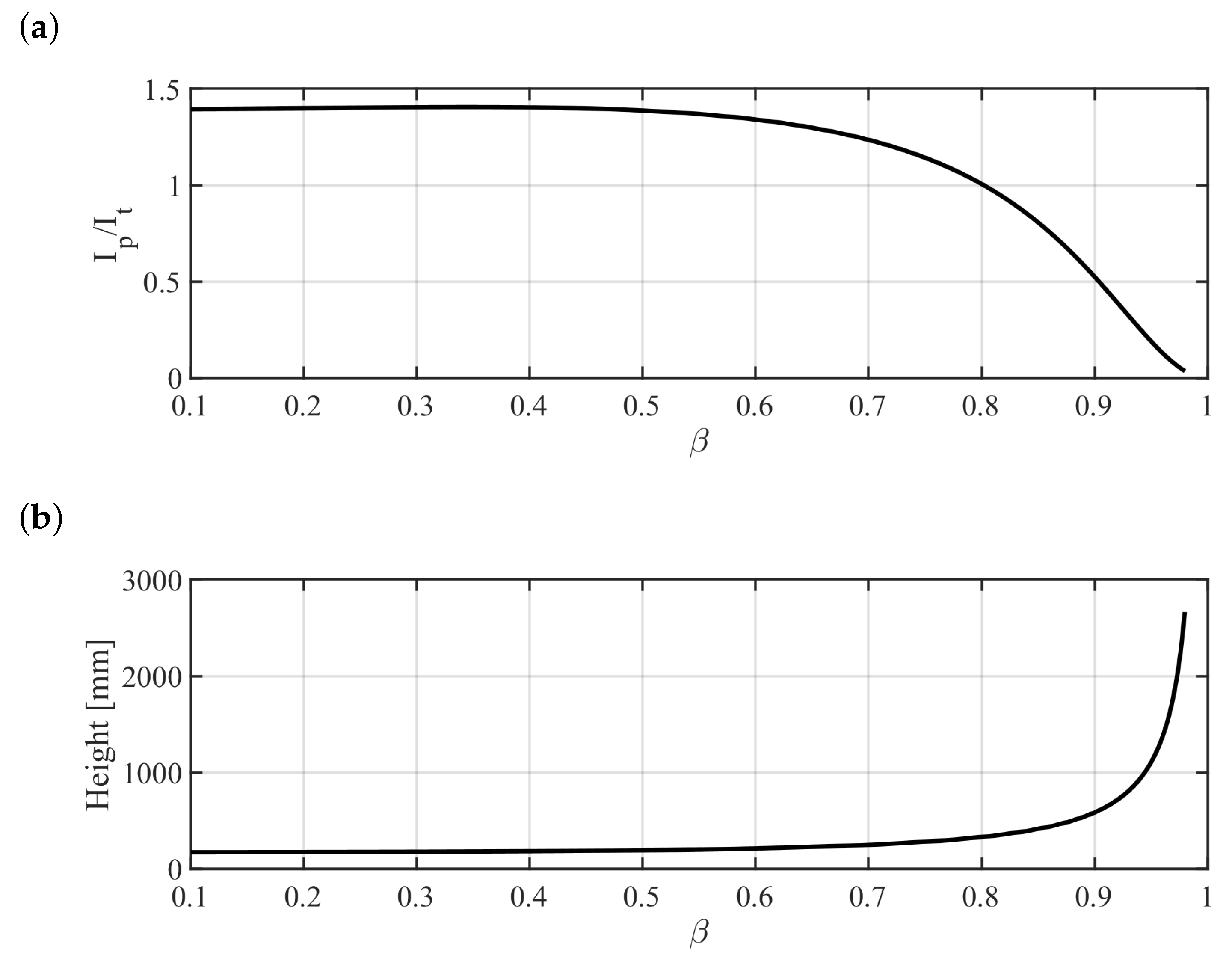

**Figure 3.**Polar and transversal moment of inertia ratio of the flywheel versus inner and outer radius ratio (

**a**). Flywheel height versus inner and outer radius ratio (

**b**).

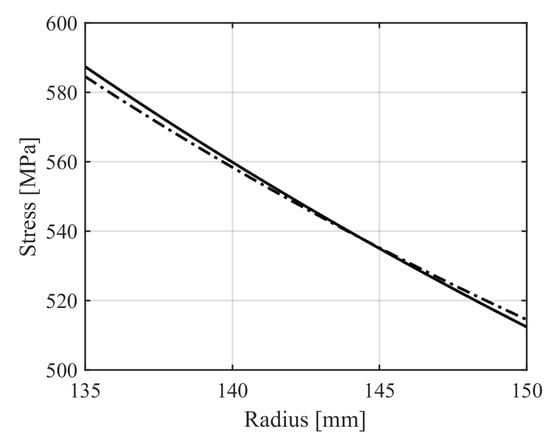

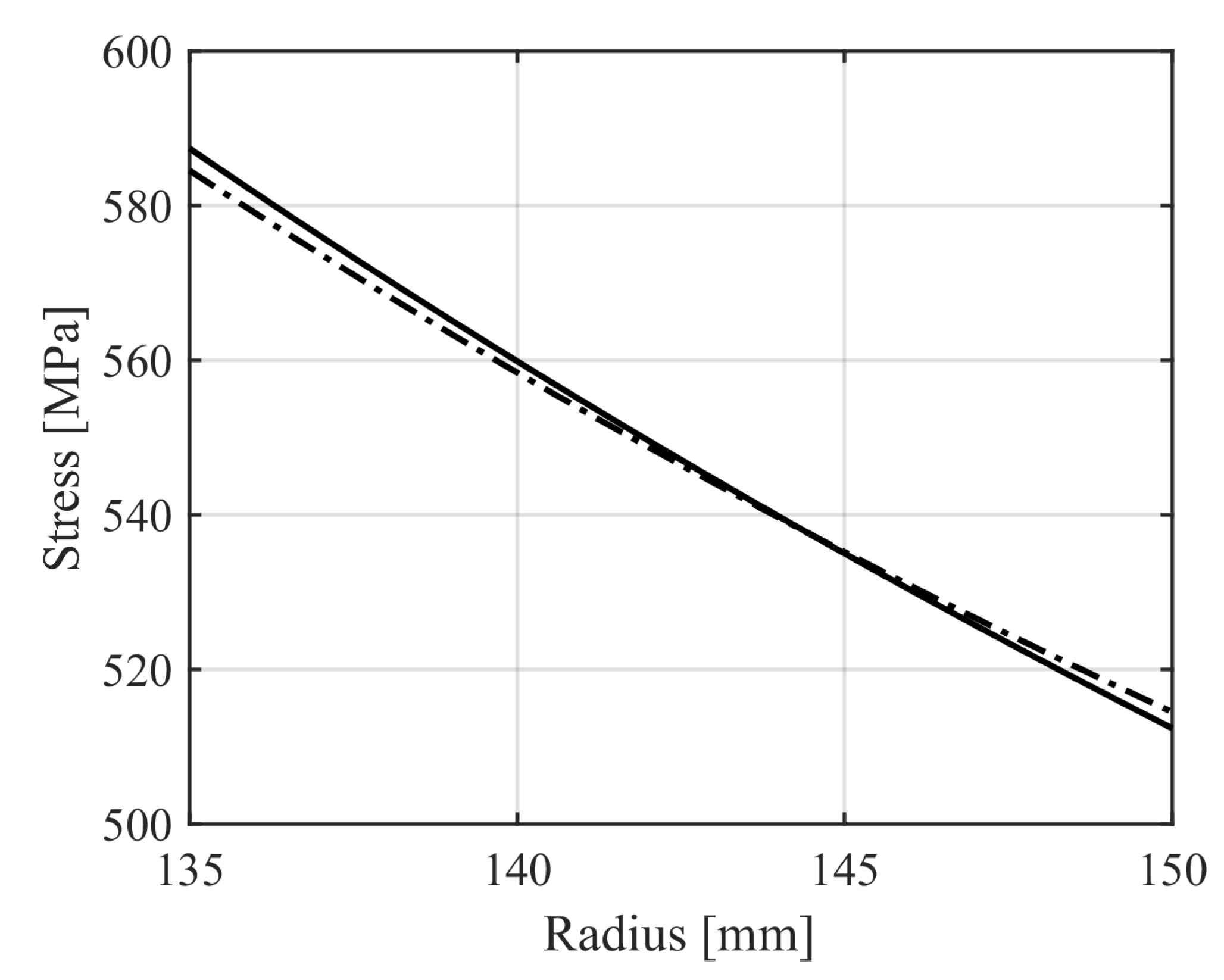

**Figure 4.**Von Mises equivalent stress vs radius of the flywheel: analytical plane stress (solid); numerical finite-element (dash-dotted).

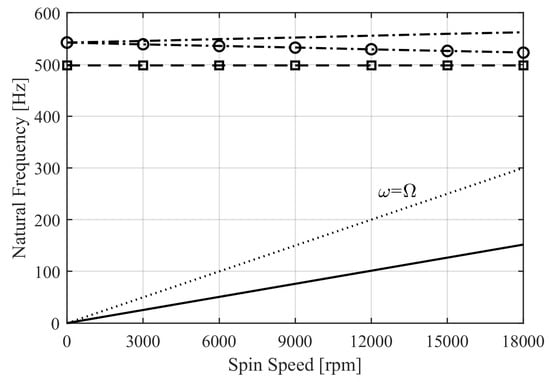

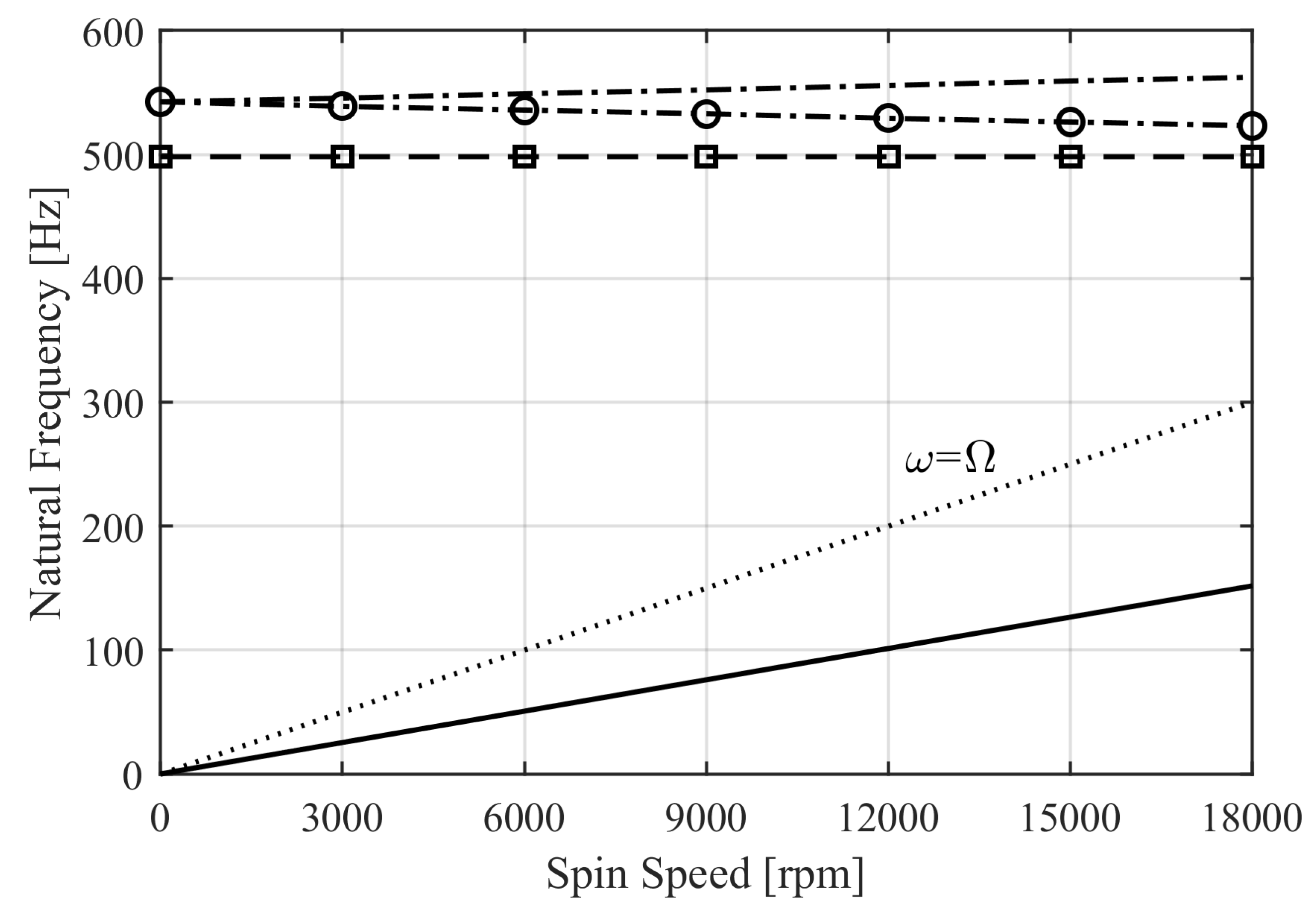

**Figure 5.**Campbell diagram of the flywheel: conical rigid body mode (solid); forward (dashed with squares) and backward (dashed) pure radial modes; forward (dash-dotted with circles) and backward (dash-dotted) radial shearing modes; synchronous whirling (dotted). The forward and backward pure radial modes (dashed with squares and dashed, respectively) are superimposed.

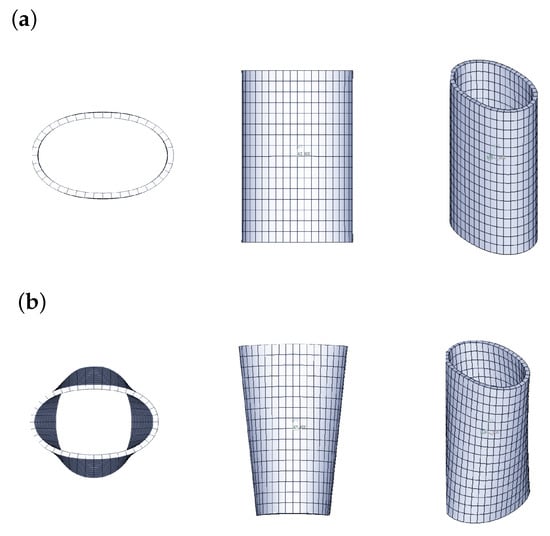

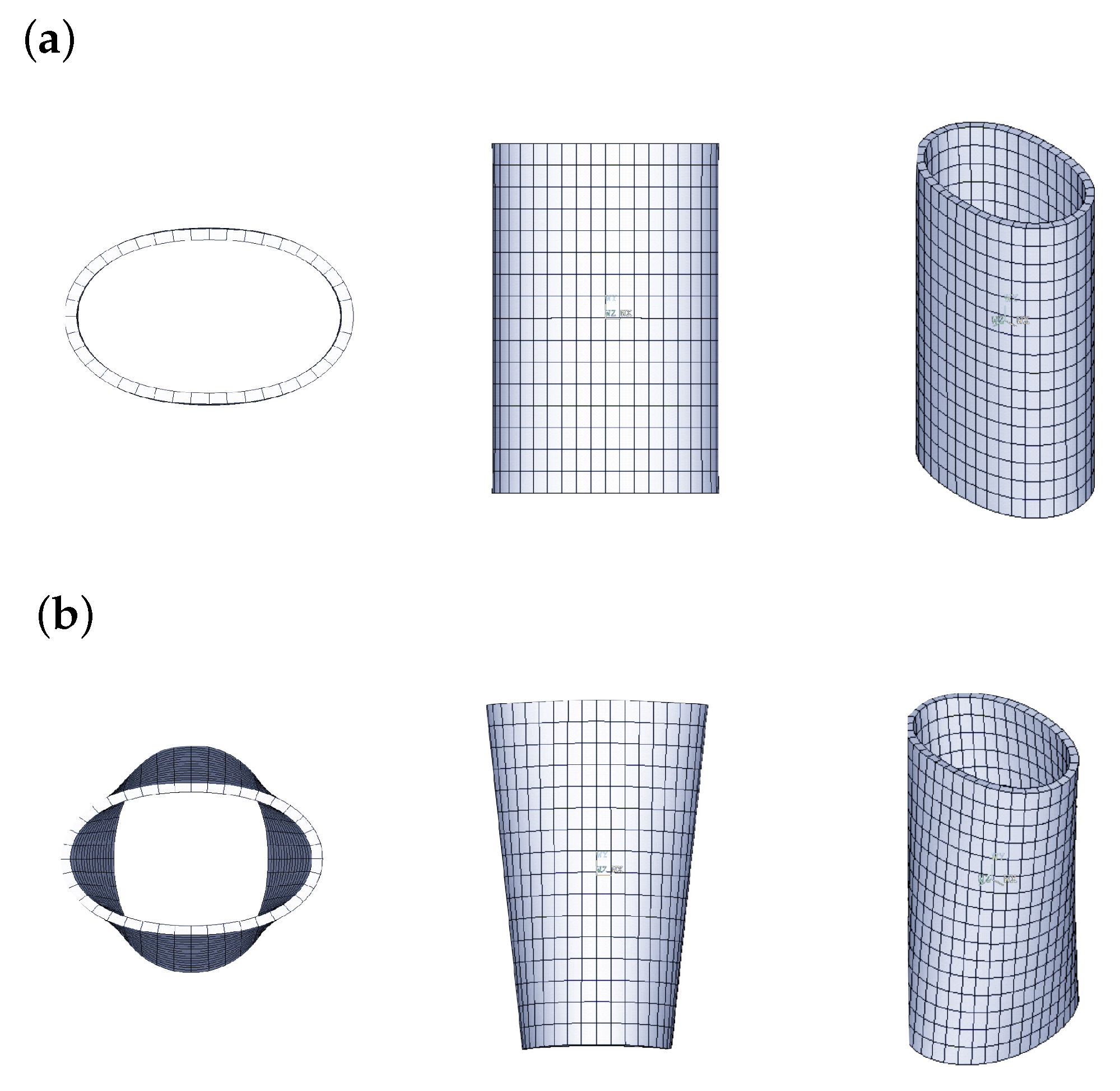

**Figure 6.**Pure radial (

**a**) and radial shearing (

**b**) mode shapes in the top, lateral and isometric view.

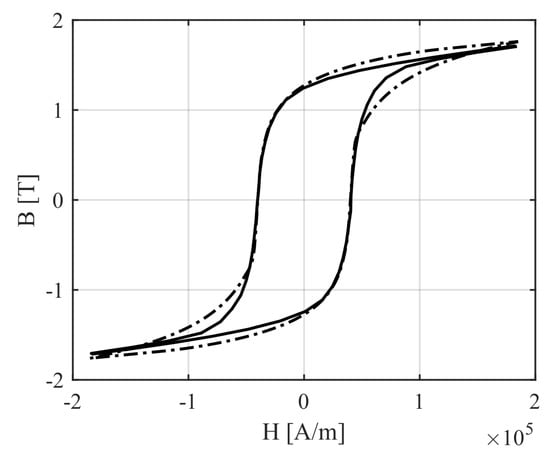

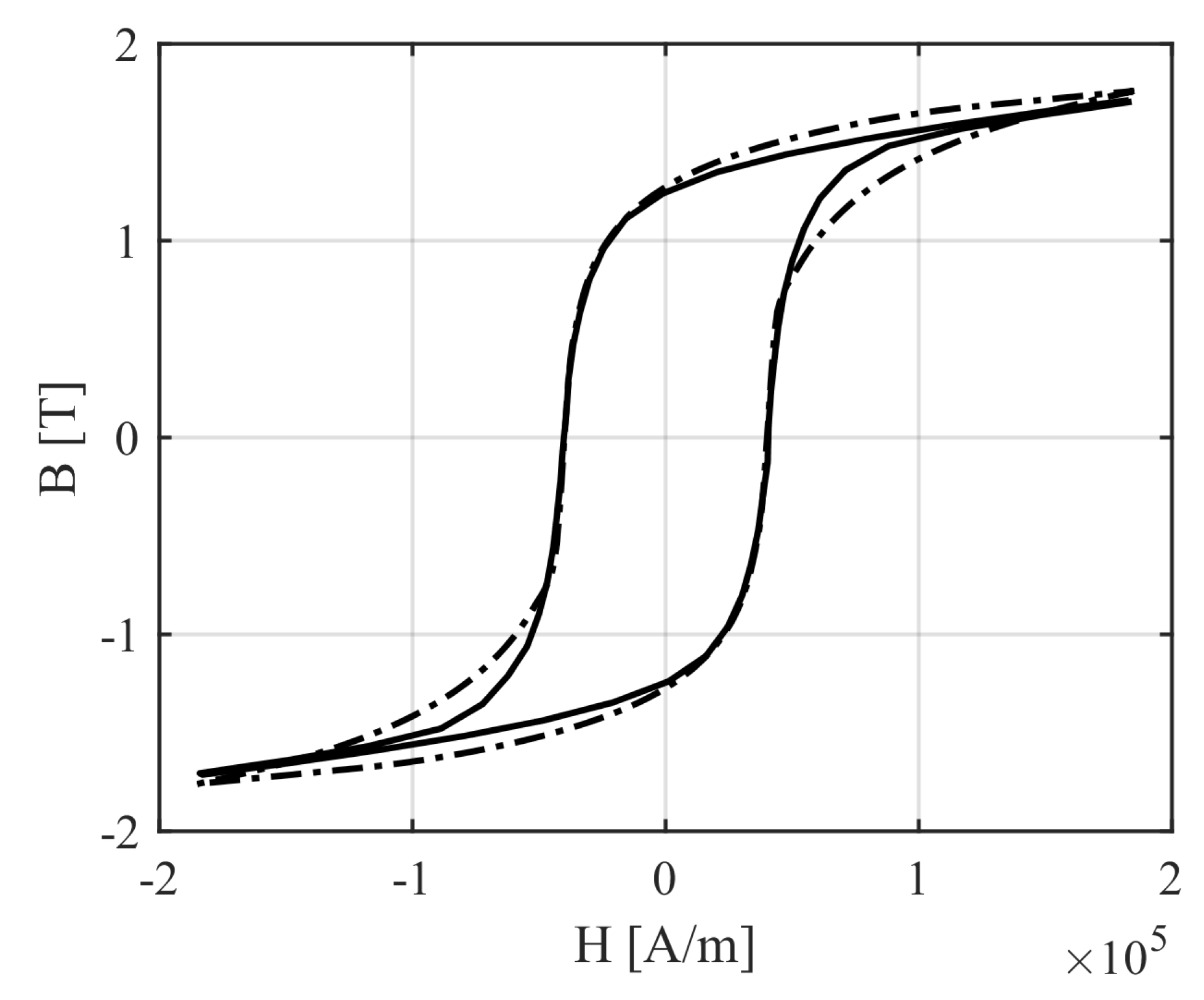

**Figure 9.**Magnetic characteristic of the FeCrCo 48/5 alloy: experimental (solid) and numerical (dash-dotted) loop.

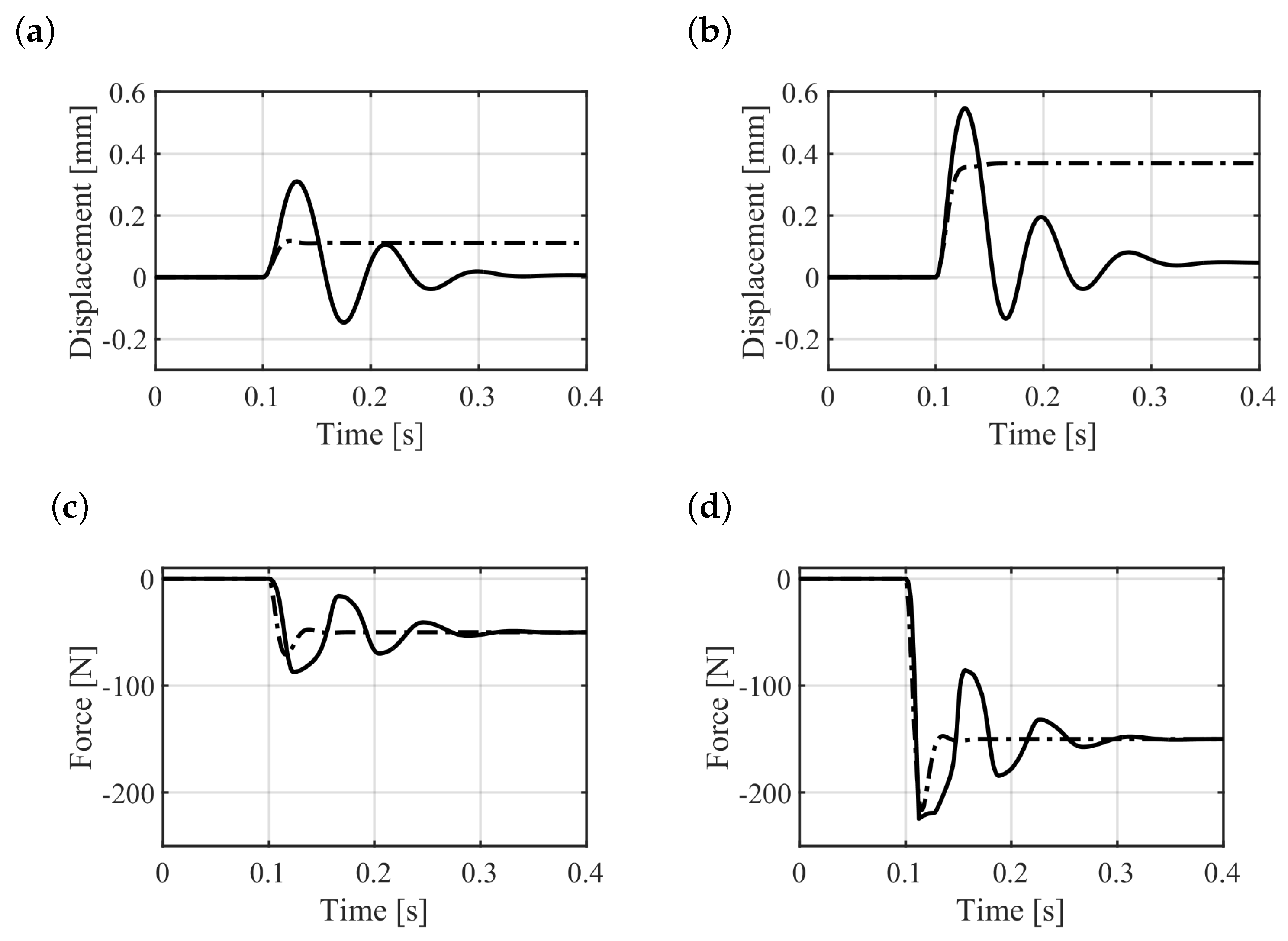

**Figure 11.**Response of the system with hysteretic (solid) and linearized (dash-dotted) rotor material to external force steps: displacement of the flywheel at the location of the radial AMBs for the 100-N (

**a**) and the 300-N (

**b**) step amplitude; force provided by each AMB for the 100-N (

**c**) and the 300-N (

**d**) step amplitude.

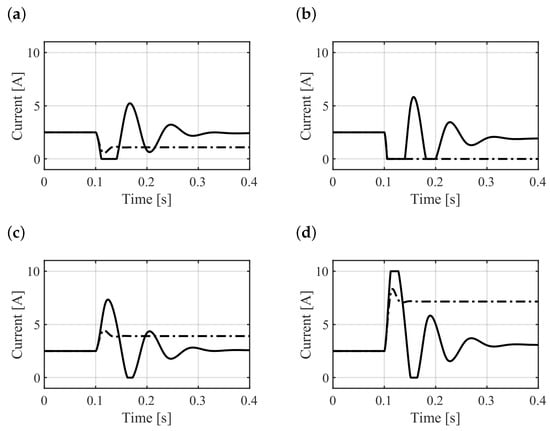

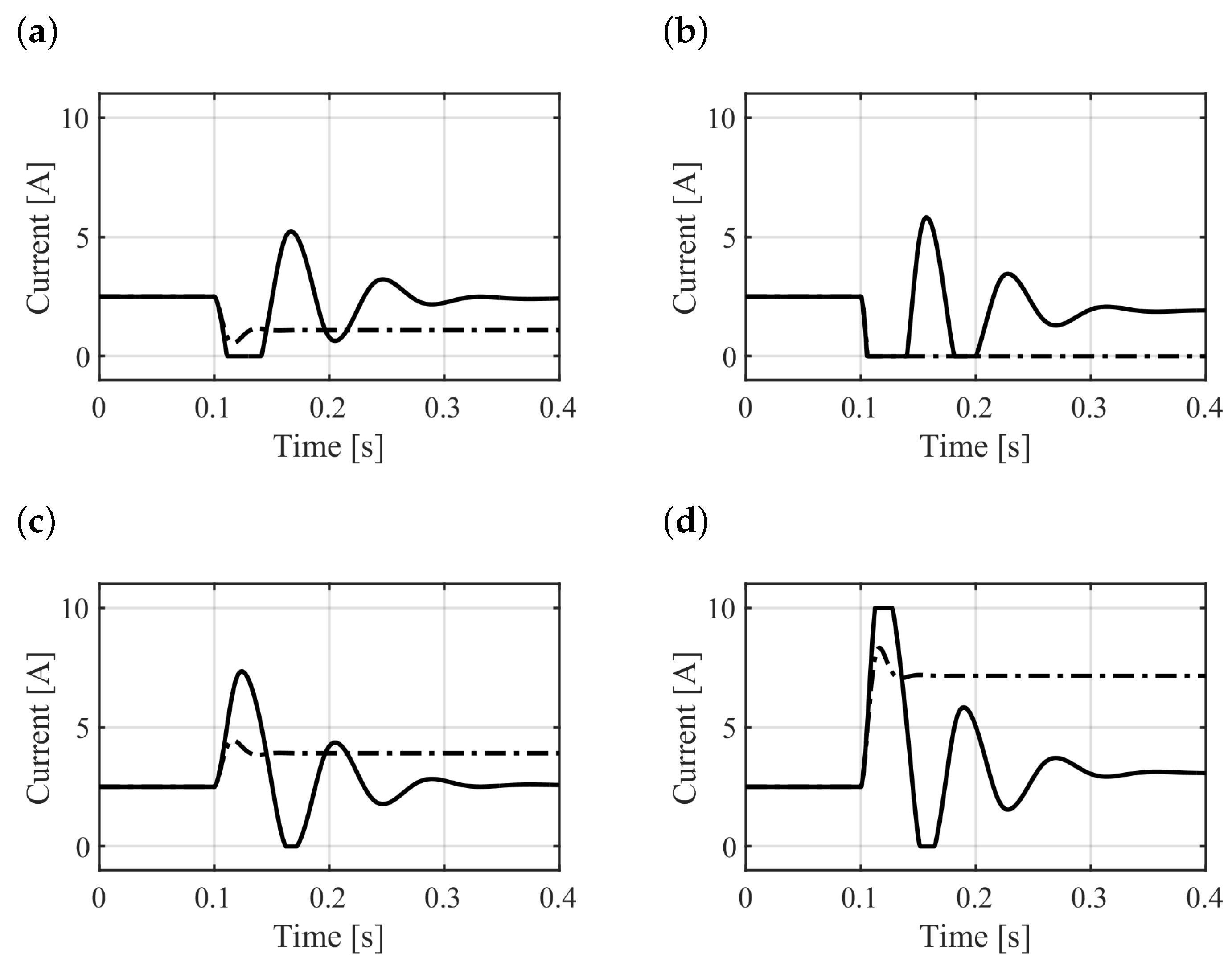

**Figure 12.**Response of the system with hysteretic (solid) and linearized (dash-dotted) rotor material to external force steps: currents ${i}_{0}+{i}_{c}$ (

**a**) and ${i}_{0}-{i}_{c}$ (

**c**) for the 100-N step amplitude; currents ${i}_{0}+{i}_{c}$ (

**b**) and ${i}_{0}-{i}_{c}$ (

**d**) for the 300-N step amplitude.

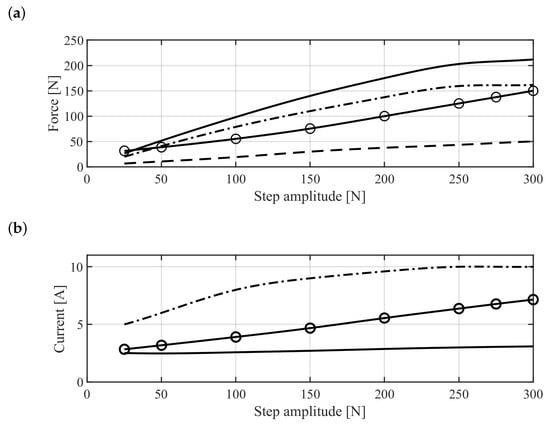

**Figure 13.**(

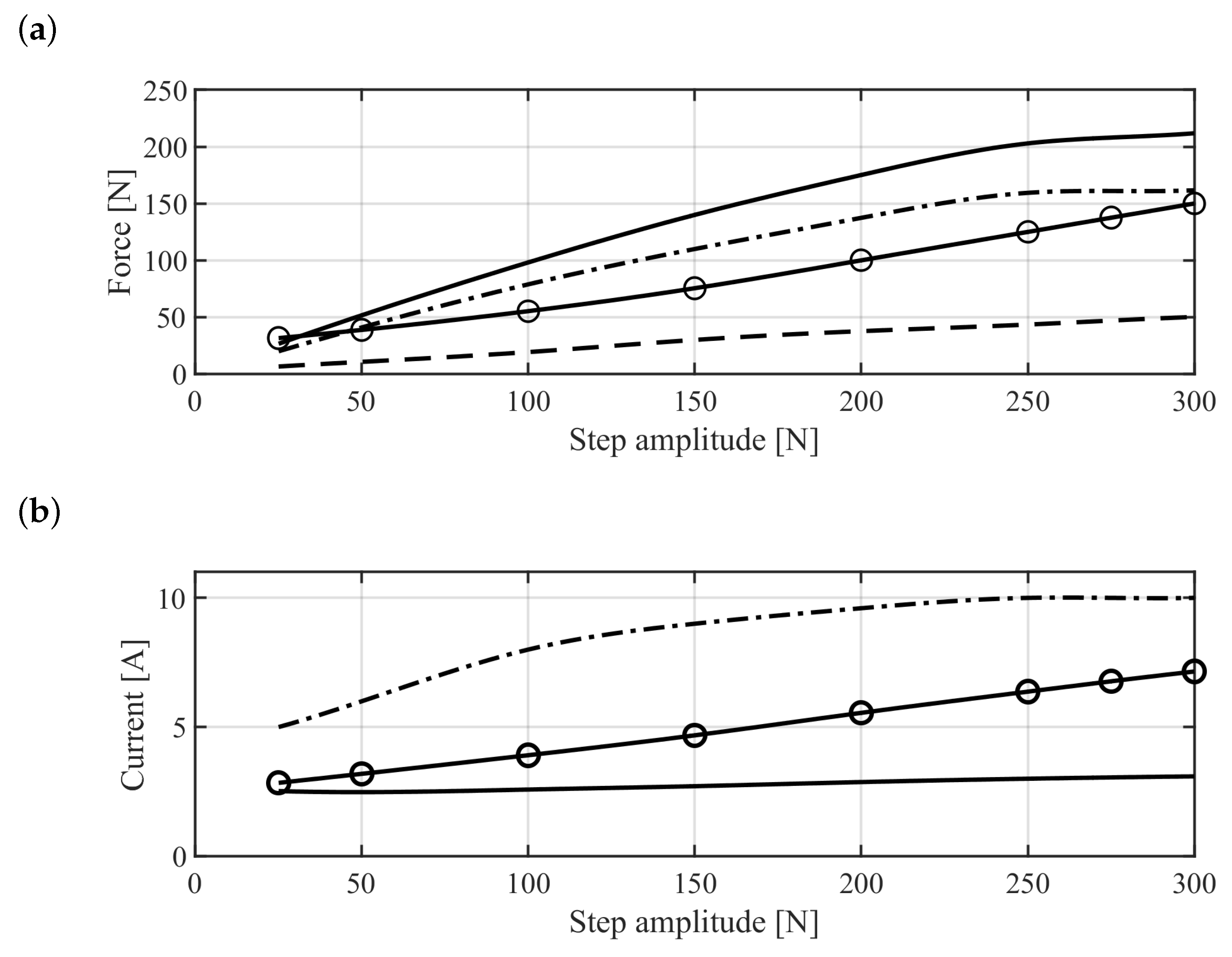

**a**) Force provided by the most loaded electromagnet at steady state vs external force step applied to the rotor center of mass. Solid: total force (hysteretic rotor material case). Dash-dotted: residual force (hysteretic). Dashed: current-related force (hysteretic). Solid with circles: total force (linearized rotor material case). (

**b**) Current supplied to the most loaded electromagnet at steady state vs external force step applied to the rotor center of mass. Solid: current (hysteretic rotor material case). Dash-dotted: maximum current overshoot (hysteretic). Solid with circles: current (linearized rotor material case).

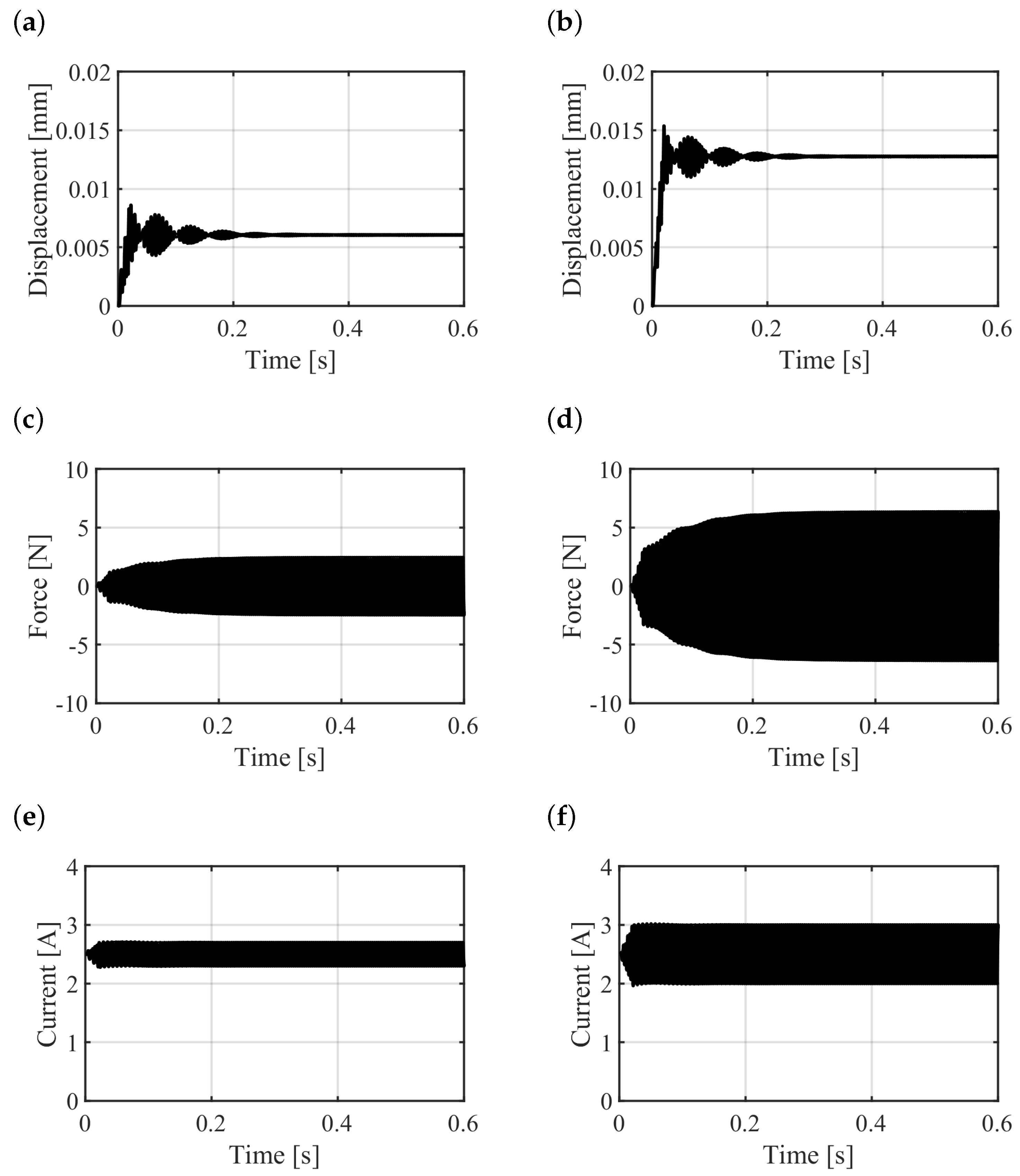

**Figure 14.**Responses to the unbalance: maximum displacement at the location of the AMB A (
